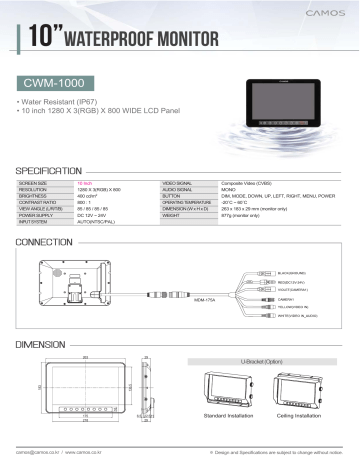

10”Waterproof MONITOR
CWM-1000
• Water Resistant (IP67)
• 10 inch 1280 X 3(RGB) X 800 WIDE LCD Panel
SPECIFICATION
SCREEN SIZE
RESOLUTION
10 Inch
1280 X 3(RGB) X 800
400 cd/m2
800 : 1
85 / 85 / 85 / 85
VIDEO SIGNAL
AUDIO SIGNAL
BUTTON
OPERATING TEMPERATURE
DIMENSION (W x H x D)
Composite Video (CVBS)
MONO
DIM, MODE, DOWN, UP, LEFT, RIGHT, MENU, POWER
-20˚C ~ 60˚C
263 x 183 x 29 mm (monitor only)
POWER SUPPLY
DC 12V ~ 24V
WEIGHT
877g (monitor only)
INPUT SYSTEM
AUTO(NTSC/PAL)
BRIGHTNESS
CONTRAST RATIO
VIEW ANGLE (L/R/T/B)
CONNECTION
MDM-175A
DIMENSION
263
29
16
183
136.5
U-Bracket (Option)
175
218
[email protected] / www.camos.co.kr
6.5 22.5 11
29
Standard Installation
Ceiling Installation
※ Design and Specifications are subject to change without notice.
