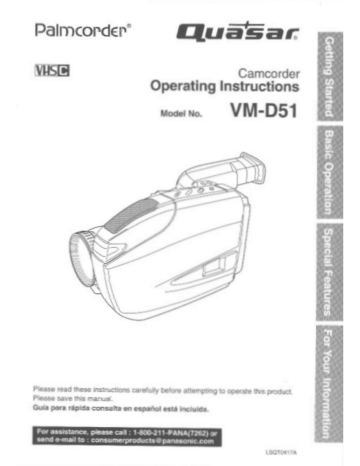

 Palmcorder”’ Duasar
Camcorder
Operating Instructions
Model No. — VM-D51
uonesadoO 21seg E pa.ejs Bunjoo
Please read these nstuctons carefuby belore anemping lo operate tvs product
Please save tés marux
Guia para rapida consalta en españo! está incluida
uoReWIOjU| NOL 104 § Sainjead [Roady
LSOTOM 7A
Things You Should Know
Thank you for choosing Panasonic!
You have purchased one of the most
sophisticated and reliable products on the
market today. Used properly, it will bring
you years of enjoyment. Please take time
to fill in the information at the right.
The serial number is on the tag located on
the rear side of your Camcorder. Be sure
to retain this manual as your convenient
Camcorder information source.
NUnpackiyounCamconden
Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Model No.
Serial No.
These accessories are provided in order to set up or use your Camcorder.
1 pc. AC Adaptor
(PV-A19) with DC Power
Cable (page 9)
(page 32)
1 pc. Audio/Video Cable
(LSJA0283) (pages 18, 19)
1 pc. CR2025 Clock
Battery (VSBW0004)
(installed in Camcorder)
Sensor tag
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts @panasonic.com
1 pc. Battery Pack
(PV-BP15) (pages 8, 9)
Fe)
La
Battery Charging
Confirmation
Marker
Use this marker as a reminder
to yourself when the battery is
fully charged or in need of a
charge. This marker performs
no function and is for your
reference only.
O Open the Hand Strap as illustrated
at left.
O Remove the Sensor tag.
Then, replace the Hand Strap.
Things You Should Know
SafetylRrecautions
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
Your Compact VHS Camcorder is designed to record and play back in Standard Play (SP)
and Super Long Play (SLP) modes. You can also play a Compact VHS Camcorder
recording on your VHS VCR using the VHS PlayPak supplied.
This Camcorder is equipped with the HQ System to provide excellent video pictures, and
is compatible with standard VHS equipment.
it is recommended that only cassette tapes that have been tested and inspected for use in
VCR machines with the and/or mark be used.
This symbol warns the user that
UN ECO uninsulated voltage within the unit may
have sufficient magnitude to cause
RISK OF ELECTRIC SHOCK a .,
1 DO NOT OPEN electric shock. Therefore, it is
dangerous to make any kind of contact
with any inside part of this unit.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
This symbol alerts the user that
DO NOT REMOVE COVER (OR BACK) | important literature concerning the
NO USER-SERVICEABLE PARTS INSIDE operation and maintenance of this unit
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL has been included. Therefore, it should
be read carefully in order to avoid any
problems.
The above markings are located on the appliance's bottom cover.
FCC Warning: Any unauthorized changes or modifications to this equipment would
void the user's authority to operate.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This. equipment has been tested and found to comply with Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when
operated in a residential environment.
If this equipment does cause interference to radio or television reception, which can be determined
by turning the equipment off and on, use the equipment in another location and/or utilize an electrical
outlet different from that used by the receiver.
If necessary, consult the dealer or an experienced radio/TV technician for help. You may tind the
booklet, ‘Something About Interference’ available from FCC local regional offices helpful.
Important Safeguards
10.
Read Instructions — All the safety and
operating instructions should be read before
the unit is operated.
Retain Instructions — The safety and
operating instructions should be retained for
future reference.
Heed Warnings — All warnings on the unit
and in the operating instructions should be
adhered to.
Follow Instructions — All operating and
maintenance instructions should be followed.
Cleaning — Unplug this video unit from the
wall outlet before cleaning. Do not use liquid
or aerosol cleaners. Use a dry cloth for
cleaning.
Attachments — Do not use attachments not
recommended by the video product
manufacturer as they may be hazardous.
Water and Moisture — Do not use this video
unit near water — for example near a bath tub,
wash bowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, and
the like.
Accessories — Do not place this video unit
on an unstable cart, stand, tripod, bracket, or
table. The video unit may fall, causing serious
injury to a child or adult, and serious damage
to the unit. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer, or sold with the video unit. Any
mounting of the unit should follow the
manufacturers instructions and should use a
mounting accessory recommended by the
manufacturer. An appliance and cart
combination should be moved
with care. Quick stops,
excessive force, and uneven
surfaces may cause the
appliance and cart combination
to overturn.
Ventilation — Slots and openings in the
cabinet are provided for ventilation and to
ensure reliable operation of the video unit
and to protect it from overheating. These
openings must not be blocked or covered.
Never place the video unit on a bed, sofa,
rug, or other similar surface, or near or over a
radiator or heat register. This video unit
should not be placed in a built-in installation
such as a bookcase or rack unless proper
ventilation is provided or the manufacturer's
instructions have been adhered to.
Power Sources — This video unit should be
operated only from the type of power source
indicated on the marking label. {f you are not
sure of the type of power supply to your
home, consult your appliance dealer or local
power company. For video units intended to
be operated from battery power, or other
sources, refer to the operating instructions.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to ; consumerproducts @panasonic.com
11. Grounding or Polarization — This video unit
may be equipped with either a polarized 2-
wire AC (Alternating Current) line plug (a
plug having one blade wider than the other)
or 3-wire grounding type plug, a plug having
a third (grounding) pin.
The 2-wire polarized plug will fit into the
power outlet only one way. This is a safety
feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If
the plug still fails to fit, contact your
electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the
polarized plug.
The 3-wire grounding type plug will fit into a
rounding type power outlet. This is a safety
eature. If you are unable to insert the plug
into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the grounding type plug.
12. Power-Cord Protection — Power-supply
cords should be routed so that they are not
likely to be walked on or pinched by items
placed upon or against them. Paying
particular attention to cords of plugs,
convenience receptacles, and the point
where they exit from the unit.
13. Outdoor Antenna Grounding — lt an
outside antenna or cable system is
connected to the video unit, be sure the
antenna or cable system is grounded 50 as
to provide some protection against voltage
surges and built-up static charges, Part 1 of
the Canadian Electrical Code, in USA
Section 810 of the National Electrical Code,
provides information with respect to proper
grounding of the mast and supporting
structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes, and
requirements for the grounding electrode.
ANTENNA
DISCHARGE UNIT
[NEC SECTION 830-20}
GROUNDING CONDUCTORS
(NEC SECTION B10-21)
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC — NATIONAL ELECTRICAL CODE
14. Lightning — For added protection of this
video unit receiver during a lightning storm, or
when it is left unattended and unused for long
periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system.
This will prevent damage to the video unit due
to lightning and power-line surges.
Important Safeguards
L
15. Power Lines — An outside antenna system b. If any liquid has been spilled into, or
should not be located in the vicinity of overhead objects have fallen onto, the video unit.
power lines or other electric light or power c. If the video unit has been exposed to rain
circuits, or where it can fall into such power or water.
lines or circuits. When installing an outside d. If the video unit does not operate normally
antenna system, extreme care should be taken by following the operating instructions.
to keep from touching such power lines or Adjust only those controls that are covered
circuits as contact with them might be fatal. by the operating instructions, as an improper
16. Overloading - Do not overload wall outlets adjustment of other controls may result in
and extension cords as this can resultin a damage and will often require extensive
risk of fire or electric shock. work by a qualified technician to restore the
17. Objects and Liquids — Never push objects video unit to its normal operation.
of any kind into this video unit through e. If the video unit has been dropped or the
openings as they may touch dangerous cabinet has been damaged.
voltage points or short out parts that could f. When the vídeo unit exhibits a distinct
result in a fire or electric shock. Never spill change in performance — this indicates a
liquid of any kind onto the video unit. need for service.
18. Servicing — Do not attempt to service this 20. Replacement Parts — When replacement
video unit yourself as opening or removing parts are required, be sure the service
covers may expose you to dangerous voltage technician has used replacement parts
or other hazards. Refer all servicing to specified by the manufacturer or have the
qualified service personnel. same characteristics as the original part.
19. Damage Requiring Service —- Unplug this Unauthorized substitutions may result in fire,
video unit from the wall outlet and refer electric shock or other hazards.
servicing to qualified service personnel under — 24. Safety Check ~ Upon completion of any
the following conditions: service or repairs to this video unit, ask the
a. When the power-supply cord or plug is service technician to perform safety checks
damaged. to determine that the video unit is in sale
operating order.
Precautions
USE & LOCATION
« TO AVOID SHOCK HAZARD ... Your Camcorder and power supply should not be exposed to rain or moisture.
Do not connect the power supply or operate your Camcorder if it gets wet. Your Camcorder has been designed for
outdoor use, however it is not designed to sustain direct exposure to water, rain, sleet, snow, sand, dust, or a direct
splashing from a pool or even a cup of coffee. This action could permanently damage the intemal parts of your
Camcorder. Do not attempt to disassemble this unit. There are no user serviceable parts inside. Unplug your
Camcorder from the power supply before cleaning.
« DO NOT AIM YOUR CAMCORDER AT THE SUN OR OTHER BRIGHT OBJECTS.
* DO NOT LEAVE THE CAMCORDER WITH THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY CAUSE
DAMAGE TO THE INTERNAL PARTS OF THE EVF.
DO NOT EXPOSE YOUR CAMCORDER TO EXTENDED HIGH TEMPERATURE ... Such as, in direct sunlight,
inside a closed car, next to a heater, etc... This action could permanently damage the intemal parts of your
Camcorder.
« AVOID SUDDEN CHANGES IN TEMPERATURE ... If the unit is suddenly moved from a cold place to a warm
place, moisture may form on the tape and inside the unit. :
- DO NOT LEAVE YOUR CAMCORDER OR THE POWER SUPPLY TURNED ON WHEN NOT IN USE.
« STORAGE OF YOUR CAMCORDER ... Store and handle your Camcorder in a manner that will not subject it to
unnecessary movement (avoid shaking and striking). Your Camcorder contains a sensitive pick-up device which
could be damaged by improper handling or storage.
CARE
* TO CLEAN YOUR CAMCORDER ... Do not use strong or abrasive detergents when cleaning your Camcorder
body.
« TO PROTECT THE LENS ... Do not touch the surface of the lens with your hand. Use a commercial camcorder
lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating.
* TO PROTECT THE FINISH OF YOUR CAMCORDER ... Before handling your Camcorder, make sure your hands
and face are free from any chemical products, such as suntan lotion, as it may damage the finish,
5
Table of Contents
Things You Should Know ...........--..e=====<eererecersecer eee a Dee ene nee tea 2-3
Important Safeguards ..............----..... 0. <+rnieeson er aecenoneecon re enenn eo aaaDe enamore. 4-5
Precautions ...............e 1re-semscoereatore area anotan aan ao ren eaa RENO Donar ana oo O Tope n Tena ane neon ameaOe. 5
Quick Operation Guide ..............--=——.esonacernreeonaceco rea nanennenreanoranane ana anacanane arenas 7
Supplying Power (Battery Charge/Use/Refresh/Care, AC Adaptor, Car Battery Cord)... 8-9
Cassette Information ..............—... 1.—-..eserer-ascitere=nccoc encon ne enneno Nene enaan roo nrO nacen. 10
Using MENU Mode ...............--.—cerennuncocarananaooonaonatovancuna auna Ne Eee e aaa norenen nena noneeanana 11
Setting the Clock (Time Zone, Auto Daylight Saving Time) ...........-—.ex=rvesznanaone 12-13
vs) | Camera Recording (Basic, Stand-by, Programmed Recording) .............ecweennaea. 14-16
"2 | Playing Back Recordings ;
4 {Basic Playback, Visual Search, Still Picture, Tracking, TV Playback) ............... 17-18
o Copying your Tapes (dubbing) .….-….....-......--mccconsemcrancrasmensensemen came te eme nn 00cm 19
Four-Speed Power Zoom....................eveureceresmeeeeoecraner cancer neo toomeneaeentenerenD ene. 20
Backlight ..................—.——cecemmmecaooinenenerecanano enano to nues iaconenenaa nea TnenanoUreaeeatananevacer. 20
Focus (Auto/Manual Focus) ........—.—e.====ee=ecanenancer conan nao oran Eee Nene ere era aer DREn e econ 21
High Speed Shutter (Auto/Manual ShUttEr) …….….…crmeerenmeneannçnnesnntennnnnennnnannnnn 22
FY Co J = Uo [= J CP 23
Color Digital Fade ..................6-0a---.0nerueuaer arena aeeuEe nece Ne euuee nen eaanader ranma tao yeneneaee 24
Digital Zoom ..............-.—e=.ce.screnerovacenrosaraunerconerranaconoranatenanenananEranenacarenenananvencuno 25
Digital Electronic Image Stabilization (E.l.S.) -..….….……merecrerramenneneeene meme ones nee 25
Security MOCE ..…....…......-00secsenmeresemeennenenmerensonmamesUN Sen runcaronanauazoran ena nanrnececenantcenemen 26
Intelligent Titler (Auto/Manual Title, Phrase Title) .-...….………escenmesersensannensenanenseascee 27-28
Electronic Viewfinder Indications .............-.----e-ere=...e2esveru=snonnaoo0arannereamaao 29-30
Operation Notes (Using the Shoulder and Hand Straps, Cleaning EVF).................. 31
Replacing Clock Battery ..............—..... .=eneeeserizennoncuorere ooo narecoorenooevennenonacaneaóne 32
Palmcorder Accessory System .........---..ere-n-.es7rmencconooanzcanorzanaononemaan rene nene mt 33
Palmcorder Accessory Order FOrm .............=.—....esnes2deceieeiuenonoemenonn ruca reee 34
Specifications ..........e=.—_.easen==evscer RUPP UPR 35
Request for Service Notice ..............——e.«narncaronniar canon encana ore natonDnete ner raamenereneee 35
Before Requesting Service (Video Head CICANING) ……crsnesmenreseneenntennancenteess 36°
Limited Warranty N 37
Servicenter List ............ e... .e=oson-neoo1rmentenancen a ieC aran o nee ana sss innnensnnassseersnssronnnsas 38
Spanish Quick Use Guide/Guía Para Uso Rápido .....................emnneeusonemnnoso 39
Index .........e...-.orsanicdoracartaoo enana toria aan Ena NON Ne NAaOer NEON DOnemr Aa TamEeTaDOnTenmnacantacenrra 40
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts € panasonic.com
Quick Operation Guide
(Chargingkhe)BatterylRack
Charge Battery Pack fully before 1
operation (page 8). Attach fully
charged Battery
Ns Plug in AC (page 8).
Adaptor.
= 2 Slide TAPE EJECT
№ to open door.
N a
Insert cassette
(page 10).
Insert Battery. CHARGE
Lamp flashes, then stays lit 4 Press here to close
when charging is complete. door.
Camera
See page 14.
1 Set POWER to CAMERA.
9 Press RECORD/PAUSE to start
recording.
Press RECORD/PAUSE again to pause
recording.
playbacKusinokhelEVR
See page 17.
ui 2 Press REWIND/SEARCH to
rewind tape. ;
a 3 Press PLAY to start playback.
es
~~ — 4 Press STOP to stop playback.
es |
Supplying Power
Charging us BattenyIRack 1 Plug in AC Adaptor.
Charge Battery Pack fully before use. POWER Lamp lights.
Insert Battery.
€) Align left side of Battery with left edge of
AC Adaptor.
Press Battery down and slide in direction
of arrow.
1 The CHARGE Lamp flashes, then stays lit
when charging is complete.
Remove Battery.
Slide Battery to the left and lift off.
CHARGE Г | ‘ . Note:
Lamp « Charging takes about 1 hour.
PACK « While the DC Power Cable (supplied) is connected
AM to the AC Adaptor, the Battery cannot be charged.
< « After charging 5 times, use Battery Refresh feature
O as explained below.
1 » Battery life gradually decreases after repeated use
and recharging. If operation time becomes very
(Top View) short even after a sufficient charge, discard Battery
properly {page 9).
Usingkthe)BattenyiRack
À fully charged Battery provides a maximum of about 1 hour 10 minutes of continuous use.
Actual time may vary due to operating conditions.
10
A Attach Battery.
© Insert top of Battery into top of mounting
surface. `
( Press and snap into place.
Slide BATTERY RELEASE and remove
Battery.
To use battery refresh, insert Battery on AC
BatterylRefresh Adaptor (see steps 1-2 above), then press
This feature completely discharges BATTERY REFRESH.
Battery before recharging begins. Use tho REFRESH Lamp lights, then goes out when
after every 5 charges for optimum discharae i ; я
ge is complete. Battery charging will then
Battery performance. start automatically.
If BATTERY REFRESH is pressed by mistake,
remove Battery from AC Adaptor and reinsert it
for normal charging.
Note:
* Charging takes about 5 hours when Battery
Refresh is used.
REFRESH * Battery will not operate in extremely high
| temperatures.
REFRESH
Lamp
8 For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts € panasonic.com
Supplying Power
L
Ear CELO |
Caution: To avoid Battery damage:
* Charge only with specified charger. * Do not drop or jar Battery.
* Battery can be charged within a temperature range of * Use Battery with specified units only.
10 °C (50 °F) and 35 °C (95 °F). * |f Battery is used in extremely high
* Battery is normally warm after charging or just after use. temperatures, a safety device will
* Do not use an insufficiently charged or worn-out Battery. automatically prevent operation.
Safety precautions: To prolong Battery life:
* Do not get Battery near, or dispose of in fire. * While not in use, remove Battery
« Do not directly connect (short circuit) the positive (+) and from the Camcorder and AC Adaptor
negative (=) terminals. and store in a cool, dark, dry place.
« Never attempt to disassemble or reassemble Battery. * Keep Battery terminals clean.
~ U.S.A. CONSUMERS: ATTENTION:
The product you have purchased is powered by a nickel cadmium battery
which is recyclable. At the end of its useful life, under vanous state and local
laws, it is illegal to dispose of this battery into your municipal waste stream.
rea” Please call 1-800-8-BATTERY for information on how to recycle this battery.
AG AcEptor CarBatteylCordl(@ptional)
Cigarette
Lighter
Socket
(12 V)
VCR DC OUT
Connector
Connect AC Adaptor VCR DC OUT to
Camcorder DC IN with supplied DC
Power Cable.
Plug in AC Adaptor.
POWER Lamp lights.
Note:
* While the DC Power Cable (supplied) is
connected to the AC Adaptor, the Battery
cannot be charged.
* When not in use, unplug AC Adaptor from
AC outlet. (Adaptor uses 1.2 W of electricity
while plugged in.)
» CAUTION:
This unit will operate on 110/120/220/240 V AC.
An AC plug adaptor may be required for voltages
other than 120 V AC. Please contact either a
local or foreign electrical parts distributor for
assistance in selecting an alternate AC plug. We
recommend using the accessory power plug
adaptor {VJSS0070) in an area which has
special AC outlets.
|
Car Battery Cord Cigarette
(optional) Lighter Plug
1 Connect PV-C16 Car Battery Cord
(optional) to Camcorder DC IN.
® Start engine first.
Plug Car Battery Cord into
Cigarette lighter socket.
* |F Car Battery cord fuse needs
replacing, use exact current rating
(in amps).
Note:
* This cord only works in vehicles
equipped with DC 12 Y (negative
ground) battery. Check with your car/
truck dealer. Use only specified car
battery cord.
* To avoid blowing the car battery cord
fuse, do step 2 in the proper order.
* Running vehicles must be well ventilated.
* When not in use, disconnect cigarette
lighter plug.
9
O8000000000000000O00060000090C000D9O00O00000800O0900D0O0OUD0DO0
Cassette Information
| pee]
[Cassette Insertion/Removal
Î Turn Tape Wheel in direction of arrow
until there is no slack.
2 Attach Battery (page 8).
3 Slide TAPE EJECT to open door.
4 Insert cassette as shown.
5 Press here to close door.
+ To remove the cassette, slide the TAPE
EJECT switch.
Récord/R lavbacKklime
Use tapes with the VHSI mark in this unit.
Tape Speed Cassette type
Selector Position TC-20 TC-30 TC-40
SP . . ,
(Standard Play) 20 minutes | 30 minutes | 40 minutes
SLP 1 hour
(Super Long Play) 1 hour 30 minutes é hours
* SLP playback may contain more picture noise.
EraselRrotectionhliab;
Protects tapes from being accidentally 1
erased. To prevent accidental erasing,
; — a break off tab with screwdriver.
(Or, slide tab open.)
2 To record again,
cover hole with adhesive tape.
Slide tab type (Or, slide tab closed.)
E call: 1-800-211-PANA(7262) or send e-mail to : consumerproducts € panasonic.com
Using MENU Mode
Before you begin...
» Connect Camcorder to power source.
« Set POWER to CAMERA or VCR.
1 Press MENU for MENU mode.
The CAMERA or VCR MENU screen (see
below left) appears when Menu mode is
entered.
2 Press UP 4 or DOWN Y to highlight the
desired menu item.
3 Press DISPLAY to set selection.
4 Press MENU to exit.
Note:
+ The Menu mode is canceled if UP/DOWN(A/V),
DISPLAY, or MENU are not pressed within 5
minutes.
(MENU Mode (CAMERA) Screen )
,
1 NN — MENU --- PAGE 1/2
PROGRAMMED REC
2 ~~. [od ; AUTO/MANUAL
3 — SHUTTER ; AUTO
4 — | cLock SET
v
5 7 seebr: PUSH vía KEY
|
,
6 PAGE 2/2)
de.
DISPLAY : ON
7 SECURITY ; OFF
+ VIDEO EFFECTS ; FADE
8 BLACK
-STAND-BY RELEASE : OFF
SET : PUSH DISPLAY KEY
END : PUSH MENU KEY
\, ”
SELECT : PUSH ¥/A KEY
SET : PUSH DISPLAY KEY
‚END : PUSH MENU KEY y
1 PROGRAMMED REC (page 16).
Camcorder starts and stops recording at a
preset time,
2 TITLE (pages 27, 28).
AUTO/MANUAL : 16 items
PHRASE : 10 items
3 SHUTTER (page 22).
Select desired shutter speed.
4 STAND-BY RELEASE (page 15).
ON: Enables quick resumption of recording
from Stand-by mode.
5 CLOCK SET (pages 12, 13).
Select to set clock.
6 DISPLAY (page 29).
) ON: On-screen Display (OSD) screens are
(MENU Mode (VCR) Screen
( --- MENU --- )
5 CLOCK SET
6 — DISPLAY : ON
SELECT : PUSH F/à KEY
SET : PUSH DISPLAY KEY
¡END : PUSH MENU KEY y
displayed.
7 SECURITY (page 26).
ON: Enables Motion Security recording.
8 VIDEO EFFECTS (pages 23, 24).
AUTO FADE : BLACK or WHITE
DIGITAL FADE : TYPE — 7 types
COLOR — 8 colors
11
Setting the Clock
Set the following items in order: Time Before you begin...
Zone, Daylight Saving Time, Date, * Connect Camcorder to power source.
and Time. » Set POWER to CAMERA or VCR.
1 Press MENU for MENU mode.
Press UP 4 or DOWN Y to select
CLOCK SET}
| - = = MENU - PAGE 172) i т + ъ MENU rm m
PROG ПОНАММЕр AEC CLOCK SET
- AUTORMANUAL SPLA .
SHUTTER : AUTO el Y ON
STAND-BY RELEASE : OFF
Y”
SELECT : PUSH Y/A KEY SELECT : PUSH Wa KEY
SET : PUSH DISPLAY KEY SET : PUSH DISPLAY KEY
(END : PUSH MENU KEY | (END : PUSH MENU KEY
[CAMERA MODE] [VCR MODE]
2 Press DISPLAY for [e ELOCKSET-— |
CLOCK SET menu. ; EASTERN
Press UP_A or DOWN Y | 9ATE/TIME : 12:00:08
to select TIME ZONE, SELECT: PUSH vía KEY
SET PUSH DISPLAY KEY
DST, or DATE/TIME. | PUSH MENU KEY
-
3 Press DISPLAY for menu of item selected in
step 2.
To change the setting: |
EIN > Go to step 3a on page13.
> Go to step 3b on page13.
> Go to step 3c on page13.
4 Press MENU twice to exit.
1 2 For assistance, please call : En 1-PANA(7262) or send e-mail to : consumerproducts E panasonic.com
Setting the Clock
За Sing Te time Zone
The Camcorder is preset to Eastern time.
[ Time Zone chart ]
: 6:00: 7:00 8:00 2 9:00 ! 16:00: 11:00: 12:00: 1:00 : 2:00
3 b ie Dain Saving Th
Clock will auto-adjust to daylight saving
time (DST).
r DST: AUTO -
Spring (First Sunday in April) :
ahead one hour.
1:00 a.m. 2:00 a.m.
[Normal Time |—— ———>H—Ze
Daylight Saving 6+
Time 3:00 am. 4:00 am.
Autumn (Last Sunday in October) :
back one hour,
Daylight Saving
Time
1:00 a.m. 2:00 a.m.
о
| Normal Time | Ñ——e—
1:00 a.m. 2:00 am.
JC [Esti] Dare enditus
Date and time including leap year are
calculated up to DEC 31, 2099.
~ EXAMPLE :
Press UP À or (SELECT TIME ZONE --- |
DOWN y to select age
local time zone. CENTRAL
Press DISPLAY to
: SELECT: PUSH Tía KEY
confirm entry. SET: PUSH DISPLAY KEY
* When traveling, repeat this operation and
select one of the 8 listed time zones to
set the clock to local time.
Note :
+ Clock may lose or gain up to 2 minutes
per month.
* When traveling outside the listed time
zones, set clock to local time manually.
* To adjust or set clock, see “Setting Date
and Time” bottom of page.
The Camcorder is preset to DST: [Ske].
If DST is not observed in your area, set
to[s]dd by doing the following.
Press UP À or (DAYLIGHT SAVING TIME - |
DOWN Y to select
OFF or AUTO. AUTO
Press DISPLAY to =
confirm entry. SELECT: PUSH v/a KEY
[SET __: PUSH DISPLAY KEY }
Note:
* Auto DST does not function if time zone
is set to Hawaii or Samoa (see “Setting
the Time Zone” above).
,
-.. DATEMME SETTING --- |
slo К о
12%00:00AM-
JAN 1 2001
DISPLAY
в SELECT : PUSH T/A KEY
SET” : PUSH DISPLAY KEY |
4
xo
SET + PUSH DISPLAY KEY ) (SET : PUSH DISPLAY KEY | | SET
- DATE/TIME SETTING + DATE/TIME SETTING - - - - - - DATE/TIME SETTING - - -
% solo
1 2:00:08AM-| | 1200 :08P M> 1:00:00 PM
JAN 1 2001 | | JAN 1 2001 || ЗАМ! М 2001 and year.
FAR A
UP
ea Press or hold down UP 4 or
fo "Y | CP + DOWN Y to select hour, then
press DISPLAY to fix.
Repeat for minute, month, day,
Clock starts when year is
SELECT : PUSH W/A KEY SELECT : PUSH F/A KEY SELECT: PUSH W/a KEY entered and DISPLAY is
: PUSH DISPLAY KEY pressed.
13
Camera Recording
RecondingvialEViEl Before you begin...
Vi di EVE * Connect Camcorder to power source.
lew recording scene on * Insert cassette with record tab (page 10).
1 Set POWER to | PAUSE
VISIÓN CAMERA.
ADJUSTMENT Lens Cover opens.
Built-in Twin Power Lamp lights.
Capsule 2-Way * Be sure POWER
Sy e is fully turned to
CAMERA position.
* EVF turns on/off by the POWER switch.
EVF Indication
(Record/Pause mode)
2 Look into EVF and adjust VISION
ADJUSTMENT to your eyesight.
3 Hold down TAPE SPEED fer abou
second to change tape speed to SP/SLP
(page 10). Tape speed
EP
”
4 Press RECORD/
PAUSE to start or RECORD
pause recording.
_ J
5 Set POWER to EVF Indication
OFF when finished. (Record mode)
* TO remove the cassette, slide the TAPE
EJECT switch (page 10).
Note:
* When Camcorder is aimed at excessively
bright objects, or bright lights, a vertical bar
may appear in the picture. This is normal for
the CCD pick-up. Try to avoid this when
possible.
please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts @ panasonic.com
Camera Recording
Before you begin...
» Connect Camcorder to power source.
» Insert cassette with record tab (page 10).
1
bc a
AC
ManuallEasylEditingli
SEM HAY (Cuil
If left in RECORD/PAUSE mode for 5
minutes, Camcorder switches to Stand-
by mode to conserve battery. When set
to ON, Stand-by Quick Release lets
you resume recording by pressing
RECORD/PAUSE two times. Stand-by
Quick Release is set to OFF at the
factory.
1 Set POWER to CAMERA.
É Ty
--- MENU --- PAGE 1/2
2 Press MENU for | Poche rec
MENU mode. amo
Press UP A or (49% 5
Y
DOWN Y to SET : PUSH DISPLAY KEY
select \
STAND-BY RELEASE]
3 Press DISPLAY to select ON/OFF.
ON : From Stand-by mode, press
RECORD/PAUSE two times
to resume recording.
From Stand-by mode,
set POWER to OFF, then to
CAMERA. Press RECORD/
JISE
A»
endo
ver
OFF:
d PAUSE to record.
4 Press MENU to exit.
IEasylEdiliStand:by;
For proper continuity when taping from Stop For a smooth transition between scenes if
mode or after attaching a new Battery.
A Set POWER to VCR.
Bo Press REWIND/SEARCH to rewind
a few seconds of tape.
(Press PLAY to review recording.
(Press STILL where you want to
continue recording.
C Set POWER to CAMERA.
D Press RECORD/PAUSE to resume
recording.
recording is stopped, and then started
within 24 hours.
a Press RECORD/PAUSE to stop
recording.
b Set POWER to OFF and leave
cassette in Camcorder.
C To resume recording, set POWER to
CAMERA.
d Press RECORD/PAUSE to resume
recording.
Note:
* Use Manual Easy Edit (left) if more than
24 hours before recording is resumed.
15
Camera Recording
Set a recording start and stop time. Or,
set a 5 or 10 second interval recording
to be done each minute.
~ REC TIME :
10MIN.—— 20MIN. —+ 30MIN.
[INTERVAL'S INTERVAL"! _ TO TAPE |
10 SEC/MIN. 5 SEC/MIN. * END
*1 Record 5 seconds each minute.
"2 Record 10 seconds each minute.
=
16 For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts € panasonic.com
e
Before you begin...
* Connect Camcorder to power source.
Use AC Adaptor for longer recordings.
* Insert cassette with record tab (page 10).
» Set POWER to CAMERA.
-
1 Press MENU for MENU
mode. Press UP A or |Zumen (0
CLOCK SET
DOWN Y to select
PROGRAMMED REC
STAND-BY RELEASE ; OFF
Y
SELECT: PUSH Y/a KEY
: PUSH DISPLAY KEY
: PUSH MENU KEY y
-
PAGE 1/2
| END
2 Press DISPLAY. ,
(Current time is
displayed.)
Each additional press ser : rusH DISPLAY KEY
of DISPLAY increases
10: 20PM
REC TIME ; 10MIN
start time by 30 minutes. (___"e-20-00PM J
3 Press DOWN Y to Г НИ \
select хе а. CERT © Ae
Press DISPLAY SELECT: PUSH Vía KEY
repeatedly 10 select one [star | Puse RECORD KEY
of the options shown at \ 10-20-0081
left.
To cancel the setup, press MENU twice.
fo
4 Press RECORD/PAUSE STAND-BY
to place Camcorder in REC TIME | 10MM,
stand-by mode. 10:20:00
N J
Recording will be done as scheduled.
Note:
* Start time may not be set over 24 hours from
current time.
* Camcorder shuts off at tape end, or 12 hours
after interval Recording starts.
* To cancel, set POWER to OFF.
Playing Back Recordings
Before you begin...
* Connect Camcorder to power source.
* Insert recorded tape.
| Auto Tracking |
Continuously analyzes each recording for
optimum picture quality.
| Manual Tracking |
Some recordings require manual
adjustment to reduce noise.
Press UP A or DOWN Y until Playback
picture clears up.
Press DISPLAY to return to Auto Tracking.
Play bacon EVE
1 Set POWER to VCR.
Power Lamp lights.
* |f tape has no record tab, auto
playback begins.
« EVF turns on/off by the POWER
switch.
2 Playback function buttons.
QREW :Rewind tape.
GPLAY : Play tape.
(STOP : Stop tape.
Specialleffects
[Quick Visual Search |
Search Speed
«SP (Standard Play) : 3 times normal.
* SLP (Super Long Play) : 9 times normal.
During playback, press:
«FF : fast forward search
* REW : rewind search
Press again or press PLAY for normal play.
[Still Picture |
Press STILL to freeze picture.
Press again for normal play.
This feature works best in SLP mode (page 10).
Note:
* During search, horizontal noise bars will
appear. Audio is muted.
* To protect video heads and tape, operating
modes will revert as follows after 5
minutes:
Still —* Stand-by
Stand-by = Power off (when Battery Pack
ls used).
* Tape auto-rewinds If played or fast
forwarded to end.
17
Playing Back Recordings
UY © УДО) Before you begin...
Connect Camcorder to a TV to view « Connect Camcorder to power source.
; : M TV-
playback or recordings in progress. * Make all TV-Camcorder connections
( Connections )
1 Set POWER to:
VCR — view playback.
CAMERA — view picture as it is
recorded.
2 Turn TV ON and set to LINE INPUT.
See TV owners manual.
3 Begin playback or recording.
(Supplied)
CATV System Installer
This reminder is provided to call the CATV system installers attention to Articie 820-40
of the NEC in USA (and to the Canadian Electrical Code in Canada) that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building, as close to the point of cable
entry as practical. |
1 8 For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
Copying your Tapes (dubbing)
Source
(Playing)
Audio/Video
Out
Camcorder
Connections)
Audio/Video
„{% Cable
(supplied) {not supplied)
TV
| gan _ > _
Cable
To Audio In To Video In
y
Recording YCR
fuel >
o
—VHF Connecting
[Montar win yew Y
* TUrn TV on and tune to VCR channel
(CH3 or CH4).
« Set TV/VCR Selector on VCR to VCR.
Before you begin...
+ Make Camcorder-VCR connections (see left).
+ Turn both units on.
* Set VCR input signal to LINE.
Please see VCR owner's manual.
+ Set Camcorder POWER to VCR.
Insert a pre-recorded tape
into Camcorder and a blank tape with
record tab into VCR.
Press PLAY on Camcorder, then press
STILL at starting point.
Press REC, then STILL/PAUSE on
VCR.
Press STILL on Camcorder and STILL/
PAUSE on VCR to start copying.
5 Press STOP on both units to stop
copying.
Note:
* Camcorder will only playback tapes
recorded in SP or SLP mode.
* Dubbing may reduce picture quality.
= CAUTION:
Unauthorized exchanging and/or copying
of copyrighted recordings may be
copyright infringement.
19
Four-Speed Power Zoom
Zoom in (close up) and out (wide angle) in Before you begin...
one of four speeds ranging from slow (16 * Connect Camcorder to power source.
seconds) to fast (2 seconds). | * Set POWER to CAMERA.
Zoom In (“T”)
Zoom Out (“Му”)
« Zoom slowly:
Lightly press “T” (telephoto) or “W” (wide
angle) POWER ZOOM button.
+ Zoom quickly:
Apply more pressure to the button.
Backlight
Use when subject is darker than Before you begin...
surroundings, in shadowed area, or in front « Connect Camcorder to power source.
of the light source. * Set POWER to CAMERA.
== | Press BACKLIGHT while recording to
| select the level of backlight compensation.
оо In normal lighting, press BACKLIGHT
§ 0G o e repeatedly until no indicator is displayed.
—
BACKLIGHT
EVF Indications
И fr y > “me (No Indication)
= es \ A First press
=m) e © (Low)
O Second press
(Medium)
` / > ’ y Third press
Press BACKLIGHT. O (High)
Fourth press
20 For assistance, please call : 1-800-21 1-PANA(7262) or send e-mail to : [email protected]
Focus
Г
Before you begin...
* Connect Camcorder to power source.
+ Set POWER to CAMERA.
Focus
Camcorder automatically focuses on subject even during zooming.
Auto Focus is on when “MF” is not displayed in EVF.
Press MANUAL FOCUS to remove “MF” in EVF if necessary.
Manualikocús'
Use Manual Focus (MF) when :
* recording through glass.
* lighting is poor.
* subject is far.away with objects in foreground. EVF indication
subject has distinct horizontal lines. ( В
* subject is not centered in EVF. ME
* subject has a shiny surface.
* subject is stanted.
* subject is bright and flat, like a white wall. |
* subject has fast motion, like a golf swing.
1 Press MANUAL FOCUS so "MF" (Manual
Focus) appears in EVF.
2 Hold down “T” (telephoto) on POWER
ZOOM to maximum zoom in.
3 Press UP A (FAR) or DOWN Y (NEAR)
until subject is in focus.
* Back away from subject if necessary.
4 Hold down “W” (wide angle) on POWER
ZOOM as desired.
* Refocus as needed
when aiming at new scenes.
MANUAL
FOCUS TITLE
IMacrolkocust(closesups
Auto Focus functions up to 12.7 mm (1/2 inch) from subject.
Hold down “W” on POWER ZOOM to maximum wide angle.
Bring Camcorder up close to the subject.
21
| High Speed Shutter
Improves Still or Slow Motion playback Before you begin...
picture of high speed subjects (e.g. a tennis — + Connect Camcorder to power source.
stroke), when viewed on Camcorder or 3 or = Insert cassette with record tab (page 10).
4 head VCR. » Set POWER to CAMERA.
Arto Siniter
“In AUTO mode (no indication in EVF), shutter speed is auto-adjusted from 1/60 to 1/350
according to subject brightness.
* AUTO mode is selected each time POWER is set to CAMERA.
ManuallSelection
The faster the shutter speed, the more light is needed for proper picture and color quality,
High Speed Shutter indication flashes if light is inadequate. Provide additional light.
1 Press MENU for MENU mode.
Press UP 4 or DOWN Y to select
SHUTTER
2 Press DISPLAY repeatedly to select
shutter speed.
/ >
--- MENU --- PAGE 1/2
PROGRAMMED REC
TITLE ; AUTOMANUAL
; AUTO —
STAND-BY RELEASE ; OFF
CLOCK SET
Y
SELECT : PUSH Ta KEY
SET : PUSH DISPLAY KEY
END : PUSH MENU KEY
>
CO 1 > 1/100> 1/250 > 1/500 7
1/10000 + 1/4000 + 1/2000 + 1/1000
3 Press MENU to exit.
Note:
* Provide additional halogen or tungsten light
for use indoors or in poor light. Fluorescent
light degrades picture.
* Auto Focus may not function properly if high
speed shutter is used in inadequate light.
* Setting reverts to AUTO each time POWER is
set to CAMERA.
22 NFor assistance, please cali : 1-800-211-PANA(7262) or send e-mail to : consumerproducts € panasonic.com
An interesting way to open and close
scenes.
1.234
A
Our
FOCUS
Cm
DISPLAY MENU
RECORD/
PAUSE
WHITE
BLACK
Fade In
Fade Out
Auto Fade
Before you begin...
« Connect Camcorder to power source.
+ Set POWER to CAMERA.
1 Press MENU for
fr PAGE 2/2)
MENU mode. DISPLAY : ON
Press UP A or Aer : FADE
DOWN Y to select
MDL. (= | Asi cisely
: (END: PUSH MENU KEY |
2 Press DISPLAY for
VIDEO EFFECTS --- VIDEO EFFECTS --- |
menu.
Press UP A or
DOWN Y to select SELECT; PUSH V/A KEY
AUTO FADE | Bo rush MU key
3 Press DISPLAY for
AUTO FADE ;
COLOR menu. ema.
Press UP 4 or
DOWN Y to select
BLACK or WHITE. ©
SELECT: PUSH ía KEY
SET : PUSH DISPLAY MEY |
4 Press DISPLAY to confirm entry.
Press MENU to exit.
| Fade In: |
In RECORD/PAUSE mode, press FADE
so “FADE” flashes in EVF.
Press RECORD/PAUSE.
Recording starts as picture and sound
gradually fade in.
Fade Out: |
While recording, press FADE so "FADE"
flashes in EVF.
Press RECORD/PAUSE.
Picture and sound gradually fade out, and
recording is paused.
If FADE is pressed accidentally, press
again so “FADE” disappears in EVF.
23
Color Digital Fade
Choose from 7 fade effects in 8 Before you begin...
different colors. * Connect Camcorder to power source.
* Set POWER to CAMERA.
FAR A 1 Press MENU for MENU | . PAGE 2/2
Qu mode. SOU OF
1 2 3 4 5 (Cy DOWN Press UP 4 or — BLACK
+ + , 1 NEAR DOWN У 10 select BELECT | PUSH т! KEY
iS VIDEO EFFECTS (EEE
=< 2 Press DISPLAY for ORD TEES
VIDEO EFFECTS menu.
D Press DOWN Y to
) 09904 select PIM. |: TERY ver
= Lo - A
3 Press DISPLAY for DIGITAL FADE menu.
6 Press UP 4 or DOWN Y to select ERT13.
Press DISPLAY for TYPE menu.
Press UP A or DOWN Y to select from 7
different types of fades.
* À preview of each fade type is displayed
as it is selected.
EVF Indications
—WHT À f --- DIGITAL FADE --- | -- DIGITAL FADE : TYPE -- )
YEL . ня
; ЕЕ БОРТ CE: SHARP
RED J , " El EHARP PVO ETRIPE +}
(COLOR: WHITE > E MOSANS 5 RANDOM
= SOFT -
MAG SELECT: PUSH Y/4 KEY ’
SET : PUSH DISPLAY KEY SELECT: PUSH Y/A KEY
BLU [END PUSH MENU KEY |) | ВЕТ : PUSH DISPLAY KEY |
CYN
GAN 4 Press DISPLAY for DIGITAL FADE menu.
—BLK Y Press DOWN Y to selecta e].
Press DISPLAY for COLOR menu.
Press UP 4 or DOWN Y to select from 8
colors.
* A preview of each color is displayed as it
IS selected,
--- DIGITAL FADE --. | ne DIGITAL FADE ; COLOR „-
TYPE | E3SOFT BLUE
WHITE {py RED GREEN
A ' MAGENTA BLACK
H For more effects, stop fade in or fade SELECT: PUSH V/A KEY | 7
out at any time (except RANDOM END Push MEN KEV SETI PUSH DISPLAY KEY
mode) by pressing FADE.
Then, press FADE to resume fade. 5 Press DISPLAY to confirm entry.
Press MENU twice to exit.
Note: 6
* Audio is not affected by fade. Press FADE for about 2 seconds to fade
* To cancel Digital Fade, do steps 1, 2, out during recording (selected fade type
and 5. In step 2, select AUTO FADE. flashes). Press FADE again to fade in.
24 For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts E panasonic.com
Digital Zoom
Power Zoom magnification is digitally
increased. 2
EE,
Tir
Im Vl ES
dr {CW lor
C 0000 ap
1,3
50% N
D.ZOOM
„”
000900900000000DC00O0N090DD0O0O0O0O00O0O000000D0OO0O0OANOOO0ODOO
Before you begin...
* Connect Camcorder to power source.
* Set POWER to CAMERA.
1 Press D. ZOOM.
Digital Zoom mode (150x maximum).
The Higher digital magnification levels
may cause picture distortion.
2
Hold down “T” on POWER ZOOM.
Digital Zoom starts when normal zoom
reaches maximum (20x).
* Zoom level appears in EVF.
* POWER ZOOM switch controls digital
zoom level.
Normal zoom resumes when level falls
to 20x.
Press D. ZOOM to turn off Digital Zoom
so no indication appears.
Digital Electronic Image Stabilization (E.LS.)
Helps stabilize picture when recording in
unstable situations.
== 0)
0d
0080] lg
— \ Mm
=»
« и N 4 J
(NORMAL ) (Digital EIS ON)
Before you begin...
* Connect Camcorder to power source.
« Set POWER to CAMERA.
1 Press EIS to display “EIS” in the EVF.
* Image becomes slightly enlarged and
shutter speed auto-adjusts from 1/80 to
1/350 according to brightness.
* Use High Speed Shutter {page 22) if
needed. Shutter speed setting remains
after EIS is canceled.
2 Press EIS again to cancel when not in
use.
E.I.S. may not function during...
* extreme Camcorder movement.
* recording of subjects with distinct
horizontal or vertical stripes.
* low light situations (EIS indicator flashes).
* intense fluorescent lighting situations.
* recording of very fast motion.
Te)
(D
D
25
Security Mode
—
Recording starts automatically if motion is Before you begin...
detected. * Connect Camcorder to power source.
Use AC Adaptor for longer recordings,
* Insert cassette with record tab (page 10).
* Set POWER to CAMERA.
* Securely position and aim Camcorder.
A
up
FOCUS 1 И ``
1 2 3 (D DOWN Press MENU for a PAGE 2/2
y y NEAR DISPLAY : ON
DISPLAY MENU MENU mode. D O ADE
O O Press UP 4 or BLACK
DOWN Y to select | suecr: rusa vía kev
= SECURITY | E
= 5 2 Press DISPLAY to select ON:
80800
= 3 | |
Press MENU for Motion Security
stand-by mode. (If cassette is not
inserted, “ee” will flash.)
Motion Security may mistakenly start ( à ( REC)
when: MOTION MOTION
. background 15 plain, like a white wall, or SECURITY “e SECURITY
has distinct vertical, horizontal, or STAND-BY
slanted stripes, like a venetian biind.
\ A = A
* brightness suddenly changes.
Motion Security may not start when:
+ motion is very slow or fast.
e moving object is very small.
* motion occurs oniy in 1 corner of
viewing area. |
* in poor lighting {in this case, MOTION
SECURITY flashes).
* background is plain, like a white wall, or
has distinct horizontal or vertical stripes.
Note:
* Security recording starts if Camcorder is
bumped or repositioned.
* This feature is not available during normal
recording.
* While in Motion Security stand-by, the
following functions are not available:
Record/Pause, Stand-by mode, Digital
E.1.5., Video Effects (Auto/Digital Fade).
26 For assistance, please call : 1-800-211-PANA(7262) or send e-mail to ; consumerproducts € panasonic.com
* Recording will start about 3 seconds
after motion is detected.
* Date and time are recorded if
displayed in EVF (page 14).
* Recording stops about 30 seconds
after motion ceases.’
To cancel Security Mode, set POWER to
OFF.
Intelligent Ti itler
| [x
Camcorder auto-displays title greeting on
selected holidays when power is first
turned on. See title list below.
EVF Indication
—
Automatic/Manual
Title Display
Before you begin...
* Connect Camcorder to power source.
« Insert cassette with record tab (page 10).
* Set POWER to CAMERA.
1 Press MENU for f --. MENU --- PAGE 1/2)
MENU mode. Po TOMANUAL
Press UP 4 or STANDBY RELEASE OFF
DOWN Y to select ye en va er
TITLES END | PUSH MENU KEY
„
2 Press DISPLAY to select AUTO/
MANUAL.
3 Press MENU to exit.
4 To record the title, press RECORD/
PAUSE.
5 Press TITLE while recording to remove
title.
Note:
* Once removed, title will not be
auto-displayed. To redisplay, or select from
other titles, use Manual Title (see below).
Automatic/Manual Title Display List
Dec. 31-Jan. 1
HAPPY NEW YEAR! / CHEERS!
Feb. 14
VALENTINE'S DAY / BE MY VALENTINE
2nd Sunday in May
HAPPY MOTHER'S DAY / WE LOVE YOU!
Last Monday in May
MEMORIAL DAY |
3rd Sunday in Jun.
HAPPY FATHER’S DAY / WE LOVE YOU!
Jul. 4
INDEPENDENCE DAY
1st Monday in Sep.
LABOR DAY
Oct. 31
HAPPY HALLOWEEN
4th Thursday in Nov.
HAPPY THANKSGIVING
Dec. 24-25
MERRY CHRISTMAS / HO! HO! HO!
These Titles must be
displayed manually.
HAPPY EASTER
HAPPY ANNIVERSARY
HAPPY BIRTHDAY
VACATION
WEDDING DAY
A SPECIAL DAY
27
Intelligent Titler
Before you begin...
* Connect Camcorder to power source.
* Insert cassette with record tab (page 10).
» Set POWER to CAMERA.
MANUAL
7{ FOCUS" TITLE
Phrase Title Display
,
os indication)
EVF Indication — BEAUTIFUL
BRAVO!
| CHEERS!
CONGRATULATIONS
GIMME A BREAK!
GOOD LUCK
| LOVE YOU
OOPS
OUR LITTLE ANGEL
WAY TO GO
С
28 EC a) please call | 1-800-211-PANA(7262) or send e-mail to : consumerproducts € panasonic.com
IVantalknitiey
Fo MM
--- MENU --- PAGE 1/2
1 Confirm that TITLE: PROGRAMMED REC
AUTO/MANUAL is set (VE МЛМ
in M d t STAND-BY RELEASE + OFF
in Menu mode (steps К
_ SELECT : PUSH Y/a KEY
1-3, page 27). SET : PUSH DISPLAY KEY
(END: PUSH MENU KEY |
2 In Record/Pause mode, press TITLE
repeatedly to display titles from list on
page 27.
3 To record the title, Press RECORD/
PAUSE.
4 Press TITLE while recording to remove
title.
Note:
* To redisplay title, press TITLE in Record/
Pause mode.
OOONCoDoONdAarndadaddOgdadaagaoaaca>an
Hues ville
A Press MENU for | —=- MENU --- PAGE М2
MENU mode. E hase
Press UP 4 or STANDBY RELEASE; OFF
DOWN Y to select SELECT: PUSH víA KEY
TITLE Y : (END PUSH MENU KEY |
B Press DISPLAY to select PHRASE.
C Press MENU to exit.
D In Record/Pause mode, press TITLE
repeatedly to display phrases from the
list at left.
E Do steps 3, 4 above to record and
remove phrase.
Note:
* To redisplay phrase, press TITLE in Record/
Pause mode.
Electronic Viewfinder Indications
Tape remaining and battery charge level Before you begin...
can be displayed. * Connect Camcorder to power source.
1 Set POWER to CAMERA.
2 Press DISPLAY (Initial screen)
repeatedly to select (mas ss
the following displays. Нее
Fifth press
r | 12:00-00AM
и ` | JAN 1 2001
1X SP 7
First press Gp
REC
1X NC ul = SP
REC
a A
Fourth press 4) oo
и = | AN 1 2001
1X TL) Gal BE) SP —
Co REC Second press Чу
Battery Remaining: Tape Remaining: es m
-[a2]- (No tape)
FULL р} bl EZ] FULL : )
Г} Bel LA
Ls) Third press“ '*1 . . JJ
== hal * Tape remaining indicator operates a few
EMPTY == La] -E EMPTY seconds after tape starts moving.
KRhecordingkthe)Datetandhlimen
1 Do steps 1 and 2 above to select time/date, er m | Банан SP)
date only, or no display,
2 Start a recording (page 14).
+ Only the Date and/or Time are recorded. | Le Po JAN 12001
Display Offf{Mode
No Indication, except Intelligent Titler (pages 27, 28), will be displayed.
Mn 10 |
A A PAGE 22) | --- MENU --- )
Set POWER to CAMERA or VCR. Pro TT a
B Press MENU for MENU mode. SELECT: PUSH iA KEY SELECT PUSH via KEY y =
Press UP A or DOWN У 10 се1есП 1, (END PUSH MENU KEY) (Es; PUSH MENU KEY} | =
C [CAMERA MODE] [VCR MODE] ©
| Press DISPLAY to select OFF. , - =
Press MENU to exit. =
Press DISPLAY repeatedly to remove time/date. =
Indications are restored the next time Camcorder is 12-00-00 =)
turned on. AH 2007 ; —
29
Electronic Viewfinder Indications
2 3 4 5
| | |
r >
1 0:20
6 I Zo 12
7 ID.ZOOM] - MFI OH— 13
— 14
|
8, 9, 10 CHECK TAPE 15
FADE] 16
12: 00:00AM EISHR
110 ED 17
Ne —
wl
Zoom Magnification level (pages 20, 25). 6 Digital E.I.S. (page 25).
2 Battery Remaining Ватан у (page 29). 7 Digital Zoom (page 25).
“WARNING LOW BATTERY” appears 8 VCR-MODE
a
SE N
and Power Lamp starts flashing 15 “VCR-MODE” appears 1 minute when
seconds before Camcorder shuts off. POWER is set to VCR or if RECORD/
3 Tape Remaining (page 29). PAUSE is pressed in VCR mode.
“[221” flashes and “TAPE END” 9 DEW |
appears for 5 seconds when: If moisture condensation occurs in
» End of tape is reached. unit, “WARNING DEW DETECTED”
“3” flashes 1 minute and “CHECK appears, Power ramp fasnss, and q
TAPE” appears for 5 seconds when: Meco WIN S | о A seconc S.
e RECORD/PAUSE is pressed with no С al or it no dont ashes when
cassette, or cassette has no record tab ameor er is urned on to use.
in Camera (RECORD) mode. 10 Security Mode (page 26).
* PLAY, FF or REW is pressed with no 11 Date and Time (pages 12, 13).
cassette inserted in VCR mode. 12 Operating Mode
4 10-Second Reminder * REC (record) * PAUSE
Each time a recording Is started, a 10 * FF (fast forward) * PLAY
second incremental display (up to 59:50) * REW (rewind)
lets you monitor how long one scene is 13 Backlight (page 20).
0:00 0:10 0:20 ..... 59:50 14 Manual Focus (page 21). -
| 15 High Speed Shutter (page 22).
(return to 0:00 and continue) 16 Fade {page 23). |
5 TAPE SPEED (pages 10, 14). 17 Color Digital Fade (page 24).
(SP=standard play,
SLP=super long play).
30 For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts € panasonic.com
Operation Notes
fAttachingiShoulde7strapti | | AcE: und ofithe,
Remove Battery Pack before doing steps. Shoulder
1 Undo strap ends from buckles.
2 Thread strap ends through Strap Pull a loop of strap from buckie, then pull
Rings on Camcorder. strap tight to shorten or lengthen.
HandiStrap
3 Re-insert the strap ends into buckles.
aa
TEC TT
КО}
Adjust Hand Strap length to fit your hand as
shown,
min. 25.4 mm (1 inch)
Ce EEE
To Remove
7 (Y Remove the screw with a Phillips
` screwdriver.
Turn counterclockwise.
& Tum the EVF Eyepiece.
Pull the EVF Eyepiece.
2 Remove any lint or dust particles
with a soft clean cloth being careful
IROË 30] |
not to scratch the glass surfaces. =
ol
3 Replace the EVF Eyepiece and the =
screw. =
Ab)
ны
©
=
31
Replacing Clock Battery
The clock battery is pre-installed. Follow the steps below if replacement becomes
necessary.
= WARNING:
Replace battery with Panasonic PART NO, VSBWO004 (CR2025) only. Use of another
batiery may present a risk of fire or explosion.
Caution: Battery may explode if mistreated. Dispose of used battery promptly. Keep
away from children. Do not recharge, disassemble or dispose of in fire.
KEISCKIBatteryAl
Tripod Mounting Hole 4
C
Î
Underside View
4 2 In
3—=
32 For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts € panasonic.com
1 While pinching 2 tabs, pull Battery
Tray out.
2 Bend middle tab out and remove
Battery.
3 Snap new Battery (© mark down) into
Battery Tray.
* Do not reverse the polarity.
4 Insert Battery Tray so the triangle
marks meet.
Note:
* Keep Battery out of children's reach.
Swallowing it may be harmful.
* Improperly installed, discharged, or
missing battery causes “CLOCK
BATTERY" to appear when DISPLAY is
pressed.
» Battery life is approximately 5 years.
Palmcorder Accessory System
For ordering instructions, see the Accessory Order Form page.
* The listed standard battery use times are based on continuous recording using this Palmcorder.
Accessory #
Description
Price
PY-A17
AC Adaptor with
DC Power Cable
(Charging of the Nickel
Cadmium Battery)
$139.95
PV-A19
AC Adaptor with
DC Power Cable
{Charging of the Nickel
Cadmium Battery or Nickel
Metal Hydride Battery)
Call For
Pricing
HHR-V60A/1B
Up to 6 hr Battery Pack
(Rechargeable Nickel
Metal Hydride Battery)
$119.95
HHR-V40A/18
Up to 4 hr Battery Pack
(Rechargeable Nickel
Metal Hydride Battery)
$69.95
HHR-V20A/1B
Up to 2 hr Battery Pack
{Rechargeable Nickel
Metal Hydride Battery)
$59.95
PV-AAG
"AA" Battery Case
$20.00
PV-C16
Car Battery Cord
$70.00
PV-H18A-
Soft Sided
Carrying Case
$49.95
Note:
* Prices subject to change without notice.
RO 598] |
JEUMOJU]
UOI
Palmcorder Accessory Order Form
Please photocopy this form when placing an order.
1. Palmcorder Model # ‘
2. Items Ordered
Accessory # Description Price Each Quantity Total Price
Subtotal
Your State & Local Sales Tax
Shipping & Handling 6.95
Total Enclosed
3. Method of payment (check one)
[1 Check or Money Order enclosed (NO C.O.D.SHIPMENTS)
[| МБА Credit Card #
[J MasterCard Expiration Date
[1 Discover Customer Signature
Make Check or Money Order to: PANASONIC ACCESSORIES
(Please do not send cash)
4. Shipping information (UPS delivery requires complete street address)
Ship To:
Mr.
Mrs.
Ms.
First Last Phone #:
Day ( )
Street Address
Night ( )
City State Zip
TO OBTAIN ANY OF QUR PALMCORDER ACCESSORIES YOU CAN DO ANY OF THE
FOLLOWING;
VISIT YOUR LOCAL PANASONIC DEALER
OR
CALL PANASONIC'S ACCESSORY ORDER LINE AT 1-800-332-5368
[6 AM-5 PM M-F, 6 AM-10:30 AM SAT, PACIFIC TIME]
- OR
MAIL THIS ORDER TO: PANASONIC SERVICES COMPANY ACCESSORY
ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
CY ME For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts € panasonic.com
Specifications
Power Source: Compact VHS Camcorder: DC 6 V
AC Adaptor: 110/120/220/240 V AC, 50/60 Hz
Battery: Nickel-Cadmium Type DC 6 V
Power Consumption: Compact VHS Camcorder: 6Y DC 6.0 W
AC Adaptor: 19 W
1.2 W (when not in use.)
Video Signal: EIA Standard (525 lines, 60 fields) NTSC color signal
Video Recording System: 2 rotary heads plus flying erase head. Helical scanning system
Audio: 1 track
Pick-Up System: © Sequential color difference field reverse system
Pick-Up Device: One integral color filter Charge Coupled Device (CCD)
Lens: 20:1 zoom lens, F1:1.6 with auto iris control
Focal length: 3.6 mm - 72 mm
4 speed power zoom function
Viewfinder: 10.2 mm (0.4 inch) Electronic Viewfinder
Minimum illumination Required: 0.8 Ix {F1:1.6) 0.08 tootcandles
7 Ix (F1:1.6) 0.7 footcandles (EIA Standard)
Operating Temperature: 0 °C~40 °C (32 °F-104 °F)
Operating Humidity: 10 %~75 %
Weight: Compact VHS Camcorder: 0.85 kg
1.87 lbs.
AC Adaptor: 0.3 kg
0.66 Ibs.
Dimensions: Compact VHS Camcorder;
110.4 (W) x 122 (H} x 186.5 (D) mm
4-3/8 (W) x 4-3/4 (H) x 7-3/8 (D) inch
AC Adaptor: 68 (М/) х 41 (Н) х 140 (D) mm
2-11/16 (W) x1-5/8 (H) x 5-1/2 (D) inch
Weight and dimensions shown are approximate.
Designs and specifications are subject to change without notice.
ocoOUEONOCANOCONANANOCOORNaOcCCOCOONONAaACaOdaAaOaDCaACÚOASAOAOdANDCONRNORONODO
Request for Service Notice
Please photocopy this form when making a request for service notice.
In the unlikely event this product needs service.
+ Please include your proof of purchase.
Request for Service Notice: (Failure to due so will delay your repair.)
« To further speed your repair please provide an ©
=
=
explanation of what is wrong with the unit and any
symptom it is exhibiting.
Mail this completed form and your Proof of Purchase along with your unit to:
Panasonic Services Company
1705 N. Randall Road
Elgin, IL. 60123-7847
Attn: Camcorder Repair
35
Before Requesting Service
If a problem arises, you may be able to correct it yourself.
See Symptom and Correction list below.
Symptom Correction
No picture in EVF ... * Connect Power Source. (pp. 8, 9)
* Set POWER to VCR or CAMERA. (pp. 14, 17)
* Check for Dew Indication. (p. 30)
* Uso fully charged Battery. (o. 8)
» Firmly connect all needed cables. (p. 9)
Video cassette cannot be inserted ... * Connect Power Source. (pp. 8, 9)
* Insert cassette, window side facing out. (p. 10)
Video cassette cannot be removed … * Connect Power Source. (pp. 8, 9)
Operation buttons do not work … * Check for Dew Indication. (p. 30)
Recording cannot be done ... * Make sure record tab is intact. (p. 10)
» Check Battery Indicator. (p. 29)
* Check for Dew Indication. {p. 30)
Auto Focus does not operate ... * Set FOCUS to AUTO. (p. 21)
* Set POWER to CAMERA. (p. 14)
Sound from microphone can't be monitored ...| » Set unit to REC or Record/Pause mode.
Camera picture is too dark ... * Set HIGH SPEED SHUTTER to AUTO. (р. 22)
No playback picture, or the playback * Press UP A/DOWN Y button during playback
picture is noisy or contains streaks ... (Tracking Control). (p.17)
Top of playback picture waves back and forth | * A playback signal is not as stable as an off the air
excessively ... TV signal, so the top of your TV screen may
appear bent or unstable during playback. This is
called, “Horizontal AFC time constant change.” To
correct, slowly turn the TV horizontal hold control.
If your TV does not have this control, or adjusting it
does not help, contact your TV service center.
(Some nominal service charges may be required.)
While head cleaning is normally not needed, playing old or
damaged tapes may clog the heads. When playback picture
resembles example at the left, head cleaning is required.
Ideally, head cleaning should be performed by a qualified
service technician. When this is not possible, purchase a
head cleaning cassette. Be sure to follow cleaning cassette
instructions exactly and only use when symptoms occur.
36 For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts € panasonic.com
Limited Warranty
Panasonic Consumer Electronics Company, Panasonic Sales Company,
Division of Matsushita Electric Corporation of Division of Matsushita Electric of Puerto Rico, Inc.
America, One Panasonic Way Secaucus, AVE. 65 de Infanteria, Km. 9.5 San Gabriel
New Jersey 07094 Industrial Park Carolina, Puerto Rico 00985
PANASONIC Video Products
Limited Warranty
Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as
“the Warrantor”) will repair this product with new or refurbished parts, free of charge, in the USA or
Puerto Rico, in the event of a defect in materials or workmanship as follows {all time periods
commence from the date of the original purchase):
PRODUCT |PARTS LABOR SERVICE CONTACT NUMBER
CAMCORDER | ONE (1) YEAR, EXCEPT NINETY (90) DAYS | Carry-In or Mail In | 1-800-211-PANA(7262)
CCD IMAGE SENSOR
CCD IMAGE SENSOR NINETY (90) DAYS
- SIX (6) MONTHS
VCR ONE (1) YEAR NINETY (90) DAYS | Carry-In or Mail In | 1-800-211-PANA(7262)
AN MIXER ONE (1) YEAR NINETY (90) DAYS | Carry-In or Mail In |1-800-211-PANA(7262)
MONITOR- ONE (1) YEAR, EXCEPT CAT [NINETY (90) DAYS | Carry-in: 21" CRT | 1-800-211-PANA(7262)
VCR CRT - TWO (2) YEARS CAT - NINETY (90) | and Smaller
Combination DAYS In-home or carry-in:
22" CRT and Larger
Batteries (if included) - New rechargeable batteries in exchange for defective rechargeable batteries for
ten (10) days. Non-rechargeable batteries are not warranted.
Tape (if included) - New video cassette tape in exchange for a defective video cassette tape for five (5) days.
In-home, carry-in or mail-in service, as applicable, in the USA can be obtained during the warranty period
by contacting a Panasonic Services Company (PASC) Factory Servicenter listed in the Service Directory.
Or call toll free contact number listed above, to locate an authorized PASC Servicenter. Carry-in or mail-
in service in Puerto Rico can be obtained during the warranty period by calling the Panasonic Sales
Company telephone number listed in the Servicenter Directory.
This warranty is extended only to the original purchaser. A purchase receipt or other proof of the date of
the original purchase is requires before warranty service is rendered.
This warranty only covers failures due to defects in materials and workmanship which occur durnng
normal use and does not cover normal maintenance, including, but not limited to, video and audio head
cleaning. The warranty does not cover damage which occurs in shipment, or failures which are caused
by products not supplied by the warrantor, or failures which result from accident, misuse, abuse, neglect,
mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper
antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line
surge, improper voltage supply, lightning damage, commercial use such as hotel, office, restaurant, or
other business or rental use of the product, or service by anyone other than a PASC Factory Servicenter
or a PASC authorized Servicenter, or damage that is attnbutable to acts of God.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above,
THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING, WITHOUT LIMITATION, DAMAGE TO RECORDING MEDIA) RESULTING FROM THE
USE OF THIS PRODUCTS, OR ARISING OUT OF ANY BREACH OF THE WARRANTY. ALL
EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY
PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
If a problem with this product develops during or after the warranty period, you may contact your dealer
or Servicenter. If the problem is not handled to your satisfaction, then write to the Consumer Affairs
Department at the Panasonic Consumer Electronics Company address above.
SERVICE CALLS WHICH DO NOT INVOLVE DEFECTIVE MATERIALS OR WORKMANSHIP AS
DETERMINED BY THE WARRANTOR, IN ITS SOLE DISCRETION, ARE NOT COVERED. COSTS OF
SUCH SERVICE CALLS ARE THE RESPONSIBILITY OF THE PURCHASER.
warvid 8/8/2000
37
Servicenter List
alllCustomer
TL
FoProductiintormations
Service
LANEY (fA) Saturday:Sunday/Sam-7amYESTA
orisend[e-mailltoIconsumerproducts e panasonicicom
Operating
inquiriesipleasejcontact
\WeblSite:
Y.oulcan]purchaselpartsNaccessoriesloglocatelyour
nearestiservicenterbyivisiting[ouráWeb]Site*
PAccessonIburchasesd
1-800-332-5368 (Customer Orders Only )
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(6 am to 5 pm Monday - Friday; 6 am to 10:30 am Saturday; PST)
(Visa, MasterCard, Discover Card, American Express, Check)
[LA г o . .
Product{Repairs Centralized Factory Servicenter
Panasonic Services Company
MAIL TO : 1705 N. Randall Road,
Elgin, IL 60123-7847
Attention: Camcorder Repair
Igin for repair.
Please carefully pack and ship, prepaid and insured, to the Elgin centralized repair Factory
Servicenter. While there will be added handling delays, you may bring your unit to one of the
following locations who will then forward the unit to
Customer's in Puerto Rico, please ship or carry in to location below (“Service in Puerto Rico”).
Ractonylsenvicentersiiiocationsy
CALIFORNIA
6550 Katella Avenue
Cypress, CA 80630
GEORGIA
8655 Roswell Road
Suite 100
Atlanta, GA 30350
MINNESOTA
7850-12th Avenue South
Airport Business Center
Bloomington, MN 55425
TEXAS
13615 Welch Road
Suite 101
Farmers Branch, TX
Phonel(787)1750-4300]|Fax{(787)}768:2910
800 Dubuque Avenue 75244
S. San Francisco ILLINOIS OHIO
CA 94080
| 9060 Golf Road 2236 Waycross Road WASHINGTON
3878 Ruffin Road Niles, IL 60714 Civic Center Plaza 20425-84th Avenue
Suite A ForestPark, OH 45240 South
San Diego, CA 92123 1703 North Randall Road Kent, WA 98032
COLORADO Elgin, IL 60123 PENNSYLVANIA
(Pick-up/drop-off only) 2221 Cabot Blvd. West
1640 South Abilene Suite B
Street Suite D MARYLAND Langhorne, PA 19047
Aurora, CO 80012 62 Mountain Road
Glen Burnie, MD 21061 TENNESSEE
FLORIDA HAWAII
3800 Ezell Road
3700 North 29th Avenue | MASSACHUSETTS Suite 806 99-859 Iwaiwa Street
Suite 102 60 Glacier Drive Nashville, TN 37211 Aiea, Hawaii 96701
Hollywood, FL 33020 Suite G Phone {808) 488-1996
Westwood, MA 02090 Fax (808) 486-4369
Servicelin|Buerto/Rico,
MatsushitalElectricloi|Buerto/RicoYinc]Ranasonic]Sales ae) Sansa
Ox, GB ek Ents. (3m. ©6 San Cf) needa) Ger: Gag, (Rus Ee (EES
As of January 2001
38 For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts E panasonic.com
Spanish Quick Use Guide/Guia Para Uso Rapido
Antes de comenazar...
« Inserte un casete con lengiieta para prevención del grabado.
carguellajbatería mnsentelelcasete
Cargue completamente la batería antes
de usarla.
N=
—
Instale la bateria. El indicador de
carga (CHARGE) parpadea, luego
queda encendido si ha terminado
la carga. Desmonte la batería.
Coloque la batería
1 Enchufe el cargada.
= adaptador de CA.
Deslice TAPE
EJECT para abrir la
(0 compuerta.
3 Inserte el casete.
Presione aquí para
cerrar la compuerta.
1 Ajuste POWER a CAMERA.
Presione RECORD/PAUSE para comenzar la
grabacion.
Presione RECORD/PAUSE otra vez para
hacer una pausa en la grabación.
OS
ReproduzcajusandoleNCo lo EV
tr
1 Ajuste POWER a VCR.
=
|. ный
Presione REWIND/S EARCH para rebobinar la
cinta. :
— 3 Presione PLAY para comenzar la reproducción.
__ 4 Presione STOP para finalizar la reproducción.
CEn la TV)
NY TO
IReproducciontcontetectostespeciales]
Para localizar rapidamente una escena especifica
* Oprimir el botón de localización (SEARCH).
Para congelar una imagen
e Oprimir el botón de pausafimagen fija (PAUSE/STILL).
* Oprimir nuevamente el botón cuando se desea continuar
reproduciendo.
A la salida 7%
de audio/ de audio
vídeo
EEN
Ver
Cable da audio/video
(incluido)
39
Index
A F S
AC Adaptor ...................... 9 Fade ........... een... 23,24 Safety Precautions ........... 3
Accessories (Optional) ... 33 FADE Button ............ 23,24 Security Mode ................ 26
Accessories (Supplied) .... 2 FAST FORWARD/ Servicenter List .............. 38
Audio/Video Cable ... 18, 19 SEARCH Button ......... 17 Shoulder Strap ............... 31
Audio/Video Out …… 18,19 FOCUS ….…..…......nuccsscrcraee. .21 Specifications ны, 35
Auto Daylight Saving H — STILL Button 17
TIME... 13 Stil Picture ae 17
Hand Strap .................... 3 STOP Button .................. 17
B High Speed Shutter ........ 22
Backlight...................... 20 | T
BACKLIGHT Button ....... 20 Tab coe, 10
Battery Pack ................. 8,9 LensCover........... 14 TAPE EJECT Switch 10, 14
BATTERY RELEASE Limited Warranty ........... - 37 TAPE SPEED Button ..... 14
Button encens 8 м TITLE Button ............ 27,28
Built-in Twin Capsule 2-Way TUEler ........ e... nace. 27, 28
Microphone System …. 14 MANUAL FOCUS Button 21 Tracking Control ............ 17
MENU Button .................. 11 Tripod Mounting Hole 39
с MENU Mode.................... MM
Camera Recording ... 14-16 р U
Car Battery Cord .............. 9 UP À (FAR) / DOWN Y
Charging Battery ............ .. 8 PLAY Button -...........—..... Ш (NEAR) Button . 11, 17, 21
Cleaning EVF ................. 31 Playback................... 17,18
Clock Battery .................. 32 Power Lamp ............ 14,17 V
Power Supply ............... 8,9 VHF Connecting Cable .. 19
Clock Set .................. 12,13 POWER Switch 417 on g
Copying your Tapes ....... 19 Ann GARAGES | video Cassettes (tapes). 10
POWER ZOOM Button Video Head Cleaning ..... 36
De 20, 21, 25 Viewing (TVVCR) .......... 18
N 9 Programmed Recording. 16 VISION ADJUSTMENT .. 14
DC Power Cable .............. 9 R 7 '
Digital E.L.S. ................... 25
Digital ZOOM ovr... 25 Ari PAUSE Button 14 Zoom ..................—... 20, 25
D.ZOOM Button ............. 25 Replacing Clock Battery. 32
DISPLAY Button .. 11,17, 29 Request for Service Modes
Display-off Mode ............ 29 REWIND/SEARCH Button
Е ен 17
Electronic Viewfinder
Indications ............ 29, 30
EIS Button ...................... 25
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Q
Printed in Indonesia
LSOTO417A
S0201-0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
