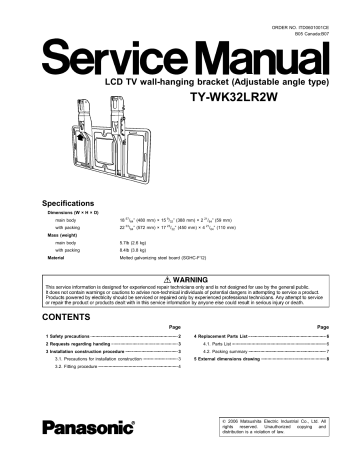

ORDER NO. ITD0601001CE
B05 Canada:B07
LCD TV wall-hanging bracket (Adjustable angle type)
TY-WK32LR2W
Specifications
Dimensions (W × H × D)
main body
18 57/64” (480 mm) × 15 9/32” (388 mm) × 2 21/64” (59 mm)
with packing
22 33/64” (572 mm) × 17 23/32” (450 mm) × 4 21/64” (110 mm)
Mass (weight)
main body
5.7lb (2.6 kg)
with packing
8.4lb (3.8 kg)
Material
Melted galvanizing steel board (SGHC-F12)
CONTENTS
Page
1 Safety precautions
2
2 Requests regarding handing
3
3 Installation construction procedure
3
3.1. Precautions for installation construction
3
3.2. Fitting procedure
4
Page
4 Replacement Parts List
6
4.1. Parts List
6
4.2. Packing summary
7
5 External dimensions drawing
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
8
TY-WK32LR2W
1 Safety precautions
To prevent injury to the user and others and to prevent damage to property, directions that must be followed are explained as
shown below.
2
TY-WK32LR2W
2 Requests regarding handing
3 Installation construction procedure
3.1.
Precautions for installation construction
3
TY-WK32LR2W
3.2.
Fitting procedure
4
TY-WK32LR2W
5
TY-WK32LR2W
4 Replacement Parts List
4.1.
Ref.
No.
Parts List
Part No.
Part Name &
Description
Pcs
2
4
1
1
1
1
1
2
THEA129
THEA132J
3
4
5
TKKX0014-1
TMMX098
XWC4DFJK
6
7
8
TMKX971
XZB10X10C08
XZB10X25C03
TQZH713
SAFTY BOLT(M5x35)
ALLEN HEAD
COUNTERSUNK
SCREW(M4x20)
ALLEN WRENCH
INSULATION SPACER
DISHED TOOTHED
WASHER
STAND MOUNT COVER
PLASTIC BAG
POLY BAG
FITTING INSTRUCTION
9
10
11
12
TPCB92001
TPDF1565
TPDF1566
TPEH241
CARTON
PAD(UPPER)
PAD(BOTTOM)
PROTECT COVER
Remarks
1
4
4
2
1
1
1
6
TY-WK32LR2W
4.2.
Packing summary
7
TY-WK32LR2W
5 External dimensions drawing
8
