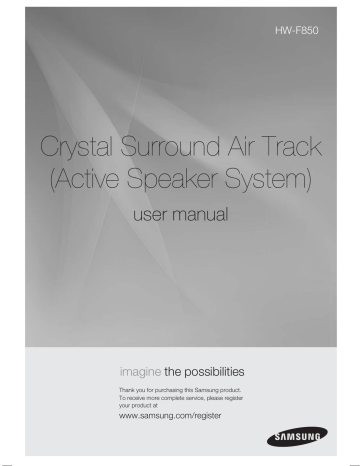

HW-F850

Crystal Surround Air Track

(Active Speaker System)

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

2

features

SoundShare

SoundShare produces TV sound on your SAT via a Bluetooth connection and controls the sound.

HDMI

HDMI transmits video and audio signals simultaneously, and provides a clearer picture.

The unit is also equipped with the ARC function which lets you listen to sound from your TV via an HDMI cable through the Crystal

Surround Air Track. This function is only available if you connect the unit to an ARC compliant TV.

3D Sound Plus

The 3D SOUND PLUS feature adds depth and spaciousness to your listening experience.

Wireless Subwoofer

Samsung’s wireless module does away with cables running between the main unit and the subwoofer.

Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Special Sound mode

You can select from 7 different sound modes - MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, and STANDARD (Original

Sound) - depending on the type of content you want to enjoy.

Multi-function Remote Control

The supplied remote control can be used to control the TV connected to this unit. (Works only for Samsung TVs)

The remote control has a TV hotkey that enables you to perform various operations with the simple press of a button.

Active Speaker System

This unit features an Active Speaker System that provides high sound quality in a single slim unit. This unit does not require any satellite loudspeakers or speaker cabling, which are normally associated with conventional surround sound systems.

USB Host support

You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory, etc. using the

Air Track's USB HOST function.

Bluetooth Function

You can use connect a Bluetooth device to the SAT and enjoy music with high quality stereo sound, all without wires!

NFC

Connect your NFC compatible device via Bluetooth to the Air Track using this simple set-up procedure and play music on the device through the Air Track.

LICENSE

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued

& pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademark of

DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

- To send inquiries and requests regarding open sources, contact Samsung via Email ([email protected]).

safety information

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates important instructions accompanying the product.

WARNING :

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION :

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

3

PRECAUTIONS

68.6 mm

99.1mm

99.1mm

99.1mm

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches, 7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the wall outlet.

Voltage peaks due to lightning could damage the unit.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and cause the unit to malfunction.

Phones

Protect the product from moisture (i.e. vases), and excess heat

(e.g. a fireplace) or equipment creating strong magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only.

Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

The batteries used with this product contain chemicals that are harmful to the environment.

Do not dispose of batteries in the general household trash.

Do not dispose of batteries in a fire.

Do not short circuit, disassemble or overheat the batteries.

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

4

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

contents

FEATURES

2

SAFETY INFORMATION

3

GETTING STARTED

6

DESCRIPTIONS

7

REMOTE CONTROL

9

CONNECTIONS

10

FUNCTIONS

15

2 Features

2 License

3 Safety

4 Precautions

6 Before reading the user’s manual

7 Front/Bottom

9 Tour of the remote control

10 Installing the wall mount

11 Connecting the wireless subwoofer

12 Attaching the toroidal ferrite core to the power cord of the subwoofer

12 Looping the power cable around the toroidal core

12 Auto sound calibration (ASC)

13 Connecting an external device using an

HDMI cable

14 Connecting an external device using

Audio (analog) cable or Optical (digital) cable

14 Assembling the cable clip

15 Input

15 ARC (HDMI out)

16 NFC

17 Bluetooth

19 SoundShare

20 USB

21 Using the remote control

TROUBLESHOOTING

25

APPENDIX

26

25 Troubleshooting

26 Specifications

5

6

getting started

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

Icons used in this manual

Icon Term

Caution

Definition

Indicates a situation where a function does not operate or settings may be canceled.

Note

Indicates tips or instructions on the page that help you operate a function.

Safety Instructions and Troubleshooting

Copyright

©2013 Samsung Electronics Co.,Ltd.

All rights reserved; no part of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.

WHAT’S INCLUDED

Check for the supplied accessories shown below.

TV

AUX

D.IN

SOURCE

USB

HDMI

BT

SOUND

SHARE

MUSIC NEWS

CINEMA

3D SOUND+

SPORTS

STANDARD

DRAMA

GAME

ASC

MUTE

S/W LEVEL

TV INFO

VOL

TV CH

TONE

TV SOURCE

TV VOL -

VT

DIMMER

TV EXIT

AUDIO SYNC

DRC

TV CH

REPEAT

AUTO POWER

SMART VOL SPEAKER

AH59-02583A

TV VOL +

Remote Control /

Batteries (AAA size)

User Manual

Bracket-Wall

Mount

(Holder-screw:2EA)

(Screw:2EA)

Screw USB Cable Cable Clip

Power Cord DC Adapter AUX Cable

(For Subwoofer power cable 1EA)

ASC Microphone

Toroidal ferrite core

The appearance of the accessories may differ slightly from the illustrations above.

Use the dedicated USB cable to connect external USB devices to the unit.

descriptions

FRONT/BOTTOM PANEL

1 2 3 4

VOLUME +/-

VACUUM

TUBE AMP

NFC TAG

0.5A

5V

1

DISPLAY

2

USB PORT

Displays the current mode.

- If there is no input from the product or remote control for 15 seconds, the display will turn off automatically.

- The display will not turn off automatically in BT READY, TV READY and USB Playing modes.

Connect USB devices such as MP3 players here to play files on the devices.

3

POWER BUTTON

Turns the Crystal Surround Air Track on and off.

4

FUNCTION

BUTTON

Selects the D.IN, AUX, HDMI, BT, TV, USB input.

- While the unit is powered on, pressing the ( ) button for more than

3 seconds converts the button to the

MUTE

( ) button. To cancel

MUTE

( ) button setup, press the ( ) button for more than 3 seconds again.

When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

Do not bring cellular phones or mobile devices near the vacuum tube amp, or put other electronic devices on the top of the product. Signals from these devices can cause noise or distortion in the audio.

Do not let children touch the product's surface when the set is on. It will be hot.

7

8

descriptions

REAR PANEL

DC 24V

ASC IN

1

2

3

4

DC 24V

ASC IN

5

6

1

HDMI IN JACK

2

HDMI OUT JACK

Receives digital video and audio signals simultaneously from an external source using an HDMI cable.

Outputs digital video and audio signals simultaneously using an HDMI cable.

3

AUX IN

Connect to the Analog output of an external device.

4

OPTICAL IN

Connect to the digital (optical) output of an external device.

5

POWER SUPPLY

IN

Connect the AC power adaptor jack to the power supply jack, and then connect the AC power adaptor plug to a wall outlet.

6

ASC IN JACK

Used to connect the ASC Microphone.

When disconnecting the power cable of the AC power adaptor from the wall outlet, pull the plug. Do not pull the cable.

Do not connect this unit or other components to an AC outlet until all connections between components are complete.

remote control

TOUR OF THE REMOTE CONTROL

Turns the remote’s backlight for 5 seconds.

Turns the Crystal Surround Air Track on and off.

Press to select a connected SAT source.

(SAT: Surround Air Track)

Selects the Sound Effect: (MUSIC,

NEWS, DRAMA, CINEMA, SPORTS,

GAME)

This feature adds depth and spaciousness to the sound.

Cancels the selected Sound Effect and switches to the standard mode (displays

STANDARD for the current Sound Effect).

Press to skip backwards or forwards.

Adjusts the Subwoofer level.

Adjusts the volume level of the unit.

Displays the current TV status.

Switches between the available TV channels. Adjusts the TV volume level.

You can control the brightness of the

VACUUM TUBE AMP's display.

You can use this function to enjoy Dolby

Digital sound when watching movies at low volume at night (Standard, MAX, MIN).

Used to help sync video to audio when connected to a digital TV.

Anynet+ is a function that enables you to control other Samsung Devices with your

Samsung TV's remote control.

TV

AUX

D.IN

MUSIC

SOURCE

USB

HDMI

NEWS

BT

SOUND

SHARE

DRAMA

CINEMA

3D SOUND+

SPORTS

STANDARD

GAME

ASC

MUTE

S/W LEVEL

TV INFO

VOL

TV CH

TONE

TV SOURCE

TV VOL -

TV

MUTE

TV VOL +

VT

DIMMER

TV EXIT

AUDIO SYNC

DRC

TV CH

AUTO POWER

REPEAT

SMART VOL SPEAKER

AH59-02583A

Turns your Samsung TV on and off.

This produces TV sound on your SAT via a

Bluetooth connection and controls the sound.

Shortcut button for switching to custom sound mode saved by using the ASC function (one of the available sound effect modes)

Press to stop a music file.

Press to play or pause a music file.

Mutes the sound from the unit. Press again to restore the sound to the previous volume level.

Individual BASS, MIDDLE, TREBLE adjustment. Use VOL adjustment keys.

Press to select a connected TV's video source.

Mutes the sound from the TV. Press again to restore the sound to the previous volume level.

Exits TV (functions the same as the EXIT button of the TV remote control)

Select Repeat File, All, Random.

Synchronizes the Air Track to a connected

Optical source via the Optical jack so it turns on automatically when you turn on your TV.

This button allows you to choose to listen to audio from the Air Track or your TV.

Regulates and stabilizes the volume level against a drastic volume change.

SAT stands for Surround Air Track, which is a Samsung’s proprietary name.

The remote control can operate TVs made by SAMSUNG only.

Depending on the TV you are using, you may not be able to operate your TV with this remote control. If you can't, operate the TV using the TV's remote control.

Installing Batteries in the Remote Control

diagram inside the compartment.

Battery size: AAA straight line from the unit. You can also operate the remote at a horizontal angle of up to 30° from the remote control sensor.

9

connections

INSTALLING THE WALL MOUNT

You can use the wall mount bracket to mount this unit on a wall.

Installation Precautions

the set.

unit on a different wall that can support the unit's weight.

wood, etc.). If possible, fix the support screws into wall studs.

1.

Place the wall mount bracket on a wall surface and then secure it with two screws. If you are hanging the unit below a

TV, be sure to install the wall mount bracket so that the arrow

( ) is placed in the center of the TV. Also make sure the unit is at least two inches (5 cm) below the TV.

2.

Align the two HOLDER-SCREWs (screw holders) with the screw holes on the left and right sides of the MAIN UNIT, and then fix them to the main unit with the supplied screws.

3.

Fit the unit into the corresponding slots of the wall mount bracket. For secure installation, make sure the mounting studs slide firmly down into the bottom of the slots.

4.

The installation is complete.

2 inches (5 cm) or more

Do not hang onto the installed unit and avoid striking or dropping the unit.

Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product.

When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as it may cause it to fall.

For the optimal performance of a wall mount installation, install the speaker system at least 2 inches (5 cm) below the TV.

For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.

10

CONNECTING THE WIRELESS SUBWOOFER

The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on. If the

LINK

indicator does not light when the main unit and subwoofer are turned on, please set the ID by following the procedure below. Complete this process within

30 seconds after the Link Indicator on the subwoofer starts blinking.

1.

Plug the power cords of the main unit and subwoofer into an AC wall outlet.

2.

Confirm that the main unit is off (in STANDBY Mode).

3.

Press the

ID SET

button on the back of the subwoofer with a small, pointed object for 5 seconds.

The

LINK INDICATOR

(Blue LED) on the subwoofer blinks quickly.

4.

While the main unit is powered off (in STANDBY mode), press and hold the

MUTE

( ) on the remote control for 5 seconds.

5.

The

ID SET

message appears on the main unit’s OLED display.

TV

MUTE

6.

To finalize the link, turn the main unit’s power on while the subwoofer’s

LINK LED blinks.

The main unit and the subwoofer should now be linked (connected).

The LINK indicator (blue LED) on the subwoofer should be turned on and solid blue.

If the LINK indicator is not solid blue, the linking process has failed.

Turn off the main unit and start again from Step 2.

You can enjoy better sound from the wireless subwoofer by selecting the a sound effect. (See page 24)

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

If the main unit is powered off, the wireless subwoofer will be in the standby mode and the STANDBY

LED on the upper side will come on after the LINK indicator (Blue LED) blinks for 30 seconds.

If you use a device that uses the same frequency (2.4GHz) as the unit near the unit, interference may cause some sound interruption.

The transmission distance of the wireless signal between the main unit and subwoofer is about

33 ft., but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal.

If the main unit doesn't make a wireless connection, follow steps 1-5 above to retry the connection between the main unit and wireless subwoofer.

The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture.

For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.

11

connections

ATTACHING THE TOROIDAL FERRITE CORE TO THE POWER CORD

OF THE SUBWOOFER

Attaching the Toroidal ferrite core to the power cord of the subwoofer helps prevent RF interference from radio signals.

1.

Pull the fixing tab of the Toroidal ferrite core to open it.

2.

Make two loops around the core with the power cable of the subwoofer. See the illustration below.

3.

Attach the Toroidal ferrite core to the Subwoofer power cord as shown in the illustration below, and then press it until it clicks.

LOOPING THE POWER CABLE AROUND THE TOROIDAL CORE

Lift up to release the lock and open the core.

Make two loops around the core with the power cable. (Start winding 5 to 10 cm [2 - 4 in.] away from the core).

Close the lock.

AUTO SOUND CALIBRATION (ASC)

The ASC function measures the distance between the Air Track main unit, sub woofer, and your listening position and calibrates the volume levels and frequency characteristics of the main unit and sub woofer to provide optimum sound.

1.

Place the ASC Microphone at the listening position.

Please make sure to place the ASC mic on the actual listening point for precise adjustment.

DC 24V

ASC IN

2.

Connect the ASC Microphone to the

ASC IN

jack on the Air Track.

The Calibration starts automatically and takes about 2 minutes.

If you turn off the Air Track or unplug the ASC microphone before the completion message appears on the display, calibration will be cancelled and incomplete. If this occurs, plug the ASC microphone into the

ASC IN

jack again.

After calibration has been completed the first time, you can re-run the calibration process. Place the ASC microphone at the listening position, insert the ASC Microphone plug into the

ASC

IN

jack, and then select the ASC mode by pressing the

ASC

button on the remote control.

ASC microphone

During the ASC calibration, no other buttons work except the power button.

ASC will abort with an error if you change the set’s position in the middle of the ASC calibration.

12

CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE

HDMI is the standard digital interface for connecting to such devices as a TVs, projectors, DVD players, Blu-ray players, set top boxes, and more.

Because HDMI transmits the highest quality digital signal, you can enjoy superior video and audio - as it was originally created at the digital source.

DC 24V

ASC IN

HDMI Cable Digital Devices

HDMI Cable

HDMI IN

Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital devices.

and,

HDMI OUT (HDMI)

Connect an HDMI cable from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

HDMI transmits digital video and audio signals through a single cable.

13

connections

CONNECTING AN EXTERNAL DEVICE USING AUDIO (ANALOG)

CABLE OR OPTICAL (DIGITAL) CABLE

This unit comes equipped with one optical in digital jack and one audio analog in jack, giving you two ways to connect it to a TV.

DC 24V

ASC IN

Audio Cable

AUDIO

OUT

AUX IN

or

OPTICAL IN

OPTICAL

OUT

Optical Cable

(not supplied)

AUX IN

Connect AUX IN (Audio) on the main unit to the AUDIO OUT of the TV or Source Device.

Be sure to match connector colors.

BD/ DVD player/

Set-top box/ Game console

or,

OPTICAL IN

Connect the Digital Input on the main unit to the OPTICAL OUT of the TV or Source Device.

Do not connect the power cord of this product or your TV to the wall outlet until all connections between components are complete.

Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

ASSEMBLING THE CABLE CLIP

DC 24V

ASC IN

DC 24V

ASC IN

Attach the cable clip to the unit as shown, and then run the cables through the clip to keep them neat.

14

functions

INPUT MODE

You can select D.IN, AUX, HDMI, BT, TV input or USB input.

Press an appropriate button on the remote control to select a desired mode, or press repeatedly to select from

D.IN, AUX, HDMI, BT, TV or USB mode.

Input mode

Optical Digital input

AUX input

HDMI input

BLUETOOTH mode

TV mode

USB mode

Display

D.IN

AUX

HDMI

BT

TV

USB

TV

The unit turns off automatically in the following situations:

AUX

D.IN

SOURCE

USB

HDMI

BT

SOUND

SHARE

- If there is no audio signal for 20 minutes.

- If there is no KEY input for 8 hours when the AUX cable is connected.

- If the AUX cable is disconnected for 20 minutes.

Use the provided cable if you cannot connect a USB flash memory device directly to the unit.

ARC (HDMI OUT)

HDMI Cable

It can be enabled only when the Air Track is connected to a TV that supports the ARC function.

This function is not available if the HDMI cable does not support ARC.

The ARC function is activated in D.IN mode if you have connected the unit to a TV that supports ARC.

To turn off the ARC function, turn Anynet off.

15

16

functions

NFC

Connect your NFC compatible device via Bluetooth to the Air Track using this simple set-up procedure and play music on the device through the Air Track.

Bluetooth device

1.

Turn on the NFC function on the device and make sure the screen lock function on the device is off.

The device's NFC function will not work if screen lock is on.

2.

Gently touch the NFC logo on the front of the Air Track with the NFC supported device.

3.

A pop-up asking whether to proceed with the Bluetooth connection appears on the device. Select <

Yes

>.

When the connection is complete, the 'connected' message appears.

4.

To disconnect the NFC device, gently touch the device to the NFC logo on the front of the Air Track again. To connect another NFC device while the first device is still connected, touch the device to the NFC logo on the front of the Air Track. The Air Track will disconnect the first device and connect the second device.

Warning

: NFC pairing may not be successful if you do not place your NFC device on the Air Track correctly. If you see an "Empty tag" error message on your mobile device, you must gently touch your NFC device to the Air Track again and be sure you match the NFC location on your mobile device to the NFC logo on the Air Track exactly.

The NFC function is built into Android devices running Android OS 4.1.2 Jellybean or later.

-

If your mobile device has Android OS 4.1.2 Jellybean or later, it must also have an NFC tag to run the

NFC function. See the instructions of your device for details.

-

If your device has an Android OS earlier than Android OS 4.1.2 Jellybean, your device must have an

NFC tag and you must download the 'Samsung NFC Connection' application from Android market to run the NFC function.

The position of the NFC antenna differs on devices. Check where the NFC antenna is located before connecting.

If your device is covered with a thick case, the connection may not succeed.

The N-mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

BLUETOOTH

You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!

What is Bluetooth?

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

- A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Air Track.

- It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.

- It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

If the distance exceeds the Bluetooth operational range, the connection is lost.

automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.

To connect the Air Track to a Bluetooth device

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

Connect

Bluetooth device

1.

Press the

BT

button on the remote control of the Air Track to display the

BT

message.

The message

WAIT

appears at the very first Bluetooth activation after powering on. From the next activation,

BT READY

will appear.

2.

Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.)

3.

Select the Stereo headset menu on the Bluetooth device.

You will see a list of scanned devices.

4.

Select

"[Samsung] AirTrack"

from the list.

When the Air Track is connected to the Bluetooth device, it will display

BT CONNECTED

BT

on the front display.

If the Bluetooth device has failed to pair with the Air Track, delete the previous “[Samsung] AirTrack” found by the Bluetooth device and have it search for the Air Track again.

5.

Play music on the connected device.

You can listen to the music playing on the connected Bluetooth device over the Crystal Surround

Air Track system.

In BT mode, the Play/Repeat/Stop/Next/Prev functions are not available.

17

18

functions

You may be required to enter a PIN code (password) when connecting the Bluetooth device to the Air Track. If the PIN code input window appears, enter <0000>.

The Air Track only supports Middle Quality SBC data (up to [email protected]). It does not support High Quality SBC data ([email protected]).

The AVRCP feature is not supported.

Connect only to a Bluetooth device that supports the A2DP (AV) function.

You cannot connect to a Bluetooth device that supports only the HF (Hands Free) function.

Only one Bluetooth device can be paired at a time.

Once you have turned off Air Track and the pairing is disconnected, the pairing will not be restored automatically. To reconnect, you must pair the device again.

Search or connection may not be performed properly by Air Track in the following cases:

-

If there is a strong electrical field around the Air Track.

-

If several Bluetooth devices are simultaneously paired with Air Track.

-

If the Bluetooth device is turned off, not in place, or malfunctions.

-

Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.

To disconnect the Bluetooth device from the Air Track

You can disconnect the Bluetooth device from the Air Track. For instructions, see the Bluetooth device's user manual.

BT

DISCONNECTED

on the front display.

To disconnect the Air Track from the Bluetooth device

Press the ( ) button on the front panel of the Air Track to switch from BT to another mode or turn off the Air Track.

Track before terminating the connection. (Disconnection time may differ, depending on the

Bluetooth device)

In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the

Air Track and the Bluetooth device exceeds 16.25 ft. (5m).

If the Bluetooth device comes back into the effective range after disconnecting, you can restart the Air Track to restore the pairing with the Bluetooth device.

The Air Track automatically turns off after 20 minutes in the Ready state.

SOUNDSHARE

This section explains how to connect the Crystal Surround Air Track to a Bluetooth compatible SAMSUNG TV.

To connect the Crystal Surround Air Track to a Bluetooth compatible Samsung TV

Connect

Press the ( ) on the front panel of the Air Track or the Sound Share button on the remote to select the TV mode, and then connect the TV to the Crystal Surround Air Track.

will hear audio from the TV again.

<To pair to your TV>

To produce TV sound on your Air Track via a Bluetooth connection, you need to pair your system to the Bluetooth compliant TV first. Once the pairing is established, the pairing information is recorded and kept and no further Bluetooth connection message will appear. Bring the Air Track and the TV close together before pairing.

1.

Turn on the Samsung TV and Air Track.

Set Add New Device in the TV's SoundShare Setting menu to On.

2.

When you change the mode of the Air Track to

TV

, a message asking whether to proceed with

Bluetooth pairing is displayed. "[Samsung] AirTrack" appears on the TV screen.

3.

Select

<Yes>

on the TV screen. The pairing with the Air Track will be completed.

Once the pairing is established, when you change the Air Track to the TV mode from other input modes, it will automatically connect to the TV.

Changing the Air Track from TV mode to any other mode will cancel the SoundShare connection.

If you want to cancel the existing pairing of the SAT to a TV and pair your SAT to a different TV.

- Press the

PLAY /PAUSE

button on the SAT for 5 seconds in the TV input mode to cancel the existing pairing. You can now pair it to a different TV.

In the SoundShare mode, you can control the volume and mute using either the TV remote or the

SAT remote.

TV SoundShare operation range

-

recommended pairing range: within 20 inches (within 50cm)

-

recommended operation range: within 16.25 ft. (5m)

If the distance between the Air Track and Samsung TV is over 16.25 ft. (5m), the connection or the sound can be cut off. If this occurs, connect to the Bluetooth device again within the operational range.

Make sure the Samsung TV's SoundShare mode is on before you use this function.

The

PLAY

,

NEXT

,

PREV

,

STOP

buttons will not work in the SoundShare mode.

Bluetooth Standby On function

-

The Air Track will be powered on automatically when you turn the TV on if you connected the

TV and Air Track with SoundShare function.

-

You can toggle this function On/Off by pressing the

SoundShare

button for more than 5 seconds when the Air Track is powered off. If set to Off, the product turns off automatically when the TV turns off, but it does not turn on automatically.

-

This feature is supported by TVs released from 2013 on.

The SoundShare feature is supported by select models released from 2012 on. Check whether your TV supports SoundShare before you begin. (For more information, refer to the user's guide of your TV.)

19

functions

USB

1.

Connect the USB device to the USB port of the product.

2.

Press the ( ) button on the front panel of the Air Track repeatedly until

USB

appears.

3. USB

appears on the display screen and then disappears.

The Crystal Surround Air Track connection is complete.

The SAT automatically turns off (Auto Power Off) if no USB device has been connected for more than 20 minutes.

Playback will stop if you change the unit's position while playing files from a USB device.

Before you connect a USB device

Be aware of the following: characters, it is not displayed on the OLED.

storage media.

- The NTFS file system is not supported.

Otherwise, you may encounter a USB compatibility problem.

20

Format

*.mp3

*.wma

*.aac

*.wav

*.Ogg

*.Flac

Codec

MPEG 1 Layer2

MPEG 1 Layer3

MPEG 2 Layer3

Wave_Format_MSAudio1

Wave_Format_MSAudio2

AAC

AAC-LC

HE-AAC

-

OGG 1.1.0

FLAC 1.1.0, FLAC 1.2.1

Supporting Sampling Rate above 16KHz

USING THE REMOTE CONTROL

VT

DIMMER

TV

MUTE

TV

REPEAT

MUTE

TONE

Play/Pause/Stop

During playback, press the

►

,

button.

►

button again to stop playing the file temporarily.

Press the

►

button to play the selected file.

) button during playback.

Skip Forward/Back

During playback, press the

#

,

$

button.

When there is more than one file and you press the

$

button, the next file is selected.

#

button, the previous file is selected.

Using the REPEAT function

Repeat playback allows you to repeatedly play a file, repeat all, randomly play files, or turn Repeat off.

Press the

REPEAT

button.

REPEAT OFF :

Cancels Repeat Playback.

REPEAT FILE :

Repeat playing a track.

REPEAT ALL :

Repeat playing all tracks.

REPEAT RANDOM :

Plays tracks in random order. (A track that has already been played may be played again.)

You can set the REPEAT function during music playback from a

USB drive.

Muting the sound

This is useful when answering a doorbell or telephone call.

1.

To mute the sound of this unit, press the

MUTE

( ) button on the remote control.

2.

To mute the TV, press the

TV MUTE

button on the remote control.

3.

Press

MUTE

( )/

TV MUTE

on the remote control again (or press

VOLUME

/ ) to restore the sound.

Using the TONE function

Press

TONE

on the remote control.

TREBLE

MIDDLE

BASS

Use the VOL button to adjust the setting to -6 ~ +6.

Using the 3D SOUND PLUS function

The 3D Sound Plus feature adds depth and spaciousness to the sound.

Press

3D SOUND +

on the remote control.

Each time the button is pressed, the selection changes as follows :

3D SOUND PLUS OFF

3D SOUND PLUS MUSIC

3D SOUND PLUS

MOVIE

When you turn on 3D Sound Plus, the Sound Effect function will automatically change to STANDARD.

21

22

functions

TV

DRC

Using the SMART VOL function

This will regulate and stabilize the volume level against a drastic volume change caused by a channel change or scene transition.

Press

SMART VOL

on the remote control.

SMART VOLUME ON

SMART VOLUME OFF

Using the S/W LEVEL function

You can control the base volume with the

S/W LEVEL

button on the remote control.

1.

Press an

S/W LEVEL

button on the Remote control.

2. “SW 0”

appears on the display.

3.

Press or button on the

LEVEL

key if you want to increase or decrease the subwoofer volume. You can set it from SW -6 to SW +6.

Using the AUTO POWER LINK function

The Crystal Surround Air Track is automatically turned on when you turn on the TV or any device connected to the Air Track with the optical cable.

Press

AUTO POWER

on the remote control of this unit.

AUTO

POWER

.

AUTO POWER LINK

ON

OFF

Display

POWER LINK ON

POWER LINK OFF

If a TV or any device connected to Air Track with the optical cable is off and there is no digital input, the Air Track is turned off after 20 minutes.

These functions are available only when the Anynet+ (HDMI-CEC) is turned off.

Using the AUDIO SYNC function

Video may appear out of synch with the audio if the Air Track is connected to a digital TV. If this occurs, adjust the audio delay time to match the video.

Press

AUDIO SYNC /

on the remote control of this unit.

• , buttons to set the audio delay time between 0 ms and 300 ms.

In USB mode, TV mode or BT mode, the Audio Sync function may not work.

Using the DRC function

This feature balances the range between the loudest and quietest sounds.

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

Press

DRC

on the remote control of this unit.

Each time the button is pressed, the selection changes as follows :

DRC STANDARD

DRCMAX

DRCMIN

VT

DIMMER

TV

TV INFO

TV CH

TV SOURCE

TV VOL -

TV

MUTE

TV VOL +

VT

DIMMER

TV EXIT

TV CH

Using the VT DIMMER function

This feature controls the brightness of the VACUUM TUBE AMP.

Press

VT DIMMER

on the remote control of this unit.

VT DIMMER OFF

VT DIMMER MIN

VT DIMMER MAX

The VT DIMMER does not function for 30 seconds when you turned on the product for the very first time.

SPEAKER button

If a TV and the Air Track are connected via HDMI, this button lets you select between listening to audio through your TV or through the Air Track.

Press

SPEAKER

on the remote control of this unit.

AUDIO MODE SPEAKER

TV

HDMI IN

Air Track

ARC

TV

Air Track

Scroll Display

TV SPEAKER

AVR SPEAKER

TV SPEAKER

AVR SPEAKER

Display

TV SPK

HDMI

S MUTE

TV ARC

Using the Anynet+(HDMI-CEC) function

Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control.

The Anynet+ function turns on and off each time you press

Anynet+

.

1.

Connect the product to a Samsung TV with an HDMI cable. (See page 13)

2.

Set the Anynet+ function on your TV and the SAT to ON. (See the TV instruction manual for more information.)

Depending on your TV, certain HDMI output resolutions may not work.

Please refer to the user’s manual of your TV and check for the

logo (If your TV has an logo, then it supports the

Anynet+ function.)

Using the TV functions (with Samsung TVs only)

TV SOURCE

on the remote control to change the TV's input source.

TV INFO

on the remote control to display the TV channel information.

TV CH

on the remote control to select the TV channel.

TV VOL

on the remote control to increase or decrease the volume level.

TV EXIT

button. (It functions the same as the

EXIT button of the TV remote control.)

When you press the

SOUNDSHARE

button, the TV's sound is transmitted through the Air Track system via a Bluetooth connection. The Air Track also controls the sound volume, sound quality, etc.

The remote control can operate TVs made by SAMSUNG only.

23

24

functions

TV

MUSIC NEWS DRAMA

CINEMA SPORTS GAME

Using the Sound Effect function

You can select from 7 different sound modes - MUSIC, NEWS, DRAMA,

CINEMA, SPORTS, GAME and STANDARD (Original Sound) - depending on the type of sources you want to enjoy.

Press

MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME

on the remote control.

STANDARD

mode if you want to enjoy the original sound.

We recommend that you select a Sound Effect based on the source material and your personal taste.

When you choose a Sound Effect mode (except STANDARD), 3D

Sound Plus will automatically be turned OFF.

Once ASC calibration is completed, the ASC mode will be added.

SOFTWARE UPGRADE

Samsung may offer upgrades for the Crystal Surround Air Track's system firmware in the future.

If an upgrade is offered, you can upgrade the firmware by connecting a USB drive with the firmware upgrade stored on it to the

USB port on your Air Track.

Note that if there are multiple upgrade files, you must load them onto the USB drive singly and use them to upgrade the firmware one at a time.

Please visit Samsung.com or contact the Samsung call center to receive more information about downloading upgrades files.

Insert a USB drive containing the firmware upgrade into the USB port on the main unit.

Do not disconnect the power or remove the USB drive while upgrades are being applied. The main unit will turn off automatically after completing the firmware upgrade.

When software is upgraded, settings you have made will return to their default (factory) settings.

We recommend you write down your settings so that you can easily reset them after the upgrade.

Once the software upgrade is completed, turn off the product and then press and hold the (

) button for a while to reset the product.

If the firmware fails to upgrade, we recommend formatting the USB device in FAT16 and trying again.

For upgrading purposes, do not format the USB drive in NTFS format because it is not a supported file system.

Depending on the manufacturer, some USB devices may not be supported.

troubleshooting

Before requesting service, please check the following.

Symptom Check

The unit will not turn on.

the outlet?

A function does not work when the button is pressed.

Sound is not produced.

air?

to your TV?

Remedy

outlet.

connect it again.

cancel the function.

The Picture does not appear on a

TV when the function is selected.

• • Connect it correctly

The remote control does not work.

remote control and main unit too far?

The sound from the left/right channels are reversed.

cables from the TV connected properly?

and connect it/them correctly.

The SoundShare (TV pairing) failed.

SoundShare?

version?

connecting?

connect again.

some Samsung TVs released after 2012. Check your TV to see if it supports SoundShare.

firmware.

center.

►

button for 5 seconds to reset the product.

25

26

appendix

SPECIFICATIONS

Model name

HW-F850

GENERAL

AMPLIFIER

USB

Weight

Main unit

5V/0.5A

4.0 kg

Subwoofer (PS-WF850)

10.5 kg

Dimensions

(W x H x D)

Main unit

1182 x 126 x 57 mm

Subwoofer (PS-WF850)

305 x 401.5 x 305 mm

Operating temperature range

+5 °C to +35 °C

Operating humidity range

Rated output power

10 % to 75 %

Main Front

Main Top

50W/CH, 4OHM, THD = 1%, 1kHz

50W/CH, 4OHM, THD = 1%, 1kHz

Subwoofer (PS-WF850)

150W, 3OHM, THD = 10%, 100Hz

S/N ratio (analog input)

65 dB

Separation (1kHz)

65 dB

* S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES (Audio Engineering

Society) guidelines.

* Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

- For the power supply and Power Consumption, refer to the label attached to the product.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Area Contact Centre

Web Site

`

Asia Pacific

AUSTRALIA

NEW ZEALAND

CHINA

HONG KONG

1300 362 603

0800 SAMSUNG (0800 726 786)

400-810-5858

(852) 3698 4698

www.samsung.com/au/support

www.samsung.com/nz/support

www.samsung.com/cn/support

www.samsung.com/hk/support (Chinese)

www.samsung.com/hk_en/support (English)

INDIA

INDONESIA

JAPAN

MALAYSIA

PHILIPPINES

SINGAPORE

THAILAND

1800 3000 8282 - Toll Free

1800 266 8282 - Toll Free

30308282 - Non Toll Free

0800112888

021-56997777

0120-327-527

1800-88-9999

1-800-10-7267864 [PLDT]

1-800-8-7267864 [Globe landline and Mobile]

02-4222111 [Other landline]

1800-SAMSUNG(726-7864)

0-2689-3232,

1800-29-3232

0800-32-9999

1800 588 889

www.samsung.com/in/support

www.samsung.com/id/support

www.samsung.com/jp/support

www.samsung.com/my/support

www.samsung.com/ph/support

www.samsung.com/sg/support

www.samsung.com/th/support

www.samsung.com/tw/support

www.samsung.com/vn/support

TAIWAN

VIETNAM

`

MENA

U.A.E

OMAN

KUWAIT

BAHRAIN

QATAR

EGYPT

ALGERIA

PAKISTAN

TUNISIA

JORDAN

SYRIA

IRAN

MOROCCO

SAUDI ARABIA

800-SAMSUNG (726-7864)

800-SAMSUNG(726-7864)

183-2255 (183-CALL)

8000-4726

800-2255 (800-CALL)

08000-726786

16580

021 36 11 00

0800-Samsung (72678)

80-1000-12

0800-22273

06 5777444

18252273

021-8255

080 100 2255

920021230

444 77 11

www.samsung.com/ae/support (English)

www.samsung.com/ae_ar/support (Arabic)

www.samsung.com/eg/support

www.samsung.com/n_africa/support

www.samsung.com/pk/support

www.samsung.com/n_africa/support

www.samsung.com/Levant/support (English)

www.samsung.com/Levant/support (English)

www.samsung.com/iran/support

www.samsung.com/n_africa/support

www.samsung.com/sa/support

www.samsung.com/sa_en/support (English)

www.samsung.com/tr/support TURKEY

`

Africa

NIGERIA

Ghana

Cote D’ Ivoire

SENEGAL

CAMEROON

KENYA

UGANDA

TANZANIA

RWANDA

BURUNDI

DRC

SUDAN

SOUTH AFRICA

BOTSWANA

NAMIBIA

ZAMBIA

MOZAMBIQUE

0800-726-7864

0800-10077

0302-200077

8000 0077

800-00-0077

7095- 0077

0800 545 545

0800 300 300

0685 88 99 00

9999

200

499999

1969

0860 SAMSUNG (726 7864)

8007260000

08 197 267 864

0211 350370

847267864 / 827267864

www.samsung.com/africa_en/support

www.samsung.com/africa_fr/support

www.samsung.com/support

www.samsung.com/support

AH68-02655L-03 AH68-02655L-03

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
