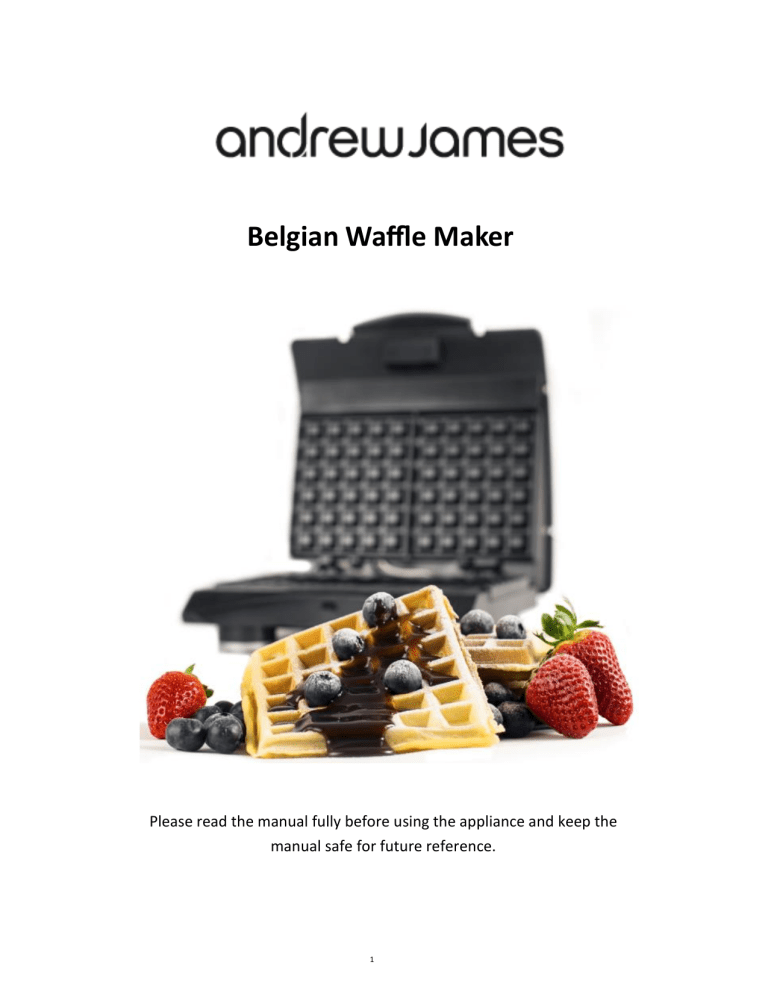

Belgian Waffle Maker
Please read the manual fully before using the appliance and keep the
manual safe for future reference.
1
Contents page
Safety instructions
Page 2
Components appliance diagram
Page 4
Before using the product
Page 5
How to use your waffle maker
Page 5
Basic waffle recipe
Page 6
Cleaning and maintenance
Page 6
Storing the appliance
Page 7
UK & EU Guarantee
Page 7
Disposal of the appliance
Page 8
Electrical information
Page 9
Contact details
Page 11
2
Safety instructions
When using any electrical appliance, basic safety precautions should always be
followed including:

This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they are older than 8 and
supervised. Keep the appliance and its cord out of reach of children less than
8 years old.

Always ensure the voltage on the rating label corresponds to the voltage in
your home.

Check the power cord and plug regularly for any damage. If the cord or the
plug is damaged, it must be replaced by a qualified electrician or a service
repair centre. If in doubt please contact our customer service team.

The appliance is intended for domestic use only. Industrial or commercial
use will void the warranty. The supplier cannot be held responsible for injury
or damage if the appliance has been used for anything other than its
intended use.

Incorrect operation and use can damage the appliance and cause injury to
the user.

Do not use the appliance if it has been dropped or damaged in any way. If
the unit has been damaged take the unit for examination and or repair by an
authorised service agent.

Do not immerse or expose the motor assembly, plug or the power cord in
water or any other liquid for any reason.

If the supply cord is damaged, it must be replaced by the manufacturer or by
someone who is suitably qualified to avoid a potential hazard.

Do not let the cord hang over the edge of a table or counter. Ensure that the
cord is not in a position where it can be pulled or tripped over accidentally.
3

Do not allow the cord to touch hot surfaces and do not place the cord near
hot gas, electric burners or in a heated oven.

Use of an extension cord with this appliance is not recommended. However
if it is necessary to use an extension cord, ensure that the extension cord is
equal to or greater than the power consumption of the appliance to avoid
overheating of the appliance and extension cord. Do not use any other
appliance on the extension cord. Do not place the extension cord in a
position where it can be pulled on by children or animals or be tripped over.

Always operate the appliance on a smooth, even and stable surface. Do not
place the unit on a hot surface.

Always remove the plug of the appliance safely. Do not pull on the
appliances cord to remove the appliance plug from the electrical socket.

Never handle or operate the appliance with wet hands.
Important safeguards

Always use the black plastic hand grip when opening the waffle maker.

Do not overfill the waffle maker as this may damage the product.

Do not use on or near gas appliances.

Position the unit in an open area as steam may be emitted from the
appliance when it is in use.

Demonstrate care when opening and closing the unit.

Warning: When the appliance is in use, the baking plates as well as the
metal parts of the top cover reach high temperatures, do not touch them.
4
Components appliance diagram
A.
Power on light RED
B.
Ready Light GREEN
C.
Handle for opening
D.
Baking plates
E.
Release button
5
Before using the product

Wipe both the interior and exterior with a slightly damp cloth or kitchen
paper.

To enhance the non-stick performance of the waffle maker plates, always
rub the plates with a little butter or margarine (suitable for frying).

When using the waffle maker for the first time it may emit a little smoke.
This is due to the plates curing and will stop after a short time.

There are two lights on the waffle maker. The red light indicates that the
power is on and the green light indicates that the unit is heating. When the
waffle maker has reached the correct cooking temperature, the green
“ready” light will go out. This light will cycle on and off whilst the appliance
is in use to keep a constant cooking temperature.

For best results, wait until the unit is up to the correct temperature (just as
the green light goes out) before adding the waffle mixture to the product.

Ensure the food Is thoroughly cooked all the way through before eating it.
How to use your waffle maker

Plug in the waffle maker in, the unit will automatically begin to pre-heat.

When the ready light goes out open the appliance and pour the batter
evenly onto the bottom plate. Make sure not to overfill the waffle plates as
the batter will flow over the edges of the plate.

Close the lid of the appliance and do not touch it during use.

Do not open the cover for the first minute.

Bake until golden brown, usually about 5-6 minutes.

Remove the waffles with a plastic or wood spatula. Never use any sharp
objects as they will damage the non-stick coating.

Before making more waffles wait for the green light on the waffle maker to
go out indicating that the appliance has reached its maximum operating
temperature.

When you have finished using the waffle maker unplug the cord from the
outlet and leave the appliance open to cool.
6
Basic waffle recipe
3
Free range eggs
150ml
Semi skimmed
milk
230g
Self raising flour
30g
Sugar
100g
Butter
Optional
Vanilla extract
Pinch of
Salt
Preparation
1.
Melt the butter and then allow it too cool completely.
2.
Whisk the eggs together.
3.
Mix the butter, sugar and milk together.
4.
Mix and fold in the flour to the mixture.
5.
Add the salt
6.
Once the waffle maker is at the correct temperature begin start cooking the
waffles.
Cleaning and maintenance

Always remember to unplug the unit from the electrical outlet when it is not
in use and before cleaning.

Let the unit cool down completely before cleaning.

The waffle plates are not removable, to clean the waffle plates first remove
pieces of food such as burnt on dough, use only soft tools for cleaning such
as plastic or wooden spoons, never use any baking oven sprays or sharp,
pointed or scouring cleaning materials, you can then clean the waffle plates
with hot water. Allow the housing and waffle plates to dry before storing.

The body of the appliance and the stand should be cleaned with a damp
cloth. Do not use bleach or other abrasive substances or solvents to clean
your appliance as It can be damaging to the finish.
7

Do not immerse the whole unit in water or any other liquid for any reason.

To remove stubborn spots/marks, wipe the surfaces with a cloth slight
dampened in soapy water or mild non-abrasive cleaner. Rinse and dry with
a clean, dry, soft cloth.
Storing the appliance

Unplug the unit from the wall outlet and clean all parts as instructed above.
Ensure that all parts are dry before storing.

Store the appliance in its box or in a clean, dry place.

Never store the appliance while it is still wet or dry.

Never wrap the power cord around the appliance.
UK and EU Guarantee
Your new Andrew James product comes with a 24 month guarantee and a 2 year
fixed warranty, effective from receipt confirmation. Your receipt or order number
is required as proof of purchase date so it is imperative that you keep it safe. This
guarantee only applies if the item has been used solely for the use intended, and
all instructions have been followed accordingly. Please note this product is only for
domestic use only and is not for commercial use.
Abuse of your product will invalidate the guarantee. Returned goods can only be
accepted if repackaged properly within the original colour product box, and
presented with the original receipt of sale/order number. This does not affect your
statutory rights.
Returned products must be cleaned and returned to us in as close to delivery
condition as possible.
If your product develops a problem within the first 12 months of the fixed
warranty, we will pay all shipping costs to have it returned to us. After 12 months
the customer will be liable for the cost of returning the product to us. We will then
pay to have the repaired/replaced item shipped back to the customer.
If you wish to return your item for a full refund, you have the right to do so within
the first 7 days. For our returns policy please go to
www.andrewjamesworldwide.com
Customers are responsible for any taxes applied to our products when they are
8
shipped outside of the EU.
All of our prices are inclusive of VAT.
Once a product has been returned to us, we will aim to repair or replace it within 30
days of receipt.
The guarantee does not cover any defect arising from improper use, damage, buildup of lime scale or repair attempts made by third-parties. Also, the guarantee does
not cover normal wear and tear of individual parts.
Disposal of the appliance
Please note that this Andrew James product is marked with this Symbol:
This means that this product must not be disposed of together with
ordinary household waste, as electrical and electronic waste must be
disposed of separately.
In accordance with the WEEE directive, every member state must ensure correct
collection, recovery, handling and recycling of electrical and electronic waste.
Private households in the E.U. can take used equipment to special recycling stations
free of charge. In certain member states used apparatus can be returned to the
dealer where they were bought on the condition you buy new products. Contact
your retailer, distributor or the municipal authorities for further information on
what you should do with electrical and electronic waste.
9
Electrical Information
Please note:
It is extremely important that the wires or cores in the flex are connected to the
correct terminals in the plug. If the colour of the mains lead of the appliance does
not correspond with the coloured markings identifying the terminals in your plug
proceed as follows:

The Live (Brown) wire
connects to the rightmost live (L) terminal
nearest to the fuse.

The Neutral (Blue) wire
connects to the left-most
neutral (N) terminal.

The Earth (Green and
Yellow) wire connects to
the central, top most
earthed (E) terminal.
Warning:
If the appliance is double
insulated indicated by the
double insulated symbol:
it should not have an earth wire or earth connection.
Plug
The plug must be protected by the correct AMP fuse; this will be indicated on the
case of the plug. Only BSI or ASTA approved fuses should be used. When changing
the fuse always replace it with a fuse that is of the same identical rating as the
original. If you are unsure about which plug or fuse to use, always refer to a
qualified electrician.
Please note after replacing the fuse, ensure that the cover is correctly fitted back
onto the plug. Never attempt to run the appliance if the plug does not have a cover.
If a moulded plug is fitted and has to be removed take great care in disposing of the
10
plug and severed cable, it must be destroyed to prevent it from engaging into a
socket. If the supply cord is damaged it must be replaced by a service agent or a
similarly qualified person in order to avoid a hazard.
All of our electrical appliances conform to pre-existing EC Directives 2006/95/EC
(Low Voltage Directive) and 2004/108/EC (EMC Directives).
For further information please visit http://www.esc.org.uk/industry/productsafety/product-testing-screening/kitchen-appliances/
Copyright Andrew James
11
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
