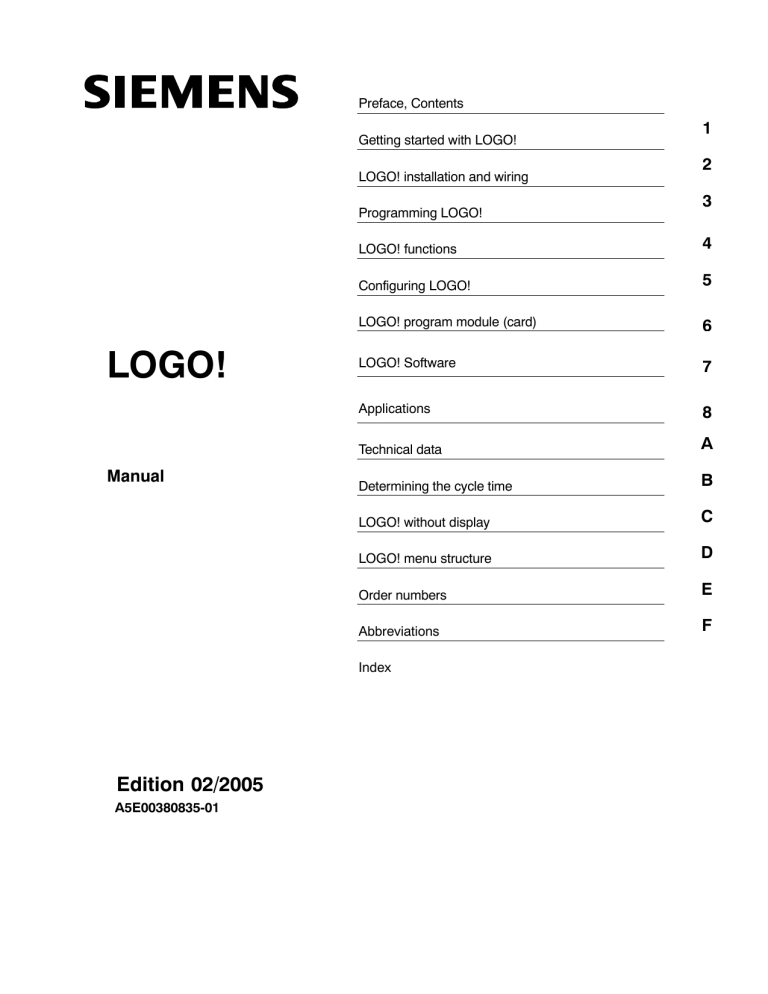

Siemens LOGO! User manual

Siemens LOGO! User manual

LOGO!

Manual

Preface, Contents

Getting started with LOGO!

LOGO! installation and wiring

Programming LOGO!

LOGO! functions

Configuring LOGO!

LOGO! program module (card)

LOGO! Software

Applications

Technical data

Determining the cycle time

LOGO! without display

LOGO! menu structure

Order numbers

Abbreviations

Index

Edition 02/2005

A5E00380835-01

6

7

D

E

F

B

C

8

A

1

2

3

4

5

Safety Guideline s

This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring to property damage only have no safety alert symbol. The notices shown below are graded according to the degree of danger.

!

Danger

indicates that death or severe personal injury will result if proper precautions are not taken.

!

Warning

indicates that death or severe personal injury may result if proper precautions are not taken.

!

Caution

with a safety alert symbol indicates that minor personal injury can result if proper precautions are not taken.

Caution

without a safety alert symbol indicates that property damage can result if proper precautions are not taken.

Attention

indicates that an unintended result or situation can occur if the corresponding notice is not taken into account.

If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to property damage.

Qualified Personnel

The device/system may only be set up and used in conjunction with this documentation. Commissioning and operation of a device/system may only be performed by qualified personnel. Within the context of the safety notices in this documentation qualified persons are defined as persons who are authorized to commission, ground and label devices, systems and circuits in accordance with established safety practices and standards.

Prescribed Usage

Note the following:

!

Warning

This device and its components may only be used for the applications described in the catalog or the technical description, and only in connection with devices or components from other manufacturers which have been approved or recommended by Siemens.

Correct, reliable operation of the product requires proper transport, storage, positioning and assembly as well as careful operation and maintenance.

Trademarks

All names identified by

are registered trademarks of the Siemens AG. The remaining trademarks in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.

Copyright Siemens AG 2004 All rights reserved

The distribution and duplication of this document or the utilization and transmission of its contents are not permitted without express written permission. Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved

Siemens AG

Automation and Drives

Postfach 4848, D-90327 Nuernberg

Siemens Aktiengesellschaft

Disclaim of Liability

We have reviewed the contents of this publication to ensure consistency with the hardware and software described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the information in this publication is reviewed regularly and any necessary corrections are included in subsequent editions.

Siemens AG 2004

Technical data subject to change.

A5E00380835-01

Preface

Dear customer

We thank you for purchasing LOGO! and congratulate you on your decision. With LOGO! you have acquired a logic module that meets the stringent quality requirements of ISO 9001.

LOGO! can be used in many fields of applications. Due to its high functionality and yet easy operation the LOGO! offers you highly efficient economies for almost any application.

Purpose of this manual

This LOGO! manual provides you with information about the creation of circuit programs, about the installation and use of LOGO!

0BA5 devices and expansion modules, and about their compatibility with the previous 0BA0-0BA4 versions (0BAx are the last four characters of the order number and differentiate the device series).

LOGO!’s place in information technology

The wiring information in your LOGO! manual is also found in the

LOGO! Product Info included with all devices. For further information on programming the LOGO! on your PC, refer to the Online

Help for LOGO!Soft Comfort.

LOGO!Soft Comfort is the programming software for PCs. It runs under Windows , Linux , Mac OS X and helps you to get started with LOGO! and to write, test, print out and archive your programs, independent of the LOGO! .

Guide

We have divided this manual into 9 chapters:

Getting started with LOGO!

LOGO! installation and wiring

Programming LOGO!

LOGO! functions

Configuring LOGO!

LOGO! program module (card)

LOGO! software

Applications

Appendix

LOGO! Manual

A5E00380835-01 i

Preface

Valid range of this manual

The manual applies to devices of series 0BA5.

Changes compared to previous releases of the manual

The digital modules LOGO! DM16 24, DM16 24R and DM16

230R were added.

The analog module LOGO! AM 2 AQ was added.

The communication modules CM EIB/KNX and CM AS interface were added.

Description of changes and new features of the series 0BA5 devices.

Main differences compared to previous devices (0BA0 to 0BA4)

Display contrast may be changed

Default setting for the start screen may be changed

New features of the current devices (0BA5)

The “Analog ramp” special function enables you to use a two-step speed control.

The “Analog multiplexer” special function enables you to select

1 of 4 analog values to be output.

The “PI controller” special function enables you to use a PI controller function.

Additional support

At our Internet address http://www.siemens.com/logo you can quickly and easily find answers to your queries about

LOGO!.

You can reach Technical Support as follows:

Phone:

Fax:

E-Mail:

+49 (0)180 5050-222

+49 (0)180 5050-223 [email protected]

ii

LOGO! Manual

A5E00380835-01

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1 Getting started with LOGO!

. . . . . .

2 LOGO! installation and wiring . . . .

2.1

Setup of the modular LOGO!

2.1.1

Maximum setup

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.2

Setup with different voltage classes

2.1.3

Compatiblity

. . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2

Installing/removing LOGO!

2.2.1

DIN rail mounting

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.2

Wall-mounting

2.2.3

Labeling LOGO!

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3

Wiring the LOGO!

2.3.1

2.3.3

2.3.5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connecting the power supply

2.3.2

Connecting LOGO! inputs

Connecting outputs

2.3.4

Connecting the EIB bus

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

Connecting the AS interface bus . . . . . . . . . . . . . . . .

2.4

Putting into operation

2.4.1

Switching on the LOGO!/Power On

2.4.2

Putting into operation of CM EIB/KNX

2.4.3

Operating states

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . .

. . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Programming LOGO! . . . . . . . . . . . .

3.1

Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2

EIB inputs/outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3

Blocks and block numbers . . . . . . . . . . . . . . . . . . . . .

3.4

The way to LOGO!, starting with the circuit diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5

The four golden rules for operating LOGO!

3.6

Overview of LOGO! menus

. . . . . .

. . . . . . . . . . . . . . . . . . . . .

15

30

30

32

40

42

43

46

46

49

49

23

24

28

29

19

19

20

22

53

55

58

60

1 i

63

66

68

LOGO! Manual

A5E00380835-01 iii

Contents

3.7

Writing and starting the circuit program

3.7.1

Selecting programming mode

. . . . . . . . .

. . . . . . . . . . . . . . . . . . .

3.7.2

The first circuit program

3.7.3

Circuit program input

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

3.7.4

Assigning a circuit program name

3.7.5

Password

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7.6

Switching LOGO! to RUN mode

3.7.7

Second circuit program

. . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

3.7.8

Deleting a block

3.7.9

. . . . . . . . . . . . . . . . . . . . .

3.7.13 Summertime/wintertime conversion

3.7.14 Synchronization

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Deleting block groups . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7.10 Correcting typing errors . . . . . . . . . . . . . . . . . . . . . . . .

3.7.11 Selecting analog output values for

RUN/STOP transition . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7.12 Deleting the circuit program

. . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.8

Memory space and circuit dimensions . . . . . . . . . . .

4 LOGO! functions . . . . . . . . . . . . . . . .

4.1

Constants and connectors – Co . . . . . . . . . . . . . . . . .

4.2

Basic functions list – GF

4.2.1

AND

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2.2

AND with edge evaluation

4.2.3

NAND (NOT AND)

. . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2.4

NAND with edge evaluation

4.2.5

OR

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2.6

NOR (NOT OR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2.7

XOR (exclusive OR)

4.2.8

. . . . . . . . . . . . . . . . . . . . . . . . . . .

NOT (Negation, Inverter) . . . . . . . . . . . . . . . . . . . . . . .

4.3

Basics on special functions

4.3.1

Designation of the inputs

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

4.3.2

Time response

4.3.3

4.3.4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Backup of the real-time clock

Retentivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.3.5

Parameter protection

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

4.3.6

Calculating the gain and offset of analog values . . .

4.4

Special functions list – SF

4.4.1

On-delay

4.4.2

Off-delay

. . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv

111

112

115

117

118

119

120

121

122

123

123

124

125

126

127

128

128

129

132

136

140

96

97

98

103

106

LOGO! Manual

A5E00380835-01

78

79

84

87

69

69

71

72

93

94

95

4.4.3

On-/Off-delay

4.4.4

4.4.5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Retentive on-delay . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiping relay (pulse output)

4.4.6

Edge triggered wiping relay

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

4.4.7

Asynchronous pulse generator

4.4.8

Random generator

4.4.9

Stairway lighting switch

. . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4.10 Multiple function switch

4.4.11 Weekly timer

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4.12 Yearly timer

4.4.13 Up/down counter

4.4.14 Hours counter

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4.15 Threshold trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4.16 Analog threshold trigger

4.4.17 Analog differential trigger

4.4.18 Analog comparator

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4.19 Analog value monitoring . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4.20 Analog amplifier

4.4.21 Latching relay

4.4.22 Pulse relay

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.4.23 Message texts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4.24 Softkey

4.4.25 Shift register

4.4.26 Analog Multiplexer

4.4.27 Analog Ramp

4.4.28 PI controller

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 Configuring LOGO!

. . . . . . . . . . . . . .

5.1

Selecting parameter assignment mode

5.1.1

Parameters

. . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.1.2

Selecting the parameters

5.1.3

Modifying parameters

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

5.2

Setting the default values for LOGO!

5.2.1

5.2.2

5.2.3

Setting the display contrast

Setting the start screen

. . . . . . . . . . . .

Setting the time-of-day and date (LOGO! ... C) . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

Contents

233

234

236

237

238

241

241

243

244

161

166

169

173

178

181

184

188

142

144

146

148

151

153

155

158

193

196

198

199

202

209

213

216

220

225

LOGO! Manual

A5E00380835-01 v

Contents

6 LOGO! program module (card) . . .

6.1

Security function (CopyProtect) . . . . . . . . . . . . . . . . .

6.2

Inserting and removing the program module (card)

6.3

Copying data from the LOGO! to the program module (card) . . . . . . . . . . . . . . . . . . .

6.4

Copying data from the program module (card) to LOGO!

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 LOGO! Software . . . . . . . . . . . . . . . . .

7.1

Connecting the LOGO! to a PC . . . . . . . . . . . . . . . . . .

8 Applications . . . . . . . . . . . . . . . . . . . .

245

247

250

252

254

257

260

263

vi

LOGO! Manual

A5E00380835-01

Contents

Appendix

A Technical data . . . . . . . . . . . . . . . . . . 267

A.1

General technical data . . . . . . . . . . . . . . . . . . . . . . . . .

A.2

Technical data: LOGO! 230...

. . . . . . . . . . . . . . . . . . . .

267

270

A.3

Technical data: LOGO! DM8 230R and LOGO! DM16 230R .

273

A.4

Technical data: LOGO! 24...

. . . . . . . . . . . . . . . . . . . . . 276

A.5

Technical data: LOGO! DM8 24 and LOGO! DM16 24 . . . . . .

279

A.6

Technical data: LOGO! 24RC...

. . . . . . . . . . . . . . . . . . 282

A.7

Technical data: LOGO! DM8 24 R and LOGO! DM16 24 R . .

285

A.8

Technical data: LOGO! 12/24... and

LOGO! DM8 12/24R . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288

A.9

Switching capacity and service life of the relay outputs . . .

291

A.10 Technical data: LOGO! AM 2 . . . . . . . . . . . . . . . . . . . .

A.11 Technical data: LOGO! AM 2 PT100 . . . . . . . . . . . . .

292

293

A.12 Technical data: LOGO! AM 2 AQ

A.13 Technical data: CM EIB/KNX

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

A.14 Technical data: LOGO!Power 12 V

A.15 Technical data: LOGO!Power 24 V

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . .

A.16 Technical data: LOGO! Contact 24/230 . . . . . . . . . . .

295

296

298

300

302

B Determining the cycle time . . . . . . . 303

C

D

E

LOGO! without display

LOGO! menu structure

Order numbers

. . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . . . . . . . . . . . .

305

309

311

F Abbreviations

Index

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

313

315

LOGO! Manual

A5E00380835-01 vii

Contents

viii

LOGO! Manual

A5E00380835-01

Getting started with LOGO!

Which communication modules are available?

LOGO! communication module (CM) AS interface, that is described in more detail in a separate documentation.

The communication module has four virtual inputs and outputs, and acts as an interface between an

AS-Interface system and a LOGO! system. The module enables four data bits to be transferred from the

LOGO! Basic to the AS-Interface system and vice versa.

LOGO! communication module (CM) EIB/KNX, that is described in more detail in a separate documentation.

CM EIB/KNX is a communication module (CM) for connecting the LOGO! to the

EIB

. It is implemented as a slave module for the logic module LOGO! (12/24 or

115/240 V).

The CM EIB/KNX is a bus device on the

EIB

and enables the LOGO! to communicate with other EIB devices through the exchange of EIB data points.

It transfers EIB data points to the LOGO! and LOGO!

functions to the

EIB

.

CM EIB/KNX makes the current states of the configured

EIB data points available to the LOGO! so that it is able to link them with its logic functions and timing elements.

The EIB data points can thus also be linked with those of the local LOGO! inputs and outputs. The CM

EIB/KNX then transfers each change in the status of the output signals on the

EIB

.

The combination of the LOGO! and CM EIB/KNX provides the user with a distributed controller functionality for the EIB with the possibility of carrying out settings or modifying parameters or logic operations quickly, simply and without a programming device.

It’s your choice

The various LOGO! Basic versions, expansion modules and communication modules offer you a highly flexible and adaptive system to suit your specific tasks.

LOGO! Manual

A5E00380835-01

3

Getting started with LOGO!

The LOGO! system offers you many solutions such as for small domestic installations, simple automation tasks, and even complex engineering tasks involving its integration into a bus system (e.g. communication module AS interface).

Note

LOGO! Basic may only be equipped with expansion modules of the same voltage class. Mechanical encoding pins in the housing prevent you from connecting devices of a different voltage class.

Exception: The left-hand interface of an analog module or communication module is galvanically isolated.

This type of expansion module can therefore be connected to devices of a different voltage class.

See also Chapter 2.1.

Each LOGO! Basic provides the following connections for the creation of the circuit program, regardless of the number of connected modules:

Digital inputs I1 to I24

Analog inputs AI1 to AI8

Digital outputs Q1 to Q16

Analog outputs AQ1 and AQ2

Digital flag blocks M1 to M24, M8: Startup flag

Analog flag blocks AM1 to AM6

Shift register bits S1 to S8

4 cursor keys

16 blank outputs X1 to X16.

4

LOGO! Manual

A5E00380835-01

Getting started with LOGO!

The LOGO! structure

1

L1 N I1 I2 I3 I4

2

I5 I6 I7 I8

4

6

5

8

10

9

Q2

3

72

Q3 Q4

8

9

2

1

L1 N I1 I2 I3 I4

11

7

RUN/STOP

Q2

55

8

10

3

4

1

2

Power supply

Inputs

Outputs

Module slot with cap

3

36 53

5

6

7

Control panel

(not for RCo)

LCD

(not for RCo)

RUN/STOP indicator

8

Expansion interface

9

10

11

Mechanical coding pins

Mechanical coding sockets

Slide

LOGO! Manual

A5E00380835-01

5

Getting started with LOGO!

2

1

L+ M I1 I2 I3 I4 I5 I6 I7 I8

4

6

5

8

10

9

3

4

1

2

Power supply

Inputs

Outputs

Module slot with cap

Q2

3

72

Q3 Q4

8

9

2

1

L+ M I1 I2 I3 I4

11

7

RUN/STOP

55

8

10

3

36

Q2

Q4

53

5

6

7

Control panel

(not for RCo)

LCD

(not for RCo)

RUN/STOP indicator

8

9

10

11

Expansion interface

Mechanical coding pins

Mechanical coding sockets

Slide

6

LOGO! Manual

A5E00380835-01

7

1

2

3

Power supply

Inputs

Outputs

6

7

Getting started with LOGO!

2

1

L+ M I1 I2 I3 I4 I5 I6 I7 I8

5

4

RUN/STOP

6

8

1

Q1

2 1

Q2

2 1

Q3

2 1

1

Q5

2 1

Q6

2 1

Q7

2 1

2

Q8

2

4

5

6

3

72

RUN/STOP indicator

Slide

Expansion interface

7

8

53

Mechanical coding pins

Mechanical coding sockets

LOGO! AM 2

9

8

9

L+ M

1

L+ M

11

7

RUN/STOP

12

PE

INPUT2x(0..10V/0..20mA)

I1 M1 U1 I2 M2 U2

1

2

7

8

Power supply

Inputs

RUN/STOP indicator

Expansion interface

9

10

11

2

36

Mechanical coding pins

Mechanical coding sockets

Slide

8

10

12

53

PE terminal, for connecting earth and the shielding of analog measuring cables.

LOGO! Manual

A5E00380835-01

7

Getting started with LOGO!

LOGO! AM 2 AQ

9

1

8

9

L+ M

1

L+ M

11

7

RUN/STOP

12

PE

OUTPUT 2x (0 ..10V)

V1+ M1 V2+ M2

1

2

7

8

Power supply

Inputs

RUN/STOP indicator

Expansion interface

LOGO! CM EIB/KNX

9

8

9

10

11

2

36

Mechanical coding pins

Mechanical coding sockets

Slide

9

1

L+ M

1

11

7

12

RUN/STOP

BUS

Prog.

+ –

1

2

7

Power supply

EIB

bus connection

RUN/STOP indicator, communication with the

LOGO!

8

9

10

11

2 13

36

Expansion interface

Mechanical coding pins

Mechanical coding sockets

Slide

8

12

53

PE terminal, for connecting earth

8

10

10

12

13

53

LED for status display of EIB/KNX

Programming button

8

LOGO! Manual

A5E00380835-01

Getting started with LOGO!

How to identify the LOGO!

The LOGO! identifier informs you of various properties:

12: 12 V DC version

24: 24 V DC version

230: 115...240 V AC version

R: Relay outputs (without R: solid-state outputs)

C: Integrated Weekly timer o: Version without display (“LOGO! Pure”)

DM: Digital module

AM: Analog module

CM: Communication module (e.g. EIB/KNX module)

Symbols

Version with display unit is equipped with 8 inputs and

4 outputs

Version without display unit is equipped with 8 inputs and

4 outputs

The digital module is equipped with 4 digital inputs and

4 digital outputs

The digital module is equipped with 8 digital inputs and

8 digital outputs

The analog module is equipped with 2 analog inputs resp. two analog outputs

The communication module (CM) is equipped with e.g.

4 virtual inputs and 4 virtual outputs (AS interface)

LOGO! Manual

A5E00380835-01

9

Getting started with LOGO!

Versions

The following LOGO! versions are available:

Symbol Designation

LOGO! 12/24 RC

LOGO! 24

LOGO! 24RC

(3)

LOGO! 230RC

(2)

Supply voltage

12/24 V

DC

24 V DC

24 V AC/

24 V DC

115...240 V

AC/DC

12/24 V

DC

Inputs Outputs

8 digital

(1)

4 relays

(10 A)

8 digital

(1)

4 solid state

24V / 0.3A

8 digital 4 relays

(10A)

8 digital 4 relays

(10A)

8 digital

(1)

4 relays

(10A)

Properties

no clock

LOGO! 12/24RCo no display unit no keyboard

LOGO! 24o 24 V DC 8 digital

(1)

4 solid state

24 V / 0.3A

no display unit no keyboard no clock

LOGO! 24RCo

(3)

24 V AC /

24 V DC

8 digital 4 relays

(10A) no display unit no keyboard

LOGO! 230RCo

(2)

115...240 V

AC/DC

8 digital 4 relays

(10A) no display unit no keyboard

(1): Of those can be used alternatively: 2 analog inputs (0 ... 10V) and 2 fast inputs.

(2): 230 V AC versions: Two groups consisting of 4 inputs each. Each group must be connected to the same phase. It is possible to interconnect groups with a different phase.

(3): The digital inputs can be operated with P or N action.

10

LOGO! Manual

A5E00380835-01

Getting started with LOGO!

Expansion modules

The following expansion modules can be connected to the

LOGO!:

Symbol Name Power supply

LOGO! DM 8 12/24R 12/24 V DC

LOGO! DM 8 24 24 V DC

LOGO! DM 8 24R

(3)

LOGO! DM 8 230R

LOGO! DM 16 24

Inputs

4 digital

4 digital

24 V AC/DC 4 digital

115...240 V AC/DC 4 digital

(1)

24 V DC 8 digital

Outputs

4 relays (5A)

4 solid state

24V / 0.3A

4 relays (5A)

4 relays (5A)

8 solid state

24V / 0.3A

8 relays (5A)

8 relays (5A)

LOGO! DM 16 24R 24 V DC 8 digital

LOGO! DM 16 230R 115...240 V AC/DC 8 digital

(4)

LOGO! AM 2 12/24 V DC

LOGO! AM 2 PT100 12/24 V DC

2 analog

0 ... 10V or 0

... 20mA

(2)

2 Pt100

–50 ° C to

+200 ° C none none none

LOGO! AM 2 AQ 24 V DC 2 analog

0 ... 10 V DC

(1): Different phases are not allowed within the inputs.

(2): 0 ... 10 V, 0 ... 20 mA can be connected optionally.

(3): Digital inputs can be operated either with P or with N action.

(4): Two groups consisting of 4 inputs each. Each group must be connected to the same phase. It is possible to interconnect groups with a different phase.

LOGO! Manual

A5E00380835-01

11

Getting started with LOGO!

Communication modules

The following communication modules can be connected to the LOGO!:

Symbol Outputs Name

LOGO! CM AS Interface

Power supply

24 V DC

Inputs

4 virtual digital inputs (Q n

... Q n+3 of LOGO! Basic)

4 virtual digital outputs (I n

... I n+3 of LOGO! Basic)

LOGO! CM EIB/KNX 24 V AC/DC max. 16 virtual digital inputs (I)

; max. 8 virtual analog inputs (AI) max. 12 virtual digital outputs (Q)

; max. 2 virtual analog outputs

(AA)

Certification and approvals

LOGO! is certified to cULus and FM.

cULus Haz. Loc.

Underwriters Laboratories Inc. (UL) to

– UL 508 (Industrial Control Equipment)

– CSA C22.2 No. 142 (Process Control Equipment)

– UL 1604 (Hazardous Location)

– CSA-213 (Hazardous Location)

APPROVED for use in

Class I, Division 2, Group A, B, C, D Tx

Class I, Zone 2, Group IIC Tx

FM Approval

Factory Mutual Research (FM) to

Approval Standard Class Number 3611, 3600, 3810

APPROVED for use in

Class I, Division 2, Group A, B, C, D Tx

Class I, Zone 2, Group IIC Tx

Note

You will find current approvals on the rating plate of the relevant module.

12

LOGO! Manual

A5E00380835-01

Getting started with LOGO!

!

Warning

Risk of personal injury and material damage.

In potentially explosive atmospheres, there is a risk of personal injury or damage to material if you disconnect connectors when the system is in RUN.

In potentially explosive atmospheres, always switch off the power supply to LOGO! and its components before you disconnect any connectors.

LOGO! is issued with the CE Certificate of Conformity. It is compliant with VDE 0631 and IEC 61131-2 and interference-proof to EN 55011, Limit Class B.

Marine certification has been requested.

ABS (American Bureau of Shipping)

BV (Bureau Veritas)

DNV (Det Norske Veritas)

GL (Germanischer Lloyd)

LRS (Lloyds Register of Shipping)

Class NK (Nippon Kaiji Kyokai)

LOGO! is therefore suitable for use both in industry and in the domestic area.

ID for Australia

Our products carrying the label shown at the side are compliant with AS/NZS 2064:1997 (Class A) standard.

Recycling and Disposal

LOGO! units can be fully recycled, due to their low-pollutant equipment. Contact a certified electronic waste disposal center for environmentally acceptable recycling and disposal of your old devices.

LOGO! Manual

A5E00380835-01

13

Getting started with LOGO!

14

LOGO! Manual

A5E00380835-01

2 LOGO! installation and wiring

General guidelines

Please note the following guidelines for installing and wiring your LOGO! :

Always ensure that the wiring of your LOGO! is compliant with current rules and standards. Also, conform with all national and regional regulations when you install and operate the devices. For information on standards and regulations that apply to your specific case, contact your local authorities.

Make sure that the device is de-energised.

Always use cables with appropriate conductor cross-sections for the relevant current. You can wire the

LOGO! with cable conductor cross-sections from

1.5 mm

2

to 2.5 mm

2

; see Chapter 2.3.

Only use approved bus cables.

Do not exceed the screw torque of the terminals. The maximum torque is: 0.5 N/m, see Chapter 2.3.

Keep the cabling as short as possible. If longer cables are necessary, you should use shielded versions. You should always route your cables in pairs: i.e. one neutral conductor plus one phase conductor or signal line.

Always keep separate:

– The AC wiring

– High-voltage DC circuits with high-frequency switching cycles

– Low-voltage signal wiring.

– The EIB bus cable may also be laid in parallel to other cables.

Ensure that the wires are installed with appropriate strain relief.

Provide a suitable lightning surge arrester for cables installed in hazardous areas.

LOGO! Manual

A5E00380835-01

15

LOGO! installation and wiring

Do not connect an external power supply in parallel to the output load of a DC output. This could develop a reverse current at the output if you have not installed a diode or similar barrier device.

The CM EIB/KNX must have its own power supply

(24 V).

Reliable functioning of the equipment is only ensured with certified components!

Note

LOGO! units may only be installed and wired by skilled personnel who are familiar with and follow general engineering rules and relevant regulations and standards.

What you must note when installing

LOGO! is designed for fixed and enclosed installation in the housing or the control cabinet.

!

Warning

Open facilities

Death, serious bodily injury or considerable damage to property can occur.

Modules of a LOGO! are open facilities. This means you must install LOGO! only in a housing or cabinet.

Access to the housings or cabinets must only be possible by using a key or a tool and only authorized or approved personnel may be allowed access.

It is permissible to operate LOGO! from its front at any time.

16

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

Safety of electronic control equipment

Introduction

The notes below apply regardless of the type or manufacturer of the electronic control.

Reliability

Maximum reliability of LOGO! devices and components is achieved by implementing extensive and cost-effective measures during development and manufacture.

This includes the following:

Use of high-quality components;

Worst-case design of all circuits;

Systematic and computer-aided testing of all components;

Burn-in of all large-scale integrated circuits (e.g.

processors, memory, etc.);

Measures preventing static charge when handling MOS

ICs;

Visual checks at different stages of manufacture;

Continuous heat-run test at elevated ambient temperature over a period of several days;

Careful computer-controlled final testing;

Statistical evaluation of all returned systems and components to enable the immediate initiation of suitable corrective measures;

Monitoring of major control components, using on-line tests (cyclic interrupt for the CPU, etc.).

These measures are referred to as basic measures.

Carrying out tests

You must, however, ensure safety in your plant.

Before finally commissioning a system you should carry out complete functional testing as well as all necessary safety testing.

Also include in testing any predictable faults that can occur.

This means that you will avoid any danger to the plant or to people in it during operation.

LOGO! Manual

A5E00380835-01

17

LOGO! installation and wiring

Risks

In all cases where the occurrence of failures can result in material damage or injury to persons, special measures must be taken to enhance the safety of the installation and therefore also of the situation. System-specific and special regulations exist for such applications. They must be observed on installing the control system (e.g. VDE

0116 for burner control systems).

For electronic control equipment with a safety function, the measures that have to be taken to prevent or rectify faults are based on the risks involved in the installation. As of a certain degree of hazard the basic measures mentioned above are no longer sufficient. Additional measures must be implemented and approved for the controller.

Important information

The instructions in the operating manual must be followed exactly. Incorrect handling can render measures intended to prevent dangerous faults ineffective, or generate additional sources of danger.

18

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

2.1 Setup of the modular LOGO!

2.1.1 Maximum setup

Maximum setup of a LOGO!

with

analog inputs

(LOGO! 12/24 RC/RCo and LOGO! 24/24o)

LOGO! Basic, 4 digital modules and 3 analog modules

I1......I6, I7, I8

AI1, AI2

LOGO! Basic

I9...I12 I13...I16 I17...I20

LOGO!

DM 8

LOGO!

DM 8

LOGO!

DM 8

I21...I24

LOGO!

DM 8

AI3, AI4 AI5, AI6 AI7, AI8

LOGO!

AM 2

LOGO!

AM 2

LOGO!

AM 2

Q1...Q4

Q5...Q8 Q9...Q12 Q13...Q16

Maximum setup of a LOGO!

without

analog inputs

(LOGO! 24 RC/RCo and LOGO! 230 RC/RCo)

LOGO! Basic, 4 digital modules and 4 analog modules

I1 . . . . . . . . . . . I8

LOGO! Basic

Q1...Q4

I9...I12 I13...I16 I17...I20 I21...I24

LOGO!

DM 8

LOGO!

DM 8

LOGO!

DM 8

LOGO!

DM 8

AI1 , AI2

LOGO!

AM 2

AI3, AI4 AI5, AI6 AI7, AI8

LOGO!

AM 2

LOGO!

AM 2

LOGO!

AM 2

Q5...Q8 Q9...Q12

Q13...

Q16

High-speed/optimal communication performance

For optimal and high-speed communication performance between LOGO! Basic and the various modules, we recommend you install the “digital modules first, then the analog modules” (example above).

We recommend that you position the CM AS Interface on the far right-hand side. (If the AS Interface voltage fails, communication between the LOGO! system and the expansion modules, which are arranged to the right of the LOGO!

CM AS Interface expansion module, is interrupted.)

LOGO! Manual

A5E00380835-01

19

LOGO! installation and wiring

Note

CM EIB/KNX

must

always be installed as the last module on the right-hand side of the LOGO! as no further interface modules may be connected to the CM EIB/KNX.

2.1.2 Setup with different voltage classes

Rules

Digital modules can only be connected to devices of the same voltage class.

You may connect analog and communications modules to devices of any voltage class.

You may replace two similar DM8 expansion modules by one appropriate DM16 expansion module (and vice versa) without having to change the circuit program.

Note

Two DM8 12/24R may be replaced by one DM16 24R only if operated with a power supply of 24 V DC.

Two DM8 24R may be replaced by one DM16 24R only if operated with DC and P action.

20

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

Overview:

Connecting an expansion module to LOGO! Basic

LOGO!

Basic

LOGO! 12/24 RC

LOGO! 24

LOGO! 24 RC

LOGO! 230 RC

LOGO! 12/24RCo

LOGO! 24o

LOGO! 24 RCo

LOGO! 230 RCo x

– x x x x x

DM8

12/24R,

DM16

24R x

– x x x x x

Expansion modules

DM8

24,

DM16

24

DM 8

24R

DM8

230R,

DM16

230R x x x

– x x x

– x

– x x x x x x x x x

AM2,

AM2

PT100,

AM2

AQ

CM x x x x x x x x

Overview:

Connecting a further expansion module to an expansion module

Expansion module

DM8

12/24R,

DM16

24R x

Further expansion modules

DM8

24,

DM16

24 x

DM 8

24R x

DM8

230R,

DM16

230R

AM2,

AM2

PT100,

AM2

AQ x

CM x DM 8 12/24R,

DM 16 24R

DM 8 24,

DM 16 24 x x x – x x

LOGO! Manual

A5E00380835-01

21

LOGO! installation and wiring

Expansion module

DM8

12/24R,

DM16

24R

DM8

24,

DM16

24

DM 8

24R x

– x

– x

DM8

230R,

DM16

230R

– x

AM2,

AM2

PT100,

AM2

AQ x x

DM 8 24 R

DM 8 230R,

DM 16 230R

AM2,

AM2 PT100,

AM2 AQ

CM x x x x x x

– x x

CM x x x x

2.1.3 Compatiblity

All currently available expansion modules are completely compatible with the basic modules of equipment series

0BA3 and 0BA4.

22

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

2.2 Installing/removing LOGO!

Dimensions

The LOGO! installation dimensions are compliant with

DIN 43880.

LOGO! can be snap-mounted to 35 mm DIN rails to

EN 50022 or on the wall.

LOGO! width:

LOGO! Basic has a width of 72 mm, which corresponds with 4 subunits.

LOGO! expansion modules have a width of 36 mm or 72 mm (DM16...), which corresponds with 2 or 4 subunits.

Note

The figure below shows you an example of the installation and removal of a LOGO! 230 RC and a digital module.

The measures shown apply to all other LOGO! Basic versions and expansion modules.

!

Warning

Always switch off power before you “remove” and “insert” an expansion module.

LOGO! Manual

A5E00380835-01

23

LOGO! installation and wiring

2.2.1 DIN rail mounting

Mounting

How to

mount

a LOGO! Basic

and

a digital module onto a

DIN rail:

LOGO! Basic:

1. Hook the LOGO! Basic module onto the rail and

2. then push down the lower end to snap it on. The mounting interlock at the rear must engage

1

6

3

5

24

2

4

LOGO! digital module:

3. On the right side of the LOGO! Basic/LOGO! expansion module, remove the connector cap

4. Place the digital module onto the DIN rail on the right-hand side of the LOGO! Basic

5. Slide the digital module towards the left until it contacts the LOGO! Basic

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

6. Using a screwdriver, push the interlock to the left. In its end position the slide interlock engages in the LOGO!

Basic.

Repeat steps 3 through 6 to mount further expansion modules.

Note

The expansion interface on the last expansion module must be covered.

LOGO! Manual

A5E00380835-01

25

LOGO! installation and wiring

Removal

To

remove

the LOGO!:

....... if you have installed

only one LOGO! Basic

:

Part

A

1. Insert a screwdriver into the eyelet at the bottom of the slide interlock and move the latch downward

2. Swing the LOGO! Basic off the DIN rail.

1

2

2

1

A

4

3

B

26

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

....... if you have connected

at least one expansion module

to the LOGO! Basic:

Part

B

1. Using a screwdriver, push the integrate slide interlock to the right

2. Slide the expansion module off towards the right

3. Insert a screwdriver into the eyelet at the bottom of the slide interlock and lever it downward

4. Swing the expansion module off the profile rail.

Repeat steps 1 to 4 for all other expansion modules.

Note

If you have connected more than one expansion module, it is advisable to start removal with the last module at the right-hand side.

Make sure that the slide interlock of the module to be installed/removed is not engaged in the next module.

LOGO! Manual

A5E00380835-01

27

LOGO! installation and wiring

2.2.2 Wall-mounting

For wall-mounting, first slide the mounting slides on the rear side of the devices towards the

outside

. You can now wall-mount the LOGO! by means of two mounting slides and two M4 screws (tightening torque 0.8 to 1.2 N/m).

Mounting slides

28

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

Drilling template for wall-mounting

Before you can wall-mount the LOGO!, you need to drill holes using the template shown below.

53.5 +/– 0.2

35.5 +/– 0.2

1

2

2 2 n x 35.5 +/– 0.2

All dimensions in mm

Bore hole for M4 screw

Tightening torque 0.8 to 1.2 N/m

1

2

LOGO! Basic

LOGO! expansion module

2.2.3 Labeling LOGO!

The gray rectangular areas on the modules are intended for labeling the LOGO! modules.

In the case of expansion modules, you can use the gray areas for labeling the inputs and outputs, for example. In this connection, you can enter a delta factor of +8 for the inputs or +4 for the outputs if the basic module already has

8 inputs or 4 outputs.

LOGO! Manual

A5E00380835-01

29

LOGO! installation and wiring

2.3 Wiring the LOGO!

Wire the LOGO! using a screwdriver with a 3-mm blade.

You do not need wire ferrules for the terminals. Permitted conductor cross-sections:

1 x 2.5 mm

2

2 x 1.5 mm

2 for each second terminal chamber

Tightening torque: 0.4...0.5 N/m or 3...4 lbs/in

Note

Always cover the terminals after you have completed the installation. To protect LOGO! adequately from impermissible contact to live parts, local standards must be complied with.

2.3.1 Connecting the power supply

The 230-V versions of LOGO! are suitable for operation with rated voltages of 115 V AC/DC and 240 V AC/DC. The

LOGO! 24-V and 12-V versions can be operated with a

24 VDC, 24 V AC or 12 VDC power supply. For information on permissible voltage tolerances, line frequencies and power consumption, refer to the installation instructions in the Product Information supplied with your device and to the technical data in Appendix A.

The CM EIB/KNX has been designed as a slave module for the LOGO! controller and must be supplied with a mains voltage of 12/24 V AC/DC.

The AS Interface bus requires a special AS Interface power supply (30 V DC) that enables simultaneous transmission of data and power for the encoders via a single line.

30

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

Note

A power failure may cause an additional edge triggering signal at the special functions, for example.

Data of the last uninterrupted cycle are stored in LOGO!.

Connecting LOGO!

To connect LOGO! to the power supply:

LOGO! ..... with DC power supply

LOGO! ..... with AC power supply

L+

M

L1

N

L+ M I1 I2 I3 I4 I5

L1 N I1 I2 I3 I4

Protection with safety fuse if required (recommended) for:

12/24 RC...:

24:

EIB/KNX

0.8 A

2.0

0.08 A

To suppress surge voltages, install varistors (MOV) with an operating voltage at least 20 % above the rated voltage.

Note

LOGO! is a double-insulated switchgear. It is not required to connect an equipment grounding conductor.

Circuit protection with AC voltage

To suppress voltage peaks on the power supply lines, you can install a metal oxide varistor (MOV) (MOV). Make sure that the operating voltage of the varistor (MOV) used lies at least 20 % above the rated voltage (for example S10K275).

LOGO! Manual

A5E00380835-01

31

LOGO! installation and wiring

2.3.2 Connecting LOGO! inputs

Requirements

At the inputs you connect sensor elements such as: momentary switches, switches, light barriers, daylight control switches etc.

Sensor characteristics for LOGO!

LOGO! 12/24 RC/RCo

LOGO! DM8 12/24 R

I1 ... I6

Signal status 0

< 5 VDC

Input current < 1.0 mA

Signal status 1

> 8 V DC

Input current > 1.5 mA

I7, I8

< 5 VDC

< 0.05 mA

> 8 V DC

> 0.1 mA

LOGO! 24/24o

LOGO! DM8 24

I1 ... I6

< 5 VDC

< 1.0 mA

> 8 V DC

> 1.5 mA

I7, I8

< 5 VDC

< 0.05 mA

> 8 V DC

> 0.1 mA

LOGO! 24

RC/RCo (AC)

LOGO! DM8

24 R (AC)

Signal status 0

< 5 V AC

Input current < 1.0 mA

Signal status 1

> 12 V AC

Input current > 2.5 mA

LOGO! 24

RC/RCo (DC)

LOGO! DM8

24 R (DC)

< 5 V DC

< 1.0 mA

> 12 V DC

> 2.5 mA

LOGO! 230

RC/RCo (AC)

LOGO! DM8

230 R (AC)

< 40 V AC

< 003 mA

> 79 V AC

> 0.08 mA

LOGO! 230

RC/RCo (DC)

LOGO! DM8

230 R (DC)

< 30 V DC

< 003 mA

> 79 V DC

> 0.08 mA

LOGO! DM16

24 R

Signal status 0

< 5 V DC

Input current < 1.0 mA

Signal status 1

> 12 V DC

Input current > 2.0 mA

LOGO! DM16

24

< 5 V DC

< 1.0 mA

> 12 V DC

> 2.0 mA

LOGO! DM16

230 R (AC)

< 40 V AC

< 0.05 mA

> 79 V AC

> 0.08 mA

LOGO! DM16

230 R (DC)

< 30 V DC

< 0.05 mA

> 79 V DC

> 0.08 mA

32

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

Note

The digital inputs of LOGO! 230 RC/RCo and of expansion module DM16 230R are divided into two groups, each consisting of four inputs.

Within

the same group, all inputs must be operated on the

same

phase.

Different

phases are only possible

between

the groups.

Example: I1 to I4 on phase

L1

, I5 to I8 on phase

L2

.

Inputs within the LOGO! DM8 230R may

not

be connected to different phases.

Sensor connections

Connecting glow lamps and 2-wire proximity switches

(Bero) to LOGO! 230 RC/230 RCo or LOGO! DM8 230 R

(AC) and LOGO! DM16 230R (AC)

The figure below shows how you connect a switch with a glow lamp to the LOGO! The current that flows through the glow lamp allows LOGO! to detect a ”1” signal even though the switch contact is not closed. If, however, you use a switch whose glow lamp is fitted with a power supply, this response does not occur.

L1

N

C

Order number for C:

Siemens

Switchgear & Systems

3SB1420-3D

L1 N

X-capacitor 2.5 kV, 100 nF

LOGO! Manual

A5E00380835-01

33

LOGO! installation and wiring

Take the quiescent current of any 2-wire proximity switches used into account. The level of the quiescent current of some 2-wire proximity switches is high enough to trigger a logical ”1” signal at the LOGO! input. You should therefore compare the quiescent current of the proximity switches with the technical data of inputs Appendix A.

Remedy

To suppress this response, use Siemens components with the following order number: Capacitor 3SB 1420–3D. As an alternative, you can also use an X capacitor rated at 100 nF and 2.5 kV. In a destructive situation, this type of capacitor safely disconnects. You must choose the voltage level for which the capacitor is rated such that it is not destroyed in the case of overvoltage!

At 230 V AC, the voltage between N and an input I(n) must not be greater than 40 V to guarantee a ”0” signal. You can connect approximately ten glow lamps to the capacitor.

Restrictions

Signal status transitions 0 !

1 / 1 !

0

After a 0 to 1 or 1 to 0 transition, the signal must remain constant at the input at least for the duration of one program cycle, so that LOGO! can detect the new signal status.

The program execution time is determined by the size of the circuit program. Appendix B contains a benchmark test routine that you can use to determine the current scan cycle time.

Special features of LOGO! 12/24 RC/RCo and LOGO! 24/24o

High-speed inputs: I5 and I6

These versions are also equipped with high-speed counting inputs (Up/down counters, Threshold triggers). The restrictions mentioned earlier do not apply to these high-speed inputs.

34

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

Note

The high-speed inputs I5 and I6 are the same as in the previous versions 0BA0 to 0BA4, i.e. a circuit program that is written in these versions can be transferred to the new

0BA5 units by means of the programming software LOGO!

SoftComfort, without any changes to these features. In contrast to this, you need to modify circuit programs written for a LOGO!...L version (high-speed inputs I11/I12).

Expansion modules do not have high-speed inputs.

Analog inputs: I7 and I8

The inputs I7 and I8 of LOGO! versions 12/24RC/RCo and

24/24o can be used both as standard digital inputs and as analog inputs. The input mode is defined in the LOGO!

circuit program.

The inputs I7 / I8 provide digital functions, and the inputs

AI1 and AI2 provide analog functions.

See also Chapter 4.1.

When using inputs I7 and I8 as analog ones, only the range from 0 to 10 V DC is available.

Connecting a potentiometer to inputs I7 / I8

To allow you to achieve 10 V as the maximum value when you completely turn the potentiometer once, you must connect a series resistor on the potentiometer’s input side regardless of the input voltage.

We suggest the following sizes of potentiometers and associated series resistors:

Voltage

12 V

24 V

Potentiometer Series Resistor

5 k

W

5 k W

6,6 k W

LOGO! Manual

A5E00380835-01

35

LOGO! installation and wiring

When using a potentiometer and 10 V input voltage as the maximum value, you must ensure that with a connected input voltage of 24 V, 14 V must release via the series resistor so that a maximum of 10 V are supplied when you turn the potentiometer one full rotation. With a voltage of 12 V, this can be neglected.

Note

The LOGO! AM 2 expansion module provides further analog inputs. The LOGO! AM 2 PT100 expansion module provides Pt100 inputs.

Always use twisted and shielded cables for analog signals, and keep these as short as possible.

Sensor connections

To connect sensors to the LOGO! :

LOGO! 12/24 ....

L+

M

L+ M

*)

I1 I2 I3 I4 I5 I8

The inputs of these devices not isolated and therefore require a common reference potential

(chassis ground ).

At the LOGO! 12/24RC/RCo and

LOGO! 24/24o modules, you can tap analog signals between the supply voltage and chassis ground

(* = series resistor with 24 V DC).

36

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

LOGO! 230 ....

L3

L2

L1

N

L1 N I1 I2 I3 I4 I5 I6

The inputs of these devices are arranged in 2 groups, each consisting of 4 inputs. Different phases are only possible between blocks, but not within the blocks.

!

Warning

Current safety regulations (VDE 0110, ... and IEC 61131-2,

... as well as cULus) do not permit the connection of different phases to an AC input group (I1 to I4 or I5 to I8) or to the inputs of a digital module.

LOGO! AM 2

L

+M

L+ M L+ M

3

RUN/STOP

PE

M L

+

Current

0...20

mA

Reference

M current

Current measurement

I1 M1 U1 I2 M2 U2

2

Voltage measurement

1

PE

PE terminal for connecting earth and the shielding of the analog measuring cable

1

2

Earth

Cable shielding

3 DIN rail

LOGO! Manual

A5E00380835-01

37

LOGO! installation and wiring

Connecting a two-wire sensor to the LOGO! AM 2

Wire up the two-wire sensor’s connecting wires as follows:

1. Connect the minus connector on the sensor to connector I1 on the analog expansion module.

2. Connect the plus connector on the sensor to the 24 V supply voltage (L+).

3. Connect the ground connector of the supply voltage to connector M1 on the analog expansion module.

LOGO! AM 2 PT100

You can connect either a 2- or 3-wire Pt100 resistive thermocouple to the module.

For a

2-wire

connection, you need to short-circuit terminals

M1+ and IC1 or M2+ and IC2. Errors caused by the ohmic resistance of the measuring line are not compensated with this type of connection. A line resistance of 1 W is proportional to a measuring error of +2.5

Ă° C.

A

3-wire

technique suppresses the influence of the cable length (ohmic resistance) on the result of the measurement.

2-wire technique

L+ M L+ M

3-wire technique

L+ M L+ M

PE

RUN/

STOP

M1+ IC1 M1- M2+ IC2 M2-

PE

RUN/

STOP

M1+ IC1 M1- M2+ IC2 M2-

Pt100

Pt100

38

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

Note

Fluctuating analog values are due to screening on the connecting wire from the analog valuator device to the analog

AM 2 / AM 2 PT100 LOGO! expansion module (encoder wire) that has either been mounted incorrectly or not at all.

To avoid fluctuating analog values when using these expansion modules, proceed as follows:

Use only shielded encoder wires.

Shorten the encoder wire as much as possible. The encoder wire must not be more than 10 meters long.

Clamp the encoder wire on one side only and clamp it only to the PE terminal on the AM 2 / AM 2 PT100 expansion module.

Connect ground on the encoder supply to the PE terminal on the expansion module.

Avoid operating the LOGO! AM 2 PT100 expansion module on a power supply that is not grounded (potential–free). If you cannot avoid this, connect the negative output/ground output on the power supply to the shielding on the resistance thermometer’s measuring wires.

LOGO! Manual

A5E00380835-01

39

LOGO! installation and wiring

2.3.3 Connecting outputs

LOGO! ...R...

The LOGO! ...

R

... version is equipped with relay outputs.

The potential of the relay contacts is isolated from the power supply and the inputs.

Requirements for relay outputs

You can connect various loads to the outputs, e.g. lamps, fluorescent lamps, motors, contactor relays etc. For information on the properties required for the loads connected to the LOGO! ...R..., refer to Appendix A.

Connecting

This is how you connect the load to LOGO! ...

R

...:

DM8...R

Q6

Load

Load

Protection with automatic circuit-breaker, max. 16 A, characteristics

B16, e.g.: Power circuit-breaker 5SX2 116-6 (if required)

40

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

LOGO! with solid-state outputs

LOGO! versions with solid-state outputs can be identified by the fact that the letter

R

is missing from their type name.

The outputs are short circuit-proof and overload-proof. An auxiliary load voltage supply is not necessary, because

LOGO! supplies the load voltage.

Requirements for solid-state outputs

The load connected to LOGO! must have the following characteristics:

The maximum switched current is 0.3 A per output.

Connecting

This is how you connect the load to a LOGO! with solid-state outputs:

DM8 24

Q5 M Q6 M

Q1 M Q2 M

Load

Load

Load: 24 V DC, 0.3 A max.

LOGO! Manual

A5E00380835-01

41

LOGO! installation and wiring

LOGO! AM 2 AQ

L

+

M

L+ M

L+ M

1

2

Earth

DIN rail

2

RUN/STOP

PE

OUTPUT 2x(0..10V)

V1+ M1

V2+ M2

1

V1, V2: 0 - 10 V DC

R: 5 k W

0-10 V

R

0-10 V

R

2.3.4 Connecting the

EIB

bus

The connection is carried out via the two-pole screw terminal (+ and –).

RUN/STOP

BUS

Prog. O

+ – EIB

42

Only the red-black core pair is used, the white-yellow core pair is not connected.

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

Press the button “Prog

” to switch the CM EIB/KNX to programming mode.

Note

The button “Prog

” should not be pressed too firmly.

If the bus connection is OK, the LED lights up green.

In programming mode, the LED lights up orange.

Networking on the

EIB

bus

The CM EIB/KNX takes over the communication between the LOGO! and

EIB

and makes communication available via

EIB

inputs/outputs.

The application of the CM EIB/KNX fills the complete

LOGO! process image; i.e. inputs or outputs which are not occupied on the LOGO! can be occupied via the EIB.

Note

For detailed information about the networking of LOGO! on the

EIB

bus please refer to the LOGO! CM EIB/KNX documentation, in particular the Micro Automation Set 8.

2.3.5 Connecting the AS interface bus

You can set the address on the AS interface bus before or after installation.

If the module is addressed via the address socket in the installed condition, the AS-Interface voltage must be disconnected beforehand. This is necessary for safety reasons.

LOGO! Manual

A5E00380835-01

43

LOGO! installation and wiring

RUN/STOP

AS-I

AS-I

ADDR + – + –

Networking on the AS interface bus

To make the connection to the AS interface bus, you need a communications-capable LOGO! variant:

LOGO! basic module + CM AS-I.

To be able to send data across the AS interface bus to the

LOGO! and to receive data from it in the same way, you also need an AS interface power supply and an AS interface master (e.g. an S7-200 with a

CP243-2).

LOGO! can only be accepted as a slave on the AS interface bus. This means that it is not possible to directly exchange data between two LOGO! devices. Data is always exchanged across the AS interface master.

!

Warning

The AS-Interface and LOGO! systems must

never

be connected together electrically!

Use safe isolation acc. to IEC 61131–2, EN

50178, UL 508, CSA C22.2 No. 142.

44

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

Logic Assignments

LOGO! system

Inputs

I n

I n+1

I n+2

I n+3

Outputs

Q n

Q n+1

Q n+2

Q n+3

AS Interface system

Output data bits

D0

D1

D2

D3

Output data bits

D0

D1

D2

D3

”n” depends on the plug-in position of the expansion module relative to the LOGO! Basic. It indicates the number of the input or output in LOGO! program code.

Note

For detailed information about the networking of LOGO! on the AS interface bus please refer to the LOGO! CM AS

Interface documentation, in particular the Micro Automation Sets 7 and 16.

LOGO! Manual

A5E00380835-01

45

LOGO! installation and wiring

2.4 Putting into operation

2.4.1 Switching on the LOGO!/Power On

LOGO! does not have a power switch. The reaction of

LOGO! during startup depends on

Whether a circuit program is stored in LOGO!

Whether a program module (Card) is inserted

Whether this is a LOGO! version without display unit

(LOGO!...o)

The status of LOGO! at the time of power failure.

All possible reaction of LOGO! are described on the following page.

To ensure that the expansion module on the LOGO!

changes to RUN mode, check the following:

Has the sliding contact between the LOGO! and the expansion module snapped into place properly?

Is the power supply connected to the expansion module?

In addition, always ensure that you switch on the power supply to the expansion module first before activating the power supply to the LOGO! basic module (or activate both power supplies at the same time); if you do not do this, the system does not detect the expansion module when you start up the LOGO! basic module.

46

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

After power on Before power off

No Program

Press ESC

No program in memory or

(empty)

No program

Press ESC

(with program)

>Program..

Card..

Setup..

Start

Mo 09:00

2003-01-27

I:

0.. 123456789

1..0123456789

2..01234

Q:

0..123456789

1..0123456

LOGO!

in RUN mode

B3:

Par = 0300

Cnt = 0028

or

(empty)

(with program)

Mo 09:00

09:00

0.. 123456789

1..0123456789

2..01234

LOGO! in

RUN mode

With stored program from

LOGO!

......

Mo 09:00

I:

0.. 123456789

1..0123456789

2..01234

with a program copied from the program module

(Card) in

B1

&

Q1

Program in memory or

(empty)

(with program)

>Program..

Card..

Setup..

Start

>Program..

Card..

Setup..

Start

with stored program from

LOGO!

with program copied from the program module

(Card) in

LOGO!

LOGO! Manual

A5E00380835-01

47

LOGO! installation and wiring

You can also memorize four simple rules for starting

LOGO! :

1. If neither the LOGO! nor the inserted program module

(Card) contains a circuit program, the LOGO! (with display unit ) reports: ’No Program / Press ESC’.

2. A circuit program on the program module (Card) is automatically copied to LOGO!. The circuit program in the LOGO! is overwritten.

3. If there is a circuit program in LOGO! or on the program module (Card), LOGO! adopts the operational state it had prior to POWER-OFF. Versions without display unit

(LOGO!...o) automatically change from STOP to RUN

(LED changes from red to green).

4. If you have enabled retentivity at least for one function, or a function is permanently retentive, the current values are retained at POWER-OFF.

Note

When a power failure occurs while you are entering a circuit program, the program in LOGO! will be deleted after power is returned.

Before you modify the circuit program, you should therefore save a backup copy of your original to a program module (Card) or to a computer (LOGO!Soft Comfort).

48

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

2.4.2 Putting into operation of CM EIB/KNX

1. Bus voltage and supply voltage must be present.

2. Connect the PC to the serial EIB interface.

3. Start software ETS, using ETS2 version 1.2.

4. Configure the application program in ETS2, V 1.2.

5. The application program is loaded into the devices via the EIB interface. The application program is available on the LOGO! home page (http://www.siemens.de/logo).

6. Click on ”Program Physical Address” in ETS.

7. Press the button of the CM EIB/KNX to switch the CM

EIB/KNX to programming mode; LED lights up orange.

Note

The button “Prog

” should not be pressed too firmly.

If the bus connection is OK, the LED lights up green.

In programming mode, the LED lights up orange.

8. If the LED is extinguished, the programming of the physical address has finished. You can now mark the physical address on the device. Composition of the physical address:

Area / Line / Device XX / XX / XXX

9. The application program can now be run. The device is then ready for operation.

10.If several CM EIB/KNX are installed in an EIB system, steps 1 to 9 must be repeated for each CM EIB/KNX.

11.Any further details about EIB commissioning can be found in the corresponding documentation.

2.4.3 Operating states

LOGO! Basic operating states

LOGO! Basic/Pure knows two operating states: STOP and

RUN.

LOGO! Manual

A5E00380835-01

49

LOGO! installation and wiring

STOP

The display shows:

’No Program’

(not LOGO!...o)

Switching LOGO! to programming mode

(not LOGO!...o)

LED is red

(only LOGO!...o)

Action of LOGO!:

The inputs data are not fetched.

The circuit program is not executed

The relay contacts are permanently open or the solid-state outputs are switched off

RUN

Display: Screen mask for monitoring I/Os and messages (after START in the main menu)

(not LOGO!...o)

Switching LOGO! to parameter assignment mode

(not LOGO!...o)

LED is green

(only LOGO!...o)

Action of LOGO!:

LOGO! reads the status of the inputs

LOGO! uses the circuit program to calculate the status of the outputs

LOGO! switches the relay/solid-state outputs on or off

Note

After switching the mains on, the system briefly switches through the outputs on the LOGO 24/24o. With an open circuit, a voltage of > 8 V can occur for up to approximately

100 ms; when loaded, this time reduces to a matter of microseconds.

LOGO! expansion modules, operating states

LOGO! expansion modules know three operating states:

The LED (RUN/STOP) is lit green, red or orange.

50

LOGO! Manual

A5E00380835-01

LOGO! installation and wiring

Green (RUN)

The expansion module communicates with the device to its left

LED (RUN/STOP) is lit

Red (STOP)

The expansion module does

not

communicate with the device to its left

Orange/Yellow

Initialization phase of the expansion module

CM AS Interface, communication states

The CM AS Interface knows three communication states:

The LED is lit green, red or flashes red/yellow.

Green

AS Interface communication OK

LED AS-I is lit

Red

AS Interface communication failed

Red/Yellow

Slave has address

”0”

CM AS Interface, behaviour on communication failure

If the AS-Interface voltage fails, communication between the LOGO! system and the expansion modules, which are arranged to the right of the LOGO! CM AS-Interface expansion module, is interrupted.

Recommendation: Position LOGO! CM AS-Interface on the far right-hand side!

If communication is interrupted, the switching outputs are reset after about 40 to 100 ms.

CM EIB/KNX, communication states

The CM EIB/KNX knows three communication states: The

LED is lit green, red or orange.

Green

Bus connection OK, communication OK, no programming mode

LED BUS is lit

Red

Bus connection interrupted

Orange

Programming mode active and bus connection OK

LOGO! Manual

A5E00380835-01

51

LOGO! installation and wiring

CM EIB/KNX, behaviour on communication failure

LOGO! voltage failure

If there is a power failure of the LOGO! or a disruption in the communication to the LOGO! master or to the communication partner on the left-hand side, the outputs are set to 0. The RUN/STOP LED lights up red after a second.

LOGO! voltage recovery

LOGO! starts up again, CM EIB/KNX sends the parameterised states.

CM EIB/KNX voltage failure

All the inputs of the LOGO! master on the

EIB

are set to

0 by the LOGO! master.

CM EIB/KNX voltage recovery

All the outputs of the LOGO! master on the

EIB

are updated. The inputs are read by the

EIB

depending on the parameterisation.

Short circuit on the bus or bus interruption

The behaviour can be parameterised in the LOGO!

configuration window of the application program in ETS

(EIB Tool Software). After 5 s, the red LED is set.

Bus recovery

The behaviour can be parameterised in the LOGO!

configuration window.

52

LOGO! Manual

A5E00380835-01

3 Programming LOGO!

Getting started with LOGO!

Programming in our context refers to creating a circuit program. A LOGO! circuit program program is actually nothing more than a circuit diagram presented in a slightly different form!

We have adapted this presentation to the LOGO! display field. In this chapter we are going to show you how to use

LOGO! to create the LOGO! circuit programs for your application.

At this point, we once again refer to LOGO!Soft Comfort, which is the LOGO! programming software you can use to quickly and easily create, test, modify save and print the circuit programs. The topics in this manual relate only to the creation of circuit programs on the actual LOGO!, because the programming software LOGO!Soft Comfort already contains extensive Online Help.

See also Chapter 7.

Note

LOGO! versions without display unit, i.e. the LOGO! 24o,

LOGO! 12/24RCo, LOGO! 24RCo and LOGO! 230RCo units, do not have an operator panel and display unit. They are primarily designed for use in small machine and process equipment engineering systems for series production.

LOGO!...o versions are not programmed directly on the unit. Instead, the circuit program is downloaded to this device by means of LOGO!Soft Comfort or program modules

(Cards) of other LOGO! 0BA5 units.

LOGO! versions without a display can not write data to program modules (Cards).

See Chapters 6, 7 and Appendix C.

LOGO! Manual

A5E00380835-01

53

Programming LOGO!

A small example in the first part of this chapter introduces the operating principle of LOGO!.

We shall first show you the meaning of two basic terms, namely the

connector

and the

block

.

As the next step, we shall create a circuit program based on a simple conventional circuit, which you ...

can enter directly in LOGO! in the third step.

It will take you only a few pages of this manual store your first executable circuit program in the LOGO! unit. With a suitable hardware (switches etc.), you will then be able to carry out first tests.

54

LOGO! Manual

A5E00380835-01

Programming LOGO!

3.1 Connectors

The LOGO! is equipped with inputs and outputs

Example of a configuration with several modules:

Inputs

L+ M I1 I2 I3 I4 I5 I6 AI1 AI2 L+ M I9 I10 I11I12 L+ M L+ M L+ M I13I14I15 I16

Q2 Q3 Q4

2

RUN/STOP RUN/STOP RUN/STOP

Q6

Q8

PE

Q10

A!3

M3U3AI4M4 U4

Q12

Outputs Analog inputs

Each input is identified by the letter I plus a number. When you look at the LOGO! from the front, you can see the input terminals at the top. Only analog modules LOGO! AM 2 and AM 2 PT100 have the inputs at the bottom.

Each output is identified by the letter Q plus a number

(AM 2 AQ: V plus number). In the figure, you can see the output terminals at the bottom.

LOGO! Manual

A5E00380835-01

55

Programming LOGO!

Note

LOGO! can recognize, read and switch the I/O of all expansion modules regardless of their type. The I/Os are presented in the installation order of the modules.

The following I/Os and flag blocks are available for creating your circuit program: : I1 to I24, AI1 to AI8, Q1 to

Q16, AQ1 and AQ2, M1 to M24 and AM1 to AM6. Also available are the shift register bits S1 to S8, 4 cursor keys

C , C , C and C , as well as 16 blank outputs X1 to

X16. More details are found in Chapter 4.1.

The following applies to inputs I7 and I8 of LOGO! 12/24...

and LOGO! 24/24o versions: If Ix is used in the circuit program, this input signal is digital; signals at AIx are analog.

Input AIx can only represent the connector that is actually capable of handling analog signals.

LOGO!’s connectors

The term connector refers to all connections and states in

LOGO! .

The digital I/O status can be ’0’ or ’1’. Status ’0’ means that the input does not carry a voltage. Status ’1’ means that the input carries voltage.

We have introduced ’hi’, ’lo’ and ’x’ connectors to make it easier for you to create the circuit program:

’hi’ (high) is assigned the status ’1’,

’lo’ (low) is assigned the status ’0’.

You do not have to use all the of connectors of a block. The circuit program automatically assigns the unused connectors a status that ensures proper functioning of the relevant block. If you prefer to do so, you can identify unused connectors with an ’x’.

For information on the meaning of the term “block”, refer to

Chapter 3.3.

56

LOGO! Manual

A5E00380835-01

Programming LOGO!

LOGO! knows the following connectors:

LOGO! Basic / Pure

Connectors

DM

AM

AM2AQ

Inputs LOGO! 230RC/RCo,

LOGO! 24 RC/RCo

Two groups:

I1... I4 and

I5 ... I8

I9 ...

I24

AI1...

AI8 none

Outputs

LOGO! 12/24RC/

RCo, LOGO! 24/24o

Q1...Q4

I1... I6, I7, I8

AI1, AI2

I9 ...

I24

Q5 ...

Q16 lo hi x

Logical ’0’ signals (off)

Logical ’1’ signals (on)

An existing connection that is not used

DM

: Digital module

AM

: Analog module

AI3...

AI8 none V1,

V2

LOGO! Manual

A5E00380835-01

57

Programming LOGO!

3.2 EIB inputs/outputs

The application program “20 CO LOGO! 900E02” controls the communication between the LOGO! and the EIB/KNX bus via the communication module CM EIB/KNX.

By configuring the application program in ETS (EIB Tool

Software), the division of the input and output area of the

LOGO! can be defined as a “hardware channel” and as a

“virtual channel” on the EIB/KNX bus.

This characteristic also applies for analog processing.

A communication object is assigned to each “virtual channel“ of the LOGO! module.

The real-time clock of the LOGO! can be used as a master or slave via the EIB/KNX bus.

The behaviour of the communication objects of the communication module CM EIB/KNX, when the status of the EIB/KNX bus changes, can also be parameterised.

A “virtual input channel“ can be used as a bus state, i.e. a bus voltage failure can be reported.

Functions of the application program

Specification of the hardware configuration (number of local digital inputs and outputs, analog inputs)

Selection of time master or slave

Use of I24 as a bus status signal

Behaviour on bus voltage failure/recovery

Input type as monoflop/normal for digital inputs via the

EIB/KNX

Output type as normal/dimmer/edge evaluation for digital outputs via the EIB/KNX

Data type, adaptation, cyclical sending and sending on change in value for analog outputs via the EIB/KNX and analog inputs on the LOGO!

Any further details about configuring the application program in ETS can be found in the current application program description.

58

LOGO! Manual

A5E00380835-01

Programming LOGO!

For the application program see Siemens product database from version J onwards or: http://www.siemens.de/gamma http://www.siemens.de/logo

LOGO! Manual

A5E00380835-01

59

Programming LOGO!

3.3 Blocks and block numbers

This chapter shows you how to use LOGO! elements to create complex circuits and how blocks and I/O are interconnected.

In Chapter 3.4 we are going to show you how to transform a conventional circuit to obtain a LOGO! circuit program.

Blocks

A block in LOGO! represents a function that is used to convert input information into output information. Previously you had to wire the individual elements in a control cabinet or terminal box.

When you create the circuit program, you interconnect the blocks. To do so, simply select the connection you require from the

Co

menu The menu name Co is an abbreviation of the term “Connector”.

Logic operations

The most elementary blocks are the logic operations:

AND

OR

...

I1

I2 x x

1

Q

Inputs I1 and I2 are here connected to the OR block. The last two inputs of the block remain unused and are identified by the creator of the circuit program with an ’x’.

These special functions offer you significantly higher performance:

Pulse relay

Up/down counter

On-delay

Softkey

....

In Chapter 4 you will find a full list of the LOGO! functions.

60

LOGO! Manual

A5E00380835-01

Programming LOGO!

View of blocks on the LOGO! display

The figure below shows a typical view of the LOGO! display. As you can see, it can show only one block at a time.

We have therefore introduced block numbers to help you check the circuit structure.

View of the LOGO! display

A further block is connectedat this point

Block number assigned by

LOGO!

B1

Input

x

B2

I3 x

1

Q1

This connector is not required Block Output

Assigning a block number

LOGO! assigns each new block a circuit program a block number.

LOGO! uses these block numbers to indicate the block interconnections. This means that these numbers mainly represent an aid to your orientation in the circuit program.

Block numbers

B2 x

I1

I2

I3

1

B1

These blocks are interconnected

x

I4

I5

I6

1

B3

B1

B1 x

B2

B3 x

1

Q1

Scrolling the circuit program using the key

B1 Q1

LOGO! Manual

A5E00380835-01

61

Programming LOGO!

The figure above shows you three views of the LOGO! display, which represent the circuit program. As you can see,

LOGO! interconnects the blocks using their numbers.

Advantages of block numbers

You can connect almost any block to an input of the current block by means of its block number. In this way, you can reuse the interim results of logical or other operations, reduce programming effort, save memory space and clean up your circuit layout. To do so, however, you need to know how LOGO! has named the blocks.

Note

We advise you to create an organizational program chart.

You will find this a valuable aid when you create the circuit program because you can enter all the block numbers that

LOGO! assigns in this chart.

By using the LOGO!Soft Comfort software to program the

LOGO!, you can directly create a function chart of your circuit program. LOGO!Soft Comfort also allows you to assign eight-character names to up to 64 blocks, and to view these on the LOGO! display in parameter assignment mode (see Chapter 3.5).

62

LOGO! Manual

A5E00380835-01

Programming LOGO!

3.4 The way to LOGO!, starting with the circuit diagram

View of a circuit diagram

You know, of course, how a circuit logic is represented in a circuit diagram. Nevertheless, here is an example:

S1 S2

K1

Load E1 is switched on and off by means of the switches

(S1

OR

S2)

AND

S3.

K1

S3

E1

Relay K1 picks up when condition (S1 OR S2) AND S3 is met.

Creating this circuit with LOGO!

In LOGO! you create a circuit logic by interconnecting blocks and connectors:

L

1

S1 ... S3

Wiring of the inputs

Circuit program in LOGO!

I1

I2 x

1

I3 x

&

Q1

N

Wiring of the outputs

LOGO! Manual

A5E00380835-01

63

Programming LOGO!

Note

Although you have four inputs available for logic operations (Basic functions, see Chapter 4.2), most of the views will only show three inputs for reasons of clarity. You program this fourth input and assign parameters just like you do with the other three inputs.

To create a circuit logic in LOGO!, start at the output.

The output is the load or relay that is to be switched.

Convert the circuit logic into blocks by working through the circuit, starting at the output and ending at the input:

Step 1: The make contact S3 is interconnected in series to output Q1 and to a further circuit element. A series connection corresponds with the AND block:

I3

&

Q1 x

Step 2: S1 and S2 are connected in parallel. A parallel circuit corresponds with the OR block:

I1

I2 x

1

I3 x

&

Q1

Unused inputs

The circuit program automatically assigns the unused connectors a status that ensures proper functioning of the relevant block. If you like, you can label unused connectors with an ’x’ identifier.

In our example we shall use only two inputs of the OR block and two inputs of the AND block; the relevant unused third and fourth inputs are identified at the connector with an ’x’.

Now connect the I/Os to the LOGO! .

64

LOGO! Manual

A5E00380835-01

Programming LOGO!

Wiring

Connect the switches S1 to S3 to the screw terminals of your LOGO! :

S1 to connector I1 of LOGO!

S2 to connector I2 of LOGO!

S3 to connector I3 of LOGO!

The output of the AND block controls the relay at output

Q1. The load E1 is connected to output Q1.

Wiring example

The following figure shows you the wiring, based on a

230 V AC version of LOGO!.

L1

N

L1 N

S

1

S

2

S

3

I1 I2 I3 I4

Input wiring

L1

1 2

Q1

Output wiring

N

LOGO! Manual

A5E00380835-01

65

Programming LOGO!

3.5 The four golden rules for operating

LOGO!

Rule 1

Changing the operating mode

You create the circuit program in

programming mode

.

After power is on, and when the display shows “No Program / Press ESC”, press the

ESC

key to select programming mode.

Timer and parameter values of an existing circuit program can be edited both in

parameter assignment mode

and in

programming mode

. During

parameter assignment

the LOGO! is in

RUN mode

, i.e. it continues execution of the circuit program (see Chapter 5). To work in

programming mode,

you need to terminate the circuit program by calling the

“Stop”

command.

Select the ’Start’ command on the main menu to set

RUN mode

.

When the system is in

RUN

, you can return to

parameter assignment mode

by pressing the

ESC

key.

When

parameter assignment mode

is open and you want to return to

programming mode

, select the

“Stop”

command from the parameter assignment menu, and confirm

“Stop Prg”

prompt with

“Yes”

. To do so, move the cursor to “

Yes

” and confirm with OK.

For more details on operating modes, refer to Appendix D.

Note

The following applies to 0BA2 device versions and earlier:

You can open programming mode by pressing + +

OK

.

You set parameter assignment mode by pressing

ESC

+

OK

.

66

LOGO! Manual

A5E00380835-01

Programming LOGO!

Rule 2

Outputs and inputs

Always create your circuit program by working from the output to the input.

You can connect an output to several inputs, but not the same input to several outputs.

Within the same program path you may not connect an output to an upstream input. For such internal recursions you should interconnect flags or outputs.

Rule 3

Cursor and cursor movement

The following applies when you edit a circuit program:

You can

move the cursor

when it appears in the form of an underscore:

– Press , , or to move the cursor in the circuit program.

– Press

OK

to change to ”Select connector/block”

– Press

ESC

to exit programming mode.

You

select a connector/block

when the cursor appears as solid square

– Press or to select a connector or a block.

– Confirm with OK.

– Press

ESC

to return to the previous step.

Rule 4

Planning

Before you start to create a circuit program, you should either first create design on paper or program LOGO!

directly using LOGO!Soft Comfort.

LOGO! can only save complete and faultless circuit programs.

LOGO! Manual

A5E00380835-01

67

Programming LOGO!

3.6 Overview of LOGO! menus

Programming mode

Main menu

>Program..

Card..

Setup..

Start

= LOGO!

OK

ESC

Programming menu

>Edit..

Clear Prg

Password

OK

Transfer menu

ESC

OK

> Card

Card

CopyProtect

ESC

Setup menu

>Clock

Contrast

Parameter assignment mode

Parameter assignment menu

>Stop

Set Param

Set..

Prg Name

For more details on these menus, refer to Appendix D.

68

LOGO! Manual

A5E00380835-01

Programming LOGO!

3.7 Writing and starting the circuit program

After you have designed a circuit, you want to write it to your LOGO! . The small example below shows how to do this.

3.7.1 Selecting programming mode

You have connected the LOGO! to the power supply and switched it on. The display now shows you the message:

No Program

Press ESC

Switch the LOGO! to programming mode by pressing the

ESC

. This will take you to the main menu of the LOGO!:

>Program..

Card..

Setup..

Start

LOGO!’s main menu

The first character in the first line is the ”>” cursor. Press and to move the ”>” cursor up and down. Move it to ”Program..” and confirm with

OK

. LOGO! opens the programming menu.

>Edit..

Clear Prg

Password

The LOGO!’s programming menu

LOGO! Manual

A5E00380835-01

69

Programming LOGO!

Here you can also move the ”>” cursor by pressing and

. Move the ”>” cursor to ”

Edit..

” (for editing, i.e. input) and confirm with

OK

.

>Edit Prg

Edit Name

AQ in Stop

Memory?

The Edit menu of LOGO!

Move the ”>” cursor to ”

Edit Prg

” (for editing the circuit program) and confirm with

OK

. LOGO! now shows you the first output:

The first output of LOGO!

Q1

You are now in programming mode. Press and to select the other outputs. Now start to edit your circuit program.

Note

Because we have not yet saved a

password

for the circuit program in LOGO!, you can directly enter editing mode.

When you select “Edit“ after you have saved a passwordprotected circuit program, you are prompted to enter a password and to confirm it with

OK

. You can only edit the program after you have entered the correct password (see

Chapter 3.7.5.).

70

LOGO! Manual

A5E00380835-01

Programming LOGO!

3.7.2 The first circuit program

Let us now take a look at the following parallel circuit consisting of two switches.

Circuit diagram

The corresponding circuit diagram:

S1 S2

K1

The load is switched on with

S1 OR S2. LOGO! interprets this parallel circuit as an ’OR’ logic, because S1

OR

S2 switches on the output.

K1

E1

Translated into a LOGO! circuit program this means: Relay

K1 is at output Q1 is controlled by means of an OR block.

Circuit program

S1 is connected to the I1 and and S2 to the I2 input connector of the OR block.

The corresponding layout of the circuit program in LOGO!:

I1

I2 x

1

Q1

LOGO! Manual

A5E00380835-01

71

Programming LOGO!

Wiring

The corresponding wiring:

L1

S1

N

S2

L1 N I1 I1 I3 I4 I5 I6 I7 I8

L

N

S1 switches input I1, while S2 switches input I2. The load is connected to the relay Q1.

3.7.3 Circuit program input

Let us now write the circuit program, starting at the output and working towards the input. LOGO! initially shows the output:

The first LOGO! output

Q1

72

LOGO! Manual

A5E00380835-01

Programming LOGO!

You will see an underscore below the Q in Q1, which is the

cursor

. The cursor indicates your current position in the circuit program. You can move the cursor by pressing the

, , and keys. Now press the key. The cursor moves to the left.

The cursor indicates your current position in the circuit program.

Q1

At this point you enter only the first (OR) block. Press

OK

to select editing mode.

The cursor is displayed as a solid square: You can now select a connector or a block

Co

Q1

The cursor no longer appears in the form of an underscore; but instead as a flashing solid square. LOGO! offers you here various options.

Select GF (basic functions) by pressing the key until GF appears, and confirm with

OK

. LOGO! now shows the first block from the list of basic functions:

B1

&

The AND is the first block of the basic functions list. The solid square cursor prompts you to select a block.

Q1

LOGO! Manual

A5E00380835-01

73

Programming LOGO!

Now press or until the OR block appears on the display:

1

B1

The solid square cursor is still positioned on the block.

Q1

Press

OK

to confirm your entries and exit the dialog.

The display now shows:

B1

1

Q1

Block number

Your complete circuit program layout

B1

1

Q1

You have now entered the first block. Each new block is automatically assigned a block number. The only thing left to do is to interconnect the block inputs. This is how it is done:

Press

OK

.

The display now shows:

B1

Co

1

Q1

Select the

Co

list: Press

OK

The display now shows:

B1 x

1

Q1

74

LOGO! Manual

A5E00380835-01

Programming LOGO!

The first element of the

Co

list is the ”Input 1” character, namely ’

I1’

.

Note

Press to go the start of the Co list: I1, I2 .... to lo. Press

to go to the end of the Co list: lo, hi, ..... to I1.

I1

B1

1

Q1

Press

OK

. I1 is now connected to the input of the OR block. The cursor jumps to the next input of the OR block.

The display now shows:

I1

1

B1

Q1

I1

Your complete circuit program in LOGO! up to now:

B1

1

Q1

Now you connect input I2 to the input of the OR block. You already know how to do this:

1. Switch to editing mode:

2. To select the

Co

list:

3. To confirm the Co list with:

Press

OK

Press or

Press

OK

4. To select

I2

:

5. To apply I2:

Press or

Press

OK

LOGO! Manual

A5E00380835-01

75

Programming LOGO!

I2 is now connected to the input of the OR block:

The display now shows:

B1

I1

I2

1

Q1

I1

I2

Your circuit program layout in

LOGO! up to now

B1

1

Q1

We do not need the last two inputs of the OR block for this circuit program. You can mark the unused inputs with an ’x’.

Enter the ’x’ character twice:

1. Switch to editing mode:

2. To select the

Co

list:

Press

OK

Press or

3. To accept the Co list:

4. To select ’

x

’:

5. To apply x:

Press

Press

OK

Press or

OK

The display now shows:

B1 Q1

I1

This is the layout of your circuit program

B1

1

I2 x

Q1

76

LOGO! Manual

A5E00380835-01

Programming LOGO!

Note

You can invert individual inputs of the basic and special functions, i.e. if an input carries a logical “1” signal, the circuit program will output a logical “0”. On the other hand, a logical “0” is inverted into a logical “1” signal.

To invert an input, move the cursor to the relevant position, e.g.:

I1

I2

I3 x

1

B1

Q1

Confirm with

OK

.

Now press or to invert this input:

Next, press

ESC

.

I1

I2

I3 x

1

B1

Q1

I1

I2

I3 x

Your circuit program layout

B1

1

Q1

You can review your first circuit program by pressing or

to move the cursor through the circuit program.

We shall now exit circuit programming mode. This is how it is done:

Return to the programming menu: Press

ESC

LOGO! Manual

A5E00380835-01

77

Programming LOGO!

Note

LOGO! has now saved your circuit program to nonvolatile memory. The circuit program remains in the LOGO! memory until you explicitly delete it.

In all LOGO! variants, basic functions, special functions, time parameters and the operating hours counter (if present) are always retentive.

Actual values (counter readings, etc.) can additionally be stored in the case of a power outage. To do this, you must activate the “Retentive” option in the corresponding function.

3.7.4 Assigning a circuit program name

You can assign your circuit program a name that consists of up to 16 uppercase/lowercase letters, numbers and special characters.

In the programming menu:

1. To move the “>” cursor to ’

2. To accept ’Edit’:

Edit..

’: Press or

Press

OK

3. Move the “>” cursor to ’

Edit Name

’: Press or

4. To accept ’Edit Name’: Press

OK

Press and to list the alphabet from A (a) to Z (z), numbers and special characters, either in ascending or descending order. You can select any letter, number or character.

To enter a space character, simply movie the cursor with to the next position. This character is the first one in the list.

Examples:

Press once to select an “

A

four times to select “

{

”, etc.

78

LOGO! Manual

A5E00380835-01

Programming LOGO!

The following character set is available:

A B C D E F G H I J K L M N O

P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 !

” # $ % & ’ ( ) * + , – .

/ : ;

< = > ?

@ [ \ ] ^ _ ‘ { | } ~

Let us assume you want to name your circuit program

ABC

”:

5. Select “

A

”: Press

6. Move to the next letter: Press

7. Select “

B

”: Press

8. Move to the next letter: Press

9. Select “

C

”: Press

10.To confirm the complete name: Press

OK

Your circuit program is now named “

ABC

”, and you are returned to the programming menu.

To

change

the name of your circuit program, proceed in the same way.

Note

You can change the name of the circuit program only in programming mode. You can read the name both in programming

and

in parameter assignment mode

3.7.5 Password

You can protect a circuit program from unauthorized access by assigning it a password.

To assign a password

LOGO! Manual

A5E00380835-01

79

Programming LOGO!

A password may have a maximum length of 10 characters, and consists only of uppercase letters (A to Z). Directly at the LOGO!, the password can be assigned, edited or deactivated only in the “Password” menu.

In the programming menu:

1. Move the “>” cursor to ’

Password

’: Press or

2. To confirm the ’Password’: Press

OK

Press or to move up and down the alphabet to select your letters. Because LOGO! only provides uppercase letters for the password, you can quickly access to letters “at the end“ of the alphabet by using the button:

Press once to select “

Z

Press twice to select “

Y

”, etc.

Let us assign the password “

AA

” to our first circuit program. The display now shows:

Old:

No Password

New:

This procedure is the same as for entering the name of the circuit program. Select “New” and enter:

3. Select “

A

”:

4. To move to the next letter:

5. Select “

A

”:

Press

Press

Press

The display now shows:

Old:

No Password

New:

6. To confirm the password: Press

OK

Your circuit program is now protected with the password

AA

”, and you are returned to the programming menu.

80

LOGO! Manual

A5E00380835-01

Programming LOGO!

Note

You can cancel the input of a new password with

ESC

. In this case, LOGO! returns to the programming menu without saving the password.

You can also set your password using LOGO!Soft Comfort.

You can not edit a password-protected circuit program at the LOGO! or upload it to LOGO!Soft Comfort unless you enter the correct password.

To allow you to create and edit a circuit program for a protected module (Card), you first need to assign a password to this new program (see Chapter 6.1).

Changing the Password

You need to know the current password in order to change it.

In the programming menu:

1. Move the ’>’ cursor to ’

Password

’:

2. To confirm the ’Password’:

Press or

Press

OK

Select “Old” and enter your old password (in our case: ’

AA

’) by repeating steps 3 through 6 as described earlier.

The display now shows:

Old:

AA

New:

Now you can select “New” to enter the new password, e.g.

ZZ

”:

3. Select “

Z

”:

4. To move to the next letter:

Press

Press

5. Select “

Z

”: Press

LOGO! Manual

A5E00380835-01

81

Programming LOGO!

The display now shows:

Old:

AA

New:

ZZ

6. To confirm your new password: Press

OK

Your new password “

ZZ

” is now set, and you are returned to the programming menu.

Deactivating the Password

Let us assume you want to deactivate the password for whichever reason. For example, you want to allow another user to edit your circuit program. You must know your current password (in our example “

ZZ

”), same as if you were changing it.

In the programming menu:

1. Move the ’>’ cursor to ’

Password

’: Press or

2. To confirm the ’Password’: Press

OK

Select “Old” and enter your current password under as described in steps 3 to 5. Confirm your entries with

OK

.

The display shows:

Old:

ZZ

New:

Clear

the password by leaving the input box

blank

:

3. To confirm the “blank” password: Press

OK

The password is ”cleared”, and you are returned to the programming menu.

82

LOGO! Manual

A5E00380835-01

Programming LOGO!

Note

This action disables the password prompt, and thus permits access without password.

Let the password prompt be

deactivated

for the time being, in order to accelerate progress in our further exercises and examples.

Password: Wrong Password!

When the user inputs the

wrong

password and confirms the input with

OK

, LOGO! does not open editing mode, but returns to the programming menu. This repeats itself over and again until you input the correct password.

LOGO! Manual

A5E00380835-01

83

Programming LOGO!

3.7.6 Switching LOGO! to RUN mode

In the main menu, select RUN to start LOGO!.

1. To return to the main menu: Press

ESC

2. Move the ’>’ cursor to ’

Start

’: Press or

3. To confirm ’Start’: Press

OK

LOGO! runs the circuit program and shows the following display:

Display field of the LOGO! in RUN mode

Mo 09:00

2005-01-27

Press

Start screen: Date and current time-ofday (only for versions with real-time clock). This element flashes if the date and time are not set.

Or: Start screen digital inputs (see

Chapter 5.2.3)

I:

0.. 123456789

1..0123456789

2..01234

Inputs I1 to I9

Inputs I10 to I19

Inputs I20 to I24

Press

Q:

0.. 123456789

1..0123456

Outputs Q1 to Q9

Outputs Q10 to Q16

Press

AI:

1: 00000

2: 01000

3: 00253

Press

AI:

4: 00010

5: 00000

6: 00005

Press

Analog inputs AI1 to AI3

Analog inputs AI4 to AI6

84

LOGO! Manual

A5E00380835-01

Programming LOGO!

AI:

7: 00000

8: 00000

Press

AQ:

1: 00000

2: 01000

Analog inputs AI7 to AI8

Analog outputs AQ1 to AQ2

Press

M:

0.. 123456789

1..0123456789

2..01234

Flags M1 to M9

Flags M10 to M19

Flags M20 to M24

Press

ESC+C

4 cursor keys for manual intervention in the circuit program

(

ESC

+key)

What is meant by: ”LOGO! is in RUN”?

In RUN mode, LOGO! executes the circuit program. To do so, LOGO! first reads the status at the inputs, determines the status of the outputs by means of the user program, and switches these on or off according to your settings.

This is how LOGO! indicates the I/O status:

I:

0.. 123456789

1..0123456789

2..01234

Input/output status is ’1’: inverted

Input/output status is ’0’: not inverted

Q:

0.. 123456789

1..0123456

In this example, only the inputs I1, I15, Q8 and Q12 are set

“high“.

Status indication on the display

LOGO! Manual

A5E00380835-01

85

Programming LOGO!

L1

Let us examine this, using our example:

S1

I1

=1

S2

I2

I:

0.. 123456789

1..0123456789

2..01234

Q:

0.. 123456789

1..0123456

When switch S1 is closed, the status at input I1 is hi.

LOGO! computes the output states by means of the circuit program.

Output Q1 = ’1’, in this case.

When Q1 = ’1’, LOGO! sets relay Q1, and the load connected to Q1 is supplied with voltage.

Q1

N

86

LOGO! Manual

A5E00380835-01

Programming LOGO!

3.7.7 Second circuit program

Up to this point, you have successfully created your first circuit, and assigned it a name and, if desired, a password.

In this section we are going to show you how to modify existing circuit programs and how to use the special functions.

Using this second circuit program, we are going to show you how to:

Add a block to an existing circuit program.

Select a block for a special function.

Assign parameters.

Modifying circuits

We shall use the first circuit program as a basis for the second, with some slight modifications.

Let us take a first look at the circuit diagram for the second circuit program:

L1

S1 S2 K1

You already know the first part of the circuit. S1 and S2 switch a relay, which is to be used to switch on the load E1, and to switch off the load with a delay of 12 minutes.

N

K1

E1

In LOGO!, this is the circuit program layout:

I1

I2 x

1 x

Par

This is the new block

Q1

You can see the OR block and the output relay Q1 we have already used in the first circuit program. The only difference is the new off-delay block.

LOGO! Manual

A5E00380835-01

87

Programming LOGO!

Editing the circuit program

Switch the LOGO! to programming mode.

As a reminder:

1. Switch the LOGO! to programming mode

(in RUN: Press

ESC

to enter the parameter assignment mode. Select the ’

Stop

’ command, confirm with

OK

, then move the ’>’ cursor to ’

Yes

’, and once again confirm with

OK

). See Page 66.

2. On the main menu, select ”

Program

3. On the Programming menu, select “

Edit

”, confirm with

OK

. Next, select ”

Edit Prg

” and confirm with

OK

.

If required, enter your password at the prompt and confirm with

OK

.

You can now modify the current circuit program.

Adding a block to a circuit program

Move the cursor to the B in B1 (B1 is the number of the OR block):

To move the cursor:

Press

B1

Q1

We now insert the new block at this position.

Confirm with

OK

.

LOGO! shows you the BN list

BN

Q1

88

LOGO! Manual

A5E00380835-01

Programming LOGO!

Press to select the SF list:

The SF list contains the special function blocks.

SF

Q1

Press OK.

The block of the first special function is shown:

Trg

Par

Q1

When you select a special or basic function block, LOGO! shows you the relevant function block. The solid square cursor is positioned on the block. Press or to select the required block.

Select your block (off-delay, see the next figure), and then press

OK

:

Before you press

’OK’, this shows the entry

Trg

B1

R

Par

B2

Q1

The added block is assigned the block number B2. The cursor is positioned at the top input of the added block.

The B1 block previously connected to Q1 is automatically connected to the uppermost input of the new block. Note that you can only interconnect digital inputs with digital outputs or analog inputs with analog outputs. The ’old’ block will otherwise be lost.

The off-delay block has three inputs. At the top is the trigger input (Trg) you use to start the off-delay time. In our example, the OR block B1 triggers the off-delay. You reset the time and the output with a signal at the reset input. Set the off-delay time at parameter T of the input Par.

LOGO! Manual

A5E00380835-01

89

Programming LOGO!

In our example we do not use the reset input of the offdelay function, and we identify it with an ’x’ connector.

B2

This is what the display should now show

B1 x

Par

Q1

Assigning block parameters

Now you set the off-delay time T:

1. Move the cursor to

Par

, if it not already at this position:

Press or

2. Switch to editing mode: Press

OK

LOGO! shows the parameters in the parameter assignment window:

T: The block parameter B2 is a time function

B2 +R

T =00:00s

“+” means: The parameter is shown and can be modified in the parameter assignment mode.

“R” means: Retentivity is enabled for this block.

Time value

Timebase

To change the time value:

Press and to position the cursor.

Press and to modify the value at the relevant position.

Confirm your entries with

OK

.

90

LOGO! Manual

A5E00380835-01

Programming LOGO!

Setting the time

Set the time T = 12:00 minutes:

1. Move the cursor to the first digit:

2. Select the digit ’1’:

3. Shift the cursor to the second digit:

4. Select digit ’2’:

5. Move the cursor to the unit:

6. Select the timebase ’m’ (for minutes):

Press or

Press or

Press or

Press or

Press or

Press or

Showing/hiding parameters – the parameter protection mode

If you want to show/hide the parameter and allow/prevent its modification in parameter assignment mode:

1. Move the cursor to the protection mode: Press or

2. Select the protection mode: Press or

The display should now show:

B2 +R

T=12:00m

or

B2 –R

T=12:00m

Protection mode +

:

The value of the time T can be modified in parameter assignment mode

3. Confirm your entries with:

Protection mode –

:

The value of the time T is hidden in parameter assignment mode

OK

Enabling/disabling retentivity

To decide whether you want to retain your current data after a power failure or not:

1. Move the cursor to the retentivity setting: Press or

2. Select the retentivity setting: Press or

LOGO! Manual

A5E00380835-01

91

Programming LOGO!

The display now shows:

B2 –R

T=12:00m

or

Retentivity R

: Current data are retained

3. Confirm your entries with

B2 –/

T=12:00m

Retentivity /

: Current data are not retained

OK

Note

For further information on the protection mode, refer to

Chapter 4.3.5.

For further information on retentivity, refer to Chapter 4.3.4.

You can modify the protection mode and retentivity setting only in programming mode, i.e. this is

not

possible in parameter assignment mode.

In this manual, the protection mode (”+” or “–”) and retentivity (”R” or “/”) settings are only shown in the displays where these can actually be changed.

Verification of the circuit program

This program branch for Q1 is now completed. LOGO!

shows you the output Q1. You can once again view the circuit program on the display. Use the keys to browse the circuit program, i.e. press or to move from block to block, and to move between the inputs at a block.

92

LOGO! Manual

A5E00380835-01

Programming LOGO!

Closing the programming mode

Although you were shown how to exit the programming mode when you created your first circuit program, here is a reminder:

1. To return to the programming menu:

2. To return to the main menu:

Press

Press

ESC

ESC

3. To move the ’>’ cursor to ’

Start

’:

4. To confirm ’Start’:

Press or

Press

OK

LOGO! is back in RUN mode:

Mo 09:30

2005-01-27

You can press or to scroll the pages and to monitor the I/O states.

3.7.8 Deleting a block

Let us assume you want to delete the block B2 from your circuit program and connect B1 directly to Q1.

B1

B2

I1

I2 x x

Par

Q1

Proceed as follows:

1. Switch the LOGO! to programming mode

(as a reminder, refer to Page 66).

2. Select ’

Edit

’: Press or

3. Confirm ’Edit’: Press

OK

(If required, enter your password and confirm with

OK

.)

4. Select ’

Edit Prg

’:

5. Confirm ’Edit Prg’:

Press or

Press

OK

LOGO! Manual

A5E00380835-01

93

Programming LOGO!

6. To move the cursor to the input of Q1, i.e. to B2, press :

B2 Q1

7. Confirm with

OK

.

8. Now replace block B2 with block B1 at output Q1.

The procedure:

– Select the

BN

list:

– Accept the BN list:

– Select ’

B1

’:

– Apply ’B1’:

Press or

Press

OK

Press or

Press

OK

Result:

Block B2 is deleted, because it is no longer used in the circuit. Block B1 has replaced B2 directly at the output.

3.7.9 Deleting block groups

Let us assume you want to delete the blocks B1

and

B2 from the following circuit program (corresponds with the circuit program in Chapter 3.7.7).

B1

B2

I1

I2 x x

Par

Q1

Proceed as follows:

1. Switch the LOGO! to programming mode

(as a reminder, refer to page 66).

2. To select ’

Edit

’: Press or

3. To confirm ’Edit’: Press

OK

(If required, enter your password and confirm with

OK

.)

4. To select ’

Edit Prg

:

Press or

94

LOGO! Manual

A5E00380835-01

Programming LOGO!

5. To confirm ’Edit Prg’: Press

OK

6. To move the cursor to the input of Q1, i.e. to B2, press :

B2 Q1

7. Confirm with OK.

8. Now set the connector ’x’ at output Q1 instead of block

B2. To do so:

– Select the

Co

list:

– Accept the Co list:

– Select ’

x

’:

Press or

Press

OK

Press or

– Apply ’x’: Press

OK

Result:

Block B2 is deleted, because it is no longer used in the circuit. This includes all blocks connected to B2. In this example, block B1 also.

3.7.10 Correcting typing errors

Programming errors can be corrected easily in LOGO! :

Provided editing mode is not yet closed, you can revert by one step by pressing

ESC

.

If you have already configured all inputs, simply reconfigure the faulty input:

1. Move the cursor to the faulty position

2. Change to editing mode. Press

OK

3. Enter the correct input circuit.

You can only replace a block with a block that has exactly the same number of inputs. However, you can delete the old block and then insert a new one. You can choose any new block.

LOGO! Manual

A5E00380835-01

95

Programming LOGO!

3.7.11 Selecting analog output values for RUN/STOP transition

You can select the analog values that are output at the two analog outputs when LOGO! changes from RUN mode to

STOP mode

.

In the programming menu:

1. Move the “>” cursor to ’

2. To accept ’Edit’:

Edit..

’:

3. Move the “>” cursor to ’

AQ in Stop

’: Press or

4. To accept ’AQ in Stop’: Press

OK

LOGO! shows the following display:

Press or

Press

OK

>Defined

Last

AQ in Stop

Last

The current setting for the analog output channels is shown on the bottom row. The default setting is ’Last’.

You can select either ’Last’ value (i.e. analog output values are held at their last value) or ’Defined’ value (i.e. analog output values are set to specific values). When LOGO!

changes from RUN mode to STOP mode, the values of the analog outputs change as well, depending on the setting.

5. Select the desired output setting:

6. To confirm your entry:

Press or .

Press

OK

Defining a specific analog output value

You want to output a specific analog value at the two analog outputs.

1. Move the ’>’ cursor to ’

Defined

’: Press or

2. Confirm ’Defined’:

The display shows:

Press

OK

96

LOGO! Manual

A5E00380835-01

Programming LOGO!

AQ1: 00000

AQ2: 00000

3. Enter a specific output value for each of the two analog outputs.

4. To confirm your entry: Press

OK

3.7.12 Deleting the circuit program

To delete a circuit program:

1. Switch the LOGO! to programming mode

>Program..

Card..

Setup..

Start

LOGO! opens the main menu

2. On the main menu, press or to move the ’>’ cursor to ’

Program

’. Press

OK

.

>Edit..

Clear Prg

Password

LOGO! changes to the programming menu

3. Move the ’>’ cursor to ’

Clear Prg

’:

4. Confirm ’Clear Prg’:

Press or

Press

OK

Clear Prg

>No

Yes

To cancel deletion of the circuit program, leave the ’>’ cursor at ’

No

’ and press

OK

.

LOGO! Manual

A5E00380835-01

97

Programming LOGO!

If you are sure that you want to delete the circuit program from memory:

5. Move the ’>’ cursor to ’

Yes

’: Press or

6. Press

OK

.

Password?

ZZ

To prevent unintentional deletion of your circuit program, you are prompted to enter your password

(provided you have assigned one).

7. Enter your password.

8. Press

OK

. The circuit program is deleted.

Note

Although you may have forgotten your password, you can still delete the circuit program by entering the wrong password four times.

3.7.13 Summertime/wintertime conversion

You can enable or disable automatic Summertime/wintertime conversion in parameter assignment mode by calling the “Set..” menu command in programming mode by calling the “Setup” menu command.

98

LOGO! Manual

A5E00380835-01

Programming LOGO!

To enable/disable automatic S/W Time conversion in programming mode:

1. Switch the LOGO! to programming mode.

2. You are now in the main menu and want to select the

Setup

’ menu command: Press or

3. Confirm ’Setup’:

4. Move the ’>’ cursor to ’

Clock

’:

Press

OK

Press or

5. Confirm ’Clock’: Press

OK

6. Move the ’>’ cursor to ’

S/W Time

’: Press or

7. Confirm ’S/W Time’:

LOGO! shows the following display:

Press

OK

>On

Off

S/W Time:

Off

The current setting of automatic S/W Time conversion is shown on the bottom row. The default setting is ’Off’: disabled.

To enable/disable automatic S/W Time conversion in parameter assignment mode:

If you want to enable/disable automatic S/W Time conversion in parameter assignment mode, select in the parameter assignment menu ’

Set..

’, then menus ’

Clock

’ and ’

S/W Time

’. You can now enable/disable automatic

S/W Time conversion.

Enabling summertime/wintertime conversion

You now want to enable this conversion and define or set its parameters:

1. Move the ’>’ cursor to ’On’:

2. Confirm ’On’:

Press or

Press

OK

The display shows:

LOGO! Manual

A5E00380835-01

99

Programming LOGO!

>EU

3. Select the desired conversion:

What is shown on the display ?:

Press or

EU

’ represents the start and end of European summertime.

UK

’ represents the start and end of summertime in the

United Kingdom.

US

’ represents the start and end of summertime in the

United States.

AUS

’ represents the start and end of Australian summertime.

AUS-TAS

’ represents the start and end of Australian/

Tasmanian summertime.

NZ

’ represents the start and end of New Zealand summertime.

. .

: Here you can enter any month, day and time zone difference.

The preset conversion data for EU, UK and US is found in the table below:

Start of summertime End of summertime Time zone difference

60 Min.

EU

UK

Last Sunday in March:

02:00––>03:00

Last Sunday in March:

01:00––>02:00

US

First Sunday in April:

02:00––>03:00

AUS

Last Sunday in October: 02:00––>03:00

AUS-

TAS

First Sunday in October: 02:00––>03:00

Last Sunday in October: 03:00––>02:00

Last Sunday in October: 02:00––>01:00

Last Sunday in October: 02:00––>01:00

Last Sunday in March:

03:00––>02:00

Last Sunday in March:

03:00––>02:00

60 Min.

60 Min.

60 Min.

60 Min.

100

LOGO! Manual

A5E00380835-01

Programming LOGO!

NZ

..

Start of summertime

First Sunday in October: 02:00––>03:00

Customizing the month and the day: 02:00––>

02:00 + Time zone difference

End of summertime Time zone difference

60 Min.

Third Sunday in March:

03:00––>02:00

Customizing the month and the day: 03:00––>

03:00 – Time zone difference

User-defined

(resolution in minutes)

Note

You can specify a time zone difference

between 0 and

180 minutes.

Let us assume you want to enable European summertime/ wintertime conversion:

4. Move the ’>’ cursor to ’

EU

’:

5. Confirm ’EU’:

Press or

Press

OK

LOGO! shows the following display:

>On

Off

S/W Time:

On

"

EU

LOGO! indicates that European S/W Time conversion is enabled.

User-defined parameters

If none of the parameters/conversions apply to your country, you can customize these under menu item ’

. .

’. To do so:

1. Confirm ’On’ once again:

2. Move the ’>’ cursor to ’

. .

’:

3. Confirm the menu item ’. .’ :

Press

OK

Press or

Press

OK

The display shows:

LOGO! Manual

A5E00380835-01

101

Programming LOGO!

Cursor / solid square

MM–DD

0

– : 01–01

D

=000min

Month (MM) and Day (DD)

Start of summertime

End of summertime

The desired time zone difference in

[min]

Let us assume you want to configure the following parameters: Start of summertime = 31st of March, end of summertime = 1st of November, time difference of 120 minutes.

This is how you can enter your data:

Press or to move the solid square/cursor.

Press and to change the value at the cursor position.

The display shows:

MM–DD

0

– : 11–01

D

=120 min

31. March

1. November

Time difference of 120 min

Confirm all your entries with

OK

.

You have now customized the summertime/wintertime conversion. The LOGO! display now shows:

>On

Off

S/W Time:

On

"

..

LOGO! indicates that summertime/wintertime conversion is enabled, and that user-defined parameters ( ’..’ ) have been set.

102

LOGO! Manual

A5E00380835-01

Programming LOGO!

Note

To disable summertime/wintertime conversion in this menu, you merely confirm ’Off’ with

OK

.

Note

Summertime/wintertime conversion only functions when

LOGO! is operating (in RUN or STOP status). It does not function when LOGO! is in buffered operation (see Chapter

4.3.3).

3.7.14 Synchronization

Time synchronization between LOGO! and a connected communication module EIB/KNX (version 0AA1 upwards!) can be enabled/disabled in parameter assignment mode by means of the set menu (“Clock” menu item) in programming mode by means of the setup menu

(“Clock” menu item).

Note

When using a LOGO! basic module with digital or analog expansion modules, but without communication module

EIB/KNX (version 0AA1 upwards), time synchronization

must not

be activated! You must check whether time synchronization is deactivated (’Sync’ must be set to ’Off’).

LOGO! Manual

A5E00380835-01

103

Programming LOGO!

To enable/disable synchronization in programming mode:

1. Switch the LOGO! to programming mode.

2. You are now in the main menu, and want to select

Setup

’: Press or

3. Confirm ’Setup’: Press

OK

4. Move the ’>’ cursor to ’

Clock

’: Press or

5. Confirm ’Clock’: Press

OK

6. Move the ’>’ cursor to ’

Sync

’: Press or

7. Apply ’Sync’: Press

OK

LOGO! shows the following display:

>On

Off

Sync:

Off

The current setting of the automatic synchronization function is displayed on the bottom row. The default setting is

’Off’, i.e. disabled.

To enable/disable synchronization in parameter assignment mode:

If you want to enable/disable automatic synchronization in parameter assignment mode, select in the parameter assignment menu ’

Set..

’, then menus ’

Clock

’ and ’

Sync

’. You can now enable/disable automatic synchronization.

Enabling synchronization

You want to enable synchronization:

1. Move the ’>’ cursor to ’

On

’: Press or

2. Confirm ’On’: Press

OK

LOGO! shows the following display:

>On

Off

Sync:

On

104

LOGO! Manual

A5E00380835-01

Programming LOGO!

When synchronization is enabled, LOGO! can receive the time-of-day from a communication module EIB/KNX

(version 0AA1 upwards).

Whether synchronization is enabled or disabled, the timeof-day is always sent to the expansion modules at power-up, every hour (STOP mode or RUN mode), and when the TOD is changed after a ’Set Clock’ is executed or after a summertime/wintertime conversion.

LOGO! Manual

A5E00380835-01

105

Programming LOGO!

3.8 Memory space and circuit dimensions

The size of a circuit program in LOGO! is limited by the memory space (memory used by the blocks).

Memory areas

Program memory

:

LOGO! allows only a limited number of blocks in your circuit program.

The second limitation is based on the maximum number of bytes a circuit program may contain. The total number of bytes used can be determined by adding up the number of bytes used for the relevant function blocks.

Retentive memory (Rem)

:

In this area, LOGO! stores process variables which need to be retentive, e.g. the hours counter value.

Blocks with optional retentivity use this memory area only if this function is actually enabled.

Resources available in LOGO!

A circuit program in LOGO! can occupy the following maximum resources:

Bytes

2000

Blocks

130

REM

60

LOGO! monitors memory utilization, and offers only those functions from the lists for which it can actually provide sufficient memory space.

106

LOGO! Manual

A5E00380835-01

Programming LOGO!

Memory requirements

The table below shows an overview of the memory requirements for the basic and special function blocks:

Function

Program memory

Rem memory*

Basic functions

AND

AND with edge evaluation

NAND (NOT AND)

NAND with edge evaluation

OR

NOR (NOT OR)

XOR (exclusive OR)

NOT (Negation)

8

4

12

12

12

12

12

12

Special functions

Times

On-delay

Off-delay

On-/Off-delay

Retentive on-delay

Wiping relay (pulse output)

Edge triggered wiping relay

Asynchronous pulse generator

Random generator

Stairway lighting switch

Multiple function switch

Weekly timer

Yearly timer

8

12

12

12

8

16

12

12

12

16

20

8

3

3

3

3

3

4

3

3

3

LOGO! Manual

A5E00380835-01

107

Programming LOGO!

Function

Program memory

Rem memory*

Counter

Up/down counter

Hours counter

Threshold trigger

Analog

Analog threshold trigger

Analog differential trigger

Analog comparator

Analog value monitoring

Analog amplifier

Analog multiplexer

Analog ramp

PI controller

Others

Latching relay

Pulse relay

Message texts

Softkey

Shift register

12

20

36

40

16

16

24

20

24

24

16

8

8

8

12

12

5

9

2

1

1

1

*: Bytes in the Rem memory area if retentivity is enabled.

Utilization of memory areas

The system indicates that there is insufficient memory space by not allowing you to add a further block to your circuit program. LOGO! offers you only the blocks for which it can provide sufficient memory space. If LOGO! memory space is insufficient to hold any further blocks you select from a block list, the system will deny access to this list.

If memory space is fully occupied, optimize your circuit program or install a second LOGO!

2

108

LOGO! Manual

A5E00380835-01

Programming LOGO!

Calculating memory requirements

When calculating the memory requirements of a circuit, you must always take all individual areas of memory into account.

Example:

Bytes

20

REM

B3

No 1

No 2

No 3

B4

I1

Par x

Bytes

12

B2

REM

B1 x

I2

Q1

B6

B5

I3

I4 x

Par Q2

The sample circuit program contains:

B1

B2

B3

B4

B5

B6

Block no.

Function

Memory area

OR

AND

Weekly timer

On-delay*

Stairway lighting switch

AND

8

12

12

76

Bytes

12

12

20

1

1

1

6

Blocks

1

1

1

Resources used by the circuit program

Memory space limits in LOGO!

Still available in LOGO!

2000

1924

130

124

*: Configured with retentivity.

This means that this circuit program fits into LOGO!.

3

0

3

REM

60

57

LOGO! Manual

A5E00380835-01

109

Programming LOGO!

Indication of available memory space

LOGO! shows you the amount of free memory space.

Proceed as follows:

1. Switch the LOGO! to programming mode

(as a reminder, refer to page 66).

2. Select ’

Edit

’:

3. Accept ’Edit’:

4. Select ’

Memory?

:

5. Accept ’Memory?’:

Press or

Press

OK

Press or

Press

OK

The display now shows:

Free Memory:

Byte =1924

Block= 124

Rem = 57

110

LOGO! Manual

A5E00380835-01

4 LOGO! functions

Organization

LOGO! provides you with various elements in programming mode. In order to maintain the overview, we have organized the elements in ’Lists’. These lists are:

Co

: Connector list (

Co

nnector)

(see Chapter 4.1)

GF

: List of the basic functions AND, OR, ...

(refer to Chapter 4.2)

SF

: List of the special functions

(refer to Chapter 4.4)

BN

: List of reusable blocks configured in the circuit program

List contents

All lists show the elements available in LOGO! Usually, this includes all connectors, basic functions and special functions the LOGO! knows. This includes all the blocks you have created in LOGO! by the time you call the

BN

list.

If not all is shown

LOGO! does not show all elements if:

No further blocks may be added.

This is either an indication of insufficient memory space or that the maximum number of blocks has been reached.

A specific block’s memory space requirement would exceed the space available in LOGO!

See Chapter 3.8.

LOGO! Manual

A5E00380835-01

111

LOGO! functions

4.1 Constants and connectors – Co

Constants and connectors (= Co) represent inputs, outputs, flags and constant voltage levels (constants).

Inputs:

1) Digital inputs

Digital inputs are identified with an

I.

The number of the digital inputs (I1, I2, ...) corresponds to the number of the input connectors of the LOGO! Basic and of the connected digital modules, in the order of their installation. See the figure below.

2) Analog inputs

The LOGO! versions LOGO! 24, LOGO! 24o,

LOGO! 12/24RC and LOGO! 12/24RCo are equipped with the inputs I7 and I8, which can also be programmed for use as

AI1

and

AI2

inputs. Signals at the I7 and I8 inputs are interpreted as digital values, and those at the AI1 and AI2 inputs are interpreted as analog values. The inputs of a connected analog module are numbered according to the already existing analog inputs. Special functions whose inputs should only be connected to analog inputs are offered in programming mode when you select the input signal, i.e. the analog inputs AI1...AI8, analog flags

AM1...AM6, the block numbers of a function with analog output or the analog outputs AQ1 and AQ2.

Outputs:

1) Digital outputs

Digital outputs are identified by the character

Q

. The output numbers (Q1, Q2, ... Q16) correspond with the numbers of the output connectors at the LOGO! Basic and with those of the expansion modules, in their order of installation. See the following figure.

112

LOGO! Manual

A5E00380835-01

LOGO! functions

There are also 16 blank outputs available. These are identified with an

x

and can not be reused in a circuit program (in contrast to flags, for example). The list shows all programmed blank outputs, and one blank output which is not yet configured. A blank output, for example, is useful for the special function “Message texts” (see Chapter 4.4.23), if only the message text is of significance to a circuit program.

2) Analog outputs

Analog outputs are identified by the letters

AQ

. Two analog outputs are available, namely AQ1 and AQ2. An analog output can only be connected with the analog input of a function, an analog flag AM or an analog output connector.

Inputs

L+ M I1 I2 I3 I4 I5 I6 AI1 AI2 L+ M I9 I10 I11I12 L+ M L+ M L+ M I13I14I15I16 L+ M L+ M

RUN/STOP RUN/STOP

Q6

Q8

PE

INPUT 2x (..10V/..20mA)

A!3

M3U3AI4M4 U4

RUN/STOP RUN/STOP

Q10

PE

OUTPUT 2x (0 ..10V)

Q12

V1+ M1 V2+ M2

Q2 Q3 Q4

Outputs Analog inputs

Analog outputs

Flag blocks

Flag blocks are identified by the letters

M

or

AM

. These are virtual outputs, which output the value of their inputs.

LOGO! provides 24 digital flags M1 ... M24 and 6 analog flags AM1 ... AM6.

LOGO! Manual

A5E00380835-01

113

LOGO! functions

Startup flag

Flag M8 is set in the first cycle of the user program and can thus be used in your circuit program as startup flag. This signal is automatically reset after the circuit program has completed its first cycle.

The M8 flag can be used in all further cycles for setting, deletion and evaluation procedures in the same way as other flags.

Note

The output of the flag always carries the signal of the previous program cycle. This value does not change within the same program cycle.

Shift register bits

LOGO! provides the shift register bits S1 to S8, which are assigned the read-only attribute in the circuit program. The content of shift register bits can only be modified by means of the “Shift register” special function (see Chapter 4.4.25).

Cursor keys

Up to four cursor keys are available to you, namely C ,

C , C and C (”C” = “Cursor”). Cursor keys are programmed for the circuit program in the same ways as other inputs. You can set the cursor keys in the corresponding display while the system is in RUN (see Chapter 3.7.6), and in an active message text (ESC + Key). Cursor keys can save switches and inputs, and allow operator control of the circuit program.

Levels

Voltage levels are designated

hi

and

lo

. A constant “1” = hi or “0” = lo status at the block can be set by means of a permanent voltage level or constant value hi or lo.

Open connectors

Unused block connectors can be identified with an

x

.

114

LOGO! Manual

A5E00380835-01

LOGO! functions

4.2 Basic functions list – GF

Basic functions represent simple logical elements of Boolean algebra.

You can invert the inputs of individual basic functions , i.e.

the circuit program inverts a logical “1” at a relevant input to a logical “0”; if “0” is set at the input, the program sets a logical “1”. A programming example is found in

Chapter 3.7.3.

The GF list contains the basic function blocks you can use for your circuit program. The following basic functions are available:

View in the circuit diagram

Series circuit make contact

View in LOGO!

Name of the basic function

AND

(see page 117)

AND with edge evaluation

(see page 118)

NAND

(NOT AND)

(see page 119)

Parallel circuit with break contacts

NAND with edge evaluation

(see page 120)

LOGO! Manual

A5E00380835-01

115

LOGO! functions

View in the circuit diagram

View in LOGO!

Name of the basic function

OR

(see page 121)

Parallel circuit with make contacts

Series circuit with break contacts

Double changeover contact

Break contact

NOR

(NOT OR)

(see page 122)

XOR

(exclusive OR)

(see page 123)

NOT

(negation, inverter)

(see page 123)

116

LOGO! Manual

A5E00380835-01

LOGO! functions

4.2.1 AND

Circuit diagram of a series circuit with several make contacts:

Symbol in LOGO!:

The output of the AND is only 1 if

all

inputs are 1, i.e. all contacts are closed.

At an unused block input (x): x = 1.

Table of the AND logic

1

1

1

1

0

1

1

1

1

1

0

0

0

0

0

0

0

2

0

0

1

1

0

0

1

1

1

1

1

1

0

0

0

0

3

1

1

0

1

0

0

0

1

1

0

0

1

0

0

1

1

4 Q

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

1

0

1

0

1

1

0

1

0

1

0

0

1

0

1

LOGO! Manual

A5E00380835-01

117

LOGO! functions

4.2.2 AND with edge evaluation

Symbol in LOGO!:

The output of an edge triggered AND is only 1 if

all

inputs are 1 and if

at least one

input was low in the previous cycle.

At an unused block input (x): x = 1.

Timing diagram for the AND with edge evaluation

Cycle

4

Q

1

2

3

1 2 3 4 5 6 7 8 9 10

118

LOGO! Manual

A5E00380835-01

4.2.3 NAND (NOT AND)

Parallel circuit with multiple break contacts in the circuit diagram:

LOGO! functions

Symbol in LOGO!:

The output of the NAND is only 0 if the status at

all

inputs is 1, i.e. the contacts are closed.

At an unused block input (x): x = 1.

Table of the NAND logic

1

1

1

1

1

1

1

1

0

0

0

0

0

1

0

0

0

2

1

1

1

1

0

0

0

1

1

0

1

1

0

0

0

0

3

1

1

0

0

0

1

1

0

1

1

0

1

0

0

0

1

4 Q

1

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

1

0

1

1

0

1

1

0

1

0

1

0

0

1

0

LOGO! Manual

A5E00380835-01

119

LOGO! functions

4.2.4 NAND with edge evaluation

Symbol in LOGO!:

The output status of the NAND with edge evaluation is only

1 if

at least one

input is 0 and if

all

inputs were 1 in the previous cycle.

At an unused block input (x): x = 1.

Timing diagram for the NAND with edge evaluation

Cycle

4

Q

1

2

3

1 2 3 4 5 6 7 8 9 10

120

LOGO! Manual

A5E00380835-01

LOGO! functions

4.2.5 OR

Circuit diagram of a parallel circuit with several make contacts:

Symbol in LOGO!:

The output status of the OR element is only 1 if

at least one

input is 1, i.e. at least one of the contacts is closed.

At an unused block input (x): x = 0.

Table of the OR logic

1

0

0

1

0

0

0

0

0

0

1

1

1

1

1

1

1

2

0

1

0

1

1

0

1

0

0

1

1

0

1

1

0

0

3 4 Q

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

1

0

0

1

0

0

1

1

0

0

1

0

1

1

0

1

0

1

LOGO! Manual

A5E00380835-01

121

LOGO! functions

4.2.6 NOR (NOT OR)

Circuit diagram of a series circuit with several break contacts:

Symbol in LOGO!:

The output status of the NOR is only 1 if

all

inputs are 0, i.e. if switched off. The NOR output is set to 0 when one of the inputs is switched on (logical 1 status).

At an unused block input (x): x = 0.

Table of the NOR logic

1

1

1

1

0

0

1

1

1

1

1

0

0

0

0

0

0

2

0

0

0

1

1

0

1

1

1

1

0

0

1

1

0

0

3

0

1

1

1

1

0

1

1

0

0

1

1

0

0

0

0

4 Q

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

1

0

1

0

1

0

0

1

0

1

0

1

0

1

0

1

122

LOGO! Manual

A5E00380835-01

LOGO! functions

4.2.7 XOR (exclusive OR)

The XOR in a circuit diagram, shown as series circuit with 2 changeover contacts:

Symbol in LOGO!:

The output status of the XOR is 1 if the inputs are

not equivalent

.

At an unused block input (x): x = 0.

Table of the XOR logic

1

1

1

0

0

2

0

1

0

1

Q

1

0

0

1

4.2.8 NOT (Negation, Inverter)

A break contact in the circuit diagram:

Symbol in LOGO!:

The output status is 1 if the input is 0. The NOT block inverts the input status.

Advantage of the NOT block, for example: The LOGO!

does not require break contacts. You simply use a make contact and the NOT block to convert these into a break contact.

Table of the NOT logic

1

0

1

Q

1

0

LOGO! Manual

A5E00380835-01

123

LOGO! functions

4.3 Basics on special functions

Because of their different input designation, you can see right away that there is a difference between the special functions and basic functions. SFs contain timer functions, retentive functions and various parameter assignment options, which allow you to adapt the circuit program to suit your own requirements.

This section provides you with a brief overview of input designations and with some particular background information on SFs. The SFs in particular are described in

Chapter 4.4.

124

LOGO! Manual

A5E00380835-01

LOGO! functions

4.3.1 Designation of the inputs

Logical inputs

Here, you will find the description of the connectors you can use to create a logical link to other blocks or to the inputs of the LOGO! unit.

S (Set):

A signal at input S sets the output to logical “1”.

R (Reset):

The reset input R takes priority over all other inputs and resets the outputs.

Trg (Trigger):

This input is used to trigger the start of a function.

Cnt (Count):

This input is used for counting pulses.

Fre (Frequency):

Frequency signals to be evaluated are applied to this input.

Dir (Direction):

This input determines the direction of count, for example.

En (Enable):

This input enables a block function. When this input is

“0”, other signal from the block will be ignored.

Inv (Invert):

A signal at this input inverts the output signal of the block.

Ral (Reset all):

All internal values are reset.

Connector X at SF inputs

SF inputs connected to connector x are set low. That is, the inputs carry a ’lo’ signal.

LOGO! Manual

A5E00380835-01

125

LOGO! functions

Parameter inputs

At some of the inputs you do not apply any signals. You configure the relevant block values instead. Examples:

Par (Parameter):

This input will not be connected. Here, you set the relevant block parameters (times, on/off thresholds etc.).

No (Cam):

This input will not be connected. Here, you configure the time patterns.

P (Priority):

This is an open input. Here, you define priorities and specify whether a message is to be acknowledged in

RUN.

4.3.2

Time response

Parameter T

At some of the SFs it is possible to configure a time value

T. When you preset this time, note that your input values are based on the timebase set:

Timebase

s (seconds) m (minutes) h (hours)

_ _ : _ _

seconds :

1

/

100

seconds minutes : seconds hours : minutes

126

B1 +

T =04:10h

Setting a time T of 250 minutes:

Unit in hours h:

04:00 hours

00:10 hours

=

240 minutes

+10 minutes

250 minutes

Note

Always specify a time T in 0.02 s. The time T is not defined for T 0.02 s.

LOGO! Manual

A5E00380835-01

LOGO! functions

Accuracy of T

Because of slight tolerances in the characteristics of electronic components, the set time T may deviate. The LOGO!

has a maximum tolerance of 0.02 %.

When 0.02 % of the time T is smaller than 0.02 seconds, the maximum deviation is 0.02 seconds.

Example:

The maximum tolerance per hour (3600 seconds) is

0.02 %, which is proportional to 0.72 seconds.

The maximum toloerance per minute (60 seconds) is

0.02 seconds.

Accuracy of the timer (weekly/yearly timer)

To prevent timing inaccuracy of the real-time clock in C versions caused by this deviation, the timer value is continuously compared with a high-precision timebase and corrected. The resultant maximum timing inaccuracy is 5 s/day.

4.3.3 Backup of the real-time clock

Because the internal real-time clock of a LOGO! is backed up, it continues operation after a power failure. The ambient temperature influences the backup time. At an ambient temperature of 25

°

C , the typical backup time is 80 hours.

If there is a power outage of a LOGO! for more than 80 hours, the internal clock responds, dependent on the equipment series, as shown below:

LOGO! Manual

A5E00380835-01

127

LOGO! functions

Equipment series 0BA0:

On restarting, the clock is set to “Sunday 00:00 1 January”. The time starts to run. Due to this, the system processes the time switches, which trigger actions, if necessary.

Equipment series 0BA1 and later:

On restarting, the clock is set to “Sunday 00:00 1 January”. The time is stopped and flashes. LOGO! is back in the status that it was in before the power outage.

In the RUN status, the system processes the counters that were parameterized with the time above. The clock is, however, still stopped.

4.3.4 Retentivity

The switching states and counter values of SFs can be set retentive. This means that current data are retained after a power failure, and that the block resumes operation at the break point. The timer is not reset, but resumes operation until the time-to-go has expired, for example.

To enable this response, however, the relevant functions must be set retentive. Two options are available:

R: The data is retained.

/

: Current data is not retained (default). See the example on

Page 91.

The hours counter is an exception because this function is always retentive.

4.3.5 Parameter protection

In the parameter protection settings, you can determine whether the parameters can be displayed and edited in

LOGO! parameter assignment mode or not. Two options are available:

+

: The parameter attribute permits read/write access in parameter assignment mode (default).

: The parameter settings are read-/write-protected in parameter assignment mode, and can be edited only in programming mode. See the example on Page 91.

128

LOGO! Manual

A5E00380835-01

LOGO! functions

4.3.6 Calculating the gain and offset of analog values

A sensor is connected to the analog input and converts a process variable into an electrical signal. This value of signal lies within the typical range of this sensor.

LOGO! always converts the electrical signals at the analog input into digital values from 0 to 1000.

A voltage of 0 to 10 V at input AI is transformed internally into range of values from 0 to 1000. An input voltage exceeding 10 V is shown as internal value 1000.

Because you can not always process the range of values from 0 to 1000 as predetermined by LOGO!, you can multiply the digital values by a gain factor and then shift the zero of the range of values (offset). This allows you to output an analog value to the LOGO! display, which is proportional to the actual process variable.

Parameter

Input voltage (in V)

Internal value

Gain

Offset

Minimum

–10.00

–10000

0

0

Maximum

10

1000

+10.00

+10000

LOGO! Manual

A5E00380835-01

129

LOGO! functions

Mathematical rule

Actual value

Ax

=

(internal value at input Ax gain) + offset

Gain and offset calculation

The gain and offset is calculated based on the relevant high and low values of the function.

Example 1:

The available thermocouples have the following technical data: –30 to +70 C, 0 to 10 V DC (i.e. 0 to 1000 in LOGO!).

Actual value

= (internal value gain) + offset, thus

–30

+70

Example 2:

= (0 A) + B, i.e. offset B = –30

= (1000 A) –30, i.e. gain A = 0.1

A pressure sensor converts a pressure of 1000 mbar into a voltage of 0 V, and a pressure of 5000 mbar into a voltage of 10 V.

Actual value

= (internal value gain) + offset, thus

1000

5000

= (0 A) + B, i.e. offset B = 1000

= (1000 A) +1000, i.e. gain A = 4

130

LOGO! Manual

A5E00380835-01

LOGO! functions

Example of analog values

Process variable

Voltage

(V)

Internal value

Gain Offset

–30 C

0 C

+70 C

1000 mbar

3700 mbar

5000 mbar

0

3

10

0

6.75

10

0.02

0.02

0.02

0.02

0

5

10

0

5

10

0

10

0

5

10

0

5

10

0

5

10

0

5

10

0

300

1000

0

675

1000

0

500

1000

0

500

1000

0

1000

2

2

2

2

0

500

1000

0

500

1000

0

500

1000

0

500

1000

0.1

0.1

0.1

4

4

4

0.01

0.1

1

10

10

10

1

1

1

1

1

1

10

10

10

0.01

0.01

0.01

0.01

0.01

0.01

1

1

1

500

500

500

–200

–200

–200

–10000

–10000

0

0

0

0

5

5

5

0

0

0

0

0

0

0

0

0

–30

–30

–30

1000

1000

1000

A sample application is found in the description of the “Analog comparator” SF on Page 188.

For further information on analog inputs, refer to Chapter 4.1.

Value shown

(Ax)

500

1000

1500

–200

300

800

–10000

0

2

20

0

0

0

5000

10000

5

10

15

0

5

10

0

500

1000

–30

0

70

1000

3700

5000

LOGO! Manual

A5E00380835-01

131

LOGO! functions

4.4 Special functions list – SF

When you create your circuit program in LOGO!, you find the special function blocks in the SF list.

You can invert the inputs of SFs individually, i.e. the circuit program converts a logical “1” at the input into a logical “0”; a logical “0” it converts into a logical “1”. An example of the program code found in Chapter 3.7.3.

The table also specifies whether the relevant function can be set retentivity (Rem). The following SFs are available:

View inLOGO!

Name of the special function

Rem

Times

On-delay REM

(see page 136)

Off-delay

(see page 140)

On-/Off-delay

(see Page 142)

REM

REM

Retentive on-delay

(see page 144)

REM

Wiping relay (pulse output)

(see page 146)

REM

132

LOGO! Manual

A5E00380835-01

LOGO! Manual

A5E00380835-01

View inLOGO!

LOGO! functions

Name of the special function

Edge triggered wiping relay

(see page 148)

Rem

REM

Asynchronous pulse generator

REM

(see Page 151)

Random generator

(see page 153)

REM Stairway lighting switch

(see page 155)

Multiple function switch

(see page 158)

Weekly timer

(see Page 161)

REM

Yearly timer

(see Page 166)

133

LOGO! functions

Counter

View inLOGO!

134

Fre

Analog

Name of the special function

Up/down counter

(see Page 169)

Hours counter

(see page 173)

Threshold trigger

(see Page 178)

Rem

REM

REM

Analog threshold trigger

(see page 181)

Analog differential trigger

(see page 184)

Analog comparator

(see Page 188)

Analog value monitoring

(see Page 193)

Analog amplifier

(see Page 196)

LOGO! Manual

A5E00380835-01

View inLOGO!

A/M

R

PV

Par

Miscellaneous

AQ

P

En

Par

Q

Latching relay

(see Page 198)

Pulse relay

(see Page 199)

Message texts

(see Page 202)

Softkey

(see Page 209)

Shift register

(see Page 213)

LOGO! functions

Rem Name of the special function

Analog multiplexer

(see Page 216)

Analog ramp

(see Page 220)

PI controller

(see Page 225)

REM

REM

REM

REM

REM

LOGO! Manual

A5E00380835-01

135

LOGO! functions

4.4.1

On-delay

Short description

The output is only set after a configurable on-delay time has expired.

Symbol in

LOGO!

Wiring Description

Input Trg

Parameter

Output Q

You start the on-delay with a negative edge (1 to 0 transition) at input Trg (Trigger).

T represents the time after which the output is switched on (0 to 1 transition of the output signal).

Retentivity:

/ = no retentivity

R = the status is retentive.

Q is switched on when the set time T has expired, provided Trg is still set.

Parameter T

Please note the defaults for parameter T in Chapter 4.3.2.

The time for parameter T can also be preset based on the actual value of another, already configured function. You can use the actual values of the following functions:

Analog comparator (actual value Ax – Ay, see Chapter 4.4.18)

Analog threshold trigger (actual value Ax, see Chapter 4.4.16)

Analog amplifier (actual value Ax, see Chapter 4.4.20)

Analog multiplexer (actual value AQ, see Chapter

4.4.26)

Analog ramp (actual value AQ, see Chapter 4.4.27)

PI controller (actual value AQ, see Chapter 4.4.28) and

Counter (actual value Cnt, see Chapter 4.4.13).

136

LOGO! Manual

A5E00380835-01

LOGO! functions

Select the required function by means of the block number.

The timebase is adjustable. Please note the following listing:

Valid ranges of the timebase, if T = parameter

Timebase max. value min. resolution

s (seconds) 99:99 10 ms m (minutes) h (hours)

99:59

99:59

1s

1 min

Accuracy

+ 10 ms

+ 1 s

+ 1 min

The display in programming mode (example):

B12 +R

T =04:10h

Valid ranges of the timebase, if T = Actual value of an already programmed function

Timebase

ms s m

max. value

99990

Meaning

Number of ms

5999 Number of s

5999 Number of min

Accuracy

+ 10 ms

+ 1 s

+ 1 min

The display in programming mode (example):

B12 +R

T

!

B006s

LOGO! Manual

A5E00380835-01

137

LOGO! functions

If the referenced block (B6, in the example) returns a value that lies out of the valid range, the value is rounded up or down to the next valid value.

Parameter preset = Actual value of an already programmed function

How to include the actual value of an actual value of an already programmed function:

1. Press to move the cursor to the equal sign of parameter T.

B12 +R

T =04:10h

Press twice

B12 +R

T =04:10h

2. Press to change the equal sign into an arrow. If it exists, the last referenced block and its timebase is shown.

B12 +R

T

!

B006s

3. Press to move the cursor to the “B” of the shown block, and then press to select the required block number.

4. Press to move the cursor to the block’s timebase and press to select the required timebase.

B12 +R

T

!

B006m

138

LOGO! Manual

A5E00380835-01

LOGO! functions

The view in parameter assignment mode (example):

B12

T =04:10h

or

B12

T

!

B006m

Ta =02:00h

Timing diagram

current time

Ta =02:00h

Trg

Q

The bold section of the timing diagram is also shown in the on-delay icon.

T T

T a

expires

Functional description

The time T a

(T a

is triggered with a 0 to 1 transition at input Trg

is the current LOGO! time).

If the status of input Trg is 1 at least for the duration of the configured time T, the output is set to 1 on expiration of this time (the output follows the input with on-delay).

The time is reset when the status at input Trg returns to 0 before the time T has expired.

The output is reset to 0 when the signal at input Trg is 0.

If retentivity is not set, output Q and the expired time are reset after a power failure.

LOGO! Manual

A5E00380835-01

139

LOGO! functions

4.4.2

Off-delay

Short description

When an on-delay is set, the output is reset when the configured time has expired.

Symbol in

LOGO!

Wiring Description

Input Trg

Input R

Parameter

Output Q

You start the off-delay time with a negative edge (1 to 0 transition) at input Trg (Trigger)

A signal at input R resets the on-delay time and the output.

T is the time that expires after which the output is switched off (1 to 0 transition of the output signal).

Retentivity:

/ = No retentivity

R = The status is retentive.

Q is set with a signal at input Trg. It holds this state until T has expired.

Parameter T

Please note the parameter T defaults specified in

Chapter 4.3.2.

The time for parameter T can be based on the actual value of another, already configured function. You can use the process variables of the following functions:

Analog comparator (actual value Ax – Ay, see Chapter 4.4.18)

Analog threshold trigger (actual value Ax, see Chapter 4.4.16)

140

LOGO! Manual

A5E00380835-01

LOGO! functions

Analog amplifier (actual value Ax, see Chapter 4.4.20)

Analog multiplexer (actual value AQ, see Chapter

4.4.26)

Analog ramp (actual value AQ, see Chapter 4.4.27)

PI controller (actual value AQ, see Chapter 4.4.28) and

Up/down counter (actual value Cnt, see Chapter 4.4.13).

Select the required function by means of the block number.

The timebase is configurable. For information on valid timebase ranges and parameter preset, refer to Chapter 4.4.1.

Timing diagram

Trg

R

Q

T a

expires T T

The bold section of the timing diagram also appears in the off-delay symbol.

Functional description

Output Q is set to hi immediately when the input Trg changes to hi.

The actual time T a

in LOGO! is retriggered at the 1 to 0 transition of Trg. The output remains set. Output Q is reset to 0 with off-delay when T

T (T a

=T).

a

reaches the value configured at

The time T a

is retriggered with a one-shot at input Trg.

You can set input R (Reset) to reset the time T a output before T a

has expired.

and the

If retentivity is not set, output Q and the expired time are reset after a power failure.

LOGO! Manual

A5E00380835-01

141

LOGO! functions

4.4.3

On-/Off-delay

Short description

The on-/off-delay function sets the output after the set ondelay time has expired, and resets it upon expiration of the off-delay time.

Symbol in

LOGO!

Wiring Description

Input Trg

Parameter

Output Q

A positive edge (0 to 1 transition) at input Trg (Trigger) triggers the on-delay time

T

H

.

A negative edge (1 to 0 transition) at input Trg (Trigger) triggers the off-delay time T

L

.

T

H

is the time after which the output is set hi (output signal transition 0 to 1).

T

L

is the time after which the output is reset ( output signal transition 1 to 0).

Retentivity:

/ = No retentivity

R = The status is retentive.

Q is set when the configured time T

H

has expired and Trg is still set. It is reset on expiration of the time T

L if the trigger Trg has not been set again.

,

142

LOGO! Manual

A5E00380835-01

LOGO! functions

Parameters T

H

and T

L

Note the preset values for the parameters T

Chapter 4.3.2.

H

and T

L

in

Timing diagram

Trg

Q

T

H

T a

expires

T a

expires

T

L

T

H

T

L

T

L

T

H

The bold section of the timing diagram is also shown in the on/ off-delay symbol.

Functional description

The time T

H

is triggered with a 0 to 1 transition at input Trg.

If the status at input Trg is 1 at least for the duration of the time T

H

, the output is set to 1 on expiration of the time T

(the output follows the input with on-delay).

H

The time is reset when the signal at input Trg is reset to 0 before the time T

H

has expired..

A 1 to 0 transition at input Trg triggers the time T

L

.

If the status at input Trg is 0 at least for the duration of the signal T

L

, the output is set to 0 on expiration of the time T

(the output follows the input with off-delay).

L

The time is reset when the signal at input Trg changes to 1 again before the time T

L

has expired.

If retentivity is not set, output Q and the expired time are reset after a power failure.

LOGO! Manual

A5E00380835-01

143

LOGO! functions

4.4.4

Retentive on-delay

Short description

A one-shot at the input triggers a configurable on-delay time. The output is set when this time has expired.

Symbol in

LOGO!

Wiring Description

Input Trg

Input R

Parameter

Output Q

A signal at input Trg (Trigger) triggers the on-delay time.

A signal at input R resets the on-delay time and the output.

T represents the on-delay time for the output (output status transition 0 to 1).

Retentivity:

/ = no retentivity

R = The status is retentive.

Q is set after the time T has expired.

Parameter T

Note the defaults specified in Chapter 4.3.2.

The time for parameter T can be based on the process variable of another, already programmed function. You can use the process variables of the following functions:

Analog comparator (actual value Ax - Ay, see Chapter 4.4.18)

Analog threshold trigger (actual value Ax, see Chapter 4.4.16)

Analog amplifier (actual value Ax, see Chapter 4.4.20)

Analog multiplexer (actual value AQ, see Chapter

4.4.26)

Analog ramp (actual value AQ, see Chapter 4.4.27)

PI controller (actual value AQ, see Chapter 4.4.28) and

144

LOGO! Manual

A5E00380835-01

LOGO! functions

Up/down counter (actual value Cnt, see Chapter 4.4.13).

Select the required function by means of the block number.

The timebase is configurable. For information on valid ranges and parameter defaults, refer to Chapter 4.4.1.

Timing diagram

Trg

R

Q

T a

expires

T

T

The bold section of the timing diagram is also shown in the symbol of the retentive on-delay.

Functional description

The 0 to 1 signal transition at input Trg triggers the current time T a

. Output Q is set when T a

= T. A further signal at input Trg does not influence the time T a

.

The output and the time T a at input R.

are reset with the next 1 signal

If retentivity is not set, output Q and the expired time are reset after a power failure.

LOGO! Manual

A5E00380835-01

145

LOGO! functions

4.4.5

Wiping relay (pulse output)

Short description

An input pulse generates a signal with a configurable period at the output.

Symbol in

LOGO!

Wiring Description

Input Trg

Parameter

Output Q

A signal at input Trg (Trigger) triggers the time for the wiping relay function.

The output is switched off after the time T has expired

(output signal transition 1 to

0).

Retentivity:

/ = No retentivity

R = The status is retentive.

A signal at input Trg sets Q.

If the input signal = 1, output

Q remains set for the time

Ta.

Parameter T

Please note the information on parameter T in Chapter

4.3.2.

Timing diagram

Trg

Q

T a

is expiring

T

The bold section of the timing diagram also appears in the symbol of the wiping relay.

T has not expired

146

LOGO! Manual

A5E00380835-01

LOGO! functions

Functional description

A 0 to 1 transition at input Trg sets the output, and triggers a time T a

during which the output remains set.

Output Q is reset to lo (pulse output) when T a value preset at T (T a

= T).

reaches the

The output is immediately reset if there is a 1 to 0 transition at input Trg before the specified time has expired.

If retentivity is not set, output Q and the expired time are reset after a power failure.

LOGO! Manual

A5E00380835-01

147

LOGO! functions

4.4.6

Edge triggered wiping relay

Short description

An input pulse generates a preset number of output pulses with a defined pulse/pause ratio (retriggerable), after a configured delay time has expired.

Symbol in

LOGO!

Wiring Description

Input Trg

Input R

Parameter

Output Q

A signal at input Trg (Trigger) triggers the times for the edge triggered wiping relay.

A signal at input R resets the current time (T output.

a

) and the

The interpulse width T

L the pulse width T

H gurable.

and

are confi-

N determines the number of pulse/pause cycles TL/TH:

Range of values: 1...9

Retentivity:

/ = No retentivity

R = The status is retentive.

Q is set after TL has expired, and reset after TH has expired.

Parameter T

Please note the information on parameter T in

Chapter 4.3.2.

Timing diagram A

Trg

Q

T a

is running T

H

T

H

N=1

T

L

=0

The bold section of the timing diagram also appears in the symbol of the edge triggered wiping relay.

148

LOGO! Manual

A5E00380835-01

LOGO! functions

Timing diagram B

Trg

Q

N=2

Timing diagram for the sample configuration

Functional description

A 0 to 1 transition at input Trg triggers the time T

Low). After the time T duration of T

L

H

(Time High).

L

(Time

has expired, output Q is set for the

If there is a further 0 to 1 transition (retriggering pulse) at input Trg before the preset time (T

L

+ T

H

) has expired, T reset and the pulse/pause cycle is restarted.

a

is

If retentivity is not set, output Q and the time are reset after a power failure.

Preset of the Par parameter

View in programming mode (example):

B25 1+R

TL =02:00s

TH =03:00s

Protection mode and retentivity

Interpulse width

Pulse width

Press

B25 2

N =1

Number of pulse/pause cycles

(example)

LOGO! Manual

A5E00380835-01

149

LOGO! functions

View in parameter assignment mode (example):

B25

TL =02:00s

TH =03:00s

Ta =01:15s

Current pulse width T

L

or T

H

150

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.7

Asynchronous pulse generator

Short description

The output pulse shape can be modified by reconfiguring the pulse/pause ratio.

Symbol in

LOGO!

Wiring Description

Input En

Input INV

Parameter

Output Q

You can use input EN to set and reset the asynchronous pulse generator.

Input INV can be used to invert the output signal of the active asynchronous pulse generator.

You can configure the pulse width T

H

and the interpulse width T

L

.

Retentivity:

/ = No retentivity

R = The status is retentive.

Q is set and reset cyclically according to the pulse/ pause ratio T

H

and T

L

.

Timing diagram

En

Inv

Q

T

H

T

L

T

H

T

L

T

H

T

H

T

L

LOGO! Manual

A5E00380835-01

151

LOGO! functions

Functional description

You can configure the pulse/interpulse width at the T

H

(Time High) and T

L

(Time Low) parameters .

Input Inv can be used to invert the output signal, provided the block is enabled with a signal at input EN.

If retentivity is not set, output Q and the expired time are reset after a power failure.

152

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.8

Random generator

Short description

The output of the random generator is set or reset within a configured time.

Symbol in

LOGO!

Wiring Description

Input En

Parameter

Output Q

A positive edge ( 0 to 1 transition) at input En (Enable) triggers the on-delay time of the random generator.

A negative edge ( 1 to 0 transition) at input En (Enable) triggers the off-delay time of the random generator.

The on-delay is set at random to a value between 0 s and T

H

.

The off-delay is set at random to a value between 0 s and T

L

.

Output Q is set when the on-delay has expired and if

En is still set. It is reset when the off-delay has expired, provided En was not set again meanwhile.

Parameter T

H

and T

L

Note the defaults of the T

H

Chapter 4.3.2.

and T

L

parameters listed in

LOGO! Manual

A5E00380835-01

153

LOGO! functions

Timing diagram

En

Q

The bold section of the timing diagram also appears in the symbol of the random generator.

T is busy

T

H

T

L

Functional description

The 0 to 1 transition at input En triggers a random on-delay time between 0 s and T

H

. The output is set when the ondelay time has expired and if the signal at input En remains hi at least for the duration of this time.

The time is reset if input En is reset before the on-delay time has expired.

A 1 to 0 transition at input EN triggers a random on-delay time between 0 s and T

L

.

The output is reset after the off-delay time has expired, provided input En remains lo at least for the duration of this time.

The time is reset if the signal at input En changes to 1 again before the off-delay time has expired.

The time expired is reset after a power failure.

154

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.9

Stairway lighting switch

Short description

An input edge triggers a configurable and retriggerable time. The output is reset after this time has expired. A warning signal can be output before this time has expired to warn of the impending shutdown.

Symbol in

LOGO!

Wiring Description

Input Trg

Parameter

Output Q

A signal at input Trg (Trigger) triggers the off-delay time for the stairway lighting switch.

T represents the off-delay time of the output (output signal transition 1 to 0).

T

!

determines the triggering time for the pre-warning.

T

!L

determines the length of the pre-warning signal.

Retentivity:

/ = No retentivity

R = The status is retentive.

Q is reset after the time T has expired. A warning signal can be output before this time has expired.

Timing diagram

Trg

Q

T a

is busy

T

T

!L

T

!

LOGO! Manual

A5E00380835-01

155

LOGO! functions

Functional description

A 0 to 1 signal transition at input Trg sets output Q. The next 1 to 0 transition at Trg retriggers the current time T and output Q remains set.

a

,

Output Q is reset when T a

= T. You can output a warning signal before the off-delay time (T – T

!

) has expired to reset

Q for the time of the pre-warning period T

!L

.

A further one-shot at input Trg during T a

T a

.

retriggers the time

If retentivity is not set, output Q and the expired time are reset after a power failure.

Preset of the Par parameter

Note the defaults specified in Chapter 4.3.2.

Note

All times must have the same timebase.

View in programming mode (example):

B9 1+R

T =60:00s

Protection mode and retentivity

Off-delay time

Press

B9 2

T! =05:00s

T!L =00:10s

Start of the off-warning period

(T – T

!

)

Off-warning time

156

LOGO! Manual

A5E00380835-01

LOGO! functions

View in parameter assignment mode (example):

B9 1

T =60:00s

Ta =06:00s

Current value of T

LOGO! Manual

A5E00380835-01

157

LOGO! functions

4.4.10 Multiple function switch

Short description

Switch with two different functions:

Pulse switch with off-delay

Switch (permanent lighting)

Symbol in

LOGO!

Wiring

Input Trg

Input R

Parameter

Output Q

Description

A signal at input Trg (Trigger) sets output Q (permanent light) or resets it with off-delay. When active, output Q can be reset with a signal at input Trg.

A signal at input R resets the current time T output.

a

and the

T represents the time after which f the output is reset

(output signal transition

1 to 0).

T

L

represents the time during which the output must be set to enable the permanent lighting function.

T

!

represents the preset time for the start of the offwarning signal.

T

!L

represents the length of the off-warning period.

Retentivity:

/ = No retentivity

R = The status is retentive.

A signal at Trg switches on output Q. Depending on the length of the input at Trg, the output is switched off again or switched on permanently, or it is reset with a further signal at Trg.

158

LOGO! Manual

A5E00380835-01

LOGO! functions

Timing diagram

Trg

T

L

T

L

Q

T a

is busy

T

T

!L

T

!

Functional description

A 0 to 1 transition at input Trg sets output Q.

If output Q = 0, and input Trg is set hi at least for the duration of T

L

, the permanent lighting function is enabled and output Q is set accordingly.

The off-delay T is triggered when input Trg returns to 0 before T

L

has expired.

Output Q is reset when T a

= T.

You can output an off-warning signal prior to the expiration of the off-delay time (T – T

!

), to reset Q for the duration of the off-warning signal T

!L

. A further signal at Trg always resets T and the output Q.

If retentivity is not set, output Q and the expired time are reset after a power failure.

Preset of the Par parameter

Note the defaults specified in Chapter 4.3.2.

Note

T, T

!

and T

!L

must all have the same timebase.

View in programming mode (example):

B5 1+R

T =60:00s

TL =10:00s

Protection mode and retentivity

Off-delay

Permanent light on-time

LOGO! Manual

A5E00380835-01

159

LOGO! functions

Press

B5 2

T! =30:00s

T!L =20:00s

Start of the off-warning period

(T – T

!

)

Off-warning time

View in parameter assignment mode (example):

B5 1

T =60:00s

TL =10:00s

Ta =06:00s

Current value of the time T

L

or T

160

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.11 Weekly timer

Short description

The output is controlled by means of a configurable on/off date. The function supports any combination of weekdays.

You select the active weekdays by hiding the inactive days.

Note

Because the LOGO! 24/24o does not have a real-time clock, the weekly timer function is not available for this version.

Symbol in

LOGO!

Wiring Description

Cam parameters

No1, No2, No3

Output Q

At the Cam parameters, you set the on- and off-times of the weekly timer for each

Cam

switch. Here you also configure the days and the time-of-day.

Q is set when the configured cam is actuated.

Timing diagram (three examples)

Cam 1 2 1 1 1 1 1 3 1 3

Monday Wednesday

Tuesday Thursday

Friday

Saturday

Sunday

Cam No1:

Cam No2:

Cam No3:

Daily:

Tuesday:

06:30 h to 08:00 h

03:10 h to 04:15 h

Saturday and Sunday: 16:30 h to 23:10 h

Q

LOGO! Manual

A5E00380835-01

161

LOGO! functions

Functional description

Each weekly timer has three cams you can use to configure a time hysteresis. You specify the on- and off-times at the Cam parameters. The weekly timer sets the output at a certain on-time, if this is not already set.

The weekly timer resets the output at a certain off-time, if it is not switched off already. You will cause a conflict if the on- and off-times you set for the weekly timer are identical, though set on different cams. In this case, cam3 takes priority over cam2, whereas cam2 takes priority over cam1.

The switching state of the weekly timer is determined by the status of all three cams.

Parameter assignment screen form

View of the parameter assignment screen form, for example for Cam1:

Block B1 Cam No1 See Showing/hiding parameters – Parameter protection mode on page 91

B1 1+

D=MTWTFSS

On =06:30

Off=08:00

Weekdays (daily)

On-time (06.30 h)

Off-time (08:00 h)

Weekday

The suffix of “D=” (Day) has the following meaning:

M : Monday

T :

W :

T :

F :

S :

S :

Tuesday

Wednesday

Thursday

Friday

Saturday

Sunday

The uppercase letter indicates: A weekday is selected. A

“–” means: A weekday has not been selected.

162

LOGO! Manual

A5E00380835-01

LOGO! functions

On-/Off-times

Possible is any time between 00:00 h and 23:59 h.

––:–– means: No on-/off-times set.

Setting the weekly timer

To set the on-/off-times:

1. Move the cursor to one of the Cam parameters of the timer (e.g. No1).

2. Press

OK

. LOGO! opens the Cam parameter assignment screen form. The cursor is positioned on the weekday.

3. Press and to select one or several weekdays.

4. Press to move the cursor to the first position of the on-time.

5. Set the on-time.

Modify the value at the respective position, using the keys and . Move to the cursor to the various positions, using the keys and . At the first position, you can only select the value ––:––

(––:–– means: No on-/off-times set).

6. Press to move the cursor to the first position of the off-time.

7. Set the off-time (in same way as in step 5).

8. Confirm your entries with

OK

.

The cursor is now positioned on the No2 parameter

(Cam2) and you can configure a further cam.

Note

For information on timer accuracy, refer to the technical data and to Chapter 4.3.2.

LOGO! Manual

A5E00380835-01

163

LOGO! functions

Weekly timer: Example

The output of the weekly timer switch is to be set daily from

05:30 h to 07:40 h. The output should also be set every

Tuesday from 03:10 h to 04:15 h, and at the weekends from 16:30 h to 23:10 h.

This requires three cams.

Here are the parameter assignment screen forms of the cams No 1, 2 and 3, based on the timing diagram shown earlier.

Cam1

Cam No1 must set the output of the weekly timer daily from

05:30 h to 07:40 h.

B1 1+

D=MTWTFSS

On =05:30

Off=07:40

Cam2

Cam No2 must set the output of the weekly timer every

Tuesday from 03:10 h to 04:15 h.

B1 2

D=–T–––––

On =03:10

Off=04:15

164

LOGO! Manual

A5E00380835-01

LOGO! functions

Cam3

Cam No3 must set the output of the weekly timer switch every Saturday and Sunday from 16:30 h to 23:10 h.

B1 3

D=–––––SS

On =16:30

Off=23:10

Result

Cam 1 2 1 1 1 1 1 3 1 3

Monday Wednesday

Tuesday Thursday

Friday

Saturday

Sunday

Q

LOGO! Manual

A5E00380835-01

165

LOGO! functions

4.4.12 Yearly timer

Short description

The output is controlled by means of a configurable on/off date.

Note

Because LOGO! 24/24o does not have a real-time clock, the yearly timer is not available for this version.

Symbol in

LOGO!

Wiring Description

Cam parameter

Output Q

At the Cam parameter, you configure the on-/off-times for the cam of the yearly timer.

Q is set when the configured cam is actuated.

Timing diagram

Feb.

Mar.

Apr.

MM.DD

On=02.20

Off=04.03

On

Off

February 20 at

00:00 h

April 3 at 00:00 h

Functional description

The yearly timer sets the output at a specific on-time, and resets it at a specific off-time. The off-date identifies the day on which the output is reset again. The first value identifies the month, the second the day. For “MM” you can select a placeholder (

**

), so that the on- and off-time is set for a specific day each month.

166

LOGO! Manual

A5E00380835-01

LOGO! functions

Sample configuration

The output of a LOGO! is to be set annually on March 1, reset on April 4, set again on July 7, and reset again on

November 19. You need to configure two yearly timers with corresponding on-times. The outputs are then logically linked by means of an OR block

B1 +

MM–DD

On =03–01

Off=04–04

B2 +

MM–DD

On =07–07

Off=11–19

On-time March 1

Off-time April 4

In addition:

On-time July 7

Off-time November 19

Result

B1

B2

On

Off

March 1 at 00:00 h

July 7 at 00:00 h

April 4 at 00:00 h

November 19 at 00:00 h

LOGO! Manual

A5E00380835-01

167

LOGO! functions

Further examples

B11 +

**–DD

On =**–01

Off=**–02

B12 +

**–DD

On =**–10

Off=**–20

B13 +

**–DD

On =**–25

Off=**–05

On-time is the first, and off-time the second day each month.

Each month, from the 10th through to the 20th

In the next month, from the 25th through the 5th

168

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.13 Up/down counter

Short description

An input pulse increments or decrements an internal value, depending on the parameter setting. The output is set or reset when a configured threshold is reached. The direction of count can be changed with a signal at input Dir.

Symbol in

LOGO!

Wiring Description

Input R

Input Cnt

Input Dir

A signal at input R resets the internal count value to zero.

The function counts the 0 to

1 transitions at input Cnt. 1 to 0 transitions are not counted.

Use inputs I5/I6 for highspeed counting (only

LOGO! 12/24 RC/RCo and LOGO! 24/24o): max. 2 kHz.

any other input or circuit component for counting low frequency signals

(5 Hz).

You set the direction of count at input Dir:

Dir = 0: Up count

Dir = 1: Down count

LOGO! Manual

A5E00380835-01

169

LOGO! functions

Symbol in

LOGO!

Wiring Description

Parameter

Output Q

On: On threshold

Range of values:

0...999999

Off: Off threshold

Range of values:

0...999999

Retentivity for internal counter value Cnt:

/ = No retentivity

R = The status is retentive.

Q is set or reset, depending on the current value at Cnt and the set thresholds.

Timing diagram

R

Cnt

Dir

On=Off=5

0

Internal count value

Cnt

Q

Functional description

The internal counter increments (Dir = 0) or decrements

(Dir = 1) by one count with every positive edge at input Cnt.

You can use input R to reset the internal count value to

’000000’. As long as R = 1, the output is also lo and the pulses at input Cnt are not counted.

If retentivity is not set, output Q and the expired time are reset after a power failure.

Q is set or reset depending on the current value at Cnt and the set thresholds. See the calculation rule below.

170

LOGO! Manual

A5E00380835-01

LOGO! functions

Calculation rule

If the On threshold Off threshold, then:

Q = 1, if Cnt On

Q = 0, if Cnt < Off.

If the On threshold < Off threshold, then Q = 1, if On Cnt < Off.

Default on/off parameters

The default limits for the on and/or off parameters can be derived from another, already programmed function. You can use the actual values of the following functions:

Analog comparator (actual value Ax – Ay, see Chapter 4.4.18)

Analog threshold trigger (actual value Ax, see Chapter

4.4.16)

Analog amplifier (actual value Ax, see Chapter 4.4.20)

Analog multiplexer (actual value AQ, see Chapter

4.4.26)

Analog ramp (actual value AQ, see Chapter 4.4.27)

PI controller (actual value AQ, see Chapter 4.4.28) and

Up/down counter (actual value Cnt).

Select the required function by means of the block number.

For information on parameter defaults, refer to Chapter 4.4.1.

Note

The system scans the counter limit value cyclically.

Thus, if the pulse frequency at the fast inputs I5/I6 is faster than the cycle time, the special function might not switch until after the specified limit value is exceeded.

Example: Up to 100 pulses per cycle can be counted; 900 pulses have been counted so far. On = 950; Off = 10000.

The output is set in the next cycle, after the value has reached 1000. (The output would not be set at all if the value Off = 980.)

LOGO! Manual

A5E00380835-01

171

LOGO! functions

View in programming mode (example):

B3 +R

On =001234

Off=000000

or

B3 +R

On =123456

Off

!

B021

If the referenced block (B6, in the example) returns a value that lies out of the valid range, the value is rounded to the next valid value.

The view in parameter assignment mode (example):

B3

On =001234

Off=000000

Cnt=000120

or

Current count value

B3

On =123456

Off

!

B021

Cnt=000120

172

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.14 Hours counter

Short description

A configured time is triggered with a signal at the monitoring input. The output is set when this time has expired.

Symbol in

LOGO!

Wiring Description

Input R

Input En

Input Ral

A positive edge (0 to 1 transition) at input R resets output Q and sets a configured value MI at the counter for the duration of the time-to-go (MN).

En is the monitoring input.

LOGO! scans the on-time of this input.

A positive edge at input Ral

(Reset all) resets both the hours counter (OT) and the output, and sets the configured value MI at the counter to for the duration of the time-to-go

(MN). That is, output Q = 0, measured operating time

OT = 0 and the time-to-go of the maintenance interval

MN = MI.

LOGO! Manual

A5E00380835-01

173

LOGO! functions

Symbol in

LOGO!

Wiring Description

Parameter MI: Maintenance interval to be preset in hour units

Range of values:

0000...9999 h

OT: Start time for OT

Range of values:

00000...99999 h

Q !

0:

When “R” is selected:

Q = 1, if MN = 0;

Q = 0, if R = 1 or Ral = 1

When “R+En” is selected:

Q = 1, if MN = 0;

Q = 0, if R = 1 or Ral = 1 or En = 0.

Output Q The output is set when the time-to-go MN = 0 (see timing diagramm).

The output is reset:

When “Q

!

0:R+En”, if

R = 1 or Ral = 1 or En = 0

When “Q

!

0:R”, if R = 1 or

Ral = 1.

MI = Configured time interval

MN= Time-to-go

OT= Total time expired since the last hi signal at input Ral

These values are always retentive!

174

LOGO! Manual

A5E00380835-01

LOGO! functions

Timing diagram

R

En

Ral

Q

MN=MI

MN=0

Par:

MI=5h

OT

MI = Configured time interval

MN = Time-to-go

OT = Total time expired since the last hi signal at input Ral

Functional description

The hours counter monitors input En. When En = 1, LOGO!

computes the time expired and the time-to-go MN. LOGO!

shows these times in parameter assignment mode. Output

Q is set when the time-to-go MN = 0.

A signal at reset input R resets output Q and sets the preset value of MI at the counter for the duration of MN. The internal total counter OT continues the count.

With a signal at the reset input Ral, you reset output Q and set the preset value of MI at the counter for the duration of

MN. The internal total counter OT is reset to zero.

Depending on your configuration of parameter Q, the output is either reset with a signal at input

R or Ral (”Q !

0:R”), or when a reset signal is set hi, or the

En signal is set lo (”Q !

0:R+En”).

LOGO! Manual

A5E00380835-01

175

LOGO! functions

Viewing the MI, MN and OT values

LOGO! Basic with display unit: You can open the parameter assignment mode when the system is in RUN to view the actual values of MI, MN and OT.

LOGO! Basic without display unit: In LOGO!Soft Comfort, you can use the Online Test to read these values

(for further information, see Chapter 7).

Limit value of OT

The value of the operating hours in OT are retained when you reset the hours counter with a signal at input R. The hours counter OT continues the count as long as En = 1, irrespective of the status at the reset input R.

The counter limit of OT is 99999 h.

The hours counter stops when it reaches this value.

In programming mode, you can set the initial value of OT.

The counter starts operation at any value other than zero.

MN is automatically calculated at the START, based on the

MI and OT values

(Example: MI = 100, OT = 130, the result is MN = 70).

Preset of the Par parameter

View in programming mode:

B16 +

MI = 0100h

Q

!

0:R+En

OT =00000h

or

Time expired

B16 +

MI = 0100h

Q

!

0:R

OT =00000h

MI is the configurable time interval. Its permissible range of values lies between 0 and 9999 hours.

176

LOGO! Manual

A5E00380835-01

LOGO! functions

View in parameter assignment mode:

B16

MI = 0100h

MN = 0017h

OT =00083h

Time interval

Time-to-go

Total operating hours

LOGO! Manual

A5E00380835-01

177

LOGO! functions

4.4.15 Threshold trigger

Short description

The output is set and reset with two configurable threshold triggers.

Symbol in

LOGO!

Wiring Description

Fre

Input Fre

Parameter

Output Q

The function counts the 0 to 1 transitions at input Fre. 1 to 0 transitions are not counted.

Use inputs I5/I6 for high-speed counting (only LOGO!

12/24 RC/RCo and LOGO!

24/24o): max. 2 kHz.

any other input or circuit component for counting low frequency signals (5 Hz).

On: On threshold

Range of values:

0000...9999

Off: Off threshold

Range of values:

0000...9999

G_T: Time interval or gate time during which the input pulses are measured.

Range of values:

00:05 s...99:99 s

Q is set and reset at the thresholds.

Timing diagram

Q

G_T

Fre f a

= 9 f a

= 10 f a

= Input frequency f a

= 8 f a

= 4

On = 9

Off = 5

178

LOGO! Manual

A5E00380835-01

LOGO! functions

Functional description

The threshold trigger measures the signals at input Fre.

The pulses are recorded across a configurable time G_T.

Output Q is set and reset in accordance with the set thresholds. See the calculation rule below.

Calculation rule

If the On threshold Off threshold, then:

Q = 1, if f a

> On

Q = 0, if f a

Off.

If the On threshold < Off threshold, then Q = 1 if

On f a

< Off.

Preset of the Par parameter

Note

The system scans the counter limit value once per interval

G_T.

View in programming mode (example):

B15 1+

On =0009

Off =0005

Parameter protection mode

On threshold

Off threshold

Press

B15 2

G_T=01:00s

Time interval for pulses

(example)

LOGO! Manual

A5E00380835-01

179

LOGO! functions

Note

The “seconds” timebase is here set as permanent default.

When you preset a time G_T of 1 s, the LOGO! returns the current frequency in parameter f a

in Hz.

View in parameter assignment mode (example):

B15

On =0009

Off =0005 fa =0010

On threshold

Off threshold

Q = 1 (f a

> On)

Note

f a

always represents the total pulses measured per time unit G_T.

180

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.16 Analog threshold trigger

Short description

The output is set and reset at two configurable thresholds.

Symbol in

LOGO!

Wiring Description

Input Ax You apply the analog signal to be analyzed at input Ax.

Use the analog inputs

AI1...AI8

(

*

)

, the analog flags AM1...AM6, the block number of a function with analog output, or the analog outputs AQ1 and AQ2.

Parameter

Output Q

A: Gain

Range of values:

10.00

B: Zero offset

Range of values:

10.000

On: On threshold

Range of values:

20.000

Off: Off threshold

Range of values:

20.000

p: Number of decimals

Range of values:

0, 1, 2, 3

Q is set or reset by the threshold triggers.

* AI1...AI8: 0...10 V corresponds with 0...1000 (internal value).

LOGO! Manual

A5E00380835-01

181

LOGO! functions

Gain and offset parameters

Please note the information on gain and offset parameters in Chapter 4.3.6.

Parameter p (number of decimals)

Does not apply to the display of On, Off and Ax values in a message text.

Does not apply to the comparison of On and Off values!

(The compare function ignores the decimal point.)

Timing diagram

1000

On

Off

Ax

0

Q

Functional description

The function fetches the analog signal at input Ax.

Ax is multiplied by the value of the A (gain) parameter, and the value at parameter B (offset) is added to product, i.e.

(Ax gain) + offset = actual value of Ax.

Output Q is set or reset, depending on the set thresholds.

See the calculation rule below.

Calculation rule

If the On threshold Off threshold, then:

Q = 1, if the actual value Ax > On

Q = 0, if the actual value Ax Off.

If the On threshold < Off threshold, then Q = 1 if

On actual value Ax < Off.

182

LOGO! Manual

A5E00380835-01

LOGO! functions

Preset of the Par parameter

The gain and offset parameters are used to adapt the sensors to the relevant application.

View in programming mode (example):

B3 1+

On =+04000

Off =+02000

Parameter protection mode

On threshold

Off threshold

Press

B3 2

A =01.00

B =+00000 p =2

Gain

Offset

Decimals in the message text

View in parameter assignment mode (example):

B3

On =+04000

Off =+02000

Ax =+05000

On threshold

Off threshold

Q = 1 (Ax > On)

View in the message text (example):

+050.00

Ax, when p = 2

Q = 1 (Ax > On)

LOGO! Manual

A5E00380835-01

183

LOGO! functions

4.4.17 Analog differential trigger

Short description

The output is set and reset depending on a configurable threshold and a differential value.

Symbol in

LOGO!

Wiring Description

Input Ax

Parameter

You apply the analog signal to be analyzed at input Ax.

Use the analog inputs

AI1...AI8

(

*

)

, the analog flags AM1...AM6, the block number of a function with analog output, or the analog outputs AQ1 and AQ2.

A: Gain

Range of values:

10.00

B: Zero offset

Range of values:

10.000

On: On/Off threshold

Range of values:

20.000

n

: Differential value for calculating the off parameter

Range of values:

20.000

p: Number of decimals

Range of values:

0, 1, 2, 3

Output Q Q is set or reset, depending on the threshold and difference values.

* AI1...AI8: 0...10 V corresponds with 0...1000 (internal value).

184

LOGO! Manual

A5E00380835-01

LOGO! functions

Gain and offset parameters

Please note the information on gain and offset parameters in Chapter 4.3.6.

Parameter p (number of decimals)

Does not apply to the display of On, Off and Ax values in a message text.

Timing diagram A: Function with negative difference

n

O n

Off = On + n

Ax

Q

Timing diagram B: Function with positive difference

n

Off = On + n

Q

On

Ax

Functional description

The function fetches the analog signal at input Ax.

Ax is multiplied by the value of the A (gain) parameter, and the value at parameter B (offset) is added to product, i.e.

(Ax gain) + offset = actual value of Ax.

Output Q is set or reset, depending on the set (On) threshold and difference value ( n

). The function automatically calculates the Off parameter: Off = On + n

, whereby n may be positive or negative. See the calculation rule below.

LOGO! Manual

A5E00380835-01

185

LOGO! functions

Calculation rule

When you set a negative differential value threshold Off threshold, and:

Q = 1, if the actual value Ax > On

Q = 0, if the actual value Ax Off.

See the timing diagram A.

n

, the On n

, the On When you set a positive differential value threshold < the Off threshold, and Q = 1, if:

On actual value Ax < Off.

See the timing diagram B.

Preset of the Par parameter

The gain and offset parameters are used to adapt the sensors to the relevant application.

View in programming mode (example):

B3 1+

On =+04000

n

=–02000

Parameter protection mode

On/off threshold

Differential value for the on/off threshold

Press

B3 2

A =01.00

B =+00000 p =2

Gain

Offset

Decimals in the message text

View in parameter assignment mode (example):

B3

On =+04000

n

=–02000

Ax =+05000

On threshold

Differential value for the off threshold

Q = 1 (Ax > On)

186

LOGO! Manual

A5E00380835-01

Press

B3

Off =+02000

Off threshold

LOGO! functions

LOGO! Manual

A5E00380835-01

187

LOGO! functions

4.4.18 Analog comparator

Short description

The output is set and reset, depending on the difference

Ax – Ay and on two configurable thresholds.

Symbol in

LOGO!

Wiring Description

Inputs Ax and

Ay

Parameter

You apply the analog signals whose difference you want to analyze at the inputs Ax and Ay.

Use the analog inputs

AI1...AI8

(

*

)

, the analog flags AM1...AM6, the block number of a function with analog output, or the analog outputs AQ1 and AQ2.

A: Gain

Range of values:

10.00

B: Zero offset

Range of values:

10.000

On: On threshold

Range of values:

20.000

Off: Off threshold

Range of values:

20.000

p: Number of decimals

Range of values:

0, 1, 2, 3

Output Q Q is set or reset, depending on the difference Ax – Ay and the set thresholds..

* AI1...AI8: 0...10 V corresponds with 0...1000 (internal value).

188

LOGO! Manual

A5E00380835-01

LOGO! functions

Gain and offset parameters

For more information on the gain and offset parameters, refer to Chapter 4.3.6.

Parameter p (number of decimals)

Does not apply to Ax, Ay, On, Off and in a message text.

n

values displayed

Does not apply to the comparison of on and off values!

(The compare function ignores the decimal point.)

Timing diagram

1000

Ax

1000

0

Ay

0

1000

Ax–Ay

200

0

Q for Ax - Ay > 200, if On = Off = 200

Functional description

The function fetches the analog values from the inputs Ax and Ay.

Ax and Ay are each multiplied by the value of the A (gain) parameter, and the value at parameter B (offset) is then added to the relevant product, i.e.

(Ax gain) + offset = actual value Ax or

(Ay gain) + offset = actual value Ay.

The function forms the difference (” values Ax – Ay.

n

”) between the actual

Output Q is set or reset, depending on difference of the actual values Ax – Ay and the set thresholds. See the calculation rule below.

LOGO! Manual

A5E00380835-01

189

LOGO! functions

Calculation rule

If the On threshold Off threshold, then:

Q = 1, if:

(actual value Ax – actual value Ay) > On

Q = 0, if:

(actual value Ax – actual value Ay) Off.

If the On threshold < Off threshold, then Q = 1, if:

On (actual value Ax – actual value Ay) < Off.

Preset of the Par parameter

The gain and offset parameters are used to adapt the sensors to the relevant application.

View in programming mode:

B3 1+

On =+00000

Off =+00000

Parameter protection mode

On threshold

Off threshold

Press

B3 2

A =00.00

B =+00000 p =0

Gain

Offset

Decimals in the message text

Example

In a heating control system, the supply T v temperatures T r sensor at AI2.

and return line

are to be compared, for example with a

A control signal is to be triggered (for example ”heater

On”), when the difference between the supply and return line temperatures is greater than 15 . The control signal is reset when the difference is less than 5 C.

The process variable of the temperature is to be shown in parameter assignment mode.

190

LOGO! Manual

A5E00380835-01

LOGO! functions

The thermocouples available have the the following technical data: –30 to +70 C, 0 to 10 VDC.

Application Internal mapping

–30 to +70 C = 0 to 10 V DC 0 to 1000

0 C

Range of values:

–30 to +70 C = 100

On threshold = 15

Off threshold = 5 C

C

300

!

Offset = –30

1000

!

Gain = 100/1000 = 0.1

Threshold = 15

Threshold = 5

See also Chapter 4.3.6.

Configuration (example):

B3 1+

On =+00015

Off =+00005

Protection mode

On threshold

Off threshold

Press

B3 2

A

B p

=00.10

=–00030

=0

Gain

Offset

Decimals in the message text

(if used)

View in parameter assignment mode (example):

B3 1

On =+00015

Off =+00005

On threshold

Off threshold

LOGO! Manual

A5E00380835-01

191

LOGO! functions

Press

B3 2

Ax =+00010

Ay =–00020

n

=+00030

Temperature values

Q = 1 (differential value > On)

View in the message text (example):

Ax =+00010

Ay =–00020

Reducing the input response of the analog comparator

You can selectively delay the output of an analog comparator by means of the “On-delay” and “Off-delay” special functions. With on-delay, output Q is only set if the pulse width of the triggering signal at input Trg ( =analog comparator output) is longer than the on-delay time.

Using this method, you will obtain a virtual hysteresis and reduce the input response to short signals.

Function block diagram

AI1

AI

AI2

AI

Analog comparator

B1

n

A

On-delay

B2

Off-delay

B3

Q1

192

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.19 Analog value monitoring

Short description

This special function saves the process variable of an analog input to memory, and sets the output when the output variable exceeds or drops below this stored value plus a configurable offset.

Symbol in

LOGO!

Wiring Description

Input En

Input Ax

A positive edge (0 to 1 transition) at input En saves the analog value at input Ax (”Aen”) to memory and starts monitoring of the analog range Aen n

.

You apply the analog signal to be monitored at input Ax.

(

Use the analog inputs AI1...AI8

*

)

, the analog flags

AM1...AM6, the block number of a function with analog output, or the analog outputs AQ1 and AQ2.

Parameter

A: Gain

Range of values:

10.00

B: Zero offset

Range of values: 10.000

n

: Difference value for the

Aen on/off threshold

Range of values: 20.000

p: Number of decimals

Range of values:

0, 1, 2, 3

Output Q Q is set/reset, depending on the stored analog value and the offset.

* AI1...AI8: 0...10 V corresponds with 0...1000 (internal value).

LOGO! Manual

A5E00380835-01

193

LOGO! functions

Gain and offset parameters

For more information on gain and offset parameters, refer to Chapter 4.3.6.

Parameter p (number of decimals)

Applies only to the Aen, Ax and message text.

n

values displayed in a

Timing diagram

En

Aen + n

Aen

Aen – n

Ax

Q

Functional description

A 0 to 1 transition at input En saves the value of the signal at the analog input Ax. This saved process variable is referred to as “Aen”.

Both the analog actual values Ax and Aen are multiplied by the value at parameter A (gain), and parameter B (offset) is then added to the product, i.e.

(Ax gain) + offset = Actual value Aen, when input En changes from 0 to 1, or

(Ax gain) + offset = Actual value Ax.

Output Q is set when the signal at input En = 1 and if the actual value at input Ax is out of range of Aen n

.

Output Q is reset, when the actual value at input Ax lies within the range of Aen

En changes to lo.

n

, or when the signal at input

194

LOGO! Manual

A5E00380835-01

LOGO! functions

Preset of the Par parameter

The gain and offset parameters are used to adapt the used sensors to the respective application.

View in programming mode:

B3 1+

n

= 00000

Parameter protection mode

Differential value for the on/off threshold

Press

B3 2

A =00.00

B =+00000 p =0

Gain

Offset

Decimals in the message text

View in parameter assignment mode (example):

B3

n

= 00010

Aen =–00020

Ax =+00005

Q = 1 (Ax is out of the range of

Aen n )

LOGO! Manual

A5E00380835-01

195

LOGO! functions

4.4.20 Analog amplifier

Short description

This special function amplifies the value of an analog input and outputs the result at an analog output.

Symbol in

LOGO!

Wiring Description

Input Ax You apply the analog signal to be amplified at input Ax.

(

Use the analog inputs AI1...AI8

*

)

, the analog flags

AM1...AM6, the block number of a function with analog output, or the analog outputs AQ1 and AQ2.

Parameter

A: Gain

Range of values:

10.00

B: Zero offset

Range of values: 10.000

p: Number of decimals

Range of values:

0, 1, 2, 3

Output AQ This special function has an analog output! This output can only be connected with the analog input of a function, an analog flag or an analog output connector (AQ1, AQ2).

Range of values for AQ:

–32768...+32767

* AI1...AI8: 0...10 V corresponds with 0...1000 (internal value).

Gain and offset parameters

Please note the information on gain and offset parameters in Chapter 4.3.6.

Parameter p (number of decimals)

Applies only to the AQ value in a message text.

196

LOGO! Manual

A5E00380835-01

LOGO! functions

Functional description

The function fetches the analog signal of input Ax.

This value is multiplied by the value of the A (gain) parameter, and parameter B (offset) is then added to the product, i.e. (Ax gain) + offset = actual value Ax.

The actual value Ax is output at AQ.

Using the analog input value of a potentiometer

You can acquire the analog input value of a potentiometer by interconnecting an analog input with an analog amplifier and an analog flag.

Scale the analog value at the analog amplifier for further use.

Connect, for example, the time base for parameter T of a time function (e.g. On-/Off-delay, Chapter 4.4.3) or the on and/or off limit specification of an up/down counter

(Chapter 4.4.13) to the scaled analog value.

For more information with programming examples refer to the online help for LOGO!Soft Comfort.

Preset of the Par parameter

The gain and offset parameters are used to adapt the sensors to the relevant application.

View in programming mode (example):

B3 +

A =02.50

B =–00300 p =0

Gain

Offset

Decimals in the message text

View in parameter assignment mode (example):

B3

AQ =–00250

LOGO! Manual

A5E00380835-01

197

LOGO! functions

4.4.21 Latching relay

Short description

Input S sets output Q, input R resets output Q again.

Symbol in

LOGO!

Wiring Description

Input S

Input R

Parameter

Output Q

You set output Q with a signal at input S.

You reset output Q with a signal at input R. If S and

R = 1, the output is reset.

Retentivity:

/ = No retentivity

R = The status is retentive.

Q is set with a signal at input S, and reset with a signal at input R.

Timing diagram

R

S

Q

Switching response

A latching relay represents a simple binary element. The output value depends on the status at the inputs and on the previous output status. The following table shows the logic once again:

S

0

n

0

1

1

R

0

1

0

n

1

Q

Comment

x The status is retentive

0 Reset

1 Set

0 Reset (takes priority over Set)

When retentivity is enabled, the current status of the output signal is retained after a power failure.

198

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.22 Pulse relay

Short description

A short pulse at the input sets and resets the output.

Symbol in

LOGO!

Wiring Description

Input Trg

Input S

Input R

Parameter

Output Q

You set and reset output Q with a signal at input Trg

(Trigger).

You set output Q with a signal at input S.

You reset output Q with a signal at input R.

Selection:

RS (R input priority) or

SR (S input priority)

Retentivity:

/ = No retentivity

R = The status is retentive.

Q is set with a signal at Trg, and reset with the next signal at Trg, if S and R = 0.

Timing diagram

Trg

S

R

Q

The bold printed section of the timing diagram is also shown in the symbol for the pulse relay.

LOGO! Manual

A5E00380835-01

199

LOGO! functions

Functional description

Output Q changes its status, i.e. the output is set or reset, with each 0 to 1 transition at input Trg and if the inputs S and R = 0.

The signal at input Trg does not influence the special function when S or R = 1.

You set the pulse relay with a signal at input S, i.e. the output is set hi.

You reset the pulse relay with a signal at input R, i.e. the output is set lo.

Status diagram

Par

*

*

*

*

RS

RS

*

*

*

*

*

*

SR

SR

RS

RS

*

*

0

0

0

0

Q n–1

0

0

0

0

1

1

1

1

0

0

1

1

1

1

1

1

1

1

0

0

S

0

0

0

0

0

0

1

1

1

1

1

1

0

0

1

1

1

1

R

0

0

0

0

1

1

1

1

1

1

0

0

Trg

0

0 –>1

0

0 –>1

0

0 –>1

0

0 –>1

0

0 –>1

0

0 –>1

0

0 –>1

0

0 –>1

0

0 –>1

1

1

0

0

Q n

0

1

**

0

0

1

0

**

0

0

1

1

0

0

1

1

200

LOGO! Manual

A5E00380835-01

LOGO! functions

Par

SR

SR

Q n–1

1

1

S

1

1

R

1

1

Trg

0

0 –>1

*: RS or SR

**: Triggering signal is effective, because S and R = 0.

Q n

1

1

Depending on your configuration, either input R takes priority over input S (i.e. input S is not effective when R = 1), or vice versa (i.e. input R is not effective when S = 1).

After a power failure, the pulse relay and output Q are reset if you have not enabled retentivity.

View in programming mode:

B29 R

Par=RS

Press

or

B29 R

Par=SR

This special function is not available in parameter assignment mode.

Note

If Trg = 0 and Par = RS, the special function “Pulse relay” corresponds with the special function “Latching relay” (see

Chapter 4.4.21).

LOGO! Manual

A5E00380835-01

201

LOGO! functions

4.4.23 Message texts

Short description

View of a configured message text in RUN mode.

Symbol in

LOGO!

Wiring Description

Input En

Input P

Parameter

Output Q

A 0 to 1 transition at input

En (Enable) starts the output of the message text.

P: Priority of the message text

Range of values: 0...30

Quit: Acknowledgment of the message text.

Text: Input of the message text

Par:Parameter or actual value of another, already programmed function

(see “Visible parameters or process variables”)

Time: Display of the continuously updated time-ofday

Date: Display of the continuously updated date

EnTime: Display of the time of the 0 to 1 transition of the signal at input En

EnDate: Display of the date of the 0 to 1 transition of the signal at input En

Q remains set as long as the message text is set.

202

LOGO! Manual

A5E00380835-01

LOGO! functions

Restriction

A maximum of 10 message text functions are available.

Functional description

With the 0 to 1 transition of the signal at input En and when the system is in RUN, the message text you have configured (process variable, text, time-of-day, date) is output to the display.

Acknowledgment disabled (Quit = Off):

The message text is hidden when the status of the signal at input En changes from 1 to 0.

Acknowledgment enabled (Quit = On):

When the status of the signal at input En changes from 1 to

0, the message text is output until it is acknowledged with

OK

. When En = 1, you can not acknowledge the message text.

When multiple message text functions are triggered with

En=1, the message text that has the highest priority is shown (0 = lowest, 30 = highest). This also means, that a newly activated message text is shown only if its priority is higher than that of previously activated message texts.

After a message text is disabled or acknowledged, the function automatically shows the previously active message text that takes the highest priority.

You can change the view and the message texts by pressing the keys and .

LOGO! Manual

A5E00380835-01

203

LOGO! functions

Example

This is how tow message texts could be shown:

Display field of the LOGO! in RUN mode

Motor 5

STOP AT

10:12

!!Action!!

Example: Message text with priority 30

Key

Motor 2

3000 hours

MAINTENANCE!

Press

Example: Message text with priority 10

Mo 09:00

2003-01-27

Date and current time-of-day

(only for versions with real-time clock).

Input P configuration

To configure the priority and the acknowledgment (programming mode):

B33 +

Priority

00

Quit=Off

“+” means: The parameters and actual values in an active message text can be edited

Priority

Status of the acknowledgment

1. Increase the priority to 1:

2. Change to ’Quit’:

3. Enable ’Quit’:

Cursor on ’0’ +

Press

Press or

204

LOGO! Manual

A5E00380835-01

LOGO! functions

LOGO! shows:

B33 +

Priority

01

Quit=On

Priority 1

Status of acknowledgment ’On’

4. Confirm the entries with

OK

Visible parameters or process variables

The following parameter or process variables can be displayed in a message text:

Special function Parameter or process variable visible in a message text

Times

On-delay

Off-delay

On-/Off-delay

Retentive on-delay

Wiping relay

(pulse output)

T, T a

T, T a

T a

, T

H

, T

L

T, T

T, T a a

Edge triggered wiping relay

T a

, T

H

, T

L

Asynchronous pulse generator T a

, T

H

, T

L

Random generator T

H

, T

L

Stairway lighting switch

Multiple function switch

Weekly timer

T a

, T, T

!

, T

!L

T a

, T, T

L

, T

!

, T

!L

3*on/off/day

Yearly timer

Counter

On, Off

Up/down counter

Hours counter

Cnt, On, Off

MI, Q, OT

LOGO! Manual

A5E00380835-01

205

LOGO! functions

Special function Parameter or process variable visible in a message text

f a

, On, Off, G_T Threshold trigger

Analog

Analog threshold trigger

Analog differential trigger

Analog comparator

Analog value monitoring

Analog amplifier

Analog multiplexer

Analog ramp

PI controller

On, Off, A, B, Ax

On, n , A, B, Ax, Off

On, Off, A, B, Ax, Ay, n A n , A, B, Ax, Aen

A, B, Ax

V1, V2, V3, V4, AQ

L1, L2, MaxL, StSp, Rate, A,

B, AQ

SP, Mq, KC, TI, Min, Max, A,

B, PV, AQ

Miscellaneous

Latching relay

Pulse relay

Message texts

Softkey

Shift register

On/Off

Changing parameters in the active message text

You can allow editing of parameter and process variables in an active message text by entering a “+” in the first line. To prevent changes, enter a “–” sign.

When the message text is active, press

ESC

to select the editing mode.

Note

You must keep the

ESC

key pressed at least for one second.

206

LOGO! Manual

A5E00380835-01

LOGO! functions

Press and to select the relevant line (you can only select lines that contain parameters). Press

OK

to change the parameter. Use the keys , , and .

Confirm your changes with

OK

. You can now edit further parameters in the message text (if any exist). Press

ESC

to exit editing mode.

Key input simulation in the active message text

You can enable the four cursor keys C , C , C and

C in an active message text by pressing

ESC

plus the relevant cursor key.

Preset of the Par parameter

To configure the message text (programming mode):

..

..

..

..

Parameter assignment screen form for Par

Press to select a line for the message text.

Press and to select the relevant type of message text

(Text, Par, Time...). Confirm with

OK

.

Further entries are required when “Text” or “Par” are selected:

Press and to select the letter to be displayed in the text. To move the cursor from one position to the other, press and .

The list of available characters is here the same as for the circuit program name. The character set is found in Chapter 3.7.4.

Press

OK

to confirm your changes, and press

ESC

to exit the editing mode.

To output a parameter (e.g. a process variable or function value) as message text, select the relevant line with and then press :

LOGO! Manual

A5E00380835-01

207

LOGO! functions

Par

..

..

..

Press

OK

to open the editing mode:

B01>T

Press and to select the blocks to be displayed and the corresponding parameters.

Press and to select the block or parameter you want to view.

Select the parameter by pressing

OK

.

Press

ESC

to exit the parameter assignment mode and to apply your changes.

208

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.24 Softkey

Short description

This special function has the effect of a mechanical pushbutton or switch.

Description Symbol in

LOGO!

En

Par

Wiring

Q

Input En

Parameter

Output Q

Output Q is set with a 0 to 1 transition of the signal at input En (Enable), and if

’Switch=On’ was confirmed in parameter assignment mode.

Programming mode:

Selecting the function for pushbutton action for the duration of one cycle, or for switching action.

Start: On or off state, initialized at the first start of the program if retentivity is disabled.

Retentivity:

/ = No retentivity

R = The status is retentive.

Parameter assignment mode (RUN mode):

Switch: Switches the momentary pushbutton or switch on or off.

Switches on if En=1 and

Switch=On was confirmed with

OK

.

Factory setting

The default setting at ’Par’ is ’Momentary pushbutton’ action.

LOGO! Manual

A5E00380835-01

209

LOGO! functions

Timing diagram

En

Switch

Q

Functional description

In parameter assignment mode, the output is set with a signal at input En, if the ’’Switch’ parameter is set to ’On’ and confirmed with

OK

. Whether the function was configured for pushbutton or switching action is here of no concern.

The output is reset to ’0’ in the following three cases:

After a 0 to 1 transition at input En.

When the function was configured for momentary pushbutton action, and one cycle has expired since it was switched on.

When the position ’Off’ was selected at the ’Switch’ parameter and confirmed with

OK

in parameter assignment mode.

If retentivity is not set, output Q is initialized after a power failure according to your configuration at the “Start” parameter.

Preset of the Par parameter

View in programming mode (example):

1. Select the ’Softkey’ function.

2. Select input En and confirm with

OK.

The cursor is now positioned below ’Par’.

3. Change to the input mode of ’Par’: Confirm with

OK

(the cursor is now positioned to ’On’)

B33 +/

On=

Start=On

The status is not retentive

The function is set for ’momentary pushbutton’ action

Q is set in the first cycle after the program start

210

LOGO! Manual

A5E00380835-01

LOGO! functions

To change ’Par’ to ’Switch’ action and the initialization status after the program start:

4. To select ’Momentary pushbutton’ or ’Switch’ action:

Press or

B33 +/

On/Off

Start=On

The status is not retentive

’Switch’ function

Q is set in the first cycle after the program start

5. To change to the start state:

6. To change the start state:

B33 +/

On/Off

Start=Off

Press or

Press or

The status is not retentive

’Switch’function

Q is reset in the init cycle after the program start

7. Confirm your entries with

OK

View in parameter assignment mode (example):

Here, you can set or reset the ’Switch’ parameter (On/Off).

When in RUN, the LOGO! shows the following display:

B33

Switch=Off

The pushbutton/switch is here switched off

Let us assume you want to set ’Switch’ (On).

1. Change to the editing mode:

(the cursor is now positioned on ’Off’)

Confirm with

OK

2. To change from ’Off’ to ’On’:

3. Confirm your entries with

Press or

Press

OK

LOGO! Manual

A5E00380835-01

211

LOGO! functions

B33

Switch=On

The momentary pushbutton/switch is here switched on

212

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.25 Shift register

Short description

You can use the shift register function to read the value of an input and to shift its bits left or right. The output value corresponds with the configured shift register bit. The shifting direction can be changed at a special input.

Symbol in

LOGO!

Wiring Description

Input In Input read at the start of the function.

Input Trg

Input Dir

Parameter

Output Q

A positive edge (0 to 1 transition) at input Trg (Trigger) starts the special function.

1 to 0 transitions are irrelevant.

The signal at input Dir determines the shifting direction for the shift register bits

S1...S8 an:

Dir = 0: Shift up (S1 >> S8)

Dir = 1: Shift down (S8 >>

S1)

Shift register bit that determines the value at output Q.

Possible settings:

S1 ... S8

Retentivity:

/ = No retentivity

R = The status is retentive.

The output value corresponds with the configured shift register bit.

LOGO! Manual

A5E00380835-01

213

LOGO! functions

Functional description

The function reads the value at input In with a positive edge

(0 to 1 transition) at input Trg (Trigger).

This value is applied to shift register bit S1 or S8, depending on the shifting direction:

Shift up: The value at input In is set at S1; the previous value at S1 is shifted to S2; the previous value at S2 is shifted to S3 etc.

Shift down: The value at input In is set at S8; the previous value at S8 is shifted to S7; the previous value at

S7 is shifted to S6 etc.

Output Q returns the value of the configured shift register bit.

If retentivity is disabled, the shift function restarts at S1 or

S8 after a power failure. When enabled, retentivity always applies to all shift register bits.

Note

The special function shift register can be used only once in the circuit program.

Timing diagram

In

Trg

Q

Dir

S1 0 1

S2 0 0

S3 0 0

S4 0 0

S5 1 0

S6 1 1

S7 0 1

S8 0 0

Shift up

1

1

0

0

0

0

0

1

0

1

0

0

1

0

1

0

0

0

0

0

0

1

1

1

0

0

1

0

1

0

0

1

Shift down

0

1

0

0

0

1

1

1

S4 = Q (example)

214

LOGO! Manual

A5E00380835-01

LOGO! functions

Preset of the Par parameter

View in programming mode:

B3 R

Q=S8

Retentivity enabled

Preset

Press

B3 R

Q=S7

etc. You can select S8...S1.

This special function is not available in parameter assignment mode.

LOGO! Manual

A5E00380835-01

215

LOGO! functions

4.4.26 Analog Multiplexer

Short description

This special function displays 0 or one of 4 saved analog values on the analog output.

Symbol in

LOGO!

Wiring Description

Input En

Inputs S1 and

S2

A change in status from 0 to

1 at input En (Enable) switches a parameterized analog value to the output

AQ, depending on the value of S1 and S2.

S1 and S2 (selectors) for selecting the analog value to be issued.

S1 = 0 and S2 = 0:

Value 1 is issued

S1 = 0 and S2 = 1:

Value 2 is issued

S1 = 1 and S2 = 0:

Value 3 is issued

S1 = 1 and S2 = 1:

Value 4 is issued

216

LOGO! Manual

A5E00380835-01

LOGO! functions

Symbol in

LOGO!

Wiring Description

Parameter

Output AQ

V1...V4: Analog values that will be issued.

Range of values:

–32768...+32767 p: Number of decimals

Range of values:

0, 1, 2, 3

This special function has an analog output! This output can only be connected with the analog input of a function, an analog flag or an analog output connector

(AQ1, AQ2).

Range of values for AQ:

–32768...+32767

Parameters V1...V4

The analog values for the parameters V1...V4 can be derived from another, already programmed function. You can use the actual values of the following functions:

Analog comparator (actual value Ax – Ay, see Chapter 4.4.18)

Analog threshold trigger (actual value Ax, see Chapter

4.4.16)

Analog amplifier (actual value Ax, see Chapter 4.4.20)

Analog multiplexer (actual value AQ)

Analog ramp (actual value AQ, see Chapter 4.4.27)

PI controller (actual value AQ, see Chapter 4.4.28) and

Up/down counter (actual value Cnt, see Chapter

4.4.13).

Select the required function by means of the block number.

For information on parameter defaults, refer to Chapter 4.4.1.

LOGO! Manual

A5E00380835-01

217

LOGO! functions

Parameter p (number of decimals)

Applies only to the values displayed in a message text.

Timing diagram

Functional description

If input En is set, then the function issues one of 4 possible analog values V1 to V4 at the output AQ, depending on the value of S1 and S2.

If the input En is not set, then the function issues the analog value 0 at output AQ.

Preset of the Par parameter

View in programming mode (example):

B3 1+/

V1 =+04000

V2 =–02000

Press

B3 2+/

V3

!

B020

V4

!

B021 p =0

218

LOGO! Manual

A5E00380835-01

LOGO! functions

View in parameter assignment mode:

B3 1

V1 =+04000

V2 =–02000

Press

B3 2

V3

!

B020

V4

!

B021

AQ =+4000

LOGO! Manual

A5E00380835-01

219

LOGO! functions

4.4.27 Analog Ramp

Short description

This special function starts up at the analog output 0 or one of 2 levels. Here you can set how quickly the level should be reached.

Symbol in

LOGO!

Wiring Description

Input En

Input Sel

Input St

A change in the status from

0 to 1 at input En (Enable) launches the start-up of a parameterized analog value at output AQ.

A change in status from 1 to

0 immediately issues 0 at output AQ.

SeI = 0:

Level 1 is started

SeI = 1:

Level 2 is started

A change in the status from

0 to 1 at input En (Enable) launches the start-up of the value 0 at output AQ.

220

LOGO! Manual

A5E00380835-01

Symbol in

LOGO!

Wiring

Parameter

LOGO! functions

Description

Level 1 and Level 2:

Levels to be reached

Range of values for each level:

–10.000 to +20.000

MaxL:

Maximum value that must not be exceeded.

Range of values:

–10.000 to +20.000

StSp:

Start/Stop offset, value that is issued for 100ms after launching the function and before reaching the 0 value

(prompted by input St).

Range of values:

0 to 20.000

Rate:

Speed with which level 1, level 2 or 0 is reached.

Steps/seconds are issued.

Range of values:

1 to 10.000

A: Gain

Range of values:

0 to 10.00

B: Offset

Range of values:

10,000 p: Number of decimals

Range of values:

0, 1, 2, 3

LOGO! Manual

A5E00380835-01

221

LOGO! functions

Symbol in

LOGO!

Wiring Description

Output AQ This special function has an analog output! This output can only be connected with the analog input of a function, an analog flag or an analog output connector

(AQ1, AQ2).

Range of values for AQ:

0 to 32767

Parameters L1, L2

The analog values for the parameters L1 and L2 can be derived from another, already programmed function. You can use the actual values of the following functions:

Analog comparator (actual value Ax – Ay, see Chapter 4.4.18)

Analog threshold trigger (actual value Ax, see Chapter

4.4.16)

Analog amplifier (actual value Ax, see Chapter 4.4.20)

Analog multiplexer (actual value AQ, see Chapter

4.4.26)

Analog ramp (actual value AQ)

PI controller (actual value AQ, see Chapter 4.4.28) and

Up/down counter (actual value Cnt, see Chapter

4.4.13).

Select the required function by means of the block number.

For information on parameter defaults, refer to Chapter 4.4.1.

Parameter p (number of decimals)

Applies only to the AQ, L1, L2, MaxL, StSp, and Rate values displayed in a message text.

222

LOGO! Manual

A5E00380835-01

Timing diagram

LOGO! functions

Functional description

If the input En is set, then the function issues the analog value StSp at output AQ for the first 100 ms.

Then, depending on the connection of Sel, the function runs from value StSp to either level 1 or level 2 at the speed set in Rate.

If the input St is set, then the function runs to the value

StSp at the speed set in Rate. Then the function issues the value StSp at output AQ for 100 ms. Then the function issues 0 at the output AQ.

If the input St is set, the function can only be restarted once the inputs St and En have been reset.

If input Sel has been changed, depending on the connection of Sel, the function runs from Level 1 to Level 2 or the other way round.

If the input En is reset, the function immediately issues 0 at output AQ.

The analog value at the output is recalculated every 100 ms.

LOGO! Manual

A5E00380835-01

223

LOGO! functions

Preset of the Par parameter

View in programming mode (example):

B3 1+/

L1 =+04000

L2

!

B020

Press

B3 2+/

MaxL=+7000

StSp=02222

Rate=00500

Press

B3 3+/

A =02.50

B =–00300 p =0

Gain

Offset

Decimals in the message text

View in parameter assignment mode:

B3 1

L1 =+04000

L2

!

B020

AQ =00250

Press

B3 2

StSp=02222

Rate=00500

Press

B3 3+/

A =02.50

B =–00300

Gain

Offset

Decimals in the message text

224

LOGO! Manual

A5E00380835-01

LOGO! functions

4.4.28 PI controller

Short description

Proportional-action and integral-action controllers. You can use both types of controller individually or combined.

Symbol in

LOGO!

Wiring Description

A/M

R

PV

Par

AQ

Input A/M Set the mode of the controller:

1: automatic mode

0: manual mode

Input R

Input PV

Use the input R to reset the output AQ. As long as this input is set, the input A/M is disabled. This ensures that during the reset, the output

AQ is set to 0 and not to

Mq.

Analog value: process value, influences the output

LOGO! Manual

A5E00380835-01

225

LOGO! functions

Symbol in

LOGO!

Wiring

Parameter

Description

SP: Set-value assignment

Range of values:

–10.000 to +20.000

KC: Gain

Range of values:

00.00 to 99.99

TI: Integral time

Range of values:

00:01 to 99:59 m

Dir: Action direction of the controller

Range of values:

+ or –

Mq: Value from AQ with manual mode

Range of values:

0 to 1000

Min: Minimum value for PV

Range of values:

–10.000 to +20.000

Max: Maximum value for PV

Range of values:

–10.000 to +20.000

A: Gain

Range of values:

10.00

B: Offset

Range of values:

10,000 p: Number of decimals

Range of values:

0, 1, 2, 3

Retentivity:

/ = No retentivity

R = The status is retentive.

226

LOGO! Manual

A5E00380835-01

LOGO! functions

Symbol in

LOGO!

Wiring Description

Output AQ This special function has an analog output

(= manipulated variable)!

This output can only be connected with the analog input of a function, an analog flag or an analog output connector (AQ1, AQ2).

Range of values for AQ:

0...1000

Parameters SP, Mq

The analog values for the parameters SP and Mq can be derived from another, already programmed function. You can use the actual values of the following functions:

Analog comparator (actual value Ax – Ay, see Chapter 4.4.18)

Analog threshold trigger (actual value Ax, see Chapter

4.4.16)

Analog amplifier (actual value Ax, see Chapter 4.4.20)

Analog multiplexer (actual value AQ, see Chapter

4.4.26)

Analog ramp (actual value AQ, see Chapter 4.4.27)

PI controller (actual value AQ) and

Up/down counter (actual value Cnt, see Chapter

4.4.13).).

Select the required function by means of the block number.

For information on parameter defaults, refer to Chapter 4.4.1.

Parameters KC, TI

Please note:

If parameter KC has value 0, the “P” function

(proportional control) will not be executed.

If parameter TI has value 99:59 m, the “I” function

(integral-action control) will not be executed.

LOGO! Manual

A5E00380835-01

227

LOGO! functions

Parameter p (number of decimals)

Applies only to the AQ, PV, SP, Min and Max values displayed in a message text.

Timing diagram

The nature, manner and speed with which the AQ changes depend on the parameters KC and TI. Thus, the course of

AQ in the diagram is merely an example. A control action is continuous; therefore the diagram portrays just an extract.

228

1. A disturbance causes the PV to drop, as Dir is positioned upwards, AQ increases until PV corresponds again to SP.

2. A disturbance causes the PV to drop, as Dir is positioned upwards, AQ decreases until PV corresponds again to SP.

Dir is coordinated to the basic conduct of a control loop.

As the basic conduct of a control loop does not really alter, the change in Dir here is shown for the purposes of clarification.

LOGO! Manual

A5E00380835-01

LOGO! functions

3. As AQ is set to 0 by means of the input R, PV changes.

This is based on the fact that PV increases, which on account of Dir = upwards causes AQ to drop.

Functional description

If the input A/M is set to 0, then the special function issues output AQ with the value that you set with parameter Mq.

If the input A/M is set to 1, then automatic mode commences. As an integral sum the value Mq is adopted, the controller function begins the calculations.

Note

For further information on the controller basics please refer to the Online Help for LOGO!Soft Comfort.

The updated value PV is used to calculate in the formulas:

Updated value PV

= (PV gain) + offset

If the updated value PV = SP, then the special function does not change the value of AQ.

Dir = upwards (+) (timing diagram numbers 1. and 3.)

– If the updated value PV > SP, then the special function reduces the value of AQ.

– If the updated value PV < SP, then the special function increases the value of AQ.

Dir = downwards (–) (timing diagram number 2.)

– If the updated value PV > SP, then the special function increases the value of AQ.

– If the updated value PV < SP, then the special function reduces the value of AQ.

With a disturbance, AQ continues to increase / decrease until the updated value PV again corresponds to SP. The speed with which AQ changes depends on the parameters

KC and TI.

LOGO! Manual

A5E00380835-01

229

LOGO! functions

If the input PV exceeds the parameter Max, then the updated value PV is set to the value of Max. If the PV falls short of the parameter Min, then the updated value PV is set to the value of Min.

If the input R is set to 1, then the AQ output is reset. As long as R is set, the input A/M is disabled.

Sampling time

The sampling time is fixed at 500 ms.

Parameter sets

For more information and application examples with application-related parameter sets for KC, TI and Dir refer to the online help for LOGO!Soft Comfort.

Preset of the Par parameter

View in programming mode (example):

B3 1+/

SP

!

B020

Press

B3 2+/

KC =10.00

TI =01:00

Dir=+

Press

B3 3+/

Mq

!

B021

Min=–05000

Max=+05000

Press

B3 4+/

A

B p

=02.50

=–00300

=0

230

LOGO! Manual

A5E00380835-01

LOGO! functions

View in parameter assignment mode:

B3 1

SP

!

B020

PV =

AQ =+0250

0

Press

B3 2

KC =10.00

TI =01:00

Dir=+

Press

B3 3

Mq

!

B021

Min=–05000

Max=+05000

Press

B3 4

A

B

=02.50

=–00300

LOGO! Manual

A5E00380835-01

231

LOGO! functions

232

LOGO! Manual

A5E00380835-01

5 Configuring LOGO!

When speaking of ’parameter assignment’, we refer to the configuration of the block parameters. You can set delay times for time functions, the switching times of the timers, the counter threshold value, the monitoring interval of an hours counter and the on and off thresholds of the trigger.

You can configure the parameters

In programming mode

In parameter assignment mode

In programming mode, the author of the circuit program also sets the parameters.

We have added the parameter assignment mode to allow the editing of parameters without having to modify the circuit program. This feature is available for the user to edit parameters, without having to change to programming mode, for example. The advantage: The circuit program remains protected, but can be adapted by the user to meet specific requirements.

Note

In parameter assignment mode, the LOGO! continues execution of the circuit program.

LOGO! Manual

A5E00380835-01

233

Configuring LOGO!

5.1 Selecting parameter assignment mode

Press

ESC

to change from RUN to parameter assignment mode:

Mo 09:00

2005-01-27

... Press

ESC

Note

The following applies to earlier device versions up to

0BA2:

You open parameter assignment mode by pressing

ESC

+

OK

.

LOGO! changes to parameter assignment mode and opens the parameter assignment menu:

>Stop

Set Param

Set..

Prg Name

234

LOGO! Manual

A5E00380835-01

Configuring LOGO!

Description of the four menu items of the parameter assignment menu

Stop

You select this command to stop your circuit program and thus change to the main menu of programming mode. To do so:

1. To move the ’>’ cursor to ’

Stop

’:

2. To confirm ’Stop’:

Press or

Press

OK

Stop Prg

>No

Yes

3. To move the ’>’ cursor to ’

Yes

’:

4. To confirm ’Yes’:

Press or

Press

OK

LOGO! shows the main menu of the programming mode:

>Program..

Card..

Setup..

Start

Set Param

For information on the various parameters, refer to the

Chapters 5.1.1 to 5.1.3.

Set..

For information on the various settings, refer to

Chapter 5.2.

Prg Name

This menu command only allows you to

read

the name of your circuit program. It is not possible to modify this name in parameter assignment mode (see Chapter 3.7.4).

LOGO! Manual

A5E00380835-01

235

Configuring LOGO!

5.1.1 Parameters

Note

In the following discourse on parameters, we presume that the respective default parameter protection mode (”+”) has been maintained. This is prerequisite for viewing and editing parameter in the parameter assignment mode!

See Chapter 4.3.5 and the example on Page 91.

Parameters are, for example:

The delay times of a timer relay.

The switching times (cams) of a timer switch.

Counter thresholds

The monitoring time for hour counters

The trigger thresholds.

Each one of the parameters is identified by its block number (Bx) and the shortname of the parameter. Examples:

T: ...is a configurable time.

MI: ...is a configurable time interval.

Note

LOGO!Soft Comfort also allows you to assign names to blocks (for more information, refer to Chapter 7).

236

LOGO! Manual

A5E00380835-01

Configuring LOGO!

5.1.2 Selecting the parameters

To select a parameter:

1. On the parameter assignment menu, select

Set Param

or

Stop

>Set Param

Set..

Prg Name

2. Confirm with

OK

.

LOGO! shows the first parameter. If no parameter can be set, you can press ESC to return to the parameter assignment menu.

B9 1

T =60:00s

Ta =06:00s

Block number

Display number for functions with several displays

The value set at parameter T (Time)

The current time in the

LOGO!

No Param

Press ESC

No parameters for editing:

Press ESC to return to the paramet ment menu

3. Now, select the desired parameter: Press or .

4. Select the parameter you want to edit, and press

OK

.

LOGO! Manual

A5E00380835-01

237

Configuring LOGO!

5.1.3 Modifying parameters

You first select the parameter you want to edit (see Chapter

5.1.2).

You change the value of the parameter in the same way as you did in programming mode:

1. Move the cursor to the point at which you want to make the change: Press or

2. To change this value:

3. To apply the value:

Press or

OK

Change: Press or

B9

T =80:00s

Move: Press or

Ta =06:00s

Done:

OK

Note

Alongside with a change of the time parameters when the system is in RUN, you can also change the timebase (s = seconds, m = minutes, h = hours). This does not apply if the time parameter represents the result of another function (for an example, see Chapter 4.4.1). In this case you can neither change the value nor the timebase.

The current time is reset to zero when you change the timebase.

Current value of a time T

View of a time T in parameter assignment mode:

B9

T =80:00s

Configured time T

Ta =06:00s

Current time T a

You can change the configured time T.

238

LOGO! Manual

A5E00380835-01

Configuring LOGO!

Current timer value

View of a timer cam in parameter assignment mode:

B1 1

D=M–W–F––

On = 09:00

Off=10:00

You can change the on/off times and the day.

Current value of a counter

View of a counter parameter in parameter assignment mode:

B3

On =001234

Off=000000

Cnt=000120

or

B3

On =123456

Off

!

B021

Cnt=000120

Current count value

You can change the on/off threshold. This does not apply if the on or off threshold represents the result of another function (in the example, this is B21, see Chapter 4.4.13).

Current value of an hour counter

View of an hour counter parameter in parameter assignment mode:

B16

MI = 0100h

MN = 0017h

OT =00083h

Time interval

Time-to-go

Total operating hours

You can edit the configured time interval MI.

LOGO! Manual

A5E00380835-01

239

Configuring LOGO!

Current value of a threshold trigger

View of the parameter of a threshold trigger in parameter assignment mode:

B15

On =0009

Off =0005 fa =0010

On threshold

Off threshold

Process variable

You can change the on/off threshold.

240

LOGO! Manual

A5E00380835-01

Configuring LOGO!

5.2 Setting the default values for LOGO!

You can set the following default values for LOGO!:

Clock settings

You can set the default values for time-of-day and date, summertime/wintertime conversion and synchronization in parameter assignment mode by means of the set menu (“Clock” menu item) in programming mode by means of the setup menu

(“Clock” menu item).

Time-of-day and date see Chapter 5.2.1.

Summertime/wintertime conversion see Chapter 3.7.13.

Synchronization see Chapter 3.7.14.

Contrast settings

You can set the default value for the display contrast in parameter assignment mode by means of the set menu (“Contrast” menu item) in programming mode by means of the setup menu

(“Contrast” menu item).

See Chapter 5.2.2.

Start screen settings

You can select the default setting for the start screen in parameter assignment mode by means of the set menu (“StartScreen” menu item).

See Chapter 5.2.3.

5.2.1 Setting the time-of-day and date

(LOGO! ... C)

You can set the TOD and the date in parameter assignment mode by means of the set menu (“Clock” menu item) in programming mode by means of the setup menu

(“Clock” menu item).

LOGO! Manual

A5E00380835-01

241

Configuring LOGO!

To set the TOD and the date in parameter assignment mode:

1. Select parameter assignment mode (see Chapter 5.1.)

2. On the parameter assignment menu, select

Set..

or

Stop

Set Param

>Set..

Prg Name

3. Confirm ’Set..’:

4. Move the ’>’ cursor to ’

Clock

’:

Press

OK

Press or

5. Confirm ’Clock’: Press

OK

6. Move the ’>’ cursor to ’

Set Clock

’: Press or

7. Apply ’Set Clock’: Press

OK

Note

The ’Set Clock’ command is only executed if your LOGO!

is equipped with a real-time clock (LOGO!..C). You set the real-time clock of LOGO! by means of the ’Set Clock’ command.

LOGO! shows the following display.

Set Clock

Mo 15:30

YYYY-MM-DD

2005-01-27

The cursor is positioned on the weekday.

8. Select the day of the week: Press or

9. Move the cursor to the next position: Press or

10.To change the value: Press or

11.To set the correct TOD, repeat steps 9. and 10.

12.To set the correct date, repeat steps 9. and 10.

13.To confirm your entries: Press

OK

242

LOGO! Manual

A5E00380835-01

Configuring LOGO!

To set the TOD and the date in programming mode:

If you want to set the TOD and the date in programming mode, select in the main menu ’

Setup

’, then menus ’

Clock

’ and ’

Set Clock

’. You can now set the weekday and the time as described earlier (as of step 8.).

5.2.2 Setting the display contrast

You can set the default value for the display contrast in parameter assignment mode by means of the set menu (“Contrast” menu item) in programming mode by means of the setup menu

(“Contrast” menu item).

To set the display contrast in parameter assignment mode:

1. Select parameter assignment mode (see Chapter 5.1.)

2. On the parameter assignment menu, select ’

Set..

or

3. Confirm ’Set..’:

4. Move the ’>’ cursor to ’

Contrast

’:

5. Confirm ’Contrast’:

Press

OK

Press or

Press

OK

LOGO! shows the following display:

Contrast

....

....

+

6. To change the display contrast:

7. To confirm your entry:

Press or

Press

OK

To set the display contrast in programming mode:

If you want to set the display contrast in programming mode, select in the main menu ’

Setup

’, then menu ’

Contrast

’. You can now set the display contrast as described earlier (as of step 6.).

LOGO! Manual

A5E00380835-01

243

Configuring LOGO!

5.2.3 Setting the start screen

You can select the default setting for the start screen of the

LOGO! in RUN mode: in parameter assignment mode by means of the set menu (“StartScreen” menu item).

To select the start screen:

1. Select parameter assignment mode (see Chapter 5.1.)

2. On the parameter assignment menu, select ’

Set..

or

3. Confirm ’Set..’: Press

OK

4. Move the ’>’ cursor to ’

StartScreen

’: Press or

5. Confirm ’StartScreen’: Press

OK

LOGO! shows the following display:

>Clock

Input DI

StartScreen

Clock

The current setting of the start screen is shown in the bottom row. The default setting is ’Clock’.

You can choose between the display of the current time-of-day and date, or the values of the digital inputs:

6. Select the desired default setting:

7. To confirm your entry:

Press or .

Press

OK

244

LOGO! Manual

A5E00380835-01

6 LOGO! program module (card)

LOGO! allows you to store only one circuit program in its memory. If you want to modify the circuit program or create a further one without deleting the first, you must archive it somewhere. One of the options is to use a program module/card.

The circuit program stored in LOGO! can be copied to a program module (card). You can then insert the program module/card in another LOGO! to copy the circuit program.

using the program module (card), you can:

Archiving circuit programs

Reproducing circuit programs

Send circuit programs by mail

Write and test your circuit program at the office, and then transfer it to a LOGO! in the switching cabinet.

LOGO! is supplied with a hood. The program module (card) is supplied separately.

Note

You do

not

need a module to backup the circuit program in your LOGO!.

The LOGO! circuit program is automatically stored in nonvolatile memory when you exit the programming mode.

We shall now introduce the program module (Card) you can order for LOGO! The card can backup all data in the

LOGO! circuit program memory.

The order number is found in the appendix.

LOGO! Manual

A5E00380835-01

245

LOGO! program module (card)

Compatibility

... to current versions (0BA4 and 0BA5 devices):

Data written to the program module (card) in a 0BA4 version can be read in all 0BA4 and 0BA5 versions.

Data written to the program module (card) in a 0BA5 version can be read in all 0BA5 versions.

... to earlier versions (0BA0 to 0BA3 devices):

A program module (card) that contains data written in earlier versions (0BA0...0BA3 devices) can not be used in

LOGO! devices of the 0BA4 or 0BA5 generation. When the

LOGO! system detects such an ’old’ program module

(card), the message “Unknown Card / Press ESC” is output to the display.

Vice versa, an 0BA4 or 0BA5 program module (card) can not be used in LOGO! devices of the 0BA0...0BA3 family.

Upward compatibility of circuit programs

Circuit programs written for the previous versions

0BA0...0BA3 can only be applied in 0BA4 or 0BA5 units by means of LOGO!Soft Comfort.

246

LOGO! Manual

A5E00380835-01

LOGO! program module (card)

6.1 Security function (CopyProtect)

We principally distinguish between program modules (card) with and without circuit program/copy protection.

Unprotected program module (card)

You can edit circuit programs without restrictions, and exchange data between the program module (Card) and the device.

Protected program module (card)

A circuit program is

protected

when it is transferred from a protected program module (card) to the LOGO!.

To execute this circuit program in LOGO!, the protected program module (card) must remain inserted during RUN, i.e. the circuit program stored on the program module

(card) can not be copied to other LOGO! devices.

Over and above that, a protected circuit program is write– protected.

A circuit program with

password

protection is no longer protected after the correct password has been entered, i.e.

you can then edit the program and remove the module.

Note

You need to assign a password when you create the circuit program for a protected module (card) to be able to edit it at a later time (see Chapter 3.7.5).

LOGO! Manual

A5E00380835-01

247

LOGO! program module (card)

Correlation between the password and the protective function

Password Protection

– –

Yes –

Yes

Yes

Yes

Editing

Yes

Yes, with password

No

Yes, with password

Copying Deleting

Yes

Yes

No

Yes, with password

Yes

Yes, with password

Yes

Yes, with password

Assigning a security function

To assign a circuit program and copy protection function to the program module (card), open the programming mode and select “Card”.

1. Switch the LOGO! to programming mode (ESC / >Stop).

2. The main menu opens. To select the ’

Card

’ command:

Press or

3. To apply you entry in ’Card’: Press

OK

4. Move the ’>’ cursor to ’

CopyProtect

’: Press or

5. To apply ’CopyProtect’: Press

OK

LOGO! shows the following display:

>No

Yes

CopyProtect:

No

The current protection setting is shown in the bottom line.

This function is disabled by default (”No“: disabled).

248

LOGO! Manual

A5E00380835-01

LOGO! program module (card)

Enabling the security function

To set the security function:

1. Move the ’>’ cursor to ’

Yes

’:

2. Confirm ’Yes’:

LOGO! shows the following display:

>No

Yes

CopyProtect:

Yes

Press or

Press

OK

Note

This only generates a circuit program and copy protection for the program module (card); the circuit program itself must be copied separately from the LOGO! to the program module (card) (can also be done initially).

You can always change the “No” status (security function disabled) to “Yes” (security function enabled).

A status change from “Yes” (security function enabled) to

“No” (security function disabled) is only possible if the program module (card) does not contain a circuit program.

LOGO! Manual

A5E00380835-01

249

LOGO! program module (card)

6.2 Inserting and removing the program module (card)

When you remove a program module (card) with circuit program and copy protection attribute, note the following:

The circuit program stored on the program module (card) can only be executed if the card remains inserted during system runtime.

After you have removed the program module (card),

LOGO! outputs the message’No Program’. A removal of the program module (card) during RUN will lead to impermissible operating states.

Always heed the following warning:

!

Warning

Do not touch the open slot of the program module (card) neither with your fingers, nor with a metallic or conductive object.

The program module (card) socket may be under voltage if the polarity is reversed at L1 and N by accident.

The program module (card) may only be removed by qualified personnel.

250

LOGO! Manual

A5E00380835-01

LOGO! program module (card)

Removing the program module (card)

To remove the program module (card):

Carefully insert a screwdriver into the groove on the upper end of the program module (card) and lever the module partially out of the slot.

You can now remove the program module (card).

Inserting a program module (card)

The entry of the program module (card) slot is chamfered on its bottom right. The edge of the program module (card) is chamfered accordingly. This encoding prevents you from inserting the program module (card) the wrong way round.

Insert the program module (card) into the slot and push it in until it engages.

LOGO! Manual

A5E00380835-01

251

LOGO! program module (card)

6.3 Copying data from the LOGO! to the program module (card)

To copy the circuit program to the program module (card):

1. Insert the program module (card) into the slot.

2. Switch the LOGO! to programming mode (ESC / >Stop).

>Program..

Card..

Setup..

Start

LOGO! main menu

3. The main menu opens. To select the ’

Card

’ command:

Press or

4. Press

OK

. The transfer menu opens.

>

"

Card

Card

"

CopyProtect

= LOGO!

252

5. Move the ’>’ cursor to ’

LOGO

³

Card

’ (if required)

Press or

6. Press

OK

.

LOGO! now copies the circuit program to the program module (card).

When LOGO! has finished copying, it automatically returns you to the main menu:

>Program..

Card..

Setup..

Start

The circuit program backup is now stored on your program module (card) and you can remove the card.

Do not forget

to replace the cap.

LOGO! Manual

A5E00380835-01

LOGO! program module (card)

If power fails while LOGO! is copying the circuit program, repeat the process after Power On.

Note

The password X of a protected circuit program in LOGO!

also applies to the copied program version on your program module (card).

LOGO! Manual

A5E00380835-01

253

LOGO! program module (card)

6.4 Copying data from the program module

(card) to LOGO!

You have a program module (card) that contains your circuit program. There are two ways to copy it to LOGO!:

Automatically during the startup of LOGO!

(POWER ON) or by means of the “Card” menu of LOGO!.

Note

If the program on the module/card is protected with the password X, the copied program in the LOGO! is also protected with the same password.

Automatic copying during the startup of LOGO!

Proceed as follows:

1. Switch off the power supply to the LOGO!

(POWER OFF)

2. Remove the slot cover.

3. Insert the program module/card into the relevant slot.

4. Switch on the power supply to the LOGO!

LOGO! copies the program from the program module/card to LOGO!. When LOGO! has finished copying, it opens the main menu:

>Program..

Card..

Setup..

Start

254

LOGO! Manual

A5E00380835-01

LOGO! program module (card)

Note

Before you switch the LOGO! to RUN, you must ensure that the system you are controlling with LOGO! does not represent a source of hazard.

1. Move the ’>’ cursor to ’

Start

’: Press or

2. Press

OK

.

Copying by means of the “Card”menu

For information on the replacement of a program module

(card), also note Chapter 6.2.

To copy a program from the program module (card) to

LOGO!:

1. Insert the program module (card)

2. Switch the LOGO! to programming mode (ESC / >Stop).

>Program..

Card..

Setup..

Start

3. Move the ’>’ cursor to ’

Card

’: Press or

4. Press

OK

. The transfer menu opens.

5. Move the ’>’ cursor to ’

Card

³

LOGO

’:

Press or

"

Card

>Card

"

CopyProtect

= LOGO!

6. Press

OK

.

LOGO! copies the circuit program from the program module (card) to LOGO!. When LOGO! has finished copying, it automatically returns to the main menu.

LOGO! Manual

A5E00380835-01

255

LOGO! program module (card)

256

LOGO! Manual

A5E00380835-01

7 LOGO! Software

LOGO!Soft Comfort is available as a programming package for the PC. This software provides many features, for example:

A graphic interface for offline creation of your circuit program by means of Ladder Diagram (contact chart / circuit diagram) or Function Block Diagram (function chart)

Simulation of your circuit program on the PC

Generating and printing of an overview chart for the circuit program

Saving a backup of the circuit program on the hard drive or other media

Comparing circuit programs

Easy configuration of blocks

Transferring the circuit program

– from the LOGO! to the PC and

– from the PC to LOGO!

Reading the values of the hour counter

Setting the TOD

Summertime/wintertime conversion

Online test: Display of status changes and process variables of LOGO! in RUN mode:

– Status of a digital I/O, flags, shift register bits and cursor keys

– The values of all analog I/Os and flags

– The results of all blocks

– The current values (including the times) of selected blocks

Stopping circuit program execution via the PC (STOP).

LOGO! Manual

A5E00380835-01

257

LOGO! Software

The LOGO! alternative

As you can see, LOGO!Soft Comfort represents an alternative to conventional engineering methods:

1. You start by developing the circuit program on your desktop.

2. You simulate the circuit program on your computer and verify its functions, before you actually implement it in your system.

3. You can add comments to the circuit program and create hardcopies.

4. You save a copy of your circuit program to the file system on your PC, to make it directly available for any modifications.

5. It takes only a few key actions to download the circuit program to LOGO!.

LOGO!Soft Comfort

LOGO!Soft Comfort allows you the efficient, easy and concise creation of your circuit programs on the PC (”Wiring by means of Softkey“). After you have created the circuit program, you can either let the system decide which LOGO!

version it requires for your program, or predetermine the relevant LOGO! version for the circuit program.

Particularly user-friendly functions are;

Offline program simulation

Simultaneous display of the status of several special functions

Extensive options of circuit program documentation

Display of the states and process variables of LOGO! in

RUN mode comprehensive Online Help.

258

LOGO! Manual

A5E00380835-01

LOGO! Software

LOGO!Soft Comfort runs under Windows 95/98,

Windows NT 4.0, Windows Me , Windows 2000 ,

Windows XP , Linux and Mac OS X . LOGO!Soft Comfort is capable of client/server operation and offers you a high degree of freedom and comfort for creating your circuit program.

LOGO!Soft Comfort V5.0

This is the current version of LOGO!Soft Comfort. You will find all the functions and the functionality of the devices described in this manual in the version 5.0 and later.

Updating LOGO!Soft Comfort versions V1.0 up to V4.0

The update can only be installed for the full version of

LOGO!Soft Comfort V1.0, V2.0, V3.0 or V4.0.

Order numbers are in Appendix E.

Note

If a full version is not installed, you can carry out an update as follows:

Install the software from the CD.

When the system prompts you for the previous version, place the old LOGO!Soft Comfort CD in CD drive.

Point your browser to the “bin” directory on the CD.

Updates and info

You can download demo versions of the software free of charge from the Internet address specified in the preface.

For detailed information on updates, upgrades and the

LOGO!Soft Comfort Update Center, refer to LOGO!Soft

Comfort’s online help.

LOGO! Manual

A5E00380835-01

259

LOGO! Software

7.1 Connecting the LOGO! to a PC

Connecting the PC cable

To connect the LOGO! to a PC, you need the LOGO! PC cable (order number is found in Appendix E).

Remove the cap or program module (card) from your

LOGO! and connect the cable to this socket. Connect the other end of the cable to the serial port of your PC.

Connecting the PC cable to the USB port

If your PC is only equipped with a USB interface (Universal

Serial Bus), you will need a converter and a device driver to connect the LOGO! cable to this port. Follow the instructions on the screen when you install the driver for the converter. Make sure you specify the correct Windows OS version when you select the driver.

We have had good results using Keyspan’s USA-19QW

USB converter as well as the GMUS-03 one available from the Kabelshop online shop. You can find these suppliers on the Internet at http://www.keyspan.com or www.kabelshop.net respectively.

Switching LOGO! to PC LOGO mode

1. Switch the LOGO! with/without display to STOP from your PC (refer to the LOGO!Soft Comfort Online Help), or select the ESC / >Stop command on a device with display and confirm the entry with ’Yes’.

When LOGO! is in STOP and online with the PC, the following PC commands are accepted:

Switch LOGO! to RUN

Read/write the circuit program

Read/write the summertime/wintertime

260

LOGO! Manual

A5E00380835-01

LOGO! Software

2. When you start the upload/download in STOP, the following display appears automatically:

PC

= LOGO!

Note

Earlier versions up to 0BA3 with/without display are automatically switched to PC LOGO mode as follows:

1. Switch off the power supply to the LOGO!.

2. Remove the cover or the program module (card) and connect the cable to this socket.

3. Switch on power.

LOGO! switches automatically to PC LOGO mode.

The PC can now access the LOGO! For information on this function, refer to the LOGO!Soft Comfort Online Help.

For more information on LOGO! versions without display, refer to Appendix C.

Closing the PC LOGO mode

When the data transfer is completed, the connection to the

PC is shut down automatically.

Note

If the circuit program created with LOGO!Soft Comfort is password protected, both the circuit program and the password are downloaded to LOGO!. The password prompt is enabled at the end of the data transfer.

The upload of a password protected program created in

LOGO! is only possible after the correct password is entered in LOGO!Soft Comfort.

LOGO! Manual

A5E00380835-01

261

LOGO! Software

262

LOGO! Manual

A5E00380835-01

8 Applications

Note

LOGO! sample applications are available to all our customers free of charge on the Internet at http://www.siemens.com/logo (go to

“Products & Solutions”, then

“Applications”).

The examples provided are noncommittal, serve as general information about the fields of application for LOGO!, and may be different to user-specific solutions.

The user operates the system at his own responsibility. We refer to the relevant national standards and system-related installation regulations.

Errors can not be ruled out, and the right to make changes is reserved.

On the Internet you can find the following sample applications (and tips for further applications):

Irrigation system for greenhouse plants

Conveyor control system

Bending machine control system

Shop window lighting

Bell system (e.g. in a school)

Parking lot surveillance

Outdoor lighting

Shutter control system

Domestic outdoor and indoor lighting system

Control system of a cream stirrer

Sports hall lighting

Constant load on 3 consumers

Sequential control system for cable-welding machines for large cross-sections

Step switch (e.g. for fans)

LOGO! Manual

A5E00380835-01

263

Applications

Sequential control for boilers

Control system for several pump sets with centralized operator control

Cutting device (e.g. for detonating fuses)

Monitoring periods of utilization, e.g. of a solar energy system

Intelligent foot switches, e.g. for speed preselection)

Elevating platform controls

Impregnation of textiles, heating and conveyor belt controls

Silo-filling system and lots more.

On the Web you can also find descriptions and the corresponding circuit diagrams of the applications. You can read these *.pdf files with the Adobe AcrobatReader. If you have installed LOGO!Soft Comfort on your computer, you can simply click the disk icon to download the relevant circuit programs, which you can then adapt to suit your application and download to the LOGO! directly via the PC cable.

Benefits of LOGO!

LOGO! is a particularly useful feature

For replacing auxiliary switchgear with the integrated

LOGO! functions

For saving wiring and installation work - because

LOGO! keeps the wiring ”in its head”.

For reducing space requirements for components in the control cabinet/distribution box. A smaller control cabinet/distribution box may provide sufficient space.

For adding or changing functions, without having to install additional switchgear or change the wiring.

264

LOGO! Manual

A5E00380835-01

Applications

For offering your customers new, additional functions for domestic and commercial housing installations. Examples:

– Domestic security systems: LOGO! switches on a lamp at regular intervals or opens and closes the shutters while you are on holiday.

– Central heating: LOGO! runs the circulation pump only when water or heating is actually required.

– Refrigerating systems: LOGO! can defrost refrigerating systems at regular intervals to save energy costs.

– You can illuminate aquaria and terraria on a time-dependent basis.

Last not least you can:

Use commonly available switches and pushbuttons, which makes it easy to install a domestic system.

Connect LOGO! directly to your domestic installation; the integrated power supply makes it possible.

Do you want more Info?

For more information about LOGO!, see our web page

(see the preface for the URL).

Do you have any suggestions?

There are definitely many more useful applications for the

LOGO! . If you know of one, why not write to us? We will collect all the suggestions made and distribute as many of them as we can. No matter whether your LOGO! circuit is particularly complex or simple, simply write to us. We shall be delighted to receive all your suggestions.

Write to:

Siemens AG

A&D AS SM MA

PO box 48 48

D-90327 Nuremberg

LOGO! Manual

A5E00380835-01

265

Applications

266

LOGO! Manual

A5E00380835-01

A Technical data

A.1 General technical data

Tested in accordance with

Criterion

LOGO!Basic

Dimensions (WxHxD)

Weight

Installation

Values

72 x 90 x 55 mm

Approx. 190 g on a 35 mm profile rail

4 module widths or wall mounting

LOGO! expansion modules DM8..., AM...

Dimensions (WxHxD)

Weight

Installation

36 x 90 x 53 mm

Approx. 90 g on a 35 mm profile rail

2 module widths or wall mounting

LOGO! expansion modules DM16...

Dimensions (WxHxD)

Weight

Installation

72 x 90 x 53 mm

Approx. 190 g on a 35 mm profile rail

4 module widths or wall mounting

Climatic conditions

Ambient temperature

Vertical installation

Storage/shipping

Relative humidity

Air pressure

Pollutants

Low temperature to

IEC 60068-2-1

High temperature to IEC 60068-2-2

IEC 60068-2-30

IEC 60068-2-42

IEC 60068-2-43

0 ... 55 ° C

0 ... 55 ° C

-40 ° C ... +70 ° C

From 10 to 95 % no condensation

795 ... 1080 hPa

SO

2

10 cm

3

/m

3

,

4 days

H

2

S 1 cm

3

/m

3

,

4 days

LOGO! Manual

A5E00380835-01

267

Technical data

Criterion Tested in accordance with

Ambient mechanical conditions

Protection mode

Vibrations: IEC 60068-2-6

Shock IEC 60068-2-27

Values

IP20

5 ... 9 Hz (constant amplitude 3.5 mm)

9 ... 150 Hz (constant acceleration 1 g)

18 shocks

(half-sine wave

15g/11 ms)

Drop height 50 mm

1 m

Drop

Free fall (packaged)

IEC 60068-2-31

IEC 60068-2-32

Electromagnetic compatibility (EMC)

Noise emission EN 55011/A

EN 55022/B

EN 50081-1

(domestic area)

Electrostatic discharge

Electromagnetic fields

HF currents on cables and cable shielding

Burst pulses

IEC 61000-4-2

Severity 3

IEC 61000-4-3

IEC 61000-4-6

High-energy surge pulse

(applies only to

LOGO! 230 ...)

IEC 61000-4-4

Severity 3

IEC 61000-4-5

Severity 3

Limit class B group 1

8 kV air discharge

6 kV contact discharge

Field strength 10 V/m

10 V

2 kV (supply and signal lines)

1 kV (power lines) symmetrical

2 kV (power lines) asymmetrical

Safety to IEC / VDE

Clearance and creepage distance rating

Fulfilled

Insulation strength

IEC 60664,

IEC 61131-2,

EN 50178 cULus to UL 508,

CSA C22.2 No.

142

With LOGO!

230 R/RC, also VDE 0631

IEC 61131-2 Fulfilled

268

LOGO! Manual

A5E00380835-01

Criterion

Cycle time

Cycle time per function

Tested in accordance with

Technical data

Values

< 0.1 ms

LOGO! Manual

A5E00380835-01

269

Technical data

A.2 Technical data: LOGO! 230...

Power consumption

115 V AC

240 V AC

115 V DC

240 V DC

Voltage failure buffering

LOGO! 230 RC

LOGO! 230 RCo

Power supply

Input voltage 115...240 V AC/DC

Permissible range 85 ... 265 V AC

100 ... 253 V DC

Permissible mains frequency 47 ... 63 Hz

10 ...40 mA

10 ... 25 mA

5 ... 25 mA

5 ... 15 mA

Power loss at

115 V AC

240 V AC

115 V DC

240 V DC

Backup of the real-time clock at 25 C

Accuracy of the real-time clock

Digital inputs

Number

Electrical isolation

1.1 ... 4.6 W

2.4 ... 6.0 W

0.5 ... 2.9 W

1.2 ... 3.6 W typ. 80 h typ. 2 s / day

8

No

270

LOGO! Manual

A5E00380835-01

LOGO! 230 RC

LOGO! 230 RCo

Input voltage L1

Signal 0

Signal 1

Signal 0

Signal 1

Input current at

< 40 V AC

> 79 V AC

< 30 V DC

> 79 V DC

Signal 1

Delay time at

0 to 1

1 to 0

Line length (unshielded)

Digital outputs

Number

Output type

Electrical isolation

In groups of

Control of a digital input

Continuous current I th

Incandescent lamp load

(25000 switching cycles) at

230/240 V AC

115/120 V AC

Fluorescent tubes with ballast

(25000 switching cycles)

Fluorescent tubes, conventionally compensated (25000 switching cycles)

< 0.03 mA

> 0.08 mA typ. 50 ms

100 m

4

Relay outputs

Yes

1

Yes max. 10 A per relay

1000 W

500 W

10 x 58 W

(at 230/240 V AC)

1 x 58 W

(at 230/240 V AC)

LOGO! Manual

A5E00380835-01

Technical data

271

Technical data

Fluorescent tubes, uncompensated (25000 switching cycles)

Short circuit-proof cos 1

Short-circuit proof cos

0.5 to 0.7

Derating

Parallel output circuits for power increase

Protection of output relay

(if desired)

Switching rate

Mechanical

Ohmic load/lamp load

Inductive load

LOGO! 230 RC

LOGO! 230 RCo

10 x 58 W (at 230/240 V AC)

Power protection B16

600A

Power protection B16

900A none; across the entire temperature range

Not permitted max. 16 A, characteristic B16

10 Hz

2 Hz

0.5 Hz

272

LOGO! Manual

A5E00380835-01

Technical data

A.3 Technical data: LOGO! DM8 230R and

LOGO! DM16 230R

Power supply

Input voltage 115...240 V AC/DC 115 ... 240 V AC/DC

Permissible range 85 ... 265 V AC

100 ... 253 V DC

Permissible mains frequency 47 ... 63 Hz

85 ... 265 V AC

100 ... 253 V DC

47 ... 63 Hz

Power consumption

115 V AC

240 V AC

115 V DC

240 V DC

Voltage failure buffering

LOGO! DM8 230R LOGO! DM16 230R

10 ... 30 mA

10 ... 20 mA

5 ... 15 mA

5 ... 10 mA

10 ... 60 mA

10 ... 40 mA

5 ... 25 mA

5 ... 20 mA

Power loss at

115 V AC

240 V AC

115 V DC

240 V DC

Backup of the real-time clock at 25 C

Accuracy of the real-time clock

Digital inputs

Number

Electrical isolation

1.1 ... 3.5 W

2.4 ... 4.8 W

0.5 ... 1.8 W

1.2 ... 2.4 W

4

No

1.1 ... 4.5 W

2.4 ... 5.5 W

0.6 ... 2.9 W

1.2 ... 4.8 W

8

No

LOGO! Manual

A5E00380835-01

273

Technical data

Input voltage L1

Signal 0

Signal 1

Signal 0

Signal 1

Input current at

Signal 0

LOGO! DM8 230R LOGO! DM16 230R

< 40 V AC

> 79 V AC

< 30 V DC

> 79 V DC

< 0.03 mA

< 40 V AC

> 79 V AC

< 30 V DC

> 79 V DC

< 0.05 mA

Delay time at

0 to 1

1 to 0

Line length (unshielded)

Digital outputs

Number

Output type

Electrical isolation

In groups of

Control of a digital input

Continuous current I th

Incandescent lamp load

(25000 switching cycles) at

230/240 V AC

115/120 V AC

Fluorescent tubes with ballast

(25000 switching cycles)

Fluorescent tubes, conventionally compensated (25000 switching cycles) typ. 50 ms

100 m typ. 50 ms

100 m

4

Relay outputs

Yes

1

8

Relay outputs

Yes

1

Yes Yes max. 5 A per relay max. 5 A per relay

1000 W

500 W

10 x 58 W

(at 230/240 V AC)

1 x 58 W

(at 230/240 V AC)

1000 W

500 W

10 x 58 W (at

230/240 V AC)

1 x 58 W (at

230/240 V AC)

274

LOGO! Manual

A5E00380835-01

Technical data

Fluorescent tubes, uncompensated (25000 switching cycles)

Short circuit-proof cos 1

Short-circuit proof cos

0.5 to 0.7

Derating

Parallel output circuits for power increase

Protection of output relay

(if desired)

Switching rate

Mechanical

Ohmic load/lamp load

Inductive load

LOGO! DM8 230R

10 x 58 W (at

230/240 V AC)

LOGO! DM16 230R

10 x 58 W (at

230/240 V AC)

Power protection

B16

600A

Power protection

B16

900A none; across the entire temperature range

Not permitted

Power protection

B16

600A

Power protection

B16

900A

None; across the entire temperature range

Not permitted max. 16 A, characteristic B16 max. 16 A, characteristic B16

10 Hz

2 Hz

0.5 Hz

10 Hz

2 Hz

0.5 Hz

LOGO! Manual

A5E00380835-01

275

Technical data

A.4 Technical data: LOGO! 24...

LOGO! 24

LOGO! 24o

Power supply

Input voltage

Permissible range

Reverse polarity protection

Permissible mains frequency

Power consumption from

24 V DC

Voltage failure buffering

Power loss at 24 V

Backup of the real-time clock at 25 C

Accuracy of the real-time clock

Digital inputs

Number

Electrical isolation

Input voltage

Signal 1

24 V DC

20.4 ... 28.8 V DC

Yes

30 ... 55 mA

0.3 A per output

0.7 ... 1.3 W

8

No

L+

< 5 V DC

> 8 V DC

276

LOGO! Manual

A5E00380835-01

LOGO! 24

LOGO! 24o

Input current at

Signal 0

Signal 1

Delay time at

0 to 1

1 to 0

Line length (unshielded)

Analog inputs

Number

Range

Cycle time for analog value generation max. input voltage

Line length (shielded and twisted)

Digital outputs

Number

Output type

Electrical isolation

In groups of

Control of a digital input

Output voltage

Output current

Continuous current I th

LOGO! Manual

A5E00380835-01

< 1.0 mA (I1...I6)

( , )

> 1.5 mA (I1... I6)

> 0.1 mA (I7, I8) typ. 1.5 ms typ. 1.5 ms

<1.0 ms (I5, I6)

100 m

2 (I7 = AI1, I8 = AI2)

0 ... 10 V DC input impedance 76 k W

300 ms

28.8 V DC

10 m

4

Transistor, current-sourcing

(1)

No

Yes

Supply voltage max. 0.3 A

Technical data

277

Technical data

LOGO! 24

LOGO! 24o

Incandescent lamp load

(25000 switching cycles) at

Fluorescent tubes with ballast

(25000 switching cycles)

Fluorescent tubes, conventionally compensated (25000 switching cycles)

Fluorescent tubes, uncompensated (25000 switching cycles)

Short circuit-proof and overload-proof

Yes

Short-circuit current limitation Approx. 1 A

Derating

Short circuit-proof cos 1 none; across the entire temperature range

Short-circuit proof cos 0.5 to

0.7

Parallel output circuit for power increase

Protection of output relay (if desired)

Switching rate

Not permitted

Mechanical

Electrical

Ohmic load/lamp load

Inductive load

10 Hz

10 Hz

0.5 Hz

(1): When LOGO! 24, LOGO! 24o or LOGO! DM8 24, LOGO! DM16 24 are switched on, signal 1 is sent to the digital outputs for about 50 microseconds.

Take this into account, especially when using devices that react to short pulses.

278

LOGO! Manual

A5E00380835-01

Technical data

A.5 Technical data: LOGO! DM8 24 and

LOGO! DM16 24

LOGO! DM8 24

Power supply

Input voltage

Permissible range

Reverse polarity protection

Permissible mains frequency

Power consumption from

24 V DC

Voltage failure buffering

Power loss at 24 V

Backup of the real-time clock at 25 C

Accuracy of the real-time clock

Digital inputs

Number

Electrical isolation

Input voltage

Signal 1

24 V DC

20.4 ... 28.8 V DC

Yes

30 ... 45 mA

0.3 A per output

0.8 ... 1.1 W

4

No

L+

< 5 V DC

> 8 V DC

LOGO! DM16 24

24 V DC

20.4 ... 28.8 V DC

Yes

30 ... 45 mA

0.3 A per output

0.8 ... 1.7 W

8

No

L+

< 5 V DC

> 12 V DC

LOGO! Manual

A5E00380835-01

279

Technical data

LOGO! DM8 24 LOGO! DM16 24

Input current at

Signal 0

Signal 1

Delay time at

0 to 1

1 to 0

< 1.0 mA

> 1.5 mA typ. 1.5 ms typ. 1.5 ms

< 1 mA typ. 1.5 ms

Line length (unshielded)

Digital outputs

Number

Output type

Electrical isolation

In groups of

Control of a digital input

Output voltage

Output current

Continuous current I th

Incandescent lamp load

(25000 switching cycles) at

Fluorescent tubes with ballast

(25000 switching cycles)

Fluorescent tubes, conventionally compensated (25000 switching cycles)

Fluorescent tubes, uncompensated (25000 switching cycles)

100 m

4

Transistor, current-sourcing

(1)

No

Yes

Supply voltage max. 0.3 A

100 m

8

Transistor, current-sourcing

(1)

No

Yes

Supply voltage max. 0.3 A

280

LOGO! Manual

A5E00380835-01

Technical data

Short circuit-proof and overload-proof

LOGO! DM8 24

Yes

Short-circuit current limitation Approx. 1 A

Derating none; across the entire temperature range

Short circuit-proof cos 1

Short-circuit proof cos 0.5 to

0.7

Parallel output circuit for power increase

Protection of output relay (if desired)

Not permitted

Switching rate

Mechanical

Electrical

Ohmic load/lamp load

Inductive load

10 Hz

10 Hz

0.5 Hz

LOGO! DM16 24

Yes

Approx. 1 A

None; across the entire temperature range

Not permitted

10 Hz

10 Hz

0.5 Hz

(1): When LOGO! 24, LOGO! 24o or LOGO! DM8 24, LOGO! DM16 24 are switched on, signal 1 is sent to the digital outputs for about 50 microseconds.

Take this into account, especially when using devices that react to short pulses.

LOGO! Manual

A5E00380835-01

281

Technical data

A.6 Technical data: LOGO! 24RC...

LOGO! 24RC

LOGO! 24RCo

Power supply

Input voltage 24 V AC/DC

Permissible range 20.4 ... 26.4 V AC

20.4 ... 28.8 V DC

Reverse polarity protection

Permissible mains frequency 47 ... 63 Hz

Power consumption

24 V AC

24 V DC

Voltage failure buffering

Power loss

24 V AC

24 V DC

40 ... 110 mA

20 ... 75 mA typ. 5 ms

0.9 ... 2.7 W

0.4 ... 1.8 W

Backup of the real-time clock at 25 C

Accuracy of the real-time clock

Digital inputs

Number typ. 80 h typ. 2 s / day

Electrical isolation

Input voltage

Signal 1

8, optional P action or N action

No

L

< 5 V AC/DC

> 12 V AC/DC

282

LOGO! Manual

A5E00380835-01

LOGO! 24RC

LOGO! 24RCo

Input current at

Signal 0

Signal 1

Delay time at

0 to 1

< 1.0 mA

> 2.5 mA typ. 1,5 ms

1 to 0

Line length (unshielded)

Analog inputs

Number

Range max. Input voltage

Digital outputs

Number

Output type

Electrical isolation

In groups of

Control of a digital input

Output voltage

Output current

Continuous current I th

Incandescent lamp load

(25000 switching cycles) at

Fluorescent tubes with ballast

(25000 switching cycles)

Fluorescent tubes, conventionally compensated (25000 switching cycles) typ. 15 ms

100 m

4

Relay outputs

Yes

1

Yes max. 10 A per relay

1000 W

10 x 58 W

1 x 58 W

LOGO! Manual

A5E00380835-01

Technical data

283

Technical data

Fluorescent tubes, uncompensated (25000 switching cycles)

Short circuit-proof and overload-proof

Short-circuit current limitation

Derating

Short circuit-proof cos 1

LOGO! 24RC

LOGO! 24RCo

10 x 58 W none; across the entire temperature range

Power protection B16,

600A

Power protection B16,

900A

Not permitted

Short-circuit proof cos 0.5 to

0.7

Parallel output circuits for power increase

Protection of output relay (if desired)

Switching rate

Mechanical

Electrical

Ohmic load/lamp load

Inductive load max. 16 A, characteristic B16

10 Hz

2 Hz

0.5 Hz

284

LOGO! Manual

A5E00380835-01

Technical data

A.7 Technical data: LOGO! DM8 24 R and

LOGO! DM16 24 R

LOGO! DM8 24 R LOGO! DM16 24R

Power supply

Input voltage 24 V AC/DC

Permissible range 20.4 ... 26.4 V AC

20.4 ... 28.8 V DC

Reverse polarity protection

Permissible mains frequency 47 ... 63 Hz

24 V DC

20.4 ... 28.8 V DC

Yes

Power consumption

24 V AC

24 V DC

Voltage failure buffering

Power loss

24 V AC

24 V DC

Backup of the real-time clock at 25 C

Accuracy of the real-time clock

Digital inputs

Number

40 ... 110 mA

20 ... 75 mA typ. 5 ms

0.9 ... 2.7 W

0.4 ... 1.8 W

30 ... 90 mA typ. 5 ms

0.7 ... 2.5 W

8

Electrical isolation

Input voltage

Signal 1

4, optional P action or

N action

No

L

< 5 V AC/DC

> 12 V AC/DC

No

< 5 V DC

> 12 V DC

LOGO! Manual

A5E00380835-01

285

Technical data

LOGO! DM8 24 R LOGO! DM16 24R

Input current at

Signal 0

Signal 1

Delay time at

0 to 1

< 1.0 mA

> 2.5 mA

< 1.0 mA typ. 1.5 ms typ. 1.5 ms

1 to 0

Line length (unshielded)

Digital outputs

Number

Output type

Electrical isolation

In groups of

Control of a digital input

Output voltage

Output current

Continuous current I th

Incandescent lamp load

(25000 switching cycles) at

Fluorescent tubes with ballast

(25000 switching cycles)

Fluorescent tubes, conventionally compensated (25000 switching cycles)

Fluorescent tubes, uncompensated (25000 switching cycles)

Short circuit-proof and overload-proof typ. 15 ms

100 m

4

Relay outputs

Yes

1

Yes typ. 1.5 ms

100 m

8

Relay outputs

Yes

1

Yes max. 5 A per relay max. 5 A per relay

1000 W 1000 W

10 x 58 W

1 x 58 W

10 x 58 W

10 x 58 W

1 x 58 W

10 x 58 W

286

LOGO! Manual

A5E00380835-01

Technical data

LOGO! DM8 24 R

Short-circuit current limitation

Derating

Short circuit-proof cos 1

Short-circuit proof cos 0.5 to

0.7

none; across the entire temperature range

Power protection

B16,

600A

Power protection

B16,

900A

Not permitted Parallel output circuits for power increase

Protection of output relay (if desired)

Switching rate

Mechanical

Electrical

Ohmic load/lamp load

Inductive load max. 16 A, characteristic B16

10 Hz

2 Hz

0.5 Hz

LOGO! DM16 24R

None; across the entire temperature range

Power protection

B16

600A

Power protection

B16

900A

Not permitted max. 16 A, characteristic B16

10 Hz

2 Hz

0.5 Hz

LOGO! Manual

A5E00380835-01

287

Technical data

A.8 Technical data: LOGO! 12/24... and

LOGO! DM8 12/24R

LOGO! 12/24RC

LOGO! 12/24RCo

Power supply

Input voltage

Permissible range

Reverse polarity protection

Power consumption

12 V DC

24 V DC

Voltage failure buffering

12 V DC

24 V DC

12/24 V DC

10.8 ... 28.8 V DC

Yes

30 ... 140 mA

20 ... 75 mA

Signal 1 typ. 2 ms typ. 5 ms

Power loss

12 V DC

24 V DC

Backup of the real-time clock at 25 C

Accuracy of the real-time clock

Electrical isolation

Digital inputs

Number

Electrical isolation

Input voltage L+

0.3 ... 1.7 W

0.4 ... 1.8 W typ. 80 h typ. 2 s / day

No

8

No

< 5 V DC

> 8 V DC

LOGO! DM8

12/24R

12/24 V DC

10.8 ... 28.8 V DC

Yes

30 ... 140 mA

20 ... 75 mA typ. 2 ms typ. 5 ms

0.3 ... 1.7 W

0.4 ... 1.8 W

No

4

No

< 5 V DC

> 8 V DC

288

LOGO! Manual

A5E00380835-01

Technical data

LOGO! 12/24RC

LOGO! 12/24RCo

LOGO! DM8

12/24R

Input current at

Signal 0

Si l 1

< 1.0 mA (I1...I6)

< 0.05 mA (I7, I8)

> 1.5 mA (I1... I6)

> 0.1 mA (I7, I8)

< 1.0 mA

> 1.5 mA

Delay time at

0 to 1

1 to 0 typ. 1.5 ms typ. 1.5 ms

<1.0 ms (I5, I6)

100 m Line length (unshielded)

Analog inputs

Number

Range

Cycle time for analog value generation max. Input voltage

Line length (shielded and twisted)

Digital outputs

Number

Output type

Electrical isolation

In groups of

Control of a digital input

Output voltage

Output current

2 (I7 = AI1, I8 = AI2)

0 ... 10 V DC input impedance

76 k

W

300 ms

28.8 V DC

10 m

4

Relay outputs

Yes

1

Yes typ. 1.5 ms typ. 1.5 ms

100 m

4

Relay outputs

Yes

1

Yes

LOGO! Manual

A5E00380835-01

289

Technical data

Continuous current I th (per terminal)

Incandescent lamp load

(25000 switching cycles) at

Fluorescent tubes with ballast

(25000 switching cycles)

Fluorescent tubes, conventionally compensated (25000 switching cycles)

Fluorescent tubes, uncompensated (25000 switching cycles)

Short circuit-proof and overload-proof

Short-circuit current limitation

Derating

Short circuit-proof cos 1

Short-circuit proof cos 0.5 to

0.7

LOGO! 12/24RC

LOGO! 12/24RCo

LOGO! DM8

12/24R

max. 10 A per relay max. 5 A per relay

1000 W

10 x 58 W

1 x 58 W

10 x 58 W none; across the entire temperature range

Power protection

B16

600A

Power protection

B16

900A

Not permitted

1000 W

10 x 58 W

1 x 58 W

10 x 58 W none; across the entire temperature range

Power protection

B16

600A

Power protection

B16

900A

Not permitted Parallel output circuits for power increase

Protection of output relay (if desired)

Switching rate

Mechanical

Electrical

Ohmic load/lamp load

Inductive load max. 16 A, characteristic B16

10 Hz

2 Hz

0.5 Hz max. 16 A, characteristic B16

10 Hz

2 Hz

0.5 Hz

290

LOGO! Manual

A5E00380835-01

Technical data

A.9 Switching capacity and service life of the relay outputs

Ohmic load

Switching cycles/million

0.5

0.4

0.3

0.2

0.1

12/24 V AC/DC

115/120 V AC

230/240 V AC

120 V DC

240 V DC

Maximum 10 A

Maximum 10 A

Maximum 10 A

Maximum 0.2 A

Maximum 0.1 A

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

2 4 6 8 10

Switched current/A

Figure A Switching capacity and service life of the contacts with ohmic load (heating)

Inductive load

Switching cycles/million

12/24 V AC/DC

115/120 V AC

230/240 V AC

120 V DC

240 V DC

Maximum 2 A

Maximum 3 A

Maximum 3 A

Maximum 0.2 A

Maximum 0.1 A

1 2 3

Switched current/A

Figure B Switching capacity and service life of the contacts with high inductive load to IEC 947-5-1 DC 13/AC 15 (contactors, solenoid coils, motors)

LOGO! Manual

A5E00380835-01

291

Technical data

A.10 Technical data: LOGO! AM 2

LOGO! AM 2

Power supply

Input voltage

Permissible range

Power consumption

Voltage failure buffering

Power loss at

12 V

24 V

Electrical isolation

Reverse polarity protection

Ground terminal

12/24 V DC

10.8 ... 28.8 V DC

25 ... 50 mA typ. 5 ms

0.3 ... 0.6 W

0.6 ... 1.2 W

No

Yes for connecting ground and shielding of the analog measuring line.

Analog inputs

Number

Type

Input range

Resolution

Cycle time for analog value generation

Electrical isolation

Line length (shielded and twisted)

Encoder supply voltage

Error limit

Interference frequency suppression

2

Unipolar

0 ... 10 V DC (input impedance 76 k

W

) or

0 ... 20 mA (input impedance <250 W )

10 bit, normalized to 0 ... 1000

50 ms

No

10 m none

+/– 1.5 %

55 Hz

292

LOGO! Manual

A5E00380835-01

Technical data

A.11 Technical data: LOGO! AM 2 PT100

LOGO! AM 2 PT100

Power supply

Input voltage

Permissible range

Power consumption

Voltage failure buffering

Power loss at

12 V

24 V

Electrical isolation

Reverse polarity protection

Ground terminal

Sensor inputs

Number

Type

Connection of sensors

2-wire technique

3-wire technique

Measurement range

12/24 V DC

10.8 ... 28.8 V DC

25 ... 50 mA typ. 5 ms

0.3 ... 0.6 W

0.6 ... 1.2 W

No

Yes for connecting ground and shielding of the measuring line

2

Resistive thermocouple Pt100

Settings for the measurement display on the basic module:

1 ° C steps

0.25

° C steps

(rounded to one decimal)

1

°

C steps

0.25

° C steps

(rounded to one decimal)

Yes

Yes

-50 ° C ... +200 ° C

–58 ° F ... +392 ° F

Offset: –200, Gain: 25

Offset: –200, Gain: 250

Offset: –128, Gain: 45

Offset: –128, Gain: 450

LOGO! Manual

A5E00380835-01

293

Technical data

Curve linearization

Measuring current Ic

Measurement rate

Resolution

Error limits

0 ° C ... +200 ° C

-50 ° C ... +200 ° C

Electrical isolation

Cable length (shielded)

Interference frequency suppression

LOGO! AM 2 PT100

No

1.1 mA depends on the installation typical: 50 ms

0.25 ° C of the final measured value:

+/– 1.0 %

+/– 1.5 %

No

10 m

55 Hz

294

LOGO! Manual

A5E00380835-01

Technical data

A.12 Technical data: LOGO! AM 2 AQ

LOGO! AM 2 AQ

Power supply

Input voltage

Permissible range

Power consumption

Voltage failure buffering

Power loss

Electrical isolation

Reverse polarity protection

Ground terminal

Analog outputs

Number

Output range

Maximum load

Resolution

Cycle time for analog output

Electrical isolation

Line length (shielded and twisted)

Error limit

24 V DC

20.4 ... 28.8 V DC

25 ... 50 mA typ. 5 ms

0.6 ... 1.2 W

No

Yes for connecting ground and shielding of the analog output line.

2

0 ... 10 V DC

5 k W

10 bit, normalized to 0 ... 1000 depending on installation (50 ms)

No

10 m

+/– 2.5 % FS

LOGO! Manual

A5E00380835-01

295

Technical data

A.13 Technical data: CM EIB/KNX

CM EIB/KNX

Mechanical data

Dimensions (WxHxD)

Weight

Installation

36 x 90 x 55 mm

Approx. 107 g on a 35 mm profile rail

2 module widths or wall mounting

Power supply

Input voltage

Permissible range

Power consumption from power supply

Power consumption via bus

EIB

data transmission rate

Connections

Digital inputs (I)

Digital outputs (Q)

Analog inputs (AI)

Analog outputs (AA)

Group addresses

Associations

Climatic conditions

Climatic withstand capability

Ambient operating conditions

Storage and transport temperature

Relative humidity

Electrical safety

Type of protection

Interference suppression

24 V AC/DC

–15% ... +10% AC

–15% ... +20% DC max. 25 mA

5 mA

9600 baud virtual max. 16 virtual max. 12 virtual max. 8 virtual max. 2 max. 56 max. 56

EN 50090-2-2

0 ... 55 ° C natural convection

-40 ° C ... +70 ° C

95 % at +25 ° C (not condensing)

IP 20 (in accordance with EN 60529)

EN 55011 (limit class B)

296

LOGO! Manual

A5E00380835-01

Technical data

Certification

CM EIB/KNX

VDE 0631

IEC 61131-2

Overvoltage protection Slow-blowing fuse 80 mA

(recommended)

Electromagnetic compatibility (EMC)

EMC requirements Complies with EN 61000-6-1 and EN

61000-6-2

Approval

KNX/EIB certified

UL 508

FM

CE mark

In accordance with the EMC guideline

(residential and functional buildings), low voltage guideline

LOGO! Manual

A5E00380835-01

297

Technical data

A.14 Technical data: LOGO!Power 12 V

LOGO! Power 12 V is a primary-switched power supply unit for LOGO! devices. Two current ranges are available.

LOGO! Power

12 V / 1.9 A

Input data

Input voltage

Permissible range

100 ... 240 V AC

85 ... 264 V AC

Permissible mains frequency 47 ... 63 Hz

Voltage failure buffering

Input current

Make current (25

Device protection

° C)

LOGO! Power

12 V / 4.5 A

> 40 ms (at 187 V AC)

0.53 ... 0.3 A 1.13 ... 0.61 A

15 A

Internal

30 A

16 A characteristic B

10 A characteristic C

Recommended circuit breaker (IEC 898) in mains line

Output data

Output voltage

Overall tolerance

Adjustment range

Residual ripple

Output current

Overcurrent limiting

Efficiency

12 V DC

+/–3 %

10.5 ... 16.1 V DC

< 200/300 mV

1.9 A typ. 2.5 A typ. 80 % pp

4.5 A typ. 5.9 A typ. 85 %

Parallel circuit for power increase

Electromagnetic compatibility

Yes

Interference suppression

Interference immunity

EN 50081-1, Class B to EN 55022

EN 61000-6-2,

EN 61000-4-2/-3/-4/-5/-6/-11

298

LOGO! Manual

A5E00380835-01

Technical data

LOGO! Power

12 V / 1.9 A

LOGO! Power

12 V / 4.5 A

Safety

Electrical isolation, primary/ secondary

Safety class

Yes, SELV (to EN 60950 and EN 50178)

Protection mode

CE marking

UL/cUL certification

FM approval

GL approval

II

IP 20 (to EN 60529)

Yes

Yes; UL 508 / UL 60950

Yes; Class I, Div. 2, T4

Yes

General details

Ambient temperature range

Storage and shipping temperature

Connections at input

Connections at output

–20 ... +55 ° C, natural convection

–40 ... +70 ° C

One terminal (1 x 2.5

mm2

or 2 x 1.5 mm

2 per L1 and N

)

Two terminals (1x.2.5 mm

2

2 x 1.5 mm

2

) per + and –

or

Installation On 35 mm DIN rail, snap-on

Dimensions in mm (WxHxD) 54 x 80 x 55 72 x 90 x 55

Approx. weight 0.2 kg 0.3 kg

LOGO! Manual

A5E00380835-01

299

Technical data

A.15 Technical data: LOGO!Power 24 V

LOGO! Power 24 V is a primary-switched power supply module for LOGO! devices. Two current ranges are available.

LOGO! Power

24 V / 1.3 A

Input data

Input voltage 100 ... 240 V AC

Permissible range 85 ... 264 V AC

Permissible mains frequency 47 ... 63 Hz

LOGO! Power

24 V / 2.5 A

Voltage failure buffering

Input current

Inrush current (25 ° C)

Device protection

Recommended circuit breaker (IEC 898) in mains line

Output data

Output voltage

Overall tolerance

Adjustment range

Residual ripple

40 ms (at 187 V AC)

0.70 ... 0.35 A

< 15 A

Internal

Output current

Overcurrent limiting

Efficiency

Parallel circuit for power increase

Electromagnetic compatibility

Yes

24 V DC

+/- 3 %

22.2 ... 26.4 V DC

< 200/300 mV pp

1.3 A typ. 2.0 A

> 82 %

1.22 ... 0.66 A

< 30 A

16 A characteristic B

10 A characteristic C

2.5 A typ. 3.4 A

> 87 %

Interference suppression

Interference immunity

EN 50081-1, Class B to EN 55022

EN 61000-6-2,

EN 61000-4-2/-3/-4/-5/-6/-11

300

LOGO! Manual

A5E00380835-01

Technical data

LOGO! Power

24 V / 1.3 A

LOGO! Power

24 V / 2.5 A

Safety

Electrical isolation, primary/ secondary

Safety class

Yes, SELV (to EN 60950 and EN 50178)

Protection mode

CE marking

UL/cUL certification

FM approval

GL approval

II

IP 20 (to EN 60529)

Yes

Yes; UL 508 / UL 60950

Yes; Class I, Div. 2, T4

Yes

General details

Ambient temperature range

Storage and shipping temperature

Connections at input

Connections at output

–20 ... +55 ° C, natural convection

–40 ... +70 ° C

One terminal (1 x. 2.5

mm2

or 2 x 1.5 mm

2 per L1 and N

)

Two terminals (1x.2.5 mm

2 or 2 x 1.5 mm

2

) per + and –

Installation On 35 mm DIN rail, snap-on

Dimensions in mm (WxHxD) 54 x 80 x 55 72 x 90 x 55

Approx. weight 0.2 kg 0.3 kg

LOGO! Manual

A5E00380835-01

301

Technical data

A.16 Technical data: LOGO! Contact 24/230

LOGO! Contact 24 and LOGO! Contact 230 are switching modules for direct switching of ohmic loads up to 20 Amps and motors up to 4 kW (without noise emission, hum-free).

Operating voltage

LOGO!

Contact 24

24 V DC

LOGO!

Contact 230

230 V AC;

50/60 Hz

Switching capacity

Utilization category AC-1: Switching of ohmic loads at 55

°

C

Operating current at 400 V

Output with three-phase loads at 400 V

Utilization category AC-2, AC-3: Motor with slip ring induction/cage armature

Operating current at 400 V

Output with three-phase loads at 400 V

Short-circuit protection:

Assignment type 1

Assignment type 2

Connecting leads

Dimensions (WxHxD)

Ambient temperature

Storage temperature

20 A

13 kW

8.4 A

4 kW

25 A

10 A

Fine-wire with wire end ferrules

Solid wire

2 x (0.75 to 2.5) mm

2

2 x (1 to 2.5) mm

2

1 x 4 mm

2

36 x 72 x 55

-25 ... +55 ° C

-50 ... +80 ° C

302

LOGO! Manual

A5E00380835-01

B Determining the cycle time

The program cycle is the complete execution of the circuit program, that is, primarily the reading in of the inputs, the processing of the circuit program and the subsequent reading out of the outputs. The cycle time is the time required to execute a circuit program once in full.

The time required for a program cycle can be determined using a short test program. This test program is created in

LOGO! and returns a value during its execution in parameter assignment mode from which the current cycle time is derived.

Test program

1. Create the test program by linking an output to a threshold trigger and connecting the trigger input with an inverted flag.

B1

M1

Par

Qx

Output Qx or other flag Mx

B2

1

M1

M1

2. Configure the threshold trigger as shown below. A pulse is generated in each program cycle due to the inverted flag. The trigger interval is set to 2 seconds.

LOGO! Manual

A5E00380835-01

303

Determining the cycle

B1 1+

On =1000

Off=0000

Press

B1 2

G_T=02:00s

3. Now start the circuit program and switch LOGO! to parameter assignment mode. In this mode, view the trigger parameters.

B1

On =1000

Off =0000 fa =0086

f a

= total of measured pulses per timeb

4. The reciprocal value of f mory.

a

is equivalent to the LOGO!

execution time of the current circuit program in its me-

1/f a

= cycle time in s

Explanation

The inverted flag block changes its output signal at each program execution. Thus, one logic level (high or low) width is exactly equivalent to the length of one cycle. Hence, a period lasts 2 cycles.

The threshold trigger indicates the ratio of periods per 2 seconds, which results in the ratio of cycles per second.

Edge transition of the inverted flag at each circuit program execution

304

Cycle time

Period

1 period = 1 pulse = 2 cycles

LOGO! Manual

A5E00380835-01

C LOGO! without display

Because some specific applications do not require operator control and monitoring units such as buttons or a display, we provide the LOGO! 12/24RCo, LOGO! 24o,

LOGO! 24RCo and LOGO! 230RCo versions without display.

View of a LOGO! 230RCo, for example:

L1 N I4 I5 I6 I7 I8

RUN/STOP

1 2 1 2 1 2 1 2

Q1 Q2 Q3 Q4

Less is definitely more!

The versions without display offer you the following benefits:

Even more cost-effective without the operating element.

Requires less switch cabinet space than conventional hardware.

Substantial benefits with regard to flexibility and prime costs compared to stand-alone electronic switchgear.

Of advantage even for applications in which merely two or three conventional switching devices can be replaced.

Very easy to use.

Access protected.

Compatible to LOGO! versions with display.

Offers the option to read data by means of LOGO!Soft

Comfort.

LOGO! Manual

A5E00380835-01

305

LOGO! without display

Creating a circuit program without operator panel

There are two ways to create a circuit program for a LOGO!

without display:

You create the circuit program with LOGO!Soft Comfort on your PC and then download it to the LOGO!

(see Chapter 7).

You download the circuit program from a LOGO! program module (card) to your LOGO! without display

(see Chapter 6).

Operating characteristics

LOGO! is ready for operation when power is switched on.

Switching off a LOGO! without display is equivalent to disconnecting the power supply, e.g. as if you were removing the plug.

The circuit program of LOGO!...o versions can not be started or stopped by means of buttons. This is why the

LOGO!...o versions have other startup characteristics:

Startup characteristics

If there is no circuit program in the LOGO! or on the inserted program module (card), LOGO! remains in STOP.

If there is a valid circuit program in LOGO! memory, the

LOGO! automatically switches from STOP to RUN when power is switched on.

The circuit program on an inserted program module (card) is automatically copied to the LOGO!, immediately after power is switched on. The existing circuit program in

LOGO! memory is overwritten. The system automatically changes from STOP to RUN.

Provided the PC cable is connected to the LOGO!, you can download the circuit program to LOGO! and start it by means of the LOGO!Soft Comfort PC software

(see Chapter 7.1).

306

LOGO! Manual

A5E00380835-01

LOGO! without display

Operating status indication

Operating states, e.g. Power On, RUN and STOP are indicated by an LED on the front hood.

Red LED:

Green LED:

Power On/STOP

Power On/RUN

The red LED is lit after Power On and in all LOGO! states other than RUN. The green LED is lit when LOGO! is in

RUN mode.

Reading current data

LOGO!Soft Comfort (see Chapter 7) provides an online test for reading the current data of all functions while the system is in RUN.

If your LOGO! without display holds a protected program module (card), you can not read the current data unless you enter the correct password for your the circuit program.

The circuit program is otherwise deleted from LOGO! memory when you remove the program module (card) to connect the PC cable, for example (see Chapter 6.1).

LOGO! Manual

A5E00380835-01

307

LOGO! without display

308

LOGO! Manual

A5E00380835-01

D LOGO! menu structure

Menu overview

Circuit program is busy (RUN)

Mo 09:00

2005-01-27

See “Start menu“

No Program

No Program

Press ESC

>Program..

Card..

Setup..

Start

See “Main menu”

>Stop

Set Param

Set..

Prg Name

Parameter assignment menu

>Yes

Parameter setting (Chapter 5.1.1 cont.)

Default values setting (Chapter 5.2 cont.)

Display of the program name

Main menu (ESC / >Stop)

>Stop/>Yes

>Program..

Card..

Setup..

Start

>Edit

..

See “Programming menu”

> –>Card

See “Transfer menu”

>Clock

Mo 09:00

2005-01-27

See “Setup menu”

See “Start menu“

Programming menu (ESC / >Stop >Program)

>Edit..

>Clear Prg

>Password

Password?

Deleting the program

(Chapter 3.7.12)

Input/change of password (Chapter 3.7.5)

>Edit Prg

>Edit Name

>AQ in Stop

>Memory?

Editing the program

(Chapter 3.7 cont.)

Editing the program name (Chapter 3.7.4)

Selecting analog output values

(Chapter 3.7.11)

Show available memory space

(Chapter 3.8)

LOGO! Manual

A5E00380835-01

309

LOGO! Menu structure

Transfer menu (ESC / >Stop >Card)

> –>Card

>Card–>

>CopyProtect

Copying the circuit program from LOGO!

to the program module (card) (Chapter 6.3)

Copying the program from the program module (card) to LOGO! (Chapter 6.4)

Setting the program/copy protection

(Chapter 6.1)

Setup menu (ESC / >Stop >Setup)

>Clock..

>Contrast

>Set Clock

>S/W Time

Setting the time/date (Chapter

5.2.1)

Setting the summertime/wintertime

(Chapter 3.7.13)

>Sync

Setting the display contrast (Chapter 5.2.2)

Synchronizing the times of LOGO!

Basic and CM EIB/KNX (Chapter

3.7.14)

Start menu (RUN)

Everything clear?

LOGO!

max. 10 message texts

Mo 09:00

2005–01–27

I:

0.. 123456789

1..0123456789

2..01234

Q:

0.. 123456789

1..0123456

AI:

1: 00000

2: 01000

3: 00253

AI:

4: 00010

5: 00000

6: 00005

Analog inputs

Date/time

AI:

7: 00000

8: 00000

Inputs

Analog inputs

AQ:

1: 00000

2: 01000

Analog outputs

Outputs Analog inputs

M:

0.. 123456789

1..0123456789

2..01234

ESC+C

Flags Cursor keys

310

>Stop

Set Param

Set..

Prg Name

Parameter assignment menu

LOGO! Manual

A5E00380835-01

E Order numbers

Table A

Basic

Basic

Variant

without display

(pure)

Designation

LOGO! 12/24 RC *

LOGO! 24 *

LOGO! 24 RC (AC)

LOGO! 230 RC

LOGO! 12/24 RCo *

LOGO! 24o *

LOGO! 24 RCo (AC)

LOGO! 230 RCo

Digital modules LOGO! DM 8 12/24R

LOGO! DM 8 24

LOGO! DM 8 24R

LOGO! DM 8 230R

LOGO! DM 16 24

LOGO! DM 16 24R

LOGO! DM 16 230R

Analog modules LOGO! AM 2

LOGO! AM 2 PT100

LOGO! AM 2 AQ

Communication modules

CM EIB/KNX

CM AS Interface

*: Also with analog inputs

Order number

6ED1052-1MD00-0BA5

6ED1052-1CC00-0BA5

6ED1052-1HB00-0BA5

6ED1052-1FB00-0BA5

6ED1052-2MD00-0BA5

6ED1052-2CC00-0BA5

6ED1052-2HB00-0BA5

6ED1052-2FB00-0BA5

6ED1055-1MB00-0BA1

6ED1055-1CB00-0BA0

6ED1055-1HB00-0BA0

6ED1055-1FB00-0BA1

6ED1055-1CB10-0BA0

6ED1055-1NB10-0BA0

6ED1055-1FB10-0BA0

6ED1055-1MA00-0BA0

6ED1055-1MD00-0BA0

6ED1055-1MM00-0BA0

6BK1700-0BA00-0AA1

3RK1400-1DQ00-0AA3???

LOGO! Manual

A5E00380835-01

311

Order numbers

Table B

Accessories

Software

Program module (card)

Designation

LOGO!Soft Comfort V4.0

Upgrade to

LOGO!Soft Comfort V4.0

LOGO! Card

Switching modules

LOGO!Contact 24 V

LOGO!Contact 230 V

Power modules LOGO!Power 12V/1.9A

LOGO!Power 12V/4.5A

LOGO!Power 24V/1.3A

LOGO!Power 24V/2.5A

LOGO!Power 24V/4A

LOGO!Power 5V/3A

LOGO!Power 5V/6.3A

LOGO!Power 15V/1.9A

LOGO!Power 15V/4A

Others PC cable

Manual

Order number

6ED1058-0BA00-0YA0

6ED1058-0CA00-0YE0

6ED1056-5CA00-0BA0

6ED1057-4CA00-0AA0

6ED1057-4EA00-0AA0

6EP1321-1SH02

6EP1322-1SH02

6EP1331-1SH02

6EP1332-1SH42

6EP1332–1SH51

6EP1311-1SH02

6EP1311-1SH12

6EP1351-1SH02

6EP1352-1SH02

6ED1057-1AA00-0BA0

6ED1050-1AA00-0BE6

312

LOGO! Manual

A5E00380835-01

F Abbreviations

AM Analog module

B1 Block number B1

BN Block Number

C LOGO! device designation: integrated clock

CM Communication Module

Cnt Count = Counter input

Co Connector

Dir Direction (of count, for example)

DM Digital Module

EIB European Installation Bus

EIS EIB Interoperability Standard

En Enable = switching on (e.g. clock generators)

ETS EIB Tool Software

Fre Input for frequency signals to be analyzed

GF Basic Functions

Inv Input for inverting the output signal

KNX Konnex Association Standard for home and building electronic systems

No Cam (parameter of the timer) o in LOGO! designations: with

o

ut display

Par Parameter

R Reset input

R in LOGO! designations: Relay outputs

Ral Reset all = Input for resetting all internal values

S Set (latching relay, for example)

SF Special functions

SU Subunit

T Time = parameter

Trg Trigger (parameter)

0BA5 devices: the latest LOGO! Basic version, described in this manual.

LOGO! Manual

A5E00380835-01

313

Order numbers

314

LOGO! Manual

A5E00380835-01

Index

A

Abbreviations, 313

AM.

See

Analog module

Amplifier, analog, 196

Analog comparator, 188 values, 129

Analog amplifier, 196

Analog differential trigger, 184

Analog module, 2, 9

Analog multiplexer, 216

Analog output values, 96

Analog outputs, 42

Analog ramp, 220

Analog threshold trigger, 181

Analog value monitoring, 193

AND, 117

Applications, 263

AQ in Stop, 96

AS interface, 3

AS interface bus communication failure, 51 communication states, 51 connecting, 43 networking, 44

Asynchronous pulse generator,

151

B

Basic functions, 115

AND, 117

with edge, 118

NAND, 119 with edge, 120

NOR, 122

NOT, 123

OR, 121

XOR, 123

Basics on special functions,

124

BF, 111

Blank outputs, 56 blank outputs, 113

Block, 60 deleting, 93 block groups, 94 inserting, 88 number, 60 assigning, 61

BN, 111

C

Cap, 24

Card.

See

Program module

(card)

CE label, 13

LOGO! Manual

A5E00380835-01

315

Index

Certification, 12

Character set, 79

Circuit diagram, 63

Circuit program, input, 72 circuit program, 106 deleting, 97

Circuit program name, assigning, 78

Circuit programs archiving, 245 reproduce, 245 send by mail, 245

Closing the programming mode, 93

CM.

See

Communications module

Co, 111, 112

Communication module

AS interface, 3

EIB/KNX, 3

Communication modules, 3

Communications module, AS interface, 9

Compatibility, Versions, 246

Compatiblity, Expansion modules, 22

Configuring, EIB bus, 58

Connecting

AS interface bus, 43

EIB bus, 42

Inputs, 32 outputs, 40

Connector, 24

Connectors, 55, 112

316 blank, 56 hi, 57 inputs, 57 lo, 57

LOGO!’s, 56 open, 114 outputs, 57 unused, 64 x, 56, 57, 64, 125

Constants, 112

Control panel, 5, 6

Conversion, Summertime and wintertime, 98

Correcting typing errors, 95

Counter

Operating hours, 173

Up/down, 169

CSA, 12 cULus , 12

Cursor, 67

Cursor keys, 56, 114, 207

Cursor movement, 67

Cycle time, 303

D

Default values, 241

Demo versions, 259

Device types, LOGO!, 2

Digital module, 2, 9

Dimensions, 23

DIN rail, 23

Display, 61

LOGO! Manual

A5E00380835-01

Display contrast, 243

Display view, 61

Disposal, 13

DM8....

See

Digital module

E

Earth connection, 31

Edge evaluation, 118, 120

Editing, 88

EIB bus communication failure, 52 communication states, 51 configuring, 58 connecting, 42 networking, 43

EIB/KNX, 3 exclusive OR, 123

Expansion modules, 2

Analog module, 2, 57

Digital module, 57 digital module, 2

Operating state, 50 expansion modules, 55

F

Flag blocks, 113

FM, 12

Four golden rules, 66

Function blocks, 60

Functions, 111

LOGO! Manual

A5E00380835-01

Index

G

Gain, 129

GF, 115

Golden rules, 66

Guidelines, 15

H

Hiding, 91 high-speed counting, 35

Hours counter, 173

Reading the MN and OT values, 176

Hysteresis, 192

I

Inputs, 112

Analog inputs, 35, 112 connection, 32

Cursor keys, 56, 114

Digital Inputs, 112

Groups, 33 inverting, 77, 115, 132 unused, 64 inputs, High-speed inputs, 35

Inserting, 88

Installation guidelines, 15

Interlock, 25, 27

Internet address, ii

Interpulse, width, 152

317

Index

Inverter, 123

L

Labeling, 29

Latching relay, 198

LCD, 5, 6

LED, 307

Levels, 114

List

BF, 111

BN, 111

Co, 111, 112

SF, 111, 132

List , GF, 115

Logic module, 1

Logical inputs, 125

LOGO!

connecting to PC, 260

Guidelines, 15 identifying, 9

Installing, 23 labeling, 29

Operating states, 49 removing, 23

Structure of, 5 switching on, 46

Versions, 10 wiring, 30

LOGO! menus, 68

LOGO! software, 257

LOGO!Soft Comfort, 258

M

Memory areas, 106 free, 110 limitation, 106 requirements, 107 space, 106

Menu structure, 309

Menus

Main menu, 68

Parameter assignment menu,

68

Programming menu, 68

Setup menu, 68

Transfer menu, 68

Message texts, 202

Character set, 207

Mode

Parameter assignment, 234 parameter assignment, 68

PC-LOGO, 260 programming, 68

Mounting

DIN rail mounting, 24

Drilling template, 29

Wall-mounting, 28

Multiple function switch, 158

N

Name, 78

NAND, 119

318

LOGO! Manual

A5E00380835-01

Negation, 123 of a BF input, 115 of an input, 77 of an SF input, 132

Networking

AS interface bus, 44

EIB bus, 43

NOR , 122

NOT , 123

NOT AND, 119

NOT OR, 122

O

Off-delay, 140

Off-time, 163

Offset, 129

On-/Off-delay, 142

On-delay, 136 retentive, 144

On-time, 163

Open connectors, 114

Operating characteristics, 306

Status indication, 307

Operating mode

Changing the operating mode, 66

Programming mode, 69

OR, 121

Order numbers, 311

Outputs, 112

Analog outputs, 113

LOGO! Manual

A5E00380835-01

Index

blank, 56, 113 connecting, 40

Digital outputs, 112

P

Parameter, 236

’Set Param’, 235

Inputs, 126 selecting, 237 setting, 233

T, 126

Parameter assignment, 90

Parameter assignment menu,

234

Parameter assignment screen form, 162, 204

Parameter protection, 128

Parameters, modifying, 238 parameters, showing/hiding, 91

Password assigning, 79 changing, 81 deactivating, 82 wrong, 83

PC cable, 260

USB, 260

PC-LOGO, 260

PI controller, 225

Planning, 67

Power off, 47

On, 46 on, 47

319

Index

switch, 46

Power supply, connecting, 30

Program memory, 106

Program chart, 62

Program cycle, 303

Program module (card)

’Card --> LOGO’, 255

’CopyProtect’, 248

’LOGO --> Card’, 252 copying, 254

Enabling the security function,

249 inserting, 250, 251 removing, 250, 251

Security function, 247

Program name change, 79 character set, 79 read, 235

Programs

’AQ in Stop’, 96

’Clear Prg’, 97

’Edit Name’, 78

’Edit Prg’, 70

’Password’, 80 modifying, 87

Protection mode, 91

Pulse

Pause, 149 width, 149 width , 152 pulse generator, Asynchronous

, 151

Pulse output, 146

Pulse relay, 199

R

Random generator, 153

Recycling, 13

Relay outputs, 40, 291 service life, 291 switching capacity, 291

Removal, 26

Resources, 106

Retentive memory, 106

Retentive on-delay, 144

Retentivity, 128 enabling/disabling, Retentivity setting, 91

Rules, Four golden, 66

RUN, ’Start’, 84

S

Sensor Characteristics, 32

Sensor connections, 36

Set clock, ’Set Clock’, 242

Setting

Default values, 241

Display contrast, 243

Start screen, 244 time, 91

Time-of-day and date, 241

Setting the date, 241

Setting the time-of-day, 241

Settings, ’Set’, 235

320

LOGO! Manual

A5E00380835-01

Index

Setup, 19

Maximum setup, 19 with different voltage classes,

20

SF, 111, 132

SFs, Delay, On, 136

Shift register, 213

Shift register bits, 56, 114

Showing, 91

Signal status transitions, 34

Simulation, 257

Size of a circuit, 106

Softkey, 209

Software, 257

Solid-state outputs, 41

Special functions, 132

Analog amplifier, 196

Analog Comparator, 188

Analog differential trigger, 184

Analog multiplexer, 216

Analog ramp, 220

Analog threshold trigger, 181

Analog value monitoring, 193

Basics, 124

Counter

Hours counter, 173

Up/down, 169

Delay

Off, 140

On/Off, 142 delay, ret. on, 144

Message texts, 202

PI controller, 225

Pulse generator, asynchronous, 151

Random generator, 153

LOGO! Manual

A5E00380835-01

Relay, Latch, 198 relay, Pulse, 199

Shift register, 213

Softkey, 209

Switch

Comfort, 158

Stairway lighting, 155

Threshold trigger, Frequency,

178

Timer

Week, 161

Year, 166

Trigger, Analog threshold,

181

Wiping relay edge triggered, 148

Pulse output, 146

Stairway lighting switch, 155

Start, 84

Start screen, 244

Startup characteristics, 306

Startup flag, 114

Stop, 235

Subunits, 23

Summertime, 98

Summertime/Wintertime Conversion

’Clock’, 99

’S/W Time’, 99

Summertime/wintertime conversion, 98, 241 disabling, 103 enabling, 99 user-define parameters, 101

Switch

Multiple function, 158

321

Index

Stairway lighting, 155

Switched current, maximum, 41

Symbols, 9

Synchronization, 103, 241

’Clock’, 104

’Sync’, 104 enabling, 104 accuracy, 127

Timing inaccuracy , 127

Trigger, Analog threshold, 181 trigger, Analog, Differential, 184

T

T, Parameter, 127

Technical data, 267

CM EIB/KNX, 296 general, 267

LOGO! 12..., 288

LOGO! 230...., 270

LOGO! 24/24o, 276

LOGO! 24RC/24RCo, 282

LOGO! AM 2 PT100, 293

LOGO! AM2, 292

LOGO! AM2 AQ, 295

LOGO! DM16 230R, 273

LOGO! DM16 24, 279

LOGO! DM16 24R, 285

LOGO! DM8 12/24R, 288

LOGO! DM8 230R, 273

LOGO! DM8 24, 279

LOGO! DM8 24R, 285

LOGO!Contact, 302

LOGO!Power 12 V, 298

Threshold trigger, Frequencies,

178

Time, Accuracy of, 126

Time response, 126

Timebase, 90, 126, 137

Timer, 1

U

Unused connectors, 64 unused connectors, 56

Unused inputs, 64

Up/down counter, 169

Update, 259

Upward compatibility, 246

URL, ii

USB, 260

V

Verification, 92

Voltage levels , 114

Voltage supply, connecting, Circuit protection, 32

W

Weekday, 162

Weekly timer, 9, 163

Examples, 164 setting, 163

Weekly timer , 161

Wintertime, 98

322

LOGO! Manual

A5E00380835-01

Wiping relay edge triggered, 148

Pulse output, 146

Wire ferrules, 30 without display, 305 creating a circuit program, 53

PC-LOGO mode, 260 reading current data, 307

Y

Yearly timer, 166

Z

Zero offset, 129

X

XOR , 123

Index

LOGO! Manual

A5E00380835-01

323

Index

324

LOGO! Manual

A5E00380835-01

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
