RCS REFR4 Owner's manual

RCS REFR4 Owner's manual
The alarm
sounds and the
temperature
display
flashes.
Fridge is not
cooling, but
the lights
are on
Has the appliance drawer been open for
longer than 60 seconds? If not, then the
temperature has risen higher or fallen lower
than the temperature that has been set. This
could be due to:
The appliance drawer being opened too often.
The ventilation opening being covered or too
dusty.
A lengthy interruption in the power supply.
A large amount of food has been added to the
unit.
If yes, close the drawer.
Do not open the drawer more often than
necessary.
Clear the obstructions and clean the
dust.
Leave the appliance to work for a while
until the set temperature has been
reached.
Is the compressor hot?
If so, the compressor has failed.
Is the compressor cool?
If so, the compressor relay's failed
and need to be replaced
RCSGasGrills.com
OUTDOOR TWO DRAWER
STAINLESS STEEL REFRIGERATOR
INSTRUCTION MANUAL
(800) 833-5998
18700 Carrot St. Spring, Texas 77379
BEFORE USE PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
12
RCSGasGrills.com
v11.4.2020
TABLE OF CONTENTS
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible service call. Try the
suggestions below to see if you can solve the problem before calling the servicer.
Appliance Safety
Important Safeguards
Installation Instructions
Before Using Your Appliance
Installation of Your Appliance
Site Preparation
Anti-tip Bracket Installation
Leveling the Unit
Installing Handle
Electrical Connection
Extension Cord
Operation Your Appliance
Control Panel
Defrosting
Temperature Alarm / Drawer Alarm
Removing your Appliance
Care and Maintenance
Cleaning and Maintaining Your Appliance
Power Failure
Vacation Time
Moving Your Appliance
Energy Saving Tips
Troubleshooting
3
3-4
5-7
5
5-6
6
6
7
7
7
7
8-9
8-9
9
9
9
9-10
9
10
10
10
10
11-12
PROBLEM
POSSIBLE CAUSE
REMEDY
Appliance
does not
operate.
Appliance is not connected to a power supply.
The appliance is turned off.
Tripped circuit breaker or blown a fuse.
Connect the appliance.
Switch on the appliance.
Switch on circuit breaker or replace fuse.
Appliance is
not cold
enough.
The temperature is not set correctly.
Temperature could require a lower
temperature setting.
The drawer was not closed completely.
Drawer is not hermetically sealed.
The condenser is too dirty.
The ventilation opening is blocked or too dusty.
Check the set temperature.
Set a lower temperature.
Do not open the drawer more
often than necessary.
Close drawer properly.
Check the drawer seal and clean/replace.
Clean the condenser when necessary.
Clear the obstructions, clean the dust.
Appliance
turns itself on
and off
frequently.
The room temperature is higher than average.
A large amount of food has been added
to the unit.
The drawer is open too often.
The drawer is not closed completely.
The drawer gasket does not seal properly.
Put the appliance in a cooler place.
Leave the appliance to work for a
while until the set temperature has
been reached.
Do not open more than necessary.
Close drawer properly.
Check the drawer seal and clean/replace.
Appliance is not connected to a power supply. Connect the appliance.
The light does
Switch on circuit breaker or replace fuse.
Tripped circuit break or blown a fuse.
not work.
The light was switched off on the control panel. Switch on the light.
The appliance is not properly leveled.
The appliance
seems to
make too
much noise.
The rattling may come from the flow of the refrigerant, which is normal. As each cycle
ends, you may hear gurgling sounds caused by the flow of refrigerant in your appliance.
If temperature fluctuations occur, the contraction and expansion of the inner walls may
cause popping and cracking noises.
Level the appliance with the
adjustable feet.
The appliance is not properly level.
The appliance is not properly level.
The drawer will The drawer was reversed and not properly
not close
installed.
properly.
The gasket is dirty.
2
Level the appliance with the
adjustable feet.
Vibrations
11
Level the appliance with the
adjustable feet.
Check the drawer hinge and reassemble
correctly.
Clean the drawer gasket.
!
CAUTION
• Stainless steel models exposed to chlorine gas and moisture such as areas with spas or swimming
pools, may have some discolorations of the stainless steel. Discoloration from chlorine gas is normal.
Follow exterior cleaning instructions.
• NEVER USE CHLORIDE TO CLEAN STAINLESS STEEL.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect temperature of your
appliance if you minimize the number of times the drawer is opened. If the power is going to be off for
a longer period of time, you need to take the proper steps to protect the contents.
VACATION TIME
Short vacations: Leave the appliance operating during vacations of less then three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off
the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the
drawer open slightly, blocking it open if necessary.
MOVING YOUR APPLIANCE
1. Remove all items.
2. Securely tape down all loose items inside your appliance.
3. Turn the adjustable legs up to the base to avoid damage.
4. Tape the drawer shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also protect the
outside of the appliance with a blanket or similar item.
ENERGY SAVING TIPS
The appliance should be located in the coolest area of the room or outdoor location, away from heat
producing appliances and out of direct sunlight.
Ensure that the unit is adequately ventilated. Never cover air vents.
Do not keep the drawer open any longer than necessary.
Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the
compressor to run longer.
Be sure to wrap foods properly and wipe containers dry placing them in the unit. This cuts down on
frost build up inside the unit.
Unit drawers should not be lined with aluminum foil, wax paper or paper toweling.
Liners interfere with cold air circulation, making the unit less efficient.
Organize and label stored items reduce drawer openings and extended searches. Remove as many
items as needed at one time and close the drawer as soon as possible.
10
APPLIANCE SAFETY
!
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential hazards
that can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the DANGER or WARNING.
!
!
DANGER
!
DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.
!
WARNING
!
WARNING means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury or death.
All safety messages will alert you about the potential hazard, tell you how to reduce the
chance of injury and let you know what can happen if the instructions are not followed.
IMPORTANT SAFEGUARDS
!
Before the appliance is used, it must be properly positioned and installed
as described in this manual, so read the manual carefully. To reduce the
risk of fire, electrical shock or injury when using the appliance, follow
basic precautions, including the following:
!
DANGER
!
Plug into a grounded 3 prong outlet, do not remove prong, do not use an adapter and do not
use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance. The fumes can create a fire hazard or explosion.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
Do not attempt to repair or replace any part or your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
3
!
WARNING
!
FOLLOWING WARNING CALLS OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your appliance, The front of the unit must be completely
unobstructed.
Choose a well-ventilated area with temperatures above 50°F (10°C) and below 109.4°F (43°C).
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60HZ), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
Do not kink or pinch the power supply cord of the appliance.
The size of the fuse (or circuit breaker) should be 1.3 amperes.
It is important that the appliance be leveled in order to work properly. You may need to make
several adjustments to level it.
All installations must be in accordance with local plumbing code requirements.
Make certain that the pipes are not pinched, kinked or damaged during installation.
Check for leaks after connection.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
Use this appliance only for its intended purpose as described in this Instruction Manual.
Keep fingers out of the “pinch point” areas. Clearances between the drawer and cabinet are
necessarily small. Be careful closing drawer when children are in the area.
!
DANGER
!
Interior Light
The unit is quipped with an interior LED light which will be turned ON when the drawer is open
and the interior fan is stopped at the same time.
You can press manually to turn on or turn off the light.
Defrosting
The unit defrosts automatically in normal operating conditions.
The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in
the drainage channel behind the rear wall of the unit and flows through the drainage hole into the
drip tray by the compressor where it evaporates.
However, frost may accumulate on the evaporator if the unit is repeatedly opened in a high heat or
high humidity location. If this frost pattern does not clear within 24 hours, your unit will require
manual defrosting.
Press and hold for 6 seconds, the unit will be defrosted.
To stop defrost, please repeat the same interaction.
TEMPERATURE ALARM
An audible alarm sounds if the storage temperature is not cold enough. The temperature display
flashes at the same time.
The cause of the temperature being too high may be:
- Warm fresh food was placed inside
- Too much warm ambient air flowed in when rearranging and removing stored items
- Power failure for some time
- The appliance is faulty
The audible alarm is automatically silenced and the temperature display stops flashing when the
temperature is sufficiently cold again.
Risk of child entrapment!
CARE AND MAINTENANCE
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances
are still dangerous, even if they will “just sit for a few days”.
Before discarding your old refrigerator:
Take out the drawers.
– SAVE THESE INSTRUCTIONS –
4
CLEANING AND MAINTAINING YOUR APPLIANCE
Periodic cleaning and proper maintenance will ensure efficiency, top performance and long life.
The maintenance intervals listed are based on normal conditions. You may want to shorten the
intervals if you have pets or other special considerations.
Exterior Cleaning for Your Stainless Steel Model
• Your stainless steel model may discolor when exposed to chlorine gas, pool chemicals, salt
water or cleaners with bleach.
• Keep your stainless unit looking new by cleaning with a high quality, all-in-one stainless steel
cleaner/polish on a monthly basis. Frequent cleaning will remove surface contamination that
could lead to rust. Some installations will require cleaning on a weekly basis.
• DO NOT CLEAN WITH STEEL WOOL PADS.
• DO NOT USE CLEANERS THAT ARE NOT SPECIFICALLY INTENDED FOR STAINLESS
STEEL (this includes glass, tile and counter cleaners).
• If any surface discolors or rusting appears, clean it quickly with Bon-Ami or Barkeepers Friend
Cleanser and a non-abrasive cloth. Always clean in the direction of the grain. Always finish this
process with a high quality, all-in-one stainless steel cleaner/polish to prevent further problems.
• USE OF ABRASIVE PADS SUCH AS SCOTCHBRITE WILL CAUSE THE GRAINING IN THE
STAINLESS TO BECOME BLURRED.
• Rust that is allowed to linger can penetrate into the surface of the stainless steel and become
impossible to remove.
9
OPERATING YOUR APPLIANCE
INSTALLATION INSTRUCTIONS
It is recommended that you install the appliance in a place where the ambient
temperature is between 50°F and 109.4°F (10°C-43°C). If the ambient temperature is
above or below recommended temperatures, the performance of the unit may be
affected. For example, placing your unit in extremely cold or hot conditions may cause
interior temperatures to fluctuate. The operating temperature range may not be reached.
CONTROL PANEL
BEFORE USING YOUR APPLIANCE
Remove the exterior and interior packing.
Before connecting the appliance to the power source, let it stand upright for approximately 24
hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the drawer, if it not already attached (See page 7).
INSTALLATION OF YOUR APPLIANCE
Your outdoor two drawer refrigerator has been designed for both built-in and free standing. When
built-in, your refrigerator drawers do not require additional air space for top, side or rear. The front
grille must NOT be obstructed.
C
F
ON/OFF Power
To turn the appliance ON or OFF, press and hold the POWER key
SET
C F
for 5 seconds.
UP and DOWN
Press first, then press or button to increase (warm) or decrease (cool) the set temperature
by 1°C/1°F.
Press again, the temperature is selected and shows the actual temperature. If no other further
operation in 6 seconds, display will show actual temperature in the cooler.
SET
SET
Note: It is recommended that you do not install the appliance near an oven, radiator or other heating
source, as heat sources may increase electrical consumption. Do not install in a location where the
temperature will fall below 50°F (10°C). For best performance, do not install the appliance behind a
cabinet door or block the base grille.
Avoid locating the unit in moist areas.
Plug the appliance into an exclusive, properly grounded wall outlet.
SITE PREPARATION
1. Position the unit on a flat, level surface capable of supporting the entire weight of the unit.
Remember the unit will be significantly heavier once it is fully loaded.
2. Connect the unit to a Ground Fault Interrupter (GFI).
3. The unit must be installed according to your local codes and ordinances.
4. ELECTROCUTION HAZARD!
Electrical Grounding Required- This appliance is equipped with a three prong
(grounding) polarized plug for your protection against possible shock hazards.
NEVER remove the round grounding prong from the plug.
NEVER use a two-prong grounding adapter.
NEVER use an extension cord to connect power to the unit.
Where a two-prong wall receptacle is encountered or a longer power cord is
required, contact a qualified electrician to have it replaced in accordance with
applicable electrical codes.
!
°C/°F Selector
Selects the temperature display setting in Fahrenheit or Celsius degrees. To change the
temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and at the same
time, then hold for 6 seconds.
SET
Setting the Temperature Control
The temperature you are setting will increase by one degree each time you press the key, and
will decrease by one degree each time you press the key.
The range of the temperature control is from 23°F to 68°F.
To view the set temperature at any time, press the key. The set temperature will flash in the
display window for 6 seconds. After 6 seconds, the temperature inside the unit will reappear in the
display window.
(The temperature preset at the factory is 39°F).
SET
8
5
LEVELING THE UNIT
Position the unit on a flat, level surface capable of
supporting the entire weight of the unit when full.
This unit contains four (4) adjustable leveling
legs. Turn the legs clockwise to raise and
counterclockwise to lower.
5. Position the unit to allow free air flow through the front grille.
Turn Feet
To Adjust
EXHAUST
Screwdriver Screws
INTAKE
6. Wipe out inside of unit with a damp cloth,
7. Be sure to install the Anti-Tip bracket. Flow instructions provided with the Anti-Tip bracket.
!
Handle
INSTALLING HANDLE
Put the screws on the top of the drawer where
the handle is to be installed.
Align the handle with screws, tighten the
screws using the screwdrivers.
Door
ELECTRICAL CONNECTION
!
The Anti-tip Bracket must be installed on
this unit before it is used. Double stacking
units may cause serious personal injury.
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by a qualified electrician or an authorized service center.
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize
the possibility of electrical shock.
ANTI-TIP BRACKET INSTALLATION
To reduce the risk of tipping the unit by abnormal usage or improper loading, the appliance
must be secured by properly installing the anti-tip device packed with the appliance.
• Place the anti-tip bracket on the floor as shown in the figure. An anti-tip bracket can be
installed on either right or left side.
• Mark the locations of the 4 holes of the anti-tip bracket on the floor.
• Use a 5/16 masonry drill bit and insert plastic anchors.
• Secure bracket to floor using screws.
• Slide appliance into position and make sure the leg engages the anti-tip bracket.
NOTE: If the unit is relocated, the bracket must be removed and installed in the new location.
Do not under any circumstances cut or remove the third (ground) prong from the power cord
supplied. For personal safety, this appliance must be properly grounded. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized service center.
This appliance requires a standard 115/120 Volt AC~60Hz three-prong grounded electrical
outlet. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet
is properly grounded. When a standard 2-prong wall outlet is encountered, it is your
responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left
exposed or dangling.
Install the anti-tip bracket either right or left side.
Anti-tip
Bracket
The contour line of right panel of appliance
19.5mm
45.0mm
The contour line of left panel of appliance
The contour line of back panel of appliance
826
mm
Anti-tip Bracket
Move the appliance to the final position.
The contour line of front panel of appliance
6
The appliance should always be plugged into its own individual electrical outlet which has a
voltage rating that matches the rating label on the appliance. This provides the best performance
and also prevents overloading house wiring circuits that could cause a fire hazard from over
heating. Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and
pull straight out from the receptacle. Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage
along its length or at either end. When moving the appliance, be careful not to damage the
power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that
you do not use an extension cord with this appliance. However, if you must use an extension
cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance
extension cord having a grounding type plug and outlet and that the electrical rating of the cord
be 115 volts and at least 1.3 amperes.
7
LEVELING THE UNIT
Position the unit on a flat, level surface capable of
supporting the entire weight of the unit when full.
This unit contains four (4) adjustable leveling
legs. Turn the legs clockwise to raise and
counterclockwise to lower.
5. Position the unit to allow free air flow through the front grille.
Turn Feet
To Adjust
EXHAUST
Screwdriver Screws
INTAKE
6. Wipe out inside of unit with a damp cloth,
7. Be sure to install the Anti-Tip bracket. Flow instructions provided with the Anti-Tip bracket.
!
Handle
INSTALLING HANDLE
Put the screws on the top of the drawer where
the handle is to be installed.
Align the handle with screws, tighten the
screws using the screwdrivers.
Door
ELECTRICAL CONNECTION
!
The Anti-tip Bracket must be installed on
this unit before it is used. Double stacking
units may cause serious personal injury.
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by a qualified electrician or an authorized service center.
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize
the possibility of electrical shock.
ANTI-TIP BRACKET INSTALLATION
To reduce the risk of tipping the unit by abnormal usage or improper loading, the appliance
must be secured by properly installing the anti-tip device packed with the appliance.
• Place the anti-tip bracket on the floor as shown in the figure. An anti-tip bracket can be
installed on either right or left side.
• Mark the locations of the 4 holes of the anti-tip bracket on the floor.
• Use a 5/16 masonry drill bit and insert plastic anchors.
• Secure bracket to floor using screws.
• Slide appliance into position and make sure the leg engages the anti-tip bracket.
NOTE: If the unit is relocated, the bracket must be removed and installed in the new location.
Do not under any circumstances cut or remove the third (ground) prong from the power cord
supplied. For personal safety, this appliance must be properly grounded. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized service center.
This appliance requires a standard 115/120 Volt AC~60Hz three-prong grounded electrical
outlet. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet
is properly grounded. When a standard 2-prong wall outlet is encountered, it is your
responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left
exposed or dangling.
Install the anti-tip bracket either right or left side.
Anti-tip
Bracket
The contour line of right panel of appliance
19.5mm
45.0mm
The contour line of left panel of appliance
The contour line of back panel of appliance
826
mm
Anti-tip Bracket
Move the appliance to the final position.
The contour line of front panel of appliance
6
The appliance should always be plugged into its own individual electrical outlet which has a
voltage rating that matches the rating label on the appliance. This provides the best performance
and also prevents overloading house wiring circuits that could cause a fire hazard from over
heating. Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and
pull straight out from the receptacle. Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage
along its length or at either end. When moving the appliance, be careful not to damage the
power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that
you do not use an extension cord with this appliance. However, if you must use an extension
cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance
extension cord having a grounding type plug and outlet and that the electrical rating of the cord
be 115 volts and at least 1.3 amperes.
7
OPERATING YOUR APPLIANCE
INSTALLATION INSTRUCTIONS
It is recommended that you install the appliance in a place where the ambient
temperature is between 50°F and 109.4°F (10°C-43°C). If the ambient temperature is
above or below recommended temperatures, the performance of the unit may be
affected. For example, placing your unit in extremely cold or hot conditions may cause
interior temperatures to fluctuate. The operating temperature range may not be reached.
CONTROL PANEL
BEFORE USING YOUR APPLIANCE
Remove the exterior and interior packing.
Before connecting the appliance to the power source, let it stand upright for approximately 24
hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the drawer, if it not already attached (See page 7).
INSTALLATION OF YOUR APPLIANCE
Your outdoor two drawer refrigerator has been designed for both built-in and free standing. When
built-in, your refrigerator drawers do not require additional air space for top, side or rear. The front
grille must NOT be obstructed.
C
F
ON/OFF Power
To turn the appliance ON or OFF, press and hold the POWER key
SET
C F
for 5 seconds.
UP and DOWN
Press first, then press or button to increase (warm) or decrease (cool) the set temperature
by 1°C/1°F.
Press again, the temperature is selected and shows the actual temperature. If no other further
operation in 6 seconds, display will show actual temperature in the cooler.
SET
SET
Note: It is recommended that you do not install the appliance near an oven, radiator or other heating
source, as heat sources may increase electrical consumption. Do not install in a location where the
temperature will fall below 50°F (10°C). For best performance, do not install the appliance behind a
cabinet door or block the base grille.
Avoid locating the unit in moist areas.
Plug the appliance into an exclusive, properly grounded wall outlet.
SITE PREPARATION
1. Position the unit on a flat, level surface capable of supporting the entire weight of the unit.
Remember the unit will be significantly heavier once it is fully loaded.
2. Connect the unit to a Ground Fault Interrupter (GFI).
3. The unit must be installed according to your local codes and ordinances.
4. ELECTROCUTION HAZARD!
Electrical Grounding Required- This appliance is equipped with a three prong
(grounding) polarized plug for your protection against possible shock hazards.
NEVER remove the round grounding prong from the plug.
NEVER use a two-prong grounding adapter.
NEVER use an extension cord to connect power to the unit.
Where a two-prong wall receptacle is encountered or a longer power cord is
required, contact a qualified electrician to have it replaced in accordance with
applicable electrical codes.
!
°C/°F Selector
Selects the temperature display setting in Fahrenheit or Celsius degrees. To change the
temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and at the same
time, then hold for 6 seconds.
SET
Setting the Temperature Control
The temperature you are setting will increase by one degree each time you press the key, and
will decrease by one degree each time you press the key.
The range of the temperature control is from 23°F to 68°F.
To view the set temperature at any time, press the key. The set temperature will flash in the
display window for 6 seconds. After 6 seconds, the temperature inside the unit will reappear in the
display window.
(The temperature preset at the factory is 39°F).
SET
8
5
!
WARNING
!
FOLLOWING WARNING CALLS OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your appliance, The front of the unit must be completely
unobstructed.
Choose a well-ventilated area with temperatures above 50°F (10°C) and below 109.4°F (43°C).
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60HZ), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
Do not kink or pinch the power supply cord of the appliance.
The size of the fuse (or circuit breaker) should be 1.3 amperes.
It is important that the appliance be leveled in order to work properly. You may need to make
several adjustments to level it.
All installations must be in accordance with local plumbing code requirements.
Make certain that the pipes are not pinched, kinked or damaged during installation.
Check for leaks after connection.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
Use this appliance only for its intended purpose as described in this Instruction Manual.
Keep fingers out of the “pinch point” areas. Clearances between the drawer and cabinet are
necessarily small. Be careful closing drawer when children are in the area.
!
DANGER
!
Interior Light
The unit is quipped with an interior LED light which will be turned ON when the drawer is open
and the interior fan is stopped at the same time.
You can press manually to turn on or turn off the light.
Defrosting
The unit defrosts automatically in normal operating conditions.
The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in
the drainage channel behind the rear wall of the unit and flows through the drainage hole into the
drip tray by the compressor where it evaporates.
However, frost may accumulate on the evaporator if the unit is repeatedly opened in a high heat or
high humidity location. If this frost pattern does not clear within 24 hours, your unit will require
manual defrosting.
Press and hold for 6 seconds, the unit will be defrosted.
To stop defrost, please repeat the same interaction.
TEMPERATURE ALARM
An audible alarm sounds if the storage temperature is not cold enough. The temperature display
flashes at the same time.
The cause of the temperature being too high may be:
- Warm fresh food was placed inside
- Too much warm ambient air flowed in when rearranging and removing stored items
- Power failure for some time
- The appliance is faulty
The audible alarm is automatically silenced and the temperature display stops flashing when the
temperature is sufficiently cold again.
Risk of child entrapment!
CARE AND MAINTENANCE
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances
are still dangerous, even if they will “just sit for a few days”.
Before discarding your old refrigerator:
Take out the drawers.
– SAVE THESE INSTRUCTIONS –
4
CLEANING AND MAINTAINING YOUR APPLIANCE
Periodic cleaning and proper maintenance will ensure efficiency, top performance and long life.
The maintenance intervals listed are based on normal conditions. You may want to shorten the
intervals if you have pets or other special considerations.
Exterior Cleaning for Your Stainless Steel Model
• Your stainless steel model may discolor when exposed to chlorine gas, pool chemicals, salt
water or cleaners with bleach.
• Keep your stainless unit looking new by cleaning with a high quality, all-in-one stainless steel
cleaner/polish on a monthly basis. Frequent cleaning will remove surface contamination that
could lead to rust. Some installations will require cleaning on a weekly basis.
• DO NOT CLEAN WITH STEEL WOOL PADS.
• DO NOT USE CLEANERS THAT ARE NOT SPECIFICALLY INTENDED FOR STAINLESS
STEEL (this includes glass, tile and counter cleaners).
• If any surface discolors or rusting appears, clean it quickly with Bon-Ami or Barkeepers Friend
Cleanser and a non-abrasive cloth. Always clean in the direction of the grain. Always finish this
process with a high quality, all-in-one stainless steel cleaner/polish to prevent further problems.
• USE OF ABRASIVE PADS SUCH AS SCOTCHBRITE WILL CAUSE THE GRAINING IN THE
STAINLESS TO BECOME BLURRED.
• Rust that is allowed to linger can penetrate into the surface of the stainless steel and become
impossible to remove.
9
!
CAUTION
• Stainless steel models exposed to chlorine gas and moisture such as areas with spas or swimming
pools, may have some discolorations of the stainless steel. Discoloration from chlorine gas is normal.
Follow exterior cleaning instructions.
• NEVER USE CHLORIDE TO CLEAN STAINLESS STEEL.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect temperature of your
appliance if you minimize the number of times the drawer is opened. If the power is going to be off for
a longer period of time, you need to take the proper steps to protect the contents.
VACATION TIME
Short vacations: Leave the appliance operating during vacations of less then three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off
the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the
drawer open slightly, blocking it open if necessary.
MOVING YOUR APPLIANCE
1. Remove all items.
2. Securely tape down all loose items inside your appliance.
3. Turn the adjustable legs up to the base to avoid damage.
4. Tape the drawer shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also protect the
outside of the appliance with a blanket or similar item.
ENERGY SAVING TIPS
The appliance should be located in the coolest area of the room or outdoor location, away from heat
producing appliances and out of direct sunlight.
Ensure that the unit is adequately ventilated. Never cover air vents.
Do not keep the drawer open any longer than necessary.
Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the
compressor to run longer.
Be sure to wrap foods properly and wipe containers dry placing them in the unit. This cuts down on
frost build up inside the unit.
Unit drawers should not be lined with aluminum foil, wax paper or paper toweling.
Liners interfere with cold air circulation, making the unit less efficient.
Organize and label stored items reduce drawer openings and extended searches. Remove as many
items as needed at one time and close the drawer as soon as possible.
10
APPLIANCE SAFETY
!
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential hazards
that can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the DANGER or WARNING.
!
!
DANGER
!
DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.
!
WARNING
!
WARNING means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury or death.
All safety messages will alert you about the potential hazard, tell you how to reduce the
chance of injury and let you know what can happen if the instructions are not followed.
IMPORTANT SAFEGUARDS
!
Before the appliance is used, it must be properly positioned and installed
as described in this manual, so read the manual carefully. To reduce the
risk of fire, electrical shock or injury when using the appliance, follow
basic precautions, including the following:
!
DANGER
!
Plug into a grounded 3 prong outlet, do not remove prong, do not use an adapter and do not
use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance. The fumes can create a fire hazard or explosion.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
Do not attempt to repair or replace any part or your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
3
TABLE OF CONTENTS
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible service call. Try the
suggestions below to see if you can solve the problem before calling the servicer.
Appliance Safety
Important Safeguards
Installation Instructions
Before Using Your Appliance
Installation of Your Appliance
Site Preparation
Anti-tip Bracket Installation
Leveling the Unit
Installing Handle
Electrical Connection
Extension Cord
Operation Your Appliance
Control Panel
Defrosting
Temperature Alarm / Drawer Alarm
Removing your Appliance
Care and Maintenance
Cleaning and Maintaining Your Appliance
Power Failure
Vacation Time
Moving Your Appliance
Energy Saving Tips
Troubleshooting
3
3-4
5-7
5
5-6
6
6
7
7
7
7
8-9
8-9
9
9
9
9-10
9
10
10
10
10
11-12
PROBLEM
POSSIBLE CAUSE
REMEDY
Appliance
does not
operate.
Appliance is not connected to a power supply.
The appliance is turned off.
Tripped circuit breaker or blown a fuse.
Connect the appliance.
Switch on the appliance.
Switch on circuit breaker or replace fuse.
Appliance is
not cold
enough.
The temperature is not set correctly.
Temperature could require a lower
temperature setting.
The drawer was not closed completely.
Drawer is not hermetically sealed.
The condenser is too dirty.
The ventilation opening is blocked or too dusty.
Check the set temperature.
Set a lower temperature.
Do not open the drawer more
often than necessary.
Close drawer properly.
Check the drawer seal and clean/replace.
Clean the condenser when necessary.
Clear the obstructions, clean the dust.
Appliance
turns itself on
and off
frequently.
The room temperature is higher than average.
A large amount of food has been added
to the unit.
The drawer is open too often.
The drawer is not closed completely.
The drawer gasket does not seal properly.
Put the appliance in a cooler place.
Leave the appliance to work for a
while until the set temperature has
been reached.
Do not open more than necessary.
Close drawer properly.
Check the drawer seal and clean/replace.
Appliance is not connected to a power supply. Connect the appliance.
The light does
Switch on circuit breaker or replace fuse.
Tripped circuit break or blown a fuse.
not work.
The light was switched off on the control panel. Switch on the light.
The appliance is not properly leveled.
The appliance
seems to
make too
much noise.
The rattling may come from the flow of the refrigerant, which is normal. As each cycle
ends, you may hear gurgling sounds caused by the flow of refrigerant in your appliance.
If temperature fluctuations occur, the contraction and expansion of the inner walls may
cause popping and cracking noises.
Level the appliance with the
adjustable feet.
The appliance is not properly level.
The appliance is not properly level.
The drawer will The drawer was reversed and not properly
not close
installed.
properly.
The gasket is dirty.
2
Level the appliance with the
adjustable feet.
Vibrations
11
Level the appliance with the
adjustable feet.
Check the drawer hinge and reassemble
correctly.
Clean the drawer gasket.
The alarm
sounds and the
temperature
display
flashes.
Fridge is not
cooling, but
the lights
are on
Has the appliance drawer been open for
longer than 60 seconds? If not, then the
temperature has risen higher or fallen lower
than the temperature that has been set. This
could be due to:
The appliance drawer being opened too often.
The ventilation opening being covered or too
dusty.
A lengthy interruption in the power supply.
A large amount of food has been added to the
unit.
If yes, close the drawer.
Do not open the drawer more often than
necessary.
Clear the obstructions and clean the
dust.
Leave the appliance to work for a while
until the set temperature has been
reached.
Is the compressor hot?
If so, the compressor has failed.
Is the compressor cool?
If so, the compressor relay's failed
and need to be replaced

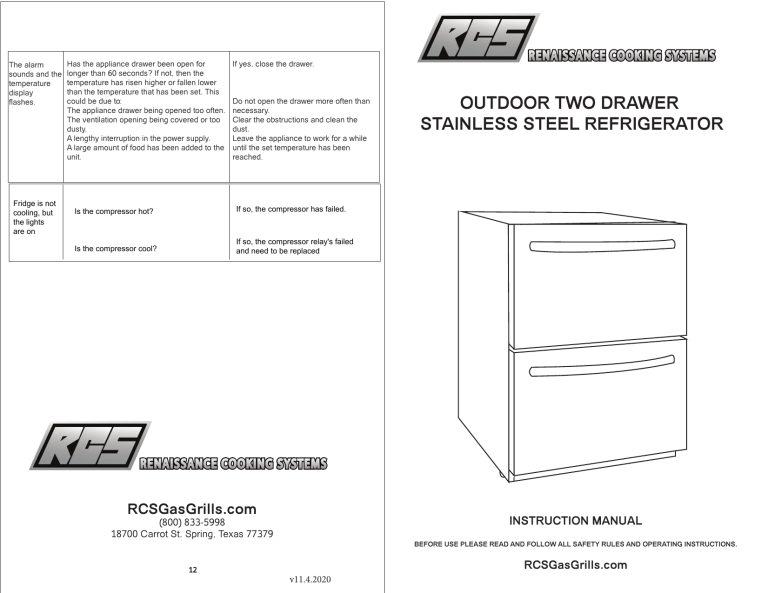

RCSGasGrills.com
OUTDOOR TWO DRAWER
STAINLESS STEEL REFRIGERATOR
INSTRUCTION MANUAL
(800) 833-5998
18700 Carrot St. Spring, Texas 77379
BEFORE USE PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
12
RCSGasGrills.com
v11.4.2020
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
