JBL Link 300 Owner's manual

JBL Link 300 Owner's manual

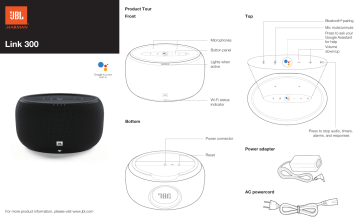

Product Tour
Front
Top
Bluetooth® pairing
Mic mute/unmute
Press to ask your
Google Assistant
for help
Volume
down/up
Microphones
Link 300
Button panel
Lights when
active
Wi-Fi status
indicator
Bottom
Press to stop audio, timers,
alarms, and responses
Power connector
Power adapter
Reset
AC powercord
For more product information, please visit www.jbl.com
Get Started
Specification
1.
Plug in the power
•
•
•
•
•
•
•
•
•
•
2.
Transducer: 1 x 89mm woofer, 1 x 20mm tweeter
Output power: 2 x 25W
Frequency response: 55Hz-22kHz (-6dB)
Signal-to-noise ratio: >80dB
Power Supply: 19VDC, 3.0A
Wireless network: 802.11b/g/n/ac (2.4GHz/5GHz)
Bluetooth version: 4.2
Supported audio formats: HE-AAC, LC-AAC, MP3,
Vorbis, WAV (LPCM), FLAC, Opus
Dimensions (W x H x D): 236 x 134 x 154 mm
Weight: 1.7 kg
Google, Google Play, Chromecast, Chromecast built-in, Google Home
and other related marks and logos are trademarks of Google Inc.
Chromecast built-in may require subscription(s).
* Requires compatible device. Availability and performance of
certain other features and services are service, device and
network-dependent and may not be available in all areas;
subscription(s) may be required, and additional terms, conditions
and/or charges may apply.
Download and run the Google Home app on a phone or tablet.
Set up your JBL Link 300 in the Google Home app.
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by
HARMAN International Industries, Incorporated is under license. Other
trademarks and trade names are those of their respective owners.
The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.
This equipment complies with FCC/IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm
between the radiator & your body.
TR03994_H
