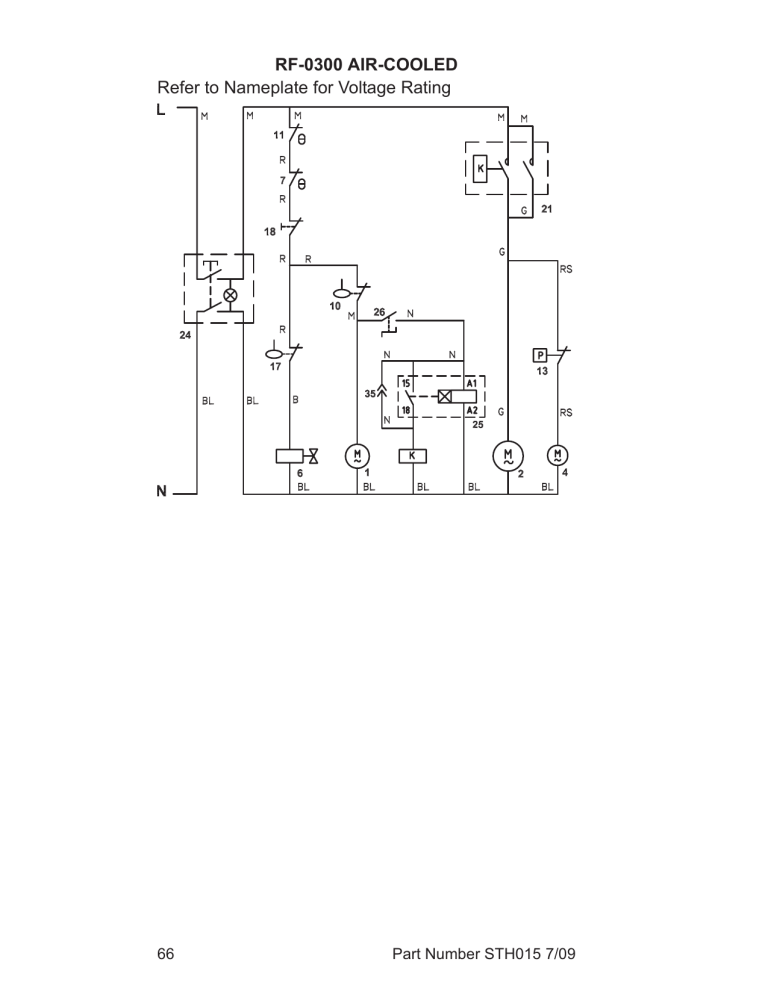

RF-0300 AIR-COOLED
Refer to Nameplate for Voltage Rating
66
Part Number STH015 7/09
Wiring Diagram Legend RF-0300
1
Gear Motor
2
Compressor
4
Condenser fan motor
6
Water inlet valve
7
Evaporator low temperature safety
10
Low water level safety
11
Bin thermostat
12
High temperature limit (snap disc)
13
Fan cycle control
17
Water level switch
18
Ice chute safety switch
21
Compressor relay
24
On/Off switch
25
Compressor time delay
26
Gear motor centrifical switch
35
Compressor time delay by-pass
Wire Color Designation
B
White
BL
Blue
G
Grey
M
Brown
N
Black
R
Red
RS
Pink
Part Number STH015 7/09
67
