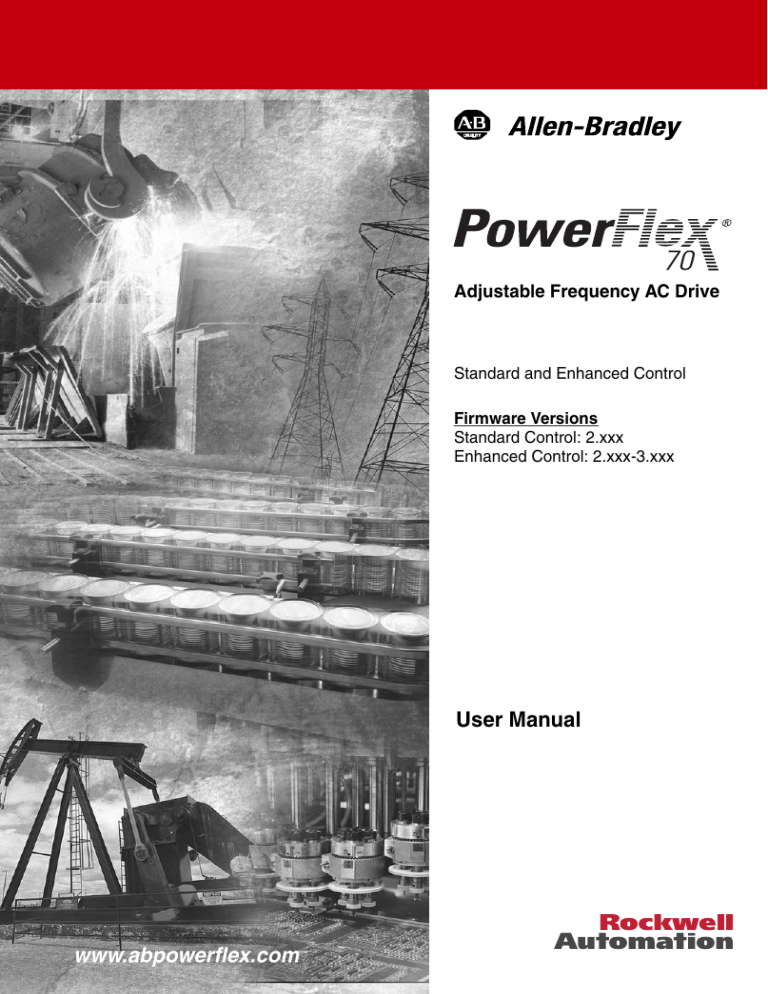

Rockwell PowerFlex  70 User manual
Adjustable Frequency AC Drive
Standard and Enhanced Control
Firmware Versions
Standard Control: 2.xxx
Enhanced Control: 2.xxx-3.xxx
User Manual
www.abpowerflex.com
Important User Information
Solid state equipment has operational characteristics differing from those of
electromechanical equipment. Safety Guidelines for the Application, Installation
and Maintenance of Solid State Controls (Publication SGI-1.1 available from your
local Rockwell Automation sales office or online at http://
www.rockwellautomation.com/literature) describes some important differences
between solid state equipment and hard-wired electromechanical devices. Because
of this difference, and also because of the wide variety of uses for solid state
equipment, all persons responsible for applying this equipment must satisfy
themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or
consequential damages resulting from the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative
purposes. Because of the many variables and requirements associated with any
particular installation, Rockwell Automation, Inc. cannot assume responsibility or
liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of
information, circuits, equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written
permission of Rockwell Automation, Inc. is prohibited.
Throughout this manual, when necessary we use notes to make you aware of safety
considerations.
WARNING: Identifies information about practices or circumstances
that can cause an explosion in a hazardous environment, which may
lead to personal injury or death, property damage, or economic loss.
Important: Identifies information that is critical for successful application and
understanding of the product.
ATTENTION: Identifies information about practices or circumstances
that can lead to personal injury or death, property damage, or economic
loss. Attentions help you:
• identify a hazard
• avoid the hazard
• recognize the consequences
Shock Hazard labels may be located on or inside the equipment (e.g.,
drive or motor) to alert people that dangerous voltage may be present.
Burn Hazard labels may be located on or inside the equipment (e.g.,
drive or motor) to alert people that surfaces may be at dangerous
temperatures.
PowerFlex is a registered trademark of Rockwell Automation, Inc.
DriveExplorer, DriveExecutive, and SCANport are trademarks of Rockwell Automation, Inc.
PLC is a registered trademark of Rockwell Automation, Inc.
Summary of Changes
The information below summarizes the changes to the PowerFlex 70
User Manual since the February 2005 release.
Parameter Updates
The following parameters have been added or updated with firmware
version 3.002.
Parameter
[Torque Estimate]
[Motor OL Mode]
[Mtr OL Trip Time]
[Drive Status 3]
[Status 3 @ Fault]
[Spd Err Filt BW]
[Fiber Control]
[Fiber Status]
[Sync Time]
[Traverse Inc]
[Traverse Dec]
[Max Traverse]
[P Jump]
[Motor NP RPM]
[Stop/Brk Mode A/B]
[Start Inhibits]
[Last Stop Source]
[Digital Inx Sel]
[Digital Outx Sel]
Number
015
050
221
222
223
448
620
621
622
623
624
625
626
044
155, 156
214
215
361-366
380, 384
Description
New
New
New
New
New
New
New
New
New
New
New
New
New
Updated
Updated
Updated
Updated
Updated
Updated
Page
3-12
3-14
3-42
3-42
3-42
3-28
3-59
3-59
3-59
3-59
3-59
3-59
3-59
3-13
3-30
3-40
3-41
3-55
3-57
Additional Manual Updates
Description of New or Updated Information
Catalog number explanation updated
External filter information added
Parameters 140 [Accel Time 1] and 141 [Accel Time 2]
minimum value corrected to 0.0 Secs.
Parameters 142 [Decel Time 1] and 143 Decel Time 2]
minimum value corrected to 0.0 Secs.
Conversion formula added to description of parameter
244-250 [Fault x Time].
Fast Brake application note added.
Page
P-5
1-24
3-29
3-29
3-45
C-6
soc-2
Notes:
Table of Contents
Preface
Overview
Chapter 1
Installation/Wiring Opening the Cover . . . . . . . . . . . . . . . . . . 1-1
Who Should Use this Manual? . . . . . . . . .
What Is Not in this Manual . . . . . . . . . . . .
Reference Materials . . . . . . . . . . . . . . . . .
Manual Conventions . . . . . . . . . . . . . . . . .
Drive Frame Sizes . . . . . . . . . . . . . . . . . . .
General Precautions . . . . . . . . . . . . . . . . .
Catalog Number Explanation . . . . . . . . . .
P-1
P-1
P-2
P-2
P-3
P-3
P-5
Mounting Considerations . . . . . . . . . . . . . 1-2
AC Supply Source Considerations . . . . . . 1-3
General Grounding Requirements . . . . . . 1-4
Fuses and Circuit Breakers . . . . . . . . . . . . 1-5
Power Wiring . . . . . . . . . . . . . . . . . . . . . . 1-5
IP66 (NEMA Type 4X/12) Installations . 1-10
Using Input/Output Contactors . . . . . . . . 1-10
Disconnecting MOVs and CM Capacitors 1-11
I/O Wiring . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Speed Reference Control . . . . . . . . . . . . 1-19
Auto/Manual Examples. . . . . . . . . . . . . . 1-20
EMC Instructions . . . . . . . . . . . . . . . . . . 1-21
Chapter 2
Start Up
Prepare For Drive Start-Up . . . . . . . . . . . .
Status Indicators . . . . . . . . . . . . . . . . . . . .
Start-Up Routines . . . . . . . . . . . . . . . . . . .
Running S.M.A.R.T. Start. . . . . . . . . . . . .
Running an Assisted Start Up . . . . . . . . . .
Chapter 3
Programming and
Parameters
About Parameters . . . . . . . . . . . . . . . . . . . 3-1
How Parameters are Organized. . . . . . . . . 3-3
Monitor File (File A). . . . . . . . . . . . . . . . 3-11
Motor Control File (File B). . . . . . . . . . . 3-13
Speed Command File (File C) . . . . . . . . 3-20
Dynamic Control File (File D) . . . . . . . . 3-29
Utility File (File E) . . . . . . . . . . . . . . . . . 3-36
Communication File (File H) . . . . . . . . . 3-47
Inputs & Outputs File (File J) . . . . . . . . . 3-52
Applications File (File K) . . . . . . . . . . . . 3-59
Parameter Cross Reference – by Name. . 3-60
Chapter 4
Troubleshooting
Faults and Alarms . . . . . . . . . . . . . . . . . . . 4-1
Drive Status . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Manually Clearing Faults . . . . . . . . . . . . . 4-3
Fault Descriptions . . . . . . . . . . . . . . . . . . . 4-3
Clearing Alarms . . . . . . . . . . . . . . . . . . . . 4-7
Alarm Descriptions . . . . . . . . . . . . . . . . . . 4-7
Testpoint Codes and Functions . . . . . . . . 4-11
Common Symptoms/Corrective Actions 4-12
Appendices
See Next Page
2-1
2-2
2-3
2-4
2-4
ii
Table of Contents
Appendix A
Supplemental Drive Specifications. . . . . . . . . . . . . . . . . . . . . . . A-1
Communication Configurations . . . . . . . . A-4
Information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . A-7
Output Devices . . . . . . . . . . . . . . . . . . . . A-14
Drive, Fuse & Circuit Breaker Ratings . . A-14
Appendix B
HIM Overview
External and Internal Connections . . . . . .
LCD Display Elements . . . . . . . . . . . . . . .
ALT Functions . . . . . . . . . . . . . . . . . . . . . .
Removing the HIM . . . . . . . . . . . . . . . . . .
Menu Structure . . . . . . . . . . . . . . . . . . . . .
Viewing and Editing Parameters . . . . . . . .
Appendix C
Application Notes
External Brake Resistor . . . . . . . . . . . . . . . C-1
Skip Frequency . . . . . . . . . . . . . . . . . . . . . C-2
Stop Mode . . . . . . . . . . . . . . . . . . . . . . . . . C-4
Motor Overload . . . . . . . . . . . . . . . . . . . . . C-7
Motor Overload Memory Retention Per 2005
NEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
Start At PowerUp. . . . . . . . . . . . . . . . . . . . C-9
Overspeed . . . . . . . . . . . . . . . . . . . . . . . . C-10
Process PI for Standard Control . . . . . . . C-11
Voltage Tolerance . . . . . . . . . . . . . . . . . . C-14
Index
B-1
B-2
B-2
B-2
B-3
B-5
Preface
Overview
The purpose of this manual is to provide you with the basic information
needed to install, start-up and troubleshoot the PowerFlex 70 Adjustable
Frequency AC Drive.
For information on…
Who Should Use this Manual?
What Is Not in this Manual
Reference Materials
Manual Conventions
Drive Frame Sizes
General Precautions
Catalog Number Explanation
See page…
P-1
P-1
P-2
P-2
P-3
P-3
P-5
Who Should Use this Manual?
This manual is intended for qualified personnel. You must be able to
program and operate Adjustable Frequency AC Drive devices. In
addition, you must have an understanding of the parameter settings and
functions.
What Is Not in this Manual
The PowerFlex 70 User Manual is designed to provide only basic
start-up information. For detailed drive information, please refer to the
PowerFlex Reference Manual, publication PFLEX-RM001…. The
reference manual is included on the CD supplied with your drive or is
also available online at http://www.rockwellautomation.com/literature.
P-2
Overview
Reference Materials
The following manuals are recommended for general drive information:
Title
Wiring and Grounding
Guidelines for Pulse Width
Modulated (PWM) AC Drives
Preventive Maintenance of
Industrial Control and Drive
System Equipment
Safety Guidelines for the
Application, Installation and
Maintenance of Solid State
Control
A Global Reference Guide for
Reading Schematic Diagrams
Guarding Against Electrostatic
Damage
Publication
Available Online at …
DRIVES-IN001…
DRIVES-TD001…
SGI-1.1
www.rockwellautomation.com/
literature
100-2.10
8000-4.5.2
For detailed PowerFlex 70 information:
Title
Publication
PowerFlex Reference PFLEX-RM001…
Manual
Available …
on the CD supplied with the drive or at
www.rockwellautomation.com/literature
For Allen-Bradley Drives Technical Support:
Title
Allen-Bradley Drives Technical Support
Online at …
www.ab.com/support/abdrives
Manual Conventions
•
In this manual we refer to the PowerFlex 70 Adjustable Frequency
AC Drive as; drive, PowerFlex 70 or PowerFlex 70 Drive.
•
To help differentiate parameter names and LCD display text from
other text, the following conventions will be used:
•
–
Parameter Names will appear in [brackets].
For example: [DC Bus Voltage].
–
Display Text will appear in “quotes.” For example: “Enabled.”
The following words are used throughout the manual to describe an
action:
Word
Can
Cannot
May
Must
Shall
Should
Should Not
Meaning
Possible, able to do something
Not possible, not able to do something
Permitted, allowed
Unavoidable, you must do this
Required and necessary
Recommended
Not recommended
Overview
P-3
Drive Frame Sizes
Similar PowerFlex 70 drive sizes are grouped into frame sizes to
simplify spare parts ordering, dimensioning, etc. A cross reference of
drive catalog numbers and their respective frame size is provided in
Appendix A.
General Precautions
!
!
!
!
!
!
ATTENTION: This drive contains ESD (Electrostatic Discharge)
sensitive parts and assemblies. Static control precautions are required
when installing, testing, servicing or repairing this assembly.
Component damage may result if ESD control procedures are not
followed. If you are not familiar with static control procedures,
reference A-B publication 8000-4.5.2, “Guarding Against Electrostatic
Damage” or any other applicable ESD protection handbook.
ATTENTION: An incorrectly applied or installed drive can result in
component damage or a reduction in product life. Wiring or application
errors, such as, undersizing the motor, incorrect or inadequate AC
supply, or excessive ambient temperatures may result in malfunction of
the system.
ATTENTION: Only qualified personnel familiar with adjustable
frequency AC drives and associated machinery should plan or
implement the installation, start-up and subsequent maintenance of the
system. Failure to comply may result in personal injury and/or
equipment damage.
ATTENTION: To avoid an electric shock hazard, verify that the
voltage on the bus capacitors has discharged before performing any
work on the drive. Measure the DC bus voltage at the +DC terminal of
the Power Terminal Block and the -DC test point (refer to Chapter 1 for
locations). The voltage must be zero.
ATTENTION: Risk of injury or equipment damage exists. DPI or
SCANport host products must not be directly connected together via
1202 cables. Unpredictable behavior can result if two or more devices
are connected in this manner.
ATTENTION: A risk of injury or equipment damage exists in
firmware version 1.011 and earlier. When there is a combination of long
shielded motor cables, high source impedance, low speed, light motor
load and parameter 190 [Direction Mode] is set to “Unipolar” or
“Bipolar,” an unexpected change in motor direction may occur. If these
conditions exist, choose one of the following corrective actions:
• Set parameter 190 to “Reverse Dis”
• Set parameters 161 and 162 to “Disabled”
• Install a properly sized Dynamic Brake resistor
P-4
Overview
!
ATTENTION: Nuisance tripping may occur in Standard Control
firmware version 1.011 and earlier due to unstable currents. When
using a motor that is connected for a voltage that is different from the
drive (e.g., using a 230V connected motor with a 460V drive) the
following adjustment must be made to “Stability Gain” using
DriveExplorer software and a personal computer.
Motor
Nameplate Voltage-------------------------------------------------------------× 128
Drive Rated Voltage
Any adjustment made to “Stability Gain” must be manually restored if
the drive is reset to defaults or is replaced.
If unstable currents are still present after making the adjustment,
contact the factory for assistance.
!
ATTENTION: The “adjust freq” portion of the bus regulator function
is extremely useful for preventing nuisance overvoltage faults resulting
from aggressive decelerations, overhauling loads, and eccentric loads.
It forces the output frequency to be greater than commanded frequency
while the drive’s bus voltage is increasing towards levels that would
otherwise cause a fault; however, it can also cause either of the
following two conditions to occur.
1. Fast positive changes in input voltage (more than a 10% increase
within 6 minutes) can cause uncommanded positive speed changes;
however an “OverSpeed Limit” fault will occur if the speed reaches
[Max Speed] + [Overspeed Limit]. If this condition is unacceptable,
action should be taken to 1) limit supply voltages within the
specification of the drive and, 2) limit fast positive input voltage
changes to less than 10%. Without taking such actions, if this operation
is unacceptable, the “adjust freq” portion of the bus regulator function
must be disabled (see parameters 161 and 162).
2. Actual deceleration times can be longer than commanded
deceleration times; however, a “Decel Inhibit” fault is generated if the
drive stops decelerating altogether. If this condition is unacceptable, the
“adjust freq” portion of the bus regulator must be disabled (see
parameters 161 and 162). In addition, installing a properly sized
dynamic brake resistor will provide equal or better performance in most
cases.
Note: These faults are not instantaneous and have shown test results
that take between 2 and 12 seconds to occur.
Overview
P-5
Catalog Number Explanation
Position Number
1-3
4
5-7
8
9
10
11
12
13
14
15
20A
B
2P2
A
3
A
Y
Y
N
N
C
0
a
b
c
d
e
f
g
h
i
j
k
l
a
Drive
Code
Type
20A
PowerFlex 70
b
Voltage
c5
ND Rating
600V, 60 Hz Input
400V, 50 Hz Input
Voltage Rating
Code
c3
ND Rating
Ph.
B
240V ac
3
C
400V ac
3
D
480V ac
3
E
600V ac
3
c1
16
Code
Amps
kW (Hp)
Code
Amps
kW (Hp)
1P3
1.3
0.37 (0.5)
0P9
0.9
0.37 (0.5)
2P1
2.1
0.75 (1.0)
1P7
1.7
0.75 (1.0)
3P5
3.5
1.5 (2.0)
2P7
2.7
1.5 (2.0)
5P0
5.0
2.2 (3.0)
3P9
3.9
2.2 (3.0)
8P7
8.7
4.0 (5.0)
6P1
6.1
4.0 (5.0)
011
11.5
5.5 (7.5)
9P0
9.0
5.5 (7.5)
015
15.4
7.5 (10)
011
11
7.5 (10)
022
22
11 (15)
017
17
030
30
15 (20)
022
22
15 (20)
037
37
18.5 (25)
027
27
18.5 (25)
11 (15)
043
43
22 (30)
032
32
22 (30)
ND Rating
060
60
30 (40)
041
41
30 (40)
208V, 60 Hz Input
072
72
37 (50)
052
52
37 (50)
Code
Amps
kW (Hp)
2P2
2.5
0.37 (0.5)
4P2
4.8
0.75 (1.0)
6P8
7.8
1.5 (2.0)
9P6
11
2.2 (3.0)
015
17.5
4.0 (5.0)
022
25.3
5.5 (7.5)
028
32.2
7.5 (10)
042
43
11 (15)
054
62.1
15 (20)
070
78.2
18.5 (25)
c2
c4
d
ND Rating
Enclosure
480V, 60 Hz Input
Code
Amps
kW (Hp)
1P1
1.1
0.37 (0.5)
2P1
2.1
0.75 (1.0)
3P4
3.4
1.5 (2.0)
5P0
5.0
2.2 (3.0)
8P0
8.0
3.7 (5.0)
011
11
5.5 (7.5)
014
14
7.5 (10)
022
22
ND Rating
027
27
15 (20)
240V, 60 Hz Input
034
34
18.5 (25)
11 (15)
Code
Enclosure
A
Panel Mount - IP 20, NEMA
Type 1
C
Wall/Machine Mount = IP66,
NEMA Type 4X/12 for indoor
use only
F
Flange Mount - Front Chassis =
IP 20, NEMA Type 1; Rear
Heatsink = IP66, UL Type 4X/12
for indoor/outdoor use
G
Wall/Machine Mount - IP54,
NEMA Type 12
Code
Amps
kW (Hp)
040
40
22 (30)
2P2
2.2
0.37 (0.5)
052
52
30 (40)
4P2
4.2
0.75 (1.0)
065
65
37 (50)
6P8
6.8
1.5 (2.0)
0
9P6
9.6
2.2 (3.0)
2
Digital LCD
015
15.3
4.0 (5.0)
3
Full Numeric LCD
022
22
5.5 (7.5)
028
28
7.5 (10)
042
42
11 (15)
054
54
15 (20)
available only with HIM Codes 0, 3, 5, or 8.
070
70
18.5 (25)
! HIM Code 8 is available only with IP66, NEMA
Type 4X/12 enclosures.
e
HIM !
Code
Interface Module
Blank Cover
5
Prog. Only LCD
8!
Wireless Interface Module
! IP66, NEMA Type 4X/12 (Enclosure Code C) is
P-6
Overview
Position Number
1-3
4
5-7
8
9
10
11
12
13
14
15
20A
B
2P2
A
3
A
Y
Y
N
N
C
0
a
b
c
d
e
f
g
h
i
j
k
l
f
i
k
Documentation
Emission Class
Control & I/O
16
Code
Type
Code
Rating
Code
Control
Safe-Off
A
English User Manual and MultiLanguage Quick Start
Standard
N/A
C
Enhanced
No
N
No Manual
Filtered!
A! & B Frames (Optional)
C, D, & E Frames (Standard)
N
A
G!
Enhanced
Yes
N
g
Not Filtered!
A & B Frames (Optional)
C, D, & E Frames
! Not available as factory installed option for
600V ratings.
! 600V Frames A through D available only
Brake IGBT
Code
w/Brake IGBT
Y
Yes
without filter (Cat. Code N). 600V Frame E
available only with filter (Cat. Code A).
l
! Increases size to Frame B.
Feedback
Code
j
h
Comm Slot
Code
Version
Code
w/Resistor
C
ControlNet (Coax)
Y
Yes
D
DeviceNet
N
No
E
EtherNet/IP
Internal Brake Resistor
R
RIO
S
RS485 DF1
N
None
Feedback
N
N/A
0
None
1
5V/12V Encoder
Chapter 1
Installation/Wiring
This chapter provides information on mounting and wiring the
PowerFlex 70 Drive.
For information on…
Opening the Cover
Mounting Considerations
AC Supply Source Considerations
General Grounding Requirements
Fuses and Circuit Breakers
Power Wiring
Using Input/Output Contactors
See page
1-1
1-2
1-3
1-4
1-5
1-5
1-10
For information on…
See page
Disconnecting MOVs and 1-11
Common Mode Capacitors
I/O Wiring
Speed Reference Control
Auto/Manual Examples
EMC Instructions
1-12
1-19
1-20
1-21
Most start-up difficulties are the result of incorrect wiring. Every
precaution must be taken to assure that the wiring is done as instructed.
All items must be read and understood before the actual installation
begins.
!
ATTENTION: The following information is merely a guide for proper
installation. Rockwell Automation, Inc. cannot assume responsibility
for the compliance or the noncompliance to any code, national, local or
otherwise for the proper installation of this drive or associated
equipment. A hazard of personal injury and/or equipment damage
exists if codes are ignored during installation.
Opening the Cover
IP 20 (NEMA Type 1)
1. Loosen cover screw.
2. Pull cover straight off chassis to
avoid damaging connector pins.
1-2
Installation/Wiring
IP 66 (NEMA Type 4X/12)
1. Loosen the cover screws.
2. Pull cover straight off chassis.
Important: Torque cover screws to 0.79 N-m (7 lb.-in.).
Mounting Considerations
Maximum Surrounding Air Temperature
Enclosure Rating
Open Type, IP 20, NEMA Type 1 &
Flange Mount
IP 66 & NEMA Type 4X/12
IP 54 & NEMA Type 12
Temperature Range
0 to 50 degrees C (32 to 122 degrees F)
0 to 40 degrees C (32 to 104 degrees F)
0 to 40 degrees C (32 to 104 degrees F)
Important: Some drives are equipped with an adhesive label on the top
of the chassis. Removing the adhesive label from the drive
changes the NEMA enclosure rating from Type 1 Enclosed
to Open Type.
Minimum Mounting Clearances
Specified vertical clearance requirements are intended to be from drive
to drive. Other objects can occupy this space; however, reduced airflow
may cause protection circuits to fault the drive. In addition, inlet air
temperature must not exceed the product specification.
76.2 mm
(3.0 in.)
76.2 mm
(3.0 in.)
Clearances apply to all
PowerFlex 70 Drives:
• Panel Mount
• Flange Mount
• NEMA Type 4X/12
76.2 mm
(3.0 in.)
76.2 mm
(3.0 in.)
Installation/Wiring
1-3
AC Supply Source Considerations
PowerFlex 70 drives are suitable for use on a circuit capable of
delivering up to a maximum of 200,000 rms symmetrical amperes, and a
maximum of 600 volts.
!
ATTENTION: To guard against personal injury and/or equipment
damage caused by improper fusing or circuit breaker selection, use only
the recommended line fuses/circuit breakers specified in Appendix A.
If a system ground fault monitor (RCD) is to be used, only Type B
(adjustable) devices should be used to avoid nuisance tripping.
Unbalanced, Ungrounded or Resistive Grounded Distribution
Systems
If phase to ground voltage will exceed 125% of normal line to line
voltage or the supply system is ungrounded, refer to the Wiring and
Grounding Guidelines for AC Drives (publication DRIVES-IN001).
!
ATTENTION: PowerFlex 70 drives contain protective MOVs and
common mode capacitors that are referenced to ground. These devices
must be disconnected if the drive is installed on a resistive grounded
distribution system or an grounded distribution system. See page 1-11
for jumper locations.
Input Power Conditioning
Certain events on the power system supplying a drive can cause
component damage or shortened product life. These conditions are
divided into 2 basic categories:
1. All drives
–
The power system has power factor correction capacitors
switched in and out of the system, either by the user or by the
power company.
–
The power source has intermittent voltage spikes in excess of
6000 volts. These spikes could be caused by other equipment on
the line or by events such as lightning strikes.
–
The power source has frequent interruptions.
2. 5 HP or Less Drives (in addition to “1” above)
–
The nearest supply transformer is larger than 100kVA or the
available short circuit (fault) current is greater than 100,000A.
–
The impedance in front of the drive is less than 0.5%.
If any or all of these conditions exist, it is recommended that the user
install a minimum amount of impedance between the drive and the
1-4
Installation/Wiring
source. This impedance could come from the supply transformer itself,
the cable between the transformer and drive or an additional transformer
or reactor. The impedance can be calculated using the information
supplied in the Wiring and Grounding Guidelines for Pulse Width
Modulated (PWM) AC Drives, publication DRIVES-IN001….
General Grounding Requirements
The drive Safety Ground - PE must be connected to system ground.
Ground impedance must conform to the requirements of national and
local industrial safety regulations and/or electrical codes. The integrity
of all ground connections should be periodically checked.
For installations within a cabinet, a single safety ground point or ground
bus bar connected directly to building steel should be used. All circuits
including the AC input ground conductor should be grounded
independently and directly to this point/bar.
Figure 1.1 Typical Grounding
R (L1)
S (L2)
T (L3)
U (T1)
V (T2)
W (T3)
PE
SHLD
Safety Ground - PE
This is the safety ground for the drive that is required by code. This point
must be connected to adjacent building steel (girder, joist), a floor
ground rod or bus bar (see above). Grounding points must comply with
national and local industrial safety regulations and/or electrical codes.
Shield Termination - SHLD
The Shield terminal (see Figure 1.2 on page 1-8) provides a grounding
point for the motor cable shield. The motor cable shield should be
connected to this terminal on the drive (drive end) and the motor frame
(motor end). A shield terminating cable gland may also be used.
When shielded cable is used for control and signal wiring, the shield
should be grounded at the source end only, not at the drive end.
Installation/Wiring
1-5
RFI Filter Grounding
Using an optional RFI filter may result in relatively high ground leakage
currents. Therefore, the filter must only be used in installations with
grounded AC supply systems and be permanently installed and
solidly grounded (bonded) to the building power distribution ground.
Ensure that the incoming supply neutral is solidly connected (bonded) to
the same building power distribution ground. Grounding must not rely
on flexible cables and should not include any form of plug or socket that
would permit inadvertent disconnection. Some local codes may require
redundant ground connections. The integrity of all connections should be
periodically checked. Refer to the instructions supplied with the filter.
Fuses and Circuit Breakers
The PowerFlex 70 can be installed with either input fuses or an input
circuit breaker. National and local industrial safety regulations and/or
electrical codes may determine additional requirements for these
installations. Refer to Appendix A for recommended fuses/circuit
breakers.
!
ATTENTION: The PowerFlex 70 does not provide branch short
circuit protection. Specifications for the recommended fuse or circuit
breaker to provide protection against short circuits are provided in
Appendix A.
Power Wiring
!
ATTENTION: National Codes and standards (NEC, VDE, BSI etc.)
and local codes outline provisions for safely installing electrical
equipment. Installation must comply with specifications regarding wire
types, conductor sizes, branch circuit protection and disconnect
devices. Failure to do so may result in personal injury and/or equipment
damage.
Cable Types Acceptable for 200-600 Volt Installations
A variety of cable types are acceptable for drive installations. For many
installations, unshielded cable is adequate, provided it can be separated
from sensitive circuits. As an approximate guide, allow a spacing of 0.3
meters (1 foot) for every 10 meters (32.8 feet) of length. In all cases,
long parallel runs must be avoided. Do not use cable with an insulation
thickness less than 15 mils (0.4 mm/0.015 in.). Use copper wire only.
Wire gauge requirements and recommendations are based on 75 degree
C. Do not reduce wire gauge when using higher temperature wire.
1-6
Installation/Wiring
Unshielded
THHN, THWN or similar wire is acceptable for drive installation in dry
environments provided adequate free air space and/or conduit fill rates
limits are provided. Do not use THHN or similarly coated wire in wet
areas. Any wire chosen must have a minimum insulation thickness of 15
mils and should not have large variations in insulation concentricity.
Shielded/Armored Cable
Shielded cable contains all of the general benefits of multi-conductor
cable with the added benefit of a copper braided shield that can contain
much of the noise generated by a typical AC Drive. Strong consideration
for shielded cable should be given in installations with sensitive
equipment such as weigh scales, capacitive proximity switches and other
devices that may be affected by electrical noise in the distribution
system. Applications with large numbers of drives in a similar location,
imposed EMC regulations or a high degree of communications /
networking are also good candidates for shielded cable.
Shielded cable may also help reduce shaft voltage and induced bearing
currents for some applications. In addition, the increased impedance of
shielded cable may help extend the distance that the motor can be
located from the drive without the addition of motor protective devices
such as terminator networks. Refer to Reflected Wave in Wiring and
Grounding Guidelines for PWM AC Drives, publication
DRIVES-IN001.
Consideration should be given to all of the general specifications
dictated by the environment of the installation, including temperature,
flexibility, moisture characteristics and chemical resistance. In addition,
a braided shield should be included and be specified by the cable
manufacturer as having coverage of at least 75%. An additional foil
shield can greatly improve noise containment.
A good example of recommended cable is Belden® 295xx (xx
determines gauge). This cable has four (4) XLPE insulated conductors
with a 100% coverage foil and an 85% coverage copper braided shield
(with drain wire) surrounded by a PVC jacket.
Other types of shielded cable are available, but the selection of these
types may limit the allowable cable length. Particularly, some of the
newer cables twist 4 conductors of THHN wire and wrap them tightly
with a foil shield. This construction can greatly increase the cable
charging current required and reduce the overall drive performance.
Unless specified in the individual distance tables as tested with the drive,
these cables are not recommended and their performance against the lead
length limits supplied is not known.
Installation/Wiring
1-7
Table 1.A Recommended Shielded Wire
Location
Rating/Type
Standard
(Option 1)
• Four tinned copper conductors with XLPE insulation.
600V, 90°C (194°F)
XHHW2/RHW-2
• Copper braid/aluminum foil combination shield and tinned
Anixter
copper drain wire.
B209500-B209507,
• PVC jacket.
Belden 29501-29507,
or equivalent
Description
Standard
(Option 2)
Tray rated 600V, 90°C • Three tinned copper conductors with XLPE insulation.
(194°F) RHH/RHW-2 • 5 mil single helical copper tape (25% overlap min.) with three
Anixter OLF-7xxxxx or bare copper grounds in contact with shield.
equivalent
• PVC jacket.
Class I & II; Tray rated 600V, 90°C • Three bare copper conductors with XLPE insulation and
impervious corrugated continuously welded aluminum armor.
Division I & II (194°F) RHH/RHW-2
Anixter 7V-7xxxx-3G • Black sunlight resistant PVC jacket overall.
or equivalent
• Three copper grounds on #10 AWG and smaller.
EMC Compliance
Refer to EMC Instructions on page 1-21 for details.
Cable Trays and Conduit
If cable trays or large conduits are to be used, refer to guidelines
presented in Wiring and Grounding Guidelines for Pulse Width
Modulated (PWM) AC Drives, publication DRIVES-IN001.
!
ATTENTION: To avoid a possible shock hazard caused by induced
voltages, unused wires in the conduit must be grounded at both ends.
For the same reason, if a drive sharing a conduit is being serviced or
installed, all drives using this conduit should be disabled. This will help
minimize the possible shock hazard from “cross coupled” motor leads.
Motor Cable Lengths
Typically, motor lead lengths less than 30 meters (approximately 100
feet) are acceptable. However, if your application dictates longer lengths,
refer to Wiring and Grounding Guidelines for Pulse Width Modulated
(PWM) AC Drives for details.
Single-Phase Input Power
The PowerFlex 70 drive is typically used with a three-phase input
supply. The drive has been listed by U.L. to operate on single-phase
input power with the following requirement:
•
Output current is derated by 50% of the three-phase ratings identified
in Tables A.B through A.D.
1-8
Installation/Wiring
Power Terminal Block
Figure 1.2 Typical Power Terminal Block Location (B Frame Shown)
IP 20 (NEMA Type 1)
IP 66 (NEMA Type 4X/12)
Table 1.B Power Terminal Block Specifications
No. Name
Description
Frame
Power Terminal Input power and A, B,
➊ Block
motor connections & C
D
E
➋
(1)
Wire Size Range (1)
Maximum Minimum
3.5 mm2 0.3 mm2
(12 AWG) (22 AWG)
8.4 mm2 0.8 mm2
(8 AWG) (18 AWG)
25.0 mm2 2.5 mm2
(3 AWG) (14 AWG)
SHLD terminal Terminating point All
for wiring shields
—
—
Torque
Maximum
0.66 N-m
(5.5 lb.-in.)
1.7 N-m
(15 lb.-in.)
2.71 N-m
(24 lb.-in.)
Recommended
0.6 N-m
(5 lb.-in.)
1.4 N-m
(12 lb.-in.)
2.71 N-m
(24 lb.-in.)
1.6 N-m 1.6 N-m
(14 lb.-in.) (14 lb.-in.)
Maximum/minimum sizes that the terminal block will accept - these are not recommendations.
Table 1.C Wire Routing Recommendations
No. Description
➌ Suggested entry for incoming line wiring.
➍
Suggested entry for motor wiring.
Cable Entry Plate Removal
If additional wiring access is needed, the Cable Entry Plate on all drive
Frames can be removed. Simply loosen the screws securing the plate to
the heat sink and slide the plate out.
Installation/Wiring
1-9
Figure 1.3 Frames A-D Power Terminal Block and DC Bus Test Points
➊
-DC
-DC
L1
R
L2
S
L3 BR1 BR2 T1
T +DC BRK U
T2
V
T3
W
PE
PE
Figure 1.4 Frame E Power Terminal Block
L1
R
L2
S
L3
T
Terminal
R
S
T
BR1
Description
R (L1)
S (L2)
T (L3)
DC Brake
BR2
DC Brake
U
V
W
PE
PE
U (T1)
V (T2)
W (T3)
PE Ground
PE Ground
-DC
DC Bus (–)
+DC
DC Bus (+)
+DC –DC BR1 BR2
T1
U
T2
V
T3
W
PE
PE
M6
M6
Notes
AC Line Input Power
AC Line Input Power
AC Line Input Power
DB Resistor Connection - Important: Do not
connect both an internal and external DB resistor at
the same time. This may violate the minimum
allowed DB resistance and cause drive damage.
To Motor
To Motor
To Motor
➊ Test point on Frames A-D located to the left or
right of the Power Terminal Block. Frame E has a
dedicated terminal.
Figure 1.5 Power Input Terminals on Frame B with Internal RFI Filter Option
-DC
-DC
L1
R
L2
S
L3
T
L1
R
L2
S
L3 BR1 BR2 T1
T +DC BRK U
T2
V
T3
W
PE
PE
1-10
Installation/Wiring
IP66 (NEMA Type 4X/12) Installations
Use the plugs supplied with IP66 (NEMA Type 4X/12) rated drives to
seal unused holes in the conduit entry plate.
Important: Completely seat the plug inner rim for the best seal.
Using Input/Output Contactors
Input Contactor Precautions
!
!
ATTENTION: A contactor or other device that routinely disconnects
and reapplies the AC line to the drive to start and stop the motor can
cause drive hardware damage. The drive is designed to use control input
signals that will start and stop the motor. If an input device is used,
operation must not exceed one cycle per minute or drive damage will
occur.
ATTENTION: The drive start/stop/enable control circuitry includes
solid state components. If hazards due to accidental contact with
moving machinery or unintentional flow of liquid, gas or solids exist,
an additional hardwired stop circuit may be required to remove the AC
line to the drive. An auxiliary braking method may be required.
Output Contactor Precaution
!
ATTENTION: To guard against drive damage when using output
contactors, the following information must be read and understood.
One or more output contactors may be installed between the drive and
motor(s) for the purpose of disconnecting or isolating certain motors/
loads. If a contactor is opened while the drive is operating, power will
be removed from the respective motor, but the drive will continue to
produce voltage at the output terminals. In addition, reconnecting a
motor to an active drive (by closing the contactor) could produce
excessive current that may cause the drive to fault. If any of these
conditions are determined to be undesirable or unsafe, an auxiliary
contact on the output contactor should be wired to a drive digital input
that is programmed as “Enable.” This will cause the drive to execute a
coast-to-stop (cease output) whenever an output contactor is opened.
Installation/Wiring
1-11
Disconnecting MOVs and Common Mode Capacitors
PowerFlex 70 drives contain protective MOVs and common mode
capacitors that are referenced to ground. To guard against drive damage,
these devices should be disconnected if the drive is installed on an
ungrounded distribution system where the line-to-ground voltages on
any phase could exceed 125% of the nominal line-to-line voltage. To
disconnect these devices, remove all the jumper(s) shown in the figure
and table below. See the Wiring and Grounding Guidelines for Pulse
Width Modulated (PWM) AC Drives, publication DRIVES-IN001, for
more information on ungrounded system installation.
!
ATTENTION: To avoid an electric shock hazard, verify that the
voltage on the bus capacitors has discharged before removing/installing
jumpers. Measure the DC bus voltage at the +DC terminal of the Power
Terminal Block and the -DC test point. The voltage must be zero.
Figure 1.6 Typical Jumper Locations (C Frame Shown)
JP3B
JP3A
JP3 JP2
Figure 1.7 Phase to Ground MOV Removal
R
S
T
Three-Phase AC Input
Jumper
(See Table)
1
2
3
4
Frame
A, B, C and D
E
Jumper
JP3 – JP2
JP2 – JP1
Removes
MOV to Ground
MOV and Line to Line
Capacitors to Ground
Figure 1.8 Common Mode Capacitors to Ground Removal
DC+
Converter
DC–
Frame
A
B
C and D
E
Common
Mode
Capacitors
Jumper
N/A
JP6 – JP5
JP3B – JP3A
JP3 – JP4
Jumper
(See Table)
Removes
Common Mode Capacitors to Ground
Common Mode Capacitors to Ground
Common Mode Capacitors to Ground
1-12
Installation/Wiring
I/O Wiring
Important points to remember about I/O wiring:
•
Use copper wire only. Wire gauge requirements and
recommendations are based on 75 degree C. Do not reduce wire
gauge when using higher temperature wire.
•
•
Wire with an insulation rating of 600V or greater is recommended.
Control and signal wires should be separated from power wires by at
least 0.3 meters (1 foot).
Important: I/O terminals labeled “(–)” or “Common” are not
referenced to earth ground and are designed to greatly
reduce common mode interference. Grounding these
terminals can cause signal noise.
ATTENTION: Configuring an analog input for 0-20mA operation and
driving it from a voltage source could cause component damage. Verify
proper configuration prior to applying input signals.
!
ATTENTION: Hazard of personal injury or equipment damage exists
when using bipolar input sources. Noise and drift in sensitive input
circuits can cause unpredictable changes in motor speed and direction.
Use speed command parameters to help reduce input source sensitivity.
!
Signal and Control Wire Types
Table 1.D Recommended Signal Wire
Signal
Type
Wire Type(s)
Analog I/O Belden 8760/9460(or equiv.)
Encoder
EMC
Compliance
(1)
Description
0.750 mm2 (18AWG), twisted
pair, 100% shield with drain (1).
Belden 8770(or equiv.)
0.750 mm2 (18AWG), 3
conductor, shielded for remote
pot only.
Belden 9728 (or equiv.)
0.196 mm2 (24 AWG),
individually shielded.
Refer to EMC Instructions on page 1-21 for details.
Minimum
Insulation Rating
300V,
75-90 degrees C
(167-194 degrees F)
If the wires are short and contained within a cabinet which has no sensitive circuits, the use of
shielded wire may not be necessary, but is always recommended.
Table 1.E Recommended Control Wire for Digital I/O
Wire Type(s)
Description
Unshielded Per US NEC or applicable national
—
or local code
Shielded Multi-conductor shielded cable
0.750 mm2 (18AWG), 3
such as Belden 8770(or equiv.)
conductor, shielded.
Minimum
Insulation Rating
300V,
60 degrees C
(140 degrees F)
Installation/Wiring
1-13
I/O Terminal Block
Figure 1.9 Typical I/O Terminal Block Location (B Frame Shown)
Table 1.F I/O Terminal Block Specifications
Wire Size Range (1)
Torque
No. Name
Description
Maximum
Minimum
Maximum
Recommended
➊
Signal & control
connections
1.5 mm2
(16 AWG)
0.05 mm2
(30 AWG)
0.55 N-m
(4.9 lb.-in.)
0.5 N-m
(4.4 lb.-in.)
(1)
I/O Terminal
Block
Maximum / minimum that the terminal block will accept - these are not recommendations.
Table 1.G Wire Routing Recommendations
No. Description
➋
Suggested entry for communication wiring.
➌
Suggested entry for I/O and control wiring.
Figure 1.10 I/O Terminal Positions
26
14
1
13
1-14
Installation/Wiring
Related
Param.
Factory
Default
Table 1.H I/O Terminal Designations – Standard and Enhanced Control
2
3
4
5
6
7
8
9
10
11
Digital In 2
Digital In 3
Digital In 4
Digital In 5
Digital In 6
24V Common
Digital In Common
+24V DC
+10V Pot Reference
Digital Out 1 – N.O.(1)
12
Digital Out 1 Common
Description
Stop – CF 11.2 mA @ 24V DC
(CF = Clear 19.2V minimum on state
Fault)
3.2V maximum off state
Start
Important: Use only 24V DC, not suitable for 115V
Auto/Man
AC circuitry.
Speed Sel 1
Inputs can be wired as sink or source.
Speed Sel 2
Speed Sel 3
–
Drive supplied power for Digital In1-6 inputs.
See examples on page 1-18.
–
150mA maximum load.
–
–
2 k ohm minimum load.
NOT Fault Max Resistive Load
Max Inductive Load
250V AC / 30V DC
250V AC / 30V DC
50 VA / 60 Watts
25 VA / 30 Watts
13
Digital Out 1 – N.C.(1)
Fault
14
15
16
17
Non-isolated, 0 to +10V, 10 bit, 100k ohm input
320 (3)
327
Voltage – impedance.
Reads
Non-isolated, 4-20mA, 10 bit, 100 ohm input
value at 14 impedance.(3)
& 15
(2)
Isolated, bipolar, differential, 0 to +10V unipolar (10
Analog In 2 (– Volts)
bipolar (10 bit & sign), 100k ohm input
Voltage – bit) or ±10V(4)
Analog In 2 (+ Volts)
impedance.
Reads
Analog In 2 (– Current) value at 18 Isolated, 4-20mA, 10 bit & sign, 100 ohm input
impedance.(4)
Analog In 2 (+ Current) & 19
(2)
0 to +10V, 10 bit, 10k ohm (2k ohm minimum) load. 340 10V Pot Common
344
Analog Out (– Volts)
0 to 20mA, 10 bit, 400 ohm maximum load.(5)
Output
Analog Out (– Current) Freq
Referenced to chassis ground.
Analog Out (+ Volts)
Common if internal 10V supply (terminal 10) is
Analog Out (+ Current)
used.
No. Signal
1
Digital In 1
18
19
20
21
22
23
24
25
26
(1)
(2)
(3)
(4)
(5)
Analog In 1 (– Volts)
Analog In 1 (+ Volts)
Analog In 1 (– Current)
Analog In 1 (+ Current)
(2)
Digital Out 2 – N.O.(1)
Digital Out 2 Common
Digital Out 2 – N.C.(1)
Run
361 366
380 387
Minimum DC Load
10 µA, 10 mV DC
See description at No.s 11-13.
380 387
NOT Run
Contacts shown in unpowered state. Any relay programmed as Fault or Alarm will energize (pick
up) when power is applied to drive and deenergize (drop out) when fault or alarm exists. Relays
selected for other functions will energize only when that condition exists and will deenergize when
condition is removed.
These inputs/outputs are dependent on a number of parameters. See “Related Parameters.”
Differential Isolation - External source must be less than 10V with respect to PE.
Differential Isolation - External source must be maintained at less than 160V with respect to PE.
Input provides high common mode immunity.
Analog output current is only available with Enhanced Control drives.
Installation/Wiring
1-15
Hardware Enable Circuitry (Enhanced Control Only)
By default, the user can program a digital input as an Enable input. The
status of this input is interpreted by drive software. If the application
requires the drive to be disabled without software interpretation, a
hardware enable configuration can be utilized. This is done by removing
the enable jumper (ENBL JMP) and wiring the enable input to “Digital
In 6” (see below).
1.Remove drive cover as
described on pages 1-1 and 1-2.
2.Locate and remove the Enable
Jumper on the Main Control
Board (see diagram).
3.Wire Enable to “Digital In 6”
(see Table 1.H).
4.Verify that 366 [Digital In6
Sel] is set to option 1 “Enable”.
Safe Off Board (Enhanced Control Only)
The PowerFlex Safe-Off board, when
used with suitable safety components,
provides protection according to EN
954-1:1997; Category 3 for safe off and
protection against restart. The PowerFlex
safe off option is just one safety control
system. All components in the system
must be chosen and applied correctly, to
achieve the desired level of operator
safeguarding.
4 3 2 1
Table 1.I Terminal Description
No. Signal
Description
1
Monitor - N.C.
2
Common - N.C.
Normally closed contacts for monitoring relay status.
Maximum Resistive Load: 250V AC / 30V DC / 50 VA / 60 Watts
Maximum Inductive Load: 250V AC / 30V DC / 25 VA / 30 Watts
3
+24V DC
4
24V Common
Connections for user supplied power to energize coil.
For detailed information on installing and wiring a safety relay system,
refer to the DriveGuard Safe-Off Option for PowerFlex AC Drives
User Manual, publication PFLEX-UM001….
Important: If the Safe-Off board is removed from
the drive, pins 3 and 4 of the Safe-Off
Connector must be jumpered for the
drive to run. If the Safe-Off board or
the jumper is not installed, and the
drive is commanded to run, an F111
“Enable Hardware” fault will occur.
1-16
Installation/Wiring
Encoder Interface (Enhanced Control Only)
The PowerFlex Encoder Interface can source 5 or 12 volt power and
accept 5 or 12 volt single ended differential inputs.
1
6
Table 1.J Terminal Description
No. Signal
Description
1
5-12V Power
Internal power source 250 mA (isolated).
2
Power Return
3
Encoder B (NOT)
Single channel or quadrature B input.
4
Encoder B
5
Encoder A (NOT)
Single channel or quadrature A input.
6
Encoder A
Figure 1.11 Jumper Settings
Receive Voltage
= 12V
= 5V
= 12V
Send Voltage
= 5V
4
5
6
B
A NOT
A
to SHLD
I/O
Encoder
Power –
External
Power
Source
Encoder
Signal –
Differential,
Dual
Channel
Connection Example
+
Common
Figure 1.12 Sample Encoder Wiring
I/O
Connection Example
Encoder
+12V DC
(250 mA)
1
Power –
Internal Drive 23
Common
Power
4
to SHLD
Internal (drive) 5
6
12V DC,
250mA
Encoder
to Power Supply
Common
Signal –
1
Single-Ended, 2
B NOT
Dual Channel 3
to
SHLD
External
Power
Supply
1
2
3
4
5
6
to SHLD
B NOT
B
A NOT
A
Installation/Wiring
1-17
I/O Wiring Examples
Input/Output
Potentiometer
Unipolar Speed
Reference
10k Ohm Pot.
Recommended
(2k Ohm minimum)
Connection Example
14
15
22
10
Joystick Bipolar
Speed Reference
±10V Input
18
19
22
-10V Com +10V
Power Source
Analog Input Bipolar
Speed Reference
±10V Input
Analog Input Unipolar
Speed Reference
0 to +10V Input
Analog Input Unipolar
Speed Reference
4-20 mA Input
–
+
18
19
Common
+
18
19
Common
20
21
+
Required Parameter Settings
Select Speed Reference source:
Param. 090 = 1 “Analog In 1”
Adjust Scaling:
Param. 091, 092, 322, 323
Check Results:
Param. 016
Set Direction Mode:
Param. 090 = 2 “Analog In 2”
Param. 190 = 1 “Bipolar”
Adjust Scaling:
Param. 091, 092, 325, 326
Check Results:
Param. 017
Adjust Scaling:
Param. 091, 092, 325, 326
Check Results:
Param. 017
Adjust Scaling:
Param. 091, 092, 325, 326
Check Results:
Param. 017
Configure Input for Current:
Param. 320, Bit #1 = 1 “Current”
Adjust Scaling:
Param. 091, 092, 325, 326
Check Results:
Param. 017
Analog Input, PTC
PTC OT set > 5V
PTC OT cleared < 4V
PTC Short < 0.2V
Ferrite
Bead
14
15
1.8k
PTC
Set Fault Config 1:
Param. 238, Bit #7 = 1 “Enabled”
Set Alarm Config 1:
Param. 259, Bit #11 = 1 “Enabled”
22
10
3.32k
Ohm
Analog Output
Unipolar
0 to +10V Output. Can
Drive a 2k Ohm load (25
mA short circuit limit)
0-20 mA Output.
400 Ohm maximum
load.
Select Source Value:
Param. 342
+
–
Adjust Scaling:
Param. 343, 344
22
23
1-18
Installation/Wiring
Input/Output
2 Wire Control
Non-Reversing
Connection Example
Internal Supply
Required Parameter Settings
Disable Digital Input 1:
Param. 361 = 0 “Not Used”
Set Digital Input 2:
Param. 362 = 7 “Run”
2
Stop-Run
7
8
9
2 Wire Control
Reversing
External Supply
Set Digital Input 1:
Param. 361 = 9 “Run Reverse”
Run Rev
Set Digital Input 2:
Param. 362 = 8 “Run Forward”
1
2
Run Fwd
8
+24V
3 Wire Control
3 Wire Control
Common
Internal Supply
Use factory default parameter
settings.
Stop
1
2
Start
7
8
9
External Supply
Use factory default parameter
settings.
Stop
1
2
Start
8
+24V
Common
Digital Output
Form C Relays
Energized in Normal
State.
or
11
12
13
NOT Fault
24
25
26
Run
Select Source:
Param. 380, 384
Fault
NOT Run
Power
Source
Enable Input
Shown in enabled state.
Standard Control
Configure with parameter 366
6
Enhanced Control
Configure with parameter 366
For dedicated hardware Enable:
Remove Enable Jumper (see
page 1-15)
Installation/Wiring
1-19
Speed Reference Control
“Auto” Speed Sources
The drive speed command can be obtained from a number of different
sources. The source is determined by drive programming and the
condition of the Speed Select digital inputs, Auto/Manual digital inputs
or reference select bits of a command word.
The default source for a command reference (all speed select inputs open
or not programmed) is the selection programmed in [Speed Ref A Sel].
If any of the speed select inputs are closed, the drive will use other
parameters as the speed command source.
“Manual” Speed Sources
The manual source for speed command to the drive is either the HIM
requesting manual control (see ALT Functions on page B-2) or the
control terminal block (analog input) if a digital input is programmed to
“Auto/Manual”.
Changing Speed Sources
The selection of the active Speed Reference can be made through digital
inputs, DPI command, jog button or Auto/Manual HIM operation.
Figure 1.13 Speed Reference Selection Chart (1)
= Default
Auto Speed Ref Options
Trim
Speed Ref A Sel, Parameter 090
Speed Ref B Sel, Parameter 093
Preset Speed 2, Parameter 102
Preset Speed 3, Parameter 103
Preset Speed 4, Parameter 104
Preset Speed 5, Parameter 105
Preset Speed 6, Parameter 106
Preset Speed 7, Parameter 107
DPI Port Ref 1-6, See Parameter 209
[Digital Inx Select]:
Speed Sel 3 2 1
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
PI Exclusive Mode
[PI Configuration]:
Bit 0, Excl Mode = 0
Auto
Speed Adders
PI Output
Slip Compensation
None
Man
[Speed Mode]:
2 "Process Pi"
1 "Slip Comp"
0 "Open Loop"
Mod Functions
(Skip, Clamp,
Direction, etc.)
Commanded
Frequency
DPI Command
Digital Input
Jog Command
Pure Reference
to follower drive for
Frequency Reference
Min/Max Speed
Manual Speed Ref Options
HIM Requesting Auto/Manual
TB Man Ref Sel, Parameter 096
Jog Speed, Parameter 100
Drive Ref Rslt
Acc/Dec Ramp
and
S Curve
Post Ramp
Drive Ramp Rslt
to follower drive for
Frequency Reference
Output
Frequency
(1)
To access Preset Speed 1, set [Speed Ref A Sel] or [Speed Ref B Sel] to “Preset
Speed 1”.
1-20
Installation/Wiring
Auto/Manual Examples
PLC = Auto, HIM = Manual
A process is run by a PLC when in Auto mode and requires manual
control from the HIM during set-up. The Auto speed reference is issued
by the PLC through a communications module installed in the drive.
Since the internal communications is designated as Port 5, [Speed Ref A
Sel] is set to “DPI Port 5” with the drive running from the Auto source.
Attain Manual Control
• Press ALT then Auto/Man on the HIM.
When the HIM attains manual control, the drive speed command
comes from the HIM speed control keys or analog potentiometer.
Release to Auto Control
• Press ALT then Auto/Man on the HIM again.
When the HIM releases manual control, the drive speed command
returns to the PLC.
PLC = Auto, Terminal Block = Manual
A process is run by a PLC when in Auto mode and requires manual
control from an analog potentiometer wired to the drive terminal block.
The auto speed reference is issued by the PLC through a
communications module installed in the drive. Since the internal
communications is designated as Port 5, [Speed Ref A Sel] is set to “DPI
Port 5” with the drive running from the Auto source. Since the Manual
speed reference is issued by an analog input (“Analog In 1 or 2”), [TB
Man Ref Sel] is set to the same input. To switch between Auto and
Manual, [Digital In4 Sel] is set to “Auto/ Manual”.
Attain Manual Control
• Close the digital input.
With the input closed, the speed command comes from the
potentiometer.
Release to Auto Control
• Open the digital input.
With the input open, the speed command returns to the PLC.
Auto/Manual Notes
1. Manual control is exclusive. If a HIM or Terminal Block takes
manual control, no other device can take manual control until the
controlling device releases manual control.
2. If a HIM has manual control and power is removed from the drive,
the drive will return to Auto mode when power is reapplied.
Installation/Wiring
1-21
EMC Instructions
CE Conformity(1)
Conformity with the Low Voltage (LV) Directive and Electromagnetic
Compatibility (EMC) Directive has been demonstrated using
harmonized European Norm (EN) standards published in the Official
Journal of the European Communities. PowerFlex Drives comply with
the EN standards listed below when installed according to the
instructions in this manual and the Wiring and Grounding Guidelines for
Pulse Width Modulated (PWM) AC Drives, publication DRIVES-IN001.
CE Declarations of Conformity are available online at:
http://www.ab.com/certification/ce/docs.
Low Voltage Directive (73/23/EEC)
•
EN50178 Electronic equipment for use in power installations
EMC Directive (89/336/EEC)
•
EN61800-3 Adjustable speed electrical power drive systems Part 3:
EMC product standard including specific test methods.
General Notes
•
If the adhesive label is removed from the top of the drive, the drive
must be installed in an enclosure with side openings less than
12.5 mm (0.5 in.) and top openings less than 1.0 mm (0.04 in.) to
maintain compliance with the LV Directive.
•
The motor cable should be kept as short as possible in order to avoid
electromagnetic emission as well as capacitive currents.
•
Use of line filters in ungrounded systems is not recommended.
•
PowerFlex drives may cause radio interference if used in a
residential or domestic environment. The installer is required to take
measures to prevent interference, in addition to the essential
requirements for CE compliance provided in this section, if
necessary.
•
Conformity of the drive with CE EMC requirements does not
guarantee an entire machine or installation complies with CE EMC
requirements. Many factors can influence total machine/installation
compliance.
•
PowerFlex drives generate conducted low frequency disturbances
(harmonic emissions) on the AC supply system.
(1)
CE Certification testing has not been completed for 600 Volt class drives.
1-22
Installation/Wiring
General Notes (continued)
•
When operated on a public supply system, it is the responsibility of
the installer or user to ensure, by consultation with the distribution
network operator and Rockwell Automation if necessary, that
applicable requirements have been met.
Essential Requirements for CE Compliance
Conditions 1-6 listed below must be satisfied for PowerFlex drives to
meet the requirements of EN61800-3.
1. Standard PowerFlex 70 CE compatible Drive.
2. Review important precautions/attention statements throughout this
manual before installing the drive.
3. Grounding as described on page 1-5.
4. Output power, control (I/O) and signal wiring must be braided,
shielded cable with a coverage of 75% or better, metal conduit, or
equivalent attenuation.
5. All shielded cables should terminate with the proper shielded
connector.
6. Conditions in Table 1.K or 1.L.
Frame
Table 1.K PowerFlex 70 EN61800-3 EMC Compatibility
Drive Description
A Drive Only
with any Comm Option
with Remote I/O
B Drive Only
with any Comm Option
with Remote I/O
C Drive Only
with any Comm Option
with Remote I/O
D Drive Only
with any Comm Option
with Remote I/O
E Drive Only
with any Comm Option
with Remote I/O
(1)
Second Environment
Restrict Motor Internal
Cable to
Filter
40 m (131 ft.) Option
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
External
Filter
✔
✔
✔
First Environment
Input
Restricted
(1)
Ferrite
Distribution
✔
✔
Refer to Table 1.L
✔
✔
✔
Input cables through a Ferrite Core (Frames A, B and C Fair-Rite #2643102002 or equivalent,
Frames D and E Fair-Rite #2643251002 or equivalent).
Installation/Wiring
1-23
Frame
Table 1.L PowerFlex 70 EN61800-3 First Environment Restricted Distribution
A
B
C
D
E
(1)
(2)
(3)
Drive Description
Drive Only
Drive with any Comm Option
Drive with Remote I/O
Drive Only
Drive with any Comm Option
Drive with Remote I/O
Drive Only
Drive with any Comm Option
Drive with Remote I/O
Drive Only
Drive with any Comm Option
Drive with Remote I/O
Drive Only
Drive with any Comm Option
Drive with Remote I/O
First Environment Restricted Distribution
Restrict
Motor Cable Internal
External Comm Cable
to:
Filter Option Filter (1) Ferrite (2)
40 m (131 ft.) –
✔
–
40 m (131 ft.) –
✔
–
40 m (131 ft.) –
✔
✔
12 m (40 ft.) ✔
–
–
12 m (40 ft.) ✔
–
–
12 m (40 ft.) ✔
–
✔
12 m (40 ft.) –
–
–
12 m (40 ft.) –
–
–
12 m (40 ft.) –
–
✔
12 m (40 ft.) –
–
–
12 m (40 ft.) –
–
–
12 m (40 ft.) –
–
✔
30 m (98 ft.) –
✔
–
30 m (98 ft.) –
✔
–
30 m (98 ft.) –
✔
✔
Common
Mode Core (3)
–
–
–
–
–
–
✔
✔
✔
–
–
–
–
–
–
External filters for First Environment installations and increasing motor cable lengths in Second
Environment installations are available. Roxburgh models KMFA (RF3 for UL installations) and MIF
or Schaffner FN3258 and FN258 models are recommended. Refer to Table 1.M and http://
www.deltron-emcon.com and http://www.mtecorp.com (USA) or http://www.schaffner.com,
respectively.
Two turns of the blue comm option cable through a Ferrite Core (Frames A, B, C Fair-Rite
#2643102002, Frame D Fair-Rite #2643251002 or equivalent).
Refer to the 1321 Reactor and Isolation Transformer Technical Data publication, 1321-TD001x for
1321-Mxxx selection information.
1-24
Installation/Wiring
Table 1.M PowerFlex 70 Recommended Filters
Manufacturer
Part
Manufacturer Frame
Number (1)
Deltron
A
KMF306A
B w/o Filter KMF310A
B w/Filter
KMF306A
C
KMF318A
D
KMF336A
D w/o DC CM KMF336A
Capacitor
E
–
Schaffner
A
FN3258-7-45
B w/o Filter FN3258-7-45
B w/Filter
FN3258-7-45
C
FN3258-16-45
D
FN3258-30-47
D w/o DC CM FN3258-30-47
Capacitor
0
FN3258-16-45
1
FN3258-30-47
2
FN3258-42-47
2 w/o DC CM FN3258-42-47
Capacitor
3
FN3258-75-52
3 w/o DC CM FN3258-75-52
Capacitor
(1)
Class
A
(Meters)
25
50
100
–
150
–
B
(Meters)
25
25
50
150
5
50
Manufacturer
Part
Number (1)
–
–
MIF306
–
MIF330
–
Class
A
(Meters)
–
–
–
–
–
–
B
(Meters)
–
–
100
–
150
–
–
–
100
–
–
0
–
–
50
50
100
150
0
150
MIF3100
–
–
–
–
FN258-30-07
–
–
–
–
–
–
–
–
30
–
–
–
–
150
–
–
–
50
150
150
150
50
150
–
–
–
–
–
–
–
–
–
–
–
–
100
150
100
150
–
–
–
–
–
–
Use of these filters assumes that the drive is mounted in an EMC enclosure.
Chapter 2
Start Up
This chapter describes how you start up the PowerFlex 70 Drive. Refer
to Appendix B for a brief description of the LED and LCD HIM (Human
Interface Module).
For information on…
Prepare For Drive Start-Up
Status Indicators
Start-Up Routines
!
See page
2-1
2-2
2-3
For information on…
See page
Running S.M.A.R.T. Start
2-4
Running an Assisted Start Up 2-4
ATTENTION: Power must be applied to the drive to perform the
following start-up procedure. Some of the voltages present are at
incoming line potential. To avoid electric shock hazard or damage to
equipment, only qualified service personnel should perform the
following procedure. Thoroughly read and understand the procedure
before beginning. If an event does not occur while performing this
procedure, Do Not Proceed. Remove Power including user supplied
control voltages. User supplied voltages may exist even when main AC
power is not applied to the drive. Correct the malfunction before
continuing.
Prepare For Drive Start-Up
Before Applying Power to the Drive
❏ 1. Confirm that all inputs are connected to the correct terminals and are
secure.
❏ 2. Verify that AC line power at the disconnect device is within the rated
value of the drive.
❏ 3. Verify that control power voltage is correct.
The remainder of this procedure requires that a HIM be installed. If
an operator interface is not available, remote devices should be used
to start up the drive.
Important: When power is first applied, the HIM may require
approximately 5 seconds until commands are recognized
(including the Stop key).
2-2
Start Up
Applying Power to the Drive
❏ 4. Apply AC power and control voltages to the drive.
If any of the six digital inputs are configured to “Stop – CF”
(CF = Clear Fault) or “Enable,” verify that signals are present or the
drive will not start. Refer to Alarm Descriptions on page 4-7 for a list
of potential digital input conflicts.
If a fault code appears, refer to Chapter 4.
If the STS LED is not flashing green at this point, refer to Status
Indicators and their indications below.
❏ 5. Proceed to Start-Up Routines.
Status Indicators
Figure 2.1 Drive Status Indicators (Typical)
➋
➊
#
Name
➊
STS
Green
(Status)
Color
State
Description
Flashing
Drive ready, but not running and no faults are present.
Steady
Drive running, no faults are present.
Flashing,
Yellow
See page 4-7 Drive Stopped
Flashing,
Drive Running
An inhibit condition exists, the drive cannot be started.
Check parameter 214 [Start Inhibits].
An intermittent type 1 alarm condition is occurring.
Check parameter 211 [Drive Alarm 1].
Steady,
A continuous type 1 alarm condition exists.
Drive Running Check parameter 211 [Drive Alarm 1].
Flashing
Red
See page 4-3 Steady
➋ PORT
MOD
A fault has occurred.
A non-resetable fault has occurred.
Refer to the Communication Status of DPI port internal communications (if present).
Adapter User Manual.
Status of communications module (when installed).
NET A
Status of network (if connected).
NET B
Status of secondary network (if connected).
Start Up
2-3
Start-Up Routines
The PowerFlex 70 is designed so that start up is simple and efficient. If
you have an LCD HIM, two start-up methods are provided, allowing the
user to select the desired level needed for the application.
•
S.M.A.R.T. Start
This routine allows you to quickly set up the drive by programming
values for the most commonly used functions (see below).
•
Assisted Start Up
This routine prompts you for information that is needed to start up a
drive for most applications, such as line and motor data, commonly
adjusted parameters and I/O. With Enhanced Control, two levels of
Assisted Start Up are provided; Basic and Detailed.
Figure 2.2 Standard Control Start Up Menu
Main Menu:
Start-Up
(1)
Input Voltage
Motor Data and
Ramp Times
Motor Tests
Configure for
Alternate Input
Voltage
Enter Motor NP
Data, Stop Mode,
Accel/Decel
Ramp Times
Optimize Torque
and
Verify Direction
Speed Limits
Set Min/Max
Speed and
Direction Control
Speed Control
Start/Stop/I/O
Done /
Exit
Configure
Configure
Source, Value
Control Method
and Scale for
(2 Wire/3 Wire), I/O,
Speed References Digital Inputs/Outputs
and Analog Outputs
If you do not have an LCD HIM, you must set parameters individually
using the LED HIM or other configuration tools, Refer to Chapter 3 for
parameters.
Important: Power must be applied to the drive when viewing or
changing parameters. Previous programming may affect the
drive status when power is applied.
Figure 2.3 Enhanced Control Start Up Menu
Main Menu:
Start-Up
(1)
Motor Control
Select
Motor Data and
Ramp Times
Motor Tests
Configures
Motor Control
Method
Enter Motor NP
Data, Stop Mode,
Accel/Decel
Ramp Times
Optimize Torque
and
Verify Direction
(1)
Speed Limits
Set Min/Max
Speed and
Direction Control
Speed/Torque
Control
Start/Stop/I/O
Configure
Configure
Source, Value
Control Method
and Scale for
(2 Wire/3 Wire), I/O,
Speed References Digital Inputs/Outputs
and Analog Outputs
Application
Configure
for Specific
Application
During “Motor Tests” the drive may modify some parameter values. It may be
necessary to review previously set values.
Done /
Exit
2-4
Start Up
Running S.M.A.R.T. Start
During a Start Up, the majority of applications require changes to only a
few parameters. The LCD HIM on a PowerFlex 70 drive offers
S.M.A.R.T. start, which displays the most commonly changed
parameters. With these parameters, you can set the following functions:
S - Start Mode and Stop Mode
M - Minimum and Maximum Speed
A - Accel Time 1 and Decel Time 1
R - Reference Source
T - Thermal Motor Overload
To run a S.M.A.R.T. start routine:
Step
Key(s)
1. Press ALT and then Esc (S.M.A.R.T). The
ALT
S.M.A.R.T. start screen appears.
2. View and change parameter values as
desired. For HIM information, see
Appendix B.
3. Press Esc to exit the S.M.A.R.T. start.
Example LCD Displays
Esc
F-> Stopped
Auto
0.0 Hz
SMART List:
Esc
Main
Menu:In2 Sel
Digital
Diagnostics
Stop Mode A
Minimum Speed
Parameter
Running an Assisted Start Up
Important: This start-up routine requires an LCD HIM.
The Assisted start-up routine asks simple yes or no questions and
prompts you to input required information. Access Assisted Start Up by
selecting “Start Up” from the Main Menu.
To perform an Assisted Start-Up
Step
1. In the Main Menu, press the Up Arrow or
Down Arrow to scroll to “Start Up”.
2. Press Enter.
Key(s)
Example LCD Displays
F-> Stopped
0.0 Hz
Main Menu:
Memory Storage
Start Up
Preferences
Auto
Chapter 3
Programming and Parameters
Chapter 3 provides a complete listing and description of the
PowerFlex 70 parameters. The parameters can be programmed (viewed/
edited) using an LED or LCD HIM (Human Interface Module).
As an alternative, programming can also be performed using
DriveExplorer™ or DriveExecutive™ software and a personal computer.
Refer to Appendix B for brief descriptions of the LED and LCD Human
Interface Modules.
For information on…
About Parameters
How Parameters are Organized
Monitor File (File A)
Motor Control File (File B)
Speed Command File (File C)
Dynamic Control File (File D)
Utility File (File E)
Communication File (File H)
Inputs & Outputs File (File J)
Applications File (File K)
Parameter Cross Reference – by Name
See page…
3-1
3-3
3-11
3-13
3-20
3-29
3-36
3-47
3-52
3-59
3-60
About Parameters
To configure a drive to operate in a specific way, drive parameters may
have to be set. Three types of parameters exist:
•
ENUM Parameters
ENUM parameters allow a selection from 2 or more items. The LCD
HIM will display a text message for each item. The LED HIM will
display a number for each item.
•
Bit Parameters
Bit parameters have individual bits associated with features or
conditions. If the bit is 0, the feature is off or the condition is false. If
the bit is 1, the feature is on or the condition is true.
•
Numeric Parameters
These parameters have a single numerical value (i.e. 0.1 Volts).
The example on the following page shows how each parameter type is
presented in this manual.
Programming and Parameters
Parameter Name & Description
Values
Default:
No.
➊
➋
➌
(1)
(1)
(1)
“Ready”
0
1
2
3
“Ready”
“User Set 1”
“User Set 2”
“User Set 3”
199
In6
D
In5 Log
R
In4 DLog slt
D R
In3 Log slt
D R
In2 Log slt
D R
In1 Log slt
DL Rsl
og t
Rs
lt
Dig
ita
Dig l In
i 6
Dig tal In
i 5
Dig tal In
it 4
Dig al In
i 3
Dig tal In
ita 2
l In
1
Status of the digital
inputs.
059
Options:
0
(1)
Drive . . .
Loads a previously saved set of
parameter values from a selected user
set location in drive nonvolatile memory
to active drive memory.
Diagnostics
Torq . . .
MOTOR . . .
UTILITY (File E)
198 [Load Frm Usr Set]
216 [Dig In Status]
➏
Related
➎
(1)
No.
Group
File
➊➋➌➍
(1)
3-2
x x 0 0 0 0 0 0 x x 0 0 0 0 0 0 1 =Input Present
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 =Input Not Present
x =Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
(1)
Enhanced firmware 2.001 & later.
Default: 500
[SV Boost Filter]
EC
Sets the amount of filtering used to boost Min/Max: 0/32767
voltage during Sensorless Vector
Units:
1
operation.
Description
File – Lists the major parameter file category.
Group – Lists the parameter group within a file.
= Parameter value can not be changed until drive is stopped.
No. – Parameter number.
32
EC
32
= 32 bit parameter.
= 32 bit parameter in Enhanced Control drives only.
FV = Parameter only displayed when [Motor Cntl Sel] is set to “4.”
➍
Parameter Name & Description – Parameter name as it appears on an LCD HIM, with a brief
description of the parameters function.
Standard
➎
= This parameter is specific to Standard Control drives.
= This parameter will only be available with Enhanced Control drives.
EC
Values – Defines the various operating characteristics of the parameter. Three types exist.
ENUM Default:
Lists the value assigned at the factory. “Read Only” = no default.
Options:
Bit
Bit #:
Numeric Default:
Min/Max:
Units:
Displays the programming selections available.
Lists the bit place holder and definition for each bit.
Lists the value assigned at the factory. “Read Only” = no default.
The range (lowest and highest setting) possible for the parameter.
Unit of measure and resolution as shown on the LCD HIM.
Important: Some parameters will have two unit values:
• Analog inputs can be set for current or voltage with 320 [Anlg In Config].
• Values that pertain to Enhanced Control drives only will be indicated by “
➏
EC
.”
Important: When sending values through DPI ports, simply remove the decimal
point to arrive at the correct value (i.e. to send “5.00 Hz,” use “500”).
Related – Lists parameters (if any) that interact with the selected parameter. The symbol “
indicates that additional parameter information is available in Appendix C.
”
Programming and Parameters
3-3
How Parameters are Organized
LED HIM (Human Interface Module)
The LED HIM displays parameters in Numbered List order. Parameters
are accessed by first selecting the file letter then a parameter number.
Important: The PowerFlex 70 Enhanced Control drive does not support
the LED HIM.
File Letter Designations
The LED HIM identifies each parameter by File Letter and Parameter
Number.
F
M
R
Utility
Log In
Out
Esc
Device
Auto/Man
Sel
Remove
Parameter 197:
Reset to Defaults
File E
JOG
ALT
LCD HIM (Human Interface Module)
The LCD HIM displays parameters in a File-Group-Parameter or
Numbered List view order. To switch display mode, access the Main
Menu, press ALT then Sel while cursor is on the parameter selection. In
addition, using 196 [Param Access Lvl], the user has the option to
display all parameters, commonly used parameters or diagnostic
parameters.
Control Options
Two different control options are available for the PowerFlex 70;
Standard and Enhanced. Standard Control drives provide Volts per Hertz
and Sensorless Vector operation. Enhanced Control drives support the
addition of FVC Vector Control, DriveGuard Safe Off option and more.
3-4
Programming and Parameters
File-Group-Parameter View
This simplifies programming by grouping parameters that are used for
similar functions. The parameters are organized into 6 files in Basic
Parameter view or 7 files in Advanced Parameter view. Each file is
divided into groups, and each parameter is an element in a group. By
default, the LCD HIM displays parameters by File-Group-Parameter
view.
Numbered List View
All parameters are in numerical order.
Programming and Parameters
3-5
Basic Parameter View – Standard Control
Parameter 196 [Param Access Lvl] set to option 0 “Basic.”
File
Group
Parameters
Monitor
Metering
Output Freq
Commanded Freq
Output Current
DC Bus Voltage
001
002
003
012
Motor Data
Motor NP Volts
Motor NP FLA
Motor NP Hertz
041
042
043
Torq Attributes
Torque Perf Mode 053
Maximum Voltage 054
Spd Mode &
Limits
Minimum Speed 081
Maximum Speed 082
Speed
References
Speed Ref A Sel 090
Speed Ref A Hi 091
Speed Ref A Lo 092
Discrete
Speeds
Jog Speed
100
Preset Speed 1-7 101-107
Ramp Rates
Accel Time 1
Accel Time 2
140
141
Load Limits
Current Lmt Sel
Current Lmt Val
147
148
Stop/Brake
Modes
Stop Mode A
Stop Mode B
Monit
or
File A
Motor Control
Motor OL Hertz
047
Speed Ref B Sel 093
Speed Ref B Hi 094
Speed Ref B Lo 095
TB Man Ref Sel
TB Man Ref Hi
TB Man Ref Lo
096
097
098
Decel Time 1
Decel Time 2
142
143
S Curve %
146
155
156
DC Brk Lvl Sel
DC Brake Level
DC Brake Time
157
158
159
Bus Reg Mode A 161
Bus Reg Mode B 162
DB Resistor Type 163
Restart Modes
Start At PowerUp 168
Auto Rstrt Tries
174
Auto Rstrt Delay
175
Power Loss
Power Loss Mode 184
Power Loss Time 185
Motor
Contro
l
Motor NP RPM
044
Motor NP Power 045
Mtr NP Pwr Units 046
Maximum Freq
Autotune
055
061
File B
Speed
Command
Speed
Comm
and
File C
Dynamic
Control
Dynam
ic Con
trol
File D
Utility
Direction Config Direction Mode
Utility
File E
Inputs &
Outputs
Inputs
& Out
puts
File J
190
Drive Memory
Param Access Lvl 196
Reset To Defalts 197
Load Frm Usr Set 198
Save To User Set 199
Language
201
Diagnostics
Start Inhibits
214
Dig In Status
216
Dig Out Status
217
Faults
Fault Config 1
238
Analog Inputs
Anlg In Config
320
Analog In1 Hi
Analog In1 Lo
322
323
Analog In2 Hi
Analog In2 Lo
325
326
Digital Out2 Sel
Dig Out2 Level
384
385
Analog Outputs Analog Out1 Sel
Analog Out1 Hi
Analog Out1 Lo
342
343
344
Digital Inputs
Digital In1-6 Sel
361-366
Digital Outputs
Digital Out1 Sel
Dig Out1 Level
380
381
3-6
Programming and Parameters
Basic Parameter View – Enhanced Control
Parameter 196 [Param Access Lvl] set to option 0 “Basic.”
File
Group
Parameters
Monitor
Metering
Output Freq
001
Commanded Freq 002
Output Current
003
Torque Current
004
DC Bus Voltage 012
Commanded Torque**024
Motor Data
Motor NP Volts
Motor NP FLA
Motor NP Hertz
041
042
043
Motor NP RPM
044
Motor NP Power 045
Mtr NP Pwr Units 046
Motor OL Hertz
Motor Poles
Torq Attributes
Motor Cntl Sel
053
Maximum Voltage 054
Maximum Freq
055
Autotune
061
Autotune Torque** 066
Inertia Autotune** 067
Torque Ref A Sel** 427
Torque Ref A Hi** 428
Torque Ref A Lo** 429
Pos Torque Limit** 436
Neg Torque Limit** 437
Speed
Feedback
Motor Fdbk Type** 412
Encoder PPR** 413
Spd Mode &
Limits
Feedback Select 080
Minimum Speed 081
Maximum Speed 082
Speed
References
Speed Ref A Sel 090
Speed Ref A Hi 091
Speed Ref A Lo 092
Speed Ref B Sel 093
Speed Ref B Hi 094
Speed Ref B Lo 095
Discrete
Speeds
Jog Speed 1
100
Preset Speed 1-7 101-107 Jog Speed 2
108
Ramp Rates
Accel Time 1
Accel Time 2
140
141
Decel Time 1
Decel Time 2
142
143
146
Load Limits
Current Lmt Sel
147
Current Lmt Val
148
Stop/Brake
Modes
Stop/Brk Mode A 155
Stop/Brk Mode B 156
DC Brake Lvl Sel 157
DC Brake Level 158
DC Brake Time 159
Bus Reg Mode A 161
Bus Reg Mode B 162
DB Resistor Type 163
Restart Modes
Start At PowerUp 168
Auto Rstrt Tries
Auto Rstrt Delay
175
Power Loss
Power Loss Mode 184
Power Loss Time 185
Monit
or
File A
Motor Control
Motor
Contro
l
File B
Speed
Command
Speed
Comm
and
File C
Dynamic
Control
Dynam
ic Con
trol
File D
Utility
Direction Config Direction Mode
Utility
File E
Inputs &
Outputs
Inputs
& Out
puts
File J
174
TB Man Ref Sel
TB Man Ref Hi
TB Man Ref Lo
S Curve %
047
049
096
097
098
190
Drive Memory
Param Access Lvl 196
Reset To Defalts 197
Load Frm Usr Set 198
Save To User Set 199
Language
201
Diagnostics
Start Inhibits
214
Dig In Status
216
Dig Out Status
217
Faults
Fault Config 1
238
Analog Inputs
Anlg In Config
320
Analog In 1 Hi
Analog In 2 Hi
322
325
Analog In 1 Lo
Analog In 2 Lo
323
326
342
Analog Out1 Hi
Analog Out1 Lo
343
344
Dig Out1 Level
Dig Out2 Level
381
385
Analog Outputs Analog Out1 Sel
Digital Inputs
Digital In1-6 Sel
361-366
Digital Outputs
Digital Out1 Sel
Digital Out2 Sel
380
384
Programming and Parameters
3-7
Advanced Parameter View – Standard Control
Parameter 196 [Param Access Lvl] set to option 1 “Advanced.”
File
Group
Parameters
Monitor
Metering
Output Freq
Commanded Freq
Output Current
Torque Current
Flux Current
001
002
003
004
005
Output Voltage
006
Output Power
007
Output Powr Fctr 008
Elapsed MWh
009
Elapsed Run Time 010
Drive Data
Rated kW
Rated Volts
026
027
Rated Amps
Control SW Ver
028
029
Motor Data
Motor Type
Motor NP Volts
Motor NP FLA
Motor NP Hertz
040
041
042
043
Motor NP RPM
Motor NP Power
Mtr NP Pwr Units
Motor OL Hertz
Torq Attributes
Torque Perf Mode 053
Maximum Voltage 054
Maximum Freq
055
Compensation
Flux Up Mode
Flux Up Time
Volts per Hertz
StAcc Boost
Run Boost
069
070
Break Voltage
071
Break Frequency 072
Spd Mode &
Limits
Speed Mode
080
Minimum Speed 081
Maximum Speed 082
Overspeed Limit 083
Skip Frequency 1 084
Skip Frequency 2 085
Skip Frequency 3 086
Skip Freq Band 087
Speed
References
Speed Ref A Sel 090
Speed Ref A Hi 091
Speed Ref A Lo 092
Speed Ref B Sel 093
Speed Ref B Hi 094
Speed Ref B Lo 095
TB Man Ref Sel
TB Man Ref Hi
TB Man Ref Lo
096
097
098
Discrete
Speeds
Jog Speed
100
Preset Speed 1-7 101-107
Speed Trim
Trim In Select
Trim Out Select
Slip Comp
Monit
or
File A
Motor Control
Motor
Contro
l
File B
Speed
Command
Speed
Comm
and
File C
Dynam
011
012
013
016
017
044
045
046
047
Motor OL Factor
048
056
057
058
Autotune
IR Voltage Drop
Flux Current Ref
061
062
063
Trim Hi
Trim Lo
119
120
Slip RPM @ FLA 121
Slip Comp Gain 122
Slip RPM Meter
123
Process PI
PI Configuration
PI Control
PI Reference Sel
PI Setpoint
PI Feedback Sel
124
125
126
127
128
PI Integral Time
PI Prop Gain
PI Lower Limit
PI Upper Limit
PI Preload
129
130
131
132
133
PI Status
PI Ref Meter
PI Fdback Meter
PI Error Meter
PI Output Meter
134
135
136
137
138
Ramp Rates
Accel Time 1
Accel Time 2
140
141
Decel Time 1
Decel Time 2
142
143
S Curve %
146
trol
Load Limits
Current Lmt Sel 147
Current Lmt Val 148
Current Lmt Gain 149
Drive OL Mode
150
PWM Frequency 151
File D
Stop/Brake
Modes
Stop Mode A
155
Stop Mode B
156
DC Brake Lvl Sel 157
DC Brake Level
DC Brake Time
Bus Reg Gain
158
159
160
Bus Reg Mode A 161
Bus Reg Mode B 162
DB Resistor Type 163
Restart Modes
Start At PowerUp 168
Flying Start En
169
Flying StartGain
Auto Rstrt Tries
170
174
Auto Rstrt Delay
Power Loss
Power Loss Mode 184
Power Loss Time 185
Dynamic
Control
ic Con
117
118
MOP Frequency
DC Bus Voltage
DC Bus Memory
Analog In1 Value
Analog In2 Value
175
3-8
Programming and Parameters
File
Group
Utility
Direction Config Direction Mode
Utility
190
HIM Ref Config Save HIM Ref
192
Man Ref Preload 193
MOP Config
Save MOP Ref
MOP Rate
Drive Memory
Param Access Lvl 196
Reset To Defalts 197
Load Frm Usr Set 198
Save To User Set 199
Reset Meters
200
Language
201
Voltage Class
Drive Checksum
202
203
Diagnostics
Drive Status 1
Drive Status 2
Drive Alarm 1
Drive Alarm 2
Speed Ref Source
Start Inhibits
Last Stop Source
Dig In Status
209
210
211
212
213
214
215
216
Dig Out Status
Drive Temp
Drive OL Count
Motor OL Count
Fault Frequency
Fault Amps
Fault Bus Volts
Status 1 @ Fault
Status 2 @ Fault
Alarm 1 @ Fault
Alarm 2 @ Fault
Testpoint 1 Sel
Testpoint 1 Data
Testpoint 2 Sel
Testpoint 2 Data
228
229
230
234
235
236
237
Faults
Fault Config 1
Fault Clear
238
240
Fault Clear Mode 241
Power Up Marker 242
Fault 1-4 Code
Fault 1-4 Time
243-249
244-250
Alarms
Alarm Config 1
259
DPI Data Rate
Drive Logic Rslt
270
271
Drive Ref Rslt
Drive Ramp Rslt
272
273
Masks &
Owners
Logic Mask
Start Mask
Jog Mask
Direction Mask
Reference Mask
Accel Mask
Decel Mask
276
277
278
279
280
281
282
Fault Clr Mask
MOP Mask
Local Mask
Stop Owner
Start Owner
Jog Owner
Direction Owner
283
284
285
288
289
290
291
Reference Owner
Accel Owner
Decel Owner
Fault Clr Owner
MOP Owner
Local Owner
292
293
294
295
296
297
Datalinks
Data In A1-D2
Data Out A1-D2
300-307
310-317
Analog Inputs
Anlg In Config
Anlg In Sqr Root
320
321
Analog In 1 Hi
Analog In 1 Lo
Anlg In 1 Loss
322
323
324
Analog In 2 Hi
Analog In 2 Lo
Anlg In 2 Loss
325
326
327
Analog Out1 Hi
Analog Out1 Lo
343
344
Digital Out2 Sel
Dig Out2 Level
Dig Out2 OnTime
Dig Out2 OffTime
384
385
386
387
File E
Communication Comm Control
Comm
unicat
ion
File H
Inputs &
Outputs
Inputs
Parameters
194
195
& Out
puts
Analog Outputs Anlg Out Absolut 341
Analog Out1 Sel 342
File J
Digital Inputs
Digital In1-6 Sel
361-366
Digital Outputs
Digital Out1 Sel
Dig Out1 Level
Dig Out1 OnTime
Dig Out1 OffTime
380
381
382
383
217
218
219
220
224
225
226
227
Programming and Parameters
3-9
Advanced Parameter View – Enhanced Control
Parameter 196 [Param Access Lvl] set to option 1 “Advanced.”
File
Group
Parameters
Monitor
Metering
Output Freq
Commanded Freq
Output Current
Torque Current
Flux Current
Output Voltage
Output Power
001
002
003
004
005
006
007
Output Powr Fctr 008
Elapsed MWh
009
Elapsed Run Time 010
MOP Frequency 011
DC Bus Voltage 012
DC Bus Memory 013
Elapsed kWh
014
Drive Data
Rated kW
Rated Volts
026
027
Rated Amps
Control SW Ver
028
029
Motor Data
Motor Type
Motor NP Volts
Motor NP FLA
Motor NP Hertz
040
041
042
043
Motor NP RPM
Motor NP Power
Mtr NP Pwr Units
Motor OL Hertz
044
045
046
047
Torq Attributes
Motor Cntl Sel
Maximum Voltage
Maximum Freq
Compensation
Flux Up Mode
Flux Up Time
SV Boost Filter
053
054
055
056
057
058
059
Autotune
061
IR Voltage Drop 062
Flux Current Ref 063
Ixo Voltage Drop 064
Autotune Torque** 066
Inertia Autotune** 067
Torque Ref A Sel** 427
Volts per Hertz
StAcc Boost*
Run Boost*
069
070
Break Voltage*
071
Break Frequency* 072
Speed
Feedback
Motor Fdbk Type 412
Encoder PPR
413
Enc Pos Feedback 414
Encoder Speed 415
Fdbk Filter Sel** 416
Notch FilterFreq** 419
Notch Filter K** 420
Spd Mode &
Limits
Feedback Select
Minimum Speed
Maximum Speed
Overspeed Limit
080
081
082
083
Skip Frequency 1 084
Skip Frequency 2 085
Skip Frequency 3 086
Skip Freq Band 087
Speed/Torque Mod**088
Rev Speed Limit 454
Speed
References
Speed Ref A Sel 090
Speed Ref A Hi 091
Speed Ref A Lo 092
Speed Ref B Sel 093
Speed Ref B Hi 094
Speed Ref B Lo 095
TB Man Ref Sel
TB Man Ref Hi
TB Man Ref Lo
Discrete
Speeds
Jog Speed 1
100
Preset Speed 1-7 101-107 Jog Speed 2
108
Speed Trim
Trim % Setpoint
116
Trim In Select
Trim Out Select
Trim Hi
Trim Lo
119
120
Monit
or
File A
Motor Control
Motor
Contro
l
File B
Speed
Command
Speed
Comm
and
File C
Dynamic
Control
Dynam
Motor OL Factor
Motor Poles
Motor OL Mode
048
049
050 3.x
Torque Ref A Hi** 428
Torque Ref A Lo** 429
Torque Setpoint1** 435
Pos Torque Limit** 436
Neg Torque Limit** 437
Control Status** 440
Torq Current Ref** 441
096
097
098
Slip Comp
Slip RPM @ FLA 121
Slip Comp Gain* 122
Slip RPM Meter
123
Process PI
PI Configuration
PI Control
PI Reference Sel
PI Setpoint
PI Feedback Sel
PI Integral Time
PI Prop Gain
PI Lower Limit
PI Upper Limit
PI Preload
PI Status
PI Ref Meter
PI Fdback Meter
PI Error Meter
PI Output Meter
PI BW Filter
PI Deriv Time
PI Reference Hi
PI Reference Lo
PI Feedback Hi
PI Feedback Lo
138
139
459
460
461
462
463
Speed
Regulator
Ki Speed Loop** 445
Kp Speed Loop** 446
Kf Speed Loop** 447
Spd Err Filt BW 448 3.x
Speed Desired BW**449
Total Inertia**
450
Speed Loop Meter**451
Restart Modes
Powerup Delay
Start At PowerUp
Flying Start En
Flying StartGain
Auto Rstrt Tries
Auto Rstrt Delay
Sleep Wake Mode
Sleep Wake Ref
Wake Level
Wake Time
Sleep Level
Sleep Time
180
181
182
183
Power Loss
Gnd Warn Level 177
Power Loss Mode 184
Power Loss Time 185
Load Loss Level 187
Load loss Time
188
Ramp Rates
Accel Time 1
Accel Time 2
Decel Time 1
Decel Time 2
S Curve %
146
Load Limits
Current Lmt Sel 147
Current Lmt Val 148
Current Lmt Gain 149
ic Con
trol
File D
117
118
Torque Estimate 015 3.x
Analog In1 Value 016
Analog In2 Value 017
Ramped Speed 022
Speed Reference 023
Commanded Torque**024
Speed Feedback 025
124
125
126
127
128
129
130
167
168
169
170
140
141
131
132
133
134
135
136
137
174
175
178
179
142
143
Drive OL Mode
150
PWM Frequency 151
Droop [email protected] 152
Regen Power Lim**153
Current Rate Lim** 154
Shear Pin Time* 189
3-10
Programming and Parameters
File
Group
Parameters
Dynamic
Control
continued
Stop/Brake
Modes
DB While Stopped
Stop/Brk Mode A
Stop/Brk Mode B
DC Brake Lvl Sel
DC Brake Level
Utility
Direction Config Direction Mode
Utility
190
192
MOP Rate
195
Drive Memory
Param Access Lvl
Reset To Defalts
Load Frm Usr Set
Save To User Set
196
197
198
199
Reset Meters
Language
Voltage Class
Drive Checksum
200
201
202
203
Dyn UsrSet Cnfg 204
Dyn UserSet Sel 205
Dyn UserSet Actv 206
Diagnostics
Drive Status 1
Drive Status 2
Drive Alarm 1
Drive Alarm 2
Speed Ref Source
Start Inhibits
Last Stop Source
Dig In Status
Dig Out Status
209
210
211
212
213
214
215
216
217
Drive Temp
Drive OL Count
Motor OL Count
Mtr OL Trip Time
Drive Status 3
Status 3 @ Fault
Fault Frequency
Fault Amps
Fault Bus Volts
218
219
220
221 3.x
222 3.x
223 3.x
224
225
226
Status 1 @ Fault
Status 2 @ Fault
Alarm 1 @ Fault
Alarm 2 @ Fault
Testpoint 1 Sel
Testpoint 1 Data
Testpoint 2 Sel
Testpoint 2 Data
227
228
229
230
234
235
236
237
Faults
Fault Config 1
Fault Clear
238
240
Fault Clear Mode 241
Power Up Marker 242
Fault 1-4 Code
Fault 1-4 Time
243-249
244-250
Alarms
Alarm Config 1
259
DPI Data Rate
Drive Logic Rslt
Drive Ref Rslt
270
271
272
Drive Ramp Rslt
DPI Port Select
DPI Port Value
273
274
275
DPI Ref Select
298
Masks &
Owners
Logic Mask
Start Mask
Jog Mask
Direction Mask
Reference Mask
Accel Mask
Decel Mask
276
277
278
279
280
281
282
Fault Clr Mask
MOP Mask
Local Mask
Stop Owner
Start Owner
Jog Owner
Direction Owner
283
284
285
288
289
290
291
Reference Owner
Accel Owner
Decel Owner
Fault Clr Owner
MOP Owner
Local Owner
292
293
294
295
296
297
Datalinks
Data In A1-D2
300-307 HighRes Ref
308
Data Out A1-D2
310-317
Security
PortMask Act
Write Mask Cfg
595
596
Write Mask Act
Logic Mask
597
276
Logic Mask Act
598
Analog Inputs
Anlg In Config
Anlg In Sqr Root
Analog In 1 Hi
320
321
322
Analog In 1 Lo
323
Analog In 1 Loss 324
Analog In 2 Hi
325
Analog In 2 Lo
326
Analog In 2 Loss 327
Analog Out1 Hi
Analog Out1 Lo
Anlg Out Scale
343
344
354
Anlg Out1 Setpt
411
File H
& Out
puts
Analog Outputs Anlg Out Config 340
Anlg Out Absolut 341
Analog Out1 Sel 342
Digital Inputs
Digital In1-6 Sel
361-366 DigIn DataLogic
Digital Outputs
Dig Out Setpt
Digital Out1 Sel
Dig Out1 Level
379
380
381
Dig Out1 OnTime 382
Dig Out1 OffTime 383
Digital Out2 Sel 384
Fiber Control
Fiber Status
Sync Time
620 3.x
621 3.x
622 3.x
Traverse Inc
Traverse Dec
Max Traverse
Applications 3.x Fiber
Functions 3.x
Applic
at
ions
164
165
166
194
ion
File J
Bus Reg Kp*
Bus Reg Kd*
Flux Braking
Save MOP Ref
unicat
Inputs
159
160
161
162
163
MOP Config
Communication Comm Control
Inputs &
Outputs
DC Brake Time
Bus Reg Ki*
Bus Reg Mode A
Bus Reg Mode B
DB Resistor Type
HIM Ref Config AutoMan Cnfg
File E
Comm
145
155
156
157
158
623 3.x
624 3.x
625 3.x
377
Dig Out2 Level
385
Dig Out2 OnTime 386
Dig Out2 OffTime 387
P Jump
626 3.x
File K
* These parameters will only be displayed when parameter 053 [Motor Cntl Sel] is set to option “2 or 3.”
** These parameters will only be displayed when parameter 053 [Motor Cntl Sel] is set to option “4.”
3.x Firmware 3.002 & later only.
Programming and Parameters
3-11
Related
No.
Group
File A
Monitor File (File A)
Parameter Name and Description
See page 3-2 for symbol descriptions
001 [Output Freq]
Values
Default:
Read Only
Output frequency present at T1, T2 & T3 Min/Max: –/+[Maximum Freq]
(U, V & W)
Units:
0.1 Hz
Default: Read Only
002 [Commanded Freq]
Value of the active frequency command.
003 [Output Current]
Min/Max: –/+[Maximum Speed]
Units:
0.1 Hz
Default: Read Only
The total output current present at T1, T2 Min/Max: 0.0/Drive Rated Amps × 2
& T3 (U, V & W).
Units:
0.1 Amps
0.01 Amps E C
Default: Read Only
004 [Torque Current]
EC
32
The amount of current that is in phase
Min/Max: Drive Rating × –2/+2
with the fundamental voltage component. Units:
0.1 Amps
0.01 Amps E C
Default: Read Only
005 [Flux Current]
EC
32
The amount of current that is out of phase Min/Max: Drive Rating × –2/+2
with the fundamental voltage component. Units:
0.1 Amps
0.01 Amps E C
Default: Read Only
006 [Output Voltage]
EC
Metering
MONITOR (File A)
32
Output voltage present at terminals T1,
T2 & T3 (U, V & W).
007 [Output Power]
Min/Max: 0.0/Drive Rated Volts
Units:
0.1 VAC
Default: Read Only
Output power present at T1, T2 & T3 (U, V Min/Max: 0.0/Drive Rated kW × 2
& W).
Units:
0.1 kW
0.01 kW E C
Default: Read Only
008 [Output Powr Fctr]
EC
32
Output power factor.
009 [Elapsed MWh]
32
Accumulated output energy of the drive.
010 [Elapsed Run Time]
32
Accumulated time drive is outputting
power.
011 [MOP Frequency]
Value of the signal at MOP (Motor
Operated Potentiometer).
012 [DC Bus Voltage]
Present DC bus voltage level.
013 [DC Bus Memory]
Min/Max: 0.00/1.00
Units:
0.01
Default: Read Only
Min/Max: 0.0/429496729.5 MWh
Units:
0.1 MWh
Default: Read Only
Min/Max: 0.0/429496729.5 Hrs
Units:
0.1 Hrs
Default: Read Only
Min/Max: –/+[Maximum Frequency]
Units:
0.1 Hz
Default: Read Only
Min/Max: 0.0/Drive Rating Based
Units:
0.1 VDC
Default: Read Only
6 minute average of DC bus voltage level. Min/Max: 0.0/Drive Rating Based
Units:
0.1 VDC
014
32
Related
No.
Programming and Parameters
Group
File A
3-12
Parameter Name and Description
See page 3-2 for symbol descriptions
[Elapsed kWh]
EC
Accumulated output energy of the drive.
015
Values
Default:
Read Only
Min/Max: 0.0/429496729.5 kWh
Units:
0.1 kWh
Default: Read Only
[Torque Estimate]
E C v3
Estimated motor torque output as percent Min/Max: –/+800.0 %
of motor rated torque.
Units:
0.1 %
Default: Read Only
016 [Analog In1 Value]
017 [Analog In2 Value]
MONITOR (File A)
Metering
Value of the signal at the analog inputs.
022
[Ramped Speed]
EC
The value shown is the value after the
accel/decel ramp but prior to any
corrections supplied by slip comp, PI, etc.
023
[Speed Reference]
EC
Summed value of ramped speed and
Process PI.
024
E C v2
[Commanded Torque]
Min/Max: 0.000/20.000 mA
–/+10.000V
Units:
0.001 mA
0.001 Volt
Default: Read Only
Min/Max: –/+500.0 Hz
Units:
0.1 Hz
Default:
Read Only
Min/Max: –/+500.0 Hz
Units:
0.1 Hz
Default: Read Only
053
FV Final torque reference value after limits & Min/Max: –/+800.0%
025
filtering are applied. % motor rated torque. Units:
Default:
[Speed Feedback]
E C v2
0.1%
Read Only
053
Value of actual motor speed, measured by Min/Max: –/+500.0 Hz
encoder feedback or estimated.
Units:
0.1 Hz
Default: Read Only
026 [Rated kW]
32
Drive power rating.
Drive Data
027 [Rated Volts]
The drive input voltage class (208, 240,
400 etc.).
028 [Rated Amps]
The drive rated output current.
029 [Control SW Ver]
Main Control Board software version.
Min/Max: 0.37/15.0 kW
0.00/300.00 kW
Units:
0.01 kW
Default: Read Only
Min/Max: 208/600 Volt
0.0/6553.5 Volt
Units:
0.1 VAC
Default: Read Only
Min/Max: 1.1/32.2 Amps
0.0/6553.5 Amps
Units:
0.1 Amps
Default: Read Only
Min/Max: 0.000/65.256
0.0/65.535 E C
Units:
0.001
EC
EC
EC
196
Programming and Parameters
3-13
Related
No.
Group
File B
Motor Control File (File B)
Parameter Name and Description
See page 3-2 for symbol descriptions
040 [Motor Type]
Values
Default:
Set to match the type of motor connected. Options:
041 [Motor NP Volts]
Set to the motor nameplate rated volts.
042 [Motor NP FLA]
Default:
0
“Induction”
0
“Induction”
1
“Synchr Reluc”
2
“Synchr PM”
Drive Rating Based
Min/Max: 0.0/[Rated Volts]
Units:
0.1 VAC
Default: Drive Rating Based
Set to the motor nameplate rated full load Min/Max: 0.0/[Rated Amps] × 2
amps.
Units:
0.1 Amps
Default: Drive Rating Based
043 [Motor NP Hertz]
044 [Motor NP RPM]
Motor Data
MOTOR CONTROL (File B)
Set to the motor nameplate rated
frequency.
Set to the motor nameplate rated RPM.
045 [Motor NP Power]
Set to the motor nameplate rated power.
32
(1) See [Mtr NP Pwr Units]
046 [Mtr NP Pwr Units]
Min/Max: 5.0/400.0 Hz
5.0/500.0 Hz E C
Units:
0.1 Hz
Default: Drive Rating Based
Min/Max: 60/30000 RPM
Units:
1 RPM
Default: Drive Rating Based
Default:
0
“Horsepower”
1
“kiloWatts”
Motor NP Hz/3
Selects the output frequency below which Min/Max: 0.0/500.0 Hz
the motor operating current is derated.
Units:
0.1 Hz
The motor thermal overload will generate
a fault at lower levels of current.
Default: 1.00
048 [Motor OL Factor]
Sets operating level for motor overload.
Min/Max: 0.20/2.00
0.01
Motor FLA x OL Factor = Operating Level Units:
049
046
Min/Max: 0.00/100.00
0.00/412.48 E C
Units:
0.01 kW/HP(1)
Default:
Drive Rating Based
Selects the motor power units to be used. Options:
047 [Motor OL Hertz]
047
048
Default: 4
[Motor Poles]
EC
Defines the number of poles in the motor. Min/Max: 2/40
Units:
2 Pole
042
220
042
220
Parameter Name and Description
Values
219
[Motor OL Mode]
E C v3
If “0,” [Drive OL Count], P219 is reset to zero by a drive reset or a power cycle. If
“1,” the value is maintained. A “1” to “0” transition resets [Drive OL Count] to zero.
Pw
rC
yc
Re
t
See page 3-2 for symbol descriptions
x x x x x x x x x x x x x x x 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
053
Torq Attributes
MOTOR CONTROL (File B)
Motor Data
050
Related
No.
Programming and Parameters
Group
File B
3-14
Standard [Torque Perf Mode]
Sets the method of motor torque
production.
Default:
0
“Sensrls Vect”
Options:
0
1
2
3
0
“Sensrls Vect”
“SV Economize”
“Custom V/Hz”
“Fan/Pmp V/Hz”
“Sensrls Vect”
0
1
2
3
4
“Sensrls Vect”
“SV Economize”
“Custom V/Hz”
“Fan/Pmp V/Hz”
“FVC Vector”(1)
Default:
[Motor Cntl Sel]
EC
Sets the method of motor control used in Options:
the drive.
Important: “FVC Vector” mode requires
autotuning of the motor, both coupled and
uncoupled to the load.
(1) Enhanced firmware 2.001 & later.
Default:
054 [Maximum Voltage]
Sets the highest voltage the drive will
output.
055 [Maximum Freq]
1 = Enabled
0 = Disabled
x = Reserved
062
063
069
070
Drive Rated Volts
Min/Max: Rated Volts × 0.25/Rated
Volts
Units:
0.1 VAC
Default: 110.0 or 130.0 Hz
083
Sets the highest frequency the drive will Min/Max: 5.0/400.0 Hz
output.
5.0/500.0 Hz
Refer to parameter 083 [Overspeed Limit]. Units:
0.1 Hz
EC
Parameter Name and Description
Values
See page 3-2 for symbol descriptions
056 [Compensation]
3-15
Related
No.
Group
File B
Programming and Parameters
411
Rs
A
Xs dap (
is t 2
Ixo tor D )
A ia
En utoC g (1)
a
a
Re ble J lc
flec erk
tW
ave
PW
Dig
In
Da
tLo
g (2)
M
Fre
qL
ock
(2)
Enables/disables correction options.
Torq Attributes
MOTOR CONTROL (File B)
x x x x x x 0 x 1 x x 1 1 0 1 1 1 =Enabled
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 =Disabled
x =Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
(1)
Enhanced firmware 1.001 & later.
Factory Default Bit Values
(2)
Enhanced firmware 2.001 & later.
Option Descriptions
Reflect Wave
Disables reflected wave overvoltage protection for long cable
lengths. (typically enabled).
Enable Jerk
In non-FVC Vector modes, disabling jerk removes a short
S-curve at the start of the accel/decel ramp.
Ixo AutoCalc
Not functional – reserved for future enhancements.
Xsistor Diag
Disables power transistor power diagnostic tests which run at
each start command.
Rs Adapt
FVC w/Encoder Only - Disabling may improve torque regulation
at lower speeds (typically not needed).
Mtr Lead Rev Reverses the phase rotation of the applied voltage, effectively
reversing the motor leads.
PWM Freq Lock Keeps the PWM frequency from decreasing to 2 kHz at low
operating frequencies in FVC Vector mode without encoder.
Default: 0
“Manual”
053
057 [Flux Up Mode]
058
Auto = Flux is established for a calculated Options: 0
“Manual”
time period based on motor nameplate
1
“Automatic”
data. [Flux Up Time] is not used.
Manual = Flux is established for [Flux Up
Time] before acceleration.
Default: 0.00 Secs
053
058 [Flux Up Time]
058
Sets the amount of time the drive will use Min/Max: 0.00/5.00 Secs
to try and achieve full motor stator flux.
Units:
0.01 Secs
When a Start command is issued, DC
current at current limit level is used to
build stator flux before accelerating.
Default: 500
059
[SV Boost Filter]
EC
Sets the amount of filtering used to boost Min/Max: 0/32767
voltage during Sensorless Vector
Units:
1
operation.
Parameter Name and Description
See page 3-2 for symbol descriptions
061 [Autotune]
Values
Default:
3
“Calculate”
053
Provides a manual or automatic method Options: 0
“Ready”
062
for setting [IR Voltage Drop] and [Flux
1
“Static Tune”
Current Ref], which affect sensorless
2
“Rotate Tune”
vector performance. Valid only when
3
“Calculate”
parameter 53 is set to “Sensrls Vect,” “SV
Economize” or “FVC Vector”
“Ready” (0) = Parameter returns to this setting following a “Static Tune” or “Rotate
Tune.” It also permits manually setting [IR Voltage Drop] and [Flux Current Ref].
“Static Tune” (1) = A temporary command that initiates a non-rotational motor
stator resistance test for the best possible automatic setting of [IR Voltage Drop].
A start command is required following initiation of this setting. The parameter
returns to “Ready” (0) following the test, at which time another start transition is
required to operate the drive in normal mode. Used when motor cannot be
rotated.
“Rotate Tune” (2) = A temporary command that initiates a “Static Tune” followed by
a rotational test for the best possible automatic setting of [Flux Current Ref]. A
start command is required following initiation of this setting. The parameter
returns to “Ready” (0) following the test, at which time another start transition is
required to operate the drive in normal mode. Important: Used when motor is
uncoupled from the load. Results may not be valid if a load is coupled to the motor
during this procedure.
Torq Attributes
MOTOR CONTROL (File B)
Related
No.
Programming and Parameters
Group
File B
3-16
!
ATTENTION: Rotation of the motor in an undesired direction can
occur during this procedure. To guard against possible injury and/or
equipment damage, it is recommended that the motor be
disconnected from the load before proceeding.
“Calculate” (3) = This setting uses motor nameplate data to automatically set [IR
Voltage Drop] and [Flux Current Ref].
Default: Drive Rating Based
053
062 [IR Voltage Drop]
Value of voltage drop across the
Min/Max: 0.0/[Motor NP Volts]×0.5 061
resistance of the motor stator at rated
Units:
0.1 VAC
motor current. Used only parameter 53 is
set to “Sensrls Vect”, “SV Economize” or
“FVC Vector.”
Default: Drive Rating Based
053
063 [Flux Current Ref]
061
32 Value of amps for full motor flux. Used
Min/Max: [Motor NP FLA] × 0.05/
only when parameter 53 is set to “Sensrls
[Motor NP FLA] × 0.9
Vect”, “SV Economize” or “FVC Vector.”
Units:
0.01 Amps
Default: Based on Drive Rating
064
[IXo Voltage Drop]
E C v2
Value of voltage drop across the leakage Min/Max: 0.0/Motor NP Volts
inductance of the motor at rated motor
Units:
0.1 VAC
current. Used only when parameter 53 is
set to “FVC Vector.”
Default: 50.0%
066
[Autotune Torque]
E C v2
Specifies motor torque applied to the
motor during the flux current and inertia
FV tests performed during an autotune.
Min/Max: 0.0/150.0%
Units:
0.1%
053
067
Parameter Name and Description
See page 3-2 for symbol descriptions
E C v2
[Inertia Autotune]
Values
Default:
Torq Attributes
MOTOR CONTROL (File B)
Provides an automatic method of setting Options:
[Total Inertia]. This test is automatically
FV run during Start-Up motor tests.
Important: Use when motor is coupled to
the load. Results may not be valid if the
load is not coupled to the motor during
this procedure.
“Ready” = Parameter returns to this
setting following a completed inertia tune.
“Inertia Tune” = A temporary command
that initiates an inertia test of the motor/
load combination. The motor will ramp up
and down, while the drive measures the
amount of inertia.
Default:
427
[Torque Ref A Sel]
E C v2
Selects the source of the external torque Options:
reference to the drive. How this reference
FV is used is dependent upon [Speed/Torque
Mod].
(1) See Appendix B for DPI port locations.
428
E C v2
[Torque Ref A Hi]
Default:
3-17
Related
No.
Group
File B
Programming and Parameters
0
“Ready”
0
1
“Ready”
“Inertia Tune”
0
“Torque Setpt”
“Torque Setpt”
0
“Analog In 1”
1
“Analog In 2”
2
3-17 “Reserved”
18-22 “DPI Port 1-5” (1)
23 “Reserved”
24 “Disabled”
100.0%
FV Scales the upper value of the [Torque Ref Min/Max: –/+800.0%
A Sel] selection when the source is an
Units:
0.1%
analog input.
Default: 0.0%
429
[Torque Ref A Lo]
E C v2
053
450
053
053
053
FV Scales the lower value of the [Torque Ref Min/Max: –/+800.0%
A Sel] selection when the source is an
analog input.
435
[Torque Setpoint1]
E C v2
Units:
0.1%
Default:
0.0%
053
FV Provides an internal fixed value for Torque Min/Max: –/+800.0%
Setpoint when [Torque Ref Sel] is set to Units:
0.1%
“Torque Setpt.”
Default: 200.0%
436
[Pos Torque Limit]
E C v2
053
Defines the torque limit for the positive
Min/Max: 0.0/800.0%
torque reference value. The reference will Units:
0.1%
FV not be allowed to exceed this value.
Default: –200.0%
437
[Neg Torque Limit]
E C v2
053
Defines the torque limit for the negative Min/Max: –800.0/0.0%
torque reference value. The reference will Units:
0.1%
FV not be allowed to exceed this value.
440
Related
No.
Programming and Parameters
Group
File B
3-18
Parameter Name and Description
See page 3-2 for symbol descriptions
E C v2
Values
[Control Status]
Read Only
053
Vlt
L
Ob imLe
s a
Fld erve kag
W S
Tor eak ts
q S
Ve Ref ts
lT
Min rqRe
T f
Ma rqCu
x S rLi
Min lip m
L
Po Slip im
sP L
Ne wrT im
g rq
Po PwrT Lim
sTr rq
Ne qLi Lim
g m
Po TrqLi it
s
m
Ne FlxC it
g ur
Po FlxCu Lim
s
r
Ne TrqCu Lim
gTr rL
qC im
urL
im
FV Displays a summary status of any condition that may
be limiting either the current or the torque reference.
1 =Condition True
0 =Condition False
x =Reserved
Torq Attributes
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Re
v
Ec Phas
o
e
Flu nomi Mot
x ze
Dr Brak
vV e
Vlt oltLi
Lim m
Sta
tor
Bit #
MOTOR CONTROL (File B)
x x x x x x x x x x x 0 0 0 0 0
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
1 =Condition True
0 =Condition False
x =Reserved
Bit #
441
E C v2
[Torq Current Ref]
FV Displays the torque current reference
value that is present at the output of the
current rate limiter (parameter 154).
Read Only
053
Min/Max: –/+3276.7 Amps
Units:
0.1 Amps
Default: Drive Rating Based
053
070
Sets the voltage boost level for starting
Min/Max: 0.0/[Motor NP Volts] × 0.25
and acceleration when “Custom V/Hz”
Units:
0.1 VAC
mode is selected.
Refer to parameter 083 [Overspeed Limit].
Default: Drive Rating Based
053
070 [Run Boost]
Sets the boost level for steady state or
Min/Max: 0.0/[Motor NP Volts] × 0.25 069
deceleration when “Fan/Pmp V/Hz” or
Units:
0.1 VAC
“Custom V/Hz” modes are selected.
Refer to the diagram at parameter 083.
Default: [Motor NP Volts] × 0.25
053
071 [Break Voltage]
072
Sets the voltage the drive will output at
Min/Max: 0.0/[Motor NP Volts]
[Break Frequency].
Units:
0.1 VAC
Refer to parameter 083 [Overspeed Limit].
Default: [Motor NP Hertz] × 0.25 053
072 [Break Frequency]
071
Sets the frequency the drive will output at Min/Max: 0.0/[Maximum Freq]
[Break Voltage].
Units:
0.1 Hz
Refer to parameter 083 [Overspeed Limit].
069 [Start/Acc Boost]
Volts per Hertz
Default:
412
Parameter Name and Description
See page 3-2 for symbol descriptions
E C v2
[Motor Fdbk Type]
Values
Default:
Speed Feedback
MOTOR CONTROL (File B)
Selects the encoder type; single channel Options:
or quadrature. Options 1 & 3 detect a loss
of encoder signal (when using differential
inputs) regardless of the [Feedback
Select], param. 080 setting. For FVC
Vector mode, use a quadrature encoder
only (option 0/1). If a single channel
encoder is used (option 2/3) in sensorless
vector or V/Hz mode, select “Reverse Dis”
(option 2) in param. 190.
Default:
413
[Encoder PPR]
E C v2
3-19
Related
No.
Group
File B
Programming and Parameters
0
“Quadrature”
0
1
2
3
“Quadrature”
“Quad Check”
“Single Chan”
“Single Check”
1024 PPR
Contains the encoder pulses per
Min/Max: 1/20000 PPR
revolution. For improved operation in FVC Units:
1 PPR
Vector mode, PPR should be ≥ (64 x
motor poles).
Default: Read Only
414
[Enc Pos Feedback]
E C v2
Min/Max: –/+2147483647
Displays raw encoder pulse count. For
Units:
1
single channel encoders, this count will
increase (per rev.) by the amount in
[Encoder PPR]. For quadrature encoders
this count will increase by 4 times the
amount defined in [Encoder PPR].
Default: Read Only
415
[Encoder Speed]
E C v2
Provides a monitoring point that reflects Min/Max: –/+500.0 Hz
speed as seen from the feedback device. Units:
0.1 Hz
Default: 0
“None”
416
[Fdbk Filter Sel]
E C v2
Selects the type of feedback filter desired. Options:
“Light” uses a 35/49 radian feedback filter.
“Heavy” uses a 20/40 radian feedback
filter.
Default:
419
[Notch FilterFreq]
E C v2
0
1
2
“None”
“Light”
“Heavy”
0.0 Hz
053
FV Sets the center frequency for an optional Min/Max: 0.0/500.0 Hz
2-pole notch filter. Filter is applied to the
torque command. “0” disables this filter.
420
[Notch Filter K]
E C v2
Units:
0.1 Hz
Default:
0.3
FV Sets the width for the 2-pole notch filter.
Min/Max: 0.1/0.9
Units:
0.1
053
3-20
Programming and Parameters
080
Parameter Name and Description
Values
Default:
See page 3-2 for symbol descriptions
Standard [Speed Mode]
Sets the method of speed regulation.
“Open Loop”
0
1
2
0
“Open Loop”
“Slip Comp”
“Process PI”
“Open Loop”
Options:
0
1
2
3
4
5
“Open Loop”
“Slip Comp”
“Reserved”
“Encoder”
“Reserved”
“Simulator”
Default:
0.0 Hz
Default:
[Feedback Select]
EC
0
Options:
Selects the source for motor speed
feedback. Note that all selections are
available when using Process PI.
“Open Loop” (0) - no encoder is present,
and slip compensation is not needed.
“Slip Comp” (1) - tight speed control is
needed, and encoder is not present.
“Encoder” (3) - an encoder is present.
“Simulator” (5) - Simulates a motor for
testing drive operation & interface check.
121
thru
138
Sets the low limit for speed reference after Min/Max: 0.0/[Maximum Speed]
scaling is applied.
Units:
0.1 Hz
Refer to parameter 083 [Overspeed Limit].
Default: 50.0 or 60.0 Hz
082 [Maximum Speed]
(Dependent on voltage
Sets the high limit for speed reference
class)
after scaling is applied.
Refer to parameter 083 [Overspeed Limit]. Min/Max: 5.0/400.0 Hz
5.0/500.0 Hz
Units:
0.1 Hz
Default: 10.0 Hz
083 [Overspeed Limit]
EC
Motor Volts
Frequency Trim due to
Speed Control Mode
Overspeed
Limit
Break Volts
Start Boost
Run
0
Min
Speed
Break
Frequency
Motor
Hz
Frequency
Max
Speed
055
083
091
094
202
082
Allowable Output Frequency Range
Bus Regulation or Current Limit
Allowable Output Frequency Range
Normal Operation
Allowable Reference Frequency Range
Max Volts
092
095
055
Sets the incremental amount of the output Min/Max: 0.0/20.0 Hz
frequency (above [Maximum Speed])
Units:
0.1 Hz
allowable for functions such as slip
compensation.
[Maximum Speed] + [Overspeed Limit]
must be ≤ [Maximum Freq]
Voltage
Spd Mode & Limits
081 [Minimum Speed]
SPEED COMMAND (File C)
Related
No.
Group
File C
Speed Command File (File C)
Output
Freq Limit
Max
Freq
Parameter Name and Description
See page 3-2 for symbol descriptions
084 [Skip Frequency 1]
085 [Skip Frequency 2]
086 [Skip Frequency 3]
Sets a frequency at which the drive will
not operate.
087 [Skip Freq Band]
Values
Default:
Default:
Default:
0.0 Hz
0.0 Hz
0.0 Hz
Min/Max: –/+500.0 Hz
Units:
0.1 Hz
Default: 0.0 Hz
Spd Mode & Limits
SPEED COMMAND (File C)
Determines the bandwidth around a skip Min/Max: 0.0/30.0 Hz
Units:
0.1 Hz
frequency. [Skip Freq Band] is split,
applying 1/2 above and 1/2 below the
actual skip frequency. The same
bandwidth applies to all skip frequencies.
“Speed Reg”
Default: 1
088
[Speed/Torque Mod]
E C v2
“Zero Torque”
Options: 0
FV Selects the torque reference source.
“Speed Reg”
1
“Zero Torque” (0) - torque command = 0.
“Torque Reg”
2
“Speed Reg” (1) - drive operates as a
“Min Torq/Spd”
3
speed regulator.
“Max Torq/Spd”
4
“Torque Reg” (2) - an external torque
“Sum Torq/Spd”
5
reference is used for the torque
command.
“Min Torq/Spd” (3) - selects the smallest algebraic value to regulate to when the
torque reference and torque generated from the speed regulator are compared.
“Max Torq/Spd” (4) - selects the largest algebraic value when the torque reference
and the torque generated from the speed regulator are compared.
“Sum Torq/Spd” (5) - selects the sum of the torque reference and the torque
generated from the speed regulator.
!
454
ATTENTION: The speed of the drive could reach [Maximum
Speed] + [Overspeed Limit] to meet required torque when any of
the torque modes have been selected. Equipment damage and/or
personal injury may result.
[Rev Speed Limit]
EC
Sets a limit on speed in the negative
direction. A value of zero disables this
parameter and uses [Min Speed] for
minimum speed.
Default:
3-21
Related
No.
Group
File C
Programming and Parameters
0.0 Hz
Min/Max: –[Max Speed]/0.0 Hz
Units:
0.1 Hz
087
084
053
Parameter Name and Description
See page 3-2 for symbol descriptions
090 [Speed Ref A Sel]
Values
Default:
Selects the source of the speed reference Options:
to the drive unless [Speed Ref B Sel] or
[Preset Speed 1-7] is selected.
For more information on selecting a speed
reference source, see Figure 1.13 on
page 1-19.
(1) See Appendix B for DPI port locations.
Speed References
(2) Enhanced Control Drives Only.
SPEED COMMAND (File C)
Related
No.
Programming and Parameters
Group
File C
3-22
091 [Speed Ref A Hi]
Default:
2
“Analog In 2”
“Analog In 1”
1
“Analog In 2”
2
3-7 “Reserved”
“Encoder”
8
“MOP Level”
9
10 “Reserved”
11 “Preset Spd1”
12 “Preset Spd2”
13 “Preset Spd3”
14 “Preset Spd4”
15 “Preset Spd5”
16 “Preset Spd6”
17 “Preset Spd7”
18 “DPI Port 1”(1)
19 “DPI Port 2”(1)
20 “DPI Port 3”(1)
21 “Reserved”
22 “DPI Port 5”(1)
23- “Reserved”
29
30 “HighRes Ref”(2)
[Maximum Speed]
Scales the upper value of the [Speed Ref Min/Max: –/+[Maximum Speed]
A Sel] selection when the source is an
Units:
0.1 Hz
analog input.
Default: 0.0 Hz
092 [Speed Ref A Lo]
Scales the lower value of the [Speed Ref Min/Max: –/+[Maximum Speed]
A Sel] selection when the source is an
Units:
0.1 Hz
analog input.
Default: 11 “Preset Spd1”
093 [Speed Ref B Sel]
See [Speed Ref A Sel].
094 [Speed Ref B Hi]
Options:
Default:
See [Speed Ref A
Sel]
[Maximum Speed]
Scales the upper value of the [Speed Ref Min/Max: –/+[Maximum Speed]
B Sel] selection when the source is an
Units:
0.1 Hz
analog input.
Default: 0.0 Hz
095 [Speed Ref B Lo]
Scales the lower value of the [Speed Ref Min/Max: –/+[Maximum Speed]
B Sel] selection when the source is an
Units:
0.1 Hz
analog input.
002
091
thru
093
101
thru
107
117
thru
120
192
thru
194
213
272
273
320
361
thru
366
082
081
See
090
093
090
093
Parameter Name and Description
See page 3-2 for symbol descriptions
SPEED COMMAND (File C)
Speed References
096 [TB Man Ref Sel]
Sets the manual speed reference source Options:
when a digital input is configured for
“Auto/Manual.”
(1) “Analog In 2” is not a valid selection if it
was selected for any of the following:
- [Trim In Select]
- [PI Feedback Sel]
- [PI Reference Sel]
- [Current Lmt Sel]
Default:
097 [TB Man Ref Hi]
Scales the upper value of the [TB Man
Ref Sel] selection when the source is an
analog input.
1
“Analog In 1”
1
2
3-8
9
“Analog In 1”
“Analog In 2”(1)
“Reserved”
“MOP Level”
[Maximum Speed]
Default:
Scales the lower value of the [TB Man Ref
Sel] selection when the source is an
analog input.
100 Standard [Jog Speed]
Sets the output frequency when a jog
command is issued.
Min/Max: –/+[Maximum Speed]
Units:
0.1 Hz
101
102
103
104
105
106
107
[Preset Speed 1]
[Preset Speed 2]
[Preset Speed 3]
[Preset Speed 4]
[Preset Speed 5]
[Preset Speed 6]
[Preset Speed 7]
Provides an internal fixed speed
command value. In bipolar mode direction
is commanded by the sign of the
reference.
108
[Jog Speed 2]
EC
Sets the output frequency when Jog
Speed 2 is selected.
097
098
096
Min/Max: –/+[Maximum Speed]
Units:
0.1 Hz
098 [TB Man Ref Lo]
[Jog Speed 1]
EC
Sets the output frequency when Jog
Speed 1 is selected.
Discrete Speeds
Values
Default:
3-23
Related
No.
Group
File C
Programming and Parameters
Default:
0.0 Hz
096
10.0 Hz
Min/Max: –/+[Maximum Speed]
Units:
0.1 Hz
Default: 10.0 Hz
Min/Max: –/+[Maximum Speed]
Units:
0.1 Hz
Default: 5.0 Hz
10.0 Hz
20.0 Hz
30.0 Hz
40.0 Hz
50.0 Hz
60.0 Hz
Min/Max: –/+[Maximum Speed]
0.1 Hz
Units:
Default:
10.0 Hz
Min/Max: –/+[Maximum Speed]
Units:
0.1 Hz
090
093
116
Related
No.
Programming and Parameters
Group
File C
3-24
Parameter Name and Description
See page 3-2 for symbol descriptions
[Trim % Setpoint]
EC
Adds or subtracts a percentage of the
speed reference or maximum speed.
Dependent on the setting of [Trim Out
Select], parameter 118.
117 [Trim In Select]
Specifies which analog input signal is
being used as a trim input.
Values
Default:
0.00%
090
093
Min/Max: –/+200.00%
Units:
0.01%
Default:
2
Options:
“Analog In 2”
See [Speed Ref A
Sel]
117
119
120
118 [Trim Out Select]
Ad
d
Tri or %
m
*
Tri Ref
m B
Re
fA
Speed Trim
Specifies which speed references are to be trimmed.
SPEED COMMAND (File C)
090
093
x x x x x x x x x x x x x 0 0 0 1 =Trimmed
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 =Not Trimmed
x =Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
* Enhanced Control Option Only.
119 [Trim Hi]
Scales the upper value of the [Trim In
Select] selection when the source is an
analog input.
120 [Trim Lo]
Scales the lower value of the [Trim In
Select] selection when the source is an
analog input.
Default:
60.0 Hz
082
Min/Max: –/+[Maximum Speed]
Units:
0.1 Hz
1 % EC
Default: 0.0 Hz
117
117
Min/Max: –/+[Maximum Speed]
Units:
0.1 Hz
1 % EC
Important: Parameters in the Slip Comp Group are used to enable and tune the
Slip Compensation Regulator. In order to allow the Slip Compensation Regulator
to control drive operation, parameter 080 must be set to 1 “Slip Comp”.
Slip Comp
121 [Slip RPM @ FLA]
Default:
Based on [Motor NP RPM] 061
080
122
123
Sets the amount of compensation to drive Min/Max: 0.0/1200.0 RPM
output at motor FLA.
Units:
0.1 RPM
If the value of parameter 061 [Autotune] =
3 “Calculate” changes made to this
parameter will not be accepted.
Default: 40.0
122 [Slip Comp Gain]
Sets the response time of slip
compensation.
123 [Slip RPM Meter]
Displays the present amount of
adjustment being applied as slip
compensation.
080
121
122
Min/Max: 1.0/100.0
Units:
0.1
Default: Read Only
Min/Max: 0.0/300.0 RPM
–/+300.0 RPM
Units:
0.1 RPM
EC
080
121
122
Parameter Name and Description
See page 3-2 for symbol descriptions
3-25
Related
No.
Group
File C
Programming and Parameters
Values
Important: Parameters in the Process PI Group are used to enable and tune the
PI Loop.
Standard To allow the PI Loop to control drive operation, parameter 080 must be
set to 2 “Process PI”.
124 [PI Configuration]
%
o
Tor f Ref (2
)
q
An ue Tr
ti-W im (2
Sto ind )
p
Fe Mod Up (1)
e
e
Ze dbak (1)
ro S
Ra Cla qr t
m m
Pre p Re p
l
f
Inv oad M
e
Ex r t Err ode
cl M or
od
e
Sets configuration of the PI regulator.
124
thru
138
x x x x x x 0 0 0 0 0 0 0 0 0 0 1 =Enabled
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 =Disabled
x =Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
(1)
Enhanced firmware 1.001 & later.
Factory Default Bit Values
(2)
Enhanced firmware 2.001 & later.
080
PI
R
PI eset
H
PI old
En
ab
le
Controls the PI regulator.
Process PI
SPEED COMMAND (File C)
125 [PI Control]
x x x x x x x x x x x x x 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
126 [PI Reference Sel]
Selects the source of the PI reference.
“PI Setpoint”
Default:
0
Options:
“PI Setpoint”
0
“Analog In 1”
1
“Analog In 2”
2
3-7 “Reserved”
“Encoder”
8
“MOP Level”
9
10 “Master Ref”
11- “Preset Spd1-7”
17
18- “DPI Port 1-3”
20
21 “Reserved”
22 “DPI Port 5”
23-29 “Reserved”
30 “HighRes Ref”(1)
50.00%
(1) Enhanced Control Drives Only.
127 [PI Setpoint]
1 =Enabled
0 =Disabled
x =Reserved
Default:
Provides an internal fixed value for
Min/Max: –/+100.00% of Maximum
process setpoint when [PI Reference Sel]
Process Value
is set to “PI Setpoint.”
Units:
0.01%
124
thru
138
124
thru
138
Related
No.
Programming and Parameters
Group
File C
3-26
Parameter Name and Description
See page 3-2 for symbol descriptions
128 [PI Feedback Sel]
Selects the source of the PI feedback.
129 [PI Integral Time]
Values
Default:
Options:
Default:
2
“Analog In 2”
See
[PI Reference Sel].
2.00 Secs
Time required for the integral component Min/Max: 0.00/100.00 Secs
to reach 100% of [PI Error Meter]. Not
Units:
0.01 Secs
functional when the PI Hold bit of [PI
Control] = “1” (enabled). A value of zero
disables this parameter
Default: 1.00
130 [PI Prop Gain]
Sets the value for the PI proportional
component.
PI Error × PI Prop Gain = PI Output
131 [PI Lower Limit]
Min/Max: 0.00/100.00
Units:
0.01
Default:
132 [PI Upper Limit]
Sets the upper limit of the PI output.
–[Maximum Freq]
–100% E C
Min/Max: –/+400.0 Hz
–/+800% E C
Units:
0.1 Hz
0.1% E C
Default: +[Maximum Freq]
100% E C
Min/Max: –/+400.0 Hz
–/+800.0% E C
Units:
0.1 Hz
0.1% E C
Default: 0.0 Hz
133 [PI Preload]
100.0% E C
Sets the value used to preload the integral
component on start or enable.
Min/Max: [PI Lower Limit]/
[PI Upper Limit
Units:
0.1 Hz
0.1% E C
Read Only
134 [PI Status]
124
thru
138
124
thru
138
124
thru
138
124
thru
138
124
thru
138
d
Status of the Process PI regulator.
124
thru
138
PI
In
PI Limi
R t
PI eset
H
PI old
En
ab
le
Process PI
SPEED COMMAND (File C)
Sets the lower limit of the PI output.
124
thru
138
x x x x x x x x x x x x 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
135 [PI Ref Meter]
Present value of the PI reference signal.
Default:
1 =Condition True
0 =Condition False
x =Reserved
Read Only
Min/Max: –/+100.00%
Units:
0.01%
124
thru
138
Parameter Name and Description
See page 3-2 for symbol descriptions
136 [PI Fdback Meter]
Present value of the PI feedback signal.
137 [PI Error Meter]
Present value of the PI error.
138 [PI Output Meter]
Present value of the PI output.
Process PI
E C v2
[PI BW Filter]
Read Only
124
thru
138
Min/Max: –/+100.00%
Units:
0.01%
Default: Read Only
124
thru
138
Min/Max: –/+100.00%
Units:
0.01%
Default: Read Only
Min/Max: –/+100.0 Hz
–/+800.0%
Units:
0.1 Hz
0.1% E C
Default: 0.0 R/s
EC
124
thru
138
137
Firmware 2.001 & later – Provides filter for Min/Max: 0.0/240.0 R/s
Process PI error signal. The output of this Units:
0.1 R/s
filter is displayed in [PI Error Meter]. Zero
will disable the filter.
Default: 0.00 Secs
459
[PI Deriv Time]
E C v2
Refer to formula below:
d
(%)
PIOut = KD (Sec) x PI Error
dt (Sec)
460
461
[PI Reference Hi]
EC
Scales the upper value of [PI Reference
Sel] of the source.
EC
[PI Reference Lo]
Scales the lower value of [PI Reference
Sel] of the source.
462
EC
[PI Feedback Hi]
Scales the upper value of [PI Feedback]
of the source.
463
EC
[PI Feedback Lo]
Min/Max: 0.00/100.00 Secs
Units:
0.01 Secs
Default:
100.0%
Min/Max: –/+100.0%
Units:
0.1%
Default: –100.0%
Min/Max: –/+100.0%
Units:
0.1%
Default: 100.0%
Min/Max: –/+100.0%
Units:
0.1%
Default: 0.0%
Scales the lower value of [PI Feedback] of Min/Max: –/+100.0%
the source.
Units:
0.1%
Default: 7.8
445
[Ki Speed Loop]
E C v2
Speed Regulator
SPEED COMMAND (File C)
139
Values
Default:
3-27
Related
No.
Group
File C
Programming and Parameters
Min/Max: 0.0/4000.0
FV Controls the integral error gain of the
0.1
speed regulator. The drive automatically Units:
adjusts [Ki Speed Loop] when a non-zero
value is entered for [Speed Desired BW]
or an autotune is performed. Typically,
manual adjustment of this parameter is
needed only if system inertia cannot be
determined through an autotune. [Speed
Desired BW] is set to “0” when a manual
adjustment is made to this parameter.
053
446
Related
No.
Programming and Parameters
Group
File C
3-28
Parameter Name and Description
See page 3-2 for symbol descriptions
E C v2
[Kp Speed Loop]
Values
Default:
6.3
053
FV Controls the proportional error gain of the Min/Max: 0.0/200.0
0.1
speed regulator. The drive automatically Units:
adjusts [Kp Speed Loop] when a non-zero
value is entered for [Speed Desired BW]
or an auto-tune is performed. Typically,
manual adjustment of this parameter is
needed only if system inertia cannot be
determined through an autotune. [Speed
Desired BW] is set to “0” when a manual
adjustment is made to this parameter.
Default: 0.0
447
[Kf Speed Loop]
E C v2
053
Min/Max: 0.0/0.5
Units:
0.1
speed regulator. Setting the Kf gain
greater than zero reduces speed
feedback overshoot in response to a step
change in speed reference.
Default: 200.0 R/s
448
E C v3 [Spd Err Filt BW]
053
Speed Regulator
SPEED COMMAND (File C)
FV Controls the feed forward gain of the
FV Sets the bandwidth of a speed error filter Min/Max: 0.0/2000.0 R/s
used in FVC Vector mode. A setting of 0.0 Units:
disables the filter.
Default:
449
[Speed Desired BW]
E C v2
FV Sets the speed loop bandwidth and
determines the dynamic behavior of the
speed loop. As bandwidth increases, the
speed loop becomes more responsive
and can track a faster changing speed
reference.
Adjusting this parameter will cause the
drive to calculate and change [Ki Speed
Loop] and [Kp Speed Loop] gains.
450
[Total Inertia]
E C v2
0.1 R/s
0.0 Radians/Sec
053
Min/Max: 0.0/250.0 Radians/Sec
Units:
0.1 Radians/Sec
Default:
0.10 Secs
Min/Max: 0.01/600.0 Secs
FV Represents the time in seconds, for a
0.01 Secs
motor coupled to a load to accelerate from Units:
zero to base speed, at rated motor torque.
The drive calculates Total Inertia during
the autotune inertia procedure.
Adjusting this parameter will cause the
drive to calculate and change [Ki Speed
Loop] and [Kp Speed Loop] gains.
Default: Read Only
451
[Speed Loop Meter]
E C v2
FV Value of the speed regulator output. When Min/Max: –/+800.0%/Hz
in FVC mode, units are in percent.
Units:
0.1%/Hz
053
053
121
Programming and Parameters
3-29
Related
No.
Group
File D
Dynamic Control File (File D)
Parameter Name and Description
See page 3-2 for symbol descriptions
140 [Accel Time 1]
141 [Accel Time 2]
Sets the rate of accel for all speed
increases.
Values
Default:
10.0 Secs
10.0 Secs
Min/Max: 0.0/3600.0 Secs
Units:
0.1 Secs
Ramp Rates
Max Speed
= Accel Rate
Accel Time
142 [Decel Time 1]
143 [Decel Time 2]
Sets the rate of decel for all speed
decreases.
Default:
10.0 Secs
10.0 Secs
Min/Max: 0.0/3600.0 Secs
Units:
0.1 Secs
Max Speed
= Decel Rate
Decel Time
146 [S Curve %]
Default:
0.0%
DYNAMIC CONTROL (File D)
Sets the percentage of accel or decel time Min/Max: 0.0/100.0%
that is applied to the ramp as S Curve.
Units:
0.1%
Time is added, 1/2 at the beginning and
1/2 at the end of the ramp.
Default: 0
“Cur Lim Val”
147 [Current Lmt Sel]
Selects the source for the adjustment of Options:
current limit (i.e. parameter, analog input,
etc.).
Default:
148 [Current Lmt Val]
Defines the current limit value when
[Current Lmt Sel] = “Cur Lim Val.”
Load Limits
149 [Current Lmt Gain]
Sets the responsiveness of the current
limit.
150 [Drive OL Mode]
Min/Max: Drive Rating Based
Units:
0.1 Amps
Default: 250
Min/Max: 0/5000
Units:
1
Default: 3
“Both–PWM 1st”
Selects the drive’s response to increasing Options:
drive temperature.
151 [PWM Frequency]
0
“Cur Lim Val”
1
“Analog In 1”
2
“Analog In 2”
[Rated Amps] × 1.5
(Equation approximates
default value.)
Default:
0
“Disabled”
1
“Reduce CLim”
2
“Reduce PWM”
3
“Both–PWM 1st”
4 kHz
Sets the carrier frequency for the PWM
Min/Max: 2, 3, 4, 5, 6, 7, 8, 9, 10 kHz
output. Drive derating may occur at higher
2, 4, 8, 12 kHz E C
carrier frequencies. For derating
Units:
1 kHz
information, refer to the PowerFlex
Reference Manual, publication
PFLEX-RM001….
142
143
146
361
thru
366
140
141
146
361
thru
366
140
thru
143
146
149
147
149
147
148
219
152
Parameter Name and Description
See page 3-2 for symbol descriptions
E C v2
[Droop RPM @ FLA]
Selects amount of droop that the speed
reference is reduced when at full load
torque. Zero disables the droop function.
DYNAMIC CONTROL (File D)
Load Limits
Setting parameter 080 to 0 is
recommended when using the Droop
function.
153
[Regen Power Lim]
E C v2
Stop/Brake Modes
Related
No.
Programming and Parameters
Group
File D
3-30
Values
Default:
0.0 RPM
Min/Max: 0.0/200.0 RPM
Units:
0.1 RPM
Default:
–50.0%
053
FV Sets the maximum power limit allowed to Min/Max: –800.0/0.0%
transfer from the motor to the DC bus.
When using an external dynamic brake,
set this parameter to its maximum value.
154
[Current Rate Lim]
E C v2
Units:
0.1%
Default:
400.0%
FV Sets the largest allowable rate of change
for the current reference signal. This
number is scaled in percent of maximum
motor current every 250 microseconds.
189
[Shear Pin Time]
EC
Sets the time that the drive is at or above
current limit before a fault occurs. Zero
disables this feature.
145
[DB While Stopped]
EC
Enables/disables dynamic brake
operation.
Min/Max: 1.0/800.0%
Units:
0.1%
Disabled = DB will only operate when
drive is running.
Enable = DB operates whenever drive is
energized.
155 Standard [Stop Mode A]
156 Standard [Stop Mode B]
Active stop mode. [Stop Mode A] is active
unless [Stop Mode B] is selected by digital
inputs programmed for “Stop Mode B.”
(1) When using options 1 or 2, refer to the
Attention statements at [DC Brake
Level].
[Stop/Brk Mode A]
E C v2
[Stop/Brk Mode B]
E C v2
See description above.
157 [DC Brake Lvl Sel]
Selects the source for [DC Brake Level].
Default:
053
0.0 Secs
Min/Max: 0.0/30.0 Secs
Units:
0.1 Secs
Default:
0
“Disabled”
Options:
0
1
“Disabled”
“Enabled”
Default:
Default:
1
0
“Ramp”
“Coast”
Options:
0
1
2
3
“Coast”
“Ramp”(1)
“Ramp to Hold”(1)
“DC Brake”
Default:
Default:
1
0
“Ramp”
“Coast”
Options:
0
1
2
3
4
0
“Coast”
“Ramp”(1)
“Ramp to Hold”(1)
“DC Brake”
“Fast Brake” E C v3
“DC Brake Lvl”
0
1
2
“DC Brake Lvl”
“Analog In 1”
“Analog In 2”
Default:
Options:
157
158
159
361
thru
366
155
156
158
159
Parameter Name and Description
See page 3-2 for symbol descriptions
158 [DC Brake Level]
Values
Default:
3-31
Related
No.
Group
File D
Programming and Parameters
[Rated Amps]
Defines the DC brake current level injected Min/Max: 0/[Rated Amps] × 1.5
into the motor when “DC Brake” is selected
(Equation yields
as a stop mode.
approximate maximum
value.)
The DC braking voltage used in this
0.1 Amps
Units:
function is created by a PWM algorithm
and may not generate the smooth holding
force needed for some applications. Refer
to the PowerFlex Reference Manual,
publication PFLEX-RM001….
Important: Frame E drives may be limited
to less than 150% depending on the setting
of parameter 151 [PWM Frequency].
ATTENTION: This feature should not be used with synchronous or
permanent magnet motors. Motors may be demagnetized during
braking.
159 [DC Brake Time]
Stop/Brake Modes
DYNAMIC CONTROL (File D)
!
ATTENTION: If a hazard of injury due to movement of equipment or
material exists, an auxiliary mechanical braking device must be used.
Default:
0.0 Secs
Sets the amount of time DC brake current Min/Max: 0.0/90.0 Secs
is “injected” into the motor.
Units:
0.1 Secs
160
Standard
[Bus Reg Gain]
[Bus Reg Ki]
EC
Sets the responsiveness of the bus
regulator.
Default:
450
Min/Max: 0/5000
Units:
1
Default:
1
4
“Adjust Freq”
“Both-Frq 1st”
Active bus regulation mode. Choices are Options:
dynamic brake, frequency adjust or both.
Sequence is determined by programmed
value or digital input programmed for “Bus
Reg Md B.”
Dynamic Brake Setup
If a dynamic brake resistor is connected to
the drive, both these parameters must be
set to either option 2, 3 or 4.
Refer to the Attention statement on page
P-4 for important information on bus
regulation.
0
1
2
3
4
“Disabled”
“Adjust Freq”
“Dynamic Brak”
“Both-DB 1st”
“Both-Frq 1st”
161 [Bus Reg Mode A]
162 [Bus Reg Mode B]
!
ATTENTION: The drive does not offer protection for externally
mounted brake resistors. A risk of fire exists if external braking
resistors are not protected. External resistor packages must be
self-protected from over temperature or the protective circuit shown
in Figure C.1 on page C-1 (or equivalent) must be supplied.
155
thru
158
161
162
160
163
361
thru
366
Parameter Name and Description
See page 3-2 for symbol descriptions
163 [DB Resistor Type]
Values
Default:
Selects whether the internal or an
external DB resistor will be used.
Options:
If a dynamic brake resistor is connected to
the drive, [Bus Reg Mode x], A, B or Both
(if used), must be set to either option 2, 3
or 4.
!
Stop/Brake Modes
DYNAMIC CONTROL (File D)
Related
No.
Programming and Parameters
Group
File D
3-32
0
2
“Internal Res”
“None” E C
0
1
2
“Internal Res”
“External Res”
“None”
ATTENTION: The drive does not offer protection for externally
mounted brake resistors. A risk of fire exists if external braking
resistors are not protected. External resistor packages must be
self-protected from over temperature or the protective circuit shown
in Figure C.1 on page C-1, or equivalent, must be supplied.
ATTENTION: Equipment damage may result if a drive mounted
(internal) resistor is installed and this parameter is set to “External
Res.” Thermal protection for the internal resistor will be disabled,
resulting in possible device damage.
164
EC
[Bus Reg Kp]
Proportional gain for the bus regulator.
Used to adjust regulator response.
165
[Bus Reg Kd]
EC
Default:
1500
Min/Max: 0/10000
Units:
1
Default: 1000
Derivative gain for the bus regulator. Used Min/Max: 0/10000
to control regulator overshoot.
Units:
1
Default: 0
“Disabled”
166
[Flux Braking]
E C v2
Set to use an increase in the motor flux Options:
current to increase the motor losses, and
allow a faster deceleration time when a
chopper brake or regenerative capability
is not available. Can be used as a
stopping or fast deceleration method.
0
1
“Disabled”
“Enabled”
161
162
167
Parameter Name and Description
See page 3-2 for symbol descriptions
[Powerup Delay]
EC
Defines the programmed delay time, in
seconds, before a start command is
accepted after a power up.
0.0 Secs
Min/Max: 0.0/30.0 Secs
Units:
0.1 Secs
Default:
0
“Disabled”
Enables/disables a feature to issue a Start Options:
or Run command and automatically
resume running at commanded speed
after drive input power is restored.
Requires a digital input configured for Run
or Start and a valid start contact.
0
1
“Disabled”
“Enabled”
!
Restart Modes
DYNAMIC CONTROL (File D)
168 [Start At PowerUp]
Values
Default:
3-33
Related
No.
Group
File D
Programming and Parameters
ATTENTION: Equipment damage and/or personal injury may
result if this parameter is used in an inappropriate application. Do
not use this function without considering applicable local, national
and international codes, standards, regulations or industry
guidelines.
169 [Flying Start En]
Enables/disables the function which
reconnects to a spinning motor at actual
RPM when a start command is issued.
170 [Flying StartGain]
Sets the response of the flying start
function.
174 [Auto Rstrt Tries]
Default:
0
“Disabled”
Options:
0
1
“Disabled”
“Enabled”
Default:
4000
Min/Max: 20/32767
Units:
1
Default: 0
170
169
175
Sets the maximum number of times the Min/Max: 0/9
drive attempts to reset a fault and restart. Units:
1
!
ATTENTION: Equipment damage and/or personal injury may
result if this parameter is used in an inappropriate application. Do
not use this function without considering applicable local, national
and international codes, standards, regulations or industry
guidelines.
175 [Auto Rstrt Delay]
Sets the time between restart attempts
when [Auto Rstrt Tries] is set to a value
other than zero.
Default:
1.0 Secs
Min/Max: 0.5/30.0 Secs
Units:
0.1 Secs
174
Parameter Name and Description
See page 3-2 for symbol descriptions
178
E C v2
[Sleep Wake Mode]
Values
Default:
Options:
Enables/disables the Sleep/Wake
function. Important: When enabled, the
following conditions must be met:
• A proper value must be programmed
for [Sleep Level] & [Wake Level].
• A speed reference must be selected in
[Speed Ref A Sel].
• At least one of the following must be
programmed (and input closed) in
[Digital Inx Sel]; “Enable,” “Stop=CF,”
“Run,” “Run Forward,” “Run Reverse.”
!
0
“Disabled”
0
1
2
“Disabled”
“Direct” (Enabled)
“Invert” (Enabled) (7)
ATTENTION: Enabling the Sleep-Wake function can cause
unexpected machine operation during the Wake mode. Equipment
damage and/or personal injury can result if this parameter is used in
an inappropriate application. Do Not use this function without
considering the information below and in Appendix C. In addition, all
applicable local, national & international codes, standards,
regulations or industry guidelines must be considered
Conditions Required to Start Drive (1)(2)(3)
Restart Modes
DYNAMIC CONTROL (File D)
Related
No.
Programming and Parameters
Group
File D
3-34
After Power-Up
Input
Stop
Enable
Stop Closed
Wake Signal
Enable Closed
Wake Signal (4)
Run Closed
Run
Run For. Wake Signal
Run Rev.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
After a Drive Fault
Reset by Stop-CF,
HIM or TB
Stop Closed
Wake Signal
New Start or Run Cmd.(4)
Enable Closed
Wake Signal
New Start or Run Cmd.(4)
New Run Cmd.(5)
Wake Signal
After a Stop Command
Reset by Clear
Faults (TB)
HIM or TB
Stop Closed Stop Closed
Wake Signal Direct Mode
Analog Sig. > Sleep Level (6)
Invert Mode
Analog Sig. < Sleep Level (6)
New Start or Run Cmd.(4)
Enable Closed Enable Closed
Wake Signal Direct Mode
Analog Sig. > Sleep Level (6)
Invert Mode
Analog Sig. < Sleep Level (6)
New Start or Run Cmd.(4)
Run Closed
New Run Cmd.(5)
Wake Signal Wake Signal
When power is cycled, if all of the above conditions are present after power is
restored, restart will occur.
If all of the above conditions are present when [Sleep-Wake Mode] is
“enabled,” the drive will start.
The active speed reference is determined as explained in Speed Reference
Control on page 1-19. The Sleep/Wake function and the speed reference
may be assigned to the same input.
Command must be issued from HIM, TB or network.
Run Command must be cycled.
Signal does not need to be greater than wake level.
Enhanced firmware 2.001 & later. For Invert function, refer to [Analog In x
Loss].
179
Parameter Name and Description
See page 3-2 for symbol descriptions
E C v2
[Sleep Wake Ref]
Values
Default:
Selects the source of the input controlling Options:
the Sleep-Wake function.
Default:
180
[Wake Level]
E C v2
Restart Modes
Defines the analog input level that will
start the drive.
181
E C v2
[Wake Time]
Defines the amount of time at or above
[Wake Level] before a Start is issued.
182
[Sleep Level]
E C v2
Defines the analog input level that will
stop the drive.
DYNAMIC CONTROL (File D)
183
E C v2
[Sleep Time]
Defines the amount of time at or below
[Sleep Level] before a Stop is issued.
177
[Gnd Warn Level]
E C v2
Sets the level at which a ground warning
fault will occur. Configure with [Alarm
Config 1].
Power Loss
2
“Analog In 2”
1
“Analog In 1”
2
“Analog In 2”
6.000 mA, 6.000 Volts
Min/Max: 0.0/1000.0 Secs
Units:
0.1 Secs
Default: 5.000 mA, 5.000 Volts
183
Min/Max: 4.000 mA/[Wake Level]
0.000 Volts/[Wake Level]
Units:
0.001 mA
0.001 Volts
Default: 1.0 Secs
182
Min/Max: 0.0/1000.0 Secs
Units:
0.1 Secs
Default: 3.0 Amps
259
Min/Max: 1.0/5.0 Amps
Units:
0.1 Amps
Default:
0
“Coast”
0
1
2
“Coast”
“Decel”
“Continue”
0.5 Secs
Sets the time that the drive will remain in Min/Max: 0.0/60.0 Secs
power loss mode before a fault is issued. Units:
0.1 Secs
Default: 200.0%
187
[Load Loss Level]
E C v2
Sets the percentage of motor nameplate
torque at which a load loss alarm will
occur.
188
E C v2
[Load Loss Time]
181
Min/Max: [Sleep Level]/20.000 mA
[Sleep Level]/10.000 Volts
Units:
0.001 mA
0.001 Volts
Default: 1.0 Secs
180
Sets the reaction to a loss of input power. Options:
Power loss is recognized when:
• DC bus voltage is ≤ 73% of [DC Bus
Memory] and [Power Loss Mode] is
set to “Coast”.
• DC bus voltage is ≤ 82% of [DC Bus
Memory] and [Power Loss Mode] is
set to “Decel”.
Default:
185 [Power Loss Time]
184 [Power Loss Mode]
3-35
Related
No.
Group
File D
Programming and Parameters
Min/Max: 0.0/800.0%
Units:
0.1%
Default:
0.0 Secs
Sets the time that current is below the
Min/Max: 0.0/300.0 Secs
level set in [Load Loss Level] before a fault Units:
0.1 Secs
occurs.
013
185
EC
184
211
259
187
3-36
Programming and Parameters
Parameter Name and Description
See page 3-2 for symbol descriptions
Direction Config
190 [Direction Mode]
Selects the method for changing drive
direction.
Mode
Unipolar
Bipolar
Reverse Dis
Values
Default:
Options:
Direction Change
Drive Logic
Sign of Reference
Not Changable
0
“Unipolar”
0
1
2
“Unipolar”
“Bipolar”
“Reverse Dis”
Standard [Save HIM Ref]
Enables a feature to save the present frequency reference value issued by the
HIM to Drive memory on power loss. Value is restored to the HIM on power up.
At
Po
wr
Do
wn
192
Related
No.
Group
File E
Utility File (File E)
x x x x x x x x x x x x x x x 1
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
HIM
Ma Disa
n b
Ma RefP le
n r
Sa ual M ld
ve od
HIM e
Re
f
[AutoMan Cnfg]
x x x x x x x x x x x x 0 1 0 1
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
HIM Ref Config
UTILITY (File E)
EC
1 =Save at Power Down
0 =Do Not Save
x =Reserved
Save HIM Ref
1 = Saves HIM reference,
Reloads HIM reference at
power-up.
0 = Disabled
Manual Mode
1 = HIM has exclusive Start &
Jog control in Manual mode.
0 = Disabled
ManRefPrld
1 = Preloads auto reference into
HIM upon Auto to Manual
transition.
0 = Disabled
HIM Disable
1 = HIM does not start drive.
0 = HIM starts drive
x = Reserved
193
Default:
Standard [Man Ref Preload]
Enables/disables a feature to
Options:
automatically load the present “Auto”
frequency reference value into the HIM
when “Manual” is selected. Allows smooth
speed transition from “Auto” to “Manual.”
0
“Disabled”
0
1
“Disabled”
“Enabled”
320
thru
327
361
thru
366
Parameter Name and Description
See page 3-2 for symbol descriptions
3-37
Related
No.
Group
File E
Programming and Parameters
Values
194 [Save MOP Ref]
At
S
At top
Po
wr
Do
wn
MOP Config
Enables/disables the feature that saves the present MOP frequency reference at
power down or at stop.
x x x x x x x x x x x x x x 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
195 [MOP Rate]
Default:
1 = Save
0 = Do Not Save
x = Reserved
1.0 Hz/s
Sets rate of change of the MOP reference Min/Max: 0.2/[Maximum Freq]
in response to a digital input.
Units:
0.1 Hz/s
Default: 0
“Basic”
196 [Param Access Lvl]
Selects the parameter display level.
Basic = Reduced param. set
Advanced = Full param. set
197 [Reset To Defalts]
UTILITY (File E)
Resets all parameter values (except
parameters 196, 201 & 202) to defaults.
Option 1 resets drive to factory settings.
Options 2 and 3 will reset drive to
alternate voltage and current rating.
Drive Memory
198 [Load Frm Usr Set]
Options:
0
1
2
0
“Basic”
“Advanced”
“Reserved”
“Ready”
Options:
0
1
2
3
“Ready”
“Factory”
“Low Voltage”
“High Voltage”
Default:
EC
Default:
0
“Ready”
199
Loads a previously saved set of
Options:
parameter values from a selected user set
location in drive nonvolatile memory to
active drive memory.
Default:
199 [Save To User Set]
0
1
2
3
0
“Ready”
“User Set 1”
“User Set 2”
“User Set 3”
“Ready”
198
Saves the parameter values in active drive Options:
memory to a user set in drive nonvolatile
memory.
0
1
2
3
0
“Ready”
“User Set 1”
“User Set 2”
“User Set 3”
“Ready”
0
1
2
0
0
1
2
3
4
5
6
7
8-9
10
“Ready”
“MWh”
“Elapsed Time”
“Not Selected”
“Not Selected”
“English”
“Français”
“Español”
“Italiano”
“Deutsch”
“Reserved”
“Português”
“Reserved”
“Nederlands”
200 [Reset Meters]
Resets selected meters to zero.
Default:
Options:
Default:
Selects the display language when using Options:
an LCD HIM. This parameter is not
functional with an LED HIM.
201 [Language]
Related
No.
Programming and Parameters
Group
File E
3-38
Parameter Name and Description
See page 3-2 for symbol descriptions
202 [Voltage Class]
Configures the drive current rating and
associates it with the selected voltage
(i.e. 400 or 480V). This parameter is
normally used when downloading
parameter sets.
203 [Drive Checksum]
Values
Default:
Based on Drive Cat.
No.
Options:
2
3
“Low Voltage”
“High Voltage”
Default:
Read Only
x x x x x x x x x x x x x x 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
Dynamic Mode
1 =Enabled
0 =Disabled
Ctrl Source
1 =[Dyn UserSet Sel]
0 =Digital Inputs
x = Reserved
[Dyn UsrSet Sel]
E C v2
Selects user set if [Dyn UsrSet Cnfg] = xxx xx11.
Us
e
Us rSet
erS Se
et l2
Se
l1
205
x x x x x x x x x x x x x x 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
0 0
Factory Default Bit Values
0 1
1 = Enabled
0 = Disabled
x = Reserved
User Set 1
User Set 2
1 0 User Set 3
1 1 User Set 3
e
Read Only
[Dyn UserSet Actv]
E C v2
Indicates the active user set and if the operation is dynamic
or normal.
od
206
Us
e
Us r Set
e
3
Us r Set
e
2
Dy r Set
na 1
mic
M
Drive Memory
UTILITY (File E)
Ctr
l
Dy Sour
na ce
mic
Mo
d
e
Provides a checksum value that indicates Min/Max: 0/65535
whether or not a change in drive
Units:
1
programming has occurred.
204
[Dyn UsrSet Cnfg]
E C v2
Enables/Disables dynamic selection of user parameter sets.
Important: In dynamic mode, changes to the parameters are not saved to
nonvolatile storage. Switching user sets restores the values last saved before
enabling dynamic mode.
x x x x x x x x x x x x 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
1 =Condition True
0 =Condition False
x = Reserved
Parameter Name and Description
Values
See page 3-2 for symbol descriptions
209 [Drive Status 1]
3-39
Related
No.
Group
File E
Programming and Parameters
Read Only
210
Sp
d
Sp Ref
d ID
Sp Ref 3 (2)
d ID
Sp Ref 2 (2)
d ID
Lo Ref 1 (2)
cal ID
Lo ID 0 (2)
ca 2 (1
Lo l ID )
ca 1 (1
At l ID )
S 0 (1
Fa peed )
ulte
Ala d
r
De m
c
Ac elera
c
ti
Ac elera ng
tua tin
Co l D g
m ir
Ac man
ti
d
Re ve Dir
ad
y
Present operating condition of the drive.
Bits (2)
15 14
0 0
0 0
0 0
0 0
0 1
0 1
0 1
0 1
1 0
1 0
1 0
1 0
1 1
1 1
1 1
1 1
13
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
12
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
Description
Ref A Auto
Ref B Auto
Preset 2 Auto
Preset 3 Auto
Preset 4 Auto
Preset 5 Auto
Preset 6 Auto
Preset 7 Auto
TB Manual
Port 1 Manual
Port 2 Manual
Port 3 Manual
Port 4 Manual
Port 5 Manual
Port 6 Manual
Jog Ref
Bits (1)
11 10
0 0
0 0
0 1
0 1
1 0
1 0
1 1
1 1
9
0
1
0
1
0
1
0
1
1 = Condition True
0 = Condition False
x = Reserved
Description
Port 0 (TB)
Port 1
Port 2
Port 3
Port 4
Port 5
Port 6
No Local
Control
210 [Drive Status 2]
Read Only
209
DP
I
Mo at 50
t
0
Bu or Ov k
s
e
Cu Freq rld
rr
R
Au Lim eg
to it
Au Rst A
to
DB Rst ct
A C
Au ctive tdn
toT *
DC uni
n
Sto Braki g
p n
Jog ping g
Ru ging
n
Ac ning
tive
Re
ad
y
Present operating condition of the drive.
x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 =Condition True
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 =Condition False
x =Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
* Enhanced Control Option Only.
211 [Drive Alarm 1]
Read Only
Alarm conditions that currently exist in the drive.
Gr
ou
Lo nd W
a
In d Los arn (2)
P
s (
Mo hase 2)
L
t
Wa or Th oss (2)
k e
De ing (2)rm (1)
cel
Dr Inh
v
i
Dr OL L bt
v O vl
LL 2
vl 1
Int
DB
An Re
lg s
Str in L OH
A o
Po t Pw ss
we rU
Un r Lo p
d
s
Pre erVo s
chr ltag
gA e
ctv
Diagnostics
UTILITY (File E)
0 0 0 0 1 1 1 0 0 0 0 0 1 1 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
x 0 0 0 0 0 0 0 0 x 0 0 0 0 0 0 1 =Condition True
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 =Condition False
x =Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
(1)
Enhanced firmware 1.001 & later.
(2)
Enhanced firmware 2.001 & later.
212
Related
No.
Programming and Parameters
Group
File E
3-40
Parameter Name and Description
See page 3-2 for symbol descriptions
Values
212 [Drive Alarm 2]
Read Only
211
PT
C
TB Con
R fl
Sle ef C ict (1)
ep flct (
Ixo Co 1)
V n
Sp olt R fig (2)
d
a
Flx Ref C ng (2)
A
f
IR mps lct
V
R
VH lts R ang
z a
Ma Neg ng
x S
NP Frq C lope
Mt Hz C flct
rT fl
Bip yp C ct
o fl
Dig lr Cf ct
I lc
Dig n Cflc t
t
I
Dig n Cfl C
In ctB
Cfl
ctA
Alarm conditions that currently exist in the drive.
1 = Condition True
0 = Condition False
x = Reserved
Us
erS
etC
flct
(2)
x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
x x x x x x x x x x x x x 0 x x 1 = Condition True
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 0 = Condition False
x = Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
(1)
Bit #
Enhanced firmware 1.001 & later.
(2)
Enhanced firmware 2.001 & later.
213 [Speed Ref Source]
Default:
Read Only
Options:
“PI Output”
0
“Analog In 1”
1
“Analog In 2”
2
3-7 “Reserved”
“Encoder”
8
“MOP Level”
9
10 “Reserved”
11 “Preset Spd1”
12 “Preset Spd2”
13 “Preset Spd3”
14 “Preset Spd4”
15 “Preset Spd5”
16 “Preset Spd6”
17 “Preset Spd7”
18 “DPI Port 1”
19 “DPI Port 2”
20 “DPI Port 3”
21 “Reserved”
22 “DPI Port 5”
23-29 “Reserved”
30 “HighRes Ref”(1)
Read Only
(1) Enhanced Control Drives Only.
214 [Start Inhibits]
Displays the inputs currently preventing the drive from
starting.
DP
I
Re Port
s
5
DP erved
IP
DP ort
3
I
DP Port
2
I
Dig Port
1
i
Sa tal In
fe
O
Sta ff (1
)
r
Pa tUp A
ra
Sto ms Rctv
p
DC Ass eset
e
En Bus rtd
ab Pch
l
rg
Typ e
e
Fa 2 A
ult lar
m
Diagnostics
UTILITY (File E)
Displays the source of the speed
reference to the drive.
x x 0 x 0 0 0 0 0 0 0 0 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
(1)
Bit #
Enhanced firmware 3.002 & later.
1 = Inhibit True
0 = Inhibit False
x = Reserved
090
093
096
101
Parameter Name and Description
Values
Default:
See page 3-2 for symbol descriptions
215 [Last Stop Source]
Displays the source that initiated the most Options:
recent stop sequence. It will be cleared
(set to 0) during the next start sequence.
216 [Dig In Status]
Read Only
“Pwr Removed”
0
“DPI Port 1”
1
“DPI Port 2”
2
“DPI Port 3”
3
“Reserved”
4
“DPI Port 5”
5
“Reserved”
6
“Digital In”
7
“Fault”
8
“Not Enabled”
9
10 “Sleep”
11 “Jog”
12 “Autotune” E C
13 “Precharge” E C
14 “Safe Off” E C v3
Read Only
(1)
(1)
(1)
(1)
(1)
361
362
363
364
365
366
361
thru
366
411
In6
In5 DLog
R
In4 DLog slt
R
In3 DLog slt
R
In2 DLog slt
D R
In1 Log slt
DL Rsl
og t
Rs
lt
Dig
ital
Dig In
i 6
Dig tal In
ital 5
Dig In
it 4
Dig al In3
i
Dig tal In
ital 2
In1
x x 0 0 0 0 0 0 x x 0 0 0 0 0 0 1 =Input Present
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 =Input Not Present
x =Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
(1)
Enhanced firmware 2.001 & later.
217 [Dig Out Status]
Read Only
380
thru
384
Status of the digital outputs.
Dig
i
Dig tal O
ital ut2
Ou
t1
Diagnostics
(1)
Status of the digital inputs.
UTILITY (File E)
3-41
Related
No.
Group
File E
Programming and Parameters
x x x x x x x x x x x x x x 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
218 [Drive Temp]
Present operating temperature of the
drive power section.
Default:
1 =Output Energized
0 =Output De-energized
x =Reserved
Read Only
Min/Max: –/+100 degC
0.0/100.0%
Units:
1.0 degC
0.1% E C
EC
Related
No.
Programming and Parameters
Group
File E
3-42
Parameter Name and Description
See page 3-2 for symbol descriptions
219 [Drive OL Count]
Values
Default:
Read Only
Accumulated percentage of drive
Min/Max: 0.0/100.0%
overload. Continuously operating the
Units:
0.1%
drive over 100% of its rating will increase
this value to 100% and cause a drive fault
or foldback depending on the setting of
[Drive OL Mode].
Default: Read Only
220 [Motor OL Count]
221
Diagnostics
Min/Max: 0.0/100.0%
Units:
0.1%
[Mtr OL Trip Time]
E C v3
Amount of time before a drive Overload
fault(F64) occurs if the load condition
remains constant. A value of 99999
means that the drive is operating under
the overload level.
Default:
Read Only
Min/Max: 0/99999
Units:
1
Read Only
[Drive Status 3]
E C v3
Present operating condition of the drive.
Fa
st
Ma Brak
nu ing
al M
od
e
Manual Mode - See Manual Speed Sources on
page 1-19.
Fast Braking - Fast Braking is active, see [Stop/Brk
Mode A] on page 3-30.
x x x x x x x x x x x x x x 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
223
[Status 3 @ Fault]
E C v3
Captures and displays [Drive Status 3] bit pattern at
the time of the last fault.
1 = Condition True
0 = Condition False
x = Reserved
Read Only
Fa
st
Ma Brak
nu ing
al M
od
e
UTILITY (File E)
222
Accumulated percentage of motor
overload. Continuously operating the
motor over 100% of the motor overload
setting will increase this value to 100%
and cause a drive fault.
x x x x x x x x x x x x x x 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
1 = Condition True
0 = Condition False
x = Reserved
150
047
048
220
Parameter Name and Description
See page 3-2 for symbol descriptions
224 [Fault Frequency]
Values
Default:
3-43
Related
No.
Group
File E
Programming and Parameters
Read Only
Captures and displays the output speed of Min/Max: 0.0/+[Maximum Freq]
the drive at the time of the last fault.
Units:
0.1 Hz
Default: Read Only
225 [Fault Amps]
Captures and displays motor amps at the Min/Max: 0.0/[Rated Amps] × 2
time of the last fault.
Units:
0.1 Amps
Default: Read Only
226 [Fault Bus Volts]
Captures and displays the DC bus voltage Min/Max: 0.0/Max Bus Volts
of the drive at the time of the last fault.
Units:
0.1 VDC
Read Only
227 [Status 1 @ Fault]
224
thru
230
224
thru
230
209
224
thru
230
0 0 0 0 1 1 1 0 1 0 0 0 1 1 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
228 [Status 2 @ Fault]
1 = Condition True
0 = Condition False
x = Reserved
Read Only
210
224
thru
230
DP
I
Mo at 50
t
0
Bu or Ov k
s
e
Cu Freq rld
rr
R
Au Lim eg
to it
Au Rst
to A
DB Rst ct
A C
Au ctive tdn
toT *
DC uni
n
Sto Brak g
p in
Jog ping g
Ru ging
n
Ac ning
tive
Re
ad
y
Captures and displays [Drive Status 2] bit pattern at
the time of the last fault.
x x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 = Condition True
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 = Condition False
x = Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
* Enhanced Control Option Only.
229 [Alarm 1 @ Fault]
Read Only
Captures and displays [Drive Alarm 1] at the time of
the last fault.
Gr
ou
Lo nd W
a
In d Los arn (2)
P
s (
Mo hase 2)
L
t
Wa or Th oss (2)
k e
De ing (2)rm (1)
cel
Dr Inh
v
i
Dr OL L bt
v O Vl
LL 2
vl 1
Int
DB
R
An e
lg s
Str in L OH
A o
Po t Pw ss
w
r
Un er Lo Up
de ss
r
Pre Vo
chr ltag
gA e
ctv
Diagnostics
UTILITY (File E)
Sp
d
Sp Ref
d R ID
Sp ef 3
d ID
Sp Ref 2
d ID
Lo Ref 1
ca ID
Lo l ID 0
ca 2
Lo l ID
ca 1
At l ID
S 0
Fa peed
ul
Ala ted
r
De m
c
Ac elera
c
ti
Ac elera ng
tu ti
Co al D ng
m ir
Ac man
tive d D
Re
ir
ad
y
Captures and displays [Drive Status 1] bit pattern at
the time of the last fault.
225
thru
230
x 0 0 0 0 0 0 0 0 x 0 0 0 0 0 0 1 =Condition True
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 =Condition False
x =Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
(1)
Bit #
Enhanced firmware 1.001 & later.
(2)
Enhanced firmware 2.001 & later.
211
224
thru
230
Related
No.
Programming and Parameters
Group
File E
3-44
Parameter Name and Description
See page 3-2 for symbol descriptions
Values
230 [Alarm 2 @ Fault]
Read Only
212
224
thru
230
PT
C
TB Con
R fl
Sle ef C ict (1)
e f
Ixo p Co lct (1)
V n
Sp olt R fig (2)
dR an
Flx ef C g (2)
A
f
IR mps lct
V
R
VH lts R ang
z a
Ma Neg ng
xF Slo
NP rq C pe
Mt Hz C flct
rT fl
Bip yp C ct
o fl
Dig lr Cf ct
I lc
Dig n Cflc t
t
I
Dig n Cfl C
In ctB
Cfl
ctA
Captures and displays [Drive Alarm 2] at the time of
the last fault.
1 = Condition True
0 = Condition False
x = Reserved
Diagnostics
Us
erS
etC
flct
(2)
x 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
x x x x x x x x x x x x x 0 x x 1 = Condition True
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 0 = Condition False
x = Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
(1)
Bit #
Enhanced firmware 1.001 & later.
(2)
Enhanced firmware 2.001 & later.
Default:
234 [Testpoint 1 Sel]
236 [Testpoint 2 Sel]
UTILITY (File E)
Selects the function whose value is
displayed value in [Testpoint x Data].
These are internal values that are not
accessible through parameters.
See Testpoint Codes and Functions on
page 4-11 for a listing of available codes
and functions.
Default:
235 [Testpoint 1 Data]
237 [Testpoint 2 Data]
EC
32
499
Min/Max: 0/999
0/65535
Units:
1
EC
Read Only
Min/Max: 0/65535
The present value of the function selected
–/+2147483647
in [Testpoint x Sel].
Units:
1
EC
238 [Fault Config 1]
Faults
Sh
ea
rPN
oA
Lo
cc (1
ad
)
In Los
Ph s (2)
Mo ase
to L
De r Th oss (2)
cel erm
Au Inh (1)
tR i
Sh st Tr bt
e
ie
Mo ar Pi s
tor n
Ov
erL
Un
d
de
Po rVo
we ltag
rL e
oss
Enables/disables annunciation of the listed faults.
x x x x 0 x 0 0 0 1 0 0 1 x 1 0 1 = Enabled
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 = Disabled
x = Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
(1)
Enhanced firmware 1.001 & later.
Factory Default Bit Values
(2)
Enhanced firmware 2.001 & later.
Default:
0
“Ready”
Resets a fault and clears the fault queue. Options:
0
1
2
“Ready”
“Clear Faults”
“Clr Flt Que”
240 [Fault Clear]
Parameter Name and Description
See page 3-2 for symbol descriptions
241 [Fault Clear Mode]
Values
Default:
Enables/disables a fault reset (clear
Options:
faults) attempt from any source. This does
not apply to fault codes which are cleared
indirectly via other actions.
Default:
242 [Power Up Marker]
3-45
Related
No.
Group
File E
Programming and Parameters
1
“Enabled”
0
1
“Disabled”
“Enabled”
Read Only
246
Elapsed hours since initial drive power up. Min/Max: 0.0000/429496.7295 Hrs
This value will rollover to 0 after the drive Units:
0.0001 Hrs
has been powered on for more than the
max value shown. For relevance to most
recent power up see [Fault x Time].
Default: Read Only
243 [Fault 1 Code]
32
Faults
UTILITY (File E)
245 [Fault 2 Code]
247 [Fault 3 Code]
249 [Fault 4 Code]
Min/Max: 0/9999
0/65535
Units:
0
EC
A code that represents the fault that
tripped the drive. The codes will appear in
these parameters in the order they occur
([Fault 1 Code] = the most recent fault).
244
246
248
250
32
[Fault 1 Time]
[Fault 2 Time]
[Fault 3 Time]
[Fault 4 Time]
Default:
Read Only
Min/Max: 0.0000/429496.7295 Hrs
Units:
0.0001 Hrs
The time between initial drive power up and the occurrence of the associated trip
fault. Can be compared to [Power Up Marker] for the time from the most recent
power up.
[Fault x Time] – [Power Up Marker] = Time difference to the most recent power up.
A negative value indicates fault occurred before most recent power up. A positive
value indicates fault occurred after most recent power up.
To convert this value to the number days, hours, minutes and seconds, the
following formula may be used:
Fault x Time / 24 hours = (# of days).(remaining time)
Remaining Time x 24 hours = (# of hours).(remaining time)
Remaining Time x 60 minutes = (# of minutes).(remaining seconds)
Remaining Time x 60 seconds = (# of seconds)
Result = (# of days).(# of hours).(# of minutes).(# of seconds)
Example: 1909.2390 Hrs / 1 Day/24 Hrs = 79.551625 Days
0.551625 Days x 24 Hrs/Day = 13.239 Hrs
0.239 Hrs x 60 Min/Hr = 14.34 Min
0.34 Min x 60 Sec/Min = 20.4 Secs
242
Parameter Name and Description
See page 3-2 for symbol descriptions
Values
259 [Alarm Config 1]
Gr
ou
Lo nd W
a
In d Los arn (2)
P
s (
Mo hase 2)
L
t
Wa or Th oss (2)
k e
De ing (2)rm (1)
c
Dr el Inh
v
i
Dr OL L bt
v O vl
LL 2
vl 1
Int
D
An BRe
lg s
Str in L OH
A o
Po t Pw ss
w
r
Un er Lo Up
d
s
Pre erVo s
chr ltag
gA e
ctv
Alarms
UTILITY (File E)
Enables/disables alarm conditions that will initiate an active drive alarm.
x 0 0 0 1 0 1 1 1 x 1 1 1 1 1 1 1 =Enabled
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 =Disabled
x =Reserved
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
(1)
Enhanced firmware 1.001 & later.
Factory Default Bit Values
(2)
Enhanced firmware 2.001 & later.
Related
No.
Programming and Parameters
Group
File E
3-46
Programming and Parameters
3-47
Related
No.
Group
File H
Communication File (File H)
Parameter Name and Description
See page 3-2 for symbol descriptions
270 [DPI Data Rate]
Values
Default:
Sets the baud rate for attached drive
Options:
peripherals. When changing this value the
drive must be reset for the change to take
affect.
271 [Drive Logic Rslt]
0
“125 kbps”
0
1
“125 kbps”
“500 kbps”
Read Only
(1)
(1)
0 1 1 1 1 1 1 0 1 0 0 0 1 1 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Comm Control
COMMUNICATION (File H)
MO
Sp P De
d c
Sp Ref
d ID
Sp Ref 2
d ID
De Ref 1
c ID
De el 2 0
c
Ac el 1
ce
Ac l 2
c
MO el 1
P
Lo Inc
cal
Re Co
v n
Fo erse trl
rw
Cle ard
a
Jog r Fa
ult
Sta
rt
Sto
p
(1)
The final logic command resulting from the
combination of all DPI and discrete inputs. This
parameter has the same structure as the
product-specific logic command received via DPI and
is used in peer to peer communications.
Bits(1)
14 13
0
0
0
0
1
0
1
0
0
1
0
1
1
1
1
1
12
0
1
0
1
0
1
0
1
272 [Drive Ref Rslt]
1 =Condition True
0 =Condition False
x =Reserved
Description
No Command - Man. Mode
Ref A Auto
Ref B Auto
Preset 3 Auto
Preset 4 Auto
Preset 5 Auto
Preset 6 Auto
Preset 7 Auto
Default:
Read Only
Present frequency reference scaled as a Min/Max: –/+32767
DPI reference for peer to peer
Units:
1
communications. The value shown is the
value prior to the accel/decel ramp and
any corrections supplied by slip comp, PI,
etc.
Default: Read Only
273 [Drive Ramp Rslt]
Present frequency reference scaled as a Min/Max: –/+32767
DPI reference for peer to peer
Units:
1
communications. The value shown is the
value after the accel/decel ramp but prior
to any corrections supplied by slip comp,
PI, etc.
Comm Control
274
275
298
Related
No.
Programming and Parameters
Group
File H
3-48
Parameter Name and Description
Values
Default:
See page 3-2 for symbol descriptions
[DPI Port Select]
EC
Selects which port reference value will
appear in [DPI Port Value].
Options:
Default:
[DPI Port Value]
EC
Value of the DPI reference selected in
[DPI Port Sel].
“Not Used”
0
“Not Used”
0
“DPI Port 1”
1
“DPI Port 2”
2
“DPI Port 3”
3
“Reserved”
4
“DPI Port 5”
5
Read Only
Min/Max: –/+32767
Units:
1
Default: 0
“Max Freq”
[DPI Ref Select]
EC
Scales DPI on [Maximum Freq] or
[Maximum Speed]. This will adjust the
resolution of the DPI reference.
Options:
0
1
“Max Freq”
“Max Speed”
276 [Logic Mask]
COMMUNICATION (File H)
DP
IP
ort
5
DP
IP
DP ort
I
3
DP Port
2
I
Dig Port
ital 1
In
288
Determines which adapters can control the drive when 598, bit 15 is set to “1.” If the thru
297
bit for an adapter is “0,” the adapter will have no control functions except for stop.
x x x x x x x x x x 1 x 1 1 1 1
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
277 [Start Mask]
1 = Control Permitted
0 = Control Masked
x = Reserved
See [Logic Mask].
288
thru
297
See [Logic Mask].
288
thru
297
See [Logic Mask].
288
thru
297
See [Logic Mask].
288
thru
297
See [Logic Mask].
288
thru
297
See [Logic Mask].
288
thru
297
See [Logic Mask].
288
thru
297
Masks & Owners
Controls which adapters can issue start
commands.
278 [Jog Mask]
Controls which adapters can issue jog
commands.
279 [Direction Mask]
Controls which adapters can issue
forward/reverse direction commands.
280 [Reference Mask]
Controls which adapters can select an
alternate reference; [Speed Ref A, B Sel]
or [Preset Speed 1-7].
281 [Accel Mask]
Controls which adapters can select [Accel
Time 1, 2].
282 [Decel Mask]
Controls which adapters can select [Decel
Time 1, 2].
283 [Fault Clr Mask]
Controls which adapters can clear a fault.
Parameter Name and Description
Values
See page 3-2 for symbol descriptions
284 [MOP Mask]
See [Logic Mask].
288
thru
297
See [Logic Mask].
288
thru
297
Read Only
276
thru
285
Controls which adapters can issue MOP
commands to the drive.
285 [Local Mask]
Controls which adapters are allowed to
take exclusive control of drive logic
commands (except stop). Exclusive “local”
control can only be taken while the drive is
stopped.
288 [Stop Owner]
3-49
Related
No.
Group
File H
Programming and Parameters
DP
IP
or t
5
DP
I
DP Port
I
3
DP Port
IP 2
o
Dig r t
ital 1
In
Adapters that are presently issuing a valid stop
command.
Masks & Owners
COMMUNICATION (File H)
x x x x x x x x x x 0 x 0 0 0 1
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
289 [Start Owner]
Adapters that are presently issuing a
valid start command.
290 [Jog Owner]
1 = Issuing Command
0 = No Command
x = Reserved
See [Stop Owner].
276
thru
285
See [Stop Owner].
276
thru
285
See [Stop Owner].
276
thru
285
See [Stop Owner].
276
thru
285
See [Stop Owner].
140
276
thru
285
142
276
thru
285
276
thru
285
276
thru
285
Adapters that are presently issuing a valid
jog command.
291 [Direction Owner]
Adapter that currently has exclusive
control of direction changes.
292 [Reference Owner]
Adapter that has the exclusive control of
the command frequency source selection.
293 [Accel Owner]
Adapter that has exclusive control of
selecting [Accel Time 1, 2].
294 [Decel Owner]
See [Stop Owner].
Adapter that has exclusive control of
selecting [Decel Time 1, 2].
295 [Fault Clr Owner]
See [Stop Owner].
Adapter that is presently clearing a fault.
296 [MOP Owner]
Adapters that are currently issuing
increases or decreases in MOP command
frequency.
See [Stop Owner].
Parameter Name and Description
See page 3-2 for symbol descriptions
Values
Masks & Owners
297 [Local Owner]
See [Stop Owner].
Adapter that has requested exclusive
control of all drive logic functions. If an
adapter is in local lockout, all other
functions (except stop) on all other
adapters are locked out and
non-functional. Local control can only be
obtained when the drive is not running.
300 [Data In A1] - Link A Word 1
301 [Data In A2] - Link A Word 2
Default:
276
thru
285
0 (0 = “Disabled”)
Min/Max: 0/387
Parameter number whose value will be
0/545 E C
written from a communications device
0/598 E C v2
data table.
Units:
1
Parameters that can only be changed
while drive is stopped cannot be used as
Datalink inputs. Entering a parameter of
this type will “Disable” the link.
Refer to your communications option
manual for datalink information.
See [Data In A1] - Link A Word 1.
302 [Data In B1] - Link B Word 1
303 [Data In B2] - Link B Word 2
Datalinks
COMMUNICATION (File H)
Related
No.
Programming and Parameters
Group
File H
3-50
304 [Data In C1] - Link C Word 1
305 [Data In C2] - Link C Word 2
See [Data In A1] - Link A Word 1.
306 [Data In D1] - Link D Word 1
307 [Data In D2] - Link D Word 2
See [Data In A1] - Link A Word 1.
310 [Data Out A1] - Link A Word 1
311 [Data Out A2] - Link A Word 2
Default:
Parameter number whose value will be
written to a communications device data
table.
312
313
314
315
316
317
308
32
[Data Out B1] - Link B Word 1
[Data Out B2] - Link B Word 2
[Data Out C1] - Link C Word 1
[Data Out C2] - Link C Word 2
[Data Out D1] - Link D Word 1
[Data Out D2] - Link D Word 2
[HighRes Ref]
EC
Used as a high resolution, 32 bit
reference with Datalinks.
–/+[Maximum Freq] or
–/+[Maximum Speed] = 2147418112
0 (0 = “Disabled”)
Min/Max: 0/387
0/545 E C
0/598 E C v2
Units:
1
See [Data Out A1] - Link A Word 1.
See [Data Out A1] - Link A Word 1.
See [Data Out A1] - Link A Word 1.
Default:
0
Min/Max: –/+2147483647
Units:
1
090
093
126
128
213
298
[Port Mask Act]
E C v2
Active status for port communication.
DP
cur
i
Se
1 x x x x x x x x x 1 x 1 1 1 1
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
1 =Not Masked
0 =Masked
x =Reserved
DP
IP
or t
5
DP
I
DP Por t
I
3
DP Por t
IP 2
o
Ho r t
st 1
[Write Mask Cfg]
E C v2
Enables/disables write access (parameters, etc.) for ports. Changes to this
parameter only become affective upon power cycle, drive reset or when 597, bit
15 transitions from “1” to “0.”
x x x x x x x x x x 1 x 1 1 1 1
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
Security
597
[Write Mask Act]
E C v2
Active status of write access for ports. Bit
15 determines if network security is
controlling the write mask instead of 596.
1 =Not Masked
0 =Masked
x =Reserved
See [Port Mask Act].
288
Determines which adapters can control the drive when 597, bit 15 is set to “1”. If thru
the bit for a port is set to “0,” the port will have no control functions except for stop. 297
276 [Logic Mask]
DP
IP
ort
5
DP
I
DP Port
I
3
DP Port
2
I
Dig Port
ital 1
In
COMMUNICATION (File H)
596
3-51
Related
Values
See page 3-2 for symbol descriptions
ty
595
Parameter Name and Description
IP
or t
5
DP
IP
DP or t
I
3
DP Por t
IP 2
o
Ho r t
st 1
No.
Group
File H
Programming and Parameters
x x x x x x x x x x 1 x 1 1 1 1
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
598
[Logic Mask Act]
E C v2
Active status of logic mask for ports. Bit
15 determines if network security is
controlling the logic mask instead of 276.
1 = Control Permitted
0 = Control Masked
x = Reserved
See [Port Mask Act].
3-52
Programming and Parameters
Related
No.
Group
File J
Inputs & Outputs File (File J)
Parameter Name and Description
See page 3-2 for symbol descriptions
Values
320 [Anlg In Config]
322
323
An
a
An log In
alo 2
gI
n1
Selects the mode for the analog inputs.
x x x x x x x x x x x x x x 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
1 =Current
0 =Voltage
x =Reserved
Analog Inputs
INPUTS & OUTPUTS (File J)
An
a
An log In
alo 2
gI
n1
321 [Anlg In Sqr Root]
Enables/disables the square root function for each input.
x x x x x x x x x x x x x x 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
322 [Analog In 1 Hi]
325 [Analog In 2 Hi]
Default:
1 =Enable
0 =Disable
x =Reserved
10.000 Volt
10.000 Volt
Sets the highest input value to the analog Min/Max: 4.000/20.000 mA Standard ,
input x scaling block.
0.000/20.000 mA E C ,
–/+10.000V,
0.000/10.000V
Units:
0.001 mA,
0.001 Volt
Default: 0.000 Volt
323 [Analog In 1 Lo]
0.000 Volt
326 [Analog In 2 Lo]
Sets the lowest input value to the analog
input x scaling block.
324 [Analog In 1 Loss]
327 [Analog In 2 Loss]
091
092
091
092
Min/Max: 4.000/20.000 mA,
0.000/10.000V (No. 323),
–/+10.000V (No. 326)
Units:
0.000/10.000V,
0.001 mA,
0.001 Volt
091
“Disabled”
Default: 0
“Disabled”
0
092
Options:
Selects drive action when an analog
signal loss is detected. Signal loss is
defined as an analog signal less than 1V
or 2mA. The signal loss event ends and
normal operation resumes when the input
signal level is greater than or equal to
1.5V or 3mA.
0
1
2
3
4
5
6
“Disabled”
“Fault”
“Hold Input”
“Set Input Lo”
“Set Input Hi”
“Goto Preset1”
“Hold OutFreq”
Parameter Name and Description
See page 3-2 for symbol descriptions
Values
[Anlg Out Config]
EC
Selects the mode for the analog outputs.
An
alo
g
Ou
t1
340
3-53
Related
No.
Group
File J
Programming and Parameters
x x x x x x x x x x x x x x x 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
1 =Current
0 =Voltage
x =Reserved
341 [Anlg Out Absolut]
342
Analog Outputs
INPUTS & OUTPUTS (File J)
An
alo
gO
ut1
Selects whether the signed value or absolute value of a parameter is used before
being scaled to drive the analog output.
x x x x x x x x x x x x x x x 1
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
Default:
342 [Analog Out1 Sel]
Selects the source of the value that drives Options:
the analog output.
[Analog Out1 Lo] Value
Options
0 “Output Freq”
1 “Command Freq”
2 “Output Amps”
3 “Torque Amps”
4 “Flux Amps”
5 “Output Power”
6 “Output Volts”
7 “DC Bus Volts”
8 “PI Reference” (1)
9 “PI Feedback”
10 “PI Error”
11 “PI Output”
12 “%Motor OL”
13 “%Drive OL”
14 “CommandedTrq:” (3)
15 “MtrTrqCurRef” (1)(3)
16 “Speed Ref” (3)
17 “Speed Fdbk” (3)
19 “Torque Est” (1)(3)
24 “Param Cntl” (1)(2)
25 “SpdFdBk NoFilt” (1)
0
1 = Absolute
0 = Signed
x = Reserved
“Output Freq”
See Table
[Analog Out1 Hi]
Param. 341= Signed
Param. 341 = Absolute Value
–[Maximum Speed]
–[Maximum Speed]
0 Amps
–200%
0 Amps
0 kW
0 Volts
0 Volts
–100%
–100%
–100%
–800%
0%
0%
–800%
–200%
–[Maximum Speed]
–[Maximum Speed]
–800%
0 Hz
0 Hz
0 Amps
0 Amps
0 Amps
0 kW
0 Volts
0 Volts
0%
0%
0%
0%
0%
0%
0%
0 Amps
0 Hz
0 Hz
0%
–[Maximum Speed] 0 Hz
(1) Refer to Option Definitions on page 3-58.
(2) Enhanced firmware 1.001 & later.
(3) Enhanced firmware 2.002 & later.
+[Maximum Speed]
+[Maximum Speed]
200% Drive Rated
200% Drive Rated
200% Drive Rated
200% Drive Rated
120% Drive Rated
200% Drive Rated
100%
100%
100%
800%
100%
100%
800% Motor Rated
200% Motor Rated
[Maximum Speed]
[Maximum Speed]
800% Motor Rated
[Maximum Speed]
001
002
003
004
005
007
006
012
135
136
137
138
220
219
024
441
023
025
015
377
Parameter Name and Description
See page 3-2 for symbol descriptions
343 [Analog Out1 Hi]
Sets the analog output value when the
source value is at maximum.
Sets the analog output value when the
source value is at minimum.
Analog Outputs
INPUTS & OUTPUTS (File J)
344 [Analog Out1 Lo]
354
Related
No.
Programming and Parameters
Group
File J
3-54
EC
[Anlg Out1 Scale]
Sets the high value for the range of analog
out scale. Entering 0.0 will disable this
scale and max scale will be used.
Example: If [Analog Out Sel] =
“Commanded Trq,” a value of 150 = 150%
scale in place of the default 800%.
377
[Anlg Out1 Setpt]
EC
Controls the analog output value from a
communication device.
Example
Set [Data In A1] to “377” which will be the
value from the communication device.
Values
Default:
10.00 Volts
Min/Max: 0.00/10.00 Volts
0.00/20.00 mA
Units:
0.01 Volt
0.01 mA E C
Default: 0.00 Volts
Min/Max: 0.00/10.00 Volts
0.00/20.00 mA
Units:
0.01 Volt
0.01 mA E C
Default: 0.0
340
342
EC
340
342
EC
Min/Max: [Analog Out1 Sel]
Units:
0.01
Default:
0.00 Volts
Min/Max: 0.00/10.00 Volts
0.00/20.00 mA
Units:
0.01 Volt
0.01 mA E C
340
EC
361
362
363
364
365
366
Parameter Name and Description
See page 3-2 for symbol descriptions
[Digital In1 Sel]
[Digital In2 Sel]
[Digital In3 Sel]
[Digital In4 Sel]
[Digital In5 Sel]
[Digital In6 Sel] (7)
Selects the function for the digital inputs.
(1) When [Digital Inx Sel] is set to option 2
“Clear Faults” the Stop button cannot
be used to clear a fault condition.
(2)
3
0
0
0
0
1
1
1
1
2
0
0
1
1
0
0
1
1
1
0
1
0
1
0
1
0
1
“Speed Sel 1-3”
Reference A
Reference B
Preset Speed 2
Preset Speed 3
Preset Speed 4
Preset Speed 5
Preset Speed 6
Preset Speed 7
(3)
Digital Inputs
INPUTS & OUTPUTS (File J)
To access Preset Speed 1, set [Speed
Ref A Sel] or [Speed Ref B Sel] to
“Preset Speed 1”.
3
0
0
0
0
1
1
1
1
2
0
0
1
1
0
0
1
1
1
0
1
0
1
0
1
0
1
“Spd/Trq Sel1-3”
Zero Torque
Spd Reg
Torque Reg
Min Spd/Trq
Max Spd/Trq
Sum Spd/Trq
Absolute
Zero Trq
(4) Enhanced Control Drives Only.
(5) Enhanced Firmware V2.001 and later.
(6)
Values
Default:
Default:
Default:
Default:
Default:
Default:
Options:
3-55
Related
No.
Group
File J
Programming and Parameters
4
5
18
15
16
17
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15-17
18
19
20
21
22
23
24
25
26
27
28
29
30
31-33
34
35
36-40
41-42
43
44
45
46
47-57
58
59
“Stop – CF”(1)
“Start”
“Auto/ Manual”
“Speed Sel 1”
“Speed Sel 2”
“Speed Sel 3”
“Not Used”
“Enable”(6)
“Clear Faults”(1)
“Aux Fault”
“Stop – CF”(1)
“Start”(9)(11)
“Fwd/ Reverse”(9)
“Run”(10)
“Run Forward”(10)
“Run Reverse”(10)
“Jog”(9) “Jog1”(4)
“Jog Forward”
“Jog Reverse”
“Stop Mode B”
“Bus Reg Md B”
“Speed Sel 1-3”(2)
“Auto/ Manual”(8)
“Local”
“Acc2 & Dec2”
“Accel 2”
“Decel 2”
“MOP Inc”(12)
“MOP Dec”(12)
“Excl Link”(12)
“PI Enable”
“PI Hold”
“PI Reset”
“Reserved”
“Precharge En”(4)(12)
“Spd/Trq Sel1-3”(3)(13)
“Jog 2”(4)
“PI Invert”(4)
“Reserved”
“UserSet Sel1-2” (5)
“Run Level” (5)(12)
“RunFwd Level” (5)(12)
“RunRev Level” (5)(12)
“Run w/Comm” (5)(12)
“Reserved”
“Sync Enable”(13)
“Traverse Ena”(13)
Opening an “Enable” input will cause the
motor to coast-to-stop, ignoring any
programmed Stop modes.
(7) A dedicated hardware enable input is
available via a jumper selection. Refer to
page 1-15 for further information.
(8) Auto/Manual - Refer to Figure 1.13 on
page 1-19 for details.
(9) Typical 3-Wire Inputs - Requires that only
3-wire functions are chosen. Including
2-wire selections will cause a type 2
alarm.
(10) Typical 2-Wire Inputs - Requires that only
2-wire functions are chosen. Including
3-wire selections will cause a type 2
alarm.
(11) A “Dig In ConflictB” alarm will occur if a “Start” input is programmed without a
“Stop” input. Type 2 Alarms - Some digital input programming may cause conflicts
that will result in a Type 2 alarm. Example: [Digital In1 Sel] set to 5 “Start” in 3-wire
control and [Digital In2 Sel] set to 7 “Run” in 2-wire. Refer to Alarm Descriptions on
page 4-7 for information on resolving this type of conflict.
(12) Refer to Option Definitions on page 3-58.
(13) Enhanced Firmware V3.002 and later.
100
156
162
096
140
194
380
125
088
108
124
205
620
In6
In5 ORda
t
In4 ORda a
t
In3 ORda a
t
In2 ORda a
O t
In1 Rda a
OR ta
da
ta
Digital Inputs
1 =Logical 1
0 =Logical 0
x =Reserved
Dig
i
Dig tal O
ital ut2
Ou
t1
[Dig Out Setpt]
EC
Controls output relays (CRx) when parameter 380 or 384 is set to option 30
“Param Cntl”.
x x x x x x x x x x x x x x 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
1 =Enabled
0 =Disabled
x =Reserved
Related
Values
[DigIn DataLogic]
EC
Provides data to the logical operations that will be done with the digital inputs
when parameter 056 is set to option 9 “DigIn DatLog”.
See page 3-2 for symbol descriptions
x x 0 0 0 0 0 0 x x 0 0 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
379
Digital Outputs
INPUTS & OUTPUTS (File J)
411
Parameter Name and Description
In6
In5 AND
da
In4 AND ta
d
In3 AND ata
AN data
In2 Dd
a
In1 AND ta
AN data
Dd
ata
No.
Programming and Parameters
Group
File J
3-56
056
Parameter Name and Description
See page 3-2 for symbol descriptions
380 [Digital Out1 Sel]
384 [Digital Out2 Sel]
Values
Default:
Selects the drive status that will energize Options:
a (CRx) output relay.
(1)
Digital Outputs
INPUTS & OUTPUTS (File J)
Any relay programmed as Fault or
Alarm will energize (pick up) when
power is applied to drive and
deenergize (drop out) when a fault or
alarm exists. Relays selected for other
functions will energize only when that
condition exists and will deenergize
when condition is removed. Refer to
page 1-14.
(2) Activation level is defined in [Dig Outx
Level] below.
(3) Enhanced Control Drives Only.
(4) Enhanced Firmware V3.002 and later.
381 [Dig Out1 Level]
385 [Dig Out2 Level]
Default:
3-57
Related
No.
Group
File J
Programming and Parameters
1
4
“Fault”
“Run”
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31-57
58
59
0.0
0.0
“Fault”(1)
“Alarm”(1)
“Ready”
“Run”
“Forward Run”
“Reverse Run”
“Auto Restart”
“Powerup Run”
“At Speed”
“At Freq”(2)
“At Current”(2)
“At Torque”(2)
“At Temp”(2)
“At Bus Volts”(2)
“At PI Error”(2)
“DC Braking”
“Curr Limit”
“Economize”
“Motor Overld”
“Power Loss”
“Input 1 Link”
“Input 2 Link”
“Input 3 Link”
“Input 4 Link”
“Input 5 Link”
“Input 6 Link”
“PI Enabled”(3)
“PI Hold”(3)
“Drive Overld”(3)
“Param Cntl”(3)
““Reserved”
“Manual Mode”(4)
“Fast Braking”(4)
Sets the relay activation level for options Min/Max: 0.0/819.2
10 – 15 in [Digital Outx Sel]. Units are
Units:
0.1
assumed to match the above selection
(i.e. “At Freq” = Hz, “At Torque” = Amps).
Default: 0.0 Secs
382 [Dig Out1 OnTime]
0.0 Secs
386 [Dig Out2 OnTime]
Sets the “ON Delay” time for the digital
Min/Max: 0.0/600.0 Secs
outputs. This is the time between the
Units:
0.1 Secs
occurrence of a condition and activation of
the relay.
381
385
382
383
002
001
003
004
218
012
137
157
147
053
048
184
380
380
Related
No.
Group
Programming and Parameters
Parameter Name and Description
See page 3-2 for symbol descriptions
383 [Dig Out1 OffTime]
387 [Dig Out2 OffTime]
Digital Outputs
INPUTS & OUTPUTS (File J) File J
3-58
Sets the “OFF Delay” time for the digital
outputs. This is the time between the
disappearance of a condition and
de-activation of the relay.
Values
Default:
0.0 Secs
0.0 Secs
380
Min/Max: 0.0/600.0 Secs
Units:
0.1 Secs
Selected Option Definitions – [Analog Outx Sel], [Digital Inx Sel],
[Digital Outx Sel]
Option
At Speed
Excl Link
Input 1-6 Link
Manual Mode
MOP Dec
MOP Inc
MtrTrqCurRef
Param Cntl
Param Cntl
PI Reference
Precharge En
Run Level
RunFwd Level
RunRev Level
Run w/Comm
Description
Relay changes state when drive has reached commanded speed.
Links digital input to a digital output if the output is set to “Input 1-6 Link.”
When Digital Output 1 is set to of these (i.e. Input 3 Link) in conjunction with Digital Input
3 set to “Excl Link,” the Digital Input 3 state (on/off) is echoed in the Digital Output 1.
Either the HIM or I/O Terminal Block (analog input) has control of the speed reference.
Decrements speed reference as long as input is closed.
Increments speed reference as long as input is closed.
Torque producing current reference.
Parameter controlled analog output allows PLC to control analog outputs through data
links. Set in [AnlgX Out Setpt], parameters 377-378.
Parameter controlled digital output allows PLC to control digital outputs through data
links. Set in [Dig Out Setpt], parameter 379.
Reference for PI block (see Process PI for Standard Control on page C-11).
Forces drive into precharge state. Typically controlled by auxiliary contact on the
disconnect at the DC input to the drive.
Provides a run level input. They do not require a transition for enable or fault, but a
transition is still required for a stop.
Allows the comms start bit to operate like a run with the run input on the terminal block.
Ownership rules apply.
SpdFdBk NoFilt Provides an unfiltered value to an analog output. The filtered version “Speed Fdbk”
includes a 125 ms filter.
Sync Enable
The fiber feature Synchronized Speed Change has been enabled. Allows a coordinated
change in drive speeds to change machine speed.
Torque Est
Calculated percentage of rated motor torque.
Traverse Enable The Traverse function has been enabled. This adds a triangle wave and square wave
modulation to the speed reference.
Related
380
361
380
380
361
361
342
342
342
342
361
342
622
342
623
624
625
626
Programming and Parameters
3-59
Parameter Name & Description
See page 3-2 for symbol descriptions
Values
[Fiber Control]
E C v3
Controls the Sync and Traverse functions.
Tra
v
Sy erse
nc En
En a
ab
le
620
Related
No.
Group
File K
Applications File (File K)
x x x x x x x x x x x x x x 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
[Fiber Status]
E C v3
Status of Sync and Traverse functions.
Read Only
Tra
v
Tra erse
ver De
Sy se c
n
O
Sy c Ra n
nc mp
Ho
ld
Fiber Functions
APPLICATIONS (File K)
621
1 = Enabled
0 = Disabled
x = Reserved
x x x x x x x x x x x x 0 0 0 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
622
623
624
625
626
[Sync Time]
E C v3
The time to ramp from the “held speed
reference” to the current speed
reference, after the Sync input is
de-energized.
Default:
[Traverse Inc]
E C v3
Sets the time period of increasing
frequency.
Default:
[Traverse Dec]
E C v3
Sets the time period of decreasing
frequency.
[Max Traverse]
E C v3
Sets the amplitude of the triangle wave
speed modulation.
[P Jump]
E C v3
Sets the amplitude of the square wave
speed modulation.
1 = Condition True
0 = Condition False
x = Reserved
0.0 Secs
Min/Max: 0.0/3600.0 Secs
Units:
0.1 Secs
0.00 Secs
Min/Max: 0.00/30.00 Secs
Units:
0.01 Secs
Default: 0.00 Secs
Min/Max: 0.00/30.00 Secs
Units:
0.01 Secs
Default: 0.00 Hz
Min/Max: 0.00/Maximum Speed
Units:
0.01 Hz
Default: 0.00 Hz
Min/Max: 0.00/Maximum Speed
Units:
0.01 Hz
3-60
Programming and Parameters
Parameter Cross Reference – by Name
Parameter Name
Accel Mask
Accel Owner
Accel Time X
Alarm Config 1
Alarm X @ Fault
Analog In X Hi
Analog In X Lo
Analog In X Loss
Analog In1 Value
Analog In2 Value
Analog Out1 Hi
Analog Out1 Lo
Analog Out1 Sel
Anlg In Config
Anlg In Sqr Root
Anlg Out Absolut
Anlg Out Config
Anlg Out1 Scale
Anlg Out1 Setpt
Auto Rstrt Delay
Auto Rstrt Tries
AutoMan Cnfg
Autotune
Autotune Torque
Break Frequency
Break Voltage
Bus Reg Gain
Bus Reg Kd
Bus Reg Ki
Bus Reg Kp
Bus Reg Mode X
Commanded Freq
Commanded Torque
Compensation
Control Status
Control SW Ver
Current Lmt Gain
Current Lmt Sel
Current Lmt Val
Current Rate Limit
Data In XX
Data Out XX
DB Resistor Type
DB While Stopped
DC Brake Level
DC Brake Lvl Sel
DC Brake Time
DC Bus Memory
DC Bus Voltage
Decel Mask
Decel Owner
Decel Time X
Dig In Status
Dig Out Setpt
Number
281
293
140, 141
259
229, 230
322, 325
323, 326
324, 327
16
17
343
344
342
320
321
341
340
354
377
175
174
192
61
66
72
71
160
165
160
164
161, 162
2
24
56
440
29
149
147
148
154
300-307
310-317
163
145
158
157
159
13
12
282
294
142, 143
216
379
Group
Masks & Owners
Masks & Owners
Ramp Rates
Alarms
Diagnostics
Analog Inputs
Analog Inputs
Analog Inputs
Metering
Metering
Analog Outputs
Analog Outputs
Analog Outputs
Analog Inputs
Analog Inputs
Analog Outputs
Analog Outputs
Analog Outputs
Analog Outputs
Restart Modes
Restart Modes
HIM Ref Config
Torq Attributes
Torq Attributes
Volts per Hertz
Volts per Hertz
Stop/Brake Modes
Stop/Brake Modes
Stop/Brake Modes
Stop/Brake Modes
Stop/Brake Modes
Metering
Metering
Torq Attributes
Torq Attributes
Drive Data
Load Limits
Load Limits
Load Limits
Load Limits
Datalinks
Datalinks
Stop/Brake Modes
Stop/Brake Modes
Stop/Brake Modes
Stop/Brake Modes
Stop/Brake Modes
Metering
Metering
Masks & Owners
Masks & Owners
Ramp Rates
Diagnostics
Digital Outputs
Page
3-48
3-49
3-29
3-46
3-43
3-52
3-52
3-52
3-12
3-12
3-54
3-54
3-53
3-52
3-52
3-53
3-53
3-54
3-54
3-33
3-33
3-36
3-16
3-16
3-18
3-18
3-31
3-32
3-31
3-32
3-31
3-11
3-12
3-15
3-18
3-12
3-29
3-29
3-29
3-30
3-50
3-50
3-32
3-30
3-31
3-30
3-31
3-11
3-11
3-48
3-49
3-29
3-41
3-56
Parameter Name
Dig Out Status
Dig OutX Level
Dig OutX OffTime
Dig OutX OnTime
DigIn DataLogic
Digital InX Sel
Digital OutX Sel
Direction Mask
Direction Mode
Direction Owner
DPI Data Rate
DPI Port Select
DPI Port Value
DPI Ref Select
Drive Alarm X
Drive Checksum
Drive Logic Rslt
Drive OL Count
Drive OL Mode
Drive Ramp Rslt
Drive Ref Rslt
Drive Status 1, 2
Drive Status 3
Drive Temp
Droop RPM @ FLA
Dyn UserSet Actv
Dyn UsrSet Cnfg
Dyn UsrSet Sel
Elapsed kWh
Elapsed MWh
Elapsed Run Time
Enc Position Fdbk
Encoder PPR
Encoder Speed
Fault Amps
Fault Bus Volts
Fault Clear
Fault Clear Mode
Fault Clr Mask
Fault Clr Owner
Fault Config 1
Fault Frequency
Fault X Code
Fault X Time
Fdbk Filter Sel
Feedback Select
Fiber Control
Fiber Status
Flux Braking
Flux Current
Flux Current Ref
Flux Up Mode
Flux Up Time
Flying Start En
Number
217
381, 385
383, 387
382, 386
411
361-366
380, 384
279
190
291
270
274
275
298
211, 212
203
271
219
150
273
272
209, 210
222
218
152
206
204
205
14
9
10
414
413
415
225
226
240
241
283
295
238
224
243-249
244-250
416
80
620
621
166
5
63
57
58
169
Group
Diagnostics
Digital Outputs
Digital Outputs
Digital Outputs
Digital Inputs
Digital Inputs
Digital Outputs
Masks & Owners
Direction Config
Masks & Owners
Comm Control
Comm Control
Comm Control
Comm Control
Diagnostics
Drive Memory
Comm Control
Diagnostics
Load Limits
Comm Control
Comm Control
Diagnostics
Diagnostics
Diagnostics
Stop/Brake Modes
Drive Memory
Drive memory
Drive memory
Metering
Metering
Metering
Speed Feedback
Speed Feedback
Speed Feedback
Diagnostics
Diagnostics
Faults
Faults
Masks & Owners
Masks & Owners
Faults
Diagnostics
Faults
Faults
Speed Feedback
Spd Mode & Limits
Fiber Functions
Fiber Functions
Stop/Brake Modes
Metering
Torq Attributes
Torq Attributes
Torq Attributes
Restart Modes
Page
3-41
3-57
3-58
3-57
3-56
3-55
3-57
3-48
3-36
3-49
3-47
3-48
3-48
3-48
3-39
3-38
3-47
3-42
3-29
3-47
3-47
3-39
3-42
3-41
3-30
3-38
3-38
3-38
3-12
3-11
3-11
3-19
3-19
3-19
3-43
3-43
3-44
3-45
3-48
3-49
3-44
3-43
3-45
3-45
3-19
3-20
3-59
3-59
3-32
3-11
3-16
3-15
3-15
3-33
Programming and Parameters
Parameter Name
Flying StartGain
Gnd Warn Level
HighRes Ref
Inertia Autotune
IR Voltage Drop
Ixo Voltage Drop
Jog Mask
Jog Owner
Jog Speed
Jog Speed 1
Jog Speed 2
Kf Speed Loop
Ki Speed Loop
Kp Speed Loop
Language
Last Stop Source
Load Frm Usr Set
Load Loss Level
Load Loss Time
Logic Mask Act
Local Mask
Local Owner
Logic Mask
Man Ref Preload
Max Traverse
Maximum Freq
Maximum Speed
Maximum Voltage
Minimum Speed
MOP Frequency
MOP Mask
MOP Owner
MOP Rate
Motor Cntl Sel
Motor Fdbk Type
Motor NP FLA
Motor NP Hertz
Motor NP Power
Motor NP RPM
Motor NP Volts
Motor OL Count
Motor OL Factor
Motor OL Hertz
Motor OL Mode
Motor Poles
Motor Type
Mtr NP Pwr Units
Mtr OL Trip Time
Neg Torque Limit
Notch Filter K
Notch FilterFreq
Output Current
Output Freq
Output Power
Output Powr Fctr
Output Voltage
Overspeed Limit
P Jump
Param Access Lvl
Number
170
177
308
67
62
64
278
290
100
100
108
447
445
446
201
215
198
187
188
598
285
297
276
193
625
55
82
54
81
11
284
296
195
53
412
42
43
45
44
41
220
48
47
50
49
40
46
221
437
420
419
3
1
7
8
6
83
626
196
Group
Restart Modes
Restart Modes
Datalinks
Torq Attributes
Torq Attributes
Torq Attributes
Masks & Owners
Masks & Owners
Discrete Speeds
Discrete Speeds
Discrete Speeds
Speed Regulator
Speed Regulator
Speed Regulator
Drive Memory
Diagnostics
Drive Memory
Power Loss
Power Loss
Security
Masks & Owners
Masks & Owners
Masks & Owners
HIM Ref Config
Fiber Functions
Torq Attributes
Spd Mode & Limits
Torq Attributes
Spd Mode & Limits
Metering
Masks & Owners
Masks & Owners
MOP Config
Torq Attributes
Speed Feedback
Motor Data
Motor Data
Motor Data
Motor Data
Motor Data
Diagnostics
Motor Data
Motor Data
Motor Data
Motor Data
Motor Data
Motor Data
Diagnostics
Torq Attributes
Speed Feedback
Speed Feedback
Metering
Metering
Metering
Metering
Metering
Spd Mode & Limits
Fiber Functions
Drive Memory
Page
3-33
3-35
3-50
3-17
3-16
3-16
3-48
3-49
3-23
3-23
3-23
3-28
3-27
3-28
3-37
3-41
3-37
3-35
3-35
3-51
3-49
3-50
3-48
3-36
3-59
3-14
3-20
3-14
3-20
3-11
3-49
3-49
3-37
3-14
3-19
3-13
3-13
3-13
3-13
3-13
3-42
3-13
3-13
3-14
3-14
3-13
3-13
3-42
3-17
3-19
3-19
3-11
3-11
3-11
3-11
3-11
3-20
3-59
3-37
Parameter Name
PI BW Filter
PI Configuration
PI Control
PI Deriv Time
PI Error Meter
PI Fdback Meter
PI Feedback Hi
PI Feedback Lo
PI Feedback Sel
PI Integral Time
PI Lower Limit
PI Output Meter
PI Preload
PI Prop Gain
PI Reference Hi
PI Reference Lo
PI Reference Sel
PI Ref Meter
PI Setpoint
PI Status
PI Upper Limit
Pos Torque Limit
Port Mask Act
Power Loss Mode
Power Loss Time
Power Up Marker
Powerup Delay
Preset Speed X
PWM Frequency
Ramped Speed
Rated Amps
Rated kW
Rated Volts
Reference Mask
Reference Owner
Regen Power Lim
Reset Meters
Reset To Defalts
Rev Speed Limit
Run Boost
S Curve %
Save HIM Ref
Save MOP Ref
Save To User Set
Shear Pin Time
Skip Freq Band
Skip Frequency X
Sleep Level
Sleep Time
Sleep Wake Mode
Sleep Wake Ref
Slip Comp Gain
Slip RPM @ FLA
Slip RPM Meter
Spd Err Filt BW
Speed Desired BW
Speed Feedback
Speed Loop Meter
Speed Mode
Number
139
124
125
459
137
136
462
463
128
129
131
138
133
130
460
461
126
135
127
134
132
436
595
184
185
242
167
101-107
151
22
28
26
27
280
292
153
200
197
454
70
146
192
194
199
189
87
84-86
182
183
178
179
122
121
123
448
449
25
451
80
Group
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Process PI
Torq Attributes
Security
Power Loss
Power Loss
Faults
Restart Modes
Discrete Speeds
Load Limits
Metering
Drive Data
Drive Data
Drive Data
Masks & Owners
Masks & Owners
Load Limits
Drive Memory
Drive Memory
Spd Mode & Limits
Volts per Hertz
Ramp Rates
HIM Ref Config
MOP Config
Drive Memory
Load Limits
Spd Mode & Limits
Spd Mode & Limits
Restart Modes
Restart Modes
Restart Modes
Restart Modes
Slip Comp
Slip Comp
Slip Comp
Speed Regulator
Speed Regulator
Metering
Speed Regulator
Spd Mode & Limits
3-61
Page
3-27
3-25
3-25
3-27
3-27
3-27
3-27
3-27
3-26
3-26
3-26
3-27
3-26
3-26
3-27
3-27
3-25
3-26
3-25
3-26
3-26
3-17
3-51
3-35
3-35
3-45
3-33
3-23
3-29
3-12
3-12
3-12
3-12
3-48
3-49
3-30
3-37
3-37
3-21
3-18
3-29
3-36
3-37
3-37
3-30
3-21
3-21
3-35
3-35
3-34
3-35
3-24
3-24
3-24
3-28
3-28
3-12
3-28
3-20
3-62
Programming and Parameters
Parameter Name
Speed Ref X Hi
Speed Ref X Lo
Speed Ref X Sel
Speed Reference
Speed Ref Source
Speed/Torque Mod
Start At PowerUp
Start Inhibits
Start Mask
Start Owner
StAcc Boost
Status X @ Fault
Status 3 @ Fault
Stop/Brk Mode X
Stop Owner
SV Boost Filter
Sync Time
TB Man Ref Hi
TB Man Ref Lo
TB Man Ref Sel
Testpoint X Data
Testpoint X Sel
Torq Current Ref
Torque Current
Torque Estimate
Torque Perf Mode
Torque Ref A Hi
Torque Ref A Lo
Torque Ref A Sel
Torque Setpoint1
Total Inertia
Traverse Dec
Traverse Inc
Trim % Setpoint
Trim Hi
Trim In Select
Trim Lo
Trim Out Select
Voltage Class
Wake Level
Wake Time
Write Mask Act
Write Mask Cfg
Number
91, 94
92, 95
90, 93
23
213
88
168
214
277
289
69
227, 228
223
155, 156
288
59
622
97
98
96
235, 237
234, 236
441
4
15
53
428
429
427
435
450
624
623
116
119
117
120
118
202
180
181
597
596
Group
Speed Reference
Speed Reference
Speed Reference
Metering
Diagnostics
Spd Mode & Limits
Restart Modes
Diagnostics
Masks & Owners
Masks & Owners
Volts per Hertz
Diagnostics
Diagnostics
Stop/Brake Modes
Masks & Owners
Torq Attributes
Fiber Functions
Speed Reference
Speed Reference
Speed Reference
Diagnostics
Diagnostics
Torq Attributes
Metering
Metering
Torq Attributes
Torq Attributes
Torq Attributes
Torq Attributes
Torq Attributes
Speed Regulator
Fiber Functions
Fiber Functions
Speed Trim
Speed Trim
Speed Trim
Speed Trim
Speed Trim
Drive Memory
Restart Modes
Restart Modes
Security
Security
Page
3-22
3-22
3-22
3-12
3-40
3-21
3-33
3-40
3-48
3-49
3-18
3-43
3-42
3-30
3-49
3-15
3-59
3-23
3-23
3-23
3-44
3-44
3-18
3-11
3-12
3-14
3-17
3-17
3-17
3-17
3-28
3-59
3-59
3-24
3-24
3-24
3-24
3-24
3-38
3-35
3-35
3-51
3-51
Chapter 4
Troubleshooting
Chapter 4 provides information to guide you in troubleshooting the
PowerFlex 70. Included is a listing and description of drive faults (with
possible solutions, when applicable) and alarms.
For information on…
Faults and Alarms
Drive Status
Manually Clearing Faults
Fault Descriptions
Clearing Alarms
Alarm Descriptions
Testpoint Codes and Functions
Common Symptoms and Corrective Actions
See page…
4-1
4-2
4-3
4-3
4-7
4-7
4-11
4-12
Faults and Alarms
A fault is a condition that stops the drive. There are three fault types.
Type Fault Description
➀ Auto-Reset Run When this type of fault occurs, and [Auto Rstrt Tries] (see
page 3-33) is set to a value greater than “0,” a
user-configurable timer, [Auto Rstrt Delay] (see page 3-33)
begins. When the timer reaches zero, the drive attempts to
automatically reset the fault. If the condition that caused the
fault is no longer present, the fault will be reset and the drive
will be restarted.
Non-Resettable
This type of fault normally requires drive or motor repair. The
➁
cause of the fault must be corrected before the fault can be
cleared. The fault will be reset on power up after repair.
➂ User Configurable These faults can be enabled/disabled to annunciate or ignore
a fault condition.
An alarm is a condition that, if left untreated, may stop the drive. There
are two alarm types.
Type Alarm Description
➀ User Configurable These alarms can be enabled or disabled through
[Alarm Config 1] on page 3-46.
Non-Configurable
These alarms are always enabled.
➁
4-2
Troubleshooting
Drive Status
The condition or state of your drive is constantly monitored. Any
changes will be indicated through the LEDs and/or the HIM (if present).
LED Indications
See page 2-2 for information on LED status indicators.
HIM Indication
The LCD and LED HIMs also provide visual notification of a fault or
alarm condition.
Condition
Drive is indicating a fault.
The LCD HIM immediately reports the fault condition
by displaying the following.
• “Faulted” appears in the status line
• Fault number
• Fault name
• Time that has passed since fault occurred
Press Esc to regain HIM control.
The LED HIM reports the fault condition by displaying
the specific fault code.
Display
LCD HIM
F-> Faulted
Auto
0.0 Hz
Fault — F
—
5
Main
Menu:
OverVoltage
Diagnostics
Time Since Fault
0000:23:52
Parameter
LED HIM
LCD HIM
Drive is indicating an alarm.
The LCD HIM immediately reports the alarm condition
by displaying the following.
F-> Power Loss
• Alarm name (Type 2 alarms only)
0.0 Hz
• Alarm bell graphic
Main Menu:
Diagnostics
Parameter
Device Select
LED HIM
No indication.
Auto
Troubleshooting
4-3
Manually Clearing Faults
Step
1. Press Esc to acknowledge the fault. The fault information will be
removed so that you can use the HIM.
Key(s)
Esc
2. Address the condition that caused the fault.
The cause must be corrected before the fault can be cleared.
3. After corrective action has been taken, clear the fault by one of
these methods.
• Press Stop
• Cycle drive power
• Set parameter 240 [Fault Clear] to “1.”
• “Clear Faults” on the HIM Diagnostic menu.
Fault Descriptions
Fault
Analog In Loss
No.
29
Type(1)
Table 4.A Fault Types, Descriptions and Actions
➀
➂
Anlg Cal Chksum 108
Auto Rstrt Tries
33
➂
AutoTune Aborted 80
Auxiliary Input
2
Decel Inhibit
24
Drive OverLoad
64
➀
➂
Description
An analog input is configured to
fault on signal loss. A signal loss
has occurred.
Configure with [Anlg In 1, 2 Loss]
on page 3-52.
The checksum read from the
analog calibration data does not
match the checksum calculated.
Drive unsuccessfully attempted
to reset a fault and resume
running for the programmed
number of [Flt RstRun Tries].
Enable/Disable with [Fault Config
1] on page 3-44.
Autotune function was canceled
by the user or a fault occurred.
Auxiliary input interlock is open.
Action
1. Check parameters.
2. Check for broken/loose
connections at inputs.
Replace drive.
Correct the cause of the fault and
manually clear.
Restart procedure.
Check remote wiring.
1. Verify input voltage is within drive
specified limits.
2. Verify system ground impedance
follows proper grounding
techniques.
3. Disable bus regulation and/or
add dynamic brake resistor and/
or extend deceleration time.
Drive rating of 110% for 1 minute Reduce load or extend Accel Time.
or 150% for 3 seconds has been
exceeded.
The drive is not following a
commanded deceleration
because it is attempting to limit
bus voltage.
Troubleshooting
Fault
No.
Drive Powerup
49
E C v2
Enable Hardware 111
EC
Encoder Loss
E C v2
Excessive Load
Type(1)
4-4
Safe-Off board is not installed
and pins 3 and 4 of the Safe-Off
Connector are not jumpered.
Safe-Off board has failed.
Hardware enable circuitry failed.
One or both encoder channel
signals is missing.
91
79
➀
HW OverCurrent
12
➀
Incompat
MCB-PB
106
➁
15
1. Reprogram [Motor NP FLA] with
the correct motor nameplate
value.
2. Repeat Autotune.
Heatsink temperature exceeds 1. Verify that maximum ambient
100% of [Drive Temp].
temperature has not been
exceeded.
2. Check fan.
3. Check for excess load.
The drive output current has
Check programming. Check for
exceeded the hardware current excess load, improper DC boost
limit.
setting, DC brake volts set too high
or other causes of excess current.
Drive rating information stored on Load compatible version files into
the power board is incompatible drive.
with the main control board.
The DC bus ripple has exceeded Check incoming power for a missing
a preset level.
phase/blown fuse.
The value for flux amps
determined by the Autotune
procedure exceeds the
programmed [Motor NP FLA].
8
Load Loss
E C v2
Replace Safe-Off board.
Replace control board.
1. Check Wiring.
2. Replace encoder.
1. Uncouple load from motor.
2. Repeat Autotune.
No fault displayed. Used as a marker in the Fault Queue indicating that
the clear queue function was performed.
Heatsink
OvrTemp
IXo VoltageRange 87
E C v2
Install Safe-Off board or jumper pins
3 and 4.
Motor did not come up to speed
in the allotted time during
autotune.
No fault displayed. Used as a marker in the Fault Queue indicating that
the fault clear function was performed.
Faults Cleared
52
E C v2
Flt QueueCleared 51
E C v2
FluxAmpsRef
78
Rang
Input Phase Loss 17
E C v2
IR Volts Range
77
Description
Action
No fault displayed. Used as a Power Up Marker in the Fault Queue
indicating that the drive power has been cycled.
Re-enter motor nameplate data.
“Calculate” is the autotune
default and the value determined
by the autotune procedure for IR
Drop Volts is not in the range of
acceptable values.
Voltage calculated for motor
1. Check for proper motor sizing.
inductive impedance exceeds
2. Check for correct programming of
25% of [Motor NP Volts].
[Motor NP Volts], parameter 41.
3. Additional output impedance may
be required.
1. Verify connections between
Drive output torque current is
motor and load.
below [Load Loss Level] for a
time period greater than [Load
2. Verify level and time
Loss time].
requirements.
Fault
Motor OverLoad
No.
7
Type(1)
Troubleshooting
➀
➂
Motor Thermistor 16
EC
Overspeed Limit
25
➀
OverVoltage
5
➀
Parameter
Chksum
100
➁
Params Defaulted 48
Phase U to Grnd
38
Phase V to Grnd
39
Phase W to Grnd 40
Phase UV Short
41
Phase VW Short
42
Phase UW Short 43
Port 1-5 DPI Loss 8185
Port 1-5 Adapter
7175
Description
Internal electronic overload trip.
Enable/Disable with [Fault Config
1] on page 3-44.
4-5
Action
An excessive motor load exists.
Reduce load so drive output current
does not exceed the current set by
[Motor NP FLA].
Thermistor output is out of range. 1. Verify that thermistor is
connected.
2. Motor is overheated. Reduce
load.
Remove excessive load or
Functions such as Slip
Compensation or Bus Regulation overhauling conditions or increase
have attempted to add an output [Overspeed Limit].
frequency adjustment greater
than that programmed in
[Overspeed Limit].
DC bus voltage exceeded
Monitor the AC line for high line
maximum value.
voltage or transient conditions. Bus
overvoltage can also be caused by
motor regeneration. Extend the
decel time or install dynamic brake
option.
The checksum read from the
1. Restore defaults.
board does not match the
2. Reload User Set if used.
checksum calculated.
The drive was commanded to
1. Clear the fault or cycle power to
write default values to EEPROM.
the drive.
2. Program the drive parameters as
needed.
A phase to ground fault has been 1. Check the wiring between the
detected between the drive and
drive and motor.
motor in this phase.
2. Check motor for grounded phase.
3. Replace drive.
Excessive current has been
1. Check the motor and drive output
detected between these two
terminal wiring for a shorted
output terminals.
condition.
2. Replace drive.
1. If adapter was not intentionally
DPI port stopped
disconnected, check wiring to the
communicating.
port. Replace wiring, port
A SCANport device was
expander, adapters, Main Control
connected to a drive operating
Board or complete drive as
DPI devices at 500k baud.
required.
2. Check HIM connection.
3. If an adapter was intentionally
disconnected and the [Logic
Mask] bit for that adapter is set to
“1”, this fault will occur. To disable
this fault, set the [Logic Mask] bit
for the adapter to “0.”
The communications card has a Check DPI device event queue and
fault.
corresponding fault information for
the device.
Troubleshooting
Fault
Power Loss
No.
3
Type(1)
4-6
➀
➂
Pwr Brd Chksum1 104
Pwr Brd Chksum2 105
➁
Replaced
MCB-PB
107
➁
Shear Pin
63
➂
SW OverCurrent
36
➀
Trnsistr OvrTemp 9
➀
UnderVoltage
➀
➂
4
UserSet1 Chksum 101
UserSet2 Chksum 102
UserSet3 Chksum 103
(1)
➁
➁
➁
Description
DC bus voltage remained below
85% of nominal for longer than
[Power Loss Time]. Enable/
Disable with [Fault Config 1] on
page 3-44.
The checksum read from the
EEPROM does not match the
checksum calculated from the
EEPROM data.
The checksum read from the
board does not match the
checksum calculated.
Main Control Board was replaced
and parameters were not
programmed.
Programmed [Current Lmt Val]
has been exceeded. Enable/
Disable with [Fault Config 1] on
page 3-44.
Drive output current has
exceeded the 1ms current rating.
This rating is greater than the 3
second current rating and less
than the hardware overcurrent
fault level. It is typically
200-250% of the drive
continuous rating.
Output transistors have
exceeded their maximum
operating temperature.
DC bus voltage fell below the
minimum value of 509V DC at
600V input, 407V DC at 400/
480V input or 204V DC at 200/
240V input. Enable/Disable with
[Fault Config 1] on page 3-44.
The checksum read from the
user set does not match the
checksum calculated.
See page 4-1 for a description of fault types.
Action
Monitor the incoming AC line for low
voltage or line power interruption.
Clear the fault or cycle power to the
drive.
1. Cycle power to the drive.
2. If problem persists, replace drive.
1. Restore defaults.
2. Reprogram parameters.
Check load requirements and
[Current Lmt Val] setting.
Check for excess load, improper DC
boost setting. DC brake volts set too
high.
1. Verify that maximum ambient
temperature has not been
exceeded.
2. Check fan.
3. Check for excessive load.
Monitor the incoming AC line for low
voltage or power interruption.
Re-save user set.
Troubleshooting
4-7
Table 4.B Fault Cross Reference
No.(1)
2
3
4
5
7
8
9
12
15
16
17
24
25
29
33
36
(1)
Fault
Auxiliary Input
Power Loss
UnderVoltage
OverVoltage
Motor Overload
Heatsink OvrTemp
Trnsistr OvrTemp
HW OverCurrent
Load Loss
Motor Thermistor
Input Phase Loss
Decel Inhibit
OverSpeed Limit
Analog In Loss
Auto Rstrt Tries
SW OverCurrent
No. (1)
38
39
40
41
42
43
48
49
51
52
63
64
71-75
77
78
Fault
Phase U to Grnd
Phase V to Grnd
Phase W to Grnd
Phase UV Short
Phase UW Short
Phase VW Short
Params Defaulted
Drive Powerup
Flt QueueCleared
Faults Cleared
Shear Pin
Drive Overload
Port 1-5 Adapter
IR Volts Range
FluxAmpsRef Rang
No. (1)
79
80
81-85
87
91
100
101
102
103
104
105
106
107
108
111
Fault
Excessive Load
AutoTune Aborted
Port 1-5 DPI Loss
IXo VoltageRange
Encoder Loss
Parameter Chksum
UserSet1 Chksum
UserSet2 Chksum
UserSet3 Chksum
Pwr Brd Chksum1
Pwr Brd Chksum2
Incompat MCB-PB
Replaced MCB-PB
Anlg Cal Chksum
Enable Hardware
Fault numbers not listed are reserved for future use.
Clearing Alarms
Alarms are automatically cleared when the condition that caused the
alarm is no longer present.
Alarm Descriptions
Decel Inhibit
Type(1)
Alarm
Analog in
Loss
Bipolar
Conflict
No.
Table 4.C Alarm Descriptions and Actions
5
➀
20
➁
10
➀
Description
An analog input is configured for “Alarm” on signal loss and signal loss has
occurred.
Parameter 190 [Direction Mode] is set to “Bipolar” or “Reverse Dis” and one
or more of the following digital input functions is configured:
“Fwd/Reverse”, “Run Forward”, “Run Reverse”, “Jog Forward”, or “Jog
Reverse”.
Drive is being inhibited from decelerating.
Alarm
Dig In
ConflictA
17
Type(1)
Troubleshooting
No.
4-8
➁
Description
Digital input functions are in conflict. Combinations marked with a “ ” will
cause an alarm.
Acc2/Dec2 Accel 2
Decel 2
Jog
Jog Fwd Jog Rev Fwd/Rev
Acc2 / Dec2
Accel 2
Decel 2
Jog
Jog Fwd
Jog Rev
Fwd / Rev
Dig In
ConflictB
18
➁
A digital Start input has been configured without a Stop input or other
functions are in conflict. Combinations that conflict are marked with a “ ”
and will cause an alarm.
Fwd/
Start Stop–CF Run Run Fwd Run Rev Jog Jog Fwd Jog Rev Rev
Start
Stop–CF
Run
Run Fwd
Run Rev
Jog
Jog Fwd
Jog Rev
Fwd /
Rev
Dig In
ConflictC
19
➁
More than one physical input has been configured to the same input function.
Multiple configurations are not allowed for the following input functions.
Forward/Reverse
Speed Select 1
Speed Select 2
Speed Select 3
Run Forward
Run Reverse
Jog Forward
Jog Reverse
Run
Stop Mode B
Bus Regulation Mode B
Acc2 / Dec2
Accel 2
Decel 2
Drive OL
Level 1
8
➀
Drive OL
Level 2
9
➀
FluxAmpsRef
Rang
Ground Warn
E C v2
In Phase Loss
E C v2
IntDBRes
OvrHeat
26
➁
15
➀ Ground current has exceeded the level set in [Gnd Warn Level].
13
➀ The DC bus ripple has exceeded the level in [Phase Loss Level].
6
➀
The calculated IGBT temperature requires a reduction in PWM frequency. If
[Drive OL Mode] is disabled and the load is not reduced, an overload fault will
eventually occur.
The calculated IGBT temperature requires a reduction in Current Limit. If
[Drive OL Mode] is disabled and the load is not reduced, an overload fault will
eventually occur.
The calculated or measured Flux Amps value is not within the expected
range. Verify motor data and rerun motor tests.
The drive has temporarily disabled the DB regulator because the resistor
temperature has exceeded a predetermined value.
Type(1)
Alarm
IR Volts
Range
No.
Troubleshooting
25
➁
IXo
28
VoltageRange
E C v2
Load Loss
14
E C v2
MaxFreq
23
Conflict
➁
4-9
Description
The drive auto tuning default is “Calculate” and the value calculated for IR
Drop Volts is not in the range of acceptable values. This alarm should clear
when all motor nameplate data is properly entered.
Motor leakage inductance is out of range.
Output torque current is below [Load Loss Level] for a time period greater
than [Load Loss time].
➁
The sum of [Maximum Speed] and [Overspeed Limit] exceeds [Maximum
Freq]. Raise [Maximum Freq] or lower [Maximum Speed]
and/or [Overspeed Limit] so that the sum is less than or equal to
[Maximum Freq].
[Fault Config 1] or [Alarm Config 1] Bit 7 “Motor Therm” is enabled and the
analog Input voltage is <0.2 Volts or >5.0 Volts.
[Motor Type] has been set to “Synchr Reluc” or “Synchr PM” and one or more
of the following exist:
• [Torque Perf Mode] = “Sensrls Vect,” “SV Economize” or “Fan/Pmp V/Hz.”
• [Flux Up Time] is greater than 0.0 Secs.
• [Speed Mode] is set to “Slip Comp.”
• [Autotune] = “Static Tune” or “Rotate Tune.”
Fan/pump mode is selected in [Torq Perf Mode] and the ratio of [Motor NP
Hertz] to [Maximum Freq] is greater than 26.
Drive has sensed a power line loss.
Motor
Thermistor
EC
12
Motor Type
Cflct
21
➁
NP Hz
Conflict
Power Loss
22
➁
3
Precharge
Active
PTC Conflict
EC
1
➀
➀
31
Drive is in the initial DC bus precharge state.
[Fault Config 1] or [Alarm Config 1] Bit 7 “Motor Therm” is enabled and
Analog In 1 is set to milliamperes.
Sleep Config 29
E C v2
➁
Speed Ref
Cflct
Start At
PowerUp
27
➁
4
➀
Sleep/Wake configuration error. With [Sleep-Wake Mode] = “Direct,” possible
causes include: drive is stopped and [Wake Level] < [Sleep Level].“Stop=CF,”
“Run,” “Run Forward,” or “Run Reverse.” is not configured in [Digital Inx Sel].
[Speed Ref x Sel] or [PI Reference Sel] is set to “Reserved”.
[Start At PowerUp] is enabled. Drive may start at any time within 10 seconds
of drive powerup.
Alarm
TB Man Ref
Cflct
EC
Type(1)
Troubleshooting
No.
4-10
30
Description
Occurs when:
• “Auto/Manual” is selected (default) for [Digital In3 Sel], parameter 363
and
• [TB Man Ref Sel], parameter 96 has been reprogrammed.
No other use for the selected analog input may be programmed.
Example: If [TB Man Ref Sel] is reprogrammed to “Analog In 2,” all of the
factory default uses for “Analog In 2” must be reprogrammed (such as
parameters 90, 117, 128 and 179). See also Auto/Manual Examples on
page 1-20.
UnderVoltage 2
UserSet
Conflict
E C v2
VHz Neg
Slope
Waking
E C v2
(1)
51
➀
➁
To correct:
• Verify/reprogram the parameters that reference an analog input
or
• Reprogram [Digital In3] to another function or “Unused.”
The bus voltage has dropped below a predetermined value.
[Digital Inx Sel] values differ in different user sets.
24
➁
[Torq Perf Mode] = “Custom V/Hz” and the V/Hz slope is negative.
11
➀
The Wake timer is counting toward a value that will start the drive.
See page 4-1 for a description of alarm types.
Table 4.D Alarm Cross Reference
No.
1
2
3
4
5
6
8
9
10
11
(1)
(1)
Alarm
Precharge Active
UnderVoltage
Power Loss
Start At PowerUp
Analog in Loss
IntDBRes OvrHeat
Drive OL Level 1
Drive OL Level 2
Decel Inhibit
Waking
No. (1)
12
13
14
15
17
18
19
20
21
22
Alarm
Motor Thermistor
In Phase Loss
Load Loss
Ground Warn
Dig In ConflictA
Dig In ConflictB
Dig In ConflictC
Bipolar Conflict
Motor Type Cflct
NP Hz Conflict
Alarm numbers not listed are reserved for future use.
No. (1)
23
24
25
26
27
28
29
30
31
51
Alarm
MaxFreq Conflict
VHz Neg Slope
IR Volts Range
FluxAmpsRef Rang
Speed Ref Cflct
Ixo Vlt Rang
Sleep Config
TB Man Ref Cflct
PTC Conflict
UserSet Conflict
Troubleshooting
4-11
Testpoint Codes and Functions
Code Selected in
[Testpoint x Sel]
1
2
3
4
5
6
7
8
9
10
11-99
(1)
Function Whose Value is Displayed
in [Testpoint x Data]
DPI Error Status
Heatsink Temperature
Active Current Limit
Active PWM Frequency
Lifetime MegaWatt Hours(1)
Lifetime Run Time
Lifetime Powered Up Time
Lifetime Power Cycles
Life MegaWatt Hours Fraction(1)
Life MegaWatt Hours Fraction Units(1)
Reserved for Factory Use
Use the equation below to calculate total Lifetime MegaWatt Hours.
Value of Code 9
 --------------------------------× 0.1 + Value of Code 5 = Total Lifetime MegaWatt Hours
 Value of Code 10

4-12
Troubleshooting
Common Symptoms and Corrective Actions
Drive does not Start from Start or Run Inputs wired to the terminal block.
Cause(s)
Drive is Faulted
Indication
Flashing red
status light
Incorrect input wiring.
See page 1-17 for wiring examples.
• 2 wire control requires Run, Run
Forward, Run Reverse or Jog
input.
• 3 wire control requires Start and
Stop inputs
• Jumper from terminal 7 to 8 is
required.
Incorrect digital input programming.
• Mutually exclusive choices have
been made (i.e., Jog and Jog
Forward).
• 2 wire and 3 wire programming
may be conflicting.
• Exclusive functions (i.e,
direction control) may have
multiple inputs configured.
• Stop is factory default and is not
wired.
None
None
Flashing
yellow status
light and
“DigIn CflctB”
indication on
LCD HIM.
[Drive Status
2] shows type
2 alarm(s).
Corrective Action
Clear fault.
• Press Stop
• Cycle power
• Set [Fault Clear] to 1 (See page 3-44)
• “Clear Faults” on the HIM Diagnostic menu
Wire inputs correctly and/or install jumper.
Program [Digital Inx Sel] for correct inputs. (See
page 3-55)
Start or Run programming may be missing.
Program [Digital Inx Sel] to resolve conflicts.
(See page 3-55)
Remove multiple selections for the same
function.
Install stop button to apply a signal at stop
terminal.
Drive does not Start from HIM.
Cause(s)
Indication
Drive is programmed for 2 wire
None
control. HIM Start button is disabled
for 2 wire control.
Corrective Action
If 2 wire control is required, no action is
necessary.
If 3 wire control is required, program [Digital Inx
Sel] for correct inputs. (See page 3-55)
Troubleshooting
4-13
Drive does not respond to changes in speed command.
Cause(s)
Indication
Corrective Action
1. If the source is an analog input, check wiring
No value is coming from the source LCD HIM
and use a meter to check for presence of
of the command.
Status Line
signal.
indicates “At
Speed” and 2. Check [Commanded Freq] for correct
output is 0 Hz.
source. (Param #002, page 3-11)
Incorrect reference source has
None
3. Check [Speed Ref Source] for the source of
been programmed.
the speed reference. (Param #213, page
3-40)
4. Reprogram [Speed Ref A Sel] for correct
source.
(Param #090, page 3-22)
Incorrect Reference source is being None
5. Check [Drive Status 1], bits 12 and 13 for
selected via remote device or digital
unexpected source selections. (Param #209,
inputs.
page 3-39)
6. Check [Dig In Status] to see if inputs are
selecting an alternate source. (Param #216,
page 3-41)
7. Reprogram digital inputs to correct “Speed
Sel x” option.
(See page 3-55)
Motor and/or drive will not accelerate to commanded speed.
Cause(s)
Acceleration time is excessive.
Indication
None
Excess load or short acceleration
times force the drive into current
limit, slowing or stopping
acceleration.
None
Speed command source or value is None
not as expected.
Programming is preventing the
None
drive output from exceeding limiting
values.
Corrective Action
Reprogram [Accel Time x].
(See page 3-29)
Check [Drive Status 2], bit 10 to see if the drive
is in Current Limit.
(See page 3-39)
Remove excess load or reprogram [Accel Time
x].
(See page 3-29)
Check for the proper Speed Command using
Steps 1 through 7 above.
Check [Maximum Speed] (Param #082, page
3-20) and [Maximum Freq] (Param #055, page
3-14) to assure that speed is not limited by
programming.
Motor operation is unstable.
Cause(s)
Indication
Motor data was incorrectly entered None
or Autotune was not performed.
Corrective Action
1. Correctly enter motor nameplate data.
2. Perform “Static” or “Rotate” Autotune
procedure.
(Param #061, page 3-16)
4-14
Troubleshooting
Drive will not reverse motor direction.
Cause(s)
Digital input is not selected for
reversing control.
Digital input is incorrectly wired.
Direction mode parameter is
incorrectly programmed.
Indication
None
None
None
Motor wiring is improperly phased None
for reverse.
A bipolar analog speed command None
input is incorrectly wired or signal is
absent.
Corrective Action
Check [Digital Inx Sel] (See page 3-55). Choose
correct input and program for reversing mode.
Check input wiring. (See page 1-14)
Reprogram [Direction Mode] for analog “Bipolar”
or digital “Unipolar” control. (Param #190, page
3-36)
Switch two motor leads.
1. Use meter to check that an analog input
voltage is present.
2. Check wiring. (See page 1-17)
Positive voltage commands forward direction.
Negative voltage commands reverse direction.
Stopping the drive results in a Decel Inhibit fault.
Cause(s)
The bus regulation feature is
enabled and is halting deceleration
due to excessive bus voltage.
Excess bus voltage is normally due
to excessive regenerated energy or
unstable AC line input voltages.
Internal timer has halted drive
operation.
Indication
Decel Inhibit
fault screen.
LCD Status
Line indicates
“Faulted”.
Corrective Action
1. See Attention statement on Preface-4.
2. Reprogram bus regulation (parameters 161
and 162) to eliminate any “Adjust Freq”
selection.
3. Disable bus regulation (parameters 161 and
162) and add a dynamic brake.
4. Correct AC input line instability or add an
isolation transformer.
5. Reset drive.
Appendix A
Supplemental Drive Information
For information on…
Specifications
Communication Configurations
Dimensions
Output Devices
Drive, Fuse & Circuit Breaker Ratings
See page…
A-1
A-4
A-7
A-14
A-14
Specifications
Category
Protection
Specification
Drive
AC Input Overvoltage Trip:
AC Input Undervoltage Trip:
Bus Overvoltage Trip:
Bus Undervoltage Output Shutoff:
Bus Undervoltage Fault Level:
Nominal Bus Voltage:
All Drives
Heat Sink Thermistor:
Drive Overcurrent Trip
Software Current Limit:
Hardware Current Limit:
Instantaneous Current Limit:
Line transients:
Control Logic Noise Immunity:
Power Ride-Thru:
Logic Control Ride-Thru:
Ground Fault Trip:
Short Circuit Trip:
Environment Altitude:
Maximum Surrounding Air
Temperature without derating:
IP20, NEMA Type 1:
Flange Mount:
IP66, NEMA Type 4X/12:
Storage Temperature (all const.):
Atmosphere
Relative Humidity:
Shock:
Vibration:
200-208V
247VAC
120VAC
405VDC
300VDC
160VDC
281VDC
240V
285VAC
138VAC
405VDC
300VDC
160VDC
324VDC
380/400
475VAC
233VAC
810VDC
407V DC
300VDC
540VDC
480V
570VAC
280VAC
810VDC
407V DC
300VDC
648VDC
600V
690V
690VAC
345VAC
1013VDC
508V DC
375VDC
810VDC
Monitored by microprocessor overtemp trip
20-160% of rated current
200% of rated current (typical)
220-300% of rated current (dependent on drive rating)
up to 6000 volts peak per IEEE C62.41-1991
Showering arc transients up to 1500V peak
15 milliseconds at full load
0.5 seconds minimum, 2 seconds typical
Phase-to-ground on drive output
Phase-to-phase on drive output
1000 m (3300 ft) max. without derating
0 to 50 degrees C (32 to 122 degrees F)
0 to 50 degrees C (32 to 122 degrees F)
0 to 40 degrees C (32 to 104 degrees F)
–40 to 70 degrees C (–40 to 158 degrees F)
Important: Drive must not be installed in an area where the
ambient atmosphere contains volatile or corrosive gas, vapors or
dust. If the drive is not going to be installed for a period of time, it
must be stored in an area where it will not be exposed to a
corrosive atmosphere.
5 to 95% non-condensing
15G peak for 11ms duration (±1.0 ms)
0.152 mm (0.006 in.) displacement, 1G peak
A-2
Supplemental Drive Information
Category
Specification
Agency
Type
Certification Type 1, Flange 4X/12,
IP30
Type
IP66
✔
✔
✔
C
UL
®
Listed to UL508C and CAN/CSA-C2.2 No. 14-M91
US
✔
Listed to UL508C for plenums (Rear heatsink only)
✔
✔
✔
✔
✔
✔
Marked for all applicable European Directives (1)
EMC Directive (89/336/EEC)
EN 61800-3 Adjustable Speed electrical power
drive systems
Low Voltage Directive (73/23/EEC)
EN 50178 Electronic Equipment for use in Power
Installations
Certified to AS/NZS, 1997 Group 1, Class A
✔
Certified to Criteria C-2, 1983.
✔
✔
..
TUV
Rheinland
Product Safety
W
✔
E
Certified to EN 954-1, Category 3 for 240V, 400V, and
480V ratings of PowerFlex 70 Enhanced Control with
C DriveGuard Safe-Off option.
Production inspected
EN 50178
Bauart geprüft
Functional
..
TUV
Rheinland
✔
Electrical
Control
✔
✔
Safety
Type approved
TUV Approved to EN 954-1, Category 3 for 600V
ratings of PowerFlex 70 Enhanced Control with
DriveGuard Safe-Off option.
The drive is also designed to meet the appropriate portions of the following specifications:
NFPA 70 - US National Electrical Code
NEMA ICS 3.1 - Safety standards for Construction and Guide for Selection, Installation and
Operation of Adjustable Speed Drive Systems.
IEC 146 - International Electrical Code.
Voltage Tolerance:
–10% of minimum, +10% of maximum. See page
C-14 for Full Power and Operating Range.
Frequency Tolerance:
47-63 Hz.
Input Phases:
Three-phase input provides full rating for all drives.
Single-phase operation provides 50% of rated current.
Displacement Power Factor (all drives):
0.98 across speed range.
Efficiency:
97.5% at rated amps, nominal line volts.
Maximum Short Circuit Rating:
200,000 Amps symmetrical.
Maximum short circuit current rating to match
Max. Short Circuit Current Rating:
specified fuse/circuit breaker capability.
Using Recommended Fuse or Circuit
Breaker Type
Method:
Sine coded PWM with programmable carrier
frequency. Ratings apply to all drives.
Carrier Frequency:
2, 3, 4, 5, 6, 7, 8, 9 & 10 kHz Standard .
2, 4, 8 & 12 kHz E C .
Drive rating based on 4 kHz.
Output Voltage Range:
0 to rated motor voltage
Output Frequency Range:
0 to 400 Hz Standard . 0 to 500 Hz E C .
Frequency Accuracy
Digital Input:
Within ±0.01% of set output frequency.
Analog Input:
Within ±0.4% of maximum output frequency.
Supplemental Drive Information
Category
Control
(continued)
Specification
Frequency Control - Speed Regulation
A-3
with Slip Compensation (V/Hz Mode)
0.5% of base speed across 40:1 speed range
40:1 operating range
10 rad/sec bandwidth
with Slip Compensation (Sensorless Vector Mode)
0.5% of base speed across 80:1 speed range
80:1 operating range
20 rad/sec bandwidth
with feedback (Sensorless Vector Mode) E C
0.1% of base speed across 80:1 speed range
80:1 operating range
20 rad/sec bandwidth
Speed Control - Speed Regulation
without feedback (Vector Control Mode) E C
0.1% of base speed across 120:1 speed range
120:1 operating range
30 rad/sec bandwidth
with feedback (Vector Control Mode) E C
0.001% of base speed across 120:1 speed range
1000:1 operating range
125 rad/sec bandwidth
Torque Regulation
Selectable Motor Control:
Stop Modes:
Accel/Decel:
Intermittent Overload:
Current Limit Capability:
Electronic Motor Overload Protection:
Encoder
(1)
Type:
Supply:
Quadrature:
Duty Cycle:
Requirements
without feedback +/-10%
EC
with feedback +/-5% E C
Sensorless Vector with full tuning. Standard V/Hz with
full custom capability and vector control.
Multiple programmable stop modes including - Ramp,
Coast, DC-Brake, Ramp-to-Hold and S-curve.
Two independently programmable accel & decel times.
Each time may be programmed from 0-3600 seconds
in 0.1 sec. increments
110% Overload capability for up to 1 minute
150% Overload capability for up to 3 seconds
Proactive Current Limit programmable from 20 to
160% of rated output current. Independently
programmable proportional and integral gain.
Class 10 protection with speed sensitive response.
Investigated by U.L. to comply with N.E.C. Article 430.
U.L. File E59272, volume 12.
Incremental, dual channel
5V/12V Configurable +/-5%
90° +/-27° at 25° C.
50% +10%
Encoders must be line driver type, quadrature (dual
channel) or pulse (single channel), single-ended or
differential and capable of supplying a minimum of 10
mA per channel. The Encoder Interface Board
accepts 5V or 12V DC square-wave with a minimum
high state voltage of 3.5V DC (5V mode) and 7.0V DC
(12V mode). Maximum low state voltage is 1V DC (for
both 5V and 12V modes). Maximum input frequency is
250 kHz.
Applied noise impulses may be counted in addition to the standard pulse train causing erroneously high [Pulse
Freq] readings.
A-4
Supplemental Drive Information
Communication Configurations
Typical Programmable Controller Configurations
Important: If block transfers are programmed to continuously write
information to the drive, care must be taken to properly
format the block transfer. If attribute 10 is selected for the
block transfer, values will be written only to RAM and will
not be saved by the drive. This is the preferred attribute for
continuous transfers. If attribute 9 is selected, each program
scan will complete a write to the drives non-volatile
memory (EEprom). Since the EEprom has a fixed number
of allowed writes, continuous block transfers will quickly
damage the EEprom. Do Not assign attribute 9 to
continuous block transfers. Refer to the individual
communications adapter User Manual for additional
details.
Supplemental Drive Information
A-5
Logic Command/Status Words
Figure A.1 Logic Command Word
Logic Bits
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 Command Description
x Stop (1)
0 = Not Stop
1 = Stop
x
Start (1)(2) 0 = Not Start
1 = Start
x
Jog
0 = Not Jog
1 = Jog
x
Clear
0 = Not Clear Faults
Faults
1 = Clear Faults
x x
Direction 00 = No Command
01 = Forward Command
10 = Reverse Command
11 = Hold Present Direction
x
Local
0 = No Local Control
Control
1 = Local Control
x
MOP
0 = Not Increment
Increment 1 = Increment
x x
Accel Rate 00 = No Command
01 = Use Accel Time 1
10 = Use Accel Time 2
11 = Use Present Time
x x
Decel Rate 00 = No Command
01 = Use Decel Time 1
10 = Use Decel Time 2
11 = Use Present Time
x x x
Reference 000 = No Command
Select (3) 001 = Ref. 1 (Ref A Select)
010 = Ref. 2 (Ref B Select)
011 = Ref. 3 (Preset 3)
100 = Ref. 4 (Preset 4)
101 = Ref. 5 (Preset 5)
110 = Ref. 6 (Preset 6)
111 = Ref. 7 (Preset 7)
x
MOP
0 = Not Decrement
Decrement 1 = Decrement
(1)
A “0 = Not Stop” condition (logic 0) must first be present before a “1 = Start” condition will
start the drive. The Start command acts as a momentary Start command. A “1” will start the
drive, but returning to “0” will not stop the drive.
(2)
This Start will not function if a digital input (parameters 361-366) is programmed for 2-Wire
Control (option 7, 8 or 9).
(3)
This Reference Select will not function if a digital input (parameters 361-366) is programmed
for “Speed Sel 1, 2 or 3” (option 15, 16 or 17). When using the Logic Command Word for the
speed reference selection, always set Bit 12, 13 or 14. Note that Reference Selection is
“Exclusive Ownership” see [Reference Owner] on page 3-49.
A-6
Supplemental Drive Information
Figure A.2 Logic Status Word
Logic Bits
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 Status
x Ready
x
x
x
x
x
x
x
x
x
x
(1)
x
x
x
x
x
Description
0 = Not Ready
1 = Ready
Active
0 = Not Active
1 = Active
Command 0 = Reverse
Direction 1 = Forward
Actual
0 = Reverse
Direction 1 = Forward
Accel
0 = Not Accelerating
1 = Accelerating
Decel
0 = Not Decelerating
1 = Decelerating
Alarm
0 = No Alarm
1 = Alarm
Fault
0 = No Fault
1 = Fault
At Speed 0 = Not At Reference
1 = At Reference
Local
000 = Port 0 (TB)
Control (1) 001 = Port 1
010 = Port 2
011 = Port 3
100 = Port 4
101 = Port 5
110 = Port 6
111 = No Local
Reference 0000 = Ref A Auto
Source
0001 = Ref B Auto
0010 = Preset 2 Auto
0011 = Preset 3 Auto
0100 = Preset 4 Auto
0101 = Preset 5 Auto
0110 = Preset 6 Auto
0111 = Preset 7 Auto
1000 = Term Blk Manual
1001 = DPI 1 Manual
1010 = DPI 2 Manual
1011 = DPI 3 Manual
1100 = DPI 4 Manual
1101 = DPI 5 Manual
1110 = DPI 6 Manual
1111 = Jog Ref
See “Owners” on page 3-49 for further information.
Supplemental Drive Information
A-7
Dimensions
Table A.A PowerFlex 70 Frames
Output Power
kW
ND (HD)
0.37 (0.25)
0.75 (0.55)
1.5 (1.1)
2.2 (1.5)
4 (3)
5.5 (4)
7.5 (5.5)
11 (7.5)
15 (11)
18.5 (15)
22 (18.5)
30 (22)
37 (30)
HP
ND (HD)
0.5 (0.33)
1 (0.75)
2 (1.5)
3 (2)
5 (3)
7.5 (5)
10 (7.5)
15 (10)
20 (15)
25 (20)
30 (25)
40 (30)
50 (40)
Frame Size
208-240V AC Input
Not
IP66
Filtered Filtered (4X/12)
A
B
B
A
B
B
B
B
B
B
B
B
–
C
D
–
D
D
–
D
D
–
D
D
–
E
E
–
E
E
–
–
–
–
–
–
–
–
–
400-480V AC Input
Not
IP66
Filtered Filtered (4X/12)
A
B
B
A
B
B
A
B
B
B
B
B
B
B
B
–
C
D
–
C
D
–
D
D
–
D
D
–
D
D
–
D
D
–
E
E
–
E
E
600V AC Input
Not
Filtered Filtered
A
–
A
–
A
–
B
–
B
–
C
–
C
–
D
–
D
–
–
–
–
–
–
–
–
–
IP66
(4X/12)
B
B
B
B
B
D
D
D
D
–
–
–
–
Figure A.3 PowerFlex 70 Frames A-E
IP20/66 (NEMA Type 1/4X/12)
A
D
Flange Mount
C
A
C
E
B
B
F
D
E
Dimensions are in millimeters and (inches).
Frame A
B
IP20 / NEMA Type 1
A
122.4 (4.82) 225.7 (8.89)
B
171.7 (6.76) 234.6 (9.24)
C
185.0 (7.28) 300.0 (11.81)
D
219.9 (8.66) 350.0 (13.78)
E
280.3 (11.04) 555.8 (21.88)
IP66 / NEMA Type 4X/12
B
171.7 (6.76) 239.8 (9.44)
D
219.9 (8.66) 350.0 (13.78)
E
280.3 (11.04) 555.8 (21.88)
Flange Mount
A
156.0 (6.14) 225.8 (8.89)
B
205.2 (8.08) 234.6 (9.24)
C
219.0 (8.62) 300.0 (11.81)
D
248.4 (9.78) 350.0 (13.78)
E
280.3 (11.04) 555.8 (21.88)
(1)
C
D
E
F
Weight (1)
kg (lbs.)
179.8 (7.08)
179.8 (7.08)
179.8 (7.08)
179.8 (7.08)
207.1 (8.15)
94.2 (3.71)
122.7 (4.83)
137.6 (5.42)
169.0 (6.65)
200.0 (7.87)
211.6 (8.33)
220.2 (8.67)
285.6 (11.25)
335.6 (13.21)
491.0 (19.33)
5.8 (0.23)
5.8 (0.23)
5.8 (0.23)
5.8 (0.23)
6.9 (0.27)
2.71 (6.0)
3.60 (7.9)
6.89 (15.2)
9.25 (20.4)
18.60 (41.0)
203.3 (8.00)
210.7 (8.29)
219.8 (8.65)
122.7 (4.83)
169.0 (6.65)
200.0 (7.87)
220.2 (8.67) 5.8 (0.23)
335.6 (13.21) 5.8 (0.23)
491.0 (19.33) 6.9 (0.27)
3.61 (8.0)
9.13 (20.1)
18.60 (41.0)
178.6 (7.03)
178.6 (7.03)
178.6 (7.03)
178.6 (7.03)
207.1 (8.15)
123.0 (4.84)
123.0 (4.84)
123.0 (4.84)
123.0 (4.84)
117.2 (4.61)
55.6 (2.19)
55.6 (2.19)
55.6 (2.19)
55.6 (2.19)
89.9 (3.54)
2.71 (6.0)
3.60 (7.9)
6.89 (15.2)
9.25 (20.4)
18.60 (41.0)
Weights include HIM and Standard I/O.
–
–
–
–
–
A-8
Supplemental Drive Information
Figure A.4 PowerFlex 70 IP20 / NEMA Type 1 Bottom View Dimensions
Frame B
Frame A
86.4 (3.40)
34.5 (1.36)
23.9 (0.94)
127.5 (5.02)
22.2 (0.87) Dia.
4 Places
43.4 (1.71)
32.8 (1.29)
22.2 (0.87) Dia.
5 Places
155.2
(6.11)
155.2
(6.11)
135.9
(5.35)
163.7
(6.45)
163.7
(6.45)
136.7
(5.38)
126.2
(4.97)
101.6
(4.00)
129.8
(5.11)
102.4
(4.03)
55.6 (2.19)
42.7 (1.68)
75.5 (2.97)
85.7 (3.37)
113.5 (4.47)
123.8 (4.87)
55.4 (2.18)
79.3 (3.12)
85.1 (3.35)
Frame C
112.3 (4.42)
58.4 (2.30)
47.7 (1.88)
Frame D
149.7 (5.89)
22.2 (0.87) Dia.
4 Places
22.2 (0.87) Dia.
2 Places
163.5
(6.44)
155.2
(6.11)
69.3 (2.73)
58.6 (2.31)
164.1
(6.46)
155.2
(6.11)
134.7
(5.30)
129.3
(5.09)
101.3
(3.99)
103.2
(4.06)
37.5 (1.48)
36.1 (1.42)
64.0 (2.52)
93.0 (3.66)
121.0 (4.76)
56.1 (2.21)
75.2 (2.96)
94.2 (3.71)
Frame E
210.0 (8.27)
108.0 (4.25)
22.2
(0.87)
43.7
(1.72)
181.5
(7.14)
165.0
(6.49)
139.9
(5.50)
126.9
(4.99)
108.0 (4.25)
159.0 (6.26)
210.0 (8.27)
Dimensions are in millimeters and (inches).
28.5 (1.12) Dia.
2 Places
Supplemental Drive Information
A-9
Figure A.5 PowerFlex 70 IP 66 (NEMA Type 4X/12) Bottom View Dimensions
Frame D
Frame B
28.3
(1.11)
22.1
(0.87)
140.5
(5.53)
138.6
(5.46)
138.2
(5.44)
102.9
(4.05)
99.6
(3.92)
31.0 (1.22)
49.1 (1.93)
55.2 (2.17)
77.3 (3.04)
99.6 (3.92)
115.9 (4.56)
75.5 (2.97)
102.0 (4.02)
120.1 (4.73)
Frame E
22.5
(0.89)
44.5
(1.75)
163.4
(6.43)
139.9
(5.51)
124.9
(4.92)
108.2 (4.26)
157.7 (6.21)
165.7 (6.52)
207.7 (8.18)
Dimensions are in millimeters and (inches).
28.3
(1.11)
22.1
(0.87)
A-10
Supplemental Drive Information
Figure A.6 PowerFlex 70 Flange Mount Bottom View Dimensions
Frame A
103.2 (4.06)
51.3 (2.02)
40.7 (1.60)
Frame C
129.3 (5.09)
75.4 (2.97)
22.2 (0.87) Dia.
4 Places
64.7 (2.55)
95.9
(3.78)
94.6
(3.72)
104.4
(4.11)
76.6
(3.02)
102.9
(4.05)
68.7
(2.70)
70.5
(2.78)
40.6
(1.60)
43.2
(1.70)
53.1 (2.09)
59.6 (2.35)
72.4 (2.85)
96.1 (3.78)
101.9 (4.01)
73.0 (2.87)
92.2 (3.63)
111.2 (4.38)
Frame D
Frame B
144.4 (5.69)
60.3 (2.37)
49.7 (1.96)
22.2 (0.87) Dia.
5 Places
164.1 (6.46)
83.7 (3.30)
73.0 (2.87)
22.2 (0.87) Dia.
2 Places
95.0
(3.74)
76.6
(3.02)
65.9
(2.59)
103.5
(4.07)
41.4
(1.63)
70.9 (2.79)
92.4 (3.64)
102.7 (4.04)
130.5 (5.14)
140.6 (5.54)
94.6
(3.27)
74.1
(2.92)
42.3
(1.67)
51.9 (2.04)
78.3 (3.08)
107.3 (4.22)
135.5 (5.33)
210.0 (8.27)
108.0 (4.25)
22.2
(0.87)
43.7
(1.72)
94.4
(3.72)
77.9
(3.07)
39.8
(1.57)
108.0 (4.25)
159.0 (6.26)
210.0 (8.27)
Dimensions are in millimeters and (inches).
28.5 (1.12) Dia.
2 Places
103.5
(4.07)
Frame E
52.8
(2.08)
22.2 (0.87) Dia.
4 Places
Supplemental Drive Information
Figure A.7 PowerFlex 70 Cutout Dimensions
Frame A
156,0
(6.14)
140,7
(5.54)
70,7
(2.78)
6,9
(0.27)
127,0
(5.00)
225,8
(8.89)
210,6
(8.29)
197.9
(7.80)
105,3
(4.15)
8x: ∅3,5
(∅0.14)
4x: 3,0R
(0.12R)
5.0
(0.20)
58,8
(2.31)
Frame B
205,2
(8.08)
6,9
(0.27)
190,0
(7.48)
95,0
(3.74)
176,3
(6.94)
234,6
219,3 (9.24)
(8.63)
205,5
(8.09)
109,7
(4.32)
8x: ∅3,5
(∅0.14)
4x: 3,0R
(0.12R)
6,9
(0.27)
58,8
(2.31)
A-11
A-12
Supplemental Drive Information
Frame C
219,0
(8.62)
202,0
(7.95)
101,0
(3.98)
6,3
(0.25)
300,0
(11.81)
189,4
(7.46)
283,0
(11.14)
272,3
(10.72)
241,5
(9.51)
141,5
(5.57)
41,5
(1.63)
12x: ∅3,5
(∅0.14)
4x: 3,0R
(0.12R)
5,1
(0.20)
58,8
(2.31)
Frame D
248,4
(9.78)
231,4
(9.11)
4,5
(0.18)
40,7
(1.60)
190,7
(7.51)
115,7
(4.56)
350,0
(13.78)
222,4
(8.76)
333,0
(13.11)
321,4
(12.65)
271,5
(10.69)
201,5
(7.93)
131,5
(5.18)
61,5
(2.42)
14x: ∅3,5
(∅0.14)
4x: 3,0R
(0.12R)
4,5
(0.18)
58,8
(2.31)
Supplemental Drive Information
Frame E
280.3
(11.04)
262.4
(10.33)
6.0
(0.24)
56.2
(2.21)
206.2
(8.12)
131.2
(5.16)
250.4
(9.86)
525.8
(20.70)
555.8
(21.88)
493.9
(19.44)
418.9
(16.49)
343.9
(13.54)
268.9
(10.59)
193.9
(7.63)
118.9
(4.68)
43.9
(1.73)
20x: ∅3.5
(∅0.14)
6.0
(0.24)
87.1
(3.43)
A-13
A-14
Supplemental Drive Information
Output Devices
For information on output devices such as output contactors, cable
terminators and output reactors refer to the PowerFlex Reference
Manual, publication PFLEX-RM001….
Drive, Fuse & Circuit Breaker Ratings
The tables on the following pages provide drive ratings (including
continuous, 1 minute and 3 second) and recommended AC line input
fuse and circuit breaker information. Both types of short circuit
protection are acceptable for UL and IEC requirements. Sizes listed are
the recommended sizes based on 40 degree C and the U.S. N.E.C. Other
country, state or local codes may require different ratings.
Fusing
If fuses are chosen as the desired protection method, refer to the
recommended types listed below. If available amp ratings do not match
the tables provided, the closest fuse rating that exceeds the drive rating
should be chosen.
• IEC – BS88 (British Standard) Parts 1 & 2 (1), EN60269-1, Parts 1 &
2, type gG or equivalent should be used.
• UL – UL Class CC, T, RK1 or J must be used.
Circuit Breakers
The “non-fuse” listings in the following tables include both circuit
breakers (inverse time or instantaneous trip) and 140M Self-Protecting
Motor Starters. If one of these is chosen as the desired protection
method, the following requirements apply.
•
IEC and UL – Both types of devices are acceptable for IEC and UL
installations.
(1)
Typical designations include, but may not be limited to the following; Parts 1 & 2: AC,
AD, BC, BD, CD, DD, ED, EFS, EF, FF, FG, GF, GG, GH.
A
A
B
B
C
D
D
D
E
E
0.5
1
2
3
5
7.5
10
15
20
25
20AB2P2
20AB4P2
20AB6P8
20AB9P6
20AB015
20AB022
20AB028
20AB042
20AB054
20AB070
A
A
B
B
C
D
D
D
E
E
0.5
1
2
3
5
7.5
10
15
20
25
240 Volt AC Input
20AB2P2
20AB4P2
20AB6P8
20AB9P6
20AB015
20AB022
20AB028
20AB042
20AB054
20AB070
0.33
0.75
1.5
2
3
5
7.5
10
15
20
0.33
0.75
1.5
2
3
5
7.5
10
15
20
HP
Rating
ND HD
208 Volt AC Input
Drive
Catalog
Number
Frame(1)
2.5
4.8
8.7
12.2
13.9
19.9
25.7
38.7
49.8
64.5
2.9
5.6
10
14
16
23.3
29.8
39.8
57.5
72.3
1.1
2
3.6
5.1
5.8
8.3
10.7
16.1
20.7
26.8
1.1
2
3.6
5.1
5.8
8.3
10.7
14.3
20.7
26.0
2.2
4.2
6.8
9.6
15.3
22
28
42
54
70
2.5
4.8
7.8
11
17.5
25.3
32.2
43
62.1
78.2
2.4
4.8
9
10.6
17.4
24.4
33
46.2
63
81
2.7
5.5
10.3
12.1
19.2
27.8
37.9
55.5
72.4
93.1
3.3
6.4
12
14.4
23.2
33
44
63
84
108
3.7
7.4
13.8
16.5
26.6
37.9
50.6
74
96.6
124
3
6
15
20
20
25
35
50
60
90
6
10
15
20
20
30
40
60
80
90
4.5
9
15
20
30
45
60
90
100
150
6
10
15
25
35
50
70
100
125
175
3
6
15
20
20
25
35
50
60
90
6
10
15
20
20
30
40
60
80
90
8
15
25
35
60
80
110
150
200
275
10
17.5
30
40
70
100
125
175
200
300
15
15
25
35
60
80
110
150
200
275
15
15
30
40
70
100
125
175
200
300
3
7
15
15
30
30
50
50
100
100
7
7
15
30
30
30
50
70
100
100
140M-C2E-B25
140M-C2E-B63
140M-C2E-C10
140M-C2E-C16
140M-C2E-C16
140M-C2E-C25
–
–
–
–
140M-C2E-B40
140M-C2E-B63
140M-C2E-C10
140M-C2E-C16
140M-C2E-C20
140M-C2E-C25
–
–
–
–
140M-D8E-B25
140M-D8E-B63
140M-D8E-C10
140M-D8E-C16
140M-D8E-C16
140M-D8E-C25
–
–
–
–
140M-D8E-B40
140M-D8E-B63
140M-D8E-C10
140M-D8E-C16
140M-D8E-C20
140M-D8E-C25
–
–
–
–
–
–
140M-F8E-C10
140M-F8E-C16
140M-F8E-C16
140M-F8E-C25
140M-F8E-C32
140M-F8E-C45
–
–
–
–
140M-F8E-C10
140M-F8E-C16
140M-F8E-C20
140M-F8E-C25
140M-F8E-C32
140M-F8E-C45
–
–
–
–
–
–
–
140-CMN-2500
140-CMN-4000
140-CMN-6300
140-CMN-6300
140-CMN-9000
–
–
–
–
–
140-CMN-2500
140-CMN-4000
140-CMN-6300
140-CMN-6300
140-CMN-9000
Motor
Dual
Circuit
Input
Element Time Non-Time
Circuit
(4)
Protector (6) 140M Motor Starter with Adjustable Current Range (7) (8)
Ratings
Output Amps
Delay Fuse
Delay Fuse
Breaker
(2)
(3)
(2)
(3)
(5)
Amps kVA Cont. 1 Min. 3 Sec. Min.
Max.
Min.
Max.
Max.
Max.(5)
Available Catalog Numbers (9)
Table A.B 208/240 Volt AC Input Protection Devices (See page A-17 for Notes)
Supplemental Drive Information
A-15
A
A
A
B
B
C
C
D
D
D
D
E
E
0.37
0.75
1.5
2.2
4
5.5
7.5
11
15
18.5
22
30
37
20AD1P1
20AD2P1
20AD3P4
20AD5P0
20AD8P0
20AD011
20AD014
20AD022
20AD027
20AD034
20AD040
20AD052
20AD065
A
A
A
B
B
C
C
D
D
D
D
E
E
0.5
1
2
3
5
7.5
10
15
20
25
30
40
50
480 Volt AC Input
20AC1P3
20AC2P1
20AC3P5
20AC5P0
20AC8P7
20AC011
20AC015
20AC022
20AC030
20AC037
20AC043
20AC060
20AC072
0.33
0.75
1.5
2
3
5
7.5
10
15
20
25
30
40
0.25
0.55
1.1
1.5
3
4
5.5
7.5
11
15
18.5
22
30
1.3
2.4
3.8
5.6
9.8
9.5
12.5
19.9
24.8
31.2
36.7
47.7
59.6
1.6
2.5
4.3
6.5
11.3
11
15.1
21.9
30.3
35
40.7
56.8
68.9
1.1
2
3.2
4.7
8.4
7.9
10.4
16.6
20.6
25.9
39.7
39.7
49.6
1.1
1.8
3
4.5
7.8
7.6
10.4
15.2
21
24.3
28.2
39.3
47.8
1.1
2.1
3.4
5
8
11
14
22
27
34
40
52
65
1.3
2.1
3.5
5
8.7
11.5
15.4
22
30
37
43
60
72
1.2
2.4
4.5
5.5
8.8
12.1
16.5
24.2
33
40.5
51
60
78
1.4
2.4
4.5
5.5
9.9
13
17.2
24.2
33
45
56
66
90
1.6
3.2
6
7.5
12
16.5
22
33
44
54
68
80
104
1.9
3.2
6
7.5
13.2
17.4
23.1
33
45
60
74
90
120
kW (400V)
HP (480V) Input
Rating
Ratings
Output Amps
ND HD Amps kVA Cont. 1 Min. 3 Sec.
400 Volt AC Input
Drive
Catalog
Number
3
3
6
10
15
15
20
25
35
40
50
60
80
3
4
6
10
15
15
20
30
40
50
60
80
90
3
6
6
10
15
20
30
45
60
70
90
110
125
3
6
6
10
17.5
25
30
45
60
80
90
125
150
3
3
6
10
15
15
20
25
35
40
50
60
80
3
4
6
10
15
15
20
30
40
50
60
80
90
4
8
12
20
30
40
50
80
100
125
150
200
250
5
8
12
20
30
45
60
80
120
125
150
225
250
15
15
15
20
30
40
50
80
100
125
150
200
250
15
15
15
20
30
40
60
80
120
140
160
240
280
3
3
7
15
15
15
20
30
50
50
50
70
100
3
7
7
15
15
15
20
30
50
50
70
80
100
140M-C2E-B16
140M-C2E-B25
140M-C2E-B40
140M-C2E-B63
140M-C2E-C10
140M-C2E-C16
140M-C2E-C16
140M-C2E-C25
–
–
–
–
–
140M-C2E-B16
140M-C2E-B25
140M-C2E-B63
140M-C2E-C10
140M-C2E-C16
140M-C2E-C16
140M-C2E-C16
140M-C2E-C25
–
–
–
–
–
–
140M-D8E-B25
140M-D8E-B40
140M-D8E-B63
140M-D8E-C10
140M-D8E-C16
140M-D8E-C16
140M-D8E-C25
–
–
–
–
–
–
140M-D8E-B25
140M-D8E-B63
140M-D8E-C10
140M-D8E-C16
140M-D8E-C16
140M-D8E-C16
140M-D8E-C25
–
–
–
–
–
–
–
–
–
140M-F8E-C10
140M-F8E-C16
140M-F8E-C16
140M-F8E-C25
140M-F8E-C32
140M-F8E-C45
140M-F8E-C45
–
–
–
–
–
140M-F8E-C10
140M-F8E-C16
140M-F8E-C16
140M-F8E-C16
140M-F8E-C25
140M-F8E-C32
140M-F8E-C45
–
–
–
–
–
–
–
–
–
–
–
140-CMN-2500
140-CMN-4000
140-CMN-4000
140-CMN-6300
140-CMN-9000
–
–
–
–
–
–
–
140-CMN-2500
140-CMN-4000
140-CMN-4000
140-CMN-6300
140-CMN-6300
140-CMN-9000
Dual
Motor
Element Time Non-Time
Circuit
Circuit
Delay Fuse
Delay Fuse
Breaker (4) Protector (6) 140M Motor Starter with Adjustable Current Range (7) (8)
(2)
(3)
(2)
(3)
(5)
Min.
Max.
Min.
Max.
Max.
Max.(5)
Available Catalog Numbers (9)
Table A.C 400/480 Volt AC Input Protection Devices (See page A-17 for Notes).
Frame(1)
A-16
Supplemental Drive Information
20AE0P9
(9)
(8)
(7)
(6)
(5)
(4)
(3)
(2)
(1)
A 0.5
1
2
3
5
7.5
10
15
20
25
30
40
50
A
A
B
B
C
C
D
D
D
D
E
E
0.33 1.3
1.9
3
4.4
7.5
7.7
9.8
15.3
20
24.8
29.4
37.6
47.7
1.3
2
3.1
4.5
7.8
8
10.1
15.9
20.8
25.7
30.5
39.1
49.6
0.9
1.7
2.7
3.9
6.1
9
11
17
22
27
32
41
52
1.1
2
3.6
4.3
6.7
9.9
13.5
18.7
25.5
33
40.5
48
61.5
1.4
2.6
4.8
5.9
9.2
13.5
18
25.5
34
44
54
64
82
3
3
4
6
10
10
15
20
25
35
40
50
60
3
6
6
8
12
20
20
35
45
60
70
90
110
3
3
4
6
10
10
15
20
25
35
40
50
60
3.5
6
10
15
20
35
40
60
80
100
125
150
200
15
15
15
15
20
35
40
60
80
100
125
150
200
3
3
7
7
15
15
15
30
30
50
50
100
100
140M-C2E-B16
140M-C2E-B25
140M-C2E-B40
140M-C2E-B63
140M-C2E-C10
140M-C2E-C10
140M-C2E-C16
140M-C2E-C20
140M-C2E-C25
–
–
–
–
–
140M-D8E-B25
140M-D8E-B40
140M-D8E-B63
140M-D8E-C10
140M-D8E-C10
140M-D8E-C16
140M-D8E-C20
140M-D8E-C25
–
–
–
–
–
–
–
–
140M-F8E-C10
140M-F8E-C10
140M-F8E-C16
140M-F8E-C20
140M-F8E-C25
140M-F8E-C25
140M-F8E-C32
140M-F8E-C45
–
–
–
–
–
–
–
–
–
140-CMN-2500
140-CMN-2500
140-CMN-4000
140-CMN-4000
140-CMN-6300
The AIC ratings of the Bulletin 140M Motor Protector may vary. See publication 140M-SG001B-EN-P.
Manual Self-Protected (Type E) Combination Motor Controller, UL listed for 208 Wye or Delta, 240 Wye or Delta, 480Y/277 or 600Y/347. Not UL listed for use on 480V or
600V Delta/Delta systems.
Bulletin 140M with adjustable current range should have the current trip set to the minimum range that the device will not trip.
Maximum allowable rating by US NEC. Exact size must be chosen for each installation.
Motor Circuit Protector - instantaneous trip circuit breaker. For US NEC, minimum size is 125% of motor FLA. Ratings shown are maximum.
Circuit Breaker - inverse time breaker. For US NEC, minimum size is 125% of motor FLA. Ratings shown are maximum.
Maximum protection device size is the highest rated device that supplies drive protection. For US NEC, minimum size is 125% of motor FLA. Ratings shown are maximum.
Minimum protection device size is the lowest rated device that supplies maximum protection without nuisance tripping.
For IP 66 (NEMA Type 4X/12) enclosures, drives listed as Frame A increase to Frame B and drives listed as Frame C increase to Frame D.
20AE1P7
20AE2P7
20AE3P9
20AE6P1
20AE9P0
20AE011
20AE017
20AE022
20AE027
20AE032
20AE041
20AE052
0.75
1.5
2
3
5
7.5
10
15
20
25
30
40
Dual
Motor
HP
Input
Element Time Non-Time
Circuit
Circuit
Rating
Ratings
Output Amps
Delay Fuse
Delay Fuse
Breaker (4) Protector (6) 140M Motor Starter with Adjustable Current Range (7) (8)
ND HD Amps kVA Cont. 1 Min. 3 Sec. Min. (2) Max. (3) Min. (2) Max. (3) Max.(5)
Max.(5)
Available Catalog Numbers (9)
600 Volt AC Input
Drive
Catalog
Number
Frame(1)
Table A.D 600 Volt AC Input Protection Devices
Supplemental Drive Information
A-17
A-18
Notes:
Supplemental Drive Information
Appendix B
HIM Overview
For information on…
See page
For information on…
See page
External and Internal
Connections
B-1
Menu Structure
B-3
LCD Display Elements
B-2
Viewing and Editing
Parameters
B-5
ALT Functions
B-2
Removing the HIM
B-2
External and Internal Connections
CTRL BD
GND
UIB CONN
COMM PORT
➍
CONTROL/POWER CONN
➎
CTRL BD
GND
The PowerFlex 70 provides a number of cable connection points
(B Frame shown).
➊
➋
IP 20
(NEMA Type 1)
IP 66
(NEMA Type 4X/12)
1or3
➋
POWER
CONTROL
WIRE
STRIP
2
➋➌
No.
➊
➋
➌
➍
➎
Connector
DPI Port 1
Description
HIM connection when installed in cover.
DPI Port 2
Cable connection for handheld and remote options.
DPI Port 3
Splitter cable connected to DPI Port 2 provides
additional port.
Control / Power Connection Connection between control and power boards.
DPI Port 5
Cable connection for communications adapter.
B-2
HIM Overview
LCD Display Elements
Display
Description
F-> Power Loss
Auto
0.0 Hz
Direction Drive Status Alarm Auto/Man Information
Commanded or Output Frequency
Main Menu:
Diagnostics
Parameter
Device Select
Programming / Monitoring / Troubleshooting
ALT Functions
To use an ALT function, press the ALT key, release it, then press the
programming key associated with one of the following functions:
ALT Key and then …
Esc
Esc
Sel
Sel
ALT
Performs this function …
S.M.A.R.T. Displays the S.M.A.R.T. screen.
HIM Type
LCD only
Log In/Out Log in to change parameter settings.
Log out to protect parameter settings.
Change a password.
View
Allows the selection of how parameters will be
viewed or detailed information about a
parameter or component.
Device
Select a connected adapter for editing.
LED only
LED only
Lang
LCD only
Displays the language selection screen.
Auto / Man Switches between Auto and Manual Modes.
Remove
..
+/–
Exp
Param #
LCD only
LCD and LED
Allows HIM removal without causing a fault if the LCD and LED
HIM is not the last controlling device and does
not have Manual control of the drive.
Allows value to be entered as an exponent.
LCD only
(Not available on PowerFlex 70.)
Allows entry of a parameter number for viewing/ LCD only
editing.
Removing the HIM
The HIM can be removed while the drive is powered. Normally, the
drive issues a fault when the HIM is removed because it detects that a
device is missing.
Important: HIM removal is only permissible in Auto mode. If the HIM
is removed while in Manual mode or the HIM is the only
remaining control device, a fault will occur.
HIM Overview
B-3
Menu Structure
User
Display
Main Menu:
Esc
Diagnostics
Sel
Faults
Status Info
Device Items
Device Version
HIM Version
PowerFlex 70
Product Data
Main Control Board
Power Unit Board
LCD Module Product Data
LCD HIM Control Board
Keyboard – Numeric
Parameter
Param Access Lvl
File-Group-Par
Numbered List
Changed Params
Device Select
Memory Storage
Start-Up
Preferences
ALT
View selected through
Fault Info
View Fault Queue
Clear Faults
Clr Fault Queue
Reset Device
Drive Status 1
Drive Status 2
Drive Alarm 1
Drive Alarm 2
Speed Ref Source
Start Inhibits
Last Stop Source
Dig In Status
Dig Out Status
Drive Temp
Drive OL Count
Motor OL Count
Sel
Basic
Advanced
FGP: File
File 1 Name
File 2 Name
File 3 Name
FGP: Group
Group 1 Name
Group 2 Name
Group 3 Name
FGP: Parameter
Parameter Name
Parameter Name
Parameter Name
PowerFlex 70
Connected DPI Devices
HIM CopyCat
Device User Sets
Reset To Defaults
Continue
Start Over
Value Screen
Drive User Set:
Save To User Set
Load Frm Usr Set
Active User Set
Introduction
Drive Identity
Change Password
User Dspy Lines
User Dspy Time
User Dspy Video
Reset User Dspy
Contrast
Complete Steps:
1. Input Voltage
2. Motor Dat/Ramp
3. Motor Tests
4. Speed Limits
5. Speed Control
6. Strt/Stop/I/O
7. Done/Exit
Press
Press
Esc
Make a selection:
Abort
Backup
Resume
Start-Up Menu
to move between menu items
Press
Press
Device -> HIM
Device <- HIM
Delete HIM Set
to select a menu item
Esc
ALT
to move 1 level back in the menu structure
Sel
to select how to view parameters
B-4
HIM Overview
Diagnostics Menu
When a fault trips the drive, use this menu to access detailed data about
the drive.
Option
Faults
Status Info
Device Version
HIM Version
Description
View fault queue or fault information, clear faults or reset drive.
View parameters that display status information about the drive.
View the firmware version and hardware series of components.
View the firmware version and hardware series of the HIM.
Parameter Menu
Refer to Viewing and Editing Parameters on page B-5.
Device Select Menu
Use this menu to access parameters in connected peripheral devices.
Memory Storage Menu
Drive data can be saved to, or recalled from, User and HIM sets.
User sets are files stored in permanent nonvolatile drive memory.
HIM sets are files stored in permanent nonvolatile HIM memory.
Option
HIM Copycat
Device -> HIM
Device <- HIM
Device User Sets
Reset To Defaults
Description
Save data to a HIM set, load data from a HIM set to active drive
memory or delete a HIM set.
Save data to a User set, load data from a User set to active drive
memory or name a User set.
Restore the drive to its factory-default settings.
Start Up Menu
See Chapter 2.
Preferences Menu
The HIM and drive have features that you can customize.
Option
Drive Identity
Change Password
User Dspy Lines
User Dspy Time
User Dspy Video
Reset User Dspy
Description
Add text to identify the drive.
Enable/disable or modify the password.
Select the display, parameter, scale and text for the User Display.
The User Display is two lines of user-defined data that appears
when the HIM is not being used for programming.
Set the wait time for the User Display or enable/disable it.
Select Reverse or Normal video for the Frequency and User
Display lines.
Return all the options for the User Display to factory default values.
HIM Overview
B-5
Viewing and Editing Parameters
The PowerFlex 70 drive is initially set to Basic Parameter View. To view
all parameters, set parameter 196 [Param Access Lvl] to option 1
“Advanced”. Parameter 196 is not affected by the Reset to Defaults
function.
LCD HIM
Step
1. In the Main Menu, press the Up Arrow or
Down Arrow to scroll to “Parameter.”
Key(s)
Example Displays
or
2. Press Enter. “FGP File” appears on the top
line and the first three files appear below it.
3. Press the Up Arrow or Down Arrow to scroll
through the files.
or
FGP: Group
Motor Data
Torq Attributes
Volts per Hertz
4. Press Enter to select a file. The groups in the
file are displayed under it.
5. Repeat steps 3 and 4 to select a group and
then a parameter. The parameter value
screen will appear.
FGP: Parameter
Maximum Voltage
Maximum Freq
Compensation
6. Press Enter to edit the parameter.
7. Press the Up Arrow or Down Arrow to
change the value. If desired, press Sel to
move from digit to digit, letter to letter, or bit
to bit. The digit or bit that you can change will
be highlighted.
FGP: File
Monitor
Motor Control
Speed Reference
or
Sel
FGP:
Par 55
Maximum Freq
60.00 Hz
25 <> 400.00
8. Press Enter to save the value. If you want to
cancel a change, press Esc.
9. Press the Up Arrow or Down Arrow to scroll
through the parameters in the group, or
press Esc to return to the group list.
or
Esc
FGP:
Par 55
Maximum Freq
90.00 Hz
25 <> 400.00
Numeric Keypad Shortcut
If using a HIM with a numeric keypad, press the ALT key and the
+/– key to access the parameter by typing its number.
B-6
HIM Overview
LED HIM - Standard Control Only
Step
1. Press Esc until the Output Frequency
screen appears. This screen displays the
frequency of the drive if it is running. If the
drive is stopped, it will display 0.
Key(s)
Example Displays
Esc
2. Press Enter. The parameter that was last
viewed appears. Its file letter will flash.
3. Press the Up Arrow or Down Arrow to scroll
through the files.
or
4. Press Enter to enter a file. The right digit will
then flash.
5. Press the Up Arrow or Down Arrow to scroll
through the parameters that are in the file.
An “n” appears after a number if a
parameter is a bit parameter that is divided
into nibbles.
or
6. Press Enter to view the value of a
parameter or nibble. Its value will be
displayed. If you do not want to edit the
value, press Esc to return to the parameter
list.
7. Press Enter to enter edit mode. The right
digit will flash if it can be edited.
8. Press the Up Arrow or Down Arrow to
change the value. If desired, press Sel to
move from digit to digit or bit to bit. The digit
or bit that you can change will flash.
or
Sel
To change a sign in a signed value, press
Sel to move the cursor to the left-most digit.
Then, press the Up Arrow or Down Arrow to
scroll to the desired sign.
9. Press Enter to save the value. If you want to
cancel a change, press Esc. The value will
stop flashing to indicate that you are no
longer in edit mode.
10. Press Esc to return to the parameter list.
Esc
Appendix C
Application Notes
For information on…
External Brake Resistor
Skip Frequency
Stop Mode
Motor Overload
See page…
C-1
C-2
C-4
C-7
For information on…
Start At PowerUp
Overspeed
Process PI for Standard Control
External Brake Resistor
Figure C.1 External Brake Resistor Circuitry
Three-Phase
AC Input
(Input Contactor) M
R (L1)
S (L2)
T (L3)
Power Off
Power On
M
M
Power Source
DB Resistor Thermostat
See page…
C-9
C-10
C-11
C-2
Application Notes
Skip Frequency
Figure C.2 Skip Frequency
Frequency
Command
Frequency
Drive Output
Frequency
(A)
(A)
Skip + 1/2 Band
35 Hz
Skip Frequency
30 Hz
Skip – 1/2 Band
(B)
25 Hz
(B)
Time
Some machinery may have a resonant operating frequency that must be
avoided to minimize the risk of equipment damage. To assure that the
motor cannot continuously operate at one or more of the points, skip
frequencies are used. Parameters 084-086, ([Skip Frequency 1-3]) are
available to set the frequencies to be avoided.
The value programmed into the skip frequency parameters sets the center
point for an entire “skip band” of frequencies. The width of the band
(range of frequency around the center point) is determined by parameter
87, [Skip Freq Band]. The range is split, half above and half below the
skip frequency parameter.
If the commanded frequency of the drive is greater than or equal to the
skip (center) frequency and less than or equal to the high value of the
band (skip plus 1/2 band), the drive will set the output frequency to the
high value of the band. See (A) in Figure C.2.
If the commanded frequency is less than the skip (center) frequency and
greater than or equal to the low value of the band (skip minus 1/2 band),
the drive will set the output frequency to the low value of the band. See
(B) in Figure C.2.
Acceleration and deceleration are not affected by the skip frequencies.
Normal accel/decel will proceed through the band once the commanded
frequency is greater than the skip frequency. See (A) & (B) in Figure
C.2. This function affects only continuous operation within the band.
Application Notes
Skip Frequency Examples
The skip frequency will have
hysteresis so the output does not
toggle between high and low values.
Three distinct bands can be
programmed. If none of the skip
bands touch or overlap, each band
has its own high/low limit.
C-3
Max. Frequency
Skip Frequency 1
Skip Band 1
Skip Frequency 2
Skip Band 2
0 Hz
If skip bands overlap or touch, the
center frequency is recalculated
based on the highest and lowest band
values.
400 Hz.
Skip Frequency 1
Skip Frequency 2
Adjusted
Skip Band
w/Recalculated
Skip Frequency
0 Hz
If a skip band(s) extend beyond the
max frequency limits, the highest
band value will be clamped at the
max frequency limit. The center
frequency is recalculated based on
the highest and lowest band values.
400 Hz.
Max.Frequency
Skip
Adjusted
Skip Band
w/Recalculated
Skip Frequency
0 Hz
If the band is outside the limits, the
skip band is inactive.
400 Hz.
Skip Frequency 1
60 Hz. Max.
Frequency
0 Hz
Inactive
Skip Band
C-4
Application Notes
Stop Mode
Mode
Description
Coast to
Output Voltage
Stop
Output Current
Motor Speed
Time
Stop
Command
Coast Time is load dependent
This method releases the motor and allows the load to stop by friction.
1. On Stop, the drive output goes immediately to zero (off).
2. No further power is supplied to the motor. The drive has released control.
3. The motor will coast for a time that is dependent on the mechanics of the system
(inertia, friction, etc).
Brake to
Stop
Output Voltage
Output Current
Motor Speed
DC
Hold Level
Time
Stop
Command
DC Hold Time
This method uses DC injection of the motor to Stop and/or hold the load.
1. On Stop, 3 phase drive output goes to zero (off)
2. Drive outputs DC voltage on the last used phase at the level programmed in [DC Brake
Level] Par 158. This voltage causes a “stopping” brake torque. If the voltage is applied
for a time that is longer than the actual possible stopping time, the remaining time will
be used to attempt to hold the motor at zero speed.
3. DC voltage to the motor continues for the amount of time programmed in [DC Brake
Time] Par 159. Braking ceases after this time expires.
4. After the DC Braking ceases, no further power is supplied to the motor. The motor may
or may not be stopped. The drive has released control.
5. The motor, if rotating, will coast from its present speed for a time that is dependent on
the mechanics of the system (inertia, friction, etc).
Application Notes
C-5
Mode
Description
Ramp to
Output Voltage
Stop
Output Current
Motor Speed
Output Current
Output Voltage
DC
Hold
Level
Time
Stop
Command
Zero
Command
Speed
DC Hold Time
This method uses drive output reduction to stop the load.
1. On Stop, drive output will decrease according to the programmed pattern from its
present value to zero. The pattern may be linear or squared. The output will decrease
to zero at the rate determined by the programmed [Maximum Freq] and the
programmed active [Decel Time x]
2. The reduction in output can be limited by other drive factors such as bus or current
regulation.
3. When the output reaches zero the output is shut off.
4. The motor, if rotating, will coast from its present speed for a time that is dependent on
the mechanics of the system (inertia, friction, etc).
Ramp to
Hold
Output Voltage
Output Voltage
Output Current
Output Current
Motor Speed
Motor Speed
Output Current
Output Voltage
DC
Hold Level
Time
Stop
Command
Zero
Command
Speed
Re-issuing a
Start Command
This method combines two of the methods above. It uses drive output reduction to stop the
load and DC injection to hold the load at zero speed once it has stopped.
1. On Stop, drive output will decrease according to the programmed pattern from its
present value to zero. The pattern may be linear or squared. The output will decrease
to zero at the rate determined by the programmed [Maximum Freq] and the
programmed active [Decel Time x]
2. The reduction in output can be limited by other drive factors such as bus or current
regulation.
3. When the output reaches zero 3 phase drive output goes to zero (off) and the drive
outputs DC voltage on the last used phase at the level programmed in [DC Brake
Level] Par 158. This voltage causes a “holding” brake torque.
4. DC voltage to the motor continues until a Start command is reissued or the drive is
disabled.
5. If a Start command is reissued, DC Braking ceases and the drive returns to normal AC
operation. If an Enable command is removed, the drive enters a “not ready” state until
the enable is restored.
C-6
Application Notes
Mode
Fast
Brake
Description
Output Voltage
Output Current
Motor Speed
Time
Stop
Command
This method uses drive output reduction to stop the load.
1. On Stop, the drive output will decrease according to the programmed pattern from its
present value to zero at the rate determined by the programmed active [Decel Time x].
This is accomplished by lowering the output frequency below the motor speed where
regeneration will not occur. This causes excess energy to be lost in the motor.
2. The reduction in output can be limited by other drive factors such as bus or current
regulation.
3. When the output reaches very near zero, DC brake will automatically be used to
complete the stop then the output is shut off.
Application Notes
C-7
Motor Overload
For single motor applications the drive can be programmed to protect the
motor from overload conditions. An electronic thermal overload I2T
function emulates a thermal overload relay. This operation is based on
three parameters; [Motor NP FLA], [Motor OL Factor] and [Motor OL
Hertz] (parameters 042, 048 and 047, respectively).
[Motor NP FLA] is multiplied by [Motor OL Factor] to allow the user to
define the continuous level of current allowed by the motor thermal
overload. [Motor OL Hertz] is used to allow the user to adjust the
frequency below which the motor overload is derated.
The motor can operate up to 102% of FLA continuously. If the drive had
just been activated, it will run at 150% of FLA for 180 seconds. If the
motor had been operating at 100% for over 30 minutes, the drive will run
at 150% of FLA for 60 seconds. These values assume the drive is
operating above [Motor OL Hertz], and that [Motor OL Factor] is set to
1.00.
Operation below 100% current causes the temperature calculation to
account for motor cooling.
Motor Overload Curve
100000
Cold
Hot
Trip Time (Sec)
10000
1000
100
10
100
125
150
175
200
Full Load Amps (%)
225
250
[Motor OL Hertz] defines the frequency where motor overload capacity
derate should begin. The motor overload capacity is reduced when
operating below [Motor OL Hertz]. For all settings of [Motor OL Hertz]
other than zero, the overload capacity is reduced to 70% at an output
frequency of zero.
Changing Overload Hz
120
OL Hz = 10
OL Hz = 25
OL Hz = 50
Continuous Rating
100
80
60
40
20
0
0
10
20
30
40
50
60
% of Base Speed
70
80
90 100
C-8
Application Notes
[Motor NP FLA] is multiplied by [Motor OL Factor] to select the rated
current for the motor thermal overload. This can be used to raise or lower
the level of current that will cause the motor thermal overload to trip.
The effective overload factor is a combination of [Motor OL Hertz] and
[Motor OL Factor].
Changing Overload Factor
140
OL % = 1.20
OL % = 1.00
OL % = 0.80
Continuous Rating
120
100
80
60
40
20
0
0
10
20
30
40 50 60 70
% of Base Speed
80
90 100
Motor Overload Memory Retention Per 2005 NEC
Related
Values
219
[Motor OL Mode]
E C v3
If “0,” [Drive OL Count], P219 is reset to zero by a drive reset or a power cycle. If
“1,” the value is maintained. A “1” to “0” transition resets [Drive OL Count] to zero.
See page 3-2 for symbol descriptions
Re
t
Motor Data
MOTOR CONTROL (File B)
050
Parameter Name and Description
Pw
rC
yc
No.
Group
File B
The PowerFlex 70 EC (Firmware Revision 3.002 or greater) has the
ability to retain the motor overload count at power down per the 2005
NEC motor overtemp requirement. A parameter has been added to
provide this functionality. To Enable/Disable this feature, refer to the
information below.
x x x x x x x x x x x x x x x 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Nibble 4
Nibble 3
Nibble 2
Nibble 1
Bit #
Factory Default Bit Values
1 = Enabled
0 = Disabled
x = Reserved
Application Notes
C-9
Start At PowerUp
When Start At Powerup in 2 wire control is configured, the drive will
start if all start permissive conditions are met (within 10 seconds of drive
power being applied), and the terminal block start input (Run, Run
Forward or Run Reverse for 2-wire) is closed. An alarm will be
annunciated from application of power until the drive actually starts,
indicating the powerup start attempt is in progress.
The powerup start attempt will be aborted if any of the following occurs
anytime during the 10-second start interval:
•
A fault condition occurs
•
A Type 2 alarm condition occurs
•
The terminal block programmed enable input is opened
•
All terminal block run, run forward, or run reverse, inputs are
canceled
•
A Stop request (from any source) is received
If the drive has not started within the 10 second interval, the powerup
start attempt will be terminated.
Application Notes
Overspeed
Overspeed Limit is a user programmable value that allows operation at
maximum speed, but also provides an “overspeed band” that will allow a
speed regulator such as encoder feedback or slip compensation to
increase the output frequency above maximum speed in order to
maintain maximum motor speed.
The figure below illustrates a typical Custom V/Hz profile. Minimum
Speed is entered in Hertz and determines the lower speed reference limit
during normal operation. Maximum Speed is entered in Hertz and
determines the upper speed reference limit. The two “Speed” parameters
only limit the speed reference and not the output frequency.
The actual output frequency at maximum speed reference is the sum of
the speed reference plus “speed adder” components from functions such
as slip compensation.
The Overspeed Limit is entered in Hertz and added to Maximum Speed
and the sum of the two (Speed Limit) limit the output frequency. This
sum (Speed Limit) must is compared to Maximum Frequency and an
alarm is initiated which prevents operation if the Speed Limit exceeds
Maximum Frequency.
Allowable Output Frequency Range Bus Regulation or Current Limit
Allowable Output Frequency Range - Normal Operation 1
Allowable Speed Reference Range
Maximum
Voltage
Motor NP
Voltage
Output Voltage
C-10
Frequency Trim
due to Speed
Control Mode
Overspeed
Limit
Break
Voltage
Start
Boost
Run
Boost
0
Minimum
Break
Speed Frequency
Motor NP Hz
Frequency
Maximum
Speed
Output
Maximum
Frequency Frequency
Limit
Note 1: The lower limit on this range can be 0 depending on the value of Speed Adder
Application Notes
C-11
Process PI for Standard Control
The internal PI function of the PowerFlex 70 provides closed loop
process control with proportional and integral control action. The
function is designed for use in applications that require simple control of
a process without external control devices. The PI function allows the
microprocessor of the drive to follow a single process control loop.
The PI function reads a process variable input to the drive and compares
it to a desired setpoint stored in the drive. The algorithm will then adjust
the output of the PI regulator, changing drive output frequency to try and
make the process variable equal the setpoint.
It can operate as trim mode by summing the PI loop output with a master
speed reference.
Slip
Comp
+
Slip Adder
+
Spd Ref
PI Ref
PI Fbk
Open
Loop
Linear Ramp
& S-Curve
Spd Cmd
+
Process PI
Controller
+
Process
PI
Speed Control
PI Enabled
Or, it can operate as control mode by supplying the entire speed
reference. This method is identified as “exclusive mode”
+
Slip Adder
+
Linear Ramp
& S-Curve
Spd Ref
Slip
Comp
Open
Loop
Spd Cmd
Process
PI
PI Ref
PI Fbk
Process PI
Controller
PI Enabled
Speed Control
Application Notes
PI Enable
The output of the PI loop can be turned on (enabled) or turned off
(disabled). This control allows the user to determine when the PI loop is
providing part or all of the commanded speed. The logic for enabling the
PI loop is shown in below.
Drive
Running
Drive
Ramping
to Stop
Bit 0 of
[PI Control] = 1
(enabled)
Drive
Jogging
A Digital Input
is Configured
to PI Enable
The PI Loop
is Enabled
Signal Loss
"Enabled" Status
Digital Input
is Reflected
in [PI Status]
Bit 0 = 1
The Configured
Digital Input
is Closed
The drive must be running for the PI loop to be enabled. The loop will be
disabled when the drive is ramping to a stop, jogging or the signal loss
protection for the analog input(s) is sensing a loss of signal.
If a digital input has been configured to “PI Enable,” two events are
required to enable the loop: the digital input must be closed AND bit 0 of
the PI Control parameter must be = 1.
If no digital input is configured to “PI Enable,” then only the Bit 0 = 1
condition must be met. If the bit is permanently set to a “1”, then the
loop will become enabled as soon as the drive goes into “run”.
PI Enabled
PI Pre-load Value
PI Output
Spd Cmd
PI Pre-load Value = 0
PI Pre-load Value > 0
PI Enabled
100.0
Start at Spd Cmd
PI Output
Normalized SQRT(Feedback)
C-12
75.0
50.0
25.0
0.0
-25.0
-50.0
-75.0
-100.0
-100.0
-75.0
-50.0
-25.0
0.0
25.0
Normalized Feedback
Spd Cmd
Pre-load to Command Speed
50.0
75.0
100.0
Application Notes
C-13
PI_Status
.Enabled
Spd Ref
to A
PI Kp
PI Neg Limit
PI ExcessErr
abs
Linear
Ramp
PI Ref
*(PI Ref Sel)
≥
PI XS Error
PI Pos Limit
PI Cmd
+
+
PI Error
+
+
*
PI_Config
.RampCmd
+
PI_Config
.Invert
PI Ki
In Limit
-1
z
0
PI_Status
.Hold
Spd Cmd
PI Fbk
*(PI Fbk Sel)
PI_Config
.Exclusive
PI_Config
.Sqrt
Current Limit
or Volt Limit
Preload Value
PI_Config
.Exclusive
PI_Config
.ZeroClamp
Linear Ramp
& S-Curve
PI Output
*
-
PI_Status
.Enabled
Spd Cmd
+32K
+
Spd Ramp
+
PI_Config
.PreloadCmd
PI_Status
.Enabled
-32K
A
+32K
Spd Cmd
0
0
≥0
-32K
Zclamped
Application Notes
Voltage Tolerance
Drive Rating
Nominal Line
Voltage
200
208
240
380
400
480
600
200-240
380-400
500-600
Drive Full Power Range =
HP @ Motor (Drive Output)
Drive Operating Range =
Nominal Motor
Voltage
200†
208
230
380†
400
460
575†
Drive Full Power
Range
200-264
208-264
230-264
380-528
400-528
460-528
575-660
Drive Operating
Range
180-264
342-528
432-660
Nominal Motor Voltage to Drive Rated Voltage + 10%.
Rated current is available across the entire Drive Full Power Range
Lowest† Nominal Motor Voltage - 10% to Drive Rated Voltage + 10%.
Drive Output is linearly derated when Actual Line Voltage is less than
the Nominal Motor Voltage
Derated Power Range
No Drive
Output
Full Power Range
Drive Operating Range
Nominal Motor Voltage -10%
Nominal Motor Voltage
Drive Rated Voltage
Drive Rated Voltage +10%
Actual Line Voltage (Drive Input)
Example:
Calculate the maximum power of a 5 HP, 460V motor connected to a 480V rated drive
supplied with 342V Actual Line Voltage input.
• Actual Line Voltage / Nominal Motor Voltage = 74.3%
• 74.3% × 5 HP = 3.7 HP
• 74.3% × 60 Hz = 44.6 Hz
At 342V Actual Line Voltage, the maximum power the 5 HP, 460V motor can produce is
3.7 HP at 44.6 Hz.
HP @ Motor (Drive Output)
C-14
5 HP
3.7 HP
No Drive
Output
342V
480V
460V
Actual Line Voltage (Drive Input)
528V
Index
A
AC Input Line Circuit Breakers, A-1,
A-14
AC Input Line Fuses, A-1, A-14
AC Supply
Ground, 1-4
Source, 1-3
Unbalanced, 1-3
Ungrounded, 1-3
Accel Mask, 3-48
Accel Owner, 3-49
Accel Time x, 3-29
Access Level, Parameter, 3-3
Advanced Parameter View, 3-3
Agency Certification, A-2
Alarm 1 @ Fault, 3-43
Alarm Config 1, 3-46
Alarm Descriptions, 4-7
Alarms
Analog in Loss, 4-7
Bipolar Conflict, 4-7
Clearing, 4-7
Decel Inhibit, 4-7
Defined, 4-7
Dig In Conflict, 4-8
Drive OL Level, 4-8
FluxAmpsRef Rang, 4-8
Ground Warn, 4-8
In Phase Loss, 4-8
IntDBRes OvrHeat, 4-8
IR Volts Range, 4-9
IXo Voltage Range, 4-9
Load Loss, 4-9
MaxFreq Conflict, 4-9
Motor Thermistor, 4-9
Motor Type Cflct, 4-9
NP Hz Conflict, 4-9
Power Loss, 4-9
Precharge Active, 4-9
PTC Conflict, 4-9
Sleep Config, 4-9
Speed Ref Cflct, 4-9
Start At PowerUp, 4-9
TB Man Ref Cflct, 4-10
UnderVoltage, 4-10
UserSet Conflict, 4-10
VHz Neg Slope, 4-10
Waking, 4-10
Alarms Group, 3-46
ALT Key Functions, B-2
Ambient Temperature, 1-2
Analog in Loss Alarm, 4-7
Analog In Loss Fault, 4-3
Analog In x Hi, 3-52
Analog In x Lo, 3-52
Analog In x Loss, 3-52
Analog Inputs Group, 3-52
Analog Inx Value, 3-12
Analog Out1 Hi, 3-54
Analog Out1 Lo, 3-54
Analog Out1 Sel, 3-53
Analog Outputs Group, 3-53
Anlg Cal Chksum Fault, 4-3
Anlg In Config, 3-52
Anlg In Sqr Root, 3-52
Anlg Out Absolut, 3-53
Anlg Out Config, 3-53
Anlg Out1 Scale, 3-54
Anlg Out1 Setpt, 3-54
Applications File, 3-59
Armored Cable, 1-7
Assisted Start Up, 2-3
Auto Mode, 1-19
Auto Rstrt Delay, 3-33
Auto Rstrt Tries, 3-33
Auto Rstrt Tries Fault, 4-3
Auto/Manual
Control, 1-20
Modes, 1-19
AutoMan Cnfg, 3-36
Autotune, 3-16
AutoTune Aborted Fault, 4-3
Autotune Torque, 3-16
Auxiliary Input Fault, 4-3
Index-2
B
Basic Parameter View, 3-3, 3-5
Before Applying Power, 2-1
Bipolar Conflict Alarm, 4-7
Bottom Plate Removal, 1-8
Break Frequency, 3-18
Break Voltage, 3-18
Bus Capacitors, Discharging, P-3
Bus Reg Gain, 3-31
Bus Reg Kd, 3-32
Bus Reg Ki, 3-31
Bus Reg Kp, 3-32
Bus Reg Mode x, 3-31
Bus Voltage, Measuring, 1-9
C
Cable Entry Plate Removal, 1-8
Cable Length
Motor, 1-7
Signal, 1-12
Cable Trays, 1-7
Cables, Power
Armored, 1-7
Insulation, 1-5
Separation, 1-5
Shielded, 1-5, 1-7
Type, 1-5
Unshielded, 1-5, 1-6
Capacitors, Discharging, P-3
Catalog Number Explanation, P-5
CE Conformity, 1-21
Checklist, Start-Up, 2-1
Circuit Breakers
Input, 1-5
Ratings, A-1, A-14
Clearing
Alarms, 4-7
Faults, 4-3
Comm Control Group, 3-47
Commanded Freq, 3-11
Commanded Torque, 3-12
Common Mode Capacitors, 1-11
Common Symptoms and Corrective
Action, 4-12
Communication File, 3-47
Communications
Logic Command Word, A-5
Logic Status Word, A-6
Programmable Controller
Configurations, A-4
Compensation, 3-15
Conduit, 1-7
Contactors, Input, 1-10
Control Options, 3-3
Control Status, 3-18
Control SW Ver, 3-12
Control, 2 and 3 Wire, 1-17
Control, Auto/Manual, 1-20
Conventions, Manual, P-2
Cover, Opening, 1-1
Cross Reference, Parameter, 3-60
Current Lmt Gain, 3-29
Current Lmt Sel, 3-29
Current Lmt Val, 3-29
Current Rate Lim, 3-30
D
Data In, 3-50
Data Out, 3-50
Data, Diagnostic, B-4
Data, Saving, B-4
Datalinks Group, 3-50
DB Resistor Type, 3-32
DB While Stopped, 3-30
DC Brake Level, 3-31
DC Brake Lvl Sel, 3-30
DC Brake Time, 3-31
DC Bus Memory, 3-11
DC Bus Voltage, 3-11
DC Bus, Measuring Voltage, 1-9
Decel Inhibit Alarm, 4-7
Decel Inhibit Fault, 4-3
Decel Mask, 3-48
Decel Owner, 3-49
Decel Time x, 3-29
Index-3
Diagnostic Data, Viewing, B-4
Diagnostics Group, 3-39
Dig In Conflict Alarm, 4-8
Dig In Status, 3-41
Dig Out Setpt, 3-56
Dig Out Status, 3-41
Dig Outx Level, 3-57
Dig Outx OffTime, 3-58
Dig Outx OnTime, 3-57
DigIn DataLogic, 3-56
Digital Inputs Group, 3-55
Digital Inx Sel, 3-55
Digital Outputs Group, 3-56
Digital Outx Sel, 3-57
Dimensions
Minimum Clearances, 1-2
Mounting, 1-2, A-7
Direction Config Group, 3-36
Direction Mask, 3-48
Direction Mode, 3-36
Direction Owner, 3-49
Discharging Bus Capacitors, P-3
Discrete Speeds Group, 3-23
Distribution Systems, 1-3
DPI Data Rate, 3-47
DPI Port Locations, B-1
DPI Port Select, 3-48
DPI Port Value, 3-48
DPI Ref Select, 3-48
Drive Alarm 1, 3-39
Drive Checksum, 3-38
Drive Data Group, 3-12
Drive Frame Size, P-3
Drive Grounding, 1-4
Drive Logic Rslt, 3-47
Drive Memory Group, 3-37
Drive OL Count, 3-42
Drive OL Level Alarm, 4-8
Drive OL Mode, 3-29
Drive OverLoad Fault, 4-3
Drive Powerup Fault, 4-4
Drive Ramp Rslt, 3-47
Drive Ratings, A-1, A-14
Drive Ref Rslt, 3-47
Drive Status 1, 3-39
Drive Status 3, 3-42
Drive Temp, 3-41
DriveExplorer, 3-1
DriveTools, 3-1
Droop RPM @ FLA, 3-30
Dyn UserSet Actv, 3-38
Dyn UsrSet Cnfg, 3-38
Dyn UsrSet Sel, 3-38
Dynamic Brake Resistor Selection,
3-32
Dynamic Control File, 3-29
E
Earthing, see Grounding
Editing Parameters, 3-1
Elapsed kWh, 3-12
Elapsed MWh, 3-11
Elapsed Run Time, 3-11
EMI/RFI
Grounding, Filter, 1-5
Interference, 1-21
Enable Hardware Fault, 4-4
Enc Pos Feedback, 3-19
Enclosure Rating, 1-2
Encoder Loss Faults, 4-4
Encoder PPR, 3-19
Encoder Specifications, A-3
Encoder Speed, 3-19
Encoder Wiring, 1-16
Enhanced Control, 3-3
ESD, Static Discharge, P-3
Excessive Load Fault, 4-4
F
Fault Amps, 3-43
Fault Bus Volts, 3-43
Fault Clear, 3-44
Fault Clear Mode, 3-45
Fault Clr Mask, 3-48
Fault Clr Owner, 3-49
Fault Config 1, 3-44
Fault Descriptions, 4-3
Fault Frequency, 3-43
Index-4
Fault x Code, 3-45
Fault x Time, 3-45
Faults
Analog In Loss, 4-3
Anlg Cal Chksum, 4-3
Auto Rstrt Tries, 4-3
AutoTune Aborted, 4-3
Auxiliary Input, 4-3
Clearing, 4-3
Decel Inhibit, 4-3
Defined, 4-3
Drive OverLoad, 4-3
Drive Powerup, 4-4
Enable Hardware, 4-4
Encoder Loss, 4-4
Excessive Load, 4-4
FluxAmpsRef Rang, 4-4
Heatsink OvrTemp, 4-4
HW OverCurrent, 4-4
Incompat MCB-PB, 4-4
Input Phase Loss, 4-4
IR Volts Range, 4-4
IXo VoltageRange, 4-4
Load Loss, 4-3
Motor Overload, 4-5
Motor Thermistor, 4-5
OverSpeed Limit, 4-5
OverVoltage, 4-5
Parameter Chksum, 4-5
Params Defaulted, 4-5
Phase Short, 4-5
Phase to Grnd, 4-5
Port X Adapter Fault, 4-5
Port X DPI Loss, 4-5
Power Loss, 4-6
Pwr Brd Chksum, 4-6
Replaced MCB-PB, 4-6
Shear Pin, 4-6
SW OverCurrent, 4-6
Trnsistr OvrTemp, 4-6
UnderVoltage, 4-6
UserSet Chksum, 4-6
Viewing, 4-3
Faults Cleared Marker, 4-4
Faults Group, 3-44
Fdbk Filter Sel, 3-19
Feedback Select, 3-20
FGP (File-Group-Parameter), 3-3
Fiber Control, 3-59
Fiber Functions Group, 3-59
Fiber Status, 3-59
File
Applications, 3-59
Communication, 3-47
Dynamic Control, 3-29
Inputs & Outputs, 3-52
Monitor, 3-11
Motor Control, 3-13
Speed Command, 3-20
Utility, 3-36
File-Group-Parameter (FGP), 3-3
Filter Option Power Input Terminals,
1-9
Filter, RFI, 1-5
Flt Queue Cleared Marker, 4-4
Flux Braking, 3-32
Flux Current, 3-11
Flux Current Ref, 3-16
Flux Up Mode, 3-15
Flux Up Time, 3-15
FluxAmpsRef Rang Alarm, 4-8
FluxAmpsRef Rang Fault, 4-4
Flying Start En, 3-33
Flying StartGain, 3-33
Frame Designations, A-1, A-14
Frame Size, Drive, P-3
Fuses
Input, 1-5
Ratings, A-1, A-14
G
General Precautions, P-3
Gnd Warn Level, 3-35
Ground Warn Alarm, 4-8
Index-5
Grounding
Bus, 1-4
Conductor, 1-4
Filter, 1-5
General, 1-4
Impedance, 1-4
Motor, 1-7
Safety, PE, 1-4
Shields, TE, 1-4
Group
Alarms, 3-46
Analog Inputs, 3-52
Analog Outputs, 3-53
Comm Control, 3-47
Datalinks, 3-50
Diagnostics, 3-39
Digital Inputs, 3-55
Digital Outputs, 3-56
Direction Config, 3-36
Discrete Speeds, 3-23
Drive Data, 3-12
Drive Memory, 3-37
Faults, 3-44
Fiber Functions, 3-59
HIM Ref Config, 3-36
Load Limits, 3-29
Masks & Owners, 3-48
Metering, 3-11
MOP Config, 3-37
Motor Data, 3-13
Power Loss, 3-35
Process PI, 3-25
Ramp Rates, 3-29
Restart Modes, 3-33
Security, 3-51
Slip Comp, 3-24
Spd Mode & Limits, 3-20
Speed References, 3-22
Speed Trim, 3-24
Stop/Brake Modes, 3-30
Torque Attributes, 3-14
Volts per Hertz, 3-18
H
Hardware Enable Circuitry
Enable Circuitry, 1-15
Heatsink OvrTemp Fault, 4-4
HighRes Ref, 3-50
HIM Menu Structure, B-3
HIM Ref Config Group, 3-36
HIM, Removing, B-2
HW OverCurrent Fault, 4-4
I
I/O
Terminal Block, 1-13
Wiring, 1-12
Wiring Examples, 1-17
In Phase Loss Alarm, 4-8
Incompat MCB-PB Fault, 4-4
Indicators, LED, 2-2
Inertia Autotune, 3-17
Input Contactor
Start/Stop, 1-10
Input Devices
Circuit Breakers, 1-5
Contactors, 1-10
Fuses, 1-5
Input Fusing, 1-5
Input Phase Loss Fault, 4-4
Input Power
Single-Phase, 1-7
Input Power Conditioning, 1-3
Input Terminals, Power, 1-9
Inputs & Outputs File, 3-52
Installation, 1-1
IntDBRes OvrHeat Alarm, 4-8
Interference, EMI/RFI, 1-21
IP66 Installations, 1-10
IR Voltage Drop, 3-16
IR Volts Range Alarm, 4-9
IR Volts Range Fault, 4-4
IXo Voltage Drop, 3-16
IXo VoltageRange Alarm, 4-9
IXo VoltageRange Fault, 4-4
Index-6
J
Jog Mask, 3-48
Jog Owner, 3-49
Jog Speed, 3-23
Jog Speed 1, 3-23
Jog Speed 2, 3-23
K
Kf Speed Loop, 3-28
Ki Speed Loop, 3-27
Kp Speed Loop, 3-28
L
Language, 3-37
Last Stop Source, 3-41
LCD HIM, Menus, B-3
LED Indicators, 2-2
Load Frm Usr Set, 3-37
Load Limits Group, 3-29
Load Loss Alarm, 4-9
Load Loss Fault, 4-3
Load Loss Level, 3-35
Load Loss Time, 3-35
Local Mask, 3-49
Local Owner, 3-50
Logic Command Word, A-5
Logic Mask, 3-48, 3-51
Logic Mask Act, 3-51
Logic Status Word, A-6
M
Man Ref Preload, 3-36
Manual Mode, 1-19
Manual/Auto Control, 1-20
Marker
Faults Cleared, 4-4
Flt QueueCleared, 4-4
Masks & Owners Group, 3-48
Max Traverse, 3-59
MaxFreq Conflict Alarm, 4-9
Maximum Freq, 3-14
Maximum Speed, 3-20
Maximum Voltage, 3-14
Measuring DC Bus Voltage, 1-9
Menu Structure, HIM, B-3
Metering Group, 3-11
Minimum Clearances, 1-2
Minimum Speed, 3-20
MOD LED, 2-2
Modes, Auto/Manual, 1-19
Monitor File, 3-11
MOP Config Group, 3-37
MOP Frequency, 3-11
MOP Mask, 3-49
MOP Owner, 3-49
MOP Rate, 3-37
Motor Cable Lengths, 1-7
Motor Cntl Sel, 3-14
Motor Control File, 3-13
Motor Data Group, 3-13
Motor Fdbk Type, 3-19
Motor NP FLA, 3-13
Motor NP Hertz, 3-13
Motor NP Power, 3-13
Motor NP RPM, 3-13
Motor NP Volts, 3-13
Motor OL Count, 3-42
Motor OL Factor, 3-13
Motor OL Hertz, 3-13
Motor OL Mode, 3-14, C-8
Motor Overload Fault, 4-5
Motor Poles, 3-13
Motor Starters, A-1, A-14
Motor Thermistor Alarm, 4-9
Motor Thermistor Fault, 4-5
Motor Type, 3-13
Motor Type Cflct Alarm, 4-9
Mounting Clearances and
Orientation, 1-2
MOVs, 1-11
Mtr NP Pwr Units, 3-13
Mtr OL Trip Time, 3-42
N
Neg Torque Limit, 3-17
NEMA Type 4X/12 Installations, 1-10
NET LEDs, 2-2
Index-7
Notch Filter K, 3-19
Notch FilterFreq, 3-19
NP Hz Conflict Alarm, 4-9
O
Opening the Cover, 1-1
Operating Modes, 1-19
Operating Temperature, 1-2
Operator Interface, B-5
Output Current, 3-11
Output Freq, 3-11
Output Power, 3-11
Output Powr Fctr, 3-11
Output Voltage, 3-11
Overspeed Limit, 3-20
OverSpeed Limit Fault, 4-5
OverVoltage Fault, 4-5
P
P Jump, 3-59
Param Access Lvl, 3-37
Parameter
Changing/Editing, B-5
Descriptions, 3-1
Numbered List, 3-3
Organization, 3-3
Types, 3-1
Viewing, B-5
Viewing List Of Changed, B-2
Parameter Access Level, 3-3
Parameter Chksum Fault, 4-5
Parameter Cross Reference, 3-60
Parameter View
Advanced
Enhanced Control, 3-9
Standard Control, 3-7
Basic
Enhanced Control, 3-6
Standard Control, 3-5
Parameters
Accel Mask, 3-48
Accel Owner, 3-49
Accel Time x, 3-29
Alarm 1 @ Fault, 3-43
Alarm Config 1, 3-46
Analog In x Hi, 3-52
Analog In x Lo, 3-52
Analog In x Loss, 3-52
Analog Inx Value, 3-12
Analog Out1 Hi, 3-54
Analog Out1 Lo, 3-54
Analog Out1 Sel, 3-53
Anlg In Config, 3-52
Anlg In Sqr Root, 3-52
Anlg Out Absolut, 3-53
Anlg Out Config, 3-53
Anlg Out1 Scale, 3-54
Anlg Out1 Setpt, 3-54
Auto Rstrt Delay, 3-33
Auto Rstrt Tries, 3-33
AutoMan Cnfg, 3-36
Autotune, 3-16
Autotune Torque, 3-16
Break Frequency, 3-18
Break Voltage, 3-18
Bus Reg Gain, 3-31
Bus Reg Kd, 3-32
Bus Reg Ki, 3-31
Bus Reg Kp, 3-32
Bus Reg Mode x, 3-31
Commanded Freq, 3-11
Commanded Torque, 3-12
Compensation, 3-15
Control Status, 3-18
Control SW Ver, 3-12
Current Lmt Gain, 3-29
Current Lmt Sel, 3-29
Current Lmt Val, 3-29
Current Rate Lim, 3-30
Data In, 3-50
Data Out, 3-50
DB Resistor Type, 3-32
DB While Stopped, 3-30
DC Brake Level, 3-31
DC Brake Lvl Sel, 3-30
Index-8
DC Brake Time, 3-31
DC Bus Memory, 3-11
DC Bus Voltage, 3-11
Decel Mask, 3-48
Decel Owner, 3-49
Decel Time x, 3-29
Dig In Status, 3-41
Dig Out Setpt, 3-56
Dig Out Status, 3-41
Dig Outx Level, 3-57
Dig Outx OffTime, 3-58
Dig Outx OnTime, 3-57
DigIn DataLogic, 3-56
Digital Inx Sel, 3-55
Digital Outx Sel, 3-57
Direction Mask, 3-48
Direction Mode, 3-36
Direction Owner, 3-49
DPI Data Rate, 3-47
DPI Port Select, 3-48
DPI Port Value, 3-48
DPI Ref Select, 3-48
Drive Alarm 1, 3-39
Drive Checksum, 3-38
Drive Logic Rslt, 3-47
Drive OL Count, 3-42
Drive OL Mode, 3-29
Drive Ramp Rslt, 3-47
Drive Ref Rslt, 3-47
Drive Status 1, 3-39
Drive Status 3, 3-42
Drive Temp, 3-41
Droop RPM @ FLA, 3-30
Dyn UserSet Actv, 3-38
Dyn UsrSet Cnfg, 3-38
Dyn UsrSet Sel, 3-38
Elapsed kWh, 3-12
Elapsed MWh, 3-11
Elapsed Run Time, 3-11
Enc Pos Feedback, 3-19
Encoder PPR, 3-19
Encoder Speed, 3-19
Fault Amps, 3-43
Fault Bus Volts, 3-43
Fault Clear, 3-44
Fault Clear Mode, 3-45
Fault Clr Mask, 3-48
Fault Clr Owner, 3-49
Fault Config 1, 3-44
Fault Frequency, 3-43
Fault x Code, 3-45
Fault x Time, 3-45
Fdbk Filter Sel, 3-19
Feedback Select, 3-20
Fiber Control, 3-59
Fiber Status, 3-59
Flux Braking, 3-32
Flux Current, 3-11
Flux Current Ref, 3-16
Flux Up Mode, 3-15
Flux Up Time, 3-15
Flying Start En, 3-33
Flying StartGain, 3-33
Gnd Warn Level, 3-35
HighRes Ref, 3-50
Inertia Autotune, 3-17
IR Voltage Drop, 3-16
IXo Voltage Drop, 3-16
Jog Mask, 3-48
Jog Owner, 3-49
Jog Speed, 3-23
Jog Speed 1, 3-23
Jog Speed 2, 3-23
Kf Speed Loop, 3-28
Ki Speed Loop, 3-27
Kp Speed Loop, 3-28
Language, 3-37
Last Stop Source, 3-41
Load Frm Usr Set, 3-37
Load Loss Level, 3-35
Load Loss Time, 3-35
Local Mask, 3-49
Local Owner, 3-50
Logic Mask, 3-48, 3-51
Index-9
Logic Mask Act, 3-51
Man Ref Preload, 3-36
Max Traverse, 3-59
Maximum Freq, 3-14
Maximum Speed, 3-20
Maximum Voltage, 3-14
Minimum Speed, 3-20
MOP Frequency, 3-11
MOP Mask, 3-49
MOP Owner, 3-49
MOP Rate, 3-37
Motor Cntl Sel, 3-14
Motor Fdbk Type, 3-19
Motor NP FLA, 3-13
Motor NP Hertz, 3-13
Motor NP Power, 3-13
Motor NP RPM, 3-13
Motor NP Volts, 3-13
Motor OL Count, 3-42
Motor OL Factor, 3-13
Motor OL Hertz, 3-13
Motor OL Mode, 3-14, C-8
Motor Poles, 3-13
Motor Type, 3-13
Mtr NP Pwr Units, 3-13
Mtr OL Trip Time, 3-42
Neg Torque Limit, 3-17
Notch Filter K, 3-19
Notch FilterFreq, 3-19
Output Current, 3-11
Output Freq, 3-11
Output Power, 3-11
Output Powr Fctr, 3-11
Output Voltage, 3-11
Overspeed Limit, 3-20
P Jump, 3-59
Param Access Lvl, 3-37
PI BW Filter, 3-27
PI Configuration, 3-25
PI Control, 3-25
PI Deriv Time, 3-27
PI Error Meter, 3-27
PI Fdback Meter, 3-27
PI Feedback Hi, 3-27
PI Feedback Lo, 3-27
PI Feedback Sel, 3-26
PI Integral Time, 3-26
PI Lower Limit, 3-26
PI Output Meter, 3-27
PI Preload, 3-26
PI Prop Gain, 3-26
PI Ref Meter, 3-26
PI Reference Hi, 3-27
PI Reference Lo, 3-27
PI Reference Sel, 3-25
PI Setpoint, 3-25
PI Status, 3-26
PI Upper Limit, 3-26
Port Mask Act, 3-51
Pos Torque Limit, 3-17
Power Loss Mode, 3-35
Power Loss Time, 3-35
Power Up Marker, 3-45
Powerup Delay, 3-33
Preset Speed x, 3-23
PWM Frequency, 3-29
Ramped Speed, 3-12
Rated Amps, 3-12
Rated kW, 3-12
Rated Volts, 3-12
Reference Mask, 3-48
Reference Owner, 3-49
Regen Power Lim, 3-30
Reset Meters, 3-37
Reset To Defalts, 3-37
Rev Speed Limit, 3-21
Run Boost, 3-18
S Curve %, 3-29
Save HIM Ref, 3-36
Save MOP Ref, 3-37
Save To User Set, 3-37
Shear Pin Time, 3-30
Skip Freq Band, 3-21
Skip Frequency x, 3-21
Sleep Level, 3-35
Sleep Time, 3-35
Index-10
Sleep Wake Mode, 3-34
Sleep Wake Ref, 3-35
Slip Comp Gain, 3-24
Slip RPM @ FLA, 3-24
Slip RPM Meter, 3-24
Spd Err Filt BW, 3-28
Speed Desired BW, 3-28
Speed Feedback, 3-12
Speed Loop Meter, 3-28
Speed Mode, 3-20
Speed Ref A Hi, 3-22
Speed Ref A Lo, 3-22
Speed Ref A Sel, 3-22
Speed Ref B Hi, 3-22
Speed Ref B Lo, 3-22
Speed Ref B Sel, 3-22
Speed Ref Source, 3-40
Speed Reference, 3-12
Speed/Torque Mod, 3-21
Start At PowerUp, 3-33
Start Inhibits, 3-40
Start Mask, 3-48
Start Owner, 3-49
Start/Acc Boost, 3-18
Status 1 @ Fault, 3-43
Status 3 @ Fault, 3-42
Stop Mode x, 3-30
Stop Owner, 3-49
Stop/Brk Mode x, 3-30
SV Boost Filter, 3-15
Sync Time, 3-59
TB Man Ref Hi, 3-23
TB Man Ref Lo, 3-23
TB Man Ref Sel, 3-23
Testpoint x Data, 3-44
Testpoint x Sel, 3-44
Torq Current Ref, 3-18
Torque Current, 3-11
Torque Estimate, 3-12
Torque Perf Mode, 3-14
Torque Ref x Hi, 3-17
Torque Ref x Lo, 3-17
Torque Ref x Sel, 3-17
Torque Setpoint1, 3-17
Total Inertia, 3-28
Traverse Dec, 3-59
Traverse Inc, 3-59
Trim % Setpoint, 3-24
Trim Hi, 3-24
Trim In Select, 3-24
Trim Lo, 3-24
Trim Out Select, 3-24
Voltage Class, 3-38
Wake Level, 3-35
Wake Time, 3-35
Write Mask Act, 3-51
Write Mask Cfg, 3-51
Params Defaulted Fault, 4-5
PE Ground, 1-4, 1-7
Phase Short Fault, 4-5
Phase to Grnd Fault, 4-5
PI BW Filter, 3-27
PI Configuration, 3-25
PI Control, 3-25
PI Deriv Time, 3-27
PI Error Meter, 3-27
PI Fdback Meter, 3-27
PI Feedback Hi, 3-27
PI Feedback Lo, 3-27
PI Feedback Sel, 3-26
PI Integral Time, 3-26
PI Lower Limit, 3-26
PI Output Meter, 3-27
PI Preload, 3-26
PI Prop Gain, 3-26
PI Ref Meter, 3-26
PI Reference Hi, 3-27
PI Reference Lo, 3-27
PI Reference Sel, 3-25
PI Setpoint, 3-25
PI Status, 3-26
PI Upper Limit, 3-26
PORT LED, 2-2
Port Locations, DPI, B-1
Port Mask Act, 3-51
Port X Adapter Fault, 4-5
Index-11
Port X DPI Loss Fault, 4-5
Pos Torque Limit, 3-17
Power Cables/Wiring, 1-5
Power Conditioning, Input, 1-3
Power Input Terminals, 1-9
Power LED, 2-2
Power Loss Alarm, 4-9
Power Loss Fault, 4-6
Power Loss Group, 3-35
Power Loss Mode, 3-35
Power Loss Time, 3-35
Power Terminal Block, 1-8
Power Up Marker, 3-45
Powering Up the Drive, 2-1
Powerup Delay, 3-33
Precautions, General, P-3
Precharge Active Alarm, 4-9
Preferences, Setting, B-4
Preset Speed x, 3-23
Process PI Group, 3-25
Programmable Controller
Configurations, A-4
Programming, 3-1
PTC Conflict Alarm, 4-9
Publications, Reference, P-2
PWM Frequency, 3-29
Pwr Brd Chksum Fault, 4-6
R
Ramp Rates Group, 3-29
Ramped Speed, 3-12
Rated Amps, 3-12
Rated kW, 3-12
Rated Volts, 3-12
Ratings, A-1, A-14
Reference Manual, P-1
Reference Mask, 3-48
Reference Material, P-2
Reference Owner, 3-49
Regen Power Lim, 3-30
Removing Cover, 1-1
Repeated Start/Stop, 1-10
Replaced MCB-PB Fault, 4-6
Reset Meters, 3-37
Reset To Defalts, 3-37
Restart Modes Group, 3-33
Rev Speed Limit, 3-21
RFI Filter Option, 1-9
RFI Filter, Input Terminals, 1-9
RFI, see EMI/RFI
Run Boost, 3-18
S
S Curve %, 3-29
S.M.A.R.T. Start Up, 2-3
Safe Off Operation, 1-15
Safety Ground, 1-4
Save HIM Ref, 3-36
Save MOP Ref, 3-37
Save To User Set, 3-37
Saving Data, Viewing, B-4
Security Group, 3-51
Setting Preferences, B-4
Shear Pin Fault, 4-6
Shear Pin Time, 3-30
Shielded Power Cables, 1-7
Short Circuit Protection, 1-5
Single-Phase Input Power, 1-7
Skip Freq Band, 3-21
Skip Frequency x, 3-21
Sleep Config Alarm, 4-9
Sleep Level, 3-35
Sleep Time, 3-35
Sleep Wake Mode, 3-34
Sleep Wake Ref, 3-35
Slip Comp Gain, 3-24
Slip Comp Group, 3-24
Slip RPM @ FLA, 3-24
Slip RPM Meter, 3-24
Spare Parts, P-1
Spd Err Filt BW, 3-28
Spd Mode & Limits Group, 3-20
Specifications
Agency Certification, A-2
Control, A-2
Drive, P-1
Index-12
Drive Ratings, A-1, A-14
Electrical, A-2
Encoder, A-3
Environment, A-1
Protection, A-1
Speed Command File, 3-20
Speed Command Sources, 1-19
Speed Desired BW, 3-28
Speed Feedback, 3-12
Speed Loop Meter, 3-28
Speed Mode, 3-20
Speed Ref A Hi, 3-22
Speed Ref A Lo, 3-22
Speed Ref A Sel, 3-22
Speed Ref B Hi, 3-22
Speed Ref B Lo, 3-22
Speed Ref B Sel, 3-22
Speed Ref Cflct Alarm, 4-9
Speed Ref Source, 3-40
Speed Reference, 3-12
Speed Reference Control, 1-19
Speed Reference Selection, 1-19
Speed References Group, 3-22
Speed Trim Group, 3-24
Speed/Torque Mod, 3-21
Standard Control, 3-3
Start At PowerUp, 3-33
Start At PowerUp Alarm, 4-9
Start Inhibits, 3-40
Start Mask, 3-48
Start Owner, 3-49
Start/Acc Boost, 3-18
Start/Stop, Repeated, 1-10
Start-Up
Assisted, 2-3
Checklist, 2-1
S.M.A.R.T., 2-3
Static Discharge, ESD, P-3
Status (STS) LED, 2-2
Status 1 @ Fault, 3-43
Status 3 @ Fault, 3-42
Stop Mode x, 3-30
Stop Owner, 3-49
Stop/Brake Modes Group, 3-30
Stop/Brk Mode x, 3-30
Supply Source, 1-3
SV Boost Filter, 3-15
SW OverCurrent Fault, 4-6
Sync Time, 3-59
System Grounding, 1-4
T
TB Man Ref Cflct Alarm, 4-10
TB Man Ref Hi, 3-23
TB Man Ref Lo, 3-23
TB Man Ref Sel, 3-23
TE Ground, 1-4
Terminal Block
I/O, 1-13
Power, 1-8
Testpoint Codes and Functions, 4-11
Testpoint x Data, 3-44
Testpoint x Sel, 3-44
Three Wire Control, 1-17
Torq Attributes Group, 3-14
Torq Current Ref, 3-18
Torque Current, 3-11
Torque Estimate, 3-12
Torque Perf Mode, 3-14
Torque Ref x Hi, 3-17
Torque Ref x Lo, 3-17
Torque Ref x Sel, 3-17
Torque Setpoint1, 3-17
Total Inertia, 3-28
Traverse Dec, 3-59
Traverse Inc, 3-59
Trim % Setpoint, 3-24
Trim Hi, 3-24
Trim In Select, 3-24
Trim Lo, 3-24
Trim Out Select, 3-24
Trnsistr OvrTemp Fault, 4-6
Troubleshooting, 4-3
Two Wire Control, 1-17
Index-13
U
Unbalanced/Ungrounded Supply, 1-3
UnderVoltage
Fault, 4-6
UnderVoltage Alarm, 4-10
Ungrounded Distribution Systems,
1-11
Unshielded Power Cables, 1-6
UserSet Chksum Fault, 4-6
UserSet Conflict Alarm, 4-10
Utility File, 3-36
V
VHz Neg Slope Alarm, 4-10
Viewing and Changing Parameters,
B-5
Viewing Changed Parameters, B-2
Voltage Class, 3-38
Volts per Hertz Group, 3-18
W
Wake Level, 3-35
Wake Time, 3-35
Waking Alarm, 4-10
Web Sites, see WWW, World Wide
Web
Wiring, 1-1
Cable Entry Plate Removal, 1-8
Encoder, 1-16
I/O, 1-12
I/O Examples, 1-17
Power, 1-5
Signal, 1-12
Write Mask Act, 3-51
Write Mask Cfg, 3-51
WWW, World Wide Web, P-2
Index-14
U.S. Allen-Bradley Drives Technical Support
Tel: (1) 262.512.8176, Fax: (1) 262.512.2222, Email: [email protected], Online: www.ab.com/support/abdrives
www.rockwellautomation.com
Power, Control and Information Solutions Headquarters
Americas: Rockwell Automation, 1201 South Second Street, Milwaukee, WI 53204-2496 USA,Tel: (1) 414.382.2000, Fax: (1) 414.382.4444
Europe/Middle East/Africa: Rockwell Automation, Vorstlaan/Boulevard du Souverain 36, 1170 Brussels, Belgium,Tel: (32) 2 663 0600, Fax: (32) 2 663 0640
Asia Pacific: Rockwell Automation, Level 14, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong,Tel: (852) 2887 4788, Fax: (852) 2508 1846
Publication 20A-UM001L-EN-P – April, 2006
P/N 195301-P08
Supersedes 20A-UM001K-EN-P dated February, 2005
Copyright © 2006 Rockwell Automation, Inc. All rights reserved. Printed in USA.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
