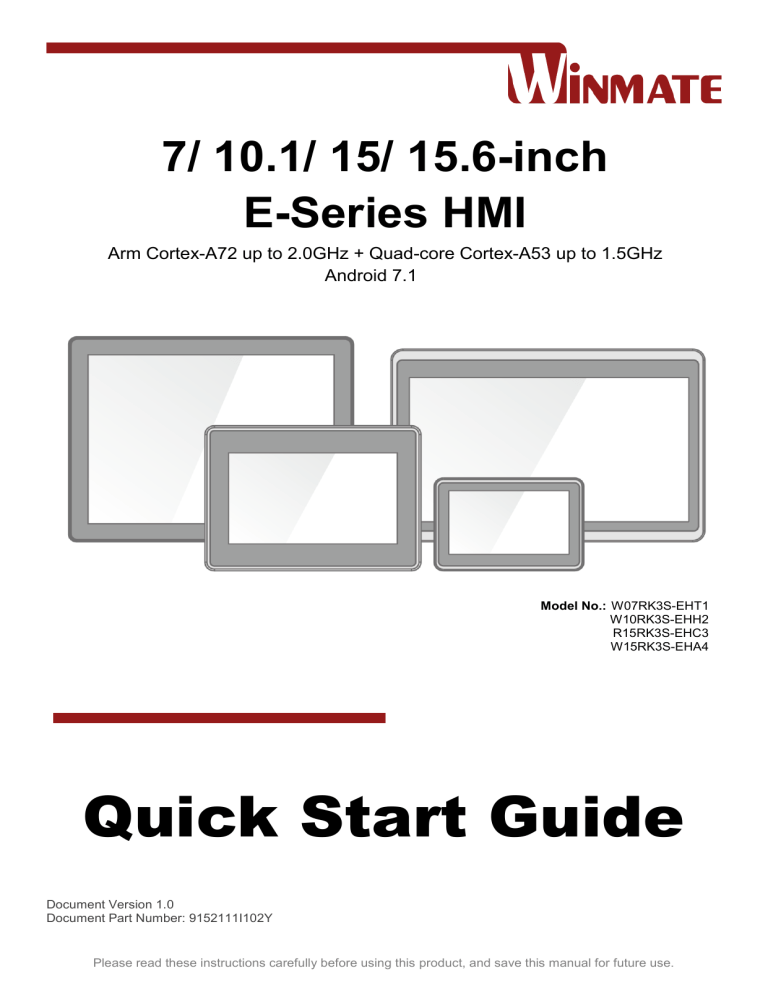

7/ 10.1/ 15/ 15.6-inch
E-Series HMI
Arm Cortex-A72 up to 2.0GHz + Quad-core Cortex-A53 up to 1.5GHz
Android 7.1
Model No.: W07RK3S-EHT1
W10RK3S-EHH2
R15RK3S-EHC3
W15RK3S-EHA4
Quick Start Guide
Document Version 1.0
Document Part Number: 9152111I102Y
Please read these instructions carefully before using this product, and save this manual for future use.
2
7~15.6" E-Series HMI Quick Start Guide
Contents
Chapter 1: Introduction ................................................................................................................. 6
1.1 Product Features
6
1.2 Package Contents
6
1.3 Connector Description
7
1.4 Mechanical Dimensions
8
Chapter 2: Hardware Installation ................................................................................................ 10
2.1 Turning On and Off Your Device
10
2.2 Connecting to Other Devices
11
2.2.1 Power Input Connector .................................................................................................................................. 11
2.2.2 Ethernet Connector ........................................................................................................................................ 11
2.2.3 Serial Port Connector ..................................................................................................................................... 11
2.2.4 USB Connector .............................................................................................................................................. 12
2.2.5 Micro HDMI Connector ................................................................................................................................... 12
2.2.6 USB OTG Connector ..................................................................................................................................... 13
2.2.7 Micro SD Card Slot ........................................................................................................................................ 13
2.3 Changing Serial Port Settings
14
2.4 System Settings
16
2.4.1 Set up the Device ........................................................................................................................................... 16
2.4.2 Home Screen ................................................................................................................................................. 16
2.4.3 Quick Settings ................................................................................................................................................ 17
2.5 Ethernet
19
2.5.1 Main Menu...................................................................................................................................................... 19
2.5.2 Configuring Ethernet ...................................................................................................................................... 20
2.5.3 Checking Ethernet Settings ............................................................................................................................ 21
2.6 Winmate® Home Manager
22
2.6.1 How to Lock Applications ............................................................................................................................... 22
2.6.2 How to Unlock Application ............................................................................................................................. 25
2.6.3 How to Change Password .............................................................................................................................. 26
Chapter 3: Mounting .................................................................................................................... 27
3.1 Wiring Requirements
27
3.2 Mounting Solution
28
3.2.1 VESA Mount ................................................................................................................................................... 28
3.2.2 Panel Mount ................................................................................................................................................... 29
APPENDIX..................................................................................................................................... 30
Appendix A: Hardware Specifications
30
Appendix A: Cleaning the Monitor
31
Appendix B: Winmate Software Development Kit
31
2
FCC Statement
This device complies with part 15 FCC rules.
Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class "B" digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at him own expense.
European Union
Electromagnetic Compatibility Directive (2014/30/EU)
 EN55024: 2010/ A1: 2015
o IEC61000-4-2: 2009
o IEC61000-4-3: 2006+A1: 2007+A2: 2010
o IEC61000-4-4: 2012
o IEC61000-4-5: 2014
o IEC61000-4-6: 2014
o IEC61000-4-8: 2010
o IEC61000-4-11: 2004
 EN55032: 2012/AC:2013
 EN61000-3-2:2014
 EN61000-3-3:2013
Low Voltage Directive (2014/35/EU)
 EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:2013
This equipment is in conformity with the requirement of the following EU legislations and
harmonized standards. Product also complies with the Council directions.
4
7~15.6" E-Series HMI Quick Start Guide
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in any form or
by any means, electronic or mechanical, for any purpose, without the prior written permission of
the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective owners.
Disclaimer
Winmate Inc. reserve the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve design and/or
performance. We assume no responsibility or liability for the use of the described product(s)
conveys no license or title under any patent, copyright, or masks work rights to these products,
and make no representations or warranties that these products are free from patent, copyright,
or mask work right infringement, unless otherwise specified. Applications that are described in
this manual are for illustration purposes only. We make no representation or guarantee that
such application will be suitable for the specified use without further testing or modification.
Warranty
Winmate Inc. warranty guarantees that each of its products will be free from material and
workmanship defects for a period of one year from the invoice date. If the customer discovers a
defect, we will, at his/her option, repair or replace the defective product at no charge to the
customer, provide it is returned during the warranty period of one year, with transportation
charges prepaid. The returned product must be properly packaged in its original packaging to
obtain warranty service. If the serial number and the product shipping data differ by over 30
days, the in-warranty service will be made according to the shipping date. In the serial numbers
the third and fourth two digits give the year of manufacture, and the fifth digit means the month
(e. g., with A for October, B for November and C for December).
For example, the serial number 1W16Axxxxxxxx means October of year 2016.
Customer Service
We provide a service guide for any problem by the following steps: First, visit the website of our
distributor to find the update information about the product. Second, contact with your
distributor, sales representative, or our customer service center for technical support if you need
additional assistance.
You may need the following information ready before you call:
 Product serial number
 Software (OS, version, application software, etc.)
 Description of complete problem
 The exact wording of any error messages
In addition, free technical support is available from our engineers every business day. We are
always ready to give advice on application requirements or specific information on the
installation and operation of any of our products.
4
Advisory Conventions
Four types of advisories are used throughout the user manual to provide helpful information or to alert you
to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and
Warnings. The following is an example of each type of advisory.
Note:
A note is used to emphasize helpful information
Important:
An important note indicates information that is important for you to know.
Caution/ Attention
A Caution alert indicates potential damage to hardware and explains how to avoid the
potential problem.
Une alerte d’attention indique un dommage possible à l’équipement et explique comment
éviter le problème potentiel.
Warning!/ Avertissement!
An Electrical Shock Warning indicates the potential harm from electrical hazards and how
to avoid the potential problem.
Un Avertissement de Choc Électrique indique le potentiel de chocs sur des emplacements
électriques et comment éviter ces problèmes.
Alternating Current Mise à le terre !
The Protective Conductor Terminal (Earth Ground) symbol indicates the potential risk of
serious electrical shock due to improper grounding.
Le symbole de Mise à Terre indique le risqué potential de choc électrique grave à la
terre incorrecte.
Safety Information
Warning!/ Avertissement!
Always completely disconnect the power cord from your chassis whenever
you work with the hardware. Do not make connections while the power is on.
Sensitive electronic components can be damaged by sudden power surges.
Only experienced electronics personnel should open the PC chassis.
Toujours débrancher le cordon d’alimentation du chassis lorsque vous
travaillez sur celui-ci. Ne pas brancher de connections lorsque l’alimentation
est présente. Des composantes électroniques sensibles peuvent être
endommagées par des sauts d’alimentation. Seulement du personnel
expérimenté devrait ouvrir ces chassis.
Caution/ Attention
Always ground yourself to remove any static charge before touching the CPU
card. Modern electronic devices are very sensitive to static electric charges.
As a safety precaution, use a grounding wrist strap at all times. Place all
electronic components in a static-dissipative surface or static-shielded bag
when they are not in the chassis.
Toujours verifier votre mise à la terre afin d’éliminer toute charge statique
avant de toucher la carte CPU. Les équipements électroniques moderns sont
très sensibles aux décharges d’électricité statique. Toujours utiliser un
bracelet de mise à la terre comme précaution.
Placer toutes les
composantes électroniques sur une surface conçue pour dissiper les charge,
ou dans un sac anti-statique lorsqu’elles ne sont pas dans le chassis.
6
7~15.6" E-Series HMI Quick Start Guide
Chapter 1: Introduction
1.1 Product Features
Congratulations on purchasing Winmate® E-Series HMI. Winmate® continues developing new
generation of Human Machine Interfaces for Industry 4.0 and Internet of Things (IoT).
Our E-Series HMI runs on Android 7.1 operating system that allows installing the latest
applications (APPs). Thereby wide customization possibilities are available to satisfy the needs
of industrial automation.
There are two USB connectors, USB 3.0 and USB 2.0, onboard to connect mouse or keyboard
and one micro USB OTG for system updates. and micro SD card for data logging, backup or
data storage. System memory of 2 GB ensures stable operation of applications.
With mounting clips for panel mounting there is no need to drill holes in a fixture. This saves you
the time for mounting and guarantee aesthetic look of the wall after the unit gets removed.
Winmate® E-Series HMI features:








Arm® Cortex®-A72 up to 2.0GHz + Quad-core Cortex®-A53 up to 1.5GHz
Projected capacitive Multitouch
Fanless cooling system and Ultra-low power consumption
Front IP65 water and dust proof, rear IP22
Optional PoE (Data and Power in a single cable)
Mounting clips for quick Installation
Elegant design for room booking, access control and room information applications
Android 7.1 operating system
1.2 Package Contents
Carefully remove the box and unpack your device. Please check if all the items listed below are
inside your package. If any of these items are missing or damaged contact us immediately.
Standard factory shipment list:

HMI Device
Varies by product
specifications

AC Adapter
(12V/ 50W)
Part No. 922D050W12A


Quick Start Guide
(Hardcopy)
Part No. 9152111I102Y

Part No. 9171111I102P

Power Cord
Part No. Varies by country
6
User Manual &
Driver CD
Mounting Clips
and Screws
Part No.82111E240400

Terminal Block
3 pin
Part No. 94J602G030K0
*Package content may vary based on your order.
1.3 Connector Description
Terminal interfaces are located on the bottom side of the HMI device.
Note:
Notice that input and output connectors vary by product size and specifications.
Terminal interfaces description:
No.
Item
Description
1
RJ45 – Connects HMI device to Ethernet network. Supports PoE for
power transmission in network equipment, via network UTP cable,
together with data.
2
Terminal Block – Provides power to the HMI device, accepts 12V DC.
Example: AC cord or DC power supply. If both are provided, choose
only one.
3
RS-232/422/485 – Connects external devices to HMI device.
Example: A barcode reader or scanner to HMI device.
4
USB 3.0, USB 2.0- Connects USB 3.0/ USB 2.0 compatible devices to
HMI device.
Example: A printer to HMI device
5
Micro HDMI – Transmits video from HMI device to external monitor.
Example: An external monitor to HMI device.
6
USB OTG – Connect to PC for client use and update OS Image.
7
MicroSD Card Slot – Insert microSD card to expand the storage.
8
7~15.6" E-Series HMI Quick Start Guide
1.4 Mechanical Dimensions
This section describes appearance, connectors’ layout and mechanical dimensions of E-Series
HMI. Notice that this is a simplified drawing and some components are not marked in detail.
Please contact our sales representative if you need further product information.
E-Series HMI 7”
Unit: mm
Dimensions: 184.94 x 127.7 x 44.9
E-Series HMI 10.1”
Unit: mm
Dimensions: 267.42 x 182.14 x 57.6
8
E-Series HMI 15”
Unit: mm
Dimensions: 276.7 x 352.5 x 56.3
E-Series HMI 15.6”
Unit: mm
Dimensions: 421 x 260.6 x 65.5
10
7~15.6" E-Series HMI Quick Start Guide
Chapter 2: Hardware Installation
2.1 Turning On and Off Your Device
To turn on your HMI device:
1. Connect a 3-pin terminal block to the HMI connector.
2. Connect the other side of the terminal block to the AC adapter.
3. Connect the AC adapter to the power cord.
4. Plug in the power cord to a working AC wall outlet. The device will boot automatically.
Note:
Power cords vary in appearance by region and country.
Note:
Based on the model, terminal block connector may be located either on the
bottom or on the rear side of the HMI device.
Caution/ Attention
Use
only
the
AC
adapter
included
in
your
package
(Rating: Output 4.2 A). Using other AC adapters may damage the device.
Alternating Current Mise à le terre !
This product must be grounded. Use only a grounded AC outlet. Install the
additional PE ground wire if the local installation regulations require it.
To turn off your HMI device:
1. Disconnect the power cord from the HMI device to completely turn off the device.
10
2.2 Connecting to Other Devices
2.2.1 Power Input Connector
The DC power source input of the HMI device is a 3 pin terminal block connector that supports
12V DC power input.
Pin assignment and connector description of terminal block connector.
Voltage
Minimum Voltage 11.4V
Maximum Voltage 12.6V
Maximum Current 4.2A
2.2.2 Ethernet Connector
The HMI device supports one RJ45 10/100/1000 Mbps Ethernet interface for connecting to the
internet.
Pin assignment and connector description of RJ45 connector.
Pin №
Signal Name
Pin №
Signal Name
1
TX1+
2
TX1-
3
TX2+
4
TX2-
5
TX3+
6
TX3-
7
TX4+
8
TX4-
2.2.3 Serial Port Connector
The E-Series HMI has one serial port connector to connect your HMI to external devices such as mouse,
modem or printer. You can configure serial port settings via APP.
Pin assignment and connector description of serial port connector.
*Default setting: RS-232
Pin №
1
2
3
4
5
6
7
8
9
*RS-232
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
RS-422
TxDTxD+
RxD+
RxDGND
NC
NC
NC
NC
RS-485
DD+
NC
NC
GND
NC
NC
NC
NC
12
7~15.6" E-Series HMI Quick Start Guide
2.2.4 USB Connector
The HMI device has one USB 2.0 and one USB 3.0 connectors. Use USB 2.0 and USB 3.0
connector to connect your HMI device to other USB 2.0/ USB 3.0 compatible devices.
Pin assignment and connector description of USB connector.
Pin №
1
3
5
7
9
11
13
Signal Name
+5V
USB_D+
STDA_SSRXGND_DRAIN
STDA_SSTX+
USB_DGND
Pin №
2
4
6
8
10
12
Signal Name
USB_DGND
STDA_SSRX+
STDA_SSTX+5V
USB_D+
2.2.5 Micro HDMI Connector
The HMI device has one micro HDMI connector. Use micro HDMI cable to connect your HMI
device to external monitor or other peripheral.
Pin assignment and connector description of micro HDMI connector.
Pin №
1
3
5
7
9
11
13
15
17
19
Signal Name
HP_DET_OUT
HDMI_D2P
HDMI_D2M
GND
HDMI_D0P
HDMI_D0M
GND
HDMI_CEC_OUT
H_CLK_OUT
HDMI_5V
12
Pin №
2
4
6
8
10
12
14
16
18
Signal Name
NC
GND
HDMI_D1P
HDMI_D1M
GND
HDMI_CLKP
HDMI_CLKM
GND
H_DAT_OUT
2.2.6 USB OTG Connector
Use USB OTG connector to connect the panel PC to other USB On-The-Go compliant devices
such as flash drives, digital cameras, mice or keyboards. Use USB OTG cable to install software
on the panel PC.
Pin assignment and connector description of USB OTG connector.
Pin №
Signal Name
Pin №
Signal Name
1
+5V
2
USB_OTG_D-
3
USB_OTG_D+
4
USB_OTG_ID
5
GND
Refer to the device’s user manual for more details on how to install software
2.2.7 Micro SD Card Slot
Insert microSD card to microSD card slot to extend the memory of your HMI device.
Pin assignment and connector description of micro SD card slot.
Pin №
1
3
5
7
9
*PIN9 default is NC
Signal Name
DATA2
CMD
CLK
DATA0
Card_Det
Pin №
2
4
6
8
Signal Name
DATA3
+3.3V
GND
DATA1
14
7~15.6" E-Series HMI Quick Start Guide
2.3 Changing Serial Port Settings
Serial COM Port can be configured for RS-232, RS-422 or RS-485. Winmate provide COM port
settings application for Android OS.
To configure serial port settings:
1. Settings
> Accessibility.
2. Accessibility > System: Comport-Setting.
14
3. Comport-Setting > Comport 1/ Comport 2/ Comport 3
* Select Comport 1/ Comport 2/ Comport 3 that you want to configure.
4. Comport 1 > RS232/RS422/RS485
* Configure Comport 1 settings
16
7~15.6" E-Series HMI Quick Start Guide
2.4 System Settings
This section explains how to adjust main system settings in Android 7.1.
2.4.1 Set up the Device
When you first turn on your HMI device, you’ll see a Welcome screen. Choose the language
you want and touch Start or the Start icon. When prompted, you can sign in with your Google
Account or create one at that time. You can also choose to skip this step and create one later.
2.4.2 Home Screen
Your device runs on Android 7.1 operation system by default.
Back
Opens the previous screen you were working in, even if it was in a different app.
Once you back up to the Home screen, you can’t go back any further.
Home
Returns to the Home screen. To get suggestions based on the screen you’re
currently viewing, touch & hold this button.
Overview
Opens a list of thumbnail images of screens you’ve worked with recently. To open
one, touch it. To remove a screen from the list, swipe it left or right or touch the X.
Your apps
To see all your apps, touch
in the Favorites tray on any Home screen. This is
where you can see all your apps, including those that come with your phone or
tablet and those you downloaded on Google Play. You can move app icons to any
of your Home screens. The apps you’ve used most recently appear in the first row.
16
Some apps hide these buttons temporarily, or fade them to small dots in the same position. To
bring them back, touch the dots, touch the screen in the middle, or swipe up from the bottom.
Many screens in apps and Settings include a menu icon at the top right of the screen.
Touch it to explore additional options, including Help & feedback.
To add an app to a Home screen:
1. Go to the Home screen where you want to place the app.
2. Touch All Apps
.
3. Swipe from left to right to find the app you want.
4. Touch & hold the app until the Home screen appears, slide it into place, and lift your
finger.
To remove an app icon from the Home screen without removing it permanently from your
device, touch & hold it, slide your finger toward the top of the screen, and drop the app over
Remove in the top left.
2.4.3 Quick Settings
You can open your device’s Settings app from the All Apps screen or from Quick Settings.
For example, to change notification sounds, and volume go to Settings
change the volume.
> Device > Sound to
Use Quick Settings to easily change frequently used settings, like turning on Wi-Fi. To open
Quick Settings, swipe down from the top of the screen with two fingers. To change a setting,
just touch the icon:


Display brightness: Slide
Wi-Fi network: Turn Wi-Fi

Bluetooth settings: Turn Bluetooth

Auto-rotate: Lock your device’s orientation
to lower or increase the brightness of your screen.
on or off or open the Wi-Fi settings menu.
on or off or open the Bluetooth settings menu.
in portrait or landscape mode.
18
7~15.6" E-Series HMI Quick Start Guide
Open the main Settings menu by touching Settings
18
at the top right.
2.5 Ethernet
2.5.1 Main Menu
1. Connect Ethernet Cable to the HMI.
2. Touch All APPS
icon, and the open Ethernet
3. Ethernet APP main menu appears
application.
Setting
Description
Check Ethernet
Check Ethernet connection parameters: IP mode, IP
address, DNS address and others
Configure Ethernet
Enable Ethernet connection and configure its such as
connection type
Advanced Settings
Configure advanced parameters of the Ethernet
20
7~15.6" E-Series HMI Quick Start Guide
2.5.2 Configuring Ethernet
Go to All Apps
> Ethernet
> Configure Ethernet
*Ethernet OFF is set by default. Swipe Ethernet ON to activate Ethernet connection.
Connection Type
Setting
Description
DHCP
The device automatically capture IP-address from the router
Static IP
Allows to manually set up IP-address, DNS, Network and
Gateway
20
2.5.3 Checking Ethernet Settings
To check Ethernet settings:
Go to All Apps
> Ethernet
> Check Ethernet
Ethernet settings menu appears on the top right side of the desktop.
22
7~15.6" E-Series HMI Quick Start Guide
2.6 Winmate® Home Manager
Winmate ® E-Series HMI comes with preinstalled APP named Winmate® Home Manager
(WHM) which let the device manager to lock the launcher then the user can only use one
application assigned by the device manager.
2.6.1 How to Lock Applications
To lock applications:
1. In the main APPS window, select the Home Manager APP
and tap it to open.
Menu
Description
Home Manager
Set which app you want to run up automatically after
booting
Password Manager Set the WHM password (Default password is “0000”).
About
Displays information about Home Manager
22
2. Go to “Application Selector”, and choose the app which you want to run up automatically
after booting.
3. Go back to “Home Selector” and press “Clear and Reset Default Home”.
24
7~15.6" E-Series HMI Quick Start Guide
4. Select “Restrict Home” and “Always”, and then restart the computer to enable these
settings.
The system will automatically start the application which you selected and lock it. Any time
user presses home key or back key; the system will go back to the same application which you
have selected.
24
2.6.2 How to Unlock Application
Follow the instruction below to reset Home Manager.
1. If you want to reset the home manager, pull down the left side to open the status bar and
open HomeManager.
2. System will request the password to login. Touch OK.
26
7~15.6" E-Series HMI Quick Start Guide
Default password is “0000”.
3. Restart the system and you will go back to the normal Launcher.
2.6.3 How to Change Password
To change the password:
1. Go to Password Manager and set your own password for this APP.
2. The default password is “0000”. Enter a new password in New Password field, and
then tap Change Password.
26
Chapter 3: Mounting
3.1 Wiring Requirements
The following common safety precautions should be observed before installing any electronic
device:









Strive to use separate, non-intersecting paths to route power and networking wires. If
power wiring and device wiring paths must cross make sure the wires are perpendicular
at the intersection point.
Keep the wires separated according to interface. The rule of thumb is that wiring that
shares similar electrical characteristics may be bundled together.
Do not bundle input wiring with output wiring. Keep them separate.
When necessary, it is strongly advised that you label wiring to all devices in the system.
Do not run signal or communication wiring and power wiring in the same conduit. To
avoid interference, wires with different signal characteristics (i.e., different interfaces)
should be routed separately.
Be sure to disconnect the power cord before installing and/or wiring your device.
Verify the maximum possible current for each wire gauge, especially for the power
cords. Observe all electrical codes dictating the maximum current allowable for each
wire gauge.
If the current goes above the maximum ratings, the wiring could overheat, causing
serious damage to your equipment.
Be careful when handling the unit. When the unit is plugged in, the internal components
generate a lot of heat which may leave the outer casing too hot to touch.
28
7~15.6" E-Series HMI Quick Start Guide
3.2 Mounting Solution
3.2.1 VESA Mount
VESA Mount is a widely used mounting solution suitable for all kinds of industrial applications.
Notice that VESA Mounting solution applies only to 7” E-Series HMI.
Size
Dimensions
Screw Hole Diameter
7”
75 x 75 mm
VESA M4 x 3 mm
Mounting Instruction:
1. Screw VESA bracket to the fixture (ex. wall) with four M4 x 3 mm VESA screws.
2. Place the device on VESA bracket.
*with customer’s bracket
28
3.2.2 Panel Mount
Panel Mount solutions is suitable for many applications where HMI should be embedded in the
machine. With this mounting solution flat surface leave no bezel in the front. In addition to
elegant design, rear mount solution is making the HMI unit easy to clean and maintain. The HMI
device is secured to the fixture from the rear by using the mounting brackets included in the
package.
Size
7”
10.1”
15”
15.6”
Cutout
dimension
(W x D in mm)
179.54 x 116.9
244 x 159
333 x 264
371.2 x 223.5
Mounting
Clips and
Screws
4 pcs
8 pcs
10 pcs
10 pcs
Mounting Instruction:
30
7~15.6" E-Series HMI Quick Start Guide
APPENDIX
Appendix A: Hardware Specifications
W07RK3S-EHT1
Display
Size/ Type
Resolution
Brightness
Contrast Ratio
Model Name
W10RK3S-EHH2
R15RK3S-EHC3
W15RK3S-EHA2
10.1” (Wide)
1280 x 800
350 nits
800:1 (typ.)
-85~85(H);
85~85(V)
16.7M (8bit)
15”
1024 x 768
300 nits
700:1 (typ.)
-80~80(H);
80~80(V)
16.7M (8bit)
15.6" (Wide)
1366 x 768
400 nits
500 : 1 (typ.
Max Colors
7” (Wide)
1024 x 600
320 nits
500 : 1 (typ.)
-70~70(H);
-50~60(V)
16.7M (8bit)
Touch
Projected capacitive
Projected capacitive
Projected capacitive
Projected capacitive
Viewing Angle
-70~70(H);-50~60(V)
16.7M (8bit)
Mechanical Specifications
Dimensions,
mm
184.94 x 127.7 x 44.9
267.42 x 182.14 x 57.6
276.7 x 352.5 x 56.3
421 x 260.6 x 65.5
Cutout
Mounting
Cooling
179.54 x 116.9
Panel Mount (4 x clips)
Fanless design
244 x 159
Panel Mount (8 x clips)
Fanless design
333 x 264
Panel Mount (10 x clips)
Fanless design
371.2 x 223.5
Panel Mount (10 x clips)
Fanless design
Arm Cortex-A72 up to
2.0GHz + Quad-core
Cortex-A53
up
to
1.5GHz
2GB LPDDR3L 1600
(Optional
4GB
LPDDR3L)
16GB eMMC,
Micro SD Card
Android 7.1
Arm Cortex-A72 up to
2.0GHz + Quad-core
Cortex-A53
up
to
1.5GHz
2GB LPDDR3L 1600
(Optional
4GB
LPDDR3L)
16GB eMMC,
Micro SD Card
Android 7.1
Arm Cortex-A72 up to
2.0GHz + Quad-core
Cortex-A53
up
to
1.5GHz
2GB LPDDR3L 1600
(Optional
4GB
LPDDR3L)
16GB eMMC,
Micro SD Card
Android 7.1
Arm Cortex-A72 up to
2.0GHz + Quad-core
Cortex-A53 up to
1.5GHz
2GB LPDDR3L 1600
(Optional
4GB
LPDDR3L)
16GB eMMC,
Micro SD Card
Android 7.1
Power
Terminal block 3-pin
Terminal block 3-pin
Terminal block 3-pin
Terminal block 3-pin
USB Ports
1 x USB 3.0,
1 x USB 2.0,
1 x USB OTG
1 x USB 3.0,
1 x USB 2.0,
1 x USB OTG
1 x USB 3.0,
1 x USB 2.0,
1 x USB OTG
1 x USB 3.0,
1 x USB 2.0,
1 x USB OTG
COM Port
1 x RS-232/422/485
1 x RS-232/422/485
1 x RS-232/422/485
1 x RS-232/422/485
Ethernet
1 x RJ45, 10/100/1000
LAN (Optional PoE)
1 x RJ45, 10/100/1000
LAN (Optional PoE)
1 x RJ45, 10/100/1000
LAN (Optional PoE)
1 x RJ45, 10/100/1000
LAN (Optional PoE)
SD Slot
1 x Micro SD Card
1 x Micro SD Card
1 x Micro SD Card
1 x Micro SD Card
HMDI
1 x Micro HDMI
1 x Micro HDMI
1 x Micro HDMI
1 x Micro HDMI
12V DC
Supports
PoE
(Optional),
Power
Device (PD) follows
IEEE 802.3at (25W)
12V DC
Supports
PoE
(Optional),
Power
Device (PD) follows
IEEE 802.3at (25W)
12V DC
Supports
PoE
(Optional),
Power
Device (PD) follows
IEEE 802.3at (25W)
12V DC
Supports PoE (Optional),
Power
Device
(PD)
follows IEEE 802.3at
(25W)
9.3W
12.9W
17.7W
14.6W
-10°C to +50°C
-10°C to +50°C
-10°C to +50°C
-10°C to +50°C
10 ~ 90%
(non-condensing)
Front IP65
10 ~ 90%
(non-condensing)
Front IP65
10 ~ 90%
(non-condensing)
Front IP65
10 ~ 90%
(non-condensing)
Front IP65
CE, FCC
CE, FCC
CE, FCC
System Specifications
Processor
Memory
Storage
OS
Input / Output
Power Specifications
Power Input
PoE
Power
Consumption
Environment Considerations
Operating
Temp.
Operating
Humidity
IP Rating
Standards and Certifications
Safety
CE, FCC
30
Appendix A: Cleaning the Monitor
Before cleaning:


Make sure the device is turned off.
Disconnect the power cable from any AC outlet.
When cleaning:





Never spray or pour any liquid directly on the screen or case.
Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
The display area is highly prone to scratching. Do not use ketene type material (ex.
Acetone), Ethyl alcohol, toluene, ethyl acid or Methyl chloride to clear the panel. It may
permanently damage the panel and void the warranty.
If it is still not clean enough, apply a small amount of non-ammonia, non-alcohol based
glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.
Don not use water or oil directly on the display screen. If droplets are allowed to drop on the
screen, permanent staining or discoloration may occur.
Appendix B: Winmate Software Development Kit
Winmate® provides Software Development Kit (SDK). The table below lists SDK provided by
Winmate for E-Series HMI:
Item
1
2
3
4
5
File Type
Android Driver
Android Driver
SDK
SDK
Guide
Description
USB Driver
USB OTG Driver
Android SDK
Linux SDK
Download OS Image Tool
To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact
us. Also, you can download drivers from Download Center.
Winmate Inc.
9F, No.111-6, Shing-De Rd., San-Chung District,
New Taipei City 24158, Taiwan, R.O.C
www.winmate.com
Copyright © Winmate Inc. All rights reserved.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
