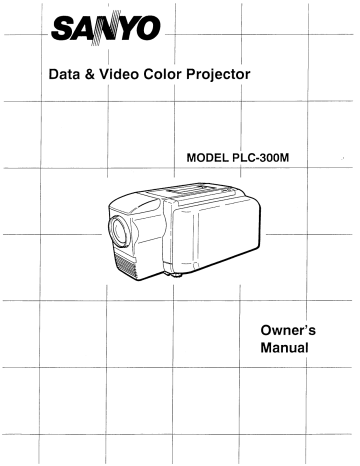

 SANYO
Data & Video Color Projector
MODEL PLC-300M
Owner's
Manual
| INFORMATION TO THE USER
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
TO THE OWNER
As the owner of a new Data & Video Color Projector, you are probably eager to try out your new projector.
Before you do, we suggest that you spend a little time reading this manual to familiarize yourself with the
operating procedures, so that you will receive maximum enjoyment from the many features included on your
new projector.
This owners manual will acquaint you with your projector's features. Reading it will help us too. Through the
years, we have found that many service requests were not caused by problems with our projectors. They were
caused by problems that could have been prevented, if the owner had followed the instructions in the manual.
You can often correct operating problems yourself. If your projector fails to work properly, locate the operating
problem in the Helpful Hints Chart on page 25 and try the solutions marked for each problem.
SAFETY PRECAUTIONS
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
The data & video color projector has a grounding-type AC line plug. This is a safety feature to be sure
that the plug will fit into the power outlet. Do not try to defeat this safety feature.
Intense light source. Do not stare directly into the projection lens as possible eye damage could result.
Be especially careful that children do not stare directly into the beam.
If the data & video color projector will not be used for an extended time, unplug the data & video color
projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGER- THIS SYMBOL INDICATES THAT THERE ARE
OUS VOLTAGE CONSTITUTING A RISK OF IMPORTANT OPERATING AND MAINTENANCE
ELECTRIC SHOCK IS PRESENT WITHIN INSTRUCTIONS IN THE OWNERS MANUAL
THIS UNIT. WITH THIS UNIT. |
IMPORTANT SAFETY INSTRUCTIONS
All the safety and operating instructions should be read
before the product is operated.
Read all of the instructions given here and retain them for
later use. Unplug this projector from AC power supply
before cleaning. Do not use liquid or aerosol cleaners. Use
a damp cloth for cleaning.
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable can, stand, or
table. The projector may fall, causing serious injury to a
child or adult, and serious damage to the projector. Use
only with a cart or stand recommended by the
manufacturer, or sold with the projector. Wall or shelf
mounting should follow the manufacturer's instructions,
and should use a mounting kit approved by the
manufacturer.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool or the
like.
Slots and openings in the cabinet and the back or bottom
are provided for ventilation, to insure reliable operation of
the equipment and to protect it from overheating.
The openings should never be covered with cloth or other
material, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or
over a radiator or heat register.
This projector should not be placed in a built-in installation
such as a bookcase unless proper ventilation is provided.
This projector should be operated only from the type of
power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized
dealer or local power company.
Do not overload wall outlets and extension cords as this
can result in fire or electric shock. Do not allow anything to
rest on the power cord. Do not locate this projector where
the cord will be abused by persons walking on it.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points
or short out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the projector.
Do not attempt to service this projector yourself as opening
Or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
. When the power cord or plug is damaged or frayed.
. If liquid has been spilled into the projector.
. If the projector has been exposed to rain or water.
. If the projector does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the projector to normal
operation.
e. If the projector has been dropped or the cabinet has
been damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
0 Oo U
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks
to determine that the projector is in safe operating
condition.
This projector is equipped
with a grounding type AC
line plug. Should you be
unable to insert the plug
into the outlet, contact your
electrician. Do not defeat
the safety purpose of this
grounding type plug.
GROUND
me)
Follow all warnings and instructions marked on the
projectors.
For added protection for the projector during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will
prevent damage due to lightning and powerline surges.
An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
TABLE OF CONTENTS
PAGE
ОЕЗСА!РТЮЮМ EEE 4
OPERATION OF CONTROLS: ---.......02000 000000000000 e ee rear errar orrero 5-6
REMOTE CONTROL UNIT OPERATION cctv ttt ete eee eae ee eee eee eee eee aoeoeeaioo ceo 7-8
SETTING-UP THE PROUE CTR revert tttttete tet anna aa anna AAA g
USING THE PROJECTOR -----.....0000000000000ireecea ene eee aaa a eee aerea anaceoeaa aaa reia 10-14
PICTURE ADJUSTMENTS---..........00000000000ami 0 ene ea e errar aaoreoorerereo 15-16
CONNECTING THE PROJECTOR ---..........22000000000000riire rene e eee arena eraeea 17-23
AIR FILTER CARE AND CLEANING ----..........0.00000000000000 ri DR eee eee 24
LAMP REPLACEMENT/TEMPERATURE INDICATORS ------.......20000000000r00 00 en e e a eee 24
HELPFUL HINTS-Problems and Solutions... RER a a ear enea, 25
SERVICE «ctr reee ea aereo oararias 25
TECHNICAL SPECIFICATIONS --------.....00000r0e00000rereiee eee eran eee 26
POWER REQUIREMENTS
Your projector uses nominal input voltages of 100-120 VAC or 200-240 VAC. The projector automatically selects the |
correct input voltage. The projector is designed to work with single-phase power systems having a grounded neutral |
conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. Consult your
authorized dealer or service station if you are not sure what type of power is supplied to your building.
Projector side (Female) AG outlet side (Male)
E ds de
100-120 volt (provided) 200-240 volt (not provided)
DESCRIPTION
FRONT CARRY HANDLE
PROJECTION LENS 5] DOOR
| /
ZZ нь Ч
DNS
N
REMOVABLE /
LENS COVER C
INFRARED = —k
REMOTE
RECEIVER ==
N
SPEAKER LEVELING/ELEVATING FEET
REAR
COOLING FAN AIR FILTER
Connect the AC power supply cord (supplied)
to the projector
MOVING THE PROJECTOR
Use the carry handle when moving projector. 4
Replace the lens cover when moving the projector to prevent damage to the lens.
— 4 —
Lift here to ореп —
INSIDE CONTROLS
OO
<
o
Pr
<
=
m
+
O
<
о
rr
<
=
m
|
O
=
m
xz
C
O
r-
m
<
m
Le
+
O
A
m
<
m
r
|
O
~
о
о
M/FOCUS
O
т
о
D
=
>
rr
OFF
O
A
e
0
+
m
a
0:0
ON DISPLAY
o
KEYSTONE
® © © © à © | © | ©
TOP INDICATION
O
"dWIL 1i17Y1d3Y4
о о O
«НУ О АОТаН DNINHYM dar
HIMOd ——e
6 666 ©
O ©
о © ©
66666606 0
©
OPERATION OF CONTROLS
INSIDE CONTROLS TOP INDICATION
MODE BUTTON
Used to select video source. (Computer Input, Video Input-1 or Video
Input-2)
VOLUME BUTTONS
Used to adjust volume
MENU BUTTON
O Computer Mode
Used to select on-screen adjustment displays for brightness, contrast,
horizontal position, vertical position, fine sync and memory. Press
repeatediy to cycle.
@ AV Mode
Used to select on-screen adjustment displays for color, tint,
brightness, contrast and sharpness. Press repeatedly to cycle.
LEVEL CONTROL BUTTONS
@ Computer Mode
Used to adjust zoom, focus, brightness, contrast, horizontal position,
vertical position, fine sync, memory, blue back, picture scan and
keystone by pressing + or - button.
O AV Mode
Used to adjust zoom, focus, color, tint, brightness, contrast, sharpness,
superimpose, blue back, picture scan and keystone by pressing + or -
button.
ZOOM/FOCUS BUTTON
Used to select power zoom lens or focus system.
NORMAL BUTTON
Used to reset to normal picture adjustment preset by factory.
SYSTEM BUTTON
O Computer Mode
Used to select computer system.
@ AV Mode
Used to select color system.
SETTING BUTTON
Used to select on-screen adjustment displays for superimpose, blue back
and picture scan. Press repeatedly to cycle.
DISPLAY BUTTON
Used to select DISPLAY ON or DISPLAY OFF position.
KEYSTONE BUTTON
Used to select the keystone correction mode.
LAMP REPLACEMENT INDICATOR
Lights orange when projection lamp is nearing end of service life.
TEMPERATURE WARNING INDICATOR
Lights red when internal projector temperature is too high.
READY INDICATOR
Lights green when projector lamp is ready to be turned on.
POWER INDICATOR
Lights dim when the projector is on.
Lights bright when the projector is stand-by position.
POWER (LAMP) ON/OFF BUTTON
Used to turn projection lamp on or off.
BACK OF THE PROJECTOR
© ©
(MONO!
AY1
MAINS EW
8-VIDEO
AUDIO [L1 yo, VIDEO
9 © ©
OUT VIDEO
ART
О
WIRED REMOTE JACK
When using the wired remote control, connect the remote cable to this jack.
COMPUTER INPUT/OUTPUT TERMINAL
Used to connect a computer to the projector.
COMPUTER AUDIO INPUT JACKS
Used to connect a computer audio input to the projector.
S-VIDEO INPUT JACK
Used to connect a S-VHS video source to the projector.
VIDEO INPUT-1 (BNC) JACK
Used to connect a video source to the projector.
AUDIO INPUT-1 JACKS
Used to connect an audio input to the projector.
VIDEO INPUT-1 JACK
Used to connect a video source to the projector.
AUDIO MONITOR OUTPUT JACKS
Permits audio connection to a monitor.
VIDEO MONITOR OUTPUT JACK
Permits video connection to a monitor.
21-PIN TERMINAL
Used to connect a video source with a 21-pin terminal to the projector.
MAINS ON/OFF BUTTON
Used to turn the projector on.
838 9 88838808006
REMOTE CONTROL OPERATION
о
9 © 9 © © ©
MODE BUTTON
Used to select video source. (Computer Input, Video Input-1
or Video Input-2)
POWER (LAMP) ON/OFF BUTTON
Used to turn projection lamp on or off.
ZOOM BUTTONS
Used to operate power zoom lens.
FOCUS BUTTONS
Used to operate power focus system.
SOUND MUTE BUTTON
Used to mute sound.
VOLUME BUTTONS
Used to adjust volume.
TEXT BUTTON (Computer mode only)
Used to select VGA TEXT (VGA 720 x 400) mode or VGA
GRAPHIC (VGA 640 x 400) mode.
LEVEL CONTROL BUTTONS
@ Computer Mode
Used to adjust brightness, contrast, horizontal position, vertical position, fine sync, memory, biue back, picture
scan and keystone by pressing + or - button.
@ AV Mode
Used to adjust color, tint, brightness, contrast, sharpness, superimpose, blue back, picture scan and keystone by
pressing + or - button.
KEYSTONE BUTTON
Used to select the keystone position.
NORMAL BUTTON
Used to reset to normal picture adjustment preset by factory.
MENU BUTTON
@ Computer Mode
Used to select on-screen adjustment displays for brightness, contrast, horizontal position, vertical position, fine
sync and memory. Press repeatedly to cycle.
@ AV Mode
Used to select on-screen adjustment displays for color, tint, brightness, contrast and sharpness. Press repeatedly
to cycle.
SYSTEM SELECT BUTTON
@ Computer Mode
Used to select computer system.
@ AV Mode
Used to select color system.
ALTER BUTTON
Used to select previous video mode.
FREEZE BUTTON (Computer Mode only)
Use this button to hold a still picture on-screen.
LIGHT UP BUTTON
Press to light the back light for function buttons on the remote control unit for 5 seco
button during the lighting to light for another 5 seconds.
WIRED REMOTE JACK
INFRARED/WIRED
REMOTE CONTROL
POWER
ZOOM FOCUS
MUTE
VOLUME
TEXT LEVEL
NORMAL MENU
SYSTEM | AL FREEZE
LIGHT UP
fair:
"
When using the wired remote control, connect the remote cable to this jack.
nds. Press any other function
REMOTE CONTROL BATTERY INSTALLATION
Remove the battery 2 Slide the batteries into the 3 Replace the compart-
ment lid.
compartment lid. compartment.
Note: For correct polarity (+
and - terminal), be sure the
battery terminals are in
contact with the pins in the
compartment.
(Ham)
NA+)
(+)
The remote control unit can be used as wireless or wired remote control.
USING THE REMOTE CONTROL UNIT (wireless)
Co
Point the remote control toward the front of the projector (Receiver window)
whenever pressing the buttons. Maximum operating range for the remote 150°
control is about 16.4’ (5m) and 150° from the front of the projector.
16.4
(5m)
USING THE REMOTE CONTROL UNIT (wired)
Connect a remote control cable to RC jacks located on the remote control unit and the back of the projector.
To insure safe operation, please observe the following precautions:
* Use (3) AA type batteries.
* Change three batteries at the same time.
* Do not use a new battery with a used battery.
* Avoid contact with water.
* Do not drop the remote contro! unit.
SETTING-UP THE PROJECTOR
POSITIONING: e This projector is basically designed to project on a flat projection surface. If the projector is not
(See page 12 KEYSTONE CORRECTION.)
e This projector can be focused from 7.5’ (2.3m) ~ 44’ (13.4m).
® Use the illustration below as an example when positioning the projector to the screen.
90°
||
SIDE VIEW |
a)
Minimum
a 44' (13
5 (2.3m)
|
"
4m)
Maximum projection distance
300”
2
[Tc 50”
157”
131”
=
| — 200
1
lor +
TT оо
o.
| TOP VIEW |
50”
100” an»
78” 80 60” 45”
43 RT
M
—
_9.2' (2.8m
12.1 (3.7m)
Y Y”
14.8" (4.5m)
21.6’ (6.6m)
Y Y
"Ч
29.2’ (8.9m)
36.7" (11.2m)
Y Y
pd
44’ (13.4m)
Y
"Ч
LEVELING AND ELEVATING ADJUSTMENTS
Picture adjustments can be made with the two
leveling/elevating feet.
Adjustments of 5 °
feet on the bottom of the projector.
Adjustments of 5°
the stand.
De
up are possible by rotating the
down are possible by raising up
Q
—
ROOM LIGHT
Minimum Zoom
=17.5' (2.3m)
>
FEET
placed at 90% angle to the screen, the projected image will have a keystone distortion.
The projector should ideally be placed in a
room with very limited light. Picture quality will
be directly affected by lighting conditions.
DIAGONAL IMAGE SIZES
Maximum Zoom
——a—
STAND Ef
q
N
À
UP (EE DOWN
USING THE PROJECTOR
TO TURN ON THE PROJECTOR
Connect the projector to a video source (Computer, VCR, Video Camera, Video Disc Player, etc.) using the appropriate
terminals on the rear of the projector (See page 17-23).
Connect the projector's AC power cord into a wall outlet and press the MAINS ON/OFF button (located on projector) to
ON (IN) position. The POWER indicator will light RED and the READY indicator will light GREEN.
Press the POWER (LAMP) ON/OFF button on the projector or on the remote control
unit to ON. The POWER indicator will light dim and the cooling fan will operate. The
walt display (A MOMENTYUN MOMENTO! and numeral 30) appears on the screen
and the count-down starts (30-29-28-...1). The signal from the video source appears A MOMENT!/UN MOMENTO!
after 30 seconds. 30
CAUTION:
© THIS PROJECTOR USES A METAL-HALIDE ARC LAMP. IF YOU TURN ON THE LAMP, DO NOT TURN IT OFF
FOR AT LEAST 5 MINUTES SO THAT ITS LIFE WILL NOT GET SHORTER.
® ОО NOT UNPLUG THE PROJECTOR OR PRESS MAINS ON/OFF BUTTON (LOCATED ON PROJECTOR) TO OFF
UNTIL THE COOLING FAN HAS STOPPED OPERATING.
NOTE 1: After you turn off the projector using the POWER (LAMP) ON/OFF button on the projector (or on the remote
control unit) you must wait one minute before you can turn the projector on again.
NOTE 2: TEMPERATURE WARNING INDICATOR flashes red, the projector will automatically turn off.
Wait at least 5 minutes before turning the projector on.
If the TEMPERATURE WARNING INDICATOR continues to flash, follow the procedures below:
. Press POWER (LAMP) ON/OFF button to OFF.
. Check the air filter for dust accumulation.
2)
(3). Remove dust with vacuum cleaner (See air filter care and cleaning on page 24.)
(4). Press POWER (LAMP) ON/OFF button to ON.
If the TEMPERATURE WARNING INDICATOR still continues to flash, call your authorized distributor or dealer
for service.
TO TURN OFF THE PROJECTOR
Press the POWER (LAMP) ON/OFF button on the projector (or on the remote control unit) to OFF. The POWER indicator
will light bright and READY indicator will turn off. The cooling fan will operate for 1 minute after the projector is turned off.
(During this "cooling down” period, the projector can not be turned on.)
After 1 minute, the READY indicator will light green again and the projector may be turned on by pressing the POWER
(LAMP) ON/OFF button.
— 10 —
ADJUST THE PROJECTOR
VIDEO MODE SELECT
Press the MODE button (located on projector or remote control unit) to select Computer Input, Video Input-1 or Video
Input-2. The "COMPUTER", "AV1” or "AV2” display will appear on the screen.
COMPUTER AV1 AV?
Press the ALTER button on the remote control unit to
alternate quickly between the two modes. (Current mode | CURRENT MODE : PREVIOUS MODE
and Previous mode)
For example, Computer IN/OUT Terminals and AV1 are AV1 MODE ~—» COMPUTER MODE
connected with personal computer and VCR respectively.
Firstly project computer image on the screen. Secondly COMPUTER MODE «———» AV2 MODE
press MODE button to select AV1. And then, press
ALTER button to select previous mode (Computer mode). AV2 MODE -«4———» AV1 MODE
VOLUME ADJUSTMENT
Press VOLUME buttons (located on projector or remote control unit) to adjust the
volume. The screen display will appear.
Pressing (+) will increase volume and the green indicator will increase to the right
on the screen.
Pressing (- ) will decrease volume and the green indicator will decrease to the left
on the screen.
«МНН ----
SOUND MUTE ADJUSTMENT
Pressing SOUND MUTE button on the remote control unit will mute audio. Press
SOUND MUTE button again to restore audio to its previous level.
ZOOM ADJUSTMENT (Without remote control unit)
Press ZOOM/FOCUS button until zoom display appears on the screen, and press
LEVEL (+) or (-) to obtain your desired picture size. (The zoom display will appear
for 5 seconds.) For a larger picture, press (+) and for a smaller picture, press (-).
ZOOM ADJUSTMENT (With remote control unit)
Press ZOOM ( A) or ( V ) to obtain your desired picture size. (The zoom display ZOOM
will appear for 5 seconds.) For a larger picture, press ( A ) and for a smaller
picture, press ( V ).
FOCUS ADJUSTMENT (Without remote control unit)
Press ZOOM/FOCUS button until focus display appears on the screen, and press
LEVEL (+) or (- ) for sharper, crisper picture. (The focus display will appear for 5
seconds.)
FOCUS ADJUSTMENT (With remote control unit)
Press FOCUS ( A) or (VV) for sharper, crisper picture. (The focus display will
appear for 5 seconds.) FOCUS
PICTURE ADJUSTMENT
The normal picture level is factory preset on the projector and can be obtained
anytime by pressing the NORMAL button on the projector, or on the remote control
unit. (The Normal display will appear for 5 seconds.)
Picture adjustments can be made by using the MENU and LEVEL buttons on the
projector, or on the remote control unit. (See picture adjustment on page 15-16.)
NORMAL
— 11 —
KEYSTONE CORRECTION
When the projector is used at upper or lower position, keystone distortions appear at the bottom or top of the screen.
The keystone can be corrected as follows:
e LOW MOUNT PROJECTION
If the projector is mounted low, the keystone will
appear at the top of the screen. Press keystone button
on the projector, or remote control unit using the tip of
a ball-point pen until the bar appears on the top of the
screen.
Press the level (- ) button until the keystone Is
corrected.
Z—
oe HIGH MOUNT PROJECTION
If the projector is mounted high, the keystone will
appear at the bottom of the screen. Press keystone
button on the projector, or remote control unit using
the tip of a ball-point pen until the bar appears on the
bottom of the screen.
Press the level (- ) button until the keystone is
corrected.
TOP KEYSTONE
CORRECTION DISPLAY
PRESS ( —) LEVEL
BUTTON
>
~~
PRESS (+) LEVEL
BUTTON
BOTTOM KEYSTONE
CORRECTION DISPLAY
PRESS ( — ) LEVEL
BUTTON
>
—«@
PRESS (+) LEVEL
BUTTON
NOTE: The projector is equipped with a built-in memory feature that eliminates the need to readjust the keystone each
time the projector is turned off and the AC power cord is disconnected.
— 12—
SYSTEM SELECT
* AT COMPUTER MODE
Press the SYSTEM button (located on projector or remote
control unit) to select your computer system.
For example; The display of "MAC II NORMAL” will appear ~~
on-screen when the signal cames from Mac I normal, Super MAC II NORMAL MAC LC 13RGB
Mac and/or Raster Ops.
In case of connecting Mac LC 13” RGB monitor, press SYSTEM
button to select the display of ” MAC LC 13 RGB”.
e AT AV MODE
Press the SYSTEM button (located on projector or remote contro! unit) to select AUTO, PAL, SECAM, NTSC4.43 or
NTSC.
Each time the SYSTEM button is pressed, the color system changes as follows:
When the color system is set to "AUTO" position, this projector can receive color programs from one of the 4 systems
(PAL, SECAM, NTSC4.43 or NTSC), automatically.
If the picture quality is poor, make sure the proper color system is selected to match the video source.
AUTO PAL SECAM NTSC4.43 NTSC
|
TEXT SELECT
(VGA 720 x 400 and VGA 640 x 400 used only)
Press the TEXT button on the remote control unit to select "VGA
720 X 400”-TEXT- or "VGA 640 X 400”-GRAPHIC-.
NOTE: "720 x 400” TEXT mode is projected to be compressed VGA 720 x 400 VGA 640 x 400
as 640 x 400”. In this mode, Keystone correction can |
not be operated.
DISPLAY ON/OFF SELECT
Press the DISPLAY button (located on projector) to ON(IN) position, to see the on-screen display of all setting and
adjustments. Press the DISPLAY button (located on projector) to OFF (OUT) position, to see the on-screen display of any
setting and adjustments. In this mode, Zoom and Focus adjustments can not be operated by Zoom/Focus button on the
projector.
FREEZE FUNCTION (COMPUTER Mode only)
Press the FREEZE button on the remote control unit, and then, the still picture will remain on-screen. This function is
cancelled when the FREEZE button is pressed again or any other function button is pressed.
NOTE: Your computer is not affected by this function, and will continue to run.
— 13—
OTHER PICTURE CONTROLS
This projector has other picture control functions; superimpose, blue back and picture scan. These picture control by
using SETTING and LEVEL buttons on the projector.
1. Press SETTING button to select the picture control function.
Each time the SETTING button is pressed, the control function changes as follows:
SUPERIMPOSE BLUE BACK PICTURE SCAN
OFF: — ON: + OFF: — ON: + OFF: — ON: +
2. Adjust the superimpose, blue back or picture scan function by pressing LEVEL (- and +) buttons.
3. The ON-SCREEN display will disappear automatically in 5 seconds.
SUPERIMPOSE (AV Mode only)
When this function is "ON" position, the projector produces white character and lines on a blue background.
BLUE BACK
When this function is "ON" position, the projector will project the blue image without video noise on the screen when the
video source is unplugged or turned off.
PICTURE SCAN
When this function is "ON" position, versatile left/right
picture reverse capability lets you project onto the
screen from in front from behind.
— 14 —
PICTURE ADJUSTMENTS
INSIDE CONTROLS
OF THE PROJECTOR REMOTE CONTROL UNIT
O LEVEL CONTROL
VOLUME — MENU С — 7 BUTTONS
BUON “TEE | menu
Ca LEVEL CONTROL BUTTON
(3 BUTTONS NORMAL
phi BUTTON
O NORMAL
| BUTTON
(A) COMPUTER MODE
Picture adjustments have been preset at the factory to our quality standards. The picture adjustments can be made by
the MENU and LEVEL buttons on the projector or on the remote control unit.
1. Press the MENU button to select the picture adjustments function.
Each time the MENU button is pressed, the control function changes as follows:
, BRIGHTNESS | CONTRAST H. POSITION
|
MEMORY ‘ FINE SYNC V. POSITION
2. Adjust the brightness, contrast, H. position, V. position or fine sync by pressing the LEVEL (+ and -) buttons. 8
3. The ON-SCREEN display will disappear automatically in 5 seconds. |
— +
[ JLEVEL[ J
«— ——— — — >
* Press the LEVEL CONTROL buttons to make adjustments.
Refer to the control chart below. :
BRIGHTNESS DARKER ——— BRIGHTER
CONTRAST SOFTER -«—» SHARPER
H. POSITION LEFT —— RIGHT
V. POSITION DOWNWARD -—» UPWARD
FINE SYNC Press the LEVEL CONTROL buttons ( — or +) as
necessary to eliminate flicker from the display.
4. Then press the MENU button to select the MEMORY menu. Press the LEVEL + button to save the picture adjustment
levels in memory.
NOTE: The projector is equipped with a built-in memory feature that can maintain the picture adjustment levels if the
projector is turned off and AC power cord is disconnected. If NORMAL button is pressed, the projector will return
to factory preset level.
— 15 —
(B) AV1 and AV2 MODE
Picture adjustments have been preset at the factory to our quality standards. The picture adjustments can be made by
the MENU and LEVEL buttons on the projector or on the remote contro! unit.
1. Press the MENU button to select the picture adjustments function.
Each time the MENU button is pressed, the control function changes as follows:
> COLOR — TINT — CONTRAST
---INIO------ ---IO------ ---HNO------
SHARPNESS - BRIGHTNESS |“
---!НО------ ---HO------
NOTE: 1. "TINT" will be skipped during in the PAL and SECAM mode.
2. Adjust the color intensity, tint, contrast, brightness or sharpness by pressing the LEVEL (+ and - ) buttons.
3. The ON-SCREEN display will disappear automatically in 5 seconds.
— +
FL JLEVELL |
«< — — — — —
e Press the LEVEL CONTROL buttons to make adjustments.
Refer to the control chart below.
COLOR DECREASES -«——» [INCREASES
TINT MORE GREEN -«——» MORE PURPLE
CONTRAST SOFTER -«——» SHARPER
BRIGHTNESS DARKER <«—— BRIGHTER
SHARPNESS SOFTER -«——» SHARPER
NOTE: The projector is equipped with a built-in memory feature that can maintain the picture adjustment levels set on
AV1 and AV2 respectively even if the projector is turned off and AC power cord is disconnected. If the NORMAL
button is pressed, the projector will return to factory preset level.
— 16 —
CONNECTING THE PROJECTOR
Your projector is equipped with various audio/video inputs and outputs including Computer DB25-pin terminals, S-VHS
video input and 21-pin terminals.
COMPUTER MODE
This projector is compatible with many different types of personal computers: using the adapter Y cable provided, it can
be connected directly to any VGA , MAC I and MAC LC or compatible computers equipped with CGA, EGA, PC-9801
(640 x 400), PC-9821 (640 x 400), PC-9821 (640 x 480), FM-TOWNS (640 x 400) and FM-TOWNS (640 x 480).
(adapter cable not provided).
CONNECTING TO THE COMPUTER INPUT/OUTPUT DB25-PIN TERMINAL
Personal computers can be connected to the DB25-pin terminal on the projector.
e Connect the computer to this terminal! using the adapter cable (two type of adapter Y cables are provided).
WARNING: For projectors, adapter Y cable provided is designed to reduce RFI (Radio Frequency Interference)
emissions. For regulatory compliance reasons, this cable must be used and must not be replaced by any
other cable.
Specification of DB25-pin terminal
Pin No. Signal Pin No. Signal
1. Red input (Analog) 0.7 Vp-p/75 ohm 14. Ground
2. Green input (Analog) 0.7 Vp-p/75 ohm 15. Ground
3. Blue input (Analog) 0.7 Vp-p/75 ohm 16. Ground
4. Red output (Analog) 0.7 Vp-p/75 ohm 17. Red input (TTL)
5. Green output (Analog) 0.7 Vp-p/75 ohm 18. Green input (TTL)
6. Blue output (Analog) 0.7 Vp-p/75 ohm 19. Blue input (TTL)
7. IDO | 20. r input (TTL, EGA)
8. ID 1 21. g input (TTL, EGA), CGA Intensity
9. ID? 22. b input (TTL, EGA)
10. Ground 23. NC
11. Ground 24. Ground
12. V. Sync 25. Ground
13. H. Sync
DB25 -PIN TERMINAL
13121110 9
OO OO O
OOOOOOOOO0OO0
25 24 23 22 21 20 19 18 17 16 15 14
7 6 5 43 2 1
CC OOOO
O o
CONNECTING TO THE COMPUTER AUDIO INPUT JACKS
e Connect audio outputs from your computer to these jacks.
e If the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective right
and left jacks.
e if the audio input of the audio equipment is monaural, connect it to the left jack.
— 17 —
CONNECTING THE PROJECTOR TO A COMPUTER
Personal
Computer
Projector RE
un - — (E
[=
I=
"1
MONITOR
COMPUTER
a COMPUTER —
INPUT/OUTPUT mo
|
AY2
AUDIO
OUTPUT
pa
Lone
COMPUTER
AUDIO INPUT
NOTE: The hook up should be done as per the above illustration. After hook up, turn on the personal computer and
monitor and the POWER(LAMP) ON/OFF button to light the projection lamp. Otherwise, the monitor’s image does
not appear.
— 18 —
COMPATIBLE PERSONAL COMPUTER SPECIFICATIONS
ON-SCREEN COMPATIBLE POLA
DISPLAY COMPUTER DOT x LINES | fH (kHz) | 1V(LINE) y V
CGA TEXT CGA TEXT 640 x 200 15.70 262 + +
CGA GRAPHIC CGA GRAPHIC 640 x 200 15.70 262 + +
FMT 640 X 400 FM-TOWNS (640 x 400) 640 X 400 24.37 440 — —
PC-9801 ( 640 x 400) 640 x 400 24.83 440 — —
PC98 640 X 400
PC-9821 ( 640 x 400) 640 x 400 24.83 440 — —
VGA 640 X 400 VGA 640 x 400 640 x 400 31.47 449 — +
VGA 720 x 400 VGA 720 x 400 720 X 400 31.47 449 — +
VGA 640 X 350 VGA 640 x 350 640 X 350 31.47 449 + —
VGA 640 x 480 640 x 480 31.47 525 — —
PC-9821 ( 640 x 480) 640 x 480 31.47 525 — =
VGA 640 X 480 FM-TOWNS (640 x 480) 640 x 480 31.47 525 — —
J-3100VS 640 X 480 31.47 525 — —
T-4500C 640 x 480 31.32 525 — —
VGA 640 X 400 525 LINE VGA 640 x 400 525 LINE 640 x 400 31.47 525 — +
VGA 640 X 350 525 LINE VGA 640 x 350 525 LINE 640 x 350 31.47 525 + —
MAC I (NORMAL) 640 x 480 35.00 525 — +
MAC II NORMAL MAC II (SuperMac) 640 x 480 35.00 525 — +
MAC IT (RasterOps) 640 x 480 35.00 525 — +
MAC LC 13RGB MAC LC (13"RGB-MO) 640 X 480 34.97 525 — —
Specifications are subject to change without notice.
— 19 —
ACCESSORIES ADAPTER CABLE SPECIFICATIONS
(A) VGA Y CABLE
i
LCD Projector Monitor Computer
DB25 (Male) HD-DB15 (Male)
\ 23456 EE
C0000 OC 06860000
O00 © © ® © 6 O O CO
141516 24 25
Pin No./Signal Pin No./Signal Pin No./Signal
1 Rinput 1 Rinput 1 Routput
2 Ginput 2 Ginput 2 Goutput
3 Binput 3 B input 3 B output
4 R output 4 Sense 2 4 Sense 2
5 Goutput 5 Notused 5 Not used
6 B output 6 R Return 6 Not used
7 — — — —— 7 G Return 7 Return (R, G, B)
8 8 B Return 6 — — — —
9 — — ———— 9 — — — — 9 — — — —
10 Ground (H, V) 10 Ground (H,V) 10 Ground (H,V)
11 Ground (H, V) 11 Sense O 11 Sense 2
12 V-sync. 12 Sense 1 12 Sense 1
13 H-sync. 13 H-sync. 13 H-sync.
14 R return 14 V-sync. 14 V-sync.
15 G return 15 — 15
16 B return
17
18
19
20
21
22
23
24 Ground
25 Ground
— 20 —
(B) MAC Il Y CABLE
E
LCD Projector Monitor Computer
DB25 (Male) DB15 (Female) DB15 (Male)
Pails 10 E 765 E) Ea
OSO OOO & 8988089 OO e COC O O 000 CS O OGG в
ее ее > e e OO0O00060
141516 15 * 13121110 910111213 15
Pin No./Signal Pin No./Signal Pin No./Signal
1 Rinput 1 R Return 1 R Return
2 Ginput 2 Rinput 2 R output
3 Binput 3 Comp.-sync. 3 Comp.-sync.
4 R output 4 Sense O 4 Sense O
5 Goutput 5 Ginput 5 G output
6 B output 6 G Return 6 G Return
7 7 Sense 1 7 Sense 1
8 8 8
9 — — — — 9 B input 9 B output
10 Ground (Comp. & V) 10 Sense 2 10 Sense 2
11 — — — — 11 Ground (Comp. & V) 11 Ground (Comp. & V)
12 V-sync. 12 V-sync. 12 V-sync.
13 H-sync. 13 B Return 13 Not used
14 R Return 14 — — — — 14
15 G Return 15 H-sync. 15 H-sync.
16 B Return
17
18
19
20
21
22 Not used
23 —————
24 Ground (Comp. & V)
25 ——
— 21 —
AV MODE (AV-1 or AV-2)
CONNECTING TO THE AV1 INPUT JACKS
Connect to the video and audio outputs of a VCR, video disc player, video camera, satellite TV tuner or other AV
equipment.
® Connect video/audio outputs from external sources to these input jacks.
e |f the audio signal from the AV equipment is stereo, be sure to connect the right and left channels to the respective right
and left audio input jacks.
e |f the external audio signal is monaural, connect it to the left jack.
e Do not connect the video sources to the AV1 (RCA) together with the BNC jack. Use one video input only for AV1.
S-VHS FORMAT VCR CONNECTION
The AV1 input includes an extra video input jack marked S-VIDEO to allow connection to an S-VHS format VCR that has
separate Y/C video signals. The S-VIDEO jack has priority over the VIDEO (RCA or BNC) jack.
CONNECTING TO THE AV2 21-PIN TERMINAL
VCR, Video disc player or other AV equipment can be connected to the 21-pin terminal on the rear of the projector.
When the 21-pin terminal is used for connection of AV equipment, note the following points.
e When using the equipment with the output function signal into PIN No. 8 of 21-pin terminal below, the VIDEO MODE is
automatically set to "AV2” and VIDEO MODE selection is not required. And when using equipment without the output
function signal, press VIDEO MODE select button on the projector or remote control to select "AV2” mode.
Specification of 21-pin terminal
Pin No. Signal Pin No. Signal
1. Audio output (right channel) 0.5 Vrms/ = 1 Kohm 11. Green (G) input 0.7 Vp-p /75 ohm
2. Audio input (right channel) 0.5 Vrms/ = 10 K ohm 12. Not used
3. Audio output (left channel) 0.5 Vrms/< 1 K ohm 13. Ground (red)
4. Ground (audio) 14. Ground
5. Ground (blue) 15. Red (R) input 0.7 Vp-p/75 ohm
6. . Audio input (left channel) 0.5 Vrms/ = 10 K ohm 16. Fast blanking L: 0-0.4V, H:1-3V
7. Blue (B) input 0.7 Vp-p 75 ohm 17. Ground (video)
8. Function switching L: 0-2V, H-12V 18. Ground
9. Ground (green) 19. Video sync. output 1 Vp-p/75 ohm
10. Notused 20. Video sync. input 1 Vp-p/75 ohm
21. Ground
21-PIN TERMINAL
fo] [te] re] [re] iz] [ro] fe) [o] [412]
21] 17] [1s] [2] [ri] [o [7] (51 [=] [1]
CONNECTING TO THE MONITOR OUTPUT JACKS
These jacks will contain the audio/video information of the selected program source being viewed on the screen. If you
have selected program source AV1 the audio signals connected to the AV1 jacks will be available at the monitor output
jacks.
e Connect video/audio inputs from AV equipment to these output jacks.
e |f the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective right
and left jacks.
e |f the audio input of the audio equipment is monaural, connect it to the left jack.
e Whenever the S-VIDEO signal source is viewed on the screen, the video signal available at the MONITOR OUTPUT
jack will be in black and white (monochrome).
— 9227—
HOW TO CONNECT EXTERNAL AV EQUIPMENT
Projector
1 IRIS
— В
ES
AUDIO OUTPUT S-VIDEO OUTPUT
Monitor
20
go
30
so
So
So
98
95
©
80
So
go
S-VIDEO INPUT
AUDIO INPUT
|»
R L
AUDIO MONITOR | O
OUTPUT _
AUDIO VIDEO MONITOR
INPUT SPEAKER Speaker (L) OUTPUT
VIDEO
INPUT
Speaker (R) MONITOR
— 23 —
Video Cassette Recorder
Satellite TV Tuner
\ gap Video Disc Player
| Amp. e | Speaker
A
VIDEO/
AUDIO
21 PIN TERMINAL
VIDEO INPUT (BNC)
Satellite TV Tuner
Video Disc Player
E =—— |
Video Cassette Recorder
[Em
<a Jm
DEO INPUT
isa
—© 5 | AUDIO INPUT
AUDIO VIDEO VIDEO
OUTPUT OUTPUT OUTPUT
L В (BNC)
I |
000 => *
| =
Video Cassette Recorder
AIR FILTER CARE AND CLEANING
The removable air filter prevents dust from accumulating on the surface of the projection lens and projection mirror.
Should the air filter become clogged with dust particles, it will reduce the cooling fan's effectiveness and may result in
internal heat built up and reduce the life of the projection lamp.
To clean the air filter, follow the cleaning procedures below:
1. Turn the POWER (LAMP) ON/OFF button OFF.
2. Remove the air filter cover from the side of the projector.
3. Remove the air filter and sponge from the filter cover.
4. Clean the air filter and sponge with a vacuum cleaner.
5. Replace the air filter and sponge. Make sure that air filter cover
is fully inserted.
AIR FILTER
A y COVER
Do not clean with water. Doing so may damage the air filter.
Do not operate the projector with air filter removed.
PULL
AIR FILTER
AND SPONGE
EEE ue POL
LAMP REPLACEMENT 8: TEMPERATURE WARNING INDICATORS
LAMP REPLACEMENT INDICATOR
When the lamp nears the end of its service life, the picture quality and color quality will deteriorate and the lamp
replacement indicator will light orange.
DO NOT ATTEMPT TO REMOVE OR CHANGE THE PROJECTION LAMP. THE LAMP CAN
ONLY BE CHANGED BY QUALIFIED SERVICE PERSONNEL.
TEMPERATURE WARNING INDICATOR
The TEMPERATURE WARNING INDICATOR lights red when the internal temperature of the projector exceeds the
normal temperature.
Possible causes for the temperature warning may be: | -
1. Ventilation slots at the rear or bottom of the projector are blocked. In such an event, reposition the projector so that -
ventilation slots are not obstructed.
2. Air filter is clogged with dust particles. Remove dust from the air filter by following instructions in the Air Filter Care and
Cleaning section above. |
If temperature warning indicator remains on after performing the checks listed above, cooling fan/internal circuits may
be malfunctioning. Request service from an authorized dealer or service station.
— 24 —
HELPFUL HINTS-Problems and Solutions
Check the following chart before requesting service.
Problem:
Try these Solutions:
No power
e Plug the projector into an AC outlet.
e Press the MAINS ON/OFF button to ON.
e Press the POWER (LAMP) ON/OFF button to ON.
e Check the READY INDICATOR light ON.
e One minute has not passed after the projector turned OFF.
NOTE: After pressing the POWER (LAMP) ON/OFF button to
OFF, the projector functions as follows.
1. The POWER and READY indicator will turn off.
2. The cooling fan will operate for 1 minute after the projector is
turned off. (During this "cooling down period, the projector
can not be turned on.)
3. After 1 minute, the READY indicator will light green again
and the projector may be turned on by pressing the POWER
(LAMP)ON/OFF button.
No sound from built-in speaker
e Press the VOLUME (A) and (W)to (4).
e Check audio cable connection from audio input source.
Picture is reversed
e Check PICTURE SCAN FEATURE.
Picture blurred or color faded
e Check the projection distance 7.5’ (2.3m)~44’ (13.4m).
e Adjust the FOCUS control.
NOTE: Moving the projector from a cool temperature location to
a warm temperature location may result in moisture
condensation on the lens. In such an event, leave the
projector OFF and wait until condensation disappears.
SERVICE
WARNING: High voltages are used to operate
this projector. Do not remove the back from
your unit.
You can often correct operating problems yourself. If
the projector fails to work properly, locate the
operating problem in the Helpful Hints Chart. To
correct them, try the "Solutions.”
Sanyo Service is easily obtained. If after following all
operating instructions, you find that service is
necessary, contact the SFS Corporation in los
Angeles, or the store where you purchased the unit.
Give the model number and explain the difficulty. We
will advise you how to obtain service.
— 95 —
TECHNICAL SPECIFICATIONS
SPECIFICATIONS
Projector Type
Portable Data & Video Color Projector
Dimensions (H x W x D)
10” (253 mm ) x 10.6” (268 mm) x 22.5” (572 mm)
Net Weight
29.1 Ibs (13.2 kg)
LCD Panel System
3.1" TFT Active Matrix type ( Thin Film Transistor) x 3
Number of Pixels
921,600 (307,200 x 3)
Color System
4 color system (PAL, SECAM, NTSC4.43 and NTSC)
Projection Image Size (Diagonal)
Adjustable from 25” to 300”
Contrast Ratio 100 :1
Horizontal Resolution 550 TV lines
Projection Lens f4.2~ 4.5 lens with 5.31"~10.63" Motor-drive zoom and focus
Lens Aperture 2.64” (67 mm)
Throw Distance
7.5’ (2.3 M) - 44’ (13.4 M)
Projection Lamp
Metal Halide, 180 watt
Projection Mirror
Dichroic mirror system
AV Input jacks
RCA Type x 1 (Video, Audio R and L), BNC Type x 1
DIN 4 pin (S-Video) x 1 and 21 pin (SCART) X 1
Computer Input/Output Jack
DB25 Terminal x 1
Computer Audio Input Jack
RCA Type x 1 (R and L)
Video Monitor Output Jack
RCA Type x 1
Audio Monitor Output Jacks
RCA Type x 1 (R and L)
Built-in Speaker
INT. SP. Monaural, 3 watt RMS (T.H.D. 10%)
Image Elevation Adjustment
Up5° , Down 5°
Voltage 100 ~ 120V, 200 ~ 240V AC, 50/60 Hz
Power Consumption 275 Watts
Operating Temperature 5°C ~35°C
Storage Temperature — 10°C ~ 60°C
Remote Control Battery (3) AA Type
Standard Accessories
Remote Control Unit, R/C Cable 5° (1.5m), AC Power Supply Cord,
VGA Y Cable, MAC II Y Cable, Lens Cover, Owner's Instruction
Manual and Protective Dust Cover
This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc.
Up It is designed and manufactured to meet rigid U.L. safety standards against fire, casualty and
® electrical hazards.
— 26 —
For assistance in obtaining repairs or technical information, contact the following Service Regional offices:
SFS Corporation
New Jersey Office California Office Illinois Office Georgia Office
210 Riser Rd. 1200 W Artesia Blvd. 600 Supreme Dr. 1790 Corp. Dr., Suite 340
Little Ferry, NJ 07643 Compton, CA 90220 Bensenville, IL 60106 Norcross, GA 30093
201-641-3000 310-537-5830 708-350-1505 404-925-8900
LCD PROJECTOR LIMITED WARRANTY
THIS WARRANTY IS VALID ONLY ON SANYO PRODUCTS PURCHASED AND USED IN THE UNITED STATES OF
AMERICA EXCEPT U.S. TERRITORIES AND PROTECTORATES. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL
USER.
Subject to OBLIGATIONS and EXCLUSIONS found below, this product is warranted against manufacturing defects in material
and workmanship for the period or Parts + Labor specified and Sanyo will repair or replace (at our option) any parts found to be
defective. For the period specified under Parts, Sanyo will provide a replacement for any defective parts.
PARTS N HOME |
SERVICE
LABOR | PROJECTION LAMP OTHER PARTS ==
1 YEAR 90 DAYS 1 YEAR | NONE
Each warranty period commences on the date of purchase by the original user. Performance under this warranty must be
obtained at a Sanyo Authorized Service Station. A list of Sanyo Authorized Stations can be obtained from SFS Corporation,
1200 W. Artesia Blvd Compton, CA 90220. ATTN : Customer Information Center (1-800-421-5013)
OBLIGATIONS
1. This warranty will be honored only on the presentation of the original dated bill of sale or sales slip.
2. Transportation of the product to and from the service station is the responsibility of the user unless specifically stated
otherwise in this warranty.
EXCLUSIONS
1. THIS WARRANTY SHALL NOT COVER ADJUSTMENT OF CUSTOMER OPERATED CONTROLS AS EXPLAINED IN THE
APPROPRIATE MODEL'S INSTRUCTION MANUAL OR PRODUCTS WHICH HAVE BEEN ALTERED, REPLACED, OR
HAVE MISSING SERIAL NUMBERS.
2. This warranty shall not apply to the antenna nor to appearance or accessory items including, but not limited to cabinets,
cabinet parts, knobs, batteries. cartridges, or styli. |
. This warranty does not apply to uncrating, setup, installation, or the removal and reinstallation of products for repair.
. This warranty shall not apply to repairs or replacements necessitated by any cause beyond the control of Sanyo including,
but not limited to, any malfunction, defects or failure caused by or resulting from unauthorized service or parts, damaged or
broken video heads, improper maintenance. modification or repair by the user, abuse, misuse, neglect. accident, fire, flood or
other Acts of God, incorrect line voltage, damage or image burns to television picture tubes caused by or attributable to the
use of any accessory, electronics game or device, or damage caused to image pickup tubes by excessive light.
The foregoing is in lieu of all other expressed warranties and Sanyo does not authorize any party to assume for it any other
obligation or liability. In no event shall Sanyo be liable for special or consequential damages arising from the use of this product,
or for any delay in the performance or this warranty due to causes beyond our control.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES, SO THAT THE ABOVE LIMITATIONS ON IMPLIED
WARRANTY AND CONSEQUENTIAL DAMAGES MAY NOT APPLY TO YOU.
> aw
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE
TO STATE.
ATTENTION
For your protection in the event of theft or loss of
this product, please fill in the information requested
below: | |
Model No. |
Serial No. 21350 Lassen Street
(Located on back or bottom side of unit.) Chatsworth, California 91311
Date of Purchase Price Printed in J
Wher Pur rinted in Japan
e rurchased Part No. 610 246 6713(1AA6P1P0153-- G8DD)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
