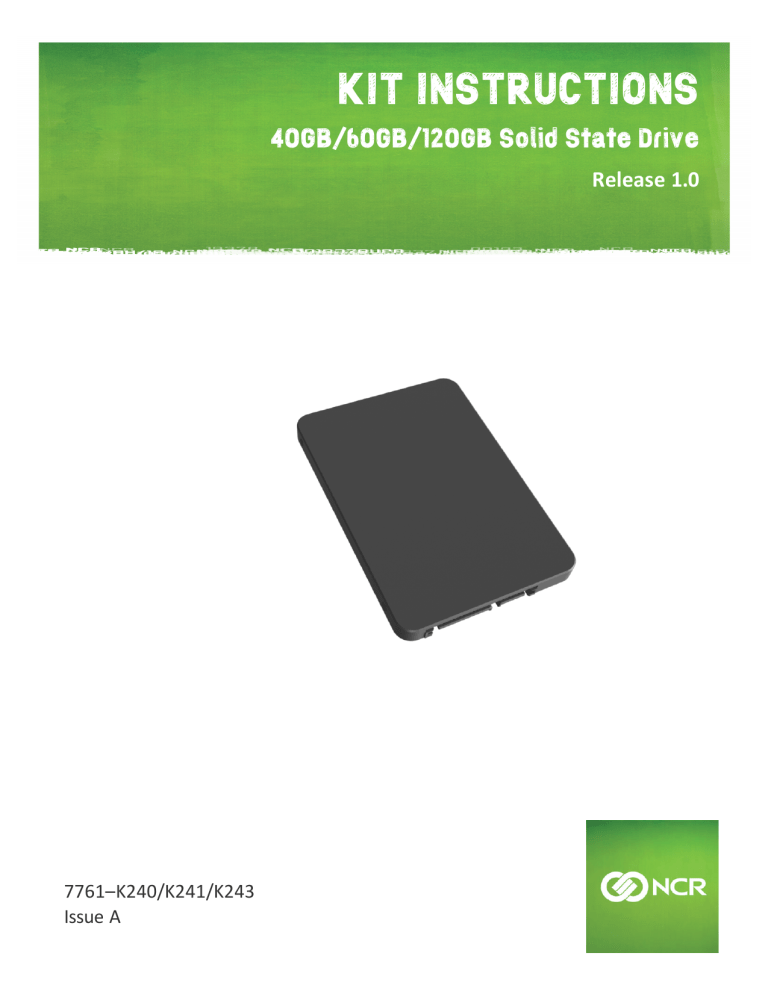

KIT INSTRUCTIONS
40GB/60GB/120GB Solid State Drive
Release 1.0
7761–K240/K241/K243
Issue A
i
The product described in this document is a licensed product of NCR Corporation.
NCR is a registered trademark of NCR Corporation. Product names mentioned in this publication may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
Where creation of derivative works, modifications or copies of this NCR copyrighted documentation is permitted under the terms
and conditions of an agreement you have with NCR, NCR's copyright notice must be included.
It is the policy of NCR Corporation (NCR) to improve products as new technology, components, software, and firmware become
available. NCR, therefore, reserves the right to change specifications without prior notice.
All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances,
photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR
office for information that is applicable and current.
To maintain the quality of our publications, we need your comments on the accuracy, clarity, organization, and value of this book.
Please use the link below to send your comments.
EMail: [email protected]
Copyright © 2017
By NCR Corporation
Duluth, GA U.S.A.
All Rights Reserved
Revision Record
Issue Date
A
Apr 2017
Remarks
First Issue
40GB/60GB/120GB Solid State Drive
Introduction
This kit provides a 40GB/60GB/120GB, 2.5" Solid State Drive (SSD) for a P1535/P1235
POS.
Kit Content
Kit Number
Part Number
Description
7761–K240
006–8625385
Apacer 2.5" SATA, 40GB, APS25AF4040G-A4MCM-NCR
7761–K241
006–8625426
Apacer 2.5" SATA, 60GB, APS25AF4060G-A4MCM-NCR
7761–K243
006–8625150
SSD - 2.5" Apacer, SATA, 120GB
2
7761-K240_K241_K243 (40GB, 60GB, 120GB SSD)
Installation Procedure
1. Loosen the captive thumbscrew (1) that secures the cable cover.
2. To open, press on the indentations in the cable cover to unlatch the cover and then
pivot the cover open. Detach the cable cover.
7761-K240_K241_K243 (40GB, 60GB, 120GB SSD)
3. Remove the screw (1) that secures the Solid–State Cover.
4. Remove the Solid–State Cover and SSD.
3
4
7761-K240_K241_K243 (40GB, 60GB, 120GB SSD)
5. Remove the screws (2) that secure the SSD to the Solid–State Cover. Remove the
SSD.
6. Mount the new 40GB/60GB/120 SSD to the Solid–State Cover through the keying
features. Secure with screws (2).
7761-K240_K241_K243 (40GB, 60GB, 120GB SSD)
7. Install the Solid-State Cover and SSD.
8. Secure with screw (1).
5
6
7761-K240_K241_K243 (40GB, 60GB, 120GB SSD)
9. Hook and snap back the Cable Cover.
10. Tighten the thumbscrew to secure the cover.
