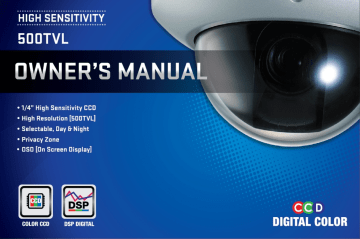

HIGH SENSITIVITY
500TVL
OWNERS MANUAL
``
* 1/4” High Sensitivity CCD
* High Resolution [500TVL]
» Selectable, Day & Night
* Privacy Zone
* 0SD [On Screen Display]
CED
COLOR CCD DSP DIGITAL DIGITAL COLOR
USER INFORMATION
1 RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
ACCESSORIES SOLD SEPARATELY. CONTACT QUALIFIED SERVICE PERSONNEL FOR
INFORMATION ON ACCESSIBLE ACCESSORIES.
The lightning arrowhead symbol in a triangle means to watch out for live wires that might
cause an electrical shock.
/N The exclamation symbol in a triangle indicates an important operational and service instruction.
PLEASE NOTE THE FOLLOWING WARNING AT THE BOTTOM OF THE PRODUCT:
“WARNING-TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE.”
USER INFORMATION
INFORMATION
This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part
15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmtul interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at their own expense.
WARNING
Please note that the user is liable for any incidents in operating the unit if it is altered or modified without
manufacturer's approval.
CAUTION
To prevent electric shock and risk of fire hazards:
* Do not Use power sources except for that specified.
* Do not expose this appliance to rain or moisture.
CONTENTS
Thank you for purchasing this ZOOM DOME CAMERA.
Before using this camera, please read this operation manual carefully
to obtain the best result and keep this manual for feature reference.
1. SAFETY INSTRUCTIONS —------------------=--e=e<eneena anna nennen 5
2. PRECAUTIONS |---<-<-<-<-<=<=<ceceonmememenennnnnnnnnnmnn aaa 6
3. COMPOSITION —----------------------==eeeenee nn 7
4. FEATURES --<-<-<-<-<=<=soccscanenennennennennten en annannennen=en anasannnanaues 8
5. NAME AND FUNCTIONS ------------—----—-—-——==emenenoo 9
6. INSTALLATION --------—--—-—--—==—=====eeeeooeen ns 10
7. CONNECTIONS ---------=====cccacanaanaranon nana $
8. OPERATING CAMERA -------------=—=—=eeeeeeeeeeeeeenenennnnn 13
9. SPECIFICATION — -----------------------ee-neeeeenananns 42
10. TROUBLESHOOTING _----------............…….….…...….ccccecceccecencnnes 44
1. SAFETY INSTRUCTIONS
Read Instructions
Read all of the safety and operating instructions
before using the product.
Retain Instructions
Save this instructions for later use.
Cleaning ‚
Unplug this appliance from wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
Water and Moisture.
Do not use this product near water or moisture.
( For example. near a bathtub, wash bowl,
kitchen sink, or laundry tub, in a wet basement,
or near swimming pool, etc.)
Installation
|
Do not place this product on an unstable car,
stand, or table. The product may fall causing
serious injury to a child or adult, and damage
to the product.
Use only with a cart or stand recommended
by the manufacturer, or sold with the product.
Mounting should follow the manufacturer's
instructions, and should use a mounting accessory
recommended by manufacturer.
Power source
&
This product should be operated only from
the type of power source indicated on the
marking label.
If you are not sure of the type of power supplied
to your home, consult your dealer or local
power company.
2. PRECAUTIONS
2 Do not install the camera in extreme temperature conditions.
Do use the camera under conditions where temperatures are within -10°C to 40°C.
Especially be careful for ventilation under high temperature.
9 Do not install or use the camera in an environment where the humidity is high.
It can cause the image quality to be poor.
2 Do not install the camera under unstable lighting conditions.
Severe lighting change or flicker can cause the camera to work improperly.
+ Never use the camera close to a gas or oil leak.
It can cause malfunctions to occur.
© Do not disassemble the camera.
There are no user repairable parts inside.
9 Do not drop the camera or subject them to physical shocks.
It can cause malfunctions to occur.
+ Never keep the camera face to strong light directly.
It can damage CCD.
9 Do not expose the camera to rain or spill liquid on it.
If it gets wet, wipe it with dry cloth immediately.
Liquids can contain minerals that corrode the electronic components.
NOTE When this camera is installed near wireless communication devices that emits
strong electromagnetic field, irregularity such as noise on the monitor may appear.
3. COMPOSITION
ZOOM DOME CAMERA
111 477
Mounting Screw Plastic Anker
Guide Pattern (nn ac Owner's Manual
L-Wrench Service Monitor Cable
4. FEATURES
1. 1/4” High Sensitivity CCD 4. Selectable, day & night
- ICR
2. Min lllumination (F1.2, 30IRE, AGC Max) 5. RS-485 Communiction Control Support
- 0.05 LUX (COLOR) - Remote OSD menu control via an RS-485
- 0.005 LUX (ICR, B/W) interface is supported.
3. High performance menus for functions
- High Resolution (500TVL)
- BLC (Back Light Compensation)
- SSNR : Digital noise reduction
- Privacy zone selectable.
- H-REV
- Flickerless On/Off.
5. NAME AND FUNCTIONS
Camera Lay-out
[e e nooo 4 Tilt rotation
Adjust the vertical angle of view.
+ Rotation
Adjusti the rotational angle of view.
--------2 Pan rotation
Adjust the horizontal angle of view.
6. INSTALLATION
| | й Ceilinc
Stick the guide pattern on the wall or ceiling.
Drill three holes according to the guide pattern then insert > Guide Pattern
anchors into the drilled holes.
ры
Le
P Surface Mount
Bracket
> ;
Connect the dome base to the surface mount bracket Mounting Screw
by screws.
» Dome Base
Adjust desired focus and scene by turning and moving
the 3-axis camera bracket by hand.
Put the dome cover over the base. » Inner Dome
"ithe dome cover on the base by L-Wreneh. > Dome Cover
L-Wrench
7. CONNECTIONS
1. Connecting to Monitor and Power
4 For 24V AC / 12V DC Dual Power Type
- Use 24V AC power source or 12V DC power source.
,iéè) Function
Remark
Video Output
1.0 Vp.p
Power Input
Green
24V AC(+10%) or 12V DC(+10%),
6.0W (Max)
Control
Gray & Black
RS-485 (Pelco-D)
Video Qutput
2. Connecting to Controller
Receiver &
Remote Control
(SC100)
8. OPERATING CAMERA
MENU CONFIGURATION
MAIN SETUP MENU
« CAMID «CAMINFO «MOTION ALARM + ZOOM MAG
TE « LANGUAGE «END
WHITE BAL «ATW «MANUAL «AWC ->SET «OUTDOOR «INDOOR
BACKLIGHT “OFF «LOW «MIDDLE HIGH
MOTION DET | «OFF + ОМ
-ocus „MODE + ZOOMTRK + ZOOMSPEED D-ZOOM
» ZOOM POS INIT + DISPZOOM MAG «LENS INIT «END
e «BRIGHTNESS «IRIS «SHUTTER «AGC + SSNA
+ SENS-UP «END
USERPRESET «PRIVACY «DAY/NIGHT «COMM ADJ
SECA. IMAGE ADJ + ЕМО
RESET
EXIT
1. Press the SET button for 2 seconds. (Short-pressing the button activates the AUTO FOCUS).
- Main setup menu is displayed on the monitor screen.
k,
MAIN SETUP
CAM TITLE
WHITE BAL
BACKLIGHT
MOTION DET
FOCUS +
EXPOSURE +
SPECIAL +
RESET
EXIT
2. Select the desired feature using the UP or DOWN button.
- Each pressing of the UP or DOWN button moves the indicator to the next or previous feature.
- Move the arrow indicator to the desired feature item.
3. Change the status of the selected feature using the LEFT or RIGHT button.
4. When completed, move the arrow indicator to 'EXIT' and press the SET button.
OFF
ATW +
OFF
OFF
© NOTE
Features marked with à + have an accessible submenu.
* Access the submenu by pressing the SET button.
* CAM TITLE
(1) Press the SET button to display the main setup menu and move
the arrow indicator to CAM TITLE using the UP or DOWN button.
(2) Set CAM TITLE to ON using the LEFT or RIGHT button.
not displayed in the monitor
® NOTE ° If the CAM TITLE feature is set to OFF’, the name will
DISPLAY SETUP
CAM TITLE OFF
CAM ID ON
CAM INFO ON
MD ALARM m
ZOOM MAG ON
LANGUAGE ENGLISH
END
(3) Press SET button.
CAMERA TITLE SETUP
ABCDEFGHIJKLMNDGO
POQRSTUVWXY Zabcd
efghijklmnopagrs
tuvwxyz01 2 34567
8 9 ()< > - / # * | 7.
@ = CLR POS END
(4) You can enter up to 20 characters.
a. Move the cursor to the character entry field using the LEFT or RIGHT button.
b. Use UF, DOWN, LEFT and RIGHT buttons to select a desired character.
c. Press the SET button to confirm selection of the blinking character. The character is then saved,
and the cursor in the entry field moves to the next position.
d. Repeat steps a through c until the desired name has been entered.
NOTE ° Correcting Mistakes
Move the cursor th ‘CLR’ and press the SET button to clear the entire entry. To modify
one character, use LEFT or RIGHT to position the cursor above the character to be modified
and click the SET button after selecting the character to enter. |
(5) Enter a title, move the cursor to POS and press the SET button. The entered title appears on the
screen. Select the position to display the title on the screen by using the 4 direction butons and
press the SET button. When the position is determined, select.
- CAM ID : Displays camera ID on top left corner of the screen.
- CAM INFO : Displays camera information on screen.
- MOTION ALARM : You can toggle the use of the camera alarm.
- ZOOM MAG : Use th is feature to display the current zoom magnification level on screen.
Position the indicator over 'Z00M MAG’ using the UP or Down button. Then set to
ON using the LEFT or RIGHT button.
- LANGUAGE : You ca n select the menu language according to your requirements
(Korean, ESPANOL, FRANCAIS, ITALIANO, DEUTSCH, ENGLISH, Japaness, Chiness)
- END : Select this to save the SPECIAL menu settings and return to the SPECIAL menu.
WHITE BALANCE (White Bal.)
Use the White Balance function to adjust the screen color.
1. When the SETUP menu screen is displayed, select White Bal'. by using the Up and Down buttons
so that the arrow indicates White Bal.
2. Select a desired mode using the Up and Down buttons.
MAIN SETUP
WHITE BAL ATW +
BACKLIGHT OFF
9 Select one of the following 3 modes, as appropriate for your purpose.
* ATW : Select this when the color temperature is between 1800°K and 10500°K
- INDOOR : Select this when the color temperature is between 4500°K and 8500°K.
- OUTDOOR : Sel ect this when the color temperature is between 1800°K and 10500*K.(sodium light inclusion)
* AWC -> SET : To find the optimal setting for the current luminance
environment in this mode, set the point the camera WHITE BAL MANUAL SETUP
towards a sheet of white paper and press the SET | 3 |
button. If the environment changes readjust it. inp — |
* MANUAL : Select this to fine-tune White Balance manually. END
Set White Balance first by using the ATW or AWC mode.
After that switch to MANUAL mode, fine-tune the | E ЛО оЗОО
White Balance and then press the SET button.
® NOTE + White Balance may not work properly under the following conditions. In this case select
2 the AWC mode.
1. When the color temperature of environment surrounding the subject is out of the control range
2. When the ambient illumination of the subject is dim.
3. If the camera is directed towards a fluorescent light or is installed in a place where
illumination changes dramatically, the White Balance operation may become unstable.
BACKLIGHT
This camera is designed so that it delivers a distinctive subject and background at The same time, even
when the subject is in backlight, unlike conventional cameras, By adopting a proprietary SV-IV DSP chip.
1. When the SETUP menu screen is displayed, select ‘BACKLIGHT by using the Up and Down buttons
so that the arrow indicates ‘BACKLIGHT
MAIN SETUP
WHITE BAL ATW +
BACKLIGHT OFF
MOTION DET OFF
2. Select a desired mode using the Left and Right buttons depending on the camera pupose.
* BLC : En ables a user to directly select a desired area from a picture, and to view the area more clearly.
You can select LOW, MIDDLE, HIGH, OFF
Trono E) 1099 : Display only (No output signal)
This product has a feature that allows you to observe movements of objects in 4 different areas
on the screen, and the words MOTION DETECTED appear on the screen when movement is detected:
hence a single individual can conduct supervision efficiently. The camera detects an objects movement
by sensing disparity of outline, and level of brightness and color. The camera receives detection signal
from MD output terminal.
MD SETUP
DISP ALARM OFF
AREA SEL AREA1
AREA MODE ON +!
TOP +
BOTTOM — 4
LEFT —3
RIGHT —
- Please press the SETUP button.
(1) OFF : MOTION DETECTION mode is cancelled.
(2) ON : Any motion in the selected areas is observed.
* DISP ALARM : You can select the alarm on the screen when motion detect.
* AREA SEL : You can select the area you wish to observe from the 4 area.
* AREA MODE : Determines whether to use the MD area selected in ON/OFF
« TOP/BOTTOM/LEFT/ RIGHT : You can select the boundary of MD area.
* END
MAIN SETUP
WHITE BAL ATW +
BACKLIGHT OFF
MOTION DET OFF
FOCUS +
EXPOSURE +
1. Press the SET button to access the main setup manu and
then position the indicator over FOCUS using the UP or
DOWN button.
2. Press the SET button.
* MODE : You can select the most suitable zoom mode.
Move the arrow indicator to ‘MODE’ using UP
or DOWN button.
FOCUS SETUP
MODE AUTO +
ZOOM TRK OFF
ZOOM SPEED FAST
D-ZOOM OFF
ZOOM POS INIT OFF
LENS INIT
END
(1) AUTO : Select AUTO and press the SET button to confirm.
Increase or decrease optical zoom (ZOOM) or
digital zoom (D-ZOOM) positions using the UP or
DOWN button while verifying the changes on screen.
Enabling D-ZOOM (ON) means that digital zoom will
activate once optical zoom ends. Focus is automatically
adjusted with moving zoom.
(2) ONE-PUSH : Focus is automatically adjusted just once, after
zoom position is changed. Select ONE PUSH
and press the SET button to confirm. Increase
or decrease optical zoom (ZOOM) or digital zoom
(D-ZOOM) positions using the directional buttons
while verifying the changes on screen.
Press the SET button once desired image quality
Is obtained
ZOOM POS SETUP
$ :TELE 1 : WIDE
ZOOM/FOCUS POS SETUP
$ :TELE $:WIDE
+=: NEAR =: FAR
(3) MANUAL : Select 'MANUAL' and press the SET button to
confirm. Increase or decrease optical zoom (ZOOM)
or digital zoom (D-ZOOM) positions using the
directional buttons while verifying the changes on
screen. Press the SET button on ce desired image
quality is obtained. Focus can be manually adjusted,
independent of moving zoom.
« ZOOM TRK : Use the left or right button in the ZOOM item to select ON or OFF and press SET button
to activate the zoom action focus function.
(1) ON : Zooming In while deciding or adjusting
the status of the focus.
(2) OFF : Only the zoom lens moves.
ZOOM/FOCUS POS SETUP
$ :TELE +: WIDE
a : NEAR = : FAR
FOCUS SETUP
MODE AUTO +
ZOOM TRK OFF
« ZOOM SPEED : Configure zoom tracing speed using this feature. Position the indicator over
ZOOM SPEED using the UP or DOWN button and then set to desired mode
using the LEFT or RIGHT button.
r
FOCUS SETUP
MODE AUTO +
ZOOM TRK OFF
ZOOM SPEED FAST
(1) FAST : To move zoom fast.
(2) SLOW : To move zoom slowly.
* D-ZOOM : Configure magnification limit from x2~x10 using this
feature. Position the indicator over D-ZOOM using
the UP or DOWN button. Set D-ZOOM to ÓN ano
press the SET button to confirm.
* DISP ZOOM MAÁG : You can select the zoom magnification. ON/OFF-
(1) Set ZOOM LIMIT to the desired level using the LEFT or
RIGHT button.
FOCUS SETUP
MODE AUTO +
ZOOM TRK OFF
ZOOM SPEED FAST
D-ZOOM OFF
DISP ZOOM MAG OFF
ZOOM POS INIT OFF
D-ZOOM LIMIT SETUP
MODE X2
END
« ZOOM POS INIT : Moves to the controlled ZOOM position when the power truned on and is a function of
the initial ZOOM position control.
FOCUS SETUP
MODE MANUAL +
ZOOM TRK OFF
ZOOM SPEED FAST
D-ZOOM OFF
DISP ZOOM MAG OFF
ZOOM POS INIT OFF
LENS INIT
(1) ON : If you turn the power off and on, the zoom magnification level is set to the previous level
that was set before the power went off.
ZOOM INIT POS SET
POS INIT X1
END
- MANUAL : The zoom magnification level can be set from 1x to 10x.
(2) OFF: Disabled
1. Press the SET button to access the main setup menu and then position the indicator over "EXPOSURE!
using the UP or DOWN button.
2. Press the SET button to confirm.
MAIN SETUP
WHITE BAL ATW
BACKLIGHT OFF
MOTION DET OFF
FOCUS +
EXPOSURE +
SPECIAL +
* BRIGHTNESS:
Use this feature to adjust image brightness. Position the indicator
over BRIGHTNESS using the UP or DOWN button. Then increase
or decrease brightness level using the LEFT or RIGHT button
while verifying the changes on screen. Set END once desired
level is obtained.
+ |RIS : Set IRIS to AUTO or MANUAL. Position the indicator
over 'IRIS using the UP or DOWN button and then select
the desired iris mode using the LEFT or RIGHT button.
- AUTO: The iris is automatically activated upon illumination.
- MANUAL : Manual iris configuration. Set IRIS to MANUAL
using the LEFT or RIGHT button and then press
the SET button. Increase or decrease iris level
using the LEFT or RIGHT button while verifying
the changes on screen. The range is from 0 fo 100
EXPOSURE SETUP
BRIGHTNESS |
IRIS AUTO
SHUTTER -..
IRIS MANUAL SETUP
IRIS VAL | I |
END
« SHUTTER : Control image brightness by adjusting shutter speed.
(1) Position the indicator over 'SHUTTER' using the UP or DOWN button.
Then select the desired shutter mode (A.FLK, ESC, MANUAL) using the LEFT or RIGHT button.
- A.FLK (NTSC : 1/100, PAL : 1/120) : Flicker-free mode
- ESC : Automatic shutter speed setting ("option available on select model(s) only). Auto operation
Is possible only when the IRIS is set to MANUAL.
- MANUAL : Manual shutter speed setting
EXPOSURE SETUP
BRIGHTNESS -—
AUTO
IRIS
SHUTTER ona
AGC MIDDLE
(2) It you choose ‘MANUAL, select the optimal shutter speed.
- In MANUAL mode, the optimal shutter speed needs to be
designated. Select from 1/60 to 1/120,000(NTSC) or from
1/50 to 1/120,000(PAL).* Sens-Up mode can be configured
manually (2x to 128x).
- Verify changes made to the shutter speed by referencing to
changes in on screen brightness.
(3) Press the SET button to complete.
SHUTTER MANUAL SETUP
SHUTTER VAL 1/60
END
NOTE * Image may become unstable if the camera is set to ESC mode and faces a strong
fluorescent light.
e Under ESC mode, the brightness can be adjusted using the LEFT or RIGHT button.
a
* AGC (Auto Gain Control) : For brighter images.
(1) Position the indicator over AGC using the UP or DOWN button.
(2) Set AGC to the desired mode using the LEFT or RIGHT button.
- HIGH : Wide range gain value adjustment.
- NORMAL : Normal range gain value adjustment.
- MANUAL : Selecting gain value range.(5dB~41dB)
- OFF : Disabled
EXPOSURE SETUP
BRIGHTNESS H—F-—
IRIS AUTO
SHUTTER ---
АСС NORMAL
SSNR LOW
AGC MANUAL SETUP
LEVEL 5dB
END
¢ SSNR : On screen noise reduction.
(1) Position the indicator over SSNR using the UP or DOWN button.
(2) Set 'SSNR' to the desired mode using the LEFT or RIGHT button.
- LOW : Low noise reduction
- MIDDLE : Medium noise reduction
- HIGH : High noise reduction
- OFF : Disabled
ha,
EXPOSURE SETUP
BRIGHTNESS | т
IRIS AUTO
SHUTTER ---
AGC NORMAL
SSNR LOW
SENS-UP OFF
® NOTE
* Changing 'AGC' setting from LOW to HIGH results in greater sensitivity, as well as
on screen noise.
* SENS-UP : This feature ensures clear images at night or under low lighting conditions.
(1) Position the indicator over SENS-UP using the UP or DOWN button.
(2) Set SENS-UP to the desired mode using the LEFT or RIGHT button.
- AUTO : Select this mode for use in night time or under low lighting conditions.
- OFF : Disabled
EXPOSURE SETUP
BRIGHTNESS |-— —4——
IRIS AUTO
SHUTTER …
AGC NORMAL
SSNR LOW
SENS-UP OFF
NOTE
* Once 'AUTO' mode is set, the user can configure Sens-Up limit by increasing / decreasing
the shutter speed (e.g.: X2, X4....... X32, X64, X128).
* Enabling Sens-Up increases camera sensitivity and may result in additional noise and /or
other phenomenons. This is normal.
1. Press the SET button to access the main setup menu and MAIN SETUP
then position the indicator over SPECIAL using the UP or WHITE BAL ATW <-
DOWN button. BACKLIGHT OFF
2. Press the SET button to confirm. MOTION DET OFF
FOCUS +
EXPOSURE «-
SPECIAL +
RESET
e USER PRESET Option available on select model(s) only
- Prese t user-designated configurations using this feature. Position the indicator over ‘USER PRESET
using the UP or DOWN button and then set to 'ON' using the LEFT or RIGHT button. Press the SET
button to confirm.
USER PRESET SETUP |
PRESETNO + | | (1) PRESET NO : Up to 8 preset configuratons are supported.
PRESET SAVE (2) PRESET SAVE : Save configured preset.
PRESET CLEAR (3) PRESET CLEAR : Clear configured preset.
END (4) END : Revert to the FOCUS SETUP menu.
PRESET NOT DEFINED EJ
* PRIVACY : Hide an area you want to hide on the screen.
SPECIAL SETUP
USER PRESET OFF
PRIVACY OFF
DAY/NIGHT AUTO
(1) When the SPECIAL menu screen is displayed, press the Up
and Down buttons so that the arrow indicates PRIVACY.
PRIVACY SETUP
GROUPSEL GROUPÍ
AREA SEL AREA1
AREAMODE OFF
MASK TONE J
TOP i
BOTTOM т
LEFT т
RIGHT т
(2) Setup the mode using the 4 direction buttons.
- GROUP SEL : You can select up to 8 groups.
- AREA SEL : You can select up to 4 MD areas.
- AREA MODE : Determines whether to use the area selected
in the AREA SEL, and the size and position of
the area.
- MASK TONE : Determine the transparency of selected area
as controlling number from O to 3.
- TOP / BOTTOM / LEFT / RIGHT : You can select the boundary of PRIVACY area.
- END : Select this to save the PRIVACY menu settings and
return to the SPECIAL menu.
« DAY/NIGHT : You can display pictures in color or black and white.
SPECIAL SETUP
PRIVACY OFF
DAY/NIGHT AUTO
SYNC INT
COMM ADJ
- A
(1) When the SETUP menu screen is displayed, select DAY/NIGHT by using the Up and Down buttons
so that the arrow indicates 'DAY/NIGHT".
(2) Select a desired mode using the Left and Right buttons according to the picture display you want.
- COLOR : The picture is always displayed in color.
- B/W : The picture is always displayed in black and white.
- AUTO : The mode is switched to 'Color' in a normal environment, but switches to 'B/W' mode
when ambient illumination is low. To set up the sswitching time or speed for AUTO mode,
press the SET button. (AUTO1, AUTO2)
When using a Video Auto Iris Lens, if you set the lens level to low, automatic switching
between Color and Black & White may not occur.
* You cannot control the DAY/NIGHT menu when AGC in the EXPOSURE menu is ‘OFF’.
At this time, the exchange between DAY mode and NIGHT mode operates as like selecting
‘COLOR’ mode.
* The OSD key does not work for 3 seconds when switching to Color or B/W, to ensure stable
camera operation.
* The camera may focus less well under infrared illumination than under normal illumination.
* Since the camera may not focus as well under infrared illumination at night as it does under
normal illumination, install an Extra-low Dispersion Lens to obtain sharp pictures.
* The brightness of illumination is changeable by installed environment.
* IMAGE ADJ : Includes image quality or special function factors.
SPECIAL SETUP
PRIVACY OFF
DAY/NIGHT COLOR +
COMM ADJ
IMAGE ADJ
DISPLAY
(1) When the SETUP menu screen is displayed, select IMAGE ADJ. by using the Up and Down buttons
so that the arrow indicates IMAGE ADJ.
(2) Select a desired mode using the Up and Down buttons.
- FREEZE : You can view still or moving pictures.
- H-REV : You can flip the picture horizontally on the screen.
- V-REV : You can flip the picture vertically on the screen.
- SHARPNESS : As you increase this value, the picture outline
becomes stronger and clearer.
- ON : 0-31 LEVEL
- OFF : Disabled
- COLOR GAIN : Adjusting this value affects the chroma level only;
the burst level is unaffected.
- END : evert back to the MAIN SETUP menu.
To reset your camera to factory default condition.
save and Exit : MENU
IMAGE SETUP
FREEZE OFF
H-REV OFF
V-REV OFF
SHARPNESS ON +
COLOR GAIN | a
END
SHARPNESS SETUP
LEVEL | i
END
9. SPECIFICATION
NTSC | PAL NOTE
Image Sensor 1/4" High Sensitivity CCD
CCD | Total Pixels 811(H) x 508(V) | 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) | 752(H) x 582(V)
Optics 10x, f=3.5 to 35mm F1.8
OPTICS Min. Focus Distance 1000 mm
D. ZOOM OFF/ON (Limit 10x)
Angle Field of view H: Appr. 51.2 (Wide) to 5.58 (Tele) / V : Appr. 39.3 (Wide) to 4.27 (Tele)
scanning System 2:1 Interlace
Sync. | Synchronization Internal
Frequency H:15.734KHz / V : §9.94Hz | H :15.625KHz / V : 50.00Hz
Resolution 500 TV Lines(Min.) : Color / 570 TV Lines(Min.) : B/W
Min. IIlumination 0.7 Lux / F1.6 (50 IRE) : Color / 0.06 Lux / F1.6 (50 IRE) : B/W
S/N (Y signal) 50 dB (AGC OFF, Weight ON)
Video Output CVBS (1.0Vp-p/750)
Focus AUTO / MANUAL / ONE-PUSH
Zoom Movement Speed 2.5 Sec
IRIS Control AUTO / MANUAL
Lens Initialize
Built-In
Camera Title ON / OFF
Camera ID 256 ea ID:000 -> Remote only
E Day é Night AUTO / COLOR / BWIICR) IR-Cut Filter
L Gain Control NORMAL / HIGH / MANUAL / OFF Removable
Е White Balance ATW / AWC / MANUAL (1800°K ~ 10.500°K)
C BACK LIGHT ВСС / OFF
T Shutter Speed AUTO / MANUAL / A.FLK 1/120,000sec-X128
R 0.5.0 Built-In
Motion Detection ON / OFF (4 Programmable Zone) Display only (No output signal)
C | control Output RS-485 (9600bps) 8-N-1
; SSNR LOW / MIDDLE / HIGH / OFF
privacy Function | ON/OFF (2 Zones It consists of 8 Gove
FLIP H/V / H&V [| OFF [ Selectable
PROTOCOL PELCO-D
POWER Input Voltage 24V AC (£10%) / 12V DC (£10%)
Power Consumption 6.0W (max)
Operating Temperature/Humidity -10°C to +50°C / 20% to 80% RH
Storge Temperature/Humidity -20°C to +60 C / 20% to 95% RH
Dimension 151(@) X 124(H)mm
Weight Approx. 1.5 Kg
10. TROUBLESHOOTING
IT you have trouble operating your camera, refer to the following guidelines. If the guidelines do
not help you to solve the problem, contact an authorized technician.
Nothing appears on the screen
Y Check that the power cord and line connection between the camera and monitor are fixed properly.
Y Check that you have properly connected VIDEO cable to the camera VIDEO output jack.
The image on the screen is dim
+ Is lens stained with dirt? Clean your lens with soft, clean cloth.
w Set the monitor to proper condition.
Y If the camera is exposed to too strong light, change the camera position.
Y Adjust the lens' focus properly.
The image on the screen is dark
+ Adjust the contrast feature of the monitor.
w If you have an intermediate device, set the 750 / Hi-z properly.
The camera is not working properly, and the surface of the camera is hot.
w Check that you have properly connected the camera to an appropriate power source.
The image on the screen flickers.
Y Check whether the camera is exposed to strong sunlight or fluorescent lighting.
ZUUM DOME CAMERA
DIGITAL ZDOM CAMERA SERIES
a
Ч
P/N : 3810-0226A1 [Ver.1012E) (®
Design and specifications are subject to change without notice.
a
+
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
