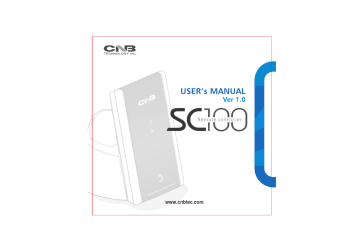

 CN
TECHNOLOGY Inc.
USER's MANUAL
Ver 1.0
SECO
IZ
www.cnbtec.com
USER's MANUAL
Ver 1.0
SCICO
A
WARNING
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONAL.
This exclamation point symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature
This lightning flash with arrowhead symbol is intended to alert the user to the presence
of un-insulated "dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
/N accompanying the appliance.
WARNING : TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE THIS CAMERA TO RAIN OR MOISTURE.
CAUTIONS
Important Safeguard
* Read all of the safety and operating instructions before using the product.
e Save these instructions for future reference.
e Do not use attachments or accessories unless recommended by the appliance manufacturer as they
may cause hazards, damage product and void warranty.
* Do not use this product near water or moisture.
* Do not place or mount this product in or on an unstable or improperly supported location.
* This product should be operated only from the type of power source indicated on the marking label.
Precautions
* Before using, make sure power supply and others are properly connected.
* While operating, if any abnormal condition or malfunction is observed, stop using the product immediately
and then contact your local dealer.
* Do not disassemble or tamper with parts inside the product.
* Do not drop or subject the product to shock and vibration as this can damage product.
* Do not install the product in areas of extreme temperature, which exceed the allowable range.
* Avoid installing in humid or dusty places.
* Avoid installing in places where radiation is present.
* Avoid installing in places where there are strong magnetic fields and electric signals.
* Avoid installing in places where the product would be subject to strong vibrations.
* Never expose the procuct to rain and water.
CONTENTS
1. INTRODUCTION 3 ---------------------m.............................….…..ererrerrererceccrcec crc ccccccccee 6
2. FEATURES secancoceneorarcararanorarcararcararcarencarariarariorercoran orar enarierercorarcorarancorencarancera 6
3. PRODUCT8ACCESSORIES ----.............e.2222000reriererreceriecececeeece recen rene 7
4. INSTALLATION -.......------------..-------mmn.ccccncncnncnccccnccccccccececec sen e seen esse sense rreee 8
1. System Connection «rrr enero ercer eranerererereacerererererereererenererene. 8
2. Connector Layout ge 9
3. Update port eaeraneroooooerrecececce reo caccacaranterariorartoreorararoorraroorarrarenercerocariorerreceniororeo 9
4. Terminal DIP Switch 3 ---.----"-->->-"--<""<-<.<.....cercecencenencenen cena cases cases cc sens 10
5. REMOTE CONTROLLER FUNCTIONS | -------------------.-................... 11
1. Remote controller exterior and it's description neorereerarenvareoeecaceccencacerrerre. 11
2. Numeric pads ---:---::-=::==10e0eeeereeneeee eee erre ene nene nenes 12
3. General control part Pe 12
4. Camera control part nesoriorerencererocarerroreorerencarareocancacancaranterantororeorareorararrererarerre 12
5. Menu control рай! | сеееееееееееснееенннененыеныеннеееннееесеееннененнннненненнеееннееенееее 12
6. Сатега setup part ›эееееееееееееененееееенененнеенннененненееененннненненннненнненное 12
6. CONTROLLER SETUP een ne ne e DD e e eee reee reee reee 15
1. Protocol setup esrrerarecocreonenercanerr ener cerarsareacarere neceser ceransarorerarenercanenereerene.. 15
2. Camera ID setup LLC TT TT CC TT TT LL 16
3. Alarm setup | ‹эеееееееееееееенннеенеененнееенннееененнеееенненнееенннееннененнеенннененнене. 16
4. Firmware version display enerooceroeceneccrmescenerocrorocroarenorceooracoecorrerrecoreaoreereceee.. 17
7. EXTERIOR --------..............................ercerrerereereneseersrrerre rer eee erece rene n crc cena 18
8. SPECIFICATIONS 3 --…............----.-.....................rcrrcrcreccccccccccccccccccnc rence 19
9, OPERATION TABLE TS 20
1 | INTRODUCTION
Introduction
* The SC100 is a dedicated CCTV controller consisting 30 keys and FND in order to directly control devices
such as speed dome camera and dome camera.
2 | FEATURES
* The SC100 is capable of commanding up to 255 devices including PTZ cameras and dome cameras.
* The RS-485 communication provides long distance remote control up to 1.2Km.
* |t supports different protocols and baudrates for each channels.
1) PelcoD(2400, 9600, 19200, 38400)
2) PelcoP(4800, 9600)
3) Samsung Electronics(9600, 19200)
4) Samsung Techwin(9600, 19200)
5) Panasonic Conventional(9600, 19200)
6) Panasonic New(9600, 19200)
7) CNB Monalisa Dome(2400)
8) CNB Zoom module(9600)
9) BOSCH(9600, 19200)
* It is able to control various kinds of functions of the devices such as Preset, Pattern, Swing, Group, etc.
* Using remote controller, can control Pan/Tilt speed of the camera.
* The SC100 can control OSD(On Screen Display) menu control of camera.
* For user's convenience, adopted four FND.
* The alarm function executed by sensor inputs.
* The SC 100 is able to upgrade using the CNB X-stick.
3 | PRODUCT & ACCESSORIES
1. Product & Accessories
5
SRR ра
| SC100 Body | Cradle | Manual | Remote controller | Protocol table sticker
- SCH 00 Body 00000000000000400004000040000408 lea
- Cradle lea
- Manual lea
- Remote comtroller eonverorccraroceoneecono ea
- Protocol table sticker —------------=--"-="- 2ea
* The power adapter is not included in this package.
* Use the following specific power Adapter.
12V
More than 100mA
4 | INSTALLATION SCC
1. System connection
PIR Sensors..ETC.
Seni Sen2 Sen
Sent Sen2 Sen
4 | INSTALLATION
2. Connector layout
SC100 POWER(+12V DC)
SC100 POWER (GND)
SENSOR POWER(+5~12V)
SENSOR INPUT 1(-)
SENSOR INPUT 2(-)
485 TX (-)
485 TX(+)
19-2 34567
3. Update port
1) The SC100 is able to upgrade using the CNB X-stick.
2) The X-stick is not included in this package.
< 7—7)
10
4 | INSTALLATION
4. Terminal DIP switch
1) Termination switch(pin 1) is used in cases listed below.
So —_
Termination switch is used in case listed below.
2) Long-distance communication between the controller and the camera (1-to-1 connection)
- When the connecting distance between the two units is especially long, communication errors may occur
due to the impedance of transmission cable. In this case, set the termination switch of both units to ON.
3) Controlling multiple cameras (Multiple connection)
- The camera may not operate correctly if multiple cameras are connected and controlled. In this case, set
the termination switch of the controller and the last connected camera to ON and the switch of other
cameras is OFF.
5 | REMOTE CONTROLLER FUNTIONS
1. Remote controller exterior and it's description
PRESET Key
Numeric Keys
CAM ID Key
Pan Tillt control
Keys
Speed keys
Focus Keys
Swing Key
MENU Key
SHIFT Key
SET Key
ZOOM Keys
IRIS Keys
Pattern Key
Group Key
fp
==
5 | REMOTE CONTROLLER FUNTIONS
. Numeric pads
The number pads used for entering camera ID or other function.
. General control part
- IRIS OPEN/CLOSE : Used to adjust iris of zoom camera function.
- ZOOM TELE/WIDE : Used for executing zoom operation of camera.
- FOCUS NEAR/FAR : Used for controlling focus when using zoom lens.
. Camera control part(Pan Tilt control)
- The pan tilt speed can control using speed button.
- TILT UP : Moves camera upwards.
- TILT DOWN : Moves camera downwards.
- PAN LEFT : Moves camera left.
- PAN RIGHT : Moves camera right.
. Menu control part
Press, then it enters into the camera OSD menu.
. Camera setup part
1) PRESET
Used when moving to preset point.
a) PRESET setting
i} Move the camera to the desired position using P/T keys or zoom keys.
ii) Enter desirde PRESET No.
- nnn
Ex) No. His e
iif) Press SHIFT button and PRESET button at the same time, then the current position will be set to
desired PRESET No.
Нл
Ex)No.1 PRESET LL. lf. 1 8 + GER
5 | REMOTE CONTROLLER FUNTIONS
b) PRESET execution
i) Enter desired PRESET No.
ME
Ex) No. 1 п... 9
ii) Press PRESET button, then the camera moves to the specified PRESET position.
CN
Ex) No.1 PRESET 1.1. 1. PRESS
2) PATTERN
It stores PTZ operation and PRESET operation patterns executed for a specified period, and allows executing
them again.
a) PATTERN setup
i) Enter desired PATTERN No.
= ar
Ex) No. Dis Q
ii) Press SHIFT button and PATT-N button at the same time, then current number will be set to desird to PATTERN No.
PRES oom
ii) Move the camera to desired position using PTZ key or camera control button.
iv) Store/Cancel the pattern using NEAR/FAR key button.(Applicable to the supported camera only)
b) PATTERN execution.
i) Enter desired PATTERN No.
Ex) No.1 PATTERN
- Fl |
EX) No. a ©
ii) Press PATT-N button, then the desired PATTERN is executed.
Но
Ex) No.1 PATTERN 1.1. alll
PR
5 | REMOTE CONTROLLER FUNTIONS
3) SWING
This function can select 2 preset positions remembered on preset setup and automatically monitor repeatedly.
a) SWING setup
i} It is possible to directly setup it within camera OSD menu. (Applicable to the supported camera only).
b) SWING execution
i} Enter desired SWING No.
arn
EX) No. mi e
ii) Press SWING button shortly, then desired SWING is executed.
Нал
Ex) No.1 SWING ml. lalo labo 11 E79
4) Group
It provides repeated sequential monitoring with specified speed and waiting time by combining PRESET,
PATTERN and SWING functions.
a) GROUP setup
i) It is possible to directly set it up within camera OSD menu. (applicable on the supported camera only)
b) GROUP execution:
i) Enter desired GROUP No.
orn
£4 No. mis O
ii) Press GROUP button shortly, then desired GROUP is executed.
НОП
Ex) No.1 GROUP И... am
6 | CONTROLLER SETUP
1. Protocol setup
The protocol can be set by specified numbers combination.
1) Enter Protocol ID using keypad.
oon
Ex) PELCO D 2400 setup 000 LI. LI. LI. Li
2) Entering.
>» Pad
3) Protocol table.
PELCO D
PELCO D
PELCO D (1
PELCO D
PELCO P
PELCO P
CNB
CNB
1
PANASONIC
PANASONIC
PANASONIC
PANASONIC
SAMSUNG
SAMSUNG
SAMSUNG
SAMSUNG ELECTRONICS (1
6 | CONTROLLER SETUP
16
Ex) CAM ID setup and protocol selection
PELCO D (2400) 01 1 + CAM key -> 880 + SET key
BOSCH (9600) 02 2 + CAM key -> 888 + SET key
CNB MONALISA (9600) 03 3 + CAM key -> 887 + SET key
2. Camera ID setup
The SC100 is capable of commanding up to 255 devices including PTZ cameras and dome cameras.
1) Enter desired CAM ID No.
arn
Ex) No. midi ©
2) Press CAM button, then desired CAM ID is set.
3) Basic FND display is CAM ID.
EEN
. Alarm setup
Alarm support 2 input sensors and if an external sensor activated, can be set to move to corresponding
preset position. This function is used to intrusion surveillance.
1) Set the corresponding preset point using SET PRESET function.(available on set preset, alternatively)
Нл
== +
Ex) No. 1 set preset 1. 0. 0. 1 g ННЕЗЕИ
2) Set the corresponding preset point using GO PRESET function and then press SET key within 4 seconds.
Нл
Ex) No. 1 go preset I... If 11. 1 © + Ca =p
within 4sec
6 | CONTROLLER SETUP
3) Selected preset can assign 1 alarm or 2 alarm using Tilt down or up key. To confirm save, press SET key.
(After 4 seconds, changed main display automatically)
non caca
+» > Г. 3.0} + @ > 200
© =H. ACC
4) Alarm deleting process is similar to “3)”. but SET key and SHIFT key must be combination.
«+» >» Ir aE EH
пола >» © © > eno
> >» NC CDE
4. Firmware version display
The SC 100 displays version when power on.
IM AM
EX) Version 1.00 LI. ALI NI
bus
7 | EXTERIOR
POWER LED(Red) CRADLE
IR STATUS LED(Green)
SEVEN-SEGMENT
BUZZER
27
S
64
69 | 98.7
ma
8 | SPECIFICATIONS
SPECIFICATIONS
SC100 BODY
POWER DC 12V, more than 100mA
FRONT CASE ABS
BACK COVER ABS
MATERIALS REMOTE HOUSING | ABS
WINDOW PC
COLOR White
SIZE W69xH 110 xD 21
WEIGHT 979
INTERFACE RS-485 2400, 4800, 9600, 19200, 38400 bps
REMOTE CONTROLLER
POWER DC 3V, AAA Size Battery
BUTTONS 30 keys
AVAILABLE DISTANCE 10M
REMOTE CONT. ABS
COVER MATERIALS
BUTTON KEYS Rubber
COLOR Silver
SIZE W 45 x H 165 x D 20
WEIGHT 739
PR
9 | OPERATION TABLE
[1~253]
[KEYPAD 1-255] + [C] Select camera © [1~99] [1-99] © © 160,175 © ©
except
[MENU] Camera OSD MENU ON | © O © O O © © ©
[MENU] Camera OSDMENUOFF| X © © © X X X ©
[SET] Alarm setup © © © © © © © ©
Protocol setup © © © © © © © ©
[KEYPAD 1-255] ; 1-64 1~128 1~99 1-198 X Zoom preset
РАЕЗЕТ] PRESET execution | [1~128] © [1-64] | [ ] | [1-99] | [ ] [1~167]
[KEYPAD 1-255] + [S] ; 8 Zoom preset
+ [PRESET] PRESET execution | [1~128] © [1~64] | [1~128] | [1~99] | [1~128] X [1167]
[KEYPAD 1-4]+[PATTN] | PATTERN execution | © © © [1-3] [1-2] © X X
[KEYPAD 1-4] + [S] . X -
+ [PATEN] PATTERN execution | © © © (m 050 [1~2] © X X
[S] + [MENU] PATTERN execution X X X X © X X X
| © © © M | na
[KEYPAD 1-8)+[SWING] | — SWING execution © (SORT) | (SORT) |(AUTO PAN) (AUTO PAN) o'r ory X X
Match Match Match Match Th
1
[KEYPAD 1-8]+[GROUP]| SWING execution © (SEQ) © (SCAN) SON) [1~6] X X
Match Match Match Match
e PEL* = PELCO D, P Protocols
* SAMS* = Samsung electronics Protocol
e PANAS* N* = Panasonic New Protocol
e PANAS* C* = Panasonic Conventional Protocol
* SAMT* = Samsung Techwin Protocol
e CNB M* = CNB Monalisa Protocol
* CNB Z* = CNB Zoom camera Protocol
520]
НА Y AS Бе
Ver 1.0
SEC
IZ
ON
SEIS
: 973 SAY ASE Llo)7| 910) HE EL Y YE ALES ojotA| DAN,
ASA МАР ДЕ HA PEZ SOLA HEEL
NA UT AA QA EFE AUAZ TONO,
39
ПГ
НГ
ПО
ra on
re
lO
HU
I
mn
o| ENE AO 71 5495 OS YA
LH SOA] LIEFLEA] E224 O2{gh BAEK]
AERtONA| E10= EA QILIEE
0x
©
НГ Mi
ro i
lord
Ho I2
©
jo HH
el
ox x
59
rio
О) ВА Ее БАРАН ЯН (E)= Stoll No =261
ALEXA FX] Al7|= ZA SLT.
où
ПГ
|= 771 Y
[| == 479 340256 YES Sp Hs] = ES
30] = ZA7]A| DA.
г
ZEHN
. M3SSFAI7| MO] OO Che: AS SE ALE9| ZA TE
- HZ SE ASS YAM AE 28M = # EfotddA
71719 AJEAERE SEA 2 SA YES ZE + YE AECA] OENAJO.
‚ОН G717 15 BoM = Е МЕ MS O
‚= SEN= YX = ZU ASS SS] FA OSO.
E NNEZ 34 Tel Ao CHA SEE LICH.
MAZA ENE
AS 5}{A[7| 0 244 4 120)
ASE SC OlISt НАЧ! Е EZ
YAM.
«HES ZoliotA| OAL HIE WES YES UA
SQ EE Lot] 9910) SATA AS Y
-ASE= E 595 2006 A0 = ASS SASHA
57| E HA 42 ZUM X= To FAN.
SAFSO| UE LOA] EXE To THAJ, FEO 73
YSt ASTON E] A S7t Y XA EXE To TAJO.
Yet Aso 7F1XI= LONA] AXE To FAN.
E ASES B| EZ =0) SE SS MIA ONO.
y
ci
Ja
Sh
SCO
1. AE 2
2.15 53
3.AlE 74
4, Ax]
6.
ce
1. ANNE AZ
2. AYE HEE
3. @Н|0|Е ЖЕ
4. loja AA
5, 9H HE 715
27 YE Y 7| MH
EA ЩЕ
de =>
oa
bli AIO
712 48
E32 На
паев На
7+ol2+ 1) 43
da 43
XHSUN-SNOUBUNS
X
CHAO BH EA
= YT
AE
2d a
Bi
JA DH
О
uE
11 HE 12
712
* SCI00S SES 7+Ajer 5 = 7HH[EF HHS 22H 2 8501 АО]
2 НО.
2271 BAZ TNE CCTV AS HEE
Lo L—o2a
CE
* 219] НЕЕ Е ECN 2557171) 7+Ol2-E= SAO HES ASE = USLICH
* R5-485 SASE 1.2Km7}{A|2] FA 2| HZ M(O17H 7H S ÉPLICt.
о 21 AEOCFHO|ISES 7 SA $5S AHELICE.
1) PelcoD(2400, 9600, 19200, 38400)
2) PelcoP(4800, 9600)
3) Samsung Electronics(9600, 19200)
4) Samsung Techwin(9600, 19200)
5) Panasonic Conventional(9600, 19200)
6) Panasonic New(9600, 19200)
7) CNB Monalisa Dome(2400)
8) CNB Zoom module(9600)
9) BOSCH(9600, 19200)
e IC MH, 29, 05 = MOUSE FH|9]| #8 7|5SE ANYS E YESLICH
| 275 0/80) 7+A2+9 TA, HE HEE NOE 5 WEL
e 7}H|Et2| OSD(On Screen Display) & {-5E EST + YSLUCE.
* FNDE %{S5}0] SC1009| SEE ALZA) EA) 205 SLICH
e NAL Y 5919 A 7|55 YU E + VÉLIE.
* EA] Y IO|=7t 7+SBILIEHCNBTEC Xstick AS)
Dt
E 4 YESA
e y
26
3 | № та
|SC100 25] | AXICH | 1179 | 27 нае ЖАН
- SC100 El 00000000000000400000000000000008 lea
- HAICH Tea
- =< Tea
- 2 2A Tea
12V
100mA 0|&
ma
2. 4YEJ HT
3. Н|0|Е ЖЕ
1) СМВТЕС®| X-stickS 850] 5С1009| 9101 @|Н|0|Е
2) ) Xstick& E20] YA ВЕН
<
“>
SC100 POWER(+12V)
SC100 POWER (GND)
SENSOR POWER(+5~12V)
SENSOR INPUT 1(-)
SENSOR INPUT 2(-)
485 TX (-)
485 TX(+)
@ = МЕН.
4, Ela AMA
1) CHEF Zo| DIP AYKX] 145 AMEN
<
— .—
SHAE Sa 22 E20 ASSL.
2) AJOJ7|2 7+a|=+S| =+1 Ao) 0tF 71 42(1:1 AS)
2 37 SA ES YE AE 0 SA SO} EST +
X|017|2t 7tlEF ArOLO| 71517t OE El ©
UELICE 0| 370 A072 7er 2 EE ES ONCE YYot0 ASIN,
3) 42] lO 7tHI2tE SAlo| HASH ALES 37
a 2 7Haler= Alo ++) Ajoj7 10 ASE 420 SA SONT} ÉSE += ASLICH 0| 390
X|0{7|2| SHAŸS ONCE So, 7hAlet SANA 7FE) OFXITO AIXISt 7 pot 102] SE
ONSE ASoHAJO, YEN 5 7ta)=t9) SEE ONCE 83 ANZ
y
ma:
5 | ый HE 7
1.271 23 Y 7 4
ad
PRESET A|0{ 7]
ZA Hof 7]
CAM ID H|of 7|
ter AJO] 7]
Speed KO] 7|
Focus KO] 7|
Swing Allo] 7|
MENU Jo] 7|
Shift 71 Hof 7|
SET AJO] 71
Zoom XI[o| 7|
IRIS AO] 71
Pattern XO] 7|
Group Allo 7|
5 | 228 HE Js
. XX E
EXI(0-9)= 0|J=04 YO 7+Al2+ IDE YSSHALE, 71E- 7152) 21330] АВ 2.
. HS XX-H
- IRIS OPEN/CLOSE : 5 7i9let9) X2712 X5% 42 ALESIL ICH
- ZOOM TELE/WIDE : 7-H2 5 =XS 4184 ALA
- FOCUS NEAR/FAR : E=21X AZ A| E4A> AJYSE 42 ALSSILI|CH
‚ ЭНН} ZA (HEHAJO] 71)
- £ENIOJ7|E A-25-0) PT£=5 AJOJE + 9 SLICHI-64)
- TILT UP : 7+Bl2h5 9Y= O|SAJZILICE,
- TILT DOWN : 7+)eh= ote O|SAJZIL|Ch,
- PAN LEFT : 7tH|2}E ESE о) БАС
- PAN RIGHT : 7}H|2tE 2522 0|SA|ZLIC}
. I A015
MENU HES +28 0SD 52 AQYSLICH ASS oa
‚ Me} 835
1) za
Te] XMOZ OSE Of ALR ELITE
a) ZA 4A
ofo
ol
I
п
го
о
an |
ax LU e
iii) SHIFTHES +E F PRESETHES SAIO) EA SH ZA 157 SE ElLICH
anno
zas (7.0.0.1. O + GEES
=
>
5 | 227 HS 71
ME
E14 2x LOLOL e
ii) PRESET HES +2 Al PRESETYALE OS LICH
orn
sou dogg, ©
Ex) 151
HE
AN 717 sot x1 24 Y TAI 21 SENS IN AZo-0] CHAJ ASNO-| SILICH,
a) {EH MF
D 22719 EX NES A-2o-01 Yol= HEI HS= QSL ICH
nnn
prie 0.0.0.0. O
ii) SHIFTZ|2t PATT-N7|& SA|0| ЕН ЩЕ HO] AE LICH
mao .
_ QE PATT-N
воля ще Dit. 1 8
ii) 2271 ASEO 7| E= 7+A|2) XXI HHES 0|£o-0 M10t= YX|= O|S=PIL|CH,
iv) 2| 272 NEAR/FAR 715 0|S6}0} МА ВНР (Даб 7-M|2t0) Steh)
b) DHE! AE
Ex) 161 47, CI. Ll. Li
1) PAT-N HES F=1 ДАН ЕЕ Не ICH
LOCA
Ex) 164 THES ГО... Ge
5 | 22: HE Js
3) AZ
Z| A oa 7194 AJ71 EAN Y] E 2715 MENotO] HOZ HAO= 7|5
a) =3 “3
i) 7+All=+ OSD A LHOJAJ LE 93 7+SSLICH (A|oh= 7+M|2t0) Steh
b) AZ HA
) 249) TA 7|E ANS 00) Ao= <4 155 YSELIC,
rn o
Ех) 14 AX НЫ
ii) SWING HES 42H AE AFS ddsLIC,
oil a
Ех) 14 29 E es
4) 15
TEA, HN, 2 7|53 So AA St 52 17 |2 НЕ 7H] Et ЖЕ Аб 715 НО.
Ex) 1H 2x} CJ. Ll. Li
i) GROUP HES += X| HE
НОП
Ex) 1H 22 JE.
ull
Г
Y
Ве @ = EU.
k
Hu
HT
H
o
mr
>
>
E
In
mijn
op
ol
2 IH
г
т
Em
т
o CI 17
Ex) PELCO D 2400 4% ^ © о CLEC)
2) 2253 ID $ SETHES == НО Эн ЕН)
MAC r
= | a. ci
3) IEEE AEH
PELCO D
PELCO D
PELCO D (1
PELCO D
PELCO P
PELCO P
CNB
CNB_
4
PANASONIC
PANASONIC
PANASONIC
PANASONIC
SAMSUNG
SAMSUNG
SAMSUNG
SAMSUNG ELECTRONICS (1
PELCO D (2400) 01 1+ CAM key -> 880 + SET key
BOSCH (9600) 02 2 + CAM key -> 888 + SET key
CNB MONALISA (9600) 03 3 + CAM key -> 887 + SET key
. 702} D43
E 25542) 7+A|2-S 1042) SCIO0S ASSf0] Al <= 91а НС.
1) EA == AHSo-01 Yoh= IDE YSL ICH
MO
6) 181 AN mit O
2) C(CAM) HES == | E| Ho} 1D7) SES ELIC.
3) FND7|E $+H2 7-M) 2) IDOILICH,
mr
СБ. п
ora MM
E 2719] YE YE Mesto] MA Y2O| US Al NTE T2IH0| SHEE 71502 HK UNO) AE
ALICE 20] SEEM 2X A271 SAE 20712) Ген ЕЕ 5e] SA BEX SS A E <= НС
1) Z2|Ml MA 7152 еб Moh= 0] ZA ALICE (set preset 7+5)
Ona
+
Бо 18! лее М Г.Н. 1. @ +
2) |8! БАН |5 МАО MJeIS+HH OE =S0-27|A(4X) SET7 |E ЕН.
anno
_ +
zas Cd OE © ou
Y
ma:
ma
2d
ol
XY
o
>
38 219/X|Z TILT UP, D
«=> H- » © > I:
4) LEAHE “3)"SE OA SHIFT_SET7|E FEA =H He 20] Ar EL
пооо ЧЕ
y» > 9.5.2.0 » в: @ +"!
> > Er
4. Hello] HH ZA]
El CIF Al FNDOJ HATO] EALEILICA.
IM AM
ex) HAo| 1.002 32 lb. 6.1.6. 1.1
OWN7|= ArEot0) MEN
Ca |
I
I
m U
Ct.
ИНН
ны
JL 2
71 MS 285
POWER LED(Red)
IR STATUS LED(Green)
SEVEN-SEGMENT
BUZZER
69
710
21
64
41
o y
8 | ME MS
SPECIFICATIONS
SC100
NES DC 12V, 100mA O| 4}
FRONT CASE ABS
A= BACK COVER ABS
REMOTE HOUSING | ABS
WINDOW PC
AHA White
37] W 69 x H 110 x D 21
TAL 97 9
=> | RS-485 2400, 4800, 9600, 19200, 38400 bps
REMOTE CONTROLLER
AS HA DC 3V, AAA Size Battery
HE7| 30 keys
[email protected]=| 10M
NE REMOTE CONT. ABS
BUTTON KEYS Rubber
Ma Silver
37| W 45 x H 165 x D 20
Al 739
ma:
[1~253]
[KEYPAD 1-255] + [C] | 7 m2 4154 © | [1-99] | [1-99] © © | 160,175 | © ©
Hel
[MENU] 7-M|=- OSD MENU ON | © © © © © © © ©
[MENU] 7HME+ OSD MENU OFF | X © © © X X X ©
YEN © © © © © © © ©
[SET]
TREE MH © © © © © © © ©
[KEYPAD 1-255] = 8 Zoom preset
PRESET PRESET 4138 [1-128)| O | [1-64] | [1-128) | [1-99] | [1-128] | X | 467]
[KEYPAD 1-255] + [S] 1-128 _ N N x Zoom preset
+ [PRESET] PRESET “33 [1-18]| © [1-64] | [1-128] | [1-99] | [1~128] X 167]
[KEYPAD 1-4)+[PATT-N] | PATTERN 4189 © © © [1~3] [1~2] © X X
[KEYPAD 1-4] +[S] 1 X 1-2 X X
+ [PATEN] PATTERN 43 © © © sport [1-2] ©
[S] + [MENU] PATTERN XZ} X X X X © X X X
© © © [1] -
[KEYPAD 1-8]+[SWING] | SWING 4184 © (SORT) | (SORT) |[(AUTO PAN)|(AUTO PAN) ет о) X X
Match Match Match Match Do
[1]
[KEYPAD 1-8]+[GROUP] | GROUP 48H O (SEQ) (SEQ) | (SCAN) | (SCAN) | [1-6] X X
Match Match Match Match
e PEL* = PELCO D, P Protocols e SAMT* = Samsung Techwin Protocol
e SAMS* = Samsung electronics Protocol
e PANAS* N* = Panasonic New Protocol
e PANAS* C* = Panasonic Conventional Protocol
e CNB M* = CNB Monalisa Protocol
e CNB Z* = CNB Zoom camera Protocol
y
Remote controller
| Design and specificatins are subject to change without notice.
3810-0231A (Ver.1009)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
