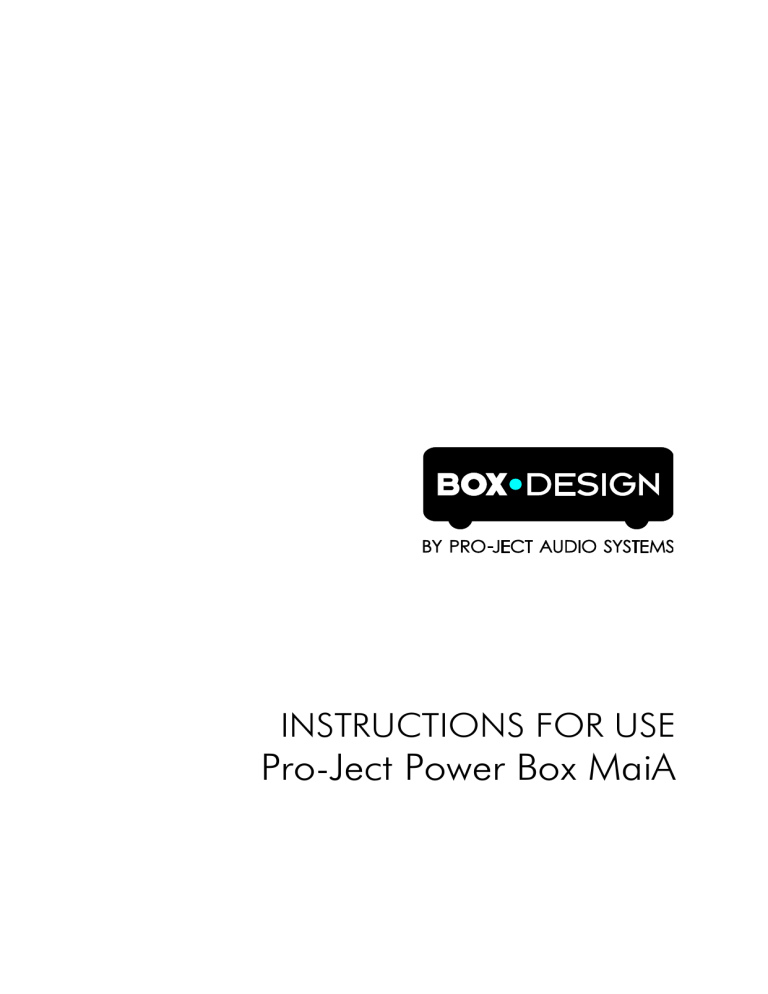

INSTRUCTIONS FOR USE
Pro-Ject Power Box MaiA
Dear music lover,
Thank you for purchasing a Pro-Ject Audio Systems Power Box MaiA.
In order to achieve maximum performance and reliability you should study these instructions for use carefully.
!
Warning of a hazard for the user, the unit or possible misuse
Important notice
Safety instructions
!
AC outlet voltages vary from country to country. Before connecting to the mains, make sure that the
voltage in your area meets the voltage requirements printed on the device.
Never handle the device while your hands are wet or damp. Avoid letting liquids enter the device.
Never place any item containing liquid, such as a flower vase on or near the device. Never spill any
liquid on the device. Never place any naked flame sources, such as lighted candles on or near the device.
The product shall not be used in damp or wet locations, next to a bathtub, sink, swimming pool or any
other similar conditions.
Using the product
Power Box MaiA is designed to power MaiA integrated amplifier and a wide range of other DC-powered
products from Pro-Ject Audio Systems.
!
Make all connections whilst the Power Box MaiA is switched off or disconnected from the mains.
Interconnection cables are included in the packaging. Original power supplies are no longer
required.
In case of any doubts consult user manuals of all connected products or ask your dealer.
9V output : CD Box S, DAC Box S FL, DAC Box S USB, Media Box S, Stream Box DSnet, Bluetooth Box S.
18V output : Most of the rest of products except of power amplifiers, integrated amplifiers & receivers.
15V turntable output : All of Pro-Ject DC-powered turntables.
20V output : MaiA (alternatively also Receiver Box S, Amp Box S, Stereo Box S, Stereo Box S phono Pr)
2
© Pro-Ject Audio Systems · Pro-Ject Power Box MaiA · Revision 2015.7.21
Main power switch
The toggle switch turns the unit on or off. The blue LED above the switch shows that the unit is switched on.
Technical specifications Pro-Ject Power Box MaiA
Output voltage / current (socket diameter):
Dimensions W x H x D:
Weight:
2x 9V/2A (1,8mm), 1x 18V/1A(2,5mm), 1x 15V(2,1mm),
1x 20V/3A
203 x 72 x 207 mm
3850 g
Service
Should you encounter a problem which you are not able to alleviate or identify despite the above information,
please contact your dealer for further advice. Only when the problem cannot be resolved there should the
unit be sent to the responsible distributor in your country.
Warranty
The manufacturer accepts no responsibility for damage caused by not adhering to these instructions
for use. Modification or change to any part of the product by unauthorized persons, release the
manufacturer from any liability over and above the lawful rights of the customer.
Copyright, trademarks
Pro-Ject Audio Systems is a Registered Trademark of
H. Lichtenegger.
This guide was produced by: Pro-Ject Audio Systems
Copyright © 2015. All rights reserved.
The information was correct at the time of going to
press. The manufacturer reserves the right to make
changes to the technical specification without prior
notice as deemed necessary to uphold the ongoing
process of technical development.
© Pro-Ject Audio Systems · Pro-Ject Power Box MaiA · Revision 2015.6721
3
