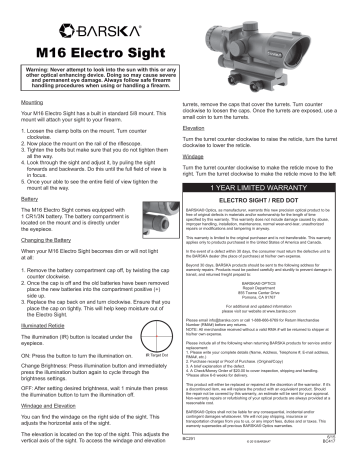

M16 Electro Sight
Warning: Never attempt to look into the sun with this or any
other optical enhancing device. Doing so may cause severe
and permanent eye damage. Always follow safe firearm
handling procedures when using or handling a firearm.
Mounting
Your M16 Electro Sight has a built in standard 5/8 mount. This
mount will attach your sight to your firearm.
1. Loosen the clamp bolts on the mount. Turn counter
clockwise.
2. Now place the mount on the rail of the riflescope.
3. Tighten the bolts but make sure that you do not tighten them
all the way.
4. Look through the sight and adjust it, by puling the sight
forwards and backwards. Do this until the full field of view is
in focus.
5. Once your able to see the entire field of view tighten the
mount all the way.
turrets, remove the caps that cover the turrets. Turn counter
clockwise to loosen the caps. Once the turrets are exposed, use a
small coin to turn the turrets.
Elevation
Turn the turret counter clockwise to raise the reticle, turn the turret
clockwise to lower the reticle.
Windage
Turn the turret counter clockwise to make the reticle move to the
right. Turn the turret clockwise to make the reticle move to the left
1 YEAR LIMITED WARRANTY
Battery
ELECTRO SIGHT / RED DOT
The M16 Electro Sight comes equipped with
1 CR1/3N battery. The battery compartment is
located on the mount and is directly under
the eyepiece.
BARSKA® Optics, as manufacturer, warrants this new precision optical product to be
free of original defects in materials and/or workmanship for the length of time
specified by this warranty. This warranty does not include damage caused by abuse,
improper handling, installation, maintenance, normal wear-and-tear, unauthorized
repairs or modifications and tampering in anyway.
Changing the Battery
This warranty is limited to the original purchaser and is not transferable. This warranty
applies only to products purchased in the United States of America and Canada.
When your M16 Electro Sight becomes dim or will not light
at all:
In the event of a defect within 30 days, the consumer must return the defective unit to
the BARSKA dealer (the place of purchase) at his/her own expense.
1. Remove the battery compartment cap off, by twisting the cap
counter clockwise.
2. Once the cap is off and the old batteries have been removed
place the new batteries into the compartment positive (+)
side up.
3. Replace the cap back on and turn clockwise. Ensure that you
place the cap on tightly. This will help keep moisture out of
the Electro Sight.
Illuminated Reticle
The illumination (IR) button is located under the
eyepiece.
ON: Press the button to turn the illumination on.
Change Brightness: Press illumination button and immediately
press the illumination button again to cycle through the
brightness settings.
OFF: After setting desired brightness, wait 1 minute then press
the illumination button to turn the illumination off.
Windage and Elevation
You can find the windage on the right side of the sight. This
adjusts the horizontal axis of the sight.
The elevation is located on the top of the sight. This adjusts the
vertical axis of the sight. To access the windage and elevation
Beyond 30 days, BARSKA products should be sent to the following address for
warranty repairs. Products must be packed carefully and sturdily to prevent damage in
transit, and returned freight prepaid to:
BARSKA® OPTICS
Repair Department
855 Towne Center Drive
Pomona, CA 91767
For additional and updated information
please visit our website at www.barska.com
Please email [email protected] or call 1-888-666-6769 for Return Merchandise
Number (RMA#) before any returns.
NOTE: All merchandise received without a valid RMA # will be returned to shipper at
his/her own expense.
Please include all of the following when returning BARSKA products for service and/or
replacement:
1. Please write your complete details (Name, Address, Telephone #, E-mail address,
RMA#, etc.)
2. Purchase receipt or Proof of Purchase. (Original/Copy)
3. A brief explanation of the defect.
4. A Check/Money Order of $20.00 to cover inspection, shipping and handling.
*Please allow 6-8 weeks for delivery.
This product will either be replaced or repaired at the discretion of the warrantor. If it's
a discontinued item, we will replace the product with an equivalent product. Should
the repair not be covered by this warranty, an estimate will be sent for your approval.
Non-warranty repairs or refurbishing of your optical products are always provided at a
reasonable cost.
BARSKA® Optics shall not be liable for any consequential, incidental and/or
contingent damages whatsoever. We will not pay shipping, insurance or
transportation charges from you to us, or any import fees, duties and or taxes. This
warranty supersedes all previous BARSKA® Optics warranties.
BC291
© 2015 BARSKA®
6/15
BC417
