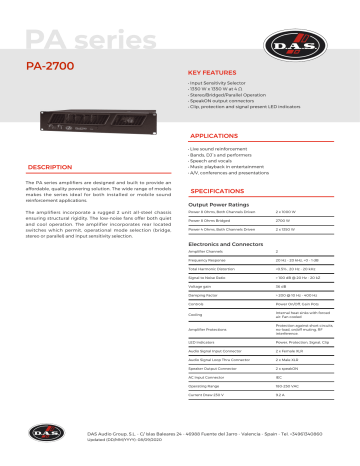

DAS PA-2700 Datasheet

DAS PA-2700 Datasheet
KEY FEATURES
· Input Sensitivity Selector
· 1350 W x 1350 W at 4 Ω
· Stereo/Bridged/Parallel Operation
· SpeakON output connectors
· Clip, protection and signal present LED indicators
APPLICATIONS
· Live sound reinforcement
· Bands, DJ´s and performers
· Speech and vocals
· Music playback in entertainment
· A/V, conferences and presentations
DESCRIPTION
The PA series amplifiers are designed and built to provide an
affordable, quality powering solution. The wide range of models
makes the series ideal for both installed or mobile sound
reinforcement applications.
The amplifiers incorporate a rugged 2 unit all-steel chassis
ensuring structural rigidity. The low-noise fans offer both quiet
and cool operation. The amplifier incorporates rear located
switches which permit, operational mode selection (bridge,
stereo or parallel) and input sensitivity selection.
SPECIFICATIONS
Output Power Ratings
Power 8 Ohms, Both Channels Driven
2 x 1000 W
Power 8 Ohms Bridged
2700 W
Power 4 Ohms, Both Channels Driven
2 x 1350 W
Electronics and Connectors
Amplifier Channels
2
Frequency Response
20 Hz - 20 kHz, +0 - 1 dB
Total Harmonic Distortion
<0.5% , 20 Hz - 20 kHz
Signal to Noise Ratio
> 100 dB @ 20 Hz - 20 kZ
Voltage gain
36 dB
Damping Factor
> 200 @ 10 Hz - 400 Hz
Controls
Power On/Off, Gain Pots
Cooling
Internal heat sinks with forced
air: Fan cooled
Amplifier Protections
Protection against short circuits,
no-load, on/off muting, RF
interference.
LED Indicators
Power, Protection, Signal, Clip
Audio Signal Input Connector
2 x Female XLR
Audio Signal Loop Thru Connector
2 x Male XLR
Speaker Output Connector
2 x speakON
AC Input Connector
IEC
Operating Range
180-250 VAC
Current Draw 230 V
9.2 A
DAS Audio Group, S.L. - C/ Islas Baleares 24 - 46988 Fuente del Jarro - Valencia - Spain - Tel. +34961340860
Updated (DD/MM/YYYY): 08/09/2020
Dimensions-Weight
Dimensions ( H x W x D )
88 x 482 x 294 mm
3,5 x 19,0 x 11,6 in
Net Weight
19,5 kg ( 43,0 lb )
Shipping
Carton Dimensions ( H x W x D )
160 x 580 x 540 mm
6,3 x 22,8 x 21,3 in
Shipping Weight
19,0 kg ( 41,8 lb )
ORDERING INFORMATION
Performance
Model
Description
P/N
System
PA-2700
10717130
DIMENSIONS
DAS Audio Group, S.L. - C/ Islas Baleares 24 - 46988 Fuente del Jarro - Valencia - Spain - Tel. +34961340860
Updated (DD/MM/YYYY): 08/09/2020
