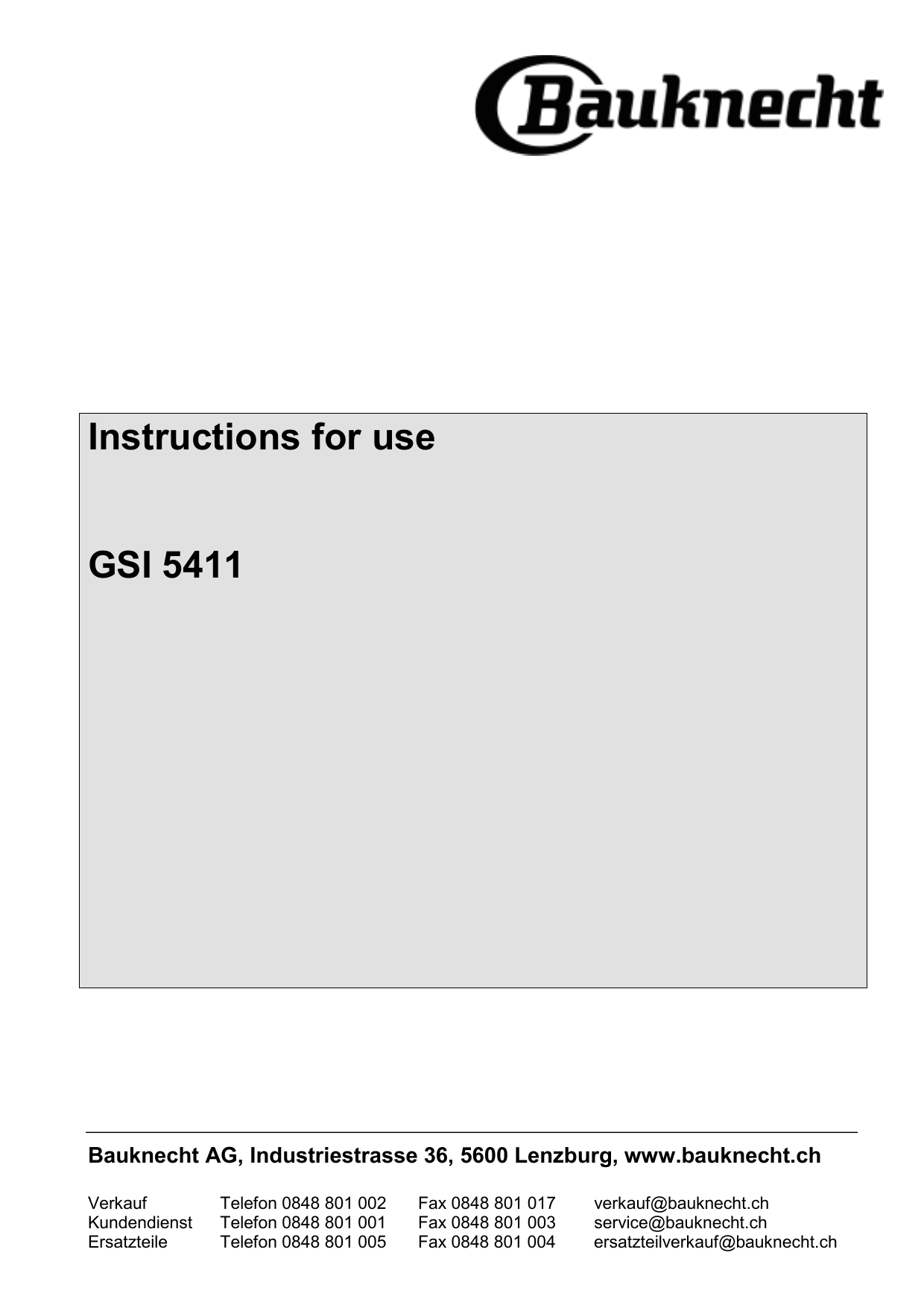

Bauknecht GSI 5411 Owner Manual

Instructions for use
GSI 5411
Bauknecht AG, Industriestrasse 36, 5600 Lenzburg, www.bauknecht.ch
Verkauf
Kundendienst
Ersatzteile
Telefon 0848 801 002
Telefon 0848 801 001
Telefon 0848 801 005
Fax 0848 801 017
Fax 0848 801 003
Fax 0848 801 004
[email protected]
[email protected]
[email protected]
Before using the dishwasher, read the user instructions!
GB
Quick Reference Guide
GSI 5411
Programme selector knob
On / Off button
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the
programme.
Indicators
Add regeneration salt
Only add regeneration salt immediately
before starting a wash programme.
Programme chart
Programmes
1)
2)
Detergent 2)
Loading instructions
Consumption 3)
A
B
Litres
kWh
Minutes
-
-
5.0
0.02
10
Pre-Rinse
cold
Rapid 30 min
soiled crockery, with no
40°C Lightly
dried-on food.
X
-
13.0
0.70
30
Standard 1)
50°C Normally soiled crockery.
X
X
16.0
1.05
160
Intensive
soiled crockery, especially
70°C Heavily
pots and pans.
X
X
17.0
1.90
135
Crockery to be washed later.
Reference programme for energy label in compliance with
EN 50242 regulations;
Refer to “User instructions”;
3)
Program data obtained in conformity with European
standard EN 50242. Values may vary in relation to usage,
e.g.: different loads, water temperatures - above or below
15°C - as well as water hardness and power supply
voltage, etc.
Important information for Test Laboratories:
For detailed information on the EN/Standard loading comparison test, contact the following address:
“[email protected]”.
5019 496 90420
(We reserve the right to make technical modifications)
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
Press the ON / OFF button.
Compartment A:
Fill the detergent dispenser
A
With each wash cycle.
BC
Compartment B:
For programmes with pre-wash only.
Check the rinse aid level
Check the
regeneration salt level
Load the racks
Mechanical indicator lamp C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator lamp D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Close the dishwasher door,
turn on the water tap
Select a programme
Select additional options
The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.
If necessary (and if provided).
The corresponding indicator lamp lights up.
“Change programme in progress”
Wash cycle
Press the Start button
Switch off the appliance
Turn off the water tap,
unload the racks
The selected programme is
then memorised (even in the
event of power failure).
Press the START button for 2 sec. until the
Start indicator lamp switches off.
Select another programme and press the
START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
Only after the START button has switched off: Press the ON / OFF button.
All the indicator lamps switch off.
Warning: When the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
Dishwasher loading instructions and racks provided
depending on the model
Upper rack:
B
Crockery holder (A):
Depending on the position, for long-handles utensils,
cups and plates.
Glass holder (B):
Long-stemmed glasses.
Long-handled utensils (e.g. carving forks, knives)
must be arranged with the sharp end facing in
towards the appliance.
A
Half Load:
C
Load the upper rack only. Place the cutlery basket (C),
if provided, in the upper rack.
D
Rack height adjustment (also when loaded):
Pull the two rack handles
(D) outwards and lower
the rack.
Pull the two rack handles
(D) upwards until the rack
Upper adjustment:
clicks into place (factory
setting).
The rack must be level on both sides.
Lower adjustment:
D
Retainer
closed
Retainer
open
Removing the top rack to provide clearance for
large items of crockery in the bottom rack:
Open the rack guide retainers (E) on the right and left
and remove the top rack.
When the upper rack is in place the retainers must
always be closed.
E
E
Lower rack:
Depending on the model
with fixed or tilting plate
holders (F).
Half Load:
Load the lower rack only.
Greater washing power,
particularly for plates and
saucepans.
F
F
Cutlery basket (G):
Grid (H) to keep items separate.
Sharp knives and forks that might cause injury
must be placed in the cutlery basket with the
sharp end facing downwards.
H
G
C
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for
washing in a dishwasher, for example wooden items, aluminium, tin, hand-decorated crockery
(unglazed), silver cutlery.
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see
also the corresponding chapter in the user instructions).
Problem
The appliance is not
working
If crockery is not
perfectly dry
If crockery is not
perfectly clean
Cause
Remedy
• No water supply.
• Open the tap.
• The appliance does not load sufficient
water.
• Clean the water supply tap filter.
• Ensure there are no kinks in the water hose.
• There is a power failure.
•
•
•
•
• Starting the selected programme.
• The programme can be set to “0” to start.
• Insufficient rinse aid.
• Increase dosage *.
• Residual water in cavities.
• Load crockery at an angle.
• The water jet does not reach the
crockery.
• Arrange crockery so that items do not touch each
other. Load crockery upside down.
• Insufficient detergent.
• Follow recommended detergent dosage.
• Unsuitable programme.
• Select a more intense wash cycle.
• Spray arms blocked.
• The spray arms must be able to turn freely.
• Spray arm nozzles clogged.
• Remove any impurities obstructing the water flow *.
Insert the plug into the mains socket.
Press the Start button.
Close the door.
Check the safety circuit breaker.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
Sandy or grainy
residues
Colour of plastic parts
faded
• Clogged filters.
• Check filters regularly/if necessary clean *.
• Filters incorrectly assembled.
• Insert the filter correctly *.
• Tomato/carrot juice, ...
• Depending on the material, if necessary use a
detergent with a greater whitening power.
• Streaks on the crockery/glasses.
• Increase the rinse aid dosage *.
• Streaks on glasses.
• Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses.
• Close the salt container lid properly *.
• Insufficient water softening, calcium
deposits.
• Change water hardness setting, if necessary add salt *.
Deposits on crockery
• Removable
• Not removable
Opaque glasses/ glasses • Cannot be washed in the dishwasher.
not sparkling
• Use suitable glasses.
Rust on cutlery
• Not made of stainless steel.
• Use suitable cutlery.
Identifying appliance
faults
• The START indicator lamp flashes.
• Indicator F... (if provided).
• Ensure the filter assembly is not clogged and that
there is no interruption to the water supply
(if necessary, clean the filters *). Start the programme
again. Press the START button for 2 seconds, until the
START indicator lamp switches off. Select a new
programme and press the Start button again.
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water
supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault
• The appliance type and model
• The service code (the number indicated on the adhesive rating plate)
inside the door on the right-hand side.
.
INSTRUCTIONS FOR USE
BEFORE USING THE DISHWASHER/CONNECTIONS
ELECTRICAL CONNECTION
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
HOW TO FILL THE SALT CONTAINER
HOW TO FILL THE RINSE AID DISPENSER
HOW TO FILL THE DETERGENT DISPENSER
CARE AND MAINTENANCE
11
BEFORE USING THE DISHWASHER/CONNECTIONS
1. Removing the packaging and controls:
After unpacking, make sure that the dishwasher is
undamaged and that the door closes correctly. If in
doubt, contact a qualified technician or your local
retailer.
• Keep the packaging materials (plastic bags,
polystyrene parts, etc.) out of reach of children, as
they are potentially dangerous.
• This dishwasher has been factory tested to ensure
it functions correctly.
Such testing may leave slight water marks that will
disappear with the first wash.
2. Water and electrical connections:
All water and electrical connections must be
carried out by a qualified technician in compliance
with the manufacturer's instructions (refer to the
enclosed installation booklet) and current local
safety regulations.
The appliance must only be used in the household
for the prescribed uses.
Do not use the dishwasher if it has been damaged
in transit. Consult your local retailer or our
After-Sales Service.
(Refer to the separate installation
instructions booklet)
3. Water inlet and drain:
• Observe any special regulations issued by your local
Water Board.
Water supply pressure: 0.3 - 10 bar.
• Make sure the inlet and drain hoses are kink-free
and are not crushed.
• If the hose length is not sufficient, please contact
your local dealer or our After-Sales Service.
• The inlet hose must be securely clamped to the
water tap to prevent leaks.
• The inlet water temperature varies according to
the model installed. Inlet hose marked “25°C Max”:
maximum temperature 25°C.
All other models: maximum temperature 60°C.
• When installing the appliance, make sure the drain
water discharges correctly (if necessary, remove
the wire gauze from the sink siphon).
• Fix the drain hose to the spigot with a clamp to
prevent it from coming off during operation.
For appliances with water-stop system only: If the
water connections are made correctly, the waterstop system safeguards your home against damage
caused by flooding.
12
4. Electrical connection:
• Closely adhere to local Electricity Board
regulations.
• Voltage information is shown on the rating plate
mounted inside the door on the right hand side.
• The appliance must be earthed as prescribed by law.
• Do not use extension leads or multiple adapters.
• Before carrying out maintenance, disconnect the
mains plug.
• If necessary, the power cable may be replaced with
one the same obtained from our After-Sales
Service. The power cable must only be replaced by
a qualified technician.
Warning for models provided with LCD
display:
The mains plug must be positioned in an easily
accessible place.
• For Austria: if the apparatus is series connected to
a fault current switch, this must be sensitive to the
pulsating current.
ELECTRICAL CONNECTION
1) For Great Britain only
Warning - this appliance must be earthed
Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A 13amp
fused plug, to change a fuse in this type of plug use an A.S.T.A.
approved fuse to BS 1362 type and proceed as follows:
1. Remove the fuse cover (A) and fuse (B).
2. Fit replacement 13A fuse into fuse cover.
3. Refit both into plug.
Important:
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
2) For the Republic of Ireland only
The information given in respect of Great Britain will frequently
apply, but a third type of plug and socket is also used, the
2-pin, side earth type.
3) Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet, please contact
Whirlpool Service for further instruction. Please do not attempt to
change plug yourself. This procedure needs to be carried out by a
qualified Whirlpool technician in compliance with the manufactures
instructions and current standard safety regulations.
13
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
1. Packing:
The packing box may be fully recycled as
confirmed by the recycling symbol
.
2. Energy and water saving tips:
• Do not rinse crockery under running water.
• Always fully load the dishwasher before switching
on or set the wash programme to half load/
Multizone (if available) if one rack only is loaded.
• If ecological energy sources are available such as solar
panel heating, heat pumps or centralised heating
systems, the appliance may be connected to the hot
water mains up to a maximum temperature of 60°C.
Make sure the water inlet hose is of the correct type.
Refer to the “Connections” chapter in these user
instructions.
3. Disposal:
The appliance is built from reusable materials. If
you decide to scrap the dishwasher, it must be
disposed of in compliance with local waste disposal
laws.
Before scrapping, cut off the power cable so that
the appliance cannot be connected to the mains.
• To prevent situations of potential danger to
children (e.g. danger of suffocation), break the lock
of the door so that it can no longer be closed.
4. Child safety:
• Children must not be allowed to play with the
dishwasher.
• Store the detergent, rinse aid and salt in a dry place
out of the reach of children.
5. Safety warnings:
• The open dishwasher door can only support the
weight of the loaded rack when pulled out. Do not
rest objects on the open door or sit or stand on it:
the appliance may topple over!
• Do not use solvents inside the dishwasher: risk of
explosion!
• Sharp knives and forks that might cause injury must
be placed in the cutlery basket with the sharp end
facing downwards.
Long-handled utensils must be arranged
horizontally in the upper rack, with the sharp end
facing away from the front of the appliance.
• Before cleaning or carrying out maintenance,
switch off the appliance, disconnect the mains plug
and turn off the water tap.
14
• If a fault occurs, switch off the appliance and turn off
the water tap.
• On completion of the programme switch off the
dishwasher and turn off the water tap.
• Repairs and technical modifications must be carried
out exclusively by a qualified technician.
• The water in the dishwasher is not potable.
• Do not store inflammable liquids near the
dishwasher.
• Do not operate the appliance in the open air.
6. Resistance to frost
If the appliance is placed in surroundings exposed
to the risk of frost, it must be drained completely.
Turn off the water tap, remove the flexible inlet
and outlet hoses, and let all the water run out.
7. For appliances with water stop system:
The water inlet hose and plastic casing contain
electrical components. Do not therefore cut the
hose or immerse the plastic casing in water. If the
hose is damaged switch off the appliance
immediately.
8. The appliance must be used at temperatures
between 5°C and 45°C.
EC Declaration of conformity
This appliance has been designed, constructed and
distributed in compliance with the safety
requirements of EC Directives:
• 73/23/EEC
• 89/336/EEC
• 93/68/EEC
Load capacity:
12 place settings.
HOW TO FILL THE SALT CONTAINER
From a water hardness category of 1–2 (medium), before using the
dishwasher, fill the salt container with regeneration salt (to find out the
hardness level of water in your area, contact your local Water Board or
check the last bill you received).
If the water hardness level does not correspond to position 3 (factory
setting) or if the water hardness level changes:
Set the water hardness level (for dishwashers without water
hardness sensor only):
Setting must be carried out according to the following table.
• Switch on the appliance (consult the quick reference guide).
• Select programme 2 (consult the programme chart in the quick
reference guide).
• Press the Start button for at least 5 seconds until the Start indicator lamp
blinks.
• The “Start indicator lamp” blinks or the digital display lights up according to
the water hardness level selected (chart, setting...).
• With each successive touch of the Start button the setting increases and
when it reaches 7 it returns to 1 again.
• Switch off the appliance (consult the quick reference guide).
The selected setting is now memorized.
mmol/l
Clarke scale
or English
degrees
°eH
Setting
blinking
frequency
(1x-7x)
or digital display
(1-7)
0-9
10 - 18
19 - 27
28 - 37
38 - 50
51 - 63
0 - 0.9
1.0 - 1.8
1.9 - 2.7
2.8 - 3.7
3.8 - 5.0
5.1 - 6.3
0 - 6.3
7 - 12.6
13.3 - 18.9
19.6 - 25.9
26.6 - 35
35.7 - 44.1
1
2
3
4
5
6
64 - 107
6.4 - 10.7
44.8 - 74.9
7
Hardness
level
German
degrees
French
degrees
°dH
°fH
1 soft
1 - 2 medium
2 average
3 medium-hard
4 hard
4 very hard
4 extremely
hard
0-5
6 - 10
11 - 15
16 - 21
22 - 28
29 - 35
36 - 60
Settings for dishwashers without
water hardness sensor only.
In appliances provided with a water
hardness sensor, the setting is
automatically executed.
If the water hardness level falls within
category 1 (soft), no salt is required.
How to fill the salt container
Warning: Only use regeneration salts for use in domestic dishwashers!
Do not fill the salt container with unsuitable substances, such as detergent,
as this will cause irreparable damage to the water softener system.
1. Remove the lower rack.
2. Unscrew the cap by turning it counter-clockwise.
3. When first using the dishwasher: fill the salt container to the rim with water.
4. Fill the salt container to the rim with salt (using the filler provided)
(when filling for the first time use min. 1.5 kg and max. 2 kg) and stir
with a spoon handle.
5. Screw the cap back on by turning it clockwise.
6. Fit the lower rack.
7. If regeneration salt is to be added, immediately start a wash
programme (rinsing alone is not sufficient) in order to eliminate any
residual saline solution straight away and avoid corrosion.
Salt level indicator
The dishwasher is equipped with an electric or visual salt level indicator
(depending on the model installed).
Electric indicator
The salt level indicator lamp on the control panel lights up when the salt
container is empty.
Visual indicator
The float is clearly visible in the cap window when the salt container is full.
The float lowers and is no longer visible when the salt container is empty.
15
HOW TO FILL THE RINSE AID DISPENSER
The rinse aid facilitates drying and prevents the formation of unsightly
spots and streaks on crockery. Before using the dishwasher for the
first time, fill the rinse aid dispenser. Only use rinse aids recommended
for use in domestic dishwashers.
1. Press button A to open the cover (see drawing).
2. Fill the dispenser with rinse aid up to the dotted line
(about 100 ml maximum).
Immediately wipe away any rinse aid spilt accidentally! This prevents
the formation of excess suds which may spoil washing results.
3. Close the cover.
Thereafter, regularly check the rinse aid level.
How to adjust the rinse aid dosage regulator
Factory setting: Position 4.
If you are not satisfied with washing or drying results, change the rinse
aid dosage setting.
1. Press button A to open the cover (see drawing).
2. If crockery is prone to whitish streaks: reduce the dosage by
turning the dial to a lower setting (1-3) using a coin or the like. If
crockery is not perfectly dry: increase the dosage by turning the
dial to a higher setting (5-6).
3. Close the cover.
Rinse aid level indicator:
Visual indicator:
add rinse aid
light
sufficient rinse aid.
dark
Electric indicator (if provided):
The indicator lamp on the control panel lights up when more rinse aid
needs to be added.
16
A
HOW TO FILL THE DETERGENT DISPENSER
Only use detergents recommended for use in domestic dishwashers.
Only fill the detergent dispenser prior to starting a wash
programme (see the Quick Reference Guide).
C
1. Press button C to open the cover.
2. How to fill the detergent dispenser.
A
B
• Programmes with pre-rinse:
-
-
Powder and/or liquid detergent:
pour two thirds of the recommended dosage into the
compartment (A);
pour one third into the compartment (B).
Tablets:
place a tablet in the compartment (A) and/or follow the
directions on the detergent pack.
• Programmes without pre-rinse:
-
Powder and/or liquid detergent, tablets:
pour the entire recommended dosage into the compartment
(A).
• For programmes with additional “Half load/Multizone” function
selected (if provided):
-
When using powder or liquid detergent the dosage can be
reduced by 1/3.
3. Close the cover.
Detergent
Use good quality liquid or powder dishwasher detergents and/or
tablets (do not use hand dishwashing detergents).
In order to safeguard the environment, follow the manufacturer's
directions for use. Do not use more than the amount of detergent that
is recommended. Observe the manufacturer's safety warnings.
Keep these products out of reach of children.
If you use detergents in tablet form, follow the manufacturer's
directions for use.
If you use multi-action dishwasher detergents that incorporate rinse
aid and regeneration salt, follow the directions below:
• products that incorporate the rinse aid enhance the detergent
action only with some programs.
• products that do not require using regeneration salt may be
used only in areas with specific water hardness level.
Read the product user instructions carefully. If in doubt, contact the
detergent manufacturer.
The guarantee is not applicable if faults are caused by the use of these
products.
17
CARE AND MAINTENANCE
Before cleaning or carrying out maintenance, switch off the appliance,
disconnect the mains plug and turn off the water tap.
Cleaning the outside of the appliance:
To clean the outside of the appliance, use a neutral detergent and a
damp cloth.
Clean the control panel with a damp cloth only.
Do not use abrasive detergents.
Cleaning the inside of the dishwasher:
Regularly wipe the door seal and inside of the door with a damp cloth
to remove any food residue.
Upper spray arm:
1. Slacken the fixing nut (A) (by turning it counter-clockwise) and
detach the spray arm (B) by pulling it down.
2. Rinse the nozzles.
3. To remount the spray arm, align it and then tighten the fixing nut
(by turning it clockwise), paying attention not to bend it.
The fixing nut must be tightened until it clicks!
A
B
Make sure the spray arm rotates freely.
Lower spray arm:
1. Slacken the fixing nut (C) (by turning it counter-clockwise) and
detach the spray arm (D) by pulling it upwards.
2. Rinse the nozzles.
3. To remount the spray arm, align it and then tighten the fixing nut
(by turning it clockwise), paying attention not to bend it.
The fixing nut must be tightened until it clicks.
Make sure the spray arm rotates freely.
18
D
D
C
CARE AND MAINTENANCE
E
Cleaning the filters
1. Rotate the microfilter counter-clockwise (in the direction of the
arrow “0”) and extract it (E).
2. Remove the wide-mesh filter (F).
3. Remove the fine-mesh filter (G).
4. Clean all filters under running water, paying attention not to bend
the fine-mesh filter.
Check that no impurities are left inside the dishwasher!
5. To reassemble:
insert the wide-mesh filter into the microfilter so it clicks into
place. Insert the fine-mesh filter.
The filter must be fitted under both tabs (H).
Insert the wide-mesh filter / microfilter unit and turn clockwise
(in the direction of the arrow “1”), until the dashed lines on the
microfilter and fine-mesh filter are aligned.
F
The filter unit must be correctly assembled to ensure good
wash results!
G
H
19

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF
