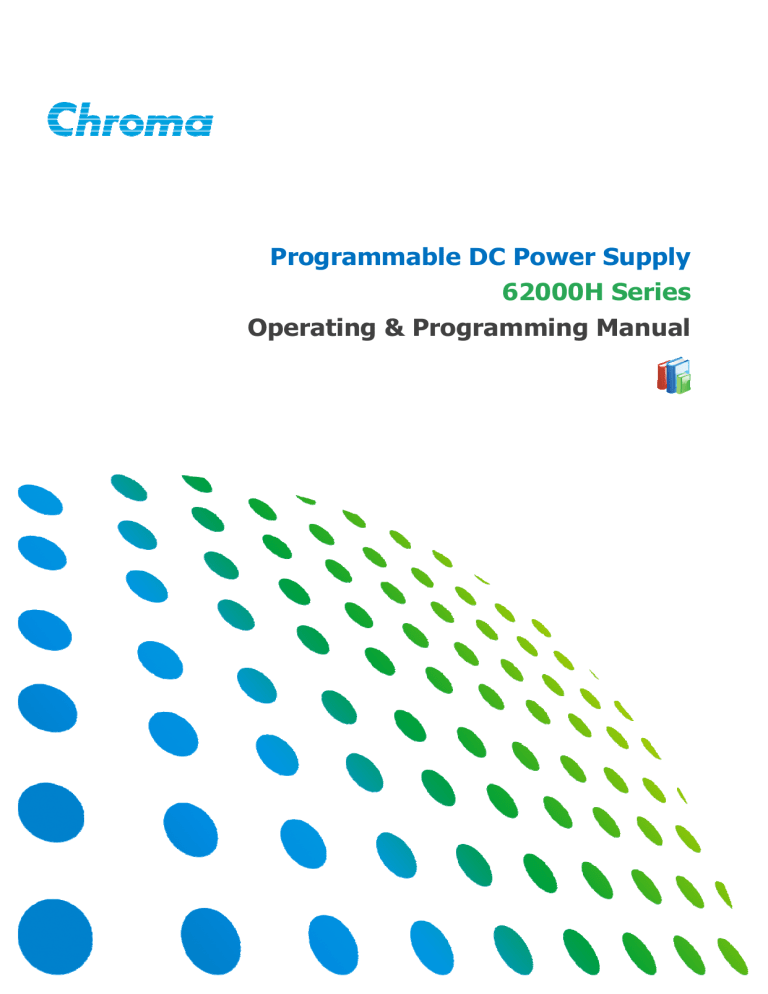

Programmable DC Power Supply

62000H Series

Operating & Programming Manual

Programmable DC Power Supply

62000H Series

Operating & Programming

Manual

Version 1.5

July 2013

Legal Notices

The information in this document is subject to change without notice.

Chroma ATE INC. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Chroma ATE INC. shall not be held liable for errors contained herein or direct, indirect, special, incidental or consequential damages in connection with the furnishing, performance, or use of this material.

CHROMA ATE INC.

66 Hwaya 1st Rd., Kueishan Hwaya Technology Park, Taoyuan County 33383, Taiwan

Copyright Notices. Copyright 2009 Chroma ATE INC., all rights reserved. Reproduction, adaptation, or translation of this document without prior written permission is prohibited, except as allowed under the copyright laws. ii

Warranty

All of Chroma’s instruments are warranted against defects in material and workmanship for a period of one year from date of shipment. Chroma agrees to repair or replace any assembly or component found to be defective, under normal use during this period.

Chroma’s obligation under this warranty is limited solely to repairing any such instrument, which in Chroma’s sole opinion proves to be defective within the scope of the warranty when returned to the factory or to an authorized service center. Purchaser is responsible for the shipping and cost of the service item to Chroma factory or service center. Shipment should not be made without prior authorization by Chroma.

This warranty does not apply to any products repaired or altered by persons not authorized by Chroma, or not in accordance with instructions furnished by Chroma. If the instrument is defective as a result of misuse, improper repair, or abnormal conditions or operations, repairs will be billed at cost.

Chroma assumes no responsibility for its product being used in a hazardous or dangerous manner either alone or in conjunction with other equipment. High voltage used in some instruments may be dangerous if misused. Special disclaimers apply to these instruments.

Chroma assumes no liability for secondary charges or consequential damages and in any event, Chroma’s liability for breach of warranty under any contract or otherwise, shall not exceed the purchase price of the specific instrument shipped and against which a claim is made.

Any recommendations made by Chroma regarding the use of its products are based upon tests believed to be reliable; Chroma makes no warranty of the results to be obtained. This warranty is in lieu of all other warranties, expressed or implied, and no representative or person is authorized to represent or assume for Chroma any liability in connection with the sale of our products other than set forth herein.

CHROMA ATE INC.

66 Hwaya 1st Rd., Kueishan Hwaya Technology Park,

Taoyuan County 33383, Taiwan

Tel: 886-3-327-9999

Fax: 886-3-327-2886 e-mail: [email protected]

http://www.chromaate.com

iii

iv

Material Contents Declaration

The recycling label shown on the product indicates the Hazardous Substances contained in the product as the table listed below.

: See

<Table 1>

.

: See

<Table 2>

.

<Table 1>

Part Name

Hazardous Substances

Lead Mercury Cadmium Hexavalent Polybrominated Polybromodiphenyl

Chromium Biphenyls Ethers

Pb Hg Cd Cr

6+

PBB PBDE

PCBA

CHASSIS

O O O O

O O O O

O O O O

O

O

O

O

O

O

ACCESSORY

PACKAGE

O O O O O O

“O” indicates that the level of the specified chemical substance is less than the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.

°

” indicates that the level of the specified chemical substance exceeds the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.

Disposal

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new one, the retailer is legally obligated to take back your old appliances for disposal at least for free of charge.

<Table 2>

Part Name

Hazardous Substances

Lead Mercury Cadmium Hexavalent Polybrominated Polybromodiphenyl

Chromium Biphenyls Ethers

Pb Hg Cd Cr

6+

PBB PBDE

PCBA

CHASSIS

°

°

O O O

O O O

O

O

O

O

ACCESSORY

° O O O O O

PACKAGE

O O O O O O

“O” indicates that the level of the specified chemical substance is less than the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.

°

” indicates that the level of the specified chemical substance exceeds the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.

1. Chroma is not fully transitioned to lead-free solder assembly at this moment; however, most of the components used are RoHS compliant.

2. The environment-friendly usage period of the product is assumed under the operating environment specified in each product’s specification.

Disposal

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new one, the retailer is legally obligated to take back your old appliances for disposal at least for free of charge. v

vi

Safety Summary

The following general safety precautions must be observed during all phases of operation, service, and repair of this instrument. Failure to comply with these precautions or specific

WARNINGS given elsewhere in this manual will violate safety standards of design, manufacture, and intended use of the instrument.

Chroma

assumes no liability for the customer’s failure to comply with these requirements.

BEFORE APPLYING POWER

Verify that the power is set to match the rated input of this power supply.

PROTECTIVE GROUNDING

Make sure to connect the protective grounding to prevent an electric shock before turning on the power.

NECESSITY OF PROTECTIVE GROUNDING

Never cut off the internal or external protective grounding wire, or disconnect the wiring of protective grounding terminal. Doing so will cause a potential shock hazard that may bring injury to a person.

FUSES

Only fuses with the required rated current, voltage, and specified type

(normal blow, time delay, etc.) should be used. Do not use repaired fuses or short-circuited fuse holders. To do so could cause a shock or fire hazard.

DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE

Do not operate the instrument in the presence of flammable gases or fumes.

DO NOT REMOVE THE COVER OF THE INSTRUMENT

Operating personnel must not remove the cover of the instrument.

Component replacement and internal adjustment can be done only by qualified service personnel.

WARNING

Touching the output terminal on the rear panel when the power or current is set and outputting may result in personal injury or death. vii

Safety Symbols

DANGER –

High voltage.

Explanation:

To avoid injury, death of personnel, or damage to the instrument, the operator must refer to an explanation in the instruction manual.

High temperature:

This symbol indicates the temperature is now higher than the acceptable range of human. Do not touch it to avoid any personal injury.

Protective grounding terminal:

To protect against electrical shock in case of a fault. This symbol indicates that the terminal must be connected to ground before operation of equipment.

WARNING

The

WARNING

sign denotes a hazard. It calls attention to a procedure, practice, or the like, which, if not correctly performed or adhered to, could result in personal injury. Do not proceed beyond a

WARNING

sign until the indicated conditions are fully understood and met.

CAUTION

The

CAUTION

sign denotes a hazard. It may result in personal injury or death if not noticed timely. It calls attention to procedures, practices and conditions.

The

Notice

sign denotes important information in procedures, applications or the areas that require special attention. Be sure to read it carefully. viii

Revision History

The following lists the additions, deletions and modifications in this manual at each revision.

Date Version Revised Sections

Sep. 2009 1.0 Complete this manual.

Feb. 2010 1.1 Add standard voltage/current settings of some specifications for test conditions.

May 2010 1.2 Modifiy the followings:

– The description in Note for specification.

– The description, figure and pin assignments of the Analog

Interface signal connector on the rear panel.

May 2011 1.3

Sep. 2012 1.4

Jul. 2013 1.5

– The setting of BRIGHTNESS.

Modify Note and Caution in the section of “

Specifications

”.

Update the following:

Value of Input Specification in “

Notice in “

Notice in “

Notice in “ section

Checking the Package

SERIES/PARALLEL

Other Specifications

” section

” section

”section

Assembling Series/Parallel Communication Interface

Add “

D/D FAULT Protection

” section in the chapter of “

Manual

Operation

Add 62100H-1000 and 62150H-1000 two models

Update the following:

Specification

” in the chapter of “

Overview

Preparation for Use

” section in the chapter of “

Installation

Setting DC_ON

” and “

SERIES/PARALLEL

” sections in the chapter of “

Manual Operation

” ix

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Table of Contents

1.

Overview ..............................................................................................................1-1

1.1

Introduction............................................................................................................1-1

1.2

System Functions ..................................................................................................1-1

1.2.1

Operation Mode .............................................................................................1-1

1.2.2

Protection.......................................................................................................1-1

1.2.3

Output/Indication............................................................................................1-2

1.2.4

Input Control Signals .....................................................................................1-2

1.2.5

Measuring & Editing.......................................................................................1-2

1.3

Specifications ........................................................................................................1-2

1.3.1

Other Specifications.......................................................................................1-6

1.4

Function Keys......................................................................................................1-10

1.4.1

Front Panel ..................................................................................................1-10

1.4.2

Rear Panel...................................................................................................1-13

2.

Installation ...........................................................................................................2-1

2.1

Checking the Package...........................................................................................2-1

2.1.1

Maintenance & Cleaning................................................................................2-1

2.2

Preparation for Use ...............................................................................................2-1

2.2.1

Normal Environment Conditions ....................................................................2-2

2.3

Requirements of Input Power ................................................................................2-2

2.3.1

Ratings...........................................................................................................2-2

2.3.2

Input Connection............................................................................................2-3

2.4

Remote Sensing ....................................................................................................2-5

2.4.1

Correct Connection........................................................................................2-5

2.4.2

Disconnecting Remote Sensing Wire ............................................................2-6

2.4.3

Reverse Connection of Remote Sensing Wire Polarity .................................2-6

2.5

Output Connection.................................................................................................2-6

2.5.1

Rear Panel Output .........................................................................................2-6

2.5.2

Specification of Connecting Wire...................................................................2-9

2.5.3

Specification of Parallel Capacitance ............................................................2-9

2.5.4

Installing the Handle ....................................................................................2-10

2.6

Power On Procedure ...........................................................................................2-10

3.

Manual Operation................................................................................................3-1

3.1

Introduction............................................................................................................3-1

3.2

Setting Voltage & Current......................................................................................3-1

3.3

Setting Configuration .............................................................................................3-2

3.3.1

SYSTEM SETUP ...........................................................................................3-5

3.3.1.1

APG ...........................................................................................................3-5

3.3.1.2

BUZZER...................................................................................................3-10

3.3.1.3

POWER ON STATUS..............................................................................3-10

3.3.2

OUTPUT SETUP .........................................................................................3-12

3.3.2.1

VOLTAGE LIMIT SETTING .....................................................................3-13

3.3.2.2

CURRENT LIMIT SETTING.....................................................................3-14

3.3.2.3

VOLTAGE SLEW RATE ..........................................................................3-15

3.3.2.4

CURRENT SLEW RATE SETTING .........................................................3-16

3.3.2.5

Setting DC_ON ........................................................................................3-17

3.3.3

SERIES/PARALLEL ....................................................................................3-18

3.3.3.1

Connecting Series/Parallel Output Cable ................................................3-19

3.3.3.2

Assembling Series/Parallel Communication Interface .............................3-19

3.3.3.3

Setting Series/Parallel Operation Mode...................................................3-21

3.3.3.4

Setting Series Parameters .......................................................................3-26

xi

Programmable DC Power Supply 62000H Series Operating & Programming Manual

3.3.3.5

Setting Parallel Parameters .....................................................................3-28

3.3.3.6

Setting Procedure for APG in Series or Parallel ......................................3-30

3.3.4

DISPLAY......................................................................................................3-32

3.3.4.1

BRIGHTNESS..........................................................................................3-32

3.3.4.2

DISPLAY SELECTION ............................................................................3-33

3.3.4.3

READING AVERAGE TIMES ..................................................................3-35

3.3.5

PROTECTION .............................................................................................3-36

3.3.5.1

OVP Protection ........................................................................................3-37

3.3.5.2

OCP Protection........................................................................................3-38

3.3.5.3

OPP Protection ........................................................................................3-39

3.3.5.4

REMOTE INHIBIT....................................................................................3-40

3.3.5.5

SAFETY INT.LOCK .................................................................................3-41

3.3.5.6

EXTERNAL ON/OFF ...............................................................................3-43

3.3.5.7

FOLDBACK..............................................................................................3-44

3.3.5.8

OTP .........................................................................................................3-46

3.3.5.9

AC FAULT................................................................................................3-47

3.3.5.10

SENSE FAULT Protection ...................................................................3-47

3.3.5.11

FANLOCK Protection...........................................................................3-48

3.3.5.12

D/D FAULT Protection .........................................................................3-49

3.3.6

FACTORY SETTING ...................................................................................3-49

3.3.7

CALIBRATION.............................................................................................3-50

3.3.7.1

Voltage Output & Measurement Calibration ............................................3-51

3.3.7.2

Current Measurement Calibration............................................................3-53

3.3.7.3

Current Output (PROG.) Calibration ........................................................3-57

3.3.7.4

APG Voltage Calibration ..........................................................................3-60

3.3.7.5

APG Current Calibration ..........................................................................3-63

3.3.8

REMOTE SETUP ........................................................................................3-66

3.3.8.1

GPIB ADDRESS ......................................................................................3-66

3.3.8.2

ETHERNET..............................................................................................3-66

3.3.8.3

RS232/RS485..........................................................................................3-68

3.3.8.4

BAUDRATE .............................................................................................3-68

3.3.8.5

RS485 ADDR...........................................................................................3-69

3.3.8.6

RS485 TERMINATOR .............................................................................3-70

4.

Program Sequence .............................................................................................4-1

4.1

LIST MODE ...........................................................................................................4-1

4.1.1

Description of PROGRAM Settings ...............................................................4-2

4.1.1.1

Setting EXT._TRIG PULL ..........................................................................4-3

4.1.1.2

Setting PROG NO......................................................................................4-3

4.1.1.3

Setting RUN COUNT .................................................................................4-3

4.1.1.4

Setting PROG CHAIN ................................................................................4-5

4.1.1.5

Setting CLEAR PROGRAM .......................................................................4-8

4.1.2

Setting Sequence ..........................................................................................4-9

4.1.2.1

Setting Sequence Number.......................................................................4-10

4.1.2.2

Setting Sequence Type............................................................................4-10

4.1.2.3

Setting Time.............................................................................................4-14

4.1.2.4

Setting Voltage ........................................................................................4-14

4.1.2.5

Setting Voltage Slew Rate .......................................................................4-14

4.1.2.6

Setting Current.........................................................................................4-14

4.1.2.7

Setting Current Slew Rate .......................................................................4-15

4.1.3

Execution in LIST MODE.............................................................................4-15

4.1.3.1

Running LIST MODE ...............................................................................4-15

4.1.3.2

Program List Mode Description................................................................4-16

4.2

V_STEP MODE ...................................................................................................4-16

xii

Programmable DC Power Supply 62000H Series Operating & Programming Manual

4.2.1

Setting V_STEP MODE ...............................................................................4-17

4.2.1.1

Setting START_VOLTAGE ......................................................................4-17

4.2.1.2

Setting END_VOLTAGE ..........................................................................4-18

4.2.1.3

Setting RUN_TIME ..................................................................................4-18

4.2.2

Execution of V_STEP MODE ......................................................................4-19

4.2.2.1

Running V_STEP MODE .........................................................................4-19

4.2.2.2

Description of Program V_Step Mode .....................................................4-20

5.

Remote Operation ...............................................................................................5-1

5.1

Overview................................................................................................................5-1

5.1.1

USB Interface ................................................................................................5-1

5.1.2

Setting GPIB, Ethernet, RS-232C & RS-485 Parameters .............................5-1

5.1.3

Connecting RS-232C.....................................................................................5-1

5.1.4

Connecting RS-485 .......................................................................................5-2

5.1.5

Ethernet Remote Control ...............................................................................5-3

5.2

GPIB Function of 62000H Series...........................................................................5-3

5.3

Introduction to Programming .................................................................................5-3

5.3.1

Conventions...................................................................................................5-4

5.3.2

Numerical Data Formats................................................................................5-4

5.3.3

Boolean Data Format.....................................................................................5-5

5.3.4

Character Data Format ..................................................................................5-5

5.3.5

Basic Definition ..............................................................................................5-5

5.3.5.1

Command Tree Structure ..........................................................................5-5

5.3.5.2

Program Headers.......................................................................................5-5

5.3.5.3

Common Command and Query Headers ..................................................5-5

5.3.5.4

Instrument-Controlled Headers..................................................................5-5

5.3.5.5

Program Header Separator (:) ...................................................................5-6

5.3.5.6

Program Message......................................................................................5-6

5.3.5.7

Program Message Unit ..............................................................................5-6

5.4

Traversal of the Command Tree............................................................................5-6

5.5

Execution Order.....................................................................................................5-7

5.6

Commands of DC Power Supply ...........................................................................5-7

5.6.1

Common Command Syntax...........................................................................5-7

5.6.2

Specific Commands for 62000H Series.......................................................5-11

5.6.2.1

ABORT Subsystem..................................................................................5-11

5.6.2.2

CONFIGURE Subsystem.........................................................................5-11

5.6.2.3

SOURCE Subsystem...............................................................................5-16

5.6.2.4

FETCH Subsystem ..................................................................................5-19

5.6.2.5

MEASURE Subsystem ............................................................................5-20

5.6.2.6

PROGRAM Subsystem............................................................................5-20

5.6.2.7

SYSTEM Subsystem ...............................................................................5-25

6.

Theory of Operation............................................................................................6-1

6.1

Overview................................................................................................................6-1

6.2

Function Description..............................................................................................6-3

6.2.1

I/P (PFC) Stage .............................................................................................6-3

6.2.2

Auxiliary Power ..............................................................................................6-4

6.2.3

Output Stage..................................................................................................6-4

6.2.4

Digital Circuit..................................................................................................6-4

7.

Self Test & Troubleshooting ..............................................................................7-1

7.1

Overview................................................................................................................7-1

7.2

Troubleshooting.....................................................................................................7-1

Appendix A APG & System Status Pin Assignment............................................... A-1

xiii

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Appendix B List of Protection................................................................................... B-1

xiv

Overview

1. Overview

1.1 Introduction

Chroma 62000H Series are high power density DC Power Supplies that can provide stable

DC output and accurate measurement for voltage and current.

The features of 62000H Series DC Power Supply are:

(1) Voltage mode with two loops control ¨ able to provide stable and quick responded output, also to set the slew rate of output voltage and current.

(2) High power density output ¨ the maximum output power can up to 15kW under 3U height.

(3) 16-bit ADC/16-bit DAC ¨ provides excellent resolution.

(4) Lower transient spike and transient response time ¨ makes the unit under test gets the most stable output and the best protection under the circumstance of load variation

(5) Editing mode (Programming Mode) for output waveform ¨ provides multiple output voltage and current combinations in real time for long period test.

(6) Rotary knob and keyboard control on the front panel ¨ to set the output voltage and current. panel gives users a high brightness and wide view angle interface for operation.

(8) Via GPIB/Ethernet (option), USB, RS-232/RS-485 or APG (analog programmable interface) interface ¨ to do remote control.

1.2 System Functions

1.2.1 Operation Mode

(1) Local operation is performed by the keyboard and rotary knob on the front panel.

(2) Remote control is done via GPIB/Ethernet (option), USB or RS-232/RS-485 interface.

(3) Through the APG input to control output via analog signal.

1.2.2 Protection

(1) Protections for voltage phase loss, input over-voltage or under-voltage, output over- voltage, over-current, over-power, over-temperature, fan fail, CV/CC foldback and etc. are available.

(2) Free temperature control for fan speed.

1-1

Programmable DC Power Supply 62000H Series Operating & Programming Manual

1.2.3 Output/Indication

(1) Auxiliary power output (12Vdc/10mA).

(2) Analog monitors (V/I Monitor) the output signal instantaneously. This allows signals to be easily monitored by external instruments (DMM, Oscilloscope, etc). Able to set the output level indication (DC ON) signal.

(3) Output indicator (DC ON) signal.

(4) Protection state indication (OVP/OCP/OPP /FAN LOCK/AC FAULT, etc).

(5) Over temperature (OTP) protection signal.

(6) CV/CC status indicators.

(7) Output status indicators.

1.2.4 Input Control Signals

(1) Remote sense input for voltage drop compensation.

(2) Analog reference voltage (APG) input in which the setting of voltage and current can be set by the voltage source, current source and resistance that adjusted for the panel setting.

(3) Remote inhibit control signal (TTL)

1.2.5 Measuring & Editing

(1) Measurement for voltage, current and power.

(2) 10 programs and 100 sequences to edit voltage/current waveform output.

(3) One run time voltage program that can be set for long hour.

1.3 Specifications

Chroma 62000H Series High Power Density DC Power Supplies contain 5KW (62050H),

10KW (62100H) and 15KW (62150H) 3 models by the output power and the power supply of

each model has various output specifications. Table 1-1, Table 1-2 and Table 1-3 list the

output specifications of 62000H Series DC POWER SUPPLY 5KW, 10KW and 15KW. (It is suggested to warm up 10 minutes or above before performing the test items. The test condition is 25

±

5°C and under resistance load.)

1-2

Overview

Table 1-1 62000H Series 5KW Operating Specification

Model 62050H-40 62050H-450 62050H-600

Output Ratings

Output Voltage

Output Current

1

2

0-40V 0-450V 0-600V

0-125A 0-11.5A 0-8.5A

Output Power 5000W 5000W 5000W

Voltage

Measurement

Range

Accuracy

8V / 40V 90V / 450V

0.05% + 0.05%F.S.

120V / 600V

Current

Measurement

Range

Accuracy

Output Noise &

Ripple

Voltage Noise(P-P)

3

Voltage Ripple(rms)

Current Ripple(rms)

4

Programming

Response Time

Rise Time: Full Load

Rise Time: No Load

Fall Time: Full Load

Fall Time:

10% F.S. CC Load

Fall Time: No Load

Slew Rate Control

Voltage slew rate range

5

Current slew rate range

Minimum transition

25A / 125A

60 mV

15 mV

50 mA

8 ms

8 ms

8 ms

100 ms

1 s

0.001V/ms – 5V/ms

0.001A – 1A/ms, or

INF

2.3A / 11.5A

0.1% + 0.1%F.S.

300 mV

450 mV

20 mA

60 ms

60 ms

60 ms

250 ms

2.5 s

0.001V/ms –

7.5V/ms

0.001A – 0.1A/ms, or

INF

1.7A / 8.5A

350 mV

600 mV

15 mA

60 ms

60 ms

60 ms

250 ms

2.5 s

0.001V/ms – 10V/ms

0.001A – 0.1A/ms, or

INF

Operating

Temperature Rage

0°C ~ 50°C

1-3

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Model

Table 1-2 62000H Series 10KW Operating Specification

62075H-30 62100H-40 62100H-450 62100H-600 62100H-1000

17

Output

Ratings

Output Voltage

Output Current

1

2

0-30V 0-40V 0-450V 0-600V 0-1000V

0-250A 0-250A 0-23A 0-17A 0-10A

Output Power 7500W 10000W 10000W 10000W 10000W

Voltage

Measurement

Range

Accuracy

Current

Measurement

Range

Accuracy

6V / 30V 8V / 40V

50A / 250A 50A / 250A

90V / 450V

4.6A / 23A

120V / 600V

0.05% + 0.05%F.S.

3.2A / 17A

0.1% + 0.1%F.S.

200V/1000V

4A / 10A

Output Noise

& Ripple

Voltage Noise

(P-P)

3

Voltage Ripple

(rms)

Current Ripple

(rms)

4

Programming

Response

Time

Rise Time:

Full Load

Rise Time:

No Load

Fall Time:

Full Load

Fall Time:

10% F.S. CC

Load

Fall Time:No

Load

Slew Rate

Control

Voltage slew rate range

5

Current slew rate range

60 mV

15 mV

100 mA

6 ms

6 ms

6 ms

100 ms

1 s

0.001V/ms

5V/ms

0.001A −

1A/ms, or

INF

60 mV

15 mV

100 mA

8 ms

8 ms

8 ms

100 ms

1 s

0.001V/ms

− 5V/ms

0.001A −

1A/ms, or

INF

300 mV

450 mV

40 mA

60 ms

60 ms

60 ms

250 ms

2.5 s

0.001V/ms

7.5V/ms

0.001A −

0.1A/ms, or

INF

350 mV

600 mV

30 mA

60 ms

60 ms

60 ms

250 ms

2.5 s

0.001V/ms

10V/ms

0.001A

0.1A/ms, or

INF

2550 mV

1500 mV

180 mA

25 ms (

30%F.S.

CC Load)

25 ms

25 ms (

50%F.S.

CC Load)

120 ms

3 s

0.001V/ms

40V/ms

0.001A

INF

0.1A/ms, or

Minimum transition time

Operating

Temperature

Rage

0°C ~ 50°C

0.5 ms

0°C ~ 40°C

1-4

Overview

Model

Table 1-3 62000H Series 15KW Operating Specification

62100H-30 62150H-40 62150H-450 62150H-600 62150H-1000

17

Output Ratings

Output Voltage

Output Current

1

2

0-30V 0-40V 0-450V 0-600V 0-1000V

0-375A 0-375A 0-34A 0-25A 0-15A

Output Power 11250W 15000W 15000W 15000W 15000W

Voltage

Measurement

Range

Accuracy

Current

Measurement

Range

Accuracy

6V / 30V 8V / 40V

75A / 375A 75A / 375A

90V / 450V

0.05% + 0.05%F.S.

6.8A / 34A

120V / 600V

5A / 25A

0.1% + 0.1%F.S.

200V / 1000V

6A / 15A

Output Noise &

Ripple

Voltage

Noise(P-P)

3

Voltage

Ripple(rms)

Current

Ripple(rms)

4

Programming

Response

Time

60 mV

15 mV

150 mA

60 mV

15 mV

150 mA

300 mV

450 mV

60 mA

350 mV

600 mV

45 mA

2550 mV

1500 mV

270 mV

Rise Time:

Full Load

6 ms 8 ms 60 ms 60 ms

25 ms

(50%F.S. CC

Load)

Rise Time:

No Load

6 ms 8 ms 60 ms 60 ms 25 ms

Fall Time:

Full Load

6 ms 8 ms 60 ms 60 ms

25 ms

(50%F.S. CC

Load)

Fall Time:

10% F.S. CC

Load

Fall Time:No

Load

Slew Rate

Control

Voltage slew rate range

5

Current slew rate range

100 ms

1 s

0.001V/ms

5V/ms

0.001A −

1A/ms, or

INF

100 ms

0.001V/ms

1 s

5V/ms

0.001A −

1A/ms, or

INF

250 ms

2.5 s

0.001V/ms

7.5V/ms

0.001A −

0.1A/ms, or

INF

250 ms

2.5 s

0.001V/ms

− 10V/ms

0.001A −

0.1A/ms, or

INF

80 ms

3 s

0.001V/ms

40V/ms

0.001A −

0.1A/ms, or INF

Minimum transition time

Operating

Temperature

Rage

0°C ~ 50°C

0.5 ms

0°C ~ 40°C

1-5

Programmable DC Power Supply 62000H Series Operating & Programming Manual

1.3.1 Other Specifications

Table 1-4 lists the other specifications of 62000H.

Table 1-4 62000H Other Specifications

Model

Line Regulation

6

Voltage

Current

Load Regulation

7

Voltage

Current

OVP Adjustment Range

Range

Efficiency

8

Accuracy

62000H Series

+/- 0.01% of full scale

+/- 0.05% of full scale

+/- 0.02% of full scale(62000H-1000: +/- 0.05% of full scale)

+/- 0.1% of full scale

0-110% programmable from front panel, remote digital inputs.

+/- 1% of full-scale output

62050H : 0.87 (Typical)

62100H : 0.87 (Typical)

62150H : 0.87 (Typical)

62100H-1000 :0.85(Typical)

0.04% of Vmax

0.06% of Imax

0.02% of Vmax

0.04% of Imax

Drift (30 minutes)

9

Voltage

Current

Drift (8 hours)

10

Voltage

Current

Temperature

Coefficient

11

Voltage

Current

Transient Response

Time

12

Programming

Resolution

Voltage (Front Panel )

Current (Front Panel)

Voltage (Digital Interface)

Current (Digital Interface)

Voltage (Analog

Interface )

Current (Analog

Interface )

Measurement

Resolution

0.04% of Vmax/°C

0.06% of Imax/°C

Recovers within 1ms to +/- 0.75% of steady-state output for a 50% to 100% or 100% to 50% load change(1A/us)

10 mV(62000H-1000:100mV)

10 mA(62000H-1000:1mA)

0.002% of Vmax

0.002% of Imax

0.04% of Vmax

0.04% of Imax

Voltage (Front Panel )

V o

<10V 10V ≤

V o

<100V 100V ≤

V o

V o

=1000V

Current (Front Panel)

Voltage (Digital Interface)

Current (Digital Interface)

I o

<10A 10A ≤

I o

<100A 100A ≤

0.1mA 1mA

0.002% of Vmax

0.002% of Imax

I o

< 1000A

10mA

1-6

Overview

Voltage (Analog

Interface )

Current (Analog

Interface )

0.04% of Vmax

0.04% of Imax

Remote Interface

Analog programming Standard

USB Standard

RS232 Standard

RS485 Standard

GPIB

13

Optional

Ethernet

13

Optional

System bus(CAN)

Programming Accuracy

Voltage (Front Panel and

Digital Interface )

Standard for master/slave control

0.1% of Vmax

Current (Front Panel and

Digital Interface )

0.3% of Imax

GPIB Command

Response Time

Vout setting

?Volt , ? Current

Analog Interface (I/O)

Voltage and Current

Programming inputs (I/P)

Voltage and Current monitor output (O/P)

External ON/OFF (I/P)

DC_ON Signal (O/P)

GPIB send command to DC source receiver <20ms

Under GPIB command using Measure <25ms

0-10Vdc / 0-5Vdc / 0-5k ohm / 4-20 mA of F.S.

0-10Vdc / 0-5Vdc / 4-20mA of F.S.

TTL: Active Low or High (Selective)

Level by user define

( Time delay= 1 ms at voltage slew rate of 10V/ms.)

CV or CC mode Indicator

(O/P)

OTP Indicator (O/P)

System Fault indicator

(O/P)

Auxiliary power supply

(O/P)

Safety interlock (I/P)

Remote inhibit (I/P)

Analog Interface

Accuracy

Programming

Voltage

Current

Measurement

Voltage

Current

Series & Parallel

Operation

14

Auto Sequencing

(List mode)

Number of program

Number of sequence

TTL Level High=CV mode; TTL Level Low=CC mode

TTL: Active Low

TTL: Active Low

Nominal supply voltage : 12Vdc /

Maximum current sink capability: 10mA

Time accuracy: <100ms

TTL: Active Low

0.2% of F.S.

0.3% of F.S.

0.5% of F.S.

0.75% of F.S.

Master / Slave control via CAN for 10 units up to 150KW.

(Series: two units / Parallel: ten units )

10

100

1-7

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Dwell time Range

Trig. Source

5ms – 15000S

Manual / Auto / External

Auto Sequencing

(Step mode)

Start voltage

End voltage

Run time

Trig. Source

Input Specification

AC input voltage

3phase , 3 wire + ground

15

AC frequency range

Power factor

General Specification

Maximum Remote Sense

Line Drop Compensation

Weight

0 to Full scale

0 to Full scale hh : mm : ss.ss ( 00 : 00 : 00.01 to 99 : 59 : 59.99 )

Auto

200/220 Vac(operating range 180 -242 Vac)

*

380/400 Vac(operating range 342 - 440 Vac)

440/480 Vac(operating range 396 - 528 Vac)

*

*

Call for Availability

47-63 Hz

0.5 (200/220Vac)

62050H : 0.5 (380/400Vac)

0.5 (440/480Vac)

0.55 (200/220Vac)

62100H : 0.55 (380/400Vac)

0.55 (440/480Vac)

0.6 (200/220Vac)

62150H : 0.6 (380/400Vac)

0.6 (440/480Vac)

<100V model: 5% of full scale voltage per line(10% total) ;

>100V model :2% of full scale voltage per line (4% total)

62050H : < 23 kg

62100H : < 29 kg

62150H : < 35 kg

Dimensions (HxWxD) mm

16

Storage Temperature

Rage

132.8 x 428 x 610 mm

-40°C ~ +85°C

All specifications are subject to change without prior notice.

NOTE

1. Minimum output voltage <0.5% of rated voltage.

2. Minimum output current <0.2% of rated current.

3. It uses the BNC cable and a 50 (Ohm) terminal load oscilloscope for confirmation (20k Hz ~ 20M Hz.)

4. The output voltage range is from 10% to 100% and the output current is measured under the condition of full load.

5. This setting is only valid when there is output and the voltage as well as the current settings are larger than 1. & 2. Please be noted that the fall slew rate of output voltage is varied with the power of

6. output load.

±

10% variation under rated voltage.

7. For 0-100% load step with nominal line voltage (after warmed-up for

30 minutes). It is 0.04%FS when in cold.

8. Under the maximum output power condition of rated voltage.

9. The maximum drift of output power during 30 minutes test period when the input, loading and ambient temperature are fixed.

1-8

Overview

10. The maximum drift of output power after warmed up for 30 minutes and 8 hours test period when the input, loading and ambient temperature are fixed.

11. The change caused by the ambient temperature per centigrade when the input and loading are fixed.

12. Over 50% of maximum output voltage and the loading slew rate is

1A/us for rise and fall.

13. Either Ethernet or GPIB can be selected when shipping.

14. Please consult with the manufacturer.

15. Varied by local voltage regulation, all models in the 62000H Series

5kW, 10kW, 15kW have 200/220 Vac, 380/400 Vac and 440/480

Vac 3 types of input voltage for selection. Users can follow the local voltage regulation to select a proper voltage spec. The Power

Supply is set with the required input voltage when shipped and when the input voltage is not within the range, it will show AC_fault protection and shut down the output.

16. It is the chassis size without any accessories.

17. The output voltage for operating the power supply should be larger than 5% Full-scale.

CAUTION

1. If it is applied to battery charge or inductance load such as motors, the output port needs to connect a diode in series to prevent the load current from backwash and damage the device interior, see

Figure 1-1

2. For switchable power load applications, if the output load cable is longer (>20cm) it is suggested to strand the load cable and parallel the capacitance at the load power input to prevent any unexpected

oscillation from occurring, see Figure 1-2

Figure 1-1

Figure 1-2

1-9

Programmable DC Power Supply 62000H Series Operating & Programming Manual

WARNING

Voltage from the two output terminals to earth varies with the 62000H

Series Models as Table 1-5 shows below:

Table 1-5

Max. Voltage (Vdc) Difference

Model between Output Terminal and Earth

62075H-30 ±250

62050H-40 ±250

62050H-450 ±1200

62050H-600 ±1200

62100H-30 ±250

62100H-40 ±250

62100H-450 ±1200

62100H-600 ±1200

62100H-1000 ±1200

62150H-40 ±250

62150H-450 ±1200

62150H-600 ±1200

62150H-1000 ±1200

If the voltage exceeds the above range it may result damage to the DC

Power Supply.

1.4 Function Keys

1.4.1 Front Panel

1-10

Figure 1-3 Front Panel of 62000H

Overview

Item

1

2

3

4

5

6

7

8

0

to

Symbol

9

and

VOLT

Table 1-6 Description of Front Panel

Description

Display:

VFD Display: it shows the output settings and measured result.

Numeric and Decimal Point:

Users can use the numeric keys and the decimal point key to enter digital data.

Voltage Setting Key:

Enters voltage setting mode. Users can use numeric keys or voltage rotary knob ( ) to input voltage values

CURR

PROG

LOCAL

ENTER

DEL

Current Setting Key:

Enters current limit setting mode. Users can use numeric keys or current rotary knob ( limit values.

) to input current

PROGRAM Key:

Press this key to skip to “Program Function Page” for setting waveform editing mode.

LOCAL Key:

Press this key to switch the control mode from remote control back to manual operating mode.

ENTER Key:

Press this key to confirm the parameter settings.

Delete Key:

Press this key to delete the input value.

1-11

10

11

12

13

14

15

16

17

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Item

9

18

Symbol

EXIT

LOCK

ON/OFF

CONF

SAVE

Description

EXIT Key:

Press this key to go to previous screen. If this key is pressed before “

SAVE

” is pressed, the screen will go back to “MAIN PAGE” and the data will not be saved.

LOCK Key:

Press this key to lock all keys and rotary knob.

To unlock ¨ press “

LOCK

” for 3 seconds to release it.

ON/OFF Key:

Press this key to control the output to “ON” or “OFF”.

CONFIG Key:

Press this key to skip to “Config Choose Page” for setting various functions.

SAVE Key:

Press this key to save the settings in “Program and Config

Function Page”.

Cursor Movement Keys:

Use “ ” and “ ” keys to move the cursor to the parameter to be modified.

Voltage Rotary Knob:

Users can turn the knob “ ” to input data or select item.

Current Rotary Knob:

Users can turn the knob “ ” to input data or select item.

Main Power Switch:

It switches the power on or off.

Rack Bracket:

(Option)

Use the left (right) bracket to fit the Power Supply on

Rack.

1-12

Overview

1.4.2 Rear Panel

Figure 1-4 Rear Panel of 62000H

Table 1-7 Description of Rear Panel

Item

1

Name Description

RS-232C /RS-485 It is a 9-pin D type male connector. The control commands are transmitted between remote and PC for remote control.

2 ANALOG

INTERFACE Signal

Connecting Terminal

3 System Bus

4 USB

There are 25 pins signals that include APG input/output terminals and system status signal terminals. See

Appendix A

for detail pin assignments.

It is for serial/parallel data transmission.

The remote controller uses USB connector to connect to PC for remote operation.

5 Output terminal

Connector

Connector

8 GPIB/ETHERNET

Connector (Option)

The output terminals of DC Power Supply.

Connecting this connector to load can compensate the voltage drop generated due to cable resistance. Be sure to connect the remote sense connector “+” to the positive output terminal and

“–” connector to the negative output terminal. Do not connect the remote sense connector to the “+”, “–” output terminal reversely.

It shares the output current equally when connecting in parallel and it has to be removed when connecting in series for use.

The GPIB/ETHERNET bus used by remote controller is connected to PC via this connector for remote control.

Connector

It inputs AC power through power line and connects to input stage through this connector.

10 Functional Ground This terminal is for user to refer to Earth Ground easily.

11 Fan Mask Avoid touching the fan and do not block the fan mask to avoid accumulating heat inside the machine.

1-13

Programmable DC Power Supply 62000H Series Operating & Programming Manual

The callout 8 in Figure 1-4 is the cover plate for standard configuration.

When GPIB/ETHERNET interface is selected as shipping default, it will

be installed before shipment as Figure 1-5 (a) & (b) shows.

(a) GPIB Interface (b) ETHERNET Interface

Figure 1-5

1-14

Installation

2. Installation

2.1 Checking the Package

(1) Check if there is any damage or any missing accessories after unpacking it.

(2) Should any damage is found, contact “Chroma RMA” immediately to request return shipment.

Figure 2-1 (a) & (b) shows the accessories.

(a) cable for current sharing (b) cable for system bus

Figure 2-1

1. Please keep all of the packing materials in case the device has to be returned for repair.

2. Do not return the instrument to the factory without obtaining prior

RMA acceptance from Chroma.

3. Check if the accessories listed in the packing list are all received.

CAUTION

The power supply is too heavy for one person to safely lift and mount. To avoid injury, ask a co-worker for assistance.

2.1.1 Maintenance & Cleaning

Remove all connected wires and cables on the instrument before cleaning. Use a brush to clean the dust on it and if there are stains on the chassis that cannot be removed by brush, wipe it with volatile liquid (such as Cleaning Naphtha). Do not use any corrosive liquid to avoid damaging the chassis. Use a damp cloth with soap water or soft detergent to clean the

LCD front panel. For internal cleaning, use a low-pressure air gun the dust inside or send it back to our agent for cleaning.

2.2 Preparation for Use

(1) Remove the iron holder of the front panel as Figure 2-2 shows and keep it in case the

Power Supply is required for return service.

(2) Be sure the Power Supply is connected to the AC line input that meets the specification.

(3) The instrument must be installed in an air-circulated area to avoid the internal temperature getting too high.

2-1

Programmable DC Power Supply 62000H Series Operating & Programming Manual

(4) The ambient temperature does not exceed 50

°

C (40

°

C for models of 1000V).

Figure 2-2

CAUTION

If the iron holder on the front panel is not removed, it may cause OTP or damage on the hardware due to poor ventilation.

2.2.1 Normal Environment Conditions

(1) In door use.

(2) Altitude up to 2000 meters.

(3) Temperature

°

C to 50

°

C.

(4) Maximum relative humidity is 65% at 25

°

C and increasing linearly to 90% relative humidity for temperature up to 50

°

C.

(5) Input AC supply voltage fluctuations can up to

±

10% of the rated voltage.

(6) Transient over voltage is impulse withstand CAT II.

(7) Pollution degree II.

2.3 Requirements of Input Power

2.3.1 Ratings

Maximum input power: 12 kVA

Maximum input power: 21 kVA

Maximum input power: 29 kVA

2-2

Installation

Model

Vin

200/220

380/400

440/480

62050H-xxx

39 A

22 A

19 A

2.3.2 Input Connection

62100H-xxx 62150H-xxx

69 A

37 A

32 A

93 A

50 A

44 A

Current of each phase

(1) The input connector board is located at the right of rear panel.

(2) The power line must be 85°C rated at least.

(3) The power cable width must be within 6AWG~8AWG.

(4) To assemble 62000H ¨

see Figure 2-3 (a), (b) and execute the following steps:

a. Remove the input terminal safety cover from the rear panel of DC Power Supply. b. Scrape off the skin of power cable tip (the bare portion is about 1cm) and use an O type terminal to crimp it. c. Secure the power cable and input terminal with a Phillips screwdriver with suggested range of lock torque in 30~40 (kg-cm). d. Lock the safety cover to avoid electric shock. e. Secure the safety cover latch and safety cover to prevent the cable from falling or the electric terminal from exposing.

(a) (b)

Figure 2-3

1. Connect the green or green/yellow metal wire to terminal.

2. Connect the black or brown metal wire to “L1, L2, L3” terminal.

3. Figure 2-4 shows the suggested specification of O type terminal.

2-3

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 2-4

WARNING

1. To protect the operators, the wire connected to the GND terminal

( ) must be connected to the earth. Under no circumstances shall this DC Power Supply be operated without an adequate ground connection.

2. Installation of the power cord must be done by a professional and compliant with local electrical codes.

CAUTION

1. Be sure to select an appropriate withstand voltage cable based on the varied input voltage.

2. To ensure the operation safety, follow the input power source during installation to select the current rated BREAKER that closes to each phase and connect it to the input terminal in series.

Table 2-1 is the cable specification of PVC (105°C) with the ambient temperature at 30°C for

reference.

Table 2-1 PVC (105°C

)

Cable Specification

Conductor Area

Sectional Area mm

2

Safe Current (A)

Copper

Conductor

Lead

Conductor

2-4

Installation

2.4 Remote Sensing

2.4.1 Correct Connection

1. Connecting remote sensing wire correctly can ensure the output voltage is the set voltage. The DC Power Supply is able to compensate maximum 4-10% of F.S. line voltage drop.

2. Figure 2-5 shows the correct connection. Use two wires to connect the positive/negative

connector of load to the remote sensing connector on the rear panel. The connecting wire diameter must be larger than 30AWG and its withstand voltage should be within the specification.

3. Though remote sensing is able to compensate the voltage drop; however, if the line loss

is too large (see specification) it will cause protection on remote sensing as Figure 2-6

shows and is unable to compensate voltage drop correctly.

Figure 2-5

Figure 2-6

2-5

Programmable DC Power Supply 62000H Series Operating & Programming Manual

2.4.2 Disconnecting Remote Sensing Wire

If the remote sensing wire is disconnected (means the two cables are open), it still works however the error range will be wider. The voltage measured from the output terminal is about 2% of F.S.; therefore it is necessary to connect the remote sensing wire correctly.

Please connect the remote sensing wire to output terminal even if the line voltage drop can be ignored in actual practice.

2.4.3 Reverse Connection of Remote Sensing Wire

Polarity

The polarity of remote sensing wire must be connected correctly, that is the “+” terminal is connected to the “+” of output terminal or to the connecting wire of the terminal, while the “–” terminal is connected to the “–” of output terminal or to the connecting wire of the terminal.

If the polarity is connected reversely, the output will drop to 0V and prompt an error message

“SENSE FAULT” as Figure 2-6 shows.

The DC Power Supply does not burn down due to reverse connection of polarity. Do the following step to reset it:

1. First power it off.

2. Connect the remote sensing wire properly.

3. Restart the DC Power Supply.

CAUTION

1. If there is voltage on the Power Supply output, do not reverse connect the Remote sense to it or to the UUT to avoid damaging the

Power Supply.

2. The voltage of Remote Sense and local output needs to be smaller than 10% V_MAX to avoid damaging the Power Supply.

2.5 Output Connection

The output connector of 62000H Series DC Power Supply is located at the upper middle area on the rear panel. The load is connected to “+” and “–” output terminal.

2.5.1 Rear Panel Output

(1) The output terminal is located at the upper middle area on the rear panel.

(2) The output cable must be 85

°

C rated at least.

(3) Assembly

see Figure 2-7 (a) & (b) and execute the steps below:

a. Scrape off the skin of power cable tip (the bare portion is about 1cm) and use an O type terminal to crimp it. b. Secure the power cable and input terminal with a Phillips screwdriver. c. Secure the safety cover latch and safety cover to prevent the cable from falling or the electric terminal from exposing.

2-6

Installation

(a) (b)

Figure 2-7

The output protective covers are varied by different output currents. Table 2-2 lists the types

of various protective covers.

Table 2-2 Types of Protective Covers

Protective Cover Type Current Range Applicable Model

I

O

>250A

62100H-30

62150H-40

Large Protective Cover – Short Rear

Plate / Long Rear Plate

100

A

I

≤ 250A

O

62075H-30

62050H-40

62100H-40

Medium Protective Cover

Small Protective Cover

I

O

100A

62050H-450

62100H-450

62150H-450

62050H-600

62100H-600

62150H-600

62100H-1000

62150H-1000

For the models require large protective cover, the cable with wider diameter is needed. To ensure the output terminal has enough stress, it is necessary to add a secondary copper.

Figure 2-8 shows the assembly. First secure an insulation board as Figure 2-8 (a) shows and then follow the steps to install the secondary copper and secure the cable as Figure 2-8 (b) ~

2-7

Programmable DC Power Supply 62000H Series Operating & Programming Manual

(d) show. Next, secure the large protective cover as Figure 2-8 (e) shows and last secure the cover plate as Figure 2-8 (f) or (g) shows based on the way the cable is extended.

(a) (b)

(c) (d)

(e) (f)

2-8

Installation

(g)

Figure 2-8

CAUTION

1. To meet the safety requirement, the safety cover must be tightly secured.

2. The diameter of the wire connected to load must be able to carry the maximum current applied.

WARNING

For safety reason, do not exceed rated current (different from 62000H

Series) for the output current to avoid any danger.

2.5.2 Specification of Connecting Wire

The maximum inductance of connecting wire to the source is 2 μ H (the total inductance of two wires after twisted or processed otherwise including self inductance and mutual inductance).

CAUTION

2. Do not use the wire with extra thin diameter to avoid overheating and causing hazard.

2.5.3 Specification of Parallel Capacitance

The parallel capacitance for output varies with the 62000H Series Models as Table 2-3

shows.

Table 2-3

Model Max. Parallel Capacitance for Output (uF)

62075H-30 10000

62050H-40 10000

62050H-450 1350

62050H-600 1350

62100H-30 20000

62100H-40 20000

2-9

Programmable DC Power Supply 62000H Series Operating & Programming Manual

62100H-450 2700

62100H-600 2700

62100H-1000 1350

62150H-40 30000

62150H-450 4050

62150H-600 4050

62150H-1000 1350

CAUTION

2. Be aware of the polarity and its withstand voltage when paralleling capacitance.

2.5.4 Installing the Handle

Use M4X12 flat head screws to secure the handle to the rack mounting kit as shown in

Figure 2-9.

Figure 2-9 Installing the Handle

2.6 Power On Procedure

Plug in the power cord and turn on the power switch on front panel. The DC Power Supply will run a series of self-tests. The VFD on the front panel will light up and show as below:

2-10

Installation

Figure 2-10

Meanwhile, the DC Power Supply will run self-tests for memory, data and communication.

Once the routine of self-tests are done, the model no. and serial no. will show on the screen and prompt “

OK

” at the right of the test item if passed. When self-test is done the display shows as below:

Figure 2-11

When the self tests of memory, data and communication are done, the screen turns to the

MAIN PAGE automatically as shown below:

Figure 2-12

WARNING

The DC Power Supply internal circuit may not be able to reset if it is powered off and on immediately. It is suggested to wait for 3 seconds after powered off and power it on again.

CAUTION

potential electric shock may occur in any interrupted grounding and

2-11

Programmable DC Power Supply 62000H Series Operating & Programming Manual

could injure personnel.

2-12

Manual Operation

3. Manual Operation

3.1 Introduction

DC Power Supply can be operated manually or remotely via GPIB/ETHERNET (option) or

USB or RS-232/RS-485 or APG interface which is described in Chapter 5 and section 3.3.1.1.

The manual operation for using the front panel keyboard or rotary knobs to input the data is described in this chapter.

If the operation mode is not saved before the user powers the instrument off, the operation mode is manual (default) when power it on next time.

3.2 Setting Voltage & Current

There are two ways to set the output voltage (CV MODE) as Figure 3-1 shows:

Method 1:

VOLT

”, the cursor for V on MAIN PAGE blinks.

2. Use the numeric keys (

1

~

9

) to set the value and press “ the voltage setting or turn the “Rotary” (

ENTER

) knob to adjust the set value.

” to complete

3. Press

ON/OFF

” to output the set voltage. (Be noted that in order to remain the output in

CV mode the current setting must be larger than the load current, otherwise the output voltage will not equal to the set voltage.)

Method 2:

VOLT

”, the cursor for V on MAIN PAGE blinks.

2. When using “Rotary” ( ) knob for setting, the “ ” and “ ” keys can be used to move the cursor to individual digit, and then turn the rotary knob to increase or decrease the minimum unit of the set value.

3. Press

ON/OFF

” to output the set voltage. (Be noted that in order to remain the output in

CV mode the current setting must be larger than the load current, otherwise the output voltage will not equal to the set voltage.)

Figure 3-1

3-1

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Following is the way to set the current (CC MODE):

Press “

CURR

” and the rest settings are same as voltage as Figure 3-2 shows. (Be noted that

in order to remain the output in CC mode the voltage setting must be larger than the load voltage; otherwise the output current will not equal to the set current.)

Figure 3-2

3.3 Setting Configuration

The configuration setting function allows users to set the system functions for the DC Power

Supply. The system functions that can be edited by the configuration are:

1. System Setup : To set various system parameters including GPIB address.

2. Output Setup : To set various output parameters including voltage/current slew rate and etc.

3. Series/Parallel : To set the parameters for series or parallel mode.

4. Display : To set the parameter arrangement on panel.

5. Protection : To set the parameters for each protection functions.

6. Factory Setting : To set the production information and settings.

7. Calibration : To calibrate the DC Power Supply.

8. Remote Setting : To set the system parameters for GPIB address and etc.

Following explains the way to set the configuration.

Press “

CONF

” to enter into the config setting screen as Figure 3-3 shows.

3-2

Figure 3-3

Manual Operation

1.

Use the numeric (

1

~

8

) keys or “Rotary” (

2.

Press “

ENTER

” to confirm.

3.

Press “

EXIT

” to return to the MAIN PAGE.

) knob to select the item to be set.

1. To cancel the setting, press “

EXIT

” to return to the MAIN PAGE.

VOLT

” or “

CURR

” in any page can return to the MAIN

PAGE.

Figure 3-4 shows the tree structure of CONFIG PAGE.

3-3

Programmable DC Power Supply 62000H Series Operating & Programming Manual

CONFIG PAGE

1 . SYSTEM SETUP

2 . OUTPUT SETUP

3. SERIES /

PARALLEL

4.DISPLAY SETUP

5 . PROTECTION

APG VSET

APG ISET

APG VMEAS

APG IMEAS

BUZZER

POWER ON STATUS

V LIMIT

I LIMIT

V SLEW RATE

I SLEW RATE

VDC_R

VDC_F

MASTER OR SLAVE

M/S TERMINATOR

PARALLEL OR SERIES

NUM. OF SLAVE

MASTER & SLAVE CONTROL

BRIGHTNESS

DISPLAY SETUP

READING AVERAGE TIMES

AVERAGE METHOD

OVP

OCP

OPP

REMOTE INHIBIT

SAFETY INT. LOCK

EXT ON/OFF

FOLDBACK

RECALL DEFAULT

6. FACTORY

SETTING

7. CALIBRATION

8. REMOTE SETUP

CURRENT [ MEAS.]

APG VOLTAGE [ PROG./ MEAS.]

APG CURRENT [ PROG./ MEAS.]

GPIB ADDR

ETHERNET

RS232/RS485

BAUDRATE

Figure 3-4

RS485 ADDR

RS485 TERMINATOR

3-4

Manual Operation

3.3.1 SYSTEM SETUP

1. In Config setup page, press “

1

” and “

ENTER

” will display the screen of Figure 3-5.

Use “ ”, “ ” keys to move the cursor to desired selection.

Figure 3-5

3.3.1.1 APG

Analog Programming interface (APG) is able to perform the following two functions: 1. use the analog signal control panel to set the value and 2. Use the analog signal to indicate the panel measurement. Users can specify the value of set and measured separately as described below.

”, “

” keys to move the cursor to the column to be set as Figure 3-6

shows.

Figure 3-6

2. For , use the numeric keys

0

~

4

or “Rotary” ( ) to set the mode. There are 5 selections for APG VSET which are NONE / Vref(0-5V) /Vref(0-10V) /

Iref(4-20mA)/ Rref(0-5KOhm), where:

NONE: It means not using the programming function.

Vref(0-5V): It means using the external voltage source as the programming setting.

Vref(0-10V): It means using the external voltage source as the programming setting.

Iref(4-20mA): It means using the external voltage current source as the programming setting.

3-5

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Rref(0-5KOhm): It means using the external resistance as the programming setting.

3. Press

ENTER

” to confirm.

4. For

APG ISET

, use the numeric keys

0

~

4

or “Rotary” ( ) to set the mode. There are 5 selections for APG ISET which are NONE / Vref(0-5V) /Vref(0-10V) /

Iref(4-20mA)/ Rref(0-5KOhm), where:

NONE: It means not using the programming function.

Vref(0-5V): It means using the external voltage source as the programming setting.

Vref(0-10V): It means using the external voltage source as the programming setting.

Iref(4-20mA): It means using the external voltage current source as the programming setting.

Rref(0-5KOhm): It means using the external resistance as the programming setting.

ENTER

” to confirm.

6. For

APG VMEAS,

use the numeric keys

0

~

3

or “Rotary” ( ) to set the mode. There are 4 selections for APG VMEAS which are NONE / Vref(0-5V) /Vref(0-10V)

/ Iref(4-20mA), where:

NONE: It means not using the measurement function.

Vref(0-5V): It means using the power supply output voltage source as the measurement result.

Vref(0-10V): It means using the power supply output voltage source as the measurement result.

Iref(4-20mA): It means using the power supply output current source as the measurement result.

ENTER

” to confirm.

8. For

APG IMEAS

, use the numeric keys

0

~

3

or “Rotary” ( ) to set the mode. There are 4 selections for APG IMEAS which are NONE / Vref(0-5V) /Vref(0-10V)

/ Iref(4-20mA), where:

NONE: It means not using the measurement function.

Vref(0-5V): It means using the power supply output voltage source as the measurement result.

Vref(0-10V): It means using the power supply output voltage source as the measurement result.

Iref(4-20mA): It means using the power supply output current source as the

ENTER

” to confirm.

10. Press “

EXIT

” to return to the MAIN PAGE.

1.

APG VSET/APG ISET

has 5 selections which are NONE / Vref(0-5V)

/Vref(0-10V) / Iref(4-20mA)/Rref(0-5KOhm), where

: a. When selecting Vref=5V ¨ it means the DC Power Supply’s output

0V ~ 600V/0A ~ 25A will map to 0~5V as Figure 3-7(a) shows.

3-6

Manual Operation

b. When selecting Vref=10V ¨ it means the DC Power Supply’s output

0V ~ 600V/0A ~ 25A will map to 0~10V as Figure 3-7 (b) shows.

c. When selecting Iref=4-20mA ¨ it means the DC Power Supply’s

output 0V ~ 600V/0A ~ 25A will map to 4-20mA as Figure 3-7 (c)

shows. d. When selecting Vref=5KOhm ¨ it means the DC Power Supply’s

output 0V ~ 600V/0A ~ 25A will map to 0~5KOhm as Figure 3-7 (d)

shows.

(a) (b)

(c) (d)

Figure 3-7

2.

APG VMEAS/APG IMEAS

has 4 selections which are NONE /

Vref(0-5V) /Vref(0-10V) / Iref(4-20mA) where: a. When selecting Vref=5V Î it means the DC Power Supply’s

measurement output 0 ~ 600V/0A ~ 25A will map to 0~5V as Figure

3-8 (a) shows.

b. When selecting Vref=10V Î it means the DC Power Supply’s

measurement output 0 ~ 600V/0A ~ 25A will map to 0~5V as Figure

3-8 (b) shows.

c. When selecting Iref=4~20mA Î it means the DC Power Supply’s measurement output 0 ~ 600V/0A ~ 25A will map to 4mA~20mA as

Figure 3-8 (c) shows.

3-7

Programmable DC Power Supply 62000H Series Operating & Programming Manual

(a) (b)

600V/25A

APG OUTPUT 4mA~20mA

(c)

Figure 3-8

3.

When using APG, in case the error is too large be sure to calibrate the

APG settings and measurements first.

4.

When setting the APG VMEAS/APG IMEAS to Iref(4-20mA) mode, to ensure the DC Power Supply can output correctly, the series resistance cannot exceed 500 Ω

.

Also it is necessary to attention to the resistor wattage to avoid damaging the resistor.

3.3.1.1.1 Pin Assignment of APG Control

APG control is an output of external analog signal and its connector is located at the rear

panel and its pin assignments are shown as Figure 3-9 and Figure 3-10.

Figure 3-9

3-8

Manual Operation

Figure 3-10

Following lists the definition of each pin:

1. Auxiliary power Vcc: This pin outputs a +12Vdc power with maximum output current

10mA (output port.)

2. Voltage programming: It inputs the resistance (0-5K Ohm) from this pin and APIGND that can control the output voltage (CV mode) linearly.

3. Voltage programming: It inputs the analog current (4-20mA) from this pin to APIGND that can control the output voltage (CV mode) linearly.

4. Voltage programming: It inputs the analog voltage (0-10Vdc or 0-5Vdc) from this pin to

APIGND that can control the output voltage (CV mode) linearly.

5. Voltage measurement: This pin will output the voltage in analog signal 4mA-20mA for users to monitor it.

6. Voltage measurement: This pin will output the voltage in analog signal 0-5V or 0-10V for users to monitor it.

14. APIGND: This contact is the reference potential of APG interface. The potential is separated for APG and chassis, and the maximum tolerance of voltage differential is

70Vdc.

15. Current programming: It inputs the resistance (0-5K Ohm) from this pin and APIGND that can control the output current (CC mode) linearly.

3-9

Programmable DC Power Supply 62000H Series Operating & Programming Manual

16. Current programming: It inputs the analog current (4-20mA) from this pin to APIGND that can control the output current (CC mode) linearly.

17. Current programming: It inputs the analog voltage (0-10Vdc or 0-5Vdc) from this pin to

APIGND that can control the output current (CC mode) linearly.

18. Current measurement: This pin will output the current in analog signal 4mA-20mA for users to monitor it.

19. Current measurement: This pin will output the current in analog signal 0-5V or 0-10V for users to monitor it.

3.3.1.2 BUZZER

The buzzer sounds when the keys or the rotary knob on the front panel is pressed or turned to remind user. It can be turned off if it is not necessary. (The default is ON.)

1.

Use “ shows.

”, “

” keys to move the cursor to the column to be set as Figure 3-11

Figure 3-11

2.

Use the numeric (

0

~

1

) keys or “Rotary”( mode.

3.

Press “

ENTER

” to confirm.

4.

Press “

EXIT

” to return to the MAIN PAGE.

) knob to select “ON” or “OFF”

1.

BUZZER has two options: ON / OFF.

2.

When the BUZZER is set to ON, press any key or turn the rotary knob will beep once to remind user.

3.

When the BUZZER is set to ON and the BUZZER will beep continuously if system protection occurs to remind user.

4.

When BUZZER is set to OFF then it will not beep in any situation.

3.3.1.3 POWER ON STATUS

It loads the default output status automatically after powered on, so that users don’t have to set it again.

3-10

Manual Operation

1.

Use “ shows.

”, “

” keys to move the cursor to the column to be set as Figure 3-12

Figure 3-12

2.

Press “

0

” or “

2

” to set the value, or use ““Rotary” ( ) knob to set it.

POWER ON STATUS has three options: DEFAULT / LAST TURN OFF STATUS /

USER DEFINITION.

When it is set to DEFAULT, it means the output state is not defined specifically, which is

V = 0.00V ; I = 0.00A ; OUTPUT = OFF.

When it is set to LAST TURN OFF STATUS, the instrument will log the command voltage, command current and output state before powering it off, so that the state before powered off can be obtained for next power-on.

Ex.: In Figure 3-13, the voltage setting is 60.00V, current setting is 10.00A and output

setting is ON. When it powers on again, the instrument will remain the previous state by setting the voltage to 60.00V, current to 10.00A and output to ON.

V = 6 0. 0 0 V I = 1 0. 0 0 _ A C C O N

6 0 . 0 0 0 V 1 0 . 0 0 0 A

6 0 0 . 0 W

Figure 3-13

When set to USER DEFINITION a setting line will prompt beneath the POWER ON

STATUS line as Figure 3-14 shows for the user to set the default power-on state

including voltage (V_SET), current (I_SET) and OUTPUT=ON/OFF.

3-11

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 3-14

3.

Press “

4.

Press “

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

3.3.2 OUTPUT SETUP

1. In Config Setup page, press “

2

” key and “

screen as Figure 3-15 shows.

2. Press.

ENTER

” to enter into the Output Setup

EXIT

”, “ ” keys to move the cursor to the column to be set.

” to return to the MAIN PAGE.

Figure 3-15

The values in Figure 3-15 are the default settings of 62150H-600.

Following introduces the options of OUTPUT SETTING.

3-12

Manual Operation

3.3.2.1 VOLTAGE LIMIT SETTING

”, “

” keys to move the cursor to the column to be set as Figure 3-16

shows.

Figure 3-16

2. Use the numeric (

0

~

9

) keys or “Rotary” ( ) knob to set the value.

Use this option can narrow down its range by setting the MIN and MAX. When “

VOLT

is pressed to set the output voltage, the DC Power Supply allows setting the voltage within the range of [MIN value ≤ user-defined value ≤ MAX value]. Take example by

62150H-600, the V LIMIT: MAX=100V, MIN=20V. If the setting exceeds the output

” voltage 110V set by the user, the BUZZER will beep one time (if BUZZER is set to ON)

and the main screen will prompt a warning message automatically as shown in Figure

3-17 below.

V = 6 0. 0 0 V I = 1 0. 0 0 _ A O F F

0 . 0 0 0 0 V 0 . 0 0 0 0 A

V L I M I T R A N G E = 2 0 . 0 V

1 0 0 . 0 V

Figure 3-17

3. Press

ENTER

” to confirm.

4. Press

EXIT

” to return to the MAIN PAGE.

3-13

Programmable DC Power Supply 62000H Series Operating & Programming Manual

3.3.2.2 CURRENT LIMIT SETTING

”, “

” keys to move the cursor to the column to be set as Figure 3-18

shows.

) knob to set the value.

Figure 3-18

2. Use the numeric (

0

~

9

) keys or “Rotary” (

Use this option can narrow down its range by setting the MIN and MAX. When “

CURR

is pressed to set the output current, the DC Power Supply allows setting the current

” within the range of [MIN value ≤ user-defined value ≤ MAX value]. Take example by

62150H-600, the V LIMIT: MAX=20A, MIN=2A. If the setting exceeds the output current

21A set by the user, the BUZZER will beep one time (if BUZZER is set to ON) and the

main screen will prompt a warning message automatically as shown in Figure 3-19

below.

V = 6 0. 0 0 V I = 1 0. 0 0 _ A O F F

0 . 0 0 0 0 V 0 . 0 0 0 0 A

I L I M I T R A N G E = 2 . 0 A

2 0 . 0 A

Figure 3-19

3. Press

ENTER

EXIT

” to confirm.

” to return to the MAIN PAGE.

3-14

Manual Operation

3.3.2.3 VOLTAGE SLEW RATE

”, “

” keys to move the cursor to the column to be set as Figure 3-20

shows.

Figure 3-20

2. Use the numeric (

0

~

9

) keys or “Rotary” ( ) knob to set the value.

Take example by 62150H-600, the output voltage slew rate of the DC Power Supply is

set as Figure 3-21 shows. The maximum input Slew Rate is 10V/mS and the minimum is

0.001V/mS. The output of DC Power Supply will follow the slew rate to rise to the set output voltage while the fall slew rate is limited by load.

Vo

SR

=

Δ

V

Δ

T

ΔV

ΔT

Time(mS)

Figure 3-21

3. Press

ENTER

” to confirm.

4. Press

EXIT

” to return to the MAIN PAGE.

The minimum transient time is (

Δ

T) = 0.5 ms.

3-15

Programmable DC Power Supply 62000H Series Operating & Programming Manual

3.3.2.4 CURRENT SLEW RATE SETTING

”, “ ” keys to move the cursor to the column to be set.

Figure 3-22

2. Use the numeric (

0

~

9

) keys or “Rotary” ( ) knob to set the value.

Take example by 62150H-600, the output current slew rate of the DC Power Supply is

set as Figure 3-23 shows. The maximum input Slew Rate is 0.1A/mS and the minimum

is 0.001A/mS. If the input is larger than 0.1A/mS, the current Slew Rate will be set to

INF. and change with maximum slew rate (near infinite). The output of DC Power Supply will follow the slew rate to rise to the set output current.

Io

SR

=

Δ

I

Δ

T

ΔI

ΔT

Figure 3-23

3. Press

ENTER

” to confirm.

4. Press

EXIT

” to return to the MAIN PAGE.

Time(mS)

3-16

Manual Operation

3.3.2.5 Setting DC_ON

There are two methods to set DC_ON. One is when the DC power supply is ON and the voltage is over VDC_R, the pin10 DCOUT_ON of the ANALOG INTERFACE on the rear panel will turn to HIGH; also when the DC power supply is OFF and the voltage is lower than

VDC_F, the pin10 DCOUT_ON of the ANALOG INTERFACE on the rear panel will turn to

LOW. The other is when the DC power supply is ON, the pin10 DCOUT_ON of the

ANALOG INTERFACE on the rear panel will turn to HIGH; also when the DC power supply is

OFF, the pin10 DCOUT_ON of ANALOG INTERFACE on the rear panel will turn to LOW

, as

Figure 3-24 shows:

VDC_F

VDC_R

VO

DC_ON t

Figure 3-24

Set DC_ON as described below:

1. Method 1: Use “

Figure 3-25 shows.

”, “ keys to move the cursor to the column to be set as

Figure 3-25

2. Use the numeric keys (

0

~

9

) or “Rotary” ( ) knob to set the value, the lower limit is 1%Vmax and upper limit is 99%Vmax. For instance, the lower limit of

DC_ON is 6V and the upper limit is 594V for 62150H-600.

3. Method 2: Use “

Figure 3-26 shows.

”, “ ” keys to move the cursor to the column to be set as

3-17

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 3-26

4. Use the numeric kesy (

0

~

1

) or “Rotary” ( ) knob to set the DCOUT ON

MODED to ON/OFF and make the pin 10 of ANALOG INTERFACE take the command from the OUTPUT button on the front panel.

3.3.3 SERIES/PARALLEL

62000H Series DC Power Supplies are able to operate in series or parallel. The voltage is up to 1200V if connecting in series and the current is up to 3750A if connecting in parallel.

1. Series/Parallel cannot be mixed in use.

2. The maximum output voltage or current is 1200V or 3750A when

operating the 62000H Series in series or parallel. Table 3-1 lists the

examples of 62150H-40, 62150H-450, 62150H-600 and

62150H-1000.

Table 3-1

62000H Series

Model

Max.

Serial

Max. Output Max.

Parallel

Max. Output

Devices Voltage (V) Devices Current (A)

62150H-40 2 80 10 3750

62150H-450 2 900 10 340

62150H-600 2 1200 10 250

62150H-1000 2 1200 10 150

3. Different model is unable to be operated in parallel or serial.

4. Be sure the breaker capacity is enough and the earth wire is grounded to earth ground when series/parallel is in use.

5. When the devices to be paralleled are over 5 sets (>5), please contact the Service Center or agent of CHROMA.

6. Please configure the DC Power Supplies up and down stack for parallel connection. The standard CURRENT SHARING cable is unable to use if placing the devices lateral for parallel configuration.

It is necessary to purchase another optional CURRENT SHARING

(100CM) cable for use. Please contact CHROMA Service Center or local agent for further information. Also, be noted that the paralleled

3-18

Manual Operation

3.3.3.1 Connecting Series/Parallel Output Cable

Figure 3-27 and Figure 3-28 show the connections of serial and parallel output cables.

62150H-600

SVO+

VO+

VO

SVO

--

--

+

62150H-600

VO -

--

-

Figure 3-27

Figure 3-28

3.3.3.2 Assembling Series/Parallel Communication Interface

1. When the DC Power Supply is connecting in series for operation, the SYSTEM BUS

connectors on the rear panel must be connected as Figure 3-29 shows.

Figure 3-29

2. When the DC Power Supply is connecting in parallel for operation, besides the SYSTEM

BUS connectors on the rear panel need to be connected, the CURRENT SHARING

connectors have to be connected as well as Figure 3-30.

3-19

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 3-30

1. Each DC Power Supply has two RS485 interface female connectors. They need to be connected either in series or parallel operation. There is no difference between left and right; just to

connect one after another as Figure 3-29 or Figure 3-30 shows in

solid line.

2. Each DC Power Supply has two CURRENT SHARING connecting terminals. Connect the output terminal of the first Power Supply to the input terminal of the second Power Supply and so forth as

Figure 3-30 shows in dot line. Be sure to use the CURRENT

SHARING communication cable provided by CHROMA.

3. The CURRENT SHARING communication cable must be well connected when in parallel operation, or it may cause the DC Power

Supply to run abnormally or poor result in CURRENT SHARING.

4. If it is necessary to return to single unit operation mode, be sure to remove the SYSTEM BUS, CURRENT SHARING signal cables to avoid operation error.

WARNING

1. The DC Power Supply might be burned-out if the CURRENT

SHARING input and output terminals are connected incorrectly when in parallel mode.

2. Do not connect the CURRENT SHARING cable when in series operation or it might be burned-out.

3-20

Manual Operation

3.3.3.3 Setting Series/Parallel Operation Mode

3.3.3.3.1 Setting SLAVE

CAUTION

It is necessary to set SLAVE first and MASTER last when operating

62000H Series DC Power Supply in series or parallel mode, or it may not be able to operate due to communication error.

When MASTER OR SLAVE sets to SLAVE, it has to set the SLAVE to SLAVE1 ~ SLAVE9 and M/S TERMINATOR selection. Set the SLAVE in sequence starting from SLAVE1.

1. In Config Setup page, press “

3

” and “

display Figure 3-31.

ENTER

” to select PARALLEL /SERIES and

”, “ selection column.

” keys to move the cursor to the PARALLEL OR SERIES

Figure 3-31

3. Use the numeric (

1

~

0

) keys or “Rotary” (

as Figure 3-32 shows.

) knob to set SLAVE1~SLAVE9

Figure 3-32

4. Press

ENTER

” to confirm and press “

EXIT

” to return to the MAIN PAGE.

5. Use the numeric (

1

~

0

) key or “Rotary” (

the TERMINATOR as Figure 3-32 shows.

) knob to ENABLE or DISABLE

6. Press

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

3-21

Programmable DC Power Supply 62000H Series Operating & Programming Manual

3.3.3.3.2 Setting MASTER

If MASTER OR SLAVE is set to MASTER, it has to set M/S TERMINATOR, PARALLEL OR

SERIES and NUM. OF SLAVE selections. See the description of PARALLEL OR SERIES in

section 0 and NUM. OF SLAVE in section 3.3.3.3.4.

MASTER has two main functions:

(1) It issues commands to all SLAVE, such as voltage setting, current setting, protection setting and etc., which means all settings in SALVE are from MASTER. The original settings in SLAVE are temporary invalid.

(2) It accepts all measurement values and protection signals from SLAVE. The MASTER calculates all measurement values and displays them in the main page. Moreover, when protection is occurred in one SLAVE, the MASTER will notify other SLAVE to set off the protection and show in the MASTER’s main page.

When multiple DC Power Supplies are connected in series or parallel, only one DC Power Supply can be the Master and the rest have to be set to Slave.

Set MASTER as described below:

1. In Config Setup page, press “

3

” and

2. Use the numeric (

0

) key or “Rotary” ( shows.

ENTER

to select PARALLEL/SERIES

.

) knob to set MASTER as Figure 3-33

[ S E R I E S / P A R A L L E L ]

M A S T E R O R S L A V E = M A S T E R _

M / S T E R M I N A T O R = D I S A B L E

P A R A L L E L O R S E R I E S = P A R A L L E L

N U M . O F S L A V E = 1

M A S T E R & S L A V E C O N T R O L = N O

Figure 3-33

3. Use “ item.

”, “ ” keys to move the cursor to the M/S TERMINATOR selection

4. Use the numeric (

1

~

0

) key or “Rotary” (

the TERMINATOR as Figure 3-33 shows.

) knob to ENABLE or DISABLE

5. Press “

ENTER

” to confirm.

Description of M/S TERMINATOR

When the 62000H Series Models are operating in MASTER OR SLAVE mode, please be aware of the M/S TERMINATOR setting. Assuming

the connection is as Figure 3-34 shows, the M/S TERMINATOR of the

first and last devices must be ENABLED with 120 Ω internal resistance.

3-22

Manual Operation

Figure 3-34

3.3.3.3.3 Setting PARALLEL or SERIES

This option is to set the Power Supply to be operated in Series or Parallel mode as Figure

3-35 shows. There are two selections: PARALLEL and SERIES.

”, “ ” keys to move the cursor to the column to be set.

Figure 3-35

2. Use the numeric (

0

~

1

) keys or “Rotary” (

SERIES.

) knob to set PARALLEL or

Connect the cables on the rear panel as Figure 3-29 shows when set to SERIES and as

Figure 3-30 shows when set to PARALLEL.

Select SERIES will prompt the following window as Figure 3-36 shows to remind the

user to disconnect the CURRENT SHARING cable on the rear panel.

3-23

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 3-36

3. Press

ENTER

EXIT

” to confirm.

” to return to the MAIN PAGE.

3.3.3.3.4 Setting NUM. OF SLAVE

Take example by 62150H-600, when the DC Power Supply is set to MASTER, the controlled number that is the SLAVE number has to be set as well. If the controlled sets are 4, then

set NUM. OF SLAVE = 4 as Figure 3-37 shown below.

”, “ ” keys to move the cursor to the column to be set.

2. Use the numeric (

0

~

1

) keys or “Rotary” (

SLAVE.

) knob to set the number of

Figure 3-37

3. Press

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

3-24

Manual Operation

Take example by 62150H-40:

1. If there are 5 sets connected in parallel and 40V/1000A is set, the setting of each set is 40V/200A and the total output will be

40V/1000A.

2. If there are 2 sets connected in series and 80V/375A is set, the setting of each set is 40V/375A and the total output will be

80V/375A.

3. The total sets for connecting in series are 2; therefore, the maximum number of NUM. OF SLAVE is 1.

4. The total sets for connecting in parallel are 10; therefore, the maximum number of NUM. OF SLAVE is 9.

3.3.3.3.5 Activating MASTER & SLAVE CONTROL

When PARALLEL OR SERIES, NUM. OF SLAVE are set for MASTER, it is able to use

MASTER to activate the series/parallel control as described below:

1. Use “ shows.

”, “

” keys to move the cursor to the column to be set as Figure 3-38

2. Use the numeric (

1

) key or “Rotary” ( ) knob to set YES

Figure 3-38

3. Press “

ENTER

to confirm, it will skip to the series/parallel MASTER page automatically as

Figure 3-39 shows.

Figure 3-39

4. The SLAVE page will skip to Figure 3-40 automatically.

3-25

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 3-40

5. Start the series/parallel usage.

CAUTION

Communication error will occur if the SLAVE settings are the same

(such as SLAVE 1 & SLAVE 1). The MAIN PAGE of MASTER will show as

1. Figure 3-41. When this type of error occurs, exit the series/parallel operation first and then change the SLAVE setting to resume the operation.

S L A V E 1

M E A S . E R R

Figure 3-41

2. Once the series/parallel is set, the settings can be saved. After all machines are powered off, turn on the SLAVE first and MASTER the last, it will set series/ parallel operation automatically.

3.3.3.4 Setting Series Parameters

When the software communication and hardware settings for series are completed, the settings of following windows are introduced in the sections underneath - (1) MAIN PAGE, (2)

SYSTEM SETUP, (3) OUTPUT SETUP and (4) PROTECTION.

3.3.3.4.1 Setting MAIN PAGE

MAIN PAGE is mainly used to set voltage (V) and current (I). The difference between single unit and series operation is that the voltage set will increase following the number connected in series. The voltage set is indicated by Σ V for easy identification. When set to MASTER,

MST will appear at the window’s upper right corner as Figure 3-42 shows below.

3-26

Manual Operation

Figure 3-42

3.3.3.4.2 Setting SYSTEM SETUP for Series

The operation of POWER ON STATUS in SYSTEM SETUP for series is the same as single unit; only the output voltage will increase following the number of machines set in series.

For example if there are 2 sets of 62150H-600 in series, the maximum output voltage can be

set is 1200V, and the maximum output current is 25A as Figure 3-43 shows below:

Figure 3-43

It will return to single unit mode once the POWER ON STATUS is set in series mode. The POWER ON STATUS sets the output voltage and current to 0 and OUTPUT to OFF automatically.

3.3.3.4.3 Setting OUTPUT SETUP for Series

The V LIMIT MAX in OUTPUT SETUP of MASTER for series connection will increase following the number connected in series. It is indicated by Σ V LIMIT MAX: for easy

identification as Figure 3-44 shows below. Furthermore, the setting range of

Σ V SLEW

RATE will increase following the number connected in series too.

3-27

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 3-44

3.3.3.4.4 Setting PROTECTION for Series

The OVP and OPP in PROTECTION of MASTER for series connection will increase following the number connected in series. It is indicated by Σ OVP and Σ OPP for easy

identification as Figure 3-45 shows below.

Figure 3-45

3.3.3.5 Setting Parallel Parameters

When the software communication and hardware settings for parallel are completed, the settings of following windows are introduced in the sections underneath - (1) MAIN PAGE, (2)

SYSTEM SETUP and (3) OUTPUT SETUP.

3.3.3.5.1 Setting MAIN PAGE

MAIN PAGE is mainly used to set voltage (V) and current (I). The difference between single unit and parallel operation is that the current set will increase following the number connected in parallel. The current set is indicated by Σ I for easy identification. When set

to MASTER, MST will appear at the window’s upper right corner as Figure 3-46 shows

below.

3-28

Manual Operation

Figure 3-46

3.3.3.5.2 Setting SYSTEM SETUP for Parallel

The operation of POWER ON STATUS in SYSTEM SETUP for parallel is the same as single unit; only the output current will increase following the number of machines set in parallel.

For example if there are 5 sets of 62150H-600 in parallel, the maximum output voltage can

be set is 600V, and the maximum output current is 125A as Figure 3-47 shows below:

Figure 3-47

It will return to single unit mode once the POWER ON STATUS is set in parallel mode. The POWER ON STATUS sets the output voltage and current to 0 and OUTPUT to OFF automatically.

3.3.3.5.3 Setting OUTPUT SETUP for Parallel

The I LIMIT MAX in OUTPUT SETUP of MASTER for parallel connection will increase following the number connected in parallel. It is indicated by Σ I LIMIT MAX: for easy

identification as Figure 3-48 shows below. Furthermore, the setting range of

Σ I SLEW

RATE will increase following the number connected in parallel too.

3-29

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 3-48

3.3.3.5.4 Setting PROTECTION for Parallel

The OCP and OPP in PROTECTION of MASTER for parallel connection will increase following the number connected in parallel. It is indicated by Σ OCP and Σ OPP for easy

identification as Figure 3-49 shows below.

Figure 3-49

3.3.3.6 Setting Procedure for APG in Series or Parallel

3.3.3.6.1 Series Setting

To connect 2 sets of 62150H-600 DC Power Supplies in series for operation and set the

APG option to APG VSET/APG ISET = Vref(0-5V), the MAIN PAGE of MASTER will show as

Figure 3-50.

3-30

Figure 3-50

Manual Operation

As to the voltage setting, the inputted analog voltage 0~5V maps to the actual output voltage

0~1200V; and for the current setting, the inputted analog voltage 0~5V maps to the actual

output current 0~25A as Figure 3-51(a) shows. Set the APG option to APG VSET/APG

ISET = Vref(0-10V) means the inputted analog voltage 0~10V maps to the actual output

0~1200V for APG voltage also maps to the actual output 0~25A for APG current as Figure

3-51(b) shows. For the above voltage/current setting method, the analog voltage (0~5V or

0~10V) has to be inputted to the devices connected in series respectively in order to have the effect of serial operation in APG mode.

1200V

/25A

1200V

/25A

APG INPUT 5V/5V APG INPUT 10V/10V

(a) (b)

Figure 3-51

3.3.3.6.2 Parallel Setting

To connect 5 sets of 62150H-600 DC Power Supplies in parallel for operation and set the

APG option to APG VSET/APG ISET = Vref(0-5V), the MAIN PAGE of MASTER will show as

Figure 3-52.

Figure 3-52

As to the voltage setting, the inputted analog voltage 0~5V maps to the actual output voltage

0~600V; and for the current setting, the inputted analog voltage 0~5V maps to the actual

output current 0~125A as Figure 3-53(a) shows. Set the APG option to APG VSET/APG

ISET = Vref(0-10V) means the inputted analog voltage 0~10V maps to the actual output

0~600V for APG voltage also maps to the actual output 0~125A for APG current as Figure

3-53(b) shows. For the above voltage/current setting method, the analog voltage (0~5V or

0~10V) has to be inputted to the devices connected in series respectively in order to have the effect of serial operation in APG mode.

3-31

Programmable DC Power Supply 62000H Series Operating & Programming Manual

600V/125

A

600V/125

A

APG INPUT 5V/5V APG INPUT 10V/10V

3.3.4 DISPLAY

(a) (b)

Figure 3-53

DISPLAY setting has 4 options: (1) BRIGHTNESS (2)DISPLAY SELECTION(2)READING

AVERAGE TIMES (4) AVERAGE METHOD.

3.3.4.1 BRIGHTNESS

This option sets the backlight panel brightness of the VFD on the front panel. There are 4 types of backlight brightness for selection (including turn off the backlight) for use in various occasions.

1.

Use “ shows.

”, “

” keys to move the cursor to the column to be set as Figure 3-54

[ D I S P L A Y S E T U P ]

B R I G H T N E S S = H I G H _

D I S P L A Y S E L E C T I O N = N O N E

R E A D I N G A V E R A G E T I M E S = 1

Figure 3-54

2.

Use the numeric keys (

0

~

3

) or “Rotary” ( brightness.

3.

Press “

ENTER

” to confirm.

4.

Press “

EXIT

” to return to the MAIN PAGE.

) to select the VFD backlight

3-32

Manual Operation

1. There are 3 selections for BRIGHTNESS:

HIGH /NORMAL/

DIMMED

, the default is

HIGH

.

2. Shortcuts and brightness description: a. Press

0

”, BRIGHTNESS = HIGH. b. Press

1

”, BRIGHTNESS = NORMAL. c. Press

2

”, BRIGHTNESS = DIMMED.

3. The lower backlight brightness, the longer the display panel life.

Thus, it is suggested to turn the backlight brightness to DIMMED when the device is doing burn-in to prolong the product life of VFD display.

3.3.4.2 DISPLAY SELECTION

The setting of DISPLAY is to show the internal settings on the last line of MAIN PAGE for easy identification without entering the setting page. There are 4 options available for displaying on the MAIN PAGE: (1) NONE, (2) V/I LIMIT, (3) V/I/P PROTECT and (4) V/I

SLEWRATE.

1. In Config setting page, press “

4

” to display the screen and “

DISPLAY SELECTION as Figure 3-55 shows.

ENTER

” to enter into

[ D I S P L A Y S E T U P ]

B R I G H T N E S S = H I G H

D I S P L A Y S E L E C T I O N = N O N E _

R E A D I N G A V E R A G E T I M E S = 1

Figure 3-55

”, “

” keys to move the cursor to the column to be set as Figure 3-55

shows.

3. Use the numeric keys (

0

~

3

) or “Rotary” ( ) knob to select the desired setting. There are 4 selections on the MAIN PAGE

(1)NONE, (2)V/I LIMIT, (3)V/I/P

PROTECT and (4)V/I SLEWRATE. The system default is NONE.

When the selection is set to NONE, the MAIN PAGE does not show any message on the last line.

When it is set to V/I LIMIT, the MAIN PAGE last line will show the range set by V LIMIT

and I LIMIT in OUTPUT SETUP as Figure 3-56 shows. See section 3.3.2.1 and 3.3.2.2

for detail description.

3-33

Programmable DC Power Supply 62000H Series Operating & Programming Manual

V = 6 0. 0 0 V I = 1 0. 0 0 _ A O F F

0 . 0 W

V _ L I M : 2 0 . 0

1 0 0 . 0 I_ L I M : 2 . 0 0

1 8 . 0 0

Figure 3-56

When the selection is set to V/I /P PROTECT, the MAIN PAGE last line will show the

OVP, OCP and OPP settings in the PROTECTION as Figure 3-57 shows. See sections

3.3.5.1 ~3.3.5.3 for detail description.

V = 6 0. 0 0 V I = 1 0. 0 0 _ A O F F

0 . 0 W

O V P = 6 6 0 . 0 V O C P = 1 8 . 9 0 A O P P = 1 0 5 0 0 . 0 W

Figure 3-57

When the selection is set to V/I SLEW, the MAIN PAGE last line will show the settings of

V SLEWRATE and I SLEWRATE in OUTPUT SETUP as Figure 3-58 shows. See

section 3.3.2.3 and 3.3.2.4 for detail description

V = 6 0. 0 0 V I = 1 0. 0 0 _ A O F F

0 . 0 W

V _ S / R : 1 0 .0 0 0 ( V / m s ) I _ S / R : 0 . 0 0 1 ( A / m s )

Figure 3-58

3-34

Manual Operation

3.3.4.3 READING AVERAGE TIMES

READING AVERAGE TIMES option can set the average times the MAIN PAGE displays.

The default is 2 as Figure 3-59 shows. When changing the READING AVERAGE TIMES

default, the average method can be changed.

[ D I S P L A Y S E T U P ]

B R I G H T N E S S = H I G H

D I S P L A Y S E L E C T I O N = N O N E

R E A D I N G A V E R A G E T I M E S = 1 _

Figure 3-59

Follow the steps below to change the average times and method:

”, “

” keys to move the cursor to the column to be set as Figure 3-60

shows.

Figure 3-60

2. Use numeric keys

0

~

3

or “Rotary” ( ) to select the desired average times. READING AVERAGE TIME can be set to 1, 2, 4 and 8.

3. Move the cursor to AVERAGE METHOD and use numeric keys (

0

~

1

) or

“Rotary” ( ) to select the desired average method. AVERAGE METHOD has FIXED and MOVING 2 types.

1. Assuming setting the READING AVERAGE TIME = 8, AVERAGE

METHOD:FIXED, readings sampling is that the device clears all of the old samples (A1 ~ A8) in the buffer and saves the new samples (B1 ~

B8), then average them in repetition as Figure 3-61 shows.

Figure 3-61

3-35

Programmable DC Power Supply 62000H Series Operating & Programming Manual

2. Assuming setting the READING AVERAGE TIME = 8, AVERAGE

METHOD:MOVING, the readings sampling is that the device removes the oldest sample in the buffer and saves a new sample, then average

them in repetition as Figure 3-62 shows.

Figure 3-62

3. The panel reading is refreshed in the rate of 200mS.

3.3.5 PROTECTION

Chroma 62000H Series DC Power Supplies have complete protection functions divided in two classes. The first type protection includes over voltage, over current, over power and

FOLDBACK; while the second type protection includes over temperature, fan failure and over/under input voltage. The first class protection trigger point is set by user as described below, while the second class protection is auto detected by the system hardware protection circuit.

To enter into the Protection mode:

1. Press “ ” to the Config Setup page.

2. In Config Setup page, press “

5

” and “

page as Figure 3-63 shows.

ENTER

” to enter into PROTECTION selection

Figure 3-63

When in the selection page, use “ cursor to the column to be set.

”, “ ” keys to move the

3-36

Manual Operation

3.3.5.1 OVP Protection

”, “

” keys to move the cursor to the column to be set as Figure 3-64

shows.

) knob to set the value.

Figure 3-64

2. Use the numeric keys (

0

~

9

) or “Rotary” (

3. Press

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

This function sets the protection point for Over Voltage. Once the output voltage exceeds the range, it will turn off the output that is OUTPUT = OFF to protect the unit under test.

Table 3-2 shows the voltage range of OVP.

Table 3-2 OVP Range

Model Min. OVP (V) Max. OVP (V)

62xxxH-xxx 0 1.10 x Vo_MAX

When OVP occurs the main page will prompt a protection message as Figure 3-65 shows:

Figure 3-65

3-37

3-38

Programmable DC Power Supply 62000H Series Operating & Programming Manual

3.3.5.2 OCP Protection

”, “

” keys to move the cursor to the column to be set as Figure 3-66

shows.

Figure 3-66

2. Use the numeric (

0

~

9

) keys or “Rotary” (

3. Press

ENTER

EXIT

” to confirm.

” to return to the MAIN PAGE.

) knob to set the value.

This function sets the protection point for Over Current. Once the output current exceeds the range, it will turn off the output that is OUTPUT = OFF to protect the unit under test.

Table 3-3 shows the current range of OCP.

Table 3-3

Model Min. OCP (A) Max. OCP (A)

62xxxH-xxx 0 1.05 x Io_MAX

When OCP occurs the main page will prompt a protection message as Figure 3-67 shows

below:

Figure 3-67

Manual Operation

3.3.5.3 OPP Protection

”, “

” keys to move the cursor to the column to be set as Figure 3-68

shows.

) knob to set the value.

Figure 3-68

2. Use the numeric (

0

~

9

) keys or “Rotary” (

3. Press

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

This function sets the protection point for Over Power. Once the output power exceeds the range, it will turn off the output that is OUTPUT = OFF to protect the unit under test.

1. Table 3-4 shows the power range of OPP.

Table 3-4

Model

62xxxH-xxx

Min. OPP (W)

0

Max. OPP (W)

1.05 x Po_MAX

2.

The OPP protection point is based on the comparison of calculated power of output current and remote sense voltage.

When OPP occurs the main page will prompt a protection message as Figure 3-69 shows:

Figure 3-69

3-39

Programmable DC Power Supply 62000H Series Operating & Programming Manual

3.3.5.4 REMOTE INHIBIT

This function allows users to close the outputting power supply or control the power supply’s

ON/OFF directly through the PIN9 _INHIBIT in APG & SYSTEM STATUS.

3-70 shows.

” & “

” keys to move the cursor to the column to be set as Figure

Figure 3-70

2. Use numeric keys

0

~

1

or “Rotary” ( ) to set REMOTE INHIBIT mode.

There are DISABLE and EXT. ON/OFF two options.

1. Selecting DISABLE: It closes the function.

2. Selecting ENABLE: It sets the REMOTE INHIBIT to ENABLE. The DC Power

Supply’s ON/OFF is still controlled by “

ON/OFF

” key.

When Pin 9 (_INHIBIT) of ANALOG INTERFACE is triggered by Low Level that equals to press the “

ON/OFF

” key on the front panel and set OUTPUT = OFF, the DC

Power Supply will shut down and sends out a protection signal (in this case the “

ON/OFF

” will be off.) It cannot use

Pin 9 (_INHIBIT) of ANALOG INTERFACE to release the protection.

3. Press

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

3. When protection occurs to REMOTE INHIBIT the main page will appear the protection

message as Figure 3-71 shows.

3-40

Figure 3-71

Manual Operation

4. Furthermore, Pin 9 is the input pin of TTL Level and is able to set the initial state to

PULL=HIGH or PULL=LOW.

5. When the DC Power Supply is set to OUTPUT = ON, the detail actions of REMOTE

INHIBIT are shown in Figure 3-72.

_INHIBIT

SIGNAL

INHIBIT

=DISABLE

Output

Output

INHIBIT

=ENABLE

Figure 3-72

3.3.5.5 SAFETY INT.LOCK

This function allows users to control the DC Power Supply to be OFF temporary through the

Pin 21 (INTERLOCK of ANALOG INTERFACE.

3-73 shows.

” & “

” keys to move the cursor to the column to be set as Figure

Figure 3-73

2. Use the numeric kesy

0

~

1

or the “Rotary” ( ) knob to set SAFETY

INT.LOCK mode. There are DISABLE and ENABLE two options.

3-41

Programmable DC Power Supply 62000H Series Operating & Programming Manual

1.

Selecting DISABLE: It closes this function.

2.

Selecting ENABLE: It sets SAFETY INT.LOCK to ENABLE. The DC Power

Supply’s ON/OFF is still controlled by “

OUTPUT

”. When the

PIN 21 of ANALOG INTERFACE is at low level, it indicates the power supply is outputting normally and when it is at high level, it closes the power supply output temporary (the

ON/OFF

” is still on) and issues protection signal. Once the

Pin 21 of ANALOG INTERFACE is returned to low level, the DC Power Supply will continue to output normally.

3.

Press “

ENTER

” to confirm.

4.

Press “

EXIT

” to return to the MAIN PAGE.

3. When protection occurs to SAFETY INT.LOCK the main page will appear the protection

message as Figure 3-74 shows.

Figure 3-74

4. Furthermore, Pin 21 is the input pin of TTL Level and is able to set the initial state to

PULL=HIGH or PULL=LOW.

5. When the DC Power Supply is set to OUTPUT = ON, the detail actions of SAFETY

INT.LOCK are as shown in Figure 3-79.

INTERLOCK

SIGNAL

INTERLOCK

=DISABLE

Output

Output

INTERLOCK

=ENABLE

Figure 3-75

3-42

Manual Operation

3.3.5.6 EXTERNAL ON/OFF

This function allows users to control the DC Power Supply’s ON/OFF through the Pin 22

(_EXT_ON) of ANALOG INTERFACE.

”, “

” keys to move the cursor to the column to be set as Figure 3-76

shows.

Figure 3-76

2. Use the numeric keys

0

~

9

or “Rotary” ( ) to set the EXTERNAL

ON/OFF mode. This function has DISABLE and ENABLE two selections.

1. Selecting DISABLE: It closes this function.

2. Selecting ENABLE: It sets EXTTERNAL ON/OFF to ENABLE and make the

ON/OFF

” invalid, also the Pin 22 (_EXT_ON) replaces the

ON/OFF

” to control the Power Supply’s ON/OFF. When the Pin 22 (_EXT_ON) voltage level of ANALOG

INTERFACE turns to HIGH, the Power Supply is unable to output, that is OUTPUT = OFF. When the Pin18

(_EXT_ON) voltage level turns to LOW, the DC Power

Supply outputs normally, that is OUTPUT = ON.

3. Press

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

3. When the EXT. ON/OFF is enabled, the MAIN PAGE will appear the EXT message as

Figure 3-77 shows.

Figure 3-77

3-43

Programmable DC Power Supply 62000H Series Operating & Programming Manual

4. Furthermore, Pin 22 is the input pin of TTL Level and is able to set the initial state to

PULL=HIGH or PULL=LOW.

5. When the DC Power Supply is set to OUTPUT = ON, the detail actions of EXTERNAL

ON/OFF are as shown in Figure 3-78.

_EXT ON

SIGNAL

EXT ON

=DISABLE

Output

Output

EXT ON

=ENABLE

Figure 3-78

3.3.5.7 FOLDBACK

This function allows users to turn off the output that is OUTPUT = OFF when changing output mode (CV to CC, or CC to CV) to protect the unit under test.

”, “

” keys to move the cursor to the column to be set as Figure 3-79

shows.

Figure 3-79

2. Use the numeric keys (

0

~

2

) or “Rotary” ( ) knob to set the FOLDBACK mode. There are three options available for selection: DISABLE, CV TO CC and CC TO

CV.

3-44

Manual Operation

1. DISABLE: Ignore the output off function.

2. CV TO CC: Active in CV MODE only. Once the work mode changed to CC

MODE the system will turn off the output to protect the UUT.

3. CC TO CV: Active in CC MODE only. Once the work mode changed to CV

MODE the system will turn off the output to protect the UUT.

When the FOLDBACK option set to CV TO CC or CC TO CV, a selection for DELAY

TIME will prompt beneath for users to set the time delayed for protection after changed

the mode as Figure 3-80 shows.

[ P R O T E C T I O N ]

F O L D B A C K = C V T O C C_

D E L A Y T I M E = 0 . 0 1 S

Figure 3-80

When FOLDBACK protection occurs the main page will prompt a protection message as

Figure 3-81 shows:

Figure 3-81

Be aware that if DELAY TIME sets to

t

seconds, it means the FOLDBACK that set to CV

TO CC or CC TO CV won’t be activated unless it sustains

t

seconds when a mode change is detected. If the change time of mode is less than

t

seconds it will return to it

original state and FOLDBACK protection will not occur as Figure 3-82 shows.

3-45

Programmable DC Power Supply 62000H Series Operating & Programming Manual

CV MODE

DC SOURCE OPERATION MODE

DELAY TIME

Time

FOLDBACK

PROTECTION

CC MODE

Figure 3-82

Assuming the FOLDBACK is set to CV TO CC, the solid line in Figure 3-82 will create

Foldback protection while the dot line will not.

3. Press

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

3.3.5.8 OTP

The OTP protection will activate when the internal temperature reaches the high limit and the output will be turned off that is OUTPUT = OFF for protection.

When OTP occurs the main page will prompt a protection message as Figure 3-83 shows:

3-46

Figure 3-83

1. User is unable to change the OTP setting.

2. The output will turn off when OTP occurs and won’t be on again that is OUTPUT = ON until the internal temperature drops to a certain set value.

Manual Operation

3.3.5.9 AC FAULT

The AC FAULT protection will activate when the internal input voltage is not within the model’s range, or when a certain input voltage is having under voltage. The output will turn off that is OUTPUT = OFF for protection.

When AC FAULT occurs the main page will prompt a protection message as Figure 3-84

shows:

Figure 3-84

1. The table below lists the typical value of AC FAULT for 62000H

Series:

Line to Line Rated Voltage Lower than

(Vac)

High than

(Vac)

Table 3-5 AC FAULT Range

2. Once the AC FAULT is activated, the output is turned off that is

OUTPUT = OFF. Power off the device and then power it on again after the input voltage spec and connection are confirmed. If the any of the voltage spec or connection is incorrect, AC FAULT protection will occur continuously.

3. Be aware that the diameter of input wire cannot be too thin, or the line loss generated may cause the input voltage out of SPEC and

AC FAULT may occur. See section 2.3.2 for the spec of wire

diameter.

3.3.5.10 SENSE FAULT Protection

The remote sense is located at the rear panel near to output terminal. See section 2.4.1 for

correct connection. When the connection is correct it can adjust the UUT’s voltage to be consistent with the panel set voltage without affecting by the voltage drop of load wire.

(1) When the connection is wrong, for instance the VOLTAGE SENSING polarity is reversed that means the UUT’s “–” terminal is connected to the “+” of output terminal, and UUT’s “+” terminal is connected to the “–” of output terminal.

3-47

Programmable DC Power Supply 62000H Series Operating & Programming Manual

(2) When the voltage drop of load wire is exceeding the full scale of output voltage for 4%, for instance taking the example by 62150H-600, the protection will occur when the load wire voltage drop > 600 x 0.04=24V.

SENSE FAULT protection will occur when these two situations are encountered. The output will turn off that is OUTPUT = OFF for protection. It is necessary to connect the

REMOTE SENSING wires correctly and reboot to remove the protection.

When SENSE FAULT occurs the main page will prompt a protection message as Figure

3-85 shows.

Figure 3-85

3.3.5.11 FANLOCK Protection

Fans are built-in inside the DC Power Supply to ventilate the heat generated by components.

If one of the fans is fail (not running), FANLOCK protection will occur and the output will turn off that is OUTPUT = OFF for protection.

When FANLOCK occurs the main page will prompt a protection message as Figure 3-86

shows:

CAUTION

3-48

Figure 3-86 first and then power it on again to see if it is caused by error action.

(2) If FANLOCK protection occurs again, please contact sales

Manual Operation

agent for repair services.

2. Keep the two sides and the rear of DC Power Supply clear when in loading state to prevent Over Temperature Protection from occurring.

3.3.5.12 D/D FAULT Protection

If the Stage which is the internal output main circuit (DC TO DC Stage) is having error, a D/D

FAULT protection signal will generate and the output will be shutdown that is OUTPUT =

OFF to protect the DC Power Supply.

When D/D FAULT protection occurs, the main screen will prompt a protection message as shown below.

Figure 3-87

Troubleshooting:

(1) When D/D FAULT protection occurs, please turn off the Power

Supply first, remove the load and check if the connections are correct and then power it on again.

(2) If D/D FAULT protection happens again, please contact the local agent of Chroma to return it for repair.

3.3.6 FACTORY SETTING

This function lets users to reset the instrument to its factory default settings.

To enter it:

1. In Config Setup page, press “

6

” and

option as Figure 3-88 shows.

ENTER

to enter into FACTORY SETTING

FACTORY DEFAULT has two options: (1) NO and (2) YES.

When set to FACTORY DEFAULT = NO the instrument will retain the last configuration saved by user. On the contrary, if it is set to FACTORY DEFAULT = YES all configuration settings will return to the factory default.

In the mean time, the screen will display DEVICE MODEL, SERIAL NO., FIRMWARE

VERSION, FPGA VERSION and MODULE VERSION 5 types of message.

3-49

Programmable DC Power Supply 62000H Series Operating & Programming Manual

DEVICE MODEL

SERIAL NO.

FIRMWARE

VERSION

: Display the model no.

62150H-600

as Figure 3-88 shows.

: Display the serial no.

65535

as Figure 3-88 shows.

: Display firmware version

00.54

and the released date July

20, 2009 as Figure 3-88 shows.

FPGA VERSION

Display the FPGA version no.

00.00B,00.00B

as Figure 3-88

shows.

MODULE VERSION

Display the module version no.

00.00B,00.00B,00.00B

as

Figure 3-88 shows.

Figure 3-88

3.3.7 CALIBRATION

Chroma 62000H Series DC Power Supplies have 5 calibration functions:

(1) VOLTAGE: the actual voltage output (CV mode) and its measurement accuracy.

(2) CURRENT: the measurement accuracy of current.

(3) CURRENT: the actual current out (CC mode).

(4) APG VOLTAGE: the actual voltage output and its accuracy of analog V Monitor under analog voltage control mode.

(5) APG CURRENT: the actual current output and its accuracy of analog I Monitor under analog current control mode.

Follow the procedure below to enter into calibration mode:

1. In CONFIG Setup page, press “

7

” and press

option as Figure 3-89 shows.

ENTER

to enter into CALIBRATION

3-50

Figure 3-89

Manual Operation

2. Enter the password and press “

ENTER

” to confirm. The screen will display 4 calibration

options as Figure 3-90 shows. The calibration steps are described from section 3.3.7.1

to 3.3.7.5.

3. To abort CALIBRATION, press “

EXIT

” to return to the MAIN PAGE.

C H O I C E = V O L T A G E [ P / M ] [ C A L I B R A T I O N ]

1. V O L T A G E [ P R O G . / M E A S . ]

2. C U R R E N T [ M E A S . ]

3. C U R R E N T [ P R O G . ]

4. A P G V O L T A G E [ P R O G . / M E A S . ]

5. A P G C U R R E N T [ P R O G . / M E A S . ]

Figure 3-90

Password is required for CALIBRATION. The password is “3636”.

3.3.7.1 Voltage Output & Measurement Calibration

3.3.7.1.1 Hardware Requirements

It is as Table 3-6 shows.

DVM

Device

Table 3-6

Suggested Model or Capacity

HP 34401A or equivalent DVM

3.3.7.1.2 SETUP

It is as Figure 3-91 shows.

sv v

62000H

DC Power Supply

v sv

+

+

+

DVM

Figure 3-91

1. For the instrument that performs calibration its accuracy has to be higher than the accuracy of spec.

2. It is suggested to set the Resolution parameter of HP34401 to

SLOW 6 digit.

3. When conducting the voltage calibration, each calibration point has to key in at least 5 Arabic numerals to ensure the Power Supply accuracy after calibration.

3-51

Programmable DC Power Supply 62000H Series Operating & Programming Manual

3.3.7.1.3 Calibration Procedure (Example: Model 62150H-600)

1. Enter into the page of Figure 3-90.

2. In CALIBRATION page, press “

1

” or turn “Rotary” (

3. Press

ENTER

) knob to set CHOICE=1.

” to confirm entering into voltage calibration options as Figure 3-92 shows.

Figure 3-92

4. When in Voltage calibration page, press “

ENTER

” to confirm.

5. First does the low voltage range calibration, the instrument will output the voltage to

8.00V and the cursor is stopped at position [1] as Figure 3-93 shows. Enter the voltage

measured by DVM to position [1] and press “

ENTER

” to confirm.

” again to do the low voltage range calibration for its second point, the instrument will output the voltage to 115.00V and the cursor is stopped at position [2] as

Figure 3-93 shows. Enter the voltage measured by DVM to position [2] and press

ENTER

” to confirm.

Figure 3-93

” to do the high voltage range calibration, the instrument will output the

voltage to 150.00V first and the cursor is stop at position [3] as Figure 3-94 shows. Enter

the voltage measured by DVM to position [3] and press “

ENTER

” to confirm.

” again to do the high voltage range calibration for its second point, the instrument will output the voltage to 525.00V and the cursor is stopped at position [4] as

Figure 3-94 shows. Enter the voltage measured by DVM to position [4] and press

ENTER

” to confirm.

3-52

Manual Operation

Figure 3-94

9. Now the voltage calibration is done. To save the calibration data, press “

SAVE

prompt a confirmation page as Figure 3-95 shows. Press “

1

” or “Rotary” (

” will

) to

“ set SAVE=YES and press “

EXIT

ENTER

” to save it. If there is no need to save it, press

” to return to the Calibration screen.

Figure 3-95

10. Press “

EXIT

” to return to the MAIN PAGE.

1. The calibration point may be different for other models (non

62150H-600), please operate it following the instructions displayed.

2. It is necessary to remove the output load when performing voltage

calibration. The LCD panel will show the text as Figure 3-93 and

once no load is confirmed for the output, press “ calibration.

ENTER

” to start

3.3.7.2 Current Measurement Calibration

3.3.7.2.1 Hardware Requirements

Table 3-7 lists the hardware requirements for current measurement calibration.

Table 3-7

DVM

LOAD

Device

CURRENT SHUNT

Suggest Model or Capacity

HP 34401A or equivalent DVM

Prodigit 7550 or equivalent

ELECTRICAL LOAD CHROMA 63204 or equivalent

3-53

Programmable DC Power Supply 62000H Series Operating & Programming Manual

CAUTION

The table above lists the BREAKER capacity for 62150H-600 only. The applicable BREAKER for other models, please see the specifications of

OUTPUT CURRENT in Table 1-1 to Table 1-3.

3.3.7.2.2 SETUP

Figure 3-96 is the diagram for connecting current calibration devices.

Current Shunt

+ −

+

DVM

sv v

62000H

DC Power Supply

v sv

+

+

Breaker

+

Electronic Load

Figure 3-96

When conducting the current calibration, each calibration point has to key in at least 5 Arabic numerals to ensure the Power Supply accuracy after calibration.

3.3.7.2.3 Calibration Procedure (Example: Model 62150H-600)

1. Enter into the page of Figure 3-90.

2. In CALIBRATION page, press “

2

” or turn “Rotary” ( ) knob to set CHOICE=2.

3. Press

ENTER

shows.

” to confirm and entering into current calibration options as Figure 3-97

Figure 3-97

4. Open the Breaker to ensure the DC Power Supply has no load and press “ confirm.

ENTER

” to

5.

It is important

to reconnect the DC Power Supply to current shunt whose rating is closest to but still cover 2A. For Prodigit 7550, use 2A shunt directly.

3-54

Manual Operation

6. Then it will show Figure 3-98 and press “

ENTER

”. First it will calibrate the low current range, the system outputs a fixed voltage and then sets the loading current of Electronic

LOAD to 0.5A. The cursor is stopped at position [1] as Figure 3-98 shows. Enter the

current read by Current Shunt (DVM) to position [1] and press “ wait for it to end.

ENTER

” to confirm and

Figure 3-98

7. Once the 0.5A point was calibrated,

it is important

to turn the loading of Electronic

Load off and reconnect the DC Power Supply to current shunt whose rating is closest to but still cover 2A. For Prodigit 7550, use 2A shunt directly.

8. Next, press “ ” to do 1.5A calibration. The cursor will stop at position [2] as

Figure 3-99 shows for setting the loading current of Electronic LOAD to 1.500A. Enter

the current read by Current Shunt (DVM) to position [2] and press “

ENTER

” to confirm and wait for it to end. Use 0.5A and 1.5A for calibration, the system will calculate the calibration factor for the low current range.

Figure 3-99

9. After the low current range was calibrated,

it is important

to turn the loading of

Electronic Load off reconnect the DC Power Supply to current shunt whose rating is closest to but still cover 10A. For Prodigit 7550, use 10A shunt directly.

10. For high current range calibration, press “ ” to perform 2.5A calibration. The

cursor will stop at position [3] as Figure 3-100 shows for setting the loading current of

Electronic LOAD to 2.500A. Enter the current read by Current Shunt (DVM) to position

[3] and press “

ENTER

” to confirm and wait for it to end.

3-55

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 3-100

11. Once the 2.5A point was calibrated,

it is important

to turn the loading of Electronic

Load off reconnect the DC Power Supply to current shunt whose rating is closest to but still cover 10A. For Prodigit 7550, use 10A shunt directly.

12. Press “

” to perform 6.5A calibration. The cursor will stop at position [4] as Figure

3-101 shows for setting the loading current of Electronic LOAD to 6.500A. Enter the

current read by Current Shunt (DVM) to position [4] and press “

ENTER

” to confirm and wait for it to end. Use 2.5A and 6.5A for calibration, the system will calculate the calibration factor for the high current range.

Figure 3-101

13. The current calibration is done once the above actions are completed. To save the calibration data, press “

SAVE

Press “

1

” or “Rotary” (

” will prompt a confirmation page as Figure 3-102 shows.

) to set SAVE=YES and press “

ENTER

” to save it. If there is no need to save it, press “

EXIT

” to return to the Calibration screen.

Figure 3-102

14. Press “

EXIT

” to return to the MAIN PAGE.

3-56

Manual Operation

WARNING

Improper shunt range selection may cause damage to the current shunt.

The calibration point may be different for other models (non

62150H-600), please operate it following the instructions displayed.

3.3.7.3 Current Output (PROG.) Calibration

3.3.7.3.1 Hardware Requirements

Table 3-8 lists the hardware requirements for current output calibration.

Table 3-8

DVM

Device

CURRENT SHUNT

LOAD

Suggest Model or Capacity

HP 34401A or equivalent DVM

Prodigit 7550 or equivalent

ELECTRICAL LOAD CHROMA 63204 or equivalent

CAUTION

The table above lists the BREAKER capacity for 62150H-600 only. The applicable BREAKER for other models, please see the specifications of

OUTPUT CURRENT in Table 1-1 to Table 1-3.

3.3.7.3.2 SETUP

Figure 3-103 shows the wire connection.

Current Shunt

+ −

+

DVM

sv v

62000H

DC Power Supply

v sv

+

+

Breaker

+

Electronic Load

Figure 3-103

When conducting the current calibration, each calibration point has to key in at least 5 Arabic numerals to ensure the Power Supply accuracy after calibration.

3.3.7.3.3 Calibration Procedure (Example: Model 62150H-600)

1. Set the Electronic Load to CV mode 5V.

2. In CALIBRATION page, press “

3

” or turn “Rotary” ( ) knob to set CHOICE=3.

3. Press

ENTER

to confirm and entering into current calibration options as Figure 3-104

shows.

3-57

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 3-104

4. The output of the DC Power Supply will be off before user pressing ENTER. Next, set

the Electronic LOAD to short as Figure 3-105 shows. Then, set the current shunt whose

rating is closest to but still cover 2A. For Prodigit 7550, use 2A shunt directly.

Figure 3-105

5. Press ENTER the system will set the output current to 0.500A automatically and the

cursor will stop at position [1] as Figure 3-106 shows. Input the current read by Current

Shunt (DVM) to position [1] and press “

ENTER

” to confirm.

Figure 3-106

6. Now the DC Power Supply will be set to off again and a message will pop up to remind the user to reconnect to proper current shunt range. Set the current shunt whose rating is closest to but still cover 2A. For Prodigit 7550, use 2A shunt directly.

” will perform 1.5A calibration. The system will set the output current to

1.500A automatically and the cursor will stop at position [2] as Figure 3-107 shows.

Input the current read by Current Shunt (DVM) to position [2] and press “

ENTER

” to

3-58

Manual Operation

confirm. Use 0.5A and 1.5A for calibration, the system will calculate the calibration factor for the low current range.

Figure 3-107

8. Now start the high current range calibration. Set the current shunt whose rating is closest to but still cover 10A. For Prodigit 7550, use 10A shunt directly .

“ ” will perform 2.5A calibration. The system will set the output current to

2.500A automatically and the cursor will stop at position [3] as Figure 3-108 shows.

Input the current read by Current Shunt (DVM) to position [3] and press “ confirm.

ENTER

” to

Figure 3-108

10. The DC Power Supply will be set to off again. Set the current shunt whose rating is closest to but still cover 10A. For Prodigit 7550, use 10A shunt directly.

11. Press “ ” will perform 6.5A calibration. The system will set the output current to

6.500A automatically and the cursor will stop at position [4] as Figure 3-109 shows.

Input the current read by Current Shunt (DVM) to position [4] and press “ confirm.

ENTER

” to

Figure 3-109

3-59

Programmable DC Power Supply 62000H Series Operating & Programming Manual

12. The current calibration is done once the above actions are completed and the DC Power

Supply output will be turned off. To save the calibration data, press “

SAVE

” will

prompt a confirmation page as Figure 3-110 shows. Press “

1

” or “Rotary” ( ) to

“ set SAVE=YES and press “

EXIT

ENTER

” to save it. If there is no need to save it, press

” to return to the Calibration screen.

Figure 3-110

13. Press “

EXIT

” to return to the MAIN PAGE.

WARNING

Improper shunt range selection may cause damage to the current shunt.

The calibration point may be different for other models (non

62150H-600), please operate it following the instructions displayed.

3.3.7.4 APG Voltage Calibration

3.3.7.4.1 Hardware Requirements

Table 3-9 lists the hardware requirements for APG voltage calibration.

Table 3-9

DVM

Device Suggest Model or Capacity

HP 34401A or equivalent DVM

DC Power Supply Any DC Power Supply or DC signal source that can output 10Vdc and drive 100mA.

3.3.7.4.2 SETUP

Figure 3-111 shows the wire connection for APG voltage calibration.

3-60

Manual Operation

Figure 3-111

When conducting the APG voltage calibration, each calibration point has to key in at least 4 Arabic numerals to ensure the Power Supply accuracy after calibration.

3.3.7.4.3 Calibration Procedure (Example: Model 62150H-600)

1. In CALIBRATION page, press “

4

” or turn “Rotary” (

2. Press

ENTER

shows.

) knob to set CHOICE = 4.

” to confirm entering into APG Voltage Calibration options as Figure 3-112

Figure 3-112

1. When entering into the CALILBRATION page, be sure to check the interface connection on the rear panel is correct and then press

ENTER

” to start calibration.

2. If HP 34401 is used, the DVM1 and DVM2 can be connected to the front and rear measurement input terminal respectively.

3. When in the APG Voltage Calibration pages and the connection is correct, press

ENTER

” to confirm.

4. It will ask the user to input about 0.5V voltage signal (Pin 4). The cursor stops at position

[1] as Figure 3-113 shows after pressed “

ENTER

” for the above step. Adjust the Power

Supply to 0.5V±0.2V and use DVM1 to measure the reading of Power Supply. Input the voltage read by DVM1 to position [1] and press “

ENTER

” to confirm.

3-61

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 3-113

” again will ask the user to input about 8.0V voltage signal (Pin 4). The

cursor stops at position [2] as Figure 3-113 shows after pressed “

ENTER

”. Adjust the

Power Supply to 8V±0.2V and use DVM1 to measure the reading of Power Supply.

Input the voltage read by DVM1 to position [2] and press “

ENTER

” to confirm.

” again the system will set the output voltage of Pin 6 on the rear panel to

0.5V and the cursor stops at position [3] as Figure 3-114 shows

.

Input the voltage read by DVM2 to position [3] and press “

ENTER

” to confirm.

Figure 3-114

“ ” again the system will set the output voltage of Pin 6 on the rear panel to

8.0V and the cursor stops at position [4] as Figure 3-114 shows. Input the voltage read

by DVM2 to position [4] and press “

ENTER

” to confirm.

8. The APG Voltage calibration is done once the above actions are completed. To save the calibration data, press “

SAVE

” will prompt a confirmation page as Figure 3-115

shows. Press “

1

” or “Rotary” ( it. If there is no need to save it, press “

) to set SAVE=YES and press “

EXIT

ENTER

” to save

” to return to the Calibration screen.

3-62

Manual Operation

Figure 3-115

EXIT

” to return to the MAIN PAGE.

The calibration point may be different for other models (non

62150H-600), please operate it following the instructions displayed.

3.3.7.5 APG Current Calibration

3.3.7.5.1 Hardware Requirements

Table 3-10 lists the hardware requirements for APG current calibration.

Table 3-10

DVM

Device

DC Power Supply

Suggest Model or Capacity

HP 34401A or equivalent DVM

Any DC Power Supply or DC signal source that can output 10Vdc and drive 100mA.

3.3.7.5.2 SETUP

Figure 3-116 shows the wire connection for APG current calibration.

1 14 ...

17 ...

19

+12VAPI API GND AIO_SETV

AIO_MEAS

DC Power

Supply

DVM1

Figure 3-116

DVM2

3-63

Programmable DC Power Supply 62000H Series Operating & Programming Manual

When conducting the APG current calibration, each calibration point has to key in at least 4 Arabic numerals to ensure the Power Supply accuracy after calibration.

3.3.7.5.3 Calibration Procedure (Example: Model 62150H-600)

1. In CALIBRATION page, press “

5

” or turn “Rotary” ( ) knob to set CHOICE = 5.

2. Press

ENTER

shows.

” to confirm entering into APG Voltage Calibration options as Figure 3-117

Figure 3-117

When entering into the CALILBRATION page, be sure to check the interface connection on the rear panel is correct and then press “ to start calibration.

ENTER

3. When in the APG Current Calibration pages and the connection is correct, press

ENTER

” to confirm.

4. It will ask the user to input about 0.5V voltage signal (Pin 17). The cursor stops at

position [1] as Figure 3-118 shows after pressed “

ENTER

” in the above step. Adjust the

Power Supply to 0.5V±0.2V and use DVM1 to measure the reading of Power Supply.

Input the voltage read by DVM 1 to position [1] and press “

ENTER

” to confirm.

Figure 3-118

” again will ask the user to input about 8.0V voltage signal (Pin 17). The

cursor stops at position [2] as Figure 3-118 shows after pressed “

ENTER

” in the above step. Adjust the Power Supply to 8V±0.2V and use DVM1 to measure the reading of

3-64

Manual Operation

Power Supply. Input the voltage read by DVM1 to position [2] and press “ confirm.

ENTER

” to

” again the system will set the output voltage of Pin 19 on the rear panel

to 0.5V and the cursor stops at position [3] as Figure 3-119 shows. Input the voltage

read by DVM2 to position [3] and press “

ENTER

” to confirm.

Figure 3-119

“ ” again the system will set the output voltage of Pin 19 on the rear panel

to 8.0V and the cursor stops at position [4] as Figure 3-119 shows. . Input the voltage

read by DVM2 to position [4] and press “

ENTER

” to confirm.

8. The APG current calibration is done once the above actions are completed. To save the calibration data, press “

SAVE

” will prompt a confirmation page as Figure 3-120 shows.

Press “

1

” or “Rotary” ( ) to set SAVE=YES and press “ there is no need to save it, press “

EXIT

ENTER

” to save it. If

” to return to the Calibration screen.

Figure 3-120

EXIT

” to return to the MAIN PAGE.

The calibration point may be different for other models (non

62150H-600), please operate it following the instructions displayed.

3-65

Programmable DC Power Supply 62000H Series Operating & Programming Manual

3.3.8 REMOTE SETUP

3.3.8.1 GPIB ADDRESS

This DC Power Supply supports remote operation via GPIB function. It is necessary to set the GPIB address before operating remotely.

”, “

Figure 3-121 shows.

” keys to move the cursor to the column of GPIB ADDR as

) to set the address.

Figure 3-121

2. Use the numeric keys

1

~

0

or “Rotary” (

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

The valid address range is 1~30.

3.3.8.2 ETHERNET

The DC Power Supply is able to operate remotely using the ETHERNET function. To operate remotely, it is necessary to get the ETHERNET IP address.

1. The user needs to connect the network cable to the DC Power

Supply for auto detection.

2. If the network cable is not connected properly, it may cause the DC

Power Supply screen to show abnormally. Turn off the DC Power

Supply to resolve the network cable problem and reboot it can clear the abnormal screen.

”, “

Figure 3-122 shows.

” keys to move the cursor to the column of ETHERNET as

2. Press

ENTER

” to enter into the ETHERNET IP address setting screen as Figure 3-123

shows.

3-66

Manual Operation

Auto detection:

The DHCP default is ON and when entering the screen of Figure 3-123, the DC Power

Supply will detect the external network IP address automatically.

Manual detection:

3. Move the cursor to DHCP and use numeric keys

0

~

1

or “Rotary” ( set the DHCP to OFF.

) to

4. Move the cursor to IP ADDRESS and use numeric keys

0

~

9

to set the IP address.

5. Move the cursor to GATEWAY ADDR and use numeric keys

0

~

9

to set the address.

6. Move the cursor to SUBNET MASK and use numeric keys

0

~

9

to set the

IP address.

) to 7. Move the cursor to APPLY and use numeric keys

0

~

1

or “Rotary” ( set the APPLY to YES.

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

Figure 3-122

Figure 3-123

3-67

Programmable DC Power Supply 62000H Series Operating & Programming Manual

1. The LAN STATUS is displayed automatically in the following 5 types:

CONNECTED: It means the network is connected.

CONNECTING. . . .: It means the network is connecting.

NONE CONNECT: It means the network is not connected.

SETTING. . . .: It means the network is under setting.

ETHERNET MODULE FAIL: It means the network module is fail.

2. The ETHERNET IP address is 0~255. In ETHERNET setting,

DHCP=ON will get the address automatically and DHCP=OFF will get the address manually. Once the IP address is set, it needs to set APPLY=YES and press “

ENTER

” for the address to be in effect.

3.3.8.3 RS232/RS485

”, “

Figure 3-124 shows.

” keys to move the cursor to the column of RS232/RS485 as

Figure 3-124

2. Use numeric keys

0

~

1

or “Rotary” (

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

) to select RS232 or RS485.

3.3.8.4 BAUDRATE

The DC Power Supply is also able to operate remotely via RS-232. Before use it is necessary to set the RS-232 baudrate.

”, “

Figure 3-125 shows.

” keys to move the cursor to the column of BAUDRATE as

3-68

Manual Operation

Figure 3-125

2. Use numeric keys

0

~

4

or “Rotary” (

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

) to select BAUDRATE.

There are 5 settings for BAUDRATE: 9600/19200/38400/57600/115200.

3.3.8.5 RS485 ADDR

The DC Power Supply also supports remote operation via RS485 function. It is necessary to set the RS485 address before operating remotely.

”, “

3-126 shows.

” keys to move the cursors to the column of RS485 as Figure

Figure 3-126

2. Use numeric keys

1

~

0

or “Rotary” (

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

The valid address range is 1~30.

) to set the address.

3-69

Programmable DC Power Supply 62000H Series Operating & Programming Manual

3.3.8.6 RS485 TERMINATOR

When using the remote operation via RS485 function, it needs to set the terminator status.

”, “

Figure 3-127 shows.

” keys to move the cursor to RS485 TERMINATOR column as

[R E M O T E S E T U P]

G P I B A D D R = 1

E T H E R N E T = C O N F I G

R S 2 3 2 / R S 4 8 5 = R S 2 3 2

B A U D R A T E = 9 6 0 0

R S 4 8 5 A D D R = 1

R S 4 8 5 T E R M I N A T O R = D I S A B L E _

Figure 3-127

2. Use the numeric

0

~

1

keys or “Rotary” (

RS485 TERMINATOR.

ENTER

” to confirm.

EXIT

” to return to the MAIN PAGE.

) to enable or disable the

The RS485 TERMINATOR internal resistance is 120 Ω .

3-70

Program Sequence

4. Program Sequence

62000H Series DC Power Supplies allow users to program the sequence for output in LIST

MODE and V_STEP MODE. LIST MODE has 10 Programs and each Program can add new sequences liberally that total 100 sequences are available for editing. V_STEP MODE provides a run time voltage program with the maximum of 99 hours 59 minutes and 59.99 seconds.

Each sequence in LIST MODE can be edited for voltage settings, voltage slew rates, current settings, current slew rates, run times and trigger types that can apply to almost any situation.

PROG

” on the front panel.

2. It displays PROGRAM options as Figure 4-1 shows.

3. Use numeric keys

1

~

2

or “Rotary” (

4. Press

ENTER

” to confirm.

) knob to set the desired mode.

5. To quit PROGRAM, just press “

EXIT

” to return to the MAIN PAGE.

Figure 4-1

4.1 LIST MODE

In LIST MODE there are maximum 100 sequences that can be added liberally in one

program. The sequence setting is described in section 4.1.2 and the complete program

structure is listed in Figure 4-2.

4-1

Programmable DC Power Supply 62000H Series Operating & Programming Manual

PROG NO. = 1

RUN COUNT = 1

PROG CHAIN = NO

CLEAR PROG = NO

[ SEQUENCE ]

SEQ NO. = 1

SEQ TYPE = AUTO TIME = 0.000(S)

VOLTAGE = 0.00V

V S. R. = 1.000(V/ms)

CURRENT = 0.000A

I S. R. = INF. (A/ms)

[ SEQUENCE ]

SEQ NO. = 2

SEQ TYPE = AUTO TIME = 0.000(S)

VOLTAGE = 0.00V

V S. R. = 1.000(V/ms)

CURRENT = 0.000A

I S. R. = INF. (A/ms)

[ SEQUENCE ]

SEQ NO. = 3

SEQ TYPE = AUTO TIME = 0.000(S)

VOLTAGE = 0.00V

V S. R. = 1.000(V/ms)

CURRENT = 0.000A

I S. R. = INF. (A/ms)

[ SEQUENCE ]

SEQ NO. = 4

SEQ TYPE = AUTO TIME = 0.000(S)

VOLTAGE = 0.00V

V S. R. = 1.000(V/ms)

CURRENT = 0.000A

I S. R. = INF. (A/ms)

Figure 4-2

4.1.1 Description of PROGRAM Settings

A PROGGRAM has 5settings: (1) EXT._TRIG PULL, (2) PROG NO., (3) RUN COUNT, (4)

PROG CHAIN and (5) CLEAR PROG.

4-2

Program Sequence

4.1.1.1 Setting EXT._TRIG PULL

”, “

4-3 (1) shows.

” keys to move to the cursor to the column to be set as Figure

2. Use numeric keys

0

~

1

or “Rotary” ( ) to set HIGH or LOW.

3. Press

ENTER

” to confirm.

EXIT

” to return to Figure 4-1.

1. When the EXT._TRIG PULL is set to HIGH, the user has to input a negative edge trigger signal (TTL level) from the Analog Interface

PIN 8 on the rear panel to jump to the next sequence.

2. When the EXT._TRIG PULL is set to LOW, the user has to input a high level signal from the Analog Interface PIN 8 on the rear panel and change it to low level signal (negative edge trigger) to jump to the next sequence.

4.1.1.2 Setting PROG NO.

(2) shows.

2. Use the numeric (

0

~

9

) keys or “Rotary” (

3. Press

ENTER

”, “

” keys to move the cursor to the column to be set as Figure 4-3

” to confirm.

) knob to set the value.

EXIT

” to return to Figure 4-1.

Figure 4-3

Since there are 10 programs for setting, the valid range of PROG NO. is 1 ~ 10.

4.1.1.3 Setting RUN COUNT

”, “

” keys to move the cursor to the column to be set as Figure 4-3

(3) shows.

2. Use numeric keys

0

~

9

or “Rotary” ( ) knob to set the value.

4-3

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Each PROGRAM has a RUN COUNT that sets the execution number. Following table lists the RUN COUNT range:

Table 4-1

RUN COUNT MIN MAX

Ex.1: Set RUN COUNT for a PROGRAM

Set PROG #1 to NEXT TO PROG NO =3, RUN COUNT=2.

PROG #3 to NEXT TO PROG NO =0, RUN COUNT=3.

The program execution flow of RUN COUNT is listed as Figure 4-4 shows.

A1: Execution steps:

(1) When all PROG #1 SEQUENCES are done, return to PROG #1.

(2) Repeat step (1) twice and skip PROG #2 and return to PROG #3.

(3) When all PROG #3 SEQUENCES are done, return to PROG #3.

(4) Repeat step (3) for 3 times.

(5) End

START

PROG #1

PROG CHAIN NO. = 3

REMAIN COUNT =1

SEQ 1_1 ~ SEQ 1_10

PROG #1

PROG CHAIN NO. = 3

REMAIN COUNT =0

SEQ 1_1 ~ SEQ 1_10

PROG #3

PROG CHAIN NO. = 0

REMAIN COUNT=2

SEQ 3_1 ~ SEQ 3_10

Figure 4-4

3. Press

ENTER

EXIT

” to confirm.

” to return to Figure 4-1.

PROG #3

PROG CHAIN NO. = 0

REMAIN COUNT=1

SEQ 3_1 ~ SEQ 3_10

PROG #3

PROG CHAIN NO. = 0

REMAIN COUNT=0

SEQ 3_1 ~ SEQ 3_10

END

4-4

Program Sequence

4.1.1.4 Setting PROG CHAIN

”, “

” keys to move the cursor to the column to be set as Figure 4-3

(4) shows.

2. Use numeric keys

0

~

1

or “Rotary” ( ) knob to set YES or NO.

The PROGRAM CHAIN indicates the link among programs. YES must be set before executing different programs, and then select the PROGRAM to be executed next

(NEXT TO PROG NO.).

The setting range is 0 ~ 10.

(1) Set NEXT TO PROG NO. to 0

When setting NEXT TO PROG NO., it means no program link.

(2) Set NEXT TO PROG NO. to non 0

When setting NEXT TO PROG NO. to non-0, it means to perform program link as the example listed below.

Ex.2: Link execution among programs

Set PROG #1 to NEXT TO PROG NO =3, RUN COUNT=1

PROG #3 to NEXT TO PROG NO =4, RUN COUNT=1

PROG #4 to NEXT TO PROG NO =6, RUN COUNT=1

PROG #6 to NEXT TO PROG NO =0, RUN COUNT=1

The program execution flow is listed as Figure 4-5 shows.

A2: Execution steps:

(1) When all PROG #1 SEQUENCES are done, skip PROG #2 and jump to

PROG #3

(2) When all PROG #3 SEQUENCES are done, jump to PROG #4

(3) When all PROG #4 SEQUENCES are done, skip PROG #5 and jump to

PROG #6

(4) End

4-5

Programmable DC Power Supply 62000H Series Operating & Programming Manual

START

PROG #1

PROG CHAIN NO = 3

SEQ 1_1 ~ SEQ 1_10

PROG #2

PROG CHAIN NO = 0

SEQ 2_1 ~ SEQ 2_10

PROG #3

PROG CHAIN NO = 4

SEQ 3_1 ~ SEQ 3_10

PROG #4

PROG CHAIN NO = 6

SEQ 4_1 ~ SEQ 4_10

PROG #6

PROG CHAIN NO = 0

SEQ 6_1 ~ SEQ 6_10

PROG #7

PROG CHAIN NO = 0

SEQ 7_1 ~ SEQ 7_10

PROG #8

PROG CHAIN NO = 0

SEQ 8_1 ~ SEQ 8_10

PROG #9

PROG CHAIN NO = 0

SEQ 9_1 ~ SEQ 9_10

PROG #5

PROG CHAIN NO = 0

SEQ 5_1 ~ SEQ 5_10

PROG #10

PROG CHAIN NO = 0

SEQ 10_1 ~ SEQ 10_10

Figure 4-5

Ex. 3: Use a PROGRAM to form an infinite loop

Set PROG #1 to NEXT TO PROG NO =1, RUN COUNT=1

The program execution flow is listed as Figure 4-6 shows.

A3: Execution steps:

(1) When all PROG #1 SEQUENCES are done, jump to PROG #1.

(2) Rerun step (1).

(3) Form an infinite loop.

END

4-6

Program Sequence

START

PROG #1

PROG CHAIN NO. = 1

SEQ 1_1 ~ SEQ 1_10

Figure 4-6

Ex.4: Use multiple PROGRAMS to form an infinite loop

Set PROG #1 to NEXT TO PROG NO =3, RUN COUNT=1

PROG #3 to NEXT TO PROG NO =4, RUN COUNT=1

PROG #4 to NEXT TO PROG NO =6, RUN COUNT=1

PROG #6 to NEXT TO PROG NO =1, RUN COUNT=1

The program execution flow is listed as Figure 4-7shows.

A4: Execution steps:

(1) When all PROG #1 SEQUENCES are done, skip PROG #2 and jump to

PROG #3.

(2) When all PROG #3 SEQUENCES are done, jump to PROG #4.

(3) When all PROG #4 SEQUENCES are done, skip PROG #5 and jump to

PROG #6.

(4) When all PROG #6 SEQUENCES are done, skip PROG #7~ PROG #10 and jump to PROG #1.

(5) Rerun step (1) ~ step (4).

(6) Form an infinite loop.

4-7

Programmable DC Power Supply 62000H Series Operating & Programming Manual

START

PROG #1

PROG CHAIN NO. = 3

SEQ 1_1 ~ SEQ 1_10

PROG #6

PROG CHAIN NO. = 1

SEQ 6_1 ~ SEQ 6_10

PROG #2

PROG CHAIN NO. = 0

SEQ 2_1 ~ SEQ 2_10

PROG #7

PROG CHAIN NO. = 0

SEQ 7_1 ~ SEQ 7_10

PROG #3

PROG CHAIN NO. = 4

SEQ 3_1 ~ SEQ 3_10

PROG #4

PROG CHAIN NO. = 6

SEQ 4_1 ~ SEQ 4_10

PROG #8

PROG CHAIN NO. = 0

SEQ 8_1 ~ SEQ 8_10

PROG #9

PROG CHAIN NO. = 0

SEQ 9_1 ~ SEQ 9_10

PROG #5

PROG CHAIN NO. = 0

SEQ 5_1 ~ SEQ 5_10

PROG #10

PROG CHAIN NO. = 0

SEQ 10_1 ~ SEQ 10_10

Figure 4-7

3. Press

ENTER

EXIT

” to confirm.

” to return to Figure 4-1.

If it skips to next PROGRAM, which has no SEQUENCE, all

SEQUENCES will set top SKIP (see 4.1.2.2 SEQUENCE TYPE) and the

PROGRAM will stop execution.

4.1.1.5 Setting CLEAR PROGRAM

”, “

” keys to move the cursor to the column to be set as Figure 4-3

(4) shows.

2. Use numeric keys

0

~

1

or “Rotary” ( ) knob to set the value.

4-8

Program Sequence

Clear Program has two options, which are CLEAR PROG. = YES / NO. The main function of Clear Program is to clear all sequences in that program.

3. Press

ENTER

” to confirm.

EXIT

” to return to Figure 4-1.

4.1.2 Setting Sequence

1. The default SEQUENCE of all PROGRAMS is 0 and maximum 100 SEQUENCES can be added freely to a PROGRAM. In other words, the total SEQUENCES to be used by

10 PROGRAMS are 100 maximum.

2. Adding a new SEQUENCE: a.

In PROGRAM page (Figure 4-3), if the PROGRAM has no SEQUENCE when the

cursor is at (5), press “

Figure 4-8.

”can add a new SEQUENCE. The page will skip to b.

When the cursor is at (7) in Figure 4-8 as the SEQUENCE of a PROGRAM, press

“ ” can add a new SEQUENCE.

“ ” function key is usually used as cursor movement key, only when in the above situations can be used for adding new SEQUENCE.

”, “

” keys to move the cursor to the column to be set as Figure 4-8

shows.

4. Use numeric keys

0

~

1

or “Rotary” ( ) knob to set the value.

Figure 4-8

Each sequence has eight options: (1) SEQ NO., (2) SEQ. TYPE, (3) TIME, (4)

VOLTAGE, (5) V S.R., (6) CURRENT and (7) I S.R. which are described as below.

5. Press

ENTER

EXIT

” to confirm.

” to return to Program PAGE (Figure 4-3).

4-9

Programmable DC Power Supply 62000H Series Operating & Programming Manual

4.1.2.1 Setting Sequence Number

(1) shows.

”, “

” keys to move the cursor to the column to be set as Figure 4-8

2. When the cursor is in Figure 4-8 (7), press “

” can add a new SEQUENCE. Also it can use numeric keys

0

~

9

or “Rotary” ( return to the previous set Sequence Number.

) knob to set the value and

A program has maximum 100 sequences, therefore the range of SEQ NO. is: 1~100.

3. Press

ENTER

” to confirm.

4. Press

EXIT

” to return to Program PAGE (Figure 4-3).

4.1.2.2 Setting Sequence Type

”, “

” keys to move the cursor to the column to be set as Figure 4-8

(2) shows.

2. Use numeric keys

0

~

3

or “Rotary” ( ) knob to set the Sequence Type.

There are four Sequence Types, which are: (1) AUTO, (2) MANUAL, (3) TRIGGER, (4)

SKIP. a. Setting Sequence Type to AUTO

When SEQ TYPE = AUTO is set, the page shown as Figure 4-9 indicates the

sequence will complete the execution automatically and skip to next sequence.

TIME= will prompt at the lower left corner to ask users entering the time remained for this sequence.

1. Table 4-2 lists the range for setting the time remains (TIME =).

Table 4-2

TIME Min. (Sec) Max. (Sec)

2. When SEQ. TYPE = AUTO and TIME = 0 it indicates the program is done before setting TIME = 0 for previous Sequence.

4-10

Program Sequence

Figure 4-9

Ex. 5: Set Sequence Type to AUTO

If PROGRAM 1 is set as Figure 4-10 shows the output load is 10(

Ω

).

PROG NO. = 1

RUN COUNT = 2

PROG CHAIN = NO

CLEAR PROG = NO

[ SEQUENCE ]

SEQ NO. = 1

SEQ TYPE = AUTO TIME = 5.000(S)

VOLTAGE = 10.00V

V S. R. = 1.000(V/ms)

CURRENT = 20.000A

I S. R. = 1.000 (A/ms)

[ SEQUENCE ]

SEQ NO. = 2

SEQ TYPE = AUTO TIME = 10.000(S)

VOLTAGE = 30.00V

V S. R. = 10.000(V/ms)

CURRENT = 20.000A

I S. R. = 1.000 (A/ms)

[ SEQUENCE ]

SEQ NO. = 3

SEQ TYPE = AUTO TIME = 0.000(S)

VOLTAGE = 0.00V

V S. R. = 1.000(V/ms)

CURRENT = 0.000A

I S. R. = 1.000(A/ms)

[ SEQUENCE ]

SEQ NO. = 10

SEQ TYPE = AUTO TIME = 0.000(S)

VOLTAGE = 0.00V

V S. R. = 1.000(V/ms)

CURRENT = 0.000A

I S. R. = INF. (A/ms)

Figure 4-10

4-11

Programmable DC Power Supply 62000H Series Operating & Programming Manual

A5: Execution step:

(1) SEQ#1:

(1) Since SEQ TYPE = AUTO is set for SEQ#1, it begins to execute the settings in SEQ#1.

(2) During SEQ#1 voltage rise, the maximum loading current is 1A and does not exceed the current setting 20A; therefore SEQ#1 is in CV Mode during voltage rise.

(3) Once the voltage reached the set 10V, the program lasts for 5 seconds from rising.

(4) Skip to SEQ#2.

(2) SEQ#2:

(1) Since SEQ TYPE = AUTO is set for SEQ#2, it begins to execute the settings in SEQ#2.

(2) During SEQ#2 voltage rise, the maximum loading current is 3A and does not exceed the current setting 20A; therefore, SEQ#2 is in CV Mode during voltage rise.

(3) Once the voltage reached the set 30V, the program lasts for 10 seconds from rising.

(4) Skip to SEQ#3.

(3) SEQ#3:

(1) Since SEQ TYPE = AUTO and TIME=0 are set for SEQ#3, it indicates

SEQ#3 is not executing and the Program is ended.

(4)

As RUN COUNT=2 is set, steps (1), (2) and (3) are executed again.

(5)

End.

Figure 4-11 shows the output waveform:

Figure 4-11 b. Setting Sequence Type to MANUAL

When SEQ TYPE = MANUAL is set, the Sequence page shown as Figure 4-12

indicates the sequence will run automatically and stop at the setting of VOLTAGE or CURRENT without skipping to next sequence until any key on the front panel is presses. It will not ask users to enter the time the sequence will remain when set to

MANUAL.

4-12

Program Sequence

Figure 4-12 c. Setting Sequence Type to TRIGGER

When SEQ TYPE = TRIGGER is set, the Sequence page shows as Figure 4-13

indicates the sequence will run automatically and stop at the setting of VOLTAGE or CURRENT without skipping to next sequence until inputting a singal from PIN 8

of Analog Interface on the rear panel. See section 4.1.1.1 for the input signal

definition of Analog Interface PIN 8. It will not ask users to enter the time the sequence will remain when set to TRIGGER.

Figure 4-13 d. Set Sequence Type to SKIP

When SEQ TYPE = SKIP is set, the Sequence page shows as Figure 4-14

indicates the Sequence will skip automatically and jump to next SEQUENCE.

This Sequence page will not ask users to enter the time sustained for this

Sequence.

Figure 4-14

4-13

Programmable DC Power Supply 62000H Series Operating & Programming Manual

4.1.2.3 Setting Time

”, “

” keys to move the cursor to the column to be set as Figure 4-8

(3) shows.

2. Use numeric keys

0

~

9

or “Rotary” ( ) to set the value.

This function is to set the time sustained. This setting TIME = only appears when SEQ.

TYPE = AUTO.

3. Press

ENTER

” to confirm.

EXIT

” to return to Program PAGE (Figure 4-3).

4.1.2.4 Setting Voltage

”, “

” keys to move the cursor to the column to be set as Figure 4-8

(4) shows.

2. Use numeric keys

0

~

9

or “Rotary” (

3. Press

ENTER

” to confirm.

) knob to set the SEQ output voltage

EXIT

” to return to Program PAGE (Figure 4-3).

See section 3.2 for detail description.

4.1.2.5 Setting Voltage Slew Rate

”, “

” keys to move the cursor to the column to be set as Figure 4-8

(5) shows.

2. Use numeric keys

0

~

9

or “Rotary” ( conversion slew rate.

3. Press

ENTER

” to confirm.

) knob to set the SEQ voltage

EXIT

” to return to Program PAGE (Figure 4-3).

See section 3.3.2.3 for detail description.

4.1.2.6 Setting Current

”, “

” keys to move the cursor to the column to be set as Figure 4-8

(6) shows.

2. Use numeric keys

0

~

9

or “Rotary” ( limit.

3. Press

ENTER

” to confirm.

) knob to set the SEQ output current

EXIT

” to return to Program PAGE (Figure 4-3).

See section 3.2 for detail description.

4-14

Program Sequence

4.1.2.7 Setting Current Slew Rate

”, “

” keys to move the cursor to the column to be set as Figure 4-8

(7) shows.

2. Use numeric keys

0

~

9

or “Rotary” ( conversion slew rate.

3. Press

ENTER

” to confirm.

) knob to set the SEQ current

EXIT

” to return to Program PAGE (Figure 4-3).

See section 3.3.2.4 for detail description.

4.1.3 Execution in LIST MODE

When the sequences are finished for editing, press “

EXIT

” to abort it.

ON/OFF

” to start execution and press

4.1.3.1 Running LIST MODE

1. Press

ON/OFF

” will prompt a confirmation page as Figure 4-15 shows.

Figure 4-15

2. Press

ON/OFF

” again to confirm the execution and go to the MAIN PAGE as Figure 4-16

shows. To quit the execution, press “

EXIT

” will return to the standby MAIN PAGE.

S E Q S T A T U S = A U T O T I M E = 0 0 0 : 0 0 : 20

P R G N O . = 1 S E Q N O . = 1 C O U N T _ R E M A I N = 0

0 . 0 W

Figure 4-16

4-15

Programmable DC Power Supply 62000H Series Operating & Programming Manual

1. Press

ON/OFF

” in Program page (Figure 4-3) or Sequence page

(Figure 4-8) will prompt a confirmation page as Figure 4-15 shows.

EXIT

” can abort the executing program which means to stop the Power Supply from output.

4.1.3.2 Program List Mode Description

Figure 4-17 shows the main execution page of LIST MODE. Items (1)~(5) in the figure are

explained below.

Figure 4-17

(1)

Program Number: PRG NO. indicates the Program Number being executed at present.

(2)

Sequence Number: SEQ NO. indicates the Sequence Number being executed at present.

(3)

Sequence Status: SEQ STATUS indicates the Sequence state being executed at present.

(4)

Count_Remain: COUNT_REMAIN indicates the numbers to be executed for the current

Program.

(5)

Running Time: TIME indicates the sum of time from the program is executed to the sequence is run on Main Page.

The time format is HOUR:MIN:SEC and the maximum display limit is 99 hours 59 minutes and 59 seconds. If the time accumulated exceeds the maximum display limit, it will reset to 0 and recount.

4.2 V_STEP MODE

It is able to set a run time program in V_STEP MODE. Figure 4-18 shows the screen when

V_STEP MODE is selected.

4-16

Program Sequence

Figure 4-18

4.2.1 Setting V_STEP MODE

V_STEP MODE has 3 settings: (1) START_VOLTAGE, (2) END_VOLTAGE and (3)

RUN_TIME.

4.2.1.1 Setting START_VOLTAGE

1. Use “ ”, “

” keys to move the cursor to the column to be set as Figure 4-19

(1) shows. Set the start voltage of STEP MODE.

2. Use numeric keys

0

~

9

or “Rotary” ( ) knob to set the value.

3. Press “

ENTER

” to confirm.

4. Press “

EXIT

” to return to Figure 4-1.

Figure 4-19

CAUTION

V_STEP MODE: (1) The output voltage rises to the setting of

START_VOLTAGE and the V SLEW RATE is 1V/mS, or (2) it falls to the setting of START_VOLTAGE and the falling time is calculated by 1V/mS while the actual V SLEW RATE is varied by load.

4-17

Programmable DC Power Supply 62000H Series Operating & Programming Manual

4.2.1.2 Setting END_VOLTAGE

1. Use “ ”, “

” keys to move the cursor to the column to be set as Figure 4-19

(2) shows. Set the end voltage of STEP MODE.

2. Use numeric keys

0

~

9

or “Rotary” ( ) knob to set the value.

3. Press “

4. Press “

ENTER

” to confirm.

EXIT

” to return to Figure 4-1.

4.2.1.3 Setting RUN_TIME

1. Use “ ”, “

” keys to move the cursor to the column to be set as Figure

4-19(3) shows. Set the run time of STEP MODE. The time format is HOUR:MIN:SEC

and the maximum setting is 99 hours 59 minutes and 59.99 seconds.

2. Use numeric keys

0

~

9

or “Rotary” ( ) knob to set the value.

3. Press “

ENTER

” to confirm.

4. Press “

EXIT

” to return to Figure 4-1.

When V_STEP MODE ends the hardware output voltage will remain at the setting of END_VOLTAGE.

Ex. 1: Set the START_VOLTAGE to 10V, END_VOLTAGE to 50V and RUN_TIME to 10 minutes.

CASE1: The hardware initial voltage is 0V and the output waveform is as Figure 4-20

shows.

CASE2: The hardware initial voltage is 10V and the output waveform is as Figure 4-21

shows.

CASE3: The hardware initial voltage is 20V and the output waveform is as Figure 4-22

shows.

50V

10(MIN)

4-18

10V

0V

START 1V/mS

Figure 4-20

Program Sequence

50V

10(MIN)

10V

START

Figure 4-21

50V

10(MIN)

20V

START

10V

Figure 4-22

4.2.2 Execution of V_STEP MODE

After the setting is done, press “ press “

EXIT

”.

ON/OFF

” to confirm and start the execution. To abort it, just

4.2.2.1 Running V_STEP MODE

1. Press “

ON/OFF

” will appear a confirmation window as Figure 4-15 shows.

2. Press “

ON/OFF

” one more time to confirm the execution. It will skip to the MAIN PAGE

during execution as Figure 4-23 shows. To quit the execution, press “

to the MAIN PAGE window at standby.

EXIT

” can return

Press “

EXIT

” can interrupt the Program execution forcibly that is the

Power Supply stops output.

4-19

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 4-23

4.2.2.2 Description of Program V_Step Mode

When executing V_STEP MODE its main screen is as Figure 4-24 shows. The following explains the meaning of (1)~(4) in Figure 4-24.

Figure 4-24

(1) START_VOLT: It is the start voltage setting of V_STEP MODE.

(2) END_VOLT: It is the end voltage setting of V_STEP MODE.

(3) STEP STATUS: It is the executing status of V_STEP MODE.

(4) ELAPSE TIME: It is the executed time of V_STEP MODE. The time format is

HOUR:MIN:SEC and the maximum display is 99 hours 59 minutes and 59 seconds.

4-20

Remote Operation

5. Remote Operation

5.1 Overview

62000H Series DC Power Supply can be controlled remotely via USB, GPIB, Ethernet,

RS-232 or RS-485 port.

The USB interface supports USB 2.0/USB 1.1. GPIB interface is an 8-bit parallel data bus that synchronizes with the host bus commands. Ethernet interface is used in local area network for data transmission. RS-232C is a serial bus with less powerful functions; however, users can do remote control easily via simple programming.

5.1.1 USB Interface

(1) Hardware Support:

(2) Software Support:

(3) OS Support:

USB 2.0 and USB 1.1

USBTMC class and USB488 subclass

Windows 98/2000/XP/Vista

62000H Series USB Interface supports USBTMC, so if the PC

OS supports USBTMC (installed NI-VISA runtime version 3.00 or above) it is no need to install other drivers. The OS will search for the standard USBTMC driver installation program automatically.

If the PC OS does not support USBTMC, it is suggested to install the NI-VISA runtime version 3.00 or above first. When the installation of NI-VISA runtime is done, the USBTMC driver program is stored in OS. The PC can communicate with 62000H Series via NI-VISA after using the USB cable to connect them.

Related Documents:

1. USB Test and Measurement Class (USBTMC) specification, Revision 1.0, http://www.usb.org

2. USB Test and Measurement Class USB488 subclass specification, Revision 1.0, http://www.usb.org

5.1.2 Setting GPIB, Ethernet, RS-232C & RS-485

Parameters

See section 3.3.8.

5.1.3 Connecting RS-232C

The default baudrate of 62000H Series DC Power Supply is 115200 and the parity check is set to None. Only TxD and RxD signal can be used for data transmission. The connector of

RS-232C is a 9-pin D type male connector. Table 5-1 lists the pins and signals of RS-232C

connector.

5-1

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Table 5-1

Pin No. INPUT/OUTPUT

1 ---

2 INPUT

3

4

5

6

7

8

9

OUTPUT

---

---

---

---

---

---

Description

“N.C.”

RxD

TxD

DSR

GND

DTR

CTS

RTS

“N.C.”

Table 5-2 lists the connection between PC (IBM compatible) and 62000H Series DC Power

Supply.

Table 5-2

Pin No. IBM PC

1 DCD

2 RX

3 TX

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 “N.C.”

62000H

“N.C.”

RX

TX

“N.C.”

DGND

“N.C.”

“N.C.”

“N.C.”

“N.C.”

“N.C.” stands for “Not Connected”.

5.1.4 Connecting RS-485

The default transmission baudrate of 62000H Series is set to 115200 and the parity check is set to None. The RS-485 interface is a half-duplex two-wire differential signaling transmission and only RS485_P and RS485_N signals are required for data transmission. The connection

is the same as RS-232C that is a 9-pin D type male connector. Table 5-3 lists the pin number

and assigned signal of RS-485 connector.

Table 5-3

Pin No.

1

2

3

4

5

6

7

8

9

Description

---

---

---

RS485_P

---

---

---

---

RS485_N

5-2

Remote Operation

Here is the connection:

Master (PC)

RS485_P

RS485_N

Slave 1

(62000H)

Slave n

(62000H)

5.1.5 Ethernet Remote Control

To remote program a DC Power Supply via a PC with Ethernet interface, it needs to confirm the IP address, Gateway address and Subnet mask in advance. To ensure reliable data transmission, TCP is used for data transmission and the communication port is 2101.

5.2 GPIB Function of 62000H Series

Table 5-4

GPIB Function Description

Talker/Listener Commands and response messages can be sent and received over the GPIB bus. Status information can be read using a series poll.

Service Request It sets the SRQ line to true if there is an enabled service request condition.

Remote/Local Power-on in local mode, the front panel can be operated and the commands are responded through GPIB. When in remote mode, all front panel keys are invalid except return to local mode.

LOCAL

. Press

LOCAL

” can

5.3 Introduction to Programming

All commands and response messages are transmitted in ASCII codes. The response messages must be read completely before a new command is sent, or the remaining response messages will be lost and cause a query interrupt error.

5-3

Programmable DC Power Supply 62000H Series Operating & Programming Manual

5.3.1 Conventions

The table below lists the convention used in this section.

Table 5-5

Angle brackets < > Items in angle brackets are parameter abbreviations.

Vertical bar | Vertical bar separates alternative parameters.

Square brackets

Braces

[ ] Items in square brackets are optional. For example,

OUTP [ : STATe] means that : STATe may be omitted.

{ } Braces indicate the parameters that may be repeated.

The notation <A> {<, B>} means that parameter “A” must be entered while parameter “B” may be omitted or entered once or more times.

5.3.2 Numerical Data Formats

The numerical data format of 62000H DC Power Supply is listed in Table 5-6. Numerical

data can be added to the suffix to distinguish data while the multiplier can be placed prior the

suffix. Table 5-7 lists the suffix used by 62000H DC Power Supply and Table 5-8 lists the

multiplier.

Table 5-6 Format of Numerical Data

Example

123, 0123

Symbol Description

NR1 It is a digit without decimal point. The decimal is assumed to be at the right of the least significant digit.

NR2 It is a digit with a decimal point.

NR3 It is a digit with a decimal point and an exponent.

NRf Flexible decimal format including NR1or NR2 or NR3.

NRf+ Extended decimal format including NRf and MIN, MAX.

MIN and MAX is the high and low limit of parameter.

12.3, .123

1.23E

+

2

123, 12.3, .23E+3

123, 12.3,1.23E+3,

MIN, MAX

Type

Table 5-7

Suffix Unit

Voltage V Volt

Table 5-8

Multiplier Symbol Definition

1E6 MA Mega

1E3 K Kilo

1E-3 M Milli

1E-6 U Micro

1E-9 N Nano

5-4

Remote Operation

5.3.3 Boolean Data Format

The Boolean parameter <Boolean> uses the form ON|OFF only.

5.3.4 Character Data Format

The character strings returned by query command are shown in either of the following forms:

<CRD>

<SRD>

Character Response Data: character string with maximum length of 12.

String Response Data: character string.

5.3.5 Basic Definition

5.3.5.1 Command Tree Structure

The commands of the DC Power Supply are based on a hierarchical structure, also known as a tree system. In order to obtain a particular command, the full path to that command must be specified. This path is represented in the structure by placing the highest node in the farthest left position of the hierarchy. Lower nodes in the hierarchy are indented in the position to the right, below the parent node.

5.3.5.2 Program Headers

Program headers are key words that identify the command. They follow the syntax

described in subsection 5.6 of IEEE 488.2. The DC Power Supply accepts characters in

both upper and lower case without distinguishing the difference. Program headers consist of two distinctive types, common command headers and instrument-controlled headers.

5.3.5.3 Common Command and Query Headers

The syntax of common command and query headers is described in IEEE 488.2. It is used together with the IEEE 488.2-defined common commands and queries. The commands with a leading “ * ” are common commands.

5.3.5.4 Instrument-Controlled Headers

Instrument-controlled headers are used for all other instrument commands. Each of them has a long form and a short form. 62000H Series only accepts the exact short and long forms. A special notation will be taken to differentiate the short form header from the long one of the same header in this subsection. The short form header is shown in characters of upper case, whereas the rest of the headers are shown in those of lower case.

5-5

Programmable DC Power Supply 62000H Series Operating & Programming Manual

5.3.5.5 Program Header Separator (:)

If a command has more than one header, the user must separate them with a colon

(FETC:CURR FUNC:SHAP). Data must be separated from program header by one space at least.

5.3.5.6 Program Message

Program message consists of a sequence of zero or other elements of program message unit that is separated by separator elements of program message unit.

5.3.5.7 Program Message Unit

Program message unit represents a single command, programming data, or query.

Example: VOLT?, OUTPut ON.

5.3.5.7.1 Program Message Unit Separator (;)

The separator (semicolon ;) separates the program message unit elements from one another in a program message.

Example: VOLT 80; CURR 15<PMT>

5.3.5.7.2 Program Message Terminator (<PMT>)

A program message terminator represents the end of a program message. Three permitted terminators are:

(1) <END> : end or identify (EOI)

(2) <NL> : new line which is a single ASCII-encoded byte 0A (10 decimals).

(3) <NL> <END> : new line with EOI.

The response message is terminated by <NL> <END> for GPIB, and

<NL> for RS-232C.

5.4 Traversal of the Command Tree

Multiple program message unit elements can be sent in a program message. The first command is always referred to the root node. Subsequent commands are referred to the same tree level as the previous command in a program message. A colon preceding a program message unit changes the header path to root level.

Example:

SOURce:VOLTage:SLEW 1

:SOURce:VOLTage:SLEW 1

All colons are header separators.

SOURce:VOLTage:SLEW 1;:VOLT 100

Only the first colon is a specific root.

Only the third colon is a specific root.

5-6

Remote Operation

5.5 Execution Order

The 62000H DC Power Supply executes program messages by the order received.

Program message units except coupled commands are executed in order of reception. The execution of coupled commands is deferred until program message terminator is received.

A coupled command sets parameters, which are affected by the setting of other commands.

Problems may arise, because the prior state of the 62000H DC Power Supply will affect the response of a coupled parameter to its programming.

5.6 Commands of DC Power Supply

This section describes the syntax and parameters of all commands for DC Power Supply.

5.6.1 Common Command Syntax

Commands are defined by IEEE488.2 standard containing common and query commands.

Common commands begin with a “*” and consist of three letters and/or one “?” (query).

Common commands and queries are listed alphabetically.

*CLS Status

Type: Device status

Description: *CLS command acts the follows:

Clear Error Code Reset Error Message. If “*CLS” is followed by <nl>, the

“output queue” and MAV bit will be clear as well.

Syntax: *CLS

Parameter: None

*ESE Standard Event Status Enable

Type: Device status register, which determines which events of the Standard Event Status

Event register (see *ESR?) are allowed to set the ESB (Event Summary

Bit) of the Status Byte register. A "1" in the bit position enables the corresponding event. All of enable events of the Standard Event Status

Event register are logically ORed to cause the ESB (bit 5) of the Status

Byte register to be set.

Parameter: 0 to 255

Example: *ESE 48 This command enables the CME and EXE events of the Standard Event Status Event register.

Query Syntax: *ESE?

Return Parameter: <NR1>

Query Example: *ESE? This query returns current setting of Standard

*ESR? Standard Event Status Register

Type: Device status

Description: This query reads the Standard Event Status register and clears it.

Query Syntax: *ESR?

Return Parameter: <NR1>

5-7

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Query Example: *ESR?

Return Example: 48

Return status readings of Standard Event Status register.

Type: System interface

Description: This query requests the 62000H to identify itself.

Query Syntax: *IDN?

Query Example: *IDN?

String Description

ATE Manufacturer

Return Example: CHROMA ATE, 62150H-600,123456,01.00

Type: Device status

Description: This command causes the interface to set the OPC bit (bit 0) of the

Standard Event Status register when the DC Power Supply has completed all pending operations.

Parameter: None

Operation

Type: Device status

Description: This query returns an ASCII “1” when all pending operations are completed.

Query Syntax: *OPC?

Return Parameter: <NR1>

Query Example: 1

*RCL Recall Instrument State Command

Type: Device status

Description: This command restores the High Slew Rate Load to a state that was previously stored in memory with the *SAV command to the specified location (see *SAV).

Parameter: None

Example: *RCL 1

*RST Command

Type: Device status

Description: Reset System

Parameter: None

Type: Device status

Description: This command stores the present state of the DC Power Supply and the states of current mode in a specified location in memory.

Syntax: *SAV

Example: *SAV

5-8

Remote Operation

*SRE Service Request Enable Command/Query

Type: Device status

Description: This command sets the condition of the Service Request Enable

register, which determines which events of the Status Byte register (see

*STB) are allowed to set the MSS (Master Status Summary) bit. A "1" in the bit position enable bits are logically ORed to cause Bit 6 (the Master

Summary Status Bit) of the Status Byte register to be set. See Status

Byte register for detail description.

Syntax: *SRE <NRf>

Parameter: 0 to 255

Example: *SRE 20

Query Syntax: *SRE?

Enable the CSUM and MAV bit of the Service Request.

Return Parameter: <NR1>

Query Example: *SRE? Return the current setting of Service Request Enable.

Type: Device status

Description: This query reads the Status Byte register. Note that the MSS (Master

Summary Status) bit instead of RQS bit is returned in Bit 6. This bit

indicates if the High Slew Rate Load has at least one reason for requesting service. *STB? does not clear the Status Byte register, which is cleared only when subsequent action has cleared all its set bits.

Query Syntax: *STB?

Return Parameter: <NR1>

Query Example: *STB?

Return Example: 20

Return the contents of Status Byte.

1. Status Byte Register:

The Status Byte Register is composed of eight bits that summarize an overlaying status data structure. The Status Byte Register can be read using *STB? to return a decimal expression of the register contents (which means the total byte weight of all the byte set to

“1”.)

Service

Request

Status Summary Message

7 RQS ESB MAV 3 2 1 0

Status Bytes

Register Read by *STB?

&

7

&

5 4

&

&

&

&

3 2 1

&

0

Set Service Request

Enable Register by

*SRE

Figure 5-1

5-9

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Bit No. Bit Weight

7 128

Table 5-9

Description

Operation Status Register Summary Bit

Request Service Bit. This bit is set when any

5 32 requesting service.

Standard Event Status Register Summary Bit.

Message Available Bit. This bit is set whenever

4 16 reset when the available data is read.

2. Standard Event Status Register:

The Standard Event Status Register is frequently used. The common use commands *ESE and *ESR? can be utilized to program it.

Summary Message

Event Bit (ESB)

Bit 5 of Status Byte

Register

Bit No. Bit Weight

7 6 5 4 3 2 1 0

Read Standard

Event Status

Register by *ESR?

&

&

7 6

&

&

&

&

&

&

5 4 3 2 1 0

Set Standard Event

Status Enable

Registor by *ESE

Figure 5-2

Table 5-10

Description

5-10

Execution Error Bit. This bit is set to 1 when the inconsistent.

Device Dependent Error Bit. This bit is set to 1

3 8 error queue is full.

2 4 Queue Error Bit. This bit is set to 1 when reading

Remote Operation

data from the output buffer and no data is present, or when the data is lost.

0 1

5.6.2 Specific Commands for 62000H Series

5.6.2.1 ABORT Subsystem

ABORt

Description: It sets all output state to “OFF”.

5.6.2.2 CONFIGURE Subsystem

1. CONFigure:BEEPer

Description: It sets the beeper to ON or OFF.

Syntax: CONFigure:BEEPer ON

CONFigure:BEEPer OFF

Parameter: ON|OFF

Example: CONF: BEEPer ON

CONF: BEEPer OFF

Query Syntax: CONFigure:BEEPer?

Return Parameter: ON | OFF

Query Example: CONF:BEEPer? It returns the beeper control status.

Return Example: ON or OFF

2. CONFigure:REMote

Description: It sets the remote control status (valid for RS232C only).

Syntax: CONFigure:REMote ON

Parameter: ON|OFF

Example: CONF:REM OFF

3. CONFigure:OUTPut

It disables remote control.

Description: It sets the output voltage/current.

Syntax: CONFigure:OUTPut ON

CONFigure: OUTPut OFF

Parameter: ON|OFF

Example: CONFigure: OUTPut The power supply starts output.

CONFigure: OUTPut OFF The power supply stops output.

Query Syntax: CONFigure: OUTPut?

Query Example: CONF: OUTPut?

Return Example: ON or OFF

4. CONFigure:FOLDback

Description: It sets the type of FOLDBACK PROTECT.

Syntax: CONFigure:FOLDback DISABLE

CONFigure:FOLDback CVTOCC

CONFigure:FOLDback CCTOCV

5-11

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Parameter: DISABLE|CVTOCC|CCTOCV

Example: CONFigure:FOLD DISABLE

CONFigure:FOLD CVTOCC

Query Syntax: CONFigure:FOLD?

Query Example: CONF:FOLD? It returns the status set.

Return Example: DISABLE or CVTOCC or CCTOCV

5. CONFigure:FOLDT

Description:

Syntax:

Parameter:

It sets the delay time of FOLDBACK PROTECT

CONFigure:FOLDT <NRf1>

0.01~600.00 (Unit : Sec)

Query Syntax: CONF:FOLDT?

Return Parameter: <NRf1>

Query Example: CONF:FOLDT?

Return Example: 1.000000e+01

6. CONFigure:APGVSet

Description: It sets the action type of APG VSET.

Syntax: CONFigure:APGVSet NONE

CONFigure:APGVSet VREF5

CONFigure:APGVSet RREF

Parameter: NONE | VREF5 | VREF10 | IREF | RREF

Example: CONFigure:APGVSet VREF10

Query Syntax: CONFigure:APGVSet?

Query Example: CONFigure:APGVSet?

Return Example: VREF10

7. CONFigure:APGVMeas

Description: It sets the action type of APG VMEAS.

Syntax: CONFigure:APGVMeas NONE

CONFigure: APGVMeas VREF5

CONFigure: APGVMeas IREF

Parameter: NONE | VREF5 | VREF10 | IREF

Query Syntax: CONFigure: APGVMeas?

Query Example: CONFigure: APGVMeas?

Return Example: VREF10

8. CONFigure:APGISet

Description: It sets the action type of APG ISET.

Syntax: CONFigure:APGISet NONE

CONFigure:APGISet VREF5

CONFigure:APGISet RREF

Parameter: NONE | VREF5 | VREF10 | IREF | RREF

Query Syntax: CONFigure:APGISet?

Query Example: CONFigure:APGISet?

Return Example: VREF10

9. CONFigure:APGIMeas

Description: It sets the action type of APG IMEAS.

Syntax: CONFigure:APGIMeas NONE

CONFigure: APGIMeas VREF5

5-12

Remote Operation

CONFigure: APGIMeas IREF

Parameter: NONE | VREF5 | VREF10 | IREF

Query Syntax: CONFigure:APGIMeas?

Query Example: CONFigure:APGIMeas?

Return Example: VREF10

10. CONFigure:AVG:TIMES

Description: It sets the average times of AD for input voltage/current.

Syntax: CONFigure:AVG:TIMES <NR1>

Parameter: <NR1>

0: 1 time

1: 2 times

2: 4 times

3: 8 times

Example: CONFigure:AVG:TIMES 0

CONFigure:AVG:TIMES 1

Query Syntax: CONFigure:AVG:TIMES?

Return Parameter: 1 |2 | 4 | 8

Query Example: CONFigure:AVG:TIMES?

Return Example: 1

11. CONFigure:AVG:METHod

Description: It sets the average method of AD for input voltage/current.

Syntax: CONFigure:AVG:METHOD <NR1>

Parameter: FIX/MOV

Query Syntax: CONFigure:AVG:METHOD?

Return Parameter: FIX | MOV

Query Example: CONFigure:AVG:METHOD?

Return Example: FIX

12. CONFigure:BRIGhtness

Description: It sets the display brightness of panel.

Description: CONFigure:BRIGhtness

CONFigure: BRIGhtness DIM

Parameter: HIGH | NOR | DIM

Example: CONFigure: BRIGhtness HIGH

Query Syntax:

CONFigure: BRIGhtness?

Return Parameter: HIGH | NOR | DIM

Query Example: CONFigure: BRIGhtness ? It returns the brightness control status of panel.

Return Example: HIGH

13. CONFigure:MSTSLV:ID

Description: It sets to Master or Slave.

Syntax: CONFigure:MSTSLV:ID MASTER

CONFigure:MSTSLV:ID SLAVE1

Parameter: MASTER,SLAVE1,SLAVE2,SLAVE3…….SLAVE9.

Example: CONFigure:MSTSLV:ID MASTER

CONFigure:MSTSLV:ID SLAVE2

5-13

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Query Syntax: CONFigure:MSTSLV:ID?

Return Parameter: MASTER | SLAVE1 | SLAVE2 | …… | SLAVE9

Query Example: CONF:MSTSLV:ID?

Return Example: MASTER or SLAVE1~SLAVE9

Note:

CONFigure:MSTSLV? must be OFF when setting it. (Not in series/parallel mode.)

14. CONFigure:MSTSLV:PARSER

Description: It sets to series or parallel mode.

Syntax: CONFigure:MSTSLV:PARSER PARALLEL

CONFigure:MSTSLV:PARSER SERIES

Parameter: PARALLEL| SERIES

Example: CONFigure:MSTSLV:PARSER PARALLEL

CONFigure:MSTSLV:PARSER SERIES

Query Syntax: CONFigure:MSTSLV:PARSER?

Return Parameter: PARALLEL| SERIES

Query Example: CONF:MSTSLV:PARSER?

Return Example: PARALLEL

Note:

CONFigure:MSTSLV? must be OFF when setting it. (Not in series/parallel mode.)

15. CONFigure:MSTSLV:NUMSLV

Description: It sets the number of SLAVE to be controlled.

Syntax: CONFigure:MSTSLV:NUMSLV <NR1>

Parameter: <NR1>

Example: CONFigure:MSTSLV:NUMSLV 1

Query Syntax:

CONFigure:MSTSLV:NUMSLV 2

CONFigure:MSTSLV:NUMSLV?

Return Parameter: <NR1>

Query Example: CONF:MSTSLV:NUMSLV?

Return Example: 1

Note:

1. CONFigure:MSTSLV? must be OFF when setting it. (Not in series/parallel mode.)

2. Only 1 slave can be set when in series mode and maximum 9 slaves can be set when in parallel mode.

16. CONFigure:MSTSLV

Description: It executes the Master/Slave control.

Syntax: CONFigure:MSTSLV ON

CONFigure:MSTSLV OFF

Parameter: ON | OFF

Example: CONFigure:MSTSLV ON

CONFigure:MSTSLV OFF

Query Syntax: CONFigure:MSTSLV?

Return Parameter: ON| OFF

Query Example: CONF:MSTSLV?

Return Example: ON| OFF

Note 1:

Set the following 3 command before controlling this function:

¾ CONFigure:MSTSLV:ID

¾ ONFigure:MSTSLV:PARSER

¾ CONFigure:MSTSLV:NUMSLV

Note 2:

When Program RUN is executed, series/parallel control is not available.

5-14

Remote Operation

17. CONFigure:INHibit

Description: It executes the Remote Inhibit control.

Syntax: CONFigure:INHibit <ARG>

Parameter: DISABLE| ENABLE

Example: CONFigure:INHibit DISABLE

Query Syntax: CONFigure:INHibit?

Return Parameter: DISABLE | ENABLE

Query Example: CONF:INH?

Return Example: DISABLE

18. CONFigure:INHibit:PULL

Description: It executes the Remote Inhibit input signal to enhance the resistance control.

Syntax: CONFigure:INHibit:PULL <ARG>

Parameter: LOW|HIGH

Example: CONFigure:INHibit:PULL LOW

CONFigure:INHibit:PULL

Query Syntax: CONFigure:INHibit:PULL?

Return Parameter: LOW | HIGH

Query Example: CONF:INH:PULL?

Return Example: LOW

19. CONFigure:INTERLOCK

Description: It executes the Safety Interlock control

Syntax: CONFigure:INTERLOCK <ARG>

Parameter: DISABLE| ENABLE

Example: CONFigure:INTERLOCK DISABLE

Query Syntax: CONFigure:INTERLOCK?

Return Parameter: DISABLE | ENABLE

Query Example: CONF:INTERLOCK?

Return Example: DISABLE

20. CONFigure:INTERLOCK:PULL

Description: It executes the Safety Interlock input signal to enhance the resistance control.

Syntax: CONFigure:INTERLOCK:PULL <ARG>

Parameter: LOW|HIGH

Example: CONFigure:INTERLOCK:PULL LOW

Query Syntax: CONFigure:INTERLOCK:PULL?

Return Parameter: LOW | HIGH

Query Example: CONF:INTERLOCK:PULL?

Return Example: OW

21. CONFigure:EXTON

Description: It executes the External ON/OFF control.

Syntax: CONFigure: EXTON <ARG>

Parameter: DISABLE| ENABLE

Example: CONFigure: EXTON DISABLE

5-15

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Query Syntax: CONFigure: EXTON?

Return Parameter: DISABLE | ENABLE

Query Example: CONF: EXTON?

Return Example: DISABLE

22. CONFigure: EXTON:PULL

Description: It executes the External ON/OFF input signal to enhance the resistance control.

Syntax: CONFigure: EXTON:PULL <ARG>

Parameter: LOW|HIGH

Example: CONFigure: EXTON:PULL LOW

Query Syntax: CONFigure: EXTON:PULL?

Return Parameter: LOW | HIGH

Query Example: CONF: EXTON:PULL?

Return Example: LOW

5.6.2.3 SOURCE Subsystem

1. SOURce:VOLTage

Description: It sets the output voltage.

Syntax: SOURce:VOLTage <NRf+>[suffix]

SOURce:VOLTage <NRf+>[suffix]

Parameter: Refer to individual spec for valid numeric range.

Example: SOUR:VOLT 0.01 It sets the output voltage to 0.01 volt.

SOUR:VOLT 80.00 It sets the output voltage to 80.00 volt.

Query Syntax: SOUR:VOLT?

Return Parameter: <NRf+> [Unit Volt]

Query Example: SOUR:VOLT? It returns the voltage.

Return Example: 8.000000e+01

2. SOURce:VOLTage:LIMit:{HIGH/LOW}

Description: It sets the output voltage range.

Syntax: SOURce:VOLTage:LIMIT:HIGH <NRf+>[suffix]

SOURce:VOLTage:LIMIT:LOW <NRf+>[suffix]

Parameter: Refer to individual spec for valid numeric range.

Example: SOUR:VOLT:LIMIT:HIGH 60.0 It sets the output voltage range to

60V maximum.

SOUR:VOLT:LIMIT:LOW 20.0 It sets the output voltage range to 20V minimum.

Query Syntax: SOUR:VOLT:LIMIT:HIGH?

SOUR:VOLT:LIMIT:LOW?

Return Parameter: <NRf+> [Unit Volt]

Query Example: SOUR:VOLT:LIMIT:HIGH? It returns the maximum range set for voltage.

Return Example: 8.000000e+01

3. SOURce:VOLTage:PROTect:{HIGH}

Description: It sets the voltage range for over voltage protection.

Syntax: SOURce:VOLTage:PROTect:HIGH <NRf+>[suffix]

Parameter: Refer to individual spec for valid numeric range.

Example: SOUR:VOLT:PROT:HIGH 60.0 It sets the high limit to 60V for

5-16

Remote Operation

voltage output protection.

Query Syntax: SOUR:VOLT:PROT:HIGH?

Return Parameter: <NRf+> [Unit Volt]

Query Example: SOUR:VOLT:PROT:HIGH? It returns the high limit of voltage protection.

Return Example: 8.800000e+01

4. SOURce:VOLTage:SLEW

Description: It sets the rising or falling slew rate (volt/ms) of output voltage.

Syntax: SOURce:VOLTage:SLEW <NR1>[suffix]

SOURce:VOLTage:SLEW <NR1>[suffix]

Parameter: Refer to individual spec for valid numeric range.

Example: SOUR:VOLT:SLEW 0.01 It sets the output voltage slew rate to

0.01volt/mS

SOUR:VOLT:SLEW 10 It sets the output voltage slew rate to

10 volt/mS

Query Syntax: SOUR:VOLT:SLEW?

Return Parameter: <NR1> [Unit Volt/ms]

Query Example: SOUR:VOLT:SLEW? It returns the voltage slew rate.

Return Example: 1.000000e+01

Description: It sets the output current (ampere).

Syntax: SOURce:CURRent <NRf+>[suffix]

SOURce:CURRent <NRf+>[suffix]

Parameter: Refer to individual spec for valid numeric range.

Example: SOUR:CURR 1 It sets the output current to 1 amps.

SOUR:CURR 60.00 It sets the output current to 60.00 amps.

Query Syntax: SOUR:CURR?

Return Parameter: <NRf+> [Unit Amp]

Query Example: SOUR:CURR? It returns the current.

Return Example: 1.000000e+00

6. SOURce:CURRent:LIMit:{HIGH/LOW}

Description: It sets the output current range.

Syntax: SOURce:CURRent:LIMIT:HIGH <NRf+>[suffix]

SOURce:CURRent:LIMIT:LOW <NRf+>[suffix]

Parameter: Refer to individual spec for valid numeric range.

Example: SOUR:CURR:LIMIT:HIGH 60.0 It sets the output current range to 60A maximum.

SOUR:CURR:LIMIT:LOW 20.0 It set the low limit to 20A for current output protection.

Query Syntax: SOUR:CURR:LIMIT:HIGH?

SOUR:CURR:LIMIT:LOW?

Return Parameter: <NRf+> [Unit Amp]

Query Example: SOUR:CURR:LIMIT:HIGH? It returns the maximum range set for current.

Return Example: 6.000000e+01

Description: It sets the current range for over current protection.

Syntax: SOURce:CURRent:PROTect:HIGH <NRf+>[suffix]

Parameter: Refer to individual spec for valid numeric range.

Example: SOUR:CURR:PROT:HIGH 60.0 It sets the high limit to 60A

5-17

Programmable DC Power Supply 62000H Series Operating & Programming Manual

for current output protection.

Query Syntax: SOUR:CURR:PROT:HIGH?

Return Parameter: <NRf+> [Unit Amp]

Query Example: SOUR:CURR:PROT:HIGH? It returns the high limit of current protection.

Return Example: 6.000000e+01

8. SOURce:CURRent:SLEW

Description: It sets the rising or falling slew rate (amp/ms) of output current.

Syntax: SOURce:CURRent:SLEW <NR1>[suffix]

SOURce:CURRent:SLEW <NR1>[suffix]

Parameter: Refer to individual spec for valid numeric range.

Example: SOUR:CURR:SLEW 0.01 It sets the output current slew rate to

0.01 Amp/mS.

SOUR:CURR:SLEW 1.00 It sets the output current slew rate to

1.00 Amp/mS.

Query Syntax: SOUR:CURR:SLEW?

Return Parameter: <NR1> [Unit Amp/ms]

Query Example: SOUR:CURR:SLEW? It returns the current slew rate.

Return Example: 1.000000e+00

9. SOURce:CURRent:SLEWINF

Description: It sets the I Slewrate to INF.

SOURce:CURRent:SLEWINF DISABLE

Parameter: ENABLE/DISABLE

Example: SOUR:CURR:SLEWINF ENABLE It sets the I Slewrate to INF.

SOUR:CURR:SLEWINF DISABLE It resets the I Slewrate and returns to 1A/ms.

Query Syntax: SOUR:CURR:SLEW?

Return Parameter: INF. Or <NRf+>[Unit = Ampere]

Query Example: SOUR:CURR:SLEW?

Return Example: INF.

It returns the setting.

10. SOURce:POWer:PROTect:HIGH

Description: It sets the over power point (Watt) of output power.

Syntax: SOURce:POWer:PROTect:HIGH <NR1>[suffix]

Parameter: Refer to individual spec for valid numeric range.

Example: SOURce:POWer:PROTect:HIGH 1260 It sets the over power point 1260.

Query Syntax: SOURce:POWer:PROTect:HIGH?

Return Parameter: <NR1> [Watt]

Query Example: SOURce:POWer:PROTect:HIGH? It returns the over power setting value.

Return Example: 1.260000e+03

11. SOURce:DCON:{RISE/FALL}

Description: It sets the DC_ON signal active point.

Syntax: SOURce:DCON:RISE <NRf+>[suffix]

Parameter: Refer to individual spec for valid numeric range.

Example: SOUR:DCON:RISE 79.5 It sets the DC_ON rise to 79.5V.

SOUR:DCON:FALL 0.5

Query Syntax: SOUR:DCON:RISE?

It sets the DC_ON fall to 0.5V.

5-18

Remote Operation

SOUR:DCON:FALL?

Return Parameter: <NRf+> [Unit = Volt]

Query Example: SOUR:DCON:RISE? It returns the setting.

Return Example: 7.950000e+01

Note:

The output must be OFF for setting.

5.6.2.4 FETCH Subsystem

1. FETCh:VOLTage?

Description: It measures the output of Power Supply and returns real time voltage.

Query Syntax: FETCh:VOLTage?

Return Parameter: <NRf+> [Unit Volt]

Query Example: FETC:VOLT?

Return Example: 9.983100e+00

2. FETCh:CURRent?

Description: It measures the output of Power Supply and returns real time current.

Query Syntax: FETCh:CURRent?

Return Parameter: <NRf+> [Unit Amp]

Query Example: FETC:CURR?

Return Example: 2.000000e-04

3. FETCh:POWer?

Description: It measures the output of Power Supply and returns real time power.

Query Syntax: FETCh:POWer?

Return Parameter: <NRf+> [Unit Amp]

Query Example: FETC:POW?

Return Example: 5.000000e+03

4. FETCh:STATus?

Description: It returns the status code of Power Supply’s state.

Query Syntax: FETCh:STATus?

Return Parameter: <Arg1><,><Arg2><,><Arg3>

<Arg1>: return warning message 0~65535, 0: no warning, use binary for the rest and identify the cause of error.

BIT 0: OVP

BIT 1: OCP

BIT 2: OPP

BIT 3: Remote Inhibit

BIT 4: OTP

BIT 5: FAN_LOCK

BIT 6: SENSE FAULT

BIT 7: SERIES FAULT

BIT 8: Reserved

BIT 9: AC FAULT

BIT 10: FOLD Back CV to CC

BIT 11: FOLD Back CC to CV

BIT 12: Reserved

BIT 13: Reserved

5-19

Programmable DC Power Supply 62000H Series Operating & Programming Manual

BIT 14: Reserved

BIT 15: Reserved

<Arg2>: ON|OFF output status at present

<Arg3>: CV or CC status at present

5.6.2.5 MEASURE Subsystem

1. MEASure:VOLTage?

Description: It returns the voltage measured at the output of Power Supply.

Query Syntax: MEASure:VOLTage?

Return Parameter: <NRf+> [Unit Voltage]

Query Example: MEAS:VOLT?

Return Example: 8.120000e+01

2. MEASure:CURRent?

Description: It returns the current measured at the output of Power Supply.

Query Syntax: MEASure:CURRent?

Return Parameter: <NRf+> [Unit Amp]

Query Example: MEAS:CURR?

Return Example: 3.150000e+01

3. MEASure:POWer?

Description: It returns the power measured at the output of Power Supply.

Query Syntax: MEASure:POWer?

Return Parameter: <NRf+> [Unit Amp]

Query Example: MEAS:POW?

Return Example: 5.000000e+03

5.6.2.6 PROGRAM Subsystem

Description: It sets the executed program no.

Syntax: PROGram: SELected <NR1>

Parameter: 1 to 10

Example: PROG:SEL 10

It returns the program no. in use. Query Syntax: PROG:SEL?

Return Parameter: <NR1>

Query Example: PROG:SEL?

Return Example: 10

2. PROGram:LINK

Description: It links a program to another when ends.

Syntax: PROGram:LINK <NR1>

Parameter: 0 to10 (0 is not linked)

Example: PROG:LINK 7

Query Syntax: PROG:LINK?

Return Parameter: <NR1>

Query Example: PROG:LINK?

Return Example: 7

5-20

Remote Operation

3. PROGram:COUNT

Description: It sets the program file to be executed in series.

Syntax: PROGram:COUNT <NR1>

Parameter: 1 to 15000

Example: PROG:COUNT 7

Query Syntax: PROG: COUNT ?

Return Parameter: <NR1>

Query Example: PROG: COUNT ?

Return Example: 7

4. PROGram:RUN

Description: It executes the program.

Syntax: PROGram:RUN ON

PROGram:RUN OFF

Parameter: ON/1, OFF/0

Example: PROG:RUN ON

Query Syntax: PROGram:RUN?

Return Parameter: <NR1>

Query Example: PROGram:RUN?

Return Example: 1

5. PROGram:SAVE

Description: It saves the program.

Syntax: PROGram:SAVE

Parameter: None

Example: PROG:SAVE

6. PROGram:PULL

Description: It executes the PROGRAM TRIGGER input signal to enhance the resistance control.

Syntax: PROGram:PULL <ARG>

Parameter: LOW|HIGH

Example: PROGram:PULL LOW

Query Syntax: PROGram:PULL?

Return Parameter: LOW | HIGH

Query Example: PROGram:PULL?

Return Example: LOW

7. PROGram:SEQuence:SELected

Description: It sets the execution sequence of a program.

Syntax: PROGram:SEQuence:SELected <NR1>

Parameter: 1 to 10

Example: PROG:SEQ:SEL 3

Query Syntax: PROGram:SEQuence:SELected?

Return Parameter: <NR1>

Query Example: PROG:SEQ:SEL?

Return Example: 3

8. PROGram:SEQuence:TYPE

Description: It sets the action type of sequence.

Syntax: PROGram:SEQuence:TYPE TRI

PROGram:SEQuence:TYPE AUTO

PROGram:SEQuence:TYPE MANUAL

5-21

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Parameter: SKIP, AUTO, MANUAL

Example: PROG:SEQ:TYPE TRI

PROG:SEQ:TYPE AUTO

PROG:SEQ:TYPE MANUAL

Query Syntax: PROG:SEQ:TYPE?

Return Parameter: SKIP, AUTO, MANUAL

Query Example: PROG:SEQ:TYPE?

Return Example: 1

9. PROGram:SEQuence:VOLTage

Description: It sets the sequence for voltage output.

Syntax: PROGram:SEQuence:VOLTage <NRf+>

Example: PROG:SEQ:VOLT 40.5

Query Syntax: PROG:SEQ:VOLT?

Return Parameter: <NRf+>

Query Example: PROG:SEQ:VOLT?

Return Example: 4.050000e+01

10. PROGram:SEQuence:VOLTage:SLEW

Description: It sets sequence for output voltage slew rate.

Syntax: PROGram:SEQuence:VOLTage:SLEW <NR1>

Parameter: 0.01 to 10.00

Example: PROG:SEQ:VOLT:SLEW 1

Query Syntax: PROG:SEQ:VOLT:SLEW?

Return Parameter: <NR1>

Query Example: PROG:SEQ:VOLT:SLEW?

Return Example: 1.000000e+01

11. PROGram:SEQuence:CURRent

Description: It sets sequence for output current.

Syntax: PROGram:SEQuence:CURRent <NRf+>

Example: PROG:SEQ:CURR 40.5

Query Syntax: PROG:SEQ:CURR?

Return Parameter: <NRf+>

Query Example: PROG:SEQ:CURR?

Return Example: 4.500000e+01

12. PROGram:SEQuence:CURRent:SLEW

Description: It sets sequence for output voltage slew rate.

Syntax: PROGram:SEQuence:CURRent:SLEW <NRf1>

Example: PROG:SEQ:CURR:SLEW 10

Query Syntax: PROG:SEQ:CURR:SLEW?

Return Parameter: <NR1>

Query Example: PROG:SEQ:CURR:SLEW?

Return Example: 1.000000e+00

13. PROGram:SEQuence:CURRent:SLEWINF

Description: It sets the slewrate of sequence current output to INF.

Syntax: PROGram:SEQuence:CURRent:SLEWINF ENABLE

PROGram:SEQuence:CURRent:SLEWINF DISABLE

Parameter: ENABLE/DISABLE

Example: PROGram:SEQuence:CURRent:SLEWINF ENABLE sets the

Slewrate to INF

5-22

Remote Operation

PROGram:SEQuence:CURRent:SLEWINF DISABLE releases the

Slewrate INF and return to 1A/ms

Query Syntax: PROGram:SEQuence:CURRent:SLEW?

Return Parameter: INF. Or <NRf+>[Unit Amp]

Query Example: PROGram:SEQuence:CURRent:SLEW? It returns the settings.

Return Example: INF.

14. PROGram:SEQuence:TIME

Description: It sets the sequence for the duration of time.

Syntax: PROGram:SEQuence:TIME <NRf1>

Parameter: 0.005~15000 , 0 (0 means end)

Example: PROG:SEQ:TIME 10

Query Syntax: PROG:SEQ:TIME?

Return Parameter: <NR1>

Query Example: PROG:SEQ:TIME?

Return Example: 1.000000e+01

15. PROGram:CLEAR

Description: It clears the sequence.

Syntax: PROGram:CLEAR

Example: PROG:CLEAR

16. PROGram:ADD

Description: It adds a sequence.

Syntax: PROGram:ADD <NR1>

Parameter: 1~100 (based on the remaining SEQUENCE no. for configuration)

Query Syntax: PROGram:ADD?

Return Parameter: <NR1>

Query Example: PROGram:ADD?

Return Example: 85 – it indicates the remaining no. is 85.

17. PROGram:MAX?

Description: It queries the sequence number of present program.

Syntax: PROGram:MAX?

Parameter:

Example: PROG:MAX?

Return Example: 2 means there are two sequences under the present program.

18. PROGram:SEQuence

Description: It sets the parameters of a single sequence.

Syntax: PROGram:SEQuence

<arg1><,><arg2><,><arg3><,><arg4><,><arg5><,><arg6><,><arg7>

Parameter:

Arg1: Sequence TYPE (NR1 0:Auto, 1:Manual, 2:EXT.Trig, 3:Skip)

Arg2: Sequence Voltage (NRf+ unit: voltage)

Arg3: Sequence Voltage Slewrate (NRf+ unit: voltage)

Arg4: Sequence Current (NRf+ unit: current)

Arg5: Sequence Current Slewrate (NRf+ unit: current) / INF –I

Slewrate sets to INF

Arg6: Reserved (always 0)

Arg7: Sequence TIME (NRf+ unit: SEC, only valid when Sequence

Type is AUTO)

Example: Set the Sequence

5-23

Programmable DC Power Supply 62000H Series Operating & Programming Manual

PROGram:SEQuence 0,80,10,15,1,0,10

Query Syntax: PROG:SEQ?

Return Parameter: 0,8.000000e+01,1.000000e+01,1.500000e+01,

1.000000e+00,0,1.000000e+01

Query Example: PROG:SEQ?

Return Example: 0,8.000000e+01,1.000000e+01,1.500000e+01,1.000000e+00,0,

1.000000e+010,80,10,15,1,0,1

19. PROGram:MODE

Description: It sets the Program Mode for output.

Example: It changes the Program Mode to STEP Mode.

Return Parameter: LIST | STEP

20. PROGram:STEP:STARTV

Description: It sets the Step Mode start voltage for output.

Example: It changes the start voltage of STEP Mode to 20.0 V.

21. PROGram:STEP:ENDV

Description: It sets the Step Mode end voltage for output.

Example: It changes the end voltage of STEP Mode to 50.0 V.

22. PROGram:STEP:TIME

Description: It sets the execution time for Step Mode.

Parameter: Hour : <NR1> 0 ~ 99

Minute : <NR1> 0 ~ 59

Second : <NRf1> 0 ~ 59.99

Example: It changes the time for STEP Mode action to 1 hour 30 min. & 5 sec.

5-24

Remote Operation

5.6.2.7 SYSTEM Subsystem

1. SYSTem:ERRor?

Description: It returns the error message and code of Power Supply.

Query Syntax: SYSTem:ERRor?

Return Parameter: aard

Query Example: SYST:ERR?

Return Example: -203, “Data out of range”

Table 5-11

Code Error Message

0 "No error"

-102 "Syntax error"

-104 "Data type error"

-106 "Illegal parameter value"

-109 "Missing parameter"

-113 "Undefined header"

-123 "Numeric overflow"

-131 "Invalid suffix"

-148 "Character data not allowed"

-158 "String data not allowed"

-203 "Data out of range"

-211 "Data stale"

-227 "UNTERMINATED"

Code Error Message

-101 "Invalid character"

-103 "Invalid separator"

-105 "GET not allowed"

-108 "Parameter not allowed"

-112 "Program mnemonic too long"

-121 "Invalid character in number"

-124 "Too many digits"

-141 "Invalid character data"

-151 "Invalid string data"

-202 "Setting conflict"

-204 "Too much data"

-224 "Self-test failed"

-226 "INTERRUPTED"

-228 "DEADLOCKED"

-231 "Sequence selected error"

5-25

Theory of Operation

6. Theory of Operation

6.1 Overview

The 62000H Series DC Power Supply has A, C, D, E, F, G, H, I, K, L,NI,NO, O, R, S, U, Y and Z total 18 circuit boards in it.

„

A board is the auxiliary power.

„ C board is the output stage control circuits.

„ D board is the main digital control board.

„ E board is the EMI filter.

„ F board is the input stage primary side.

„ G board is the GPIB & Ethernet control board (optional).

„ H board is the high voltage input rectifier.

„ I board is the adapter of CAN and USB.

„ K board has 24 (4*6) keys and an LED.

„ L board is the low voltage input rectifier.

„ NI board is the output noise board 1.

„ NO board is the output noise board 2.

„ O board is the output stage secondary side.

„ R board is the adapter of Remote sense and current sharing.

„ S board is the output stage secondary side snubber circuits.

„ U board provides serial/parallel communication for CAN and external RS232/RS485 and

USB interfaces.

„ Y board is the converter of Ethernet and GPIB.

„ Z board is the fan control circuits.

Figure 6-1 shows the system diagram.

Figure 6-1

6-1

Programmable DC Power Supply 62000H Series Operating & Programming Manual

Figure 6-2 shows the input stage structure.

V_DCBUS

J1

R

S

T

G

J2

+18V2

(Fan Power)

J3

GND_DCBUS

GND2

(Fan Power Ground)

220V INPUT: Capacitor in Parallel

380/440V INPUT: Capacitor in Series

From Digital Board

SCR_ENABLE

SCR Control Signal

+12V3

(Digital Board

Power)

GND3

(Digital Board Ground)

Fan_Fault1

Figure 6-2

Figure 6-3 shows the output stage structure.

vo

+

vo

svo svo

+

Figure 6-3

6-2

Theory of Operation

Figure 6-4 shows the digital stage structure.

K Board U Board

Keyboard

RS232/RS485

USB,CAN BUS

Isolated APG

D Board

+5VD

DGND

Linear

Regulator

+1.26VD

+1.2VD

+3.3VD

G Board

GPIB

Ethernet

Z Board

Fan signal

A Board

AC_Fault signal

C Board

Driver signal

FPGA

DSP Memory

F Board

SCR driver signal

Figure 6-4

6.2 Function Description

6.2.1 I/P (PFC) Stage

1. The input stage is a bridge rectifier to rectify the 3-phase power source to DC.

2. The way input stage inhibits inrush current is to connect the input circuit to a 40

Ω resistor in series during power-on to charge the input capacitor. Turn on the SCR after a few seconds and bypass this current limit resistor.

6-3

Programmable DC Power Supply 62000H Series Operating & Programming Manual

6.2.2 Auxiliary Power

1. The auxiliary power is the AC source input goes through the bridge rectifier and passes the flyback converter to get the desired output voltage. The PWM IC used is Unitrode

UC3845.

2. The output of auxiliary power is divided into three types of isolate power and they are named FSGND, OGND and DGND based on their potential. The FSGND is the fan reference potential of output stage, while OGND is the reference potential of output stage and DGND is the reference potential of digital signal and communication interface.

6.2.3 Output Stage

1. The output stage structure is full bridge that uses Unitrode UC3895 as PWM IC and controlled under voltage mode.

2. There are two output modes -- Constant Voltage (CV Mode) and Constant Current (CC

Mode) that switches automatically according to load state.

In Constant Voltage mode, following controls the IC detecting signal:

(2) The load actual voltage (remote sense) through output line, in which the remote sense can be disconnected but the accuracy will drop.

In Constant Current mode, following controls the IC detecting signal:

3. The secondary side is one stage LC filter to lower down the ripple voltage and ripple current.

4. The action of Dummy load is Constant Current Source and the Dummy load current will adjust following the output voltage. Moreover, it will act if the programmed voltage is less than the present output. The output has OVP and when it exceeds the OVP voltage (16 bit DAC) set by the front panel, the output will be disabled.

6.2.4 Digital Circuit

1. The digital circuit control unit is composed of TMS320VC5501ZZZ300 with Lattice FPGA

(LFXP2-8E-5FTN256C).

2. The power source 3.3V required by FPGA is got from +5VD.

3. The DSP required 3.3V and 1.26V power is got from +5VD.

4. The signal of analog program interface and digital circuit are isolated by the power source of +16VD with the free-run flyback converter and linear regulator.

5. The TTL output is +5V level and the internal digital signal is +3.3V level, therefore there are actions for level change.

6-4

Self Test & Troubleshooting

7. Self Test & Troubleshooting

7.1 Overview

Follow the actions described in this chapter to inspect the instrument and troubleshoot the problem first when the 62000H Series DC Power Supply is unable to operate normally.

Please consult the sales agent or distributor if the information provided in this manual is unable to resolve the problem.

7.2 Troubleshooting

Operation problems and suggestions for resolution:

SPEC.

(OTP)

Problem

Output is not within Accuracy

Over Temperature Protection

Cause

Bad measurement for V, I Feature swings due to aged components.

Resolution

It needs calibration periodically. See section

3.3.7 Calibration.

Feature swings due to aged components.

It needs calibration periodically. See section

3.3.7 Calibration.

1. The ambient temperature is 1. Operate the instrument too high.

2. The vent is blocked. within the temperature of

0 ~ 50°C.

2. Clear the vent.

Over Power Protection (OPP) The output power exceeds the spec.

Remove the over load or enlarge the OPP settings.

Over Current Protection

(OCP)

The output current exceeds the spec. or OCP settings.

Remove the over load or enlarge the OCP settings.

Fan Fail Protection (FAN

LOCK)

Input Error Protection 1

AC AFULT

1. The fan is out of order.

2. The feedback circuit is abnormal.

The voltage of AC input line is either too low or too high.

Consult local sales agent if it is unable to reset the protection state.

Adjust the voltage if it exceeds the spec. when measuring the input voltage.

No output voltage

Over Voltage Protection

(OVP)

1. The output voltage feedback is abnormal.

2. The D/D power stage is damaged.

The output voltage exceeds the spec. or OVP settings.

Consult local sales agent if it is unable to reset the protection state.

Unable to control DC Power

Supply via GPIB

1. The address of DC Power

Supply is incorrect.

2. The GPIB cable is loose and fallen at rear.

Check the OVP settings.

Consult local sales agent if it is unable to reset the protection state.

1. Update the address.

2. Check the cable connection and secure it with screws.

7-1

Appendix A APG & System Status Pin Assignment

Appendix A APG & System Status Pin

Assignment

The 25-pin connector is located at rear panel in green as Figure A-1 shows.

Figure A-1

PIN NO. PIN Definition

1 +12VAPI

2 AVO_SET_R

3 AVO_SET_C

4 AVO_SET_V

5 AVO_MEAS_C

6 AVO_MEAS_V

7 N.C.

8 PROG_TRIG

9 _INHIBIT

PIN NO.

14

15

16

17

18

19

20

21

22

PIN Definition

APIGND

AIO_SET_R

AIO_SET_C

AIO_SET_V

AIO_MEAS_C

AIO_MEAS_V

N.C.

INTERLOCK

_EXT_ON

10 DCOUT_ON

11 CV_CC

23

24

_FAULT

_OTP

12 N.C.

13 DGND

25 N.C.

(1) PIN 1: +12V API auxiliary power for APG only (maximum output current: 10mA), see

section 3.3.1.1 for detail description.

(2) PIN 2: AVO_SET_R, voltage programming for APG only that allows users to set in

“resistance form”, see section 3.3.1.1 for detail description.

(3) PIN 3: AVO_SET_C, voltage programming for APG only that allows users to set in

“current form”, see section 3.3.1.1 for detail description.

(4) PIN 4: AVO_SET_V, voltage programming for APG only that allows users to set in

“voltage form”, see section 3.3.1.1 for detail description.

(5) PIN 5: AVO_MEAS_C, voltage programming for APG only that allows users to set in

“current form”, see section 3.3.1.1 for detail description.

(6) PIN 6: AVO_MEAS_V, voltage programming for APG only that allows users to set in

“voltage form”, see 3.3.1.1 for detail description.

(7) PIN 7: N.C.

(8) PIN 8: PROG_TRIG, the external trigger signal (positive edge trigger) in program editing

mode, see section 4.1.2.2 for detail description.

(9) PIN 9: _INHIBIT, this function allows users to use the Pin 9 of ANALOG INTERFACE to

turn off the Power Supply when outputting, see section 3.3.5.4 for detail description.

(10) PIN 10: DCOUT_ON, when the DC Power Supply output is ON and the voltage exceeds

VDC_R, the Pin 10 (DCOUT_ON) of SYSTEM STATUS on the rear panel will turn to

HIGH. When the DC Power Supply output voltage is lower than the VDC_F setting, the

Pin 10 (DCOUT_ON) of SYSTEM STATUS on the rear panel will turn to LOW. See

3.3.2.5 for detail description.

(11) PIN 11: CV_CC, this pin is HIGH when in CV mode and is LOW when in CC mode.

A-1

Programmable DC Power Supply 62000H Series Operating & Programming Manual

(12) PIN 12: N.C.

(13) PIN 13: DGND

(14) PIN 14: APIGND, +12V auxiliary power ground potential for APG only, see section

3.3.1.1 for detail description.

(15) PIN 15: AIO_SET_R, current programming for APG only that allows users to set in

“resistance form”, see section 3.3.1.1 for detail description.

(16) PIN 16: AIO_SET_C, current programming for APG only that allows users to set in

“current form”, see section 3.3.1.1 for detail description.

(17) PIN 17: AIO_SET_V, current programming for APG only that allows users to set in

“voltage form”, see section 3.3.1.1 for detail description.

(18) PIN 18: AIO_MEAS_C, current programming for APG only that allows users to set in

“current form”, see section 3.3.1.1 for detail description.

(19) PIN 19: AIO_MEAS_V, current programming for APG only that allows users to set in

“voltage form”, see 3.3.1.1 for detail description.

(20) PIN 20: N.C.

(21) PIN 21: INTERLOCK, this function allows users to use the Pin 21 of ANALOG

INTERFACE to control the Power Supply for temporary OFF, see section 3.3.5.5 for

detail description.

(22) PIN 22: _EXT_ON, this function allows users to use the Pin 22 of ANALOG INTERFACE

to control the ON/OFF of Power Supply, see section 3.3.5.6 for detail description.

(23) PIN 23: _FAULT, this pin will turn to LOW when the protection signals described in

section 3.3.5 occur.

(24) PIN 24: _OTP, this pin will turn to LOW when over temperature protection occurs.

(25) PIN 25: N.C.

A

-

2

Appendix B List of Protection

Appendix B List of Protection

Protection

Over temperature protect

Fan fail protect

Message on Panel Protection

Over voltage protect OVP

Over current protect OCP

Over power protect OPP

OTP

FANLOCK

Input voltage abnormal protect

Remote sense abnormal protect

CV TO CC mode change protect

CC TO CV mode change protect

Message on Panel

AC FAULT

SENSE FAULT

CV TO CC FOLDBACK

CC TO CV FOLDBACK

B-1

CHROMA ATE INC.

致茂電子股份有限公司

66 Hwaya 1st Rd.

Kuei-shan Hwaya Technology Park

Taoyuan County 33383, Taiwan

33383 台灣桃園縣龜山鄉

華亞科技園區華亞一路 66 號

T +886-3-327-9999

F +886-3-327-8898

Mail: [email protected]

0H http://www.chromaate.com

Copyright by CHROMA ATE INC. All Rights Reserved.
