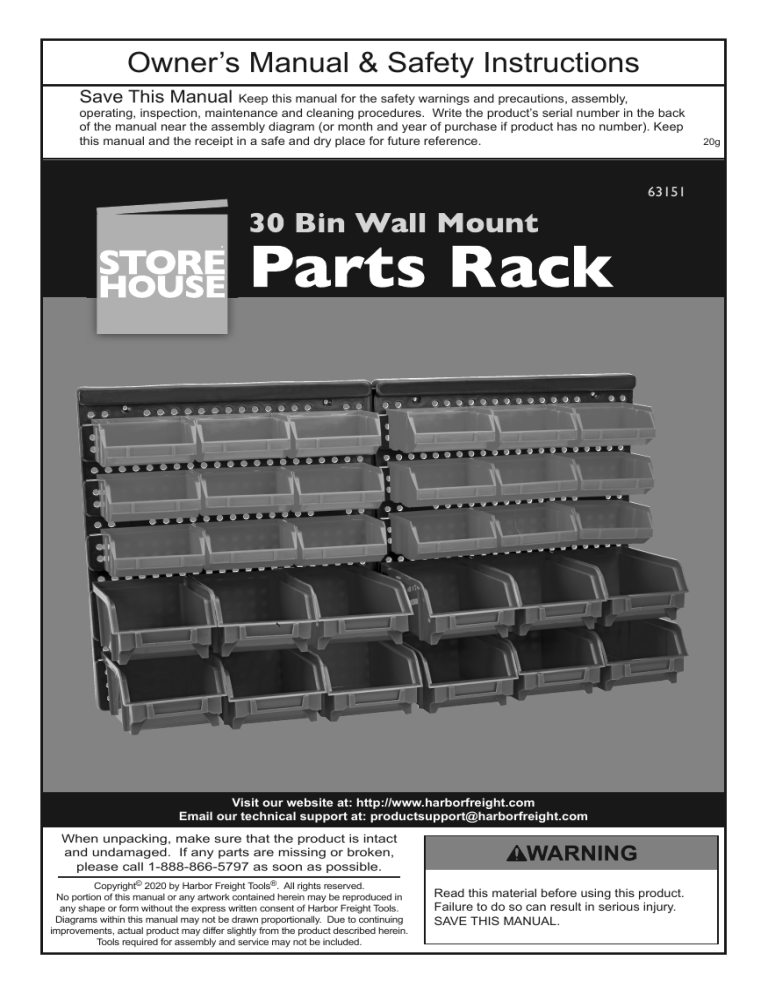

Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back
of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep
this manual and the receipt in a safe and dry place for future reference.
Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2020 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
20g
Specifications
Weight Capacity
Large Blue Bins = 3-1/2 lb each
Small Red Bins = 2 lb each
Material
Polypropylene
Important Safety Information
Installation Precautions
1.
Install only according to these
instructions. Improper installation
can create hazards.
2.
Wear ANSI-approved safety goggles
and heavy-duty work gloves
during installation.
3.
Keep installation area clean and well lit.
4.
Keep bystanders out of the
area during installation.
5.
Do not install when tired or when under
the influence of drugs or medication.
6.
Weight capacity and other product
capabilities apply to properly and
completely installed product only.
7.
Mount on a solid wood surface
capable of supporting product’s
fully loaded weight.
8.
Carefully inspect the mounting area
to make sure there are no hidden
electrical wires, cables or pipes.
4.
Maintain product labels and
nameplates. These carry
important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
Use Precautions
1.
This product is not a toy. Do not allow
children to play with or near this item.
2.
Use as intended only.
3.
Inspect before every use; do not use
if parts are loose or damaged.
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175344304 when ordering parts.
Page 2
For technical questions, please call 1-888-866-5797.
Item 63151
Installation Instructions
Note: The Mounting Board can be
split on the center line and used as
two separate Boards, if desired.
3.
After checking the mounting area for
hidden wiring, drill 8 holes to hold
1/8" wood screws, at least 2" long.
1.
Orient the Mounting Board (1) so that
the bin slots open on top, as shown.
4.
Mount the Mounting Board using
8 wood screws (sold separately).
2.
Place the Mounting Board against the
5.
mounting surface and line up with a
level (sold separately). Mark 8 mounting
holes across the joined board.
Mount Bins onto the Mounting Board
by hanging the back lip of the Bins on
the Board’s slots. The Small Bins (2)
mount in the upper 3 rows and the
Large Bins (3) in the lower 2 rows.
Parts List and Diagram
Part
1
2
3
Description
Mounting Board
Small Red Bin
Large Blue Bin
Qty.
1
18
12
Slots open
on top
1
2
3
Item 63151
For technical questions, please call 1-888-866-5797.
Page 3
