#EV#

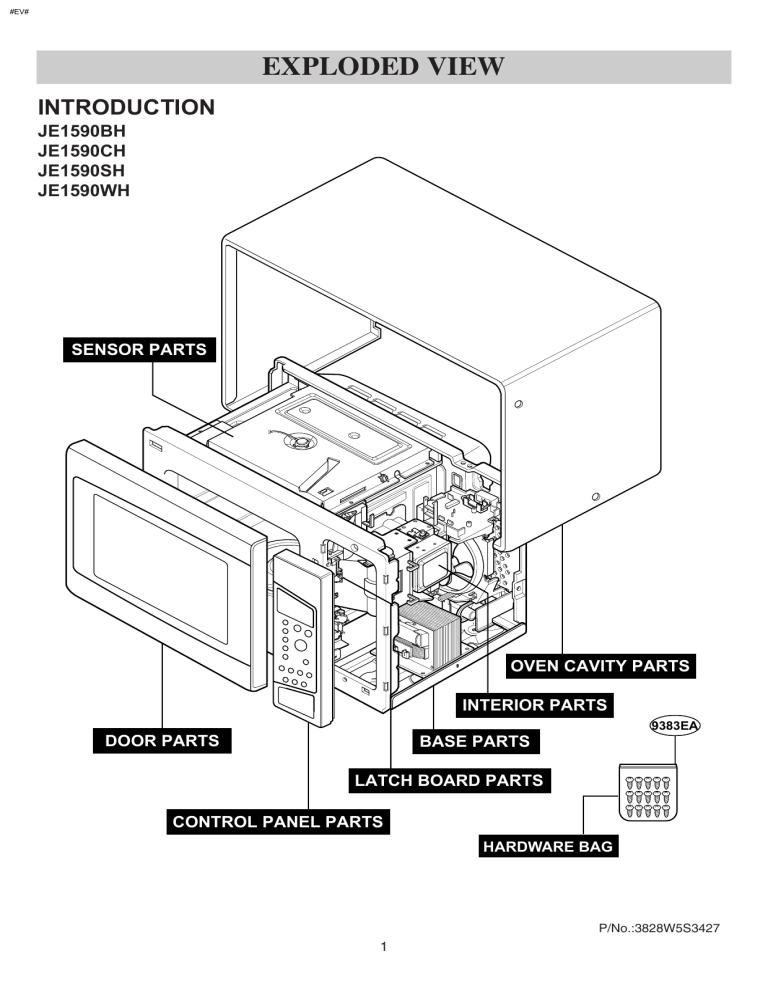

EXPLODED VIEW
INTRODUCTION
JE1590BH
JE1590CH
JE1590SH
JE1590WH
SENSOR PARTS
OVEN CAVITY PARTS
INTERIOR PARTS
9383EA
DOOR PARTS
BASE PARTS
LATCH BOARD PARTS
CONTROL PANEL PARTS
HARDWARE BAG
P/No.:3828W5S3427
1
#EV#
DOOR PARTS
JE1590BH
JE1590CH
JE1590SH
JE1590WH
13581A
15006A
13552A
13213A
FOR MODEL: JE1590SH
13551A
14890A
13720D
14026A
14970A
2
#EV#
CONTROLLER PARTS
JE1590BH
JE1590CH
JE1590SH
JE1590WH
24781S
FOR MODEL: JE1590SH
23551A
FOR MODEL: JE1590BH
JE1590CH
23572A
JE1590WH
WTP018
WTP004
FOR MODEL: JE1590BH
JE1590CH
JE1590WH
250202
23806C
23790D
268711
250201
249401
268712
24510L
24970A
FOR MODEL: JE1590BH
JE1590CH
250203
JE1590WH
23551B
FOR MODEL: JE1590SH
3
#EV#
OVEN CAVITY PARTS
JE1590BH
JE1590CH
JE1590SH
JE1590WH
33112U
WTT021
WTT010
WSZ185
WMT002
WNH002
WTT010
WTT011
FOR MODEL: JE1590WH
JE1590CH
33052M
WTT020
FOR MODEL: JE1590BH
JE1590SH
35026C
34370T
33390G
36549S
35889A
WTP013
4
#EV#
LATCH BOARD PARTS
JE1590BH
JE1590CH
JE1590SH
JE1590WH
43501A
466001
466003
43500A
WSZ085
466001
WSZ161
56912B
WTP013
53550L
36549W
54810U
56930V
55262A
466001
WTP007
WTT028
5
#EV#
INTERIOR PARTS(I)
JE1590BH01
JE1590CH01
JE1590SH01
JE1590WH01
Check the rating label of
Model and order SVC parts
according to the Model No.
568772
33808A
56411A
WTT022
WSZ002
53504A
53300G
WTT021
56322A
55290A
WTT010
35300S
54810S
55900C
348102
34930W
56549C
348101
55900N
WTT022
WWP008
WNH002
WNH003
WSZ059
WTP015
50FZZA
WWS005
56820A
WMT002
34930R
343501
348103
WTT037
WSZ085
54974S
56549F
55900A
WSZ202
WSZ005
54811A
568771
50CZZH
54810C
56851D
WSZ002
56324A
WSZ005
WTT028
6
#EV#
INTERIOR PARTS(II)
JE1590BH02
JE1590CH02
JE1590SH02
JE1590WH02
Check the rating label of
Model and order SVC parts
according to the Model No.
568772
33808A
56411A
WTT022
WSZ002
53504A
53300G
WTT021
56322A
55290A
WTT010
35300S
54810S
55900C
348102
34930W
56549C
348101
55900N
WTT022
WWP008
WNH002
WNH003
WSZ059
WWS005
50FZZA
56201A
WMT002
34930R
343501
348103
WTT037
WSZ085
54974S
56549F
55900A
WSZ202
WSZ005
54811A
568771
50CZZH
54810C
56851D
WSZ002
56324A
WSZ005
WTT028
7
#EV#
BASE PLATE PARTS
JE1590BH
JE1590CH
JE1590SH
JE1590WH
56170D
63303A
63302A
WTT021
948501
65006B
WSZ002
8
#EV#
SENSOR PARTS
JE1590BH
JE1590CH
JE1590SH
JE1590WH
WTP002
56501A
WTT021
35264A
9
REPLACEMENT PARTS LIST
For MODEL: JE1590BH
LOC.
NO
*01
*03
*07
*10
13213A
13552A
13581A
13720D
14026A
14890A
14970A
15006A
23572A
23790D
23806C
24510L
24781S
249401
24970A
250201
250202
250203
268711
268712
33052M
33112U
33390G
33808A
343501
34370T
348101
348102
348103
34930R
34930W
35026C
35264A
35300S
35889A
36549S
36549W
43500A
43501A
466001
466001
466002
466003
466003
50CZZH
50CZZH
DESCRIPTION
MANUAL,OWNERS
COOK BOOK
CARD,TECHNICAL
BOX,YELLOW
DOOR FRAME ASSEMBLY
CHOKE COVER
DOOR ASSEMBLY
PANEL,DOOR
LATCH
GLASS
SPRING
CAP,CHOKE COVER
PANEL,CONTROL
WINDOW,DIGITRON
DECO,CONTROL PANEL
LEVER
CONTROLLER ASSEMBLY,SEMI MICOM
KNOB
SPRING
BUTTON
BUTTON
BUTTON
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB
CANOPY,MICA
OUT CASE,U-BENDING
TRAY,GLASS
COVER,BACK
RING
SHAFT,TURN TABLE
BRACKET,HEATER
BRACKET,HEATER
BRACKET,HEATER
SUPPORTER
HOLDER,WIRE
SHELF
AIR TUNNEL
HEATER,SHEATH
ROTATING RING ASSEMBLY
MOTOR(CIRC),SYNCHRONOUS
MOTOR(CIRC),SYNCHRONOUS
BOARD,LATCH
BOARD ASSEMBLY,LATCH
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
CAPACITOR,DRAWING[HIGH VOLTAGE]
CAPACITOR,DRAWING[HIGH VOLTAGE]
DIFFERENCE CHART
ALTERNATIVE
SVC QTY
REMARKS
JE1590BH/01
JE1590BH/02
PART NO.
3828W5A3768
R
1
3878W5A0027
R
1
3840W5T136A
3840W1T0020
R
1
Change
3890W3Y159A
R
1
3213W0A002C
R
1
3552W0A002A
R
1
3581W0A101B
3581W0A101F
R
1 3581W0A101B Change
3720W0D341B
R
1
4026W2A012A
R
1
4890W1A029F
S
1
4970WRA001B
R
1
5006W3A017A
R
1
3720W0C188B
R
1
3790W1A064A
R
1
3806W1A109B
R
1
4510W1A015A
R
1
4781W0S034B
R
1
4940W1A118B
S
1
4B72023A
R
1
5020W1A223B
B
1
5020W1A224B
B
1
5020W1A225B
B
1
6871W1S281A
R
1
6871W1S282A
R
1
3052W3M022A
R
1
3112W0U036G
R
1
1B71961E
R
1
3550W1A090A
R
1
4B73725A
R
1
4370W3A001A
R
1
4810W3H003A
R
1
4810W3H002A
R
1
4810W3H004A
R
1
4930W3A014A
R
2
4B72944B
R
1
5026W1A035D
R
1
5264W1A015A
5264W1A015E
R
1
Change
5300W1S006A
R
1
5889W2A017A
R
1
6549W1S013A
R
1
6549WRS001P
R
1
3500W1A008A
R
1
3501W1A003U
R
1
3B73362F
R
2
3B73362E
3B73362F
R
2 6600W1K004C
6600W1K001D
R
1
3B73361E
R
1 6600W1K004B
3B73361E
R
1
3B73361D
0CZZW1H002H 0CZZW1H004B R
1 0CZZW1H002H Change
0CZZW1H002H 0CZZW1H004B R
1 0CZZW1H003H Change
R : SERVICE PARTS
10
For MODEL: JE1590BH
LOC.
NO
50FZZA
53300G
53504A
53550L
54810C
54810S
54810U
54811A
54974S
55262A
55290A
55900A
55900C
55900N
56170D
56201A
56820A
56322A
56324A
56411A
56501A
56549C
56549F
56851D
568771
568772
56912B
56930V
63302A
63303A
65006B
9383EA
948501
WMT002
WNH002
WNH003
WSZ002
WSZ005
WSZ059
WSZ085
WSZ161
WSZ185
WSZ202
WTP002
WTP004
WTP007
WTP013
WTP015
WTP018
WTT011
DESCRIPTION
FUSE,DRAWING
PLATE,INNER
CHAMBER
COVER,LAMP
BRACKET,CAPACITOR
BRACKET,MOTOR
BRACKET,DAMPER
BRACKET ASSEMBLY
GUIDE,SUCTION
DUCT
GLASS WOOL
FAN
FAN
FAN
TRANSFORMER,HIGH VOLTAGE
FILTER ASSEMBLY(CIRC)
FUSE HOLDER
THERMISTOR,NTC
MAGNETRON
POWER CORD ASSEMBLY
SENSOR ASSEMBLY
MOTOR(CIRC),CIRCULATION
MOTOR(CIRC),FAN
CABLE ASSEMBLY
HARNESS
HARNESS
LAMP,DRAWING
THERMOSTAT
BASE PLATE
BASE PLATE ASSEMBLY
CAP,BASE PLATE
SERVICE PARTS
CUSHION
SCREW MACHINE,TRUSS HEAD
NUT,HEXAGON
NUT,HEXAGON
SCREW TAP TITE(S),BINDING HEAD
SCREW TAP TITE(B),PAN HEAD
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,TRUSS HEAD
DIFFERENCE CHART
ALTERNATIVE
SVC QTY
REMARKS
JE1590BH/01
JE1590BH/02
PART NO.
3B74133K
R
1
3B74133H
3300W1G088A
R
1
3300W1G087A
R
1
3550W3L001A
R
1
4810W4C003A
R
1
3B72717A
R
1
4810W2U002A
R
1
4811W3A016A
R
1
4974W1S046A
R
1
3550W1A093B
3550W1A093A
R
1
Change
5290W1A001A
5290W1A001B
R
1
Change
2B72279B
R
1
5900W3A004B
R
1
3B72559A
R
1
6170W1D023J
6170W1D012G R
1
6170W1D023J Change
6201W2A018A
R
1
Add
4930W3B025B
R
1
Delete
6322W2A001A
R
1
6324W1A001B
6324W1A001H
R
1 6324W1A001B Change
6411W2A002Z
R
1
6501W1A004A
R
1
2B72066G
R
1
6549W2F017N
R
1
6021W3B001A
6021W3B001U
R
1 6021W3B001A Change
6877W1A301B
6877W1A301C
R
1
Change
6877W2A002C
R
1
6912W3B002E
R
1
6930W1A002F
6930W1A003D
R
1 6930W1A002F Change
3302W0A022A
R
1
3303W1A045B
R
1
5006W3A016B
R
1
383EW1A081A
Add
3B72244C
R
1
1MTC0402432
R
1
1NHA0400018
R
2
1NHA0400032
R
1
1SBF0402418
R
13
1SPF0302018
R
1
4000W4A001A
R
2
4B70188C
R
3
4B75675A
R
1
Add
1SZZW2A002A
R
2
1SZZW2A002D
R
1
1TPL0302018
R
2
1TPL0302418
R
10
1TPL0303118
R
1
1TPL0402418
R
4
1TPL0402618
R
1
Delete
1TPL0402818
R
3
1TTG0402632
R
2
R : SERVICE PARTS
11
For MODEL: JE1590BH
LOC.
NO
WTT020
WTT021
WTT022
WTT028
WTT037
WWP008
WWS005
DESCRIPTION
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
WASHER,PLAIN
WASHER,SPRING LOCK
DIFFERENCE CHART
JE1590BH/01
JE1590BH/02
1TTL0402416
1TTL0402418
1TTL0402422
1TTL0402818
1TTL0403818
1WPL0500032
1WSD0400032
SVC QTY
R
R
R
R
R
R
R
ALTERNATIVE
REMARKS
PART NO.
2
15
11
5
2
1
1
R : SERVICE PARTS
12
For MODEL: JE1590CH
LOC.
NO
*01
*03
*07
*10
13213A
13552A
13581A
13720D
14026A
14890A
14970A
15006A
23572A
23790D
23806C
24510L
24781S
249401
24970A
250201
250202
250203
268711
268712
33052M
33112U
33390G
33808A
343501
34370T
348101
348102
348103
34930R
34930W
35026C
35264A
35300S
35889A
36549S
36549W
43500A
43501A
466001
466001
466002
466003
466003
50CZZH
50CZZH
DESCRIPTION
MANUAL,OWNERS
COOK BOOK
CARD,TECHNICAL
BOX,YELLOW
DOOR FRAME ASSEMBLY
CHOKE COVER
DOOR ASSEMBLY
PANEL,DOOR
LATCH
GLASS
SPRING
CAP,CHOKE COVER
PANEL,CONTROL
WINDOW,DIGITRON
DECO,CONTROL PANEL
LEVER
CONTROLLER ASSEMBLY,SEMI MICOM
KNOB
SPRING
BUTTON
BUTTON
BUTTON
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB
CANOPY,MICA
OUT CASE,U-BENDING
TRAY,GLASS
COVER,BACK
RING
SHAFT,TURN TABLE
BRACKET,HEATER
BRACKET,HEATER
BRACKET,HEATER
SUPPORTER
HOLDER,WIRE
SHELF
AIR TUNNEL
HEATER,SHEATH
ROTATING RING ASSEMBLY
MOTOR(CIRC),SYNCHRONOUS
MOTOR(CIRC),SYNCHRONOUS
BOARD,LATCH
BOARD ASSEMBLY,LATCH
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
CAPACITOR,DRAWING[HIGH VOLTAGE]
CAPACITOR,DRAWING[HIGH VOLTAGE]
DIFFERENCE CHART
ALTERNATIVE
SVC QTY
REMARKS
JE1590CH/01
JE1590CH/02
PART NO.
3828W5A3768
R
1
3878W5A0027
R
1
3840W5T136A
3840W1T0020
R
1
Change
3890W3Y159A
R
1
3213W0A002C
R
1
3552W0A002A
R
1
3581W0A101C 3581W0A101G R
1 3581W0A010C Change
3720W0D341C
R
1
4026W2A012A
R
1
4890W1A029F
S
1
4970WRA001B
R
1
5006W3A017A
R
1
3720W0C188C
R
1
3790W1A064A
R
1
3806W1A109C
R
1
4510W1A015A
R
1
4781W0S034C
R
1
4940W1A118C
S
1
4B72023A
R
1
5020W1A223C
B
1
5020W1A224C
B
1
5020W1A225C
B
1
6871W1S281A
R
1
6871W1S282A
R
1
3052W3M022A
R
1
3112W0U036F
R
1
1B71961E
R
1
3550W1A090A
R
1
4B73725A
R
1
4370W3A001A
R
1
4810W3H003A
R
1
4810W3H002A
R
1
4810W3H004A
R
1
4930W3A014A
R
2
4B72944B
R
1
5026W1A035D
R
1
5264W1A015A
5264W1A015E
R
1
Change
5300W1S006A
R
1
5889W2A017A
R
1
6549W1S013A
R
1
6549WRS001P
R
1
3500W1A008A
R
1
3501W1A003U
R
1
3B73362F
R
2
3B73362E
3B73362F
R
2 6600W1K004C
6600W1K001D
R
1
3B73361E
R
1 6600W1K004B
3B73361E
R
1
3B73361D
0CZZW1H002H 0CZZW1H004B R
1 0CZZW1H002H Change
0CZZW1H002H 0CZZW1H004B R
1 0CZZW1H003H Change
R : SERVICE PARTS
13
For MODEL: JE1590CH
LOC.
NO
50FZZA
53300G
53504A
53550L
54810C
54810S
54810U
54811A
54974S
55262A
55290A
55900A
55900C
55900N
56170D
56201A
56820A
56322A
56324A
56411A
56501A
56549C
56549F
56851D
568771
568772
56912B
56930V
63302A
63303A
65006B
9383EA
948501
WMT002
WNH002
WNH003
WSZ002
WSZ005
WSZ059
WSZ085
WSZ161
WSZ185
WSZ202
WTP002
WTP004
WTP007
WTP013
WTP015
WTP018
WTT010
DESCRIPTION
FUSE,DRAWING
PLATE,INNER
CHAMBER
COVER,LAMP
BRACKET,CAPACITOR
BRACKET,MOTOR
BRACKET,DAMPER
BRACKET ASSEMBLY
GUIDE,SUCTION
DUCT
GLASS WOOL
FAN
FAN
FAN
TRANSFORMER,HIGH VOLTAGE
FILTER ASSEMBLY(CIRC)
FUSE HOLDER
THERMISTOR,NTC
MAGNETRON
POWER CORD ASSEMBLY
SENSOR ASSEMBLY
MOTOR(CIRC),CIRCULATION
MOTOR(CIRC),FAN
CABLE ASSEMBLY
HARNESS
HARNESS
LAMP,DRAWING
THERMOSTAT
BASE PLATE
BASE PLATE ASSEMBLY
CAP,BASE PLATE
SERVICE PARTS
CUSHION
SCREW MACHINE,TRUSS HEAD
NUT,HEXAGON
NUT,HEXAGON
SCREW TAP TITE(S),BINDING HEAD
SCREW TAP TITE(B),PAN HEAD
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,TRUSS HEAD
DIFFERENCE CHART
ALTERNATIVE
SVC QTY
REMARKS
JE1590CH/01
JE1590CH/02
PART NO.
3B74133K
R
1
3B74133H
3300W1G088A
R
1
3300W1G087A
R
1
3550W3L001A
R
1
4810W4C003A
R
1
3B72717A
R
1
4810W2U002A
R
1
4811W3A016A
R
1
4974W1S046A
R
1
3550W1A093B
3550W1A093A
R
1
Change
5290W1A001A
5290W1A001B
R
1
Change
2B72279B
R
1
5900W3A004B
R
1
3B72559A
R
1
6170W1D023J
6170W1D012G R
1
6170W1D023J Change
6201W2A018A
R
1
Add
4930W3B025B
R
1
Delete
6322W2A001A
R
1
6324W1A001B
6324W1A001H
R
1 6324W1A001B Change
6411W2A002Z
R
1
6501W1A004A
R
1
2B72066G
R
1
6549W2F017N
R
1
6021W3B001A
6021W3B001U
R
1 6021W3B001A Change
6877W1A301B
6877W1A301C
R
1
Change
6877W2A002C
R
1
6912W3B002E
R
1
6930W1A002F
6930W1A003D
R
1 6930W1A002F Change
3302W0A022A
R
1
3303W1A045B
R
1
5006W3A016B
R
1
383EW1A081A R
1
Add
3B72244C
R
1
1MTC0402432
R
1
1NHA0400018
R
2
1NHA0400032
R
1
1SBF0402418
R
13
1SPF0302018
R
1
4000W4A001A
R
2
4B70188C
R
3
4B75675A
R
1
Add
1SZZW2A002A
R
2
1SZZW2A002D
R
1
1TPL0302018
R
2
1TPL0302418
R
10
1TPL0303118
R
1
1TPL0402418
R
4
1TPL0402618
R
1
Delete
1TPL0402818
R
3
1TTG0402422
R
2
R : SERVICE PARTS
14
For MODEL: JE1590CH
LOC.
NO
WTT011
WTT021
WTT022
WTT028
WTT037
WWP008
WWS005
DESCRIPTION
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
WASHER,PLAIN
WASHER,SPRING LOCK
DIFFERENCE CHART
JE1590CH/01
JE1590CH/02
1TTG0402632
1TTL0402418
1TTL0402422
1TTL0402818
1TTL0403818
1WPL0500032
1WSD0400032
SVC QTY
R
R
R
R
R
R
R
ALTERNATIVE
REMARKS
PART NO.
2
15
11
5
2
1
1
R : SERVICE PARTS
15
For MODEL: JE1590SH
LOC.
NO
*01
*03
*07
*10
13213A
13551A
13552A
13581A
14026A
14890A
14970A
15006A
23551A
23551B
23790D
24510L
24781S
249401
24970A
250201
250202
268711
268712
33052M
33112U
33390G
33808A
343501
34370T
348101
348102
348103
34930R
34930W
35026C
35264A
35300S
35889A
36549S
36549W
43500A
43501A
466001
466001
466002
466003
466003
50CZZH
50CZZH
50FZZA
DESCRIPTION
MANUAL,OWNERS
COOK BOOK
CARD,TECHNICAL
BOX,YELLOW
DOOR FRAME ASSEMBLY
SERVICE PARTS(DOOR STS ASSY)
CHOKE COVER
DOOR ASSEMBLY
LATCH
GLASS
SPRING
CAP,CHOKE COVER
SERVICE PARTS
SERVICE PARTS
WINDOW,DIGITRON
LEVER
CONTROLLER ASSEMBLY,SEMI MICOM
KNOB
SPRING
BUTTON
BUTTON
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB
CANOPY,MICA
OUT CASE,U-BENDING
TRAY,GLASS
COVER,BACK
RING
SHAFT,TURN TABLE
BRACKET,HEATER
BRACKET,HEATER
BRACKET,HEATER
SUPPORTER
HOLDER,WIRE
SHELF
AIR TUNNEL
HEATER,SHEATH
ROTATING RING ASSEMBLY
MOTOR(CIRC),SYNCHRONOUS
MOTOR(CIRC),SYNCHRONOUS
BOARD,LATCH
BOARD ASSEMBLY,LATCH
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
CAPACITOR,DRAWING[HIGH VOLTAGE]
CAPACITOR,DRAWING[HIGH VOLTAGE]
FUSE,DRAWING
DIFFERENCE CHART
ALTERNATIVE
SVC QTY
REMARKS
JE1590SH/01
JE1590SH/02
PART NO.
3828W5A3768
R
1
3878W5A0027
R
1
3840W5T136A
3840W1T0020
R
1
Change
3890W3Y159A
R
1
3213W0A002C
R
1
383EW5A167A
R
1
3552W0A002A
R
1
3581W0A101D
3581W0A101H
R
1 3581W0A101D Change
4026W2A012A
R
1
4890W1A029F
S
1
4970WRA001B
R
1
5006W3A017A
R
1
383EW5A168A
R
1
383EW5A169A
R
1
3790W1A064A
R
1
4510W1A015A
R
1
4781W0S034D
R
1
4940W1A118D
S
1
4B72023A
R
1
5020W1A223D
R
1
5020W1A224D
B
1
6871W1S281A
R
1
6871W1S282A
R
1
3052W3M022A
R
1
3112W0U036G
R
1
1B71961E
R
1
3550W1A090A
R
1
4B73725A
R
1
4370W3A001A
R
1
4810W3H003A
R
1
4810W3H002A
R
1
4810W3H004A
R
1
4930W3A014A
R
2
4B72944B
R
1
5026W1A035D
R
1
5264W1A015A
5264W1A015E
R
1
Change
5300W1S006A
R
1
5889W2A017A
R
1
6549W1S013A
R
1
6549WRS001P
R
1
3500W1A008A
R
1
3501W1A003U
R
1
3B73362F
R
2
3B73362E
3B73362F
R
2 6600W1K004C
6600W1K001D
R
1
3B73361E
R
1 6600W1K004B
3B73361E
R
1
3B73361D
0CZZW1H002H 0CZZW1H004B R
1 0CZZW1H002H Change
0CZZW1H002H 0CZZW1H004B R
1 0CZZW1H003H
3B74133K
R
1
3B74133H
R : SERVICE PARTS
16
For MODEL: JE1590SH
LOC.
NO
53300G
53504A
53550L
54810C
54810S
54810U
54811A
54974S
55262A
55290A
55900A
55900C
55900N
56170D
56201A
56820A
56322A
56324A
56411A
56501A
56549C
56549F
56851D
568771
568772
56912B
56930V
63302A
63303A
65006B
9383EA
948501
WMT002
WNH002
WNH003
WSZ002
WSZ005
WSZ059
WSZ085
WSZ161
WSZ185
WSZ202
WTP002
WTP004
WTP007
WTP013
WTP015
WTP018
WTT011
WTT020
DESCRIPTION
PLATE,INNER
CHAMBER
COVER,LAMP
BRACKET,CAPACITOR
BRACKET,MOTOR
BRACKET,DAMPER
BRACKET ASSEMBLY
GUIDE,SUCTION
DUCT
GLASS WOOL
FAN
FAN
FAN
TRANSFORMER,HIGH VOLTAGE
FILTER ASSEMBLY(CIRC)
FUSE HOLDER
THERMISTOR,NTC
MAGNETRON
POWER CORD ASSEMBLY
SENSOR ASSEMBLY
MOTOR(CIRC),CIRCULATION
MOTOR(CIRC),FAN
CABLE ASSEMBLY
HARNESS
HARNESS
LAMP,DRAWING
THERMOSTAT
BASE PLATE
BASE PLATE ASSEMBLY
CAP,BASE PLATE
SERVICE PARTS
CUSHION
SCREW MACHINE,TRUSS HEAD
NUT,HEXAGON
NUT,HEXAGON
SCREW TAP TITE(S),BINDING HEAD
SCREW TAP TITE(B),PAN HEAD
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
DIFFERENCE CHART
ALTERNATIVE
SVC QTY
REMARKS
JE1590SH/01
JE1590SH/02
PART NO.
3300W1G088A
R
1
3300W1G087A
R
1
3550W3L001A
R
1
4810W4C003A
R
1
3B72717A
R
1
4810W2U002A
R
1
4811W3A016A
R
1
4974W1S046A
R
1
3550W1A093B
3550W1A093A
R
1
Change
5290W1A001A
5290W1A001B
R
1
Change
2B72279B
R
1
5900W3A004B
R
1
3B72559A
R
1
6170W1D023J
6170W1D012G R
1
6170W1D023J Change
6201W2A018A
R
1
Add
4930W3B025B
R
1
Delete
6322W2A001A
R
1
6324W1A001B
6324W1A001H
R
1 6324W1A001B Change
6411W2A002Z
R
1
6501W1A004A
R
1
2B72066G
R
1
6549W2F017N
R
1
6021W3B001A
6021W3B001U
R
1 6021W3B001A Change
6877W1A301B
6877W1A301C
R
1
Change
6877W2A002C
R
1
6912W3B002E
R
1
6930W1A002F
6930W1A003D
R
1 6930W1A002F Change
3302W0A022A
R
1
3303W1A045B
R
1
5006W3A016B
R
1
383EW1A081A R
1
Add
3B72244C
R
1
1MTC0402432
R
1
1NHA0400018
R
2
1NHA0400032
R
1
1SBF0402418
R
13
1SPF0302018
R
1
4000W4A001A
R
2
4B70188C
R
3
4B75675A
R
1
Add
1SZZW2A002A
R
2
1SZZW2A002D
R
1
1TPL0302018
R
2
1TPL0302418
R
10
1TPL0303118
R
1
1TPL0402418
R
4
1TPL0402618
R
1
Delete
1TPL0402818
R
3
1TTG0402632
R
2
1TTL0402416
R
2
R : SERVICE PARTS
17
For MODEL: JE1590SH
LOC.
NO
WTT021
WTT022
WTT028
WTT037
WWP008
WWS005
DESCRIPTION
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
WASHER,PLAIN
WASHER,SPRING LOCK
DIFFERENCE CHART
JE1590SH/01
JE1590SH/02
1TTL0402418
1TTL0402422
1TTL0402818
1TTL0403818
1WPL0500032
1WSD0400032
SVC QTY
R
R
R
R
R
R
ALTERNATIVE
REMARKS
PART NO.
15
11
5
2
1
1
R : SERVICE PARTS
18
For MODEL: JE1590WH
LOC.
NO
*01
*03
*07
*10
13213A
13552A
13581A
13720D
14026A
14890A
14970A
15006A
23572A
23790D
23806C
24510L
24781S
249401
24970A
250201
250202
250203
268711
268712
33052M
33112U
33390G
33808A
343501
34370T
348101
348102
348103
34930R
34930W
35026C
35264A
35300S
35889A
36549S
36549W
43500A
43501A
466001
466001
466002
466003
466003
50CZZH
50CZZH
DESCRIPTION
MANUAL,OWNERS
COOK BOOK
CARD,TECHNICAL
BOX,YELLOW
DOOR FRAME ASSEMBLY
CHOKE COVER
DOOR ASSEMBLY
PANEL,DOOR
LATCH
GLASS
SPRING
CAP,CHOKE COVER
PANEL,CONTROL
WINDOW,DIGITRON
DECO,CONTROL PANEL
LEVER
CONTROLLER ASSEMBLY,SEMI MICOM
KNOB
SPRING
BUTTON
BUTTON
BUTTON
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB
CANOPY,MICA
OUT CASE,U-BENDING
TRAY,GLASS
COVER,BACK
RING
SHAFT,TURN TABLE
BRACKET,HEATER
BRACKET,HEATER
BRACKET,HEATER
SUPPORTER
HOLDER,WIRE
SHELF
AIR TUNNEL
HEATER,SHEATH
ROTATING RING ASSEMBLY
MOTOR(CIRC),SYNCHRONOUS
MOTOR(CIRC),SYNCHRONOUS
BOARD,LATCH
BOARD ASSEMBLY,LATCH
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
SWITCH,MICRO
CAPACITOR,DRAWING[HIGH VOLTAGE]
CAPACITOR,DRAWING[HIGH VOLTAGE]
DIFFERENCE CHART
ALTERNATIVE
SVC QTY
REMARKS
JE1590WH/01
JE1590WH/02
PART NO.
3828W5A3768
R
1
3878W5A0027
R
1
3840W5T136A
3840W1T0020
R
1
Change
3890W3Y159A
R
1
3213W0A002C
R
1
3552W0A002A
R
1
3581W0A101A
3581W0A101E
R
1
3581W0A101A Change
3720W0D341A
R
1
4026W2A012A
R
1
4890W1A029F
S
1
4970WRA001B
R
1
5006W3A017A
R
1
3720W0C188A
R
1
3790W1A064A
R
1
3806W1A109A
R
1
4510W1A015A
R
1
4781W0S034A
R
1
4940W1A118A
S
1
4B72023A
R
1
5020W1A223A
B
1
5020W1A224A
B
1
5020W1A225A
B
1
6871W1S281A
R
1
6871W1S282A
R
1
3052W3M022A
R
1
3112W0U036D
R
1
1B71961E
R
1
3550W1A090A
R
1
4B73725A
R
1
4370W3A001A
R
1
4810W3H003A
R
1
4810W3H002A
R
1
4810W3H004A
R
1
4930W3A014A
R
2
4B72944B
R
1
5026W1A035D
R
1
5264W1A015A
5264W1A015E
R
1
Change
5300W1S006A
R
1
5889W2A017A
R
1
6549W1S013A
R
1
6549WRS001P
R
1
3500W1A008A
R
1
3501W1A003U
R
1
3B73362F
R
2
3B73362E
3B73362F
R
2 6600W1K004C
6600W1K001D
R
1
3B73361E
R
1 6600W1K004B
3B73361E
R
1
3B73361D
0CZZW1H002H 0CZZW1H004B R
1 0CZZW1H002H Change
0CZZW1H002H 0CZZW1H004B R
1 0CZZW1H003H Change
R : SERVICE PARTS
19
For MODEL: JE1590WH
LOC.
NO
50FZZA
53300G
53504A
53550L
54810C
54810S
54810U
54811A
54974S
55262A
55290A
55900A
55900C
55900N
56170D
56201A
56820A
56322A
56324A
56411A
56501A
56549C
56549F
56851D
568771
568772
56912B
56930V
63302A
63303A
65006B
9383EA
948501
WMT002
WNH002
WNH003
WSZ002
WSZ005
WSZ059
WSZ085
WSZ161
WSZ185
WSZ202
WTP002
WTP004
WTP007
WTP013
WTP015
WTP018
WTT010
DESCRIPTION
FUSE,DRAWING
PLATE,INNER
CHAMBER
COVER,LAMP
BRACKET,CAPACITOR
BRACKET,MOTOR
BRACKET,DAMPER
BRACKET ASSEMBLY
GUIDE,SUCTION
DUCT
GLASS WOOL
FAN
FAN
FAN
TRANSFORMER,HIGH VOLTAGE
FILTER ASSEMBLY(CIRC)
FUSE HOLDER
THERMISTOR,NTC
MAGNETRON
POWER CORD ASSEMBLY
SENSOR ASSEMBLY
MOTOR(CIRC),CIRCULATION
MOTOR(CIRC),FAN
CABLE ASSEMBLY
HARNESS
HARNESS
LAMP,DRAWING
THERMOSTAT
BASE PLATE
BASE PLATE ASSEMBLY
CAP,BASE PLATE
SERVICE PARTS(HARD WARE BAG)
CUSHION
SCREW MACHINE,TRUSS HEAD
NUT,HEXAGON
NUT,HEXAGON
SCREW TAP TITE(S),BINDING HEAD
SCREW TAP TITE(B),PAN HEAD
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW,DRAWING
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,PAN HEAD
SCREW TAPPING,TRUSS HEAD
DIFFERENCE CHART
ALTERNATIVE
SVC QTY
REMARKS
JE1590WH/01
JE1590WH/02
PART NO.
3B74133K
R
1
3B74133H
3300W1G088A
R
1
3300W1G087A
R
1
3550W3L001A
R
1
4810W4C003A
R
1
3B72717A
R
1
4810W2U002A
R
1
4811W3A016A
R
1
4974W1S046A
R
1
3550W1A093B
3550W1A093A
R
1
Change
5290W1A001A
5290W1A001B
R
1
Change
2B72279B
R
1
5900W3A004B
R
1
3B72559A
R
1
6170W1D023J
6170W1D012G R
1
6170W1D023J Change
6201W2A018A
R
1
Add
4930W3B025B
R
1 4930W3B025A
Delete
6322W2A001A
R
1
6324W1A001B
6324W1A001H
R
1 6324W1A001B Change
6411W2A002Z
R
1
6501W1A004A
R
1
2B72066G
R
1
6549W2F017N
R
1
6021W3B001A
6021W3B001U
R
1 6021W3B001A Change
6877W1A301B
6877W1A301C
R
1
Change
6877W2A002C
R
1
6912W3B002E
R
1
6930W1A002F
6930W1A003D
R
1 6930W1A002F Change
3302W0A022A
R
1
3303W1A045B
R
1
5006W3A016B
R
1
383EW1A081A R
1
Add
3B72244C
R
1
1MTC0402432
R
1
1NHA0400018
R
2
1NHA0400032
R
1
1SBF0402418
R
13
1SPF0302018
R
1
4000W4A001A
R
2
4B70188C
R
3
4B75675A
R
1
Add
1SZZW2A002A
R
2
1SZZW2A002D
R
1
1TPL0302018
R
2
1TPL0302418
R
10
1TPL0303118
R
1
1TPL0402418
R
4
1TPL0402618
R
1
Delete
1TPL0402818
R
3
1TTG0402422
R
2
R : SERVICE PARTS
20
For MODEL: JE1590WH
LOC.
NO
WTT011
WTT021
WTT022
WTT028
WTT037
WWP008
WWS005
DESCRIPTION
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
SCREW TAPPING,TRUSS HEAD
WASHER,PLAIN
WASHER,SPRING LOCK
DIFFERENCE CHART
JE1590WH/01
JE1590WH/02
1TTG0402632
1TTL0402418
1TTL0402422
1TTL0402818
1TTL0403818
1WPL0500032
1WSD0400032
SVC QTY
R
R
R
R
R
R
R
ALTERNATIVE
REMARKS
PART NO.
2
15
11
5
2
1
1
R : SERVICE PARTS
21
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
