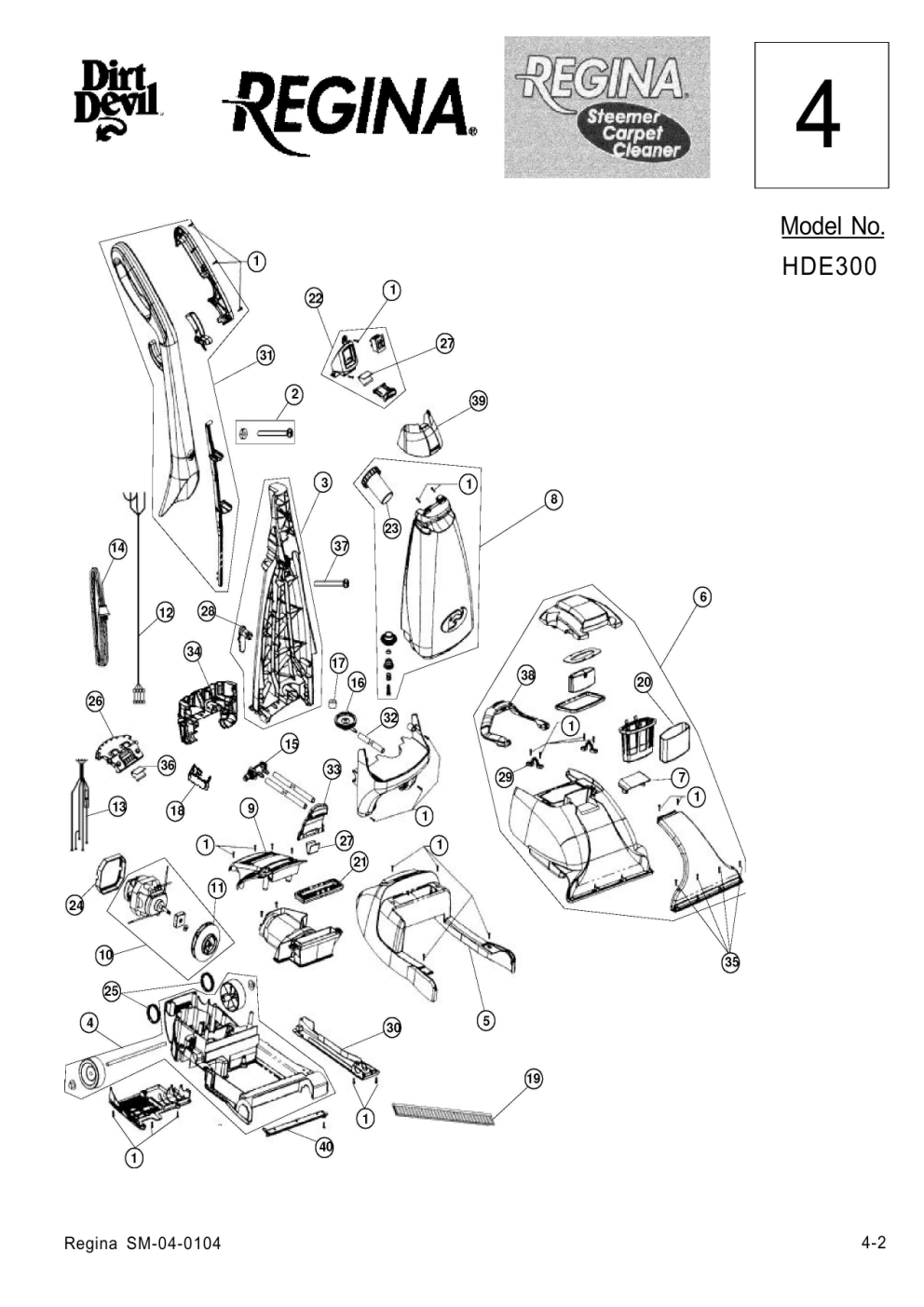

Regina HDE300 Vacuum Cleaner Owner's Manual

Model No.
HDE300
Regina SM-04-0104
4-2
Parts Listing / Price List
Item Part Number
Models to Fit
Part Description
1
1-700130-000
HDE300
SCREW
2
2-710673-600
HDE300
HANDLE SCREW ASSEMBLY
3
9-710501-600
HDE300
LOWER HANDLE ASSEMBLY
4
2-710100-600
HDE300
BASE ASSEMBLY
HDE300
BASE COVER
5
6
2-HDE200-000
HDE300
DIRTY WATER TANK ASSEMBLY
7
2-700755-Q00
HDE300
HOSE DOOR ASSEMBLY
8
1-HDE100-000
HDE300
C.W. BOTTLE ASSEMBLY
9
1-700125-600
HDE300
MOTOR COVER BASE
10
9-710212-000
HDE300
MOTOR ASSEMBLY
11
2-710240-600
HDE300
FAN ASSEMBLY
12
1-710530-000
HDE300
UPPER WIRE HARNESS
13
1-710532-000
HDE300
MIDDLE WIRE HARNESS
14
1-700542-600
HDE300
POWER CORD - 25 ft.
15
2-700575-700
HDE300
VALVE ASSEMBLY/PORT HOSE
16
1-710580-000
HDE300
VALVE ADAPTOR PLATE
17
1-700595-600
HDE300
TANK ADAPTER SCREEN
18
1-700574-600
HDE300
VALVE COVER
19
2-710320-000
HDE300
BRUSH STRIP BAR
20
1-700750-600
HDE300
DW FOAM FILTER
21
1-710230-600
HDE300
DW SEAL - FAN HOUSING
22
2-710551-600
HDE300
SWITCH PLATE ASSEMBLY
23
2-700805-B00
HDE300
C.W. TANK FILL CAP
24
1-700210-600
HDE300
REAR MOTOR MOUNT
25
1-700510-000
HDE300
LOWER HANDLE PIVOT
26
1-700135-B00
HDE300
BASE HANDLE LOCK
27
1-700140-000
HDE300
LATCH SPRING
28
1-720120-600
HDE300
CORD HOOK
29
1-700732-B00
HDE300
CARRY HANDLE CLAMP
30
1-700115-600
HDE300
BASE BELT COVER
31
9-710114-600
HDE300
UPPER HANDLE ASSEMBLY
32
1-700567-600
HDE300
21" TUBING valve/spray plate
33
1-700735-B00
HDE300
DW COVER LATCH
34
1-710502-600
HDE300
LOWER HANDLE BOTTOM
Regina SM-04-0104
Model No.
HDE300
Parts Listing / Price List
Item Part Number
Models to Fit
Part Description
35
1-700155-000
HDE300
SCREW
36
1-700142-000
HDE300
HANDLE RELEASE SPRING
37
1-710672-600
HDE300
LOWER HANDLE SCREW
38
1-700730-600
HDE300
D.W. TANK CARRY HANDLE
39
1-700860-600
HDE300
C.W. TANK CARRY HANDLE
2-700150-600
HDE300
SPRAY PLATE ASSEMBLY
40
Model No.
HDE300
