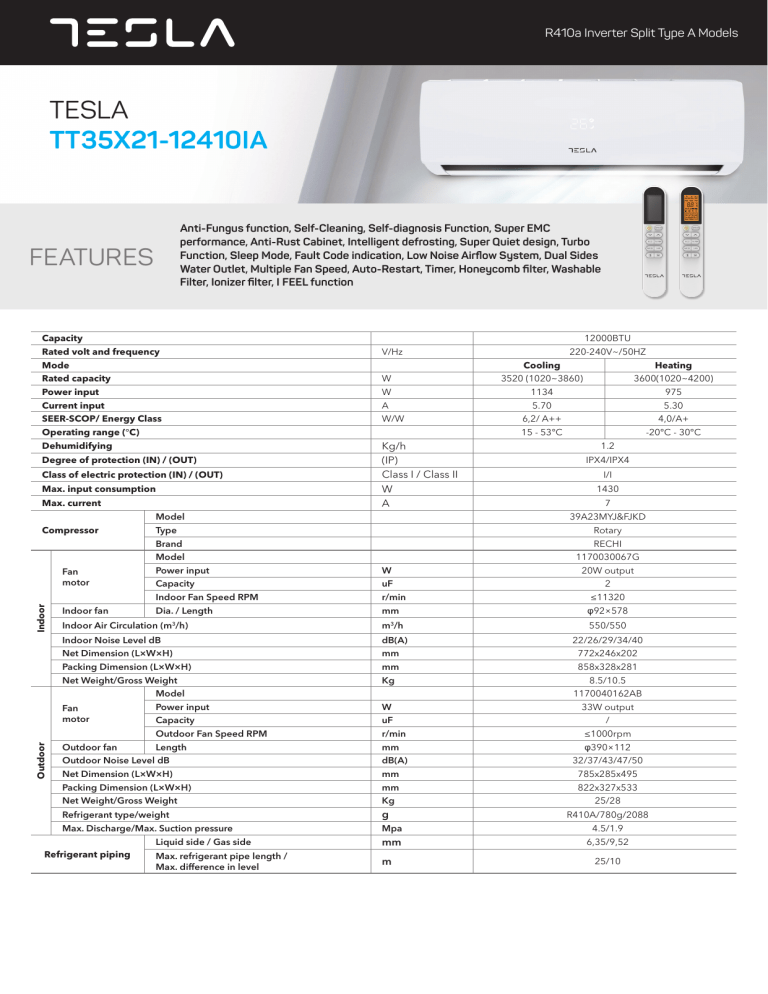

Tesla TT35X21-12410IA Specification

Tesla TT35X21-12410IA Specification
R410a Inverter Split Type A Models
TESLA
TT35X21-12410IA
Anti-Fungus function, Self-Cleaning, Self-diagnosis Function, Super EMC
performance, Anti-Rust Cabinet, Intelligent defrosting, Super Quiet design, Turbo
Function, Sleep Mode, Fault Code indication, Low Noise Airflow System, Dual Sides
Water Outlet, Multiple Fan Speed, Auto-Restart, Timer, Honeycomb filter, Washable
Filter, Ionizer filter, I FEEL function
FEATURES
Capacity
12000BTU
Rated volt and frequency
V/Hz
Mode
220-240V~/50HZ
Cooling
Heating
Rated capacity
W
3520 (1020~3860)
3600(1020~4200)
Power input
W
1134
975
Current input
A
5.70
5.30
SEER-SCOP/ Energy Class
W/W
Operating range (°C)
Dehumidifying
Degree of protection (IN) / (OUT)
Class of electric protection (IN) / (OUT)
Max. input consumption
Max. current
Kg/h
(IP)
Class I / Class II
W
A
Model
Compressor
Indoor
Fan
motor
Indoor fan
4,0/A+
-20°C - 30°C
1.2
IPX4/IPX4
I/I
1430
7
39A23MYJ&FJKD
Type
Rotary
Brand
RECHI
Model
1170030067G
Power input
W
Capacity
uF
Indoor Fan Speed RPM
r/min
Dia. / Length
mm
20W output
2
≤11320
φ92×578
Indoor Air Circulation (m /h)
m /h
550/550
Indoor Noise Level dB
dB(A)
22/26/29/34/40
Net Dimension (L×W×H)
mm
772x246x202
Packing Dimension (L×W×H)
mm
858x328x281
Net Weight/Gross Weight
Kg
3
3
Model
Fan
motor
Outdoor
6,2/ A++
15 - 53°C
Outdoor fan
8.5/10.5
1170040162AB
Power input
W
Capacity
uF
Outdoor Fan Speed RPM
r/min
Length
mm
33W output
/
≤1000rpm
φ390×112
Outdoor Noise Level dB
dB(A)
Net Dimension (L×W×H)
mm
785x285x495
Packing Dimension (L×W×H)
mm
822x327x533
Net Weight/Gross Weight
Kg
Refrigerant type/weight
g
Max. Discharge/Max. Suction pressure
Refrigerant piping
32/37/43/47/50
25/28
R410A/780g/2088
Mpa
4.5/1.9
Liquid side / Gas side
mm
6,35/9,52
Max. refrigerant pipe length /
Max. difference in level
m
25/10
