DKS 9050 Aug 2018 - later User manual

DKS  9050 Aug 2018 - later  User manual

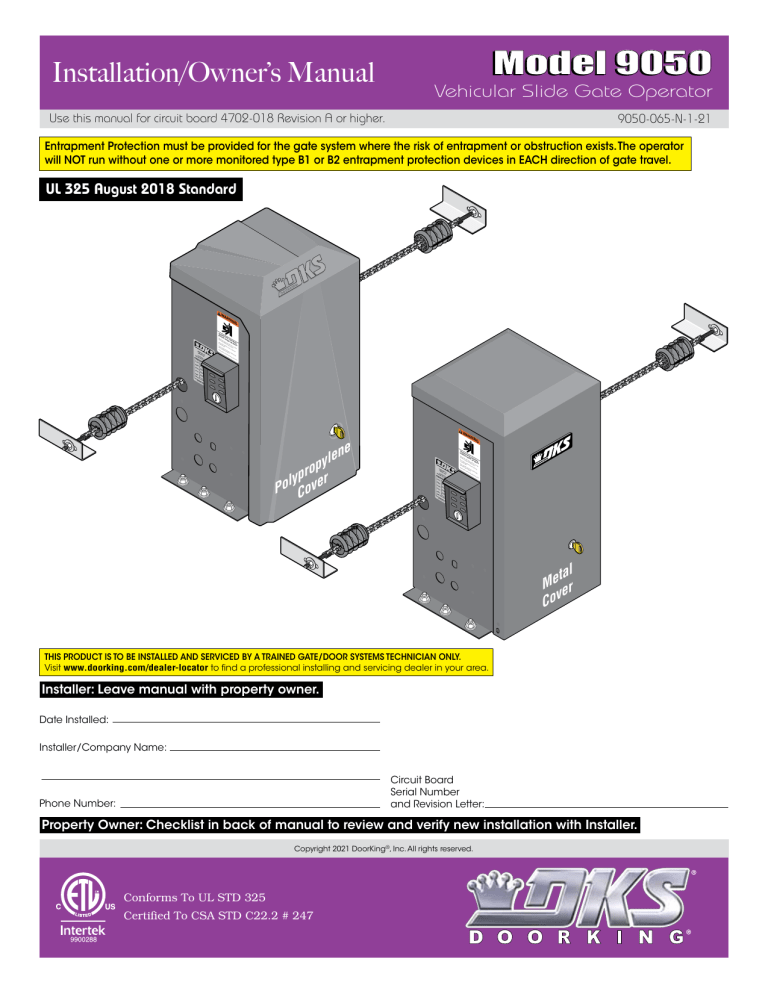

Installation/Owner’s Manual

Use this manual for circuit board 4702-018 Revision A or higher.

Vehicular Slide Gate Operator

9050-065-N-1-21

Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator will NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH direction of gate travel.

UL 325 August 2018 Standard

W

ARNIN

G

CA

HI

CUL

AR

GA

MO

SE

RI

VO

LT

CONF

ANSI/

CE

N/CS

CL

AS S

DE

AL

S

ORMS

RT

A C

UL

IFIE

22.

-32

D T

5

O

2 NO

53382

TE

OPE

HP

RA

TO

R

AM

PS

MA

X GA

Door

TE L

OA

D

King, Inc., In

PH AS

60 H z

E glewo od, CA

MO

SERIOUS IN

Op and fr or

Do pa

Rea era ga

G GA

TE CAN

ee o f pe

no

op t all

no t s th whi d own te ow ate er’s only ople chi ate.

tand le g in

m ga is m anua

JURY O

wh

and ov en ga

obs ldren to te pa tions.

play

in ga ing.

l and

sa te

R

DEAT

ar r wa

CAUSE

ea

is

in te ar lk th sigh ea rough fety

ins tru

H

ction s.

WA

RNING

CA

N/

CER

VEH

CLA

SER

CO

NF

ANS

ORM

CS A C

ICU

SS

MODE

L

IAL

I/UL

22.

LA

S T

5

O

2 N

O.

R GA 24

7

TE O

5338

PER

HP

ATOR

VOL

TS

AM

MA

PS

X G

ATE

LOA

D

PHA

SE

60 Hz

Inc.,

Ingl ewood

, CA

SE

Op and

Do path

RIO

fre or o per ate

NG

US I

e o

ga te.

en to

while d in

GA

NJU

on ly ople whe and

RY

n g ate str

OR

ar ea uct

CAUSE

D

EAT

ion s.

sigh

H

Read gat

owne e is m te mo anu path vin

pla y in gate are a g.

al a fety lk th rou gh ins tru ctio ns.

Metal

Cover

THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY.

Visit

www.doorking.com/dealer-locator

to find a professional installing and servicing dealer in your area.

Installer: Leave manual with property owner.

Date Installed:

Installer/Company Name:

Phone Number:

Circuit Board

Serial Number and Revision Letter:

Property Owner: Checklist in back of manual to review and verify new installation with Installer.

Copyright 2021 DoorKing

®

, Inc. All rights reserved.

Conforms To UL STD 325

Certified To CSA STD C22.2 # 247

Copyright 2009 DoorKing, Inc. All rights reserved.

QUICK GUIDE: DIP-Switches

Every time

the operator is powered up, the

First

open command will automatically run “

Multiple gate cycles”

that will locate and remember the gate’s open and close positions (See page 20).

Whenever a switch setting is changed, power MUST be cycled to the operator.

Switch Function Setting Description

1

Changes the direction the operator will open/close the gate depending on the different chain configurations.

Opening direction using

OFF

setting.

Front

Mount

Opening direction using

ON

setting.

Opening direction using

ON

setting.

Center or

Post

Mounts

Opening direction using

OFF

setting.

Opens with

ON

setting.

All Rear

Mounts

Left

All Rear

Mounts

Right

Opens with

OFF

setting.

2

3

4

Auto-Close

Timer

Relay

Built-In

Solenoid Lock

See Page 32-33

OFF

ON

OFF

ON

OFF

ON

Auto-close timer is OFF. Manual input required to close gate.

Auto-close timer is ON. Adjustable from 1-23 seconds to close gate.

Relay is activated when gate is full open.

Relay is activated when gate is not closed.

Normal Setting.

Fail-Safe (Factory Set). Lock engages only when an attempt is made to manually force the gate open.

Fail-Secure. Lock engages after each cycle.

CAUTION:

Do not use this setting unless the 2600-862 manual release kit has been installed or

damage will occur to operator.

5 and 6

7 and 8

Gate

Gate

Open

Back-Off

Position

Close

Back-Off

Position

5-OFF 6-OFF

5-OFF 6-ON

5-ON 6-OFF

5-ON 6-ON

7-OFF 8-OFF

7-OFF 8-ON

7-ON 8-OFF

7-ON 8-ON

Normal Setting.

Gate fully opens.

Gate stops short 1” from full open position. Used for a reversing edge device.

Gate stops short 2” from full open position. Used for a reversing edge device.

Gate stops short 3” from full open position. Used for a reversing edge device.

Normal Setting.

Gate fully closes.

Gate stops short 1” from full close position. Used for a reversing edge device.

Gate stops short 2” from full close position. Used for a reversing edge device.

Gate stops short 3” from full close position. Used for a reversing edge device.

Switch 1

Must

OPEN the gate upon initial AC power up and open command. If the first open command begins to close the gate, turn AC power off and reverse this switch. Opening direction will vary depending on the chain setup position (See above).

Switch 2 Turns the auto-close timer on or off. Can be adjusted from 1 to 23 seconds to close gate.

Switch 3 This switch determines when the relay on the board will be activated. This relay can be used as a switch for various functions such as illuminating a warning light when the gate is not closed, or turning on a green light when the gate is full open.

Switch 4 This switch determines the operation of the built-in solenoid lock. The OFF setting is the factory setup.

Caution: Do not set this switch to ON unless the 2600-862 fail-secure manual release kit has been installed in the operator.

Changing this switch to the ON setting without installing the lock kit will damage the operator. See pages 32 and 33 for more information about Fail-Safe vs. Fail-Secure release systems.

Switches 5-6 These work in conjunction with each other and determine if the operator will stop the gate at the full open position, or if the gate should stop 1, 2 or 3 inches short of the full open position. Needed only when using a reversing edge entrapment protection device on the

opening

edge of the gate with an end post as the physical stop.

Switches 7-8 These work in conjunction with each other and determine if the operator will stop the gate at the full close position, or if the gate should stop 1, 2 or 3 inches short of the full close position. Needed only when using a reversing edge entrapment protection device on the

closing

edge of the gate with an end post as the physical stop.

2 Quick Guide - 1

9050-065-N-1-21

See page 28 for terminal wiring.

QUICK GUIDE: Terminal Descriptions

• When gate is closed, this input will open gate to full position.

• When gate is open and auto close timer Switch 2 turned , input will re-set and hold timer.

• When gate is open and auto close timer Switch 2 turned , input will close gate.

• When gate is closing, input will reverse gate.

• This input ONLY functions when gate is

fully

open

or in the

closing cycle

.

• When gate is open and auto close

timer Switch 2 is turned

ON

, input

will re-set and hold timer.

• When gate is open and auto close

timer Switch 2 is turned

OFF

, input

will prevent gate from closing.

• When gate is closing, input will reverse gate.

9

8

Earth Ground

Circuit Board Power

Circuit Board Power

DANGER

HIGH VOLTAGE!

Motor

Motor

Built-In Solenoid

Lock Power

24 VAC - 250 mA max.

(See note below)

Full Open

Standard Reverse

10

11

Dry Relay Contact

Dry Relay Contact

Low Voltage Common

• Operation of relay is dependent on setting of switch 3.

• When Switch 3 is turned

ON

, relay activates

when gate is in the full open position.

• When Switch 3 is turned

OFF

, relay is

activated when gate IS NOT closed.

Relay contacts can be set for Normally Open (NO) or

Normally Closed (NC) operation.

Contact rating is 1 amp maximum at 24-volts DC.

NC

NO

Main Terminal Input LEDs Note:

The LED that is beside the main terminal #8 and #9 wiring input will light when that terminal input gets activated.

1

22

33

44

55

8

9

66

7

10

11

12

#8

#9

UL 325

Terminal

Pages

22-25

5

6

3

4

1

2

NC

NO

4702

9050-065-N-1-21

Main Terminal #7 Note:

Exceeding 250 mA of power from this terminal may cause the circuit board transformer to overheat, causing intermittent problems.

Quick Guide - 2 3

9050 OPERATOR SPECIFICATIONS

Class of Operation

Type of Gate

Horsepower

Voltage / Phase

Current

Max Gate Weight

(Installed level)

Max Gate Length

(Installed level)

Drive Sprocket Size

Cycles Per Hour

Speed

Inherent Entrapment Protection Device

External Entrapment Protection Device Inputs

(Monitored Inputs)

UL 325 Class I

Vehicular Slide Gates Only

1/2 HP

115 VAC Single-Phase

4.3 Amps @ 120V

300 Lbs.

16 Ft.

#40 Chain

Use this manual for the Model 9050 operator with circuit board 4702-018

Rev A or higher ONLY.

20 Per Hour

Approximately 1 Ft. per Second

Inherent Reverse Sensor System (Type A)

Connection inputs for Non-contact Sensor -

Photo Sensor (Type B1)

Connection input for Contact Sensor -

Reversing Edge (Type B2)

Model # Cover Type

9050-380

9050-385

Metal

Polypropylene

Polypropylene Cover Note:

Allows wireless signal through cover.

Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists.

The operator will NOT run without one or more monitored type B1 or B2 external entrapment protection devices in EACH direction of gate travel (minimum of 2 external devices required).

11.5”

Type of wiring to be used on ALL external devices:

A)

Type

CL2

,

CL2P

,

CL2R

, or

CL2X

.

B)

Other cable with

equivalent

or

better

electrical, mechanical, and flammability ratings.

12”

CONFORMS TO

ANSI/UL-325

53382

CERTIFIED TO

CAN/CSA C22.2 NO. 247

VEHICULAR GATE OPERATOR

CLASS HP

MODEL

SERIAL

VOLTS PHASE

AMPS

MAX GATE LOAD

60 Hz

DoorKing, Inc., Inglewood, CA

WARNING

MOVING GATE CAN CAUSE

SERIOUS INJURY OR DEATH

Operate gate only when gate area is in sight and free of people and obstructions.

Do not allow children to play in gate area or operate gate.

Do not stand in gate path or walk through path while gate is moving.

Read owner’s manual and safety instructions.

10.5”

Chain Height:

Idler wheels in top position.

24”

1” Minimum

Concrete

Pad

14.75”

4” Minimum

Concrete

Pad

4

DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.

9050-065-N-1-21

TABLE OF CONTENTS

QUICK GUIDES

Quick Guide: DIP-Switches

Quick Guide: Terminal Descriptions

9050 Operator Specifications

Slide Gate Requirements

Safety Information for Slide Gate Operators

ASTM 2200 Standard for Gate Construction

Important Safety Instructions

Instructions regarding intended installation:

Important Notices

UL325 Entrapment Protection

Glossary

SECTION 1 - INSTALLATION

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

Hardware for the Gate

Physical Stops for the Gate

Types of Gates

Operator Mounting Positions

Underground Conduit Requirements

Pad, Post or Ceiling Mount without / with J-Box Setup

Mounting Operator and Chain

Installation of Warning Signs

SECTION 2 - AC POWER TO OPERATOR(S)

2.1

2.2

High Voltage Wire Runs

High Voltage Terminal Connection

SECTION 3 - ADJUSTMENTS

3.1 4702 Circuit Board Description and Adjustments

3.3 Automatic Open / Close Limit Adjustment

3.5 Inherent Reverse Sensor Adjustment

SECTION 4 - ENTRAPMENT AND SAFETY PROTECTION

4.1

4.2

4.3

4.4

UL 325 Terminal Description

Entrapment Protection Device Locations

Dual Gates Multiple Reversing Edges Wiring Sample

Loop Detector Wiring

SECTION 5 - WIRING

5.1

5.2

5.3

Main Terminal Description

Control Wiring for Single/Primary Operator

Bi-Parting Gates Wiring - Dual Gate Operators

SECTION 6 - OPERATING INSTRUCTIONS

6.1 AC Power and Reset Switch

6.3 Manual Gate Operation

SECTION 7 - MAINTENANCE AND TROUBLESHOOTING

7.1 Maintenance

7.2 Troubleshooting

Model 9050 Wiring Diagram

SECTION 8 - OWNER OF THE GATE OPERATOR

8.1

8.2

8.3

8.4

Alarm Sounding OR “Chirping” and Gate WILL NOT Operate

Manual Gate Operation

Gate Operators Monthly Checkup

New Installation Checklist for Installer and Property Owner

Printable Safety Page

9050-065-N-1-21

Quick Guide-1

Quick Guide-2

Previous Page

2

3

4

4

4

5

6

7

8

9

10-13

8

8

13

14

15-16

16

18

18

19

20

21

21

17

17

17

30

30

31-32

32-33

27

28

29

22

22

23-24

25

26

27

34

34

35-36

37

38

39

39

40

41

42

43

1

Illustrations not to scale.

Slide Gate Requirements

The operator is intended for installation only on gates used for vehicles.

Pedestrians must be supplied with a separate access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.

Adjacent fence that covers open gate position.

X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X

High Risk of Entrapment Area

X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X

Closed Gate

X X X

All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of six (6) feet (1.83 m) above the ground to prevent a 2 1/4 inch (57.2 mm) diameter sphere from passing through the openings anywhere in the gate and in that portion of the adjacent fence that the gate covers in the open position.

Screened Wire Mesh Less than 2 1/4”

Gates shall be designed, constructed and installed to not fall over more than 45 degrees from the vertical plane, when a gate is detatched from the supporting hardware.

Fall Over Bracket

A gap, measured in the horizontal plane parallel to the roadway, between a fixed stationary object nearest the roadway (such as a gate support post) and the gate frame when the gate is in either the fully open position or the fully closed position, shall not exceed 2 1/4 inch (57.2 mm).

Note: A filler post or barrier may need to be installed in the gap area to reduce the distance to 2 1/4 inches

or less

.

A contact sensor should be installed in this area for safety.

(See A on next page and page 23).

2

DoorKing recommends installing screened wire mesh on the

ENTIRE

gate

AND

and on that portion of the adjacent fence that the gate covers in the open position. (See above).

9050-065-N-1-21

Non-Contact Sensors (Photo Sensors)

1

Helps minimize the potential of entrapment during the closing cycle of the gate. Minimizes the potential of the gate closing on vehicular or other traffic that loops cannot sense. It can be installed on the secure

OR

non-secure side of gate.

2

Helps minimize the potential of entrapment during the back travel of the gate (opening cycle). See previous page for gate gap information.

2

Illustration not to scale.

Safety Information for Slide Gate Operators

Entrapment protection devices are required to reduce the risk of injury.

Install sensors where the risk of entrapment or obstruction exists while gate is moving.

Individual requirements will vary.

See pages 22-26 for more information on typical layout locations and setup.

Physical Stops

Positive stops shall be required to limit travel to the designed fully open and fully closed positions. These stops shall be installed either at the top of the gate, or at the bottom of the gate where such stops shall horizontally or vertically project no more than is required to perform their intended function.

Contact Sensor (Reversing Edges)

A

Installed on the fence to help minimize the potential of entrapment between the gate and fence during the opening cycle of the gate. A filler post or barrier MAY need to be installed between fence and gate.

B

Helps minimize the potential of entrapment during the back travel of the gate (opening cycle).

C

Helps minimize the potential of entrapment during the closing cycle of the gate. Minimizes the potential of the gate closing on vehicular or other traffic that loops cannot sense.

Guide Rollers

See previous page for more information.

B

A

Screened

Wire Mesh

May be necessary on part of fence

AND

entire gate.

See previous page for more information.

Warning Sign

Moving Gate Can Cause

Serious Injury or Death

KEEP CLEAR! Gate may move at any time without prior warning.

Do not let children operate the gate or play in the gate area.

This entrance is for vehicles only.

Pedestrians must use separate entrance.

Automatic

Exit Loop

(Optional) will provide an open command to the gate operator(s) when a vehicle is exiting the property.

Reverse

Loop

Minimizes the potential of the gate closing when a vehicle is present. Number and placement of loops is dependent on the application.

1 1

Reverse

Loop

Minimizes the potential of the gate closing when a vehicle is present. Number and placement of loops is dependent on the application.

Warning Signs

Permanently mounted and easily visible from either side of the gate.

Moving Gate Can Cause

Serious Injury or Death

KEEP CLEAR! Gate may move at any time without prior warning.

Do not let children operate the gate or play in the gate area.

This entrance is for vehicles only.

Pedestrians must use separate entrance.

Separate

Pedestrian

Walkway

Located so pedestrians cannot come in contact with the vehicular gate.

C

Physical Stop

9050-065-N-1-21

External entrapment protection devices are

REQUIRED

for operator to function. see page 22

3

ASTM F2200 Standard for Gate Construction

Vehicular gates should be constructed and installed in accordance with ASTM F2200; Standard Specification for Automated Vehicular Gate Construction.

For a copy of this standard, contact ASTM directly at 610-832-9585; [email protected]; or www.astm.org.

Important Safety Instructions

WARNING - To reduce the risk of injury or death:

1.

READ AND FOLLOW ALL INSTRUCTIONS.

2.

Never let children operate or play with gate controls. Keep the remote control away from children.

3.

Always keep people and objects away from gate.

NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.

4.

Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object activates the non-contact sensors.

After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the risk of injury or death.

5.

Use the emergency release only when the gate is not moving.

6.

KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate hardware.

7.

The entrance is for vehicles only. Pedestrians must use separate entrance.

8.

SAVE THESE INSTRUCTIONS!

4

Instructions regarding intended installation:

• Install the gate operator only if:

1.

The operator is appropriate for the construction of the gate and the usage class of the gate.

2.

All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of 6 feet (1.83 m) above the ground to

prevent a 2 ¼ inch (57.2 mm) diameter sphere from passing through the openings anywhere in the gate, and in that portion of the adjacent fence

that the gate covers in the open position.

3.

All exposed pinch points are eliminated or guarded.

4.

Guarding is supplied for exposed rollers.

• The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate access opening. The pedestrian

access opening shall be designed to promote pedestrian usage. Locate the gate such that persons will not come in contact with the vehicular gate

during the entire path of travel of the vehicular gate.

• The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent structures when opening and closing to

reduce the risk of entrapment. Swinging gates should not open into public access areas.

• The gate must be properly installed and work freely in both directions prior to the installation of the gate operator. Do not over-tighten the operator

clutch, pressure relief valve or reduce reversing sensitivity to compensate for a damaged gate.

• For gate operators utilizing Type D protection:

1.

The gate operator controls must be placed so that the user has full view of the gate area when the gate is moving.

2.

A warning placard shall be placed adjacent to the controls.

3.

An automatic closing device (such as a timer, loop sensor, or similar device) shall not be employed.

4.

No other activation device shall be connected.

• Controls intended for user activation must be located at least six feet (6’) away from any moving part of the gate and where the user is prevented from

reaching over, under, around or through the gate to operate the controls. Outdoor or easily accessible controls should have a security feature to prevent

• The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start.

• A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.

• For gate operators utilizing a non-contact sensor:

1.

See the instructions on the placement of non-contact sensors for each type of application.

2.

Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate is still moving in the opening direction.

3.

One or more non-contact sensors shall be located where the risk of entrapment or obstruction exist, such as the perimeter reachable by a moving

gate or barrier.

• For gate operators utilizing contact sensors:

1.

One or more contact sensors shall be located where the risk of entrapment or obstruction exist, such as at the leading edge, trailing edge, and

post mounted both inside and outside of a vehicular horizontal slide gate.

2.

One or more contact sensors shall be located at the bottom edge of a vehicular vertical lift gate.

3.

One or more contact sensors shall be located at the pinch point of a vehicular vertical pivot gate.

4.

A hardwired contact sensor shall be located and its wiring arranged so that the communication between the sensor and the gate operator is not

subjected to mechanical damage.

5.

A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for entrapment protection functions shall

be located where the transmission of the signals are not obstructed or impeded by building structures, natural landscaping or similar

obstructions. A wireless contact sensor shall function under the intended end-use conditions.

6.

One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm).

• Be sure you have instructed the owner of the gate operator about safe and proper operation and testing of the gate operator.

9050-065-N-1-21

Important Notices

Vehicular gate operator products provide convenience and security. However, gate operators must use high levels of force to move gates and most people underestimate the power of these systems and do not realize the potential hazards associated with an incorrectly designed or installed system.

These hazards may include:

• Pinch points

• Entrapment areas

Reach through hazards

• Absence of entrapment protection devices

• Improperly located access controls

• Absence of vehicle protection devices

• Absence of controlled pedestrian access

In addition to these potential hazards, automated vehicular gate systems must be installed in accordance with the UL 325 Safety Standard and the ASTM

F2200 Construction Standard. Most people are unaware of, or are not familiar with, these standards. If an automated vehicular gate system is not properly designed, installed, used and maintained, serious injuries or death can result. Be sure that the installer has instructed you on the proper operation of the gate and gate operator system.

Be sure that the installer has trained you on proper and safe operation of this gate operating system and about the basic functions of the required reversing systems associated with your gate operating system and how to test them (see section 8). These include reversing loops, inherent reversing system, electric edges, photoelectric cells, or other external devices.

• This Owner’s Manual is your property. Keep it in a safe place for future reference.

• Be sure that all access control devices are installed a minimum distance of 6 feet away from the gate and gate operator, or in such a way that a

person cannot touch the gate or gate operator while using the device. If access control devices are installed in violation of these restrictions,

immediately remove the gate operator from service and contact your installing dealer.

Opening device MUST be mounted a minimum of 6 feet from the gate and

NOT accessible through the gate!

9050-065-N-1-21

• Loops and loop detectors, photo-cells or other equivalent devices must be installed to prevent the gate from closing on vehicular traffic.

• The speed limit for vehicular traffic through the gate area is 5 MPH. Install speed bumps and signs to keep vehicular traffic from speeding

through the gate area. Failure to adhere to posted speed limits can result in damage to the gate, gate operator, and to the vehicle.

• Be sure that all persons who will use the gate system are familiar with the proper use of the gate and gate operator and are familiar with the

possible hazards associated with the gate system.

• Be sure that warning signs are permanently installed on both sides of the gate in an area where they are fully visible to traffic.

• It is your responsibility to periodically check all entrapment protection devices. If any of these devices are observed to function improperly,

remove the operator from service immediately and contact your installing or servicing dealer.

• Follow the recommended maintenance schedule.

• Do not allow children to play in the area of the operator or to play with any gate-operating device.

• To remove the gate operator from service, operate the gate to the full open position and then shut off power to the operator at the service panel.

5

UL 325 Entrapment Protection

UL 325 Classifications

Authorized

Personnel ONLY

Class I - Residential

Vehicular Gate Operator

A vehicular gate operator (or system) intended for use in garages or parking areas associated with a residence of one-to four single families.

Class III - Industrial/Limited Access

Vehicular Gate Operator

A vehicular gate operator (or system) intended for use in an industrial location or building such as a factory or loading dock area or other locations not accessible by or intended to service the general public.

Class II

- Commercial/General Access

Vehicular Gate Operator

A vehicular gate operator (or system) intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units), hotel, garages, retail store, or other buildings accessible by or servicing the general public.

Class IV - Restricted Access

Vehicular Gate Operator

A vehicular gate operator (or system) intended for use in a guarded industrial location or building such as an airport security area or other restricted access locations not servicing the general public, in which unauthorized access is prevented via supervision by security personnel.

6

Gate Operator Category

Effective January 12, 2016

Horizontal Slide, Vertical Lift, Vertical Pivot Swing, Vertical Barrier (Arm)

Entrapment Protection Types A, B1*, B2* or D A, B1*, B2*, C or D

Type A

- Inherent entrapment protection system.

Type B1

- Non-contact sensor (photoelectric sensor or the equivalent).

Type B2

- Contact sensor (edge device or equivalent).

Type C

- Inherent force limiting, inherent adjustable clutch or inherent pressure relief device.

Vertical Barrier Note:

Barrier gate operators (arm) that is not intended to move toward a rigid object closer than 16 inches (406 mm) are not required to be provided with a means of entrapment protection.

Type D

- Actuating device requiring constant pressure to maintain opening or closing motion of the gate.

*

B1 and B2 means of entrapment protection must be MONITORED.

9050-065-N-1-21

Glossary

GATE

- A moving barrier such as a swinging, sliding, raising, lowering, or the like, barrier, that is a stand-alone passage barrier or is that portion of a wall or fence system that controls entrance and/or egress by persons or vehicles and completes the perimeter of a defined area.

RESIDENTIAL VEHICULAR GATE OPERATOR – CLASS I

- A vehicular gate operator (or system) intended for use in a home of one-to four single family dwelling, or garage or parking area associated therewith.

COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR - CLASS II

- A vehicular gate operator (or system) intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units), hotels, garages, retail store, or other building servicing the general public.

INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR - CLASS III

- A vehicular gate operator (or system) intended for use in an industrial location or building such as a factory or loading dock area or other locations not intended to service the general public.

RESTRICTED ACCESS VEHICULAR GATE OPERATOR - CLASS IV

- A vehicular gate operator (or system) intended for use in a guarded industrial location or building such as an airport security area or other restricted access locations not servicing the general public, in which unauthorized access is prevented via supervision by security personnel.

VEHICULAR BARRIER (ARM) OPERATOR (OR SYSTEM)

- An operator (or system) that controls a cantilever type device (or system), consisting of a mechanical arm or barrier that moves in a vertical arc, intended for vehicular traffic flow at entrances or exits to areas such as parking garages, lots or toll areas.

VEHICULAR HORIZONTAL SLIDE-GATE OPERATOR (OR SYSTEM)

- A vehicular gate operator (or system) that controls a gate which slides in a horizontal direction that is intended for use for vehicular entrance and exit to a drive, parking lot, or the like.

VEHICULAR SWING-GATE OPERATOR (OR SYSTEM)

- A vehicular gate operator (or system) that controls a gate which moves in an arc in a horizontal plane that is intended for use for vehicular entrance and exit to a drive, parking lot, or the like.

SYSTEM

- In the context of these requirements, a system refers to a group of interacting devices intended to perform a common function.

WIRED CONTROL

- A control implemented in a form of fixed physical interconnections between the control, the associated devices, and an operator to perform predetermined functions in response to input signals.

WIRELESS CONTROL

- A control implemented in means other than fixed physical interconnections (such as radio waves or infrared beams) between the control, the associated devices, and an operator to perform predetermined functions in response to input signals.

INHERENT ENTRAPMENT PROTECTION SYSTEM

- A system, examples being a motor current or speed sensing system, which provides protection against entrapment upon sensing an object and is incorporated as a permanent and integral part of the operator.

EXTERNAL ENTRAPMENT PROTECTION DEVICE

- A device, examples being an edge sensor, a photoelectric sensor, or similar entrapment protection device, which provides protection against entrapment when activated and is not incorporated as a permanent part of an operator.

ENTRAPMENT

- The condition when an object is caught or held in a position that increases the risk of injury.

9050-065-N-1-21

7

SECTION 1 - INSTALLATION

Prior to beginning the installation of the slide gate operator, we suggest that you become familiar with the instructions, illustrations, and wiring guide-lines in this manual. This will help insure that your installation is performed in an efficient and professional manner compliant with UL 325 safety and ASTM F2200 construction standards.

The proper installation of the vehicular slide gate operator is an extremely important and integral part of the overall access control system.

Check all local building ordinances and building codes prior to installing this operator. Be sure your installation is in compliance with local codes.

1.1 Hardware for the Gate

Good hardware is essential for proper operation of a sliding gate. DoorKing has a full line of gate hardware products that will ensure safe, reliable and long lasting gate operation. The gate must be properly installed and roll smoothly in both directions.

8

Roller Bearing V-Wheels with Protective Cover -

Helps to minimize a pinch point on the gate’s wheel and V-rail.

Guide Rollers with

Protective Covers -

Helps to minimize a pinch point on the gate.

Endless Idler Assembly with

Protective Cover -

Helps to minimize a pinch point for a

180° chain return.

Gate End Retainer -

Helps stabilize the end of the gate in the open or closed position. Recommended for all slide gate applications.

1.2 Physical Stops for the Gate

The 9050 automatic open/close gate limits

must have a physical stop on the open and close positions of the gate

. This can be the use of end posts with gate end retainers or chain stops, depending on the mounting position of the operator. Chain stops DO NOT meet the ASTM F2200 requirements.

Gate End Retainer

Rubber bumper faces toward operator. it will make contact with the operator housing during the initial automatic

Multiple gate cycling”

to set the open and close gate position.

Chain Stops

End

Post

Gate

9050-065-N-1-21

1.3 Typical Gate Types

The Model 9050 operator is designed to be installed on these gate types. See the next 4 pages for specific operator mounting positions. Individual installations and physical stops can vary.

• 300 lb max. weight per gate.

• Single Operator - 16 ft max. gate length.

• Dual Operators - 32 ft max. total gate length.

Cantilever

ORM

VEH

LAR

NO.

SERI

TE O

ATO PER g, Inc 60 H glew

WA

RNI

NG

SER MO VIN G G

ATE N C

Front position with post mount shown.

Chain stops used as physical stops for gate.

V-Rail V-Wheel Ornamental

ICUL VEH 2 NO

SERI

TE O

PER ATO

X GA

Door 60 Hz

WA

RN ING

SER VIN G G

ATE CA

OR

Front position with concrete pad shown.

Gate end retainers on end posts used as physical stops for gate.

9050-065-N-1-21

9

1.4 Operator Mounting Positions

The Model 9050 operator is designed to be installed in the front, rear, center or ceiling mounting positions shown on this page and the next 3 pages. V-wheel V-rail ornamental gates are shown as examples but other gate types on the previous page can use the same mounting setups. Once the mounting position has been determined, the chain idler wheels may need to be adjusted

BEFORE

the operator is mounted.

Physical stops MUST be used in the open AND close positions for ANY gate installation (Chain stops, end posts with gate end retainers or a wall that the gate comes in contact with).

Front Position with Concrete Pad

Standard method of installation.

Chain Setup

Chain Idler

Wheels

• Operator’s chain idler wheels are factory set

for the front position.

• Remove only the top chain knockouts from

each side of the operator.

• Chain stops or gate end retainer can be

used as the physical stop for the gate

(Chain stops are shown).

Chain

Stop

Top View

A filler post or barrier may need to be installed between the gate and wall area

(See page 2 for more information).

10

Front Position with Post Mount

Raises operator and allows different chain heights.

Gate End Retainer

Chain Setup

• Set operator chain idler wheels in the

DO NOT

remove chain knockouts.

• Chain stops with base plate stop

brackets or gate end retainer can be

used as the physical stop for the gate

(Both are shown, only one type is

needed).

Base Plate

Stop Bracket

Chain

Stop

Chain Idler

Wheels

Additional hardware required.

Post base plate (P/N 2600-418) 4 x 4 steel posts not available from DoorKing.

Base plate stop brackets (P/N 2600-970) bolts on post base plate when using chain stops.

Top View

A filler post or barrier may need to be installed between the gate and wall area

(See page 2 for more information).

Gate End Retainer

Gate End

Retainer

9050-065-N-1-21

Rear Position with Concrete Pad

Hides the chain from outside the property looking in.

• Set one chain Idler wheel at the top and one in the

center position on one side of the operator.

• Remove both chain knockouts from one side of the

operator.

• Chain stops or gate end retainer can be

used as the physical stop for the gate

(Chain stops are shown).

Chain Idler

Wheels

Chain Setup

Chain

Stop

Additional hardware required.

Endless idler assembly (P/N 2600-818) and additional chain #40 (P/N 2600-442 - 20 ft. per box) may be needed.

Top View

A filler post or barrier may need to be installed between the gate and wall area

(See page 2 for more information).

Endless

Idler

See page 16 for more information about endless idlers.

Rear Position with Post Mount

Hides the chain from outside the property looking in.

• Chain setup is the same as above.

9050-065-N-1-21

Additional hardware required.

Post base plate (P/N 2600-418) 4 x 4 steel posts not available from DoorKing.

11

Center Position with Post Mount

Hides the chain from outside the property looking in.

Chain

Setup

• Set operator chain idler wheels in the

DO NOT

remove chain knockouts.

Chain Idler

Wheels

12

Additional hardware required.

Post base plate (P/N 2600-418) 4 x 4 steel posts not available from DoorKing. Endless idler assembly (P/N 2600-818). Additional chain #40 (P/N 2600-442 - 20 ft. per box). Gate end retainer (P/N 1204-004).

Gate in Open Position

Gate End

Retainer

Top View

A filler post or barrier may need to be installed between the gate and wall area

(See page 2 for more information).

Note: Chain stops

CANNOT

be used for this installation.

End post with a gate end retainer must be installed as the physical stop if gate does not have any other means of a physical stop in the open

AND

close position.

Gate in Close Position

Endless

Idler

End Post

Endless

Idler

See page 16 for more information about endless idlers.

9050-065-N-1-21

Front or Rear Position Ceiling Mount

Can be mounted on the ceiling to conserve floor space.

Ceiling

• Operator’s setup is the same as the front

position or rear position with concrete pad

shown on page 10 and 11.

(Front ceiling mount shown here).

• Junction box connection is used for the

ceiling mount installation (See page 14).

Chain Setup

Chain Idler

Wheels

Chain

Stop

Note: There are

NO

fluids in the operator that can leak out.

Top View

Operator

Bottom

A filler post or barrier may need to be installed between the gate and wall area

(See page 2 for more information).

1.5 Underground Conduit Requirements

Primary

Operator

Position

Secondary

Operator

Position

DoorKing’s Primary/Secondary Interconnection Cable (Dual Operator Application Only)

(Secondary Power and Communication wires)

External Safety Devices, Controls and P.A.M.S. Wires (Low Voltage wire insulation)

Loop Lead-In Wires (Low Voltage wire insulation)

Sweeps

AC Input Power (High Voltage wire insulation)

AC Input Power (High Voltage wire insulation)

3/4 Inch Conduit Recommended

Concrete

Pad

• The conduit requirements are for a typical slide gate operator installation (the secondary operator is shown for those

applications where a secondary operator may be used).

The conduit requirements for your application may vary from

this depending on your specific needs.

Use only sweeps for conduit bends. Do not use 90° elbows as this will make wire pulls very

difficult and can cause damage to wire insulation. DoorKing recommends using 3/4-inch conduit.

Sweep

YES

Elbow

NO

• Installation of are

REQUIRED

(photo sensors and/or reversing edges).

• Be sure that all conduits are installed in accordance with local codes.

Never

run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.

9050-065-N-1-21

13

1.6 Pad, Post or Ceiling Mount without/with J-Box Setup

Pad Mount with Conduit

1” minimum from operator housing to gate.

2.5”

Conduit Area

11”

Solenoid

Lock

4”

Concrete pad

MUST be level.

15”

Min.

Electronic Box 4” min. above ground. Concrete Pad

Concrete Pad

Center

21” Min.

Underground depth of the concrete pad is determined by soil conditions and local building codes. Reinforced concrete recommended.

Post Mount with Conduit

1” minimum from operator housing to gate.

Conduit

12”

Min.

Conduit area inside post.

Base Plate

P/N 2600-418

Conduit area inside post.

21”

Min.

Note: Weld the posts to the base plate and mount assembly into concrete

BEFORE

attaching the operator. Conduit runs up through 4 x 4 steel posts.

Base Plate

MUST be level.

4” min. above ground.

Underground depth of the concrete foundation is determined by soil conditions and local building codes. Reinforced concrete recommended.

Concrete Foundation

Conduit

Pad, Post or Ceiling Mount Connected with Junction Boxes

All wire connections can be made on

either side

of the operator housing after it has been installed.

Never

run high voltage and low voltage in the same conduit.

WARNING

CONFORMS TO

ANSI/UL-325

53382

CERTIFIED TO

CAN/CSA C22.2 NO. 247

VEHICULAR GATE OPERATOR

CLASS

MODEL

HP

SERIAL

VOLTS PHASE

MAX GATE LOAD

DoorKing, Inc., Inglewood, CA

MOVING GATE CAN CAUSE

SERIOUS INJURY OR DEATH

Operate gate only when gate area is in sight and free of people and obstructions.

Do not allow children to play in gate area or operate gate.

Do not stand in gate path or walk through path while gate is moving.

Read owner’s manual and safety instructions.

Operator MUST be level.

High

Volt

Low

Volt

Pad, post or

Low

Volt

High

Volt

1/2

3/4

Fail-Secure

Key Lock

1/2

1/2 1/2

1/2

3/4

Conduit Knock-Out Sizes

14

Note: Operator must be mounted

1” min. away from gate.

9050-065-N-1-21

1.7 Mounting Operator and Chain

Prior to mounting the operator, be sure that the correct chain knockouts have been removed and chain idler wheels are in the correct position (top, center or bottom).

Fail-Secure Manual Release Kit Installation Note:

It is easier to install the 2600-862 fail-secure manual release kit

before

mounting the operator and attaching the chain. Refer to the instruction sheet supplied with the kit for installation.

Positioning Operator and Chain Brackets

1” minimum from operator housing to gate.

Chain Idler Wheels

Operator NOT parallel to gate.

Chain

Bracket

Lines up with Idler

Wheels

Operator

MUST

be parallel to gate!

Chain bracket

MUST

line up with chain idler wheels!

Chain bracket does NOT align with idler wheels.

Chain brackets

MUST

be mounted so the chain remains the same height as it is on the idler wheels!

Chain Idler Wheels

Correct

Chain

Bracket

Height

10.5”

3/8

Attaching Operator to Concrete

DoorKing recommends a minimum of four (4) 3/8” x 2” sleeve anchors (not supplied).

10.5”

Chain idler wheels in top position.

Correct

Chain

Bracket

Height

10.5”

Chain Bracket

Option 2

Connect Chain Bracket to Gate.

Weld completely around bracket.

Chain nut and chain bolt should not protrude past gate frame.

Chain

Nut

Chain Bolt

Option 1

Lock

Washer

Washers

Attaching Operator to Post Base Plate

Use six (6) 1/2”-13 x 1 1/2” bolts, lockwashers and nuts

(not supplied).

Connect Chain to Chain Bracket.

Connect chain to chain bolt with master link. Adjust the chain nuts to tighten the chain. The chain should sag no more than one (1) inch per 10 feet of travel.

Do not over tighten the chain.

9050-065-N-1-21

Chain brackets positioned too high.

Chain brackets positioned too low.

1 5

16

Endless Idler Assembly (On Select Installations)

DoorKing offers an endless idler assembly with a protective cover designed for the Model 9050 installations (P/N 2600-818).

Make sure the endless idler assembly is

securely

fastened to the wall or post (Depending on which type of installation will be used). Extreme force will be exerted on this assembly during gate cycling.

Center and Rear Mount Positions (Top View)

NO

Gate Rail

Operator

Idler Wheel

Lower chain

MUST

align with upper chain!

Chain Brackets

YES

Endless

Idler

Lower chain does NOT align with upper chain.

Note: Be sure that the chain is aligned and parallel to the gate. Installing the chain in any other manner will cause excessive noise, chain idler wheel wear and chain stretching.

Center Mount Position (Side View)

Operator Idler Wheel

Upper Chain

Lower Chain

Chain

Bracket

Lower chain

MUST

be

1 inch lower than the endless idler’s 180° chain return.

Chain

Return

1”

Chain

Bracket

Gate Rail

YES

Endless

Idler

Rear Mount Position (Side View)

YES

Upper Chain

Chain

Bracket

Operator Idler Wheels

Chain

Bracket

Chain

Return

Lower Chain

Endless

Idler

Upper and lower chain

MUST

be the same height as they are on the operator idler wheels.

Gate Rail

NO

Lower chain mounted Too High.

NO

Lower chain mounted

Too Low.

Upper chain mounted Too High.

NO

Upper chain mounted

Too Low.

NO

1.8 Installation of Warning Signs

This DoorKing Slide Gate Operator is shipped with two warning signs. The purpose of the warning sign is to alert uninformed persons, and to remind persons familiar with the gate system, that a possible hazard exists so that appropriate action can be taken to avoid the hazard or to reduce exposure to the hazard. See page 3 for suggested mounting positions of signs.

Permanently install the supplied warning signs in locations so that the signs are visible

by persons on both sides of the gate.

• Use appropriate hardware such as wood or sheet metal screws (not supplied) to install the

9050-065-N-1-21

SECTION 2 - AC POWER TO OPERATOR(S)

Before attempting to connect any wiring to the operator, be sure that the circuit breaker in the electrical panel is in the OFF position. Permanent wiring must be installed to the operator as required by local electrical codes. It is recommended that a licensed electrical contractor perform this work.

Since building codes vary from city to city, we highly recommend that you check with your local building department prior to installing any permanent wiring to be sure that all wiring to the operator (both high and low voltage) complies with local code requirements.

THIS GATE OPERATOR MUST BE PROPERLY GROUNDED!!

2.1 High Voltage Wire Runs

If power wiring is greater than the maximum distance shown, it is recommended that a service feeder be installed. When large gauge wire is used, a separate junction box must be installed for the operator connection. The wire table is based on stranded copper wire. Wire run calculations are based on a power source with a 3% voltage drop on the power line, plus an additional 10% reduction in distance to allow for other losses in the system.

Single 9050: 4.3 Amp Motor

Never

Dual 9050’s, Single Power Source run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.

Wire Size / Max Distance in Feet

12 AWG

200

100

10 AWG

325

170

8 AWG

510

255

6 AWG

820

410

“Optional” 3.3 Amp Heater Installation Note:

When installing the heater(s), refer to the

“high voltage AC power wire size and distance requirements”

table on the instruction sheet with the heater kit (P/N 1601-154) for AC power wire run requirements.

2.2 High Voltage Terminal Connection

• Route incoming AC power wire through the high voltage conduit and run wire in the operator as shown.

• Be sure wiring is installed in accordance with local codes. Be sure to color code all wiring.

Dual Operators

• It is recommended that a surge suppressor be installed on the high voltage power lines to help protect the operator and circuit board from surges and power fluctuations.

AC Power

• Dual operators (Primary/Secondary) require AC power to

EACH

operator.

DO NOT

power up and cycle the operator until the “

Physical stops”

have been installed.

Damage could occur to the gate and operator.

MOV

- Helps protect operator from power surges.

DANGER

HIGH VOLTAGE

115 VAC Connection

Hot Neu

AC Power

115 VAC

AC Power Terminal

Chassis

Ground

High Voltage

AC Power Wire

White - Neutral

Black - 115 VAC Hot

Green - Chassis

Ground

Loosen the 2 nuts under the electronic box to swing box up.

IMPORTANT:

Electronic box

MUST

be in the down position and secured for operator to function.

External Power

Disconnect Switch

AC POWER

ON

A

separate

power disconnect switch may be needed in your area. Check local building

OFF

Use the wire restrainers inside operator to keep wire away from moving parts.

codes before installation.

EXTERNAL ENTRAPMENT PROTECTION

DEVICES MUST be connected or the gate operator

WILL NOT function.

(See pages 22-25)

Every time

High Voltage

Conduit

the operator is powered up, the

First

open command will automatically run “

Multiple gate cycles”

that will locate and remember the gate’s open and close positions (See page 20).

9050-065-N-1-21

17

1 8

SECTION 3 - ADJUSTMENTS

The switch settings and adjustments in this chapter should be made after your installation and wiring to the operator(s) is complete.

Whenever any of the programming switches on the circuit board are changed, power must be shut-off, and then turned back on for the new setting to take effect. Every time

the operator is powered up, the

First

open command will automatically run “

Multiple gate cycles”

that will locate and remember the gate’s open and close positions (See page 20).

3.1 4702 Circuit Board Description and Adjustments

LEDs

Indicates that low voltage power is applied to the circuit board.

Input LEDs

should be OFF and will only illuminate when the input is activated.

Pulse

LEDs

will blink as the operator is running. They can be either ON or OFF when the operator is stopped.

3

4

5

6

7

1

2

10

11

12

1

2

3

4

5

6

UL 325

Terminal

Page 22

NC

NO

Loop Detector

See page 26.

Single Channel

9410

EXIT LOOP

4702-018

Exit Loop Port

UL 325

DIP-Switches

Page 22

Power LED

REVERSE LOOP

Pulse LEDs

UL 325 LEDs

Page 22

REV

SENS

TIME

DELAY

Auto-Close Timer

Auto-close timer (when turned

ON

) Switch 2.

Adjust from 1 second

(full counter clockwise) to approximately 23 seconds

(full clockwise).

TIME

DELAY

1 23

Loop Detector

See page 26.

Single Channel

9410

L1

Dry Relay Contact

NC

Dry relay contacts

(terminals 10-11)

NO

can be set for Normally Open (NO) or

Normally Closed (NC) operation by placing the relay shorting bar on the N.O. or N.C. pins respectively. DIP-switch 3 must be set to control relay.

See next page and page 27.

Magnetic Sensors

See section 3.4 on page 21.

Pulse LEDs

will blink as the operator is running. They can be either ON or OFF when the operator is stopped.

Inherent Reverse Sensor

Adjust reversing sensitivity.

Full counter clockwise for minimum sensitivity, full clockwise for maximum sensitivity. See page 21.

Min Max

Sensitivity

DIP-Switches

Typical setting shown.

See switch setting chart on next page for

DIP-Switch options.

9050-065-N-1-21

3.2 DIP-Switch Settings

The DIP-switches located on the circuit board are used to program the operator to operate in various modes and to turn on or off various operating features. Whenever a switch setting is changed, power to the operator must be turned OFF and then turned back on for the new setting to take affect. Check and review ALL switch settings prior to applying power to the operator.

Every time

the operator is powered up, the

First

open command will automatically run “

Multiple gate cycles”

that will locate and remember the gate’s open and close positions (See next page).

Switch Function Setting Description

1

Changes the direction the operator will open/close the gate depending on the different chain configurations.

Opening direction using

OFF

setting.

Front

Mount

Opening direction using

ON

setting.

Opening direction using

ON

setting.

Center or

Post

Mounts

Opening direction using

OFF

setting.

Opens with

ON

setting.

All Rear

Mounts

Left

All Rear

Mounts

Right

Opens with

OFF

setting.

2

3

4

Auto-Close

Timer

Relay

Built-In

Solenoid Lock

See Page 32-33

OFF

ON

OFF

ON

OFF

ON

Auto-close timer is OFF. Manual input required to close gate.

Auto-close timer is ON. Adjustable from 1-23 seconds to close gate.

Relay is activated when gate is full open.

Relay is activated when gate is not closed.

Normal Setting.

Fail-Safe (Factory Set). Lock engages only when an attempt is made to manually force the gate open.

Fail-Secure. Lock engages after each cycle.

CAUTION:

Do not use this setting unless the 2600-862 manual release kit has been installed or

damage will occur to operator.

5 and 6

7 and 8

Gate

Gate

Open

Back-Off

Position

Close

Back-Off

Position

5-OFF

5-OFF

6-OFF

6-ON

5-ON 6-OFF

5-ON 6-ON

7-OFF

7-OFF

8-OFF

8-ON

7-ON 8-OFF

7-ON 8-ON

Normal Setting.

Gate fully opens.

Gate stops short 1” from full open position. Used for a reversing edge device.

Gate stops short 2” from full open position. Used for a reversing edge device.

Gate stops short 3” from full open position. Used for a reversing edge device.

Normal Setting.

Gate fully closes.

Gate stops short 1” from full close position. Used for a reversing edge device.

Gate stops short 2” from full close position. Used for a reversing edge device.

Gate stops short 3” from full close position. Used for a reversing edge device.

Switch 1

Must

OPEN the gate upon initial AC power up and open command. If the first open command begins to close the gate, turn AC power off and reverse this switch. Opening direction will vary depending on the chain setup position (See above).

Switch 2 Turns the auto-close timer on or off. Can be adjusted from 1 to 23 seconds to close gate.

Switch 3 This switch determines when the relay on the board will be activated. This relay can be used as a switch for various functions such as illuminating a warning light when the gate is not closed, or turning on a green light when the gate is full open.

Switch 4 This switch determines the operation of the built-in solenoid lock. The OFF setting is the factory setup.

Caution: Do not set this switch to ON unless the 2600-862 fail-secure manual release kit has been installed in the operator.

Changing this switch to the ON setting without installing the lock kit will damage the operator. See pages 32 and 33 for more information about Fail-Safe vs. Fail-Secure release systems.

Switches 5-6 These work in conjunction with each other and determine if the operator will stop the gate at the full open position, or if the gate should stop 1, 2 or 3 inches short of the full open position. Needed only when using a reversing edge entrapment protection device on the

opening

edge of the gate with an end post as the physical stop.

Switches 7-8 These work in conjunction with each other and determine if the operator will stop the gate at the full close position, or if the gate should stop 1, 2 or 3 inches short of the full close position. Needed only when using a reversing edge entrapment protection device on the

closing

edge of the gate with an end post as the physical stop.

9050-065-N-1-21

19

3.3 Automatic Open / Close Limit Adjustment

The operator’s open/close limits

DO NOT

have to be physically adjusted.

Every time the operator is powered up, the first open command will automatically run “Multiple gate cycles” that will locate and remember the gate’s open and close positions.

These positions are determined by the physical stops that have been installed (See section 1.2, page 8).

Timer:

The Auto-Close Timer should be turned ON (DIP-Switch 2) to allow the “multiple gate cycles” to run automatically, otherwise manual close commands will be required to complete this sequence.

Clutch:

The clutch’s factory setting will work correctly for most installations. The clutch must

NOT

slip while the gate is cycling

between

the full open and full closed position or the gate limits will be incorrect. If the clutch slips during this period, it must be tightened before running this sequence (See section 3.4 on the next page).

Safety Devices:

Run this sequence

before

testing any safety features (primary inherent reverse sensor, external entrapment protection, entrapment alarm and reset features).

Reversing Edge mounted on the Gate using End Posts:

When using a reversing edge on either end of the gate with

an end post as the physical stop

, the reversing edge must be disconnected from the circuit board every time this sequence will be run

(the UL 325 terminal can be unplugged from the circuit board).

Sequence of Automatic “Multiple Gate Cycles” to Set Gate Limits

CAUTION: Keep pedestrians and vehicles clear of the gate while this sequence is running!

After the first open command is given to the operator

(gate can be in any position)

:

Open

Gate

MUST

open until it contacts the

physical “open” stop

. (if gate starts to close, turn power off and change the direction operator opens (DIP-Switch 1). Turn power back on and give open command again).

Close

Auto-close timer will close the gate until it contacts the

physical “close” stop

. (Manual close command required if timer is turned off).

Open

Gate will automatically open until it gets approximately 12 inches away from the full open position and stop, then continue opening until it contacts the

physical “open” stop

again.

Close

Auto-close timer will close the gate until it gets approximately 12 inches away from the full close position and stop, then continue closing until it contacts the

physical “close” stop

again. (Manual close command required if timer is turned off).

20

Sequence

Finished

Open and close gate positions are now set and will be remembered by the operator (until it loses AC power).

Gate will function normally

after automatic “Multiple Gate Cycles” sequence has finished.

Note: If gate encounters an obstruction during this sequencing, it will automatically continue after obstruction has been cleared.

9050-065-N-1-21

3.4 Clutch Adjustment

In addition to the inherent reverse sensor, this operator is equipped with a mechanical slip clutch to further reduce the possibility of injury should an entrapment occur.

DO NOT

over tighten the clutch to compensate for a gate that is damaged, poorly constructed or too heavy.

Over tightening the clutch would create a hazard

which could result in serious injury or death to persons who may become entrapped.

Ideal Clutch Adjustment:

The operator will cycle the gate

without

the clutch slipping. The clutch

will

slip and the gate will reverse

ONLY

after striking an obstruction with no more than 75 Lbs of force.

This force can be measured with a gate scale.

Hex Bolt

To adjust clutch:

1

Make sure power to operator is OFF when adjusting clutch.

2

3

Hold large pulley to loosen the hex bolt counter clockwise.

Magnetic spring assembly can now be loosened (counter clockwise) or tightened

(clockwise) to adjust the clutch.

4

Tighten the hex bolt to lock assembly after adjustment.

Note:

After power has been turned back on, the first open command will automatically run the “multiple gate cycles” to locate and remember the open and close gate positions (See section 3.4 on previous page).

Magnetic

Spring Assembly

Hex nut is connected to black plastic magnet holder.

Important Note:

2

magnetic sensors

located on the bottom of the circuit board sense when the magnetic spring assembly is slipping during operation. Keep all high voltage wires away from the 2 sensors to avoid any electrical interference between the sensors and magnets.

Test the operator clutch adjustment:

CAUTION: Keep pedestrians and vehicles clear of the gate while testing clutch!

Place an immobile object along the gate path, allowing the gate to strike it while in the

open

and

close

cycles. The clutch

must

slip and the gate

must

reverse direction after striking the object. If it does not, readjust the clutch. Repeat this test until the correct clutch adjustment has been achieved. The operator will assume a soft shutdown after striking and reversing the gate which will require a key switch command to cycle operator again.

3.5 Inherent Reverse Sensor Adjustment

This vehicular gate operator is equipped with an inherent adjustable reversing sensor (Type A) used as entrapment protection according to UL

325 standards.

The gate will reverse direction after “physically” encountering an obstruction in either the opening or closing gate cycle

.

If the Auto-Close Timer (DIP-switch 2) is ON and the gate physically encounters an obstruction during the

CLOSING

cycle, it will reverse to the open position and

HOLD

the gate at this position (Soft shutdown condition). Another input command is needed before the gate will reset and close again.

For the reverse system to function correctly, the gate must be properly installed and work freely in both directions.

The clutch must be properly adjusted before adjusting the reverse sensor.

1

Give open command to cycle the gate or momentarily jumper terminals 8 and 12 to open gate.

2

While gate is cycling, slowly rotate reverse sensor clockwise until the gate reverses direction.

Rotate reverse sensor back counter-clockwise approximately 1/8 turn.

3

Cycle the gate a few times to be sure that it cycles completely.

Note: Each operator must be individually adjusted if dual operators have been installed.

Min Max

Sensitivity

Reverse

Sensitivity

Test the operator reversing sensitivity:

Place an immobile object along the gate path, allowing the gate to strike it while in the

open

and

close

cycles. The gate must reverse direction operator will assume a soft shutdown after striking and reversing the gate which will require a key switch command to cycle operator again.

9050-065-N-1-21

21

SECTION 4 - ENTRAPMENT AND SAFETY PROTECTION

External Entrapment Protection Devices:

In addition to the inherent reversing sensor system, this operator has a UL 325 terminal for the connection of

photo sensors

-Type B1 and/or

reversing edges

-Type B2 entrapment protection required by UL 325 standards. Install these devices where the risk of entrapment or a safety hazard exists, examples of which are shown below and the next 3 pages. Installations can vary.

Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator will NOT run without ONE or more monitored type B1 or B2 external entrapment protection devices installed in EACH direction of gate travel

(minimum of 2 external devices required).

4.1 UL 325 Description

5

6

7

8

3

4

1

2

9

10

11

12

3

4

1

2

5

6

NC

NO

EXIT LOOP

4702-018

REVERSE LOOP

#12 low voltage common

Ground (Common) Note:

Connect all Ground

(Common) inputs to main terminal #12 low voltage common.

UL 325 DIP-Switches

1 - OPEN Beam

2 - CLOSE Beam

3 - OPEN Edge

4 - CLOSE Edge

DIP-switches

MUST

be turned

ON

for each device wired to terminal.

UL 325 LEDs

W

AR

NI

NG

CON

FO

AN RM S TO

L325

CAN/C CE RT

SA IFIE

2.2

D TO

CL

ICU

ASS LA

MO

SE

VO

DE

RI

LTS

NO.

R G 24

ATE

OP

ERA

TO

HP R

AM

PS

MA X GA

Doo

TE L

OA rKin g,

Inc

D

., In

PHA

SE

60 H gle wo od,

CA

SER

Op and era te ga

G GA

S IN

Do free of

Do no or o per path whil t all

Rea d ow e ga te o nly

pe opl ow ate ga ildr t sta nd te.

in ga te is ne r’s m

JU

w he e a en t te pa

m n ga ov anu al a

RY

stru o p th

AN

OR

te a lay

in ga or rea

DE

ctions alk n s te a rea through

E

ight nd s afe ty in struc tion s.

REV

SENS

TIME

DELAY

UL 325 Terminal 1 or 2

UL 325 Terminal 3 or 4

UL 325 Terminal

Connect

ONLY MONITORED

Devices

All inputs are normally closed (NC).

1

4

5

2

3

6

OPEN Beam - DIP-Switch 1

CLOSE Beam - DIP-Switch 2

UL 325 LEDs Note:

LED ON:

Connected device has been activated.

LED remains

OFF

during normal operation.

LED Flashing:

Connected device is in fault.

Wiring to device is bad.

OPEN Edge - DIP-Switch 3

CLOSE Edge - DIP-Switch 4

Monitored Device Note:

Only 1 monitored Device can be connected to each input. An

OPTIONAL

Expansion Board

(sold separately) will allow connection for additional devices.

Alarm Reset (Factory wired)

Entrapment Alarm (Factory wired)

115 VAC

Convenience

Outlets

Device Terminal Number/Function and General Location

1

Obstructed opening-direction photo beam will stop the gate

during the opening-direction only.

Gate will resume the open cycle when the obstructed photo beam has been cleared.

Wall / Fence

Open Beam

Open Beam

Entrapment Area

Typical Open Beam Locations

Filler Post if necessary

Closed Gate

2

Obstructed closing-direction photo beam will reverse the gate to the open position and reset the close-timer

during the closing-direction only.

Gate will close when timer times out.

Wall / Fence

Entrapment Area

Close Beam

Closed Gate

3

Obstructed reversing edge will reverse the gate to the close position

during the opening-direction only.

input will cycle the gate again.

Note:

If the gate is opening by a time clock and the edge

gets obstructed, the gate will return to the closed position and

another input (automatic exit loop, reverse loop, remote etc.)

is needed to cycle the gate open again.

4

Obstructed reversing edge will reverse the gate to the open position

during the closing-direction only.

Wall / Fence

Open Edge - Wireless

Filler Post if necessary

Open Edge

Closed Gate

Entrapment Area

Typical Open Edge Locations

Entrapment Area

Wall / Fence

will time out and close the gate (if it is turned on).

Closed Gate

Wireless - Close Edge

gate reaching the close limit, the gate will

reverse to full open

22

5

This input turns off the entrapment alarm and resets the operator after a hard shutdown occurs.

Factory wired.

6

This is an output from the circuit board that drives the entrapment alarm.

Do not connect any other device to this terminal.

Factory wired.

9050-065-N-1-21

4.2 Entrapment Protection Device Locations

Typical UL Photo Sensor mounting height and distance away from gate.

If the distance between the gate and wall is greater than 2 1/4”.

Filler Post or Barrier

Secure Side

Inside Property

Non-Secure Side

Outside Property

5” or

Less

5” or

Less

Reversing Edge (Open Contact Sensor)

Note: Additional photo sensors can be added above the 27.5” height.

Wall

No higher than

27.5” above grade.

21” is typical for most installations.

Photo sensors may be installed on either side of gate frame, as close as practical to the gate but no further away than 5”.

A filler post or barrier may need to be installed between the gate and wall area to reduce the distance to 2 1/4”

or less

.

A reversing edge should be installed on the post or barrier for safety (See page 2 for more information).

Photo Sensors (With Filler Post and Reverse Edge) Sample Setup

Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator will NOT run without ONE or more monitored type B1 or B2 external entrapment protection devices in EACH direction of gate travel (minimum of

2 external devices required).

Close Beam

Open Edge

Filler Post If necessary

Wall

Open Beam

Closed Gate

Only 1 monitored Device can be connected to each input. An

OPTIONAL

Expansion Kit (sold separately) will allow connection for additional devices.

Photo Sensor Power Note:

Photo sensors can be powered by the built-in convenience outlets located on the operator (See previous page).

IMPORTANT:

Monitored Photo and

Edge sensors must be end-of-line resistive types. See specific manufacturer's wiring manual for more information.

#12 Ground

(Common)

9

10

11

12

1

2

3

4

5

6

7

8

1

2

3

4

5

6

NC

NO

4702

#12 Ground (Common)

UL 325 DIP-Switches

DIP-switches

1, 2 and 3 ON

1 - OPEN Beam

2 - CLOSE Beam

3 - OPEN Edge

4 - CLOSE Edge

1

2

3

4

5

6

1 - OPEN Beam (Switch 1)

2 - CLOSE Beam (Switch 2)

3 - OPEN Edge (Switch 3)

4 - CLOSE Edge (Switch 4)

UL 325 Terminal

Connect

ONLY

MONITORED

Devices

Type of wiring to be used on ALL external devices:

A)

Type

CL2

,

CL2P

,

CL2R

, or

CL2X

.

B)

Other cable with

equivalent

or

better

electrical, mechanical, and flammability ratings.

9050-065-N-1-21

23

Type of wiring to be used on ALL external devices:

A)

Type

CL2

,

CL2P

,

CL2R

, or

CL2X

.

B)

Other cable with

equivalent

or

better

electrical, mechanical, and flammability ratings.

P/N - 8080-008 RF Monitored Gate Link Kit (RB-G-K10)

Miller Edge Sensing Edges - All models with a T2 (resistive) termination.

Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator will

NOT run without ONE or more monitored type B1 or

B2 external entrapment protection devices in EACH direction of gate travel

(minimum of 2 external devices required).

Open

Edge

Edge transmitter mounted on gate.

Open

Beam

Close

Edge

VEH

CON

ATE ATO

W AR

NIN

G

SER VING

te onl

allow

GA

CAU

ATH

oving

OR DE

60 Hz

IMPORTANT:

Monitored Photo and

Edge sensors must be end-of-line resistive types. See specific manufacturer's wiring manual for more information.

Sensors Power Note:

Photo sensors can be powered by #5 input or the built-in convenience outlets located on the operator (See page 22).

Mount

MONITORED

transmitter on gate.

Monitored Edge

Transmitter

Filler Post (If necessary, not shown above) Wall

Open Edge

Open Beam

Close Edge

Closed Gate

RB-G-K10

CHECK

GND ANT

See manufacturer’s manual to “PROG” wireless edges.

Gate Link

24

Coax Antenna Kit

P/N 1514-073

Wireless Note:

Refer to the instruction sheet that comes with the receiver/transmitter for more specific wiring, mounting and “PROG” instructions.

MR

R1

R2

PROG

ON DIP

1 2 3 4

R3 ATEST

Set 4 to “OFF”

+ -

CS1 C1 BS1 CS2 C2 BS2 NO3 C3 Com ATEST

Sold Separately

24 Volt

Power is limited to 250 mA

Com

Com

Main Terminal

10

11

12

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

NC

NO

4702

Only 1 monitored Device can be connected to each input. An

OPTIONAL

Expansion Kit (sold separately) will allow connection for additional devices.

UL 325 DIP-Switches

DIP-switches

1, 3 and 4 ON

1 - OPEN Beam

2 - CLOSE Beam

3 - OPEN Edge

4 - CLOSE Edge

1

4

5

2

3

6

1 - OPEN Beam (Switch 1)

2 - CLOSE Beam (Switch 2)

3 - OPEN Edge (Switch 3)

4 - CLOSE Edge (Switch 4)

UL 325 Terminal

Connect

ONLY MONITORED

Devices

Main Terminal #7 Note:

Exceeding 250 mA of power from this terminal may cause the circuit board transformer to overheat, causing intermittent problems.

9050-065-N-1-21

4.3 Dual Gates Multiple Reversing Edges Wiring Sample

Wall / Fence Filler Post

Wireless Edge

Transmitter

Wireless Open Edge

Open Edge

Wireless Edge

Transmitter

Wireless Close Edge

Wireless Edge

Transmitter

Wireless Close Edge

Open Edge

Filler Post Wall / Fence

Wireless Edge

Transmitter

Wireless Open Edge

Wireless Edge

Transmitter

RB-TX10

PROG

Mount on gate next to edge.

HARDWired

CHECK

See manufacturer’s manual to “PROG” wireless edges.

Gate Link

GND ANT

MR

R1

R2

PROG

ON DIP

1 2 3 4

R3 ATEST

Set 4 to “OFF”

Power

+ -

CS1 C1 BS1 CS2 C2 BS2 NO3 C3 Com ATEST

Wireless OPEN

Edges (Relay 1)

Wireless

CLOSE

Edges

(Relay 2)

Power

WIRING DIAGRAM

OUT B OUT A

P

R

OUTPUT

TYPE

ON

1 2

Set to “R”

INPUT/OUTPUT

ASSIGNMENTS

ON

A

LEARN

1 2 3 4 5 6 B

X X 3 4 5 6

Set 3 to “A Output”

Model # MIM-62 Class 2 Device

MIM-62 Back

See manufacturer’s manual to “LEARN” open edges.

Output A

MIM-62 Front

IN3

Pwr+

Pwr-

Com

Input

Output B Output A

IN4

Pwr+

Pwr-

Com

Input

Input

Com

Pwr-

Pwr+

IN1

Input

Com

Pwr-

Pwr+

IN2

IN5

Pwr+

Pwr-

Com

Input

IN6

Miller

Edge

MIM-62

Multi-Input Module

Pwr+

Pwr-

Com

Input

Part Numbers:

8080-079 Multi-Input

Module (MIM-62)

8080-008 RF Monitored

Gate Link Kit (RB-G-K10)

8080-006 Monitored

Transmitter RB-TX-10

Miller Edge Sensing Edges:

All models with a T2

(resistive) termination.

Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists.

The operator will NOT run without ONE or more monitored type

B1 or B2 external entrapment protection devices in EACH direction of gate travel

(minimum of 2 external devices required).

PRIMARY UL 325 DIP-Switches

DIP-switches

MUST

be turned

ON

for each device wired to terminal.

All safety devices

MUST

be wired to the

PRIMARY

operator

ONLY

when using dual gate operators.

DIP-switches

3 and 4 ON

1

2

1 - OPEN Beam

2 - CLOSE Beam

3 - OPEN Edge

4 - CLOSE Edge

1 - OPEN Beam (Switch 1)

2 - CLOSE Beam (Switch 2)

3

3 - OPEN Edge (Switch 3)

1

2

3

4

5

6

4 - CLOSE Edge (Switch 4)

PRIMARY UL 325 Terminal

Connect

ONLY MONITORED

Devices

4

5

24 Volt

Power is limited to

250 mA

6

7

8

9

10

11

12

3

4

1

2

5

6

NC

NO

PRIMARY

Main Terminal

IMPORTANT:

Monitored

Photo and Edge sensors must be end-of-line resistive types. See specific manufacturer's wiring manual for more information.

9050-065-N-1-21

2 5

4.4 Loop Detector Wiring

To help protect the operator from accidentally closing on vehicles in the gate’s path, DoorKing highly recommends that loops and loop detectors be installed. Loops are laid underneath, cut into asphalt or concrete driveways or buried beneath gravel and earth driveways. A loop detection system will sense a vehicle like a metal detector and send a signal to the gate operator preventing the gate from automatically opening or closing on a vehicle when it is in the gate’s path. DoorKing recommends that a licensed installer perform this work.

DoorKing offers a free “

Loop and Loop-Detectors

Information Manual

” PDF located at Doorking’s web site for more information. www.doorking.com

Reverse Loops

Reverse loops are placed on each side of the gate to prevent the gate from closing on a vehicle in the gate’s path. They will reverse the cycling of the gate while a vehicle is in or near the gate’s pathway.

PVC Conduit

Reverse

4 Ft. min. to avoid reverse loop inter

Automatic Exit ference.

Reverse

4 Ft. min. to avoid gate movement inter

4 Ft. min. to avoid gate movement inter ference.

ference.

A

Reverse loop lead-in wires are twisted approx.

6 twists per foot and are wired in series.

Loop Lead-In Wires

26

Automatic Exit Loop

Automatically opens the gate for exiting vehicles without having to use a transmitter or keypad. The exit loop can be placed a minimum of 4 feet away from the reverse loop or far enough away from the gate so the gate has started opening or even completely opened by the time you drive up to it (Free exit).

B

Exit loop lead-in wires are twisted approx. 6 twists per foot.

PVC Conduit

10

11

12

6

7

8

9

1

2

3

4

5

3

4

1

2

5

6

NC

NO

B

9410

EXIT LOOP

Single Channel

4702-018

DoorKing

Plug-in

Loop Detectors

Single Channel

Reverse

Loop Port

REV

SENS

TIME

DELAY

9410

L1 L2

A

Note: Loop detector wiring is shown for DoorKing plug-in loop detector P/N 9410-010

(Single Channel) only. If other loop detectors are used, refer to the installation instructions supplied with those detectors for wiring and separate power instructions.

9050-065-N-1-21

SECTION 5 - MAIN TERMINAL WIRING

5.1 Main Terminal Description

• When gate is closed, this input will open gate to full position.

• When gate is open and auto close timer Switch 2 turned , input will re-set and hold timer.

• When gate is open and auto close timer Switch 2 turned , input will close gate.

• When gate is closing, input will reverse gate.

• This input ONLY functions when gate is

fully

open

or in the

closing cycle

.

• When gate is open and auto close

timer Switch 2 is turned

ON

, input

will re-set and hold timer.

• When gate is open and auto close

timer Switch 2 is turned

OFF

, input

will prevent gate from closing.

• When gate is closing, input will reverse gate.

9

8

Earth Ground

Circuit Board Power

Circuit Board Power

DANGER

HIGH VOLTAGE!

Motor

Motor

Built-In Solenoid

Lock Power

24 VAC - 250 mA max.

(See note below)

Full Open

Standard Reverse

10

11

Dry Relay Contact

Dry Relay Contact

Low Voltage Common

• Operation of relay is dependent on setting of switch 3.

• When Switch 3 is turned

ON

, relay activates

when gate is in the full open position.

• When Switch 3 is turned

OFF

, relay is

activated when gate IS NOT closed.

Main Terminal Input LEDs Note:

The LED that is beside the main terminal #8 and #9 wiring input will light when that terminal input gets activated.

1

22

33

44

55

8

9

66

7

10

11

12

#8

#9

UL 325

Terminal

Pages

22-25

3

4

1

2

5

6

NC

NO

4702

Relay contacts can be set for Normally Open (NO) or

Normally Closed (NC) operation.

Contact rating is 1 amp maximum at 24-volts DC.

NC

NO

Main Terminal #7 Note:

Exceeding 250 mA of power from this terminal may cause the circuit board transformer to overheat, causing intermittent problems.

27

9050-065-N-1-21

5.2 Control Wiring for Single/Primary Operator

Important:

Controls intended for user activation must be located at least six (6) feet away from any moving part of the gate and where the user is prevented from reaching over, under, around or through the gate to operate the controls. Reset buttons must be located in the line-of-sight of the gate and no further than 50 feet from the gate.

Emergency access controls only accessible by authorized personnel (e.g., fire, police, EMS) may be placed at any location in the line-of-sight of the gate.

Type of wiring to be used on ALL external devices:

A)

Type

CL2

,

CL2P

,

CL2R

, or

CL2X

.

B)

Other cable with

equivalent

or

better

electrical, mechanical, and flammability ratings.

24 Volt, 250 mA Max.

Relay

Com

3-Wire Radio

Receiver

Main Terminal #7 Note:

Exceeding 250 mA of power from this terminal may cause the circuit board transformer to overheat, causing intermittent problems.

Polypropylene Cover Note:

Allows wireless signal through cover.

WA

RNING

CA

N/C

VEH

CLA

CO

NF

AN

CER

SA

ICU

SS

MO

DE

L

SER

IAL

VO

LT S

OR

SI/U MS

TO

TIF

C

LA

L-3

22.2

25

IED

TO

N

R G

O.

247

HP

AM

PS

MA

X G

ATE

LO

Door

King,

AD

Inc ., Inglew

PH

AS E

60 H ood,

CA

533

82

TO

R

MO

SERI

Op and era

fre

Do no or o

Do per

no

w

VI

OUS

te g ate e o ate hile

NG

f pe ow

ga

Rea d o wn

ga er’s

on

ch

GAT

IN

JURY

ly w hen

OR

te.

ildr en t d o

ga te a bstr rea is i

DEA

SE

m

m anu ovin al a o p n g ate

pa th o lay uct in g g.

r w alk ion s.

ate

are

TH

n s igh afe ty in str ucti ons

24 Volt Power Com

Relay Com

Relay N.O.

24 Volt Power

4-Wire

Radio

Receiver

Fire Box

Telephone

Entry

Key Switch

Stand-Alone

Keypad

1

2

3

4

5

8

9

6

7

10

11

12

3

4

1

2

5

6

NC

NO

4702

2 8

Stand-Alone

Card Reader

Note: All stand-alone, telephone entry and photo sensor devices must use a separate power source.

N.O.

Com

9050-065-N-1-21

5.3 Bi-Parting Gates Wiring - Dual Gate Operators

• Separate power source for

photo sensor (See page 22).

To Common Main Terminal #12

To Close Beam #2

Entrapment Protection Devices for Bi-Parting Gates

Close Beam

Fence Open Edge

Gate Gate

Open Edge

Fence

Open Beam Open Beam

Primary

Operator

Secondary

Operator

To Open Beam #1

To Common

Main Terminal

#12

To Common Main Terminal #12

To Open Edge #3

To Common Main Terminal #12

To Open Edge #3

To Open Beam #1

24 Volt Power

250 mA max.

Relay

Com

3-Wire Receiver

4-wire receiver wiring, see page 28.

Note: Connect other opening devices to primary main terminal #8 and #12 as required

(See page 28). They must use a separate power source if power is required.

Reverse

Loop

Reverse

Loop

Reverse loop lead-in wires are wired in series.

Main Terminal #7 Note:

Exceeding 250 mA of power from this terminal may cause the circuit board transformer to overheat, causing intermittent problems.

1

2

3

4

5

6

7

8

9

10

11

Open Beam

Close Beam

Open Edge

3

4

1

2

5

NO

6

NC

NO

12

4702

• Requires AC power to

each

operator.

Both

operator DIP-switches must to be set.

• Connect all control devices, auxiliary devices

and loops to the

primary

operator

only

.

Open Beam Note:

If

Open beam

is required for entrapment protection,

#1 UL 325 terminal MUST be wired in parallel between primary and secondary operators.

1

2

3

4

5

6

7

8

9

10

11

Open Beam

Close Beam

Open Edge

3

4

1

2

5

6

UL 325

Terminal

12

4702

Automatic

Exit Loop

Green to primary operator chassis ground.

Green to secondary operator chassis ground.

N.O.

N.O.

External Loop Detectors

DKS plug-in loop detectors

CANNOT

be used in this primary / secondary arrangement. Use external detectors that have a normally open

(N.O.) relay contact. Loop detectors must use a separate power source.

9050-065-N-1-21

Blue Gray Gray

Interconnection Cable

Sold separately from DoorKing.

6 wires used (8 - 18 AWG wires total).

Blue

Type of wiring to be used on ALL external devices:

A)

Type

CL2

,

CL2P

,

CL2R

, or

CL2X

.

B)

Other cable with

equivalent

or

better

electrical, mechanical, and flammability ratings.

29

30

SECTION 6 - OPERATING INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING

-

To reduce the risk of injury or death:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Never let children operate or play with gate controls. Keep the remote control away from children.

3. Always keep people and objects away from gate.

NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE

.

4. Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the risk of injury or death.

5. Use the emergency release only when the gate is not moving and power has been shut-off.

6. KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate

hardware.

7. The entrance is for vehicles only. Pedestrians must use separate entrance.

8. .

6.1 AC Power Switch and Reset Button

Unlock the power switch cover and open to access the Main Power, and the operator Reset Button.

Important:

The operator

WILL NOT

lose its open and close limit positions after pressing the reset button.

WA

RNI

NG

CON

ANS FOR

MS

I/UL

CA

N/C

CER

TIF

-3

VEHIC

CLA

SS

UL

AR

TO

25

SA

C2 IED

2.2

TO

NO.

MO

DE

L

SERIA

VO

LTS

AMP

L

S

MA

GA

247

TE O

PE

HP

533

82

RA

X G

ATE

LO

AD rKin g,

Inc

., In

PH

AS

60 H

E z gle wo od,

CA

MO

SER

Op and

Do or o

Do

Re ad era

fre

no

VI

IO

e o per ate

no hile

NG

US

f pe ow

ga nd i

ow ner’

IN

nly op

chi te. n g te is s m

JUR

le a an ua he n g ldre n to

m

AN

Y O

ate

pla y in th o

are

CAU

a is ns.

ga te a

si

SE

rea ing

. l an d s ro ugh afet y in stru ght ctio ns.

AC

POWER

OFF

Reset Button

- Used to turn off the entrapment alarm and to reset the operator after a

HARD

shutdown has occurred.

Alarm Siren

AC Power Switch

- Powers the operator ON (toggle up) or

OFF (toggle down).

Every time

the operator is powered up, the

First

open command will automatically run “

Multiple gate cycles”

that will locate and remember the gate’s open and close positions (See page 20).

9050-065-N-1-21

6.2 Shutdown Conditions

Under various entrapment conditions the operator will assume either a

soft

or

hard (alarm)

shutdown. To determine what type of reset action is required, you will need to understand how the different entrapment conditions affect the gate operator.

Soft Shutdown

This occurs in various situations where the inherent or external entrapment protection devices have been activated. In a soft shutdown condition, the operator

will not

respond to any input that was present when the entrapment protection device sensed an obstruction. If the gate stops at the open position, the operator will not respond to the automatic close timer.

Example 1

- A time clock keys the gate open in the morning and an entrapment protection device senses

an obstruction prior to the gate reaching the full open position. If the entrapment is sensed by the inherent

system, the gate will reverse and run back to the closed position. The time clock input is still present, but

the gate will not re-open.

Note: In some systems, the time clock input comes from the telephone entry system relay. This same relay may also provide open commands for a card reader, MicroPLUS transmitters and the visitor telephone entry. If so, these devices will also be disabled in a soft shutdown condition.

Example 2

- If the gate is closing and an entrapment protection device is activated, the gate will either stop

or reverse and run back to the open position, depending upon if the secondary or inherent device was

activated. The automatic close timer will not close the gate.

Example 3

- Vehicle arrives at exit loop and gate runs towards the open position. If the inherent entrapment

protection gets activated during this opening cycle, the gate reverses and runs back to the closed position.

After the inherent entrapment protection is cleared, If the vehicle is still present at the exit loop, a soft

shutdown condition does not occur. The exit loop input provides an immediate reset of the operator and the

gate will again run to the open position.

Resetting a Soft Shutdown

In some conditions, a soft shutdown will reset as soon as the entrapment condition clears. For example, if a non-contact sensor (photo cell) is sensing an obstruction, the operator will stop the gate and assume a soft shutdown condition. When the photocell clears, the operator will return to normal operation.

When the operator is in a soft shutdown, activation of any "intended input" will reset the operator. An "intended input" includes any command, any standard safety input and any loop input. Activating any of these inputs will reset the gate. At that point the gate will return to normal operation. If the gate is open, the automatic close timer will then time out and close the gate.

9050-065-N-1-21

Hard Shutdown (Alarm Activated)

A hard shutdown condition occurs when: (1.) The inherent entrapment protection system (Type A) gets activated

TWO consecutive times before the gate completes the open or close cycle. (2.) The reversing edge (Type B2) gets activated and reverses but before the gate completes the reverse cycle the inherent entrapment protection system

(Type A) gets activated.

Example of a Hard Shutdown

- The gate is closing and the inherent entrapment protection system senses

an obstruction and causes the gate to reverse direction. As the gate begins to run in the open direction, a

second obstruction is sensed prior to the gate reaching the full open position. Once the second obstruction

has been sensed, the operator will stop,

the audio alarm will sound and all standard inputs are shut

down

(including open commands, safety commands, loop inputs, etc.).

– To silence the alarm

, press the reset button or after 5 minutes, the audio alarm will shut off but will

“chirp” every 5 seconds. This indicates that the operator is in a hard shutdown condition (The reset

button must be pressed to reset the operator and stop the alarm “chirping”).

31

Resetting a Hard Shutdown

The operator is in a hard shutdown condition when the audio alarm is sounding OR “chirping” every 5 seconds.

• Before resetting a hard shutdown, determine why the shutdown occurred. Inspect the gate for any

obstructions along its path that could have activated the inherent entrapment sensing system. Inspect

the gate and gate hardware.

The audio alarm will sound for five minutes, or until the operator’s reset button is pushed. After (5) five minutes the alarm will “chirp every 5 sec.” and the hard shutdown condition will remain in affect until the reset button is pushed.

Note: DoorKing operators have a built-in alarm reset push button mounted on the operator above the power ON-OFF toggle switch. Activating this button will return the gate operator to normal operation, but will not cycle the gate operator. A remote alarm/reset station (P/N 1404-080) can be mounted external of the gate operator provided that it is installed in the line-of-sight of the gate and gate operator.

The gate operator

WILL NOT

lose its open and close positions after resetting a hard shutdown.

Once the gate has been reset, an open or close command is needed to start the gate operator. Most activating commands will cause the gate operator to cycle to the open position. This includes activation of a key switch or open command and activation of an automatic exit loop. Activation of a close command will run the gate to the closed position.

6.3 Manual Gate Operation

This operator is equipped with one of two types of manual release systems,

“Fail-Safe”

(required by many city codes) or

“Fail-Secure”

that will allow the gate to be pushed open in the event of a power outage or equipment failure.

Caution: Never attempt to manually push open any gate with an operator attached to it until you have verified that power to the operator has been shut-off.

Fail-Safe Manual Release System (Factory Installed)

This manual release system is the most reliable and safest method for placing the gate operator in manual operation.

It is the preferred method of emergency gate operation under worse case conditions by many Fire Chiefs and Building Inspectors and is

typically used in Class I and Class II applications.

This system is accessible from either side of the gate and requires

NO

keys, cranks or other tools to manually operate the gate. This prevents any delays for emergency vehicle access in the event of a power outage. The operator “Fails” (Loss of AC power) in a

“Safe” (Manually operable) condition.

Solenoid Lock

Clutch Plate

Switch 4 must be

OFF

.

32

Solenoid lock does

NOT

secure the clutch plate during an

AC power failure or turning AC power off. Gate can be immediately manually operated during these conditions.

Solenoid lock

WILL

retract and secure the clutch plate during normal operation

ONLY

if operator senses an

unauthorized

manual open attempt. Gate will

NOT

be allowed to move.

9050-065-N-1-21

Fail-Secure Manual Release System (Owner Installed)

This manual release system (Installed 2600-862 Fail-Secure Manual Release Kit) allows the gate to be manually operated ONLY after unlocking the gate operator.

Power outages or turning power off WILL NOT allow gate to be manually operated without physically unlocking the gate operator with the key first. This option is

typically used in Class

III and Class IV applications.

The gate operator “Fails” (Loss of AC power) in a “Secure” (Manually in-operable) condition.

Switch 4 must be

ON.

Important:

solenoid lock

MUST

be in position shown.

Solenoid

Lock

Clutch Plate

Solenoid lock does

NOT

allow the clutch plate to rotate when:

• The AC power is on but the operator is not cycling.

• The AC power is turned off.

• AC power failure.

W

ARNING

CAN CE

VEH

CL

CO

NFORM

AN SI/UL-

S TO

/CSA

ICU

ASS

RT

C2

LA

IFIE

2.2

D

325

TO

NO.

247

MODE

L

SE

RI

AL

VO

LTS

AM

MAX

PS

GA

TE

LOAD

Door

King, In

HP

PHASE

60 Hz

533

AT c., Inglew ood,

CA

82

OR

MOVI

SE

RIO

Op era and free

Do or not

ope rate ga

Do not pa th sta

Re ad whi ow

NG

US

te ga

of le ga ne te o

pe nd

GAT

nly opl

allow

chi te. in

JU

w e a ldr en

m he nd obs te a te pa

E C

AN C

RY

OR AUSE

n ga truc to pl ay i th r’s m oving.

anua l and or safe

w rea tion is i s. n ga te a alk

thr ty ins n s ight rea ou gh truc tions

Key Release

Turning key 1/2 turn retracts solenoid lock and allows clutch plate to rotate for manual operation

with

or

without

AC power.

Solenoid lock automatically retracts and allows clutch plate to rotate

ONLY

during normal gate cycling.

Clutch Plate

Operator

Housing

Emergency Vehicle Access Conditions

This automatic vehicular gate system is designed to allow access to emergency vehicles under different operating conditions.

1. During normal AC powered operation,

emergency vehicles access the gate by a

separate

emergency access device individually installed and wired to your gate system. The type of devices that can be used in your community depends on your city codes. These devices may include (but are not limited to) Fire Department lock boxes,

Click-2-Enter radio receivers, strobe light sensors, siren sensors, etc.

2. In the event of an AC power failure,

the emergency vehicle access device will not function because the gate operator is un-powered.

“Fail-Safe” or “Fail-Secure”

release systems for the gate operator allow the gate to be manually operated during AC power failure.

ONLY

the

“Fail-Safe”

release system allows the gate to be manually operated

without

unlocking the operator first and has been designed that way to allow emergency personnel to immediately manually operate the gate from either side under emergency situations.

9050-065-N-1-21

33

34

SECTION 7 - MAINTENANCE AND TROUBLESHOOTING

Inspection and service of this gate operator by a qualified technician should be performed anytime a malfunction is observed or suspected. High cycle usage may require more frequent service checks.

DO NOT

7.1 Maintenance

When servicing the gate operator, always check any external reversing devices (loops, photocells, etc.) for proper operation.

If external reversing devices cannot be made operable, do not place this operator in service until the malfunction can be identified and

Align clutch plate holes with screws to corrected.

repair solenoid lock.

Always check the inherent reversing system when performing any maintenance. If the inherent reversing system cannot be made operable, remove this operator from service until the cause of the malfunction is identified and corrected. Keeping this operator in service when the inherent reversing system is malfunctioning creates a hazard for persons which can result in serious injury or death should they become entrapped in the gate.

Every time

the operator is powered up, the open command will automatically run “

First

Multiple gate cycles”

that will locate and remember the gate’s open and close positions (See page 20).

When servicing this gate operator, always turn power

OFF!!

Operator

Component

Warning Signs

Alarm

Drive Belt

Chain

Clutch

Fire Dept.

Gate

Grease

Loop(s)

Inherent Reverse System

Pulleys

Manual Release

External Reverse Devices

Complete System

Maintenance

Check that warning signs are on

BOTH

sides of the gate area.

Activate the inherent reverse system by blocking the gate with a solid object. When the gate reverses, block the gate in the opposite direction prior to the limit being reached. The entrapment alarm should activate. Press the reset button to silence the alarm.

Monthly Interval

1

6 12

Check for alignment, tightness and wear.

Check for sagging. Tighten if necessary.

Check for proper slippage when an obstruction is encountered.

Check emergency vehicle access device for proper operation.

Inspect for damage. Check gate wheels. rollers and guides for wear and grease if necessary.

Wheels and guide rollers if necessary.

Check vehicular exit and reverse loops for proper operation.

Check that the gate reverses on contact with an object in both the opening and closing cycles. See page 41.

Adjust the reversing sensor and/or clutch if necessary.

Check for alignment. Check setscrews.

Check manual release for proper operation. See page 40.

Check external reverse devices stop or reverse the gate when activated. See page 41.

Complete check of gate and gate operating system.

9050-065-N-1-21

7.2 Troubleshooting

Have a good VOM meter to check voltages and continuity. A Meg-Ohm meter capable of checking up to 500 meg-ohms of resistance is necessary to properly check the integrity of the ground loops. When a malfunction occurs, isolate the problem to one of three areas:

1.

the operator,

2.

the loop system,

3.

the keying devices.

Use caution when checking high voltage terminals, motor capacitor and the motor.

1.

Check the input indicator LEDs. They should only come ON when a keying device (card reader, push button, etc.) is activated.

If any of the input LEDs are ON continuously, this will cause the gate operator to hold open. Disconnect the keying devices one at a time until the LED goes OFF.

2.

Check any external entrapment protection devices. Any short or malfunction in these devices can cause the gate operator to stop or to hold open.

3.

A malfunction in a loop or loop detector can cause the gate operator to hold open, or to not detect a vehicle when it is present over the loop. Pull the loop detector circuit boards from the loop ports on the operator circuit board. If the malfunction persists, the problem is not with the loop system. For more information on trouble shooting loops and loop detectors, refer to your loop detector instruction sheet and to the DoorKing Loop and Loop Detector Information Manual.

4.

Check to be sure that there are no shorted or open control wires from the keying devices to the gate operator. If a keying device fails to open the gate, momentarily jumper across terminals 8 and 12 on the operator circuit board. If the gate operator starts, this indicates that a problem exist with the keying device and is not with the gate operator.

5.

Check the high voltage supply. A voltage drop on the supply line (usually caused by using too small supply voltage wires) will cause the operator to malfunction. Refer to the wire size chart in section 2.1, page 17.

Every time

the operator is powered up, the

First

open command will automatically run “

Multiple gate cycles”

that will locate and remember the gate’s open and close positions (See page 20).

Operator will not run. Power LED is OFF.

Operator will not run. Power LED is ON.

• Check that AC power to the operator is turned ON.

• Transformer may be overheated. Turn power off and allow board to cool for several minutes then retest.

Check for low 115 VAC power and low voltage shorts.

• Check for 115 VAC at high voltage terminal. If voltage measures 0, check the terminal strip or replace the

• Insure that a minimum of one (1) external entrapment protection device is connected in

EACH

direction of gate

travel (minimum of 2 external devices required) and the inputs are connected and enabled (UL 325

DIP-switches are turned ON).

• If a photo sensor is used as a entrapment protection device, check to be sure that the beam is not blocked.

• Momentarily jumper terminal 8 to terminal 12. If the input LED does not come ON, check the terminal strip or

replace the circuit board. If LED does come ON, proceed to next steps.

• Be sure that the chain is not too tight. A too tight chain may cause the operator to stall.

• Bypass circuit board and

Check Motor:

Turn power switch OFF and remove the circuit board.

1. Place a jumper wire from terminal 3 to terminal 4.

CAUTION – HIGH VOLTAGE.

Turn the power switch on.

The motor should run. Turn the power switch OFF and remove the jumper.

2. Place a jumper wire from terminal 3 to terminal 5.

CAUTION – HIGH VOLTAGE.

Turn the power switch on.

The motor should run in the opposite direction. Turn the power switch off and remove the jumper.

• If the motor runs in both steps above, replace the control board. If the motor does not run, or runs in only one

direction, problem can be a bad motor, motor capacitor, motor resistors, wire connections from the control

board to the motor or a bad control board.

9050-065-N-1-21

3 5

36

Operator will not run, entrapment protection input(s) LED is ON.

• The entrapment protection device has a fault or the wiring to it is shorted.

Operator will not run, entrapment protection input(s) LED is

Blinking.

• The entrapment protection device is not connected or the wiring to it is open.

Gate opens a short distance, then stops and reverses.

Gate opens but will not close.

Gate closes but will not open.

Gate starts to close, then reverses to open.

• Insure the electronic box inside operator is fully DOWN and secured properly.

• Check that the clutch is adjusted properly and is not slipping.

• Disconnect the gate from the gate operator and check that the gate slides freely without any binding.

• Re-adjust the reverse sensitivity.

• Check that the magnetic pickup transistors on control board are not obstructed by excess wires. Electrical

interference from excess wires can diminish magnetic field.

• Check that the magnetic pickup transistors on control board are within 1/8 inch of the clear plastic protective

cover above the black plastic magnetic spring assembly on the main shaft.

• Continue troubleshooting or replace the circuit board.

• Check the input LEDs. Any ON will hold the gate open and indicates a problem with a keying device.

• Check external safety devices. Any activated will hold gate open and indicates a problem with the safety device.

• Check the loop detectors. Any activated can hold the gate open and indicates a problem with the loop detector

or ground loop.

• Operator may be in a “soft shutdown.” Activate any keying device to determine if operator returns to normal

operation.

• If automatic close is desired, be sure Switch 2 is ON and set timer open from 1-23 seconds.

• Bypass circuit board and check motor as described on previous page.

• Operator may be in a “soft shutdown.” Check input LEDs. If any are ON, momentarily disconnect, then

re-connect the wire going to the respective terminal. Operator should open.

• Check to be sure that the operator is running in the proper direction. Turn power OFF, and then back ON.

Activate a keying device. Operator should run in the open direction. If operator runs in the close direction, turn

power OFF and change direction of Switch 1. Go to above section if operator now opens but will not close.

• Be sure that the each LED on the control board lights when the keying device connected to the that terminal is

activated. If LED does not light, momentarily place a jumper wire from terminal 12 to the input terminal being

checked. If LED lights and gate opens, problem is with the keying device. If LED does not light, replace control

board.

• Bypass circuit board and check motor as described on previous page.

• Check that the clutch is adjusted properly and is not slipping.

• Re-adjust the reverse sensitivity.

• Disconnect the gate from the gate operator and check that the gate slides freely without any binding.

• Check the loop detector LEDs and input LEDs. Any that flash ON will cause the gate to reverse.

• Check the Magnetic Sensor LEDs on the circuit board. If either LED is not blinking as the operator is running,

check that the magnetic pickup transistors are within 1/8 inch of the protective plastic cover above the magnet

assembly on the main shaft.

• Continue troubleshooting or replace the circuit board.

Gate closes then re-opens.

Alarm is sounding.

Operator will not run.

• Check for any input or loop detector LED’s that are ON.

• Check that the operator is running in the proper direction (see “gate closes but will not open”).

• Turn power off, then back on to run multiple gate cycles to reset operator open and close positions.

• Operator is in a “hard shutdown” condition. Reset button must be pushed to return operator to normal

operation, see Section 6.2 Shutdown Conditions, pages 31-32.

Alarm chirps once every 5 seconds.

Operator will not run.

• Operator has been in a “hard shutdown” condition in excess of 5 minutes. Reset button must be

pushed to return operator to normal operation, see Section 6.2 Shutdown Conditions, pages 31-32.

Operator has intermittent functionality problems that vary.

• The main terminal #7 250 mA power has been exceeded. Check total amp draw of connected device(s).

9050-065-N-1-21

7.3 Accessory Items

UL 325 Monitored Entrapment Protection Devices available for model 9050 slide gate operator.

Type B2 Contact Sensors (Reversing Edge)

DoorKing 8080 Series Sensing Edges

Miller Edge Sensing Edges - all models with a T2 (resistive) termination.

Miller Edge wireless monitored transmitter/receiver kit model RB-G-K10

ASO GMBH Sentir GF Series sensing edges

Type B1 Non-contact Sensors (Photo Cell)

DoorKing Model 8080-057 Retro-Reflective Photocell

Miller Edge Reflective-Guard Model RG

Miller Edge Prime-Guard Model PG

EMX Industries Model IRB-MON

EMX Industries Model IRB-RET

Omron Model E3K-R10K4

Seco-Larm Model E-936-S45RRGQ

Seco-Larm Model E-960-D90GQ

Monitored Expansion Kit

Miller Edge Multi-Input Module Model MIM-62

Accessory items available for the model 9050 slide gate operator.

Plug-In Loop Detector

- Detectors plug directly into ports on circuit board simplifying wiring.

Single channel detector - P/N 9410-010

Dual channel detector - P/N 9409-010

Single channel detector with aux relay - P/N 9411-010

Single channel low power draw detector - P/N 9416-010

Dual channel low power draw detector - P/N 9415-010

External Loop Detector

Reno A&E 12/24 VDC or 24 VAC - 9402-045

Reno A&E 120 VAC - 9402-047

Carlo Gavazzi 24 VAC/VDC - 9402-044

Diablo 10-30 VAC/VDC low power draw - 9402-050

Loop Wire

- 18 AWG loop wire with XLPE insulation is ideal for ground loops. Available in 500 and 1000 foot rolls. Red, blue or black insulation.

Pre-Fab Loops

- Prefabricated ground loops. 24-foot circumference with 50-foot lead-in. Available in yellow, red or blue jackets. Not for use in asphalt roadways.

Loop Test Meter

- Meg-ohm meter checks the integrity of ground loops. P/N 9401-045

Interconnect Cable

- Interconnect wire cable contains all the necessary wires to interconnect primary / secondary operators.

Cable length: 30 ft. - P/N 2600-755 40 ft. - P/N 2600-756 50 ft. - P/N 2600-757

115 VAC Heater with Fan Assembly Kit

- Thermostatically controlled heater and fan for cold environments.

For 115 VAC input power ONLY. P/N 1601-154

Time Clock

- 7 day clock can be used to automatically open gate at pre-set time and days. Compact clock fits inside the operator.

7 day clock - P/N 2600-791

V-Wheels

- 4 inch and 6 inch. UHMW or Steel. Roller bearings or sleeve bearings. Single or tandem wheel configurations.

Endless Idler Assembly with Safety Cover

- Use when gate operator chain needs 180° return. P/N 2600-818

Guide Rollers with Safety Covers

- A variety of sizes to support slide gates.

Gate End Retainer

- Fits on top of end post and helps stabilize the end of the gate in the open or closed position (End post not provided).

P/N 1204-004

Base Plate for 9050

- Required for post mount installation. P/N 2600-418

Base Plate Stop Brackets for 9050

- Required for post mount installation when using chain stops. P/N 2600-970

Additional #40 Chain

- 20 ft. per box. P/N 2600-442

Fail-Secure Manual Release Kit

- Changes the Fail-Safe manual release to a Fail-Secure manual release. P/N 2600-862

Surge Devices

- High and low voltage surge suppressors help prevent circuit board failure caused by lightning strikes and power surges.

High Voltage - P/N 1879-010 Low Voltage - P/N 1878-010

Speed Bumps

- Prefabricated six-foot speed bump reduces traffic speed through gate system. P/N 1610-150

9050-065-N-1-21

37

Model 9050 1/2 HP 115 VAC

3 8

Convenience Outlets

Black

Power

White

Neutral

White

Red

Yellow

White

Alarm

Reset

AC Power

Red

Blue

Blue

Red

Brown

3

4

5

6

7

8

1

2

9

10

11

12

30uf Capacitor

Blue

Red

White

Built-In Solenoid Lock

Mounting

Screw

White

Black

Brown

MOV Assembly

White

HOT NEU

Chassis

Ground

115 VAC

Black

1/2 HP

4.3 Amp

Brown

White

Green

Board

Ground

1

2

3

4

5

6

NC

NO

EXIT LOOP

4702-018

Ground

REVERSE LOOP

REV

SENS

TIME

DELAY

9050-065-N-1-21

SECTION 8 - OWNER OF THE GATE OPERATOR

8.1 Alarm Sounding OR “Chirping” and Gate WILL NOT Operate

Operator is in a HARD Shutdown Condition: The alarm will sound for (5) five minutes. After five minutes the alarm will start “Chirping” every 5 seconds and continue “Chirping” until operator gets reset.

A KEY has been supplied that will unlock the power switch cover on this gate operator.

Note:

The

owner

of the gate operator is responsible for the

KEY

availability.

When Alarm is Sounding OR “Chirping” . . . . .

ALWAYS CHECK THE ENTIRE GATE AREA FOR ANY OBSTRUCTIONS OR DAMAGE FIRST.

• If a Fire Dept Access Device has been activated by

emergency personnel

, then operator can be

reset

and put

back into normal operation again. Alarm will

always

sound when this access device gets activated.

• If the cause of the alarm

CAN

be identified and

CORRECTED

, then operator can be

reset

and put back into

normal operation again.

• If the cause of the alarm

cannot be corrected

, shut-off power and

DO NOT

place this operator back into

service until the malfunction can be identified and

CORRECTED

.

IMPORTANT: Putting this gate operator back into service WITHOUT

CORRECTING the cause of the alarm could result in serious injury or DEATH!

WA

RNING

CON

AN FO

S T

25

O

N/C

VE

CERT

SA

HIC

CLAS

S

IFIE

ULAR

D T

O

NO.

24

7

TE

OPERA MOD

EL

SER

IAL

VO

LTS

HP

533

TO

82

R

AM

MA

PS

X GA

TE L

OA

D

PHA

SE

Do orK ing

, In

60 Hz c., I ngle wo od, C

A

MO

SER

Op and

Do era

fre

no

VING GA

t all

US

ate f pe ow

IN

ople

Do

no

w ate

ga

ch t sta nd in te.

JU

on ly w

an ildre

RY O

hen d o n to gate bs tru pla y in

R D

area ctio

ga

is i

EAT

n s igh

H

Rea hile d o wn

ga er’s

ga

ma te p

m ovin l an

or g.

d s wa afe lk th rou ty in gh struc tio ns.

Power

Switch

Cover

AC

POWER

Reset Operator:

UNLOCK

the power switch cover with

KEY.

Press

RESET Button OR

Cycle Power Switch OFF & ON

.

This will reset the gate operator and allow normal gate operation again.

Press RESET Button

OR

Cycle Power Switch

OFF

Operator HARD Shutdown Condition occurs when:

9050-065-N-1-21

1. Fire Department (Emergency Access) input has been activated by Police, Fire Department, EMT, Ambulance etc.

2. The inherent entrapment protection system (Type A) gets activated TWO consecutive times before the gate

completes the open cycle OR the close cycle.

3. The reversing edge contact sensor (Type B2) gets activated and reverses, but before the gate completes the

reverse cycle the inherent entrapment protection system (Type A) gets activated.

Please read

SECTION 6 - OPERATING INSTRUCTIONS

for more information about operating this gate operator.

39

8.2 Manual Gate Operation

Caution:

NEVER attempt to manually operate the gate until you have VERIFIED that power to the gate operator has been SHUT-OFF!

Please read

SECTION 6 - OPERATING INSTRUCTIONS

for more information about operating this gate operator.

Factory Equipped FAIL-SAFE Manual Operation

Gate can be

IMMEDIATELY

manually operated (pushed open) during a power outage.

NO

Key is required.

Push on end of gate

A “STRONG”

Push is

Needed!

Moving Gate Can Cause

Serious Injury or Death

KEEP CLEAR! Gate may move at any time without prior warning.

Do not let children operate the gate or play in the gate area.

This entrance is for vehicles only.

Pedestrians must use separate entrance.

40

Optional Owner Installed FAIL-SECURE Manual Operation

Gate CANNOT be manually PUSHED open until FAIL-SECURE Lock has been UNLOCKED.

WA

RN

IN

G

CA

CO

AN

NF

N/C

VEH

IC

CLA

SS

SA IED

ULA

R G

DEL

SER

IA

L

VO

LTS

SI/U

C2

MS

2.2

25

TO

. 2

47

ATE O

HP

533 82

AT

OR

AMP

S

X G

ATE

Door

LO

AD

PH

AS

60 H

E

Inc.

, Inglew ood,

CA

MOV

SER

Op era and

fre ate

on

Do

Do

no or o pe

not path

w e o

ING

GA

f p ow rate

ga

S IN

eop

ch te.

le a

JURY

ly w hen

AN CA

OR

te a

DE

re a is

US

AT

in s igh

E

H

sta nd i

Rea d o wn er’s n g ildre te is

ma

m pa nua bstr n to

pla th or d s ucti wa

ga ons gh afe ty in str ucti ons

Fail-Secure

Lock

A KEY is supplied with the Optional

Fail-Secure Kit that will unlock the

Fail-Secure lock and release the gate.

Note:

The

owner

of the gate operator is responsible for the

KEY

availability.

Turn

Key

1/2 turn (180°).

Manually operate gate

(Push Open).

Manual operation

with

or

without

AC power.

Note:

If gate operator does

NOT

have a fail-secure lock, then the operator is a FAIL-SAFE operator (see above).

9050-065-N-1-21

8.3 Gate Operator’s Monthly Checkup

Caution:

Make SURE gate area is clear BEFORE testing the gate operator!

DO NOT

repair or adjust gate systems yourself. Contact a trained gate systems technician with any questions or to make any repairs or adjustments. If you feel uncomfortable performing any of these inspections or testing, a qualified service technician will perform the visual inspections and testing for you.

You can find a trained service technician at DoorKing’s “Dealer Locator” at www.doorking.com

Visual Inspection

Visually inspect the rollers, fasteners, brackets and other gate hardware for proper alignment, proper tightness, and signs of damage, breakage, looseness, rust or wear. Moving parts should be lubricated and should not be squeaking.

Visually inspect wiring for fraying or exposure. If a malfunction is found, contact a trained service technician to make adjustments or repairs.

Test Built-In Reversing Sensor

Begin with the gate in the fully

OPEN

position. Stand just outside the path of the gate and close the gate (typically auto-timer will time-out and close gate automatically). As the gate is

closing

, firmly press a solid object against the end of the gate frame in the direction opposing the travel of the gate. The gate should

stop

within 2 sec. and

reverse

to the

OPEN

position.

Another input command is needed before the gate will reset and close again. Repeat this test while

opening

the gate. Start from the fully

CLOSED

position. While

opening

, gate should

stop

and

reverse

to the

CLOSE

position. If gate does

NOT

respond like it should in

either

direction of gate travel, contact a trained service technician to make adjustments or repairs.

Test Photo Sensors

If the gate has a photo sensing device protecting the path of a

closing gate

, perform the following test. Begin with the gate in the fully

OPEN

position. Stand just outside the path of the gate and close the gate (typically auto-timer will time-out and close gate automatically). Pass an object across the path of the closing photo sensing beam. The gate should

stop

within 2 sec. and

reverse

to the

OPEN

position. Typically the auto-timer times out and gate closes again.

If the gate has a photo sensing device protecting the path of a

opening gate

, start from the fully

CLOSED

position.

OPEN

gate. Pass an object across the path of the opening photo sensing beam. The gate should

stop,

the gate will resume opening when the beam is clear. If gate does

NOT

respond like it should in

either

direction of gate travel, contact a trained service technician to make adjustments or repairs.

Test Reversing Edges

If the gate has a reversing edge(s) protecting the path of a

closing gate

, perform the following test. Begin with the gate in the fully

OPEN

position. Stand just outside the path of the gate and close the gate. As the gate is closing, firmly press a solid object against the reversing edge in the direction opposing the travel of the gate. The gate should

stop

within 2 sec. and

reverse

to the

OPEN

position (typically auto-timer will time-out and close gate automatically). If the gate encounters

another

obstruction before it is closed, the gate will

stop

and reverse to the

OPEN

position

again

. A input command is needed before the gate will reset and close again, auto-timer will

NOT

close gate (Typically, press your remote button for input command).

If the gate has a reversing edge(s) protecting the path of a

opening gate

, starting from the fully

CLOSED

position.

Stand just outside the path of the gate and open the gate.

OPEN

gate. As the gate is opening, firmly press a solid object against the reversing edge in the direction opposing the travel of the gate. gate should

stop

and

reverse

to the

CLOSE

position. If gate does

NOT

respond like it should in

either

direction of gate travel, contact a trained service technician to make adjustments or repairs.

Note:

This gate operator uses high levels of force to move the gate and most people underestimate the power of these systems and do not realize the potential hazards associated with this system if

NOT

maintained properly.

Scheduled maintenance visits are offered by most qualified service technicians to MAINTAIN your gate operator system.

9050-065-N-1-21

41

8.4 New Installation Checklist for Installer and Property Owner

Instructions:

Check the space next to each item (“

”) to indicate that it has been addressed by installer

AND

property owner.

If it is not applicable, enter N/A. Please note that the checklist is intended to be a summary of many

important

automated vehicular gate aspects,

But may not inclusively identify all potential hazards of every specific gate system installation.

Each item listed and checked has been examined by the Installer and is CLEARLY understood by the Property Owner.

42

Installer

Property

Owner

Description

The operator is installed on a gate used for vehicles only.

Verify that separate pedestrian access is provided or available, and the access is such that pedestrians cannot come in contact with the moving vehicular access gate during its entire length of travel.

Gate/Hardware:

Insure that there is a means to prevent the gate from falling over in the event of a roller or hinge failure. Insure the gate has physical limit stops and that gravity will not initiate motion of the gate. Insure that all rollers are guarded or covered to eliminate the possibility of a finger being inserted between the roller and gate.

Slide Gate:

Insure that the maximum opening in the gate and in that portion of the adjacent fence that the gate covers when the gate is in the open position is such that a 2 ¼" sphere cannot pass through the openings up to 72 inches above the ground or to the top of the gate, whichever is less. If the gate and adjacent fence do not meet this requirement, wire mesh (or other means) must be added to meet this requirement before placing the gate system in operation.

Insure that any gaps between the slide gate and stationary posts/pilasters is less than 2 1/4" and that these areas are protected with an entrapment protection device.

The gate operator system is in compliance with the

entrapment protection requirements of UL 325.

Identify all potential entrapment zones and ensure they are protected. Potential pinch areas have been guarded so as to be inaccessible OR have a contact (reverse edge) and/or non-contact (photocell) obstruction sensing devices installed.

Verify that the system has in place external entrapment protection, independent from the inherent entrapment protection. Edge sensors or photocells are typical, other means are possible. For more information see your

specific

installation/owners manual for entrapment protection installation and locations.

The installer has properly adjusted the

inherent entrapment protection feature

on the gate operator, and has tested the gate to make sure that the gate stops and reverses a short distance upon striking an immovable object.

Check that placement of

user operational controls

are six (6) or more feet away from the gate. If any operational control is closer than six (6) feet to the gate,

DO NOT

place the automated vehicular gate into service.

Warning signs

have been installed so that they are visible from each side of the gate - whether the gate is open or closed.

The installer has instructed the property owner in the

proper use of the gate operator

and has reviewed the operational functions, obstruction-sensing devices, alarm, and reset as outlined in

your specific

installation/owners manual.

The installer has instructed the property owner in the proper use of the operator's

manual release feature

as outlined in

your specific

installation/owners manual.

The installer has

reviewed all safety instructions with the property owner

, including the need to never let children operate or play with gate controls, to keep the remote control away from children, and to always keep people and objects away from the gate.

The installer has explained to the property owner that a

regular maintenance schedule

for both the gate and the gate operator is recommended, including regular testing of entrapment protection as outlined in the manufacturer's instructions.

The installer has left the installation/owners manual with the property owner for future reference.

9050-065-N-1-21

Lock

Fa

AR

Cover Power Switch

RIOU

RNING

WA

RESET

Installation/Owner’s Manual

Use this manual for circuit board 4702-018 Revision A or higher.

Vehicular Slide Gate Operator

9050-065-N-1-21

Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator will NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH direction of gate travel.

UL 325 August 2018 Standard

THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY.

Visit

www.doorking.com/dealer-locator

to find a professional installing and servicing dealer in your area.

www.doorking.com

DoorKing, Inc.

120 S. Glasgow Avenue

Inglewood, California 90301

U.S.A.

Phone: 310-645-0023

Fax: 310-641-1586

Copyright 2009 DoorKing, Inc. All rights reserved.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
