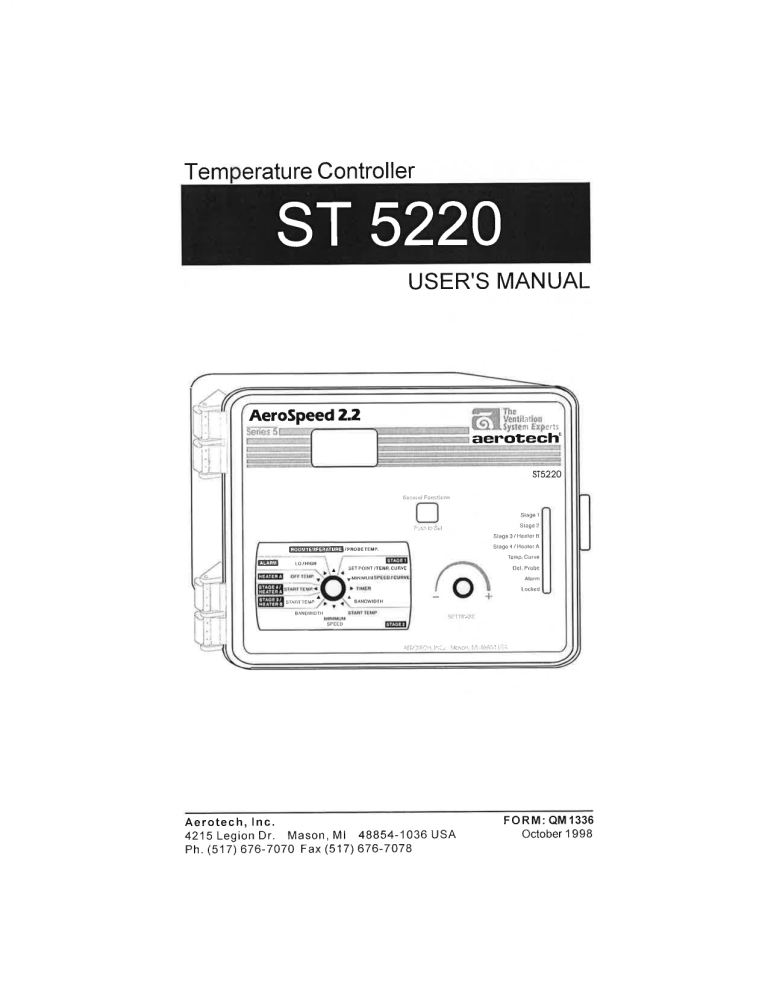

Temperature Controller
ST 5220
USER'S MANUAL
a =
a 2.2 —] Ту N
Ventiation
< 5 _ —;—]— System EX perts
ee ———aerotech
515220
Second Funstians
a [|
Push to Sut ms
Slage 3/Healer B
Slage 4 / Heater À
Temp. Curve
У“ Del. Probe
/ \ Alarm
æ O 3 Locked =
ROOMTEMPERATURE / PROBE TEMP.
ALARM LO HIGH
« | A | SETPOINT/TENP.CURVE
gd | +
[ENTE of tier w MINIMUIA SPEED 2 EURYL
MEA Na IE
a
HAE STARTTEME / x.“ BANDWIOTH
BANDWIDTH ii м p
AREAL
Aerotech, Inc. FORM: QM 1336
4215 Legion Dr. Mason, MI 48854-1036 USA October 1998
Ph. (517) 676-7070 Fax (517) 676-7078
TABLE OF CONTENTS
Page
PRECAUTIONS .......o eines seers esses esse snes esse ee 3
FEATURES mnnrurunacancurinaso ems ea Eo Eee 4
LOCATION OF THE CONTROLS .....................ememmeccanreeneza 6
Controller Status Leds ............................ 0 ee eres 7
Internal Switches ........................00000 sens ar rare 7
INSTALLATION LL....nnnuncccccarccoccsrrrrrrenerreneemesansassassrasannenrannaee 8
Mounting Instructions ........................... e... eee e e e eee 8
Connections ....................eea na nenereene an eana rare eee 8
Motor Types «ooo eee eee, 9
Temperature Probes ................................ 000000 ee cer DDD. 12
Heating Options ...........................eeiein ran ne en reee. 14
CHANGING THE PARAMETER SETTINGS 15
The Meaning of a Flashing Display .................................. 15
Locking the Parameters Settings ..........................ee.íeeeeees 15
TEMPERATURE SETTINGS ................e====sccrerioncccanzcenecannees 16
Temperature Units ...... suis ac 16
Viewing Temperatures .............................. e 16
Temperature Set Point ee 19
Temperature Curve... eee) 20
VENTILATION SETTINGS .............eeececerennnnaonnnennnnananananananas 24
Cooling Operation ..............................eeeee mea cn 24
Minimum Ventilation Cycle .......................... eee 26
Ventilation Settings ............................... eee es 28
Minimum Ventilation Speed Curve …….…..…….…….………………. 31
Mist CoOlING rs area ne sir eee na ee erre 37
HEATER SETTINGS …......…………ccroccorsessnsonsanssensassrarranennarannn ne 40
ALARM SETTINGS .............ee..eeeossieircacenenenaaae een arerenacenanena 42
TROUBLESHOOTING GUIDE ................cemeeannnncanonnnnnnnnn ena. 43
TECHNICAL SPECIFICATIONS -....................eeesrmerercconanereeo 48
FACTORY SETTINGS .................==..escsczasacccaneareeseeo oe eee. 49
2 QM 1336.rev.01
PRECAUTIONS
EEE
—
«== = ——
We strongly recommend installing supplementary natural
ventilation, a failure alarm system as well as a back-up ther-
mostat on at least one cooling stage (refer to the wiring diagram
enclosed with this user's manual to connect the thermostat).
Although fuses on the outputs of the controller protect its
circuits in case of an overload or overvoltage, we recommend
installing an additional protection device on the supply circuit
as Well as an external relay on all ON-OFF stages to prolong
the life of the controller.
The room temperature where the controller is located MUST
ALWAYS REMAIN BETWEEN 32°F AND 104°F (0°C TO 40°C).
To avoid exposing the controller to harmful gases or exces-
sive humidity, it is preferable to install it in a corridor.
DO NOT SPRAY WATER ON THE CONTROLLER
FOR CUSTOMER USE
Enter below the serial number located on
the side of the controller and retain this
information for future reference.
Model number: ST 5220
Serial number:
Date installed:
QM 1336.rev.01
=
3
FEATURES
The ST 5220 is an electronic device used for environmental control in
livestock buildings. It allows the user to maintain a specified target tem-
perature by controlling the operation of ventilation and heating equipment.
Two stages of variable speed cooling fans and two stages of either constant-
speed cooling fans or heaters can be connected to the controller. In addi-
tion, the last cooling stage can be configured as a mist cooling stage.
The main features of the ST 5220 are as follows:
THREE-DIGIT DISPLAY
A three-digit display provides a high level of accuracy, allowing the user to
specify a temperature to within one tenth of a degree (in Fahrenheit or
Celsius units).
PILOT LIGHTS
Pilot lights indicating the state of outputs allow the user to monitor the
operation of the system without having to enter the building.
MINIMUM VENTILATION CYCLE
When ventilation is not required for cooling, the first stage fans can be
operated either continuously or intermittently to reduce the level of humid-
ity and supply oxygen to the room.
TEMPERATURE AND MINIMUM VENTILATION SPEED CURVES
The controller can be set to automatically change the temperature set point
and the minimum ventilation speed over a given period of time in accor-
dance with the user's requirements by specifying a temperature curve and
a minimum ventilation speed curve with up to six different points each.
CHOICE OF FIVE MOTOR CURVES
The variation in motor speed resulting from a change in voltage will depend
on the make and capacity of the motor. In order to achieve a high degree
of compatibility between controller and motor, the user can choose from
among five different motor curves, thus ensuring that the correct voltage is
supplied.
4 QM1336.rev.01
ST 5220
FULL-SPEED FAN START-UP
In order to overcome the inertia of the ventilation system components and
de-ice the fan blades in cold weather conditions, the controller supplies
maximum voltage to the variable speed fans for 2 seconds immediately
following each start-up.
FOUR INDEPENDENT TEMPERATURE PROBE INPUTS
Up to four temperature probes can be connected to the controller in order
to obtain a more accurate reading of the average room temperature and a
faster reaction time.
OVERLOAD AND OVERVOLTAGE PROTECTION
Fuses and other protection devices are installed on the outputs of the
controller to protect its circuitry in the case of an overload or overvoltage.
COMPUTER CONTROL
The controller can be connected to a computer, thus making it possible to
centralize the management of information and diversify control strategies.
CONTROL OF AIR INLET MOVEMENT USING THE SB 2000
If the ST 5220 is used in combination with a SB 2000 controller, the move-
ment of the air inlets can be coordinated with the operation of the fans
using a potentiometer located on the curtain machine or baffle actuator.
This allows the air inlets to be adjusted correctly, without the influence of
uncontrollable factors such as wind or air from adjoining rooms.
HIGH/LOW TEMPERATURE ALARM OUTPUT
QM 1336.rev.01 >
LOCATION OF THE CONTROLS
‘AeroSpeed 2.2 | The
| =! Ventilation
seres 5 | = = A E | К Experts
Era DIGITAL mme SAA Т НЕЕ - aerotech
Eos DISPLAY FR
o = SCREEN = = rer со
SI 5220
Second Functions
FUNCTION и
SELECTION Stage 1
me e eT PUSH-BUTTON 199°
KNOB Push to Set Stage 2
Stage 3/ Heater B
ROOMTEMPERATURE 24 45(e 1-14 5511155
Stage 4 / Heater A
Temp. Curve
ЕС LO /HIGH STAGE 1]
———~_,\ a /, SETPOINT/TEMP.CURVE Def. Probe
[ZED OFF TEMP. o y MINIMUM SPEED / CURVE Alarm
> TIMER Locked
E : —
A
STAGE3/ CONTROLLER
START TEMP. N BANDWIDTH
Ed Py STATUS LEDS
BANDWIDTH START TEMP _
MINIMUM SETTINGS
SPEED [STAGE 2| PARAMETER
ADJUSTMENT
KNOB
AERC NC, » Manon, ME 48354 USA
6 QM1336.rev.01
ST 5220
CONTROLLER STATUS LEDS
LED MEANING
STAGE 1 TURNS ON WHEN STAGE 1 FANS ARE ON,
STAGE 2 TURNS ON WHEN STAGE 2 FANS ARE ON
STAGE 3
Ed, | TURNS ON WHEN STAGE 3 FANS OR HEATER B UNITS ARE ON.
UIT TURNS ON WHEN STAGE 4 FANS OR HEATER A UNITS ARE ON
HEATER A
TEMP. CURVE
FLASHES WHEN THE TEMPERATURE CURVE 1S ACTIVATED.
TURNS ON WHEN THE MINIMUM VENTILATION SPEED CURVE IS
ALSO ON,
DEF. PROBE |FLASHES WHEN A DEFECTIVE PROBE IS DETECTED
ALARM TURNS ON WHEN AN ALARM IS DETECTED,
LOCKED TURNS ON WHEN THE PARAMETERS ARE LOCKED.
ON
INTERNAL SWITCHES diddddddd
10 11 12
The internal switches are located on the inside of the front cover. When
the controller is shipped from the factory, all the switches are set to OFF.
# OFF ON
1 UNLOCKED PARAMETERS LOCKED PARAMETERS
2 FAHRENHEIT DEGREES CELSIUS DEGREES
3 COOLING ONLY HEATING
4 1 HEATER 2 HEATERS
QM 1336.rev.01
7
INSTALLATION
MOUNTING INSTRUCTIONS
Open the latch and lift the cover. Remove the black caps located on each of
the four mounting holes. Mount the enclosure on the wall using four screws.
Be sure the electrical knockouts are at the bottom of the enclosure in order
to preventwater fromentering the controller. Insert the screws in the mounting
holes and tighten. Fasten the four black caps provided with the controller onto
the four mounting holes. The enclosure must be mounted in a location that
will allow the cover to be completely opened right up against the wall.
CONNECTIONS
Toconnect the controller, refer to the wiring diagram enclosed with this user's
manual.
MM Setthe voltage switch to the appropriate voltage.
ME Usetheelectrical knockouts provided atthe bottom ofthe enclosure. Do
not make additional holes in the enclosure, particularly on the top ofthe
enclosure when using a SL 1400 communication board.
Ш If metallic cable holders are used to secure cables entering the
enclosure, use the ground plate provided with the controller. Connect
the ground wire to the ground stud on the plate.
EM Forthe heating stages, it may be necessary to install a transformer in
order to supply the appropriate voltage to the heating unit.
ALARM CONNECTION: There are two types of alarms on the market. One
type activates when currentis cut off atits input, whereas the other activates
when current is supplied at its input. For an alarm of the first type, use the
NO terminal as shown on the wiring diagram. For an alarmofthe second type,
use the NC terminal.
ALL WIRING MUST BE DONE BY AN AUTHORIZED ELECTRI-
Л\ CIAN AND MUST COMPLY WITH APPLICABLE CODES, LAWS
AND REGULATIONS. BE SURE POWER IS OFF BEFORE DO-
ING ANY WIRING TO AVOID ELECTRICAL SHOCKS AND EQUIP-
MENT DAMAGE.
8 QM1336.rev.01
ST 5220
MOTOR TYPES
The relationship between the voltage supplied to a motor and its operating
speed is described by a motor curve. This curve varies with the make and
capacity ofthe motor. The various motors available in the industry have been
divided into five categories and the controller has been programmed with a
different motor curve for each of these categories. To ensure that the
controller supplies the correct voltages, an appropriate curve must be
selected for Stage 1 according to the type of fan motors used (see table on
following page).
En Selecting a Motor Type for Stage 1
Refer to the list of motors on the following page to determine which type (1
to 5) is appropriate for the motors used.
a Set the selection knob to STAGE re a TE PROBE TEMP
1 — BANDWIDTH. The Stage 1 EM men \ / GLE
. . . * 4 | a | SET POINT /TEMP. CURVE
bandwidth IS displayed, alternat- OFF TEMP. Sica № w MINIMUM SPEED | CURYE
ing with the letters "bd". E eos > men
START TEME.
EH Press the push-button. The cur- Firion
rently selected type is displayed,
alternating with the letters "tYP".
EH Use the adjustment knob to adjust the type to the desired value.
EM Return to the Stage 1 bandwidth display by pressing the push-button.
QM 1336.rev.01 9
ST 5220
[Al Selecting A Motor Type for Stage 2
Refer to the list of motors enclosed with this user's manual to determine
which type (1 to 5) is appropriate for the motors used.
M Set the selection knob to STAGE 2 — BANDWIDTH. The
bandwidth is displayed, alternating with the letters "bd".
M Press the push-button. The currently selected motor type is
displayed, alternating with the letters "tY P".
M Usetheadjustmentknobto adjustthe motor type to the desired value.
BM Return to the Stage 2 bandwidth display by pressing the push-button
once again.
10 QM1336.rev.01
©
N
N
LH
-
N
‘“S9OLINO W104 O1 19181 ‘OAOGE UBUI JOUJO SJUSUISIINDEI JO SUOIJEINÉIUOO 104
"ejgeoldde y Jennus pue p.eno 'pooH :sellosseg9y UBA (€
d'S ,50%0 :e1nsse1d 21e1S (2
IVA 077 :BeloA INdul (1
:9SIMI9U1O pajou ssejun suonipuoo Buimol¡joj 94) eWiNssE sanjeA aNOde OU |
0521! 051 05 G L9D9E1V 1D9E1V L9Z9E1V Z9E1V | „95
0521 LLL Ob Y 7vea9 9Irelv dvely Zyvelvy | avc
009 ZOL 07 © 8199 9gilv 481L1V'Z8LLV | ‚8!
OL LOL 0€ © DOLIV HOLIV ZOL1V | „9!
OL} LOL G9 | dSGLlY dvsily | „5!
021 LOL G9 | OPLIV 4719 ZPL1IV | Jb)
05 cv Sy | (DVA OFZ) 2dVO0L1Y ‘2dSOLLY ‘2Z601Y
0S 18 Sp | (DVA 021) LdVOLLY ‘LdSOLLY ‘1Z601Y | „6
dS indno paadg anny S19qunN (PON "eq
„S0°0 18 | эбенод | tWNWILIA | 4010 ue
ИН) WNWIULHA
sbuines [0414097
TE EL BLAUES ET SATTE
11
QM1336.rev.01
ST 5220
TEMPERATURE PROBES
EB Connecting the Probes
The controlleris supplied with one room probe connected toinput#1. Three
additional probes can be connected toinputs#2, 3and 4 (see wiring diagram
enclosed).
CAUTION: Probes operate at low voltage and are isolated from the
supply. Be sure that probe cables remain insulated from all high voltage
sources. In particular, do not route the probe cables through the same
electrical knockout as other cables. Do not connect the shield from the probe
cable to an input or a ground.
El Extending the Probes
Each probe can be extended up to 500 feet (150 meters). To extenda probe:
B Useashielded cable of outside diameter between 0.245 and 0.260 in
(6.22 and 6.60 mm) (the cable dimensions should not be under 18
AWG) to ensure the cable entry is liquid tight. Do not ground the
shielding.
M It is preferable to solder the cable joint to ensure a proper contact
between the two cables.
CAUTION: Do not run probe cables next to other power cables. When
crossing over other cables, cross at 90°.
12 QM1336.rev.01
ST 5220
E Defective Probes
Room Probes: lfa defective probe is detected, the Defective Probe Pilot
Light flashes. The room temperature shown on the display is then the average
temperature measured by the probes in working condition. The controller
will operate according to this temperature.
To identify the defective probe:
Mm Setthe selection knob to ROOM CEERI» ove ews
TEMPERATURE. The room tem- EE omer | SN
perature is displayed. OFFTEME EE y MINIMUM SPEED ICUAVE
erre < DATE
M Press the push-button. If the [BEE en/a ono
probe connected to input # 1 and LS pom
supplied with the controller is not
defective, the letters"PR1" are
displayed, alternating with the
temperature measured by the
probe. If the probe is defective,
the letters "PR1" are displayed,
alternating with the letter "P".
For each additional probe connected to the controller:
M Press the push-button once again. If the probe is not defective, the
letters "PR#" (where # is the number of the input to which the probe
is connected) are displayed, alternating with the temperature mea-
sured by the probe. If the probe is defective, the letters "PR#" are
displayed, alternating with the letter "P".
QM 1336.rev.01 13
ST 5220
HEATING OPTIONS
Stages 3 and 4 can operate as heating or cooling stages.
=> Set switches # 3 and # 4 to OFF to
use both stages for cooling. en
= Set switch # 3 to ON and switch # 4
to OFF to use Stage 4 for heating
and Stage 3 for cooling.
= Set switches # 3 and # 4 to ON to
use both stages for heating.
Note that if only one stage is used for heating, it must be Stage 4.
14 QM1336.rev.01
CHANGING THE PARAMETER SETTINGS
THE MEANING OF A FLASHING DISPLAY
*
`` Pal
The display will flash in cer-
tain cases and not in others. AALEN
The flashing indicates that the a 1 —
value shown can be adjusted. 77 J |
A value that is not flashing /
cannot be adjusted. A |
LOCKING THE PARAMETER SETTINGS
The parameter settings can be locked to prevent accidentally modifying
them. When the settings are locked, only the temperature set point and the
Stage 1 minimum ventilation speed can be modified (as long as the tem-
perature curve and the minimum ventilation speed curve are deactivated
respectively).
To lock the parameter settings:
Bm Setinternal switch # 1 to ON. The Locked Parameter Pilot Light turns
on.
To unlock the parameter settings:
B Set internal switch # 1 to OFF. The Locked Parameter Pilot Light
turns off.
QM 1336.rev.01 15
TEMPERATURE SETTINGS
TEMPERATURE UNITS
Temperatures can be displayed in either Celsius or ON
Fahrenheit units
№ Set internal switch # 2 to the desired position:
* ON to display temperatures in Celsius units.
* OFF to display temperatures in Fahrenheit units. 2
VIEWING TEMPERATURES
The readout can display values from
40 OF to 120% ( -40.0%C to 48.9% C).
When the temperature drops below -
9.9 degrees, the negative sign is dis-
played separately, alternating with the
numerical value.
qd AOOCMTEMPERATURE PAOEE TEM,
ALARM | LO /HIGH Г
\'a | SETPOINT/TEMP. CURVE
e [
CALLE) OFF TEMP. VX y MINIMUM SPEED | CURVE
HEATER A БТАЯТ TENF 4 O > TIMER
A A
STAGE J/ ;
START TEMP. +, BANDWIDTH
(HEATERD 7" y 1
DANDWIDTH START TEMP.
MINIMUM
SPEED BTAQE
El Viewing the Room Temperature
The room temperature is the average value of all temperatures measured
by activated probes in proper operating condition.
M Set the selection knob to ROOM TEMPERATURE / PROBE TEMP.
The room temperature is displayed.
E Viewing the Probe Temperatures
The controller can display probe temperatures individually. Probes can also
be turned on or off to control the temperature in different parts of the building.
B | Set selection knob to ROOM TEMPERATURE / PROBE TEMP. The
average room temperature is displayed.
16 QM1336.rev.01
ST 5220
HW Press the push-button. The temperature reading from probe 1 is
displayed, alternating with the letters "Pr 1".
M For each additional probe, press the push-button. The temperature
reading from probe x is displayed, alternating with the letters "Pr x",
etc.
M Press the push-button once again to display the state of probe 1, i.e.
ON / OFF. When a probe is activated, it is used in the calculation of
the average room temperature.
M Use the adjustment knob to change the state of the probe.
BM For each additional probe, press the push-button. The state of probe
is displayed, alternating with the letters "Pr x", etc.
Notes:
i) Atleastone probe must be activated atall times. Ifonly one probe remains
active, the controller will lock the on/off switch for that probe.
ii) The display returns to the average room temperature after one minute.
iii} Initially, only probe one is activated.
|3 | Viewing Minimum / Maximum Temperatures
The minimum and maximum temperatures are the lowest and highest tem-
perature values recorded since the last reset. Temperatures values are
averaged over all active probes.
Ш Set the selection knob to ROOM TEMPERATURE / PROBE TEMP.
or OUTSIDE TEMP. / SETTINGS. The room or outside temperature
is displayed.
B Turn the adjustment knob clockwise by one notch. The minimum
temperature flashes on the display, alternating with the letters "Lo".
QM 1336.rev.01 17
ST 5220
BM Turn the adjustment knob clockwise one notch further. The maxi-
mum temperature flashes on the display, alternating with the letters
"HI".
BM Turn the adjustment knob clockwise a third notch. The room or out-
side temperature is displayed again.
B For each individual probe, press the push-button. The temperature
reading from probe x is displayed, alternating with the letters "Pr x"
and the on/off state of the probe.
EH Turn the adjustment knob clockwise by one notch. The minimum is
displayed, alternating with the letters "Lo".
B Тит the adjustment knob clockwise one notch further. The maxi-
mum temperature is displayed, alternating with the letters "Hi".
EM Turn the adjustment knob clockwise a third notch. The probe tem-
perature is displayed again.
B For each additional probe, press the push-button. The temperature
reading from probe x is displayed, alternating with the letters "Pr x"
and the on/off state of the probe, etc.
NOTE: If you let the display flash for more than 10 seconds, the control-
ler resets the minimum and maximum temperatures currently in memory
(the display stops flashing to indicate that the reset has been done).
18 QM 1336.rev.01
ST 5220
TEMPERATURE SET POINT
ROOMTEMPERATURE Fala{e)-]1-9 11 |.
The temperature set point is the target EXE onion | Crm
. Lal
room temperature. It can be adjusted OFF TEMP. (Ng q NINIONEPEEDTCUAVE
between -40.0°F and 99.9°F (-40.0°C | snr reves » TIMER
and 37.7°C). FEE serene A = N BANDWIDTH
BANDWIOTH START TEMP.
MINIMUM
SPEED
Adjusting the Temperature Set Point
M | Setthe selection knobto SET POINT /TEMP. CURVE.The current set
point flashes on the display.
M Use the adjustment knob to adjust the set point to the desired value.
NOTE: The temperature set point can be adjusted only if the temperature
curve is deactivated (see following section).
QM1336.rev.01 19
ST 5220
TEMPERATURE CURVE
The user can define a temperature curve to adjust the set point automatically
over a given time period.
Temperature
To]
T2 =
T3 +
Te4 =
Thm
To6 =
so
d4 des d35 d50 d70 d80 pays
A curve is defined using six points. Each point specifies a day number and
a set point for that day. Once the points of the curve are defined, the curve
must be activated. The controllerwill change the temperature set pointevery
hourinalinear fashion between consecutive points of the curve. When the
last point of the curve is reached, the temperature set point for that day is
maintained until the curve is reactivated.
NOTES :
i) All six points of the curve must be specified. If six points are not needed,
repeat the last temperature value for each unnecessary point.
11) Certain restrictions apply to reduce the risk of errors:
— The highest possible day number is 99.
— Decreasing day numbers are not allowed.
— Increasing temperatures are not allowed.
— The temperature variation cannot exceed 3°F (1.6°C) per day.
20 QM 1336.rev.01
ST 5220
EL Specifying the Curve
1
ET TT
|
BM Set the selection knob to SET OFF TEMP. N | 4
ROOMTEMPERATURE / PAOBETEMP.
wr MINIT
E TIMES
POINT / TEMP. CURVE. The | ren
current temperature set point — эпопее
flashes on the display. oanDwR rue ETART TEMP
SPEED [STAGE]
M Pressthe push-button. The word OFF is displayed indicating that the
termperature curve is deactivated. If this is not the case, see below
to deactivate the curve.
Repeat the following steps for each of the six points:
a Press the push-button once again. The word "day" is displayed,
alternating with a day number.
EH Using the adjustment knob, set the day number to the desired value.
в Press the push-button once again. The currenttemperature set point
is displayed, alternating with the word "set".
EH Using the adjustment knob, adjust the set point to the desired value.
Once the six points of the curve have been specified, activate the curve as
explained below.
NOTE: Make sure the temperature curve is deactivated before specify-
ing new points (see below).
QM 1336.rev.01 21
ST 5220
2 Activating the Temperature Curve
If you have just finished specifying the points on the curve:
Press the push-button once again. The word OFF flashes on the
display.
Turn the adjustment knob clockwise one notch. The word ON flashes
on the display, the Temperature Curve Pilot Light flashes, indicating
that the temperature curve is now activated.
Set the selection knob to ROOM TEMPERATURE.
If you have previously defined the points on the curve:
22
Set the selection knob to SET POINT / TEMP. CURVE. The current
value of the temperature set point flashes on the display.
Press the push-button. The word OFF flashes on the display.
Press the push-button to display the points of the curve currently
defined until the word OFF appears (thirteen clicks).
Turn the adjustment knob clockwise one notch. The word ON flashes
on the display and the Temperature Curve Pilot Light flashes, indi-
cating that the temperature curve is now activated.
Set the selection knob to ROOM TEMPERATURE.
QM 1336.rev.01
ST 5220
3 Viewing Current Set Point and Day Number
When the temperature curve is activated, the current temperature set
point and day number can be viewed at any time. The current day num-
ber can also be adjusted in order to move forward or backward on the
temperature curve.
EH Set the selection knob to SET POINT / TEMP. CURVE. The current
temperature set point flashes on the display.
H Press the push-button. The current day number is displayed.
EH Use the adjustment knob to set the day number to the desired
value.
E Deactivating the Temperature Curve
Mm Setthe selection knob to SET POINT / TEMP. CURVE. The current
temperature set point flashes on the display.
M Press the push-button to display the points of the curve actually
defined until the word ON appears (fourteen clicks).
ME Turn the adjustment knob counterclockwise one notch. The word
OFF flashes on the display and the Temperature Curve Pilot Light
turns off indicating that the temperature curve is now deactivated.
H Setthe selection knob to ROOM TEMPERATURE.
QM1336.rev.01 23
VENTILATION SETTINGS
COOLING OPERATION
The ST 5220 controls two stages of variable-speed fans (Stages 1 and 2)
and two optional stages of constant-speed fans (Stages 3 and 4«««). The
last cooling stage can also be configured as a mist stage.
<
о = о on (о un
922 J FF 5
6 m о © © ©
53 Но М
| | | | =
| | | |
+
об | 1 11
Te p | 11
09 о Ze
ВЕ 53 | |
D © = |
La | o
T wy — | | |
0 | |
a — |
EE | 1
© 42 | | |
ne |
sy 0 | *
|
wn т |
ой 2 |
as == === === === = Nn |
w 3
TU
о 1
ов ón
E —
+ 3
©
dws |
LUCO y
/
A
24 QM1336.rev.01
ST 5220
If room temperature rises:
* When room temperature < Set Point, stage 1 fans run at minimum
speed according to the minimum ventilation cycle.
* AtSet Point: stage 1 fans stop operating according to the minimum
ventilation cycle and increase in speed as the room temperature
rises.
* At Set Point + Bandwidth: stage 1 fans reach full speed.
* At Stage 2 Starting Temp.: stage 2 fans start running.
* At Stage 3 Starting Temp.: stage 3 fans start running.
* At Stage 4 Starting Temp.: stage 4 fans start running.
If the room temperature falls:
* At Stage 4 Starting Temp. - 1.5°F: stage 4 fans return to a stop.
* At Stage 3 Starting Temp. - 1.5°F : stage 3 fans return to a stop.
* At Stage 2 Starting Temp. - 1.5°F: stage 2 fans return to a stop.
e At Set Point + Bandwidth: the stage 1 decrease in speed as the
temperature falls.
* At Set Point: stage 1 fans stop operating continuously and oper-
ate according to the minimum ventilation cycle at minimum speed.
*When room temperature < Set Point, stage 1 fans run at minimum
speed according to the minimum ventilation cycle.
QM 1336.rev.01 25
ST 5220
MINIMUM VENTILATION CYCLE
When the room temperature is below the set point, the Stage 1 fans operate
according to the minimum ventilation cycle. Running the fans even though
ventilation is not required for a cooling purpose is useful to reduce humidity
levels and supply oxygen tothe room. Italso prevents the fans from freezing
in winter.
TIMEON
STAGE 1
STAGE 1 — MIN. SPEED
OFF ———й —
«фр
TIME OFF
STAGE 1
During time on, the Stage 1 fans run at Stage 1 minimum speed. The Stage
1 Pilot Lightturns on. During time off, the Stage 1 fans do notrun. The Stage
1 Pilot Light turns off. The Stage 1 minimum speed can also be defined by
a speed curve (see below).
NOTE: The controller supplies maximum voltage to the variable-speed fans
for 2 seconds immediately following each start-up.
Minimum Ventilation Cycle Settinas
1. Torunthe fans continuously at minimum speed, set time offto zero and
time on to any value other than zero.
2. To stop the fans, set time on to zero and time off to any value.
3. Torun the fans intermittently, set time on to the desired running time
and time off to the desired off time.
20 QM1336.rev.01
ES Adjusting Stage 1 Minimum Speed
The minimum speed can be adjusted between 10 and 100% ofthe full speed
of the fans.
BM Setthe selection knob to STAGE
1 — MINIMUM SPEED/CURVE.
The current minimum speed for
Stage 1 flashes on the display.
ПООМТЕМРЕНАТЬНЕ | PROBLE TEMO,
L Г
LO/HIGH | Y ATAGE I
\ д |, SET POINT TEMP. CURVE
TILE] OFF TEMP о E unvE
FE srant Tem 4
STAGE 3 / TS A M BANOWIDTH
HEATERB |7» y
BANDWIDTH START TEMP.
MINIMUM
M Use the adjustment knob to ad-
just the minimum speed to the de-
sired value.
NOTE: The minimum speed can be adjusted only if the minimum speed
curve is deactivated or if the minimum speed curve is activated but not
currently operating (see below).
BE Adjusting Stage 1 Time On and Time Off
m Setthe selection knob to STAGE 1 — TIMER. The current time on for
Stage 1 flashes on the display, alternating with the letters "On".
B Use the adjustment knob to adjust time on to the desired value.
M Pressthe push-button. The current time off for Stage 1 flashes on the
display, alternating with the letters "OFF".
M Use the adjustment knob to adjust time off to the desired value.
Time on and Time Off can be adjusted between 0 and 900 seconds, In
increments of 15 seconds.
QM 1336.rev.01 27
VENTILATION SETTINGS
Adjusting the Stage 1 Bandwidth
The Stage 1 bandwidth is the tempera- ESMAS o. ews
ture interval within which the Stage 1 women \ /
variable speed fans increase or de- orm Ed canins es Vies
crease in speed proportionally to the ы
temperature (see the diagram above).
When this value is adjusted, all the anu
starting values for consecutive stages ——K—
are adjusted by the same amount. The
bandwidth can be adjusted between
0.5°F and 20.0°F (0.3°C and 11.1% C).
ВАМСАМИУТЫ START TEMP
MINIMUM
BM Set the selection knob to STAGE 1 — BANDWIDTH. The current
bandwidth is displayed, alternating with the letters "bd".
B Use the adjustment knob to adjust the bandwidth to the desired value.
E Adjusting the Stage 2 Starting Temperature
The Stage 2 starting temperature is the temperature at which the Stage 2 fans
start running (see the diagram above). When this value is adjusted, all the
starting values for consecutive stages are adjusted by the same amount. The
difference between the starting temperature and the Stage 1 starting tempera-
ture + bandwidth can go from 0.5°F to 20.0°F (0.3°C to 11.1°C).
BM Setthe selection knobto STAGE 2— START TEMP. The currentstarting
temperature flashes on the display.
EM Use the adjustment knob to adjust the temperature to the desired value.
28 QM 1336.rev.01
ST 5220
E Adjusting Stage 2 Bandwidth
The Stage 2 bandwidth is the temperature interval within which the Stage 2
variable speed fans increase or decrease in speed proportionally to the
temperature (see the diagram above). The bandwidth can be adjusted
between 0.5°F and 20.0°F (0.3°C and 11.1°C).
Ш Set the selection knob to STAGE 2 — BANDWIDTH. The current
bandwidth for Stage 2 is displayed, alternating with the letters "bd".
H Use the adjustment knob to adjust the bandwidth to the desired value.
E Adjusting Stage 2 Minimum Speed
The minimum speed can be adjusted between 10% and 100% of the full speed
of the fans.
H Setthe selection knob to STAGE 2 — MINIMUM SPEED. The current
minimum speed for Stage 2 flashes on the display.
HB Use the adjustment knob to adjust the minimum speed to the desired
value.
a Adjusting the Stage 3 Starting Temperature
The Stage 3 starting temperature is the temperature at which the Stage 3 fans
start running (see the diagram above). The hysteresis is fixed at 1.5°F and
determines when the fans return to a stop. The difference between the starting
temperature and the Stage 2 starting temperature + bandwidth can go from
0.5°F to 20.0°F (0.3°C to 11.1°C).
M Settheselectionknobto STAGE 3— START TEMP. The current Stage
3 starting temperature is displayed, alternating with the letters "ST3".
BM Usetheadjustmentknob to adjustthe temperature to the desired value.
QM1336.rev.01 29
ST 5220
e Adjusting the Stage 4 Starting Temperature
The Stage 4 starting temperature is the temperature at which the Stage 4 fans
start running (see the diagram above). The hysteresis is fixed at 1.5% and
determines when the fans returnto a stop. The difference between the starting
temperature and the stage 3 starting temperature can go from 0.5°F to 20.0°F
(0.3°C to 11.1°C).
B Settheselectionknobto STAGE 4— START TEMP. The current Stage
À starting temperature is displayed, alternating with the letters "ST4".
EM Usetheadjustmentknobto adjustthe temperature to the desired value.
30 QM1336.rev.01
ST 5220
MINIMUM VENTILATION SPEED CURVE
The user can define a minimum ventilation speed curve to adjust the Stage
1 minimum speed automatically over a given time period. Each curve is
defined by six points. Each point specifies a day number and a fan speed
for that day. Once the points are defined, the minimum speed curve must
be activated. When the minimum speed curve is activated, the controller
adjusts the Stage 1 minimum speed every hour in a linear fashion be-
tween two consecutive points.
When the last point of the curve is reached, the curve is deactivated. The
controller maintains the minimum speed specified for this point until the
curve is reactivated or until a new single minimum speed is specified using
the first method.
A
Temperature
or Speed
Minimum Speed Curve
. Temperature Curve
da di0 d25 d35 450 d70 d80 a
Days
NOTE:
If the room temperature falls below the threshold value given in table 1,
the fans will begin to run at the minimum speed specified for the first
point of the curve and will continue to do so as long as the room
temperature remains below the set point. When the room temperature
rises above the set point, the fans will return to the current minimum speed,
calculated according to the minimum speed curve.
QM1336.rev.01 31
ST 5220
Table 1.
STAGE 4
OPERATION THRESHOLD VALUE
Cooling "Set Point - 5.0°F (2.8°C)"
"Heater A Starting Temperature - 5.0°F (2.8°C)
Heating OR
“Set Point”, if the parameter settings are such that the
preceding value is greater than the set point.
Interaction Between the Temperature Curve and the Mini-
mum Speed Curve
* The minimum speed curve can be activated only if the tempera-
ture curve is already activated
* All points of the minimum speed curve other than the first one are
automatically given day numbers identical to those specified for the
temperature curve. Only the first point of the minimum speed curve
has an adjustable day number. This day number must be greater or
equal to the day number specified for the first point of the tempera-
ture curve and less than the day number specified for the second
point of the temperature curve (see example 1).
EXAMPLE 1
TEMPERATURE CURVE MINIMUM SPEED CURVE
POINT 1 d5 d5 to d19 (adjustable)
POINT 2 d20 d20 (not adjustable)
32 QM1336.rev.01
ST 5220
* When the minimum speed curve is activated, it will effectively be
operating (i.e. the controller will begin to adjust the minimum speed
according to the specified points of the curve) only when the current
day number of the temperature curve reaches the first day number of
the minimum speed curve.
EXAMPLE 2
TEMPERATURE CURVE MINIMUM SPEED CURVE
Day Temperature Day Speed
POINT 1 dd 90.0 °F d10 10 %
POINT 2 d20 85.0 °F d20 20 %
If you activated the temperature curve yesterday, the current day
number of the temperature curve is d6. Therefore, if you activate the
minimum speed curve today, it will effectively be in operation in 4
days, when the current day number of the temperature curve reaches
d10. In the meantime, the fans will run at the specified single
minimum speed (see example 2).
* If you activated the temperature curve six days ago, the current day
number of the temperature curve is d11. Therefore, if you activate
the minimum speed curve today, it will effectively be in operation the
moment you activate it. In this case, the current minimum speed will
be a value between 10% and 20%.
QM 1336.rev.01 33
ST 5220
Eu Specifying the Minimum Speed Curve
Leia NUS / PROBE TEMP,
|| Set the selection knob to ET LO/HIGH | a а
аа | H HP, €
STAGE 1 — MINIMUM BETO OFF TEMP. Sn 4
SPEED / CURVE. The cur- EATEN rar rer « = TIMEN
rent minimum speed flashes on НЕЕ этляттеме / > < a BANDWIDTH
the dis la Ces el START TEMP.
Р y SPEED
M Press the push-button. The word OFF is displayed, Indicating that
the minimum speed curve is deactivated. If this is not the case,
deactivate the curve as described below.
Repeat the following steps for each of the six points:
EH Press the push-button once again. The word "day" is displayed,
alternating with a day number.
B For the first point of the curve, use the adjustment knob to adjust
the day number to the desired value. For all other points of the
curve, the day number can not be adjusted.
M Press the push-button once again. The minimum speed for that
day is displayed, alternating with the letters "SPd".
BM Use the adjustment knob to adjust the minimum speed to the de-
sired value.
NOTES:
1) The minimum speed curve must be deactivated before specifying
the points on the curve (see below).
1) All six points of the curve must be specified. If you do not need
six different points, repeat your last minimum speed for each
unnecessary point of the curve.
Ili) Certain restrictions apply to reduce the risk of errors:
*decreasing minimum speeds are not allowed.
*the minimum speed variation cannot exceed 10% per day.
34 QM1336.rev.01
ST 5220
el Activating the Minimum Speed Curve
If you have just finished specifying the points on the curve:
M Press the push-button once again. The word OFF flashes on the
display.
EH Turn the adjustment knob clockwise by one notch. The word ON
flashes on the display and the Temperature Curve Pilot Light turns
on, indicating that the minimum speed curve is now activated.
If vou have previously specified the points on the curve:
EH Set the selection knob to STAGE 1 — MINIMUM SPEED / CURVE.
The current minimum speed flashes on the display.
M Press the push-button to display the points of the curve currently
defined until the word OFF appears (thirteen clicks).
EH Turn the adjustment knob clockwise by one notch. The word ON
flashes on the display the Temperature Curve Pilot Light turns on,
indicating that the minimum speed curve is now activated.
NOTE: When the minimum speed curve is operating, the current Stage
1 minimum speed can be viewed at any time by setting the selection knob
to STAGE 1 — MINIMUM SPEED / CURVE. The current day number can
then be viewed by pressing the push-button.
QM1336.rev.01 35
ST 5220
E Deactivating the Minimum Speed Curve
B Set the selection knob to STAGE 1 — MINIMUM SPEED / CURVE.
The current minimum speed flashes on the display.
M Press the push-button to display the points of the curve currently
defined until the word ON appears (fourteen clicks).
E Turn the adjustment knob counterclockwise by one notch. The word
OFF flashes on the display and the Temperature Curve Pilot Light
starts blinking, indicating that the minimum speed curve is now deac-
tivated.
36 QM1336.rev.01
ST 5220
MIST COOLING
The last cooling stage can be configured as a mist stage. The number of
heating stages determines which stage this is.
NUMBER OF HEATING STAGES MIST STAGE
4
1 3
Note that if two heating stages are needed, no mist stage can be config-
ured. The following diagram sums up the operation of the mist units. If a
mist stage is not needed, time off should be set to zero.
TIMEON
Ej — pe
MISTUNITSON
MISTUNITSOFF — — —— —
+
TIMEOFF
The diagram below illustrates the operation of a mist stage.
Л
Mist units Mist units operate
turn off in timer mode
Mist a 10
OFF | i >
Room
Set Point Start Temperature
Temp.
QM 1336.rev.01 37
ST 5220
Adjusting the Mist Starting Temperature and Timer
The mist starting temperature is bounded below by the starting temperature
of the preceding cooling stage + 0.5°F (0.3°C) and above by the starting
temperature of the preceding cooling stage + 20.0°F (11.1°C). The time on
and time off parameters can take values from 0 to 60 minutes.
If Stage 3 is the mist stage:
ROOM TEMPERATURE JILIN"
(ALARM) LO/ HIGH /
« \ à |, SET POINT /TEMP. CURVE
» ia
aL) OFF TEMP. hme MINIMUM SPEED / CURVE
eL |
HÉATER À БЛАНТ eut” O > TIMER
PF
E 1 ' A
MED START TEMP. |/ 4, BANDWIOTH
Set the selection knob to
STAGE 3 — START TEMP.
The stage 3 starting tempera-
ture is displayed, alternating
with the letters "ST3".
О IDE START TEMP.
SAP URAL IAD
SPEED STAGE 2
Use the adjustment knob to set the starting temperature to the desired
value.
Press the push-button. The mist time on is displayed, alternating with
the word "On".
Use the adjustment knob to set time on to the desired value.
Press the push-button. The mist time off is displayed, alternating with
the word "OFF".
Use the adjustment knob to set time off to the desired value.
38 QM1336.rev.01
ST 5220
If Stage 4 is the mist stage:
Set the selection knob to
STAGE 4 — START TEMP.
The mist starting temperature
is displayed, alternating with
the letters "ST4".
Use the adjustment knob to set
the starting temperature to the
desired value.
RATS | PROBE TEMP,
f
ALARM | LO/HIGH f (STAGE 1]
\ a | SETPOINT/TENP. CURVE
“№1 |
[920400] off TEMP Y y MINIMUM SPEED / CUMVE
EA TN
HEATER > > TIMER
` i a
ERC
SIGE] STARTTENR. 7» | a BANDWIDTH
BANDWIDTH START TEME.
MINIMUM
SPEED бота
Press the push-button. The mist time on is displayed, alternating with
the word "On".
Use the adjustment knob to set time on to the desired value.
Press the push-button. The mist time off is displayed, alternating with
the word "OFF".
Use the adjustment knob to set time off to the desired value.
QM 1336.rev.01 39
All heaters operate according to the average reading from all temperature
probes and only one heater off temperature is needed.
Heating A
Heater B \ /
À т HeaterAON
Heater À — Heater A OFF
f | | Room
Temperature
HEATERB HEATERA OFF Set Point
START START TEMP, = 75%
TEMP. TEMP. = 74°F
= 70°F = 72°F
If the room temperature rises:
- at 72°F: Heater B turns off.
- at 74°F: Heater A turns off.
If the room temperature falls:
- at 72°F: Heater A turns on.
- at 70°F: Heater B turns on.
40 QM1336.rev.01
EK Adjusting Starting Temperatures
The heater starting temperature is the temperature at which the heating
units turn on (see diagram above). The Heater A starting temperature is
bounded above by the off temperature — 0.5°F and below by the off
temperature — 20°F. The Heater B starting temperature is bounded above
by the Heater A starting temperature — 0.5°F and below by the Heater A
starting temperature — 20°F.
= Set selection knob to HEATER ESOS (nose veu
A — START TEMP. The cur- CU — LomiGH EXE
a: SET POINT / TEMP. CURVE
L°- 4
rent starting temperature for
Heater À is displayed, alternat-
ing with the letters "Ht.A".
y MINIMUM SPEED FEURVE
№ TIRE
A
BANDWIDTH
BANOWIDTH SANT TE BO"
MINIMUM
SPEED EZ
M Use the adjustment knob to ad-
just the starting temperature to
the desired value.
BM Setselection knob to HEATER B— START TEMP. The current starting
temperature for Heater B is displayed, alternating with the letters "Ht.b".
M Use the adjustment knob to adjust the starting temperature to the de-
sired value.
El Adjusting Off Temperature
The heater off temperature can provide substantial energy savings if cor-
rectly adjusted according to the outside temperature. lt is the temperature
below the set point at which the heating units turn off (see diagram above).
The off temperature is bounded above by the set point + 10°F and below
by the set point — 20°F.
BM Set selection knob to HEATER A/B — OFF TEMP. The current off
temperature is displayed, alternating with the letters "Ht.A".
H Use the adjustment knob to adjust the off temperature to the desired
value.
QM 1336.rev.01 41
ALARM SETTINGS
The controller sets off an alarm in the case of a power failure, a fault in the
supply circuit or a high or low temperature. Temperature alarms by high
and low temperature thresholds as shown below.
A
Room |
Temperature High Temperature Alarm
aT ST
Set Point N
No"
nt i i y a mamo a nm — Low Temperature
=
„о
Time
Adjusting the Alarm Settings
The high and low alarm offsets range from 0.5°F to 40°F. The critical
temperature ranges from -40.0°F to 99.9°F (-40.0°C to 37.7°C).
E Set the selection knob to CERTAIN One Ten
ALARM — LO/HIGH. The / \ 7 AT
) \ a SET POINT/TEMP.CURVE
current low alarm temperatu re OFF TEMP. al a y MINIMUM SPEED | CURVE
flashes on the display, alternat- RUS воет теме <. > TIMER
ing with the word "LO". НЕА sTant reme A . а BANDWIDTH
BM Use the adjustment knob to set
BANDWIDTH START TEMP.
MINIMUM
SPEED EXE
the low alarm temperature to
the desired value.
B Pressthe push-button. The current high alarm temperature flashes
on the display, alternating with the word "HI".
= Use
the adjustment knob to set the high alarm offset to the desired
value.
42 QM1336.rev.01
TROUBLESHOOTING GUIDE
PROBLEM CAUSE SOLUTION
Thereis no The circuit breakerat | Correctthe problem and reset
display. the service panel is the circuit breaker.
offortripped.
The wiring is incor- Correct the wiring.
rect.
The voltage selector Set the switch to the correct
switch is in the position.
wrong position.
The display board Be sure the cable is firmly
interconnectcableis pluggedin.
not properly plugged
into the power supply
board.
The display A room probe is Correct the room probe connec-
shows "P" when connected improp- tion.
the parameter erly.
selection knobis
set to ROOM. A room probe is Refer to "defective probes"
defective.
The defective A room or outside Referto "defective probes”
probe pilot light probeis defective.
Is on.
QM 1336.rev.01
43
PROBLEM CAUSE SOLUTION
Thedisplay A variation in resist- Be sure the probes are dry.
shows sudden ance is induced ona Locate them away from drafts
variations inthe probe. and sources of radiant heating.
room or outside Be sure the outside probe is
temperature. installed correctly. Referto
"Installing the outside probe"
There is electrical Isolate the probe cables from all
noise near a probe high voltage sources. Do not
cable. route probe cables and other
power cables through the same
electrical knockout. Do not run
probe cables next to other
power cables. When crossing
other power cables, cross at
90°.
The stage 1or2 | The wiring is incor- Correct the wiring. Be sure two
variable speed rect. different lines are connectedto
cooling fans are each fan motor: line L1 modu-
not running. lated by the controller should be
combined with anotherline (N
for 115V or L2 for 230V) to
activate the motor. Also, be sure
the stage 1 COMMON is supplied
byline L1.
The stage 1 fuse is Correct the problem and replace
open. the fuse.
Thedisplay board Be sure the cable is firmly
interconnect cableis pluggedin.
not properly plugged
into the power supply
board.
44 QM 1336.rev.01
ST 5220
PROBLEM
CAUSE
SOLUTION
The stage 1 or 2
variable speed
cooling fans are
not running.
(continued)
The minimum speed
is too low.
The fan motor is
defective.
Adjust the minimum speed to a
higher value.
Check if the motor is defective
by connecting itto an alternate
power supply. !fit still is not
operating, replace the motor.
The stage 1
variable speed
cooling fans run
erratically.
The selected motor
curve is inappropri-
ate.
The stage 1 band-
width is too small.
The stage 1 time on
or time off is too
short.
A variation in resist-
ance inducedona
room probe causes
this probe to meas-
ure sudden variations
in the room tempera-
ture.
Electrical noise near
a room probe cable
causes this probe to
measure sudden
variations in the
roomtemperature.
Select an appropriate motor
curve. Refer to "motor curves”
Adjust the stage 1 bandwidth to
a higher value.
Adjust the stage 1 time onor
time off to a higher value.
Be sure the room probes are
dry. Locate them away from
drafts and sources of radiant
heating.
Isolate the room probe cables
from all high voltage sources.
Do not route probe cables and
other power cables through the
same electrical knockout. Do
not run probe cables nextto
other power cables. When
crossing other power cables,
cross at 90”.
QM 1336.rev.01 45
PROBLEM
CAUSE
SOLUTION
The stage 1
variable speed
cooling fans run
continuously
when the room
temperature is
below the room
set point
(minimum
ventilation
cycle).
The stage 1 time off
is set to zero.
The wiring is incor-
rect.
Set the stage 1 time off to
a value other than zero.
Correct the wiring. Be sure
two different lines are connected
to each fan motor: line L1
modulated by the controller
should be combined with
another line (N for 115V or L2 for
230V) to activate the motor.
Also, be sure the
stage 1 COMMON is supplied by
lineL1.
The mistis not
operating as
desired.
The mist time on and
time off were incor-
rectly adjusted.
The mist time on and time off
are in minutes. Adjust the mist
time on and time off correctly.
The cooling fans
are not running.
or
The heaters are
notturningon.
The wiring is incor-
rect.
The stage's fuse is
open.
Correct the wiring. Be sure
two different lines are connected
to each fan motor or heater: the
controller's output line L1 should
be combined with another line
(N for 115V or L2 for 230V) to
activate the fan motor or heater.
Also, be sure the stage's
COMMON is supplied by line L1.
Replace the fuse.
46 QM1336.rev.01
ST 5220
or
The heaters are
notturning on.
(continued)
PROBLEM CAUSE SOLUTION
The cooling fans | The display board Be sure the cable is firmly
are not running. interconnect cableis pluggedin.
not properly plugged
into the power supply
board.
The fan motor or
heater is defective.
The controlleris
defective.
Check if the motor or heater is
defective by connectingitto an
alternate power supply. Ifit still
is not operating, replace the
motor or heater.
Listen to see if there is a clicking
sound when the stage or heater
pilot light turns on. If there is no
clicking sound, contact your
distributor to repairthe contro!-
ler.
QM 1336.rev.01 47
TECHNICAL SPECIFICATIONS
Supply: - 115/230 VAC (-18%, +8%), 60 Hz, L1 same phases as Stages
1 and 2, overload and overvoltage protection fuse F11-1A fast blow.
- 12 VDC for AC back-up supply; can activate stages 3 and 4 if
supplied with DC back-up voltage.
Stage 1: Variable output, 60 Hz, 10A FAN (1/2 HP/115 VAC) / (1.5 HP/
230VAC), fuse F1-15A slow blow.
Stage 2: Variable output, 60 Hz, 10A FAN (1/2 HP/115 VAC) / (1.5 HP/
230VACQC), fuse F8-15A slow blow.
Stage 3: ON-OFF output, 115/230 VAC, 60 Hz, 30VDC, 6A FAN,10A RES,
fuse F3-15A slow blow.
Stage 4: ON-OFF output, 115/230 VAC, 60 Hz, 30VDC, 6A FAN,10A RES,
fuse F4-15A slow blow.
Alarm: ON-OFF output, 115/230 VAC, 60 Hz, 30VDC, 3A, fuse F7-3A slow
blow.
Probes: Low voltage ( < 5V), isolated from the supply. Operating range:
-40.0° 0 120.0°Е (-40.0° 10 48.9°С). Accuracy: 1.8°F (1°C) between 41° and
95% (5% and 35°C).
Enclosure: ABS, moisture and dust-tight.
The room temperature where the controller is located MUST
ALWAYS REMAIN BETWEEN 32° AND 104°F (0° AND 40°C).
48 QM1336.rev.01
FACTORY SETTINGS
PARAMETER
FACTORY
SETTING
RANGE OF
VALUES
Temperature Set Point
75°F(23.9°C)
-40 to 99.9 °F
(-40 to 37.7 °C)
Minimum Speed
40 %
10 % to 100 %
Ti me On 15 seconds 0 to 900 seconds by
Stage 1 increments of 15
Time Off 0 seconds seconds
3.0°F 0.5 to 20 °F
Bandwidth (1.7°C) (0.3 to 11.1 °C)
Minimum Speed 40 % 10 % to 100 %
Set Point + Bandwidth
78.5% to Set Point +
Stage 2 ¡Starting Temp. (25.8°С) Bandwidth + 20°F
(11.1 °C)
3.0°F 0.5 to 20 °F
pandwidth (1.7°C) (0.3 to 11.1 °C)
Stage 2 Starting Temp.+
. 83.5°F Bandwidth+0.5°F to
Stage 3 ¡Starting Temp. | (28.1C) |Stage 2 Starting Temp.+
Bandwidth+20°F(11.1°C)
Stage 3 Starting Temp.+
. 85.5°F 0.5°F to Stage 3
Stage 4 |Starting Temp. (39.2°C) Starting Temp.+
20°F(11.1°C)
QM 1336.rev.01 49
FACTORY RANGE OF
A REET EI SETTING VALUES
Time On 1 minute
Mist 0 to 60 minutes
Time Off 0 minutes
Heater A -Starting 72.5% ЭЛ UR Fe of CRC)
Temp (22.5°C) to Off Temp.-20°F
(11.1°C)
Heater A Starting
Heater B -Starting 70.5°F Temp.-0.5°F(0.3°C) to
Temp. (21.4°C) Heater A Starting
Temp.-20°F (11.1°C)
Set Point-20°F(11.1°C)
Heater A / B Off Temp. (23-650) to Set Point+10°F
' (5.6°C)
Low Temp. 65°F(18.3°C) 0.5 to 40 °F
Alarm (0.3 to 22.2°C)from
High Temp. 87°F(30.6°C) Set Point
NOTES:
1) These initial parameter settings will not be retained in the controller's
memory. Each new setting will replace the preceding one.
li) If the power supply is cut off, the last parameter settings will be
retained in memory until the power is restored.
50 QM1336.rev.01
NENE
M 890-00362 rev, 01 PN895-00294 REV. 01
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
