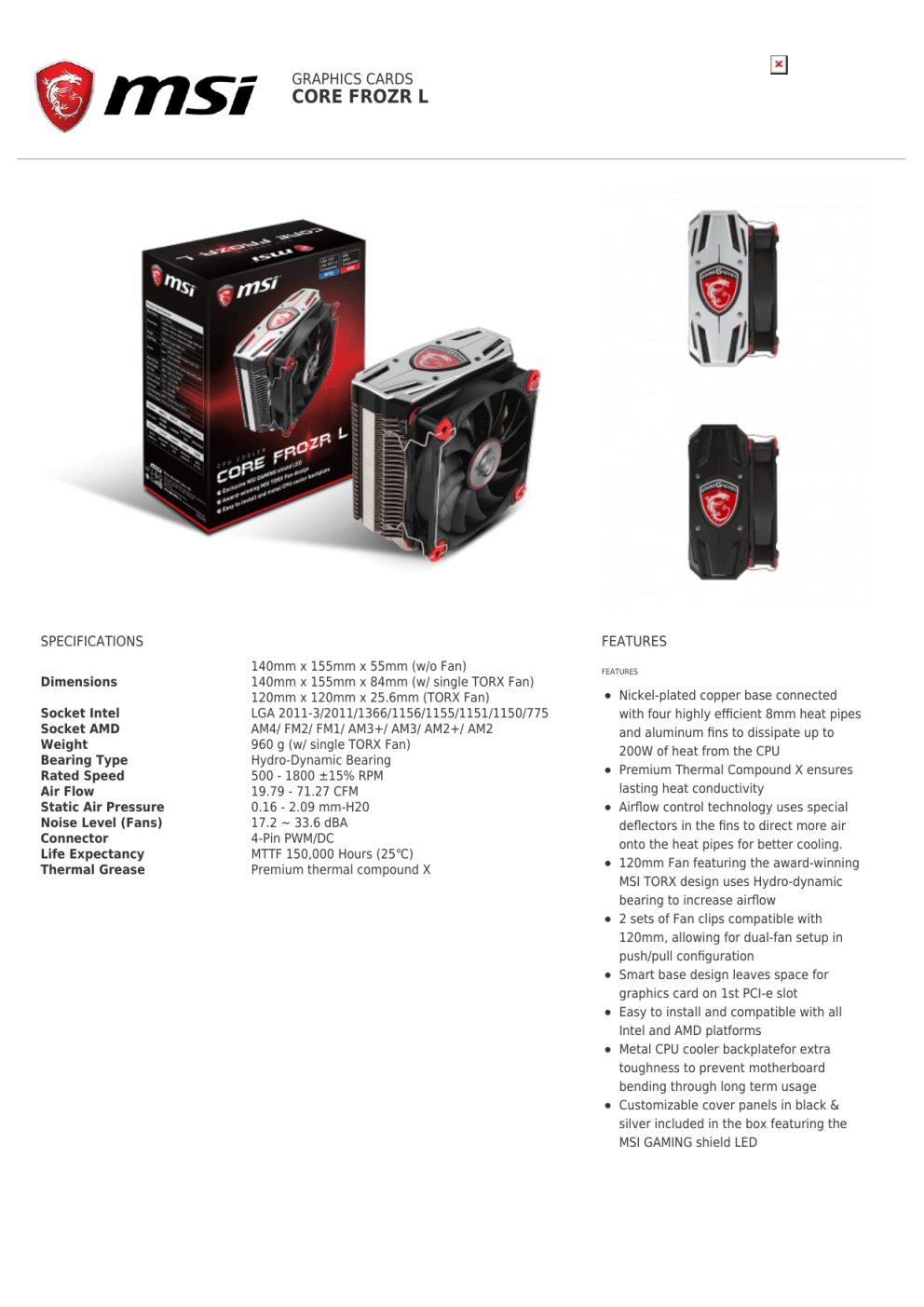

MSI MSI Core Frozr L CPU Cooling Fan Specification Sheet

GRAPHICS CARDS
CORE FROZR L
SPECIFICATIONS
Dimensions
Socket Intel
Socket AMD
Weight
Bearing Type
Rated Speed
Air Flow
Static Air Pressure
Noise Level (Fans)
Connector
Life Expectancy
Thermal Grease
FEATURES
140mm x 155mm x 55mm (w/o Fan)
140mm x 155mm x 84mm (w/ single TORX Fan)
120mm x 120mm x 25.6mm (TORX Fan)
LGA 2011-3/2011/1366/1156/1155/1151/1150/775
AM4/ FM2/ FM1/ AM3+/ AM3/ AM2+/ AM2
960 g (w/ single TORX Fan)
Hydro-Dynamic Bearing
500 - 1800 ±15% RPM
19.79 - 71.27 CFM
0.16 - 2.09 mm-H20
17.2 ~ 33.6 dBA
4-Pin PWM/DC
MTTF 150,000 Hours (25℃)
Premium thermal compound X
FEATURES
Nickel-plated copper base connected
with four highly efficient 8mm heat pipes
and aluminum fins to dissipate up to
200W of heat from the CPU
Premium Thermal Compound X ensures
lasting heat conductivity
Airflow control technology uses special
deflectors in the fins to direct more air
onto the heat pipes for better cooling.
120mm Fan featuring the award-winning
MSI TORX design uses Hydro-dynamic
bearing to increase airflow
2 sets of Fan clips compatible with
120mm, allowing for dual-fan setup in
push/pull configuration
Smart base design leaves space for
graphics card on 1st PCI-e slot
Easy to install and compatible with all
Intel and AMD platforms
Metal CPU cooler backplatefor extra
toughness to prevent motherboard
bending through long term usage
Customizable cover panels in black &
silver included in the box featuring the
MSI GAMING shield LED
