HyperX HX316C10FBK2/16 Memory Installation Manual

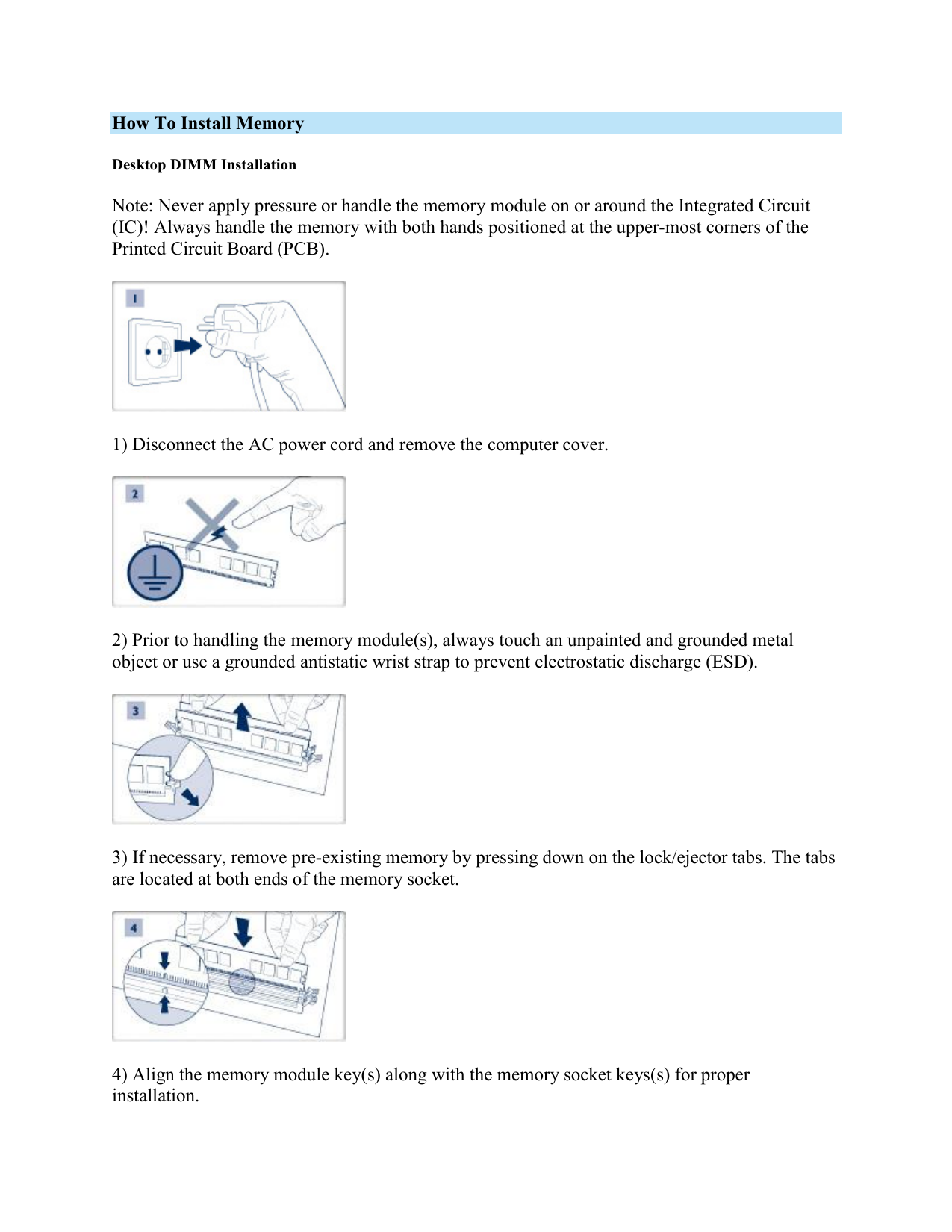

How To Install Memory
Desktop DIMM Installation
Note: Never apply pressure or handle the memory module on or around the Integrated Circuit
(IC)! Always handle the memory with both hands positioned at the upper-most corners of the
Printed Circuit Board (PCB).
1) Disconnect the AC power cord and remove the computer cover.
2) Prior to handling the memory module(s), always touch an unpainted and grounded metal
object or use a grounded antistatic wrist strap to prevent electrostatic discharge (ESD).
3) If necessary, remove pre-existing memory by pressing down on the lock/ejector tabs. The tabs
are located at both ends of the memory socket.
4) Align the memory module key(s) along with the memory socket keys(s) for proper
installation.
5) Press the memory into the socket until the tabs snap into place and secure the memory
module.
6) Replace the computer cover and plug in the AC power cord.
Notebook SO-DIMM Installation
Note: Never apply pressure or handle the memory module on or around the Integrated Circuit
(IC)! Always handle the memory with both hands positioned at the upper-most corners of the
Printed Circuit Board (PCB).
1) Disconnect the AC power cord and remove the battery.
2) Prior to handling the memory module(s), always touch an unpainted and grounded metal
object or use a grounded antistatic wrist strap to prevent electrostatic discharge (ESD).
3) If necessary, remove pre-existing memory by gently pulling the lock/ejector tabs (located on
both sides of the memory socket) away from the memory module. The memory will unlock and
pop-up 30 degrees for removal.
4) Align the memory module key along with the memory socket key and insert the memory at a
30 degree angle.
5) Rotate the memory downward until the lock/ejector tabs engage and click into place.
6) Replace the battery and plug in the AC power cord.
