Sennheiser EK 1039 Specification

Sennheiser EK 1039 Specification

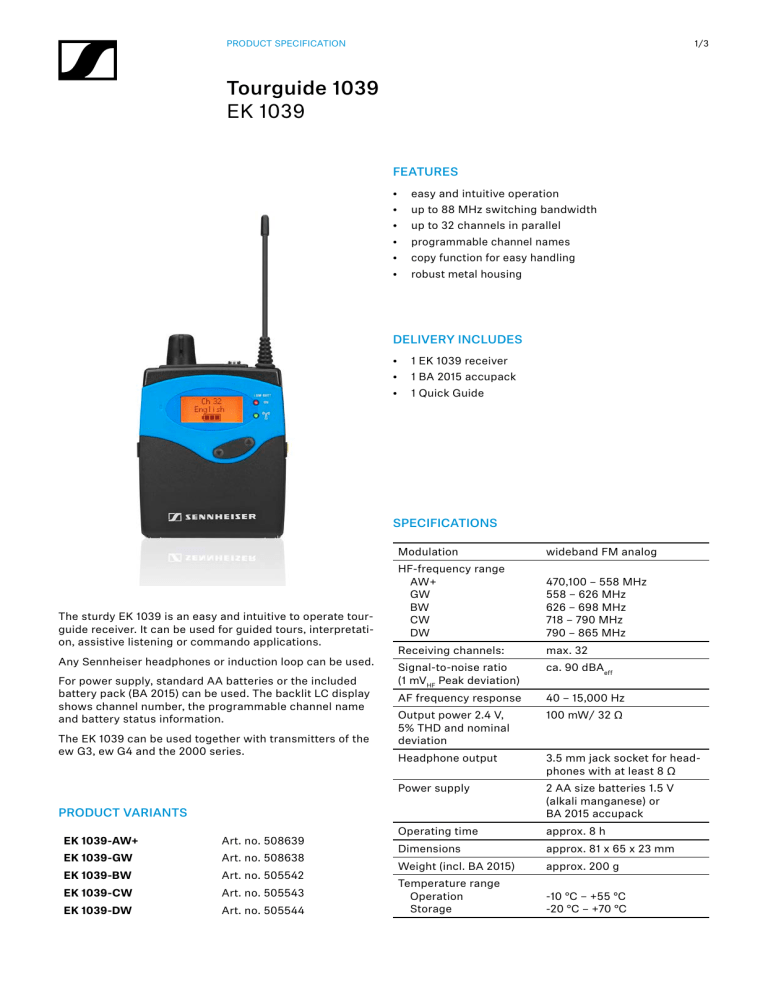

PRODUCT SPECIFICATION
1/3
Tourguide 1039
EK 1039
FEATURES
•
easy and intuitive operation
•
up to 88 MHz switching bandwidth
•
up to 32 channels in parallel
•
programmable channel names
•
copy function for easy handling
•
robust metal housing
DELIVERY INCLUDES
•
1 EK 1039 receiver
•
1 BA 2015 accupack
•
1 Quick Guide
SPECIFICATIONS
The sturdy EK 1039 is an easy and intuitive to operate tourguide receiver. It can be used for guided tours, interpretation, assistive listening or commando applications.
Any Sennheiser headphones or induction loop can be used.
For power supply, standard AA batteries or the included
battery pack (BA 2015) can be used. The backlit LC display
shows channel number, the programmable channel name
and battery status information.
The EK 1039 can be used together with transmitters of the
ew G3, ew G4 and the 2000 series.
Modulation
wideband FM analog
HF-frequency range
AW+
GW
BW
CW
DW
470,100 – 558 MHz
558 – 626 MHz
626 – 698 MHz
718 – 790 MHz
790 – 865 MHz
Receiving channels:
max. 32
Signal-to-noise ratio
(1 mVHF Peak deviation)
ca. 90 dBAeff
AF frequency response
40 – 15,000 Hz
Output power 2.4 V,
5% THD and nominal
deviation
100 mW/ 32 Ω
Headphone output
3.5 mm jack socket for headphones with at least 8 Ω
Power supply
2 AA size batteries 1.5 V
(alkali manganese) or
BA 2015 accupack
Operating time
approx. 8 h
Dimensions
approx. 81 x 65 x 23 mm
Weight (incl. BA 2015)
approx. 200 g
Temperature range
Operation
Storage
-10 °C – +55 °C
-20 °C – +70 °C
PRODUCT VARIANTS
EK 1039-AW+
Art. no. 508639
EK 1039-GW
Art. no. 508638
EK 1039-BW
Art. no. 505542
EK 1039-CW
Art. no. 505543
EK 1039-DW
Art. no. 505544
PRODUCT SPECIFICATION
2/3
Tourguide 1039
EK 1039
ACCESSORIES
Name
Description
Art. no.
L 1039-10
19" bay charger for 10x
EK 1039 (incl. power supply
units)
505632
BA 2015
Spare battery
(1x incl. in the box)
009950
L 2015
2 bay charger
NT 1-1
Power supply unit for L 2015
NT 3-1
Power supply unit for up to
three L 2015 cascaded
503159
LA 2
Charging adapter for L 2015
for charging handheld transmitters
503162
HP 02-100
Headphones
(1 m cable length)
505965
HP 02-140
Headphones
(1 m cable length)
505966
NP 02-100
Headphones
(1 m cable length)
505967
NP 02-140
Headphones
(1 m cable length)
505968
Mobile Transmitters
SK 300 G4
Range
Art. no.
SK 500 G4
Range
Art. no.
GBw
507720
GBw
507775
GW
507721
GW
507776
009828
BW
507722
BW
507777
503158
CW
507723
CW
507778
DW
507724
DW
507779
AW+
508406
AW+
508413
SKM 300 G4
Range
Art. no.
SKM 500 G4
Range
Art. no.
GBw
507728
GBw
507783
GW
507729
GW
507784
BW
507730
BW
507785
CW
507731
CW
507786
DW
507732
DW
507787
AW+
508407
AW+
508414
SKP 500 G4
Range
Art. no.
GBw
507815
Stationary Transmitters
GW
507816
Art. no.
SR 2050 IEM
Range
Art. no.
BW
507817
A1
507842
GW-X
503847
CW
507818
A
507843
BW-X
503851
DW
507819
GB
507844
CW-X
503855
AW+
508418
G
507845
DW-X
503859
B
507846
GBW
504955
C
507847
E
507848
SR IEM G4
Range
PRODUCT SPECIFICATION
3/3
Tourguide 1039
EK 1039
DIMENSIONS
ARCHITECT’S SPECIFICATIONS
The device shall be a portable adaptive diversity compact
personal receiver for use with a companion transmitter
as part of a high reliability adaptive diversity wireless
broadband FM (MPX, mono) radio frequency transmission
system. The portable receiver model shall operate within 5
RF frequency ranges 470,100 – 558 MHz; 558 – 626 MHz;
626 – 698 MHz; 718 – 790 MHz; 790 – 865 MHz; with a
maximum of 32 preset channels per range, with a switching bandwidth of maximum 88 MHz. The receiver shall
include an auto-lock feature to prevent settings from being
accidentally altered.
Audio frequency response shall be 40 – 15,000 Hz. Signal-to-noise ratio shall be ≥ 90 dBA. The earphone audio
output shall utilize a 3.5 mm audio socket with an output
power of 100 mW at 32 Ω (adjustable via receiver external control). Menubased software adjustments for channel designation shall be made using a backlit LCD user
display; display shall indicate operating channel number,
programmable channel name and battery state of charge.
The receiver shall provide function for copying settings
between receivers.
The receiver shall be fully compatible with Sennheiser
2000 series (range AW+, GW, BW, CW, and DW) and G3
/ G4 series transmitters (range A1, A, GB, G. B, C and E).
Power shall be supplied to the portable receiver by 2 “AA”
size batteries (1.5 VDC) or by one Sennheiser BA 2015
rechargeable battery pack. Operating time shall be typical
8 hours. A rechargeable batter pack shall be in the delivery. The receiver case dimensions shall be approximately
3.23" x 2.52" x 0.94" (82 x 64 x 24 mm). Weight including
battery shall be approximately 7.05 oz (200 grams). Operating conditions shall be ambient temperature +32 °F to
+104 °F (0 °C to +40 °C). The portable adaptive diversity
compact personal receiver shall be Sennheiser model
EK 1039.
