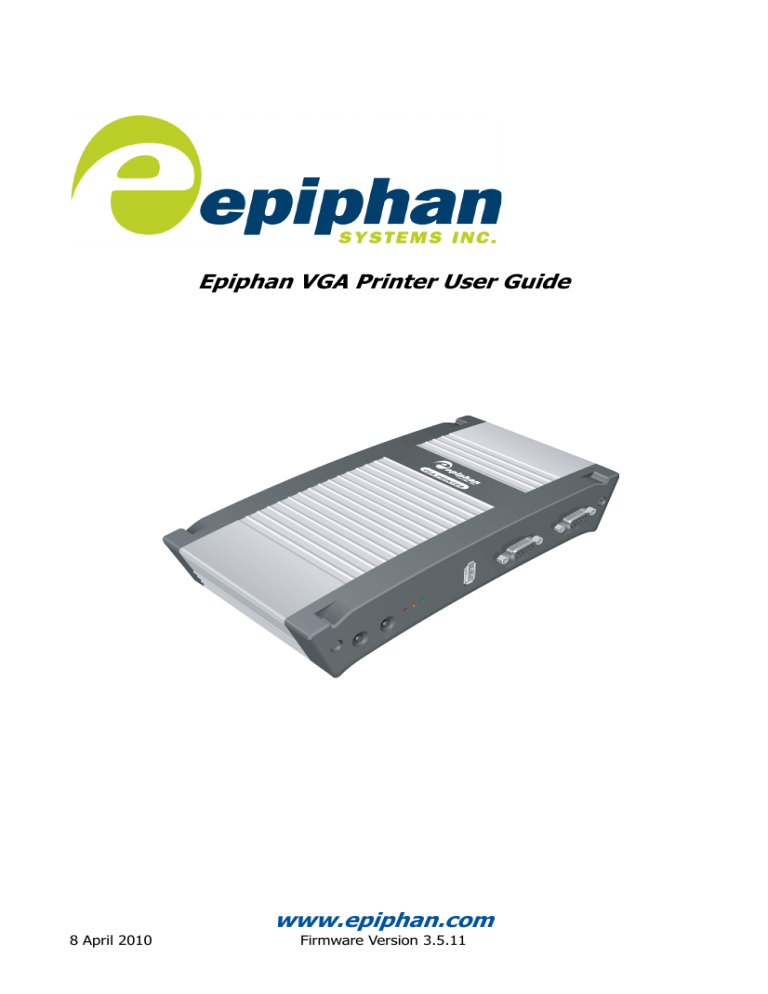

Epiphan VGA Printer User Guide

8 April 2010

www.epiphan.com

Firmware Version 3.5.11

Thank you for choosing Epiphan!

At Epiphan, product function and quality are our top priority. We make every effort to make sure that our products exceed our customers expectations. We regularly contact our customers to ensure product performance and reliability.

We strive to continually enhance our products to accommodate your needs.

Specifications

You can go to the VGA Printer page of the Epiphan website to get information about the VGA Printer.

Warranty

All Epiphan Systems products are provided with a 100% replacement warranty for one year from the date of purchase. We welcome your feedback and suggestions for product improvements. You can email your comments to [email protected]

.

Technical Support

Epiphan is staffed by a professional support team. If, after checking the FAQs for your product on the Epiphan website and re-installing the Epiphan driver software, you continue to have outstanding issues, email a problem report to [email protected]

. To help us solve the problem efficiently, include the following info:

• Your VGA Printer serial number.

• The behavior of your VGA Printer LED indicators.

• Technical description of the VGA or DVI-A signal source including resolution, refresh rate, synchronization, type of hardware.

• Complete description of the problem you’re experiencing.

Environmental Information

The equipment that you bought has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment.

In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems. Those systems will reuse or recycle most of the materials of your end life equipment in a sound way.

The crossed-out wheeled bin symbol invites you to use those systems.

If you need more information about collection, reuse and recycling systems, please contact your local or regional waste administration.

You can also contact us for more information on the environmental performance of our products.

Copyright © 2010 Epiphan Systems Inc.

The names of actual companies and products mentioned herein may be the trademarks of their respective owners.

Table of Contents

Table of Contents

1. Introduction 5

Adding Printers 6

Printing Captured Images 7

About This Document 8

2. Installation and Getting Started 9

VGA Printer Hardware Features 10

VGA Printer Basics 12

Connecting the VGA Printer Device 14

Using the Network Discovery Utility to Find the IP Address of the VGA Printer Device 16

Logging Into the VGA Printer Web admin interface 18

Troubleshooting 19

If the Network Doesn’t Have a DHCP Server 20

RS-232 Integration 25

3. Printing Basics 27

Adding Printers 27

Printing a Captured Image 33

4. VGA Printer Web admin interface 35

Adding or Changing the Administrator’s Password 36

Configuring the VGA Printer device 37

Configuring the Ethernet Bridge For Use if You Have Only

One Ethernet Connection 40

Using the VGA Printer device as a DHCP Server 45

Changing VGA Printer Sound Volume 46

Configuring VGA2USB Adjustments 46

Rebooting or Restarting the VGA Printer device 50

Maintenance Configuration 50

Web Page Configuration 54

Date and Time Configuration 54

User Guide Page 3

Table of Contents

Firmware Upgrade 55

System Information 56

5. Advanced Printer Configuration 57

Adding a Printer That the VGA Printer Device Cannot Find

Automatically 57

Deleting a Printer 67

Selecting the Default Printer 68

Controlling Print Jobs 70

Network Protocols Supported By the VGA Printer device 75

Index 79

Page 4 Epiphan VGA Printer

1. Introduction

1. Introduction

You can use the VGA Printer device to print any VGA or DVI-A display to any compatible printer with the push of a button or the click of a link on a web interface. The VGA Printer device can easily and cost-effectively capture images displayed on computer screens, or generated by medical equipment, microscopes and other specialized imaging products that have VGA or DVI-A output. While these devices may support printing, none is easier to set up or more effective than the VGA Printer device.

No special hardware is required just the VGA (or DVI-A) source and a printer that supports USB 1.1 or 2.0. You can also print to most network printers. Capturing and printing VGA or DVI-A images requires the following components:

• A VGA or DVI-A video source to capture images from.

• An Epiphan VGA Printer device that captures images from the video source and sends them to a printer.

• One or more printers to print captured images.

The VGA Printer device combines an Epiphan Frame Grabber and a computer in a small appliance. The Frame Grabber captures images. The computer records images captured by the Frame

Grabber and can send captured images to one or more configured printers. The printers can be connected directly to the VGA

Printer device with a USB cable or they can be network printers connected to the same network as the VGA printer.

Note:

The VGA Printer Frame Grabber is equivalent to a

VGA2USB or VGA2USB Pro that has been optimized for the VGA

Printer device.

The computer also provides the VGA Printer network setup and printer configuration settings, and the VGA Printer .Web admin interface. You use the VGA Printer Web admin interface to configure the VGA Printer device and to view and print captured images.

User Guide Page 5

1. Introduction

Figure 1: VGA Printer components

Adding Printers

VGA Printer

Admin Interface

Connection to printer

(USB or network)

VGA or

DVI-A

Cable

Video Source

(Equipment with VGA or

DVI-A Output)

Epiphan

VGA Printer

Printer

(Print Captured

Images)

Configuring and operating the VGA Printer device from the Web admin interface is simple. You can connect to the Web admin interface with any web browser and configure settings such as the

VGA Printer network configuration, printer settings, and image capture optimization.

The VGA Printer device can also get network settings from a

DHCP server if there is a DHCP server on the network.

Adding Printers

In most cases, adding a printer to the VGA Printer device is quick and easy, especially if the VGA Printer device can automatically find your printer.

A wide range of printer options, print job settings, and other functions are available if you require them. But in most cases once you have used the VGA Printer device to automatically find and configure a printer you do not have to spend much time working with the printer configuration.

While there are a lot of settings and options, in most cases you do not need to use them. However, they are available for advanced users or if you have special requirements.

Page 6 Epiphan VGA Printer

1. Introduction Printing Captured Images

The VGA Printer device is compatible with most printers. If you connect a printer to a VGA Printer USB port or if a network printer is connected to the same network, the VGA Printer device can usually find the printer and after a few simple steps you can be printing captured images to it.

Figure 2: Finding available printers

You can easily add more than one printer to the VGA Printer device and then select one of them to use. The VGA Printer device remembers all of the printers that you have configured. This makes it easy to move the VGA Printer device to different locations and either add a new printer or print to a previously added printer.

As well, if you have special printer needs or want to print to a printer that the VGA Printer device cannot find or does not automatically support, the VGA Printer device supports uploading PPD files or creating custom printer configurations.

Printing Captured Images

You can print captured images by pressing the Print button on the VGA Printer device. You can also print from the Web admin interface. Finally you can automate print requests using an

RS-232 interface or by using a custom VGA Printer URL.

User Guide Page 7

1. Introduction About This Document

The VGA Printer device displays the current captured image on the Web admin interface so that you can preview the image before you print it. You can also use the VGA Printer Web admin interface to add annotations to printed images and to adjust image capture settings and printer settings to optimize the printed image quality.

The VGA Printer device queues print jobs which means you can continue to print captured images without having to wait for the previous print job to finish.

About This Document

This

Epiphan VGA Printer User Guide

describes how to install the

VGA Printer device and how to use the VGA Printer device to print captured images. This document also describes VGA Printer

Web admin interface settings, and basic and advanced printer options.

This

Epiphan VGA Printer User Guide

describes Firmware Version

3.5.11 of the Epiphan VGA Printer firmware.

This document contains the following chapters:

Chapter 2. “Installation and Getting Started” on page 9

, describes how to connect the VGA Printer device to a printer, to a video source, and to a network. It also describes how to log into the VGA Printer Web admin interface.

Chapter 3. “Printing Basics” on page 27 describes how to add

a printer, and print a captured image. For many users the information in chapters 2 and 3 should be all the information needed.

Chapter 4. “VGA Printer Web admin interface” on page 35

, describes the Web admin interface options.

Chapter 5. “Advanced Printer Configuration” on page 57

, describes advanced printing functions such as manually adding printers, selecting the default printer and working with print job queues.

• This document concludes with an alphabetical

Index .

Page 8 Epiphan VGA Printer

2. Installation and Getting Started

2. Installation and Getting Started

This chapter describes how to connect and install the VGA Printer device, add a printer, and print captured images. This chapter contains the following sections:

• VGA Printer Hardware Features

• VGA Printer Software Features

• Connect and Power on the VGA Printer Device

VGA Printer Basics

Connecting the VGA Printer Device

Using the Network Discovery Utility to Find the IP Address of the VGA Printer Device

Logging Into the VGA Printer Web admin interface

Troubleshooting

If the Network Doesn’t Have a DHCP Server

RS-232 Integration

User Guide Page 9

2. Installation and Getting Started VGA Printer Hardware Features

VGA Printer Hardware Features

The VGA Printer device includes the following hardware features.

Figure 3: VGA Printer connectors, buttons, and LEDs

Power not supported

Eth 1 Eth 2

Left Side

USB USB

Page 10

Power

ETH 1

ETH 2

Reset

Button

Not

Used

LEDs USB VGA

OUT

Right Side

VGA

IN

Connect the AC adapter to the VGA Printer power connector and to a power outlet.

Primary 10/100/1000 Base-T RJ-45 autosensing Ethernet network port to connect the device to an Ethernet network.

Secondary 10/100/1000 Base-T RJ-45 autosensing Ethernet network port. This port is useful for some configurations. See

“Configuring the Ethernet Bridge For Use if

You Have Only One Ethernet Connection” on page 40 for more information.

Epiphan VGA Printer

2. Installation and Getting Started VGA Printer Hardware Features

VGA IN

To connect a VESA-compatible VGA source to the VGA Printer device. See the VGA Printer technical specifications on the Epiphan web site for information about the video input supported by the VGA Printer

VGA OUT

Not used.

USB ports

All VGA Printer devices have multiple USB

2.0 connectors (that also support USB 1.1).

You can send commands to VGA Printer device by connecting a USB port to an RS-232 control system (using a USB to RS-232

connector). See “RS-232 Integration” on page 25

for more information.

Reset Button

Reset the VGA Printer device to factory default settings. To use this button, disconnect power to the device, press and hold the Reset button as you reconnect the power. The blue

LED lights up. Keep pressing the Reset button until the blue LED turns off and the Green

LED lights up. Release the Reset button. The device starts normally but with all settings returned to factory defaults.

Note:

You may have to re-configure the device’s network settings to reconnect the device to the network. See

“Changing the

VGA Printer IP Address” on page 22

for more information.

User Guide Page 11

2. Installation and Getting Started VGA Printer Basics

VGA Printer LEDs

LED Activity Description

Red

Power

(PWR)

Capture

(CAP)

Status

(STAT)

Off

Flashing

Amber

On

Off

Flashing

Green

Normal operation, the Frame Grabber is receiving power.

Power is disconnected from the Frame

Grabber.

The video capture application is running and has found the Frame Grabber. The

Frame Grabber is capturing images.

The Frame Grabber is not receiving a

VGA/DVI-A signal, or cannot adjust video capture parameters.

The Frame Grabber is not recognized by the operating system.

Normal operation, the Frame Grabber is initialized and ready to capture.

VGA Printer Basics

To get started, a quick reference of VGA Printer system requirements and some useful information:

Video source

Printer

Interface

Any VESA-compatible VGA or DVI-A source.

USB connection and network printers that use the http, ipp, lpd, or socket protocol. The

VGA Printer device does not support printing to Windows shared network printers.

Page 12 Epiphan VGA Printer

2. Installation and Getting Started VGA Printer Basics

Recommended and Supported

Printers

See the VGA Printer compatible printers page of the Epiphan Web Site for the up-to-date list of recommended and supported printers.

PostScript printers are recommended for fastest printing. You can use the VGA Printer

Web admin interface to easily find and quickly configure printers.

Note:

You can automatically find printers connected to the VGA Printer device or on the same network. You must add a printer before you can print captured images. See

3. “Printing Basics” on page 27

.

Web admin interface

Use the Web admin interface to add printers, configure the VGA Printer device and print captured images. To log in, open a web browser to and browse to: http://<VGA_Printer_IP_Address>

User Name:

admin (no password)

Default Web admin interface IP address and network mask

IP:

192.168.255.250

Netmask:

255.255.255.252

The VGA Printer device can get an IP address from a DHCP server on your network if available. After you connect the VGA Printer device to your network, check your DHCP server logs to find the IP address assigned to the VGA Printer device. If your network does not have a DHCP server, see

“If the Network

Doesn’t Have a DHCP Server” on page 20 .

User Guide Page 13

2. Installation and Getting Started Connecting the VGA Printer Device

Connecting the VGA Printer Device

This section describes how to connect the VGA Printer device to a

VGA or DVI-A video source, a printer, and to your network. Use the network connection to connect to the VGA Printer Web admin interface. The VGA Printer device also uses the network connection to communicate with network printers.

Figure 4

shows VGA Printer connectors, buttons, and LEDs.

Figure 4: Connecting the VGA Printer device

Page 14

VGA Printer

Admin Interface

Connection to printer

(USB or network)

VGA or

DVI-A

Cable

Video Source

(Equipment with VGA or

DVI-A Output)

Epiphan

VGA Printer

Printer

(Print Captured

Images)

To connect the VGA Printer device you need:

• A VGA or DVI-A video source.

• An IP-based Ethernet network.

• One or more printers the can connect to the network or to a

VGA Printer USB port.

To connect and turn on the VGA Printer device

1

Use a VGA cable to connect the VGA signal output source to the VGA IN port.

You can connect the VGA Printer device to any VGA source.

If you are connecting to a DVI-A video signal, use a VGA to

DVI-A adapter.

Epiphan VGA Printer

2. Installation and Getting Started Connecting the VGA Printer Device

Figure 5: Connecting a the VGA Printer device to a VGA source

VGA IN

You can use an active VGA splitter to split the VGA signal between a monitor and the VGA Printer device. Splitting the

VGA signal may reduce the image quality.

2

Use a USB cable to connect a printer directly to any VGA

Printer USB port.

Follow the connection instructions supplied by your printer manufacturer for connecting your printer (except that you do not have to install printer drivers on the VGA Printer device.)

3

Use a standard 10/100 Base-T RJ-45 Ethernet cable to connect the network to the VGA Printer ETH 1 port.

The network must be running the TCP/IP protocol. Ideally you should be able to connect to the Internet from the VGA

Printer device.

4

Connect the power adapter to the VGA Printer power connector.

The VGA Printer device powers on and starts up.

5

Power on any printers connected to the VGA Printer device.

6

Start up the VGA source.

User Guide Page 15

2. Installation and Getting StartedUsing the Network Discovery Utility to Find the IP Address of

7

Confirm that the VGA Printer device is receiving images from the VGA source by logging into the VGA Printer Web admin interface (see

“Logging Into the VGA Printer Web admin interface” on page 18

) and confirming that a captured image appears.

If a captured image does not appear, check the VGA source to make sure it is transmitting a VGA image. Also check the cable between the VGA Printer device and the VGA source to make sure it is connected correctly.

Using the Network Discovery Utility to

Find the IP Address of the VGA Printer

Device

You can use the Network Discovery Utility on a Windows PC to find the VGA Printer device and its IP address on the network.

You can also use the Network Discovery Utility to connect to the

Web admin interface.

The VGA Printer device must be assigned an IP address on the network to be able to find and print to network printers. It can get an IP address from a DHCP server if there is one on the network.

If the network does not have a DHCP server, see “If the Network

Doesn’t Have a DHCP Server” on page 20 .

This section assumes that the network has a DHCP server and that the DHCP server gives the VGA Printer device an IP address on the network.

To install the Network Discovery Utility

1

Find the latest Network Discovery Utility on an Epiphan download page. For example: http://www.epiphan.com/products/broadcasting/ vga-broadcaster-lite/download/

2

Select

Download Network Discovery Utility

.

Make sure you note the download destination folder.

Page 16 Epiphan VGA Printer

2. Installation and Getting StartedUsing the Network Discovery Utility to Find the IP Address of

3

Run NetworkDiscovery.exe.

4

Select Search to find the Epiphan devices connected to the network.

Note:

The Network Discovery Utility can only find the Epiphan devices on the same network as the Windows PC.

If the VGA Printer device is operating, has received an IP address from a DHCP server, and is connected to the network, the

Network Discovery Utility should find it and it should appear on the Network Discovery Utility display. The Network Discovery

Utility also displays the VGA Printer IP address.

You can use this IP address to connect to the Web admin interface. You can also select Web config to connect to the Web admin interface.

If the VGA Printer device is capturing images, its status should be

Device OK shown with a green indicator.

Note:

When you restart the Network Discovery Utility and if it has already found an Epiphan device, it will show the status as

Detecting and the indicator will be amber. The DHCP server may have assigned a new IP address; therefore, always select Search after starting the Network Discovery Utility.

If the Network Discovery Utility cannot find the VGA Printer device, make sure the device is turned on and check the network connections. If you find and correct the problem, select Search to refresh the list of devices.

If you still cannot see the VGA Printer device, it may not have gotten an IP address from the DHCP server. Use the information

in “Changing the VGA Printer IP Address” on page 22 to log into

the Web admin interface and manually change the VGA Printer

IP address.

User Guide Page 17

2. Installation and Getting Started Logging Into the VGA Printer Web admin interface

Logging Into the VGA Printer Web admin interface

You use the VGA Printer Web admin interface to configure the

VGA Printer device. Log into the VGA Printer Web admin interface from any web browser. Before you log into the Web admin interface you need to determine the IP address of the VGA

Printer device.

Note:

You can always log into the VGA Printer Web admin interface by browsing to the default VGA Printer IP address, which is

http://192.168.255.250

. To log into the VGA Printer device using this IP address you must change your PC to use the static IP address 192.168.255.249 and netmask 255.255.255.252.

Then open a Web browser and browse to

http://192.168.255.250

.

If the Network has a DHCP Server

The VGA Printer device can get network settings automatically if the network has a DHCP server. After connecting the VGA

Printer device to the ethernet network, you can use the Network

Discovery Utility or check the DHCP server logs to determine the

IP address given to the VGA Printer device.

To log into the VGA Printer Web admin interface

1

Start a web browser on a PC connected to the same network as the VGA Printer device.

2

Browse to: http://<VGA_Printer_IP_address>

3

Enter the following:

User Name:

admin

Password:

(no password required)

Page 18 Epiphan VGA Printer

2. Installation and Getting Started Troubleshooting

4

Press Enter.

The VGA Printer Web admin interface appears. Figure 6

shows a sample VGA Printer Web admin interface with an example captured image. If the VGA Printer device is connected to an active VGA source, the Web admin interface shows the current captured image.

Figure 6: VGA Printer Web admin interface (example image)

Troubleshooting

If the VGA Printer device can’t print but the printer is connected and functioning properly you may need to select a default printer or add a new printer. Log into the VGA Printer Web admin interface and if Configure VGA Printer displays the message

Error: printer is not configured!

the VGA Printer device cannot find a printer.

User Guide Page 19

2. Installation and Getting Started If the Network Doesn’t Have a DHCP Server

• To add a new printer, see “Adding Printers” on page 27

.

• To set a printer to be the default printer, see “Selecting the

Default Printer” on page 68

.

If a printer is turned off or disconnected, VGA Printer may store print jobs in that printer’s print queue. When the printer is connected or turned on again, the stored print jobs will be printed. After the printer is restarted you may have to go to the print queue and restart print jobs for them to print. See

“Controlling Print Jobs” on page 70 for information about

viewing and starting print jobs.

If the Network Doesn’t Have a DHCP

Server

If the network doesn't have a DHCP server, to log into the VGA

Printer Web admin interface you need to temporarily change the network configuration of your PC.

You must also establish an ethernet connection between the VGA

Printer device and your PC. You can do this one of the following ways:

• Connect the VGA Printer ETH 1 port to the same Ethernet network as your PC.

• Connect the VGA Printer ETH 1 port to an Ethernet network switch and connect your PC’s Ethernet port to the same switch.

• Connect the VGA Printer ETH 1 port directly to your PC’s

Ethernet port using a cross-over cable.

Page 20 Epiphan VGA Printer

2. Installation and Getting Started If the Network Doesn’t Have a DHCP Server

To log into the VGA Printer Web admin interface

1

Change the IP address of a PC connected to the same network as the VGA Printer device to:

IP Address:

192.168.255.249

Subnet Mask:

255.255.255.252

Follow the instructions for your operating system. If your operating system supports adding more than one IP address, then you can add this IP address as a second IP address instead of changing the current address.

Figure 7: VGA Printer Web admin interface (with an example captured image)

2

Start a web browser on the PC and browse to: http://192.168.255.250

User Guide Page 21

2. Installation and Getting Started If the Network Doesn’t Have a DHCP Server

3

Enter the following:

User Name:

admin

Password:

(no password required)

4

Press Enter.

The VGA Printer Web admin interface appears. Figure 7 shows a sample VGA Printer Web admin interface. If the VGA source is active, the display shows a captured image.

Otherwise it will be blank.

Changing the VGA Printer IP Address

You can change the VGA Printer IP address at any time. You may need to change the IP address so that PCs on the network can connect to the VGA Printer Web admin interface and so that the

VGA Printer device can connect to network printers.

• If the network does not have a DHCP server you will most likely need to change the VGA Printer IP address.

• If the network does have a DHCP server you might also want to change the VGA Printer IP address if you would rather the the VGA Printer device have a static IP address instead of a dynamic address assigned by the DHCP server.

• You can also change the VGA Printer IP address even if the

DHCP server has assigned an IP address. If for some reason the DHCP server goes down, you can switch the VGA Printer to connect using the static IP address.

To change the VGA Printer IP address

This procedure describes how to disable DHCP and give the VGA

Printer device a static IP address.

1

Log into the VGA Printer Web admin interface.

2

Scroll down to

Change IP Address

.

You can also use your web browser find feature to find

Change IP Address.

Page 22 Epiphan VGA Printer

2. Installation and Getting Started If the Network Doesn’t Have a DHCP Server

Figure 8: Change the VGA Printer IP address

3

Set

How to obtain IP address

to

Use static address

.

You must disable DHCP for the VGA Printer device to use a static IP address.

4

Enter an

IP

address,

Mask

,

Gateway

, and

DNS server

that are valid for the network.

Contact your network administrator if you are not sure what information to use. The IP address, netmask, gateway, and

DNS server that you assign to the VGA Printer device must be compatible with the IP addresses and netmask of the other devices on the network. For example:

IP:

Mask:

Gateway:

DNS server:

192.168.1.20

255.255.255.0

192.168.1.2

192.168.1.99

5

Select

Change IP Address Configuration

to save these changes.

The VGA Printer device displays the changed IP address configuration.

User Guide Page 23

2. Installation and Getting Started If the Network Doesn’t Have a DHCP Server

Figure 9: Example VGA Printer IP address configuration change

Page 24

6

Confirm that the settings are correct and select

Continue

.

7

Scroll down the Web admin interface to the

Reboot the system

section and select

Reboot

. Then select

Continue

.

It takes a few minutes for the VGA Printer device to reboot.

8

After a few minutes try logging into the VGA Printer Web admin interface by browsing to the new IP address. For example, browse to: http://192.168.1.20

9

Enter the Web admin interface user name and password to login.

To reset network settings to use DHCP

By default, if you connect the VGA Printer device to a network with a DHCP server, the DHCP server will automatically configure the VGA Printer network settings. If required you can disable DHCP settings to use a static IP address. This procedure describes how to re-enable DHCP settings that have been disabled.

1

Log into the VGA Printer Web admin interface.

2

Scroll down to

Change IP Address

.

You can also use your web browser find feature to find

Change IP Address.

3

Change

How to obtain IP address

to

Use DHCP

.

4

Select

Continue

.

5

Scroll down the Web admin interface to the

Reboot the system

section and select

Reboot

. Then select

Continue

.

It takes a few minutes for the VGA Printer device to reboot.

Epiphan VGA Printer

2. Installation and Getting Started RS-232 Integration

6

After a few minutes check the Network Discovery Utility or your DHCP server logs to determine the VGA Printer IP address.

7

Try logging into the VGA Printer Web admin interface by browsing to the new IP address. For example, if the VGA

Printer IP address has changed to 192.168.1.200, browse to: http://192.168.1.200

RS-232 Integration

You can integrate the VGA Printer device with control equipment that uses an RS-232 interface. You can use this RS-232 interface to trigger the VGA Printer device to print the current captured image by sending a PRINT command over the RS-232 connection.

The PRINT command must be terminated with an LF (ASCII code

10).

Connect your control equipment to the VGA Printer using a standard RS-232 null-modem cable. (such as Belkin Serial File

Transfer cable part number F3X171-10). You must use an RS-232 serial adapter to connect the RS-232 null-modem cable to one of the VGA Printer USB ports.

The VGA Printer package does not include an RS-232 serial adapter but you can purchase one from Epiphan as an optional accessory.

Use the following serial port configuration for the RS-232 connection:

Speed

Data bits

Parity

Stop bits

Flow control

19200 bps

8

None

1

Hardware

User Guide Page 25

2. Installation and Getting Started RS-232 Integration

Page 26 Epiphan VGA Printer

3. Printing Basics Adding Printers

3. Printing Basics

This chapter describes how to add a printer, and print captured images. This chapter contains the following sections:

Adding Printers

Printing a Captured Image

Adding Printers

You can add a printer to the VGA Printer device if the printer is connected directly to a VGA Printer USB port or if the printer is connected to the same network as the VGA Printer device.

You can add almost any printer, but Epiphan recommends that you add a compatible printer listed on the VGA Printer compatible printers page of the Epiphan Web Site. This page contains the up-to-date list of recommended and supported printers. PostScript printers are recommended for fastest printing.

Note:

To add a printer that is not supported by the VGA Printer

device, see the information provided in Chapter 5. “Advanced

Printer Configuration” on page 57 .

The VGA Printer device uses the Common UNIX Printing System

(CUPS) to communicate with locally connected and network connected printers. This section describes some basic procedures for using the VGA Printer CUPS implementation. For detailed information about CUPS, see http://www.cups.org

.

Note:

Chapter

5. “Advanced Printer Configuration” on page 57

contains additional detailed CUPS-related procedures for the

VGA Printer device.

The procedures for adding a local or a network printer are similar. This procedure describes how to add either type of printer. Before starting this procedure:

User Guide Page 27

3. Printing Basics Adding Printers

• If you want to print to a printer connected directly to the VGA

Printer device, connect the printer to a VGA Printer USB port and turn on the printer.

• If you want to print to a network printer, make sure the network printer is on the same network and subnet as the

VGA Printer device and make sure the printer is turned on.

Also make sure the VGA Printer device can connect to the network.

To add a printer (local or network)

1

Log into the Web admin interface.

2

Scroll down to

Configure VGA Printer

.

Figure 10:Configure VGA Printer

Page 28

3

Select

Printers configuration and jobs control

.

You may have to enter the admin username and password again before the Printers page appears.

Epiphan VGA Printer

3. Printing Basics

Figure 11:Printers page

Adding Printers

4

Select

Find New Printers

.

The VGA Printer device searches for locally connected printers and network printers. All printers that the VGA

Printer device finds appear on the Available Printers list.

Figure 12:Example Available Printers list

If this list doesn’t find the printer that you want to add, you

can add the printer manually. See “Adding a Printer That the

VGA Printer Device Cannot Find Automatically” on page 57 .

5

Select

Add This Printer

beside the printer that you would like to add to the VGA Printer device.

User Guide Page 29

3. Printing Basics

Figure 13:Adding a printer

Adding Printers

6

Optionally change any information about the Name, Location, and Description of the printer.

The printer Name cannot include spaces.

7

Select

Continue

.

The list of printer drivers appears.

Page 30 Epiphan VGA Printer

3. Printing Basics

Figure 14:List of printer drivers

Adding Printers

8

Select the best printer driver for the printer that you are adding.

The VGA Printer device usually selects the correct printer driver but if not, find the printer in the list.

If the printer does not appear in the list, see

“Adding a Printer

That the VGA Printer Device Cannot Find Automatically” on page 57 .

9

Select

Add Printer

.

The VGA Printer device adds the selected printer. This may take a short while. After the printer is added, a message is displayed letting you know that the printer was added successfully. Then, Set Printer Options appears.

User Guide Page 31

3. Printing Basics

Figure 15:Set Printer Options

Adding Printers

Page 32

You can now select options for the printer. In most cases you don’t have to change the default options. You can also go back and change them later.

If you do change printer options, make sure to make all required changes before selecting

Set Printer Options

.

Note:

The VGA Printer device only prints in landscape mode.

You can’t change to portrait mode.

10

Select

Set Printer Options

.

The VGA Printer device saves the printer configuration. This may take a short while. Information about the printer that you added appears.

Epiphan VGA Printer

3. Printing Basics

Figure 16:Printer Added

Printing a Captured Image

You can now start printing captured images on this printer.

You can also add additional printers by selecting

Find New

Printers

and repeating this procedure.

Note:

See Chapter

5. “Advanced Printer Configuration” on page 57

for more printer-related procedures.

Printing a Captured Image

There are 3 ways to print a captured image:

• Press the Print Image button on the right side of the VGA

Printer device.

• Log into the VGA Printer Web admin interface and select the

Print Page Now

button located below the captured image.

• Using an RS-232 port connection. See

“RS-232 Integration” on page 25 .

If you have added only one printer, the captured image is printed on this printer. If you have added more than one printer, the captured image is sent to the printer at the top of the list.

If you have made one of the printers the default printer the captured image is printed on the default printer. To set or change the default printer, see

“Selecting the Default Printer” on page 68

.

User Guide Page 33

3. Printing Basics Printing a Captured Image

Figure 17:Print Page Now button on the Web admin interface

Page 34

Triggering Printing From a Third-Party

Application

You can integrate the VGA Printer device with a third-party application or a script that “touches” the Print Page Now URL to trigger the VGA Printer device to print the currently captured image. If the VGA Printer IP address is 1.1.1.1 a print URL could be: http://1.1.1.1/admin/submit.cgi?cmd=prnow

.

You must also include the admin user name and password. To do this, you can combine the URL with authentication using a tool such as

Wget

. For example, if you use

Wget

and the VGA Printer

Web admin interface password is vga_print the syntax could be: wget --http-user=admin --http-passwd="vga_print"

“http://1.1.1.1/admin/submit.cgi?cmd=prnow”

See http://en.wikipedia.org/wiki/Wget for information about

Wget.

Epiphan VGA Printer

4. VGA Printer Web admin interface

4. VGA Printer Web admin interface

This chapter describes configuring the VGA Printer Web admin interface options. The following parts of the Web admin interface

are described in Chapter 2. “Installation and Getting Started” on page 9 .

• Printing the captured image. See

“Printing a Captured Image” on page 33

.

• Changing the VGA Printer IP address. See “Changing the

VGA Printer IP Address” on page 22 .

This chapter describes:

Adding or Changing the Administrator’s Password

Configuring the VGA Printer device

Configuring the Ethernet Bridge For Use if You Have Only

One Ethernet Connection

Using the VGA Printer device as a DHCP Server

Changing VGA Printer Sound Volume

Configuring VGA2USB Adjustments

Rebooting or Restarting the VGA Printer device

Maintenance Configuration

Web Page Configuration

Date and Time Configuration

Firmware Upgrade

System Information

User Guide Page 35

4. VGA Printer Web admin interface Adding or Changing the Administrator’s Password

Adding or Changing the

Administrator’s Password

Add a password for the Web admin interface to control access to the interface. You can add a password or change the password at any time.

Note:

If you lose or forget the admin password you can contact

Epiphan Technical Support for help to reset it.

To add a password to the Web admin interface

1

Log into the Web admin interface.

The Change Administrator's Password section appears at the top of the Web admin interface.

Figure 18:Change Administrator's Password

2

Enter and repeat the new password.

The password is case sensitive and can include up to 255

ASCII characters.

3

Select

Change Administrator Password

and select

Continue

.

The password changes and you must log into the Web admin interface again.

4

Log into the Web admin interface with the admin user name and the new password.

To delete the Web admin interface password

You can delete the Web admin interface password if you don’t want to require administrators to enter a password to log into the

Web admin interface.

Page 36 Epiphan VGA Printer

4. VGA Printer Web admin interface Configuring the VGA Printer device

Note:

Removing the Web admin interface password makes it easier for unauthorized users to change the VGA Printer configuration.

1

Log into the Web admin interface.

The Change Administrator's Password section appears at the top of the page.

2

Delete the characters from the Administrator’s password and the Repeat the password fields.

3

Select

Change Administrator’s Password

.

The password is deleted and you must log into the Web admin interface again.

4

Log into the Web admin interface with the admin user name and no password.

Configuring the VGA Printer device

You can use the Configure VGA Printer section of the Web admin interface to configure color transformations, page fit, and to add annotations and the date and time to the pages printed by the

VGA Printer device.

When you are done configuring the printer, select Change Printer

Settings to apply the changes.

Figure 19:Configuring the VGA Printer device

User Guide Page 37

4. VGA Printer Web admin interface Configuring the VGA Printer device

Configured

Printer

Color

Transformation

Shows the current default printer. This is the printer you are configuring the VGA Printer device for.

In some cases, you may want to transform some of the colors in the print of the captured image. For example, if you are capturing images with a dark background and white text you might want to select

Invert all colors

so that in the printed image the background is light and the text is dark.

You can also select

Invert black only

, if you want to keep the colors the same in the printed image but convert black in the captured image to white in the printed image.

You might want to select this option if the captured image has a lot of black in it.

If you select

Invert all colors

or

Invert black only

you can also enter a %

invert threshold

value to control the brightness of the printed inverted image. The higher the %invert threshold the brighter the image.

Note:

Color transformations affect the printed image only and not the captured image displayed on the VGA Printer Web admin interface.

Page 38 Epiphan VGA Printer

4. VGA Printer Web admin interface Configuring the VGA Printer device

Page Fit

Annotation

The VGA Printer device prints one image per page and scales captured images up or down to fit on the page size configured for the printer.

Fit image keeping original aspect ratio

is the default setting. This setting scales the image to fit on the printed page without distorting the image. This setting may result in white space on the printed page if the image doesn’t match the shape of the page.

You would usually select this page fit option to avoid distortion of the image if the shape of the captured image is very different from the shape of the printer page.

Select

Fit image to fill the whole page

to scale the image to fill as much of the printed page as possible. Usually you would only select this option if the captured image closely matched the shape of the printed page. If the captured image was a much different shape than the page this page fit option could distort the image an unacceptable amount.

You can select

Add annotation to the printed page

to add text to each captured image printed by the VGA Printer device. The text appears at the bottom of the page. Add the text for the annotation to the

Annotation text

field.

You can also select

Include timestamp to the annotation

to add the current date and time to the right of the annotation in the printed image. The date and time format is yyyy-mm-dd hh:mm:ss.

User Guide Page 39

4. VGA Printer Web admin interface Configuring the Ethernet Bridge For Use if You Have Only

Configuring the Ethernet Bridge For

Use if You Have Only One Ethernet

Connection

You can use the ethernet bridge setting to connect devices or networks to the VGA Printer ETH 1 and ETH 2 ports. This section describes:

Connecting a PC and an Ethernet Network to the VGA Printer

Device

Connecting a Network Printer Directly to the VGA Printer

ETH 2 Port

Connecting a PC and an Ethernet Network to the VGA Printer Device

In some cases you may only have one network connection available for a PC and for the VGA Printer device. To connect both the PC and the VGA Printer device to the network you can do the following.

To connect a PC and an Ethernet network to the VGA

Printer device

In this configuration the VGA Printer ETH 1 and ETH 2 interfaces act like a 2-port hub allowing the PC to connect to the network.

For best performance you should connect the PC to ETH 1 and the

Ethernet network to ETH 2. Also, the overhead required to forward packets between ETH 1 and ETH 2 can affect the performance of the device. You can temporarily improve performance by disconnecting ETH 2 from the network.

1

Log into the Web admin interface.

2

In the

Ethernet Bridge

section, select

Enable

.

3

Select

Change Ethernet Bridge Configuration

.

4

Select

Continue

.

Page 40 Epiphan VGA Printer

4. VGA Printer Web admin interface Configuring the Ethernet Bridge For Use if You Have Only

5

Scroll down the Web admin interface to the

Reboot the system

section and select

Reboot

. Then select

Continue

.

It takes a few minutes for the device to reboot.

6

Connect ETH 1 directly to the PC using a cross-over or regular

Ethernet cable.

7

Connect ETH 2 to the network.

Figure 20:Connecting a network and a PC to the VGA Printer device

Ethernet

Network

ETH 2

VGA

Cable

ETH 1

VGA source

PC

Connecting a Network Printer Directly to the

VGA Printer ETH 2 Port

You can use the following procedure to connect a supported network printer directly to a VGA Printer Ethernet port. Usually you would connect the printer to the ETH 2 port and keep the

ETH 1 port available for connecting a PC or for connecting the

VGA Printer device to a network.

User Guide Page 41

4. VGA Printer Web admin interface Configuring the Ethernet Bridge For Use if You Have Only

This procedure is useful if you do not have access to a local

Ethernet network and you want to connect a network printer.

This procedure can also be useful if you have only one Ethernet connection and you want to connect both the VGA Printer and a network printer to the network.

To connect a network printer directly to the VGA Printer

ETH 2 port

In this configuration the ETH 1 and ETH 2 interfaces act like a

2-port hub allowing both the network printer and the PC to connect to the VGA Printer device.

For best performance you should connect the PC to ETH 1 and the printer to ETH 2. Also, the overhead required to forward packets between ETH 1 and ETH 2 can affect the video capture performance of the device. To improve performance do not print from the PC and the VGA Printer device at the same time.

Note:

This procedure uses example IP addresses for the network printer, the PC, and the VGA Printer device. You can use any three addresses as long as they are on the same subnet.

1

Manually configure the network printer with an IP address netmask, and gateway. For example:

IP address

: 192.168.10.102

Netmask

: 255.255.255.0

Gateway

: 192.168.10.200

2

Connect the VGA Printer ETH 1 port directly to the PC’s

Ethernet port using a cross-over cable.

Page 42 Epiphan VGA Printer

4. VGA Printer Web admin interface Configuring the Ethernet Bridge For Use if You Have Only

3

Log into the Web admin interface.

If you have been able to assign the VGA Printer an IP address log in using that IP address. Otherwise, use the following steps:

• Change the IP address of the PC connected to ETH 1 to:

IP Address:

192.168.255.249

Subnet Mask:

255.255.255.252

Follow the instructions for your operating system. If your operating system supports adding more than one IP address, then you can add this IP address as a second IP address instead of changing the current address.

• Start a web browser on the PC and browse to: http://192.168.255.250

• Enter the following:

User Name:

admin

Password:

(no password required)

• Press Enter to log into the Web admin interface.

4

In the

Ethernet Bridge

section, select

Enable

.

5

Select

Change Ethernet Bridge Configuration

.

6

Select

Continue

.

7

Scroll down the Web admin interface to the

Reboot the system

section and select

Reboot

. Then select

Continue

.

It takes a few minutes for the device to reboot.

8

Scroll down to

Change IP Address

.

9

Set

How to obtain IP address

to

Use static address

.

10

Enter the following network settings:

IP:

Mask:

Gateway:

DNS server:

192.168.10.101

255.255.255.0

192.168.10.200

(leave blank)

User Guide Page 43

4. VGA Printer Web admin interface Configuring the Ethernet Bridge For Use if You Have Only

11

Change the IP address of the PC connected ETH 1 to:

IP Address:

192.168.10.103

Subnet Mask:

255.255.255.252

12

Connect ETH 2 directly to the printer Ethernet port using a cross-over or regular Ethernet cable.

13

Log into the Web admin interface by browsing to the following IP address: http://192.168.10.101

14

Follow the instructions in

“Adding Printers” on page 27

to add the network printer to the VGA Printer configuration.

Figure 21:Connecting a network printer directly to the VGA

Printer ETH 2 port

Printer

(Print Captured

Images)

ETH 2

VGA

Cable

ETH 1

VGA source

PC

Page 44 Epiphan VGA Printer

4. VGA Printer Web admin interface Using the VGA Printer device as a DHCP Server

Using the VGA Printer device as a DHCP

Server

You can configure the VGA Printer device to act as a DHCP server on the network. To configure the VGA Printer device to act as a DHCP server, enable the DHCP server on the device and enter the range of IP addresses that the DHCP server can provide.

You might want to configure the VGA Printer DHCP server if the network you are connecting your the VGA Printer device to does not have a DHCP server and you want to automatically set the IP addresses of the some of the devices on your network using

DHCP.

To enable the VGA Printer DHCP server

1

Log into the Web admin interface.

2

Scroll down to the

DHCP Server

section.

Figure 22:DHCP server

3

Select

Run DHCP Server

.

4

Enter the Start and End addresses of the IP address range that the DHCP server can assign to devices on the network.

5

Select

Change DHCP Server Configuration

.

6

Scroll down to

Reboot the system

.

7

Scroll down the Web admin interface to the

Reboot the system

section and select

Reboot

. Then select

Continue

.

It takes a few minutes for the device to reboot and resume operation with the new DHCP server configuration.

User Guide Page 45

4. VGA Printer Web admin interface Changing VGA Printer Sound Volume

Changing VGA Printer Sound Volume

You can configure the VGA Printer device to produce a sound each time a print request is received. You can also set the sound volume level. Set sound volume to 0 to turn sound off.

You can set the sound volume to 10, 25, 50, 75, or 100. Try different sound levels until you find the one that works for you.

Configuring VGA2USB Adjustments

The VGA Printer device automatically adjusts image capture settings every time it starts up. This automatic adjustment is repeated every 60 seconds during operation. You can change the interval between automatic adjustments if you want them to occur more or less often.

Normally you would not have to make manual image adjustments. However, you may have special requirements or for other reasons have image quality problems that can only be fixed by making manual adjustments.

The Web admin interface contains most of the information that you need to make image adjustments including a brief description of the affect of each adjustment and the adjustment range.

Because image adjustments are made automatically there are no default image adjustment settings. Also, changing image adjustments means making relative adjustments from the settings auto configured by the system.

To configure image adjustments from the Web admin interface

1

Log into the Web admin interface.

2

Scroll down to the

VGA2USB Adjustments

section.

Page 46 Epiphan VGA Printer

4. VGA Printer Web admin interface

Figure 23:Image adjustment options

Configuring VGA2USB Adjustments

3

Enter values for the image capture settings that you want to adjust.

For information about each setting, see “Image Adjustment

Settings” on page 48

.

4

Select

Save and Apply VGA2USB Adjustments

.

5

Select

Continue

.

If image adjustments are required, you may need to make them in small increments to avoid loss of image synchronization. If image synchronization is lost, the device will stop responding and stop capturing images. You may have to wait a few minutes before the device will start responding again. You can disconnect the video cable for 10 seconds to reset image synchronization. You can also reset image synchronization by restarting the device. See

“Rebooting or Restarting the VGA Printer device” on page 50 .

To reset image adjustments from the Web admin interface

1

Log into the Web admin interface.

User Guide Page 47

4. VGA Printer Web admin interface Configuring VGA2USB Adjustments

2

Scroll down to the

VGA2USB Adjustments

section.

3

Delete the values from the fields for each image adjustment that you want to reset.

4

Select

Save and Apply VGA2USB Adjustments

.

5

Select

Continue

.

Image Adjustment Settings

Interval

Vertical shift

Horizontal

Shift

Phase

Change the interval between automatic adjustments if you want them to occur more or less often.

Configure vertical shift to offset the captured image position. For example, a captured image shifted slightly downward (vertically), can be corrected with minor adjustments to the vertical shift settings.

Increasing or decreasing the value entered in the

Vertical Shift field shifts the image up or down.

Configure horizontal shift to offset the captured image position. For example, a captured image shifted slightly to the right (horizontally) can be corrected with minor adjustments to the horizontal shift settings.

Increasing or decreasing the value entered in the

Horizontal Shift field shifts the image to the left or right.

Configure Phase (also called sampling phase) to adjust the horizontal resolution of the image.

Improperly adjusted phase will result in a fuzzy image. You can adjust the sampling phase in small steps until a sharper image is displayed.

Page 48 Epiphan VGA Printer

4. VGA Printer Web admin interface Configuring VGA2USB Adjustments

PLL adjustment

Offset and

Gain

Aspect

Ratio

Configure PLL to adjust the vertical synchronization properties of the image. The

PLL adjustment may need to be changed when there is a repetitive distortion or blurriness on the horizontal axis of the image. You can adjust the PLL setting in small steps until a sharper image is displayed.

Use the offset and gain controls together to optimize image quality. Increasing gain amplifies weak signals but also increases noise.

Increasing offset reduces background noise but also reduces the overall signal.

Balance offset and gain to achieve the best quality image. You should adjust these settings by the smallest values possible to achieve the best results. You can compensate for a large change to one by making a large change to the other, but setting both offset and gain to high values can result in poorer video quality.

Set the aspect ratio of the captured image. The default aspect ratio is 4:3. You can change the aspect ratio to wide mode so that the device can accurately capture wide aspect ratio VGA modes.

It's not always possible for the Epiphan device driver to distinguish between video modes when they have the same number of rows, for example, 1024x768 and 1280x768. You can change the aspect ratio to Wide Mode if you want the driver to choose wide video mode in these situations.

User Guide Page 49

4. VGA Printer Web admin interface Rebooting or Restarting the VGA Printer device

Rebooting or Restarting the VGA

Printer device

Some configuration changes, require you to reboot the VGA

Printer device. For an example, see

“Changing the VGA Printer IP

Address” on page 22

. You may also want to reboot the VGA

Printer device for other reasons.

To reboot or restart the device

1

Log into the Web admin interface.

2

Scroll down to

Reboot the system

.

3

Select

Reboot

.

The VGA Printer device takes a short time to reboot and resume operation.

Maintenance Configuration

The VGA Printer device uses the maintenance configuration settings that you set on the Web admin interface to communicate with the Epiphan maintenance server. This allows Epiphan to review the VGA Printer configuration, firmware version, and other basic operating parameters. If you are having problems with the VGA Printer device and you contact Epiphan Support, the support team can use this maintenance information to help remotely troubleshoot the problems.

Note:

The VGA Printer device does not send private information to the Epiphan maintenance server, just basic operation and configuration information. The amount of traffic sent to the

Epiphan maintenance server is small. The traffic should not affect network or Internet connection throughput.

Page 50 Epiphan VGA Printer

4. VGA Printer Web admin interface Maintenance Configuration

By default, the maintenance configuration uses TCP port 30 to communicate with the Epiphan maintenance server. The default address of the Epiphan maintenance server is

epiphany.epiphan.com

. The VGA Printer device must be able to find a DNS server to resolve the epiphany.epiphan.com address and then must be able to connect to this address on the Internet using TCP port 30.

If there is a firewall or other device protecting the network, the configuration of this device may have to be changed for the VGA

Printer device to connect to the Epiphan maintenance server.

Contact your network administrator for assistance.

Figure 24:Maintenance Configuration

You can change the following maintenance configuration settings.

Enable

Remote

Support

Allow Epiphan Support to log into the VGA

Printer device with special access privileges to troubleshoot problems.

Enable

Connection to

Maintenance server

The VGA Printer device establishes an outgoing

TCP connection to the Epiphan maintenance server using TCP port 30. Using this connection, the device sends information to the Epiphan maintenance server and Epiphan Support can use this maintenance connection to remotely log into your VGA Printer device.

User Guide Page 51

4. VGA Printer Web admin interface Maintenance Configuration

Maintenance

Server

The address of the Epiphan maintenance server.

This address is usually epiphany.epiphan.com.

However, you can change this address if required, (but usually only as recommended by

Epiphan Support). For example, you may have to change this address to a numeric IP address if the

VGA Printer device cannot connect to a DNS server.

Maintenance

Port

The TCP port that the VGA Printer device uses to connect to the Epiphan maintenance server. This is usually port 30. However, you can change this address if required or as recommended by

Epiphan Support.

You can enable and disable remote support and the connection to the maintenance server independently. The following table describes the results of different configurations.

Enable

Remote

Support

Enable

Connection to

Maintenance

Server Result

Yes Yes

No Yes

The VGA Printer device connects to the Epiphan maintenance server. If required, Epiphan Support can remotely connect to the device with special access privileges.

The VGA Printer device connects to the Epiphan maintenance server.

Epiphan Support can remotely connect to the Web admin interface with the same access privileges as an administrator.

Page 52 Epiphan VGA Printer

4. VGA Printer Web admin interface Maintenance Configuration

Enable

Remote

Support

Enable

Connection to

Maintenance

Server Result

Yes

No

No

No

The VGA Printer device does not connect to the Epiphan maintenance server. If required, Epiphan Support can remotely connect to the device with special access privileges if you provide remote access to the network in some other way (for example, using port forwarding). Contact

Epiphan Support for assistance.

The VGA Printer device does not connect to the Epiphan maintenance server. If required, Epiphan Support can remotely connect to the Web admin interface with the same access privileges as an administrator if you provide remote access to the network in some other way (for example, using port forwarding). Contact

Epiphan Support for assistance.

To change maintenance configuration settings

1

Log into the Web admin interface.

2

Scroll down to

Maintenance Configuration

.

3

Change settings as required and select

Save and Apply

Settings

.

The changes take effect right away.

User Guide Page 53

4. VGA Printer Web admin interface Web Page Configuration

Web Page Configuration

You can use the Web admin interface web page configuration setting to change how often the captured image is refreshed.

Change the Autorefresh time as required and select

Save and

Apply Settings

.

Date and Time Configuration

You can set date and time manually or you can Enable Time synchronization. It is important that the VGA Printer device has the correct time if you include the date and time annotation on printed pages.

Enable time synchronization, to update the date and time using a time server. You can select

NTP

to get date and time updates from a public network time protocol (NTP) server by connecting to the server over the Internet. NTP users UDP port 123. The default NTP server is

time.nrc.ca

. You should change this to an

NTP server recommended for your location.

For complete information about NTP, including a list of recommended NTP servers, see The NTP Public Services Project .

To make sure you get the correct time from an NTP server, you should select the correct

Time Zone

for the location of the VGA

Printer device.

If the device cannot connect to the Internet and if you have an

RDATE server on your network, you can set time synchronization to use

RDATE

(defined by RFC 868).

Contact your network administrator for the address of the RDATE server and enter the

RDATE server IP address into the Server IP Address field.

In both cases, you can control how often the date and time are updated. The

Time Update

interval can be every 1, 6, 12, or 24 hours. You can also set Time Update to check for the correct date and time just before printing an image.

Page 54 Epiphan VGA Printer

4. VGA Printer Web admin interface Firmware Upgrade

Firmware Upgrade

You can obtain new firmware versions from Epiphan Support.

New firmware is released to fix known problems or to add new features.

To install new firmware

Installing new firmware can take several minutes. Once you start a firmware upgrade, you cannot print captured images until the firmware upgrade is complete.

1

Get the new firmware file from Epiphan Support.

2

Place a copy of the firmware file on the PC you use to connect to the Web admin interface.

3

Log into the Web admin interface.

4

Scroll down to

Firmware Upgrade

.

5

Select

Browse

and then select the firmware file.

6

Select

Save and Upgrade Firmware

.

The firmware uploads. The VGA Printer device unpacks the firmware update file, verifies the contents and then upgrades the firmware.

Messages similar to the following appear on the Web admin interface.

Local update detected: /tmp/rfc1867_NHWCk7

Unpacking update...

linux initrd.img

rootfs.img

syslinux.cfg

default.cf.default

boot.img

md5sum

Verifying update...

linux: OK initrd.img: OK rootfs.img: OK syslinux.cfg: OK default.cf.default: OK boot.img: OK

Substituting files. Do NOT interrupt...

Update completed successfully. You can reboot the system.

User Guide Page 55

4. VGA Printer Web admin interface System Information

7

Select

Continue

.

To complete the firmware upgrade you must reboot the VGA

Printer device.

8

Scroll to the

Reboot the system

section of the Web admin interface, select

Reboot

and select

Continue

.

The device reboots and starts up running the new firmware.

This may take a few minutes.

9

Log into the Web admin interface.

10

Scroll down to

System Information

and select

View System

Information

.

11

Confirm that the VGA Printer device is running the new firmware version.

System Information

Scroll down to

System Information

and select

View System

Information

to display the following:

• The current firmware version including details of the firmware build

• Information about the Frame Grabber installed in your VGA

Printer

• Information about the VGA Printer device CPU

• VGA mode information.

Figure 25:System Information

Page 56 Epiphan VGA Printer

5. Advanced Printer ConfigurationAdding a Printer That the VGA Printer Device Cannot Find Au-

5. Advanced Printer Configuration

This chapter describes some advanced printer configuration procedures for the VGA Printer device. In most cases, you would only need the information in this chapter if the VGA Printer device cannot find and configure a printer automatically.

The VGA Printer device uses the Common UNIX Printing System

(CUPS) to communicate with locally connected and network printers. This chapter describes some basic procedures for using the VGA Printer CUPS implementation. For more information about CUPS, see http://www.cups.org

.

This chapter contains the following sections:

Adding a Printer That the VGA Printer Device Cannot Find

Automatically

Deleting a Printer

Selecting the Default Printer

Controlling Print Jobs

Network Protocols Supported By the VGA Printer device

Adding a Printer That the VGA Printer

Device Cannot Find Automatically

The VGA Printer device can usually automatically find any printer that is turned on and either directly connected to the VGA

Printer device or connected to the same network as the VGA

Printer device. However, if the VGA Printer device can’t find a printer that you want to add, you can use the procedures in this section to add and configure the printer manually.

You can also use these procedures if you want to add a printer that is not currently connected to the to the VGA Printer device or the network. For example, if you are moving the VGA Printer device to a new location or network, you can add a printer that is at the new location before you move the device.

User Guide Page 57

5. Advanced Printer ConfigurationAdding a Printer That the VGA Printer Device Cannot Find Au-

This section contains two procedures. You can use the first one,

“Adding a Printer Manually” on page 58

, if the VGA Printer device can’t find a printer that you want to add. You can use the second procedure,

“Adding a Printer Using a PPD File” on page 64 , if the VGA Printer device can’t find a printer that you

want to add and you have a PPD file for that printer or if you would like to attempt to get a PPD file for that printer.

Adding a Printer Manually

Use the following procedure to manually add a printer. Before you start this procedure you should know the following:

• The name and manufacturer of the printer.

• If the printer is connected to a network, the network protocol used by the printer (see

“Network Protocols Supported By the

VGA Printer device” on page 75 ).

To add a printer manually

1

Log into the Web admin interface.

2

Scroll down to the

Configure VGA Printer

section.

3

Select

Printers configuration and jobs control

.

You may have to enter the admin username and password.

The Printers page appears.

Figure 26:Printers page (no printers added)

Page 58 Epiphan VGA Printer

5. Advanced Printer ConfigurationAdding a Printer That the VGA Printer Device Cannot Find Au-

4

Select

Add Printer

.

The Add New Printer page appears.

Figure 27:Adding a new printer

5

Enter descriptive information about the printer.

You must enter a name and the name cannot include spaces or the / and # characters. If you add more than one printer, the

VGA Printer device lists the printers in alphabetical order by name. You cannot change the Name after you add the printer.

Entering the location and description is optional, but it can be useful to enter this information to make it easier to identify the printer. You can add or change the location and description information later.

6

Select

Continue

.

The Device page appears.

User Guide Page 59

5. Advanced Printer ConfigurationAdding a Printer That the VGA Printer Device Cannot Find Au-

Figure 28:Select the printer device

7

Select how the VGA Printer device communicates with the printer.

• If the printer is a network printer select the correct network

protocol (See “Network Protocols Supported By the VGA

Printer device” on page 75 ).

• If the printer is, or will be connected directly to a VGA

Printer USB port, select

USB Serial Port #1

.

8

Select

Continue

.

The page that is displayed next depends on whether you are adding a network printer or a printer that is connected to a

USB port.

9

Configure how the VGA Printer device connects to the printer:

• If the printer is a network printer, enter the Device URI for

the printer. (See “Network Protocols Supported By the

VGA Printer device” on page 75

)

Page 60 Epiphan VGA Printer

5. Advanced Printer ConfigurationAdding a Printer That the VGA Printer Device Cannot Find Au-

Figure 29:Device URI for a network printer

• If the printer is connected directly to the VGA Printer device select

Continue

. You do not have to change serial port settings.

Figure 30:Serial port settings for a USB-connected printer

User Guide

The Make/Manufacturer page appears.

Page 61

5. Advanced Printer ConfigurationAdding a Printer That the VGA Printer Device Cannot Find Au-

Figure 31:Select the printer Make/Manufacturer

Page 62

10

At this point you can optionally upload a PPD file for the printer. If you have a PPD file, see the procedure

“To use a

PPD file to add a printer” on page 64 .

11

Select the name of the manufacturer of the printer.

12

Select

Continue

.

13

Select the printer model name.

14

Select

Add Printer

.

The printer is added and you can optionally change printer controls such as page size, and print resolution. The printer controls that are available depend on the printer.

Epiphan VGA Printer

5. Advanced Printer ConfigurationAdding a Printer That the VGA Printer Device Cannot Find Au-

15

You can either change printer controls or select

Set Printer

Options

to add the printer and complete this procedure.

If the VGA Printer device can add the printer, a message appears indicating that the printer has been successfully added.

Figure 32:Printer added

16

Select the

Printers

tab to display all added printers. The printers are displayed in alphabetical order by name.

17

Select

VGA Printer Config

to return to the Web admin interface.

18

Scroll down to the

Configure VGA Printer

section and make sure that the VGA Printer device will print to the correct printer. If the VGA Printer device will not print to the correct printer you can set the correct printer to be the default printer.

See

“Selecting the Default Printer” on page 68

.

User Guide Page 63

5. Advanced Printer ConfigurationAdding a Printer That the VGA Printer Device Cannot Find Au-

Figure 33:The printer that the VGA Printer device will print to is displayed in the Configure VGA Printer section of the

Web admin interface

Page 64

Adding a Printer Using a PPD File

A PPD file is a text file that describes a printer. You can add a PPD file to the VGA Printer device to add the configuration settings for a printer.

Usually, you can get a PPD file from the printer manufacturer.

PPD files are also available for many printers from this CUPS web page: http://www.cups.org/ppd.php

. You can also test PPD files, to confirm that they are compatible with CUPS and may work with the VGA Printer device, at http://www.cups.org/testppd.php

.

To use a PPD file to add a printer

1

Follow steps

1

to

9

of the procedure “To add a printer manually” on page 58

.

Epiphan VGA Printer

5. Advanced Printer ConfigurationAdding a Printer That the VGA Printer Device Cannot Find Au-

Figure 34:Uploading a PPD file

2

Select

Browse

, select the PPD file and then select open.

3

Select

Add Printer

to upload the PPD file to the VGA Printer device.

The printer is added to the VGA Printer device and you can optionally change printer controls such as page size, and print resolution. The printer controls that are available depend on the PPD file.

4

You can either change printer controls or select

Set Printer

Options

to add the printer and complete this procedure.

A message appears indicating that the printer has been successfully added.

User Guide Page 65

5. Advanced Printer ConfigurationAdding a Printer That the VGA Printer Device Cannot Find Au-

Figure 35:Printer added

Page 66

5

Select the

Printers

tab to display all added printers. The printers are displayed in alphabetical order by name.

6

Select

VGA Printer Config

to return to the Web admin interface.

7

Scroll down to the

Configure VGA Printer

section and make sure that the VGA Printer device will print to the correct printer. If the VGA Printer device will not print to the correct printer you can set the correct printer to be the default printer.

See “Selecting the Default Printer” on page 68 .

Epiphan VGA Printer

5. Advanced Printer Configuration Deleting a Printer

Figure 36:The printer that the VGA Printer device will print to is displayed in the Configure VGA Printer section of the

Web admin interface

Deleting a Printer

You can delete any printer added to the VGA Printer device.

Deleting a printer removes the printer’s configuration settings.

If you delete the default printer or the printer that the VGA

Printer device was printing to, you may have to select another

printer to be the default printer. See “Selecting the Default

Printer” on page 68

.

To delete a printer

1

Log into the Web admin interface.

2

Scroll down to the

Configure VGA Printer

section.

3

Select

Printers configuration and jobs control

.

You may have to enter the admin username and password.

The Printers page appears.

4

Scroll down the list of printers to find the printer to delete.

5

Select

Delete Printer

, for the printer to delete.

6

Confirm that you want to delete the printer.

A message appears indicating that the printer has been successfully deleted.

User Guide Page 67

5. Advanced Printer Configuration Selecting the Default Printer

7

Select

VGA Printer Config

to display the Web admin interface.

8

Check the

Configure VGA Printer

section. If the message

Error: printer is not configured!

appears, you must add a new printer or set one of the already added printers to be the default printer.

• To add a new printer, see “Adding Printers” on page 27 or

“Adding a Printer That the VGA Printer Device Cannot

Find Automatically” on page 57 .

• To set a printer to be the default printer, see

“Selecting the

Default Printer” .

Selecting the Default Printer

If you have added more than one printer, you may need to change the printer that the VGA Printer device prints to. You change the printer by making the printer that you want the VGA

Printer device to print to the default printer.

Also, if you delete the printer that the VGA Printer device was printing to, you may need to select a default printer.

Note:

You don’t always have to select a default printer. Setting the default printer is available if you want to change the printer that the VGA Printer device prints to, or if

Configure VGA

Printer

displays the message

Error: printer is not configured!

.

Only one printer can be the default printer. If the default printer is turned off or disconnected, print jobs are stored in that printer’s print queue. You can either move those print jobs to another printer, or the stored print jobs will be printed when the printer is connected or turned on again. You may have to start the print jobs manually, see

“Controlling Print Jobs” on page 70

).

To change the default printer

1

Log into the Web admin interface.

2

Scroll down to the

Configure VGA Printer

section.

Page 68 Epiphan VGA Printer

5. Advanced Printer Configuration Selecting the Default Printer

3

Select

Printers configuration and jobs control

.

The Printers page appears.

Figure 37:Printers page

4

Find the printer to set as the default printer and select the

Set

As Default

button.

The VGA Printer device sets the printer as the default printer and displays the status of the printer.

User Guide Page 69

5. Advanced Printer Configuration

Figure 38:The default printer

Controlling Print Jobs

Controlling Print Jobs

When you select to print a captured image, the VGA Printer device creates a print job. The print job is added to the current or default printer’s job queue and then sent to the printer.

If you send captured images faster than the printer can print them, multiple print jobs are added to the printer’s job queue. The

VGA Printer device then sends the print jobs to the printer one at a time in the order in which you selected to print them.

All print jobs in the print queue have a unique ID which consists of the printer name followed by a consecutive number. For a given printer, the VGA Printer device prints jobs in ID order. If a print job with a lower ID is stopped, print jobs with higher IDs will not print. You must restart, cancel, or move a stopped print job to print the jobs below it in the print queue.

Page 70 Epiphan VGA Printer

5. Advanced Printer Configuration

Figure 39:Example print queue

Controlling Print Jobs

You do not normally have to work with VGA Printer print jobs or print job queues, but working with print jobs can be useful for checking the status of print jobs and for solving some printing problems. Also, if a printer is turned off or disconnected and you send print jobs to it, the print jobs are stored in that printer’s print queue. You can either move those print jobs to another printer or when the printer is connected or turned on again, the VGA

Printer device sends the stored print jobs to the printer. After the printer is restarted, you may have to go to the print queue and restart print jobs for them to print.

To view an individual printer’s print jobs

1

Log into the Web admin interface.

2

Scroll down to the

Configure VGA Printer

section.

3

Select

Printers configuration and jobs control

.

The Printers page appears.

4

To see the print job queue, select the printer icon for the printer.

The print jobs for the selected printer are displayed.

A number of options are available from the print jobs queue including:

Reject Jobs

to prevent the VGA Printer device from queueing jobs for this printer.

Move All Jobs

to move all print jobs to another printer’s print queue.

Cancel All Jobs

to cancel all jobs in this printer’s queue.

User Guide Page 71

5. Advanced Printer Configuration Controlling Print Jobs

Figure 40:Example print job queue for a printer showing two print jobs

Page 72 Epiphan VGA Printer

5. Advanced Printer Configuration Controlling Print Jobs

You can use the Search function to only display some jobs.

You can display all jobs completed by this printer since the

VGA Printer device was powered on.

For each print job you can:

Reprint job

to start a print job that has been stopped.

Hold job

to temporarily stop the VGA Printer device from printing this job. The VGA Printer device will print the next job in the queue.

Release job

to release a held job for printing.

Cancel job

to cancel a print job and remove it from the queue.

Move job

to move a print job to another printer.

To view all print jobs

1

Log into the Web admin interface.

2

Scroll down to the

Configure VGA Printer

section.

3

Select

Printers configuration and jobs control

.

The Printers page appears.

4

Select the

Jobs

tab to view all print jobs for all printers.

Similar to viewing the print jobs for an individual printer you can reject, move, cancel, reprint, and hold jobs.

To restart stopped print jobs

Use the following procedure to restart print jobs that have been stopped. The print jobs could have been stopped because they were added to the queue of a printer that was not connected or turned on, moved to a printer’s print queue from another print queue, or for other reasons. In most cases, the following steps will restart a stopped print job.

1

Log into the Web admin interface.

2

Scroll down to the

Configure VGA Printer

section.

3

Select

Printers configuration and jobs control

.

The Printers page appears.

User Guide Page 73

5. Advanced Printer Configuration Controlling Print Jobs

4

To restart print jobs, select the printer icon for the printer.

The print jobs for the selected printer are displayed.

5

To print all of the

stopped

print jobs, select

Reprint job

for each stopped print job.

To move jobs from one printer to another

You can easily move jobs from one printer’s queue to another printer’s queue even if the printers are completely different. After you move a print job, you can start it printing on the printer that you moved it to.

1

Log into the Web admin interface.

2

Scroll down to the Configure VGA Printer section.

3

Select

Printers configuration and jobs control

.

The Printers page appears.

4

To display the print jobs to move, select the

Jobs

tab to display all print jobs or select a printer to view the jobs for that printer.

5

Select

Move Job

.

6

Select the name of the printer to move the job to.

The print job is added to the selected printer’s print queue.

Usually the job state is set to stopped.

7

Select the printer that you moved the print job to.

8

For the job that you moved, select

Reprint Job

to print the moved job.

Page 74 Epiphan VGA Printer

5. Advanced Printer Configuration Network Protocols Supported By the VGA Printer device

Network Protocols Supported By the

VGA Printer device

The VGA Printer device supports most network printers that use the following protocols:

• AppSocket/HP JetDirect

• Internet printing protocol (ipp or http)

• line printer daemon (LPD or LPR)

Printer discovery is currently accomplished using the SNMP protocol; however, future versions of CUPS will also include support for multicast DNS service discovery as well.

See the CUPS document Using Network Printers for more information about network printing including a table of common device URIs.

Note:

The VGA Printer device does not support printing to

Windows network shared printers.

AppSocket/HP JetDirect

The AppSocket protocol (sometimes also called the JetDirect protocol, because of its origins with the HP JetDirect network interfaces) is the simplest, fastest, and generally the most reliable network protocol used for printers. AppSocket printing normally happens over port 9100 and uses socket URIs: socket://ip-address-or-hostname socket://ip-address-or-hostname?waiteof=false socket://ip-address-or-hostname:port-number socket://ip-address-or-hostname:port-number?waiteof=false

Examples: socket://192.168.20.34

socket://MyPrinter?waiteof=false socket://192.168.34.56:9100 socket://10.10.10.23:9100?waiteof=false

User Guide Page 75

5. Advanced Printer Configuration Network Protocols Supported By the VGA Printer device

The “waiteof” option controls whether the socket backend waits for the printer to complete the printing of the job. The default is to wait.

Internet Printing Protocol (ipp or http)

IPP is supported by some network printers and print servers. IPP support may be inconsistent so you should only use IPP when the vendor actually documents official support for it. IPP printing normally happens over port 631 and uses the http or ipp URIs: http://ip-address-or-hostname:port-number/resource http://ip-address-or-hostname:portnumber/resource?option=value http://ip-address-or-hostname:portnumber/resource?option=value&option=value ipp://ip-address-or-hostname/resource ipp://ip-address-or-hostname/resource?option=value ipp://ip-address-orhostname/resource?option=value&option=value ipp://ip-address-or-hostname:port-number/resource ipp://ip-address-or-hostname:portnumber/resource?option=value ipp://ip-address-or-hostname:portnumber/resource?option=value&option=value

Examples: http://192.168.20.1:631/ipp/ http://MyPrinter/ipp/port1 http://10.10.10.23:631/ipp?compression=gzip ipp://192.168.22.34/ipp ipp://OurPrinter/ipp/port3

Page 76 Epiphan VGA Printer

5. Advanced Printer Configuration Network Protocols Supported By the VGA Printer device

Line Printer Daemon (LPD or LPR) Protocol

LPD is supported by many network printers. LPD printing normally uses port 515 and lpd URIs: lpd://ip-address-or-hostname/queue lpd://ip-address-or-hostname/queue?option=value lpd://ip-address-or-hostname

/queue?option=value&option=value

Examples: lpd://192.168.45.123/queue lpd://MyPrinter/queue?banner=on

User Guide Page 77

5. Advanced Printer Configuration Network Protocols Supported By the VGA Printer device

Page 78 Epiphan VGA Printer

Index

Symbols

% invert threshold 38

Numerics

2-port hub 40, 42

A

add

annotation to the printed page 39

printer 59

printers 27

add password

admin 36

address

maintenance server 51

adjustments

image 46

admin interface 5

adding a password 36

default IP address and netmask 13

log in 18, 20

web page configuration 54

admin password

add 36

advanced

printer configuration 57

annotation 39

adding to printed pages 37

text 39

AppSocket 75

aspect ratio

image adjustments 49

autorefresh 54

B

basics 12

bridge

Ethernet 40, 43

button

print image 33

reset 11

buttons and controls 10

C

cancelling print jobs 70, 71

captured image

adjustments 46

does not appear 16

printing 7, 33

change

DHCP server configuration

45

Ethernet bridge configuration 40, 43

IP address 22, 43

IP address configuration 23

color transformation 38

printed pages 37

common UNIX printing system

(CUPS) 57

compatible printers 27

configured printer 38

connect to VGA printer

no DHCP server 20

connecting

printer to VGA printer 15

VGA Printer 14

connection to maintenance server

maintenance configuration

51

connector

USB 11

connectors 10 connectors and buttons 10

User Guide Page 79

Page 80 control interface

RS-232 25

controlling print jobs 70

CUPS 57

D

dark background 38

date and time

adding to printed pages 37

configuration 54 synchronization 54

default 68

printer 63, 68

VGA Printer IP address 18

delete

printer 67

the web admin interface password 36

description

printer 59

device

printer 59

device URI

printer 60

DHCP

configuring VGA Printer as a

DHCP server 45

enabling 24

server 6, 18, 20, 45

turning on 24

DNS server 23, 51

download

network discovery utility 16

E

Error

printer is not configured! 19,

68

ETH 1 40, 41, 42

connector 10

Eth 1 42

ETH 2 40, 41, 42

connector 10

Eth 2 42, 44

Ethernet

connection to VGA printer 15

network 10

Ethernet bridge 40, 43 configuring 40

F

firewall 51

firmware

upgrade 55

fit image

keeping original aspect ratio

39 to fill the whole page 39

G

gain

image adjustments 49

gateway 23

getting started 9

H

holding print jobs 73

horizontal resolution

image adjustments 48

horizontal shift

image adjustments 48

HP JetDirect 75 http 75, 76

hub 40, 42

I

ID

print job 70


confirm that VGA printer is receiving 16

scaling 39

Epiphan VGA Printer

image adjustments 46

aspect ratio 49 gain 49

horizontal resolution 48 horizontal shift 48 interval 48

offset 49

phase 48

PLL adjustment 49

reset 47

sampling phase 48 settings 48 vertical shift 48

vertical synchronization 49 wide mode 49

image capture

settings 46

image synchronization

recovering 47

include timestamp to the annotation 39

information

system 56

install

network discovery utility 16

installation 9

internet printing protocol 75, 76

interval

image adjustment 46, 48

invert

all colors 38 black only 38

IP address

changing 22

default 18

DHCP server 18

VGA Printer default 13

ipp 75, 76

J

job

print 70 job queue 70 cancel jobs 70, 71

hold jobs 73

ID 70

moving jobs to another

printer 68, 70, 71, 74 reject jobs 71

release jobs 73 reprint jobs 73, 74

restart jobs 70, 71

restart stopped jobs 73 search jobs 73

status 71

view jobs 73

viewing print jobs 71

L

landscape 32

LEDs 10

VGA2USB 12

line printer daemon 75, 77

location

printer 59

log in

admin interface 18, 20

LPD 75, 77

LPR 75, 77

M

maintenance

changing the maintenance configuration 53

configuration 50

default maintenance server

IP address 51 enable connection to maintenance server 51 enable remote support 51

maintenance server 52 port 52

server 50

server configuration 52

User Guide Page 81

maintenance server

TCP port 51

make

printer manufacturer 61

mask 23

model name

printer 62

move

VGA printer 57

N

name

printer 59

netmask 23

network discovery utility 16 download 16 install 16

network printer 28

network settings 6

DHCP server 6

network time protocol 54

NTP

date and time server 54

NTP Public Services Project 54

null-modem cable 25

O

offset

image adjustments 49

one Ethernet connection 40

P

page fit 39

printed pages 37

page size 62

password

add admin password 36 adding 36 deleting 36 if you loose or forget 36

PC

changing the network configuration 20

phase

image adjustments 48

PLL adjustment

image adjustments 49

port

maintenance 52

portrait 32

power

connecting 15

connector 10

power on 14

PPD 58, 62, 64

getting a PPD file for your printer 64 testing PPD files 64

uploading 65

uploading PPD files 7

PRINT

RS-232 interface command

25

print

from an application 34

queue 71

touching a URL 34

print image

button 33

print resolution 62

Page 82 Epiphan VGA Printer

printer 68

add 27

adding 6, 28

adding a disconnected printer 57 adding manually 57

adding using a PPD file 58,

62, 64

adding when you can’t connect 57 advanced configuration 57

cancelling print jobs 70, 71

configuration 57

connected to a USB port 28

connecting to VGA printer 15

controlling print jobs 70

default 63, 68

deleting 67

description 59 device 59

holding print jobs 73

interface 12

job queue 70 job queue ID 70

location 59

make and manufacturer 61

model name 62

moving print jobs to another

printer 68, 70, 71, 74

name 59

network 28

not connected 57

print job status 71

recommended and supported 13

rejecting print jobs 71

releasing print jobs 73

remote 57

reprinting print jobs 73, 74

restarting print jobs 70, 71

restarting stopped print jobs

73 searching print jobs 73

setting the default printer 68

VGA Printer cannot find 57

viewing print jobs 71, 73

printers configuration and jobs control 28, 58

printing

captured images 7, 33

script 34 using a third-party application 34

protocol 77

provide a PPD file 65

Q

queue

cancelling print jobs 70, 71

holding print jobs 73

moving print jobs to another

printer 68, 70, 71, 74

print job 70 print job ID 70

print job status 71 rejecting print jobs 71

releasing print jobs 73 reprinting print jobs 73, 74

restarting print jobs 70, 71

restarting stopped print jobs

73 searching print jobs 73

viewing print jobs 71, 73

R

RDATE

date and time server 54

reboot 56

VGA Printer 24, 50

recommended

printers 13

rejecting print jobs 71

releasing print jobs 73

User Guide Page 83

Page 84 remote support

maintenance configuration

51

reprinting print jobs 73, 74

reset

button 11

image adjustments 47

restart 50

restarting print jobs 70, 71

restarting stopped print jobs 73

RS-232

integration 25 printing 25

Run DHCP Server 45

S

sampling phase

image adjustments 48

scale

image 39

script

printing 34

searching print jobs 73

serial port settings 61

set as default 69

set printer options 63

settings

image adjustments 48

sound

volume 46

static IP address 22

stopped jobs

restarting 73

supported

printers 13

synchronization

date and time 54

system information 56

T

TCP port 30

default maintenance port 51

third-party application

printing 34

time

configuration 54 synchronization 54 time zone 54 update 54 time.nrc.ca 54

troubleshooting 19, 50

turn on power 14

U

UDP port 123 54

update

time 54

upgrade

firmware 55

URI 75

printer device 60

USB

USB Serial Port #1 60

USB connectors 11

use DHCP 24

use static address 23, 43

V

vertical shift

image adjustments 48

vertical synchronization

image adjustments 49

VGA IN

connector 11

VGA mode information 56

VGA OUT

connector 11

VGA Printer 50

VGA signal output

connecting 14

VGA source

connecting 14

Epiphan VGA Printer

VGA2USB

adjustments 46

LEDs 12 video source 12

view system information 56

viewing print jobs 71, 73

volume

sound 46

W

web admin interface 5, 13

deleting the password 36

options 35

web page configuration 54

Wget 34

white text 38

wide mode

image adjustments 49

Windows network shared printers

75

Z

zone

time zone 54

User Guide Page 85

Page 86 Epiphan VGA Printer

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
