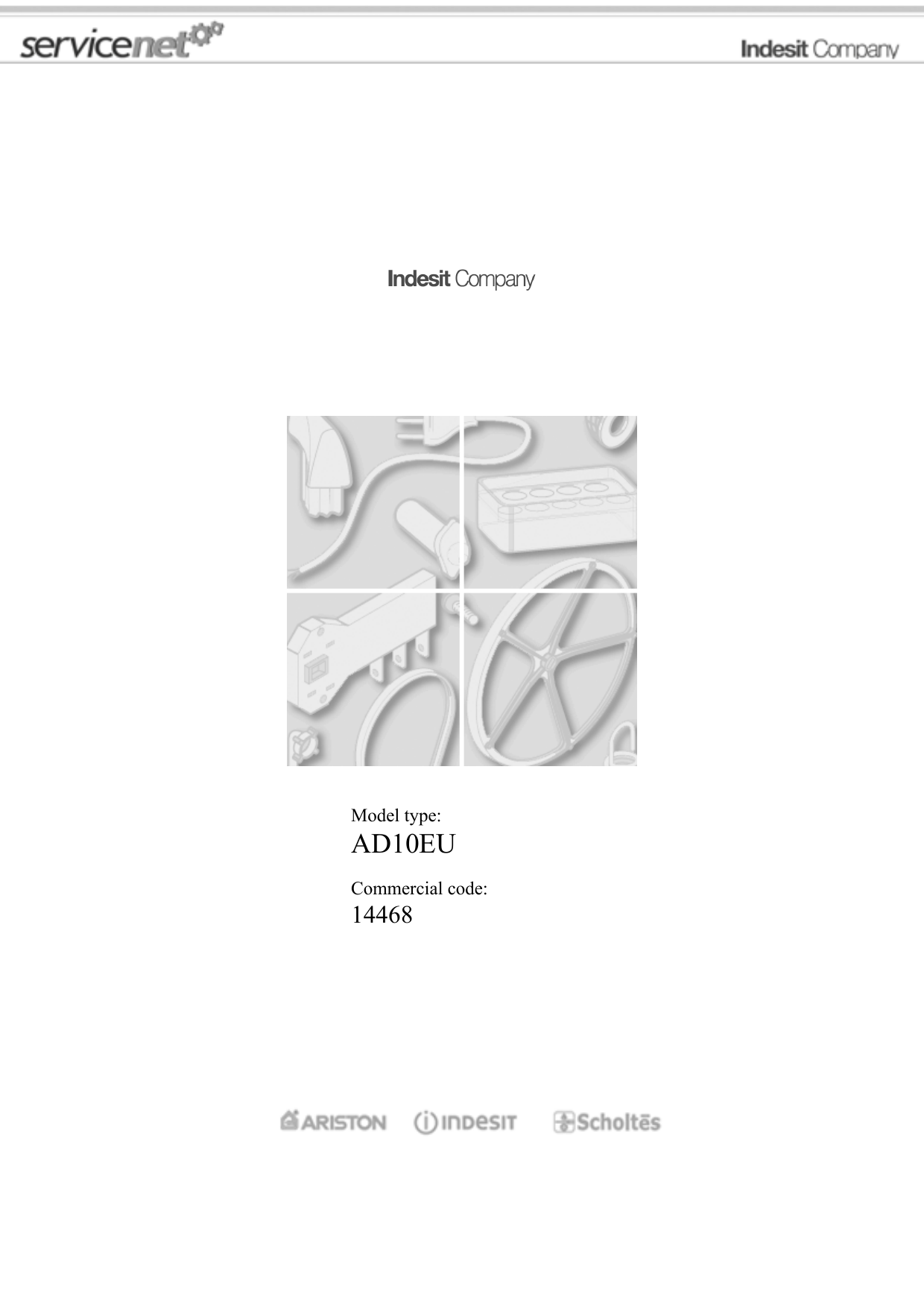

Ariston AD10EU Owner Manual

Model type:
AD10EU
Commercial code:
14468
General notes
Technical Documentation guidelines
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------You can find herewith some generic information to simplify cunsulting of technical documentation:
1. Models of same range share the same exploded views, which report the richest set of spare parts:generally, a model does not
necessarly have a related spare part for each particular shown on exploded views.
2. Some spare parts can not be represented directly on the exploded views (instruction booklets, specific kit, etc...). You can find
those codes in the spare parts list with the same reference of particular where spares are installed or with references 099, 999.
Instruction booklets, once managed, appear with 000 reference.
3. On the higher right site of each exploded view there is a serial number which indicates the beginning of the production of
certain range:some models might have more than an exploded view for a given category, each distinguished by a different serial
no.and linked to another spare parts list, In this case, serial no. is required to supply the right spare part code. Exploded view to be
considered is the one with a more recent serial no. but previous than the one of the model that needs assistance.
4.Exploded views might require further updates even after publishing. Addition of new spares will go on following the already
existing numeration references. Revision number of an exploded view is shown into last four digits of serial number into upper
right hand corner.
5.The spare parts list associated to an exploded view shows related codes of spares managed for a certain model; for each spare
part other informations are available:
REF: reference no of spare into a table; SUBSTITUTE: list of spare(s) which can replace a code but that keeps same functional
characteristics
INDUSTRIAL CODE: list of variables of a model (shown into model label) where such spare is used; NOTICE: code of
information(s) to refer to complete technical intervention, track for changes or to find correct spare part code.
6. Some notices, into a same section are generic therefore cannot be directly linked to a spare part. In order to assist a model in
the best way as possible, it is helpful to pay attention to all notices and constantly verify documentation updates
7.Technical documentation cover shows model name and its commercial codes
mod.AD10EU
page 2
1060190
mod.AD10EU
Exploded views
page 3
1060190
Spare parts list
Ref.
Code
000
C00051111
000
C00051117
000
C00051118
instruction booklet dialogic gb-d-
000
C00051127
quick-reference dialogic it
000
C00051129
quick-reference dialogic fr
000
C00051130
quick-reference dialogic de
000
C00051131
quick-reference dialogic nl
000
C00051133
quick-reference dialogic pt
000
C00052861
quick-reference dialogic russo
000
C00052912
quick-reference dialogic gb
000
C00054784
user istructions booklet turco
000
C00054785
quick-reference dialogic turco
001
C00046139
top - white (shiny) 530mm x 594
n1040015
001
C00061931
top - white (shiny) 544mm x
n1040015
002
C00024552
hose holder
003
C00048289
cabinet kit white 27 dialogic
004
C00048301
bolt hi-lo 5x13
005
C00048300
box control
006
C00048310
wiring - control card/harness
007
C00048315
flat wiring braid - control
008
C00012717
self -tapping screw 2,9x9,52 tcb
009
C00048313
keyboard support (with latch pin)
010
C00048312
programme start card dialogic
011
C00051119
control panel + handle dialogic
012
C00048294
indicator lamp - green dialogic
013
C00048299
push button (programme start) -
014
C00051116
keyboard & support kit
015
C00048316
knob (programme selection)
016
C00048291
push button (on/off) - white 27
017
C00048296
display window "glass" dialogic
018
C00012687
self-tapping screw hi-lo 3,5x13
019
C00019671
door glass
0106541
019
C00028304
door glass
0106541
020
C00003044
pivot pin - door catch
021
C00043668
finger spring-door handle
mod.AD10EU
From
To S/N
Substitute
Description
Notice
Industrial
dialogic remote control
1 x C00051118
1 x C00046139
instruction booklet dialogic f-e-p
0106552
n1040047
page 4
1060190
Spare parts list
Ref.
Code
From
To S/N
Substitute
Description
022
C00019705
1 x C00021300
striker - door catch
023
C00046135
door handle - white 27
023
C00049411
door handle assy - white 27
024
C00046138
door frame outer-white 27
025
C00046125
plinth - white (shiny)
026
C00046122
1 x C00036019
Notice
Industrial
foot - front m 10
1 x C00056928
027
C00044819
clip
028
C00046121
029
C00046119
foot - rear
030
C00046137
inner door frame white
031
C00043019
032
C00020024
033
C00019668
hinge plate door
034
C00019845
bolt t 1/2 t m4x8
035
C00046666
collar for drain hose
036
C00019664
rear cover - white
036
C00049515
rear cover - white 27
037
C00003144
blanking plug 11mm
038
C00019685
outlet hose holder
039
C00048298
friction slider - keyboard support
040
C00049070
friction gear wheel-keyboard
041
C00048304
spring - keyboard push/push
042
C00057723
card control dialogic white
spring for foot
1 x C00074149
d = 12.2 mm
taptite screw m4x6testfr
hinge plate outer case
0106552
0106543
n1040019
n1040032
043
C00046127
pivot pin - drawer front
044
C00049411
door handle assy - white 27
045
C00001412
door assy
099
C00014855
bolt + washer m8x90
099
C00023798
spacer pvc 60mm.'str.80'
mod.AD10EU
page 5
1060290
mod.AD10EU
Exploded views
page 6
1060290
Spare parts list
Ref.
Code
From
To S/N
Substitute
Description
Notice
001
C00039671
002
C00039670
washer-for pulley
003
C00027206
belt poly-v l=1270 mm.
004
C00039669
drum pulley
005
C00002591
bearing 20x47x14
006
C00039668
bearing spider assembly 1000 rpm
007
C00019667
spider retaining bracket
008
C00046542
upper counterweight 10 kg
0106517
008
C00048325
upper counterweight dialogic
0106517
009
C00019849
washer 37x8,5x2
009
C00037346
nylon washer
010
C00030443
011
C00049071
012
C00019675
anchorage pad - suspension
013
C00030387
pressure switch hose 150 mm
014
C00021774
y junction pressure switch hose
015
C00041192
air trap hose 370 mm.
016
C00038865
bolt m8 x 60
017
C00019755
anti-vibration bush (foam)
018
C00019730
air trap
019
C00027990
hose clamp 78-85 to tank
020
C00044809
hose-tank to pump
021
C00030389
plastic ferrule(bellows seal)-
022
C00023840
bolt m6 x 80 for clamping band
023
C00003018
clamping band tank front
024
C00036780
bellows clamp (tank front)
025
C00033041
clamping ring - bellows seal front
026
C00019714
plastic ferrule-(door seal)detgent
027
C00030385
detergent recovery hose
028
C00019722
Industrial
bolt - drum pulley fixing
1 x C00046542
1 x C00047136
nut romob m8
tank suspension spring
1 x C00065005
bellows seal
0106505
n1040041
028
C00051879
bellows seal(nitrilica) - oil
028
C00065005
bellows seal (90621)
029
C00052574
front counterweight cast iron
030
C00023841
nut for clamping band tank front
mod.AD10EU
0106505
0106517
page 7
1060290
Spare parts list
Ref.
Code
031
C00038672
032
C00031029
tub front stainless
033
C00020941
seal - tank front inox
034
C00040865
drum 1000 rpm mulinello
035
C00038358
bolt m8x16 (dry loc)
036
C00027923
hose dispenser to tank
037
C00043434
stainless tub
038
C00046142
nut metalbloc m10
039
C00037132
bolt + washer m4x12x1 (stainless)
040
C00037133
1 x C00037132
seal
041
C00037142
1 x C00037132
washer 4x12x1 stainless
042
C00037135
043
C00037083
044
C00039667
oil seal bearing + spider/tank seal
045
C00013563
bearing 25 x52 x 15 6205-2z
046
C00030445
screw m8 x 25 zntr
047
C00030341
spring washer 10,5x17,5x2,2
048
C00030392
049
C00030339
shouldered rubber bush
050
C00030338
shock absorber support
051
C00030446
bolt m10 x 45 zntr
052
C00030340
shock absorber 80 n
053
C00027466
drain hose - to sink l=1860mm
053
C00051738
054
C00019902
055
C00048324
conducibility sensor dialogic
056
C00058523
pillar retainer-heating element
099
C00001109
loctite 270 10 gr.
099
C00033026
ambljgon grease ta 100 gr.
mod.AD10EU
From
To S/N
Substitute
Description
Notice
Industrial
bolt m8 x 55
n1040300
self-locking nut m4
1 x C00037177
1 x C00030339
1 x C00091775
heater bracket
rubber cup washer
0106552
outlet hose
plastic -u- to make drain hose
page 8
1060390
mod.AD10EU
Exploded views
page 9
1060390
Spare parts list
Ref.
Code
001
C00022357
002
C00029204
terminal block box elettrogibi
002
C00041163
terminal block
003
C00047063
004
C00048317
pressure switch 1 level 315/240
005
C00030394
pressure switch 1 level 108/85
006
C00048322
wiring dialogic ad10eu
007
C00046157
stopper detergent container
008
C00046152
additive container
009
C00046154
fabric conditioner cover
010
C00046148
soap dispenser drawer (rotary)
011
C00044808
air trap clip
012
C00046667
wiring stop
013
C00048324
conducibility sensor dialogic
014
C00011140
door interlock flange black
015
C00045023
filter handle
015
C00045025
filter seal
015
C00045027
filter element kit
016
C00044998
self cleaning pump 240v./50hz.
017
C00002407
washer 6,4x13x1,5
018
C00019682
rubber bush 20 mm - motor
019
C00043430
019
C00046533
motor 1000 kit rpm
019
C00047317
brush for motor
020
C00048321
spring - module bracket retention
021
C00048319
card power dialogic
0106543
021
C00056981
card power dialogic
0106543
022
C00048320
bracket - power module
023
C00019964
motor bolt m6 x 212 te
024
C00019965
spacer tube for motor support
026
C00014917
grommet - thermostat
026
C00020181
blank grommet - thermostat
027
C00015856
thermostat 1t 87ø c nc
0106512
027
C00048318
probe-temperature dialogic black
0106512
027
C00053573
temperature sensor ("control") -
0106512
mod.AD10EU
From
To S/N
Substitute
Description
1 x C00024521
supply cable 3x1 schuko l= 2,70 m
1 x C00043435
1 x C00097257
1 x C00053573
Notice
Industrial
0106552
radio interference suppressor
n1040047
tacho generator black for ice
0106512
page 10
1060390
Spare parts list
Ref.
Code
028
C00033055
029
C00046151
1 x C00066347
dispenser body + cover assy
030
C00046669
1 x C00015498
hose valve to dispenser (hot) 400
032
C00030358
on-off switch(na+na 2pole e0040)
033
C00047185
electrovalve 2 way 7 lt (cold)
034
C00005572
sealing washer-mains inlet hose
035
C00005781
inlet hose filter
036
C00003070
mains inlet hose cold 25c 10bar
099
C00052828
door seal hose clip bz 6140r
mod.AD10EU
From
To S/N
Substitute
Description
Notice
Industrial
heating element+termal cut-out
page 11
Notices
0106505: DOOR SEAL (NITRILE)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Please be informed that the nitrile seal (code no. 051879) for the round glass door, which replaces code no.019722, is now
available from the Central Spare Parts Warehouse.
The new seal should be used in cases where the seal undergoes excessive wear, due to the presence of chemical agents on the
clothes being washed.
0106512: IMPROVEMENTS ON DIALOGIC
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Beginning with serial number 70522.0001, the Dialogic washing machine has undergone the following modifications to improve
the appliance:
---A new software program has been used for the control card (the new card can be used in place of the old one, but not vice
versa).
The SAT code remains unchanged (Code 048311).
A new temperature sensor (Code 053573) has been used, which must be used on all appliances with the new control card. The
sensor is now white whereas the previous one was black.
The sensor with code no. 048318 will be used until all the stock has been used. Then, the new sensor will be used in its place.
---The new appliance has been fitted with a safety thermostat (87°C NC) that will intervene only in the event of an electronic
malfunction.
---Keyboard support kit.
Below is a list of the code numbers for the parts affected by these modifications, model by model.
AD10IT
Cod. 048314 - Keyboard support kit;
Cod. 015856 - Thermostat - 87°C (Normally Closed);
Cod. 048311 - Control card;
Cod. 053573 - Temperature sensor - white;
Cod. 014917 - Thermostat seal;
AD10EU - AD10UK
Cod. 015856 - Thermostat - 87°C (Normally Closed);
Cod. 048311 - Control card;
Cod. 053573 - Temperature sensor - white;
Cod. 014917 - Thermostat seal.
If the thermostat (Code 015856) is fitted to a pre-modification machine, it must be connected to the phase wire (brown wire) in
series with the heating element, as the tank is already designed with a hole for this thermostat.
mod.AD10EU
page 12
0106517: NEW COUNTERWEIGHTS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Beginning with serial no. 70730.0001, the front counterweight with part no. 034635 (ESI with part nos. 052574 and 036952) and
the top counter- weight with part no. 046542 will be used on all the Dialogic washing machines.
0106537: INITIALIZATION OF CONTROL CARD
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
An examination of the data collected from the Dialogic washing machines in which the control card had been replaced shows that
the permanent memory has not been initialised.
In fact, since the replacement cards are normal production cards, the permanent memory is not initialised when supplied; this
operation is carried out automatically during the line test.
The initialisation process is mainly concerned with the ability of the program to determine the water hardness automatically at the
first wash. If this initialisation is not carried out, a default average water hardness is assumed. If the value of the water hardness is
in fact average, then pre-washes and rinses will not be affected by malfunctions. However, problems may arise if the water is soft
or very hard.
To avoid any malfunction of the conductivity sensor, which may result in excessive rinses or the incorrect execution of
prewashes, the control card must be initialised every time it is replaced. To do this, use one of the following procedures:
---The quick procedure, using the washing machine control panel.
This procedure is simple, and therefore recommended. For a detailed explanation of the procedure, refer to the section "Updating
the water hardness measurement" in the Dialogic washing machine manual.
---The extended procedure, using a PC. This procedure requires further information regarding the date and the country. It is based
on the LBSAT.EXE program used by the Technical Service personnel, and is carried out as follows:
- connect the PC to the washing machine
- switch on the washing machine
mod.AD10EU
page 13
- start the LBSAT.EXE program (any program release may be used)
- select the Eeprom menu
- press the INIT (^I) button
- ensure that the message "Initialisation successfully completed" appears after 2-3 seconds, otherwise check for proper
connections and repeat the procedure.
.eol
0106541: UNIFICATION OF DOOR HINGES
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
In order to reduce the variety of spare parts being utilized, we would like to point out that the glass door with part no. 028304 can
be used in place of the one with part no. 019671 on all the ARISTON brand models produced at the Comunanza factory.
0106543: MODIFIED CONTROL CARDS (AD10-AD12)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
On the AD10EU, AD10IT, AD10UK and AD12EU washing machines, the initialization software has been modified (together
with the replacement of the 1.01 microprocessor with the
2.01 version). Therefore, the control cards have been diversified as follows:
Part no. 057701 - AD12EU Control Card (yellow mark);
Part no. 057723 - AD10 EU and AD10IT Control Cards (white mark);
Part no. 057722 - AD10UK Control Card (blue mark).
The new cards can be identified by the coloured mark on the transformer.
Beginning with serial no. 80819.0001 on the AD10 Dialogic appliances, the REMCO power card (part no. 056981) is being used,
which has already been adopted for the AD12EU model. It is interchangeable with the pre-modification one (part no. 048319)
only if the control card is also replaced with the new one.
To avoid errors in the future, the control card with part no.
048311 will be eliminated from all documents, and any stock left may be used on the AD10EU, AD10IT and AD10UK
appliances with serial numbers before 80819.0001.
0106552:
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Beginning with serial no. 80825.0001 on the Dialogic washing machines and washer dryers, AB, AL and AB..C, AL..C, the rear
cover, outlet hose, terminal block and cushion frame cabinet have been changed.
The items subjected to new modification are:Dialogic:
Cod. 049515 Rear cover;
Cod. 051738 Outlet hose;
Cod. 041163 Terminal block.
Washing machines and washer dryers AL / AB AL..C / AB..C
Cod. 049515 Rear cover;
Cod. 051738 Outlet hose;
Cod. 041163 Terminal block.
The modified cabinets keep the same SAT codes as the pre-modification ones, and in order to maintain the same
mod.AD10EU
page 14
interchangeability, they are handled assembled with rear panel and terminal block.
This modification also applies to cabinets which are no longer produced but still handled as spares. Therefore, in cases where the
cabinet is modified, it is necessary to use rear cover cod. 049515 and terminal block cod. 041163.
n1040015: Top depth reduction
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Top depth was reduced in Super-Margherita and Giugiaro washing machines, with serial number 81012.0001 and 81022.0001,
respectively.
The new tops are interchangeable with the pre-modification ones and the SAT codes 046139 (530 mm depth) for SuperMargherita and 044821 (530 mm depth) for Giugiaro remain unchanged (Historical consumption requirement).
Due to the presence of large stocks, the pre-modification tops 061931 Super-Margherita (540 mm depth) and 061932 (544 mm
depth) Giugiaro were re-coded.
n1040019: Error signalling from control board
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
From serial number 90101.0001 to 90415.0001, the control boards of Dialogic, AD10IT, AD10EU, AD12EU and AD12BE
washing machines can signal the F03 error code. In standard conditions, the code is associated with a defect of the temperature
probe. In the above-mentioned machined (and only in them) the code is associated with the control board that must be replaced.
n1040032: New Dialogic control board software (2.12)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Beginning from serial number 90531.0001 the new software 2.12. has been introduced in the control board (white sticker) code
057723 used in the Dialogic AD10IT washing machine in replacement of the old software 2.01.
The boards with software 2.12 can be used on the premodification appliances and are handled with the same SAT code. The
boards with software 2.01 can only be used until the arrival of the new boards.
All the control boards used in the Dialogic production will be provided with the new software by June.
Code 057723 - Control board with white sticker;
AD10IT
AD10EU
AD10SKD
Code 057722 - Control board with blue sticker;
AD10UK
Code 057701 - Control board with yellow sticker;
AD12EU
AD12BE
mod.AD10EU
page 15
Code 058062 - Control board with green sticker;
AD12UK
Code 061941 - Control board with red sticker; (Only with the new software 2.12);
AD8EU
AD7IT
In order to facilitate the identification of the new boards, the microprocessor has been provided with a label with the software
version (2.12).
n1040041: Door seals
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
On some of the Washing-Machine models manufactured at the Comunanza factory, the following door seals have been used:
Serial no. 90614.0001 the door seal part no. 065006;
Serial no. 90621.0001 the door seal part no. 065005.
The new door seals for the models concerned by this information are interchangeable with the pre-modification ones, but not viceversa.
The door seal part no. 056743 will continue to be handled normally, as it is used on other models being produced, whereas part
no. 019722 is being discontinued and replaced by part no. 065005 door seal.
n1040047: Modification to the swivel drawer
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Beginning with serial no. 90901.0001 on all washing machines in the following ranges: Dialogic AD, Supermargherita AL - LA AB - BA- ALS - LAS - ABS - BAS, and other EWA, S, A, CD, ML.S, WDS, SG, LB, WMS, MLT and MLTI, the swivel drawer
was modified.
The modified drawer keeps the same SAT code (part no. 046148); if it is used on pre-modification appliances, part of the internal
rib on the handle has to be removed, as indicated in the figure below.
If the control panel plus handle have to replaced, verify whether this has to be done or not by checking the serial no. and handle
used.
A - To assemble the new drawer, remove the highlighted area of the rib (with the aid of a cutter or a file) from the premodification handles.
mod.AD10EU
page 16
mod.AD10EU
page 17
Electric schemes and links
Cod. 106366b
mod.AD10EU
page 18
Legend
Legend: 106366b
AQS
Aquastop electrovalve
Mzbn/MTA
zbn timer motor
B
Buzzer
N
Neutral or Terminal Board
BC
Blocco Cesto
NC
Spin cycle exclusion
BF
Terminal board contact, motor fan and dryer
P
Pressure switch
BP
Buzzer
P1
1st level pressure cut-off switch
C
Condensator
P2
2nd level pressure cut-off switch
CA
Condensator
PA
High speed potentiometer
DV
Switching device
PB
Low speed potentiometer
EF/CL
Electro-Valve Cold Water / Bleach
PL
Pure Wool
EF/L
Electro-Valve Cold Water / Wash
PM
Motor Thermoprotector
EF/P
Electro-Valve Cold Water / Prewash
PR
Timer programmer or Pressure switch
ER
Exclude Heating Element
PS
Drain pump
ET
Thermostat disactivation
R
Heating element
EV
Electrovalve
RE
Relay
EVA
Dryer electrovalve
RR
Heating element
EVC
Hot water electrovalve
RV
Speed regulator
EVF
Elettrovalvola acqua fredda
Ras/RA
Dryer heating element
EVL
Wash electrovalve
S
LED
EVP
Pre Wash electrovalve
SL
Line LED
FA
Antijamming filter
SO
Door LED
FD
Delicate drying cycle thermostat
SR
Heating LED
FE
Strong drying cycle thermostat
ST
Temperature selector
FRT
Thermofusible Heating Element
SV
Speed Selector for Spin
I
Inverter
T
Timer contacts
I1..2..3..
Switches/switching devices
TA
Drying timer contacts
IA
Switch On/Off
TB
Low Temperature Thermostat
IC
Switch N.C. - 1/2 Load
TC
Spider wheel earth
ID
Switch display
TFL
Flange earth
IE
Water Saving Device
TG
Main earth
IF
Switch - Spin Reduction
TH
Thermostat
IP
Door switch
TH1
1st temperature thermostat
IR
Line switch
TH2
2nd temperature thermostat
IS
Water-stop
TH3
3rd temperature thermostat
mod.AD10EU
page 19
L
Line or Lamp
THF
Operating thermostat
LB
Low Level
THR
Adjustable thermostat
LN
Normal Level
TM
Motor earth
LS
Pilot lamp
TMB
Main cabinet earth
M
Earth-symbol
TMP
Motor thermal protector
MC
Spin cycle motor
TMS
Thermostop
MI
MOTOR WITH PULLEY
TP
Thermal protector
ML
Wash cycle motor
TPS
Drain pump earth
MO
Terminal Board
TR
Heating element earth
MP
Door dip-switch
TS
Safety thermostat
MR
Thermal Lock
TT
Timer earthing connection
MT
Timer motor
TTH
Earthing Thermostat
MV
Motor fan
TV
Tank earth
MV -Ras
Dryer heating element
ZBN
Timer
mod.AD10EU
page 20
Electric schemes and links
Cod. 106366c
mod.AD10EU
page 21
Legend
Legend: 106366c
AQS
Aquastop electrovalve
Mzbn/MTA
zbn timer motor
B
Buzzer
N
Neutral or Terminal Board
BC
Blocco Cesto
NC
Spin cycle exclusion
BF
Terminal board contact, motor fan and dryer
P
Pressure switch
BP
Buzzer
P1
1st level pressure cut-off switch
C
Condensator
P2
2nd level pressure cut-off switch
CA
Condensator
PA
High speed potentiometer
DV
Switching device
PB
Low speed potentiometer
EF/CL
Electro-Valve Cold Water / Bleach
PL
Pure Wool
EF/L
Electro-Valve Cold Water / Wash
PM
Motor Thermoprotector
EF/P
Electro-Valve Cold Water / Prewash
PR
Timer programmer or Pressure switch
ER
Exclude Heating Element
PS
Drain pump
ET
Thermostat disactivation
R
Heating element
EV
Electrovalve
RE
Relay
EVA
Dryer electrovalve
RR
Heating element
EVC
Hot water electrovalve
RV
Speed regulator
EVF
Elettrovalvola acqua fredda
Ras/RA
Dryer heating element
EVL
Wash electrovalve
S
LED
EVP
Pre Wash electrovalve
SL
Line LED
FA
Antijamming filter
SO
Door LED
FD
Delicate drying cycle thermostat
SR
Heating LED
FE
Strong drying cycle thermostat
ST
Temperature selector
FRT
Thermofusible Heating Element
SV
Speed Selector for Spin
I
Inverter
T
Timer contacts
I1..2..3..
Switches/switching devices
TA
Drying timer contacts
IA
Switch On/Off
TB
Low Temperature Thermostat
IC
Switch N.C. - 1/2 Load
TC
Spider wheel earth
ID
Switch display
TFL
Flange earth
IE
Water Saving Device
TG
Main earth
IF
Switch - Spin Reduction
TH
Thermostat
IP
Door switch
TH1
1st temperature thermostat
IR
Line switch
TH2
2nd temperature thermostat
IS
Water-stop
TH3
3rd temperature thermostat
mod.AD10EU
page 22
L
Line or Lamp
THF
Operating thermostat
LB
Low Level
THR
Adjustable thermostat
LN
Normal Level
TM
Motor earth
LS
Pilot lamp
TMB
Main cabinet earth
M
Earth-symbol
TMP
Motor thermal protector
MC
Spin cycle motor
TMS
Thermostop
MI
MOTOR WITH PULLEY
TP
Thermal protector
ML
Wash cycle motor
TPS
Drain pump earth
MO
Terminal Board
TR
Heating element earth
MP
Door dip-switch
TS
Safety thermostat
MR
Thermal Lock
TT
Timer earthing connection
MT
Timer motor
TTH
Earthing Thermostat
MV
Motor fan
TV
Tank earth
MV -Ras
Dryer heating element
ZBN
Timer
mod.AD10EU
page 23
Electric schemes and links
Cod. 106455b
mod.AD10EU
page 24
Legend
Legend: 106455b
AQS
Aquastop electrovalve
Mzbn/MTA
zbn timer motor
B
Buzzer
N
Neutral or Terminal Board
BC
Blocco Cesto
NC
Spin cycle exclusion
BF
Terminal board contact, motor fan and dryer
P
Pressure switch
BP
Buzzer
P1
1st level pressure cut-off switch
C
Condensator
P2
2nd level pressure cut-off switch
CA
Condensator
PA
High speed potentiometer
DV
Switching device
PB
Low speed potentiometer
EF/CL
Electro-Valve Cold Water / Bleach
PL
Pure Wool
EF/L
Electro-Valve Cold Water / Wash
PM
Motor Thermoprotector
EF/P
Electro-Valve Cold Water / Prewash
PR
Timer programmer or Pressure switch
ER
Exclude Heating Element
PS
Drain pump
ET
Thermostat disactivation
R
Heating element
EV
Electrovalve
RE
Relay
EVA
Dryer electrovalve
RR
Heating element
EVC
Hot water electrovalve
RV
Speed regulator
EVF
Elettrovalvola acqua fredda
Ras/RA
Dryer heating element
EVL
Wash electrovalve
S
LED
EVP
Pre Wash electrovalve
SL
Line LED
FA
Antijamming filter
SO
Door LED
FD
Delicate drying cycle thermostat
SR
Heating LED
FE
Strong drying cycle thermostat
ST
Temperature selector
FRT
Thermofusible Heating Element
SV
Speed Selector for Spin
I
Inverter
T
Timer contacts
I1..2..3..
Switches/switching devices
TA
Drying timer contacts
IA
Switch On/Off
TB
Low Temperature Thermostat
IC
Switch N.C. - 1/2 Load
TC
Spider wheel earth
ID
Switch display
TFL
Flange earth
IE
Water Saving Device
TG
Main earth
IF
Switch - Spin Reduction
TH
Thermostat
IP
Door switch
TH1
1st temperature thermostat
IR
Line switch
TH2
2nd temperature thermostat
IS
Water-stop
TH3
3rd temperature thermostat
mod.AD10EU
page 25
L
Line or Lamp
THF
Operating thermostat
LB
Low Level
THR
Adjustable thermostat
LN
Normal Level
TM
Motor earth
LS
Pilot lamp
TMB
Main cabinet earth
M
Earth-symbol
TMP
Motor thermal protector
MC
Spin cycle motor
TMS
Thermostop
MI
MOTOR WITH PULLEY
TP
Thermal protector
ML
Wash cycle motor
TPS
Drain pump earth
MO
Terminal Board
TR
Heating element earth
MP
Door dip-switch
TS
Safety thermostat
MR
Thermal Lock
TT
Timer earthing connection
MT
Timer motor
TTH
Earthing Thermostat
MV
Motor fan
TV
Tank earth
MV -Ras
Dryer heating element
ZBN
Timer
mod.AD10EU
page 26
Electric schemes and links
Cod. 106455c
mod.AD10EU
page 27
Legend
Legend: 106455c
AQS
Aquastop electrovalve
Mzbn/MTA
zbn timer motor
B
Buzzer
N
Neutral or Terminal Board
BC
Blocco Cesto
NC
Spin cycle exclusion
BF
Terminal board contact, motor fan and dryer
P
Pressure switch
BP
Buzzer
P1
1st level pressure cut-off switch
C
Condensator
P2
2nd level pressure cut-off switch
CA
Condensator
PA
High speed potentiometer
DV
Switching device
PB
Low speed potentiometer
EF/CL
Electro-Valve Cold Water / Bleach
PL
Pure Wool
EF/L
Electro-Valve Cold Water / Wash
PM
Motor Thermoprotector
EF/P
Electro-Valve Cold Water / Prewash
PR
Timer programmer or Pressure switch
ER
Exclude Heating Element
PS
Drain pump
ET
Thermostat disactivation
R
Heating element
EV
Electrovalve
RE
Relay
EVA
Dryer electrovalve
RR
Heating element
EVC
Hot water electrovalve
RV
Speed regulator
EVF
Elettrovalvola acqua fredda
Ras/RA
Dryer heating element
EVL
Wash electrovalve
S
LED
EVP
Pre Wash electrovalve
SL
Line LED
FA
Antijamming filter
SO
Door LED
FD
Delicate drying cycle thermostat
SR
Heating LED
FE
Strong drying cycle thermostat
ST
Temperature selector
FRT
Thermofusible Heating Element
SV
Speed Selector for Spin
I
Inverter
T
Timer contacts
I1..2..3..
Switches/switching devices
TA
Drying timer contacts
IA
Switch On/Off
TB
Low Temperature Thermostat
IC
Switch N.C. - 1/2 Load
TC
Spider wheel earth
ID
Switch display
TFL
Flange earth
IE
Water Saving Device
TG
Main earth
IF
Switch - Spin Reduction
TH
Thermostat
IP
Door switch
TH1
1st temperature thermostat
IR
Line switch
TH2
2nd temperature thermostat
IS
Water-stop
TH3
3rd temperature thermostat
mod.AD10EU
page 28
L
Line or Lamp
THF
Operating thermostat
LB
Low Level
THR
Adjustable thermostat
LN
Normal Level
TM
Motor earth
LS
Pilot lamp
TMB
Main cabinet earth
M
Earth-symbol
TMP
Motor thermal protector
MC
Spin cycle motor
TMS
Thermostop
MI
MOTOR WITH PULLEY
TP
Thermal protector
ML
Wash cycle motor
TPS
Drain pump earth
MO
Terminal Board
TR
Heating element earth
MP
Door dip-switch
TS
Safety thermostat
MR
Thermal Lock
TT
Timer earthing connection
MT
Timer motor
TTH
Earthing Thermostat
MV
Motor fan
TV
Tank earth
MV -Ras
Dryer heating element
ZBN
Timer
mod.AD10EU
page 29

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
