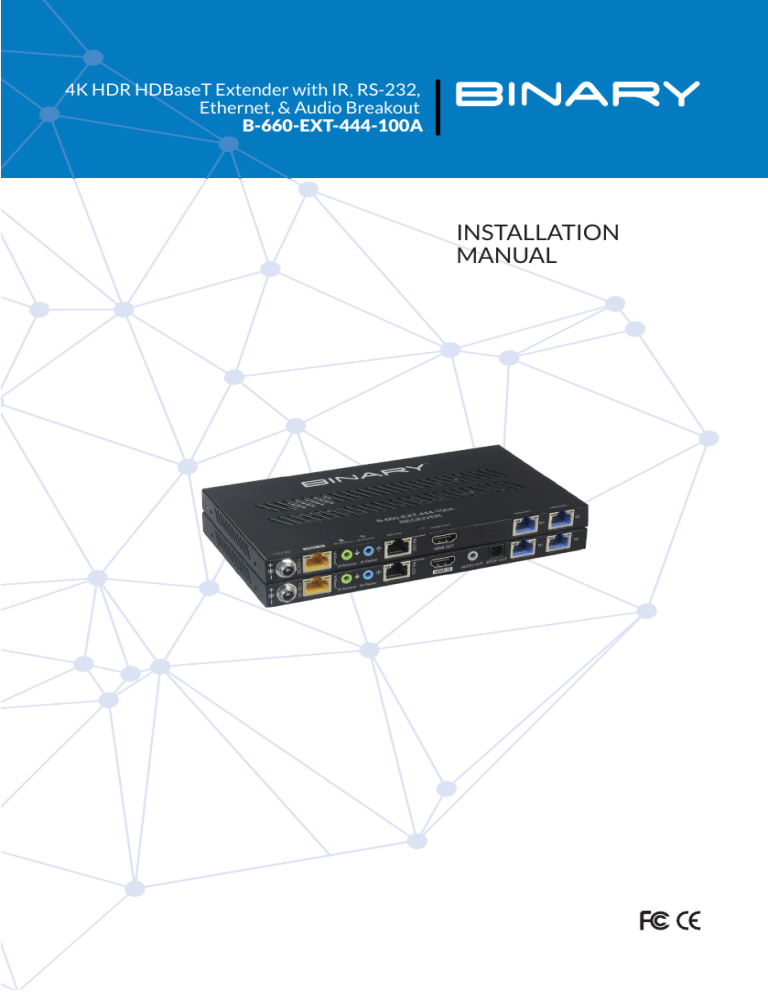

4K HDR HDBaseT Extender with IR, RS-232,
Ethernet, & Audio Breakout
B-660-EXT-444-100A
INSTALLATION
MANUAL
Source | M
(HDMI Ou
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this
manual. Keep this manual for future reference.
1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping
or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the
equipment. Do not use this apparatus near water.
2. Do not remove cover. No user serviceable parts inside.
3. Clean only with a dry cloth.
4. Do not block any ventilation openings. Install according to manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
6. Do not override the safety purpose of the polarized or grounding plug. A polarized plug has
two blades, one of which is wider than the other. A grounding plug has two matching blades
and a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
7. Protect the power cord from being walked on or pinched, particularly at the plug end and
where the power cord is attached to the apparatus.
8. Only use attachments and accessories specified by the manufacturer.
9. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as when the power supply cord or plug is damaged,
liquid has been spilled on or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, the apparatus does not operate normally, or it has been
dropped.
10. To completely disconnect this equipment from power, disconnect the power supply cord
from the power outlet.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
2
CAUTION
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK.
DO NOT REMOVE COVER. NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
FCC WARNINGS
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
TRADEMARKS
Dolby Digital™,Dolby TrueHD™, and Dolby Atmos™ are registered trademarks of Dolby
Laboratories DTS 5.1™, DTS-HD Master Audio™ and DTS:X™ are registered trademarks of DTS,
Inc. All other trademarks and registered trademarks are owned by their respective holders.
3
CONTENTS
1.
Product Overview ��������������������������������������������������������������������������������������������������������������������������������������������������������5
2.
Features�����������������������������������������������������������������������������������������������������������������������������������������������������������������������������5
3.
Package Contents����������������������������������������������������������������������������������������������������������������������������������������������������������5
4.
Device Layout������������������������������������������������������������������������������������������������������������������������������������������������������������������6
4.1. B-660-EXT-444-100A Transmitter��������������������������������������������������������������������������������������������������������������6
4.2. B-660-EXT-444-100A Receiver��������������������������������������������������������������������������������������������������������������������8
5.
Installation and Wiring���������������������������������������������������������������������������������������������������������������������������������������������10
5.1. Installation����������������������������������������������������������������������������������������������������������������������������������������������������������10
5.2. Wiring�������������������������������������������������������������������������������������������������������������������������������������������������������������������10
6.
EDID Management����������������������������������������������������������������������������������������������������������������������������������������������������12
7.
Function Setting����������������������������������������������������������������������������������������������������������������������������������������������������������13
8.
Connections������������������������������������������������������������������������������������������������������������������������������������������������������������������14
8.1. HDBaseT Link (RJ45) Connection�������������������������������������������������������������������������������������������������������������14
8.2. RS-232 Control Connections����������������������������������������������������������������������������������������������������������������������14
8.2.1. RS-232 Control (DB-9) Connection............................................................................................15
9.
Specifications���������������������������������������������������������������������������������������������������������������������������������������������������������������17
9.1. Transmission Distance�����������������������������������������������������������������������������������������������������������������������������������18
10. Warranty������������������������������������������������������������������������������������������������������������������������������������������������������������������������19
11. Support���������������������������������������������������������������������������������������������������������������������������������������������������������������������������19
4
1.
PRODUCT OVERVIEW
The B-660-EXT-444-100A is a 4K HDR HDBaseT extender that supports [email protected] 4:4:4 8bit
including DCI 4K (4096 x 2160), and HDCP 2.2 compatibility. It can transmit 1080P signals up
to 100m/330ft and [email protected] signals up to 70m/230ft via Cat 5e/6 cable, and transmit 1080P
and [email protected] 4:4:4 8bit signals up to 100m/330ft via Cat 6a/7 cable.
The B-660-EXT-444-100A supports bi-directional IR pass through, CEC pass through, RS-232
pass through, and ethernet pass-through. With bi-directional PoC support, only one power
adapter is needed. The extender also supports HDMI IN audio de-embedding (analog and
digital) on the 3.5mm analog and Toslink audio output ports.
Two independent 4-pin Video and Audio EDID DIP Switches provide a variety of EDID
combinations to fit the needs of the installation and operation environment. The 4-pin Function
DIP Switches provide a variety of configurations and upgrading requirements to fit multiple
application scenarios.
2.
FEATURES
• Supports resolutions up to [email protected] 4:4:4 8bit and HDCP 2.2.
• Supports HDR (High Dynamic Range), including HDR 10, HLG up to [email protected] and HDR 10+,
and Dolby Vision up to [email protected]
• Supports digital and analog audio de-embedding.
• Over a Cat 5e/6 cable, HDBT transmits [email protected] 4:4:4 8bit up to 70m/230ft, and 1080P up
to 100m/330ft; Over a Cat 6a/7 cable, HDBT transmits [email protected] 4:4:4 8bit and 1080P up
to 100m/330ft.
• DIP Switches to configure EDID, IR, RS-232 functions and FW update.
• CEC pass through capable.
• Supports bi-directional IR pass through, RS-232 pass through, and Ethernet pass through.
• Bi-directional PoC, one power adapter at either transmitter or receiver side can power both
units.
3.
PACKAGE CONTENTS
• 1 x B-660-EXT-444-100A Extender
• 1 x DC 12V Power Adapter with US Pins
• 4 x Mounting Ears (with Screws)
• 4 x Drywall Screws
• 8 x Rubber Feet
• 1 x Installation Manual
5
4.
DEVICE LAYOUT
4.1. B-660-EXT-444-100A Transmitter
Front Panel
1
2
3
4
5
6
7
1. POWER LED
On: Transmitter is powered on
Off: Transmitter is powered off.
2. STATUS LED
Blinking: The transmitter is working properly.
Off: The transmitter is not working properly.
3. LINK LED
On: HDBT link is normal.
Off: No HDBT link.
4. HDCP LED
On: HDCP signal is being transmitted.
Blinking: No-HDCP signal is being transmitted.
Off: No signal is being transmitted.
5. Video
Video EDID DIP Switch. For more information, see EDID Management Section.
6. Audio
Audio EDID DIP Switch. For more information, see EDID Management Section.
7. Function
Function DIP Switch. For more information, see Function Setting Section.
6
Rear Panel
1
2
3
4
5
6
7
8
9
1. +12V DC
Connect the 12V power cord provided.
2. HDBT OUT
Connect to the receiver via a Cat x cable.
3. IR Receiver
Connect to an IR receiver cable.
4. IR Flasher
Connect to an IR emitter cable.
5. RS-232
RJ45 port. Connect to a RS-232 control device for RS-232 pass through/ firmware upgrade.
6. HDMI IN
Connect to an HDMI source device.
7. AUDIO OUT
3.5mm analog audio out, HDMI IN audio de-embedding. Connect to an audio system such
as amplifier.
8. SPDIF OUT
HDMI IN audio de-embedding, digital audio out. Connect to an audio system such as AV
receiver.
9. Network 1&2
Connect to ethernet devices or to the network.
7
4.2. B-660-EXT-444-100A Receiver
Front Panel
1
2
3
4
5
1. POWER LED
On: Receiver is powered on
Off: Receiver is powered off
2. STATUS LED
Blinking: The receiver is working properly.
Off: The receiver is not working properly.
3. LINK LED
On: HDBT link is normal.
Off: No HDBT link.
4. HDCP LED
On: HDCP signal is being received.
Blinking: No-HDCP signal is being received.
Off: No signal is being received.
5. Function
Function DIP Switch. For more information, see Function Setting Section.
8
Rear Panel
1
2
3
4
5
6
7
1. +12V DC
Connect the 12V power cord provided.
2. HDBT IN
Connect to the transmitter via a Cat 5e/6/6a/7 cable.
3. IR Receiver
Connect to an IR receiver cable.
4. IR Flasher
Connect to an IR emitter cable.
5. RS-232
RJ45 port. Connect to a RS-232 control device such as a PC for RS-232 pass through or
firmware upgrade.
6. HDMI OUT
Connect to an HDMI display.
7. Network 1&2
Connect to ethernet devices or to the network.
9
5.
INSTALLATION AND WIRING
5.1. Installation
Before installation, please ensure the device is disconnected from the power supply.
Steps to install the device on a suitable position:
1. Attach the mounting ears to the enclosure using the screws provided in the package.
2. The mounting ear is attached to the enclosure as shown.
3. Repeat steps 1-2 for the other side of the transmitter.
4. Mount the transmitter in the rack mount with the mounting screws.
5. Repeat steps 1-4 to install the receiver.
5.2. Wiring
Warnings:
• Before wiring, disconnect the power from all devices.
• During wiring, connect and disconnect the cables gently.
Steps for device wiring:
1. Connect HDMI IN
Connect the HDMI sources (such as PC, Blu-ray player, Apple TV, 4K media player, etc) to
the HDMI IN of the transmitter.
2. Connect HDBT OUT
Connect HDBT OUT of the transmitter to HDBT IN of the receiver with Cat 5e/6/7 cables.
3. Connect HDMI OUT
Connect HDMI display device (such as TV, projector) to the HDMI OUT of the receiver.
4. Connect for additional control options:
•
IR Pass Through: Connect IR emitter cable to IR Flasher port or IR receiver cable to IR
Receiver port of the transmitter, and connect IR receiver cable to IR Receiver port or
IR emitter cable to IR Flasher port of the receiver. The source remote can control the
source at receiver side, the display remote can control display at the transmitter side.
•
RS-232 Pass Through: To set RS-232 mode see “Function Setting” Section, below.
Connect control devices such as PC to RS-232 ports of transmitter and receiver to
realize RS-232 pass through. For details, see RS-232 Control Connections Section.
•
ETHERNET Pass Through: Connect Network port of transmitter or receiver to the local
network, connect a PC to the Network port of receiver or transmitter, the PC can be
connected to the local network.
5. Connect the DC 12V power cord provided.
6. Power on all attached devices.
10
Display Remote
Blu-ray Player
IR Emitter 1
Amplifier
HDMI IN
AUDIO OUT
IR Receiver 2
ETHERNET
Transmitter
HDBT
Receiver
IR Receiver 1
HDMI OUT
IR Emitter 2
ETHERNET
Display
Source Remote
PC
Application Diagram 1
To connect HDMI de-embedding audio for amplification, when using 3.5mm AUDIO OUT, the
transmitter AUDIO dip switch should be set to 2CH PCM. At this time, the SPDIF OUT will also
output 2-channel.
Blu-ray Player
Display Remote
IR Emitter 1
AV Receiver
HDMI IN
SPDIF OUT
IR Receiver 2
ETHERNET
Transmitter
HDBT
Receiver
IR Receiver 1
HDMI OUT
IR Emitter 2
Display
Source Remote
ETHERNET
PC
Application Diagram 2
When using SPDIF OUT for surround sound, the transmitter AUDIO dip switch should be set to
COMPRESSED 5.1. At this time, the 3.5mm AUDIO OUT terminal will be muted.
11
EDID MANAGEMENT
6.
EDID is configured by Video and Audio DIP Switch. The default setting is Auto, please refer to
the following table to configure.
O
N
1
2
3
Video
EDID
0
1
2
3
4
5
6
DIP Switch Position
Resolution
Auto (Default)
1080P SDR
1080P HDR
[email protected] SDR
[email protected] HDR
[email protected] 4:2:0 SDR
[email protected] HDR
1
Up
Up
Up
Up
Up
Up
Up
Audio
EDID
0
1
2
3
4
5
4
2
Up
Up
Up
Up
Down
Down
Down
3
Up
Up
Down
Down
Up
Up
Down
4
Up
Down
Up
Down
Up
Down
Down
DIP Switch Position
Resolution
Auto (Default)
2CH (PCM)
6CH (PCM)
Compressed 5.1
8CH (PCM)
Compressed 7.1
1
Up
Up
Up
Up
Up
Up
12
2
Up
Up
Up
Up
Down
Down
3
Up
Up
Down
Down
Up
Up
4
Up
Down
Up
Down
Up
Down
7.
FUNCTION SETTING
IR, RS-232 and ARC functions can be configured by Function DIP Switch. The default setting is
“Up, Up, Up, Up”, please refer to the following table to configure.
O
N
1
2
3
4
TX Function Settings
4-Pin DIP Positions
IR/RS-232/ FW Update
1
2
3
IR RCVR PWR OFF (12v) Up
IR RCVR PWR ON (12v) Down
DTE (RS-232)
Up
DCE (RS-232)
Down
RS-232 pass-thru
Up
System f/w update
Down
HDBT f/w update
Up
Reserved
Down
4
Up
Up
Down
Down
RX Function Settings
4-Pin DIP Positions
IR/RS-232/ FW Update
1
2
3
IR RCVR PWR OFF (12v) Up
IR RCVR PWR ON (12v) Down
DTE (RS-232)
Up
DCE (RS-232)
Down
RS-232 pass-thru
Up
System f/w update
Down
HDBT f/w update
Up
Reserved
Down
4
Up
Up
Down
Down
13
CONNECTIONS
8.
8.1. HDBaseT Link (RJ45) Connection
This device is specified to operate with category cables for communication between the
transmitter and receiver. The transmission path may include a maximum of two keystones and
two patch cables, as long as the total length does not exceed 100 m for category cable and
resolution desired.
TIA/EIA Standard 568-B (Gold Pins Facing Up)
Pin 1 - White/Orange
Pin 2 - Orange
Pin 3 - White/Green
Pin 4 - Blue
Pin 5 - White/Blue
Pin 6 - Green
Pin 7 - White/Brown
Pin 8 - Brown
1
2
3
4
5
6
7
8
TIA/EIA-568-B
HDBaseT RJ45 Connections
Note: The HDBaseT Link RJ45 connection includes a 48V signal. Do not connect anything to
this port other than a B-660-EXT-444-100A transmitter or receiver.
8.2. RS-232 Control Connections
• Bidirectional RS-232 signals are transmitted between the device transmitter and receiver
over the category cable. The transmitter may be connected to a control system, and the
receiver may be connected to an RS-232 controllable device.
A
RS-232 Control (DB-9) - See Section 8.2.1
B
HDBaseT Link Category - See Section 8.1
Control System
TX Function Group
DTE
DTE Mode
1
ON
2
Transmitter
3
4
B
A
HDBT
Receiver
A
RX Function Group
DCE Mode
1
ON
2 3
DCE
4
RS-232 Controllable Device
Example 1
14
RS-232 Controllable Device
TX Function Group
DCE Mode
1
ON
2 3
DCE
4
A
Transmitter
HDBT
B
Receiver
A
RX Function Group
DTE
1
ON
2
3
4
DTE Mode
Control System
Example 2
RS-232 Control Terminal
TX Function Group
DTE
DTE Mode
1
ON
2
3
Transmitter
4
B
A
HDBT
Receiver
A
RX Function Group
DTE
DTE Mode
1
ON
2
3
4
Control System
Example 3
15
8.2.1. RS-232 Control (DB-9) Connection
To eliminate the need to make crossover or null modem cables, the RS-232 pinouts can be
configured for DCE or DTE. Set switch 2 to DCE if the connected device is DCE, and to DTE if
the connected device is DTE.
Typically the control system will be DTE and the controlled device will be DCE, however,
devices may vary. Refer to the manual for the connected devices for proper pinout
configuration.
DTE Mode
DCE Mode
DTE
Transmitter
1
ON
2
3
4
1
ON
2 3
DCE
4
3
4
1
ON
2 3
DCE
4
DTE
Receiver
1
ON
2
1 (NC)
2 (NC)
1
2
3
4
5
6
7
8
3 (NC)
4 (GND)
5 (RxD)
6 (TxD)
7 (NC)
8 (NC)
RS-232 Modes and Connections
16
9.
SPECIFICATIONS
Technical
Transmitter:
1 x HDMI IN, 1 x HDBT OUT, 1 x HDMI OUT,
1 x IR Receiver,1 x IR Flasher,
1 x RS-232 (RJ45),
1 x AUDIO OUT (3.5mm analog audio out),
1 x SPDIF OUT, 2 x ETHERNET, 1 x DC 12V IN
Receiver:
1 x HDMI OUT, 1 x HDBT IN, 1 x IR Receiver,
1 x IR Flasher, 1 x RS-232 (RJ45),
1 x AUDIO OUT, 1 x SPDIF IN,
2 x ETHERNET, 1 x DC 12V IN
HDMI with [email protected] YUV 4:4:4, HDCP 2.2,
including DCI 4K (4090x2160)
VESA:
800x6008, 1024x7688, 1280x7688,
1280x8008, 1280x9608, 1280x10248,
1360x7688, 1366x7688, 1440x9008,
1600x9008, 1600x12008, 1680x10508,
1920x12008, 2560x14408, 2560x16008
SMPTE:
1280x720P6,7,8, 1080I6,7,8,
1920x1080P1,2,3,4,5,6,7,8,
3840x2160P2,3,5,6,8, 4096x2160P2,3,5,6,8
NOTE: 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25
Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 =
at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
HDMI IN/OUT: Fully supports audio formats
in HDMI 2.0 specification, including PCM
2.0/5.1/7.1, Dolby TrueHD™, Dolby Atmos™,
DTS-HD Master Audio™ and DTS:X™
3.5mm Analog AUDIO OUT: PCM 2.0
SPDIF: PCM 2.0, Dolby Digital™, DTS 5.1™
HDMI IN & HDMI OUT: 18Gbps
IR, RS-232, CEC, DIP Switches
Input/Output Port
Input/Output Signal Type
Input/Output Resolution Supported
Audio Format
Maximum Data Rate
Control Method
General
Operating Temperature
Storage Temperature
Humidity
0°C to 40°C (32°F to 104°F)
-20°C to 60°C (-4°F to 140°F)
10% to 90%, non-condensing
Human-body Model:
±15kV (Air-gap discharge)
DC 12V 3A
Receiver is powered by transmitter: 24.05W
Transmitter is powered by receiver: 23.67W
Transmitter and receiver are powered
separately: Transmitter: 8.95W,
Receiver: 11.05W
194mm x 15.4mm x 110mm/7.64” x 0.61”
x 4.33” (Transmitter/Receiver, without
mounting ears)
0.42kg/0.93lb
ESD Protection
Power Supply
Power Consumption (Max)
Device Dimension
(W x H x D)
Product Weight
17
9.1. Transmission Distance
Note: Straight-through category cable wired to T568B standard is recommended.
Cable Type
Cat 5e/6
Range
100m/330ft
70m/230ft
Supported Video
Up to [email protected] 36bpp
[email protected] 48bpp
[email protected] 24bpp
[email protected] 4:2:0 24bpp
[email protected] 4:4:4 24bpp
Cat 6a/7
100m/330ft
HDMI
Recommended max
length of 3m/10ft
All supported resolutions
10. WARRANTY
2-Year Limited Warranty
This Binary product has a 2-Year limited warranty. This warranty includes parts and labor
repairs on all components found to be defective in material or workmanship under normal
conditions of use. This warranty shall not apply to products that have been abused, modified
or disassembled. Products to be repaired under this warranty must be returned to SnapAV
or a designated service center with prior notification and an assigned return authorization
number (RA).
11. SUPPORT
Need Help? Contact Tech Support!
If you need further clarification, please call tech support at 800.838.5052, or email [email protected]
snapav.com. For other information, instructional videos, support documentation, or ideas, visit
our website and view your item’s product page at www.snapav.com.
18
19
Rev: 200402-121400
© 2020 Binary
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
