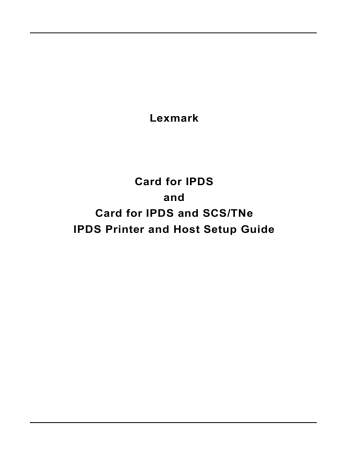

Lexmark
Card for IPDS
and
Card for IPDS and SCS/TNe
IPDS Printer and Host Setup Guide
IPDS Printer and Host Setup Guide Notices
NOTICES
Edition Notice
Sixth Edition. April 2011, Rev 006.
© Copyright Lexmark International, Inc. 2011. All rights reserved.
© Copyright Kodak. 2011. All rights reserved.
Disclaimers
The following paragraph does not apply to any country where such provisions are inconsistent with local law:
LEXMARK INTERNATIONAL, INC. AND KODAK PROVIDE THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not
allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not
apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made to
the information herein; these changes will be incorporated in later editions. Improvements or changes in the
products or the programs described may be made at any time.
References in this publication to products, programs, or services do not imply that the manufacturer intends to
make these available in all countries in which it operates. Any reference to a product, program, or service is not
intended to state or imply that only that product, program, or service may be used. Any functionally equivalent
product, program, or service that does not infringe any existing intellectual property right may be used instead.
Evaluation and verification of operation in conjunction with other products, programs, or services, except those
expressly designated by the manufacturer, are the user's responsibility.
Trademarks
AFP, AS/400, IBM, iSeries, MVS, OS/2, OS/390, OS/400, Print Services Facility, PSF, System/390, zSeries,
and z/OS are trademarks of International Business Machines Corporation in the United States, other countries,
or both.
Intelligent Printer Data Stream and IPDS are trademarks or registered trademarks of Ricoh Co., Ltd in the
United States, other countries, or both.
Lexmark and Lexmark with diamond design and MarkNet are trademarks of Lexmark International, Inc. registered in the United States and/or other countries.
2
IPDS Printer and Host Setup Guide - Table of Contents
TABLE OF CONTENTS
Notices
........................................................................................................................................................ 2
Table of Contents.............................................................................................................................................. 3
Equipment Requirements and Specifications................................................................................................ 4
Customer Support............................................................................................................................................. 5
1. iSeries and AS/400 LAN Printing Using the Printer Standard Network Port or MarkNet Internal Print
Server ................................................................................................................................................................ 6
2. PSF/MVS LAN Printing Using the Standard Network Port or Internal Print Server ........................... 14
3. PSF/2 LAN Printing Using an Internal LAN Print Server ...................................................................... 22
4. Printer and Host Timeout Values ............................................................................................................ 29
5. Printer Messages and Problems ............................................................................................................ 31
3
IPDS Printer and Host Setup Guide Equipment Requirements And Specifications
EQUIPMENT REQUIREMENTS AND
SPECIFICATIONS
This guide provides information to help you configure the host and printer to print IPDS jobs. The information in
this guide applies to the following printers and Multifunction Products (MFPs).
•
Lexmark C734, C736
•
Lexmark C792
•
Lexmark C925
•
Lexmark E460dn, E460dw, E462dtn
•
Lexmark T650, T652
•
Lexmark T654
•
Lexmark T656dne
•
Lexmark W850
•
Lexmark X463de, X464de
•
Lexmark X466dte, X466dtwe
•
Lexmark X651de, X652de
•
Lexmark X654de, X656de
•
Lexmark X658de
•
Lexmark X734de, X736de, X738de
•
Lexmark X860de, X862de, X864de
•
Lexmark X792
•
Lexmark X925
•
Lexmark C950
•
Lexmark X950, X952, X954
•
Lexmark X548
•
Lexmark 6500e
Unless otherwise specified, in the rest of this guide the term "printer" covers both printers and MFPs. The term
"Card for IPDS" also refers to the "Card for IPDS and SCS/TNe".
To print IPDS jobs, the printer must have the optional Card for IPDS and SCS/TNe* or Card for IPDS installed,
a required** minimum of user memory (DRAM), and one of the following:
•
Standard Network (Ethernet connection integrated into printer system board)
•
MarkNet internal LAN print server (optional card providing Ethernet connection).
•
Lexmark wireless internal print server.
To install the printer, determine the host, host software, and type of printer connection you will be using. Find
the appropriate chapter in the Table of Contents and follow the steps to configure the host and printer.
*Note:
SCS/TNe is not supported on all printers.
**Note: A minimum amount of user memory (DRAM) may be required to support IPDS. Refer to your model’s
IPDS Emulation User’s Guide for memory requirements and recommendations.
4
IPDS Printer and Host Setup Guide Equipment Requirements And Specifications
Customer Support
If you cannot find answers in this guide about using the IPDS emulation, or require firmware updates, please
contact your point of purchase, your local Lexmark office, or check the Lexmark support web site at
http://support.lexmark.com/index?page=localeSelect&locale=en&jumppage=home
5
IPDS Printer and Host Setup Guide iSeries and AS/400 LAN Printing Using the Printer Standard Network Port or MarkNet Internal Print Server
1.
iSeries and AS/400 LAN Printing Using the Printer
Standard Network Port or MarkNet Internal Print
Server
With the optional Card for IPDS and a LAN print server installed, the printer can receive, process, and print
AFP/IPDS print jobs over TCP/IP from the following IBM software:
•
PSF/400 V3R1-R3, V3R6-R7, V4R1-R5, V5R1-R4, V6R1, or greater
The information below will lead you through the steps for setting up the AS/400, or iSeries, and the printer to
print IPDS jobs over a LAN. The printer must be configured with a Standard Network port or MarkNet internal
LAN print server.
Refer to the IPDS User’s Guide for detailed instructions on using the control panel to select and change option
settings.
Steps
The following steps must be completed to begin printing IPDS jobs.
1
Choose a Printer Port for Use in the Device Description
2
Create a PSFCFG
3
Create a Printer Device Description
4
Configure the Printer’s Print Server TCP/IP Settings
5
Select the IPDS Emulation, Bar Code Size, Host Resolution, and Fax Interrupt Settings
6
Verify IPDS Printing
7
Troubleshooting
Step 1
Choose a Printer Port for Use in the Device Description
Several printer ports are available for receiving IPDS jobs when using the printer Standard Network port or the
MarkNet internal LAN print server. The printer port will be used in one of the following steps.
Port descriptions:
•
Port 5001 - This is the recommended port selection for receiving IPDS jobs. This port is only used for
receiving IPDS jobs.
•
Port 9600 - This port is only provided for compatibility with some older printers.
NOTE: Some previous printers supported port 9100 for IPDS printing. If you are replacing a printer using port
9100, change to port 5001.
Step 2
Note:
Create a PSFCFG
Examples showing parameters displayed on an iSeries may be different than the parameters displayed
on your system. Examples are shown with V6R1 parameters.
Define a PSF configuration object for your printer using CRTPSFCFG. The PSFCFG object defined in this step
is referenced in the printer device description (CRTDEVPRT). More than one printer can use this object.
Below is an example of a PSF configuration. The parameters in bold are the parameters which must be
changed for printing IPDS jobs.
6
IPDS Printer and Host Setup Guide iSeries and AS/400 LAN Printing Using the Printer Standard Network Port or MarkNet Internal Print Server
Example PSFCFG with parameters to change shown in bold.
PSF configuration
PSFCFG
(Note: IPDSPRT is a user defined name.)
Library...............................
User resource library list..
USRRSCLIBL
Device resource library list
DEVRSCLIBL
+ for more values
IPDS pass through..................... IPDSPASTHR
Activate release timer................ ACTRLSTMR
Release timer......................... RLSTMR
Restart timer......................... RESTRTMR
APPC and TCP/IP retry count........... RETRY
Delay time between APPC retries....... RETRYDLY
Acknowledgement frequency............. ACKFRQ
Printer response timer................ PRTRSPTMR
Generate PDF output................... PDFGEN
Save AFP data
AFPSAVE
Text 'description'.................... TEXT
> IPDSPRT1
> Your LIB
*JOBLIBL
*DFT
> *NO
<note1>
*NORDYF
> *SEC15 <note2>
*IMMED
15
90
100
*NOMAX
*NONE
*NO
> 'PSFCFG for IPDS
Printer'
(Note: ‘PSFCFG for IPDS Printer’ is user defined text.)
Press PF10 to show the following parameters:
Additional Parameters
Automatic session recovery:
AUTOSSNRCY
Enabled...........................
Message option....................
Blank page............................ BLANKPAGE
Page size control..................... PAGSIZCTL
Resident fonts........................ RESFONT
Resource retention.................... RSCRET
Edge orient........................... EDGEORIENT
Use outline fonts..................... USEOUTLFNT
PSF defined option.................... PSFDFNOPT
Font substitution messages............ FNTSUBMSG
Capture host fonts at printer......... FNTCAPTURE
Font resolution for formatting........ FNTRSL
Font mapping table.................... FNTTBL
Library.............................
Cut sheet emulation mode.............. CSEMODE
Use DBCS simulation fonts............. MAPIGCFNT
Replace............................... REPLACE
Authority............................. AUT
*NO
*YES
*NO
*YES
*YES
*NO
*NO
*NONE
*YES
*NO
*SEARCH
*NONE
<note3>
<note4>
*NONE
*NO
*YES
*LIBCRTAUT
Press PF9 to show the following parameters:
Cut sheet emulation mode..............
Use DBCS simulation font..............
Generate PDF output...................
*NONE
*NO
*NONE
PDF device emulation type.............
PDF paper size drawer 1...............
> *IP40240
*LETTER
7
IPDS Printer and Host Setup Guide iSeries and AS/400 LAN Printing Using the Printer Standard Network Port or MarkNet Internal Print Server
PDF paper size drawer 2................
PDF multiple group handling:.........
Acknowledge multiple groups..........
Process option.....................
PDF fonts inline .....................
PDF data queue........................
Library ............................
PDF mail server .....................
Sender of PDF mail ...................
PDF administrator ...................
PDF user program .....................
Library..............................
PDF mapping object....................
Library..............................
PDF output queue......................
Library...................
PDF file location.....................
Save AFP data .......................
AFP output queue......................
Library..............................
Text description .....................
Device resource library list: ........
*LETTER
*NO
*YES
*NONE
*SNDDST
*SPLFOWN
*NONE
*NONE
*NONE
*NO
*DFT
Note 1: IPDS pass through may be set to *YES. This may increase job performance. Selecting *YES may
change the fonts downloaded from the host and change paper jam recovery action between the host
and printer.
Note 2: SEC15 is recommended. Refer to “Printer and Host Timeout Values” [page 29] for information on
selecting other Release Timer values.
Note 3:
Use outline fonts controls the type of fonts downloaded to the printer. When set to *YES,
outline fonts are downloaded to the printer. When set to *NO, raster fonts are downloaded to the
printer. When the outline or raster fonts are marked eligible for capture on the host, the host will send
fonts which can be captured at the printer.
Note 4:
Capture host fonts at printer must be set to *YES and fonts must be marked eligible
to be captured before the host will send fonts which can be captured to the printer. Refer to the IPDS
Emulation User's Guide for additional information on capturing fonts.
Step 3
Note:
Create a Printer Device Description
Examples showing parameters displayed on an AS/400 or iSeries may be different than the
parameters displayed on your system. Examples are shown with V6R1 parameters.
Create a printer device description for your printer using CRTDEVPRT.
Below is an example of a device description. The parameters in bold are the parameters which must be
changed for printing IPDS jobs.
Example CRTDEVPRT with parameters to change shown in bold.
Device description.................... DEVD
(Note: IPDSPRT is a user defined name.)
Device class.......................... DEVCLS
Device type........................... TYPE
> IPDSPRT1
> *LAN
> *IPDS
8
IPDS Printer and Host Setup Guide iSeries and AS/400 LAN Printing Using the Printer Standard Network Port or MarkNet Internal Print Server
Example CRTDEVPRT with parameters to change shown in bold.
Device model.......................... MODEL
> 0
LAN attachment........................ LANATTACH
> *IP
Advanced Function Printing............ AFP
> *YES
Port number........................... PORT
> 5001
(Note: Port number selected in step 1 above.)
Online at IPL......................... ONLINE
*YES
Font:
FONT
Identifier..........................
> 11
Point size..........................
*NONE
Form feed............................. FORMFEED
> *AUTOCUT
Separator drawer...................... SEPDRAWER
*FILE
Separator program..................... SEPPGM
*NONE
Library.............................
Printer error message................. PRTERRMSG
*INQ
Message queue......................... MSGQ
Your Queue
Library.............................
Your LIB
(Note: Port number selected in step 1 above.)
Activation timer...................... ACTTMR
> *NOMAX <note1>
Image configuration
IMGCFG
*NONE
Maximum pending requests ............. MAXPNDRQS
6
Print while converting................ PRTCVT
*YES
Form definition....................... FORMDF
F1C10110
Library.............................
*LIBL
Remote location:
RMTLOCNAME
Name or address.....................
> ’157.184.115.32’
(See your Network Administrator for address.)
User-defined options ................. USRDFNOPT
*NONE
+for more values
User-defined object:
USRDFNOBJ
Object..............................
Library...........................
Object type.........................
> Your OBJ
> Your LIB
> *PSFCFG
Data transform program................ USRDTATFM
*NONE
Library.............................
User defined driver program........... USRDRVPGM
*NONE
Library.............................
Secure connection..................... SECURECNN
*NO
Validation list....................... VLDL
*NONE
Library............................
Publishing information: .............. PUBLISHINF
Support duplex.....................
*UNKNOWN
Support color......................
*UNKNOWN
Pages per minute black.............
*UNKNOWN
Pages per minute color.............
*UNKNOWN
Location...........................
*BLANK
Data streams supported ............
*UNKNOWN
+ for more values
Text 'Description'.................... TEXT
> 'IPDS Printer'
(Note: 'IPDS Printer' is user defined text.)
Additional Parameters
9
IPDS Printer and Host Setup Guide iSeries and AS/400 LAN Printing Using the Printer Standard Network Port or MarkNet Internal Print Server
Example CRTDEVPRT with parameters to change shown in bold.
Remote network identifier............. RMTNETID
Workstation customizing object........ WSCST
Library............................
Authority............................. AUT
*NETATR
*NONE
*LIBCRTAUT
Note 1: Setting the Activation Timer to *NOMAX allows multiple writers or multiple hosts to use
the same printer. The writer does not time out while waiting on the printer to start a new job.
Step 4
Configure the Printer’s Print Server TCP/IP Settings
To enable IPDS printing with a Standard Network port or a MarkNet internal LAN print server, several settings
must be verified. You can verify these settings from the printer control panel as shown below.
1
From a Ready state press the MENU button (printers). Touch
2
Use the navigation buttons
3
Select Network/Ports.
or icon
or
on touch screens.
to scroll to Network/Ports.
TIp: To do this on printers, press the Select button
; on touch screens touch Network/Ports.
4
Now you will see a list of menus. Select the Standard Network menu.
5
Select Std Network Setup.
6
Select TCP/IP.
7
Use the navigation buttons or icons to scroll through the options. Check each of the following settings and
change them as needed to configure TCP/IP communication.
TCP/IP Settings
Parameter
Value
Activate
On
(Printers: Must be "On" to enable TCP/IP communications. MFPs: not displayed.)
IP Address
157.184.67.102
(Address available from your network administrator)
Netmask
255.255.255.0
(Appropriate netmask for your network)
Gateway
157.184.67.1
(IP address of your IP gateway)
Enable DHCP
On or Off
(On, if you use a DHCP server.)
(Off, if you set the IP address another way.)
10
IPDS Printer and Host Setup Guide iSeries and AS/400 LAN Printing Using the Printer Standard Network Port or MarkNet Internal Print Server
TCP/IP Settings
Parameter
Value
Enable RARP
On or Off
(On, if you use a RARP server.)
(Off, if you set the IP address another way.)
Enable BOOTP
On or Off
(On, if you use a BOOTP server.)
(Off, if you set the IP address another way.)
Enable AutoIP
Yes or No
(Default is Yes. This is the recommended setting.)
WINS Server Address 157.184.100.20
(Address of your WINS Server)
DNS Server Address 157.184.115.7
(Address of your DNS Server)
8
Save/submit any changes and return to the Ready screen.
9
To verify the new print server settings, print a Network Setup Page. Using the control panel MENU/Menus,
select Reports > Network Setup Page. Note that the Network Job Timeout is identified as End-of-job
Timeout on this report.
Step 5
Select the IPDS Emulation, Bar Code Size, Host Resolution, and Fax Interrupt
Settings
It is important to select the correct emulation in the printer IPDS MENU before sending IPDS jobs.
Guidelines for Choosing the IPDS Emulation Setting
The IPDS Emulation, the BAR CODE and Host Resolution options are found in the printer control panel
under MENU/Menus > Option Card Menu > IPDS MENU > EMULATION.
1
"Resident" is the default setting. If you are replacing a printer that used a Native Emulation setting,
"Resident" is the recommended emulation.
2
If you are replacing a printer that used a 4028 Emulation setting, choose the "Resident" Emulation and
change the following settings:
a) Set Bar Code Size to "4028" under BARCODE > Bar Code Size.
b) The recommended Host Resolution setting is "Auto". If you experience printing problems, set Host
Resolution to "300".
3
If you are replacing a printer that used a 43xx Emulation setting, choose the "Resident" Emulation and
change the following settings:
a) Set Bar Code Size to "43xx" under BAR CODE > Bar Code Size.
b) The recommended Host Resolution setting is "Auto". If you experience printing problems, set Host
Resolution to "300".
11
IPDS Printer and Host Setup Guide iSeries and AS/400 LAN Printing Using the Printer Standard Network Port or MarkNet Internal Print Server
4
If you are replacing a printer that used a 3812/3816 Emulation, select the "3812/3816" Emulation. This
emulation only accepts 240 dpi resources (fonts, overlays, etc.) from the host and does not support DBCS
printing.
On MFPs, you can set the print priority of received faxes. Refer to the IPDS Emulation User’s Guide for additional information about Fax Interrupt. This option is found under MENU/Menus > Option Card Menu > IPDS
MENU > EMULATION.
Refer to the IPDS Emulation User’s Guide for information on these options and other IPDS MENU settings to
format IPDS jobs.
Note 1: On MFPs, "Copy Interrupt" is supported: an IPDS job can be interrupted by copy jobs and will resume
printing automatically.
Note 2: The supported printers and MFPs do not contain an Advanced Function Common Control Unit
(AFCCU).
Step 6
Verify IPDS Printing
If you have completed the steps above to configure the host and printer, you are ready to print your first IPDS
job.
It is assumed that TCP/IP communications is installed and started on the host.
1
Vary ON the device.
VRYCFG CFGOBJ(IPDSPRT) CFGTYPE(*DEV) STATUS(*ON)
2
Start the writer.
STRPRTWTR IPDSPRT
3
Send an IPDS job from your host system.
4
Observe the printer control panel. When the first job data is received, Busy or IPDS should be displayed in
the printer control panel. If the job does not print, go to Step 7 Troubleshooting.
5
After the last page of the IPDS job prints, Busy or IPDS will remain displayed until the host or printer ends
the session. This is controlled by the Release Timer on the host or by the IPDS Timeout on the printer.
6
You may want to refer to the IPDS Emulation User's Guide to determine if other IPDS MENU settings need
to be changed.
Step 7
Troubleshooting
If the IPDS job does not print, try the following.
1
If Busy or IPDS is not displayed in the printer control panel or if the printer remains in Ready mode, check
to be sure the printer is connected to the network. Try to PING the printer.
2
If Busy or IPDS is not displayed in the printer control panel or if the printer remains in Ready mode, check
all host and printer settings to be sure they are correct.
3
If you receive an IPDS Negative Acknowledgement (NACK) beginning with ’08C1’ indicating that the job is
printing outside the printer valid printable area, choose one of the following solutions:
a) Change the Printable Area setting to Physical Page. Using the control panel MENU/Menus, select
Option Card Menu > IPDS MENU > EMULATION > Printable Area.
b) Change your application to position the text within the printable area. Refer to Printable Area in the
IPDS Emulation User’s Guide for more information.
12
IPDS Printer and Host Setup Guide iSeries and AS/400 LAN Printing Using the Printer Standard Network Port or MarkNet Internal Print Server
c) Change the Exception Ctrl setting to Sup Beyond VPA. Using the control panel MENU/Menus,
select Option Card Menu > IPDS MENU > EMULATION > Exception Ctrl. The printer will not send
a NACK to the host when printing outside the valid printable area.
4
If you receive an IPDS Negative Acknowledgement (NACK) beginning with ’0821’ indicating there are
undefined characters in the job, choose one of the following solutions:
a) Change your application to send only valid characters and control codes.
b) Change the Exception Ctrl setting to Sup Undef Char. Using the control panel MENU/Menus,
select Option Card Menu > IPDS MENU > EMULATION > Exception Ctrl. The printer will not send
undefined character NACKs to the host.
5
If the job prints, but some characters are printed incorrectly, you should check the default code page setting.
Using the control panel MENU/Menus, select Option Card Menu > IPDS MENU > EMULATION > Default
Codepage. On some printers, the next step is to select Codepages A-E or Codepages F-K or Codepages
L-Z, then select the proper code page from these groups. On models with touch screens, the complete list
of code pages appear beside Default Codepage.
6
If the job prints, but some bar codes print in the wrong size, refer to the Bar Code Size option in the IPDS
User’s Guide for more information. Using the control panel MENU/Menus, select Option Card Menu >
IPDS MENU > EMULATION > BARCODE > Bar Code Size.
7
Refer to Chapter 5. Printer Messages and Problems on page 31 for additional problem solutions.
8
Once the job prints, refer to the IPDS Emulation User’s Guide for information on changing other IPDS MENU
settings.
13
IPDS Printer and Host Setup Guide PSF/MVS LAN Printing Using the Standard Network Port or Internal Print Server
2.
PSF/MVS LAN Printing Using the Standard Network
Port or Internal Print Server
With the optional Card for IPDS and a LAN print server installed, the printer can receive, process, and print
AFP/IPDS print jobs over TCP/IP directly from an MVS mainframe using the following IBM software:
•
PSF/MVS 2.2 or greater
The information below will lead you through the steps for setting up the MVS mainframe and printer to print
IPDS jobs over a LAN. The printer must be configured with a Standard Network port or MarkNet internal LAN
print server.
Refer to the IPDS User’s Guide for detailed instructions on using the control panel to select and change option
settings.
Software requirements for MVS are:
•
PSF/MVS Version 2 Release 2.0 with APAR OW15599,OW15018 and OW16442. OW08340 for font
capture.
•
PSF/MVS Version 3.1 or later.
•
MVS Scheduler APAR OW12236 to support two new PRINTDEV keywords: IPADDR and PORTNO.
•
TCP/IP Version 3 Release 1, or higher installed and configured on MVS.
•
MVS Maintenance Level Required in TCP/IP Profile
IBM PTF UQ03848
IBM PTF UQ11550
For an installation description please refer to the following publications:
Print Services Facility/MVS: Update Guide G544-3984
Version 2, Release 2, Modification 0
Print Services Facility/MVS: System Programming Guide S544-3672
Version 2, Release 2, Modification 0
PSF V3R4 for z/OS: Customization S544-5622
PSF V3R4 for z/OS: Licensed Program Specifications G544-5626
PSF V3R4 for z/OS: Messages and Codes G544-5627
PSF V3R4 for z/OS: User's Guide S544-5630
PSF V4R2 for z/OS: Customization S550-0427
PSF V4R2 for z/OS: Licensed Program Specifications G550-0431
PSF V4R2 for z/OS: Messages and Codes G550-0432
PSF V4R2 for z/OS: User's Guide S550-0435
Note: Ideally, you should always consult the latest edition of the publication. When a version number is shown,
this indicates that earlier versions are not usable.
14
IPDS Printer and Host Setup Guide PSF/MVS LAN Printing Using the Standard Network Port or Internal Print Server
Steps
The following steps must be completed to begin printing IPDS jobs.
1
Choose a Printer Port for Printing IPDS Jobs
2
Define the printer to JES
3
Add the printer to the PSF STARTUP PROC
4
Configure the Printer’s Print Server TCP/IP Settings
5
Select the IPDS Emulation, Bar Code Size, Host Resolution, and Fax Interrupt Settings
6
Verify IPDS Printing
7
Troubleshooting
Step 1
Choose a Printer Port for Printing IPDS Jobs
Several printer ports are available for receiving IPDS jobs when using the printer Standard Network port or the
MarkNet internal LAN print server. The printer port will be used in one of the following steps.
Port descriptions:
•
Port 5001 - This is the recommended port selection for receiving IPDS jobs. This port is only used for
receiving IPDS jobs.
•
Port 9600 - This port is only provided for compatibility with some older printers.
NOTE: Some previous printers supported port 9100 for IPDS printing. If you are replacing a printer using port
9100, change to port 5001.
15
IPDS Printer and Host Setup Guide PSF/MVS LAN Printing Using the Standard Network Port or Internal Print Server
Step 2
Define the printer to JES
a) Example for JES2
FSS(FSS1)
PRT7
PROC=PSFPROC,HASPFSSM=HASPFSSM
FSS=FSS1,MODE=FSS,
PRMODE=(LINE,PAGE,SOSI1,SOSI2),
CLASS=C,UCS=0,SEP,NOSEPDS,CKPTPAGE=100,
DRAIN,MARK,TRKCELL=YES
b) Example for JES3
FFSDEF,TYPE=WTR,FSSNAME=FSS3,PNAME=SAMPLE01,
SYSTEM=SYS1,TERM=NO,
DEVICE,DTYPE=PRTAFP1,NAME=PRT7,
JUNIT=(,SYS1,,OFF),FSSNAME=FSS3,
MODE=FSS,PM=(LINE,PAGE,SOSI1,SOSI2),CHARS=(YES,GT12),
CARRIAGE=(YES,A868),CKPNTGP=100,HEADER=YES,
WC=(C)
Step 3
Add the printer to the PSF STARTUP PROC
Add printer to PSFSTARTUP PROC.
Parameters to change are shown in bold.
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
PRT7
CNTL
PRT7 PRINTDEV FONTDD=*.FONT01,
OVLYDD=*.OLAY01,
PSEGDD=*.PSEG02,
PDEFDD=*.PDEF01,
FDEFDD=*.FDEF01,
JOBHDR=*.JOBHDR
JOBTRLR=*.JOBTLR
DSHDR=*.DSHDR,
FORMDEF=A10110,
PIMSG=(YES,16),
DATACK=UNBLOCK,
TRACE=NO,
MGMTMODE=OUTAVAIL,
CONNINTV=0,
DISCINTV=15,
TIMEOUT=REDRIVE,
FAILURE=WCONNECT,
IPADDR='157.184.67.102',
PORTNO=5001,
PRT7 ENDCNTL
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
/*
*/
FONT
*/
OVERLAY
*/
SEGMENT
*/
PAGEDEF
*/
FORMDEF
*/
JOB HEADER
*/
JOB TRAILER
*/
DATA SET HEADER
*/
FORMDEF
*/
MESSAGES
*/
REPORT ALL DATA CHECKS */
INTERNAL TRACE
*/
PRINTER MANAGEMENT MODE */
NO TIMEOUT
*/
TIMEOUT=15 SECONDS
*/
PSF ACTION ON TIMEOUT
*/
ATTEMPT RECONNECT
*/
IP ADDRESS FOR PRINTER */
PORT ADDRESS FOR PRINTER*/
*/
The value (15) for DISCINTV specifies the time in seconds after which PSF ends the printer session when no
output is available. The valid range is from 0 to 8160 seconds. The default value is 0. If DISCINTV=0, the
PSF does not end the printer session when no output is available. Refer to “Printer and Host Timeout Values”
[page 29] for information on selecting the DISCINTV value.
16
IPDS Printer and Host Setup Guide PSF/MVS LAN Printing Using the Standard Network Port or Internal Print Server
Example PSF STARTUP PROC - JCL and PRINTDEV.
Example PSF STARTUP PROC
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
//
SAMPLE PROC
*
STEP01 EXEC PGM=APSPPIEP,REGION=4096K,TIME=1440
STEPLIB DD DSN=PSF.LINKLIB,DISP=SHR
JOBHDR OUTPUT PAGEDEF=V06483,
/* JOB HEADER
*/
FORMDEF=A10110,CHARS=GT12
/*
*/
JOBTLR OUTPUT PAGEDEF=V06483,
/* JOB TRAILER
*/
FORMDEF=A10110,CHARS=GT12
/* FORMDEF
*/
MSGDS
OUTPUT PAGEDEF=A08682
/* MESSAGE
*/
FORMDEF=A10110,CHARS=GT15
/*
*/
*
*/
FONT01 DD DSN=SYS1.FONTLIB,DISP=SHR
/* SYSTEM FONTS
*/
DD DSN=INST.FONTLIB,DISP=SHR/* USER FONTS
*/
*
PSEG02
DD DSN=INST.PSEGLIB,DISP=SHR
/* PAGE SEGMENTS
*/
*
OLAY01
DD DSN=INST.OVERLIB,DISP=SHR
/* OVERLAYS
*/
*
PDEF01
DD DSN=SYS1.PDEFLIB,DISP=SHR
/* SYSTEM PAGE DEFS
*/
DD DSN=INST.PDEFLIB,DISP=SHR/* PAGE DEFS
*/
*
FDEF01
DD DSN=INST.FDEFLIB,DISP=SHR
/* SYSTEM FORM DEFS
*/
DD DSN=INST.FDEFLIB,DISP=SHR/* FORM DEFS
*/
*
PRT7
CNTL
/*
*/
PRT7 PRINTDEV FONTDD=*.FONT01,
/* FONT
*/
OVLYDD=*.OLAY01,
/* OVERLAY
*/
PSEGDD=*.PSEG02,
/* SEGMENT
*/
PDEFDD=*.PDEF01,
/* PAGEDEF
*/
FDEFDD=*.FDEF01,
/* FORMDEF
*/
JOBHDR=*.JOBHDR
/* JOB HEADER
*/
JOBTRLR=*.JOBTLR
/* JOB TRAILER
*/
DSHDR=*.DSHDR,
/* DATA SET HEADER
*/
FORMDEF=A10110,
/* FORMDEF
*/
PIMSG=(YES,16),
/* MESSAGES
*/
DATACK=UNBLOCK,
/* PRINT ALL DATA CHECKS
*/
TRACE=NO,
/* INTERNAL TRACE
*/
MGMTMODE=OUTAVAIL,
/* PRINTER MANAGEMENT MODE */
CONNINTV=0,
/* NO TIMEOUT
*/
DISCINTV=15,
/* TIMEOUT=15 SECONDS
*/
TIMEOUT=REDRIVE,
/* PSF ACTION TIMEOUT
*/
FAILURE=WCONNECT,
/* ATTEMPT RECONNECT
*/
IPADDR='157.184.67.102',
/* IP ADDRESS FOR PRINTER */
PORTNO=5001,
/* PORT ADDRESS FOR PRINTER */
PRT7 ENDCNTL
/*
*/
Step 4
Configure the Printer’s Print Server TCP/IP Settings
To enable IPDS printing with a Standard Network port or a MarkNet internal LAN print server, several settings
must be verified. You can verify these settings from the printer control panel as shown below.
17
IPDS Printer and Host Setup Guide PSF/MVS LAN Printing Using the Standard Network Port or Internal Print Server
1
From a Ready state press the MENU button (printers). Touch
2
Use the navigation buttons
3
Select Network/Ports.
or icon
or
on touch screens.
to scroll to Network/Ports.
TIp: To do this on printers, press the Select button
; on touch screens touch Network/Ports.
4
Now you will see a list of menus. Select the Standard Network menu.
5
Select Std Network Setup.
6
Select TCP/IP.
7
Use the navigation buttons or icons to scroll through the options. Check each of the following settings and
change them as needed to configure TCP/IP communication.
TCP/IP Settings
Parameter
Value
Activate
On
(Printers: Must be "On" to enable TCP/IP communications. MFPs: not displayed.)
IP Address
157.184.67.102
(Address available from your network administrator)
Netmask
255.255.255.0
(Appropriate netmask for your network)
Gateway
157.184.67.1
(IP address of your IP gateway)
Enable DHCP
On or Off
(On, if you use a DHCP server.)
(Off, if you set the IP address another way.)
Enable RARP
On or Off
(On, if you use a RARP server.)
(Off, if you set the IP address another way.)
Enable BOOTP
On or Off
(On, if you use a BOOTP server.)
(Off, if you set the IP address another way.)
Enable AutoIP
Yes or No
(Default is Yes. This is the recommended setting.)
WINS Server Address 157.184.100.20
(Address of your WINS Server)
DNS Server Address 157.184.115.7
(Address of your DNS Server)
18
IPDS Printer and Host Setup Guide PSF/MVS LAN Printing Using the Standard Network Port or Internal Print Server
8
Save/submit any changes and return to the Ready screen.
9
To verify the new print server settings, print a Network Setup Page. Using the control panel MENU/Menus,
select Reports > Network Setup Page. Note that the Network Job Timeout is identified as End-of-job
Timeout on this report.
Step 5
Select the IPDS Emulation, Bar Code Size, Host Resolution, and Fax Interrupt
Settings
It is important to select the correct emulation in the printer IPDS MENU before sending IPDS jobs.
Guidelines for Choosing the IPDS Emulation Setting
The IPDS Emulation, the BAR CODE and Host Resolution options are found in the printer control panel
under MENU/Menus > Option Card Menu > IPDS MENU > EMULATION.
1
"Resident" is the default setting. If you are replacing a printer that used a Native Emulation setting,
"Resident" is the recommended emulation.
2
If you are replacing a printer that used a 4028 Emulation setting, choose the "Resident" Emulation and
change the following settings:
a) Set Bar Code Size to "4028" under BARCODE > Bar Code Size.
b) The recommended Host Resolution setting is "Auto". If you experience printing problems, set Host
Resolution to "300".
3
If you are replacing a printer that used a 43xx Emulation setting, choose the "Resident" Emulation and
change the following settings:
a) Set Bar Code Size to "43xx" under BAR CODE > Bar Code Size.
b) The recommended Host Resolution setting is "Auto". If you experience printing problems, set Host
Resolution to "300".
4
If you are replacing a printer that used a 3812/3816 Emulation, select the "3812/3816" Emulation. This
emulation only accepts 240 dpi resources (fonts, overlays, etc.) from the host and does not support DBCS
printing.
On MFPs, you can set the print priority of received faxes. Refer to the IPDS Emulation User’s Guide for additional information about Fax Interrupt. This option is found under MENU/Menus > Option Card Menu > IPDS
MENU > EMULATION.
Refer to the IPDS Emulation User’s Guide for information on these options and other IPDS MENU settings to
format IPDS jobs.
Note 1: On MFPs, "Copy Interrupt" is supported: an IPDS job can be interrupted by copy jobs and will resume
printing automatically.
Note 2: The supported printers and MFPs do not contain an Advanced Function Common Control Unit
(AFCCU).
Step 6
Verify IPDS Printing
If you have completed the steps above to configure the host and printer, you are ready to print your first IPDS
job.
19
IPDS Printer and Host Setup Guide PSF/MVS LAN Printing Using the Standard Network Port or Internal Print Server
1
Send an IPDS job from your host system.
2
Observe the printer control panel. When the first job data is received, BUSY should be displayed in the
printer control panel. If the job does not print, go to Step 7 Troubleshooting.
3
After the last page of the IPDS job prints, BUSY will remain displayed until the host or printer ends the
session. This is controlled by the DISCINTV value on the host or by the IPDS Timeout on the printer.
4
You may want to refer to the IPDS Emulation User's Guide to determine if other IPDS MENU settings need
to be changed.
Step 7
Troubleshooting
If the IPDS job does not print, try the following.
1
If Busy or IPDS is not displayed in the printer control panel or if the printer remains in Ready mode, check
to be sure the printer is connected to the network. Try to PING the printer.
2
If Busy or IPDS is not displayed in the printer control panel, or if the printer remains in Ready mode, check
the status of the printer on the host. The status will be "inactive" if waiting for a print job. If the status is
"drained", restart the printer.
3
If Busy or IPDS is not displayed in the printer control panel or if the printer remains in Ready mode, check
all host and printer settings to be sure they are correct.
4
If you receive an IPDS Negative Acknowledgement (NACK) beginning with ’08C1’ indicating that the job is
printing outside the printer valid printable area, choose one of the following solutions:
a) Change the Printable Area setting to Physical Page. Using the control panel MENU/Menus, select
Option Card Menu > IPDS MENU > EMULATION > Printable Area.
b) Change your application to position the text within the printable area. Refer to Printable Area in the
IPDS Emulation User’s Guide for more information.
c) Change the Exception Ctrl setting to Sup Beyond VPA. Using the control panel MENU/Menus,
select Option Card Menu > IPDS MENU > EMULATION > Exception Ctrl. The printer will not send
a NACK to the host when printing outside the valid printable area.
d) In the PSF STARTUP PROC, set DATACK = BLKPOS. This will block any VPA or position checks.
5
If you receive an IPDS Negative Acknowledgement (NACK) beginning with ’0821’ indicating there are
undefined characters in the job, choose one of the following solutions:
a) Change your application to send only valid characters and control codes.
b) Change the Exception Ctrl setting to Sup Undef Char. Using the control panel MENU/Menus,
select Option Card Menu > IPDS MENU > EMULATION > Exception Ctrl. The printer will not send
undefined character NACKs to the host.
c) In the PSF STARTUP PROC, set DATACK = BLKCHAR. This will block any invalid character errors.
6
If the job prints, but some characters are printed incorrectly, you should check the default code page setting.
Using the control panel MENU/Menus, select Option Card Menu > IPDS MENU > EMULATION > Default
Codepage. On some printers, the next step is to select Codepages A-E or Codepages F-K or Codepages
L-Z, then select the proper code page from these groups. On models with touch screens, the complete list
of code pages appear beside Default Codepage.
7
If the job prints, but some bar codes print in the wrong size, refer to the Bar Code Size option in the IPDS
User’s Guide for more information. Using the control panel MENU/Menus, select Option Card Menu >
IPDS MENU > EMULATION > BARCODE > Bar Code Size.
8
Refer to Chapter 5. Printer Messages and Problems on page 31 for additional problem solutions.
20
IPDS Printer and Host Setup Guide PSF/MVS LAN Printing Using the Standard Network Port or Internal Print Server
9
Once the job prints, refer to the IPDS Emulation User’s Guide for information on changing other IPDS MENU
settings.
21
IPDS Printer and Host Setup Guide PSF/2 LAN Printing Using an Internal LAN Print Server
3.
PSF/2 LAN Printing Using an Internal LAN Print
Server
With the optional Card for IPDS and an internal LAN print server installed, the printer can receive, process, and
print AFP/IPDS print jobs over TCP/IP directly from PSF/2.
The information below will lead you through the steps for setting up PSF/2 and the printer to print IPDS jobs
over a LAN. The printer must be configured with a Standard Network port or a MarkNet internal LAN print
server. Refer to the IPDS User’s Guide for detailed instructions on using the control panel to select and change
option settings.
Refer to the PSF/2 documentation if you need a description of how to connect PSF/2 to a host to receive AFP
and IPDS data.
Steps
The following steps must be completed to begin printing IPDS jobs.
1
Choose a Printer Port for Printing IPDS Jobs
2
Create a Printer in PSF/2
3
Enable Printer Sharing With the Job Interval Shutdown Timer
4
Configure the Printer’s Print Server TCP/IP Settings
5
Select the IPDS Emulation, Bar Code Size, Host Resolution, and Fax Interrupt Settings
6
Verify IPDS Printing
7
Troubleshooting
Step 1
Choose a Printer Port for Printing IPDS Jobs
Several printer ports are available for receiving IPDS jobs when using the printer Standard Network port or the
MarkNet internal LAN print server. The printer port will be used in one of the following steps.
Port descriptions:
•
Port 5001 - This is the recommended port selection for receiving IPDS jobs. This port is only used for
receiving IPDS jobs.
•
Port 9600 - This port is only provided for compatibility with some older printers.
NOTE: Some previous printers supported port 9100 for IPDS printing. If you are replacing a printer using port
9100, change to port 5001.
Step 2
Create a Printer in PSF/2
a) Start PSF/2 control panel by selecting the PSF/2 Folder and then selecting the PSF/2 Control Panel
icon.
22
IPDS Printer and Host Setup Guide PSF/2 LAN Printing Using an Internal LAN Print Server
b) On the PSF/2 Control Panel select Profile and then New. The PSF/2 New Device menu appears.
Enter the device name and the device description and select a Device Resolution of 300 pel.
c) Select TCP/IP as Attachment Type and select Settings. The TCP/IP Settings menu appears.
Enter the IP address of the printer. The IP address should be obtained from your network administrator.
Enter the TCP/IP port selected in Step 1.
d) Select OK and then Create. The PSF/2 printer device is now created and is ready to print from a
PSF/2 connected host.
e) On the PSF/2 Control Panel select Options and Setup queues.
The Setup queues menu will appear. It will be blank at first. Enter the Queue name, description and select
the Device and then select Setup.
23
IPDS Printer and Host Setup Guide PSF/2 LAN Printing Using an Internal LAN Print Server
An OS/2 printer queue is now created and the printer is ready to print IPDS from OS/2 and a PSF/2 connected host.
Note:
Step 3
You can check the connection using the PSF/2 Print Submitter. A number of AFP print files are
delivered with the PSF/2 package. Any of these files can be submitted to the newly created print
queue.
Enable Printer Sharing With the Job Interval Shutdown Timer
To enable the printer to start other print jobs from another protocol, interface or server, the PSF/2 tuning option
Job Interval Shutdown Timer is used.
Use the following steps to set the Job Interval Shutdown Timer option:
a) Start the PSF/2 control panel by selecting the PSF/2 folder and then the PSF/2 Control Panel icon.
24
IPDS Printer and Host Setup Guide PSF/2 LAN Printing Using an Internal LAN Print Server
b) On the PSF/2 Control Panel select Profile and then Change.
c) Now select Tuning Options.
The Job Interval Shutdown Timer indicates the number of seconds PSF/2 waits before shutting down when
there are no jobs in the queue. In other words this is the amount of time that PSF/2 remains active after the last
job is printed.
Valid values:
integers 1 to 9999
1-9998 time in seconds to wait between jobs
9999 wait indefinitely for the next job to be received.
25
IPDS Printer and Host Setup Guide PSF/2 LAN Printing Using an Internal LAN Print Server
Step 4
Configure the Printer’s Print Server TCP/IP Settings
To enable IPDS printing with a Standard Network port or a MarkNet internal LAN print server, several settings
must be verified. You can verify these settings from the printer control panel as shown below.
1
From a Ready state press the MENU button (printers). Touch
2
Use the navigation buttons
3
Select Network/Ports.
or icon
or
on touch screens.
to scroll to Network/Ports.
TIp: To do this on printers, press the Select button
; on touch screens touch Network/Ports.
4
Now you will see a list of menus. Select the Standard Network menu.
5
Select Std Network Setup.
6
Select TCP/IP.
7
Use the navigation buttons or icons to scroll through the options. Check each of the following settings and
change them as needed to configure TCP/IP communication.
TCP/IP Settings
Parameter
Value
Activate
On
(Printers: Must be "On" to enable TCP/IP communications. MFPs: not displayed.)
IP Address
157.184.67.102
(Address available from your network administrator)
Netmask
255.255.255.0
(Appropriate netmask for your network)
Gateway
157.184.67.1
(IP address of your IP gateway)
Enable DHCP
On or Off
(On, if you use a DHCP server.)
(Off, if you set the IP address another way.)
Enable RARP
On or Off
(On, if you use a RARP server.)
(Off, if you set the IP address another way.)
Enable BOOTP
On or Off
(On, if you use a BOOTP server.)
(Off, if you set the IP address another way.)
Enable AutoIP
Yes or No
(Default is Yes. This is the recommended setting.)
26
IPDS Printer and Host Setup Guide PSF/2 LAN Printing Using an Internal LAN Print Server
TCP/IP Settings
Parameter
Value
WINS Server Address 157.184.100.20
(Address of your WINS Server)
DNS Server Address 157.184.115.7
(Address of your DNS Server)
8
Save/submit any changes and return to the Ready screen.
9
To verify the new print server settings, print a Network Setup Page. Using the control panel MENU/Menus,
select Reports > Network Setup Page. Note that the Network Job Timeout is identified as End-of-job
Timeout on this report.
Step 5
Select the IPDS Emulation, Bar Code Size, Host Resolution, and Fax Interrupt
Settings
It is important to select the correct emulation in the printer IPDS MENU before sending IPDS jobs.
Guidelines for Choosing the IPDS Emulation Setting
The IPDS Emulation, the BAR CODE and Host Resolution options are found in the printer control panel
under MENU/Menus > Option Card Menu > IPDS MENU > EMULATION.
1
"Resident" is the default setting. If you are replacing a printer that used a Native Emulation setting,
"Resident" is the recommended emulation.
2
If you are replacing a printer that used a 4028 Emulation setting, choose the "Resident" Emulation and
change the following settings:
a) Set Bar Code Size to "4028" under BARCODE > Bar Code Size.
b) The recommended Host Resolution setting is "Auto". If you experience printing problems, set Host
Resolution to "300".
3
If you are replacing a printer that used a 43xx Emulation setting, choose the "Resident" Emulation and
change the following settings:
a) Set Bar Code Size to "43xx" under BAR CODE > Bar Code Size.
b) The recommended Host Resolution setting is "Auto". If you experience printing problems, set Host
Resolution to "300".
4
If you are replacing a printer that used a 3812/3816 Emulation, select the "3812/3816" Emulation. This
emulation only accepts 240 dpi resources (fonts, overlays, etc.) from the host and does not support DBCS
printing.
On MFPs, you can set the print priority of received faxes. Refer to the IPDS Emulation User’s Guide for additional information about Fax Interrupt. This option is found under MENU/Menus > Option Card Menu > IPDS
MENU > EMULATION.
Refer to the IPDS Emulation User’s Guide for information on these options and other IPDS MENU settings to
format IPDS jobs.
Note 1: On MFPs, "Copy Interrupt" is supported: an IPDS job can be interrupted by copy jobs and will resume
printing automatically.
Note 2: The supported printers and MFPs do not contain an Advanced Function Common Control Unit
(AFCCU).
27
IPDS Printer and Host Setup Guide PSF/2 LAN Printing Using an Internal LAN Print Server
Step 6
Verify IPDS Printing
If you have completed the steps above to configure the host and printer, you are ready to print your first IPDS
job.
1
Send an IPDS job from your host system.
2
Observe the printer control panel. When the first job data is received, BUSY should be displayed in the
printer control panel. If the job does not print, go to Step 7 Troubleshooting.
3
After the last page of the IPDS job prints, BUSY will remain displayed until the host or printer ends the
session. This is controlled by the Release Timer on the host or by the IPDS Timeout on the printer.
4
You may want to refer to the IPDS Emulation User's Guide to determine if other IPDS MENU settings need
to be changed.
Step 7
Troubleshooting
If the IPDS job does not print, try the following.
1
If Busy or IPDS is not displayed in the printer control panel or if the printer remains in Ready mode, check
to be sure the printer is connected to the network. Try to PING the printer.
2
If Busy or IPDS is not displayed in the printer control panel or if the printer remains in Ready mode, check
all host and printer settings to be sure they are correct.
3
If you receive an IPDS Negative Acknowledgement (NACK) beginning with ’08C1’ indicating that the job is
printing outside the printer valid printable area, choose one of the following solutions:
a) Change the Printable Area setting to Physical Page. Using the control panel MENU/Menus, select
Option Card Menu > IPDS MENU > EMULATION > Printable Area.
b) Change your application to position the text within the printable area. Refer to Printable Area in the
IPDS Emulation User’s Guide for more information.
c) Change the Exception Ctrl setting to Sup Beyond VPA. Using the control panel MENU/Menus,
select Option Card Menu > IPDS MENU > EMULATION > Exception Ctrl. The printer will not send
a NACK to the host when printing outside the valid printable area.
4
If you receive an IPDS Negative Acknowledgement (NACK) beginning with ’0821’ indicating there are
undefined characters in the job, choose one of the following solutions:
a) Change your application to send only valid characters and control codes.
b) Change the Exception Ctrl setting to Sup Undef Char. Using the control panel MENU/Menus,
select Option Card Menu > IPDS MENU > EMULATION > Exception Ctrl. The printer will not send
undefined character NACKs to the host.
5
If the job prints, but some characters are printed incorrectly, you should check the default code page setting.
Using the control panel MENU/Menus, select Option Card Menu > IPDS MENU > EMULATION > Default
Codepage. On some printers, the next step is to select Codepages A-E or Codepages F-K or Codepages
L-Z, then select the proper code page from these groups. On models with touch screens, the complete list
of code pages appear beside Default Codepage.
6
If the job prints, but some bar codes print in the wrong size, refer to the Bar Code Size option in the IPDS
User’s Guide for more information. Using the control panel MENU/Menus, select Option Card Menu >
IPDS MENU > EMULATION > BARCODE > Bar Code Size.
7
Refer to Chapter 5. Printer Messages and Problems on page 31 for additional problem solutions.
8
Once the job prints, refer to the IPDS Emulation User’s Guide for information on changing other IPDS MENU
settings.
28
IPDS Printer and Host Setup Guide Printer and Host Timeout Values
4.
Printer and Host Timeout Values
Selecting compatible values of the printer IPDS Timeout value and host release timers is very important when
printing IPDS jobs. Selection of some values will cause communication problems between the printer and the
host. Use the tables below to verify the timeout settings in the printer and on the host.
AS/400 or iSeries host and Printer IPDS Timeout Values
Printer IPDS
Timeout
AS/400 or iSeries Release
Timer
AS/400 or iSeries Device Description
Valid Port Number
Note
Host Controlled
*SEC15
5001, 9600
Host Controlled
*SEC30
5001, 9600
Host Controlled
Specific Number of Seconds
5001, 9600
1
Host Controlled
*NOMAX
None
2
15 sec to 10 Min
*SEC15
5001, 9600
3
15 sec to 10 Min
*SEC30
5001, 9600
3
15 sec to 10 Min
Specific Number of Seconds
5001, 9600
3
15 sec to 10 Min
*NOMAX
5001, 9600
4
Note 1: The number of seconds should be greater than or equal to 15 seconds.
Note 2: This timer combination is not recommended. The printer will remain busy after the IPDS job has
completed. Jobs from other IPDS sessions and non-IPDS jobs waiting on other ports will not print.
Note 3: These timer combinations are not recommended. If used, the difference between the two timers
should be a minimum of 30 seconds.
Note 4: A printer IPDS Timeout value of 15 sec or 30 sec is recommended. This allows 15 or 30 seconds for
the host to send another job before the printer times out and starts printing jobs waiting on other ports.
29
IPDS Printer and Host Setup Guide Printer and Host Timeout Values
MVS host and Printer IPDS Timeout Values
Printer
IPDS Timeout
STARTUP PROC
STARTUP PROC
Disconnect Interval (DISCINTV) Valid Port Number (PORTNO)
Note
Host Controlled
Specific Number of Seconds
5001, 9600
1
Host Controlled
0
None
2
15 sec to 10 Min
Specific Number of Seconds
5001, 9600
3
15 sec to 10 Min
0
5001, 9600
4
Note 1: The number of seconds should be greater than or equal to 15 seconds.
Note 2: This timer combination is not recommended. The printer will remain busy after the IPDS job has
completed. Jobs from other IPDS sessions and non-IPDS jobs waiting on other ports will not print.
Note 3: This timer combination is not recommended. If used, the difference between the two timers should be
a minimum of 30 seconds.
Note 4: A printer IPDS Timeout value of 15 sec or 30 sec is recommended. This allows 15 or 30 seconds for
the host to send another job before the printer times out and starts printing jobs waiting on other ports.
30
IPDS Printer and Host Setup Guide Printer Messages and Problems
5.
Printer Messages and Problems
Review these problems and solutions for possible answers to your questions.
Use the table below if you are searching for information on a printer message or for keywords for a problem.
Message (bold) or Problem
Problem
Number
Page
Printer remains in Ready and message on Host
1
32
1510 Incorrect DLE Installation, install in the other 2
slot
32
34 Incorrect Media
10
35
1565 EMUL ERROR
9
35
900.40 Firmware error
15
36
Bad Memory System
8
35
Busy
3
32
Disk Full
13
36
Disk protected, Fonts Not Erased
12
36
Fatal error in print queue
3
32
Flash Full
13
36
Flash Protected, Fonts Not Erased
12
36
Intervention Required messages
7
34
IPDS memory exception
4
33
No print or "Smiley faces" are printed
14
36
Not enough free space in flash/disk memory for
resources
13
36
PostScript jobs don't print
5
34
PCL jobs don't print
5
34
Remote output queue (name clash)
6
34
Standard Network port not working
11
35
Timeout (IPDS Timeout; Busy Timeout etc.)
3
32
31
IPDS Printer and Host Setup Guide Printer Messages and Problems
Problem 1: Printer remains in Ready and messsage on Host
iSeries and AS/400 - Writer is started but printer remains in Ready status. After several minutes, the message queue may have the following messages:
1
Connection with device is being retried
2
Session with device ended abnormally
3
Writer did not end normally
Solution to Problem 1
Check the port defined on the host for printing IPDS to the printer. Port 9100 is not supported for IPDS printing.
Change the port selection on the host to 5001. If this does not resolve the issue, check the IP address and
other network parameters defined for communicating with the printer.
Problem 2: "1510 Incorrect DLE Installation, install in the other slot"
The message, "1510 Incorrect DLE Installation, install in the other slot", is displayed after I installed the
optional IPDS firmware card.
Solution to Problem 2
Power the printer OFF, remove the optional IPDS firmware card, and install it in the other connector on the system card. Some models require the optional firmware card to be installed in a specific connector.
Problem 3: Fatal error in print queue; incorrect Busy / Timeout
The print queue stops with a fatal error which requires operator intervention or the printer displays Busy or
IPDS even when no IPDS jobs are printing.
Solution to Problem 3
The host still has control of the printer.
You need to adjust the Network Job Timeout on the printer, the printer IPDS Timeout value, the host port
value, or the appropriate timer/timeout value on your IPDS host.
You may have to adjust a combination of these to solve the problem.
IPDS Timeout = Host Controlled
If you selected the IPDS Timeout value of Host Controlled in order to allow the host to directly control ending
(disconnecting) a LAN session, correct the appropriate host timer/timeout value as shown below.
PSF/400 with OS/400 V3R1 or V3R6
WRKAFP2: Inactivity Timer (INACTTMR)
PSF/400 with OS/400 V3R2, V3R7, V4R1-R5, V5R1-R4,
V6R1, or greater
CRTPSFCFG: Release Timer (RLSTMR)
*SEC15 or *SEC30
*SEC15 or *SEC30
32
IPDS Printer and Host Setup Guide Printer Messages and Problems
PSF/MVS
PSF Startup Proc: Disconnect Interval (DISCINTV)
15 seconds
PSF/2
TCP/IP Settings: Connect Timeout
Tuning Option: Job Interval Shutdown Timer
30 seconds
30 seconds
PSF/AIX
SMIT Printer Def: Connect Timeout
30 seconds
IPDS Timeout = 15 seconds to 10 minutes
If you selected an IPDS Timeout value of 15 seconds to 10 minutes in order to allow the printer IPDS emulation to determine when an IPDS LAN session times out, correct the appropriate host timer/timeout value as
shown below.
PSF/400 with OS/400 V3R1 or V3R6
WRKAFP2: Inactivity Timer (INACTTMR)
PSF/400 with OS/400 V3R2, V3R7, V4R1-R5, V5R1-R4,
V6R1, or greater
CRTPSFCFG: Release Timer (RLSTMR)
*NOMAX
*NOMAX
PSF/MVS
PSF Startup Proc: Disconnect Interval (DISCINTV)
0
PSF/2
TCP/IP Settings: Connect Timeout
Tuning Option: Job Interval Shutdown Timer
0
9999
PSF/AIX
SMIT Printer Def: Connect Timeout
0
Problem 4: IPDS memory exception
Sometimes an IPDS memory exception is reported to the host.
Solution to Problem 4
You need to do one or more of the following:
A. Postscript or PCL resources may be saved in the printer memory. The memory cannot be used by IPDS.
Set Resource Save to "Off" in the printer menu to allow permanent downloaded resources from PostScript
and PCL jobs to be deleted. Try reprinting the job after powering the printer OFF and ON.
B. There may be insufficient printer memory to print the IPDS job with print resolution selected in the printer's
MENU/Menus > Option Card Menu > IPDS MENU > EMULATION >IPDS Print Res menu item. Select a
lower print resolution and try reprinting the job.
C. There may be insufficient printer memory to temporarily store IPDS resources and print non-IPDS jobs. Add
more memory to the printer. Requirements vary greatly according to type of printing and types of resources
being used. For information on the minimum recommended installed memory for various printing
33
IPDS Printer and Host Setup Guide Printer Messages and Problems
requirements on each supported printer, refer to the appendix on memory requirements and
recommendations in the IPDS Emulation User’s Guide.
D. The host may be downloading more IPDS resources than can be held in the printer's memory. Add more
memory to the printer. Requirements vary greatly according to type of printing and types of resources being
used. For information on the minimum recommended installed memory for various printing requirements on
each supported printer, refer to the appendix on memory requirements and recommendations in the IPDS
Emulation User’s Guide.
Problem 5: Large or complex PostScript or PCL jobs do not print after installing IPDS
emulation
Before installing the IPDS emulation, my PostScript and PCL jobs printed correctly. Now some large PostScript and PCL jobs do not print.
Solution to Problem 5
A. If you have set host and printer settings to temporarily store IPDS resources when printing non-IPDS jobs,
change these settings to allow the host to delete the IPDS resources before printing non-IPDS jobs. Refer
to IPDS Timeout in the IPDS Emulation User’s Guide for more information on setting printer values and see
the appropriate host installation section in this guide to change the host timeout value.
B. Add more memory to the printer. This will allow IPDS resources to be temporarily stored and more complex
non-IPDS jobs to print. Requirements vary greatly according to type of printing and types of resources being
used. For information on the minimum recommended installed memory for various printing requirements on
each supported printer, refer to the appendix on memory requirements and recommendations in the IPDS
Emulation User’s Guide.
Problem 6: Remote output queue (name clash)
I'm trying to set up a remote printer with the Standard Network port or a MarkNet internal LAN print server
(named IPDSPRT) from my AS/400. When I try to print to it, I get an error message such as:
•
"All sessions ended for device IPDSPRT"
•
"Bind sense code ... received for mode QSPWTR device IPDSPRT"
•
"Writer...did not end normally"
Solution to Problem 6
A remote output queue created using CRTOUTQ and a PSFCFG device created using WRKAFP2 or CRTPSFCFG have the same user defined name. You must use a unique name for the remote output queue for an
ASCII device using TCP/IP and the AS/400 Host Print Transform. This cannot be the same name used to
define the printer as an IPDS printer with WRKAFP2 or CRTPSFCFG.
Problem 7: Intervention Required messages
Intervention Required messages (printer offline, out of paper, and cover open) from the printer are causing problems on the IPDS host.
Solution to Problem 7
You can suppress this message reporting by selecting the value Do Not Report for the option Intervention
34
IPDS Printer and Host Setup Guide Printer Messages and Problems
Required in the IPDS menu system - MENU/Menus > Option Card Menu > IPDS MENU > EMULATION. You
would then rely on users noticing the status of the printer.
Problem 8: Bad Memory System
The message Bad Memory System displays and the printer stops.
Solution to Problem 8
The IPDS memory has been corrupted. Power the printer OFF and then ON.
Problem 9: 1565 EMUL ERROR LOAD EMUL OPTION
1565 EMUL ERROR LOAD EMUL OPTION appears on the display after updating the printer code.
Solution to Problem 9
The IPDS emulation version contained in the Card will not function with the printer code. Download the correct
IPDS emulation version. See the section on support (page 5) for firmware update information.
Problem 10: 34 Incorrect Media
34 Incorrect Media appears on the display
Solution to Problem 10
A. Load the correct paper size and/or check tray paper guides to be sure the correct size is sensed.
B. Select Continue and the job will be printed.
Note:
The host is notified of the paper change. Several jobs may print formatted for the wrong paper size
before the host changes to the new paper size.
Problem 11: Standard Network port not working
I have a Standard Network port and a MarkNet internal LAN print server installed. My Standard Network
port is not working.
Solution to Problem 11
The Standard Network port cannot be used when a MarkNet internal LAN print server is installed. Try the following.
A. Obtain an unused network address from your administrator.
B. Remove the MarkNet internal LAN print server.
C. Use the new address and other information to configure the Standard Network port.
D. Attach the Standard Network port to the network.
E. Send a job to the printer.
F.
If the job does not print, you should recheck all settings on the printer and host.
35
IPDS Printer and Host Setup Guide Printer Messages and Problems
G. If the job prints, you must decide which port to use for receiving jobs.
Problem 12: Disk Protected, Fonts Not Erased or Flash Protected, Fonts Not Erased
One of the above messages is displayed when I select menu items under the Remove Resources Menu.
Solution to Problem 12
The disk or the flash is password protected. Remove the password protection to remove the IPDS fonts and
then restore the password protection.
Problem 13: Disk Full or Flash Full
The printer control panel displays a disk full or flash full message and the printer stops printing.
Solution to Problem 13
The hard disk or user flash became full before all resources from the host were captured. Select Continue to
resume printing. When the printer returns to Ready, disable capturing of resources. To disable capturing, select
MENU/Menus > Option Card Menu > IPDS MENU > RESOURCE CAPTURE > Resources to Capture. Disable capturing of resources.
If additional resources must be captured, install a larger user flash or hard disk.
You may also choose to capture fewer resources, reformat the user flash or remove resources from the disk
and capture the resources again.
To remove resources from a disk, select MENU/Menus > Option Card Menu > IPDS MENU > RESOURCE
CAPTURE > Remove Resources.
Problem 14: The printer prints "smiley faces" or does not print anything
When an IPDS job is released, the printer prints "smiley faces" or does not print anything and the job remains
on the print queue.
Solution to Problem 14
9100 or some other unsupported port number is specified as the IPDS communications port on the host. The
printer supports port 5001 and 9600 for IPDS printing. Change the port number on the host to 5001 or 9600.
The recommended port number for printing IPDS jobs is 5001.
Problem 15: Message "900.40 Firmware error" displays when I power on the printer
The printer control panel displays "900.40 Firmware error.. ..256MB required" when I power on the printer with
the IPDS card installed.
Solution to Problem 15
A minimum of 256 MB of user memory (DRAM) is required to activate IPDS printing. The message indicates
there is less than 256 MB of memory in the printer. Add additional DRAM to bring the installed total to 256 MB
or more of installed memory. IPDS should function normally with the extra memory. For all other 900.40 Firmware errors, contact technical support.
36
IPDS Printer and Host Setup Guide Printer Messages and Problems
37
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
