JBL Link 500 Quick start guide

JBL Link 500 Quick start guide

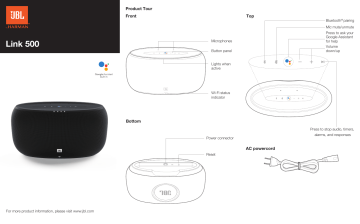

Product Tour
Front
Top
Bluetooth® pairing
Mic mute/unmute
Link 500
Press to ask your
Google Assistant
for help
Volume
down/up
Microphones
Button panel
Lights when
active
Wi-Fi status
indicator
Bottom
Press to stop audio, timers,
alarms, and responses
Power connector
AC powercord
Reset
For more product information, please visit www.jbl.com
Get Started
Specification
1.
•
Plug in the power
•
•
•
•
•
•
•
•
•
2.
Transducer: 2 x 89mm woofer, 2 x 20mm
tweeter
Output power: 4 x 15W
Frequency response: 55Hz-22kHz (-6dB)
Signal-to-noise ratio: >80dB
Power Supply: Internal 100-240V – 50/60Hz
Wireless network: 802.11b/g/n/ac
(2.4GHz/5GHz)
Bluetooth version: 4.2
Supported audio formats: HE-AAC, LC-AAC,
MP3, Vorbis, WAV (LPCM), FLAC, Opus
Dimensions (W x H x D): 370 x 200 x 157 mm
Weight: 3.5 kg
Google, Google Play, Chromecast, Chromecast built-in, Google Home
and other related marks and logos are trademarks of Google Inc.
Chromecast built-in may require subscription(s).
* Requires compatible device. Availability and performance of
certain other features and services are service, device and
network-dependent and may not be available in all areas;
subscription(s) may be required, and additional terms, conditions
and/or charges may apply.
Download and run the Google Home app on a phone or tablet.
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by
HARMAN International Industries, Incorporated is under license. Other
trademarks and trade names are those of their respective owners.
Set up your JBL Link 500 in the Google Home app.
The Wi-Fi CERTIFIEDTM Logo is a certification mark of the Wi-Fi Alliance®.
This equipment complies with FCC/IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm
between the radiator & your body.
TR03995_F
