Miele 10744850 MasterCool Series 24 Inch Smart Counter Depth Refrigerator Column Installation Instructions

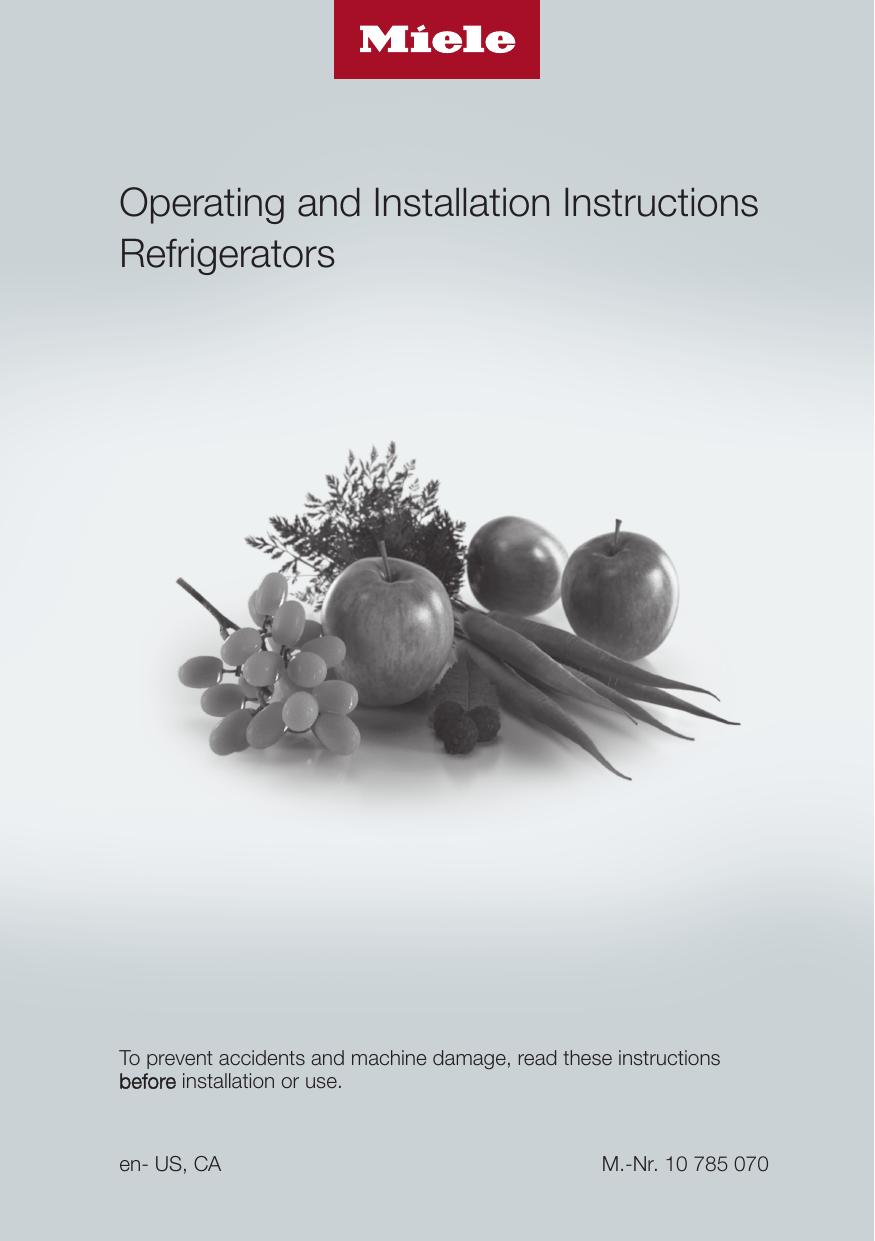

Operating and Installation Instructions
Refrigerators
To prevent accidents and machine damage, read these instructions before installation or use.
en- US, CA M.-Nr. 10 785 070
Contents
IMPORTANT SAFETY INSTRUCTIONS ............................................................
Load-bearing capacity of the niche floor ....................................................... 15
Dimensions when the appliance door is open (opening angle 90°/115°)....... 21
Securing and aligning the cabinet front ......................................................... 39
Securing the toe-kick ventilation grille and toe-kick cover ............................ 45
Limiting the opening angle of the appliance door.......................................... 46
2
Contents
Choosing the right Door Assistant ( Push2Open / Pull2Open ) ........................ 58
Adhering labels for the MasterFresh zone...................................................... 59
Adjusting the temperature in the MasterFresh zone (dry compartment)
on or off........................................................................ 64
Switching on the Door Assistant
..................................................................... 66
..................................................................... 68
................................................................................ 72
Resetting the settings to their default settings
.............................................. 73
Switching on, switching off, or resetting the Display Active AirClean Filter
... in the refrigerator section and in the MasterFresh zone .................................. 78
Automatic cold air circulation (DynaCool) ...................................................... 78
Adjusting the temperature in the dry compartment of the MasterFresh zone 79
Removing compartments from the Fridge Zone ................................................. 84
3
Contents
Food which is not suitable for storage in the refrigerator section ....................... 86
Humidity-controlled compartment with moisture regulator ........................... 88
Dry compartment with adjustable temperature.............................................. 90
4
IMPORTANT SAFETY INSTRUCTIONS
This refrigeration appliance complies with current safety requirements. Inappropriate use can, however, lead to personal injury and material damage.
Please read the operating and installation instructions carefully before using the refrigeration appliance for the first time. They contain important information on safety, installation, use, and maintenance. This is to protect yourself from injury, and from damaging your refrigeration appliance.
Miele expressly and strongly advises that you read and follow the instructions in the chapter on installing the refrigeration appliance, as well as the IMPORTANT SAFETY INSTRUCTIONS.
Miele cannot be held liable for injury or damage caused by noncompliance with these instructions.
Keep these instructions in a safe place and pass them on to any future owner.
Risk of injury and damage due to tipping refrigeration appliance.
This refrigeration appliance is very heavy and can tip forward when the door is open.
Keep the appliance door shut until the refrigeration appliance has been built in and secured in its housing in accordance with the operating and installation instructions.
5
IMPORTANT SAFETY INSTRUCTIONS
Appropriate use
This appliance is intended for use in domestic households and similar residential environments such as
– staff kitchen areas in shops, offices and other working environments
– farm houses and by clients in hotels, motels and other residential type environments
– bed and breakfast type environments
– catering and similar non-retail applications.
This appliance is not intended for use outdoors, in damp environments or in places exposed to rain.
This refrigeration appliance is intended for domestic use only for the cool storage of food and drink.
Any other usage is at the owner’s risk and could be dangerous.
This refrigeration appliance is not suitable for storing and keeping cool medicines, blood plasma, laboratory preparations, or other similar substances or products that are subject to the Medical
Device Directive. Incorrect use of the refrigeration appliance for such purposes may cause deterioration of the items stored. The refrigeration appliance is also not suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage resulting from incorrect or improper use or operation.
This refrigeration appliance may only be used by people (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they are supervised while using it.
The refrigeration appliance may only be used by these people without supervision if they have been shown how to use it in a safe way and recognize and understand the consequences of incorrect operation.
6
IMPORTANT SAFETY INSTRUCTIONS
Safety with children
To reduce the risk of injury, do not allow children to play in, on or near the appliance.
The door hinges can cause injury. Keep children well away at all times.
Ensure that any packing material is disposed of safely and kept out of the reach of children. DANGER of suffocation!
Technical safety
The coolant circuit has been checked for leaks. The refrigeration appliance complies with statutory and regulatory requirements..
To avoid the risk of damage to the appliance, make sure that the connection data (fuse rating, frequency and voltage) on the data plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult a qualified electrician if in any doubt.
The electrical safety of the appliance can only be guaranteed when correctly grounded. It is essential that this standard safety requirement is met. If in any doubt please have the electrical installation tested by a qualified electrician.
Reliable and safe operation of this appliance can only be assured if it has been connected to the electricity supply.
The outlet must not be concealed behind the appliance and must be easily accessible so that the appliance can be quickly disconnected from the electrical supply in case of an emergency.
If the power cord supplied is damaged, it must only be replaced by an original part to prevent a hazard for the user. Miele can only guarantee the safety of the appliance when original Miele parts are used.
The electrical outlet must be properly grounded.
7
IMPORTANT SAFETY INSTRUCTIONS
Do not connect the appliance to the electrical supply with a power bar or extension cord. These are a fire hazard and do not guarantee the required safety of the appliance.
If moisture gets into electrical components or into the power cord, it could cause a short circuit. Therefore, do not operate the machine in areas where there may be moisture or splashing water (e.g., garages, laundry rooms).
This appliance must not be installed and operated in mobile installations (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check the appliance for visible signs of damage.
For safety reasons, this appliance may only be used after it has been built in.
During installation, side-by-side heater installation, maintenance and repair work, the appliance must be disconnected from the electrical power supply. It is only completely isolated from the electricity supply when:
- the circuit breaker has been tripped, or
- the screw-type fuses on the electrical service panel have been removed or
- the power cord has been unplugged. Pull on the plug and not on the cord when removing it from the outlet.
Installation, repair, and maintenance work should only be performed by a Miele-authorized service technician.
Work by unqualified persons could be dangerous and may void the warranty.
Any manufacturer's warranty will be void if the appliance is not repaired by a Miele approved service technician.
8
IMPORTANT SAFETY INSTRUCTIONS
Defective components should only be replaced by Miele original parts. Only with these parts can the manufacturer guarantee the safety of the appliance.
Correct use
The refrigeration appliance is designed for use within a specific climate class (room temperature range). Do not use in a climate class for which it is not designed. A lower room temperature will cause the compressor to switch off for longer periods, meaning that the refrigeration appliance is unable to maintain the required temperature.
WARNING! DANGER of overheating! Do not cover or block the air vents. This can impair the efficiency of the appliance, increase the power consumption and cause damage to the appliance.
If storing food which contains a lot of fat or oil in the appliance, make sure that it does not come into contact with plastic components as this could cause stress cracks or break the plastic.
Risk of fire and explosion. Do not store any explosive materials or products containing flammable propellants (e.g., spray cans) in the appliance. Electrical components can cause flammable mixes of gases to ignite.
Risk of explosion. Do not operate any electrical equipment (e.g., an electric ice-cream maker) inside the refrigeration appliance. Risk of sparking and explosion.
When eating stored food, there is a danger of food poisoning.
Storage times will depend on several factors, including the freshness and quality of the food, as well as the temperature at which it is stored. Observe the manufacturer's “use-by” dates and storage instructions.
Use only genuine original Miele parts. If parts or accessories from other manufacturers are used, the warranty may become invalid.
9
IMPORTANT SAFETY INSTRUCTIONS
Cleaning and maintenance
Do not use any oil or grease on the door seals.
They can cause the seals to deteriorate over time.
Never use a steam cleaner to clean the appliance.
The steam can reach the electrical components and cause a short circuit.
Sharp edged or pointed objects will damage the evaporator, causing irreversible damage to the appliance. Do not use sharp edged or pointed objects to
- remove frost or ice,
- separate frozen foods or remove ice trays.
Transport
To avoid damage to the appliance, always transport it upright and in its packaging.
Risk of injury and damage. The refrigeration appliance is very heavy and must be transported by 2 people.
10
IMPORTANT SAFETY INSTRUCTIONS
Disposal of your old appliance
Children could become trapped in the machine and could suffocate.
- Remove the machine doors.
- Remove the drawers.
- Leave the adjustable shelves in the machine so children cannot climb inside.
DANGER of electric shock!
- Cut the plug off the power cord.
- Cut the power cord off the old appliance.
Dispose of them separately from the appliance.
Ensure that the appliance is not stored in the vicinity of gasoline or inflammable gases and liquids during and after disposal.
Make sure that the coolant pipework is not damaged during disposal to avoid uncontrolled leakage of oil and coolant (see data plate for coolant type).
Splashes of coolant can cause damage to the eyes. Be careful not to damage any part of the pipework while awaiting disposal, e.g. by
- puncturing the coolant channels in the evaporator,
- kinking any pipework,
- scratching the surface coating.
11
Caring for the environment
Disposal of packaging material
The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.
Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Return the packaging to your dealer.
Disposing of your old appliance
Electronic and electrical appliances contain many valuable materials. They also contain certain materials, compounds, and components which were essential for their correct functioning and safety. These could be hazardous to your health and to the environment if disposed of with general waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with general waste.
Instead, please make use of officially designated collection and disposal points to dispose of and recycle electrical and electronic appliances. By law, you are solely responsible for deleting any personal data from the appliance prior to disposal.
Take care not to damage your refrigeration appliance’s pipework before or during transportation to an authorized collection depot.
This is to ensure that coolant in the cooling circuit and oil in the compressor is contained, and will not leak into the environment.
Please ensure that your old appliance poses no risk to children while being stored for disposal. For additional information, see “IMPORTANT SAFETY
INSTRUCTIONS” in these operating and installation instructions.
12
*INSTALLATION*
Installation
Installation location
This appliance should be installed in a dry, well-ventilated room.
When deciding where to install your refrigeration appliance, please bear in mind that it will use more energy if installed near to a heater, a range, or another appliance that gives off heat.
Direct sunlight should also be avoided.
The higher the room temperature, the longer the compressor runs and the higher the energy consumption of the refrigeration appliance.
When installing the refrigeration appliance, please note the following:
- The electrical socket must be easily accessible in an emergency and not concealed behind the appliance.
- The plug and power cord must not touch the rear of the refrigeration appliance as they could be damaged by vibrations from the appliance.
- Do not plug in other appliances behind the refrigeration appliance.
If installation near a heat source is unavoidable, observe the following minimum distances between the appliance and the heat source:
- At least 1 1/4" (3 cm) to electric or gas stoves
- At least 11 3/4" (30 cm) to oil or coal-based stoves
If it is not possible to observe these minimum distances, an isolation plate must be installed between the refrigeration appliance and the heat source.
Climate class
The refrigeration appliance is designed for use within the climate class (room temperature range) SN-T. Do not use in a climate class for which it is not designed.
Climate class
SN
N
ST
T
Room temperature
50°F to 90°F /
10°C to 32°C
60°F to 90°F /
+16°C to +32°C
60°F to 100°F /
+16 to +38°C
60°F to 109°F /
+16 to +43°C
A lower room temperature will cause the compressor to switch off for longer periods. This can cause the internal temperature in the refrigeration appliance to rise with the risk of food deteriorating and going off.
13
*INSTALLATION*
Installation
Risk of damage due to high humidity.
In environments with high humidity, condensation can build up on external refrigeration appliance panels, which can cause corrosion.
Install the refrigeration appliance in a dry and/or air-conditioned room with sufficient ventilation.
After installation, make sure that the appliance door closes properly, the ventilation gaps are not covered, and the refrigeration appliance has been installed in accordance with these operating and installation instructions.
Installation notes
Risk of damage and injury due to the refrigeration appliance tipping over.
This refrigeration appliance is very heavy and can tip forwards when the appliance door(s) is (are) open.
Keep the appliance door(s) shut until the refrigeration appliance has been built in and secured in its housing in accordance with these operating and installation instructions.
Due to its weight and size, the refrigeration appliance must be installed by two people.
Adjoining cabinetry/units
The appliance is screwed to the adjoining cabinetry/units to the side and above. For this reason, it is essential that all cabinets/units are fixed to the ground and/or wall.
14
*INSTALLATION*
Installation
Load-bearing capacity of the niche floor
To ensure the safe installation of the refrigeration appliance and to guarantee its correct functioning, the floor of the niche where the appliance is to be installed must be smooth and even.
It must be made from strong, rigid material.
Because the refrigeration appliance is extremely heavy when fully loaded, it is essential that the floor it stands on is able to bear its weight. If necessary, seek the advice of an architect or construction expert.
When fully loaded, the weight of the refrigeration appliance is approx.:
K 2601 Vi, K 2611 Vi
K 2801 Vi, K 2811 Vi
K 2901 Vi, K 2911 Vi
717 lbs
(325 kg)
838 lbs
(380 kg)
988 lbs
(448 kg)
Ventilation
Risk of fire and damage due to insufficient ventilation.
If the refrigeration appliance is not ventilated sufficiently, the compressor will run more frequently and for longer periods.
This causes increased energy consumption and an increased compressor operating temperature, which can result in damage to the compressor.
Please ensure that there is adequate ventilation around the refrigeration appliance.
Do not block the ventilation gaps.
The ventilation gaps must never be obstructed.
Door hinge
Risk of damage and injury when changing the door hinges.
Changing the door hinges singlehandedly can cause damage to the appliance and injury.
The refrigeration appliance is supplied with a fixed hinge. On no account should you attempt to change the door hinge yourself.
If you need to change the door hinge to the other side, please contact the
Technical Service department.
15
*INSTALLATION*
Installation
Side-by-side
This appliance can be installed side-byside with another refrigeration appliance. The following overview will show you which side-by-side installation options you have with your refrigeration appliance.
Depending on the installation situation, you will need the side-byside installation kit for side-by-side installation (see “Accessories –
Optional accessories”).
Instructions for installing refrigeration appliances side-by-side can be found in the side-by-side installation kit installation instructions.
. . . with partition wall
The wall a between the side-by-side appliances must be at least
5/8" (16 mm) thick.
If the door hinges of the refrigeration appliances are next to each other, you must take into account the thickness of the cabinet fronts and door handles so that the appliance doors do not collide and become damaged if they are opened at the same time.
The refrigeration appliances are secured individually in their installation niche using the supplied installation material.
If the partition wall a is narrower than
6 5/16" (160 mm) , you will need the side panel heater from the side-by-side installation kit to prevent condensation from forming and any resulting damage.
When planning installation niches, please note that the niche into which the refrigeration appliance with the side panel heater is installed must be
3/16" (4 mm) wider (see “Installation
– Building-in dimensions”).
If the partition wall a is thicker than
6 5/16" (160 mm) , you do not need the side-by-side installation kit, nor the side panel heater.
16
*INSTALLATION*
. . . without partition wall
If the appliances are to be installed next to each other without a partition wall between them, they will need to be joined together with the side-by-side installation kit. In addition, you must install the side panel heater to prevent condensation from forming and any resulting damage.
Installation
17
*INSTALLATION*
Installation
Installation dimensions
Position of the electrical connections
- The electrical connection must not be positioned higher than 9” above the floor.
The electrical socket must not be concealed behind the appliance and must be easily accessible in an emergency.
18
*INSTALLATION*
Installation
C
A
B
K 2601 Vi,
K 2611 Vi
A
84"–85 3/16"
(2134–2164 mm)
B
24" (610 mm)
K 2801 Vi,
K 2811 Vi
84"–85 3/16"
(2134–2164 mm)
30" (762 mm)
K 2901 Vi,
K 2911 Vi
84"–85 3/16"
(2134–2164 mm)
36" (915 mm)
C
24" (610 mm) + cabinet front 3/4"–1 1/2"
(19–38 mm)
24" (610 mm) + cabinet front 3/4"–1 1/2"
(19–38 mm)
24" (610 mm) + cabinet front 3/4"–1 1/2"
(19–38 mm)
19
*INSTALLATION*
Installation
Side view
10 5/16"
(262 mm)
3 3/8 "
( 85 mm)
1 3/16"
(30 mm)
7/8"
(22 mm)
4"
(102 mm)
4"
(102 mm)
20
*INSTALLATION*
Installation
Dimensions when the appliance door is open (opening angle 90°/115°)
3/8" (10 mm)
D
A
B
C
K 2601 Vi,
K 2611 Vi
K 2801 Vi,
K 2811 Vi
K 2901 Vi,
K 2911 Vi
A
26 5/8"
(677 mm)
32 5/8"
(829 mm)
38 11/16"
(982 mm)
B*
Cabinet front max. 1 1/2"
(38 mm)
Cabinet front max. 1 1/2"
(38 mm)
Cabinet front max. 1 1/2"
(38 mm)
C*
Door handle
Door handle
Door handle
D
11 2/3"
(296 mm)
14 1/3"
(363 mm)
16 7/8"
(428 mm)
* The dimensions of the cabinet fronts and handles will vary according to the individual kitchen.
21
*INSTALLATION*
Installation
Dimensions of the cabinet front
A
B
C
K 2601 Vi,
K 2611 Vi
K 2801 Vi,
K 2811 Vi
K 2901 Vi,
K 2911 Vi
22
A B C
23 3/4" (604 mm) 79 7/8" (2029 mm) ≥ 4-5 3/16"
(102–132 mm)
29 3/4" (756 mm) 79 7/8" (2029 mm) ≥ 4-5 3/16"
(102–132 mm)
35 3/4" (908 mm) 79 7/8" (2029 mm)
≥
4-5 3/16"
(102–132 mm)
*INSTALLATION*
Building in the appliance
Before starting...
It is essential to read these installation instructions carefully before starting to install the appliance.
The appliance should be installed by a suitably qualified tradesman in accordance with these installation instructions. Safe operation of the appliance is only assured if it has been installed and connected in accordance with the installation instructions.
Risk of damage and injury!
This appliance is very heavy and can tip forwards when the door is open.
Keep the appliance door shut until the appliance has been built in and secured in its housing in accordance with the operating and installation instructions.
The appliance is both large and heavy. Installation must be carried out by two people.
The appliance must be installed in accordance with local regulations. If local regulations are not available, the following regulations must be observed:
- in the USA: the National Electric
Code, ANSI/NFPA 70 - latest edition/
State and Municipal codes and/or local codes.
- in Canada: the Canadian Electric code C22.1 - latest edition/Provincial and Municipal codes and/or local codes.
Installation
23
*INSTALLATION*
Installation
Tools required
- Cordless drill
- TX 20 screwdriver
- Hammer drill
- Drill bits in various sizes, depending on materials
- Hammer
- Open-ended wrench
- Ratchet wrench, attachment: socket,
5/16" (8 mm)
- Adhesive tape
- Utility knife
- Pipe wrench
- Level
- Tape measure
- Pencil
Other
- Step ladder
- Hand truck
Weight of cabinet front
Before installing the cabinet front, ensure that the weight of the door does not exceed the maximum permitted:
Appliance Max. weight of cabinet front
K 2601 Vi, K 2611 Vi 106 lb (48 kg)
K 2801 Vi, K 2811 Vi 59 lb (27 kg)
K 2901 Vi, K 2911 Vi 81 lb (37 kg)
If the cabinet front is too heavy, this can cause damage.
Fitting a cabinet front which is heavier than the maximum permitted weight could damage the hinges.
This damage can affect various factors, such as operation of the appliance.
Before installing the cabinet front, ensure that the weight of the door does not exceed the maximum permitted.
24
*INSTALLATION*
Aligning the installation niche
The building-in niche must be carefully aligned using a spirit level before the refrigeration appliance is installed. The niche corners must be at 90° angles to each other, otherwise the cabinet front will not sit straight on all 4 corners of the building-in niche.
Installation
Checking the installation niche
Check the installation dimensions
(see “Installation – Installation dimensions”).
Check the position of the electrical connection. The length of the power cord is 9' 10" (3 m).
The electrical socket must not be concealed behind the appliance and must be easily accessible in an emergency.
Check the surroundings for possible collisions (see “Installation –
Dimensions with appliance door open”).
Only install the refrigeration appliance in stable, solid building-in niches, positioned on an even and level floor.
Also check the building-in niche for the following criteria:
- The side panels of the installation niche must be even.
- The surrounding walls of the installation niche must be at least
5/8” (16 mm) thick.
- The surrounding walls must be securely fixed to the floor or wall.
- Shortened side walls must be at least
4" (100 mm) deep.
25
*INSTALLATION*
Installation
Before installation
Before installation, remove any accessories from the back of the appliance.
Check the refrigeration appliance for damage during transportation.
Do not install a damaged refrigeration appliance.
Check that all parts at the back of the appliance are unhindered.
To protect the floor during installation, secure an off-cut of flooring or similar material to the floor in front of the installation area.
Do not remove the installation aids from the appliance door. These will be required later for aligning the appliance in the building-in niche.
Risk of damage and injury due to the refrigeration appliance tipping over.
As soon as you unscrew the brackets that fix the refrigeration appliance to the pallet, the appliance is no longer secured.
Due to its weight and size, the refrigeration appliance must be installed by two people .
26
*INSTALLATION*
Installation
2
Unscrew the fixing brackets .
With the help of several people as required, carefully lift the refrigeration appliance from the pallet, starting with the back of the appliance.
Risk of damaging the floor from the load.
Moving the refrigeration appliance can cause damage to the floor.
Move the refrigeration appliance carefully on floors that are sensitive to scratching.
As soon as you have set the appliance upright, you can move it using the rollers on the bottom.
Preparing the installation niche
Risk of damage and injury due to the refrigeration appliance tipping over.
This refrigeration appliance is very heavy and can tip forwards when the doors are open.
The building-in niche must be secured to the wall behind it and/or above it with several screws. Only this will prevent the refrigeration appliance from tipping over after being installed.
In addition, use the provided anti-tip brackets to secure the building-in niche.
The parts required for installation are supplied with the refrigeration appliance. The plastic bags supplied are marked with letters for easy identification.
When performing the individual assembly steps, observe the letters specified and use the matching plastic bag with the required installation equipment.
27
*INSTALLATION*
Installation
The anti-tip brackets prevent the refrigeration appliance from tipping.
The anti-tip brackets are also used to fix the building-in niche securely to the surrounding walls.
Risk of injury and damage due to tipping refrigeration appliance.
If the anti-tip brackets are fixed too high up, they cannot be used to secure the refrigeration appliance.
The distance between the anti-tip brackets and the refrigeration appliance must not exceed
5/16" (8 mm).
Use 2 anti-tip brackets for each individual appliance or 4 anti-tip brackets for each (side-by-side) combination of 2 appliances.
Position the anti-tip brackets
on the left and right of the building-in niche.
Depending on the subsequent adjustment of the feet, the anti-tip brackets are positioned 7'-7' 1
3/4" (2134–2164 mm) from the floor of the niche.
Make sure that the gap between the refrigeration appliance’s rear wall and the building-in niche does not exceed
2" (51 mm).
Place a wooden wedge behind the anti-tip brackets if necessary.
While holding the anti-tip brackets in place, mark the necessary drill holes on the rear wall of the installation niche.
28
*INSTALLATION*
Installation
Fixing screws for different uses and types of material are supplied in the accompanying pack.
Securing with a wooden wedge
Secure the building-in niche to the wall behind it and/or above it as required using the anti-tip brackets
.
Securing to a concrete wall
Securing to a wooden wall
29
*INSTALLATION*
Installation
Pushing the appliance into the niche
Then push the appliance into the niche, taking care not to damage the electrical connection!
If you are installing several refrigeration appliances side by side, now secure the appliances to one another (see the installation instructions for the side-by-side installation kit).
To ensure that the refrigeration appliance can then be aligned correctly, the toe-kick ventilation grille must be removed from the appliance toe-kick:
Affix edge protection
to the adjacent cabinet fronts.
Insert the plug connector at the back of the refrigeration appliance (see
“Installation – Electrical connection”).
Insert the plug
into the electrical socket.
The electrical socket must be close to the refrigeration appliance and easily accessible.
Carefully guide a flat-head screwdriver through the toe-kick ventilation grille on both sides and use it to push the internal plastic latches outwards to release the toekick ventilation grille.
Place the toe-kick ventilation grille to one side.
Risk of damage due to electrical overload.
If the refrigeration appliance is electrically overloaded, this can cause a short circuit and thus damage your refrigeration appliance.
When you install appliances side by side, each refrigeration appliance must have its own separate electrical socket.
Tip: Secure the power cord to prevent it from becoming caught by tying a piece of string to the middle of the cord and as the refrigeration appliance is being pushed into the niche, pull the cord forward underneath the appliance.
30
*INSTALLATION*
Installation
Carefully push the refrigeration appliance into the niche.
If the refrigeration appliance cannot be pushed into the niche (because the floor is uneven, for example), unscrew the rear feet slightly (see
“Installation – Aligning the refrigeration appliance”) and slide the refrigeration appliance into the building-in niche.
Remove the edge protection
from the adjacent cabinet fronts.
Aligning the refrigeration appliance
The installation aids
on the appliance door provide assistance with the alignment of the refrigeration appliance in the building-in niche.
The installation aids are suitable for a cabinet front thickness of 3/4" or
1 1/2" (19 mm or 38 mm).
Align the appliance with neighboring cabinet fronts as described below.
Cabinet-front thickness of 3/4” (19 mm)
31
*INSTALLATION*
Installation
Cabinet-front thickness of 1 1/2” (38 mm)
The adjustable feet at the front and back of the appliance can all be adjusted from the front of the appliance.
Risk of damage due to incorrect feet adjustment.
You may damage the adjustable feet if you use a cordless screwdriver.
Always adjust the front and rear feet by hand.
Position the supplied spacers on both sides on the markings next to the adjustable feet at the front of the appliance.
32
*INSTALLATION*
Installation
Adjust the front feet with a ratchet
(attachment: 5/16” (8 mm) socket) or a TX 20 screwdriver
.
Tip: Proceed carefully when adjusting the feet, alternating between the left and right feet.
Adjust the rear feet with a ratchet
(attachment: 5/16” (8 mm) socket) or a TX 20 screwdriver
.
Place a level across the installation aids on the appliance door to check the refrigeration appliance’s alignment.
Unscrew the feet and on both sides at least until the marking on the toe-kick is aligned with the required
1 1/4” (32 mm) on the spacer
. The standard dimension of 1 1/4” (32 mm) relates to a niche height of
84” (2,134 mm).
It is important to adjust the feet to a height of at least 1 1/4” (32 mm) so that the ventilation of the refrigeration appliance via the toe-kick functions correctly.
33
*INSTALLATION*
Installation
Risk of damage if the feet are adjusted too much.
The rear adjustable feet can be damaged.
Unscrew the feet only until the marking on the toe-kick is aligned to a maximum of 2 7/16” (62 mm) (max.
niche height of 85 3/16” (2,164 mm)).
Check the alignment of the refrigeration appliance again using the installation aids and level.
Securing the appliance in the niche
Screw the lugs for the fixing plate
into the cabinets/units above the appliance.
34
*INSTALLATION*
If it is not possible to secure the appliance at the top, it can be attached to the niche with the side fixing plates:
Installation
Open the appliance door.
Open out the side fixing lugs .
Secure the side fixing lugs with the screws provided.
Screw the fixing plate lugs at the top and bottom to the cabinets/units adjacent to the appliance.
In a side-by-side combination, only the external panels of the two appliances can be secured to the cabinet wall.
35
*INSTALLATION*
Installation
Preparing the cabinet fronts
Open the appliance door as far as it will go.
Unscrew the installation aids from the appliance door.
Unscrew the angle trims
from both sides of the appliance door and place the trims and screws to one side – they will be required later.
Close the appliance door.
Measure the gap X between the mounting frame and the upper edge of the adjacent cabinet front.
36
*INSTALLATION*
Installation
Remove the nuts and washers
from the threaded bolts
and store them in a safe place – they will be required later.
Take the mounting frame
off the appliance door by removing it upwards.
Place the cabinet front on a firm surface, with the external side facing downwards (place on a blanket or similar to avoid it becoming scratched).
Mark the distance X - 1/8” (3 mm) on the inner side of the cabinet front.
Similarly, locate and mark the midpoint Y on the cabinet front.
Position the mounting frame according to the markings on the cabinet front.
Pre-drill the holes.
For inset fronts: always pay attention to the length of the screws when securing the metal strip to the cabinet front.
Screw the mounting frame
to the cabinet front:
Use at least one screw for each retaining point on the mounting frame
.
37
*INSTALLATION*
Installation
Secure the mounting frame to the top of the cabinet front, using 6 to
10 screws depending on the size.
The mounting frame has several different types of holes to take account of a variety of cabinet fronts.
When securing the frame, always screw into the strongest part of the cabinet front. To do this, select screws which are slightly shorter than the thickness of the cabinet front.
For inset fronts: only secure the mounting frame to the outer frame with the screws.
Screw the appliance handle to the cabinet front from the inside if necessary (not for handle-free kitchens).
38
*INSTALLATION*
Installation
Securing and aligning the cabinet front
Now insert the angle trims on both sides as far as they will go into the provided spaces in the mounting frame
.
Open the appliance door and hang the cabinet front on its frame onto the threaded bolts from above.
39
*INSTALLATION*
Installation
Press the angle trims
into the white plastic frame on both sides and screw them on loosely at first. Spare screws are provided in the plastic bag marked with the letter E.
Align the depth of the cabinet front via the gaps in the angle trims .
Place the spacers on top of the corners of the cabinet front on both sides.
Close the appliance door and check the distance between the door and adjacent cabinet fronts.
Align the height and sides of the cabinet front using the threaded bolts
.
40
*INSTALLATION*
Close the appliance door and check the distance between the door and adjacent cabinet fronts.
Installation
Place the washers and nuts back in position and tighten the nuts .
The cabinet front is now secured.
Now tighten the screws in the angle trims
.
Open the appliance door.
Remove the spacers from the cabinet front.
41
*INSTALLATION*
Installation
Mounting the fixing bracket
The fixing bracket is used to secure the cabinet front to the bottom of the appliance door.
Do not mount the fixing bracket until the appliance (or side-by-side combination, if applicable) has been installed and the cabinet front has been aligned.
Open the appliance door as far as it will go.
Slide the fixing bracket sideways onto the screw at the bottom of the appliance door.
Screw the fixing bracket securely to the cabinet front.
42
*INSTALLATION*
Installation
Tighten the screw at the bottom of the appliance door.
Click the cover onto the fixing bracket.
Securing the covers
The top cover must be assembled as follows before it can be installed:
Install the cover
to the fixing bracket .
Insert the two parts of the cover into one another.
43
*INSTALLATION*
Installation
Mounting the cover in a side-by-side combination
Cover viewed from the side
Insert the joining peg (from the sideby-side kit) halfway into the channel in the cover for the left-hand appliance.
Place the second cover onto the pin and press the two covers together.
Click the two covers together into the niche above the appliance.
Place the assembled cover into the gap above the appliance so it clicks into place. While doing so, slide both parts of the cover together as required.
Fit the two plastic covers on both sides of the appliance door by clicking them into the gap between the appliance door and the cabinet door, starting at the bottom and working up to the top.
44
*INSTALLATION*
Installation
Secure both sides of the appliance using at least 3 clips for the covers.
Fit the cover
to the light contact switch.
Securing the toe-kick ventilation grille and toe-kick cover
Now attach the covers
onto the retaining clips
on both sides.
In the case of side-by-side installation, the covers are only required on the outer side.
Click the toe-kick ventilation grille
onto the bottom of the appliance toekick.
45
*INSTALLATION*
Installation
Risk of fire and damage due to insufficient ventilation.
If the refrigeration appliance is not ventilated sufficiently, the compressor will run more frequently and for longer periods.
This causes increased energy consumption and an increased compressor operating temperature, which can result in damage to the compressor.
Please ensure that there is adequate ventilation around the refrigeration appliance.
Do not block the ventilation gaps.
The ventilation gaps must never be obstructed.
Limiting the opening angle of the appliance door
The door hinges are set ex works to enable the appliance door to be opened wide.
If, for example, the appliance door hits an adjacent wall when it is opened, you should limit the opening angle of the appliance door to 90°.
If necessary, cut the toe-kick cover to the required length and height (cut along the lower edge of the toe-kick facing where it touches the floor).
Secure the toe-kick cover to the bottom of the toe-kick ventilation grille.
Open the appliance door.
Insert the pin into the lower hinge from above.
This will limit the opening angle of the appliance door to 90°.
46
*INSTALLATION*
Electrical connection
Risk of electric shock!
The appliance must only be switched on when it has been installed in accordance with the installation instructions.
Ground the appliance.
The appliance must not be grounded via a gas pipe.
If in doubt, have a suitably qualified and experienced electrician check that the installation complies with relevant regulations.
Do not install a fuse into neutral current or grounding electrical circuit.
Do not use extension cords or ungrounded (two prong) adapters.
Do not use a frayed or damaged power cord.
Risk of electric shock!
For protection against electric shock, this appliance is equipped with a pole-free plug which is protected against reverse polarity. The electrical outlet must be properly grounded.
Do not remove the round grounding connector pin from the plug.
Use only a grounded plug adapter.
Installation
Wait for 1 hour after installation before plugging the appliance into the power supply. This allows coolant and refrigerator oil to settle in accordance with regulations.
Ensure that the voltage of the power supply corresponds with the connection voltage of the appliance. A power supply of 110–120 V, 60 Hz and 10–
16 Amp, which is protected by a power switch or a fuse, is required to operate the appliance.
The manufacturer recommends operating the appliance on a dedicated circuit to avoid overloading the electrical circuit.
All relevant legal electrical, fire, and building regulations must be observed when installing the electrical outlet and/ or the appliance.
In certain countries, appliances are required to be connected to the electrical supply via a wall-mounted
ON/OFF switch.
To avoid the risk of fire, electric shock, or other injuries, the appliance must be installed and connected by a suitably qualified electrician in accordance with all relevant local and national regulations and standards, including fire prevention.
The socket must not be concealed behind the appliance and must be easily accessible so that the appliance can be quickly disconnected from the electrical supply in case of an emergency.
47
*INSTALLATION*
Installation
If the outlet is no longer accessible after installation, an additional means of disconnection must be provided for all poles. Suitable means of disconnection include switches with an all-pole disconnect device with a contact opening of at least 1/8" (3 mm). These can be circuit breakers, fuses, and relays.
The plug and power cord must not come into contact with the back of the appliance as vibrations can cause damage to these components. This could result in a short circuit.
Do not plug other appliances into electrical outlet behind this appliance.
Do not connect the appliance to a stand-alone inverter such as those used with an autonomous energy source e.g., solar power .
When the appliance is turned on, power surges could result in a safety switchoff. This can damage the electronics.
The appliance must not be used with so-called energy saving devices either. These reduce the amount of energy supplied to the appliance, causing it to overheat.
If the power cord needs to be replaced, this must be performed by a qualified technician.
Connecting the appliance
Insert the plug into the back of the appliance.
Make sure that the plug has clicked into position correctly.
Insert the plug into the electrical outlet and switch on.
The appliance is now connected to the electricity supply.
48
Installation /
Maintenance
Temperature setting
Saving energy
Normal energy consumption
In a well-ventilated room.
Protected from direct sunlight.
Away from heat sources
(radiator, range/oven).
Where the ideal room temperature is approx. 68°F
(20°C).
Air vents uncovered and dusted regularly.
39°F to 41°F (4°C to 5°C) in the refrigerator section
Increased energy consumption
In an enclosed, poorly ventilated room.
In direct sunlight.
Near a heat source (radiator, oven).
Where the ambient room temperature is above 77°F
(25°C).
Where the ventilation openings are blocked and full of dust.
The lower the temperature in the appliance, the higher the energy consumption.
Dry compartment in the
MasterFresh zone approx.
32°F (0°C).
49
Saving energy
Use
Normal energy consumption
The drawers, and shelves are arranged as they were when the appliance was delivered.
Only open the door when necessary and for as short a time as possible. Store food in an organized way.
When shopping, use a cooler bag and place the food in the appliance as soon as possible.
Replace any food removed as quickly as possible, before it warms up too much.
Allow hot food and drinks to cool down before placing them in the appliance.
Store food well packaged or covered.
Increased energy consumption
Frequent opening of the door for long periods will cause a loss of coldness.
The appliance will try to cool down and the compressor will run for longer periods.
Hot food or food at room temperature raises the temperature inside the refrigeration appliance. The appliance will try to cool down and the compressor will run for longer periods.
The evaporation or condensation of liquids in the refrigerator section will cause a loss of coldness.
Place frozen food in the refrigerator section to defrost.
Do not overfill the appliance in order to allow the air to circulate.
Poor air circulation will cause a loss of coldness.
50
Guide to the appliance a
Display b
On/Off switch c
Door shelves in the appliance door d
Holder for the Active AirClean filter e
Shelves f
Hanging drawer for storing small food items g
Interior lighting h
Fruit and vegetable drawer i
Moisture regulator j
Humidity-controlled compartment with moisture regulator for fruit and vegetables k
Dry compartment with temperature adjustment for meat and fish l
Automatic door opening (Push2open/Pull2open)
51
Guide to the appliance
The dry compartment in the MasterFresh zone fulfills the requirements of a cold storage compartment according to EN ISO 15502.
52
Guide to the appliance
Main screen
4
1
2
39
°F
3
5 a
Automatic SuperCool display
(only visible when the Automatic SuperCool function has been switched on) b
Temperature display (target temperature) c
Sensor control
for setting the temperature d
Display for Miele@home connection status
(only visible when Miele@home has been set up) e
Sensor control
for adjusting various settings in Settings mode
53
Guide to the appliance
Settings mode
In Settings mode, you can select the following appliance functions and alter their settings to some extent:
Symbol
Language
Display Brightness
Color Scheme
/
Buzzer Tones
/
Keypad Tone
°F / ° C Temperature Unit
/
Keypad Lock
Function
Set
Adjust (darker to brighter)
Set (dark or bright)
Adjust the volume or switch off the Buzzer Tones completely (e.g., for the door alarm)
Adjust the volume or switch off the Keypad Tone completely
Set (°Fahrenheit or ° Celsius)
Switch on or off
(see “Selecting additional settings”)
MasterFresh
Eco Mode
Self Test
Door Assistant
Miele@home
Adjust the temperature in the dry compartment
(see “Selecting additional settings”)
Switch on or off
(see “Selecting additional settings”)
The system restarts and is checked for faults or malfunctions
(see “Selecting additional settings”)
Switch on ( Push2Open or Pull2Open ) or switch off
(see “Selecting additional settings”)
Set up, deactivate, or query WiFi connection status (see “Selecting additional settings”)
54
Guide to the appliance
*
Demo Mode
Factory Default
Sabbath Mode
Display Active
AirClean Filter
Switch off
* (only visible when
Demo Mode
, is switched on see “Selecting additional settings”)
Reset to default settings
(see “Selecting additional settings”)
Switch on or off
(see “Selecting additional settings”)
Switch on or off or reset
(see “Selecting additional settings”)
Symbols in settings mode
/
/
OK
Scroll in settings mode or select a setting
Change a setting (e.g., display brightness)
Confirm a setting
Exit the menu level
55
Accessories
Accessories supplied
Appliance plug
Labels for the MasterFresh zone
Each type of food has its own characteristics which determine the specific storage conditions it requires.
Active AirClean filters
The Active AirClean filters neutralize unpleasant odors in the refrigerator section and stop odors from being transferred to the food.
Insert the supplied Active AirClean filters as described under “Cleaning and care – Replacing the Active
AirClean filters”.
We recommend replacing the Active
AirClean filters every 6 months.
Dry compartment label
Humidity-controlled compartment label
The labels for the two compartments in the MasterFresh zone help you to choose the right type of food to ensure ideal storage conditions.
Stick the labels onto the compartments in the MasterFresh zone as described under “Before first use” in “Initial commissioning”.
56
Accessories
Optional accessories
A range of useful Miele accessories and care products are available for your appliance.
Active AirClean filters
See “Accessories supplied” for a description.
Active AirClean filters with holder
The Active AirClean filters neutralize unpleasant odors in the refrigerator section and stop odors from being transferred to the food.
The holder for the Active AirClean filters can be fixed under any shelf in the refrigerator section.
Stainless steel front panel
Stainless steel front panels give your refrigeration appliance a high-quality appearance.
Handles and toe-kick panels are also available in a stainless steel look.
Metal filler panel for inset fronts
If you wish to install two cabinet fronts next to each other instead of one cabinet front, they will have to be connected with a metal filler panel.
Side-by-side installation kit
To install two or more refrigeration appliances next to one another, you will need the side-by-side installation kit
(see “Installation – Side-by-side”).
Hinge pocket
If the door hinging needs to be changed on your refrigeration appliance, the upper toe-kick ventilation grille must be converted. A new hinge pocket is required in order to do this.
The door hinging must only be replaced by Miele Technical Service.
Accessories are available to order via the Miele Webstore, from Miele directly (see back cover for contact details) or from your Miele dealer.
57
Before first use
Before first use
Allow the appliance to stand for approx. 1 hour prior to connecting it to the power supply.
This will help prevent any malfunctions.
Packaging material
Remove all packaging material from the inside of the appliance.
Leftover tape residue.
Always remove all packaging material, including adhesive tape, before switching on the appliance.
Cleaning
Please refer to the relevant instructions in “Cleaning and care”.
Clean the inside of the appliance and the accessories.
Choosing the right Door Assistant
(
Push2Open
/
Pull2Open
)
The Door Assistant helps you to open the appliance door.
You can choose between the two Door
Assistants Push2Open and Pull2Open
(see “Selecting additional settings –
Switching on the Door Assistant ”).
The default Door Assistant is
Push2Open .
Select the
Pull2Open Door Assistant if your appliance has a cabinet front with a handle.
Select the
Push2Open
Door Assistant if your appliance has a handle-free cabinet front.
58
Adhering labels for the MasterFresh zone
Before first use
– Dry compartment for food which goes off quickly
Stick on the labels as described in the following section before switching on the refrigeration appliance.
The labels will not stick to a cold surface. Furthermore, there should not be any dust or grease on the surface.
– Humidity-controlled compartment for fruit and vegetables
Remove the label from the foil and stick it onto the frame of the dry compartment (see “Product description”).
Tip: If you are not satisfied with the positioning of the labels, you can easily pull them off and stick them on again.
In addition, they can be removed without leaving any residue.
Inserting the Active AirClean filters
Your refrigeration appliance is equipped with 2 Active AirClean filters which neutralize unpleasant odors in the refrigerator section.
Insert the Active AirClean filters supplied as described under
“Cleaning and care – Replacing the
Active AirClean filters”.
Remove the label from the foil and stick it onto the frame of the humidity-controlled compartment
(see “Product description”).
59
60
Before first use
Operating the refrigeration appliance
The touch display can be scratched by pointed or sharp objects, e.g., pens.
Only touch the display with your fingers.
If your fingers are cold, the touch display may not react.
39
°F
The sensor controls underneath the temperature display can be selected directly by touch; the symbols and text in or above the temperature display can only be displayed .
Settings mode
In Settings mode
, you can select different refrigeration appliance functions and alter their settings to some extent (see “Selecting additional settings”).
Touch the sensor control to open
Settings mode.
Use the
and
sensor controls to select the function for which you wish to adjust the settings.
Confirm your selection with OK .
Adjust the settings using either the and
sensor controls or the
and
sensor controls.
Confirm your selection with OK .
The setting with the colored background is always the selected setting; it can be confirmed directly with OK .
Touch the sensor control if you wish to switch to the previous menu level or terminate the process.
Every touch of the display is confirmed with an audible keypad tone. You can switch off this keypad tone in settings mode
.
Before first use
Starting up for the first time
Open the appliance door.
Turn the refrigeration appliance on by pressing the On/Off switch.
The On/Off switch is located below the display.
The refrigeration appliance will start to cool and the interior lighting will come on when the appliance door is opened.
Miele will appear in the refrigeration appliance display.
When you turn the appliance on for the first time, you will be asked to configure the following settings:
- Set the Language
(if you accidentally select the wrong
Language , return to Settings mode
and use the
symbol to change the language)
- Set the Temperature Unit :
°C (degrees Celsius) or °F (degrees
Fahrenheit)
- Set up Miele@home :
Select
Continue
if you wish to set up
Miele@home now (to do this, follow the instructions under “Selecting additional settings – Miele@home ”).
Select
Skip
if you would prefer to set up Miele@home later.
Use the
and
sensor controls to select the right setting and select OK to confirm your selection.
Touch the sensor control if you want to return to the previous menu level.
Set-up Successful
will appear on the display.
Confirm the first use with OK .
The main screen will appear on the display (see “Appliance description –
Main screen”).
You cannot terminate the initial startup process. The only way to terminate the process is to switch off the refrigeration appliance, though the process will continue when the appliance is switched back on.
61
62
Switching on and off
Switching on the appliance
Open the appliance door.
Turn the refrigeration appliance on by pressing the On/Off switch.
The refrigeration appliance will start to cool and the interior lighting will come on when the appliance door is opened.
Miele will appear, followed by the main screen on the refrigeration appliance display:
39
°F
To enable the temperature to get sufficiently cold inside the appliance, allow the appliance to run for a few hours before placing food in it.
Switching off for longer periods of time
If the appliance is not going to be used for a longer period of time:
Turn the appliance off.
Unplug the appliance or trip the circuit breaker.
Clean the refrigeration appliance.
Leave the door ajar to air the refrigeration appliance and avoid odors building up inside the appliance.
If, during a long absence, the refrigeration appliance is switched off but not cleaned and the door(s) left shut, there is a danger of bacteria building up inside the appliance.
It is essential to clean the refrigeration appliance.
Switching off the appliance
Turn the refrigeration appliance off by pressing the On/Off switch.
The cooling and interior lighting are switched off.
Please note: the refrigeration appliance is not disconnected from the power supply when the On/Off switch is in the “Off” position.
Selecting additional settings
In settings mode , certain settings can be adjusted and functions selected, allowing you to adjust the machine to suit your requirements.
The following section only describe the functions in settings mode
that require further explanation.
The door alarm and other warnings are automatically disabled when the appliance is in settings mode
.
The display is unlocked briefly so you can adjust the setting as required.
Closing the appliance door will reactivate the sensor lock.
Switching
Keypad Lock
/
on or off
Switch Keypad Lock on if you wish to protect your refrigeration appliance from unwanted temperature changes or other unintentional adjustments in
Settings mode .
In Settings mode
, use the
and
sensor controls to select
Keypad
Lock and select OK to confirm your selection.
Use the and sensor controls to switch the sensor lock On or Off and select OK to confirm your selection.
The keypad lock will not be activated until you close the appliance door.
Nothing will appear on the display to indicate that the keypad lock is switched on.
The message
Press OK for 6 seconds to unlock will appear on the display if you select a sensor control while the sensor lock is switched on.
Follow the instructions on the display.
63
Selecting additional settings
Adjusting the temperature in the MasterFresh zone (dry compartment)
In Settings mode , use the and
sensor controls to select
MasterFresh
and select OK to confirm your selection.
Use the
and
sensor controls to select the desired temperature and touch OK to confirm your selection.
Touch the
sensor control if you wish to terminate the process.
The segment bar displays 5 segments; the temperature is adjusted in increments of approx. 34°F (1°C).
The factory default setting for the temperature in the dry compartment is
32°F (0°C).
Switching
Eco Mode
on or off
Eco Mode is useful when going on vacation, for example, if you do not wish to switch off the appliance completely or do not need a high degree of cooling. Energy consumption in
Eco Mode
is lower than in normal operation.
The refrigerator section is thereby regulated to a temperature of 43°F (6°C) and the dry compartment in the
MasterFresh zone to approx. 34°F (1°C).
If the Automatic SuperCool function is switched on, this will be automatically switched off when Eco Mode is selected.
In Settings mode , use the and
sensor controls to select Eco Mode and select OK to confirm your selection.
Use the
and
sensor controls to switch
Eco Mode On
or
Off
and select
OK to confirm your selection.
Only the changed temperature on the display indicates that Eco Mode is switched on.
Tip: You can also switch off the
Eco
Mode function by directly adjusting the temperature
(see “The correct temperature”) – Setting the temperature”).
Storing food at a temperature of 43°F
(6°C) for an extended period of time may impair the shelf life and quality of the food.
64
Selecting additional settings
Performing a
Self Test
Perform a Self Test if you are concerned that your refrigeration appliance is not working properly and want to check if it is suffering from any problems.
In Settings mode , use the and
sensor controls to select Self Test and select OK to confirm your selection.
Touch the
sensor control if you wish to terminate the process.
The Self Test starts and the appliance is checked for any faults or malfunctions.
- The message
System restart
will appear on the display if the Self Test does not discover any faults or malfunctions.
- If the Self Test does discover any faults or malfunctions, they are indicated as error messages on the display.
An alarm will also sound.
If you find the alarm disruptive, you can switch it off in advance by touching the
sensor control.
Make a note of the error message(s) displayed.
Contact Miele Technical Service and inform them of the error message(s) on the display.
Confirm the message with OK .
System restart will appear on the display.
The refrigeration appliance briefly switches off and then back on automatically.
Self test completed
will appear on the display.
Confirm the message with OK .
The main screen appears on the display again.
65
Selecting additional settings
Switching on the
Door
Assistant
You can choose between the two Door
Assistants Push2Open and Pull2Open .
The default Door Assistant is
Push2Open .
The Push2Open Door Assistant is suitable for cabinet fronts without handles. The door will then open automatically when you gently press against it.
The Pull2Open Door Assistant is suitable for cabinet fronts with handles. The appliance door can be opened easily with little force.
Risk of damage if the appliance door is closed prematurely.
When the Door Assistant is switched on, repeatedly closing the appliance door early can lead to damage or malfunctions.
Refrain from holding onto or closing the appliance door while automatic door opening is still extended. If you have indeed closed the appliance door, leave it closed for 5 minutes.
Automatic door opening resets itself.
Touch the sensor control to return to the previous menu level.
– Adjusting the intensity
You can also adjust the intensity of the
Push2Open function. The lower the set intensity, the less force required when you push against the appliance door.
In Settings mode , use the and
sensor controls to select Door
Assistant
and select OK to confirm your selection.
In Settings mode
, use the
and
sensor controls to select
Intensity and select OK to confirm your selection.
Use the and sensor controls to select the right intensity ( Low , Medium ,
High ) and select OK to confirm your selection.
Switching on
Push2Open
In Settings mode
, use the
and
sensor controls to select
Door
Assistant and select OK to confirm your selection.
Use the and sensor controls to select Mode and select OK to confirm your selection.
Use the and sensor controls to select Push2Open and select OK to confirm your selection.
66
Selecting additional settings
– Adjusting the duration of the
AutoClose function
You can also adjust the duration for how long the appliance door will remain open until it closes automatically.
In Settings mode
, use the
and
sensor controls to select Door
Assistant and select OK to confirm your selection.
In Settings mode , use the and
sensor controls to select AutoClose and select OK to confirm your selection.
Use the
and
sensor controls to select the duration (5 to 30 seconds) and touch OK to confirm your selection.
To protect against inadvertent opening: if you do not pull the appliance door open, it will close again by itself after a duration defined by you.
Switching on
Pull2Open
In Settings mode
, use the
and
sensor controls to select Door
Assistant
and select OK to confirm your selection.
Use the
and
sensor controls to select Mode and select OK to confirm your selection.
Use the and sensor controls to select Pull2Open and select OK to confirm your selection.
Touch the sensor control to return to the previous menu level.
– Adjusting the intensity
You can also adjust the intensity of the
Pull2Open function. The lower the set intensity, the less force required when you pull the appliance door.
In Settings mode
, use the
and
sensor controls to select Door
Assistant and select OK to confirm your selection.
In Settings mode
, use the
and
sensor controls to select Intensity and select OK to confirm your selection.
Use the and sensor controls to select the right intensity ( Low , Medium ,
High
) and select OK to confirm your selection.
67
Selecting additional settings
Switching off the
Door
Assistant
In Settings mode
, use the
and
sensor controls to select Door
Assistant
and select OK to confirm your selection.
Use the
and
sensor controls to select Mode and select OK to confirm your selection.
Use the and sensor controls to select Off and select OK to confirm your selection.
Touch the sensor control to return to the previous menu level.
Miele@home
Your refrigeration appliance is equipped with an integrated WiFi module.
Networking is deactivated at the factory.
To use this feature, you will need:
- A WiFi network.
- The Miele@mobile app.
- A Miele user account. The user account can be created via the
Miele@mobile app.
The Miele@mobile app will guide you as you connect your appliance to your home WiFi network.
Once the refrigeration appliance is connected to your WiFi network, you can use the app to carry out the following activities, for example:
- Call up information on the operating status of your refrigeration appliance.
- Change the settings on your refrigeration appliance.
Connecting your refrigeration appliance to your WiFi network will increase energy consumption, even when the appliance is switched off.
Make sure that the signal of your
WiFi network is sufficiently strong in the place where you want to set up your refrigeration appliance.
68
Selecting additional settings
Availability of the WiFi connection
The WiFi connection shares a frequency range with other appliances (including microwave ovens and remote control toys). This can cause sporadic or even complete connection failures.
Therefore, the availability of featured functions cannot be guaranteed.
Miele@home availability
The ability to use the Miele@mobile app depends on the availability of the
Miele@home service in your country.
The Miele@home service is not available in every country.
For information about availability, please visit www.miele.com.
Miele@mobile App
The Miele@mobile App is available to download free of charge from the Apple
App Store
®
or from the Google Play
Store™.
Connecting your appliance via the
Miele@mobile app
You will also require the following to log in:
- the password to your WLAN network
- your refrigeration appliance’s password
Your refrigeration appliance‘s password is its serial number, which can be found on the data plate.
The data plate can be found in the interior cabinet of the refrigeration appliance.
If your serial number is “78000001” for example, your password will be
“78000001”.
In Settings mode , use the and
sensor controls to select
Miele@home
and select OK to confirm your selection.
Set up will appear on the display.
Confirm your selection with OK .
Use the
and
sensor controls to select via the App and select OK to confirm your selection.
69
Selecting additional settings
Open the Miele@mobile app and follow the instructions in the app.
As soon as your refrigeration appliance has been integrated into your WiFi network, the message
Connection successful will appear on your refrigeration appliance‘s display.
Confirm the process with OK again.
If the WLAN connection is active,
will appear on the display.
Connecting your refrigeration appliance via WPS
Your router must be equipped with the
WPS function for this connection option.
In Settings mode
, use the
and
sensor controls to select
Miele@home and select OK to confirm your selection.
Set up
will appear on the display.
Confirm your selection with OK .
Use the
and
sensor controls to select via WPS
and select OK to confirm your selection.
Now follow the instructions on the display.
Confirm the process with OK .
To be able to use the Miele@home functions, you also have to register your refrigeration appliance in the app.
As soon as your refrigeration appliance has been integrated into your home network via WPS, the message
Connection successful
will appear on the display.
Confirm the process with OK again.
If the WLAN connection is active, will appear on the display.
70
Selecting additional settings
Deactivating Miele@home
In Settings mode , use the and
sensor controls to select
Miele@home and select OK to confirm your selection.
Use the
and
sensor controls to select Deactivate and select OK to confirm your selection.
Deactivation successful will appear on the display.
Confirm the message with OK .
Your refrigeration appliance is now disconnected from your WLAN network.
The
symbol will go out on the display.
Activating Miele@home
If you have already activated
Miele@home and then disconnected the connection, you will need to reactivate the connection.
In Settings mode , use the and
sensor controls to select
Miele@home and select OK to confirm your selection.
Use the and sensor controls to select Activate and select OK to confirm your selection.
Activation successful will appear on the display.
Confirm the message with OK .
If the WLAN connection is active,
will appear on the display.
Checking the WLAN connection status
In Settings mode
, use the
and
sensor controls to select
Miele@home
and select OK to confirm your selection.
Use the
and
sensor controls to select Connection status and select OK to confirm your selection.
Information about the WLAN connection status will then appear on the display:
connected: there is a strong connection
-
connected: there is an average connection
-
connected: there is a weak connection
-
disconnected
Setting up Miele@home again
If you have changed your WiFi network, you can set up Miele@home again for your appliance.
In Settings mode , use the and
sensor controls to select
Miele@home and select OK to confirm your selection.
Use the
and
sensor controls to select Set up again and select OK to confirm your selection.
Reset configuration?
will appear on the display.
Use the
and
sensor controls to select Yes or No and select OK to confirm your selection.
71
Selecting additional settings
Resetting the network configuration
Reset the refrigeration appliance’s settings to the default settings when disposing of your refrigeration appliance, selling it, or putting a used refrigeration appliance into operation.
This will reset the network configuration so that all personal data is deleted from the refrigeration appliance. This will also ensure that a previous owner is no longer able to access the refrigeration appliance.
Reset the settings of the refrigeration appliance as described under
“Resetting the settings to their default settings
”.
Switching off
Demo Mode
Demo mode allows the appliance to be presented in the showroom without the cooling system being switched on . Do not activate this setting for domestic use.
If Demo mode has been switched on as a default setting, will show on the display.
In Settings mode
, use the
and
sensor controls to select Demo
Mode and select OK to confirm your selection.
Press OK for 4 seconds to deactivate will appear on the display.
Follow the instructions on the display.
The countdown Demo Mode will deactivate in seconds.
appears on the display.
Demo Mode deactivated. The appliance will cool down.
will appear on the display.
Confirm the message with OK .
The main screen appears on the display again.
72
Selecting additional settings
Resetting the settings to their default settings
You can reset the refrigeration appliance‘s settings to their default settings.
Reset the refrigeration appliance’s settings to the default settings when disposing of your refrigeration appliance, selling it, or putting a used refrigeration appliance into operation. This will reset the network configuration so that all personal data is deleted from the refrigeration appliance. This will also ensure that a previous owner is no longer able to access the refrigeration appliance.
In Settings mode , use the and sensor controls to select Factory Default and select OK to confirm your selection.
Use the and sensor controls to select
Reset
and select OK to confirm your selection.
After a brief delay, Settings reset appears on the display.
Confirm the message with OK .
The initial commissioning process restarts (see “Before first use – Starting up for the first time”).
The refrigeration appliance‘s settings will be reset to the following values:
73
Selecting additional settings
Function Default settings
/
/
°F / ° C
/
Language
Display Brightness
Color Scheme
Buzzer Tones
Keypad Tone
Temperature Unit
Keypad Lock
MasterFresh
Eco Mode
Door Assistant
Miele@home
Sabbath Mode
Display Active AirClean Filter
Temperature in the refrigerator section
Temperature in the dry compartment
English
Average value
(4 of 7 segments)
Dark
Average value
(4 of 7 segments)
Average value
(4 of 7 segments)
°Fahrenheit
Switched off
32°F (0°C)
(2 of 5 segments)
Switched off
Push2open
Switched off
Switched off
Switched on
37°F (4°C)
32°F (0°C)
74
Selecting additional settings
Switching
Sabbath Mode
on or off
The refrigeration appliance has a
Sabbath Mode to support the observance of religious customs.
When
Sabbath Mode
is switched on, you cannot make any settings on your refrigeration appliance.
Ensure that the appliance door is properly closed, as visual and audible alarms are switched off in Sabbath
Mode .
In Settings mode
, use the
and
sensor controls to select Sabbath
Mode
and select OK to confirm your selection.
Use the
and
sensor controls to select On or Off and select OK to confirm your selection.
When
Sabbath Mode
is switched on,
will appear on the display and the display brightness will be reduced (the display does not change when the appliance door is closed).
When Sabbath Mode
is switched on, the following functions are switched off:
- Door Assistant
(for cabinet fronts without handles, the appliance door will have to be pulled from the bottom or side)
- Lighting
- All audible and visual signals,
- Temperature display
- The Automatic SuperCool function (if previously switched on)
You can still select:
- the sensor control for Settings mode
so that Sabbath Mode can be switched off
The Sabbath Mode function will switch itself off automatically after approx.
125 hours.
Danger of food poisoning!
Any power failure during Sabbath
Mode will not be shown on the display. After a power failure, the appliance will restart in Sabbath
Mode. When power is restored, no notification of the power failure will appear on the display.
If there is a power failure during
Sabbath mode, check the quality of the food.
75
Selecting additional settings
Switching on, switching off, or resetting the
Display Active
AirClean Filter
The Display Active AirClean Filter will remind you approx. every 6 months that the Active AirClean filters have to be replaced. Change Active AirClean Filter will appear on the display.
See “Cleaning and care – Replacing the
Active AirClean filters” for instructions on how to replace the Active AirClean filters.
The first time the Active AirClean filters need to be replaced, the display will remind you automatically; the reminder does not need to be switched on separately.
Switching on the
Display Active
AirClean Filter
If the Display Active AirClean Filter has been switched off once, it must be switched on again if required.
In Settings mode
, use the
and
sensor controls to select the Display
Active AirClean Filter and select OK to confirm your selection.
Use the and sensor controls to select On and select OK to confirm your selection.
The
Display Active AirClean Filter
has been switched on.
Switching off the
Display Active
AirClean Filter
If you do not require the Display Active
AirClean Filter , you can switch it off.
In Settings mode , use the and
sensor controls to select the Display
Active AirClean Filter and select OK to confirm your selection.
Use the
and
sensor controls to select
Off
and select OK to confirm your selection.
The Display Active AirClean Filter has been switched off.
76
Resetting the
Display Active AirClean
Filter
After you have replaced the Active
AirClean filters, you must reset the
Display Active AirClean Filter
so that it can be displayed again after 6 months.
If you do not reset the display, it appears again and again.
In Settings mode
, use the
and
sensor controls to select the
Display
Active AirClean Filter and select OK to confirm your selection.
Use the and sensor controls to select Reset and select OK to confirm your selection.
The Change Active AirClean Filter message disappears from the display.
The
Display Active AirClean Filter
to replace the Active AirClean filters has been activated.
Selecting additional settings
77
The correct temperature
It is very important to set the correct temperature for storing food in the appliance. Bacteria will cause food which is not stored at the correct temperature to deteriorate rapidly.
Temperature influences the growth rate of these bacteria. Reducing the temperature reduces their growth rate.
The temperature in the appliance will rise:
- the more often the appliance door is opened and the longer it is kept open
- the more food that is stored in it
- the warmer the food is that is being put into it
- the higher the ambient temperature surrounding the refrigeration appliance is. The appliance is designed for use within specific ambient temperatures (climate range). Do not use in ambient temperatures for which it is not designed
... in the refrigerator section and in the MasterFresh zone
We recommend a temperature of 39°F
(4°C) in the refrigerator section.
We recommend a temperature of 32°F
(0°C) in the dry compartment of the
MasterFresh zone.
Automatic cold air circulation
(DynaCool)
The fan automatically turns on when the cooling system for the refrigerator section turns on. It distributes the temperature in the refrigerator section to all areas evenly so that all the food inside will be chilled to about the same degree.
78
The correct temperature
Setting the temperature
Touch the
sensor control to set the temperature.
The previously set temperature will appear.
Use the and sensor controls to set the temperature. Keeping your finger on the sensor control changes the temperature continuously.
Confirm the temperature setting with
OK or wait approx. 8 seconds after the last touch of the sensor. This temperature will be automatically adopted.
Tip: The new temperature setting can also be confirmed and adopted by closing the appliance door.
The temperature display always shows the required temperature.
If you have adjusted the temperature, wait for approximately 6 hours if the appliance is not very full and for approximately 24 hours if the appliance is full before checking the temperature display. It will take this long for an accurate reading to be given.
If, after this time, the temperature is still too high or too low, adjust it again.
Adjusting the temperature in the dry compartment of the MasterFresh zone
The temperature in the dry compartment of the MasterFresh zone is maintained at approx. 32°F (0°C).
However, if you would like it to be warmer or colder, you can adjust the temperature slightly (see “Selecting additional settings – Adjusting the temperature in the MasterFresh zone
(dry compartment)
”).
Tip: You can select a lower setting for storing, for example, particularly delicate fish. A slightly higher temperature is preferable for storing ready-to-eat food, for example.
Temperature range
The temperature in the refrigerator section can be set between 36°F (2°C) and 46°F (8°C).
The temperature in the dry compartment in the MasterFresh zone can be set between 30°F (-1°C) and
37°F (3°C).
79
Using Automatic SuperCool
Automatic SuperCool function
The Automatic SuperCool function can be used to rapidly reduce the temperature in the refrigerator section to its lowest setting (depending on the room temperature).
Automatic SuperCool is particularly recommended for the rapid chilling of large amounts of fresh food or drink.
Switching on Automatic SuperCool
Touch the
sensor control to set the temperature.
Touch the sensor control to switch the Automatic SuperCool function on.
The symbol is highlighted in color and the newly set temperature value of
36°F (2°C) appears on the display.
Confirm the setting with OK or wait approx. 8 seconds after the last press of the button. The setting will be automatically adopted.
The
symbol is now illuminated on the display.
The appliance will now run at maximum power.
Switching off Automatic SuperCool
Touch the sensor control to set the temperature.
The
symbol is highlighted in color and the temperature value of 36°F (2°C) is shown on the display.
Touch the sensor control to switch the Automatic SuperCool function off.
The
symbol is no longer highlighted in color and the previous temperature setting appears again on the display.
Confirm the setting with OK or wait approx. 8 seconds after the last press of the button. The setting will be automatically adopted.
The symbol disappears from the temperature display.
The refrigeration appliance will continue running at normal power.
If you do not turn off the
Automatic SuperCool function, it will turn itself off automatically after approx.
6 hours. The appliance will then run at normal power again.
Tip: To save energy, the
Automatic SuperCool function can be turned off once food and drinks are sufficiently chilled.
80
The appliance is fitted with a warning system to avoid increased energy consumption if the door is left open.
Door alarm
An alarm will sound if the appliance door has been left open for longer than approx. 2 minutes.
The Close the door message also appears on the display.
As soon as the door is closed, the alarm will stop and the message on the display will disappear.
Turning the door alarm off early
If the alarm disturbs you, it can be turned off early.
Touch the OK sensor control in the display.
The alarm stops and the message disappears from the display.
After a certain time the alarm will sound again and the message will reappear in the display until the appliance door is closed.
Door alarm
81
Adjusting the interior fittings
Moving the shelves in the appliance door
Danger of injury!
Only move the shelves in the door when they are empty.
The shelves can be moved when loading and unloading and for cleaning or they can be removed completely:
Moving the adjustable shelves
If necessary, the adjustable shelves can be removed or their height can be adjusted:
Hold the shelf on the frame with both hands and lift it slightly so that it can be lifted with the catches on both sides over the guide.
Remove the shelf or place it in the required position at the back with the catches in the guides at the same height.
Make sure that the shelf is straight.
Tip: For the purposes of loading and unloading or cleaning, the clip-in containers in the shelves can be removed from their holders completely.
Hold the shelf on both sides and raise it slightly so that it can be lifted with the catches over the guide at the back.
Pull the shelf forwards.
Remove the shelf or place it in the required position, with the catches engaged at the back.
Make sure that the shelf is straight.
82
Removing the hanging drawer
The hanging drawer can be moved to the left or right if required.
To clean the hanging drawer, remove it as follows:
Pull the hanging drawer straight out to lift it over the pull-out stops on both sides.
To reinsert the hanging drawer, push it straight into the guide.
Adjusting the interior fittings
Moving the hanging drawer
The hanging drawer can be fixed under any shelf in the refrigerator section.
Pull the hanging drawer out.
To remove the holder for the hanging drawer, press against the retainers on both sides of the holder from the rear and pull the holder downwards diagonally from the frame.
To replace the holder, press against the retainers on both sides of the holder from the rear and clamp it into the gap on the frame from below.
Put the hanging drawer back in.
Tip: Alternatively, you can move the shelf together with the hanging drawer.
83
Adjusting the interior fittings
Removing compartments from the Fridge Zone
The compartments in the Fridge Zone are on telescopic runners, and can be removed for filling, emptying, or cleaning purposes:
Pull the compartment out a little bit.
Using both hands, grasp the compartment frame from below and push the compartment downwards so that the rear end disengages and lifts upwards.
Pull the compartment forwards to remove it.
Push the runners back in again to avoid damaging them!
Be careful not to wash away the special lubricant in the telescopic runners during cleaning.
Wipe the telescopic runners with a damp cloth to clean them.
To reinsert the compartment, position it on the telescopic runners so that it clicks into place.
84
Always observe USDA food safety guidelines.
Risk of fire from electrical appliances.
Operating electrical devices in the appliance can cause sparks to form.
Do not operate any electrical devices inside the appliance.
Risk of explosion due to flammable mixes of gases.
Electrical components can cause flammable mixes of gases to ignite.
Do not store any explosive materials or products containing flammable propellants (e.g., spray cans) in the appliance. The spray cans in question can be identified by the contents printed on the can or by a flame symbol. Electrical components can cause escaping gases to ignite.
Risk of damage due to greasy or oily foods.
If storing food which contains a lot of fat or oil in the appliance or the door, make sure that it does not come into contact with plastic components as this could cause stress cracks or break the plastic.
Make sure that no fat or oil leaks onto the plastic parts of the appliance.
Storing food in the refrigerator section
Different storage zones
Due to natural air circulation, there are different temperature zones in the refrigerator section.
Cold, heavy air sinks to the lowest section of the refrigeration section.
Make use of the different zones when placing food in the appliance.
Tip: To allow air to circulate efficiently, do not pack food too closely together in the refrigerator.
If there is insufficient air circulation, the cooling performance will decrease and energy consumption will increase.
Do not cover the fan in the rear wall of the appliance.
Tip: Do not store food in such a way that it touches the rear wall of the refrigerator section as it may freeze to the rear wall.
This appliance has DynamicCooling, which helps to keep an even temperature when the fan is running.
When DynamicCooling is turned on, the difference between the various zones is less pronounced.
85
Storing food in the refrigerator section
Warmest area
The warmest area in the refrigerator section is in the top section of the door.
Use this for storing butter so that it remains spreadable and cheese so that it retains its flavor.
Coldest area
The coldest area in the refrigerator section is directly above the fruit and vegetable drawer and at the back of the appliance. The temperature in the dry compartment of the MastertFresh zone is even colder.
Use this area in the refrigerator section and in the dry compartment of the
MasterFresh zone for all delicate and highly perishable food, e.g.:
- fish, meat, poultry
- cold cuts, ready-made meals
- dishes or baked goods containing eggs or cream
- fresh dough, cake mixtures, pizza dough, or pie dough
- raw milk cheese and other raw milk products
- pre-packed vegetables and other fresh food with a best-before date that requires storage at a temperature of at least 40°F (4°C)
Food which is not suitable for storage in the refrigerator section
Not all food is suitable for refrigeration at temperatures below 41°F (5°C) because it is sensitive to cold.
Depending on the type of food, the appearance, consistency, flavor, and/or vitamin content may be altered if stored at too cold a temperature.
Foods which are sensitive to cold include:
- Pineapples, avocados, bananas, pomegranates, mangoes, melons, papayas, passion fruit, citrus fruits such as lemons, oranges, mandarins, grapefruits
- Fruit (which is not yet ripe)
- Eggplants, cucumbers, potatoes, peppers, tomatoes, zucchini
- Hard cheeses (e.g., Parmesan)
86
Storing food in the refrigerator section
Notes on buying food
The freshness of food when first placed in the appliance is an important factor in determining how long it stays fresh, and how long it can be kept in the appliance.
Take into account the use-by date and the correct storage temperature.
Time out of the refrigerator, e.g., transporting food in a warm car, should be kept to a minimum.
Tip: Take a cool bag when shopping, and load food in the appliance as soon as possible.
Storing food correctly
Ensure that food stored in the refrigerator section is in packaging or covered properly (some exceptions apply in theMasterFresh zone). This will prevent food smells from affecting other food, food from drying out, and also any cross-contamination of bacteria.
This is particularly important when storing meat products. Make sure that foods such as raw meat and fish in particular do not come into contact with other food.
By ensuring that the temperature settings are correct and by taking appropriate hygiene measures, you can prolong the storage life of your food considerably.
Fruit and vegetables
Fruit and vegetables can be stored loose in the fruit and vegetable drawer.
87
Storing food in the MasterFresh zone
MastertFresh zone
The MastertFresh zone provides ideal storage conditions for fruit, vegetables, fish, meat, and dairy products. Food stays fresh considerably longer while retaining both flavor and vitamins.
The MasterFresh zone comprises a humidity-controlled and a dry compartment.
- Depending on the moisture-regulator setting, the humidity-controlled compartment is particularly suitable for storing fruit and vegetables .
- The dry compartment is suitable for storing perishable foods such as fish, meat, and dairy products.
Any type of food can in fact be stored in this compartment, as long as it is packaged.
K 26x1 Vi/SF
K 28x1 Vi/SF
K 29x1 Vi/SF
Max. load of the drawers in the
MasterFresh zone
55 lb (25 kg)
77 lb (35 kg)
100 lb (45 kg)
Humidity-controlled compartment with moisture regulator
The humidity level in the humiditycontrolled compartment can be regulated to approximately suit the food being stored. Food retains its own moisture if stored at a higher humidity and so does not dry out as quickly. This allows it to stay crisp and fresh for longer.
The moisture released by food in storage is kept within the humiditycontrolled compartment drawer. The closer the air humidity in the humiditycontrolled compartment is to the humidity content of the food, the crisper and fresher the food remains over a longer period, as the water content of the food is largely retained.
The moisture level greatly depends on the type and quantity of food being stored, if stored unwrapped.
The temperature in the humiditycontrolled compartment is approximately equivalent to the temperature in the conventional refrigerator section.
Remember that the fresher the food when it is placed in the appliance, the longer it will stay fresh.
88
Storing food in the MasterFresh zone
The moisture regulator is used to regulate the amount of moisture in the humidity-controlled compartment with settings to .
Position of the moisture regulator
= slightly increased humidity
Select this setting if you store very large quantities of fruits and vegetables in the humidity-controlled compartment. The moisture regulator partially closes the vents in the compartment so that some of the moisture present is retained.
Tip: If the humidity level is too high and a lot of moisture has collected in the compartment, select the
setting.
If the quantity of food being stored in this compartment is small, the moisture level may be too low. If you are only storing a small amount of food, wrap it in airtight packaging.
Increased moisture in the humiditycontrolled compartment can, in some circumstances, cause a buildup of condensate.
Wipe off any condensate with a cloth.
Regulating the humidity level in the humidity-controlled compartment
Slide the moisture regulator to the left
or right
depending on the setting required.
Position of the moisture regulator
= increased humidity
Select this setting if you store small to large quantities of fruits and vegetables in the humidity-controlled compartment. The moisture regulator closes the vents in the compartment completely so that all of the moisture present is retained.
89
Storing food in the MasterFresh zone
Dry compartment with adjustable temperature
The temperature in the dry compartment is maintained at 30 to
37°F (-1 to 3°C). While lower than the temperature in a standard refrigerator section, this is the optimum temperature range for storing fresh food which is not sensitive to cold.
The deterioration process is decelerated at this temperature range so food can be stored without loss of freshness for considerably longer than in a standard refrigerator and you do not need to shop as often.
However, if you would like it to be warmer or colder, e.g., when storing fish, you can adjust the temperature slightly (see “Selecting additional settings – Adjusting the temperature in the MasterFresh zone (dry compartment) ”).
The humidity level is similar to that in the conventional refrigerator section.
Tip: This compartment is ideal for all home-cooked meals as any microorganisms that may still be present cannot multiply.
The dry compartment is ideal for storing perishable foods such as:
- dairy products such as yogurt, cheese, cream, etc.
- deli salads
- meat, poultry, and sausage
- fresh fish and shellfish
- Any type of food can in fact be stored in this compartment, as long as it is packaged.
Please note that foods rich in protein deteriorate faster than others.
Shellfish, for example, deteriorates faster than fish, and fish deteriorates faster than meat.
For hygiene reasons, always keep these foods covered or wrapped in this compartment.
Take food out of the dry compartment approximately 30 to 60 minutes before using it. The aroma and taste do not fully develop until the food has reached room temperature.
At high room temperatures, delicate food should preferably be kept in the refrigerator section for a period of time.
90
Storing food in the MasterFresh zone
The following tips may help if you find that food you have stored does not keep well (for example, the food wilts or becomes withered after only a short storage time):
Only place fresh food in the appliance as the initial condition of the food is crucial to maintaining freshness.
Clean the MasterFresh zone before storing food in it.
Very wet food should be dried off before storing it in the humidity-controlled compartment.
Do not store food which is sensitive to cold in the dry compartment (see
“Storing food in the refrigerator section – Food which is not suitable for storage in the refrigerator section”).
Allocate the appropriate settings to food you wish to store (e.g., humid or dry storage).
Store food loose in the humidity-controlled compartment.
A high humidity level in the humidity-controlled compartment is achieved by the moisture present in the food being stored.
If the humidity level is not high enough (e.g., too little food is being stored), it can be increased by placing a damp sponge in the drawer.
If you think that the temperature in the dry compartment is too high or too low, adjust the temperature in the compartment (see “The correct temperature –
Temperature range”). If ice crystals start to form at the bottom of the dry compartment, increase the temperature as otherwise the cold temperature will damage the food.
If too much water collects at the bottom of the humidity-controlled compartment, dry it with a cloth. If necessary, dry food before placing it in the appliance or place a wire rack at the bottom of the humidity-controlled compartment to allow water to drain off.
91
Automatic defrosting
WARNING! DANGER of injury and damage!
Do not use any mechanical or other types of aids which are not recommended by the manufacturer to accelerate the defrosting process.
Refrigerator section and
MasterFresh drawer
The refrigerator section and the
MasterFresh drawer defrost automatically.
Condensate and frost can build up on the back wall of the refrigerator section and the MasterFresh drawer while in use. You do not need to remove this, as it will defrost and evaporate automatically with the warmth generated by the appliance.
92
WARNING! DANGER of electric shock!
Unplug the appliance or trip the circuit breaker.
WARNING! Fire hazard!
Do not damage the coolant pipework.
Do not let water get into the electronic or the lighting.
Risk of damage due to moisture penetration.
The steam from a steam cleaner can damage plastic and electrical components.
Do not use a steam cleaner to clean the refrigeration appliance.
The data plate located inside the interior cabinet of the refrigeration appliance must not be removed. It contains information which is required in the event of a service call.
Cleaning and care
Cleaning agents
To avoid damaging the surfaces of your appliance, do not use:
- cleaning agents containing soda, ammonia, acids, or chloride
- cleaning agents containing lime scale remover
- abrasive cleaning agents, such as scouring powder, scouring liquid, or pumice stones
- cleaning agents containing solvents
- stainless steel cleaning agents
- dishwasher cleaner
- oven sprays
- glass cleaner
- hard, abrasive sponges and brushes, such as pot scrubbers
- eraser sponges
- sharp metal scrapers
Cleaning and conditioning agents used in the interior cabinet of the refrigeration appliance must be food safe.
We recommend using lukewarm water and a little liquid dish soap for cleaning.
93
Cleaning and care
Before cleaning the appliance
Turn the appliance off completely by pressing the On/Off switch.
Unplug the appliance or switch off the fuse.
Take any food out of the appliance and store it in a cool place.
Take out all other removable parts for cleaning (see “Adjusting the interior fittings”).
Interior and accessories
Clean the appliance regularly, or at least once a month.
Clean up any spills, stains, or food immediately. Do not allow them to dry and stick to the appliance.
Clean the appliance with a solution of lukewarm water and liquid dish soap.
Rinse all parts by hand. Do not wash in a dishwasher.
After cleaning, wipe with clean water and dry with a soft cloth.
Leave the door open to air the appliance sufficiently for a short while and to prevent odor buildup.
Aluminum frames
The frames to the shelves inside the appliance and the door shelves are partially made from aluminum.
Aluminum is a dynamic material. The reflection and appearance of aluminum changes in different lights and environments and depending on the angle you observe it from. It is also susceptible to scratching.
The aluminum frames may become discolored or damaged if soiling is left on for too long. Remove any soiling immediately.
94
Cleaning the door seal
Risk of damage as a result of incorrect cleaning.
If you treat the door seal with oils or grease, it can become porous.
Do not use any oils or grease on the door seal.
The door seals should be cleaned regularly with clean water, and then wiped dry with a soft cloth.
Cleaning the ventilation gaps
A build-up of dust will increase the energy consumption of the appliance.
The ventilation gaps should be cleaned on a regular basis with a brush or vacuum cleaner (you could use a Miele Vacuum Cleaner dusting brush, for example).
Cleaning and care
Replacing the Active AirClean filters
The Active AirClean filters in the refrigerator section need to be replaced approx. every 6 months.
Change Active AirClean Filter will appear on the display.
Confirm the message with OK .
To remove the holder for the Active
AirClean filters, press against the retainers on both sides of the holder from the rear and pull the holder downwards diagonally from the frame.
Remove the used Active AirClean filters and place the new Active
AirClean filters with the surrounding edge pointing downwards in the holder.
To replace the holder, press against the retainers on both sides of the holder from the rear and clamp it into the gap on the frame from below.
95
Cleaning and care
The holder can be fixed under any shelf in the refrigerator section.
Once the Active AirClean filters have been replaced, the Active AirClean filter display
must be reset using Settings mode on the display (see “Selecting additional settings – Resetting the
Display Active AirClean Filter
”).
New Active AirClean filters (both with and without a holder) can be obtained from Miele Technical Service, your local dealer, or via the Miele website.
After cleaning
Replace all shelves and accessories in the appliance.
Reconnect to the power supply and switch the appliance back on.
Switch on the SuperCool function for a while so that the refrigerator section can cool down quickly.
Switch off the SuperFrost function as soon as the temperature in the freezer is a constant 0°F (-18°C) or colder.
Place food back in the appliance and close the door.
96
Frequently Asked Questions
With the help of the following guide minor faults in the performance of the machine, some of which may result from incorrect operation, can be remedied without contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
To prevent cold from escaping, open the appliance doors as little as possible until the fault has been corrected.
Problem
If you are concerned that your appliance is not working properly, you can perform a
Self
Test . Your appliance will be checked for any faults or malfunctions.
The appliance is not getting cold and the interior lighting does not come on when the appliance door is opened.
Possible cause and solution
Any errors identified during the Self Test are shown on the display.
Perform a Self Test (see “Additional settings”, section “Performing a
Self Test
”).
Contact Technical Service and inform them of the error message(s) on the display.
The appliance has not been turned on.
Turn the appliance on. The temperature appears in the display.
The plug is not properly plugged into the electrical outlet.
Insert the plug into the outlet.
The fuse has tripped. There could be a fault with the appliance, the household electrical wiring, or another appliance.
Contact a technician or the Technical Service department.
97
Frequently Asked Questions
Problem
The compressor is turning on more frequently and for longer periods of time; the temperature in the refrigeration appliance is too low.
Possible cause and solution
The ventilation gaps in the cabinetry have been covered or become too dusty.
Do not block the ventilation gaps.
Clean the ventilation gaps on a regular basis to remove any dust.
The appliance door has been opened too frequently, or a large number of bottles have been put inside the unit all at once.
Only open the appliance door when necessary and for as short a time as possible.
After a while, the temperature will return to normal by itself.
The appliance door is not properly closed.
Close the door.
After a while, the temperature will return to normal by itself.
The ambient temperature is too high. The higher the ambient temperature, the longer the compressor has to run.
See the information in the section on “Installation –
Installation location”.
The refrigeration appliance was not properly installed in the building-in niche.
See the information in “Installation – Installing the refrigeration appliance”.
The compressor is turning on more frequently and for longer periods of time; the temperature in the appliance is too low.
The compressor comes on less and less often and for shorter periods of time. The temperature in the appliance rises.
The temperature setting is too low.
Correct the temperature setting.
The SuperCool function is still turned on.
To save energy, you can turn SuperCool off early yourself.
This is not a fault. The temperature is too high.
Correct the temperature setting.
Check the temperature again after 24 hours.
98
Frequently Asked Questions
Problem
The compressor runs continuously.
An alarm sounds.
Possible cause and solution
No alarm sounds despite the appliance door being open.
You have switched off the audible signal.
Switch the audible signal back on using Settings mode
.
The
Sabbath Mode
function is switched on: the temperature display is dark and the symbol is shown on the display.
You can switch off Sabbath mode at any time (see
“Selecting additional settings – Switching Sabbath
Mode
on or off”).
The appliance door cannot be opened.
The appliance door cannot be opened when
Sabbath Mode
is switched on.
Not a fault. To save energy, the compressor runs at a lower speed when less cooling is required. This increases the compressor run time.
The appliance door has been open for longer than
3 minutes.
Close the appliance door.
The Pull2Open Door Assistant is switched on but the appliance has a handle-free cabinet front.
For handle-free cabinet fronts, switch on the
Push2Open Door Assistant (see “Switching on the
Door Assistant” in “Selecting additional settings”).
The Push2Open Door Assistant is switched on at the same time as Sabbath Mode .
When
Sabbath Mode
is switched on, the Door
Assistant is deactivated.
Pull the appliance door open from below or from the side.
99
Frequently Asked Questions
Messages in the display
Message
The warning sounds and the message Close the door appears on the display.
is shown in the display. The machine does not get cold, but the machine controls are working.
Possible cause and solution
The appliance door is open.
Close the appliance door.
If you wish to turn the alarm off early, touch the sensor control OK on the display.
The alarm will stop.
The temperature display is dark and the
symbol is shown on the display.
“
F Please contact Miele
Technical Service.
” appears in the display and an alarm sounds.
The Sabbath Mode function is switched on. The interior lighting is switched off and the refrigeration appliance is cooling down.
You can switch off Sabbath mode at any time (see
“Selecting additional settings – Switching Sabbath
Mode
on or off”).
There is a fault.
Make a note of the fault message if necessary.
Contact Technical Service.
To turn the alarm off, touch the
symbol.
The error message does not disappear from the display until the error has been rectified.
The voltage level is too high/low.
Observe the connection data under “Electrical connections”.
Contact Technical Service if necessary.
To turn the alarm off, touch the
symbol.
The error message does not disappear from the display until the error has been rectified.
Demo Mode
is switched on. Demo mode allows the appliance to be presented in the showroom without the cooling system being turned on. Do not activate this setting for domestic use.
Switch off Demo mode (see “Selecting additional settings”, section “Switching off Demo Mode
”).
100
Frequently Asked Questions
The interior lighting is not working.
Problem
The interior lighting is not working.
Possible cause and solution
The refrigeration appliance has not been turned on.
Turn the refrigeration appliance on.
The Sabbath Mode function is switched on: the temperature display is dark and the
symbol is shown on the display.
You can switch off Sabbath Mode at any time via the Settings mode
.
There is a fault.
Risk of electric shock due to exposed, live electrical components.
When removing the lighting cover, there is a risk of coming into contact with live electrical components.
Do not remove the lighting cover. The LED lighting may only be repaired or replaced by Technical
Service.
Risk of injury from LED lighting.
This lighting corresponds to risk group RG 2. If the cover is defective, there is a risk of eye injury.
If the lighting cover is defective, do not look from a close range directly into the lighting with optical instruments (e.g., magnifying glass or similar).
Contact Technical Service.
101
Causes of noises
Normal noises
Brrrrr...
Crack...
Cause
Blub, blub...
A gurgling noise can be heard when the coolant circulates through the pipes.
Click...
A humming noise is made by the motor (compressor). This noise can get louder for brief periods when the motor switches on.
Clicking sounds occur whenever the thermostat switches the motor on or off.
A cracking sound can be heard when materials expand inside the appliance.
Please bear in mind that a certain amount of noise is unavoidable (from the compressor and the coolant circulating through the system).
Noises
Rattling, clinking
Cause and solution
The appliance is uneven. Realign the appliance using a level, by raising or lowering the adjustable feet underneath the appliance or placing something underneath it.
The appliance is touching another machine or piece of furniture.
Move it away.
Drawers, baskets or shelves are jiggling or are stuck. Check all removable parts and refit them correctly if required.
Bottles or containers are touching each other. Separate them a little.
102
Contact in the event of a fault
In the event of a fault which you cannot remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Customer
Service call-out online at www.miele.com/service.
Contact information for Miele
Customer Service can be found at the end of this document.
Please quote the model identifier and serial number of your appliance (SN) when contacting Miele Customer
Service. Both pieces of information can be found on the data plate.
You will find the data plate inside your appliance.
Appliance warranty and product registration
You can register your product and/or view the manufacturer´s warranty terms and conditions for Miele appliances and vacuum cleaners at www.mieleusa.com.
Customer Service
103
Declaration of conformity
Frequency band 2,412 GHz –
2,462 GHz
< 100 mW Maximum transmitting power
104
Copyrights and licenses
Miele uses their own and third party software which is not subject to any so-called open source license for the operation and control of the device/appliance. This software/these software components are protected by copyright. The copyright powers of Miele and third parties have to be respected.
Furthermore, this device/appliance contains software components which are distributed under open source license conditions. Please refer to the document
“Open Source Information and Licenses” for the Open Source components contained therein, together with the corresponding copyright notices, copies of the licensing conditions valid at the time, and any further information. The liability and warranty provisions of the open source licensing conditions as stated therein apply only in relation to the respective rights holders.
In particular, the device/appliance contains software components licensed by the copyright holders under the GNU General Public License, Version 2, or the GNU
Lesser General Public License, Version 2.1. For a period of at least 3 years from the date of purchase or delivery of the device/appliance respectively, Miele offers to provide you or third parties with a machine-readable copy of the source code of the Open Source components contained in the device/appliance and licensed under the terms of the GNU General Public License, Version 2, or the GNU Lesser
General Public License, Version 2.1, on a data carrier (CD-ROM, DVD or USB stick). Please contact us via e-mail ([email protected]) or the below postal address and state the product name, the serial number and the date of purchase to obtain this source code.
Miele & Cie. KG
Open Source
GTZ/TIM
Carl-Miele-Straße 29
33332 Gütersloh
Please note the limited warranty in favor of the rights holders under the terms of the GNU General Public License, Version 2, and the GNU Lesser General Public
License, Version 2.1:
This program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY, without even the implied warranty of MERCHANTABILITY of FITNESS
FOR A PARTICULAR PURPOSE. See the GNU General Public License and GNU
Lesser General Public License for more details.
105
Please have the model and serial number of your appliance available when contacting Customer Service.
U.S.A.
Miele, Inc.
National Headquarters
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
800-843-7231
609-419-4298 www.mieleusa.com
Customer Service & Support
Phone: 888-99-MIELE(64353)
Fax: 888-586-8056 [email protected]
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
Canada
Importer
Miele Limited
Headquarters and Miele Centre
161 Four Valley Drive
Vaughan, ON L4K 4V8 www.miele.ca
Customer Care Centre
Phone: 800-565-6435
905-532-2272 [email protected]
K 2601 Vi, K 2611 Vi, K 2801 Vi, K 2811 Vi, K 2901 Vi, K 2911
Vi en- US, CA M.-Nr. 10 785 070 / 07
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
