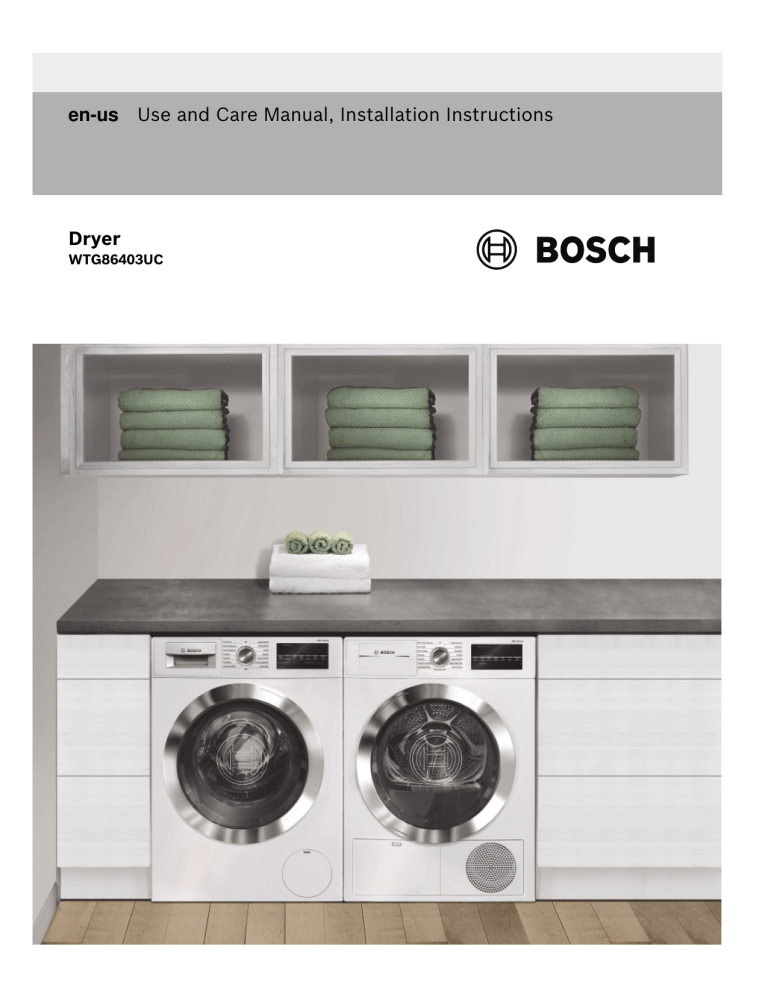

en-us

Use and Care Manual, Installation Instructions

Dryer

WTG86403UC

Welcome to Your New Dryer!

Congratulations on your selection of a new Bosch dryer for your laundry needs. We are confident you will enjoy the superior performance and reliability.

Please do not hesitate to contact our Customer Service department if you have any questions or comments about your new dryer.

Thank you for choosing Bosch.

Visit our website at www.boschhome.com/us (USA) or www.boschhome.ca (Canada) for more information and to view a selection of our products.

2

Table of contents

Use and Care Manual, Installation Instructions

Important information ................................................... 4

Purchase information ........................................................... 4

Customer service ................................................................. 4

Your dryer is intended for ............................................. 5

Safety Definitions .......................................................... 5

IMPORTANT SAFETY INSTRUCTIONS ........................ 6

Introduction to your new dryer .................................... 8

Standard features and helpful information ...................... 8

Special features .................................................................... 8

Environmentally friendly use of your dryer ...................... 8

Dimensions and clearances required .......................... 9

Installation for best performance ....................................... 9

Appliance dimensions ......................................................... 9

Length of power cord and drain hose .............................. 9

Minimum clearances ......................................................... 10

INSTALLATION INSTRUCTIONS ................................ 12

Introduction ......................................................................... 12

Before installing the dryer ................................................ 12

Waste disposal .................................................................. 13

Parts provided with your dryer ........................................ 13

Accessories for your appliance ...................................... 14

Installation - step by step and check list ...................... 14

Electrical Connections ...................................................... 16

Leveling the dryer .............................................................. 18

Check heating system ...................................................... 18

Preparing to transport the dryer - step by step ........... 18

Getting to know your appliance ................................. 19

Control panel ...................................................................... 19

Display area ....................................................................... 20

OPERATING INSTRUCTIONS ..................................... 21

Your new dryer ................................................................... 21

Before using the dryer for the first time ....................... 22

Temporary disconnection of the dryer .......................... 22

Using program selector to choose a drying cycle ..... 22

Program selection ............................................................. 23

Selecting program settings and additional options .... 23

Loading the laundry .......................................................... 24

Starting the program ......................................................... 24

Indicator of program sequence ...................................... 25

Childproof lock .................................................................. 25

Selecting a different program ......................................... 25

Cancel program ................................................................. 25

Program end ...................................................................... 25

Removing laundry/switching the appliance off ........... 25

Signal ............................................................................ 26

Laundry ........................................................................ 27

Preparing the laundry ....................................................... 27

Sorting the laundry ............................................................ 27

Drying tips .......................................................................... 27

Program selection table ............................................. 28

Default Program and Option settings ....................... 29

Dry Level ............................................................................. 29

Time dry .............................................................................. 29

Finish in ............................................................................... 29

Additional Program Option settings ......................... 29

Wrinkle Block ..................................................................... 29

Low Heat ............................................................................. 29

Spin speed ................................................................... 29

USER-MAINTENANCE INSTRUCTIONS .................... 30

Cleaning the Dryer's exterior .......................................... 30

Cleaning the lint filter area .............................................. 30

Cleaning the lint filter ........................................................ 30

Cleaning the Condenser ................................................ 32

Cleaning the moisture sensors ...................................... 33

Maintenance of drain hose ............................................. 33

Replacing fuses in the Power Adapter - step-by-step 33

Troubleshooting .......................................................... 34

Introduction ........................................................................ 34

General Troubleshooting ................................................. 34

STATEMENT OF LIMITED PRODUCT WARRANTY .. 37

Bosch Clothes Dryer ........................................................ 37

Additional information on products, accessories, replacement parts and services can be found at

www.bosch-home.com/us (USA) or www.boschhome.ca (Canada)

and in the online shop

www.boschhome.com/us/store

ZZZERVFKKRPHFRPXV86$

RU

ZZZERVFKKRPHFD&DQDGD

0DLQ6WUHHW6XLWH

,UYLQH&$

3

4

Important information

Important information

Purchase information

Please take a moment to record the following basic information about the purchase of your new Bosch® dryer.

This information will be helpful in the event you need to contact Customer Service or would like to order accessories or replacement parts for your dryer.

(1U )'

(1U

)'

The

E-Nr.

(model number) and the

FD

(serial) number can be found on the rating plate label (shown above) or in the Home Connect application under Appliance

Information.

The model number includes the slash and a two digit number (eg: "/01"). Please be sure to include the final 2 digit number when filling in your model number. This helps make sure any parts you may need are correctly matched to your specific machine.

Date of Purchase:___/___/_____

Where Purchased:___________________________

E-Nr.

:_______________/____ (ex: WTG86xxxUC/01)

FD

:__________-_________ (ex: FD 9708|90007, provides production date)

The manufacturer reserves the right to make changes in the product or manual without notification.

Customer service

Your dryer does not require any special care other than the maintenance and care mentioned in this manual. If you have a problem with your dryer, please consult the

Troubleshooting section of this manual.

~

Troubleshooting; Page 34

If problems persist and service is necessary, please contact our customer service department.

Do not attempt to repair the appliance yourself.

Bosch Customer Service

1-800-944-2904

Or by mail

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

When writing or calling please have the following information available:

E-Nr. (model number, example: WTG86xxxUC/01)

FD (serial number, example: 9708

|

90007)

Date of Original Purchase (receipt may be required)

Date Problem Occurred

Explanation of Problem

If writing, please also include a daytime telephone number and a copy of the sales invoice.

When calling Customer Service, please be ready to provide the model number

E-Nr.

and

FD

number. This information will help provide the best support for your dryer.

Additional information is available at our website: www.bosch-home.com/us (USA) or www.bosch-home.ca

(Canada).

Your dryer is intended for

Your dryer is intended for

Only household use and in a non-commercial environment.

Drying textiles washed in a residential style clothes washer.

Operating conditions:

Recommended ambient temperatures:

59-86°F / 15-30°C.

Min/Max allowable temperatures: 41-95°F / 5-35°C.

Relative humidity: under 95%

Installation by qualified installers.

Installation in accordance with all regulatory requirements; if in doubt have the appliance installed by a specialist familiar with these requirements.

Before using the appliance, read the use and installation instructions and all other information included with the appliance and act accordingly.

Keep all documents for future use.

Safety Definitions

Safety Definitions

Important safety information is contained in this manual and on the warning labels located on your dryer.

Standard symbols and headings are used to identify areas where you should take precautions to avoid injury or property damage. Please take a moment to become familiar with each of these symbols and what they mean before proceeding.

9

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

9

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE:

This indicates that damage to the appliance or property may occur as a result of non-observance of this warning.

Tip:

This symbol is used to draw the user's attention to important matters.

5

6

9

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

A N D

WARNING

When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions before using the appliance. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons. When using laundry appliances, basic safety precautions must be followed, including those in the following pages.

Examine the appliance after unpacking it. In the event of transport damage, do not plug it in.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

SERIOUS INJURY OR DEATH WHEN USING YOUR

DRYER, FOLLOW BASIC PRECAUTIONS INCLUDING

THE FOLLOWING

Bosch dryers are provided with a Use and Care Manual with Installation Instructions. Read and understand all instructions before using the dryer.

Do not dry articles that have been previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.

Before the appliance is removed from service or discarded, remove the door (to the drying compartment) to prevent children from playing or hiding inside. Also remove the power cord/plug.

Do not allow anyone to climb, lean or hang on any part of the dryer including any protruding components such as the appliance door or a pullout shelf.

Do not reach into the appliance if the drum is moving.

Do not tamper with the controls.

Do not repair or replace any part of the appliance or attempt any service unless specifically recommended in these user maintenance instructions.

Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made by using a 3D printer).

Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

Always unplug the dryer from the power supply before attempting any service. Disconnect the power cord by grasping the plug, not the cord.

To reduce the risk of fire, clothes, cleaning rags, mop heads and the like which have traces of any flammable substance, such as vegetable oil, cooking oil, petroleum based oils or distillates, waxes, fats, etc., must not be placed in the dryer. These items may contain some flammable substance(s) even after washing, which may smoke or catch fire by itself.

Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

Do not use heat to dry articles containing foam rubber

(may be labeled latex foam) or similarly textured rubber-like materials or equivalent. Foam rubber materials can ignite by spontaneous combustion.

Keep flammable materials and vapors, such as gasoline, away from the dryer.

Clean lint filter before or after each load.

Do not install or store this appliance where it will be exposed to the weather. Hoses and internal parts may be damaged if exposed to freezing temperatures.

Do not use the dryer if it has a worn power cord or loose plug.

The dryer must only be used for its intended purpose.

Always follow the fabric care instructions recommended by the clothing manufacturer.

Do not operate the dryer if parts are missing or broken.

Do not sit on top of the dryer.

To reduce the risk of fire or electrical shock, DO NOT use an extension cord to connect the dryer to the electrical power supply.

Always check pockets and remove any objects.

Cigarette lighters are particularly hazardous.

Do not operate the dryer if any guards and/or panels have been removed.

Do not bypass any safety devices.

Do not operate this dryer until you are sure that:

All services connected to the dryer (power, drain, etc.) have been installed according to the

Installation Instructions.

Installation and grounding are in compliance with all local regulations and/or other applicable regulations and requirements.

Failure to install, maintain and/or operate the dryer according to the manufacturer’s instructions may result in injury and/or damage.

To avoid floor damage and mold growth, do not let spills or splashout cause standing water around or under the appliance.

See the Installation Instructions section in this manual for grounding requirements.

~

Electrical Connections; Page 16

The IMPORTANT SAFEGUARDS and WARNINGS presented in this manual do not cover all possible conditions that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating the dryer.

Always contact your dealer, distributor, service provider or the manufacturer about any problems or conditions that you do not understand.

Follow the Safety Information in the INSTALLATION

INSTRUCTIONS and the OPERATING INSTRUCTIONS.

9

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING

WARNINGS FOR CHILDREN AND PETS

Do not allow children and pets to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

Make sure to utilize all child lock/safety features of your appliance, and be sure to turn the appliance

Off

when not in use.

Appliances are not intended for use by children, however when children become old enough to operate the appliance, it is the responsibility of the parents or legal guardians to ensure they are instructed in safe practices by qualified persons.

Keep all laundry aids (including detergents, bleach, fabric softeners, etc.) out of the reach of children.

Keep pets away from the appliance.

WARNING

PROPOSITION 65 WARNING

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

67$7(2)&$/,)251,$352326,7,21:$51,1*

:$51,1*

&DQFHUDQG5HSURGXFWLYH+DUP ZZZ3:DUQLQJVFDJRY

SAVE THESE INSTRUCTIONS!

Keep these instructions for future reference and in case of change of ownership, manual should be conveyed with the dryer.

7

8

Introduction to your new dryer

Introduction to your new dryer

9

WARNING

RISK OF FIRE, ELECTRIC SHOCK OR INJURY

To reduce the risk of fire, electric shock or injury to persons, read the IMPORTANT SAFETY

INSTRUCTIONS of this manual before installing or operating this appliance.

~

IMPORTANT SAFETY INSTRUCTIONS; Page 6

Standard features and helpful information

Thank you for choosing Bosch for your laundry appliance needs.

Please read and follow the use and care, important safety instructions and troubleshooting information contained in this manual. Please retain this manual for future reference.

~

Troubleshooting; Page 34

This dryer complies with UL 2158 Electric Clothes

Dryers.

Standard features

ENERGY STAR® certified to save energy, save money and protect the climate.

Temperatures inside the drum are lower than conventional dryers for gentle drying conditions and fabric care.

Sensor controlled auto cycles.

15.4 lb (7 kg) large drum capacity (for regular cotton loads).

Large door opening, 180

°

opening angle.

Quality tested

Each dryer which leaves our factory has undergone a thorough performance test and is in full working condition.

Website

Visit our website at www.bosch-home.com/us (USA) or www.bosch-home.ca (Canada) for more information and to view a selection of our products.

About this manual

These operating and installation instructions apply to more than one model of dryer. Illustrations used may show details that differ from your particular model.

Read your user manual. It contains valuable information about the safety, installation and operation of your new appliance.

This can save you time, make it easier to correctly install and use your dryer, and improve your overall satisfaction with your new appliance.

Special features

A distinctive feature of your dryer is low energy consumption as it is ENERGY STAR certified.

Bosch dryers feature advanced operation philosophy, customized drying programs and a solid touch and feel making them a user-friendly household assistant.

Bosch load sensing feature controls power consumption for each cycle based on the amount and type of laundry. This automatic feature optimizes energy efficiency.

Environmentally friendly use of your dryer

Your new Bosch dryer is designed to use energy in a highly efficient way to help reduce operating costs, conserve resources and protect the environment.

To save energy, money and time, Bosch recommends the following:

Spin the laundry thoroughly

Before drying, spin the laundry thoroughly in the washing machine. Use the highest possible spin speed for the type of laundry. Higher spin speeds reduce the drying time and the energy consumption.

Optimize load and selected drying program

Use the maximum amount of laundry for the appropriate drying program.

Use automatic drying programs for the most energy efficient use of your dryer. They perform according to internal moisture and temperature sensors delivering optimized efficiency and fabric care.

Use the Time Dry program for touching up damp loads or for small loads. This program will use more energy than the automatic programs.

~

Program selection table; Page 28

NOTICE:

The energy rating of this dryer is based on the

Cotton Dry program with the Dryness Level set to +2 (all other option settings are off).

Clean filter

Clean the lint filter before or after each drying process.

~

Cleaning the lint filter; Page 30

Air inlet on the dryer

Do not cover or allow any articles/items to restrict the air inlet on the front of the dryer.

Energy-saving mode

The display panel lighting goes out after a few minutes and

Start/Pause

flashes. To activate the display, touch any button.

Energy-saving mode is not activated if a program is running.

Dimensions and clearances required

Dimensions and clearances required

Installation for best performance

Appliance dimensions

9

CAUTION

E

DO NOT INSTALL THE DRYER:

▯ outdoors,

▯ in an environment with dripping water,

▯ near flammable materials, in rooms which are at risk of freezing, in rooms which may contain gas or other fuels, on carpets.

H

D

Because many variables affect drying time we recommend allowing as much free air space around your dryer as possible for the shortest drying cycle time.

NOTICE:

If your dryer is located in a closet, leave the closet door open while the dryer is operating.

The recommended ambient temperatures (between 59-

86

°

F / 15-30

°

C) are for optimum drying times, outside of this range drying times may be longer.

The installation surface (floor) must be level and structurally sound. Using a bubble level and the heightadjustable feet installed on the appliance, level the appliance side to side and front to back.

G

F

Label Dimension

a b c d e

Width

Depth (to front of door)

Height (minimum)

Height (maximum)

Side clearance

(door open 180

°)

Depth (door open 90

°)

U.S.

Inches

Metric cm

23.6

60

25 63.5

33.2

34

16

84.3

86.4

40.6

42.9

109

Length of power cord and drain hose

To Left*

U.S.

Inches

Metric cm

Power Cord

Drain Hose

40

19

102

48

* Facing the front of the dryer

To Right*

U.S.

Inches

57

40

Metric cm

145

102

9

Minimum clearances

Closet: Stacked

Only with one of the Bosch required Stacking Kits (sold separately), can this Bosch Dryer be stacked on top of a

Bosch Washer of the same dimensions to save space.

9

CAUTION

Use only the dryer stacking kit noted in this User

Manual's Accessories section.

Do not stack washer on top of dryer.

Do not stack washer on top of another washer.

Ensure washer transportation bolts have been removed and washer does not vibrate excessively.

Closet: Stand alone (shown) or Side by Side

(

&

$

%

.

(

-

+

*

&

$

'

For shortest drying times keep closet door open while dryer is operating.

NOTICE:

When closet doors are closed louvered areas only allow minimal drying results (expect long drying times).

'

Label Dimension

B

C

D

Top

Rear

Front

E & F are minimum area size!

E

F

Top Vent

Bottom Vent

U.S.

Inches

0.6 1.5

6.3 16

2.5

2.4

Metric cm

6.2

6

63 sq. 404 sq.

63 sq. 404 sq.

H

J

Vent spacing is actual (not minimum dimensions)

G 37 94

K

26

3

29

66

7.6

73.6

10

Under counter (Preferred) Under counter (Less Desirable)

$

&

%

Front of the appliance fully open.

No doors or coverings.

B

C

Minimum opening dimensions

A 28 in.

23.8 in.

34.5 in.

71.1 cm

60.5 cm

87.6 cm

+

*

(

)

If front of the appliance is covered ventilation openings must be installed.

E & F are minimum area sizes

E 63 sq.in.

F 63 sq.in.

404 sq. cm

404 sq. cm

G & H actual spacing dimensions for min. open area sizes

G 3 in.

7.6 cm

H 14 in.

35.6 cm

11

INSTALLATION INSTRUCTIONS

Installation Instructions

READ AND SAVE THESE INSTRUCTIONS

9

Introduction

Read these installation instructions completely and carefully before starting to install your new dryer. The information contained can save you time and effort and will help to ensure optimum performance of your new dryer. Be sure to observe all warnings and cautions.

9

WARNING

RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO

PERSONS

To reduce the risk of fire, electric shock or injury to persons, read the Important Safety Instructions at the beginning of this manual before installing or operating this appliance.

To reduce the risk of severe injury or death, follow all installation instruction.

Clothes dryer installation must be performed by a qualified installer, according to these instructions and according to all local codes.

In addition to the installation and safety information in this manual, the local water and electric authorities (services) may have special requirements that must be followed.

Install the clothes dryer according to these manufacturer’s instructions and local codes.

Your dryer is supplied with a specific power adapter that is only to be used with the Bosch

Washers and Dryers having NEMA 6-15P cords.

Any other use of this power adapter is prohibited.

Read and follow the Important Safety Instructions supplied with the Power Adapter.

CAUTION

The appliance is heavy. Do not lift it by yourself, use additional help and care when lifting and positioning.

If in doubt, have the appliance installed by an authorized service provider.

Take care to not damage the appliance. Do not hold on to protruding parts (e.g. door) when lifting. Do not push against the appliance door glass due to risk of damage.

Do not install the appliance outdoors or in an area exposed to freezing conditions.

If freezing conditions exist where appliance is located all drain water must be removed from hoses, sumps, pumps, etc.

Hidden surfaces may have sharp edges. During service wear gloves and use caution when reaching inside the dryer housing.

These installation instructions are intended for use by qualified installers. In addition to these instructions, the installation must comply with:

▯ for the United States - National Electrical Code, ANSI/

NFPA70 - and latest editions of the state and municipal and/or local regulations.

▯ for Canada - Canadian Electrical Code C22.1 - and the latest editions of the provincial, municipal and/or local regulations.

Before installing the dryer

Unpacking the appliance

9

CAUTION

Remove the appliance packaging carefully to prevent damage to the surfaces.

After removing the packaging, immediately remove all objects from the drum.

Check the dryer for transportation damage. Do not connect the utilities (power or drain) to a dryer which is visibly damaged. If in doubt, contact your dealer.

12

Waste disposal

Disposal of Packaging Materials

After unpacking your new appliance dispose of the protective packaging materials in an environmentally friendly way. Ask your dealer or inquire with your local authority regarding currently acceptable means of disposal.

9

WARNING

WARNINGS FOR CHILDREN

Do not let children play with packaging and associated parts to avoid risk of choking or suffocation.

Disposal of Your Old Appliance

Your old appliance can be recycled if it is no longer to be used. Prior to disposing of your old appliance observe the following precautions to reduce safety risks.

9

WARNING

TO AVOID RISK OF INJURY OR DEATH, DO THE

FOLLOWING

After unplugging the old appliance, remove the electric power cord and dispose of properly.

Remove the door or permanently disable the door lock to prevent children from being locked inside.

Dryer drum contents

A literature pack is shipped in the dryer drum. Be sure to remove this item before using the dryer.

Parts provided with your dryer

Back side of the dryer

@

H

P

User Manual and Product Registration

Power Adapter:

Supplied Power Adapter

2 spare fuses

Instruction sheet

Drain Set Pack:

(2) plastic ties for securing drain hose

Plastic elbow

Plastic connector for alternate drain connections (see hose installation instructions).

Summary of drain hose installation instructions

(

Power cord with plug

0

Drain hose connected to the dryer

8

Elbow to form the hose to fit the drain

13

9

WARNING

RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO

PERSONS

The supplied Power Adapter is intended to be used only for powering the Bosch Washers and

Dryers having NEMA 6-15P cords. This Power

Adapter is unique as it allows for both the Dryer and Washer to plug into the home's existing 4prong dryer receptacle. If the home has an existing 3-prong dryer receptacle it and its complete branch circuit must be changed to a 4prong circuit.

Use only Bosch replacement fuses in the Power

Adapter (Customer Service part number

10013781).

If any parts are missing please notify your dealer immediately.

Tip:

For correct adapter installation see

~

Electrical

Connections; Page 16

Accessories for your appliance

Drying rack

A drying rack placed inside the dryer for drying wool items, shoes, etc. is available.

Drying rack item number:

WMZ20600

Pedestal

The dryer can be mounted on a Bosch pedestal, noted below, for easier loading and unloading (see washing machine user manual for unique pedestal model number for the washer).

Pedestal item number:

WMZ20500 or replacement

WTZPW20D

Stacking kits

The dryer can be stacked on a Bosch washer of the same dimensions to save space. Only the below

Stacking kits must be used when stacking this dryer on a

Bosch washer.

Stacking kit without a shelf:

WTZ20410UC

Stacking kit with a shelf:

WTZ11400UC

Power Adapter

The Power Adapter is for plugging into home's existing 4prong receptacle and has two power outlets, one each for your current Bosch Dryer and Washer to plug into.

Power Adapter item number:

WTZPA20UC

Tip:

Your Bosch dryer comes with the Power Adapter included in the drum. The accessory number is given here only if it is lost or damaged and a replacement is needed.

Accessories can be purchased from Customer Service or your local dealer.

~

Customer service; Page 4

1.

2.

3.

4.

Installation - step by step and check list

Review the following list and check off each step as it is completed during installation, if necessary.

5.

Unpack the dryer.

Remove all objects from the dryer drum.

Check the dryer for visible damage.

Position the dryer near the installation location.

Disconnect the power cord and drain hose from their clips on the back of the dryer.

9

CAUTION

Do not disconnect the drain hose from the sump/ pump connection at the bottom of the dryer.

(QVXUHWKHGUDLQKRVH

UHPDLQVFRQQHFWHG

WRVXPSSXPSRXWOHW

6.

NOTICE:

Do not reuse an old or different drain hose.

Only use the drain hose included with the dryer.

Connect the outlet end of the drain hose to a standpipe or other drain inlet. Examples are shown below.

9

CAUTION

APPLIANCE DAMAGE COULD OCCUR IF DRAIN

WATER FLOWS BACK INTO THE APPLIANCE

In all drain conditions, scenarios, or connections you must ensure:

The drain water from the hose is free flowing and not obstructed allowing adequate water flow.

Drain opening must not be sealed in any way. It must be open to avoided a back siphon condition.

The end of the drain hose does not protrude into the pumped out or standing water.

Be sure to follow all local codes and regulations in draining the condensate water to a suitable drain.

14

Examples of connections:

1.

Plumbing box or Standpipe connection:

For most plumbing box installations (with adjacent washer) the plastic elbow supplied with the dryer will not be used and must be removed from the dryer drain hose.

Fasten the dryer drain hose to the washer drain/elbow as shown in picture “A”. Secure with plastic ties supplied.

9

CAUTION

Do not over tighten plastic ties pinching or causing a restriction in the drain hose.

Secure hose and/or elbow as shown below. Sink “D” or floor “E”.

NOTICE:

Examples shown are for reference only. Not all fittings, connectors, nuts, brackets, ties, etc. are supplied to accommodate every application.

'

$

(

2.

Place drain hose assembly into standpipe as shown in picture “B”.

%

Maximum height of drain is 39 in. (100 cm).

Sink Drain Pipe:

Attach and secure drain hose as shown below in picture “F”.

Use a standard hose clamp which can be purchased from your local hardware store.

Sink/Basin or Floor drain:

If using the elbow supplied on the hose re-position elbow closer to the drain end of hose and fasten with the plastic ties as shown in picture “C”.

&

)

Minimum height of drain for installation shown above is

31.5 in. (80 cm). Maximum height of drain is 39 in. (100 cm).

15

NOTICES

Examples shown are for reference only. Not all fittings, connectors, nuts, brackets, ties, etc. are supplied to accommodate every application.

Ensure there are no kinks or crimps along the entire length of hose.

2.

Use an existing individual 240V, 15A minimum branch circuit having a NEMA 6-15R outlet (or choose to have one installed).

9

WARNING

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK.

Do not reuse this Power Adapter with a new purchase of a Dryer. The old Power Adapter must be discarded with the old Dryer. A new Power

Adapter must be used when a new Dryer is installed.

If installed in an upper floor of a multi-story building, the dryer should be installed on a drained floor to prevent water damage to lower floors in the event of a leak.

Electrical Connections

Power Cord

The attached power cord is a standard NEMA 6-15P cord and is UL approved and listed in the USA and

Canada. It meets the following requirements:

208-240 volt rated;

15 amps.

NOTICES

This appliance is restricted to being powered by the supplied power cord noted above.

1.

There are two allowable methods to connect the appliance cord to power:

If the home has an existing 4-prong, 30A Dryer receptacle use the supplied Power Adapter.

Plug the adapter into the 4-prong receptacle (Line side) and then plug the Bosch Dryer and Washer power cords into the adapter (Load side). See following images of Power Adapter for Line/Load side locations and appliance cord placement.

NOTICE:

This adapter can only be used with a 4-prong receptacle. If the home has an existing 3-prong dryer receptacle it and its complete branch circuit must be changed to a 4-prong circuit.

16

ALL ELECTRICAL CONNECTIONS AND CIRCUITS

9

WARNING

ELECTRIC SHOCK HAZARD

Do not pull on the power cord to unplug the dryer.

Protect the power cord from physical damage such as being twisted, kinked, pinched, or walked on.

DO NOT use an extension cord to connect the dryer to the power supply.

Make sure:

The power cord fits into the outlet/receptacle.

The home’s internal power supply circuit wire size is sufficient and electrically grounded.

Do not cut, remove or bypass the grounding prong on the power cord end.

Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

The power cord must only be replaced by a qualified service provider or licensed electrician to help avoid a fire/electric shock hazard.

Use only manufacturer recommended replacement power cords purchased through our

Customer Service department.

Do not use NEMA 14-30P (4-prong) nor 10-30P

(3-prong) power cords on this appliance.

Do not reuse old power cord.

Do not make a sharp bend or crimp wiring or conductors at connections.

GROUNDING INSTRUCTIONS

9

WARNING

ELECTRIC SHOCK HAZARD

This appliance must be electrically grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

This appliance is equipped with a cord that has an equipment grounding conductor and a grounding plug.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

If a ground fault circuit breaker is used, ensure it has this symbol: z

.

Only this symbol can assure compliance with all current regulations.

SAVE THESE INSTRUCTIONS!

9

WARNING

ELECTRIC SHOCK HAZARD

To reduce the risk of electrical shock:

Only pull out the power cord by the plug end and never by the cord, as this could damage it.

Never touch or hold the plug end or power cord with wet hands.

Never unplug the plug end during operation.

9

WARNING

ELECTRIC SHOCK HAZARD

Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or servicer if you are in doubt as to whether the appliance has been properly grounded.

17

Leveling the dryer

Importance of leveling the dryer

It is important that your dryer is level and that all four dryer feet press with equal pressure against the floor.

This will help assure the quietest, most vibration-free use of your dryer.

To adjust the dryer feet:

1.

Install the dryer on a level and solid surface, preferably in a corner of a room.

2.

3.

4.

5.

If the floor is uneven (or not level) adjust the dryer feet as required to level the dryer. Do not place anything under the dryer feet to help level the dryer.

Extend the dryer feet no more than is necessary. The more the feet are extended, the more vibration the dryer will experience. Start with the dryer feet turned all the way in and adjust each foot as necessary.

Use a bubble level to check the top of the dryer to make sure it is level side to side and front to rear.

Press down on each corner of the dryer top to make sure the dryer does not “wobble“. There should be no

"give" or movement. All four dryer feet should press equally against the floor. This is just as important as the dryer being level to prevent vibration.

Check heating system

1.

Check that the drum is empty.

2.

Close the dryer door.

3.

4.

Switch the dryer to

Timed Dry Variable

program and then touch the

Start/Pause

button.

After 5-6 minutes touch the

Start/Pause

button and open the door.

If the interior of the dryer feels warm, the dryer has been connected properly. Switch the dryer to

Off

.

If the dryer does not work, switch the dryer to

Off

.

Look in the Troubleshooting section of this user manual for hints in solving the problem.

Preparing to transport the dryer - step by step

1.

Rotate the program selector to

Off

.

2.

3.

Pull out power supply plug.

Place any accessories in the drum.

4.

5.

Close the door and secure with adhesive tape.

Screw the height-adjustable feet of the dryer into the housing to prevent them from being damaged during transportation.

18

Getting to know your appliance

Getting to know your appliance

Control panel

(

Dry Level, Time Dry

,

Finish in

Selectable Option Settings for customizing Programs as desired.

Indicator Symbol lights or desired time is displayed

if setting is active.

~

Default Program and Option settings; Page 29

@

Program Selector

Selecting a program and switching on/off; turns in both directions.

H

Display area for settings and information.

0

Wrinkle Block

,

Low Heat

,

Signal

Additional option settings.

Indicator Symbol lights if setting is active.

~

Additional Program Option settings; Page 29

8

Start/Pause

▯ starts or pauses the selected cycle;

▯ indicator lamp on (steady) - cycle running, can be paused; indicator lamp blinking - options can be changed; cycle can be started; door is closed; cycle is in Pause mode.

19

Display area

(

Drying cycle status sequence

0

Childproof lock indicator

8

Cleaning required indicator

@

4 Digit Display:

Finish in time adjustable in 1h (h=hour) steps to 24h

▯ program duration 2:30

H

Time Dry

ñ

and Finish in

0

indicators

P

Indicator lamps for additional option settings: Wrinkle

Block, Low Heat and Signal

X

Check drain indicator

` h

Start/Pause indicator

Dry Level indicator

20

OPERATING INSTRUCTIONS

Operating Instructions

9

WARNING

RISK OF FIRE, ELECTRIC SHOCK, OR INJURY

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY

INSTRUCTIONS and OPERATING INSTRUCTIONS before operating this appliance.

Your new dryer

#

3

+

(

Control panel, display area, program selector

0

Drum with interior light (depending on model)

The interior light activates after the door is opened and after the program starts, it switches off automatically.

8

Open the door Close the door

21

@

Lint filter

H

Air inlet

P

Open the maintenance flap

Condenser

Close the maintenance flap

9

WARNING

BEFORE USING YOUR DRYER

Read and follow all installation and operating instructions.

Check the machine. Never connect the utilities (power or water) to or start a damaged machine! Contact Customer

Service!

~

Customer service; Page 4

Check to be sure the dryer drain hose is installed properly.

Turning the dryer on and off

The rotating Program Selector turns the dryer on as drying cycle is selected and off when the selector is later turned to the vertical

Off

position.

Before using the dryer for the first time

1.

Read these operating instructions carefully.

2.

3.

Check that the supply voltage corresponds with the voltage specifications on the rating plate on the dryer, see top rear side of the dryer and/or rating plate label inside the dryer door.

~

Electrical Connections; Page 16

Remove all objects from the drum.

4.

5.

6.

7.

Check the dryer for visible damage. If damage found contact your dealer.

Wipe the inside of the drum with a damp cloth.

Check heating system.

~

Check heating system; Page 18

If the dryer does not work, switch the dryer to

Off

.

Look in the Troubleshooting section of the operating instructions for support.

~

Troubleshooting; Page 34

Temporary disconnection of the dryer

If you intend to go on vacation or are not using your dryer for an extended period of time, you should:

1.

Turn off the circuit breaker.

2.

3.

Pull out the power supply plug if possible.

Clean the lint filter.

Using program selector to choose a drying cycle

NOTICE:

If the Child lock is activated, you must deactivate it before you can select a program.

~

Childproof lock; Page 25

Use the program selector to select the desired drying program. The dial turns in both directions and when a cycle is selected its time duration appears in the display.

22

Program selection

For optimum drying results your dryer offers several different types of programs to choose from.

Select the required drying program from the program

table according to the examples.

~

Program selection table; Page 28

Automatic programs

There are automatic programs for different types of textiles (regular/cotton, permanent press).

The program sequence of automatic programs is controlled by sensors. The duration of the program depends on the measured degree of moisture in the laundry and on the selected degree of dryness (e.g.

Cotton Dry or Cotton Extra Dry).

Regular/Cotton

Time programs

Time programs run at specific temperatures and are suitable for delicate items, individual or a few small items and for adding additional drying time if necessary

.

~

Default Program and Option settings; Page 29

Selecting program settings and additional options

By selecting program settings and additional options, you can adjust the drying process to better suit the items you are drying.

The settings can be selected and deselected depending on the cycle progress.

Permanent Press

Special programs

The programs Sanitize, Jeans, Towels, Hand Wash/Wool and Heavy Duty (depending on model) are made for special type fabric loads.

~

Program selection table; Page 28

The indicator lamps of the buttons light up if the setting is active.

For

Time Dry, Finish in, Wrinkle Block, Low Heat

and

Signal

the settings are not retained after the appliance is switched off.

~

Default Program and Option settings; Page 29

~

Additional Program Option settings; Page 29

For

Dry Level

the setting is retained after the appliance is switched off.

~

Dry Level; Page 29

23

Loading the laundry

9

WARNING

RISK OF EXPLOSION

Do not dry laundry that has ever been in contact with solvents, oil, wax, grease or paint (e.g. nail varnish remover, stain remover, cleaning solvent, etc.).

1.

Check lint filter.

Load the laundry

The filter should be cleaned after or before every drying process. Cleaning the filter reduces the drying time and saves energy.

~

Cleaning the lint filter; Page 30

Load the laundry into the drum and close the door.

2.

Tip:

If the door has not been closed properly, the dryer will not start.

Place laundry in the empty drum. Put each piece of laundry into machine separately.

For best results the laundry should be sorted according to type of laundry and desired degree of drying.

~

Sorting the laundry; Page 27

~

Program selection table; Page 28

~

Dry Level; Page 29

Starting the program

1.

Rotate program selector to the desired program.

Select the program which corresponds to the laundry in the dryer from Program selection table.

~

Program selection table; Page 28

L

2.

The

Start/Pause

indicator light starts flashing.

Touch the

Start/Pause

button. Indicator lamp lights up and the cycle starts.

Tips

After loading, close the door carefully so as not to trap any items between the door and the rubber seal. The door should close until a click is heard.

Foreign objects left in the drum may damage laundry.

Before inserting any laundry, check to make sure no foreign objects are in the drum.

Recommended Load Size

Recommended maximum load size can be found in the program selection table in this manual.

~

Program selection table; Page 28

During the cycle, the display area indicates the estimated remaining time and symbols showing the cycle progress are lit.

~

Display area; Page 20

NOTICES

If you want to protect the cycle against inadvertent adjustment, select the

Childproof lock

.

~

Childproof lock; Page 25

If

é

indicator lights up, clean the lint filter and/or

Condenser.

~

Cleaning the lint filter; Page 30

~

Cleaning the Condenser; Page 32

If

DR

indicator lights up, check the drain hose and its connection.

~

Cleaning the Condenser; Page 32

24

3.

4.

If required, select

Low Heat

by pressing the button.

~

Additional Program Option settings; Page 29

If required, select

Wrinkle Block

by pressing the button.

~

Additional Program Option settings; Page 29

Tip:

The estimated remaining time will be updated.

Indicator of program sequence

Bosch dryers use an advanced control system which continually monitors the laundry’s remaining moisture.

The current state of the process and status of the program is shown by indicator lights (Damp,

End).

=

, Dry,

Childproof lock

You can secure the dryer against inadvertent changing of the set functions. To do this, activate the childproof lock after cycle start.

To

Activate/Deactivate

, touch Time dry and Finish in buttons at the same time for 3 seconds. In the display field, you will see the

D childproof lock is active.

symbol light indicating the

NOTICE:

The childproof lock will remain activated until the next cycle start even after switching the machine off.

You must deactivate the childproof lock before the next cycle and, if necessary, activate it again after starting the cycle.

Selecting a different program

1.

2.

If you have inadvertently started the wrong program, you can change this as follows:

3.

Touch

Start/Pause

.

Select another program.

Touch

Start/Pause

. The new drying cycle starts from the beginning.

Cancel program

1.

2.

If required, you can cancel the selected program:

Touch

Start/Pause

.

Rotate the program selector to

Off

.

Program end

End

appears in the display area and the Start/Pause button indicator lamp is off.

After the program end, rotate the program selector to

Off

.

Removing laundry/switching the appliance off

1.

Open the door and remove the laundry.

2.

Turn the program selector to the

Off

position.

Appliance is switched off and dryer light goes out.

3.

4.

Clean lint filter.

~

Cleaning the lint filter; Page 30

Close the door.

Tip:

If the display panel switches off and the Start/Pause button indicator is blinking at the end of a program, the

Energy-saving mode is active. To activate the display, press any button.

~

Environmentally friendly use of your dryer; Page 8

25

Signal

For switching the buzzer on and off touch the

Signal

button.

The buzzer indicates program end if it is activated.

Other alarms are not influenced by this option.

You can also change the following settings:

▯ volume for buzzer

▯ volume for button signals

To change these settings always activate adjustment mode first.

Activate adjustment mode

2II

1.

Select

Cotton Extra Dry

on position 1.

The appliance is on.

2.

Hold down

Start/Pause

and turn the program selector to the right (position 3). Release

Start/Pause

button.

Adjustment mode is now activated and the default volume for buzzer appears in the display.

Changing the volume

You can set the volume by touching the

Time dry

(volume down) or

Finish in

(volume up) button with the program selector in the following positions:

Position 3 for buzzer volume

0 = off, 1 = soft, 2 = mid, 3 = loud, 4 = very loud

Position 4 for button signals volume

0 = off, 1 = soft, 2 = mid, 3 = loud, 4 = very loud

Quit adjustment mode

Turn the program selector to

Off

position. The settings were saved.

26

Laundry

Preparing the laundry

NOTICE:

Damage to the appliance/fabrics.

Foreign objects (e.g. coins, paper-clips, needles, nails) may damage the laundry or components in the dryer.

Therefore, note the following tips when preparing your laundry:

Empty all pockets to ensure no loose debris (coins, keys, other hard objects and cigarette lighters) are placed in the dryer drum.

Close any fasteners (such as zippers, hooks and eyelets) that could cause laundry to catch or become entangled. Button up covers. Tie cloth belts, apron strings, etc. together or use a laundry bag.

Remove any foreign objects or non-washable parts.

The drum must be empty prior to loading textiles.

Sorting the laundry

Check the care labels on each laundry item prior to drying. They provide valuable information as well as limitations about laundry process (temperature etc.) to help you choose an appropriate cycle.

Do not dry the following textiles in the dryer:

▯ air-tight textiles (e.g. rubberized), delicate fabrics (silk, synthetic curtains).

Drying tips

To ensure a uniform drying result, sort the laundry according to fabric type and drying program.

Always dry very small items (such as socks and handkerchiefs) and underwired bras together with large items of laundry or in a laundry bag.

Do not over-dry easy-care laundry - risk of wrinkling!

Allow laundry to finish drying in the air.

Do not iron laundry immediately after drying. Place the laundry in a pile for a short while. Residual moisture will then be distributed uniformly.

Knitted fabrics (e.g. T-shirts, jerseys) often shrink when tumble-dried for the first time. Do not use the

Extra

Dry

program.

Only dry wool fabrics with the use of drying rack accessory. To refresh or fluff up wool articles use the

Hand Wash/Wool

program and remove load from dryer and layout on flat surface to finish drying.

For pre-dried, multi-layered fabrics or small, individual items of laundry, use the

Time

program. Also suitable for adding additional drying time if necessary.

~

Program selection; Page 23

~

Program selection table; Page 28

Some detergents and textile care products, starch or softeners may contain chemicals that may become deposited on the moisture sensors negatively affecting their function and the drying results.

When washing laundry to be tumble-dried, use the correct amount of detergent and textile care products as specified in the manufacturer's instructions.

Clean the moisture sensor regularly.

~

Cleaning the moisture sensors; Page 33

27

Program selection table

Program selection table

Programs Max. load up to:

Type of laundry

Standard programs

Cotton Dry

Cotton Extra Dry

Perm P Damp

full load Normal cotton and linen type load (bed linen, cotton clothes, etc.) full load Terry bathrobes and terry bed linen (particularly thick or multi-ply)

1/2 load Trousers, dresses, skirts, shirts, blouses, leggings, sports clothing with syntheticrich fibers, lingerie (not to be or only lightly ironed)

Perm P Dry

1/2 load Shirts, blouses, sports clothing (not to be ironed)

Perm Press Extra Dry

1/2 load Bed linen and table linen, track suits, parkas, blankets (not to be ironed, thick or multi-ply)

Delicates

Quick 40

1/4 load Lingerie made of synthetic fibers, cotton or blended fabric

1/3 load Multi-layered fabrics.

Sensitive fabrics made of synthetic or acrylic fibers.

Also for adding additional drying time if necessary

Timed Dry Variable

Hand Wash/Wool

Air Fluff/No Heat

Quick Dry Auto

1/3 load Multi-layered fabrics.

Sensitive fabrics made of synthetic or acrylic fibers.

Also for adding additional drying time if necessary.

1/3 load Wool fabrics suitable for washing or delicate hand washed items.

Use to freshen or fluff up wool articles. Remove items after program end and spread out on flat surface to finish drying.

Use of Drying rack is recommended

~

Drying rack

; Page 14

1/3 load All types of fabrics.

For freshing up or airing out of garments that have been worn for a short period of time.

1/4 load Laundry made of synthetic fibers, cotton or blended fabrics (for example) that needs to be dried quickly

Special programs

Towels

1/3 load Mix of cotton and synthetic textiles that do not require sensitive temperatures and treatments.

Sanitize

1/2 load Cotton fabrics for drying at high temperatures.

Jeans

1/2 load Fabrics made from jeans/denim.

Heavy Duty

full load Terry towels, kitchen towels, hand towels, bed linen, underwear, cotton socks

Tip:

For best results it is recommended to load the amount of textiles into the drum according to the fabric type and amount shown in the above table.

28

Default Program and Option settings

At the factory initial settings are pre-set for all cycles.

You can change some program settings as follows.

Dry Level

This option adjusts the drying time in small steps for certain programs.

Default setting = OFF (no LED Symbol shown)

Selectable values: OFF, +1, +2, +3

The

Dry Level

is retained until changed.

NOTICE:

The higher the number value the increased time of drying.

Time Dry

Available only for Time programs,

~

Program selection table; Page 28

can be selected from minimum 20 minutes to maximum

3 hours, in 10-minute steps.

Finish in

The program end (Finish in) time can be set in one hour increments to a maximum of 24 h (hours).

After selecting the desired drying program (at the dial) but before touching the Start button, touch the

Finish in

button until the desired time is displayed, e.g. 8 h, then touch the Start button to start the dryer.

NOTICE:

The cycle duration is included in the set Finish in time.

Here is an example of 1hr:30min cycle time and an 8 h

Finish in time. 8 h is displayed (until Energy-saving mode activates) and counts down (approximately 6hr:30min) until the drying cycle begins (at 1hr:30min) then the cycle duration 1:30 is displayed and drying begins. Total time approximately 8 hours.

Additional Program Option settings

Wrinkle Block

If the

Wrinkle Block

option is activated it prevents the laundry from creasing or wrinkling. The drum rotates at specific intervals after the drying process allowing the load to remain loose and fluffy until removed.

If the

Wrinkle Block

button is touched, this function is set to 60 (+60m) or 90 (+90m) minutes.

The laundry remains loose and fluffy until it is removed.

The laundry should be removed before this time has elapsed.

Low Heat

Reduced temperature for delicate fabrics, e.g. polyacrylic, polyamide or elastane, with longer drying

Spin speed

The

Spin Speed

setting is based on your washer’s normal spin speed. Adjusting this setting allows the dryer’s displayed time to be as close as possible to the actual drying time.

NOTICE:

The spin speed is not the same as the rotation speed of the dryer drum.

To change the dryer’s

Spin Speed

setting follow the instructions below.

Activate adjustment mode

2II

1.

Select

Cotton Extra Dry

on position 1.

The appliance is on.

2.

Touch and hold

Start/Pause

and turn the program selector to the right (position 2). Release

Start/Pause

button.

Adjustment mode is now activated and the default value

(1000 rpm) appears in the display.

Change spin speed

Press the

Time dry

or

Finish in

button to change the setting (allowable values are between 600 and 1800 in increments of 100).

Quit adjustment mode

Turn the program selector to

Off

position. The settings were saved.

29

USER-MAINTENANCE INSTRUCTIONS

User-maintenance instructions

USER-MAINTENANCE INSTRUCTIONS

Your appliance is designed to give you years of service.

Observe the following instructions to maintain your appliance and keep it in top operating condition.

Cleaning the lint filter area

9

9

9

WARNING

RISK OF EXPLOSION

Never use solvents or highly flammable liquids for cleaning.

CAUTION

Regular Maintenance, especially cleaning the lint filters is important!

Improper cleaning may damage the dryer or cause injury.

Do not spray with a hose or pressure washer.

Do not use scouring agents or all-purpose cleaners.

Do not use steam cleaners.

Do not use bleach-based wipes.

WARNING

FIRE HAZARD

Follow these instructions when cleaning the lint filter area.

DO NOT extend any cleaning device or object more than six inches (6") beyond the lint filter opening.

Only use a soft instrument (rubber, cloth or soft bristles) for cleaning inside the lint filter area.

With both lint filters removed, wipe or vacuum around the lint filter opening and no more than six inches below the opening.

Over time, lint from the drying process collects in the lint filter area.

This lint can be easily removed using a vacuum cleaner.

Cleaning the Dryer's exterior

Clean the Dryer's exterior surfaces by wiping with a soft cloth and soapy water only.

Wipe the drum, door seal and inside of the door with a damp cloth only.

NOTICE:

Do not clean with a water jet.

Remove detergent and cleaning agent residue immediately.

During drying, water may occasionally accumulate between the window and the seal. This does not affect the proper operation of your dryer.

Cleaning the lint filter

Dirty filters prolong the drying time and increases energy consumption.

The filter should be cleaned before or after each drying process.

If

é

indicator lights up during a drying program, clean the filter immediately.

Tip:

The program is interrupted automatically.

To clean the lint filter:

1.

Turn the Program Selector to switch off the appliance.

9

CAUTION

The inside of the door heats up during the drying process. The drum, the door and the laundry may be hot.

30

2.

Open the door.

5.

Remove lint (run hand over filter).

NOTICE:

Severely dirty or clogged lint filter should be rinsed under warm running water.

3.

Pull out filter.

4.

Remove the lint from the lint filter opening and area below. Ensure that no lint falls into opening below.

Open the filter.

6.

The filter must be dried thoroughly before being placed back into dryer.

Close the filter and re-insert it.

7.

Close the door.

31

Cleaning the Condenser

The Condenser requires periodic cleaning

(recommended once per month under normal drying conditions). The frequency of cleaning depends on the amount and type loads being dried.

To clean the Condenser:

1.

If the dryer is hot, run on

Air Fluff/No Heat

program to allow the dryer to cool down.

2.

3.

Residual water may escape, place an absorbent cloth under the maintenance flap.

Unlock the maintenance flap and open it completely.

7.

Rinse the Condenser and the cap on all sides with a jet of water to completely remove all of the lint and fluff.

8.

Remove all lint and fluff from the seals on the dryer and Condenser.

9.

Allow the cap and the Condenser to dry fully.

10.

First insert the Condenser, then the cap.

11.

Turn back both locking levers.

4.

Turn both locking levers towards each other.

12.

Close the maintenance flap until it locks into position.

5.

Pull out the Condenser cap.

6.

Remove the Condenser.

NOTICE:

Do not damage the Condenser! Clean with warm water only. Do not use hard or sharp edged objects!

13.

Look in the Troubleshooting table to reset the maintenance indication.

~

Troubleshooting; Page 34

32

Cleaning the moisture sensors

The dryer is equipped with a stainless-steel moisture sensor. The moisture sensor measures how damp the laundry is.

After long periods of use the moisture sensor may become covered by a fine layer of limescale or residue of detergents and textile care products. Such residue must be removed regularly as the sensor function will be impaired and the drying results less than desired.

To clean the moisture sensors:

1.

Open the door.

Replacing fuses in the Power Adapter - step-by-step

Fuses are a required safety device intended to last for the life of the product. In the unlikely event one fails follow the below steps to replace it.

1.

Unplug the Washer and Dryer cords from the Power

Adapter.

Unplug the Power Adapter from the wall outlet.

2.

The deposit on the sensors can easily be removed by wiping the sensors (the two bars next to the lint filter) with a cloth and white vinegar.

2.

3.

Remove fuse holder using a pointed tool as shown

(e.g. pick or small screwdriver).

Replace suspected bad fuse with a known good one.

4.

NOTICE:

USE ONLY THE REPLACEMENT FUSE,

PART NUMBER 10013781.

Reinstall the fuse and fuse holder in the Power

Adapter ensuring it snaps into place.

NOTICE:

Use white vinegar only!

Clean the moisture sensors once a month.

Maintenance of drain hose

If

DR

indicator lights up check the drain hose for kinks, restrictions or blockage.

NOTICE:

If

DR

indicator still lights up after the above steps are taken, you should contact Customer Service.

33

Troubleshooting

Introduction

NOTICE:

Before doing maintenance work or trying to fix a problem, rotate the program selector to

Off

.

If the power supply is interrupted during operation, the program will not continue when power is restored. When power is restored, confirm program and selected options are as desired and then press the Start/Pause button.

9

WARNING

RISK OF INJURY TO SKIN

The door, the drum and the laundry may be hot.

9

WARNING

RISK OF ELECTRIC SHOCK! EXPLOSION HAZARD

Repairs or replacement of parts should be carried out by authorized service providers only.

Before calling Customer Service, check whether you can rectify the problem yourself by means of the following table.

2.

3.

If a problem cannot be rectified or a repair is required:

1.

Set program selector to

Off

.

Disconnect the dryer from the power outlet.

Call Customer Service.

~

Customer service; Page 4

General Troubleshooting

Often when you encounter a problem it will be something minor. Before you call Customer Service, consider the suggestions and instructions below:

NOTICE:

The troubleshooting items listed below can help resolve minor issues with your dryer quickly and without the necessity of a service call.

34

Determing the Problem

Problem

Dryer does not start.

Start/Pause

indicator light does not flash.

DR

indicator light up.

Water has not drained completely.

Possible cause(s)

Power cord end not inserted at all or not inserted correctly.

A fuse is blown or breaker is tripped.

Door not closed properly.

Solution(s)

Insert power cord end correctly.

Replace fuse or reset breaker.

For replacing the fuses in the supplied Power

Adapter.

~

Replacing fuses in the Power Adapter - step-by-step; Page 33

Check if laundry is caught in the door. Close the door until a click is heard.

Program not selected.

Rotate the program selector to desired program.

~

Program selection table; Page 28

Energy-saving mode is activated.

Touch any button to activate the display.

~

Environmentally friendly use of your dryer; Page 8

The display panel and indicator lights go out,

Start/Pause

indicator light flashes.

The display panel and

Start/Pause

indicator switch off.

Dryer does not start.

Start/Pause

indicatorflashes.

Sleep mode after setting the

Finish in

option is activated.

Start/Pause

button not pressed.

é

indicator light up.

Lint filter dirty.

Condenser dirty.

Drain hose is blocked.

Touch any button to activate the display.

Press the

Start/Pause

button to start the cycle.

Clean lint filter.

~

Cleaning the lint filter; Page 30

Touch the

Start/Pause

button to reset the displayed indication and then touch

Start/Pause

button again to reset the appliance if necessary.

Clean Condenser.

~

Cleaning the Condenser; Page 32

Touch the

Start/Pause

button to reset the displayed indication and then touch

Start/Pause

button again to reset the appliance if necessary.

Check drain hose.

~

Maintenance of drain hose; Page 33

Check drain hose connection conditions.

Water is leaking out.

Program terminates shortly after starting.

The door opens by itself.

Dryer is not leveled.

The Condenser seal is dirty.

Drain hose is leaking.

Laundry is not loaded.

Load too small for selected program.

Loaded laundry is too dry.

The door not closed properly.

Level the dryer.

~

Leveling the dryer; Page 18

Clean the Condenser seal.

~

Cleaning the Condenser; Page 32

Check entire length of drain hose for leaks; replace if necessary.

Check that hose is clamped on hose barb at back of the dryer securely.

Load the laundry.

~

Loading the laundry; Page 24

Use time program.

~

Program selection; Page 23

~

Program selection table; Page 28

Check the loaded laundry. If it is dry, open the door, remove laundry and turn program selector to

Off

.

Close the door until a click is heard.

35

Problem Possible cause(s) Solution(s)

Creasing.

Drying result is not satisfactory (laundry feels too damp).

Program does not start

Finish in (remaining) time is displayed.

Program does not start

- D symbol lit up.

One or more indicator lights are flashing.

Power failure.

Laundry load exceeded.

Unsuitable program selected.

Warm laundry may feel more damp than it really is.

The selected program does not suit the load.

Dryness level is not adjusted.

Fine layer of limescale or detergent and textile care products residues on the moisture sensors.

Program termination e.g. main power supply failure, door open or maximum drying time reached.

Initial load is too wet.

Do not exceed the maximum load for selected program. Remove items of laundry immediately after the end of the program, hang them up and pull into shape.

Turn program selector to

Off

.

~

Program selection table; Page 28

Select Wrinkle Block button to prevent the laundry from creasing or wrinkling.

~

Wrinkle Block; Page 29

Remove items of laundry immediately after the end of the program and turn the program selector to

Off

.

Use another drying program or, in addition, select the time program.

~

Program selection table; Page 28

Use

Dry Level

to adjust the dryness level.

~

Dry Level; Page 29

Clean the moisture sensors.

~

Cleaning the moisture sensors; Page 33

See the problem(s) mentioned in this table.

Spin laundry at higher speed in the washing machine, before drying.

Switch off the dryer, and than turn it on again.

Drying time too long.

Lint filter and/or Condenser is dirty. Clean lint filter

~

Cleaning the lint filter; Page 30

and/or Condenser.

~

Cleaning the Condenser; Page 32

Insufficient supply of ambient air for cooling.

Air inlet possibly blocked.

Ensure that cool ambient room air can freely circulate near the dryer.

~

Installation for best performance; Page 9

Do not obstruct the air inlet on the front of the dryer.

Ambient temperature is lower than

59

30

°

°

F/15

C .

°

C or higher than 86

°

F/

Ensure the ambient room conditions are within this range.

A delayed starting time has been selected and activated.

Drying cycle will begin at proper time to complete at the selected Finish in time.

Childproof look is activated.

Deactivate Childproof look.

~

Childproof lock; Page 25

Lint filter or/and Condenser is dirty. Clean lint filter or/and Condenser (see solution of the problem(s) in this table above).

Installation conditions are not adequate.

Fault in program sequence or malfunction.

Check the installation conditions.

~

Electrical Connections; Page 16

Switch off the dryer, allow it to cool down, switch back on and restart the program.

Remove laundry from the dryer immediately and spread out. This allows the heat to dissipate. Be careful as the door, the drum and the laundry may be hot.

If troubleshooting did not solve your issue contact Customer Service

~

Customer service; Page 4

36

STATEMENT OF LIMITED PRODUCT WARRANTY

STATEMENT OF LIMITED PRODUCT WARRANTY

Bosch Clothes Dryer

What this Warranty Covers & Who it Applies to:

The limited warranty provided by BSH Home Appliances

(“Bosch”) in this Statement of Limited Product Warranty applies only to the Bosch appliance ("Product") sold to you provided that the Product was purchased:

For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes.

New at retail (not a display, “as is”, or previously returned model), and not for resale, or commercial use.

Within the United States or Canada, and has at all times remained within the country of original purchase.

The warranties stated herein apply to the original purchaser of the product warranted herein and to each succeeding owner of the product purchased for ordinary home use during the term of the warranty.

Please make sure to return your registration card; while not necessary to effectuate warranty coverage, it is the best way for Bosch to notify you in the unlikely event of a safety notice or product recall.

Limitation for Third Party Accessories:

Third party accessories, other than those shipped with your Bosch appliance, and any consequential damages resulting therefrom, are not covered by this warranty. This limitation expressly includes the implied warranties of merchantability and fitness for a particular purpose, which are also expressly excluded with respect to third party accessories, other than those shipped with your

Bosch appliance. Use of third party accessories, other than those shipped with your Bosch appliance, does not void this warranty on any other part, and all other provisions of this warranty remain in effect.

How Long the Warranty Lasts:

Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred sixty-five days (365) days from the date of the original purchase. The foregoing timeline begins to run upon the date of the original purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This product is also warranted to be free from cosmetic defects in material and workmanship

(such as scratches of stainless steel, paint/porcelain blemishes, chips, dents, or other damage to the finish) of the Product, for a period of thirty (30) days from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.

SCOPE OF EXTENDED LIMITED WARRANTY

Bosch will repair or replace, free of charge, any printed circuit boards, drive motor or component part of the drive motor that proves defective under conditions of normal home use during the first seven hundred thirty (730) days from the date of the orginal purchase, labor charges excluded.

Repair/Replace as Your Exclusive Remedy:

During this warranty period, Bosch or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship.

If reasonable attempts to repair the Product have been made without success, then Bosch will replace your

Product (upgraded models may be available to you, in

Bosch’s sole discretion, for an additional charge).

Nothing in this warranty requires damaged or defective parts to be replaced with parts of a different type or design than the original part. All removed parts and components shall become property of Bosch at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not to be extended with respect to such parts. Bosch’s sole liability and responsibility hereunder is to repair manufacturerdefective Product only, using a Bosch authorized service provider during normal business hours. For safety and property damage concerns, Bosch highly recommends that you do not attempt to repair the Product yourself, or use a non--authorized servicer provider; Bosch will have no responsibility or liability for repairs or work performed by a non-authorized servicer provider. Authorized service providers are those persons or companies that have been specially trained on Bosch products, and who possess, in Bosch’s opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Bosch). Notwithstanding the foregoing, Bosch will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is in a reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, Bosch would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call.

Out of Warranty Product:

Bosch is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has expired.

37

Warranty Exclusions:

The warranty coverage described herein excludes all defects or damage that are not the direct fault of Bosch, including without limitation, one or more of the following:

Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels).

Any party’s willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self performed “fixing” or exploration of the appliance’s internal workings).

Adjustment, alteration or modification of any kind.

A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.

Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product.

Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.

In no event shall Bosch have any liability or responsibility whatsoever for damage to surrounding property, including cabinery, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are Products on which the serial numbers have been altered, defected, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses.

TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY

SETS OUT YOUR EXCLUSIVE REMEDIES WITH

RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES

IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY,

OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY

IS IN LIEU OF ALL OTHER WARRANTIES WHETHER

EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY

LAW, WHETHER FOR MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE, OR OTHERWISE,

SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT

THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN

NO EVENT WILL THE MANUFACTURER BE LIABLE FOR

CONSEQUENTIAL, SPECIAL, INCIDENTIAL, INDIRECT,

“BUSINESS LOSS”, AND/OR PUNITIVE DAMAGES,

LOSSES, OR EXPENSES, INCLUDING WITHOUT

LIMITATION TIME AWAY FROM WORK, HOTELS AND/

OR RESTAURANT MEALS, REMODELLING EXPENSES

IN EXCESS OF DIRECT DAMAGES WHICH ARE

DEFINITELY CAUSED EXCLUSIVELY BY BOSCH, OR

OTHERWISE. SOME STATES DO NOT ALLOW THE

EXCLUSIONS OR LIMITATIONS OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, AND SOME STATES DO

NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR

LIMITATIONS MAY NOT APPLY TO YOU. THIS

WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND

YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY

FROM STATE TO STATE.

No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of

BSH.

How to Obtain Warranty Service:

To obtain warranty service for your Product, you should contact Bosch Customer Service Department at 1-800-

944-2904 to schedule a repair.

38

*9001511678*

9001511678

0009

1901 Main Street, Suite 600 • Irvine, CA 92614 • 1-800-944-2904 www.bosch-home.com • © 2020 BSH Home Appliances Corporation
