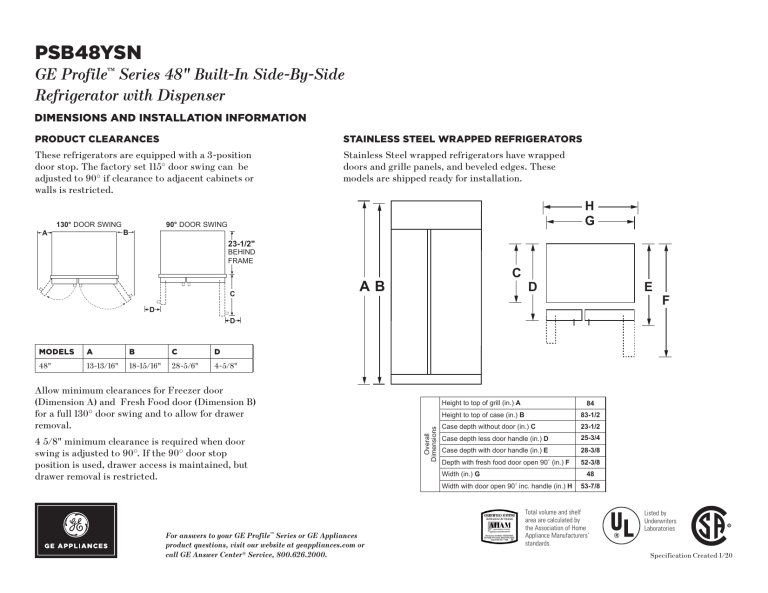

PSB48YSN
GE Profile™ Series 48" Built-In Side-By-Side
Refrigerator with Dispenser
DIMENSIONS AND INSTALLATION INFORMATION
PRODUCT CLEARANCES
STAINLESS STEEL WRAPPED REFRIGERATORS
These refrigerators are equipped with a 3-position
door stop. The factory set 115° door swing can be
adjusted to 90° if clearance to adjacent cabinets or
walls is restricted.
Stainless Steel wrapped refrigerators have wrapped
doors and grille panels, and beveled edges. These
models are shipped ready for installation.
A
130° DOOR SWING
H
G
90° DOOR SWING
B
23-1/2"
BEHIND
FRAME
C
C
AB
D
E
D
F
MODELS
A
B
C
D
48"
13-13/16"
18-15/16"
28-5/6"
4-5/8"
Allow minimum clearances for Freezer door
(Dimension A) and Fresh Food door (Dimension B)
for a full 130° door swing and to allow for drawer
removal.
4 5/8" minimum clearance is required when door
swing is adjusted to 90°. If the 90° door stop
position is used, drawer access is maintained, but
drawer removal is restricted.
For answers to your GE Profile™ Series or GE Appliances
product questions, visit our website at geappliances.com or
call GE Answer Center® Service, 800.626.2000.
Overall
Dimensions
D
Height to top of grill (in.) A
84
Height to top of case (in.) B
83-1/2
Case depth without door (in.) C
23-1/2
Case depth less door handle (in.) D
25-3/4
Case depth with door handle (in.) E
28-3/8
Depth with fresh food door open 90˚ (in.) F
52-3/8
48
Width (in.) G
Width with door open 90˚ inc. handle (in.) H
53-7/8
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Specification Created 1/20
PSB48YSN
GE Profile™ Series 48" Built-In Side-By-Side
Refrigerator with Dispenser
THE INSTALLATION SPACE
47-1/2" for 48" width models
DIMENSIONS AND INSTALLATION INFORMATION
24" (61.0)
GROUNDING THE REFRIGERATOR
SIDE PANELS
IMPORTANT—PLEASE READ CAREFULLY
Side panels (not supplied)
must be used whenever
the sides of the refrigerator
will be exposed. The 1/4"
side panels will slip into
the side case trim. Order
side panels from your
cabinet manufacturer.
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
The power supply cord of this appliance is
equipped with a three-prong (grounding) plug
which mates with a standard three-prong
(grounding) wall receptacle to minimize the
possibility of electric shock hazard from this
appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a standard 2-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a properly
grounded 3-prong wall outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG FROM
THE POWER CORD.
*Depending on installation
height.
20" for 48"
width models
A
3/16"
(.5)
6-3/4"
E
(17.1)
1 7/8"
6-3/4"
(4.8)
(17.1)
*84 +- 1/2"
A – Mounting the junction in this location
will also allow for front
accessibility through
access panel.
B – Water supply area.
*Trim will overlap
additional 7/16"
*84"
(213.4)
*Depending
on installation
height
75"
From floor
to bottom
of electrical
area
*3"- 4"
(7.6 - 10.2)
*Depending
on installation
height
5"
2 9/16"
(6.5)
B
5" 3-1/2"
WATER
FRONT VIEW
FLOORING
ADDITIONAL SPECIFICATIONS
For proper installation, this refrigerator must be
placed on a level surface of hard material that
is at the same height as the rest of the flooring.
This surface should be strong enough to support
a fully loaded refrigerator, or approximately 1500
lbs.
A 120 volt, 60Hz, 15 or 20 amp power supply is
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install
a properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be located
on rear wall as shown.
ZIF360NXLH_ZIF360NXRH _ZIFP360NXLH_ZIFP360NXRH_ ZIFS360NXLH_ZIFS360NXRH
DO NOT USE AN ADAPTER PLUG
TO CONNECT THE REFRIGERATOR
TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD
WITH THIS APPLIANCE.
NOTE: ZIR360NXLH_ZIR360NXRH_ZIRP360NXLH_ZIRP360NXRH_ZIRS360NXLH_ZIRS360NXRH
Protect the finish of the flooring. Cut a
NOTE: GFI (ground fault interrupter) is not
large section of the cardboard carton and place
recommended.
under the refrigerator where you are working.
Water line can enter the opening through the floor or
WATER AND ELECTRICAL LOCATIONS
rear wall. The water line installed should be 1/4" O.D.
copper tubing or GE SmartConnect™ tubing between
The opening must be prepared with the
the cold water line and water connection location. The
electrical and water supply located as shown.
line should be long enough to extend to the front of the
THE CUTOUT DEPTH MUST BE 24"
refrigerator. Installation of an easily accessible shutoff
The refrigerator will project forward, slightly
valve in the water line is required.
beyond adjacent cabinets, depending on your
installation.
For answers to your GE Profile™ Series or GE Appliances
product questions, visit our website at geappliances.com or
call GE Answer Center® Service, 800.626.2000.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Specification Created 1/20
PSB48YSN
GE Profile™ Series 48" Built-In Side-By-Side
Refrigerator with Dispenser
FEATURES AND BENEFITS
48” Built-In Configuration - Enjoy the streamlined appearance of a built-in refrigerator, designed to fit
inside cabinetry
Integrated Dispenser with LED Lighting – Have access to ice and water, and to refrigerator controls
like temperature settings, with a dispenser that’s integrated into your refrigerator door
LED Lighting – Find any item in your refrigerator with ease, thanks to bright, efficient lighting that
illuminates the fresh-food and freezer compartments
Climate Controlled Drawer – Alter your drawer’s internal temperature to suit the food inside, using
one of three temperature settings: Meat, Produce or Citrus
Built-In WiFi – Monitor and control your refrigerator from your smartphone, and receive helpful
alerts if the door is left open or service is needed
Fresh Food Multi-Level Drawers – Provide the ideal environment for storing your fruits and vegetables
Adjustable spillproof glass shelves – Raised edges help contain spills to make clean up quick and easy
Large door bins - Offers ideal space for storing large containers in the door, freeing up valuable shelf space
Adjustable Freezer Shelves – Make room for a variety of frozen foods, using four wire shelves that are
designed for easy adjustability
Built-In Ice Maker – Enjoy clean, filtered ice anytime by scooping it from the freezer or using
the integrated dispenser in the refrigerator door
Full-Extension Freezer Baskets – Easily load and unload frozen items with freezer baskets that
are engineered to slide all the way out
Advanced Temperature Management System – Keep foods perfectly fresh with a multi-level air
tower that distributes air evenly throughout the refrigerator and an overhead evaporator system
that regulates humidity
PSB42YSK_PSB48YSK
UFAS
COMPLIANT
Model PSB48YSNSS – Stainless steel
Specification Created 1/20
