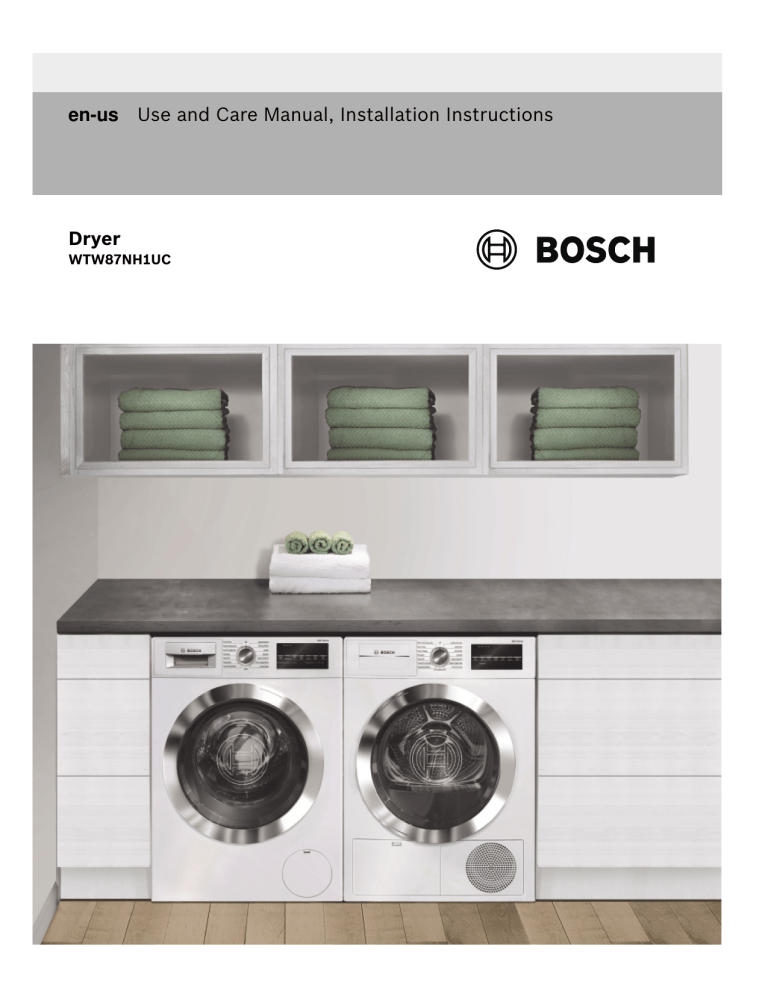

en-us Use and Care Manual, Installation Instructions
Dryer
WTW87NH1UC
Welcome to Your New Dryer!
Congratulations on your selection
of a new Bosch dryer for your
laundry needs. We are confident
you will enjoy the superior
performance and reliability.
Please do not hesitate to contact
our Customer Service department
if you have any questions or
comments about your new dryer.
Thank you for choosing Bosch.
Visit our website at www.boschhome.com/us (USA) or www.boschhome.ca (Canada) for more
information and to view a selection
of our products.
2
Table of contents
en-usUseandCreManul,InstalionIstrucions
Important information ................................................... 4
Purchase information ........................................................... 4
Customer service ................................................................. 4
Your dryer is intended for ............................................. 5
Safety Definitions .......................................................... 5
IMPORTANT SAFETY INSTRUCTIONS ........................ 6
Introduction to your new dryer .................................... 8
Standard features and helpful information ...................... 8
Special features .................................................................... 8
Environmentally friendly use of your dryer ...................... 9
Dimensions and clearances required ........................ 10
Installation for best performance .................................... 10
Appliance dimensions ...................................................... 10
Length of power cord and drain hose ........................... 10
Minimum clearances ......................................................... 11
INSTALLATION INSTRUCTIONS ................................ 12
Introduction ......................................................................... 12
Before installing the dryer ................................................ 12
Waste disposal .................................................................. 13
Parts provided with your dryer ........................................ 13
Accessories for your appliance ...................................... 14
Installation - step by step and check list ...................... 15
Electrical Connections ...................................................... 18
Leveling the dryer .............................................................. 19
Check heating system ...................................................... 19
Preparing to transport the dryer - step by step ........... 20
Reversing the door - step by step ................................. 20
Getting to know your appliance ................................. 23
Control panel ...................................................................... 23
Display area ....................................................................... 24
OPERATING INSTRUCTIONS ..................................... 26
Your new dryer ................................................................... 26
Before using the dryer for the first time ....................... 27
Temporary disconnection of the dryer .......................... 28
Using program selector to choose a drying program 28
Program selection ............................................................. 28
Selecting optional program settings .............................. 28
Loading the laundry .......................................................... 29
Starting the program ......................................................... 29
Indicator of program sequence ...................................... 30
Selecting a different program ......................................... 30
Cancel program ................................................................. 30
Program end ...................................................................... 30
Removing laundry/switching the appliance off ........... 30
Home Connect® ........................................................... 31
Calling up the Home Connect menu ............................. 31
Connecting your home network to the Home Connect
app ....................................................................................... 31
Activating/deactivating Wi-Fi ........................................... 33
Resetting your network settings ..................................... 33
Updating the software ...................................................... 33
Information on data protection ....................................... 33
Declaration of Conformity ................................................ 34
Wi-Fi® Module FCC/IC Statements ............................... 34
Laundry ........................................................................ 35
Preparing the laundry ....................................................... 35
Sorting the laundry ............................................................ 35
Drying tips .......................................................................... 35
Program selection table ............................................. 36
Optional program settings ......................................... 37
Low Heat ............................................................................. 37
Time Dry 5 ........................................................................ 37
Remote Start ...................................................................... 37
Finish in ............................................................................... 37
Dryness Level .................................................................... 37
Level Adjust ........................................................................ 37
End Signal .......................................................................... 37
Wrinkle Block ..................................................................... 37
Appliance settings ...................................................... 38
Child lock 3 sec. ............................................................... 38
Activating setting mode ................................................... 38
Exiting setting mode ......................................................... 38
USER-MAINTENANCE INSTRUCTIONS .................... 39
Cleaning the Dryer's exterior .......................................... 39
Cleaning the lint filter area .............................................. 39
Cleaning the lint filters ...................................................... 39
Cleaning the moisture sensors ...................................... 40
Maintenance of drain hose ............................................. 41
Replacing fuses in the Power Adapter - step-by-step 41
Troubleshooting .......................................................... 42
Introduction ........................................................................ 42
General Troubleshooting ................................................. 42
STATEMENT OF LIMITED PRODUCT WARRANTY .. 45
Bosch Clothes Dryer ........................................................ 45
Additional information on products, accessories,
replacement parts and services can be found at
www.bosch-home.com/us (USA) or www.boschhome.ca (Canada) and in the online shop www.boschhome.com/us/store
3
4XHVWLRQV"
ZZZERVFKKRPHFRPXV 86$ RU
ZZZERVFKKRPHFD &DQDGD 0DLQ6WUHHW6XLWH
,UYLQH&$
:HORRNIRUZDUGWRKHDULQJIURP\RX
Important information
Purchase information
Importaniformatin
Please take a moment to record the following basic
information about the purchase of your new Bosch dryer.
This information will be helpful in the event you need to
contact Customer Service or would like to order
accessories or replacement parts for your dryer.
(1U
)'
Customer service
Your dryer does not require any special care other than
the maintenance and care mentioned in this manual. If
you have a problem with your dryer, please consult the
Troubleshooting section of this manual.
~ Troubleshooting; Page 42
If problems persist and service is necessary, please
contact our customer service department.
Do not attempt to repair the appliance yourself.
Bosch Customer Service
1-800-944-2904
(1
U
)'
The E-Nr. (model number) and the FD (serial) number
can be found on the rating plate label (shown above) or
in the Home Connect application under Appliance
Information.
The model number includes the slash and a two digit
number (eg: "/01"). Please be sure to include the final 2
digit number when filling in your model number. This
helps make sure any parts you may need are correctly
matched to your specific machine.
Date of Purchase:___/___/_____
Where Purchased:___________________________
E-Nr. :_______________/____ (ex: WTG86xxxUC/01)
FD :__________-_________ (ex: 9709|90007, provides
production date)
The manufacturer reserves the right to make changes in
the product or manual without notification.
Or by mail
BSH Home Appliances Corporation
1901 Main Street, Suite 600
Irvine, CA 92614
When writing or calling please have the following
information available:
▯ E-Nr. (model number, example: WTG86xxxUC/01)
▯ FD (serial number, example: 9708|90007)
▯ Date of Original Purchase (receipt may be required)
▯ Date Problem Occurred
▯ Explanation of Problem
If writing, please also include a daytime telephone
number and a copy of the sales invoice.
When calling Customer Service, please be ready to
provide the model number E-Nr. and FD number. This
information will help provide the best support for your
dryer.
Additional information is available at our website:
www.bosch-home.com/us (USA) or www.bosch-home.ca
(Canada).
4
Your dryer is intended for
▯
Yourdeyistnedfor
▯
▯
Only household use and in a non-commercial
environment.
Drying textiles washed in a residential style clothes
washer.
Operating conditions:
Recommended ambient temperatures: 59-86°F / 1530°C.
Min/Max allowable temperatures: 41-95°F / 5-35°C.
Relative humidity: under 95%
Installation by qualified installers.
▯ Installation in accordance with all regulatory
requirements; if in doubt have the appliance installed
by a specialist familiar with these requirements.
Before using the appliance, read the use and installation
instructions and all other information included with the
appliance and act accordingly.
Keep all documents for future use.
▯
Safety Definitions
Important safety information is contained in this manual
and on the warning labels located on your dryer.
Standard symbols and headings are used to identify
areas where you should take precautions to avoid injury
or property damage. Please take a moment to become
familiar with each of these symbols and what they mean
before proceeding.
SafetyDintso
9
WARNING
This indicates that death or serious injuries may
occur as a result of non-observance of this warning.
9
CAUTION
This indicates that minor or moderate injuries may
occur as a result of non-observance of this warning.
NOTICE: This indicates that damage to the appliance or
property may occur as a result of non-observance of this
warning.
Tip: This symbol is used to draw the user's attention to
important matters.
5
9
I M P O R T A N T
S A F E T Y
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
I N S T R U C T I O N S IMPORTANSFETYINSRUCTIONSR E A D
A N D
S A V E
T H E S E
I N S T R U C T I O N S
WARNING
When properly cared for, your new appliance has been
designed to be safe and reliable. Read all instructions
before using the appliance. These precautions will
reduce the risk of burns, electric shock, fire, and injury to
persons. When using laundry appliances, basic safety
precautions must be followed, including those in the
following pages.
Examine the appliance after unpacking it. In the event of
transport damage, do not plug it in.
▯
▯
▯
▯
▯
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
SERIOUS INJURY OR DEATH WHEN USING YOUR
DRYER, FOLLOW BASIC PRECAUTIONS INCLUDING
THE FOLLOWING
▯ Bosch dryers are provided with a Use and Care Manual
with Installation Instructions. Read and understand all
instructions before using the dryer.
▯ Do not dry articles that have been previously cleaned,
washed, soaked, or spotted with gasoline, dry cleaning
solvents, other flammable or explosive substances as
they give off vapors that could ignite or explode.
▯ Before the appliance is removed from service or
discarded, remove the door (to the drying
compartment) to prevent children from playing or
hiding inside. Also remove the power cord/plug.
▯ Do not allow anyone to climb, lean or hang on any part
of the dryer including any protruding components such
as the appliance door or a pullout shelf.
▯ Do not reach into the appliance if the drum is moving.
▯ Do not tamper with the controls.
▯ Do not repair or replace any part of the appliance or
attempt any service unless specifically recommended
in these user maintenance instructions.
▯ Do not use replacement parts that have not been
recommended by the manufacturer (e.g. parts made by
using a 3D printer).
▯ Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of the
fabric softener or product.
▯ Always unplug the dryer from the power supply before
attempting any service. Disconnect the power cord by
grasping the plug, not the cord.
▯ To reduce the risk of fire, clothes, cleaning rags, mop
heads and the like which have traces of any flammable
substance, such as vegetable oil, cooking oil,
petroleum based oils or distillates, waxes, fats, etc.,
must not be placed in the dryer. These items may
contain some flammable substance(s) even after
washing, which may smoke or catch fire by itself.
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a
load to catch fire.
Do not use heat to dry articles containing foam rubber
(may be labeled latex foam) or similarly textured
rubber-like materials or equivalent. Foam rubber
materials can ignite by spontaneous combustion.
Keep flammable materials and vapors, such as
gasoline, away from the dryer.
Clean lint filters before or after each load.
Do not install or store this appliance where it will be
exposed to the weather. Hoses and internal parts may
be damaged if exposed to freezing temperatures.
Do not use the dryer if it has a worn power cord or
loose plug.
The dryer must only be used for its intended purpose.
Always
follow
the
fabric
care
instructions
recommended by the clothing manufacturer.
Do not operate the dryer if parts are missing or broken.
Do not sit on top of the dryer.
To reduce the risk of fire or electrical shock, DO NOT
use an extension cord to connect the dryer to the
electrical power supply.
Always check pockets and remove any objects.
Cigarette lighters are particularly hazardous.
The appliance contains R290, a refrigerant that is
environmentally friendly but flammable.
Keep open fire and ignition sources away from the
appliance.
Do not operate the dryer if any guards and/or panels
have been removed.
Do not bypass any safety devices.
Do not operate this dryer until you are sure that:
▯ All services connected to the dryer (power, drain,
etc.) have been installed according to the
Installation Instructions.
▯ Installation and grounding are in compliance with all
local regulations and/or other applicable
regulations and requirements.
Failure to install, maintain and/or operate the dryer
according to the manufacturer’s instructions may result
in injury and/or damage.
To avoid floor damage and mold growth, do not let
spills or splashout cause standing water around or
under the appliance.
See the Installation Instructions section in this manual
for grounding requirements.
~ Electrical Connections; Page 18
The IMPORTANT SAFEGUARDS and WARNINGS
presented in this manual do not cover all possible
conditions that may occur. Common sense, caution
and care must be exercised when installing,
maintaining or operating the dryer.
6
9
▯
▯
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Always contact your dealer, distributor, service provider
or the manufacturer about any problems or conditions
that you do not understand.
Follow the Safety Information in the INSTALLATION
INSTRUCTIONS and the OPERATING INSTRUCTIONS.
WARNING
WARNINGS FOR CHILDREN AND PETS
▯ Do not allow children and pets to play on or in the
appliance. Close supervision of children is necessary
when the appliance is used near children.
▯ Make sure to utilize all child lock/safety features of your
appliance, and be sure to turn the appliance Off when
not in use.
▯ Appliances are not intended for use by children,
however when children become old enough to operate
the appliance, it is the responsibility of the parents or
legal guardians to ensure they are instructed in safe
practices by qualified persons.
▯ Keep all laundry aids (including detergents, bleach,
fabric softeners, etc.) out of the reach of children.
▯ Keep pets away from the appliance.
WARNING
PROPOSITION 65 WARNING
This product may contain a chemical known to the State
of California, which can cause cancer or reproductive
harm. Therefore, the packaging of your product may
bear the following label as required by California:
67$7(2)&$/,)251,$352326,7,21:$51,1*
:$51,1*
&DQFHUDQG5HSURGXFWLYH+DUPZZZ3:DUQLQJVFDJRY
SAVE THESE INSTRUCTIONS!
Keep these instructions for future reference and in case
of change of ownership, manual should be conveyed
with the dryer.
7
9
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Introduction to your new dryer
9
Intrducoitoyurnewdyr
WARNING
RISK OF FIRE, ELECTRIC SHOCK OR INJURY
To reduce the risk of fire, electric shock or injury to
persons, read the IMPORTANT SAFETY
INSTRUCTIONS of this manual before installing or
operating this appliance.
~ IMPORTANT SAFETY INSTRUCTIONS; Page 6
Special features
▯
Standard features and helpful information
Thank you for choosing Bosch for your laundry
appliance needs.
Please read and follow the use and care, important
safety instructions and troubleshooting information
contained in this manual. Please retain this manual for
future reference.
~ Troubleshooting; Page 42
This dryer complies with UL 2158 Electric Clothes
Dryers.
Standard features
▯ ENERGY STAR® certified to save energy, save money
and protect the climate.
▯ Temperatures inside the drum are lower than
conventional dryers for gentle drying conditions and
fabric care.
▯ Sensor controlled auto cycles.
▯ 17.6 lb (8 kg) large drum capacity (for regular cotton
loads).
▯ Large door opening, 180° opening angle.
Quality tested
Each dryer which leaves our factory has undergone a
thorough performance test and is in full working
condition.
Website
Visit our website at www.bosch-home.com/us (USA) or
www.bosch-home.ca (Canada) for more information and
to view a selection of our products.
About this manual
These operating and installation instructions apply to
more than one model of dryer. Illustrations used may
show details that differ from your particular model.
Read your user manual. It contains valuable information
about the safety, installation and operation of your new
appliance.
This can save you time, make it easier to correctly install
and use your dryer, and improve your overall satisfaction
with your new appliance.
8
▯
▯
A distinctive feature of your Bosch dryer is its SelfCleaning Condenser. This is unique only to Bosch
Heat Pump dryers and eliminates the additional
requirements of cleaning a secondary condensate
filter found on all other Heat Pump dryers.
The Bosch Self-Cleaning condenser keeps energy
usage low for life by regularly rinsing the condenser
with every drying cycle. This helps maintain the low
energy consumption as originally certified as an
ENERGY STAR MOST EFFICIENT dryer.
Bosch dryers feature advanced operation philosophy,
customized drying programs and a solid touch and
feel making them a user-friendly household assistant.
Bosch load sensing feature controls power
consumption for each cycle based on the amount and
type of laundry. This automatic feature optimizes
energy efficiency.
Environmentally friendly use of your dryer
Your new Bosch dryer is designed to use energy in a
highly efficient way to help reduce operating costs,
conserve resources and protect the environment.
To save energy, money and time, Bosch recommends
the following:
▯
▯
Spin the laundry thoroughly
Before drying, spin the laundry thoroughly in the
washing machine. Use the highest possible spin
speed for the type of laundry. Higher spin speeds
reduce the drying time and the energy consumption.
Optimize load and selected drying program
▯ Use the maximum amount of laundry for the
appropriate drying program.
▯ Use automatic drying programs for the most energy
efficient use of your dryer. They perform according
to internal moisture and temperature sensors
delivering optimized efficiency and fabric care.
▯ Use the Time Dry program for touching up damp
loads or for small loads. This program will use more
energy than the automatic programs.
~ Program selection table; Page 36
NOTICE: The energy rating of this dryer is based on the
Cotton program with the Dryness Level set to Dry (all
other option settings are off).
▯
▯
▯
Clean filters
Clean the lint filters before or after each drying
process.
~ Cleaning the lint filters; Page 39
Air inlet on the dryer
Do not cover or allow any articles/items to restrict the
air inlet on the front of the dryer.
Energy-saving mode
The display panel lighting goes out after a few minutes
and Start/Pause flashes. To activate the display, press
any button.
Energy-saving mode is not activated if a program is
running.
If Wi-Fi is activated the appliance will not automatically
switch off (automatic switch-off function is
deactivated).
9
Dimensions and clearances required
Installation for best performance
Dimensoadclernsquired
9
Appliance dimensions
CAUTION
D
E
DO NOT INSTALL THE DRYER:
▯ outdoors,
▯ in an environment with dripping water,
▯ near flammable materials,
▯ in rooms which are at risk of freezing,
▯ in rooms which may contain gas or other fuels,
▯ on carpets.
H
F
Because many variables affect drying time we
recommend allowing as much free air space around your
dryer as possible for the shortest drying cycle time.
NOTICE: If your dryer is located in a closet, leave the
closet door open while the dryer is operating.
The recommended ambient temperatures (between 5986°F / 15-30°C) are for optimum drying times, outside
of this range drying times may be longer.
The installation surface (floor) must be level and
structurally sound. Using a bubble level and the heightadjustable feet installed on the appliance, level the
appliance side to side and front to back.
G
Label Dimension
U.S.
Metric
Inches cm
a
b
c
Width
Depth (to front of door)
Height (minimum)
Height (maximum)
Side clearance
(door open 180°)
23.6
25
33.2
34
16
60
63.5
84.3
86.4
40.6
Depth (door open 90°)
42.9
109
d
e
Length of power cord and drain hose
To Left*
U.S.
Inches
To Right*
Metric
cm
Power Cord
40
102
Drain Hose
19
48
* Facing the front of the dryer
10
U.S.
Inches
Metric
cm
57
40
145
102
Minimum clearances
Closet: Stacked
Only with one of the Bosch required Stacking Kits (sold
separately), can this Bosch Dryer be stacked on top of a
Bosch Washer of the same dimensions to save space.
Under counter (Preferred)
CAUTION
9
▯
▯
▯
▯
Use only the dryer stacking kit noted in this User
Manual's Accessories section.
Do not stack washer on top of dryer.
Do not stack washer on top of another washer.
Ensure washer transportation bolts have been
removed and washer does not vibrate
excessively.
$
For shortest drying times keep closet door open while
dryer is operating.
NOTICE: When closet doors are closed louvered areas
only allow minimal drying results (expect long drying
times).
Closet: Stacked, Stand alone or Side by Side
&
%
Front of the appliance fully open.
No doors or coverings.
Minimum opening dimensions
%
(
A
B
C
28 in.
23.8 in.
34.5 in.
71.1 cm
60.5 cm
87.6 cm
Under counter (Less Desirable)
(
&
$
(
(
PLQ
P
LQ
'
Label Description
Inches cm
A
Both Sides
0.5
1.3
B
Top
6.25
16
C
Rear
3
7.5
D
Front
0.5
1.3
Minimum door undercut (louvered area)
E
Undercut: Top and Bottom
1.25
3.2
NOTICE: Louvered areas of equal total sizes and split
between upper and lower portions of door are permitted.
For shortest drying times keep cabinet door open while
dryer is operating.
NOTICE: When cabinet door is closed louvered areas
only allow minimal drying results (expect long drying
times).
Minimum door undercut (louvered area)
E
Undercut: Top and Bottom
1.25
3.2
NOTICE: Louvered areas of equal total sizes and split
between upper and lower portions of door are permitted.
11
INSTALLATION INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Instal inoIstrcuino
9
Introduction
CAUTION
▯
Read these installation instructions completely and
carefully before starting to install your new dryer. The
information contained can save you time and effort and
will help to ensure optimum performance of your new
dryer. Be sure to observe all warnings and cautions.
▯
▯
▯
9
WARNING
RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO
PERSONS
▯ To reduce the risk of fire, electric shock or injury
to persons, read the Important Safety Instructions
at the beginning of this manual before installing
or operating this appliance.
▯ To reduce the risk of severe injury or death, follow
all installation instruction.
▯ Clothes dryer installation must be performed by a
qualified installer, according to these instructions
and according to all local codes.
▯ In addition to the installation and safety
information in this manual, the local water and
electric authorities (services) may have special
requirements that must be followed.
▯ Install the clothes dryer according to these
manufacturer’s instructions and local codes.
▯ The appliance contains R290, a refrigerant that is
environmentally friendly but flammable.
Keep open fire and ignition sources away from
the appliance.
▯ Your dryer is supplied with a specific power
adapter that is only to be used with the Bosch
Washers and Dryers having NEMA 6-15P cords.
Any other use of this power adapter is prohibited.
Read and follow the Important Safety Instructions
supplied with the Power Adapter.
▯
▯
The appliance is heavy. Do not lift it by yourself,
use additional help and care when lifting and
positioning.
If in doubt, have the appliance installed by an
authorized service provider.
Take care to not damage the appliance. Do not
hold on to protruding parts (e.g. door) when
lifting. Do not push against the appliance door
glass due to risk of damage.
Do not install the appliance outdoors or in an
area exposed to freezing conditions.
If freezing conditions exist where appliance is
located all drain water must be removed from
hoses, sumps, pumps, etc.
Hidden surfaces may have sharp edges. During
service wear gloves and use caution when
reaching inside the dryer housing.
These installation instructions are intended for use by
qualified installers. In addition to these instructions, the
installation must comply with:
▯
▯
for the United States - National Electrical Code, ANSI/
NFPA70 - and latest editions of the state and
municipal and/or local regulations.
for Canada - Canadian Electrical Code C22.1 - and the
latest editions of the provincial, municipal and/or local
regulations.
Before installing the dryer
Unpacking the appliance
9
CAUTION
Remove the appliance packaging carefully to
prevent damage to the surfaces.
After removing the packaging, immediately remove
all objects from the drum.
Check the dryer for transportation damage. Do not
connect the utilities (power or drain) to a dryer which is
visibly damaged. If in doubt, contact your dealer.
12
Waste disposal
Parts provided with your dryer
Disposal of Packaging Materials
After unpacking your new appliance dispose of the
protective packaging materials in an environmentally
friendly way. Ask your dealer or inquire with your local
authority regarding currently acceptable means of
disposal.
Back side of the dryer
9
WARNING
WARNINGS FOR CHILDREN
Do not let children play with packaging and
associated parts to avoid risk of choking or
suffocation.
Disposal of Your Old Appliance
Your old appliance can be recycled if it is no longer to be
used. Prior to disposing of your old appliance observe
the following precautions to reduce safety risks.
9
WARNING
TO AVOID RISK OF INJURY OR DEATH, DO THE
FOLLOWING
▯ After unplugging the old appliance, remove the
electric power cord and dispose of properly.
▯ Remove the door or permanently disable the
door lock to prevent children from being locked
inside.
▯ The appliance contains R290, a refrigerant that is
environmentally friendly but flammable. If it is not
disposed of correctly fire may result. Dispose of
the appliance safely by not damaging the
refrigerant circuit.
( Power cord with plug
0 Drain hose connected to the dryer
8 Drain hose. Remove from upper right tank con-
nection to drain into customer's drain pipe/system
13
Dryer drum contents
A literature pack is shipped in the dryer drum. Be sure to
remove this item before using the dryer.
9
WARNING
RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO
PERSONS
▯ The supplied Power Adapter is intended to be
used only for powering the Bosch Washers and
Dryers having NEMA 6-15P cords. This Power
Adapter is unique as it allows for both the Dryer
and Washer to plug into the home's existing 4prong dryer receptacle. If the home has an
existing 3-prong dryer receptacle it and its
complete branch circuit must be changed to a 4prong circuit.
▯ Use only the Bosch replacement fuses in the
Power Adapter (Customer Service part number
10013781).
▯ If any parts are missing please notify your dealer
immediately.
Tip: For correct adapter installation see ~ Electrical
Connections; Page 18
Accessories for your appliance
Drying rack
A drying rack placed inside the dryer for drying wool
items, shoes, etc. is available.
Drying rack item number: WMZ20600
@ User Manual and Product Registration
H Tank Kit
Blue filter
▯ Rubber plug
Drain
Set Pack:
P
▯ (2) plastic ties for securing drain hose
▯ Plastic elbow
▯ Plastic connector for alternate drain connections (see hose installation instructions).
▯ Summary of drain hose installation instructions
Power
Adapter:
X
▯ Supplied Power Adapter
▯ 2 spare fuses
▯ Instruction sheet
▯
14
Pedestal
The dryer can be mounted on a Bosch pedestal, noted
below, for easier loading and unloading (see washing
machine user manual for unique pedestal model number
for the washer).
Pedestal item number: WMZ20500 or replacement
WTZPW20D
Stacking kits
The dryer can be stacked on a Bosch washer of the
same dimensions to save space. Only the below
Stacking kits must be used when stacking this dryer on a
Bosch washer.
Stacking kit without a shelf: WTZ20410UC
Stacking kit with a shelf: WTZ11400UC
Power Adapter
The Power Adapter is for plugging into home's existing 4prong receptacle and has two power outlets, one each
for your current Bosch Dryer and Washer to plug into.
Power Adapter item number: WTZPA20UC
Tip: Your Bosch dryer comes with the Power Adapter
included in the drum. The accessory number is given
here only if it is lost or damaged and a replacement is
needed.
Accessories can be purchased from Customer Service
or your local dealer.
~ Customer service; Page 4
Installation - step by step and check list
Examples of connections:
Review the following list and check off each step as it is
completed during installation, if necessary.
▯
1. Unpack the dryer.
2. Remove all objects from the dryer drum.
3. Check the dryer for visible damage.
4. Position the dryer near the installation location.
5. Disconnect the power cord and drain hose from their
Plumbing box or Standpipe connection:
For most plumbing box installations (with adjacent
washer) the plastic elbow supplied with the dryer will
not be used and must be removed from the dryer
drain hose.
1. Fasten the dryer drain hose to the washer drain/elbow
as shown in picture “A”. Secure with plastic ties
supplied.
clips on the back of the dryer.
9
CAUTION
9
CAUTION
Do not over tighten plastic ties pinching or
causing a restriction in the drain hose.
Do not disconnect the drain hose from the sump/
pump connection at the bottom of the dryer.
$
2. Place drain hose assembly into standpipe as shown in
picture “B”.
(QVXUHWKHGUDLQKRVH
UHPDLQVFRQQHFWHG
WRVXPSSXPSRXWOHW
%
NOTICE: Do not reuse an old or different drain hose.
Only use the drain hose included with the dryer.
6. Disconnect the drain hose from the right top corner on
the back of the dryer.
7. Connect the outlet end of the drain hose to a
standpipe or other drain inlet. Examples are shown
below.
CAUTION
9
▯
▯
▯
▯
▯
Sink/Basin or Floor drain:
If using the elbow supplied on the hose re-position
elbow closer to the drain end of hose and fasten with
the plastic ties as shown in picture “C”.
&
APPLIANCE DAMAGE COULD OCCUR IF DRAIN
WATER FLOWS BACK INTO THE APPLIANCE
In all drain conditions, scenarios, or connections
you must ensure:
The drain water from the hose is free flowing and
not obstructed allowing adequate water flow.
Drain opening must not be sealed in any way. It
must be open to avoided a back siphon
condition.
The end of the drain hose does not protrude into
the pumped out or standing water.
Be sure to follow all local codes and regulations
in draining the condensate water to a suitable
drain.
15
Secure hose and/or elbow as shown below. Sink “D”
or floor “E”.
NOTICE: Examples shown are for reference only. Not all
fittings, connectors, nuts, brackets, ties, etc. are supplied
to accommodate every application.
NOTICES
▯ Examples shown are for reference only. Not all fittings,
connectors, nuts, brackets, ties, etc. are supplied to
accommodate every application.
▯ Ensure there are no kinks or crimps along the entire
length of hose.
PD[LQ
FP
'
(
Maximum height of drain is 39 in. (100 cm).
▯
Sink Drain Pipe:
Attach and secure drain hose as shown below in
picture “F”.
Use a standard hose clamp which can be purchased
from your local hardware store.
If installed in an upper floor of a multi-story building,
the dryer should be installed on a drained floor to
prevent water damage to lower floors in the event of a
leak.
Using the "tank" to collect and drain condensate water:
▯
NOTICE: If the supplied drain hose is used for draining
into the home's standpipe or other drain system, the tank
does not need to be emptied. Water collection is optional
and instructions to do so are explained here.
The dryer comes with the drain hose connected to the
tank inlet at the top and back of the dryer. If you would
like to use the tank for collecting and emptying the
condensate water, leave this connection as it is delivered
and shown in the picture below.
Check and ensure the hose is connected completely on
the entire length of the hose barb.
PLQLQ FP
PD[LQ FP
)
Minimum height of drain for installation shown above is
31.5 in. (80 cm). Maximum height of drain is 39 in. (100
cm).
If you do not have a drain system or would like to use the
tank to collect the condensate water for you to empty,
follow the below instructions.
16
1. Remove accessories from drum and locate the Tank
Kit containing the blue filter and rubber plug.
5. Turn the Tank over and you will see a small hole for
the plug to be inserted into. Insert the plug into the
hole. Ensure it is completely inserted and will not fall
out.
Installing the tank plug and filter in place.
9
CAUTION
6. Check that both the blue filter and black plug are fully
in their correct positions and insert the complete tank
into its position in the dryer.
Condensation water is not suitable for drinking
and may contain lint. Do not drink the
condensation water.
2. Remove the tank and empty it.
Ensure the tank is pushed back into the dryer until you
feel it lock in place
7. Now you are ready to use the tank for collecting all the
condensate water from the drying process.
3. Take the blue filter from the Tank Kit and install it in the
working position as shown in the picture below. Make
sure it snaps completely in place.
NOTICE: If you change the drain system to only use
the tank you are responsible for emptying the tank.
The tank must be emptied at the end of every drying
cycle. It may require additionally emptying during the
drying cycle depending on the size and initial moisture
content of the load. The total capacity of the tank is
approximately 1-1/4 gallons (4.75 liters).
When using the tank only for collecting and draining
the water, the blue filter is required for the SelfCleaning system. It is important to clean this filter
periodically.
8. To clean the blue filter simply lift it up to remove it from
its working position, rinse out and wipe clean and
reinstall it as instructed above. Make sure it snaps
completely in place.
9
4. Locate the small black plug from the Tank Kit.
CAUTION
If the blue filter is not inserted completely into its
working position lint can travel to the condenser,
during the Self-Cleaning process, and clog/damage
it.
Tip: If you want to use the drain hose to drain the water
in the future, simply reverse the installation steps above
and do all steps from the previous chapter
~ Installation - step by step and check list; Page 15
17
Electrical Connections
Power Cord
The attached power cord is a standard NEMA 6-15P
cord and is UL approved and listed in the USA and
Canada. It meets the following requirements:
▯ 208-240 volt rated;
▯ 15 amps.
ALL ELECTRICAL CONNECTIONS AND CIRCUITS
WARNING
9
NOTICES
This appliance is restricted to being powered by the
supplied power cord noted above.
▯ There are two allowable methods to connect the
appliance cord to power:
1. If the home has an existing 4-prong, 30A Dryer
receptacle use the supplied Power Adapter.
Plug the adapter into the 4-prong receptacle (Line
side) and then plug the Bosch Dryer and Washer
power cords into the adapter (Load side). See
following images of Power Adapter for Line/Load side
locations and appliance cord placement.
▯
▯
▯
NOTICE:
This adapter can only be used with a 4-prong
receptacle. If the home has an existing 3-prong dryer
receptacle it and its complete branch circuit must be
changed to a 4-prong circuit.
2. Use an existing individual 240V, 15A minimum branch
circuit having a NEMA 6-15R outlet (or choose to have
one installed).
9
WARNING
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK.
Do not reuse this Power Adapter with a new
purchase of a Dryer. The old Power Adapter must
be discarded with the old Dryer. A new Power
Adapter must be used when a new Dryer is
installed.
9
ELECTRIC SHOCK HAZARD
▯ Do not pull on the power cord to unplug the
dryer.
▯ Protect the power cord from physical damage
such as being twisted, kinked, pinched, or walked
on.
▯ DO NOT use an extension cord to connect the
dryer to the power supply.
▯ Make sure:
The power cord fits into the outlet/receptacle.
The home’s internal power supply circuit wire size is
sufficient and electrically grounded.
▯ Do not cut, remove or bypass the grounding
prong on the power cord end.
▯ Do not modify the plug provided with the
appliance; if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
▯ The power cord must only be replaced by a
qualified service provider or licensed electrician
to help avoid a fire/electric shock hazard.
Use only manufacturer recommended
replacement power cords purchased through our
Customer Service department.
▯ Do not use NEMA 14-30P (4-prong) nor 10-30P
(3-prong) power cords on this appliance.
▯ Do not reuse old power cord.
▯ Do not make a sharp bend or crimp wiring or
conductors at connections.
WARNING
ELECTRIC SHOCK HAZARD
To reduce the risk of electrical shock:
▯ Only pull out the power cord by the plug end and
never by the cord, as this could damage it.
▯ Never touch or hold the plug end or power cord
with wet hands.
▯ Never unplug the plug end during operation.
9
WARNING
ELECTRIC SHOCK HAZARD
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or servicer if you
are in doubt as to whether the appliance has been
properly grounded.
18
GROUNDING INSTRUCTIONS
9
WARNING
ELECTRIC SHOCK HAZARD
This appliance must be electrically grounded. In the
event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path
of least resistance for electric current.
This appliance is equipped with a cord that has an
equipment grounding conductor and a grounding
plug.
The plug must be plugged into an appropriate outlet
that is properly installed and grounded in
accordance with all local codes and ordinances.
If a ground fault circuit breaker is used, ensure it
has this symbol: z.
Only this symbol can assure compliance with all
current regulations.
SAVE THESE INSTRUCTIONS!
5. Press down on each corner of the dryer top to make
sure the dryer does not “wobble“. There should be no
"give" or movement. All four dryer feet should press
equally against the floor. This is just as important as
the dryer being level to prevent vibration.
Leveling the dryer
Importance of leveling the dryer
It is important that your dryer is level and that all four
dryer feet press with equal pressure against the floor.
This will help assure the quietest, most vibration-free use
of your dryer.
To adjust the dryer feet:
1. Install the dryer on a level and solid surface, preferably
in a corner of a room.
2. If the floor is uneven (or not level) adjust the dryer feet
as required to level the dryer. Do not place anything
under the dryer feet to help level the dryer.
3. Extend the dryer feet no more than is necessary. The
more the feet are extended, the more vibration the
dryer will experience. Start with the dryer feet turned all
the way in and adjust each foot as necessary.
4. Use a bubble level to check the top of the dryer to
make sure it is level side to side and front to rear.
Check heating system
1. Check that the drum is empty.
2. Close the dryer door.
3. Switch the dryer to the Time Dry program
4. Press the Start/Pause button.
5. After 15-16 minutes press the Start/Pause button and
open the door.
▯ If the interior of the dryer feels warm, the dryer has
been connected properly. Press the center of the
Program Selector to switch off the appliance.
▯ If the dryer does not work, press the center of the
Program Selector to switch off the appliance. Look
in the Troubleshooting section of this user manual
for hints in solving the problem.
19
Preparing to transport the dryer - step by
step
1. Press the center of the Program Selector to switch off
the appliance.
2. Pull out power supply plug.
3. Place any accessories in the drum.
4. Close the door and secure with adhesive tape.
5. Screw the height-adjustable feet of the dryer into the
housing to prevent them from being damaged during
transportation.
Reversing the door - step by step
Tip: To reverse your dryer door side:
▯ Use only T20 (Torx) type screw driver to remove and
reinstall door screws.
▯ Do not use any other tools to reverse the door (hinge
or latch).
1. Press the center of the Program Selector to switch off
the appliance. Remove the power plug from wall
outlet. Open the door completely.
Removing residual water from dryer
1. Pull out the condensation tank and empty it.
2. Push the tank back in place until you feel it lock into
position.
3. Switch on the appliance, select any drying program
and press Start/Pause.
4. Wait for 5 minutes while condensation water is drained
or pumped to tank.
5. Empty the condensation container, steps 1 and 2
above, again.
6. If installed, remove the drain hose from the stand pipe,
washbasin or floor drain.--> Page 16-17
9
2. Remove the hinge screws from the dryer side then
remove the door and hinge assembly from the dryer
housing.
CAUTION
Secure the drain hose to the back of the dryer to
prevent it from hanging loose or being damaged.
Do not kink the drain hose.
7. Switch off the appliance.
8. Disconnect the appliance's power cord from the
3. Place the door on a flat, smooth, secure surface such
as a towel or cloth lying on the floor or table.
receptacle.
The appliance is now ready to be transported.
9
CAUTION
Risk of material damage/damage to the
appliance.Despite draining, there will always be
some residual water in the appliance.Any residual
water may leak out and cause material damage;
therefore, the appliance should always be
transported upright.
20
4. Remove screws from the hinge insert and then remove
it from the door.
5. Remove screws from the hook insert and then remove
it from the door.
9. Place the hook insert in position adjacent to the
handle slots/openings and the hinge insert in the
opposite position as shown. Reinstall the original
screws.
6. Follow the instructions in the images below to unlock
the door ring from the door body.
7. Separate the ring from the door body and rotate the
ring 180° from it's original position. Fit the ring back to
the door body as shown below.
10.Remove screws from the door latch cover and then
remove it from the dryer housing.
11.Remove the door latch from the dryer housing.
8. Follow the instructions of the images below to lock the
door ring.
21
12.Install the door latch (1) and then door latch cover (2)
on the opposite side of the door opening.
13.Install the door and hinge assembly back on the dryer
with the original screws.
14.Confirm the door closes and latches in place. Plug in
the dryer to operate it.
22
Getting to know your appliance
Control panel
Getignowkyuraplince
&RWWRQV &DP3HUIHFW
3UHZDVK
:DWHU3OXV
5HGXFHG,URQLQJ
(DV\&DUH
0L[HG)DEULFV
'HOLFDWHV6LON
6WDUW
6WDLQV
:RRO
5HORDG
5LQVH6SLQ
'UDLQ 4QFFE3HUIHFW 7HPSHUDWXUH
6SLQ
² )LQLVKHG,Q &KLOG/RFNVHF
( Programs
0 Program Selector
Center is pressed to power the appliance ON or
OFF and dial turns in both directions to select a
program.
8 Display Panel with Buttons
23
Display area
&DP3HUIHFW
3UHZDVK
:DWHU3OXV
5HGXFHG,URQLQJ
6WDUW
K
5HORDG
4QFFE3HUIHFW 7HPSHUDWXUH
Buttons
Button
#
6WDLQV
C
;
6SLQ
² )LQLVKHG,Q 3
&KLOG/RFNVHF
+
Description
Indicator
Select Low Heat.
{
e.g. 0 ‹:…‹
P
Select Time Dry 5.
Select Remote Start.
Remote start and Home Connect® settings
Select Start/Pause.
▯ starts or pauses the selected cycle;
▯ indicator lamp on (steady) - cycle running, can be paused (if Child lock is
not activated);
▯ indicator lamp blinking - option settings can be changed; Ready state (door
closed, cycle can be started), cycle is paused (press to restart).
Select Finish in.
End of program (“Finish in” time) after...h (hours)
Press Finish in M and N at once for approximately 3 seconds to activate or
deactivate Child lock 3 sec..
Select Level Adjust.
X
Select Dryness Level.
OFF (no LED symbol
shown), +1, +2, +3
Extra Dry
Dry
Damp
`
h
Select End Signal.
{
Select Wrinkle Block.
OFF (no additional time),
+60, +120 minutes
(
0
8
@
H
For a detailed description, see ~ Optional program settings; Page 37
24
{
A
e.g. ñ‚ œ
E
Other indicators
Indicator
Description
E
é
ð
|
ó
Lit: Child lock activated
Flashing: A change to the programs or options is not allowed because Child lock is activated. Flashing
will stop after a few seconds.
Clean lint filters.
Tank is full and must be emptied or Drain System (pump, valve or drain hose) should be checked.
OFF: Wi-Fi is off.
Flashing: The appliance is trying to connect to your home network or broadcasting “Home Connect”
hot-spot.
Lit: Wi-Fi is on and the appliance is connected to your home network.
Self Cleaning of condenser in progress.
NOTICE: You may hear the sounds of the valve opening and water flushing during this Self-Cleaning
process, this is normal and no need of concern.
Drying cycle status sequence:
Drying process progressing. Textiles are damp.
å
5
Q
Drying process completing. Textiles nearly dry.
e.g. ‚:…‹
Expected program duration in hours and minutes.
- ˜-
NOTICE: Drying time may vary from initial displayed time depending on the size of load, type of and
mixture of fabrics and initial moisture content of the load.
Pause
Shown when Start/Pause button is pressed on control panel, Pause is activated from App, or door is
opened during the drying cycle. If you remove heated items from the dryer it is recommended to spread
them out allowing the heat to dissipate.
- ‹-
•©£
Wrinkle Block phase activated
NOTICE: If the door remains closed the drum may begin rotating 30 seconds after pausing to cool down
the load and •©£ will be displayed. This process can take up to 10 minutes and the program should
not be changed during this time.
Press the Start/Pause button on control panel or Continue in the App at any time to start the drying
process again.
Program end
Cool Down
Indicates dryer is operating to reduce the temperature of the load. This process can take up to 10 minutes. May appear if:
▯ program is paused via the control panel or remote app, or
▯ program is stopped or dryer is switched off via the remote control app.
25
OPERATING INSTRUCTIONS
9
OperatignIsrcutinso
WARNING
RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY
INSTRUCTIONS and OPERATING INSTRUCTIONS
before operating this appliance.
Your new dryer
3
#
+
( Control panel, display area, program selector
0 Drum with interior light (depending on model)
The interior light activates after the door is opened and after the program starts, it switches off automatically.
Close the door
8 Open the door
26
@ Lint filters
H Air inlet
P Tank
Your Heat Pump dryer is unique as it has a Self-Cleaning system for cleaning the condenser. This Self-Cleaning
system uses the tank shown in position [6] to hold water used for flushing the condenser during the drying process.
As this is an important process the tank must remain in place and not be removed during the entire drying process.
NOTICE: If the supplied drain hose is used for draining into the home's standpipe or other drain system, the tank
does not need to be emptied.
9
CAUTION
Ensure the tank is pushed back in to the dryer until you feel it lock in place.
9
WARNING
BEFORE USING YOUR DRYER
Read and follow all installation and operating
instructions.
Check the machine. Never connect the utilities (power or
water) to or start a damaged machine! Contact Customer
Service!
~ Customer service; Page 4
Check to be sure the dryer drain hose is installed
properly.
Turning the dryer on and off
Pressing the center of the Program Selector turns the
appliance on and off. After switching on, turn the outer
dial to choose a program. Switch off after the program
has finished.
Before using the dryer for the first time
1. Read these operating instructions carefully.
2. Check that the supply voltage corresponds with the
3.
4.
5.
6.
7.
voltage specifications on the rating plate on the dryer,
see top rear side of the dryer and/or rating plate label
inside the dryer door.
~ Electrical Connections; Page 18
Remove all objects from the drum.
Check the dryer for visible damage. If damage found
contact your dealer.
Wipe the inside of the drum with a damp cloth.
Check heating system.
~ Check heating system; Page 19
If the dryer does not work, press the center of the
Program Selector to switch off the dryer. Look in the
Troubleshooting section of the operating instructions
for support.
~ Troubleshooting; Page 42
27
Temporary disconnection of the dryer
If you intend to go on vacation or are not using your dryer
for an extended period of time, you should:
1. Turn off the circuit breaker.
2. Pull out the power supply plug if possible.
3. Clean the lint filters.
Time programs
Time programs run at specific temperatures and are
suitable for delicate items, individual or a few small items
and for adding additional drying time if necessary. The
Time programs are Hand Wash/Wool, Air Fluff, Time Dry,
and Quick 40.
Using program selector to choose a
drying program
NOTICE: If the Child lock is activated, you must
deactivate it before you can select a program.
~ Child lock 3 sec.; Page 38
Use the program selector to select the desired drying
program. The dial turns in both directions and when a
cycle is selected its time duration appears in the display.
Program selection
For optimum drying results your dryer offers several
different types of programs to choose from.
Select the required drying program from the program
table according to the examples.
~ Program selection table; Page 36
Automatic programs
There are automatic programs for different types of
textiles (e.g. Cotton, Permanent Press).
The program sequence of automatic programs is
controlled by sensors. The duration of the program
depends on the measured degree of moisture in the
laundry and on the selected degree of dryness (e.g.
Extra Dry).
&RWWRQV
(DV\&DUH
0L[HG)DEULFV
'HOLFDWHV6LON
:RRO
5LQVH6SLQ
'UDLQ
Special programs
The programs Anti Shrink, Hand Wash/Wool, Bulky/
Large Items, Quick 40™, Outdoor/Sport and Jeans are
made for special type fabric loads.
&RWWRQV
(DV\&DUH
0L[HG)DEULFV
'HOLFDWHV6LON
:RRO
5LQVH6SLQ
'UDLQ
28
Selecting optional program settings
By selecting optional program settings, you can adjust
the drying process to better suit the items you are drying.
The optional program settings can be selected and
deselected depending if the setting is allowed (not all
settings are allowed for all programs) and the cycle’s
progress.
The indicator lamps of the buttons light up if the setting is
active.
For Time Dry 5, Finish in, Wrinkle Block and Low Heat
the settings are not retained after the appliance is
switched off.
For Dryness Level the setting is retained for each
program separately after the appliance is switched off
(for fabric care this setting is not retained for the Cotton
program).
For Level Adjust the setting is retained for each program
separately after the appliance is switched off.
Loading the laundry
9
Load the laundry
WARNING
RISK OF EXPLOSION
Do not dry laundry that has ever been in contact
with solvents, oil, wax, grease or paint (e.g. nail
varnish remover, stain remover, cleaning solvent,
etc.).
1. Check lint filters.
Place laundry in the empty drum. Put each piece of
laundry into machine separately.
For best results the laundry should be sorted according
to type of laundry and desired degree of drying.
~ Sorting the laundry; Page 35
~ Program selection table; Page 36
~ Level Adjust; Page 37
Starting the program
1. Switch on the appliance. Rotate program selector to
The filters should be cleaned after or before every
drying process. Cleaning the filters reduces the drying
time and saves energy.
~ Cleaning the lint filters; Page 39
2. Load the laundry into the drum and close the door.
the desired program. Select the program which
corresponds to the laundry in the dryer from Program
selection table.
~ Program selection table; Page 36
Tip: If the door has not been closed properly, the dryer
will not start.
L
Tips
After loading, close the door carefully so as not to trap
any items between the door and the rubber seal. The
door should be closed until a click is heard.
Foreign objects left in the drum may damage laundry.
Before inserting any laundry, check to make sure no
foreign objects are in the drum.
Recommended Load Size
Recommended maximum load size can be found in the
program selection table in this manual.
~ Program selection table; Page 36
The Start/Pause indicator light starts flashing.
2. Press the Start/Pause button. Indicator lamp lights up
and the cycle starts.
During the cycle, the display area indicates the
estimated remaining time and, after starting the drying
cycle, the cycle duration and the symbols for the cycle
progress stay lit.
NOTICES
▯ If you want to protect the cycle against inadvertent
adjustment select the Child lock 3 sec.. ~ Child
lock 3 sec.; Page 38
▯ If é indicator lights up, clean the lint filters.
~ Cleaning the lint filters; Page 39
▯ If ð indicator lights up, check the drain hose and
its connections for restrictions and if the tank needs
to be emptied. ~ Maintenance of drain
hose; Page 41
3. If required, select Low Heat by pressing the button.
~ Low Heat; Page 37
4. If required, select Wrinkle Block by pressing the
button. ~ Wrinkle Block; Page 37
29
Indicator of program sequence
Bosch dryers use an advanced control system which
continually monitors the laundry’s remaining moisture.
The current state of the process and status of the
program is shown by indicator lights and 7-digit display.
Removing laundry/switching the
appliance off
1. Open the door and remove the laundry.
2. Press the center of the Program Selector. Appliance is
switched off and dryer light goes out.
3. Clean lint filters.
~ Cleaning the lint filters; Page 39
4. Close the door.
Tip: If the display panel switches off and the Start/Pause
button indicator is blinking at the end of a program, the
Energy-saving mode is active. To activate the display,
press any button.
~ Environmentally friendly use of your dryer; Page 9
Selecting a different program
If you have inadvertently started the wrong program, you
can change this as follows:
1. Press Start/Pause.
NOTICE: The drum will continue to rotate when the
Cool Down process is in progress, even if the program
is paused. The Cool Down process can be stopped at
any time by opening the door.
2. Select another program and/or a different optional
program setting.
NOTICE: Do not change the program during the Cool
Down process.
3. Press Start/Pause. The new drying cycle starts from
the beginning.
Cancel program
If required, you can cancel the selected program:
1. Press Start/Pause.
2. Press the center of the Program Selector to switch off
the appliance.
Program end
- ‹ - appears in the display area and the Start/Pause
button indicator lamp is off.
After the program end, press the center of Program
Selector to switch off the appliance.
30
Home Connect®
This appliance is Wi-Fi-capable and can be remotely
controlled using a mobile device.
You can use the Home Connect app to do the following
on your appliance from your mobile device:
▯ Set up programs and start them.
▯ Adjust, activate and deactivate program settings.
▯ Query the status of programs.
▯ Adjust, activate and deactivate appliance settings.
▯ Switch off the appliance.
Before you can use the Home Connect functions, you will
need to carry out the following steps:
1. Install the Home Connect app on your mobile device.
2. Register in the Home Connect app.
3. Connect your appliance to your home network
automatically or manually (you only need to do this the
first time).
HomeCnct®
4. Connect your appliance to the Home Connect app.
You can find information about the app on our
Home Connect website www.bosch-home.com/us (USA)
or www.bosch-home.ca (Canada)
Home Connect services are not available in every
country. The availability of the Home Connect function
depends on the availability of Home Connect services in
your country. You can find information on this at:
www.bosch-home.com/us (USA) or www.bosch-home.ca
(Canada)
Notes
▯ Please observe the safety precautions in this
instruction manual and make sure that these are
complied with even when operating the appliance via
the Home Connect app while you are away from
home. You must also follow the instructions in the
Home Connect app.
▯ You cannot use the Home Connect app to make
changes while the controls on the appliance are being
operated. However, you can use the
Home Connect app to see any adjustments made
directly on the appliance itself.
Calling up the Home Connect menu
In the Home Connect menu, you can create and view
network connections, reset network settings, activate/
deactivate Wi-Fi and find other Home Connect functions.
1. Switch the appliance on.
2. Press and hold Remote Start for at least 3 seconds.
‘ž£ appears in the display.
Connecting your home network to the
Home Connect app
Connect your appliance to the home network
automatically or manually (you only need to do this the
first time).
Notes
▯ If your home network router has a WPS function, you
can connect the appliance to your home network
automatically.
If your home network router does not have a
WPS function, you need to connect the appliance to
your home network manually.
You must then connect to the Home Connect app.
▯
Note: To connect your appliance to the home network,
Wi-Fi must be activated on the appliance. Wi-Fi is
deactivated on the appliance by default and is activated
automatically when you connect your appliance to your
home network.
Connecting to your home network automatically
Step 2.1
Ensure that you are in the Home Connect menu.
~ Calling up the Home Connect menu; Page 31
1. Press Start/Pause.
The appliance now attempts to connect to your home
network. | flashes in the display.
2. Activate the WPS function on your home network
router within the next 2 minutes.
If the appliance has connected to your home network
successfully, ™©Ÿ è and | appear in the display and
light up continuously.
Note: If you are not able to establish a connection,
check whether your appliance is within range of your
home network. Try connecting automatically again or
connect your appliance manually.
You are now in the Home Connect menu.
Note: Briefly press Remote Start to exit the Home
Connect menu.
31
Connecting to your home network manually
Step 2.2
Ensure that you are in the Home Connect menu.
~ Calling up the Home Connect menu; Page 31
Make sure that you have opened the Home Connect app
and are logged in.
1. Set the program to position 2.
Connecting to the Home Connect app
If your appliance is connected to your home network, you
can connect it to the Home Connect app.
Ensure that you are in the Home Connect menu.
~ Calling up the Home Connect menu; Page 31
Make sure that you have opened the Home Connect app
and are logged in.
1. Set the program to position 3.
†‘˜ (connect manually) appears in the display.
2. Press Start/Pause.
The appliance now sets up its own Wi-Fi network with the
name (SSID) Home Connect®.
‘˜˜ (connect to app) appears in the display.
2. Press Start/Pause.
The appliance now attempts to connect to the Home
Connect app.
3. Once your appliance is displayed in the app, carry out
the last steps in the Home Connect app.
Note: If you were not able to establish a connection,
check whether your mobile device is within range of your
home network or is connected to this. Try connecting to
the Home Connect app again.
3. Call up the Wi-Fi setting on the mobile device.
4. Connect the mobile device to the HomeConnect Wi-Fi
network and enter the password (key) HomeConnect.
Your mobile device now connects to the appliance.
The connection process may take up to 60 seconds.
5. Once you have connected successfully, open the
Home Connect app on your mobile device and carry
out the steps in the app.
6. In the Home Connect app, enter the network name
(SSID) and password (key) for your home network.
7. Carry out the last steps in the Home Connect app to
connect your appliance.
If the appliance has connected to your home network
successfully, ™©Ÿ è and | appear in the display and
light up continuously.
Note: If you are not able to establish a connection,
check whether your appliance is within range of your
home network. Try connecting manually again.
32
Activating/deactivating Wi-Fi
Updating the software
If your appliance is already connected to your home
network, you can activate or deactivate Wi-Fi on your
appliance.
Ensure that you are in the Home Connect menu.
~ Calling up the Home Connect menu; Page 31
You can update the Home Connect software on your
appliance. As soon as a new software update is
available, a message appears in the display: —˜š
Install the update directly via the message in the display
or manually as follows:
Ensure that you are in the Home Connect menu.
~ Calling up the Home Connect menu; Page 31
1. Set the program to position 4.
1. Set the program to position 6.
’©Ÿ (Wi-Fi function) appears in the display.
2. Press Start/Pause.
If ©Ÿ appears in the display, Wi-Fi is activated on the
appliance. If ©”” appears in the display, Wi-Fi is
deactivated on the appliance.
Notes
▯ If you connect to your home network, Wi-Fi is activated
automatically.
▯ If Wi-Fi is activated, the appliance will not switch off
automatically.
▯ If Wi-Fi is switched off on the appliance, it is not
possible to use the Home Connect app to start or
control the appliance remotely.
▯ If Wi-Fi is switched off and your appliance was
previously connected to your home network, this
connection will be re-established automatically when
Wi-Fi is switched back on.
▯ If you activate this function, the energy consumption
increases.
Resetting your network settings
You can reset all of the network settings.
Ensure that you are in the Home Connect menu.
~ Calling up the Home Connect menu; Page 31
1. Set the program to position 5.
—˜š (update) appears in the display. Start/Pause
flashes if a software update is available.
2. Press Start/Pause.
¢“à appears in the display.
3. Press Start/Pause.
Note: The software update may take several minutes.
Do not switch the appliance off while updates are being
installed.
Information on data protection
When your appliance is connected to a WLAN network
that is connected to the Internet for the first time, your
appliance transmits the following categories of data to
the Home Connect® server (initial registration):
▯ Unique appliance identification (consisting of
appliance codes as well as the MAC address of the
installed WiFi communication module).
▯ Security certificate of the WiFi communication module
(to ensure a secure data connection).
▯ The current software and hardware version of your
domestic appliance.
▯ Status of any previous resetting to factory settings.
This initial registration prepares the Home Connect
functions for use and is only required when you want to
use these Home Connect functions for the first time.
Note: Home Connect functions can be used only in
conjunction with the Home Connect app. Information on
data protection can be accessed in the Home Connect
app.
§“à (reset network settings) appears in the display.
2. Press Start/Pause.
¢“à appears in the display.
3. Press Start/Pause.
Note: If you want to operate your appliance via the
Home Connect app again, you will need to reconnect it
to your home network and to the Home Connect app.
33
Declaration of Conformity
BSH Home Appliances Group hereby declares that the
appliance which features Home Connect® functionality is
in accordance with the essential requirements and other
relevant provisions of the following Directives.
Wi-Fi® Module FCC/IC Statements
Model: COM1
FCC ID: 2AHES-COMGEN1
IC: 21152-COMGEN1
The Home Connect module is a communication device
designed to provide communication between appliances
and smart devices.
This module is integrated at the factory, under direct
control of B/S/H Home Appliances Corporation, and is
not user serviceable or upgradable. At least 20cm
separation distance should be maintained from device to
user.
FCC COMPLIANCE STATEMENT
9
CAUTION
Changes or modifications not expressly approved
could void your authority to use this equipment.
This device complies with Part 15 of the FCC Rules.
Operation to the following two conditions:
▯ This device may not cause harmful interference and
▯ this device must accept any interference received,
including interference that may cause undesired
operation.
INDUSTRY CANADA STATEMENT
This device complies with Industry Canada licenceexempt RSS standard(s). Operation is subject to the
following two conditions:
▯ This device may not cause interference and
▯ this device must accept any interference, including
interference that may cause undesired operation of the
device.
WiFi is a registered trademark of Wi-Fi Alliance.
34
Laundry
Preparing the laundry
Laundry
NOTICE: Damage to the appliance/fabrics.
Foreign objects (e.g. coins, paper-clips, needles, nails)
may damage the laundry or components in the dryer.
Therefore, note the following tips when preparing your
laundry:
▯ Empty all pockets to ensure no loose debris (coins,
keys, other hard objects and cigarette lighters) are
placed in the dryer drum.
▯ Close any fasteners (such as zippers, hooks and
eyelets) that could cause laundry to catch or become
entangled. Button up covers. Tie cloth belts, apron
strings, etc. together or use a laundry bag.
▯ Remove any foreign objects or non-washable parts.
▯ The drum must be empty prior to loading textiles.
▯
▯
When washing laundry to be tumble-dried, use the
correct amount of detergent and textile care
products as specified in the manufacturer's
instructions.
Clean the moisture sensor regularly. ~ Cleaning
the moisture sensors; Page 40
Sorting the laundry
Check the care labels on each laundry item prior to
drying. They provide valuable information as well as
limitations about laundry process (temperature etc.) to
help you choose an appropriate cycle.
Do not dry the following textiles in the dryer:
▯ air-tight textiles (e.g. rubberized),
▯ delicate fabrics (silk, synthetic curtains).
Drying tips
▯
▯
▯
▯
▯
▯
▯
▯
To ensure a uniform drying result, sort the laundry
according to fabric type and drying program.
Always dry very small items (such as socks and
handkerchiefs) and underwired bras together with
large items of laundry or in a laundry bag.
Do not over-dry easy-care laundry - risk of wrinkling!
Allow laundry to finish drying in the air.
Do not iron laundry immediately after drying. Place the
laundry in a pile for a short while. Residual moisture
will then be distributed uniformly.
Knitted fabrics (e.g. T-shirts, jerseys) often shrink when
tumble-dried for the first time. Do not use program with
selected Extra Dry dryness level.
Only dry wool fabrics with the use of drying rack
accessory. To refresh or fluff up wool articles use the
Hand Wash/Wool program and remove load from
dryer and layout on flat surface to finish drying.
For pre-dried, multi-layered fabrics or small, individual
items of laundry, use the Time program.
Also suitable for adding additional drying time if
necessary.
~ Program selection; Page 28
~ Program selection table; Page 36
Some detergents and textile care products, starch or
softeners may contain chemicals that may become
deposited on the moisture sensors negatively affecting
their function and the drying results.
35
Program selection table
Progamselctinoable
Programs
Max. load Type of laundry
up to:
Cotton
Mix
full load
1/3 load
Anti Shrink
1/3 load
Sanitize
Hand Wash/Wool
1/2 load
1/3 load
Bulky/Large Items
full load
Quick Dry Auto
1/4 load
5 Air Fluff
1/3 load
5 Time Dry
1/3 load
Quick 40™
1/3 load
Outdoor/Sport
1/4 load
Lingerie made of synthetic fibers, cotton or blended fabric.
Fabrics made from jeans/denim.
Trousers, dresses, skirts, shirts, blouses, leggings, sports clothing with syntheticrich fibers, bed linen and table linen, track suits, parkas, blankets, lingerie.
Tip: For best results it is recommended to load the amount of textiles into the drum according to the fabric type and
amount shown in the above table.
Delicates
Jeans
Permanent Press
36
1/4 load
1/2 load
1/2 load
Normal cotton and linen type load (bed linen, cotton clothes, terry bathrobes etc.)
Mix of cotton and synthetic textiles that do not require sensitive temperatures and
treatments.
Cotton or linen fabrics and easy-care textiles which may be slightly damp and
should be hung out to completely dry.
Creases in textiles are reduced.
Cotton fabrics for drying at high temperatures.
Wool fabrics suitable for washing or delicate hand washed items.
Use to freshen or fluff up wool articles. Remove items after program end and
spread out on flat surface to finish drying.
Use of Drying rack is recommended~ Drying rack; Page 14
Garments with down feather fillings, pillows and blankets but not quilts
only dry one article at a time.
Laundry made of synthetic fibers, cotton or blended fabrics (for example) that
needs to be dried quickly.
All types of fabrics.
For freshing up or airing out of garments that have been worn for a short period of
time.
Multi-layered fabrics.
Sensitive fabrics made of synthetic or acrylic fibers.
Also for adding additional drying time if necessary.
Multi-layered fabrics.
Sensitive fabrics made of synthetic or acrylic fibers.
Also for adding additional drying time if necessary.
Weatherproof and functional outdoor clothing with a membrane coating andwaterrepellent fabrics.
Optional program settings
Low Heat
Optinaolrgmsetign
Reduced temperature for delicate fabrics, e.g.
polyacrylic, polyamide or elastane, with longer drying
time.
Observe the care information or symbols on the textile’s
label.
Time Dry 5
Available only for Time programs: 5 Air Fluff and
5 Time Dry,
~ Program selection table; Page 36
Can be selected from minimum 20 minutes to maximum
3:30 hours, in 10-minute steps.
Remote Start
Briefly pressing the Remote Start button activates or
deactivates the Remote start function. Activating the
Remote start function enables the appliance to be started
remotely via the Home Connect® app.
NOTICES
▯
▯
Remote start can only be activated if the appliance
door is closed and the appliance is connected to your
home network.
Remote start will be deactivated in the following
circumstances:
▯ The door is opened.
▯ There is a power failure.
▯ The Remote Start button was briefly pressed again
deactivating it.
▯ The center of the Program Selector was pressed
switching off the appliance.
▯ Once the program has ended.
▯ Any button was pressed or the program selector
was turned on the control panel.
Pressing and holding the Remote Start button for at least
3 seconds enters Home Connect settings.
Dryness Level
Select the dryness level that you require for the laundry
you need to dry.
Extra Dry:
Heavy, multi-layered or thick laundry that does not dry
easily.
Dry:
Normal weight textiles.
Damp:
Normal weight textiles that need to be slightly damp.
Suitable for ironing or hanging up.
Level Adjust
This option adjusts the drying time in small steps for
certain programs.
Default setting = OFF (no LED Symbol shown)
Selectable values: OFF, +1, +2, +3
The Level Adjust is retained until changed.
NOTICE: The higher the number value the increased
time of drying.
End Signal
Use the End Signal button to activate or deactivate the
audible signal that sounds to indicate that the program
has ended. If the setting has been selected, the button's
indicator light will be lit and the signal tone is activated.
Wrinkle Block
If the Wrinkle Block option is activated it prevents the
laundry from creasing or wrinkling. The drum rotates at
specific intervals after the drying process allowing the
load to remain loose and fluffy until removed.
If the Wrinkle Block button is activated, this function is
set to 60 or 120 minutes.
The laundry should be removed before this time has
elapsed.
Finish in
The program end (Finish in) time can be set in one hour
increments to a maximum of 24 h (hours).
After selecting the desired drying program (at the dial)
but before pressing the Start/Pause button, press the
Finish in N or M button until the desired time is
displayed, e.g. 8 h. Press the Start/Pause button to start
the dryer.
NOTICE: The cycle duration is included in the set Finish
in time.
Here is an example of 1hr:30min cycle time and an 8 h
Finish in time. 8 h is displayed (until Energy-saving mode
activates) and counts down (approximately 6hr:30min)
until the drying cycle begins (at 1hr:30min) then the cycle
duration 1:30 is displayed and drying begins. Total time
approximately 8 hours.
37
Appliance settings
Child lock 3 sec.
Apliancestign
You can secure the appliance against inadvertent
changing of the set functions. To do this, activate the
Child lock after cycle start.
To Activate/Deactivate, press Finish in M and N for
approximately 3 seconds. In the display field, you will see
the D symbol light indicating the Child lock is active.
NOTICE: The Child lock will remain activated after the
end of the cycle. Even switching the appliance off and on
will not deactivate the Child lock. You must deactivate
Child lock and, if necessary, activate it again.
Activating setting mode
In order to change the default appliance settings
described below, you will first need to enter or activate
setting mode.
#
To enter or activate the setting mode:
1. Switch on the appliance. The indicator lamp of the
program on position 1 (() lights up.
2. Press and hold Dryness Level button and, at the
same time, turn the program selector to position 2
(0).
3. Release Dryness Level button.
The setting mode is now activated.
Changing the audible signal volume
You can adjust the volume of audible notification signals
(that indicate that a program has ended, for example)
and audible button signals by turning the program
selector to the following positions:
▯ 2 (0): Audible notification signal volume
selectable values: ‚ = quiet, ƒ = medium, „ = loud, …
= very loud
▯ 3 (8): Audible button signal volume
selectable values: ‹ = off, ‚ = quiet, ƒ = medium, „ =
loud, … = very loud
1. Turn the program selector to the required position.
2. Use the Finish in N or M button to set the volume
you require.
38
Switching the automatic switch-off function on/off
If the appliance is not used for an extended period, it
may automatically switch itself off until a program starts
or when a program has ended in order to save energy. It
can be switched back on again at any time by pressing
the power button #.
You can switch the appliance's automatic switch-off
function on or off as follows:
1. Turn the program selector to position 4 (@).
2. Use the Finish in N or M button to switch the
appliance's automatic switch-off function on (‹Ÿ) or off
(‹””).
NOTICE: The automatic switch-off function cannot be
activated if Wi-Fi is activated.
Exiting setting mode
Once you have applied all the settings, press the power
button # to switch off the appliance.
The settings you have selected will be saved and will
take effect the next time the appliance is switched on.
USER-MAINTENANCE INSTRUCTIONS
USER-MAINTENANCE INSTRUCTIONS
Your appliance is designed to give you years of service.
Observe the following instructions to maintain your
appliance and keep it in top operating condition.
User-maitnecsrcutino
9
Over time, lint from the drying process collects in the lint
filter area.
This lint can be easily removed using a vacuum cleaner.
WARNING
RISK OF EXPLOSION
Never use solvents or highly flammable liquids for
cleaning.
9
CAUTION
Regular Maintenance, especially cleaning the lint
filters is important!
Improper cleaning may damage the dryer or cause
injury.
Do not spray with a hose or pressure washer.
Do not use scouring agents or all-purpose cleaners.
Do not use steam cleaners.
Do not use bleach-based wipes.
Cleaning the Dryer's exterior
Clean the Dryer's exterior surfaces by wiping with a soft
cloth and soapy water only.
Wipe the drum, door seal and inside of the door with a
damp cloth only.
NOTICE: Do not clean with a water jet.
Remove detergent and cleaning agent residue
immediately.
During drying, water may occasionally accumulate
between the window and the seal. This does not affect
the proper operation of your dryer.
Cleaning the lint filter area
9
WARNING
Cleaning the lint filters
Dirty filters prolong the drying time and increases energy
consumption.
The filters should be cleaned before or after each drying
process.
If é indicator lights up during a drying program, clean
the filters immediately.
Tip: The program is interrupted automatically.
To clean the lint filters:
1. Press the center of the Program Selector to switch off
the appliance.
9
CAUTION
The inside of the door heats up during the drying
process. The drum, the door and the laundry may
be hot.
2. Open the door and clean all lint from around top of the
lint filter and door perimeter. Pull out the two-part lint
filter as shown.
FIRE HAZARD
Follow these instructions when cleaning the lint filter
area.
▯ DO NOT extend any cleaning device or object
more than six inches (6") beyond the lint filter
opening.
▯ Only use a soft instrument (rubber, cloth or soft
bristles) for cleaning inside the lint filter area.
▯ With both lint filters removed, wipe or vacuum
around the lint filter opening and no more than six
inches below the opening.
39
3. Clean lint from the recess shown below. Ensure no lint
falls into the opening below.
6. Close filters until they snap shut and reinsert them
together, as they were when removed, and place them
back in the opening as shown.
4. Separate the two-part lint filter and open both parts as
shown.
9
CAUTION
Do not operate the dryer without all lint filters in
place, or incomplete, or defective! Damage to the
dryer will result.
Cleaning the moisture sensors
The dryer is equipped with a stainless-steel moisture
sensor. The moisture sensor measures how damp the
laundry is.
After long periods of use the moisture sensor may
become covered by a fine layer of limescale or residue
of detergents and textile care products. Such residue
must be removed regularly as the sensor function will be
impaired and the drying results less than desired.
To clean the moisture sensors:
1. Open the door.
5. Gently remove all lint and debris from both filters by
rubbing with your fingers only.
NOTICE: Severely dirty or clogged lint filters should
be rinsed under warm water.
2. The deposit on the sensors can easily be removed by
wiping the sensors (the two bars next to the lint filter)
with a cloth and white vinegar.
NOTICE: Both filters should be completely dry before
putting them back in place in the dryer.
NOTICE: Use white vinegar only!
Clean the moisture sensors once a month.
40
Maintenance of drain hose
If ð indicator lights up check the following items:
1. Remove the tank and drain it of all water.
2. Check the drain hose for kinks, restrictions or
blockage.
NOTICE: If the ð indicator still lights up after the above
steps are taken, contact Customer Service.
Replacing fuses in the Power Adapter step-by-step
Fuses are a required safety device intended to last for
the life of the product. In the unlikely event one fails
follow the below steps to replace it.
1. Unplug the Washer and Dryer cords from the Power
Adapter.
Unplug the Power Adapter from the wall outlet.
2. Remove fuse holder using a pointed tool as shown
(e.g. pick or small screwdriver).
3. Replace suspected bad fuse with a known good one.
NOTICE: USE ONLY THE REPLACEMENT FUSE,
PART NUMBER 10013781.
4. Reinstall the fuse and fuse holder in the Power
Adapter ensuring it snaps into place.
41
Troubleshooting
Introduction
Troubleshtign
NOTICE: Before doing maintenance work or trying to fix
a problem, press the center of the program selector to
switch off the appliance.
If the power supply is interrupted during operation, the
program will not continue when power is restored. When
power is restored, confirm program and selected options
are as desired and then press the Start/Pause button.
9
WARNING
RISK OF INJURY TO SKIN
The door, the drum and the laundry may be hot.
9
WARNING
RISK OF ELECTRIC SHOCK! EXPLOSION HAZARD
Repairs or replacement of parts should be carried
out by authorized service providers only.
Before calling Customer Service, check whether you can
rectify the problem yourself by means of the following
table.
If a problem cannot be rectified or a repair is required:
1. Press the center of the Program Selector to switch off
the appliance.
2. Disconnect the dryer from the power outlet.
3. Call Customer Service.
~ Customer service; Page 4
General Troubleshooting
Often when you encounter a problem it will be something
minor. Before you call Customer Service, consider the
suggestions and instructions below:
NOTICE: The troubleshooting items listed below can
help resolve minor issues with your dryer quickly and
without the necessity of a service call.
42
Determing the Problem
Problem
Possible cause(s)
Solution(s)
Dryer does not start.
Start/Pause indicator
light does not flash.
Power cord end not inserted at all
or not inserted correctly.
A fuse is blown or breaker is
tripped.
Insert power cord end correctly.
Door not closed properly.
The display panel and
indicator lights switch
off, Start/Pause indicator flashes.
The display panel and
Start/Pause indicator
switch off.
Dryer does not start.
Start/Pause indicator
flashes.
é indicator lights up.
Energy-saving mode is activated.
ð indicator lights up.
Drain hose is blocked.
Automatic switch-off function is
active.
Press the center of the Program Selector to switch on
the appliance.
Start/Pause button not pressed.
Press the Start/Pause button to start the cycle.
Lint filter dirty.
Clean lint filters.
~ Cleaning the lint filters; Page 39
Press the Start/Pause button to reset the displayed
indication and then press Start/Pause button again to
reset the appliance if necessary.
Check drain hose.
~ Maintenance of drain hose; Page 41
Check drain hose connection conditions.
Water has not drained
completely.
Water is leaking out.
Dryer is not leveled.
Drain hose is leaking.
Program terminates
shortly after starting.
Laundry is not loaded.
Load too small for selected program.
Loaded laundry is too dry.
The door opens by
itself.
Creasing.
Replace fuse or reset breaker.
For replacing the fuses in the supplied Power
Adapter~ Replacing fuses in the Power Adapter step-by-step; Page 41
Check if laundry is caught in the door. Close the door
until a click is heard.
Press any button to activate the display.
~ Environmentally friendly use of your dryer; Page 9
The door not closed properly.
Laundry load exceeded.
Unsuitable program selected.
Level the dryer.
~ Leveling the dryer; Page 19
Check entire length of drain hose for leaks; replace if
necessary.
Check that hose is clamped on hose barb at back of
the dryer securely.
Load the laundry.
~ Loading the laundry; Page 29
Use time program.
~ Program selection; Page 28
~ Program selection table; Page 36
Check the loaded laundry. If it is dry, open the door,
remove laundry and press the center of the Program
Selector to switch off the appliance.
Close the door until a click is heard.
Do not exceed the maximum load for selected program. Remove items of laundry immediately after the
end of the program, hang them up and pull into shape.
Press the center of the Program Selector to switch off
the appliance.
~ Program selection table; Page 36
Select Wrinkle Block button to prevent the laundry
from creasing or wrinkling.
~ Wrinkle Block; Page 37
43
Problem
Possible cause(s)
Solution(s)
Drying result is not sat- Warm laundry may feel more damp
isfactory (laundry feels than it really is.
too damp).
The selected program does not suit
the load.
Remove items of laundry immediately after the end of
the program and press the center of the Program
Selector to switch off the appliance.
Use another drying program or, in addition, select the
time program.
~ Program selection; Page 28
~ Program selection table; Page 36
Dryness level is not adjusted.
Use Level Adjust to adjust the dryness level.
~ Level Adjust; Page 37
Fine layer of limescale or detergent Clean the moisture sensors.
and textile care products residues ~ Cleaning the moisture sensors; Page 40
on the moisture sensors.
Program termination e.g. main
See the problem(s) mentioned in this table.
power supply failure, door open or
maximum drying time reached.
Initial load is too wet.
Spin laundry at higher speed in the washing machine,
before drying.
Switch off the dryer, and then turn it on again.
Drying time too long.
Lint filter is dirty.
Clean lint filters~ Cleaning the lint filters; Page 39
Insufficient supply of ambient air for Ensure that cool ambient room air can freely circulate
cooling.
near the dryer.
~ Installation for best performance; Page 10
Air inlet possibly blocked.
Do not obstruct the air inlet on the front of the dryer.
Ambient temperature is lower than Ensure the ambient room conditions are within this
range.
59°F/15°C or higher than 86°F/
30°C .
Program does not start A delayed starting time has been
Drying cycle will begin at proper time to complete at
Finish in (remaining)
selected and activated.
the selected Finish in time.
time is displayed.
Program does not start Child lock is activated.
Deactivate Child lock.
~ Child lock 3 sec.; Page 38
- D symbol lit up.
One or more indicator
lights are flashing.
Installation conditions are not adequate.
Fault in program sequence or malfunction.
Check the installation conditions.
~ Electrical Connections; Page 18
Switch off the dryer, allow it to cool down, switch back
on and restart the program.
Power failure.
Remove laundry from the dryer immediately and
spread out. This allows the heat to dissipate. Be careful as the door, the drum and the laundry may be hot.
To connect to your home network, switch on Wi-Fi.
| does not appear in Wi-Fi is switched off.
~ Home Connect®; Page 31
the display panel.
Wi-Fi is switched on but a connec- Check whether your home network is available or try
tion to the home network cannot be to connect to your home network again.
established.
Home Connect® is not
▯ You can find solutions to problems with Home Conworking.
nect at www.home-connect.com.
▯ The use of the Home Connect functionality depends
on the availability of the Home Connect Services in
your country. Check here, www.home-connect.com,
to see if the Home Connect services are available in
your area and further information.
If troubleshooting did not solve your issue contact Customer Service ~ Customer service; Page 4
44
STATEMENT OF LIMITED PRODUCT WARRANTY
Bosch Clothes Dryer
STAEMNTOFLIMTEDPROUCTWARNTY
What this Warranty Covers & Who it Applies to:
The limited warranty provided by BSH Home Appliances
(“Bosch”) in this Statement of Limited Product Warranty
applies only to the Bosch appliance ("Product") sold to
you provided that the Product was purchased:
▯ For your normal, household (non-commercial) use,
and has in fact at all times only been used for normal
household purposes.
▯ New at retail (not a display, “as is”, or previously
returned model), and not for resale, or commercial
use.
▯ Within the United States or Canada, and has at all
times remained within the country of original purchase.
The warranties stated herein apply to the original
purchaser of the product warranted herein and to each
succeeding owner of the product purchased for ordinary
home use during the term of the warranty.
Please make sure to return your registration card; while
not necessary to effectuate warranty coverage, it is the
best way for Bosch to notify you in the unlikely event of a
safety notice or product recall.
Limitation for Third Party Accessories:
Third party accessories, other than those shipped with
your Bosch appliance, and any consequential damages
resulting therefrom, are not covered by this warranty. This
limitation expressly includes the implied warranties of
merchantability and fitness for a particular purpose,
which are also expressly excluded with respect to third
party accessories, other than those shipped with your
Bosch appliance. Use of third party accessories, other
than those shipped with your Bosch appliance, does not
void this warranty on any other part, and all other
provisions of this warranty remain in effect.
How Long the Warranty Lasts:
Bosch warrants that the Product is free from defects in
materials and workmanship for a period of three hundred
sixty-five days (365) days from the date of the original
purchase. The foregoing timeline begins to run upon the
date of the original purchase, and shall not be stalled,
tolled, extended, or suspended, for any reason
whatsoever. This product is also warranted to be free
from cosmetic defects in material and workmanship
(such as scratches of stainless steel, paint/porcelain
blemishes, chips, dents, or other damage to the finish) of
the Product, for a period of thirty (30) days from the date
of purchase or closing date for new construction. This
cosmetic warranty excludes slight color variations due to
inherent differences in painted and porcelain parts, as
well as differences caused by kitchen lighting, product
location, or other similar factors. This cosmetic warranty
specifically excludes any display, floor, “As Is”, or “B”
stock appliances.
SCOPE OF EXTENDED LIMITED WARRANTY
Bosch will repair or replace, free of charge, any printed
circuit boards, drive motor or component part of the drive
motor that proves defective under conditions of normal
home use during the first seven hundred thirty (730)
days from the date of the orginal purchase, labor
charges excluded.
Repair/Replace as Your Exclusive Remedy:
During this warranty period, Bosch or one of its
authorized service providers will repair your Product
without charge to you (subject to certain limitations
stated herein) if your Product proves to have been
manufactured with a defect in materials or workmanship.
If reasonable attempts to repair the Product have been
made without success, then Bosch will replace your
Product (upgraded models may be available to you, in
Bosch’s sole discretion, for an additional charge).
Nothing in this warranty requires damaged or defective
parts to be replaced with parts of a different type or
design than the original part. All removed parts and
components shall become property of Bosch at its sole
option. All replaced and/or repaired parts shall assume
the identity of the original part for purposes of this
warranty and this warranty shall not to be extended with
respect to such parts. Bosch’s sole liability and
responsibility hereunder is to repair manufacturerdefective Product only, using a Bosch authorized service
provider during normal business hours. For safety and
property damage concerns, Bosch highly recommends
that you do not attempt to repair the Product yourself, or
use a non--authorized servicer provider; Bosch will have
no responsibility or liability for repairs or work performed
by a non-authorized servicer provider. Authorized service
providers are those persons or companies that have
been specially trained on Bosch products, and who
possess, in Bosch’s opinion, a superior reputation for
customer service and technical ability (note that they are
independent entities and are not agents, partners,
affiliates or representatives of Bosch). Notwithstanding
the foregoing, Bosch will not incur any liability, or have
responsibility, for the Product if it is located in a remote
area (more than 100 miles from an authorized service
provider) or is in a reasonably inaccessible, hazardous,
threatening, or treacherous locale, surroundings, or
environment; in any such event, if you request, Bosch
would still pay for labor and parts and ship the parts to
the nearest authorized service provider, but you would
still be fully liable and responsible for any travel time or
other special charges by the service company, assuming
they agree to make the service call.
Out of Warranty Product:
Bosch is under no obligation, at law or otherwise, to
provide you with any concessions, including repairs,
prorates, or Product replacement, once this warranty has
expired.
45
Warranty Exclusions:
The warranty coverage described herein excludes all
defects or damage that are not the direct fault of Bosch,
including without limitation, one or more of the following:
Use of the Product in anything other than its normal,
customary and intended manner (including without
limitation, any form of commercial use, use or storage
of an indoor product outdoors, use of the Product in
conjunction with air or water-going vessels).
▯ Any party’s willful misconduct, negligence, misuse,
abuse, accidents, neglect, improper operation, failure
to maintain, improper or negligent installation,
tampering, failure to follow operating instructions,
mishandling, unauthorized service (including self
performed “fixing” or exploration of the appliance’s
internal workings).
▯ Adjustment, alteration or modification of any kind.
▯ A failure to comply with any applicable state, local,
city, or county electrical, plumbing and/or building
codes, regulations, or laws, including failure to install
the product in strict conformity with local fire and
building codes and regulations.
▯ Ordinary wear and tear, spills of food, liquid, grease
accumulations, or other substances that accumulate
on, in, or around the Product.
▯ Any external, elemental and/or environmental forces
and factors, including without limitation, rain, wind,
sand, floods, fires, mud slides, freezing temperatures,
excessive moisture or extended exposure to humidity,
lightning, power surges, structural failures surrounding
the appliance, and acts of God.
In no event shall Bosch have any liability or responsibility
whatsoever for damage to surrounding property,
including cabinery, floors, ceilings, and other structures
or objects around the Product. Also excluded from this
warranty are Products on which the serial numbers have
been altered, defected, or removed; service visits to
teach you how to use the Product, or visits where there is
nothing wrong with the Product; correction of installation
problems (you are solely responsible for any structure
and setting for the Product, including all electrical,
plumbing or other connecting facilities, for proper
foundation/flooring, and for any alterations including
without limitation cabinetry, walls, floors, shelving, etc.);
and resetting of breakers or fuses.
▯
46
TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY
SETS OUT YOUR EXCLUSIVE REMEDIES WITH
RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES
IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY,
OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY
IS IN LIEU OF ALL OTHER WARRANTIES WHETHER
EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY
LAW, WHETHER FOR MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, OR OTHERWISE,
SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT
THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN
NO EVENT WILL THE MANUFACTURER BE LIABLE FOR
CONSEQUENTIAL, SPECIAL, INCIDENTIAL, INDIRECT,
“BUSINESS LOSS”, AND/OR PUNITIVE DAMAGES,
LOSSES, OR EXPENSES, INCLUDING WITHOUT
LIMITATION TIME AWAY FROM WORK, HOTELS AND/
OR RESTAURANT MEALS, REMODELLING EXPENSES
IN EXCESS OF DIRECT DAMAGES WHICH ARE
DEFINITELY CAUSED EXCLUSIVELY BY BOSCH, OR
OTHERWISE. SOME STATES DO NOT ALLOW THE
EXCLUSIONS OR LIMITATIONS OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, AND SOME STATES DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
No attempt to alter, modify or amend this warranty shall
be effective unless authorized in writing by an officer of
BSH.
How to Obtain Warranty Service:
To obtain warranty service for your Product, you should
contact Bosch Customer Service Department at 1-800944-2904 to schedule a repair.
*9001538672*
9001538672
0006
1901 Main Street, Suite 600 • Irvine, CA 92614 • 1-800-944-2904
www.bosch-home.com • © 2020 BSH Home Appliances Corporation
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
