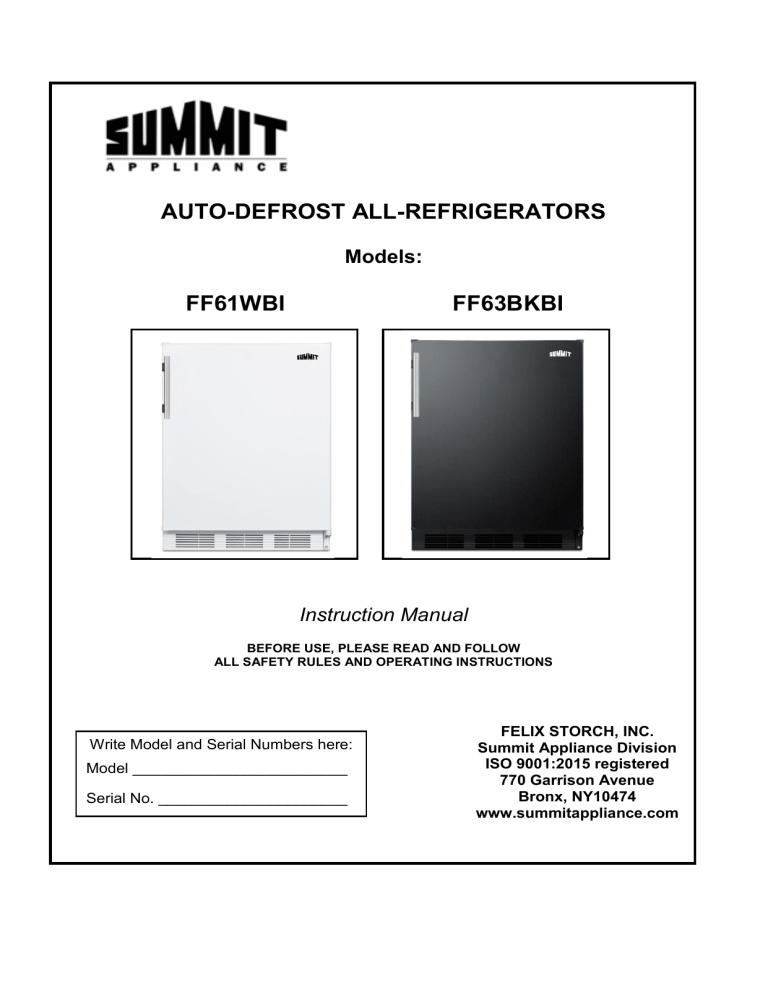

AUTO-DEFROST ALL-REFRIGERATORS
Models:
M405
CM411L
CFF61WBI
FF63BKBI
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Write Model and Serial Numbers here:
Model _________________________
Serial No. ______________________
FELIX STORCH, INC.
Summit Appliance Division
ISO 9001:2015 registered
770 Garrison Avenue
Bronx, NY10474
www.summitappliance.com
Important Safeguards
Your safety and the safety of others are very important.
Before the refrigerator is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:
Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
It is recommended that a separate circuit, serving only your refrigerator, be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the unit
is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
Do not attempt to repair or replace any part of your refrigerator unless it is specifically
recommended in this material. All other servicing should be referred to a qualified technician.
This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase
the greenhouse effect. Care must be taken during transportation and setting up of the appliance
that no parts of the cooling system are damaged. Leaking coolant can ignite and may damage the
eyes.
In the event of any damage:
– Avoid open flames and anything that creates a spark,
– Disconnect from the power source,
– Air the room in which the appliance is located for several minutes, and
– Contact the Service Department for advice.
The more coolant there is in an appliance, the larger the room in which it should be installed. In the
event of a leakage, if the appliance is in a small room, there is the danger of combustible gases
building up. For every ounce of coolant, at least 325 cubic feet of room space is required. The
amount of coolant in the appliance is stated on the data plate inside the appliance. It is hazardous
for anyone other than an Authorized Service Person to carry out servicing or repairs to this appliance.
Take serious care when handling, moving, and using the appliance to avoid either damaging the
refrigerant tubing or increasing the risk of a leak.
Replacing component parts and servicing shall be done by factory-authorized service personnel so
as to minimize the risk of possible ignition due to incorrect parts or improper service.
Use two or more people to move and install the refrigerator. Failure to do so can result in back or
other injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F
(32°C). This unit must be installed in an area protected from the elements, such as wind, rain,
water spray or drips.
The appliance should not be located next to ovens, radiators or other sources of high heat.
2
The appliance must be installed with all electrical connections in accordance with state and local
codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in accordance with
the National Electrical Code and local codes and ordinances, is required.
Do not kink or pinch the power supply cord of the appliance.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the refrigerator to be leveled in order to work properly. You may need to make
several adjustments to level it.
Never allow children to operate, play with or crawl inside the refrigerator.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit. This will also prevent pollution.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
WARNING! This appliance is intended to be used in household and similar
applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
WARNING! If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard.
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators
and freezers are still dangerous, even if they will “just sit in the garage a few days.”
Before you throw away your old refrigerator or freezer: Take off the doors. Leave the
shelves or drawers in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERSONS
UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED BY A RESPONSIBLE PERSON TO
ENSURE THAT THEY CAN USE THE APPLIANCE SAFELY. YOUNG CHILDREN SHOULD BE
SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
- SAVE THESE INSTRUCTIONS -
3
Table of Contents
Important Safeguards ................................................................................................... 2 - 3
Location of Parts ................................................................................................................ 4
Technical Information ........................................................................................................ 5
Installation Instructions ................................................................................................ 6 - 8
Before Using Your Appliance ......................................................................................... 5
Installing the Refrigerator ............................................................................................... 5
Electrical Connection / Extension Cord .......................................................................... 6
Reversing the Door Swing / Door Handle Installation .................................................... 7
Operating Your Refrigerator .............................................................................................. 9
Temperature Control
Defrosting Your Appliance
Care and Maintenance ..................................................................................................... 10
Cleaning Your Appliance / Power Failure / Vacations /
Moving your Appliance / Energy-Saving Tips
Troubleshooting................................................................................................................ 11
Limited Warranty .............................................................................................................. 12
Location of Parts
Temperature control dial
(thermostat) and interior
light
Handle
Crisper and
glass cover
Door with storage
compartments
Adjustable glass
shelves
Front ventilation
slots (kick plate)
Defrost water
outlet
(behind crisper)
Leveling legs
4
Technical Information
Model Numbers
FF61WBI (white)
FF63BKBI (black exterior)
Capacity
5.5 cu. ft.
Electrical Input
115V AC/60Hz
Rated Current
1.4A
Refrigerant
R600a
Unit Weight
86 lbs.
Installation
Built-in
Unit Dimensions (W x D x H)
23.63" x 23.5" x 33.5"*
*Models with the suffix ADA are sized at 32” high for use in ADA compliant settings.
NOTE: Specifications are subject to change without notice.
5
Installation Instructions
Before Using Your Appliance:
Remove the exterior and interior packing.
Before connecting the unit to a power source, let it stand for approximately 2 hours. This
will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
Remove the shelves and clean them and the interior surfaces of the unit with lukewarm
water using a soft cloth.
Installing the Refrigerator:
Place the unit on a floor that is strong enough to support it when the appliance is fully
loaded. To level the unit, adjust the two leveling legs at the front.
Your appliance is designed to be built into an enclosure. When installing, allow at least 2”
(51mm) of space at the sides, top and rear of the unit to allow for proper air circulation to
cool the compressor and condenser. Take care that the air vents at the front of the
appliance are never covered or blocked in any way.
This appliance is supplied with spacers which have to be mounted onto the condenser
tube at the back to make sure there is sufficient clearance between the appliance and the
wall.
Locate the unit away from direct sunlight and sources of heat (oven, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase
electrical consumption. Extremely cold ambient temperatures may also affect the unit's
performance.
Avoid locating the unit in moist areas. Too much moisture in the air will cause frost to
form quickly on the evaporator, requiring more frequent defrosting of the interior.
Plug the unit into an exclusive, properly installed and grounded wall outlet. Any questions
concerning power and/or grounding should be directed toward a certified electrician or
authorized service center.
6
Electrical Connection:
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
This unit should be properly grounded for your safety. The power cord of this unit is
equipped with a three-prong plug which mates with a standard three-prong wall outlet to
minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord
supplied. For personal safety, this appliance must be properly grounded.
This unit requires a standard 115-volt AC/60Hz electrical outlet with three-prong ground.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is
properly grounded. When a standard 2-prong wall outlet is encountered, it is your
responsibility and obligation to have it replaced with a grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the unit and not left exposed
or dangling.
The unit should always be plugged into its own individual electrical outlet which has a
voltage rating that matches the rating label on the appliance. This provides the best
performance and also prevents overloading house wiring circuits that could cause a fire
hazard from overheated wires. Never unplug the unit by pulling on the power cord. Always
grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately
any power cord that has become frayed or otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its length or at either end. When moving the unit,
be careful not to damage the power cord.
Extension Cord:
Do not use an extension cord with this appliance. If the power cord is too short, have a
qualified electrician or service technician install an outlet near the appliance.
7
Reversing the Door Swing:
NOTE: Models with professionally installed door handles are not user-reversible.
If you find the direction of opening the door of the appliance inconvenient, you can change it.
Holes on the opposite side have already been prepared at the factory.
This appliance can be opened from either the right side or the left. By default, the door hinge
is on the right side. If you prefer it on the left, please follow these instructions:
1.
2.
3.
4.
5.
Take off upper hinge cover from the door and remove the screws that hold top hinge.
Lift the hinge straight up to free the hinge pin from the socket in the top of the door.
Lift the door up and away to free its bottom socket from the hinge pin.
Remove the screws to the bottom hinge.
Remove the decorative caps from the opposite side and plug the holes from the original
side with the decorative caps.
6. Move the bottom hinge to the opposite side and tighten the screws. Use any lock washers
or nuts if they were used in the original installation.
7. Replace door onto the hinge pin on the bottom hinge. Place top hinge pin into door. Insert
screws into the top hinge and tighten.
Door Handle Installation:
The door has two screw holes on each side, allowing you to install a handled (included). To
do so, align the handle with the screw holes on the side you prefer. Fix the handle in place,
with the included screws, then cover the screw heads with the handle seal (included).
1
2
3
4
5
6
Upper hinge cover
Upper hinge
Lower hinge
Kick plate
Handle
Fastener at corner with hole
8
Operating Your Refrigerator
Temperature Control:
Your appliance’s evaporator system is out of sight behind the interior
rear wall.
The interior temperature is controlled with a thermostat knob located
inside the unit, towards the upper right-hand corner. Turn the knob
clockwise from the STOP (0) position toward the higher numbers for
colder temperatures. Higher settings on the knob (higher numbers)
mean lower temperatures (colder) in the refrigerator.
On the coldest settings, temperatures in some spots inside the cabinet may drop below
32°F. Use higher thermostat settings only when required or recommended. When the
ambient temperature is normal, we recommend a medium setting.
Changes in the ambient temperature affect the temperature inside the refrigerator so
choose an appropriate setting of the thermostat knob, depending on ambient conditions.
In the STOP (0) position, the appliance does not operate (the cooling system is switched
off), yet the power supply is not interrupted (the light still works).
The temperature inside the refrigerator also depends on how often you open the door.
In all small refrigerators without interior fans, temperatures are coldest near the bottom,
and occasionally near the rear. Place contents accordingly. It is best not to operate these
units mostly empty. If temperatures are erratic, try putting some water bottles inside to
create a load for the compressor.
NOTES:
1. The glass shelves are adjustable. These shelves stop short an inch before the back wall,
which is essential for air flow and the proper operation of the automatic defrost system.
Do not block these gaps.
2. Interior lighting is controlled by a switch that is activated by the opening and closing of the
refrigerator door.
3. If the refrigerator is unplugged, has lost power or is turned off, you must wait 3 to 5
minutes before restarting it. If you attempt to restart before this time delay, the unit will not
start.
Defrosting Your Appliance:
This appliance operates with an automatic defrost system, so the refrigerator defrosts itself.
While the compressor is operating, ice will build up along the cold rear wall (the evaporator
plate is behind the wall). During the compressor’s off-cycle, ice will melt, drip down, collect in
the trough at the bottom and drain through a small hole into a tray above the compressor;
where the compressor’s heat will evaporate the water. If you notice excessive ice build-up on
the rear wall, try adjusting the thermostat to a slightly warmer setting. Be sure that the door
gasket is sealing well and that there is no obstruction of the drain hole at the bottom rear of
the interior cabinet.
9
Care and Maintenance
Cleaning Your Appliance:
1. Unplug the appliance, turn the thermostat to STOP (0) and remove all contents, including
2.
3.
4.
5.
6.
7.
shelves and crisper.
Wash the inside surfaces with a solution of lukewarm water and vinegar. Wipe dry with a
clean, soft cloth.
Wash the shelves and crisper with a mild detergent solution, then rinse and dry
thoroughly.
Wash the outside cabinet with a solution of warm water and mild liquid detergent. Rinse
well and wipe dry with a clean soft cloth.
Wring excess water out of the sponge or cloth before cleaning the area of the
temperature control or any electrical parts.
From time to time, wipe the condenser on the back wall with a soft
non-metallic brush or vacuum cleaner.
After you have cleaned the appliance, reconnect it to the power
supply, reset the thermostat and return all contents to their place.
CAUTION: Failure to unplug the unit before cleaning or maintenance could result in
electrical shock or personal injury.
Power Failure:
Most power failures are corrected within a few hours and should not affect the temperature
of your appliance if you minimize the number of times the door is opened. If the power is
going to be off for a longer period of time, you need to take the proper steps to protect your
chilled items.
Vacations:
During long absences, remove all contents. Unplug the appliance, clean it and leave the
door open slightly to avoid possible formation of condensation, mold, or odors.
Moving Your Appliance:
1.
2.
3.
4.
5.
Remove the contents.
Securely tape down all shelving inside the unit.
Turn the leveling legs up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation.
Energy-Saving Tips:
The unit should be located in the coolest area of the room, away from heat-producing
appliances or heating ducts and out of direct sunlight.
Try not to open the door too often, especially when the weather is damp and hot. Once
you open the door, close it as soon as possible.
Occasionally check if the appliance is sufficiently ventilated (adequate air circulation
behind the appliance).
Set the thermostat from higher to lower settings as soon as possible (depending on how
loaded the appliance is, ambient temperature, etc.).
Before loading items into the unit, be sure they have cooled to ambient temperature.
10
Troubleshooting
When using this appliance, you may come across some problems that in many cases result
from improper handling and can easily be eliminated.
TROUBLESHOOTING GUIDE
The appliance fails to operate after being connected to the power source.
Check whether the power supply is active and that the thermostat is not set to the
STOP (0) position.
The compressor is running continuously.
The door was opened frequently or it was left open too long.
The door is not properly closed (the door may sag, the gasket may be dirty or
damaged).
The power supply has been interrupted for a long period of time.
The appliance may have been overloaded with items above room temperature.
There may be inadequate ventilation of the compressor and condenser. (Assure
there is adequate air circulation behind the appliance and wipe the dust from the
condenser.)
Noise
Cooling in refrigeration appliances is enabled by the refrigerating system with a
compressor, which produces noise. How noisy the appliance is depends on where it
is placed, how it is used and how old the appliance is.
During the operation of the compressor, the noise of liquid is heard and when the
compressor is not operating, the refrigerant flow is heard. This is a normal condition
and has no influence whatsoever on the lifetime of the appliance.
After starting the appliance, the operation of the compressor and the refrigerant flow
may be louder. This does not mean that something is wrong. Gradually the noise is
reduced.
Sometimes a louder noise is heard, which is unusual for the appliance. This noise is
often a consequence of improper placement of the unit. (The unit should be placed
and leveled firmly on a solid base and it should not touch the wall or cabinets
standing next to it.)
11
Limited Warranty
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated
and maintained according to instructions attached to or furnished with the product, warrantor will pay for factoryspecified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a
designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing
defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable
standards, and are not covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as
filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by
warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES – LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
WARNING: This product can expose you to chemicals including Nickel
(Metallic) which is known to the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov
Note: Nickel is a component in all stainless steel and some other metallic compositions.
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
Phone: (718) 893-3900
Fax: (844) 478-8799
www.summitappliance.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
12
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
