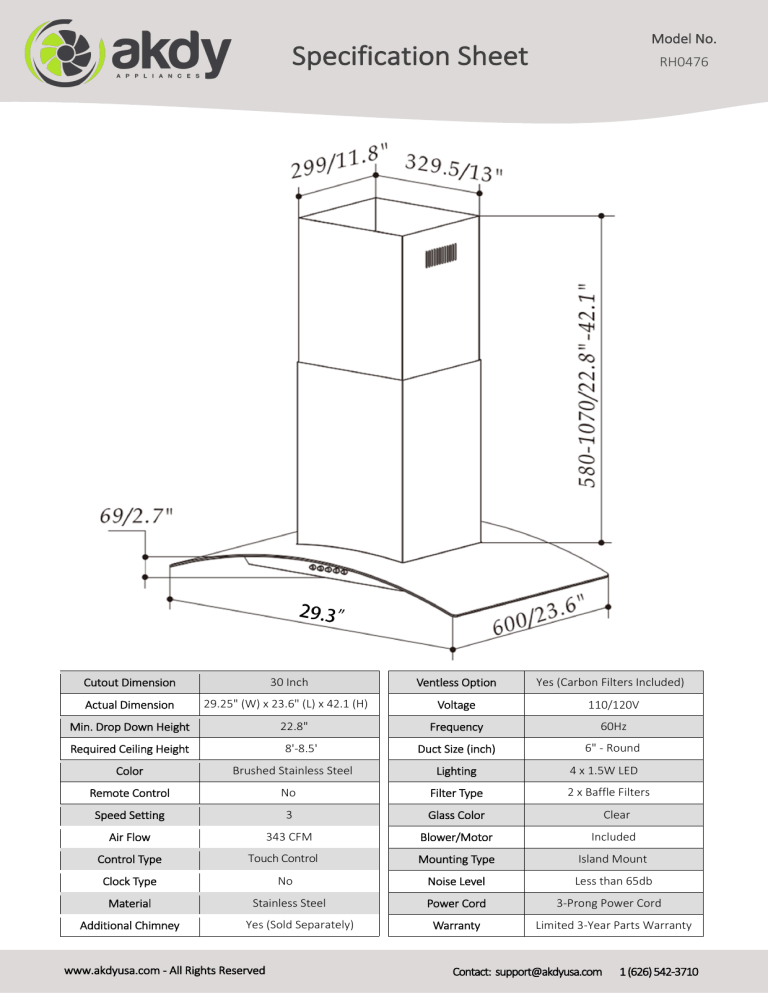

AKDY RH0477, RH0476 Specification

AKDY RH0477, RH0476 Specification
Model No.
Specification Sheet
RH0476
Cutout Dimension
30 Inch
Ventless Option
Yes (Carbon Filters Included)
Actual Dimension
29.25" (W) x 23.6" (L) x 42.1 (H)
Voltage
110/120V
Frequency
60Hz
Duct Size (inch)
6" ‐ Round
22.8"
Min. Drop Down Height
8'-8.5'
Required Ceiling Height
Color
Brushed Stainless Steel
Lighting
4 x 1.5W LED
2 x Baffle Filters
Remote Control
No
Filter Type
Speed Setting
3
Glass Color
Clear
Air Flow
343 CFM
Blower/Motor
Included
Control Type
Touch Control
Mounting Type
Island Mount
Clock Type
No
Noise Level
Less than 65db
Material
Additional Chimney
Stainless Steel
Yes (Sold Separately)
www.akdyusa.com - All Rights Reserved
Power Cord
Warranty
3-Prong Power Cord
Limited 3‐Year Parts Warranty
Contact: [email protected]
1 (626) 542-3710
