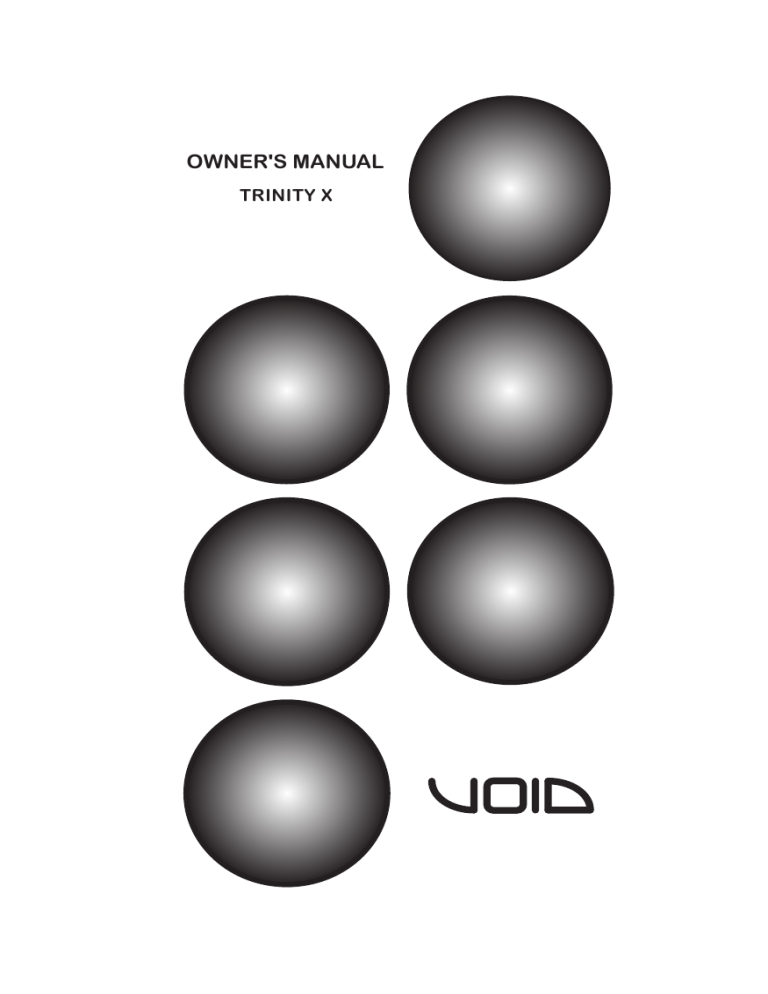

OWNER'S MANUAL
TRINITY X
OWNER'S MANUAL
TRINITY X
Trinity
Trinity
Features
Close tolerance and durable woofer provides increased reliability and greater output.
HTT (heat transference technology) maintains low power compression.
Accurately machined 15 laminate birch plywood cabinets for superior strength.
Four rear wheel mounting points for 100 mm wheels.
Tough kick proof grills with foam filters protect the components from the heaviest of abuse.
Three year warranty and guarantee.
System Connections
Trinity X's speakon connectors are wired in parallel, so either speakon can be used as the input.
The other speakon can be used as a link output.
A positive signal to the + pin gives a forward cone movement on the Trinity X enclosure.
The Trinity X enclosure contains one 8 ohm woofer. The nominal load is 8 ohms.
Precautions
Please consider the following precautions during use :
1. Install the Trinity X enclosure in a dry environment, do not expose the cabinet to rain or moisture.
2. The Trinity X enclosure contains very powerful magnets. Do not locate an enclosure near any
sensitive equipment such as: VDU monitors, TV's or high gain preamplifiers.
Page 3
Reference Manual
Trinity
TECHNICAL SPECIFICATIONS
Trinity X
Frequency Response :
30 Hz - 250 Hz -3dB points
Sensitivity :
Impedance :
LF : 104 dB 1w/1m
8 ohms
Power Handling :
1500 watts Rms
Maximum Output :
135 dB cont
139 dB peak
Dispersion :
Array Dependent
Crossover Point :
Hi Pass : 30 Hz - 24 dB/oct LR
Lo pass : 80 - 138 Hz - 24 or 48 dB/oct LR
Driver Configuration :
1 x 21" - 125 mm voice coil - neo
Protection :
N/A
Rigging, Mounting :
N/A
Construction :
18 mm 15 laminate plywood
Finish :
Textured polyurethane
Grill :
Perforated steel - foam filter
Connectors :
2 x 4 pole speakon TM
Dimensions :
723 (mm) wide 28.4"
680 (mm) high 26.7"
820 (mm) deep 32.3"
Weight :
75 (Kg) net
165 lbs
105 (Kg) shipping 231 lbs
Page 4
Reference Manual
Trinity
Service
This unit has very sophisticated circuitry and should only be serviced by a fully trained
technician.
No user serviceable parts inside
Refer servicing to a qualified technician
Worldwide Service
Service may be obtained from your local authorised service centre. To obtain service,
simply present your sales receipt as proof of purchase along with the defective unit to
an authorised service centre. They will handle the necessary paperwork and repair.
Remember to transport your unit in the original factory packaging.
1. When sending a Trinity Series product to an authorised service centre for service,
please write a detailed description of the fault and list any other equipment used in
conjunction with the faulty product. Send the fault description with the faulty product,
do not send it separately.
2. Ensure safe transportation of your unit to the authorised service centre. Ship it in the
original factory packaging if possible.
3. Do not ship the unit in any kind of rack. Ignoring this warning may result in extensive
damage to the unit and the equipment rack. Accessories are not needed. Do not
send the instruction manual, cables or any other hardware.
4. Before returning your faulty product for repair, please remember to get a return
authorisation number from the dealer whom you purchased your product from.
Failure to do so could delay the repair of your product.
Warranty Registration
Please take time to fill out the warranty registration form at the back of this manual and
return it to Void Acoustics.
Environmental
WEEE Mark
If you want to dispose of this product, do not mix with general
household waste. There are separate collection systems for used
electronic products in accordance with legislation under the WEEE
Directive (Directive 2002/96/EC) and is effective only within the
European Union.
This product is Rohs compliant
Page 5
Pb
Reference Manual
Trinity
LIMITED WARRANTY
THE WARRANTY
For a period of three (3) years from the date of delivery to the original purchaser (as shown
on the original invoice or sales receipt), Void Acoustics (hereinafter "Void") warrants to the
ORIGINAL OWNER of each new Trinity Series product (provided it was purchased at an
Authorised Void Dealer) that it is free of defects in materials and workmanship and that each
product will meet or exceed all factory published specifications for each respective model.
Void agrees to repair or replace (at its discretion) all defective parts at no charge for labour or
materials; subject to following provisions:
WARRANTY VIOLATIONS
Void shall take no responsibility for repair or replacement as specified under this warranty, if
the damaged product has been subject to misuse, accident, neglect or failure to comply with
normal maintenance procedures; or if the serial number has been defaced, altered or
removed. Nor will Void accept responsibility for, or resulting from, improper alterations or
unauthorised parts or repairs. This warranty does not cover any damage to speakers or any
other consequential damage resulting from breach of any written or implied warranty.
VOID WARRANTY PROVISIONS
Void will remedy any defect, regardless of the reason for failure (except as excluded) by
repair, or replacement. Void will remedy the defect and ship the product within a reasonable
time after receipt of the defective product at an Void Authorised Service Centre.
TO OBTAIN WARRANTY SERVICE
In the event that a Void product requires service, the Owner must contact Void or an
Authorised Void Service Centre to receive an R.A.N. (Return Authorisation Number) and
instructions on how to return the product to the Void Authorised Service Centre, or to the
factory. Void (or its Authorised Service Centre) will initiate corrective repairs upon receipt of
the returned product. Please save the original carton and all the packing materials in case
shipping is required. All products being returned to the factory or service centre for repairs
must be shipped prepaid.
If the repairs made by Void or the Void Authorised Service Centre are not satisfactory, the
Owner is instructed to give written notice to Void. If the defect or malfunction remains after a
reasonable amount of attempts by Void to remedy the defect or malfunction, the Owner shall
then have the option to elect either a refund or replacement of said Void product free of
charge. The refund shall be an amount equal to but not greater than the actual purchase
price, not including any taxes, interest, insurance, closing costs and other finance charges
(minus reasonable depreciation on the product). If a refund is necessary, the Owner must
make the defective or malfunctioning product available to Void free and clear of all liens or
other restrictions.
MODIFICATIONS OF EQUIPMENT
Void reserves the right to modify or change equipment (in whole or part) at any time prior to
delivery thereof, in order to include therein electrical or mechanical improvements deemed
appropriate by Void, but without incurring any liability to modify or change any equipment
previously delivered, or to supply new equipment in accordance with any earlier
specifications.
DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES
YOU, THE OWNER, ARE NOT ENTITLED TO RECOVER FROM VOID ANY INCIDENTAL
DAMAGES RESULTING FROM ANY DEFECT IN THE VOID PRODUCT. THIS INCLUDES
ANY DAMAGE TO ANOTHER PRODUCT OR PRODUCTS RESULTING FROM SUCH A
DEFECT.
WARRANTY ALTERATIONS
No person has the authority to enlarge, amend, or modify this Warranty. This Warranty is not
extended by the length of time which the Owner is deprived of the use of product. Repairs
and replacement parts provided pursuant to the Warranty shall carry only the non-expired
portion of the Warranty.
THIS STATEMENT OF WARRANTY SUPERSEDES ALL OTHERS CONTAINED IN THIS
MANUAL
Technical and design specifications are subject to change without notice
Page 6
Reference Manual
Unit 10B, Dawkins Road Ind Est, Poole, Dorset, BH15 4JD
Tel: +44 (0)844 410 1440 Fax: +44 (0)844 410 1439
Void Acoustics
This warranty in no way affects your statutory rights.
Carriage costs to Void Acoustics will be returned to the
customer if warranty work proves necessary. Packing,
insurance and freight on the return journey will be paid by
Void Acoustics or its authorised dealers.
Do not send goods to Void Acoustics without first obtaining
a return authorisation number.
4. That the product has not suffered damage in transit.
3. That the product has not been modified, disassembled
or tampered with by any person other than Void Acoustics
technical staff.
Tel :
Model
Void Acoustics, Unit 10B, Dawkins Road Ind Est, Poole,
Dorset, BH15 4JD, UK.
Return the product (preferably in its original box) to :
Contact the dealer from whom you purchased the product
and get a return authorisation number.
What to do if your Void product needs repair
Post code :
Suppliers name and address
Serial number
1. This warranty is only valid in the country of purchase.
2. That the product has not been abused or operated in
conjunction with unsuitable or faulty apparatus.
Date of purchase
Warranty Copy
Owner's
This Void Acoustics product is guaranteed against defects
due to faulty materials or workmanship for a period of 3
years from the date of original purchase, subject to the
following restrictions.
Warranty
Void Acoustics
Void Acoustics
Unit 10B
Dawkins Road Ind Est
Poole
Dorset
BH15 4JD
UK
Post code :
Post code :
Tel :
Your name and address
Tel :
Suppliers name and address
Serial number
Date of purchase
Model
Thank you for purchasing this Void product. Please
complete this warranty registration card and cut off this
part and send it to the address overleaf.
Warranty Registration
