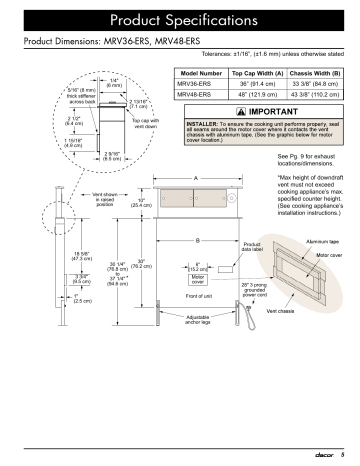

Dacor MRV48ERS Specification

Dacor MRV48ERS Specification
Tolerances: ±1/16”, (±1.6 mm) unless otherwise stated
Model Number
5/16” (8 mm)
thick stiffener
across back
1/4"
(6 mm)
Top Cap Width (A)
Chassis Width (B)
MRV36-ERS
36” (91.4 cm)
33 3/8” (84.8 cm)
MRV48-ERS
48” (121.9 cm)
43 3/8” (110.2 cm)
2 13/16"
(7.1 cm)
2 1/2"
(6.4 cm)
Top cap with
vent down
1 15/16"
(4.9 cm)
2 9/16"
(6.5 cm)
See Pg. 9 for exhaust
locations/dimensions.
*Max height of downdraft
vent must not exceed
cooking appliance’s max.
specified counter height.
(See cooking appliance’s
installation instructions.)
A
Vent shown
in raised
position
10"
(25.4 cm)
B
18 5/8”
(47.3 cm)
3 3/4"
(9.5 cm)
1"
(2.5 cm)
30"
30 1/4" (76.2 cm)
(76.8 cm)
to
37 1/4" *
(94.6 cm)
Product
data label
6"
(15.2 cm)
Motor
cover
Front of unit
28" 3 prong
grounded
power cord
Adjustable
anchor legs
5
