D301015
D301015

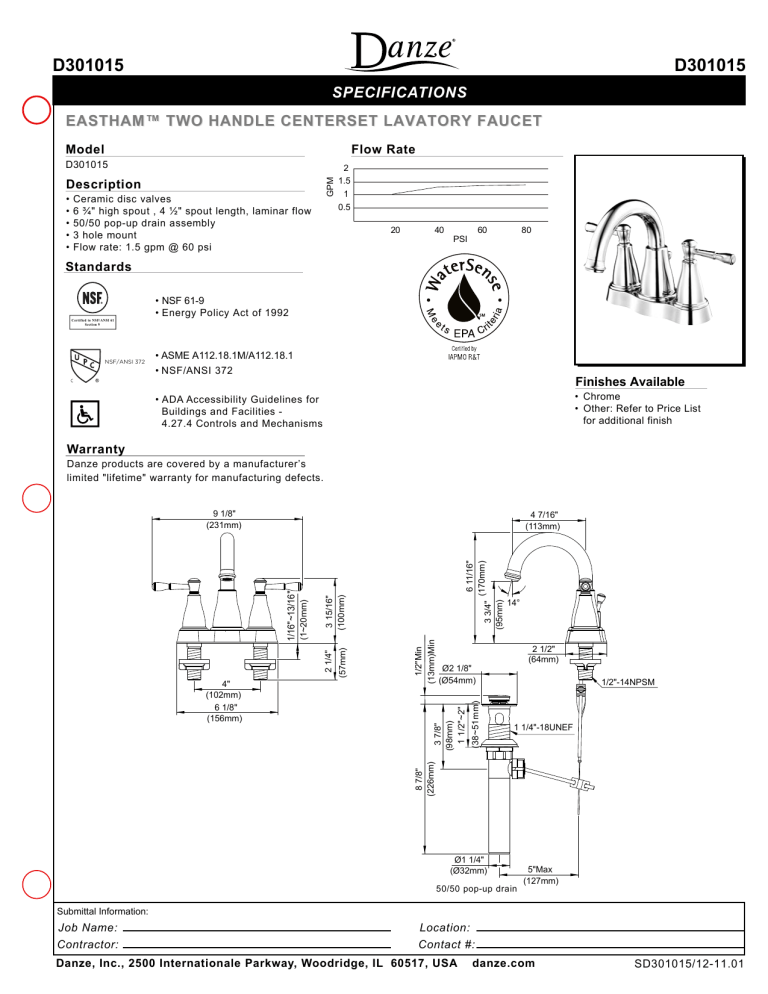

SPECIFICATIONS
EASTHAM™ TWO HANDLE CENTERSET LAVATORY FAUCET
Model
Flow Rate
D301015
•
•
•
•
•
GPM
Description
Ceramic disc valves
6 ¾" high spout , 4 ½" spout length, laminar flow
50/50 pop-up drain assembly
3 hole mount
Flow rate: 1.5 gpm @ 60 psi
2
1.5
1
0.5
20
40
60
PSI
80
Standards
• NSF 61-9
• Energy Policy Act of 1992
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
Finishes Available
• Chrome
• Other: Refer to Price List
for additional finish
• ADA Accessibility Guidelines for
Buildings and Facilities 4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
9 1/8"
(231mm)
6 11/16"
(170mm)
14°
2 1/2"
(64mm)
1/2"-14NPSM
1 1/4"-18UNEF
8 7/8"
(226mm)
(3 8 ~ 5 1 m m )
Ø2 1/8"
(Ø54mm)
3 7/8"
(98mm)
1 1 /2 "~ 2 "
1/2"Min
(13mm)Min
3 3/4"
(95mm)
3 15/16"
(100mm)
2 1/4"
4"
(102mm)
6 1/8"
(156mm)
(57mm)
(1~20mm)
1/16"~13/16"
4 7/16"
(113mm)
Ø1 1/4"
(Ø32mm)
50/50 pop-up drain
5"Max
(127mm)
Submittal Information:
Job Name:
Contractor:
Location:
Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA
danze.com
SD301015/12-11.01
