Samsung NK36N7000US 36 Inch Under Cabinet Smart Range Hood Spec Sheet

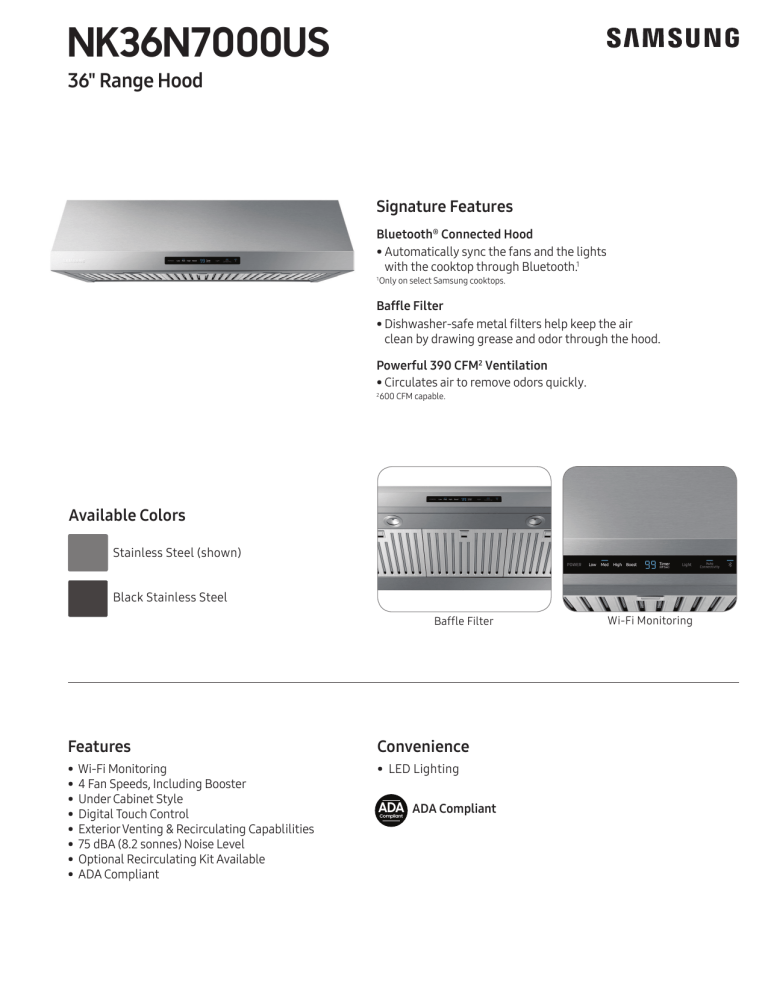

NK36N7000US
36" Range Hood
Signature Features
Bluetooth® Connected Hood
• Automatically sync the fans and the lights
with the cooktop through Bluetooth.1
1
Only on select Samsung cooktops.
Baffle Filter
• Dishwasher-safe metal filters help keep the air
clean by drawing grease and odor through the hood.
Powerful 390 CFM2 Ventilation
• Circulates air to remove odors quickly.
2
600 CFM capable.
Available Colors
Stainless Steel (shown)
Black Stainless Steel
Baffle Filter
Features
Convenience
•
•
•
•
•
•
•
•
• LED Lighting
Wi-Fi Monitoring
4 Fan Speeds, Including Booster
Under Cabinet Style
Digital Touch Control
Exterior Venting & Recirculating Capablilities
75 dBA (8.2 sonnes) Noise Level
Optional Recirculating Kit Available
ADA Compliant
ADA ADA Compliant
Compliant
Wi-Fi Monitoring
NK36N7000US
36" Range Hood
Venting Methods
Total Power
Roof Venting
425W
Wall Venting
A
C
Power Source
120V / 60 Hz / 15A
A
C
B
B
D
D
A. 6" (15.2 cm) round vent
B. 6" (15.2 cm) round transition
C. Roof cap
D. Installation height
A. 6" (15.2 cm) round vent + 90º elbow
B. 31⁄4" x 10" (8.25 x 25.4 cm) rectangular vent
C. Wall cap
D. Installation height
Recirculating through
the cabinet’s top
Recirculating through
the cabinet’s front
Range Hood
• 36" Stainless Steel Under Cabinet Hood
• Vent Fan: 390 CFM (600 CFM Optional)
• Front-Centered, Touch Control
• 4 Fan Speeds: 3 Step, 1 Booster
• 75 dBA (8.2 sonnes) Noise Level
• Hood Connectivity Control
• Bluetooth® On/Off Control
• Mobile Monitoring: Fan Speed,
Lighting On/Off, Power Control
• Removable Baffle Filter
• LED Lighting
Warranty
One (1) Year All Parts and Labor
Product Dimensions & Weight (WxHxD)
Outside (Max) Hood Dimensions:
36" x 9 3/4" x 19 3/4"
A
B
B
Weight: 38.6 lbs
A
Shipping Dimensions & Weight (WxHxD)
Dimensions:
38 13/16" x 13 3/16" x 23 9/16"
Weight: 47.4 lbs
Color
A. Recirculation grid
B. 6" (15.2 cm) round vent
A. Recirculation grid
B. 6" (15.2 cm) round vent + 90º elbow
Recirculation Kit (Optional)
Dimensions and Clearance
12″
2 /16″
3
Model #
NK-AF030FNB
Charcoal Filter
1 3/16″
NK-AR050FNB
7 1/ 4 ″
1 1/16″
9 / 4″
3
5 3/4″
13 13/16″
UPC Code
Stainless Steel
NK36N7000US/AA 887276262789
Black Stainless Steel NK36N7000UG/AA 887276262772
/ 8″
5
1 5/ 8 ″
36″
19 3/4″
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2018 Samsung Electronics America, Inc. 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
