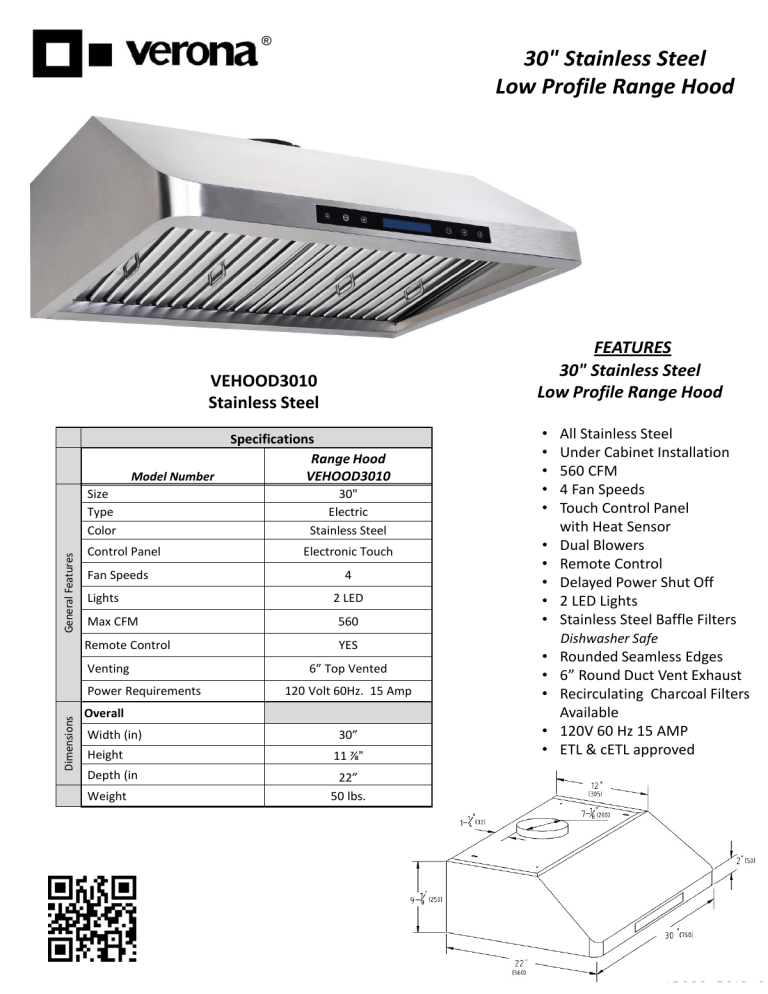

Verona VEHOOD3010 Specification

Verona VEHOOD3010 Specification
®
30" Stainless Steel
Low Profile Range Hood
FEATURES
30" Stainless Steel
Low Profile Range Hood
VEHOOD3010
Stainless Steel
Model Number
General Features
Size
Type
Color
Control Panel
Fan Speeds
Lights
30"
Electric
Stainless Steel
Electronic Touch
4
2 LED
Max CFM
560
Remote Control
YES
Venting
Power Requirements
Dimensions
Specifications
Range Hood
VEHOOD3010
6” Top Vented
120 Volt 60Hz. 15 Amp
Overall
Width (in)
30”
Height
11 ⅞”
Depth (in
22”
50 lbs.
Weight
•
•
•
•
•
•
•
•
•
•
All Stainless Steel
Under Cabinet Installation
560 CFM
4 Fan Speeds
Touch Control Panel
with Heat Sensor
Dual Blowers
Remote Control
Delayed Power Shut Off
2 LED Lights
Stainless Steel Baffle Filters
Dishwasher Safe
• Rounded Seamless Edges
• 6” Round Duct Vent Exhaust
• Recirculating Charcoal Filters
Available
• 120V 60 Hz 15 AMP
• ETL & cETL approved
