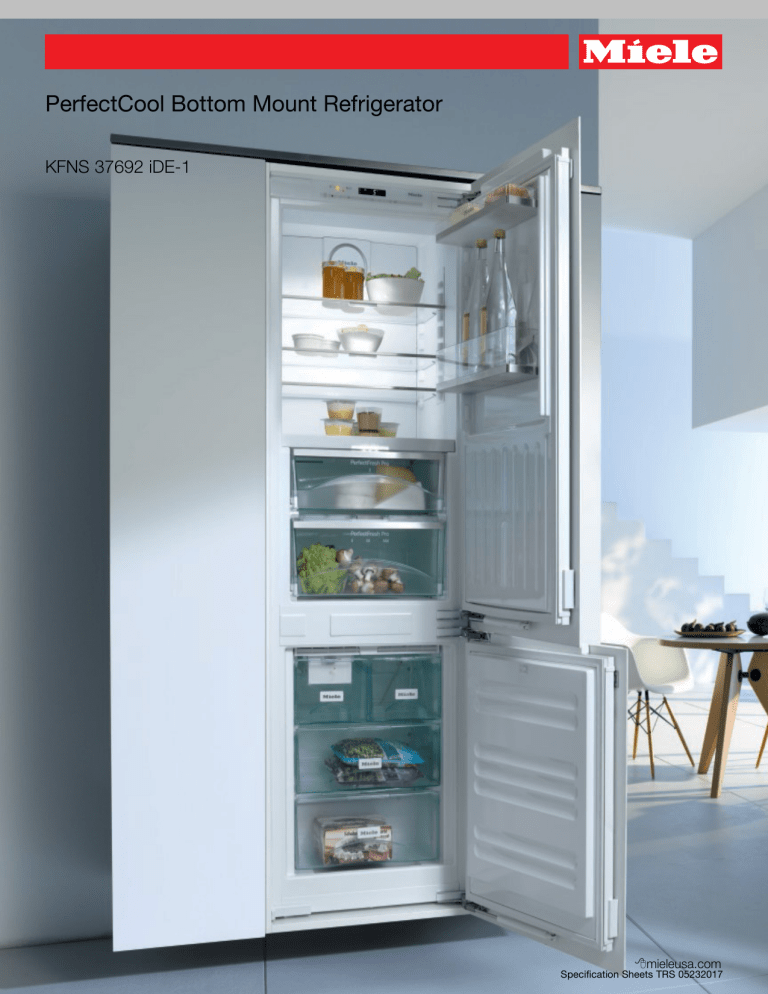

Miele 10595620 Built-In Bottom Freezer Refrigerator Specification Sheet

PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE-1
8mieleusa.com
Specification Sheets TRS 05232017
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE-1
SPECIFICATIONS
KFNS 37692 iDE-1 — Item 38376922USA
- Right Hinged (Convertible)
Overall Unit Width
22” (559 mm)
Overall Unit Height
6911/16” (1770 mm)
Overall Unit Depth
211/2” (545 mm)
Niche
Minimum Cabinet Opening Width
221/16 ” (560 mm)
Minimum Cabinet Opening Height
693/4” (1772 mm)
Minimum Cabinet Opening Depth
215/8” (550 mm)
Interior Volume
Fresh Food Volume
6.3 cu-ft (178 L)
Freezer Volume
2.4 cu-ft (68 L)
Plumbing
KFNS 37692 iDE-1
Features:
Water Supply Requirements
Connect to a cold water supply only. Must
be connected to a shut-off valve. The water
shut-off valve must be accessible after
installation. The water pressure must be
between 22 psi (1.5 bar) and may not exceed
87 psi (6 bar). If the pressure is higher than
87 psi (6 bar), a pressure reducing valve
must be installed.
Water Connection Line
Unit comes with a male 3/4” BPT connection
on back of unit. The connection parts
included with the appliance permit the
connection of various water lines (including
1/4” compression fitting). Water line is not
included.
• NEW: Miele PerfectCool Series
• FlexiLight - Shelf mounted LED
lighting
Electrical
• Right hinged, convertible
Electrical Requirements - Volts/Amps
110V / 120V, 60Hz, 15A (single)
110V / 120V, 60Hz, 20A (2 Individual units
installed side-by-side, using a Duplex outlet)
• Soft Close Door
Power Cord - Plug and length
Yes - NEMA 5-15 plug, 6’ 6” (2 m)
• DynaCool
Custom Panel
Refer to manual for further detail
• Dishwasher Safe door shelves
Maximum Panel Weight
Top Panel - 44 lbs (20 kg)
Bottom Panel - 26 lbs (12 kg)
• Easy Sensor Controls
Maximum Panel Thickness
3
/4” (19 mm)
Minimum Panel Thickness
5
/8” (16 mm)
• Plumbed Ice Maker
Shipping
• PerfectFresh Pro
Shipping Weight
192.7 lbs (87.4 kg)
• Bottle Fins
Shipping Dimensions
241/2” W x 731/2” H x 225/8” D
• Sabbath Mode
• Energy Star
Support
Call Miele
800.843.7231
Miele Website
8www.mieleusa.com
20/20 Link
82020technologies.com
KFNS 37692 iDE-1
Page 2 of 9
Specification Sheets TRS 05232017
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE-1
INSTALLATION DIMENSIONS
For additional information on Plumbing, please refer to the Plumbing section in the Install Manual.
For Side-by-Side installations two niche cutouts are required.
KFNS 37692 iDE-1
Page 3 of 9
Specification Sheets TRS 05232017
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE-1
VENTILATION DIMENSIONS
- Air intake (1) occurs via the plinth at the bottom of
the appliance and the air escapes at the top (2) at the
rear of the housing unit.
- A ventilation gap of at least 1 5/8” (40 mm) depth
must be provided behind the appliance for air to
circulate.
- The ventilation cross-sections in the plinth
housing unit and above the appliance must amount
to at least 78 3/4”2 to ensure that air can circulate
without obstruction.
- Please refer to the manual for further ventilation
details.
KFNS 37692 iDE-1
Page 4 of 9
Specification Sheets TRS 05232017
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE-1
TOP VENTILATION CROSS-SECTION
(1) Directly above the appliance with a ventilation
grill (free airflow of at least 78 3/4”2).
(2) In between the housing unit and ceiling.
(3) Through a suspended ceiling.
- Please refer to manual for further ventilation
details.
KFNS 37692 iDE-1
Page 5 of 9
Specification Sheets TRS 05232017
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE-1
BOTTOM VENTILATION SLITS
DIMENSIONS
If you would like to use the ventilation slits:
- Cut an opening in the plinth (2) as shown in the figure.
- Place the ventilation grille (1) inot the opening.
- Push the snap connector (3) into the ventilation slits
from the rear until the hooks are touching the plinth
- Reinstall the plinth with the ventilation slits
KFNS 37692 iDE-1
Page 6 of 9
Specification Sheets TRS 05232017
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE-1
CUSTOM PANEL
j - Top door panel
k - Bottom door panel
l - Unit's top door
m - Unit’s bottom door
KFNS 37692 iDE-1
Page 7 of 9
Specification Sheets TRS 05232017
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE-1
CUSTOM PANEL CONTINUED
SPECIFICATIONS
Custom Panel
Refer to manual for further detail
Maximum Panel Weight
Top Panel - 44 lbs (20 kg)
Bottom Panel - 26 lbs (12 kg)
Maximum Panel Thickness
3
Minimum Panel Thickness
5
/4” (19 mm)
/8” (16 mm)
Inset Panel
Minimum Vertical Gap - Between Cabinet
1
/8” (3 mm)
and Door Panel
Minimum Horizontal Gap - Between Top Cabinet
Panel and Door, Between 1/8” (3 mm)
Door Panels
Framed Cabinet with Inset Door
Panel Calculation
Panel Width = Niche Opening Width - 1/4” (6 mm)
Panel Height = Niche Opening Height - 1/4” (6 mm)
Frameless Style Cabinet Panel
Calculation
Panel Width = Niche Opening Width + Left Side Panel Thickenss
+ Right Side Panel Thickness
Panel Height = Niche Opening Height + Top Panel Thickness
+ Bottom Panel Thickness
KFNS 37692 iDE-1
Page 8 of 9
Specification Sheets TRS 05232017
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE-1
ADJUSTABLE DOOR HINGE
90o or 120o Opening
The door hinges are factory set so that the door can be
opned wide.
However if the opening angle of the door needs to be
limited for any reason, the hinge can be adjusted to
accommadate this.
Insert the limit pins provided into the hinges from above.
This will limit the opening angle of the applinace door to
90 o.
KFNS 37692 iDE-1
Page 9 of 9
Specification Sheets TRS 05232017
