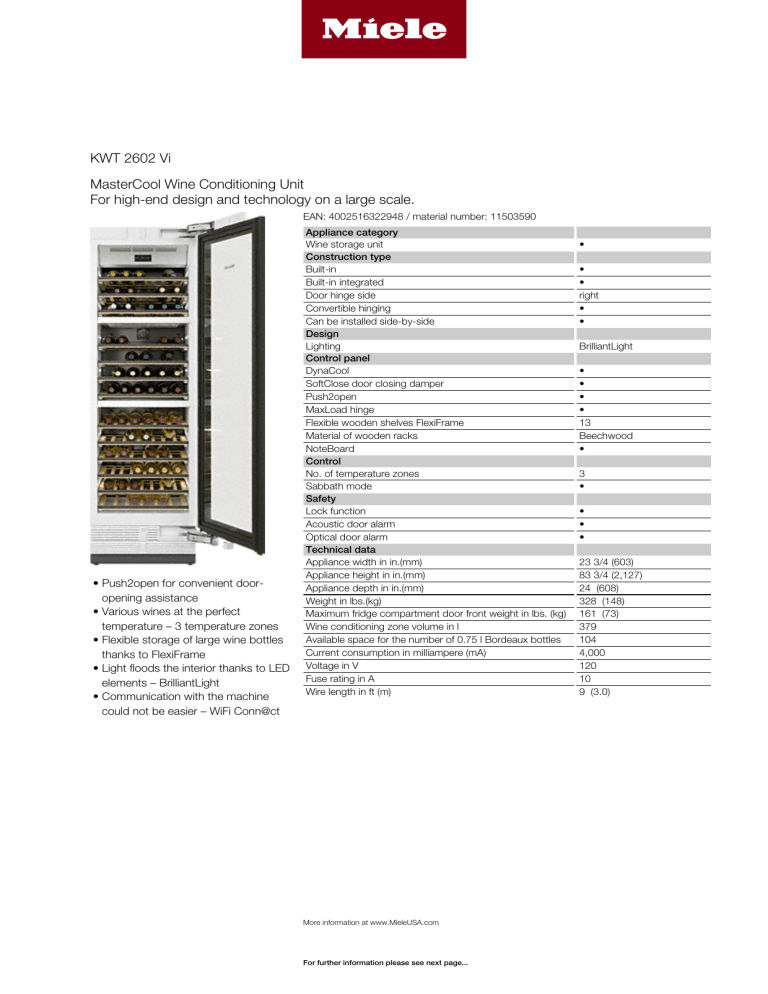

Miele 11503590 Wine Refrigerators and Beverage Center Specification Sheet

KWT 2602 Vi
MasterCool Wine Conditioning Unit
For high-end design and technology on a large scale.
EAN: 4002516322948 / material number: 11503590
• Push2open for convenient dooropening assistance
• Various wines at the perfect
temperature – 3 temperature zones
• Flexible storage of large wine bottles
thanks to FlexiFrame
• Light floods the interior thanks to LED
elements – BrilliantLight
• Communication with the machine
could not be easier – WiFi Conn@ct
Appliance category
Wine storage unit
Construction type
Built-in
Built-in integrated
Door hinge side
Convertible hinging
Can be installed side-by-side
Design
Lighting
Control panel
DynaCool
SoftClose door closing damper
Push2open
MaxLoad hinge
Flexible wooden shelves FlexiFrame
Material of wooden racks
NoteBoard
Control
No. of temperature zones
Sabbath mode
Safety
Lock function
Acoustic door alarm
Optical door alarm
Technical data
Appliance width in in.(mm)
Appliance height in in.(mm)
Appliance depth in in.(mm)
Weight in lbs.(kg)
Maximum fridge compartment door front weight in lbs. (kg)
Wine conditioning zone volume in l
Available space for the number of 0.75 l Bordeaux bottles
Current consumption in milliampere (mA)
Voltage in V
Fuse rating in A
Wire length in ft (m)
More information at www.MieleUSA.com
For further information please see next page...
•
•
•
right
•
•
BrilliantLight
•
•
•
•
13
Beechwood
•
3
•
•
•
•
23 3/4 (603)
83 3/4 (2,127)
24 (608)
328 (148)
161 (73)
379
104
4,000
120
10
9 (3.0)
KWT 2602 Vi
MasterCool Wine Conditioning Unit
For high-end design and technology on a large scale.
Opening angel 90°/115°, right side stop, MasterCool
(Sketch) *footnote
Side-by-side, MasterCool, without partition wall, with
heating mat (Sketch) (with footnote)
A) Appliance door width
F 2461 Vi: 525 mm (20 2/3 inch);
F 2462 Vi: 525 mm (20 2/3 inch);
K 2601 Vi, K 2601 SF, F 2661 Vi, KWT 2601 Vi, KWT 2601
SF, KWT 2661 ViS, KWT 2661 SFS: 677 mm (26 2/3
inch);
K 2602 Vi, K 2602 SF, F 2662 Vi, KWT 2602 Vi, KWT 2602
SF, KWT 2662 ViS, KWT 2662 SFS: 677 mm (26 2/3
inch);
K 2801 Vi, K 2801 SF, F 2801 Vi, KF 2801 Vi, KF 2801 SF:
829 mm (32 2/3 inch);
K 2802 Vi, K 2802 SF, F 2802 Vi, KF 2802 Vi, KF 2802 SF:
829 mm (32 2/3 inch);
K 2901 Vi, K 2901 SF, F 2901 Vi, KF 2901 Vi, KF 2901 SF:
982 mm (38 2/3 inch);
K 2902 Vi, K 2902 SF, F 2902 Vi, KF 2902 Vi, KF 2902 SF:
982 mm (38 2/3 inch);
B) Furniture front (max. 38 mm) (1 1/2 inch)
C) Door handle
D) Distance door to wall (without furniture front and door
handle):
F 2461 Vi: 237 mm (9 1/3 inch);
F 2462 Vi: 237 mm (9 1/3 inch);
K 2601 Vi, K 2601 SF, F 2661 Vi, KWT 2601 Vi, KWT 2601
SF, KWT 2661 ViS, KWT 2661 SFS: 296 mm (11 2/3
inch);
K 2602 Vi, K 2602 SF, F 2662 Vi, KWT 2602 Vi, KWT 2602
SF, KWT 2662 ViS, KWT 2662 SFS: 296 mm (11 2/3
inch);
K 2801 Vi, K 2801 SF, F 2801 Vi, KF 2801 Vi, KF 2801 SF:
363 mm (14 1/3 inch);
K 2802 Vi, K 2802 SF, F 2802 Vi, KF 2802 Vi, KF 2802 SF:
363 mm (14 1/3 inch)
K 2901 Vi, K 2901 SF, F 2901 Vi, KF 2901 Vi, KF 2901 SF:
428 mm (16 7/8 inch)
K 2902 Vi, K 2902 SF, F 2902 Vi, KF 2902 Vi, KF 2902 SF:
428 mm (16 7/8 inch)
E) ONLY valid for SF versions: A + 25 mm (1 inch)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US,
CA, MX, BR)
For further information please see next page...
KWT 2602 Vi
MasterCool Wine Conditioning Unit
For high-end design and technology on a large scale.
KWT2611Vi, KWT2671ViS, KWT2601Vi, KWT2661ViS,
installation, MasterCool, installation drawings
Sideview, MasterCool, Sketch
Side-by-Side, MasterCool, footnote, installation drawings
KFP2455ed/cs, KFP2454ed/cs, front panel, front
dimensions, MasterCool, installation drawings
1. KSK 2001/2002
2. Device A
3. Device B
A = niche device A
B = niche device B
Installation, MasterCool, *footnote, installation drawings
For further information please see next page...
KWT2602Vi/SF, KWT2612Vi/SF, KWT2601Vi/SF,
KWT2611Vi/SF, inner space, MasterCool, installation
KWT 2602 Vi
MasterCool Wine Conditioning Unit
For high-end design and technology on a large scale.
1. View from the front
2. Mains connection cable, L = 3000 mm (118 inch)
3. No water/ELT connections permitted in this area
drawings
