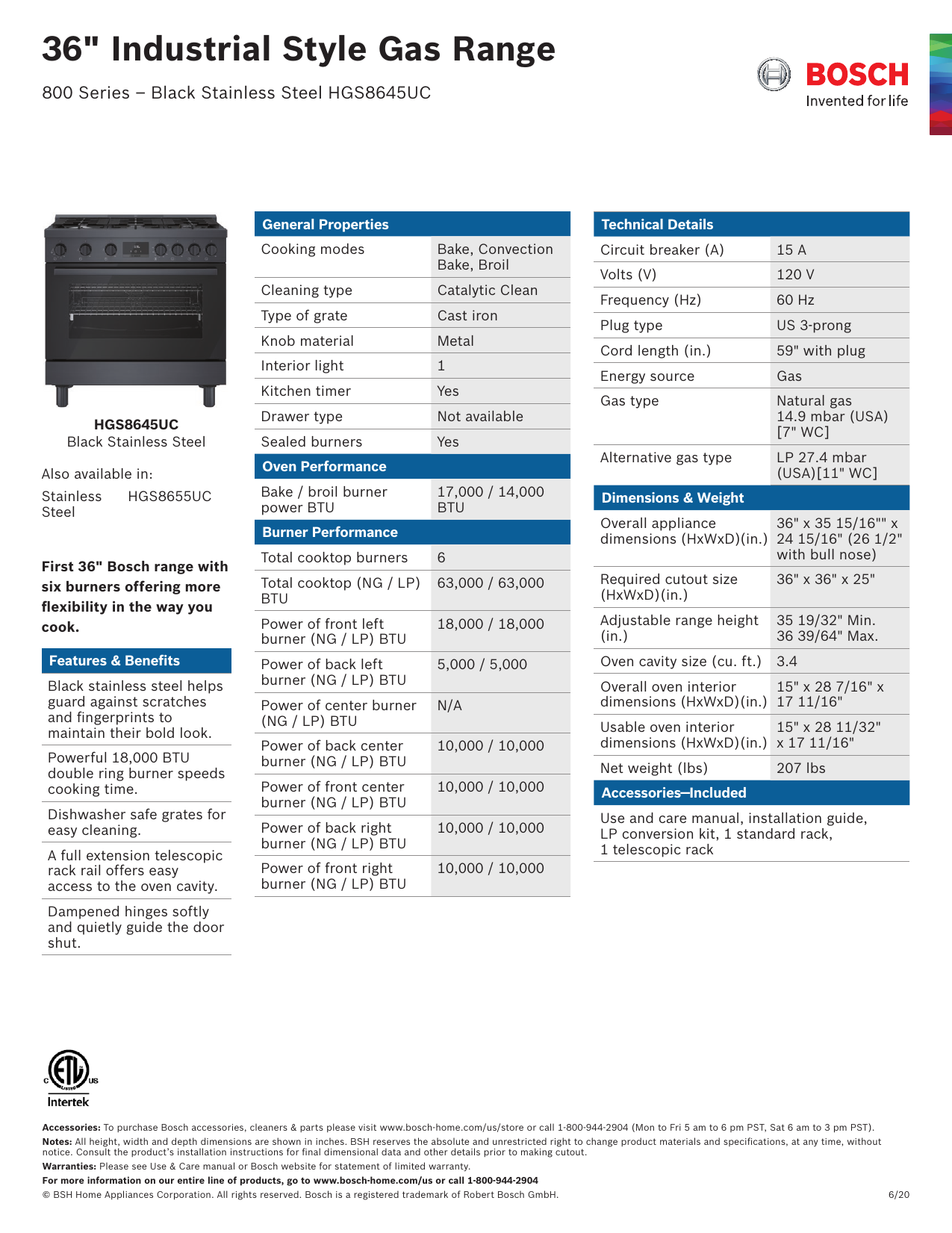

36" Industrial Style Gas Range

800 Series – Black Stainless Steel HGS8645UC

Black Stainless Steel

Also available in:

Stainless

Steel

HGS8645UC

HGS8655UC

First 36" Bosch range with six burners offering more flexibility in the way you cook.

Features & Benefits

Black stainless steel helps guard against scratches and fingerprints to maintain their bold look.

Powerful 18,000 BTU double ring burner speeds cooking time.

Dishwasher safe grates for easy cleaning.

A full extension telescopic rack rail offers easy access to the oven cavity.

Dampened hinges softly and quietly guide the door shut.

General Properties

Cooking modes

Cleaning type

Type of grate

Knob material

Interior light

Kitchen timer

Drawer type

Sealed burners

Oven Performance

Bake / broil burner power BTU

Burner Performance

Total cooktop burners

Total cooktop (NG / LP)

BTU

Power of front left burner (NG / LP) BTU

Power of back left burner (NG / LP) BTU

Power of center burner

(NG / LP) BTU

Power of back center burner (NG / LP) BTU

Power of front center burner (NG / LP) BTU

Power of back right burner (NG / LP) BTU

Power of front right burner (NG / LP) BTU

Bake, Convection

Bake, Broil

Catalytic Clean

Cast iron

Metal

1

Yes

Not available

Yes

17,000 / 14,000

BTU

6

63,000 / 63,000

18,000 / 18,000

5,000 / 5,000

N/A

10,000 / 10,000

10,000 / 10,000

10,000 / 10,000

10,000 / 10,000

Technical Details

Circuit breaker (A)

Volts (V)

Frequency (Hz)

Plug type

15 A

120 V

60 Hz

US 3-prong

Cord length (in.)

Energy source

Gas type

59" with plug

Gas

Natural gas

14.9 mbar (USA)

[7" WC]

Alternative gas type LP 27.4 mbar

(USA)[11" WC]

Dimensions & Weight

Overall appliance dimensions (HxWxD)(in.)

Required cutout size

(HxWxD)(in.)

36" x 35 15/16"" x

24 15/16" (26 1/2" with bull nose)

36" x 36" x 25"

Adjustable range height

(in.)

35 19/32" Min.

36 39/64" Max.

Oven cavity size (cu. ft.) 3.4

Overall oven interior dimensions (HxWxD)(in.)

15" x 28 7/16" x

17 11/16"

Usable oven interior dimensions (HxWxD)(in.)

15" x 28 11/32" x 17 11/16"

Net weight (lbs)

Accessories—Included

207 lbs

Use and care manual, installation guide,

LP conversion kit, 1 standard rack,

1 telescopic rack

Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).

Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.

Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.

For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904

© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.

6/20

36" Industrial Style Gas Range

800 Series – Black Stainless Steel HGS8645UC

Installation Details

1 9 /

16

(40)

"

35 15 /

16

(912)

"

1 7 /

16

"

(36)

28 3 /

4

(729)

"

26 1 /

2

"

(673)*

35 19 /

32

"

– 36 39 /

64

"

(903–929)

24 15 /

16

"

(633)

42 7 /

8

"

(1089)

5 9 /

32

"

–6 19 /

64

(134-160)

* Front of Bull Nose to Back Wall Spacer measurements in inches (mm)

B C

D

H

*

G

J

I x

K y

L

F

E

*

X =

Y =

Grounded Outlet

Gas Supply Line

B

C

J

K

I

H

L

D

E

F

G minimum 18" (457 mm) minimum 30" (762 mm) clearance between the top of the cooking surface and the bottom of the unprotected wood or metal cabinet

30": minimum 30" (762 mm)

36": minimum 36" (914 mm) minimum 25" (635 mm) maximum 13" (330 mm)

30": minimum 30" (762 mm)

36": minimum 36" (914 mm)

Zero clearance between adjacent combustible construction below the countertop surface and sides of the appliance.

35"6/16 - 36"10/16 (898 - 930 mm)

11" (279 mm)

7" (178 mm)

6" (150 mm)

11" (279 mm)

Minimum clearance of >= 12" (305 mm) on one and >= 28" (711 mm) on the other side from cutout to side walls.

Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).

Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.

Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.

For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904

© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.

6/20
