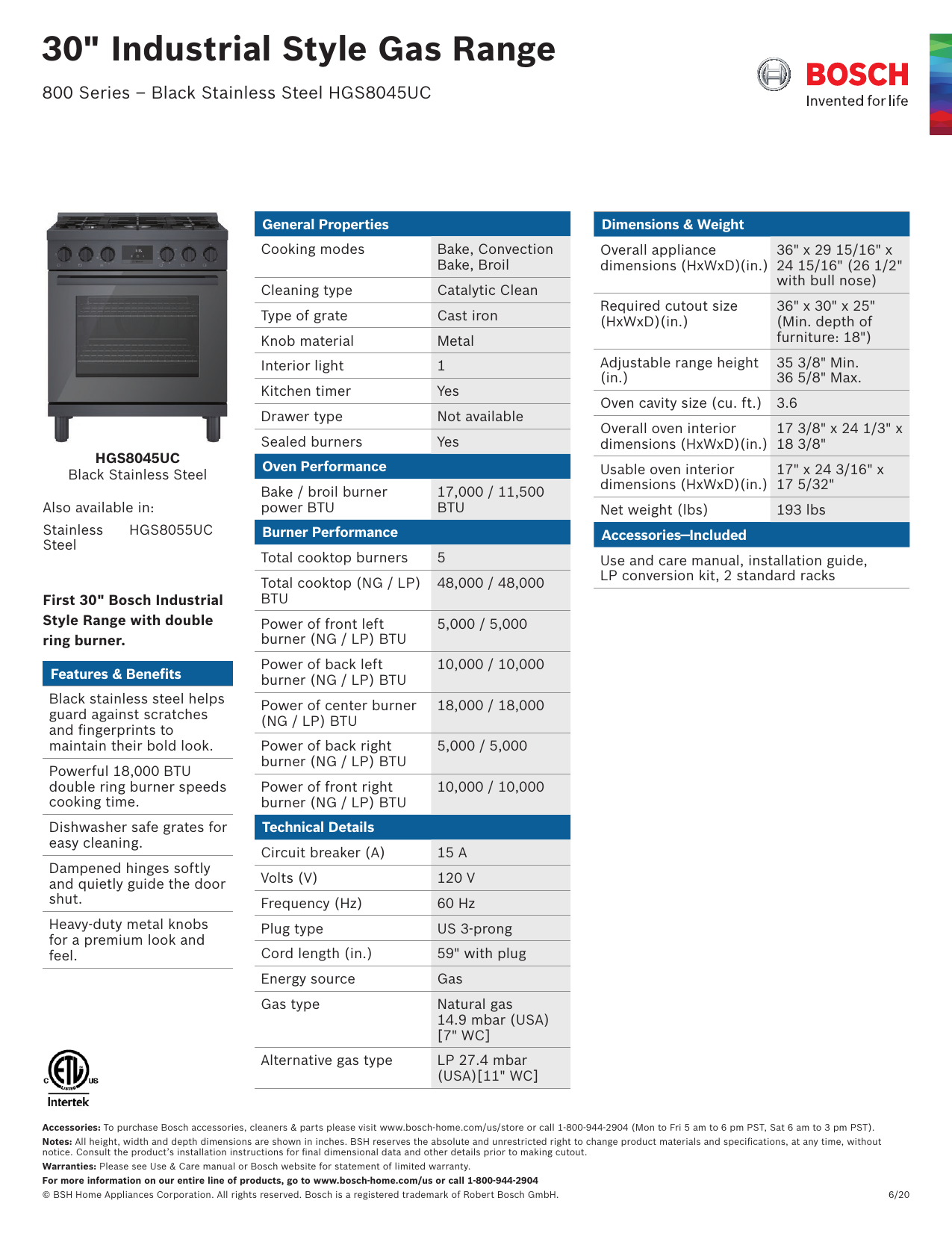

Bosch HGS8045UC Gas Range Specification Sheet

30" Industrial Style Gas Range
800 Series – Black Stainless Steel HGS8045UC
General Properties
HGS8045UC
Black Stainless Steel
Also available in:
Stainless
Steel
HGS8055UC
First 30" Bosch Industrial
Style Range with double
ring burner.
Features & Benefits
Black stainless steel helps
guard against scratches
and fingerprints to
maintain their bold look.
Powerful 18,000 BTU
double ring burner speeds
cooking time.
Dishwasher safe grates for
easy cleaning.
Dampened hinges softly
and quietly guide the door
shut.
Heavy-duty metal knobs
for a premium look and
feel.
Dimensions & Weight
Cooking modes
Bake, Convection
Bake, Broil
Cleaning type
Catalytic Clean
Type of grate
Cast iron
Knob material
Metal
Interior light
1
Kitchen timer
Yes
Drawer type
Not available
Sealed burners
Yes
Oven Performance
Bake / broil burner
power BTU
17,000 / 11,500
BTU
Burner Performance
Overall appliance
36" x 29 15/16" x
dimensions (HxWxD)(in.) 24 15/16" (26 1/2"
with bull nose)
Required cutout size
(HxWxD)(in.)
36" x 30" x 25"
(Min. depth of
furniture: 18")
Adjustable range height
(in.)
35 3/8" Min.
36 5/8" Max.
Oven cavity size (cu. ft.)
3.6
Overall oven interior
17 3/8" x 24 1/3" x
dimensions (HxWxD)(in.) 18 3/8"
Usable oven interior
17" x 24 3/16" x
dimensions (HxWxD)(in.) 17 5/32"
Net weight (lbs)
193 lbs
Accessories—Included
Total cooktop burners
5
Total cooktop (NG / LP)
BTU
48,000 / 48,000
Power of front left
burner (NG / LP) BTU
5,000 / 5,000
Power of back left
burner (NG / LP) BTU
10,000 / 10,000
Power of center burner
(NG / LP) BTU
18,000 / 18,000
Power of back right
burner (NG / LP) BTU
5,000 / 5,000
Power of front right
burner (NG / LP) BTU
10,000 / 10,000
Use and care manual, installation guide,
LP conversion kit, 2 standard racks
Technical Details
Circuit breaker (A)
15 A
Volts (V)
120 V
Frequency (Hz)
60 Hz
Plug type
US 3-prong
Cord length (in.)
59" with plug
Energy source
Gas
Gas type
Natural gas
14.9 mbar (USA)
[7" WC]
Alternative gas type
LP 27.4 mbar
(USA)[11" WC]
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
6/20
30" Industrial Style Gas Range
800 Series – Black Stainless Steel HGS8045UC
Installation Details
measurements in inches (mm)
1 9/16"
(40)
29 15/16"
(760)
1 7/16"
(36)
B
28 3/8"
(720)
C
F
35 3/8"
– 36 5/8"
26 1/2"
(673)* (898– 930)
*
G
24 15/16"
(633)
45 5/8"
( 115 9)
H
J
x
y
I
5 7/16"
–6 11/16
(138–170)
* Front of Bull Nose to Back Wall Spacer
D
L
E
K
X = Grounded Outlet
Y = Gas Supply Line
B
C
minimum 18" (457 mm)
minimum 30" (762 mm) clearance
between the top of the cooking surface
and the bottom of the unprotected wood
or metal cabinet
D 30": minimum 30" (762 mm)
36": minimum 36" (914 mm)
E minimum 25" (635 mm)
F maximum 13" (330 mm)
G 30": minimum 30" (762 mm)
36": minimum 36" (914 mm)
Zero clearance between adjacent
combustible construction below the
countertop surface and sides of the
appliance.
H 35"6/16 - 36"10/16 (898 - 930 mm)
I 11" (279 mm)
J 7" (178 mm)
K 6" (150 mm)
L 11" (279 mm)
*
Minimum clearance of >= 12" (305 mm)
on one and >= 28" (711 mm) on the other
side from cutout to side walls.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
