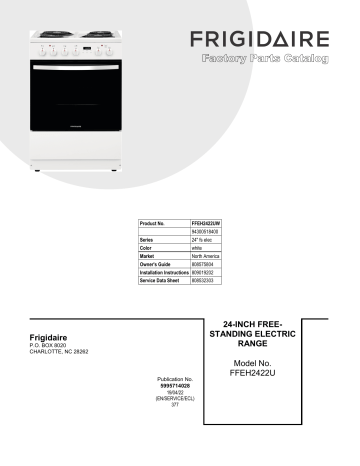

Product No.
FFEH2422UW
94300518400
Series
24" fs elec
Color
white
Market
North America
Owner's Guide
808575804
Installation Instructions 809019202
Service Data Sheet
808532303
24-INCH FREEELECTRIC
RANGE
FFEH2422UW.jpeg CFFEH2422US.wmf VFFEH2422US.wmf TFFEH2422US.wmf
STANDING
DFFEH2422US.wmf
A02037601.wmf A11495201.wmf
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
Publication No.
5995714028
19/04/22
(EN/SERVICE/ECL)
377
Model No.
FFEH2422U
Publication No: 5995714028
FFEH2422UW
BACKGUARD
04/19
2
FFEH2422UW
Publication No: 5995714028
BACKGUARD
POS. NO
200
200F
200T
210
212
220#
222S
226#
228
230#
242#
243
262#
# Functional Parts
* Non-Illustrated Parts
PART NO.
A14169201
A14168601
A14171901
342840441
342610701
A02169805
A02196201
357043902
342557313
389077706
318369501
318044511
A03134601
DESCRIPTION
Knob, surface switch, white
Knob, selector, white, oven
Knob, oven, white, temperature
Panel, control, white
Support, control panel
PC Board, assembly, user interface
Switch, surface unit
Switch, oven selector
Knob, user interface, white
Thermostat, oven
Lamp, indicator
Lens, indicator light
Switch, oven lamp, white
3
04/19
Publication No: 5995714028
FFEH2422UW
BODY
04/19
4
FFEH2422UW
Publication No: 5995714028
BODY
POS. NO
109
109A
111
113
115
131F
131R
407
408
408A
412
414
416
430
430A
453
500L
500U
502#
504U
506U
510V
518V
530#
*
# Functional Parts
* Non-Illustrated Parts
PART NO.
A14224103
A14224001
A02114902
A05102101
A02244101
A02827002
A02827004
354305101
353195608
353223903
342182502
342397603
357732201
354659502
A15915601
5029303600
A04163901
A04164101
808769006
808564103
808769001
808962602
330208111
405538919
342930902
DESCRIPTION
Panel, oven back
Cover, back panel
Panel, side, white
Receptacle, hinge, door
Foot, cabinet, adjustable
Toe Plate, front, white
Panel, filler, lower rear
Clip, bulb, oven thermostat
Air Channel, lower
Cover, air channel
Cover, lower element
Frame, oven front
Seal, oven door
Rack, oven, 422.8x347mm
Rack, oven, 423x348.8mm
Kit, bushing, (4 pcs), w/screws
Element, heating, lower
Element, heating, upper, COMBI
Lamp Assembly, oven, G9 bulb, 25W, 120V, w/receptacle
BULB, oven lamp, G9, 25W, 120V
Cover, lamp, glass, top
Blower Assembly, cooling, 13W, 240V
Thermostat, protection, overheating
Kit, terminal block
Weight, counter
5
04/19
Publication No: 5995714028
FFEH2422UW
TOP/DRAWER
04/19
6
FFEH2422UW
Publication No: 5995714028
TOP/DRAWER
POS. NO
001
001*
020#
021#
022
023
118
118*
118*
118*
120
124L
124R
127L
127R
PART NO.
A02480703
356520607
A13197402
A13197401
318067075
318067076
342175101
342553001
342553101
342557201
342174603
342817707
342817708
A14042601
A14042602
DESCRIPTION
Cook Top, white
Seal, cooktop
Element, surface heat, 150mm
Element, surface heat, 190mm
Pan-surface element, large, black, (2)
Pan-surface element, small, black, (2)
Drawer, tray
Wheel, drawer, back
Wheel, drawer, front
Axle, drawer
Panel, drawer front, white
Glide, drawer, LH
Glide, drawer, RH
Support, drawer, LH
Support, drawer, RH
*
*
*
A15216401
342485201
342583401
Plug, button, drawer
Bolt, burner support, M4x9 PH
Holder, HOB
# Functional Parts
* Non-Illustrated Parts
7
04/19
Publication No: 5995714028
FFEH2422UW
DOOR
04/19
8
FFEH2422UW
Publication No: 5995714028
DOOR
POS. NO
300
302L
302R
310
310C
330
330*
350
# Functional Parts
* Non-Illustrated Parts
PART NO.
342841147
A03195502
A03195501
356150302
342934103
A00206002
807031902
A12611601
DESCRIPTION
Glass, door front, black
Bracket, glass holder, LH
Bracket, glass holder, RH
Glass, door, 474x383mm, inner
Glass, door, 490x401.5mm, inner
Handle, door, white
Bolt, handle, 4x16 T20
Hinge, oven door
9
04/19
Publication No: 5995714028
FFEH2422UW
WIRING DIAGRAM
04/19
10
FFEH2422UW
Publication No: 5995714028
WIRING DIAGRAM
# Functional Parts
* Non-Illustrated Parts
11
04/19
